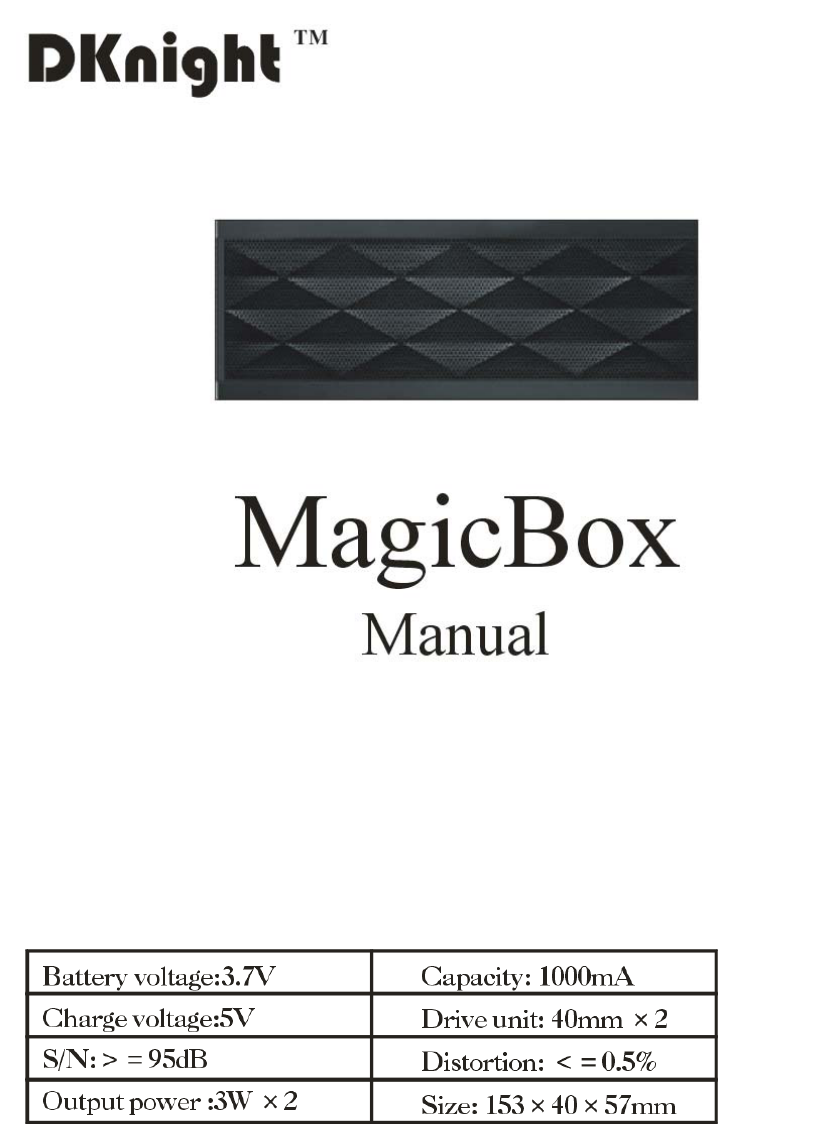

DKnight DK-MBOX-030 DKnight Magicbox Wireless Speaker User Manual
DKnight Inc DKnight Magicbox Wireless Speaker
DKnight >
Manual
1. Accessories
* Bluetooth speaker×1
* Battery ×1
* 3.5mm Audio Jack ×1
* USB Charging Cable x 1
2. Features
3. Use It The First Time
(1) With your thumbs, open the battery cover out to remove it, into the battery rightly, and then
close the battery cover.
(2) Switch dial to “ON” position, when red LED light display, you can use it now.
4. Function
Bluetooth compatibility
Support most of smart devices, such as IPhone, IPad, Samsung Galaxy, and HTC One, etc.
Hand Free Speaker
Built-in microphone for hand free phone calling.
AUX input
3.5mm audio jack included in case your device does not support Bluetooth.
TF mode
Built in TF smart decoder, automatically play the music with Micro SD card.
5. Function Keys
6. How to use the keys
In TF/Bluetooth mode, press the button for previous song, hold the
button for volume down. Does not work in AUX mode.
In TF/Bluetooth mode, press the button for play/pause, hold the button
for 3 seconds to switch modes.
In TF/Bluetooth mode, press the button for next song, hold the button
for volume up. Does not work in AUX mode.
Hand-free, press to answer incoming calls. Hold this button, will call
the last dialed number.
7. Bluetooth paring
In order to enable the Bluetooth function, please make sure the TF card and audio cable are
plugged out.
Then follow the steps in below:
1.Turn on the Magicbox and you can hear a "beep".
2.Turn on the Bluetooth function of your smart-device/PC.
3. Search available Bluetooth devices on your smart-devices/PC, select the one called "BIGBOX".
4. After the speaker being paired successfully, you will hear a "beep" again.
8. Notice
Do not give children to play
Do not hit or beat the product
Do not use in very humid and high temperature environments, product performance will
degrade when it is used in extreme environment.
Do not throw the product into fire.
Please contact us when the product is broken, do not disassemble by yourself.
It's not covered under warranty when the product has metal of rust, surface spoiling
and other natural oxidation, or man-made damage.
9. Common problems
1.What devices can connect with the Magicbox?
Answer: Any mobile devices or PC with Bluetooth function. For IMAC or other Apple computer,
please upgrade to OS X Mavericks.
2.Sometimes the sound will be interrupted, what is the reason?
Answer: Ideally, the Bluetooth connection range is 10 meters in straight line. Any high power
wireless devices close to the speaker or the smart phones will highly degrade the performance.
The battery should be fully charged. If it is connected with iPad/Iphone, the remaining power
could be monitored with the icon on the top right side of the screen.
3.Why do some songs not sound very well?
Please cancel the pairing first, check the original sound quality.
10. Warranty (One year limited warranty)
When purchasing this product, please fill in this card and be properly preserved.
Product Name:
Customer Name:
Customer TEL:
Customer ADD:
Purchase Date:
Distribution:
Distribution TEL:
Distribution ADD:
Signature:
11. Contact Information
Phone: 307-200-7006 E-mail: customerservice@dknightllc.com
12. FCC Compliance statement
1. FCC ID: 2ABPGDK-MBOX-030. The information about the Bluetooth speaker is on file with
the FCC and can be found under the display grant section of http://www.fcc.gov/oet/ea/fccid after
searching on FCC ID: 2ABPGDK-MBOX-030
2. This device complies with Part 15 of the FCC Rules. Operation is subject ot the following two
condition:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause
undesired operation.
3. Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Caution:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
