DONG HAI CHUANG Technology OBDELEVEN Car Diagnostic Scanner User Manual
Shenzhen DONG HAI CHUANG Technology Co., Ltd Car Diagnostic Scanner
user manual
EN
Quick start guide
OBDeleven Bluetooth Scan Tool for Android
This is a unique Bluetooth device which allows you to run full system diagnostics，
programming and monitoring on your vehicle. It connects to the vehicle using the OBD-II diagnostic
socket found underneath the steering wheel. The app that accompanies this scan tool is available on the
Google Play Store and supports devices running Android 4.1 or later and an active internet connection is
required.
Voltage: 9 - 16 V
Current: 45mA
Connection: Bluetooth (up to 10 meters)

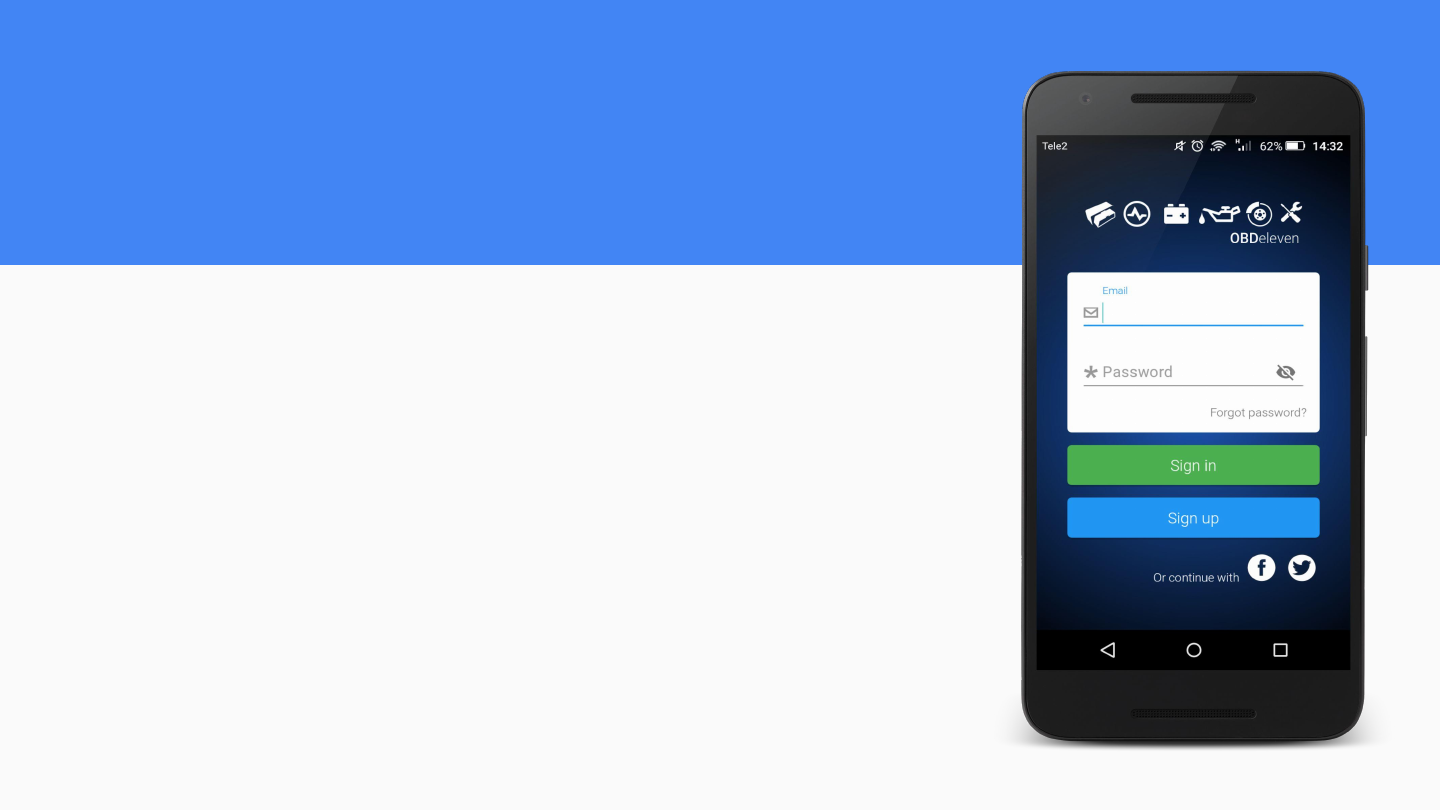

Create account
Connect with Facebook, Twitter or sign up with email by
pressing on icons in top of the screen.

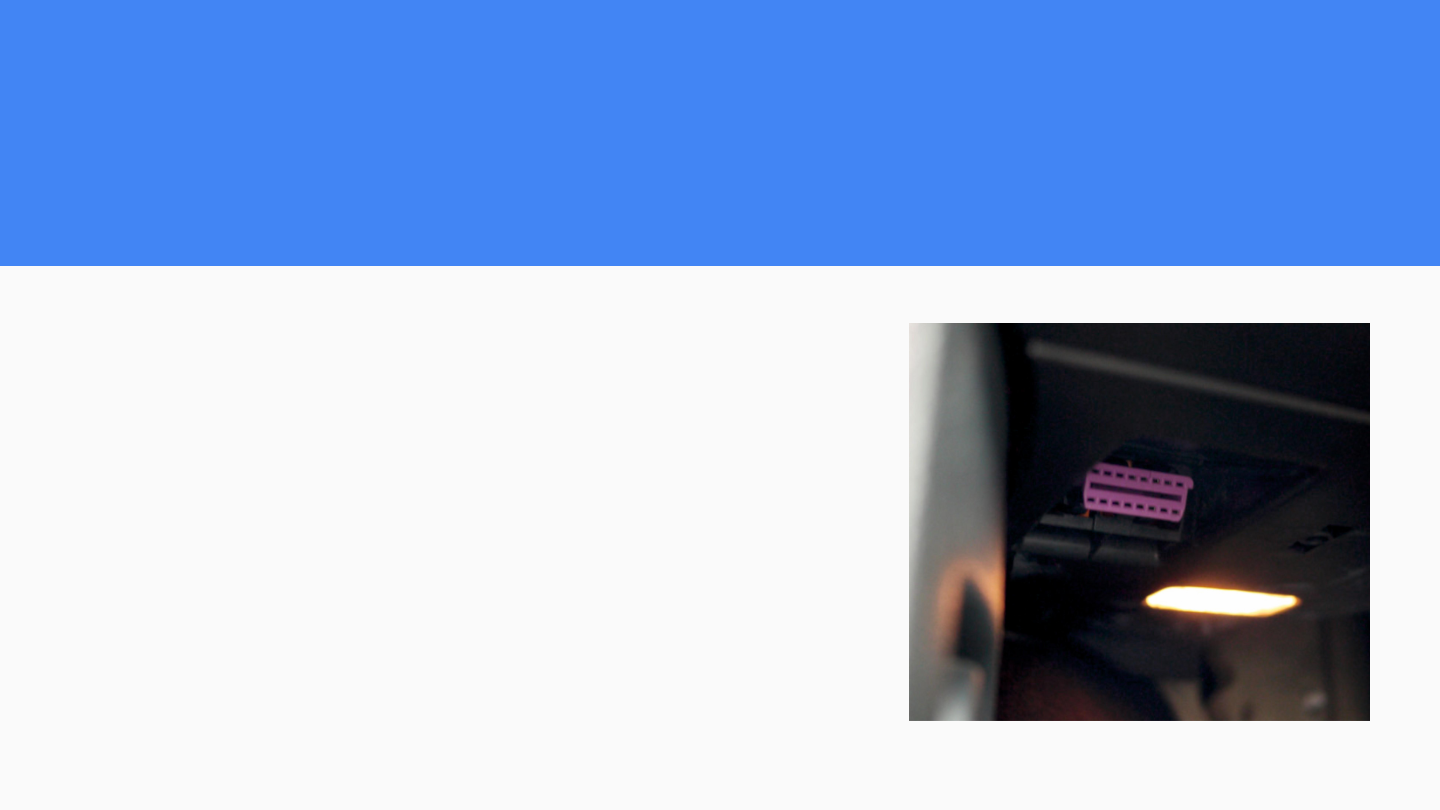

OBD2 connector is usually found on the driver’s side,
under the steering wheel.
Plug device into car OBD2 connector

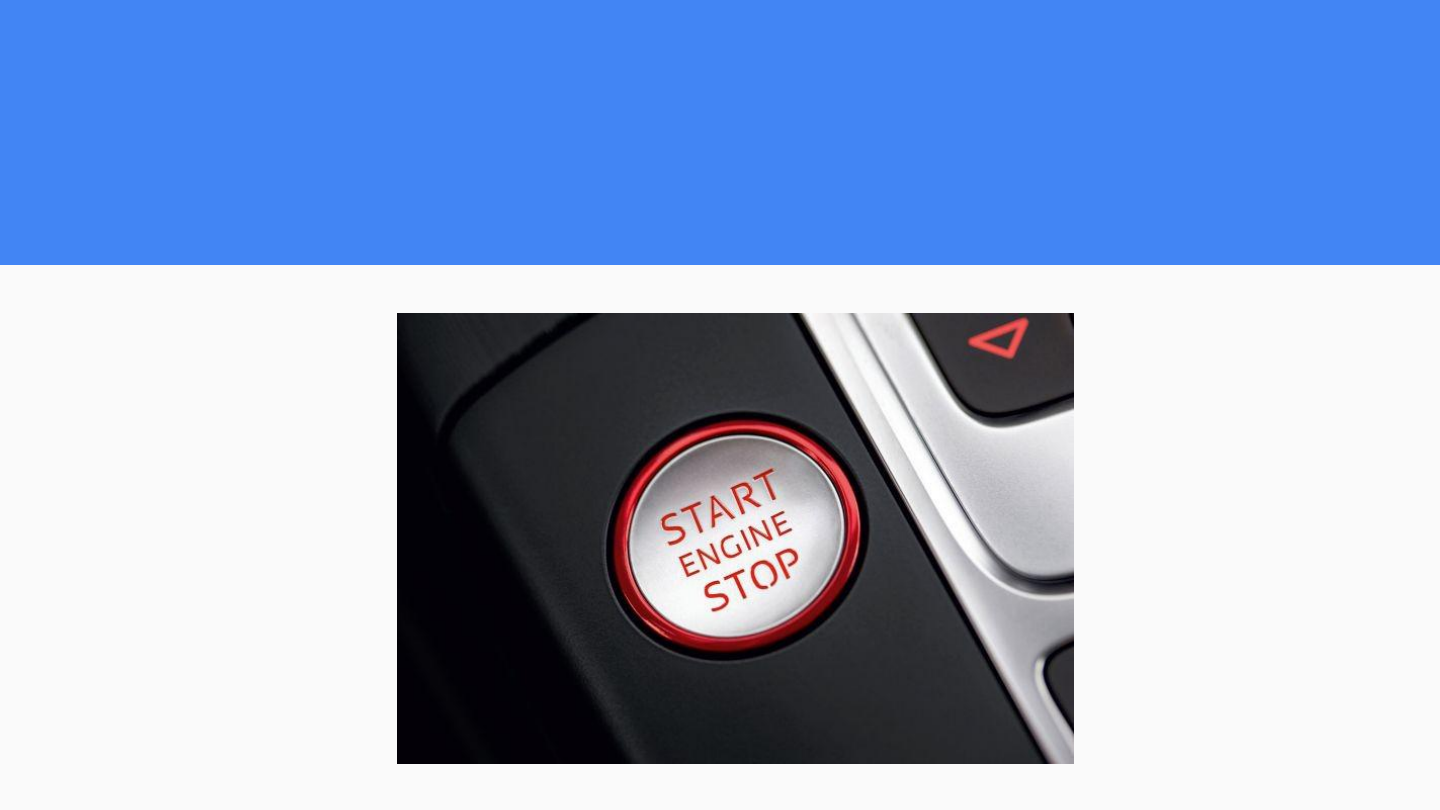

Turn ignition on or start engine

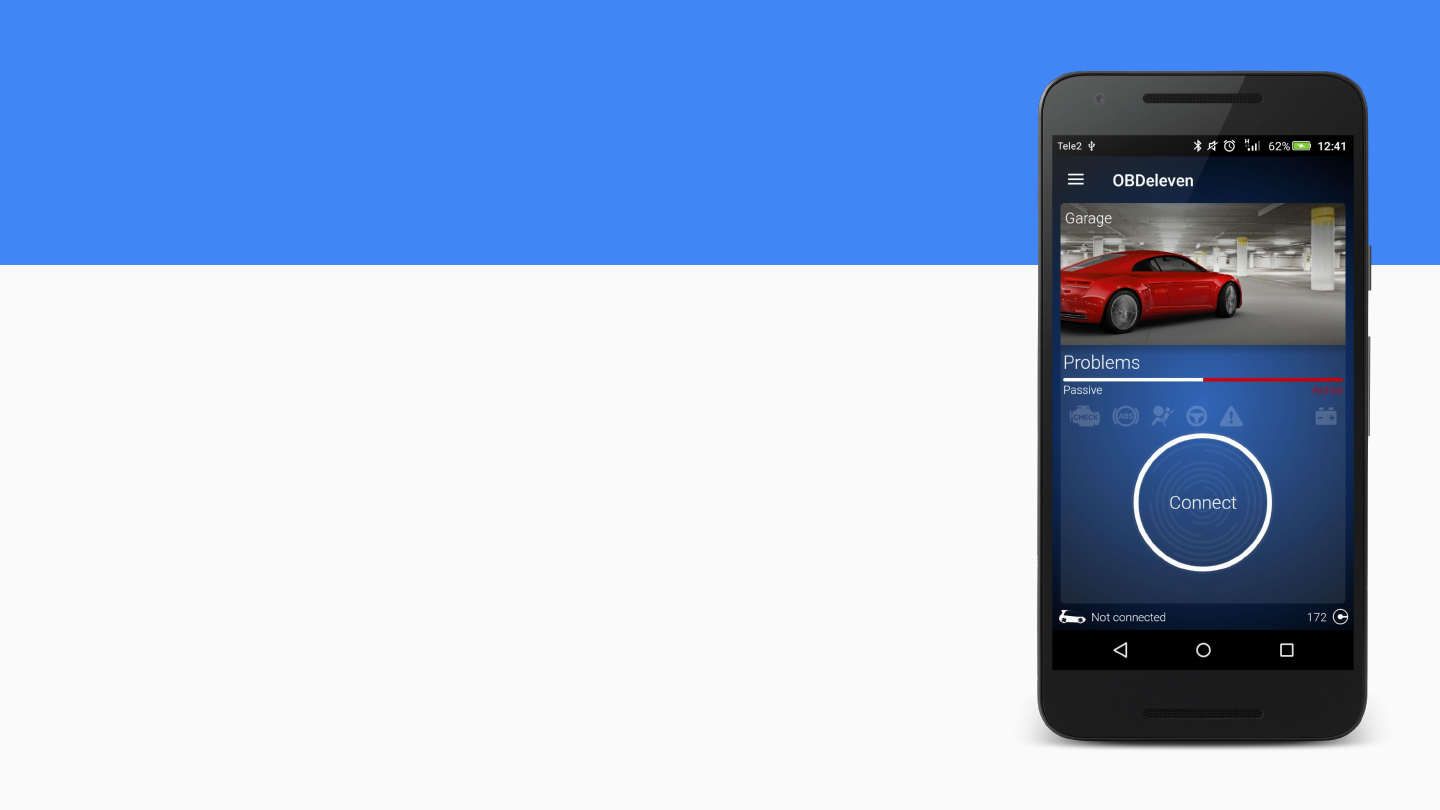

Tap connect
For faster connection pair device via Bluetooth settings.
Pairing code: 1234

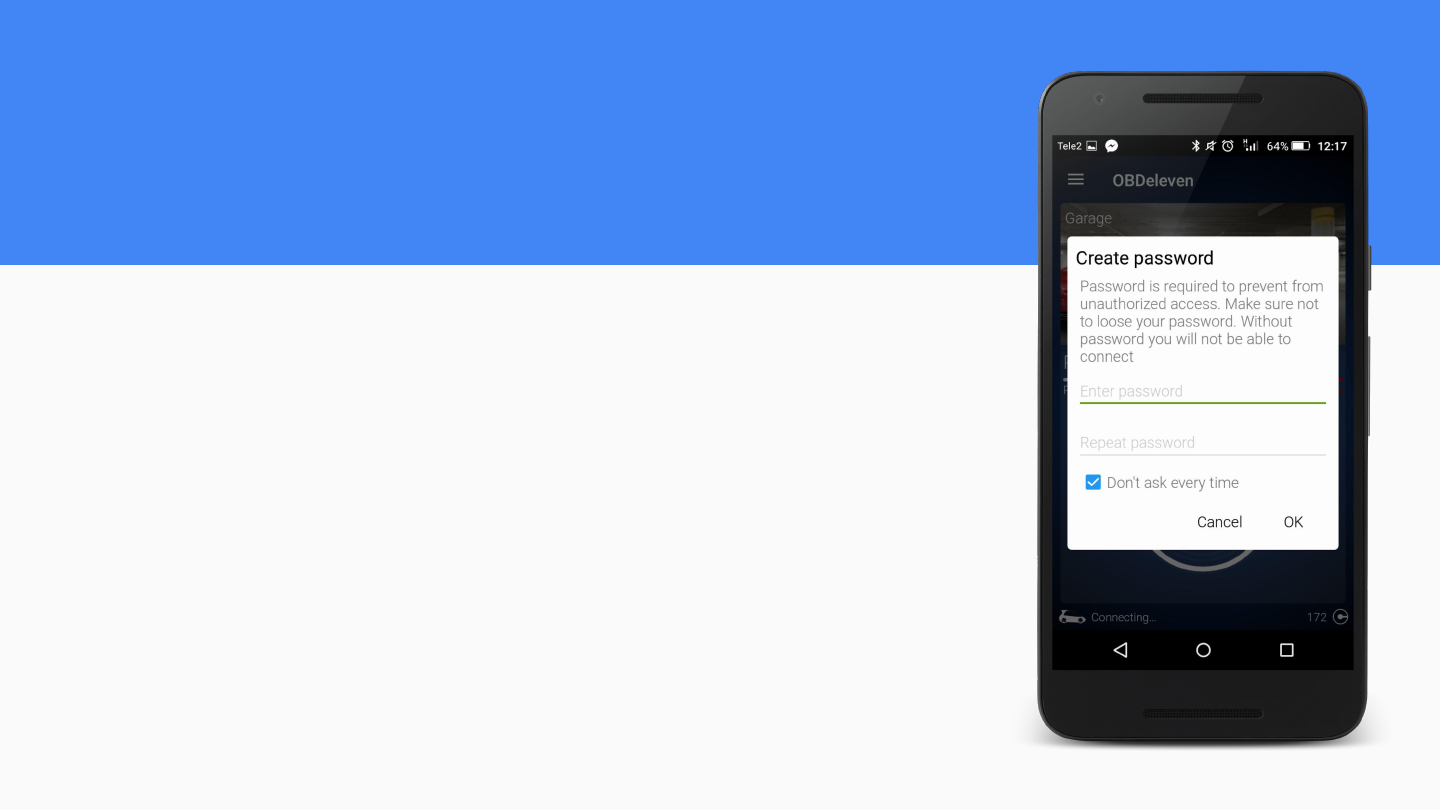

Create device password
Secure your car from unauthorized access by creating
device password.

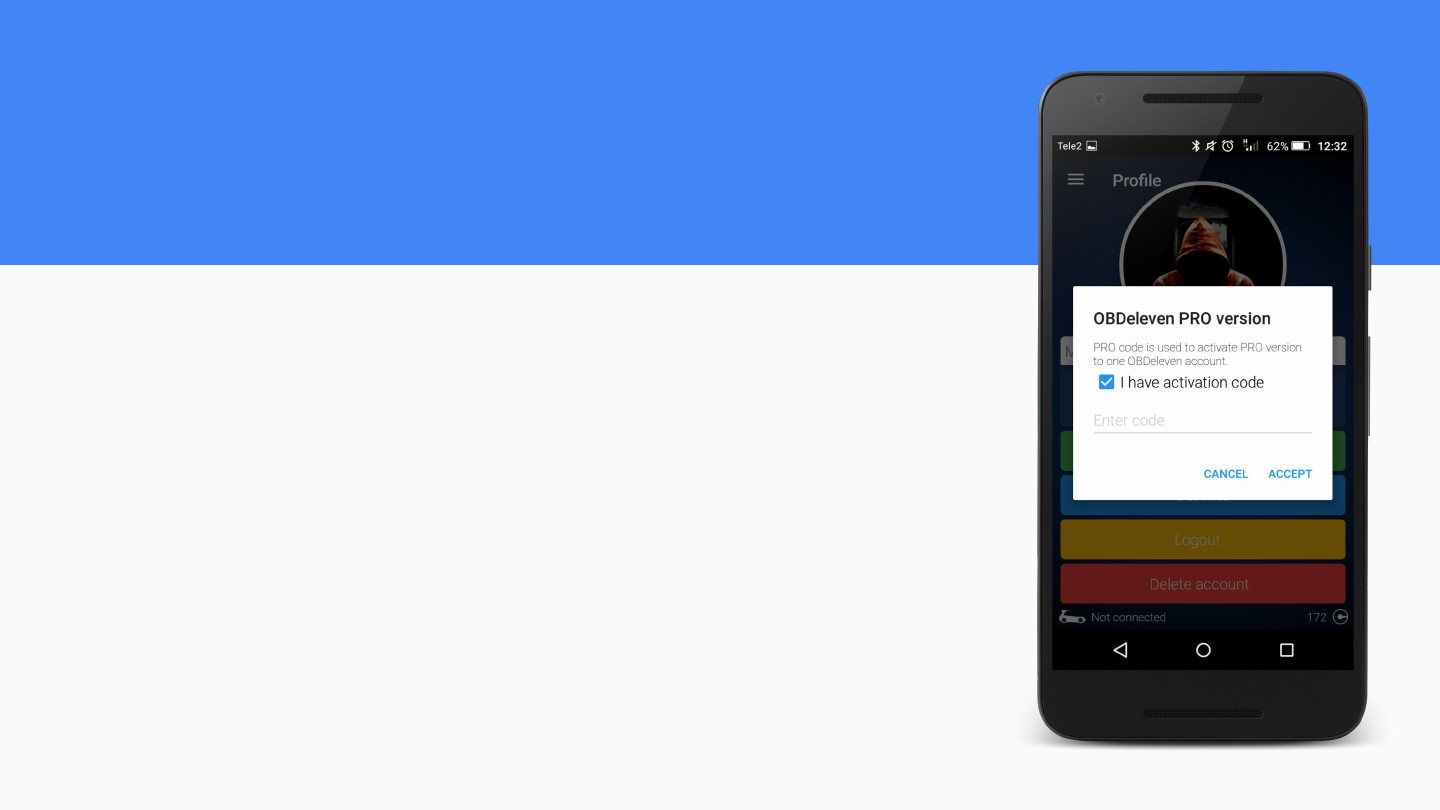

Activate PRO version
If you have PRO version activation code enter it by going to
Settings and activating PRO theme.
NOTE：
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your
authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF exposure compliance statement:
This device has been evaluated to meet the general RF exposure requirement, it can be used in portable exposure
condition without restriction.
