DONGGUAN SMART HERO ELECTRONIC CO WLDB2322TX WIRELESS DOOR CHIME PUSH BUTTON User Manual

DONGGUAN SMART HERO ELECTRONIC PRODUCTS CO LTD WIRELESS DOOR CHIME PUSH BUTTON

User manual

HOMEDEPOT.COM
Please contact 1-855-556-1852 for further assistance.
Use and Care
Guide

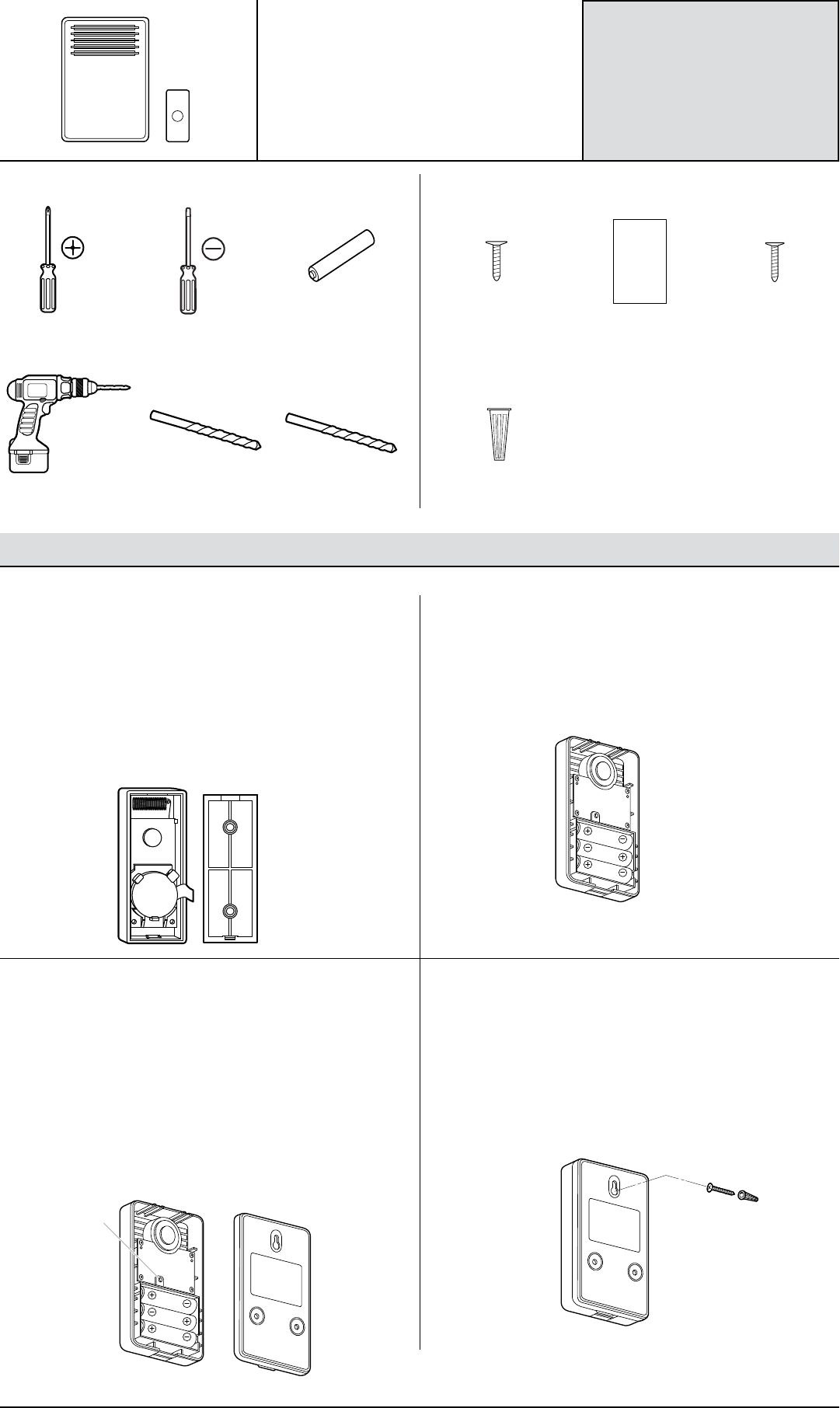

Installation
1ACTIVATING THE PUSH BUTTON BATTERY
□Remove the front cover of the push button by inserting a at
head screwdriver in the slot on the bottom of the button and
pulling up slightly.
□Remove the plastic tab from the battery compartment to
allow connection to the terminal.
□Snap the front cover onto the base by rst hooking the tops
together, then snapping the base on.
2INSERTING THE CHIME BATTERIES
□Push the tab on the bottom of the chime and pull the back
cover off of the chime.
□Insert (3) AA batteries as shown in the diagram on the chime.
3SYNCING CHIME AND PUSH BUTTON
The chime and included push button already come synced.
Follow the steps below if you need to resync, or sync
additional push buttons.
□Press and release the learning button on the inside of the chime.
□Immediately following, press and release the push button to
hear a 2-note tune. Press and release the push button again
within ve seconds to hear another tune. Continue pressing
and releasing the push button until you reach the desired tune.
To set that tune, do not push the push button for ve seconds.
4MOUNTING THE CHIME
□Snap the back cover onto the chime.
□Mark the desired screw location on a clean wall.
□Drill a pilot hole on the mark using a 3/16 in. drill bit and
insert the wall anchor.
□Screw in the included #6 screw and mount the door chime to
the screw.
216600Inst.ai
Learning
mode
button
TOOLS REQUIRED
Phillips screwdriver Flat Head Screwdriver (3) AA Batteries
HARDWARE INCLUDED
#4x3/4
#6x3/4
#4x1 White Zinc #6x1 Self Tapping
ScrewHardware.ai
(2) #4 x 3/4 in. Screws (1) Adhesive Sticker (1) #6 x 3/4 in. Screw
Drill 3/16” Drill Bit 5/64” Drill Bit (1) Wall Anchor
216600Inst.ai
Learning
mode
button
216600Inst.ai
Learning
mode
button
216600Inst.ai
Learning
mode
button
#4x3/4
#6x3/4
#4x1 White Zinc #6x1 Self Tapping
ScrewHardware.ai
#4x3/4
#6x3/4
#4x1 White Zinc #6x1 Self Tapping
ScrewHardware.ai
#4x3/4
#6x3/4
#4x1 White Zinc #6x1 Self Tapping
ScrewHardware.ai
HOMEDEPOT.COM
Please contact 1-855-556-1852 for further assistance.

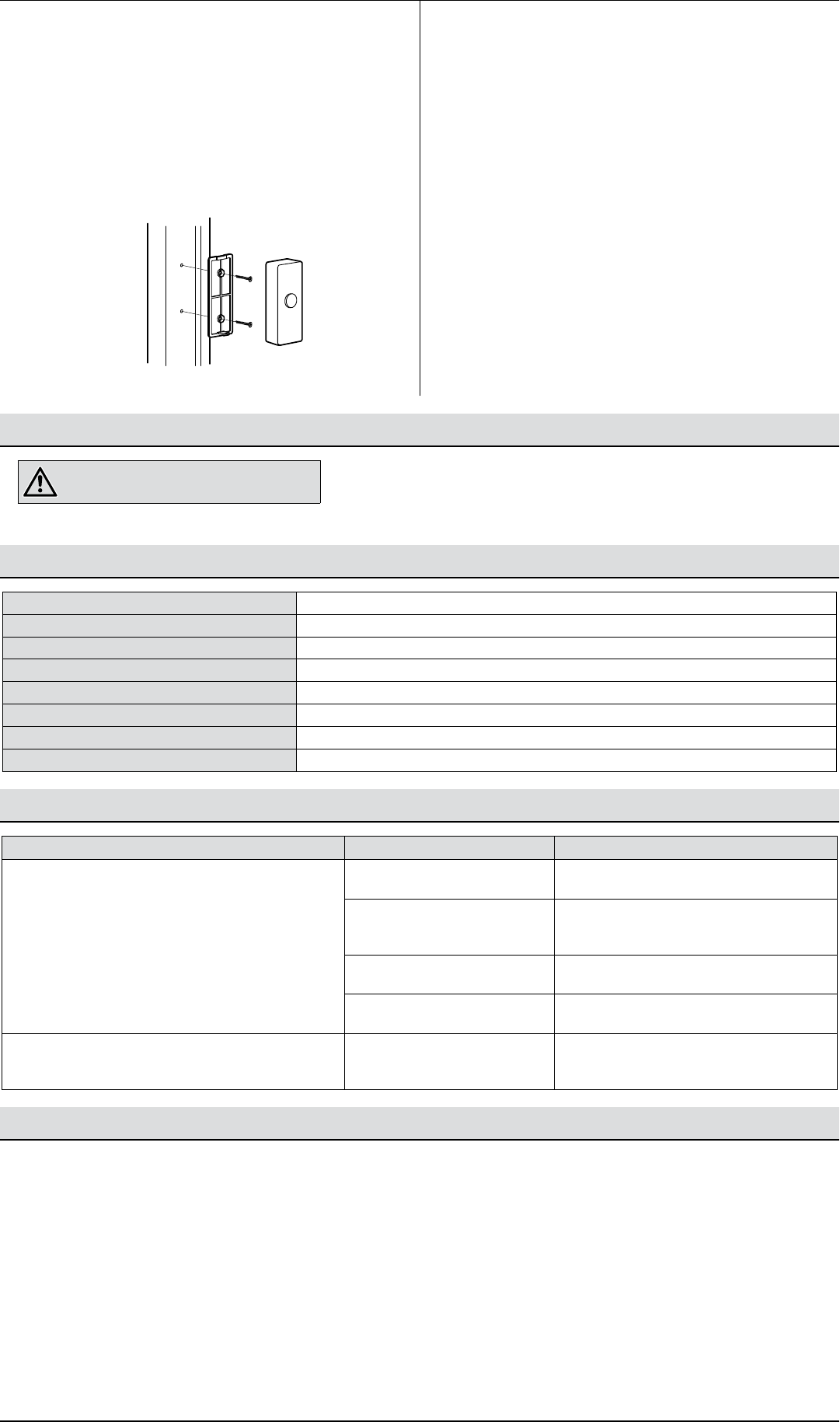

5MOUNTING THE PUSH BUTTON
□Remove the front cover from the base by following step 1.
□Mount the push button base to a clean wall or door jamb
with included #4 screws or mounting tape. If mounting with
screws, predrill a pilot hole through the push button base in
the desired location using a 5/64 in. drill bit.
□Snap the push button cover onto the base by rst hooking
the tops together, then snapping the base on.
6RESYNCING THE CHIME AND PUSH BUTTON
□Press and hold the learning mode button on the chime until
you hear a ding sound. The chime is now reset and ready to
be resynced.
□Follow step 3 to sync the chime and push button.
Safety Information
WARNING: Keep batteries out of reach of
children.
Specications
Doorbell Type Wireless
Number of Push Buttons 1
Included Hardware (2) #4 x ¾ in. Screws, (1) 18x31mm Adhesive Sticker, (1) #6 x ¾ in. Screw, and (1) Wall Anchor
Finished Product Dimensions 4.79 in. Height x 2.75 in. Width x 1.03 in. Depth
Transmission Range 100 ft.
Number of Sounds 2
Chime Power Source (3) AA Batteries (not included)
Push Button Power Source CR2032 Battery (included)
Troubleshooting
Problem Possible Cause Solution
Chime does not sound when push button is pressed. Push button battery has not been
activated.
Conrm the activation tab has been removed and
the battery is seated properly in the button.
The chime and push button are out
of transmission range.
Move the chime closer to the push button
location. Ensure there are no metallic objects or
concrete walls hindering the signal.
Push button battery needs to be
replaced.
Replace the push button battery with a CR2032
Lithium Coin battery.
Chime batteries need to be
replaced.
Replace the chime batteries with (3) AA batteries.
Chime is sounding without the push button being pushed. An outside signal is interfering with
the signal between the chime and
push button.
Resync the chime and push button following the
steps in the instructions.
Warranty
WHAT IS COVERED
The Warrantor is pleased to extend this Warranty to you, the original consumer/end user (“Consumer”) of the doorbell products and listed by model
number below (“Doorbell Product”). This Warranty is valid for any Doorbell Product used in standard residential applications, and may not be assigned or
transferred by you.
For a period of one (1) year from the date of purchase, Warrantor, at its sole option, will repair, replace or refund the purchase price for any Doorbell Product
used in a standard residential application that malfunctions due to factory defective parts or defective workmanship in the manufacture or assembly of the
Doorbell Product.
216600Inst.ai
Learning
mode
button
HOMEDEPOT.COM
Please contact 1-855-556-1852 for further assistance.
WHAT IS NOT COVERED
Warrantor shall have no further liability or obligation except as expressly stated herein.
This Warranty does not apply to any Doorbell Product that has been abused, misused, modied, subjected to abnormal use conditions, stored improperly
prior to installation, or otherwise used in any way not intended by Warrantor.
This Warranty is limited to repair, replacement or refund as set forth above and any additional reimbursement is expressly excluded from this Warranty,
including but not limited to reimbursement for inconvenience, installation costs, loss of use, return shipping charges, and batteries or other expendable
items.
If a claim is made under this Warranty on a product that is no longer available, Warrantor reserves the right to provide a similar product of comparable
quality and value.
To make a claim under this Warranty, the Consumer must, within ninety (90) days of actual or constructive knowledge of damage covered by this Warranty,
return the product to your local The Home Depot store, or call Customer Service at 1-855-556-1852.
Warrantor does not make any implied warranty of merchantability or tness of the product for a particular purpose. There are no other warranties that
extend beyond the description on the face hereof.
This Warranty gives you specic legal rights and you may have additional rights under applicable law.
Contact the Customer Service Team at 1-855-556-1852 or visit www.HomeDepot.com.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
