DONGGUAN YUJIA INDUSTRY DOWNFRAFT-BT01 Bluetooth Speaker User Manual
Dongguan Yujia Industry Co.,Ltd Bluetooth Speaker
User manual
Speaker User Manual
Introduction:
Please take a few moments to read through the following user manual before using this Speaker:

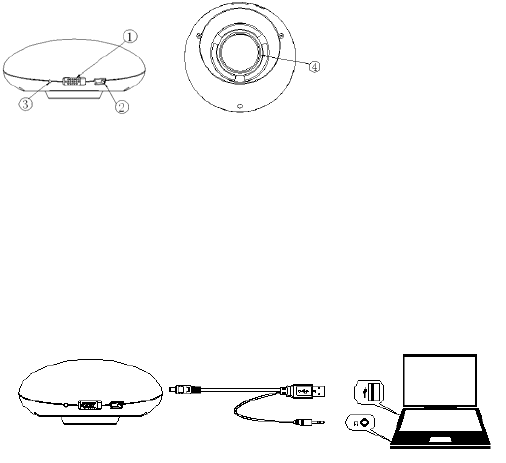

1 - Power on/off 2 - Charging port
3 - LED 4 - Speaker
Wired Operations:
1. Turn the Power ON/OFF button to active the speaker. A blue light will appear
2. Connect the speaker to your computer or other audio devices as below drawings (mini USB plug into
speaker charging port, USB port plug into female USB port and OD3.5mm pin plug into audio port)
3. Play the music by our audio device.
Battery Charging
This Bluetooth speaker has inside a lithium battery, please use the accessory USB cable to charge the
battery though PC or USB travel charger.
Normally it will need 3 hours to fully charge the battery. When charging the light will be red. When the
speaker is fully charged the light will no longer be showing
Package contents
●1 speaker (Bluetooth optional)
●1 USB & audio cable
●1 User Manual
Technical details:
●Power supplier: DC 5V
●2402.00‐2480.00MHz(ChannelFrequency=2402+1(K‐1),K=1,2,3……79)
●Output power: 2W (1 kHz, THD10%)
●Frequency: 120HZ---15000Hz
●Speaker: OD40mm 4 OHM 3W
●Distance：open air≥10m
●Li-ion: 3.7V 35mm*18mm*5.8mm (350mA)
●SNR：≥65dB
●If it is Bluetooth , the version is Bluetooth 1.0
NOTES
Keep away from high-temperature or prolonged exposure to direct sunlight.
Avoid contact with liquids.
Do not insert any conductive objects into the sound box.
Do not disassemble.
Keep out of reach of children.
Warranty
In case your BOOMPOODS® fails to function because of defects due to material or workmanship, it will be
repaired or replaced at no cost within 6 months of receiving the item providing:
It has not suffered accidental damage such as a knock or immersion in water, etc…
It has not been disassembled.
It needs to be returned to the service center free of charge, the service center will not bear any shipping
cost of the returned item.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void
your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
