DONGGUAN YUJIA INDUSTRY HF380 BLUETOOTH SPEAKER User Manual HF 380 Usermanual

Dongguan Yujia Industry Co.,Ltd BLUETOOTH SPEAKER HF 380 Usermanual

User Manual

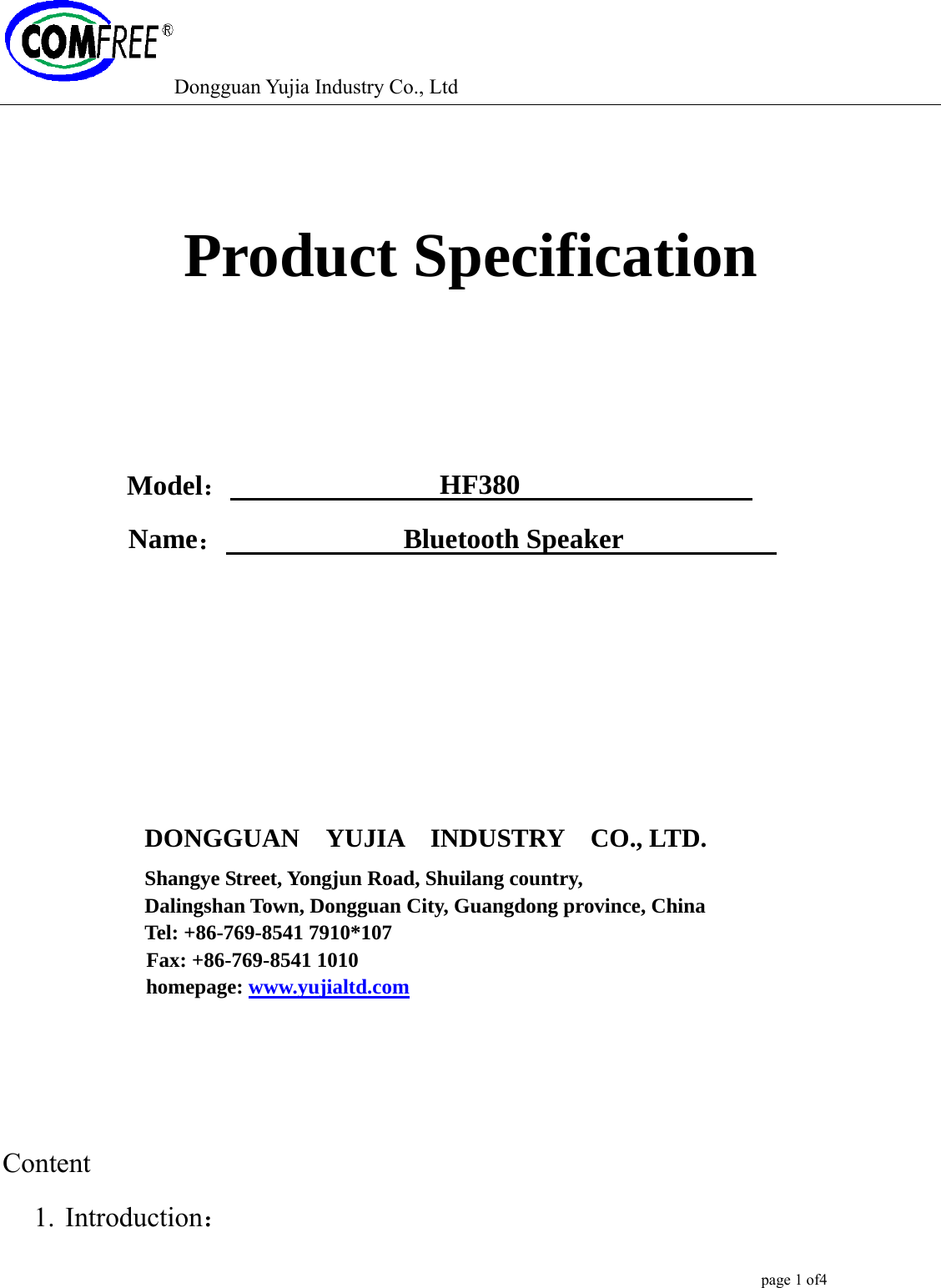

Dongguan Yujia Industry Co., Ltd page 1 of4 Product Specification Model： HF380 Name： Bluetooth Speaker DONGGUAN YUJIA INDUSTRY CO., LTD. Shangye Street, Yongjun Road, Shuilang country, Dalingshan Town, Dongguan City, Guangdong province, China Tel: +86-769-8541 7910*107 Fax: +86-769-8541 1010 homepage: www.yujialtd.com Content 1. Introduction：

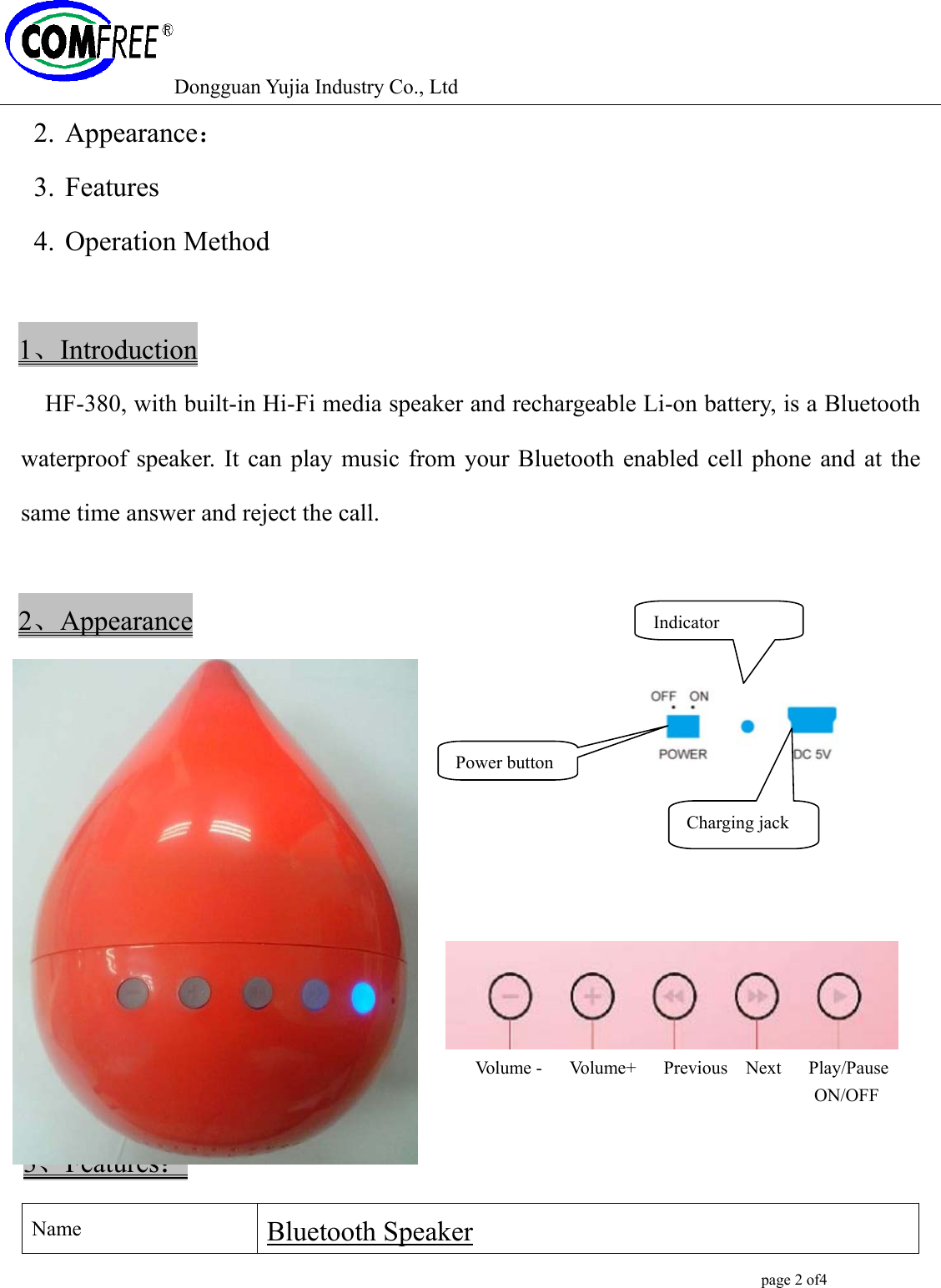

Dongguan Yujia Industry Co., Ltd page 2 of4 2. Appearance： 3. Features 4. Operation Method 1、Introduction HF-380, with built-in Hi-Fi media speaker and rechargeable Li-on battery, is a Bluetooth waterproof speaker. It can play music from your Bluetooth enabled cell phone and at the same time answer and reject the call. 2、Appearance Volume - Volume+ Previous Next Play/Pause ON/OFF 3、Features： Name Bluetooth Speaker Power buttonCharging jack Indicator

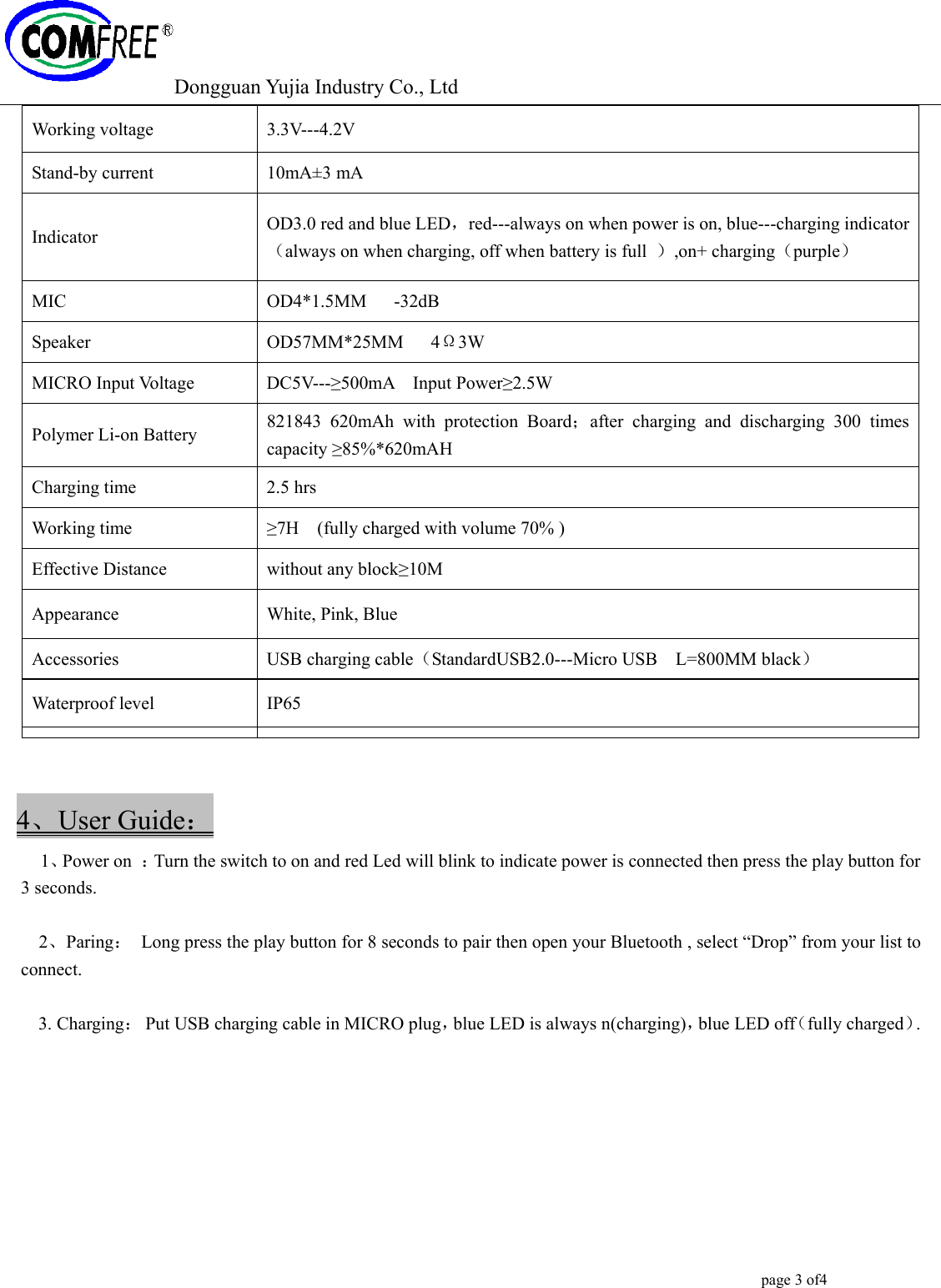

Dongguan Yujia Industry Co., Ltd page 3 of4 4、User Guide： 1、Power on ：Turn the switch to on and red Led will blink to indicate power is connected then press the play button for 3 seconds. 2、Paring： Long press the play button for 8 seconds to pair then open your Bluetooth , select “Drop” from your list to connect. 3. Charging： Put USB charging cable in MICRO plug，blue LED is always n(charging)，blue LED off（fully charged）. Working voltage 3.3V---4.2V Stand-by current 10mA±3 mA Indicator OD3.0 red and blue LED，red---always on when power is on, blue---charging indicator（always on when charging, off when battery is full ）,on+ charging（purple） MIC OD4*1.5MM -32dB Speaker OD57MM*25MM 4Ω3W MICRO Input Voltage DC5V---≥500mA Input Power≥2.5W Polymer Li-on Battery 821843 620mAh with protection Board；after charging and discharging 300 times capacity ≥85%*620mAH Charging time 2.5 hrs Working time ≥7H (fully charged with volume 70% ) Effective Distance without any block≥10M Appearance White, Pink, Blue Accessories USB charging cable（StandardUSB2.0---Micro USB L=800MM black） Waterproof level IP65

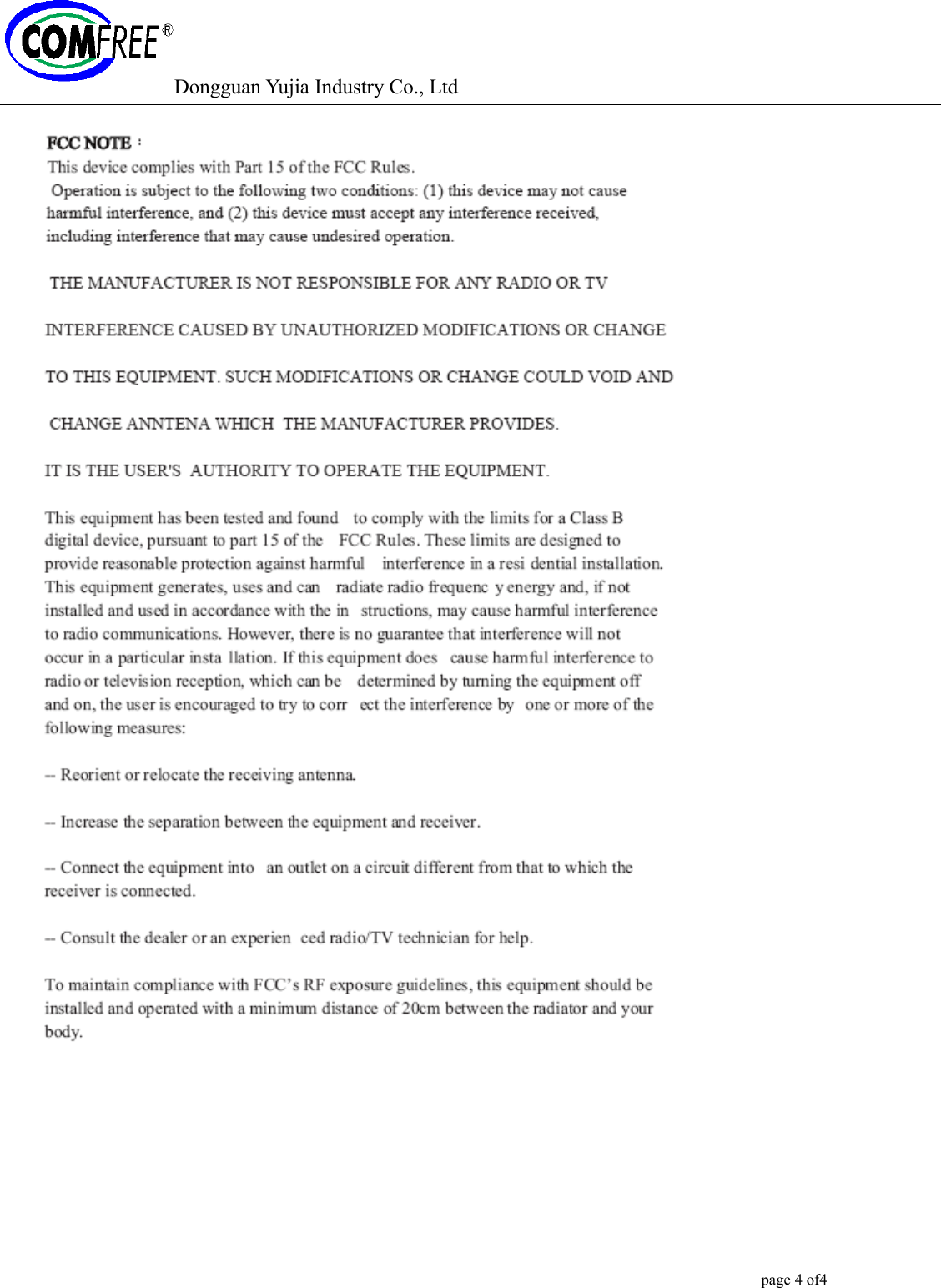

Dongguan Yujia Industry Co., Ltd page 4 of4
