DOPPIO MOBILE DP355 Mobile Phone User Manual
DOPPIO MOBILE INTERNATIONAL LIMITED Mobile Phone
User Manual
0
Doppio DP355
USER GUIDE
1
Contents
1.For your safety ................................................................ 2
2.Learn about the phone .................................................... 3
Overview .......................................................................... 3
Function Keys .................................................................. 3
3.Before using .................................................................... 4
Insert SIM cards and TF card .......................................... 4
Charge the Battery ........................................................... 7
4.Getting started ................................................................. 7
Basic Function ................................................................. 7
Home screen .................................................................... 8
Touch screen ................................................................... 10
5.Communication ............................................................... 10
Make a call........................................................................ 11
Ongoing call ..................................................................... 11
Incoming call .................................................................... 12
Send a Message ............................................................... 12
6.Multimedia ....................................................................... 12
Camera ............................................................................. 12
Gallery .............................................................................. 14
Music ................................................................................ 14
7.Connection ...................................................................... 15
Airplane mode .................................................................. 15
WF ..................................................................................... 15
BLT .................................................................................... 16
USB ................................................................................... 16
8.Features ........................................................................... 17
Fingerprint Security ......................................................... 17
Selfies Album ................................................................... 17
Power Manager ................................................................ 18
Boketh Effect ................................................................... 18
New Navigation Mode ...................................................... 18
App Lock .......................................................................... 18
9.Operation ......................................................................... 19
Smart Gestures ................................................................ 19
Suspend option................................................................ 21
10. . Warnings and notes ..................................................... 22
2
1. For your safety
Please read this manual before using the cell phone to ensure
your safety and proper use.
SWITCH OFF IN HOSPITALS
Please abide by relevant provisions or regulations. Please turn off
your mobile phone near medical equipment.
SWITCH OFF WHEN REFUELING
Don’t use the phone at a refueling point. Don’t use near fuel or
chemicals.
SIM CARDS AND TF CARD ARE PORTABLE
Keep your phone, phone parts and accessories out of children’s
reach.
BATTERY
Please do not destroy or damage the battery, it can be
dangerous and cause fire. Please do not throw battery in fire to
avoid hazard. When battery cannot be used, please dispose in
safe environment. Do not try to dismantle the battery. If the
battery or authorized charger is broken or old, please stop using
them, and replace with certified genuine battery.
For first time using, please discharge completely and charge the
battery in 100% full and continue charging one more hour with
authorized charger.
USE QUALITY EQUIPMENT
Use authorized equipment to avoid danger.
ROAD SAFETY COMES FIRST
Give full attention while driving, Park before using your phone.
Please follow traffic rules of local city town.
INTERFERENCE
All wireless devices may be susceptible to cause interference,
which could affect performance.
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft. It’s not only
dangerous but also illegal to use mobile phone in an aircraft.
3
2. Learn about the phone
Overview
1
Light Sensor
7
Fingerprint
2
Receiver
8
Camera Flash
3
Front Camera
9
Back Camera
4
Volume Key
10
Micro USB Port
5
Power /Screen Lock
11
3.5mm Audio Jack
6
Main Microphone
12
Speaker
Function Keys
Keys
Functions
Screen Lock /
Power Key
Press to turn on/off the screen.
Press and hold to reboot, power off the
phone, and turn on airplane mode or silent.
Volume Key
Press to adjust the volume of device.
4
Multi Task Key
(on the screen)
Tap to open the list of recently used apps.
Click the circle button to clean all of recently
used apps.
Home Key
(on the screen)
Tap to return to Home screen.
Long press to access Google™ search.
Back Key
(on the screen)
Tap to return to the previous screen.
Note
Multi Task Key and Back Key can be exchanged the
layout and color in Settings --> Navigation bar. You
can also hide button at the left of navigation bar.
3. Before using
The phone is a Dual SIM mobile that allows you to use two
mobile networks.
Insert SIM cards and TF card

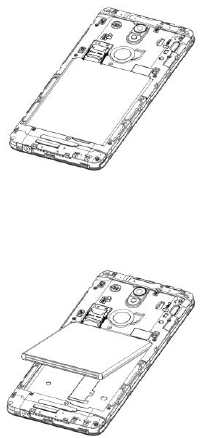

Switch off the mobile phone. Then remove the cover as shown in
the figure.
5

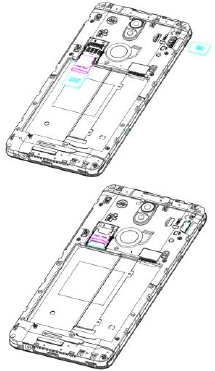

1）Remove the battery, insert the Micro / Nano SIM cards and SD
card to the card slots correctly
Card 1 supports Micro SIM card and TF card.
Card 2 supports Nano SIM card.
.
6
Note: TF card can be used as internal storage.
Option 1: Notification Center --> Tap the notice to set up -->
Use as internal storage --> Next --> Erase & Format
7
Option 2: Settings --> More settings-->Storage & USB -->
Format as internal storage--> Erase & Format
1) Push the card tray into the phone.
Note:
Micro SIM card does not support hot plugging, Nano SIM card
and TF card support hot plugging.
Do not remove the cards while the device is transferring data.
Doing so may cause data to be lost or damage to the cards
and device.
The SIM cards and TF card are small parts. Please keep
away from Children to avoid swallowing the card by accident.
Please do not touch the metal surface of SIM and TF cards
and keep them away from electromagnetic field to avoid
damaged data.
Charge the Battery
Charge the battery before using it.
Connect the USB cable to the USB power adaptor, and then
plug the end of the USB cable into the USB Port.
4. Getting started
Basic Function
Turn on the phone
Press and hold the power key for a while to turn on the phone.
Turn off the phone
Long press the power key until a menu shows. Choose
“Power off’’ to turn off the phone.
Restart the phone
Option 1: Long press the power key until a menu shows.
Choose “Reboot’’ to restart the phone.
Option 2: Long press the power key till 11s above to auto
restart the phone.
Lock the screen
8
Option 1: Press the power key to turn off the screen and lock it
Option 2: In the Home screen, double tap the screen to lock it.
(Long press on an empty spot to open the Desktop Settings,
Choose ”Quick lock screen” to turn on the function).
Option 3: The screen will auto lock if you don't use the phone
for a while.
Unlock the screen
Press the power key, and then slide to top for unlocking.

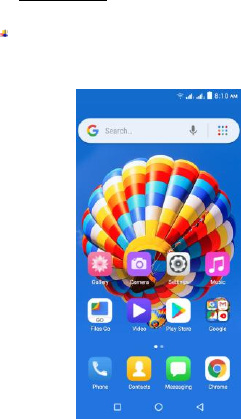

Home screen
The Home screen is your starting point to access all the features
on your phone. It displays application icons, widgets, and other
features. You can customize the Home screen with different
wallpaper and display the items you want.
9
Status Bar
At the top of the screen, it displays the time, signal, battery
information.
Notification Center
Swipe down from the top edge to see more details of the new
notification, such as messaging, missed call, WF network
available etc. Tap the notification and drag to left or right to
delete it.
Settings-->Notification-->Notification Center to manage it.

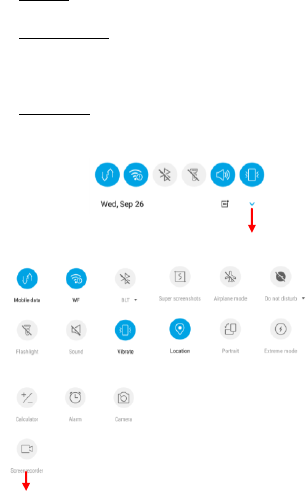

Control Center
Slide down from the top edge to open the control center.
In the control center, it’s a quick access to Mobile data, WF,
BLT , Flashlight, Sound ，Vibrate and so on
Tap to see more functions
Screen Recorder:
Tap to record your operating process, and
the videos can be save and share to others.
10
Move an application
Touch & hold the icon you want to move. Drag the icon to
move or cross at the edge of the screen to move into another
screen.
Pick up a widget
Touch and hold some icon can pick up a widget.
Creating a folder
Drag an icon on the top of another one to create a folder.
Open the folder and then tap the “Folder” to rename it.
Launcher Menu
Long press on an empty spot to open the launcher menu.
You can change Wallpaper, Arrange, Search and Desktop
Settings. It’s a quick access to Desktop Settings and Search.
Touch screen
The way to control mobile phone is using your finger on touch
icons, buttons, menu items, the onscreen keyboard, and other
items on the touch screen.
Touch: To act on items on the screen, such as application and
settings icons, to type letters and symbols using the onscreen
keyboard, or to press onscreen buttons, you simply touch
them with your finger.
Touch & hold: Touch & hold an item on the screen by
touching it and not lifting your finger until an action occurs.
Drag: Touch & hold an item for a moment and then, without
lifting your finger, move your finger on the screen until you
reach the target position. You can drag items on the Home
screen to reposition them.
Swipe or slide: To swipe or slide, quickly move your finger
across the surface of the screen, without pausing when you
first touch (so you don’t drag an item instead). For example,
you slide the screen up or down to scroll a list, and in the
same way Calendar views you can swipe quickly across the
screen to change the range of time visible.
Pinch: In some applications (Such as Maps and Gallery) you
can zoom in and out by placing finger and thumb on the
screen at same time and pinching them out together (to zoom
out) or spreading them apart (to zoom in).
Rotate the screen: On most screens, the orientation of the
screen rotates with the phone as you turn it from upright to its
side and back again. You can turn this feature on and off.
11
5. Communication

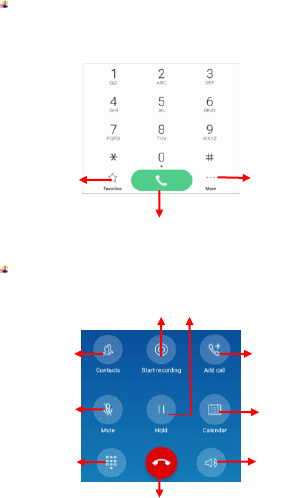

Make a call
Touch the phone icon on the Home screen.
Enter the phone number you want to dial.
Touch the phone icon to dial the number that you entered.
Ongoing call
Touch to open advanced option.
Touch to make an audio call.
Touch to open
advanced option.
Touch to make an audio call.
Touch to open favorites
Add call
Take a note
Get contacts information
Mute the line
Number keypad
End the current call
Start recording
Hold on the line
Add call
Calendar
Speaker
12
Incoming call
Send a Message
You can use this phone to exchange text messages and
multimedia messages with your friends on their mobile phones.
The messages come to and from the same contact or phone
number will be visible into a single conversation, so you can see
your entire message history with a person conveniently.
Enter text
Tap the text field to see onscreen keyboard.
Tap the keys on the keyboard to type; the characters you’ve
entered appear in a strip above the keyboard. With
suggestions for the word you are typing to the right.
Use the Delete key to erase characters to the left of the
cursor.
When you’re finished typing, press back to close the
keyboard.
6. Multimedia
Camera
Camera is a combination of camera and camcorder that you use
to shoot and share pictures and videos. Tap the image on the
camera screen where should focus on. You can also change
Drag the phone icon on
right to answer the call.
Swipe up to ignore the call.
Drag the phone icon on
left to reject the call.
Drag the phone icon down to reject
the call and send a message to caller.
Drag the phone icon on
right to answer the call.
13
camera setting like transfer front and rear camera, adjust the
exposure on this screen.
Take a photo
Time-lapse Mode – Time lapse photography is the rapid play
of the video, from a long period of time condensed to a very
short period of time.
GIF Mode – Shooting multiple images to form a simple
animation.

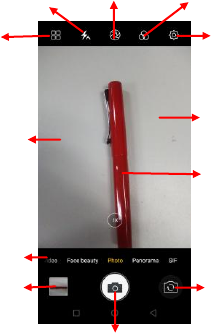

Touch to enter the Camera Settings.
Touch the screen to focus on it.
Pinch or spread the screen to
zoom in or zoom out.
Touch the screen
to focus on it.
Touch to transfer
Between Rear camera
and front camera
Pinch or spread the screen
to zoom in or zoom out.
Touch to enter the
Camera Settings.
Touch to open Filter mode.
Touch to take a picture or shoot a video.
Touch to set flash to
Auto, On or Off.
Slide down the screen
to enter Mode Settings
Slide right or left to enter
mode settings
Touch to enter Gallery
Touch to enter the
Mode Settings.
Touch to open Bokeh mode.
14
Panorama Mode - Press camera button and slowly move the
phone in one direction.
Face beauty Mode – Beautify your photo and realize full skin
beauty not just beautifying the face, so that presents more
natural selfie. You can select Smoother, Whitening, Slimming,
and Eye Enlarger. Drag the slider to adjust it.
Shoot a Video
In camera mode, slide the screen to left for video capturing.
Adjust the quality and other settings if you wish or leave them
on automatic mode.
Point the lens to frame the scene where you want to start.
Touch the Video icon. Camera starts shooting the video.
Touch Stop video icon to stop shooting. An image from your
most recent video is displayed as a thumbnail at the bottom
left.
Gallery
Touch the Gallery icon in the Launcher to view albums of your
pictures and videos which you’ve taken from camera. You may
share the pictures and videos with your friends by Messaging,
BLT and so on.
Hidden management: You can hide any folder in Hidden
Management except Selfies Folder. You can select multiple
folders by long pressing on each folder icon, and clicking on
“Hide”. After hiding, the picture will not be displayed in the
Time and All. You can go to Gallery settings --> hidden
management to view or manage the hidden folder.
Trash: Deleted pictures will be moved to trash, which will be
deleted permanently on the seventh day. You can delete or
recover these pictures manually in trash.
Music
You can use Music player to organize and listen to music and
15
other audio files that you transfer to your phone from your
computer.
7. Connection
Your phone can connect to a variety of networks and devices,
including mobile networks for voice and data transmission, WF
data networks, and BLT devices, such as headsets. You can
also connect your phone to a computer, to transfer files from your
phone storage, and share your phone’s mobile data connection
via USB or as a portable WF hotspot.
Airplane mode
Option1: Settings-->More-->Airplane mode to turn it on
Option2: Swipe down from the top edge to open control center-->
tap Airplane mode
Some locations like Airplane may require you to turn off your
phone’s Cellular network, WF, and BLT wireless connections.
You can turn off all these wireless connections at once by placing
your phone on Airplane mode.
WF
WF is a wireless networking technology that can provide internet
Add to my favorites
or New song list.
Settings Menu
Share music by BLT , Email,
Messaging and so on.
Slide to right for Playlist
Slide to left for Playlist
Slide to right for
lyrics file.
Touch to Change play
mode of Single cycle,
Shuffle, or Circulating list.
Add to my favorites
or New song list.
Share music by BLT ,,
Messaging and so on.
Settings Menu
Next song
Play/ Pause
Previous song
16
access at distance of up to 100 meters, depending on the WF
router and your surroundings. You can configure the WF as
follow:
Settings-->WF, check WF to turn it on.
Enter WF. The phone scans for available WF networks and
displays the names of those it finds. Secured networks are
indicated with a Lock icon. The phone will auto login to the
network if you have previously connected.
Touch a network to connect to it.
If the network is open, you are prompted to confirm that you
want to connect to that network by touching connect. If the
network is secured, you’re prompted to enter a password or
other credentials.
BLT
BLT is a short-range wireless communications technology that
devices can use to exchange information over a distance of
about 10 meters. The most common BLT devices are
headphones for making calls or listening to music, hands-free
kits for cars, and other portable device, including laptops and cell
phones.
To send a file
Settings--> BLT, check BLT to turn it on.
Enter Files Go to select a file, Select More--> Share--> BLT.
Touch Scan for devices, the phone will scan for and display
the names of all available BLT devices in range
Touch the names of the other device in the list to pair them.
After pairing the file will be sent.
To receive a file
Settings--> BLT, check BLT to turn it on. Ensure your BLT has
been connected within visibility time.
You can receive files from the devices which are paired with
yours. The file you received will be saved to the “ BLT” folder in
the Files Go
To connect to a Handsfree device
Turn on the Handsfree device, make it in a searchable state;
Settings--> BLT, Select “Search for devices”;
After searching for the Handsfree device，Select it in the list to
pair.
After pairing, you can use the Handsfree device to listen to
music, video and receive call.
USB
You can connect the phone to your computer with a USB cable to
17
transfer music, pictures, and other files.
Turn on USB connection
1. Connect the phone to your computer with a USB cable.
2. In notification center, tap USB charging this device to open
USB connection.
3. Choose the USB options.
Charge only, connected as a USB for charging.
Copy files, Transfer music, videos, documents and other
documents (MTP).
View photos, Browse photos in DCIM and Pictures file folder
(PTP).
USB debugging, Debug mode when USB is connected.
Note:
Do not disconnect the USB cable from the phone when you
are transferring files. Doing so may cause data loss or phone
damage.
8. Features
Fingerprint Security
Support fingerprint unlock
Selfies Album
A new album ‘Selfies’ is added in the Gallery. Photos shot by front
camera stocks in the ‘Selfies’ folder automatically.
How to use
1) Phone
settings-Security-Fingerprint
2) Set the phone security
password
3) Place your finger on
fingerprint sensor for
fingerprint entry
How to use
1) Take a selfie
2) You can always locate
your selfies in a special
folder ‘Selfies’ in the
gallery
18
Power Manager
Extreme power saving, always in power.
Boketh Effect
Excellent Bokeh effect makes your photographs visually
appealing. You can change the highlights to present the different
photo effects.
New Navigation Mode
Use sliding gestures to perform the same function.
APP Lock
APP lock can protect your privacy, locked app requires password
before using
How to use
1) System manager--＞
Power manager
2) Two power saving modes
are available
How to use
1) Turn the camera on
2) Select the main camera
mode
3) Select the bokeh feature
4) Take picture
How to use
1) Settings-->Navigation bar
2) Change navigation mode
3) Slide upward on the bottom
of the screen
19
.
9. Operation
Smart Gestures
Settings-->More settings--> Smart Gestures to turn it on.
The smart gestures system supports a variety of experience and
control, through gesture can be more convenient operation,
some of the smart gesture functions will not work while flip cover
is closed.
Pause alarm
Settings--> More settings --> Smart Gestures -->Select
Pause alarm
Flip back the phone to pause an on-going alarm.
① ②
Black screen gestures
Settings--> More settings --> Smart Gestures --> Select
Black screen gestures-->OFF
Draw pattern to access menu quickly while phone is on sleep
mode.
How to use
1) System Manager-App
Lock
2) After set security
password, select app
which you want to
protect
20
Smart Vibration Reminder
Settings--> More settings --> Smart Gestures -->Select Smart
Vibration Reminder
When the phone has missed call or unread SMS, pick up it in
sleep screen will vibrate to remind again.
① ②
Smart bright screen
Settings--> More settings --> Smart Gestures-->Select Smart
bright screen
When front camera detects you are viewing screen, the screen
will be maintained normally.
In the following scenarios, the function may fail:
-User doesn’t face on the screen
-The light is too strong or too dark
-Front camera is used by other applications
21
Double click wake up
Settings--> More settings --> Smart Gestures -->Select
Double click wake up
When the screen is in sleep mode, quickly double tap to wake up
the phone.
① ②
Suspend option
Long press can be hidden in the notification bar. Operation the
suspend button, achieved to return, sleep and so on. You can
also change the transparency, button size, and customization of
suspend button here.
Settings--> More settings --> Suspend option
Tap to open one hand
Close
Tap to lock the screen.
Tap to open one hand
operation
Close
Tap to lock the screen
screen.
Tap to return to the
previous screen
Tap to return to the Home screen.
22
10. Warnings and notes
Operational Warnings
Important information on safe and efficient operation. Read this
information before using your phone. For the safe and efficient
operation of your phone, observe these guidelines:
Potentially explosive at atmospheres: Turn off your phone
when you are in any areas with a potentially explosive
atmosphere, such as fueling areas (gas or petrol stations, below
deck on boats), storage facilities for fuel or chemicals, blasting
areas and areas near electrical blasting caps, and areas where
there are chemicals or particles (Such as metal powders, grains,
and dust) in the air.
Interference to medical and personal Electronic Devices:
Most but not all electronic equipment is shielded from RF signals
and certain electronic equipment may not be shielded against the
RF signals from your phone.
Audio Safety: This phone is capable of producing loud noises
which may damage your hearing. When using the speaker phone
feature, it is recommended that you place your phone at a safe
distance from your ear.
Other Medical Devices, hospitals: If you use any other
personal medical device, consult the manufacturer of your device
to determine if it is adequately shielded from external RF energy.
Your physician may be able to assist you in obtaining this
information. Turn your phone OFF in health care facilities when
any regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment that
could be sensitive to external RF energy.
Product statement on handling and use: You alone are
responsible for how you use your phone and any consequences
of its use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care and keep it
in a clean and dust-free place.
Do not expose your phone or its accessories to open flames or lit
tobacco products.
Do not expose your phone or its accessories to liquid, moisture,
or high humidity.
Do not drop, throw, or try to bend your phone or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to
23
clean the device or its accessories.
Do not attempt to disassemble your phone or its accessories;
only authorized personnel can do so.
Do not expose your phone or its accessories to extreme
temperatures, minimum 32℉and maximum 113℉(0℃ to 45℃).
Battery: Your phone includes an internal lithium-ion or
lithium-ion polymer battery. Please note that use of certain data
applications can result in heavy battery use and may require
frequent battery charging. Any disposal of the phone or battery
must comply with laws and regulations pertaining to lithium-ion or
lithium-ion polymer batteries.
Faulty and damaged products: Do not attempt to disassemble
the phone or its accessory. Only qualified personnel can service
or repair the phone or its accessory. If your phone or its
accessory has been submerged in water, Punctured, or
subjected to a severe fall, do not use it until you have taken it to
be checked at an authorized service center.
FCC Regulations:This mobile phone complies with part 15 of
the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
24
Emergency call
If any emergency arises, dial 112/911 (or other emergency call
number) for emergency help.
Due to the nature of cellular networking, the success of
emergency call is not guaranteed.
FCC Note:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Caution: Changes or modifications not expressly approved by
the party responsible for compliance could void the user‘s
authority to operate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States.
25
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed in
positions that simulate RF exposure in usage against the head
with no separation, and near the body with the separation of 10
mm. Although the SAR is determined at the highest certified
power level, the actual SAR level of the device while operating
can be well below the maximum value. This is because the
phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the
power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had
been tested in accordance with the measurement methods and
procedures specified in IEEE1528.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after searching
on FCC ID: . N2GDP355
For this device, the highest reported SAR value for usage against
the head, body-worn accessory, and product specific (Hotspot)
are 1.23 W/kg, 0.83 W/kg, and 0.84 W/kg respectively.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the human
body. Carry this device at least 10 mm away from your body to
ensure RF exposure level compliant or lower to the reported level.
To support body-worn operation, choose the belt clips or
26
holsters, which do not contain metallic components, to maintain a
separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and use such
body-worn accessory should be avoided.
Google, Android,Google Play and other marks are trademarks o
f Google LLC.
