User Manual
1
Doppio
DPF500 SIRIUS
User Manual
2
Contents
Safety .................................................................................................................... 4
FCC SATEMENT ............................................................................................... 6
Environment ........................................................................................................ 8
1. Getting Started ................................................................................................ 8
1.1 Getting to know your touch phone .................................................... 8
1.2 Installing the SIM card, battery and storage card .............................. 9
1.3 Charging the Battery ........................................................................ 10
1.4 Starting up the device....................................................................... 11
1.5 Status Icons ...................................................................................... 13
2. Using phone features .................................................................................... 15
2.1 Turning the phone function on and off ............................................ 15
2.2 Making a call ................................................................................... 15
2.3 Answering and Ending a call ........................................................... 16
2.4 In-call options .................................................................................. 16
2.5 Using call history ............................................................................. 17
2.6 Call settings ...................................................................................... 17
3. Setting on your device ................................................................................... 17
4. Contacts ......................................................................................................... 20
5. Messages ........................................................................................................ 21
6. Internet .......................................................................................................... 22
7. Multimedia .................................................................................................... 22
7.1 Camera ............................................................................................. 22
7.2 Music................................................................................................ 24
7.3 FM .................................................................................................... 25
7.4 Audio Recorder ................................................................................ 25
8. Other applications ......................................................................................... 25
3
8.1 Calendar ........................................................................................... 25
8.2 Clock ................................................................................................ 25
8.3 Calculator ......................................................................................... 25
9 Play Store ........................................................................................................ 25
4
Safety
Never attempt to disassemble your phone. You alone are responsible for how
you use your phone and any consequences of its use.
As a general rule, always switch off your phone wherever the use of a phone is
prohibited. Use of your phone is subject to safety measures designed to protect
users and their environment.
Do not use your phone in damp areas (bathroom, swimming pool…). Protect it
from liquids and other moisture.
Do not expose your phone to extreme temperatures lower than - 10°C and
higher than + 55°C.
The physicochemical processes created by chargers impose temperature limits
when charging the battery. Your phone automatically protects the batteries in
extreme temperatures.
Do not leave your phone within the reach of small children (certain removable
parts may be accidentally ingested).
Electrical safety: Only use the chargers listed in the manufacturer’s catalogue.
Using any other charger may be dangerous; it would also invalidate your
warranty. Line voltage must be exactly the one indicated on the charger’s serial
plate.
Aircraft safety: When traveling by plane, you will need to switch your phone
off when so instructed by the cabin crew or the warning signs.
Using a mobile phone may be dangerous to the operation of the aircraft and may
disrupt the phone network.
Its use is illegal and you could be prosecuted or banned from using cellular
networks in the future if you do not abide by these regulations.
Explosive materials: Please comply with warning signs at petrol station asking
you to switch your phone off. You will need to comply with radio equipment
usage restrictions in places such as chemical plants, fuel depots and at any
location where blasting operations are under way.
Electronic equipment: To avoid the risk of demagnetization, do not let
electronic devices close to your phone for a long time.
5
Electronic medical equipment: Your phone is a radio transmitter which may
interfere with electronic medical equipment or implants, such as hearing aids,
pacemakers, insulin pumps, etc. It is recommended that a minimum separation
of 15 cm be maintained between the phone and an implant. Your doctor or the
manufacturers of such equipment will be able to give you any advice you may
need in this area.
Hospitals: Always make sure that your phone is switched off in hospitals when
so instructed by warning signs or by medical staff.
Road safety: Do not use your phone when driving. In order to give your full
attention to driving, stop and park safely before making a call. You must comply
with any current legislation.
6
FCC SATEMENT
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Note: This
equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
7
SAR tests are conducted using standard operating positions accepted by the
FCC with the phone transmitting at its highest certified power level in all
tested frequency bands, although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while operating can
be well below the maximum value, in general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a new model phone is available for sale to the public, it must be
tested and certified to the FCC that it does not exceed the exposure limit
established by the FCC. Tests for each phone are performed in positions
and locations (e.g. at the ear and worn on the body) as required by the FCC.
For body worn operation, this model phone has been tested and meets the
FCC RF exposure guidelines when used with an accessory designated for
this product or when used with an accessory that contains no metal and that
positions the handset a minimum of 1.0 cm from the body.
Non-compliance with the above restrictions may result in violation of RF
exposure guidelines.
8
Environment
Packaging: To facilitate the recycling of packaging materials, please obey the
sorting rules instituted locally for this type of waste.
Batteries: Used batteries must be disposed at the designated collection points.
The product: The crossed-out waste bin mark affixed to the product means that
it belongs to the family of electrical and electronic equipment.
To promote the recycling and recovery of waste electrical and electronic
equipment (WEEE) and at the same time safeguard the environment, European
regulations require you to obey the sorting rules instituted locally for this type
of waste.
1. Getting Started

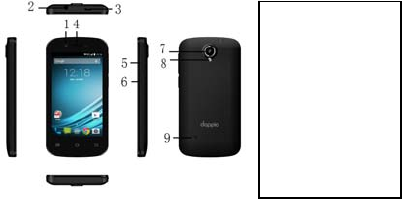

1.1 Getting to know your touch phone
1.FrontCamera
2.HeadphoneJack
3.MicroUSBPort
4.Receiver
5.VolumeKey
6.PowerKey
7.BackCamera
8.Flash
9.Speaker
9
1.2 Installing the SIM card, battery and storage card
You need to remove the back cover before you install the SIM card, Micro SD
card and the battery. Also, make sure power off your device before installing or
replacing the SIM card, Micro SD card and the battery.
To remove the back cover
1. Make sure your device is turned off.
2. Firmly hold the device with both hands and the front panel facing down.
3. Position your fingernail of thumb in the small gap at the bottom-left corner of
your phone and lift the cover up then remove it.
To install the SIM card
The SIM card contains your phone number, service details, and phonebook/
message memory. Your device is supported both 2G 、3G (WCDMA) and 4G
SIM cards.
1. Remove the battery if it is installed.
2. Locate the SIM card slot, then insert the SIM card with its gold contacts
facing down and its cut-off corner facing out the card slot.
3. Slide the SIM card completely into the slot.
Note:
• The phone can be supported the single SIM card only. The card slot will be
supported 4G, 3G (WCDMA) or 2G SIM card.
.
To install the battery
Your device comes with a rechargeable Lithium-ion battery and is designed to
use only manufacturer-specified original batteries and accessories. Battery
performance depends on many factors, including network configuration, signal
strength, and usage patterns.
10
Warning: To reduce risk of fire or burns:
• Do not attempt to open, disassemble, or service the battery pack.
• Do not crush, puncture, short external contacts, or dispose of in fire or water.
• Do not expose to temperatures above 60°C (140°F).
• Replace only with the battery pack designated for this product.
• Recycle or dispose of used battery as stipulated by local regulations.
1. Align the battery’s exposed copper contacts with the battery connectors at the
bottom part of the battery compartment.
2. Insert the contacts side of the battery first and then gently push the battery
into place.
3. Replace the back cover.
To remove the battery
1. Make sure your device is turned off.
2. Remove the back cover.
3. Remove the battery from the battery groove.
To install a memory card
To have additional storage for your images, videos, music, and files, you can
purchase a memory card and install it into your device.
1. Make sure that your device is turned off, and then remove the back cover.
2. Locate the memory card slot on the upper part of the exposed right panel.
3. Insert the memory card into the slot with its gold contacts facing down until it
clicks into place.
Note: To remove the memory card, pull it out to eject it from the slot.
1.3 Charging the Battery
New batteries are shipped partially charged. Before you start using your device,
it is recommended that you install and charge the battery. Some batteries
perform best after several full charge/discharge cycles.
Note: Only the AC adapter and USB sync cable provided with your device must
be used to charge the device.
11
Connect the USB connector of the AC adapter to the sync connector on your
device, and then plug in the AC adapter to an electrical outlet to start charging
the battery.
As the battery is being charged while the device is on, a charging icon appears
in the title bar of the Home screen. After the battery has been fully charged, a
full battery icon will appears.
Warning:
• Do not remove the battery from the device while you are charging it using the
AC or car adapter.
• As a safety precaution, the battery must stops charging before it overheats.
1.4 Starting up the device
Power on/off
To power off your phone, press & hold POWER key. Release the key when the
Phone options menu opens. Select ‘Power off’ and confirm.
To power on again, press & hold POWER.
Silent mode
To silence your phone quickly, press & hold the volume – button to zero volume.
Or on the Home screen, touch and select Settings > Sound& notification.
Select ‘Silent’ check box.
Screen sleep
After a period of inactivity, your screen will go to sleep (display will turn black).
In sleep mode, your phone uses less battery power. You can control this
behavior:
Set screen timeout period
1. On the Home screen, touch and select Settings.
2. Select Display.
3. Select Sleep. Select a time from the menu.
Prevent sleep while charging
1. On the Home screen, then touch and select Settings.
2. Select Developer options.
3. Select ‘Stay awake’ check box.
12
Lock screen & put phone to sleep
Except when on a phone call, from any screen, press POWER (immediately).
While not on a call, to lock your control buttons and screen from accidental
touch activation, press POWER.
You can increase the security of your phone by setting Screen unlock pattern.
Once set, in order to unlock your screen, you’ll have to draw the correct unlock
pattern. You can set your screen unlock pattern as follows:
1. On the Home screen, touch and select Settings.
2. Select Security and then scroll down to Screen lock pattern section.
3. Set or change your unlock pattern by selecting Screen lock pattern, as
applicable.
4. Follow the prompts to define your pattern.
Note: You must slide your finger along the screen to create the pattern, not
select individual dots. Connect at least four dots.
If you want your pattern to be hidden as you draw it, clear ‘Make pattern
visible’ check box.
Home screen
The Home screen is your starting point for using all the applications on your
phone. You can customize your Home screen to display applications, shortcuts,
and widgets as you like.
1. Touch the application tab with your fingertip to reveal the application
icons.
2. The Home screen actually extends beyond the screen width. On Home screen,
slide your fingertip left and right along the screen to reveal the full width of the
Home screen. This additional space gives you more room to customize Home
with applications, shortcuts, and widgets.
3. Create Home screen shortcuts and widgets:
• Touch the application tab with your fingertip to reveal the application
icons, slide your fingertip right to show the shortcuts and widgets.
• Select an Application shortcut, a Shortcut to some of your saved information
(such as a play list), a Widget (a clock or picture frame) for your Home screen.
• The application, shortcut, folder, or widget appears on Home screen.
13
Tip: To create an application shortcut quickly, touch the application tab to reveal
all the application icons, then touch & hold an application icon. Its shortcut is
added to the Home screen; close the application tab to see it.
4. To remove a shortcut or widget from your Home screen, touch & hold the
item to enter “move mode”. The application tab turns into a Trash button. Drag
the item to the Trash button and release. You’ll know when your item is in the
Trash because the item and the tab will turn red.
5. Move objects on the Home screen
• To move an icon or other item on the Home screen, you must first touch &
hold it to enter move mode. The object will magnify when it’s ready to be
moved.
• Without lifting your finger (or you’ll drop out of move mode), drag the object
to the new position. To move an item to a section of the Home screen not in
view, move it to the edge of the screen and hold it there for a moment. The
screen view will shift; position the object and release.
1.5 Status Icons
Connection status icons
Along the top of your phone screen is the status bar. On the left side, icons will
appear, notifying you of a new message, upcoming calendar event, or something
else you should notice. On the right side of the status bar, you’ll see connection
status icons.
2G data
connection Email
3G data
connection Playing song
4G data
connection Vibrate mode
SMS/MMS WF service connected
14
Call in progress Wireless services are
off (aeroplane mode)
Missed call
Silent
Call forward Battery is low
Alarm is set Battery is very low!
BLT is on Battery is being
charged
Connected the
PC
Connected the
earphone
Read your notifications
When you see a notification in the status bar, touch the bar and slide your finger
down the screen to open the list of notifications displayed in the sliding window.
Ongoing notifications report activities such as call forwarding ON, current call
status, song playing, etc.
Notifications report the arrival of new messages, calendar events, and alarms.
You can clear notifications list by selecting ‘Clear’ notifications at the top of the
notifications window.
To open the message, reminder, or other notification, you can touch the items.
To close the notifications window, slide your finger up the screen.
15
Notes: On the home screen, touch the bar and slide your finger down to
open the list of notifications displayed in the sliding window, such as
aeroplane mode, WF, BLT, Data connection, Brightness, Audio Profit, you
can open or close the selected function directly.
2. Using phone features
2.1 Turning the phone function on and off
To enable or disable aeroplane Mode
In many countries, you are required by law to turn off the phone while on board
an aircraft. Another way to turn off the phone function is to switch your device
to aeroplane Mode.
When you enable aeroplane Mode, all wireless radios on your device are turned
off, including the phone function, BLT, and WF.
1. Touch --> Settings -> More… -> aeroplane mode.
2. Touch ‘aeroplane mode’ to enable or disable.
When you disable aeroplane mode, the phone function is turned back on and the
previous state of BLT and WF are restored.
Adjusting the volume
Press Volume button on the right side of the phone to show the volume screen.
If the phone is in vibrating mode, the voice will be muted automatically and the
device will vibrate when there is an incoming call.
2.2 Making a call
Calling a voice call
On Home screen, touch Æ Phone to enter the dial screen.
Touch the on-screen dial pad to enter a number, touch ‘Delete’ button to delete
numbers you’ve entered. Touch & hold to delete all the numbers in the field.
To dial a number, touch ‘Voice Call’ button to make a call. To end a call,
touch ‘END’ button (Red icon).
1. Speed Dial tab: Select an entry listed in the log to call the number.
2. Contacts tab: Contacts with phone numbers are listed. Select a contact, and
then select the phone number to dial the call.
16
2.3 Answering and Ending a call
When you receive a phone call, the incoming voice call screen will appear,
allowing you to either answer or ignore the call.
1. To answer an incoming call, slide ‘ANSWER’ (Green icon) button rightward.
2. To reject a call, slide ‘REJECT’ button (Red icon) button leftward.
2.4 In-call options
While on a call, reveal the in-call options: Speaker, Mute, keypad, Hold, End.
1.Speaker：While on a call, touch ,start hands-free calling model, touch
again, close the hands-free calling model
2.Mute: To mute your side of the conversation, touch ,if you want to
cancel the mute, touch again
3.Keypad：touch , enter the dial interface
4.Hold：To hold on the current call , touch if you want to restore the call,
touch again
5. Others: If you need to add another call while on a call, touch ;if you
want to record the conversation, touch
17
2.5 Using call history
1. The missed call icon appears in the title bar when you missed a call.
2. Use ‘Call history’ tab to check who the caller was, or view all your dialed
numbers, and received calls. To open ‘Call History’ tab, touch then ‘Call
History’ button in the right screen to enter the call history list.
3. Touch icon on the left at selected contact, then you can make to do the
following options of call, edit number before call, send text message, add to
contacts or remove from call history.
2.6 Call settings
On Home screen, touch , then touch ,choose the setting menu to make the
general setting and calling accounts setting
3. Setting on your device
Control phone-wide settings from the Home settings screen: touch and
select Settings.
3.1 Wireless & networks
WF
Turn on WF if you prefer to use WF for your data connection.
Open the WF settings screen, select it from the network list. Provide your user
name or password if required.
BLT
• If BT is off, check BT to turn it on, you can open the BLT settings screen to:
• Rename your device.
• Pair or unpair with one of the BLT devices in range - You will be asked to type
a PIN before pairing. Refer to the manufacturer’s documentation for the PIN
code.
• Rescan for devices.
•Displays the files received.
Data usage
Open and close mobile network, check data usage.
18
More…
Aeroplane mode on/off: When aeroplane mode is selected, all wireless
connectivity will turn off. This icon will display in the status bar when
aeroplane mode is selected.
Mobile network
• Select data roaming capability.
• Select a wireless operator network - Scan for all available networks, or select a
network automatically.
• Add or edit network Access Point Names (APNs) - Do not change this setting
unless advised to do so by your wireless operator!
3.2 Device
Display
Brightness Level: Select to open the brightness control, and then slide your
finger along the brightness bar to set the level.
Sleep: Select to decide how long your phone must be inactive before the screen
turns off.
Sound & Notification
Select one user profile and enter the following options:
Vibrate: Select to have your phone vibrate for incoming calls.
Volumes: Select to open the volume control, and then slide your finger along the
volume bar to set an incoming call ring volume or alarm, playing back music,
videos.
Voice/video ring tone: Select to decide on a ring tone to use for incoming calls.
Note that you can override this setting for individual contacts in the Edit contact
details screens.
Default Notification Sound: Select a ring tone to use for a notification (e.g., new
message). Note that you can override this setting for new Calendar event
notifications, text and multimedia message notifications. Go to the applications
settings screens to select specific ring tones.
Dial pad touch tones: Select to have a tone sound when you use the on-screen
Dialer.
Touch sound: Select to have a sound play when you select an item on the screen
19
either using touch.
Storage
View and manage the data storage on your phone.
Micro SD card: Monitor and manage the use of your Memory card from this
screen:
1. View how much space you are using on your memory card.
2. Select to use your memory card as USB mass storage when your phone is
connected to your computer (selected by default)
3. Unmount/eject your memory card from your phone. Note that when your
phone is connected to your computer via USB, you cannot view pictures or play
any media stored on the card from your phone.
Internal phone storage: Reports how much internal storage is free.
Battery
Check the battery usage and related function
Applications (Apps)
View all the applications stored on your phone and how much space they
occupy. If you’ve installed an application, you can uninstall it from this screen.
Select a specific application to:
1. Clear your user data (if you have any associated with a particular
application).
2. Disassociate the application with any actions.
3. Uninstall - If you’ve downloaded an application, you will be able to uninstall
it from this screen by selecting Uninstall.
3.3 Personal
Location
Select a source for determining your location.
Screen unlock pattern: Create a pattern you will be asked to draw before your
screen will unlock. You can select to make the pattern visible or invisible as you
draw it.
SIM card lock settings: Lock your SIM card for extra security. You can also
change your SIM card PIN from this screen. If you don’t know your SIM PIN,
20
you can obtain it from your wireless operator.
Make Password Visible: Select to have your password display as you type it.
Unknown sources: Select this check box if you want the ability to download
applications from the Web. With this check box not selected, you will only be
able to download applications from Google Play. To ensure your personal data
and phone remain secure; it is recommended you not to select this check box.
Accounts
Turn on/off synchronization for all services.
Language &input
Change the language and text input setting, voice input and output setting.
Backup & reset
You can select to reset your phone to factory settings. This will erase all your
data from the phone and require you to sign in and go through the setup screens
to use any of the applications.
3.4 System
Date & time
Set time, time zone, and date: Use Automatic unless you need to override the
network values.
Time format: Select from 12 or 24 hour formats.
Date format: Select from a variety of formats.
About phone
View your phone Status: This screen lists a variety of information, including
your phone number, the network you are currently using, the type of network,
signal strength, whether you are roaming or not, any WF addresses you’re
connected to, and more.
View the model number and version information for your phone.
4. Contacts
Learn how to create and manage the contact list. Save the contact name, phone
number, E-mail address, etc.
21
4.1 Add a contact
Touch on the bottom of the contact list to add a new contact.
4.2 Enter contacts list, click on the search icon on the right side of the set button
Delete contact：choose one or more contacts to delete
Display contact: user-defined to display the contacts of SIM card and phone
Input& output：copy the contacts among the phones、SIM card 、the memory
card
Contact group：By creating a contact group, can manage multiple contacts, or
send the message or E-mail to the group
Share the displayed contact：share shows contact by MMS, SMS, BLT share
contacts, etc.
4.3 Select a contact, enter the contact interface, you can edit contact, make calls,
send messages, delete contact and share contacts
5. Messages
Learn how to create and send SMS or MMS，how to view or management
message has been sent or received.
5.1 Send message: enter the new message interface for editing message, enter
the name or phone number, edit the message and click the send icon to send
message
5.2 View message：enter the message interface can view all the messages
5.3 Message setting menu
Message feature is turned on: Change the default SMS application
SMS settings: change the delivery report, manage SIM card information, edit
common phrases, short message service center, and message storage location
MMS settings: change the mass of information, send reports, read reports,
allowed to return to read the report, automatic acquisition, roaming
automatically acquire, build mode, MMS size restrictions, priority etc. MMS
settings
22
Message notification settings: change notification prompt tone, vibrate mode,
and a pop-up message notification, etc.
Basic Settings: Change the display settings, storage settings, cell broadcast
settings, push information display settings and other basic settings
6. Internet
You can connect to the internet by SIM card data and WIFI
6.1 Select the browser. Default home page open
6.2 To access a specific web page, select the URL input field, enter the web
address (URL), and then select
6.3 To return to the previous page, press the return key.
6.4 Browse the Web, use the following features:
To reload the page, press the Option key ---> Refresh.
To stop browsing, press the Options button ---> Stop
To return to the main page, press the Option key → page.
To add the current web page as a bookmark, press the Options key → Save to
bookmarks
To close the current web page, press the Options button → Close
To send web address to others, press the Option key → share page.
To search for text on a web page, press the Options button → Find on page
To view the bookmark page history, press the Options button → Bookmarks /
History
To customize the browser settings, press the Options button → Settings
7. Multimedia
7.1 Camera
Learn the basic operation to capture and view photos and videos.
1. Taking picture
Select camera → enter the camera mode.
23
z The lens at the subject and make any adjustments.
z click to take pictures which will be saved automatically。
2. Shooting Video
z Choose camera → go to shoot video mode.
z The lens at the subject and make any adjustments
z Click to shoot video.
z Click to finish the shooting which will be saved
automatically.
3. Viewing photos or videos
z Click the icon in the bottom right of the viewfinder screen to
enter the viewing interface
z share pictures or videos via BLT and Information
z on the picture to edit, delete, cut, set a picture as contact picture and
wallpaper
z Rotate pictures, view pictures or videos detailed information.
4. Camera settings
z Click the left corner icon of the viewfinder screen to enter the
setting interface
z viewfinder screen, camera and video personalize
24
7.2 Music
Using the music player to listen to your favorite music : -
7.2.1 Add music files to your phone :
You can add files to the memory card through the network to download or copy.
7.2.2 To copy files to the memory card:
- Insert a micro-SD card.
- Use the PC data cable as provided to connect the micro-USB jack on the
phone and the computer.
When connected, there is a pop-up window on the PC.
- Open the folder to view files.
- Copy files from the PC to the micro-SD card.
7.2.3 Select Music :
- Select a music category → select the music file to play
7.2.4 Adding music files to a playlist :
- Select Music
- Select the artist / album / song label, tap and hold to add the artist, album or
song, then on the pop-up menu, select Add to playlist, add one or more music
files.
- Select the current playlist, add music files to the current playlist; or select New
playlist, enter a name for the new playlist, select Save to create a new playlist
and add music files.
25
7.3 FM
To listen to the music and news from the FM, please use earphone as the
antenna.
7.4 Audio Recorder
Record the audio on audio recorder
8. Other applications
8.1 Calendar
On calendar screen, choose Week, Month, Day or Agenda to switch screen
mode.
Pressing Option to create new activity, refresh, search, show calendar and delete
all the events as well as turn to setting.
8.2 Clock
Setting Alarm clock, time counter and stopwatch features.
8.3 Calculator
To do the basic calculation with the corresponding keypad.
9 Play Store
Downloading applications in Play Store.
