User Manual

1



USERMANUAL

Q88



Safety Precautions

Read these safety instructions before using your device and store them for possible future reference. Always

follow these basic safety precautions when using your Mobile device. This reduces the risk of fire, electric shock,

and injury.

● Do not expose this product to rain or moisture.

● Keep the device out of direct sunlight and heat sources.

● Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by

items placed on or against them. Pay particular attention to the point where the cord attaches to the

device.

● Only use the AC adapter included with the device. Using any other power adapter voids your warranty.

● Do not remove the cover. There are no user-serviceable parts inside.

● If the charger cord is damaged, have it repaired by the manufacturer, its service or a similarly qualified

person in order to avoid any hazard.

● The charger is not intended for use by persons (including children) with reduced physical, sensory or

mental capacity. Persons who have not read the manual, unless they have received explanations by a

person responsible for their safety and supervision should not use this unit.

● Children should be monitored to ensure that they do not play with the charger.

● The charger should always be readily accessible.

● The device should not be exposed to dripping or splashing water.

● No objects filled with liquids such as vases shall be placed on the device.

● Always leave a minimum distance of 10 cm around the unit to ensure sufficient ventilation.

● Naked flame sources, such as candles, should not be placed on top of the device.

● The device is intended for use only in a temperate climate.

● CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or

equivalent.

● The battery should not be exposed to excessive heat such as sunshine, fire or similar.

● Different types of batteries, new and used batteries should not be mixed.

● The battery must be installed according to the polarity.

● If the battery is worn, it must be removed from the product.

● The battery must be disposed of safely. Always use the collection bins provided (check with your dealer)

to protect the environment.

Clean your Device

Treat the screen gently. To clean fingerprints or dust from the screen, we recommend using a soft, non-

abrasive cloth such as a camera lens cloth.

If the charger cord is damaged, have it repaired by the manufacturer, its service or a similarly qualified person in order

to avoid any hazard.

The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capacity.

Persons who have not read the manual, unless they have received explanations by a person responsible for their

safety and supervision should not use this unit.

Children should be monitored to ensure that they do not play with the charger.

The charger should always be readily accessible.

The device should not be exposed to dripping or splashing water.

2

No objects filled with liquids such as vases shall be placed on the device.

Always leave a minimum distance of 10 cm around the unit to ensure sufficient ventilation.

Naked flame sources, such as candles, should not be placed on top of the device.

The device is intended for use only in a temperate climate.

CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent.

The battery should not be exposed to excessive heat such as sunshine, fire or similar.

Different types of batteries, new and used batteries should not be mixed.

The battery must be installed according to the polarity.

If the battery is worn, it must be removed from the product.

The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the

environment.

SWITCH OFF IN RESTRICTED AREAS

Turn off the power when the useof the mobile device is not authorized or when it may cause interference or danger,

for example; on board an aircraft, near medical equipment, fuel, chemicals or blasting sites.

ROAD SAFETY COMES FIRST

Check the current laws and regulations in the area where you drive, regarding the use of mobile devices such as this

mobile device.

• Do not hold this mobile device while driving

• Concentratefully on the driving

• Radio Frequency (RF) can affect certain electronic systems in your car, such as the audio-stereo system or

security equipment.

• An airbag inflates with great force. Do not store the mobile device or any of its accessories in the area above the

bag or in its deployment area.

INTERFERENCE

All wireless devices are susceptible to interference which can affect their performance.

AUTHORISED PERSONNEL

Only qualified personnel are authorized to install or repair this product

ACCESSORIES

Only use batteries, chargers and other accessories which are compatible for this device. Do not connect incompatible

products.

KEEP YOUR DEVICE DRY

Your device is not water proof. Keep it dry.

CHILDREN

Keep the mobile device in a safe place out of the reach of young children. Your mobile device contains small pieces

which can present a choking hazard.

3

Specification



Display Type: 7 inch TFT panel

Max Resolution: 800 x 480

Processor Type:Boxchip A23

Storage drive type: 4GB

System RAM: 512M DDRIII

Operating System: Android 4.2

Touch Panel: Resistant Touch Panel

Wireless connection : 802.11b/g/n

Built-in battery capacity: Li-polymer rechargeable battery 1000mAH

Out-put: DC 5V---2A

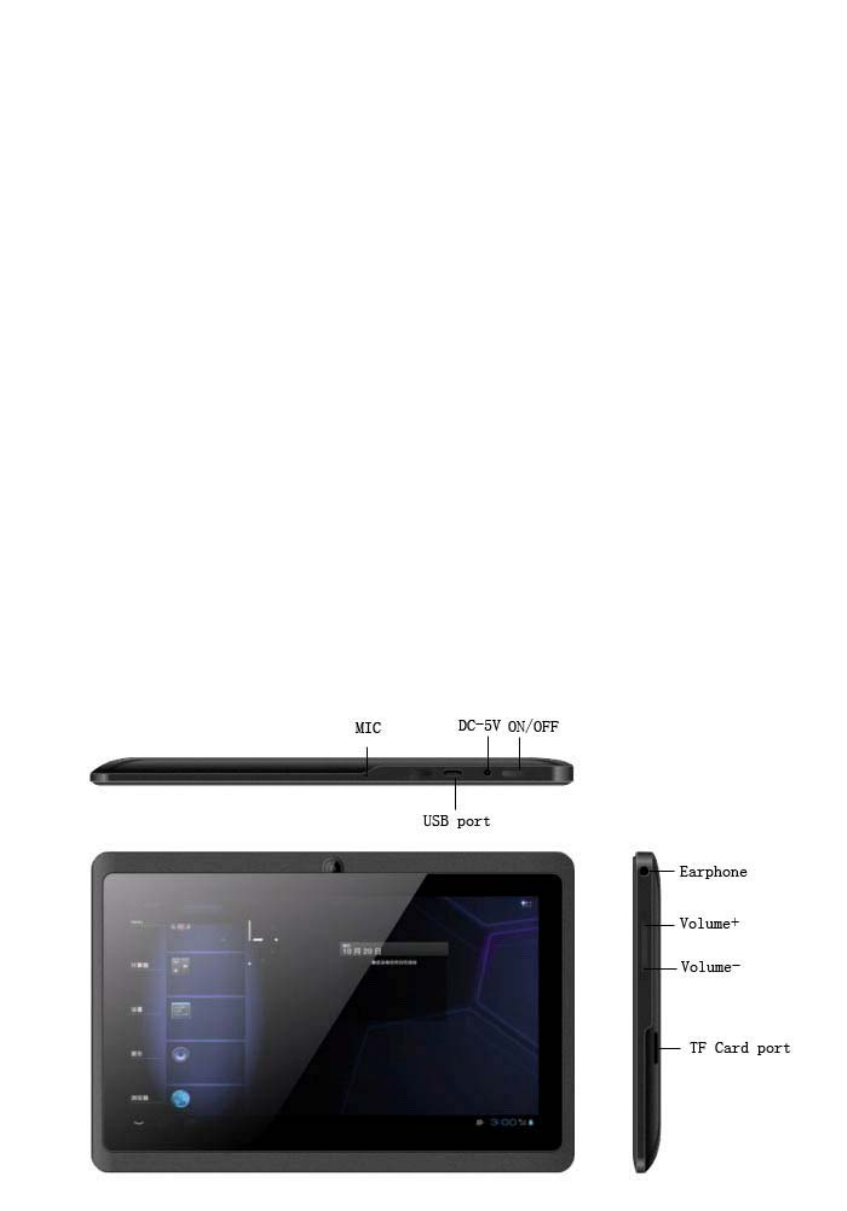

1.OutlookDescription



2.PowerButtonUsage

Startingup：Longpressthepowerbuttonfor3seconds.

Poweroff：Longpressthepowerbuttonfor3seconds→clickpoweroff→clickconfirm

Screenoffandon：Shortpresspowerbuttontoturnofforturnonscreen

4

Mandatoryshutdown:Ifthedevicehasnoresponse,longpressthepowerbuttonfor6secondstoperform

mandatorypoweroff

Notice:Incaseofnonecessaryconditions,It'sbetternotusemandatorypoweroff.Poweroffshouldbeperformed

normallyaccordingtothestandardsteps.

3．Desktop

3‐1IntroductionofMainInterface

Pressandholdthepowerbuttontobootupthemachine,thescreenafterboot‐upisinalockedstate,slideon

unlockicontounlock,thenyouwillenterthemaininterfaceasshownbelow.Throughthisinterfaceyoucanbrowse

menuusedrecently,replacewallpaper,addwidgetsorprogramshortcut,openproceduresorcarryouttheother

operations.

 

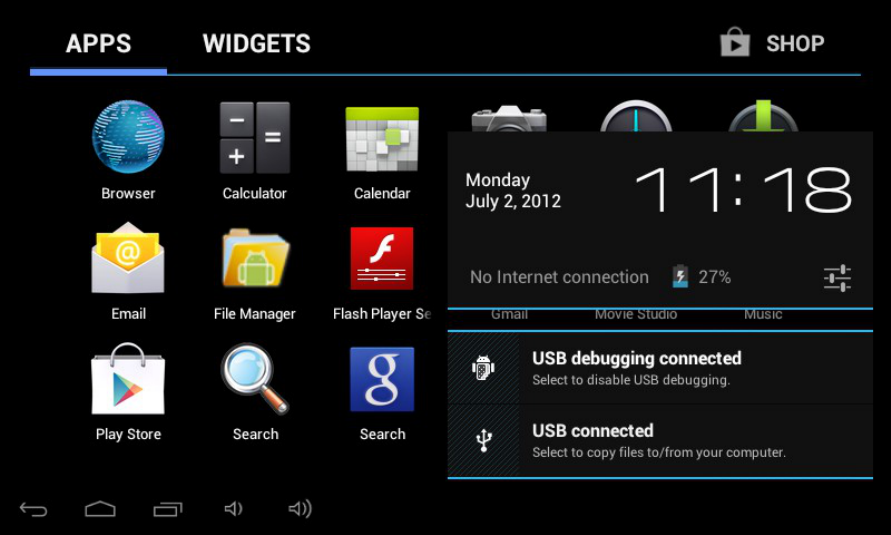

3‐1‐1.Statusbar:taponstatusbaratthelowerrightcornerwithfinger,youcanopennotificationbartoreadprompt

message,networkingstatus,batterystatus,andcanalsoseetoday'sdateandtime.

3‐1‐2.Returnbutton:tapwithfinger,youcanreturntothepreviousoperationorexittheapplicationprogram.

3‐1‐3.Maininterface:tapmaininterfacebuttontoenterthemaininterface:

 

5

●Add:itsfunctionistoaddsmalliconswithavarietyoffunctionsorwidgets,folders,wallpapers;youcandelete

iconsonmaininterfacebyholdingdowntheicontobedeleted,whenthereisX‐Removeiconappear,dragthisicon

directlytoXfordeletion

●FileManager:viewalltheproceduresinthismachineanduninstallprogramsinstalled;

●Wallpaper:inthismenu,youcansetupyourfavouritepicturesasthebackgroundofthemaininterface.

●Search:enterWebpagesearchwaitingstate,inputwebsitehereforsearch.

●Setting:touchanddirectlyenterthesystemsettingmenuinterface.

3‐1‐4．Menubuttonrecentlyused:touch,itwillpopupfunctionalmenusrecentlyusedasfollows:

Throughthisshortcutbutton,youcanquicklyaccesstoapplicationprogramsrunninginthebackstageandbrowse

tracesofrecentuse.

3‐1‐5．Volume‐,volume+



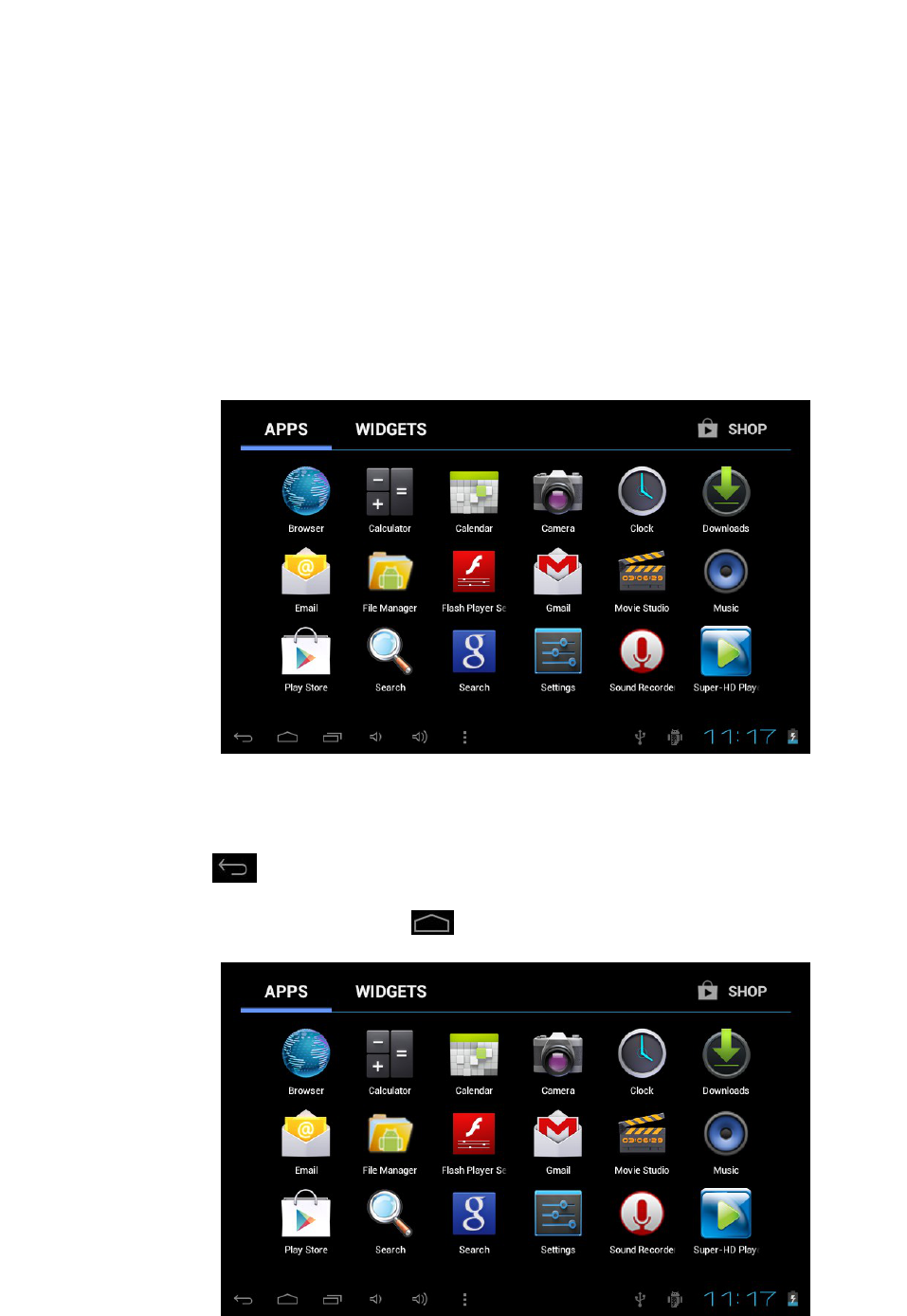

3‐1‐6．Mainmenubutton:touch,itwillpopupafull‐functionmenuasfollows:



Thiswindowshowsallfunctionaliconsinthismachine,touchanyicontoentertherelevantfunctionalinterface,

functionsoftheseiconsareintroducedbrieflyasfollows:

Browser:touchtoenterInternetinterfaceandbrowsingwebsites.

Calendar:viewcalendarandsettings.

Calculator.

Clock:cansetalarmclock.

Music:canplaymusic.Pleaserefertotheintroductionof(3‐1.Music)forthemethodofoperation.

6

Video:pleaserefertotheintroductionof(3‐2.Video)forthemethodofoperation.

Recorder:enterrecordinginterfaceforrecording.Pleaserefertotheintroductionof(3‐3.Recording)forthe

methodofoperation.

Camera:pleaserefertotheintroductionof(3‐4.Camera)forthemethodofoperation.

3‐2．Installation

ThismachineisfreetoinstallAPK(abbreviationofAndroidPackage,namelyAndroidinstallationpackage)program,

youcangetthird‐partyapplicationprogramssuitablefortheAndroidsystemontheelectronicmarketorthrough

Internet,andcaninstallitonthismachinebyyourself.

Firstopen"Settings/Security",tickitemsbehind"UnknownSource".



3‐2‐1．Programaccess：

Method1:downloadthroughInternet,thencopytheapplicationprogramintoTFcardorUdiskandtheninsertit

intothemachine;orcopyfilesfromyourcomputerthroughUSBcabletothemachine.

Method2:downloadapplicationprogramthrough"ApplicationMarket"inthismachinetoyourTFcard.

3‐2‐2．ProgramInstallation：

Touchmaininterfaceshortcut,select"Filemanager"andthenenterrootdirectoryintheSDcard,internalstorageor

USB(correspondingUdisk),thentouchthefilemanagertobeinstalledinaccordancewiththeSetupWizard.

3‐2‐3．ProgramUninstall：

7

Touchmaininterfaceshortcut,select"PlayStpre"andthenselect"Manager"toentersoftwarelist,touchthe

programtobeuninstalled,select"Uninstall"inthepop‐upcheckbox,thentouch"OK"tofinishuninstall.

3‐3．Textinput

Whenyoustartupaprogramorselectthetexteditboxneededforinputtextsornumbers,ascreenkeyboardwill

appear.Thekeyboardhasthefollowinginputmethodsforselection:

●Androidkeyboard

●GooglePinyininputmethod

3‐3‐1．Selectinputmethod

Basedonpreset,themachinewilldisplaytheAndroidkeyboardwhenyouwanttoinputtexts.

1.TouchMenubuttononthehomepageinterface,andtouchsettings.

2.Touchlanguageandkeyboard.

3.Inthelanguageandkeyboardsettingsarea,inputmethodsinstalledinyourmachinewillbelisted.

4.Tickontheinputmethodyouneed.

3‐3‐2．Useandswitchinputmethods

1.Onthetextinputinterface,holddowntexteditboxareauntiltexteditmenupopup.Thentouch"Input

Method".

2.Selectyourdesiredinputmethod.

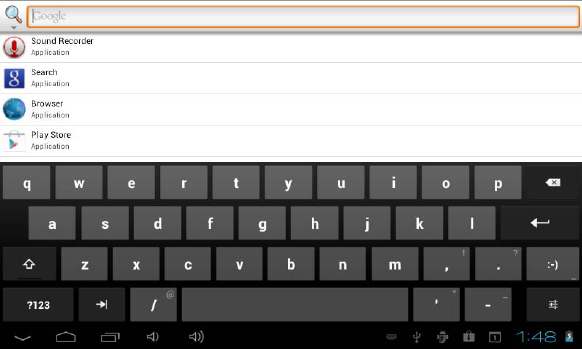

KeyboardpanelofAndroidPinyininputmethod



4．Internet

4‐1．Networksetting

Touchstatusbaratthebottomright,select"Set/WirelessandNetwork"toenternetworksettinginterface:

8



Inthe"WirelessandNetwork"settinginterface,holddown"WI‐FI"anddragtotherighttoopenWI‐FI.

AfterWI‐FIopen,itwillautomaticallysearchwirelessrouternetworkanddisplayitinalist,touchonthewireless

routernetworktobeconnected(forexample,d‐linkwirelessrouternetworkillustratedbythismachine),youwill

enterthepasswordinputinterface,inputthenetworkpasswordandthentouch"Connect",thismachinewill

automaticallyconnecttoawirelessrouterafterawhile,thenyoucanconnectittotheInternetinanormalstate.



4‐2.Webbrowser

Touchmaininterfaceshortcut,select“Browser"toenterbrowserinterface,touch“Menu"button,itwillpopup

browsersettingmenu;touch"Start",addressbarwillpopup,inputwebsiteandconfirm.Afteropenawebpage,you

canslideyourfingerupanddownonthescreentobrowseandviewtheotherpartsofthewebpage,italsosupport

simultaneousopeningandfreeswitchesofmultiplewindows,whichchangealotofinconvenienceofsinglewindow

ofAndroid4.0inthepast.

9



4‐3.E‐mail

E‐mailprogramcanreceiveandsende‐mail.E‐mailapplicationprogramisaccompaniedbye‐mailsetupwizard,

youcanaddexternalPOP3orIMAPe‐mailaccountoffamiliarWeb‐basedemailserviceproviders(suchasYahoo,

Gmail,Hotmail,andNetease).

Note:priortoE‐mailSetupWizard,makesurethatyournetworkhasbeenconnectedandthetimesettingiscorrect.



4‐3‐1．Mailbox

Touchmaininterfaceshortcut,select“Email"icon,mailboxsetupwizardwillhelpyousetup.Touch"Next"button,

inputE‐mailaddressandpasswordofyourE‐mailaccount.Thentouch"Next"button,selectyourmailboxtype‐‐

POP3orIMAP.Thentouch"Next"buttontocheckwhethertheE‐mailsendingandreceivingserverisavailable,input

youraccountnameandthenameyouwanttodisplaywhensendingE‐mails,thentouch"Finish".Ifthemailboxis

available,itwillautomaticallyenteryourinbox.

5．MultimediaEntertainment

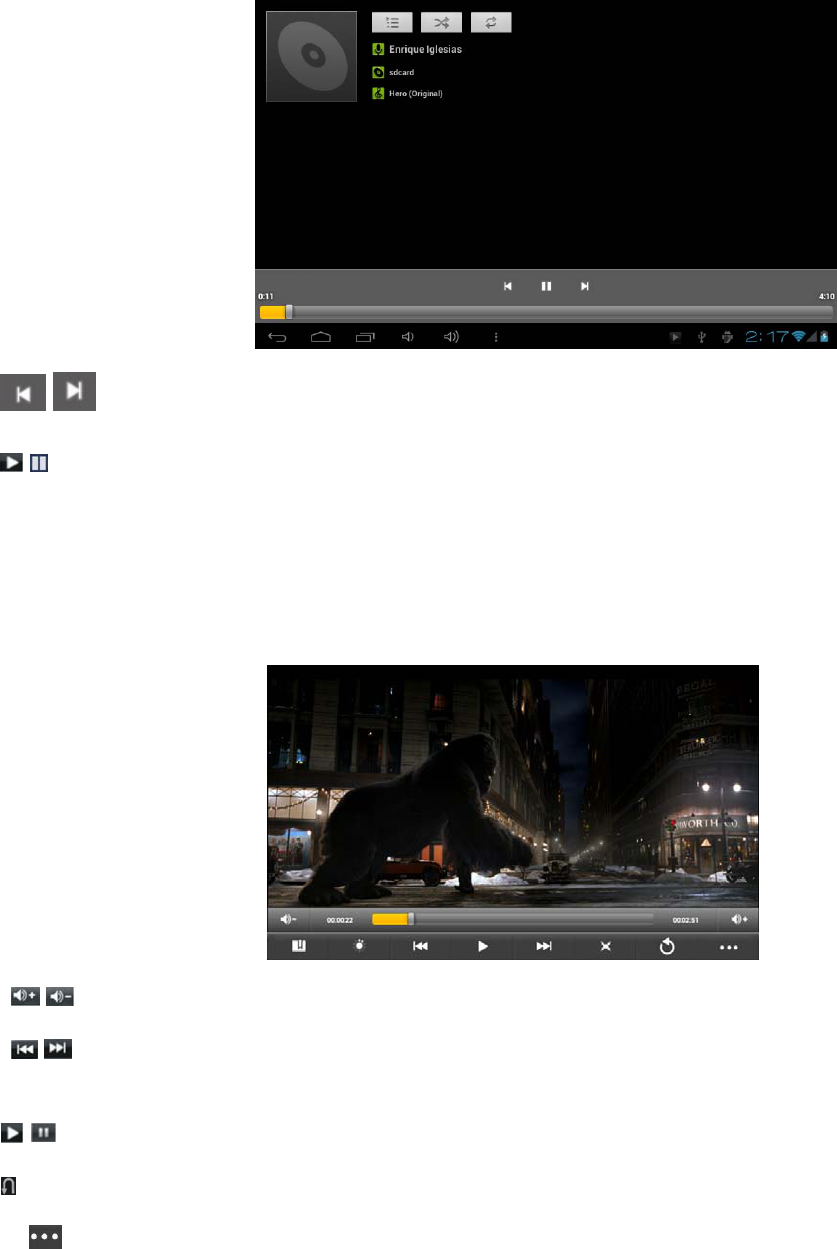

5‐1.Music

Selectmusicicon,touchandentermusicfilelist,inwhichtouchthemusicyouwanttoplayasshownbelow:

10



"/"Selectprevious/nextsong,fastbackward/fastforward;youcanalsorealizefastbackward/fastforward

bydirectlyslidingtheprogressbar.

"/":Play/pausemusic;

5‐2.Video

Selectvideoplayericon,touchandentervideofilelist,inwhichyoucanholddownthebottomofthevideofiles,it

willpopupa"Delete"menu,touch"Delete"todeletethevideofiles.Selectvideoandtouchtoentervideoplayer

interface;



“/ ”：Volumeup/down;

“/ ”：Selectaprevious/nextvideoandfastbackward/fastforwardinthecurrentvideo;youcanalsorealize

fastbackward/fastforwardbydirectlytouchingontheprogressbar.

“/ ”：Play/pauseavideo;

“”：Returntopreviousmenu;

Tapformorehumanizedsettings:

5‐3.Recording

Selectrecordingicon,touchittoentertherecordinginterface:

11



Intherecordinginterface,touch""tostartrecording,aftertherecordingisfinished,touch" "tosave

automatically.Therecordedfileswillbesavedinthe"Recordings"filefolderunderrootdirectoryin

"recordingxxxxx.mp3"fileformat.Alltherecordingfilescanbeplayedinthemusicplaymode.

5‐4．Camera

Selectcameraicontoentertheshootingmode.

5‐4‐1．Self‐timephoto

Intheshootingmode,touch"”totakephotos.Photographfilesarestoredinthe"internal

storage/DCIM/Camera"directory,filenamewillbegeneratedautomaticallyinorderintheformatof"year,month,

date,hour,minute,second.jpg".Touch""forbrowsingallphotostaken.

6．Setting



6‐1.Wirelessandnetwork:inthissetting,youcansetupnetworkconnection;themethodofoperationhasbeen

describedindetailin(2‐1NetworkSetting).

6‐2.Dateusage:youcansetdate,time,timezoneandtimedisplayformatyoulike.

6‐3.Sound:youcansetmediavolume,notificationrings,selectoperatingsound,screenlockprompttone;

6‐4.Display:rotatethescreenautomatically(ifautomaticallychangedirectionwhenrotatingMID),wallpaper

(choosefromdynamicwallpaper,photogallery,wallpapergallery),brightness(adjustbrightnessofthescreen),

sleep(timesettingofscreensaver).

12

6‐5.Storage:viewavailablecapacityofmemoryofSDcardorthemachine,uninstallSDcard,formatSDcard.

6‐6Batterycheckbattery’sstate

6‐7.Applicationprogram:inthismenu,youcanviewthememoryspace,manage/deleteinstalledapplications,view

andmanagerunningservices.

6‐8.Locationandsecurity:youcanmakethefollowingsetting:showmylocationwhenusingthenetwork,set

patternsforunlockingscreen,ifitscharactersshallbeshownwhenenteringpassword,setwhetherinstallationof

third‐partyapplicationprogramisallowedin"Unknownsources".

6‐9.Language&input,selectlanguageandsetinputmethod.

6‐10backup&resest

6‐11.AboutTabletPC:viewthestatusofthemachine,powerusagestate,legalinformation,modelandversion

numberofsoftware.



Connecttoacomputerandfiletransfer

ConnectthemachinetoacomputerthroughaUSBcable,thestatusbaratthebottomrightofthescreenwill

promptthatUSBhasconnected,defaultUSBconnectionis"connectasamediadevice",thenuserscanaccestothis

machineandtakeasaremovabledisk;Ifyouneedtoconnectapplicationofmobilephonessuchas91assistantor

peapod,youshouldopen"USBdebugging"modethrough"Settings"‐"System"‐"Developer'soption".TheUSB

storagestatesystemwillrestrictuserstouserelevantapplicationprogramswhichneedtoaccesstothelocaldisks

ofthemachine,itwillreturntonormalwhendisconnectingtheUSBstoragestatusasshownbelow:

13



14

FederalCommunicationsCommission(FCC)Statement

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)This

devicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.



Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto

part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferencein

aresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,

thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,

theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

z Reorientorrelocatethereceivingantenna.

z Increasetheseparationbetweentheequipmentandreceiver.

z Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

z Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Warning:ChangesormodificationsmadetothisdevicenotexpresslyapprovedbyDORRYELECTRONICS

INTERNATIONALCO.,LTDmayvoidtheFCCauthorizationtooperatethisdevice.

Note:Themanufacturerisnotresponsibleforanyradioortvinterferencecausedbyunauthorizedmodificationsto

thisequipment.Suchmodificationscouldvoidtheuser’sauthoritytooperatetheequipment.



DORRY ELECTRONICS Q88 TABLET PC User Manual Q8English

DORRY ELECTRONICS INTERNATIONAL CO.,LTD TABLET PC Q8English

User Manual

Navigation menu

Namespaces

Views

Navigation
