DQ Technology 202ER-4 FOUR PORT ETHERNET ADSL MODEM / ROUTER User Manual
DQ Technology, Inc. FOUR PORT ETHERNET ADSL MODEM / ROUTER
User Manual
![](/img.php?id=298668&img=bg1.png)
VisionNet
202ER-4 ADSL Ethernet Router
User’s Manual
Revision 1.0
November 01, 2002
![](/img.php?id=298668&img=bg3.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
iii
Table of Contents
1 Introduction........................................................11
Features ..............................................................................11
System Requirements ........................................................11
Using this Document...........................................................12
Notational conventions ................................................12
Typographical conventions..........................................12
Special messages........................................................12
2 Getting to Know the VisionNet 202ER-4...........13
Parts Check.........................................................................13
Front Panel..........................................................................14
Rear Panel ..........................................................................15
3 Quick Start.........................................................17

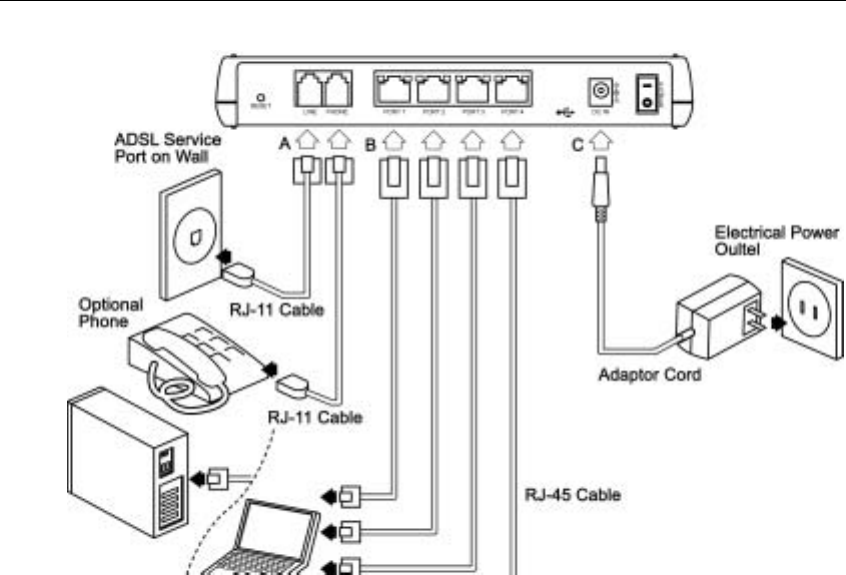

Part 1 — Connecting the Hardware...................................17
Step 1. Connect the ADSL cable and optional
telephone..................................................................18
Step 2. Connect the Ethernet cable. ...........................19
Step 3. Attach the power connector............................19
Step 4. Turn on the VisionNet 202ER-4 and
power up your systems. ...........................................19
Part 2 — Configuring Your Computers..............................20
Before you begin..........................................................20
Windows 95, 98 PCs: ...............................................20
Windows NT 4.0 workstations:....................................21
Windows 2000 PCs: ....................................................22
Windows Me PCs ........................................................23
Assigning static Internet information to your
PCs ...........................................................................24
Part 3 — Configuring the VisionNet 202ER-4오류! 책갈피가 정의되어 있지 않습
Logging in to the VisionNet 202ER-4 Quick
Setup.........................................................................25
Operation Mode ...........................................................26
![](/img.php?id=298668&img=bg4.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
iv
DNS Settings................................................................26
PPP Settings................................................................26
Default Router Settings................................................27
Testing Your Installation .....................................................28
Using VisionNet’s Diagnostic Utilities.................................29
4 Getting Started with the Configuration
Manager .........................................................31
Accessing the Configuration Manager...............................31
Functional Layout................................................................33
Commonly used buttons..............................................33
The Home Tab and System View Table............................34
Changing the System Date and Time................................36
Changing the System Date and Time................................36
Changing Your Login Password.........................................37
Committing Your Changes and Rebooting the
Device..............................................................................38
Committing your changes............................................38
Rebooting the device using Configuration
Manager....................................................................39
5 Setting the LAN IP Address ..............................41
Ethernet, USB, or Both?.....................................................41
Configuring the LAN IP Address ........................................42
Configuring the USB Port IP Address................................45
6 Viewing System IP Information and
Performance Statistics ...................................47
Viewing the VisionNet 202ER-4’s IP addresses................47
Viewing IP Global Statistics................................................48
7 Configuring Dynamic Host Configuration
Protocol ..........................................................49
Overview of DHCP..............................................................49
What is DHCP?............................................................49
![](/img.php?id=298668&img=bg5.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
v
Why use DHCP?..........................................................49
VisionNet 202ER-4 DHCP modes ..............................50
Configuring DHCP Server ..................................................51
Viewing, modifying, and deleting address
pools, and excluding IP addresses from a
pool ...........................................................................54
Viewing current DHCP address assignments.............54
Configuring DHCP Relay....................................................56
Setting the DHCP Mode .....................................................57
8 Configuring Network Address Translation ........59
Overview of NAT.................................................................59
Your Default NAT Setup.....................................................60
Viewing NAT Global Settings and Statistics .....................61
Viewing NAT Rules and Rule Statistics.............................64
Viewing Current NAT Translations.....................................65
Adding NAT Rules ..............................................................67
The napt rule: Translating between private and
public IP addresses..................................................67
The rdr rule: Allowing external access to a
LAN computer...........................................................69
The basic rule: Performing 1:1 translations ................72
The filter rule: Configuring a basic rule with
additional criteria.......................................................73
The bimap rule: Performing two-way
translations................................................................75
The pass rule: Allowing specific addresses to
pass through untranslated........................................76
9 Configuring DNS Server Addresses .................79
About DNS..........................................................................79
Assigning DNS Addresses .................................................79
Configuring DNS Relay ......................................................78
10 Configuring IP Routes.......................................81
Overview of IP Routes........................................................81
Comparing IP routing to telephone switching.............81
![](/img.php?id=298668&img=bg6.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
vi
Hops and gateways.....................................................82
Using IP routes to define default gateways.................82
Do I need to define IP routes?.....................................82
Viewing the IP Routing Table.............................................83
Adding IP Routes................................................................85
11 Configuring the Routing Information
Protocol ..........................................................89
RIP Overview......................................................................89
When should you configure RIP?................................89
Configuring the VisionNet 202ER-4’s Interfaces
with RIP............................................................................88
Viewing RIP Statistics.........................................................90
12 Configuring the ATM VCC ................................91
Viewing Your ATM VC Setup.............................................91
Adding ATM VCs ................................................................92
Modifying ATM VCs............................................................94
13 Configuring PPP Interfaces...............................95
Viewing Your Current PPP Configuration..........................95
Viewing PPP Interface Details............................................99
Adding a PPP Interface Definition....................................100
Modifying and Deleting PPP Interfaces ...........................101
14 Configuring EOA Interfaces ............................103
Overview of EOA ..............................................................103
Viewing Your EOA Setup .................................................104
Adding EOA Interfaces.....................................................106
15 Configuring IPoA Interfaces ............................109
Viewing Your IPoA Interface Setup..................................109
Adding IPoA Interfaces.....................................................110
![](/img.php?id=298668&img=bg7.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
vii
16 Configuring Bridging........................................113
Overview of Bridges..........................................................113
Using the Bridging Feature...............................................114
Defining Bridge Interfaces ................................................115
Deleting a Bridge Interface...............................................116
17 Configuring Firewall Settings ..........................117
Configuring Global Firewall Settings................................117
Managing the Black List ...................................................120
18 Configuring IP Filters.......................................121
Overview ...........................................................................121
Viewing Your IP Filter Configuration ................................121
Configuring IP Filter Global Settings................................122
Creating IP Filter Rules.....................................................123
IP filter rule examples .......................................................128
Viewing IP Filter Statistics.................................................130
Managing Current IP Filter Sessions ...............................130
19 Viewing DSL Parameters................................133
A IP Addresses, Network Masks, and
Subnets ........................................................136
IP Addresses.....................................................................136
Structure of an IP address.........................................136
Network classes.........................................................137
Subnet masks ...................................................................137
B Binary Numbers ..............................................139
Binary Numbers................................................................139
Bits and bytes.............................................................139
![](/img.php?id=298668&img=bg8.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
viii
C Troubleshooting ..............................................141
Diagnosing Problem using IP Utilities..............................143
ping.............................................................................143
nslookup.....................................................................144
D Glossary ..........................................................145
![](/img.php?id=298668&img=bg9.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
ix
FCC Compliance Statements
NOTE : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures :
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning : Modifications not expressly approved by the manufacturer could void the user’s
authority to operated the equipment under FCC rules.
![](/img.php?id=298668&img=bgb.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
11
1 Introduction
Congratulations on becoming the owner of the VisionNet 202ER-4
ADSL Ethernet bridge/router. Your LAN (local area network) will
now be able to access the Internet using your high-speed ADSL
connection.
This User Guide will show you how to install and set up the
VisionNet 202ER-4 ADSL Bridge/Router, and how to customize its
configuration to get the most out of your new product.
Features
Internal ADSL modem for high-speed Internet access
10/100Base-T Ethernet router to provide Internet
connectivity to all computers on your LAN
USB port for connecting a USB-enabled PC
Network address translation (NAT), Firewall, and IP filtering
functions to provide security for your LAN
Network configuration through DHCP Server and DHCP
Relay
Services including IP route and DNS configuration, RIP,
and IP and DSL performance monitoring
Configuration program you access via an HTML browser
System Requirements
In order to use the VisionNet 202ER-4 ADSL/Ethernet router, you
must have the following:
ADSL service up and running on your telephone line, with
at least one public Internet address for your LAN
One or more computers each containing an Ethernet
10Base-T/100Base-T network interface card (NIC)
An Ethernet hub/switch, if you are connecting the device to
more than one computer on an Ethernet network.
For system configuration using the supplied web-based
program: a web browser such as Internet Explorer v5.0 or
later, or Netscape v4.7 or later
![](/img.php?id=298668&img=bgc.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
12
Using this Document
Notational conventions
Acronyms are defined the first time they appear in text and
in the glossary (Appendix 0).
For brevity, the VisionNet 202ER-4 is referred to as “the
router.”
The terms LAN and network are used interchangeably to
refer to a group of Ethernet-connected computers at one
site.
Typographical conventions
Italics are used to identify terms that are defined in the
glossary (Appendix 0).
Bolded text is used for items you select from menus and
drop-down lists, and to identify field labels you view on-
screen.
Special messages
This document uses the following icons to call your attention to
specific instructions or explanations.
Note
Provides clarifying or non-essential information on the current
topic.
Definition
Explains terms or acronyms that may be unfamiliar to many
readers. These terms are also included in the Glossary.
WARNING
Provides messages of high importance, including messages
relating to personal safety or system integrity.
![](/img.php?id=298668&img=bgd.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
13
2 Getting to Know the VisionNet 202ER-4
Parts Check
In addition to this document, your VisionNet 202ER-4 should arrive
with the following (in picture, clockwise from upper left):
VisionNet 202ER-4 ADSL Ethernet Router
Power adapter and power cord
CD with Manual
Quick Start Guide
Ethernet cable (“straight-through” type)
Standard phone/DSL line cable
Figure 1. VisionNet 202ER-4 ADSL/Ethernet Router Package Contents
![](/img.php?id=298668&img=bge.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
14
Front Panel
The front panel contains lights called LEDs that indicate the status
of the unit.
Figure 2. Front Panel and LEDs
Label When On
PPP It’s On when VisionNet 202ER-4 is connected to PPP which
is working.
LAN On: LAN link established and active.
Off: No LAN link
SYNC On: ADSL link established and active
Blinking: DSL signal found
Off: No ADSL link
Tx/Rx Flashes when ADSL data activity occurs.
May appear solid when data traffic is heavy.
ACT On: Device passed self test
Blinking: Device failed self test
POWER On: Unit is powered on
Off: Unit is powered off
![](/img.php?id=298668&img=bgf.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guid
15
Rear Panel
The rear panel contains the ports for the unit's data and power
connections.
Figure 3. Rear Panel Connections
Label Function
POWER Switches the unit on and off
DC INPUT Connects to the supplied power converter cable
Ethernet
(Port 1 ~ Port 4)
Connects the device to your PC's Ethernet port, or to
the uplink port on your LAN's hub, using the cable
provided
PHONE Provides an optional connection to your telephone
LINE Connects the device to a telephone jack for DSL
communication
RESET Resets the device to the manufacturer’s default
configuration
![](/img.php?id=298668&img=bg11.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
17
3 Quick Start
This Quick Start provides basic instructions for connecting the
VisionNet 202ER-4 to a computer or LAN and to the Internet.
Part 1 describes setting up the hardware.
Part 2 describes how to configure Internet properties on
your computer(s) and how to install the software for using a
computer attached to the USB port.
Part 3 shows you how to configure basic settings on the
VisionNet 202ER-4 to get your LAN connected to the
Internet.
This Quick Start assumes that you have already established ADSL
service with your Internet service provider (ISP). These instructions
provide a basic configuration that should be compatible with your
home or small office network setup. Refer to the subsequent
chapters for additional configuration instructions.
Part 1 — Connecting the Hardware
In Part 1, you connect the device to the phone jack, the power outlet,
and your computer or network.
WARNING
Before you begin, turn the power off for all devices. These
include your computer(s), your LAN hub/switch (if applicable),
and the VisionNet 202ER-4.
Figure 4 illustrates the hardware connections. The layout of the
ports on your device may vary from the layout shown. Refer to the
steps that follow for specific instructions.
![](/img.php?id=298668&img=bg12.png)
VisionNet 202ER-4 ADSL Ethernet Router User’s Guide
18
