Components
Names of parts
Power supply management
Connecting
Using iriver plus4
02
02
04
05
09
Getting Started _01
Basic operations
Listening to the music
Using Bluetooth
Settings
13
13
15
17
Using _02
Safety cautions
Problem solving
Copyright
Certification
Registered trademark
Escape clause
19
20
21
22
22
22
Other information _03
CONTENTS
User Guide
AK100
Quick start guide &
product warranty
Micro USB cable
Micro USB cable: You can connect the product to the
computer and charge it.
Quick start guide: It describes the basic method of
using the product.
Product warranty: Please keep the product warranty in a
safe place in the event your iriver device needs servicing.
Manual: Please read the manual (pdf file) saved as a
PDF file in the product before use.
Components may be changed without notice to
improve the performance or quality of the product.
Compo-
nents
Product appearance, printed and engraved information
may vary depending on the model.

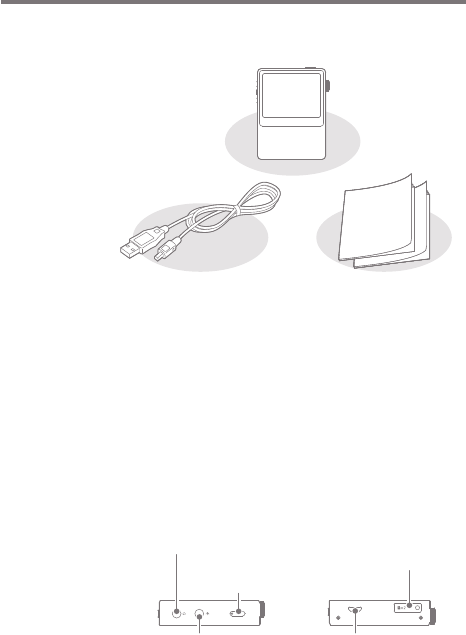

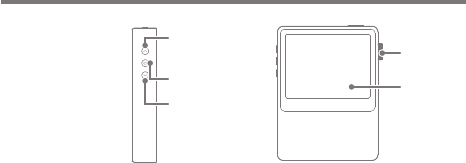

Names of
parts Earphone /
OPTICAL OUT terminal
Power
Micro SD card slot
OPTICAL IN terminal Micro USB terminal
Getting Started
02
Play/Pause
Next/
Fast forward
Previous/
Rewind Volume
Touch
LCD
Earphone / OPTICAL OUT terminal:
Connect the earphone and output sound through the
earphone.
Use an optical cable to play music stored in the
product on an external device capable of SPDIF-IN.
Power: Short - Turn on and off the screen.
Long - Turn on and off the product.
OPTICAL IN terminal: Use an optical cable to play
music stored in an external device capable of SPDIF-
OUT on the product.
Micro SD card slot: Insert a Micro SD card into the
product to see its stored files.
Micro USB terminal: Connect the product to the
computer or charge it.
Previous/Rewind: Short - Replay previous music.
Long - Rewind.
Play/Pause: Short - Play/pause.
Long - Display the playback screen.
Next/Fast forward: Short - Play the next music.
Long - Fast forward.
Volume: Turn the wheel to adjust the volume.
Touch LCD: Display the screen, and touch the screen
to start.
User Guide
Getting Started
03
User Guide
This product has an automatic power saving function to
prevent excessive battery consumption. If there is no key
operation within the prescribed period [Settings - power
settings - automatically turn off], the iriver device will be
automatically turned off. (See page XX)
This product has an automatic screen off function to
prevent excessive battery consumption. According to the
[Settings - power settings - turn off the screen] setting, the
screen will be automatically turned off if there is no key
operation within the prescribed period. (See page XX)
When using the reset function, the current time and
memory data will not be deleted. Do not use the reset
function while the product is in use. Doing so may
seriously damage the memory.
Turn on/off the screen
1. When on standby, press and hold the [ ] key to
turn off.
2. Press the [ ] key once briefly to turn on the screen.
Using the reset function
1. If the product should stop unexpectedly during
operation and the keys no longer function normally,
press the [ ] key and [ ] key simultaneously > 7
seconds to reset the product.
Turn on/off
1. Press and hold the [ ] key to turn on.
2. When on standby, Press and hold the [ ] key to
turn off.
Power
source
manage-
ment
Getting Started
04
Connecting
Connecting the earphone
1. Connect the earphone to the earphone terminal of
the product.
Connecting to a computer
1. Turn on the product and computer.
2. When using a Micro USB cable to connect the product
and the computer, the connection mode selection
window will be displayed on the screen.
- Charging & playing: The iriver device can function
normally while being recharged.
User Guide
Use only the Micro USB cable provided with the product to
ensure safe operation.
Check that it is connected to a high-power USB 2.0 port.
Connecting to a low-power USB port (some keyboards,
USB hubs without their own power supply, etc.), may
prevent normal charging.
Once the computer goes into standby mode, the iriver
device may not be charged.
The charging time is about 5 hours and 30 minutes. (Fully
discharged, with power off)
Charge the product while it is turned off. When charging
during operation, the full charge display may not be shown.
Using the product during charging may require additional
time for a full charge or the battery may not fully recharge.
Charge and keep the product at room temperature.
Exposure to excessive heat or cold may adversely affect
charging performance.
Battery performance may decline with age and number of recharges.
Charging
1. Turn on the computer.
2. Using a Micro USB cable to connect the product to the
computer automatically recharges the built-in battery.
Getting Started
05
User Guide
Disconnecting from a computer
1. Click the icon displayed in the task bar of the
computer screen to safely remove it.
2. Click [OK] to ensure the iriver device can be safely
removed.
An icon may be hidden in the task bar depending on the
operating system like Windows XP. Click the icon to
display it on the screen.
When using application programs like Windows Explorer
or Windows Media Player, it may be unsafe to remove the
iriver device.
Only remove the iriver device after exiting all application
programs. Failure to do so may result in loss of stored
data.
Connect the computer and the iriver device when all
functions are stopped.
Use only the Micro USB cable provided with the product to
ensure safe operation.
Connect the computer and the Micro USB cable only after
all functions have been stopped.
Check that it is connected to a high-power USB 2.0 port.
Connecting to a keyboard or a USB hub without its own
power supply may prevent normal operation.
Only FAT32 file system is supported so format the iriver
device accordingly.
- Connect a removable disk: It can transmit data
while connected to a computer.
Getting Started
06
Please connect the Micro USB cable correctly.
Use caution when copying or moving files. If the computer
or product is turned off or the Micro USB cable is removed
while the file/folder is being copied or moved, the data
may be lost or seriously damaged.
Transmission speed may vary depending on the computer
and OS environment.
Save media files through iriver plus4. If the files were
saved in the removable disk through file copy, re-generate
the DB in [Settings - Other - Re-generate DB]. (See page XX)
Delete the files (folders) of the product
1. Select the file/folder to delete, right-click the mouse,
and select [Delete].
2. Click [Yes] in the [check file/folder/deletion] window
to delete the selected file/folder.
User Guide
Copy files (folder) to the product
1. To copy a file/folder from the computer, select it and
drag&drop it to the drive added by the product.
Getting Started
07
User Guide
Insert/remove the Micro SD card when the product is
turned off.
Do not apply excessive force when inserting the Micro SD
card to avoid damage.
Do not remove the Micro SD card while in use. Doing so
may delete data or damage the iriver device or card.
Do not repeatedly insert/remove the Micro SD card.
Recommended SD cards
Brand: SanDisk, Transcend
Insert/separate the Micro SD card
1. Gently push to insert the SD card in the SD card slot
as shown in the figure while the product is turned off.
2. Push the card again to remove it.
Getting Started
08
iriver plus4 is integrated software that manages multiple
multimedia files. Use iriver plus4 to save PC files in the
iriver device or automatically upgrade the firmware.
Installing
iriver
plus 4
Connecting OPTICAL OUT
1. Use the optical cable to connect an external device
capable of SPDIF-IN to this iriver device to listen to
music through the external device.
Connecting OPTICAL IN
1. Use the optical cable to connect an external device
capable of SPDIF-OUT to listen to music through this
iriver device.
Improper handling of the Micro SD card may cause
damage to the iriver device or card.
Use of an unauthorized Micro SD card may result in
malfunction.
Transmission speed of the Micro SD card may vary
depending on the PC status.
The iriver device cannot be used to format the Micro SD
card. Please use the card reader to format the card.
Formatting the Micro SD card deletes all data so back up
the card before formatting it.
Format the Micro SD card as FAT.
Format any Micro SD card that is not recognized or
malfunctions.
The Micro SD card is not included in the components and
must be purchased separately.
Micro SD cards up to 32GB may be used with this iriver
device.
User Guide
Getting Started
09
User Guide
Adding media to the library
1. Follow the media wizard when running iriver plus 4
for the first time.
2. Follow the instructions on the screen to add media
files like music, video, photographs and texts in the
computer to the library.
Installing
1. Run the iriver plus 4 installation program stored in the
internal memory--the program installation instruction
dialog will be displayed.
2. Follow the instructions to complete program installation.
iriver plus 4 may also be downloaded from the iriver
homepage (www.iriver.com).
The computer must have the following conditions:
Windows® XP specifications
- Intel® Pentium®Ⅱ 233MHz or faster
- 64MB memory or larger
- 30MB or more free space
- Sound card and speaker supporting 16bit
- Microsoft Internet Explorer version 6.0 or newer
- SVGA or high-resolution monitor (at least 1024x768)
Windows® Vista specifications (Windows® Vista supports
only the 32Bit version.)
- Intel® Pentium®Ⅱ 800MHz or faster
- 512MB memory or bigger
- 20MB or more free space
- Sound card and speakers supporting 16bit
- Microsoft Internet Explorer version 6.0 or newer
- SVGA or high-resolution monitor (at least 1024x768)
Windows® 7 specifications
- 1GHz or faster 32Bit processor
- 1GB memory or larger
- 16MB or more free storage space
- DirectX 9 graphic device using WDDM 1.0 or newer driver
- SVGA or high-resolution monitor (at least 1024x768)
Only files smaller than 4GBytes can be transmitted.
Getting Started
10
Extracting media from the CD
Initializing the disk
1. Use the Micro USB cable to connect the iriver device to
the computer’s Micro USB terminal and run iriver plus 4.
2. Select [Device - Initialize disk], and when the window
displayed asks whether you want to continue, click [Start].
3. When initialization is completed, the completion
window will be displayed and the computer will be
disconnected.
Once files in the iriver device are deleted, they cannot be
recovered. Back up all files before initializing the disk.
Sending media to the product
1. Use the Micro USB cable to connect the iriver device to
the computer’s Micro USB terminal and run iriver plus 4.
2. Select the file’s check box to send from the computer
to the iriver device, click the [Send] button,
or drag&drop the file to the device icon or device
window at the bottom. Check the file transmission
progress in the [File transmission] tab.
3.
When transmission is completed, check that the selected
music has been added to the iriver device’s library.
User Guide
1. Insert a music CD in the CD drive, and run iriver plus 4.
2. Select the check box for the music to extract from
the [CD] tab of iriver plus 4, and click [CD ripping] at
the bottom of the window.
3. When music extraction is completed, select
[all music] to check that the extracted music has
been added to the library.
Getting Started
11
User Guide
If the battery is low, firmware update may not be
completed.
Do not disconnect the iriver device from the computer
while the firmware update file is being downloaded.
Disconnect the Micro USB cable after download is
completed.
When the firmware of the iriver device is up-to-date, the
latest version information window will be displayed.
If the firmware needs to be updated when the iriver device
is connected to the computer, the information window will
be displayed automatically.
Upgrading the firmware
1. Use the Micro USB cable to connect the iriver device
to the Micro USB terminal of the Internet-connected
computer, and run iriver plus 4.
2. Select [Device - Update firmware], and update the
firmware according to the information window.
Getting Started
12
Basic
operations
Using the touch LCD
Listening
to the
music
1. This iriver device has a touch LCD system that
operates by touching the screen.
Simply touch the desired icon on the screen to
execute it.
Moving up/down in the list
1. Change the list order by dragging the list screen
[down up] / [up down].
Selecting music
1. Touch the screen to display a function window.
2. Press the [ ] in the lower left corner of the screen
to display the track list.
3. Press the desired song in the list.
Using a sharp object or applying excessive force when
touching the screen may damage it.
Search music by folder in [Folder].
Continuous play time: about XX hours (MUSIC: MP3,
128Kbps, 44.1KHz, volume 20, EQ Normal, LCD Off)
Supported file formats: MP3(8~320Kbps),
WMA(8~320Kbps), APE supported compression level:
Normal, Fast, High / unsupported level: Extra High,
Insane), FLAC, WAV
Use iriver plus 4 to manage the play list.
User Guide
Using
13
User Guide
Music play screen
Listening to music
- Turn the [volume wheel] to adjust the volume.
- Press [ ] during playback to pause, press [ ] to restart.
+ Press the iriver device’s [ ] key to pause/restart.
- Press [ / ] during playback to play the previous
/next music.
+ Alternatively, press the iriver device’s [ / ] key to
play the previous/next music.
- Press and hold the [ / ] key during playback to
rewind/fast forward.
+ Alternatively, press the iriver device’s [ / ] key to
rewind/fast forward.
- The status bar may be moved to the desired section
during playback.
- To display lyrics, press [LYRIC] during playback, press
[CONTROL], to discontinue lyrics.
Present timeAlbum art
LyricsTrack list
Progress time of music
Option
Filename
Battery
Previous/
Rewind
Status bar
Play/Pause Artist name
Next/Fast forward
Total playtime
of music
Using
14
Music option
1. Press [ ] in the waiting screen or during playback
to display the list of options.
2. Select the desired menu and set it up.
3. Press [ ] to display the previous screen, and press
[ ] to display the music playback screen.
- Equalizer: Set up the equalizer as desired.
+ Set up the equalizer by adjusting its height.
- Playlist: Add currently playing music to the Playlist.
+ Press [ ] to add a Playlist.
- Music information:
Display information on the currently playing music.
- Repeat mode: Change the repeat mode.
+ :
Repeat-play the entire list of currently playing music.
+ : Repeat-play the currently playing music.
+ : Release the repeat play mode.
- Play mode: Change the play mode.
+ : Play the music saved in memory in sequence.
+ :
Play the music saved in memory in random sequence.
1
Using
Bluetooth
Use Bluetooth-supported devices to enjoy music wirelessly.
Connecting Bluetooth
1. Press [ ] in the home screen, and select [Settings -
set up Bluetooth].
2. Set Bluetooth to [ON] to display the list of Bluetooth-
supported devices.
3. Select the desired device to connect.
4. Turn on the iriver device to enjoy music wirelessly.
User Guide
Using
15
User Guide
Do not turn off the iriver device while connected to Bluetooth.
If Bluetooth malfunctions, turn off the Bluetooth device
and turn it back on.
As registration methods may vary for different Bluetooth
devices, please read the user manual for each device
before connecting it.
When you connect the iriver device to a Bluetooth device,
the distance must be within 20cm.
If the distance between the iriver device and the Bluetooth
device is extended, sound quality will deteriorate and
beyond 3m, the devices will disconnect. (Distance may vary
depending on use environment and Bluetooth device type.)
Crosstalk may occur while Bluetooth is in use.
Malfunction or noise may occur depending on the use
environment and charging state.
- When the user is wearing a Bluetooth device while
holding the iriver device or holding the device in one hand
and a cell phone in the other.
- When part of the body touches the radio sender and
receiver of the iriver device or Bluetooth headset
- When the received power is changed by obstacles like
walls, corners and partitions
- When there is radio interference from devices using the
same frequency band like medical devices, microwave
ovens and wireless LAN
- In areas with a great deal of interference like inside
elevators and basements
Disconnecting Bluetooth
1. Press [ ] to the right of the connected device to
disconnect it.
Deleting Bluetooth
1. Select Bluetooth from the Bluetooth list and drag it
to the left to display the menu list.
2. Press [ ] to delete Bluetooth from the list and press
[ ] to make the menu list disappear.
Using
16
Settings Users can set up their own product environment.
The structure of the settings menu may vary depending
on the version of the firmware.
Setup
1. Press [ ] in the home screen, and select [Settings].
2. Select the desired item and set it up.
3. Press [ ] to display the previous screen and press
[ ] to display the music play screen.
Brightness setting
- Adjust the screen brightness.
Power setting
- Automatic power off: Once a certain amount of time
passes without operating the iriver device or buttons,
power will be automatically turned off.
- Turning off the screen: Once the specified time passes,
the screen will be turned off.
Date and time settings
- Set up the present date and time.
Language setting
- Select the desired language
User Guide
Using
17
User Guide
Other
- System information: The iriver device’s system
information will be displayed.
- Re-generation of DB: The DB of the file will be
re-generated.
- Tutorial: View simple instructions on system use.
- Bluetooth device name: Change the Bluetooth
device name.
- Default settings: Reset to default settings.
Bluetooth setting
- Use Bluetooth-supported devices to enjoy music
wirelessly. (For details on setup, see [Connecting
Bluetooth] on page XX.)
Using
18
Safety Related to the iriver device
- Failure to change the screen image may result in
permanent discoloration.
- Do not put or drop metals or flammable foreign
materials on the iriver device
(coins, hairpins, matches, lighter fluid.).
- Do not put heavy objects on the iriver device.
- If the iriver device gets wet (beverages, medicines,
sweat), DO NOT turn it on. Wipe dry with a soft cloth
and take it to the nearest iriver service center.
(Problems resulting from exposure to moisture will be
repaired for a fee regardless of the warranty period,
and in some instances, may not be repairable.)
-
Do not expose the product to dusty or moist environments.
-
Do not attempt to disassemble, repair or alter the iriver device.
- Avoid exposure to direct sunlight or temperatures
exceeding -5℃ ~ 40℃.
- Do not keep the iriver device next to magnets, TVs,
monitors or speakers.
- Do not expose the iriver device to chemicals or
detergents, which may damage the surface.
- Do not drop the iriver device or expose it to strong
impacts or vibrations.
- Do not press two or more keys simultaneously.
- Do not remove the Micro USB cable while sending data.
- When connecting the Micro USB cable, use the USB
port on the back of the PC.
Some PC USB ports may be damaged during assembly.
- Never connect anything other than earphones to the
earphone connection terminal.
- Defective screen protection film or stickers attached
to the screen may dim the image.
User Guide
Other information
19
User Guide
Other
- Do not use the headphone/earphone or operate the
product while operating a bicycle, automobile or
motorcycle. It is not only dangerous but violates the
law in some regions.
- Do not use the product while driving, walking or hiking.
-
To avoid accidents, only use the iriver device in a safe place.
- Do not use the iriver device during thunderstorms.
- Use the lowest volume setting that is comfortable.
Prolonged exposure to high volume may damage hearing.
- Make sure that the headphone/earphone does not
get stuck in another object or get caught between
other objects.
- Do not fall asleep while using the earphone.
Problem-
solving
Please check!
+ It cannot be turned on.
- Check the battery power level.
Use the Micro USB cable for charging and recheck.
+ It is not charged even when the iriver device is
connected to the computer with the Micro USB cable.
- Check that the Micro USB cable is properly connected.
+
An error occurs on the PC when the Micro USB is connected.
- Check that the Micro USB cable is properly connected.
+ The volume is changed after formatting.
- The volume may vary slightly depending on the OS
of your PC.
Other information
20
+ The screen turns off repeatedly.
- To reduce power consumption during file playback,
the screen will be turned off after a certain period.
Set up time in [Settings - Power setting - Turn off the screen].
+ The screen does not look normal.
- Check for any foreign material on the screen.
+ There is no sound or there is static.
- Check that the volume is set to [0].
- Check that the earphone terminal is well connected
and remove foreign material from the terminal.
- Check the music file.
+ I cannot connect it to the computer.
- Connect the iriver device to the USB port on the
back of the computer.
Differences may occur in the output voltage of USB ports.
+ The file is not played back, or the iriver device is
unstable when a certain file is used.
- The following may occur depending on the file,
quality and damage.
Playback may not be smooth or may be difficult.
The iriver device may not work normally.
It may look different than on the PC.
There may be differences in playback speed or
other performance.
There may be differences in the playable specs.
- Convert the file or use another file.
Copyright iriver has the patent, trademark right, copyright and other
intellectual property rights related to this instruction book
so no contents may be copied or duplicated in any format
or by any means without the prior approval of iriver.
User Guide
Other information
21
User Guide
Unauthorized use of all or part of this document may
result in legal action. Copyrighted contents like software,
sound sources and video are protected by relevant laws
like the Copyright Act. The user accepts full legal
responsibility for the use of this product to copy or
distribute copyrighted contents without permission.
The names of companies, institutions, products persons
and incidents in this manual are fictional. iriver has no
intention to be associated with any company, institution,
product, person or incident through this instruction book,
and no such inference should be made. The user is
responsible for complying with the Copyright Act.
©1999~2012 iriver Limited. All rights reserved.
Certifi-
cation
KCC / FCC / CE / TELEC
Class B device (broadcasting and communication
equipment for homes):
This device is EMC equipment for homes (class B).
It can be used in all regions.
Registered
trademarks
Windows 2000, Windows XP, Windows Vista, Windows 7,
and Windows Media Player are registered trademarks
of Microsoft Corp.
Escape
clause
The manufacturer, importer and agent will not be
responsible for contingent damage including injury or
other damage due to improper use and operation of this
iriver device. The information contained in this instruction
book is based on the current iriver device specifications.
iriver, the manufacturer of this device, is adding new
functions and will continue to apply new technologies
in the future. Specifications are subject to change
without any prior notice to the user.
There is no warranty against data loss due to the use of
this device.
Other information
22
