User Manual 1
DT395
DT395
BASIC OPERATION GUIDE
INTRODUCTION
Thank you for acquiring the latest addition to DT Research’s line of mobile tablets— the
DT395. Featuring an IP64-rated, slim yet robust enclosure, the two-pound DT395 with 8.9”
TFT display is powered by the Intel® Atom™ dual core processor, offering optimal
combinations of performance and power savings. An external battery expansion option
provides approximately 3-4 hours of additional battery operation for up to eight hours of
mobile usage.
The DT395 is available with Windows® Embedded Standard 7, Windows® XP Embedded,
Windows® XP Pro for Embedded Systems, Windows® 7 Pro or Linux operating systems.
Each software operating system features web browser, client/server computing software,
media player, accessories, and applications support..
PACKAGE CONTENTS
• DT395 with Internal Battery Pack, Stylus and Bumpers
• AC-DC Power Adapter with Power Cord
• Basic Operation Guide
• Handstrap
Major options, depending on configuration:
• Desktop Charging Cradle with DC-in Power Jack and Ethernet/ USB Ports
• X-handstrap
• External Battery Pack and Battery Charger Kit
• Vehicle/ Wall Mount Cradle
* If your DT395 contains camera, 3G or scanner module, please refer to the POSmodule
operation guide for detailed operation.
SPECIFICATIONS
System
CPU Intel® Atom™ N2600, Dual Core, 1.6GHz
RAM 2GB
Storage 322GB to 256GB Flash
Operating System Microsoft® Windows® Embedded Standard 7, Windows® 7 Professional,
Windows® XP Embedded, Windows® XP Pro for Embedded Systems, or Linux
Display 9” LED-backlight screen with resistive touch; sunlight-readable option
Display Resolution 1024 x 600 (WSVGA)
Trusted Platform Module Yes, TPM 1.2 support
Control Switch and Buttons 1 power button, 7 front buttons and 1 trigger button
Indicator 1 power/ battery status LED
I/O Ports 1 DC-in Jack; 1 USB 2.0 port; 1 Headphone-out Jack combined with
microphone; 1 Full Slot Smart Card Reader
Speaker Built-in speaker
SD Slot Yes, up to 64GB
NIST Compliant Yes
Full Slot Smart Card Reader Reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
Power
AC/ DC Adapter Input: 100 – 240V AC; Output: 19Vdc, 2.36A
Battery Pack Internal 7.4V, 3760mAh/ Optional: External 7.4V, 3760mAh
Mechanical
Enclosure ABS + PC plastics; anti-microbial enclosure
Stylus Yes, non-electronic tip
Protective Grip Rubber with handstrap
Dimensions (H x W x D) 7.7 x 10 x 1.3 in/ 196 x 256 x 33.5 mm
Weight 2.43 lbs/ 1.1 kg
Environmental
Regulatory FCC Class B, CE, C-Tick, RoHS compliant
Temperature Operation: 0°C – 40°C; Storage: 0°C – 60°C
Humidity Operation: 5% - 95%; Storage: 20% - 90%
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131 http://www.dtresearch.com
Copyright © 2010, DT Research, Inc. All Rights Reserved.
DT Research and WebDT are registered trademarks of DT Research, Inc.
ENGLISH 8
DT395

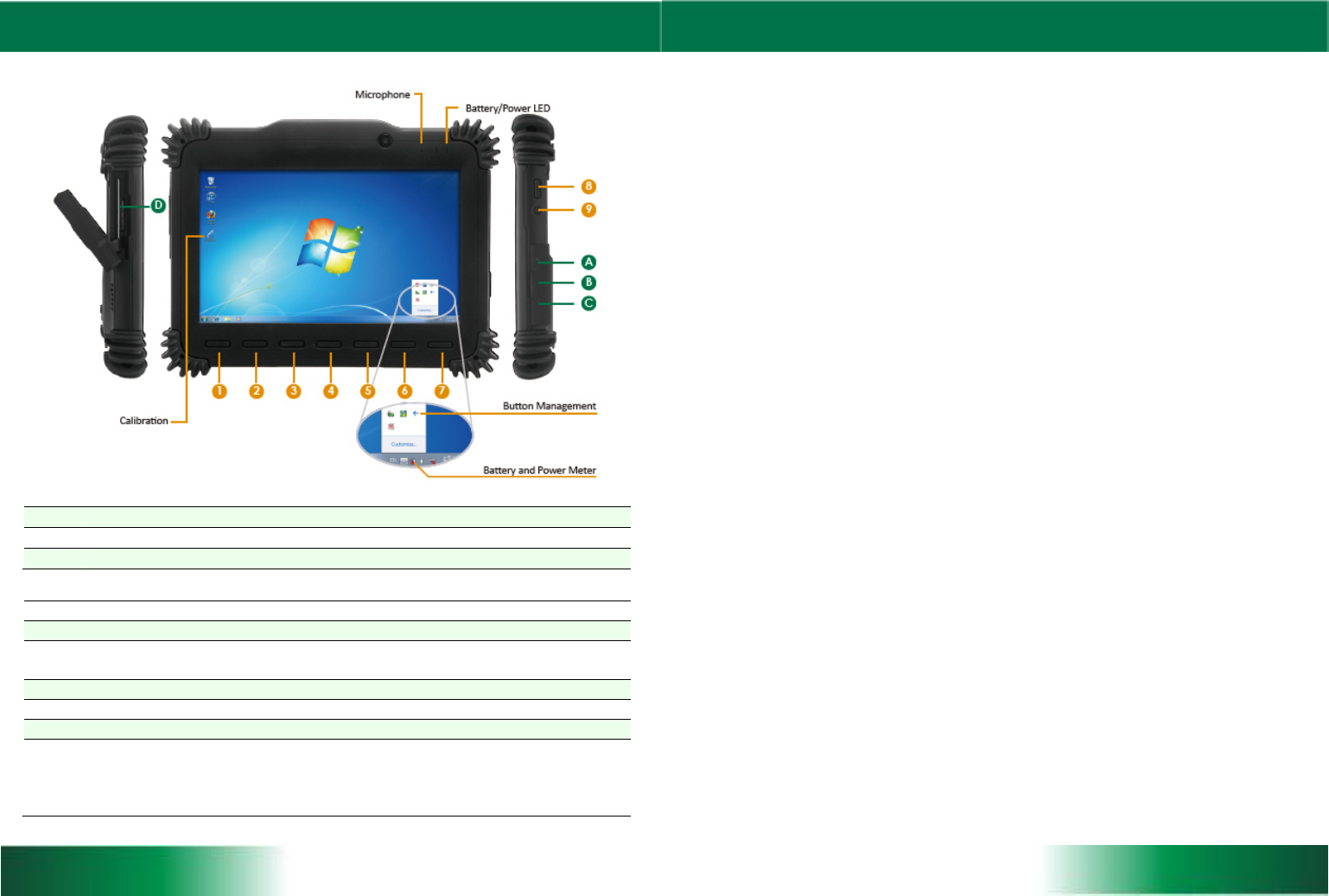

The DT395
Input/ Output Ports
○
A Headphone Jack
○
B USB Ports
○
C DC Power Input
Button Functions
Programmable
Programmable, launch soft (on-screen) keyboard (default)
Launch SAS (Secure Attention Sequence)
Generate Ctrl+Alt+Del keys to invoke the security windows defined under Windows XP
Programmable
Programmable, system utility menu (default)
Programmable, As scanner trigger when equipped with the scanner module
Power on,
Push/release typically enters Standby mode, or Push/release exits Standby mode or
restarts device (software dependent)
Push and hold (over 4 seconds) invokes hardware shutdown
Power/Battery LED Status:
• Blue indicates the battery is 25% to 100% charged
• Blinking blue indicates the battery is charging
• Orange indicates that the battery is between 11% to 25%
• Blinking Orange indicates that the battery is below 10%
Precautions
• Always exercise care when operating and handling the DT395.
• Do NOT apply excessive pressure to the display screen.
• We recommend using the Stylus provided to keep the screen clean.
• Avoid prolonged exposure of the display panel to any strong heat source. Wherever
possible, the DT395 should face away from direct light to reduce glare.
• If the AC-DC power adapter is used to recharge or power the device, do NOT use any
AC-DC adapter other than the one provided with the device or acquired from the
manufacturer or its partners.
• In the unlikely event that smoke, abnormal noise, or strange odor is present,
immediately power off the DT395 and disconnect all power sources. Report the problem
to your device provider immediately.
• Never attempt to disassemble the DT395, as this will void the warranty.
ENGLISH 2 3 ENGLISH
DT395
OPERATION
Internal Battery Switch
Warning!
The Internal battery pack should only be replaced by an authorized WebDT service
representative. Please contact your product and/or service provider for internal battery
replacement service.
Powering ON and OFF
To activate the DT395, push and quickly release the Power Button to the right side of the
front bezel. The display will come on in a few seconds. To put the DT395 in Standby
mode, push and quickly release the Power Button. To turn the W DT395 off for extended
storage, power off the device safely using any software function that “shuts down
computer” provided in the software operating system.
NOTE: The battery packs shipped with your device may be low in power—please use the
AC-DC adapter with the DT395 when setting up the device for the first time to fully
charge the internal battery pack. You may charge the external battery pack with it
attached to the DT395, or with the optional external battery charger kit.
NOTE: When the battery pack(s) is (are) charging, the blue-colored Battery LED should
blink slowly. If plugging in the AC-DC adapter does not trigger this blinking activity and
the LED stays dark, the battery pack(s) may have been drained substantially. Try
unplugging/ replugging the AC-DC adapter to the DT395 a few times to activate the
charging process.
NOTE: To conserve power, use (push and quick release) the Power Button to put the
device in “Standby” mode while not in use. Pushing briefly on the same button will wake
up the system within seconds.
NOTE: Avoid using the Power Button (“hold 4+ seconds” feature) to turn off the
device—this form of hardware shutdown is intended to be a means of recovery from
device lockups, and not as normal operation.
Start Up
If the power up (from Standby or otherwise) is successful, the appropriate interface will
be displayed after a launch sequence of several seconds.
Configuring the DT395
The device may be configured using the utilities and methods dictated by the software
operating system. The DT395 should be configurable for various properties such as user
profiles, network features, and several system elements.
Calibration
The touch display for the DT395 is calibrated before shipping. In the event that the
calibration has been modified or is unsatisfactory, the respective calibration routines
(e.g., PenMount (PM) for Windows XP) to calibrate the touch interface may be used.
Such applications are typically executed through touch input via Stylus or through mouse
click via a USB mouse.
ENGLISH 4 5 ENGLISH
DT395
Button Management
Where supported by software, many of the hard buttons on the DT395 are programmable
to perform a function of the user’s choice. The exception is the Power Button and the
SAS Button. To activate the button re-assignment application, invoke the Button Agent
application, e.g., in Windows XP Embedded.
Brightness Control
Where supported by device firmware and software, a hard button may be engaged to
manipulate the display brightness. Press the System Menu button (Button 7) on the front
of the DT395. The System screen will display a Brightness control section with up and
down arrows that can be activated with the stylus.
Battery and Power Management
The DT395 is equipped with an internal 3760mAh Li-Ion battery pack that is capable of
supporting approximately 3 - 4 hours of continuous operation. With the internal battery
and an external battery pack that clips (hot-pluggable) onto the back of the device, the
maximum period of continuous operation will be approximately 6 – 8 hours. The period
between battery recharges can be significantly lengthened by putting the device into
Standby mode through the Power Button (see Buttons Function Table) whenever the
device is not in use. Depending on the operating software, the DT395 may also be
configured to enter various power-saving modes via the Power Button
or through timed entry.

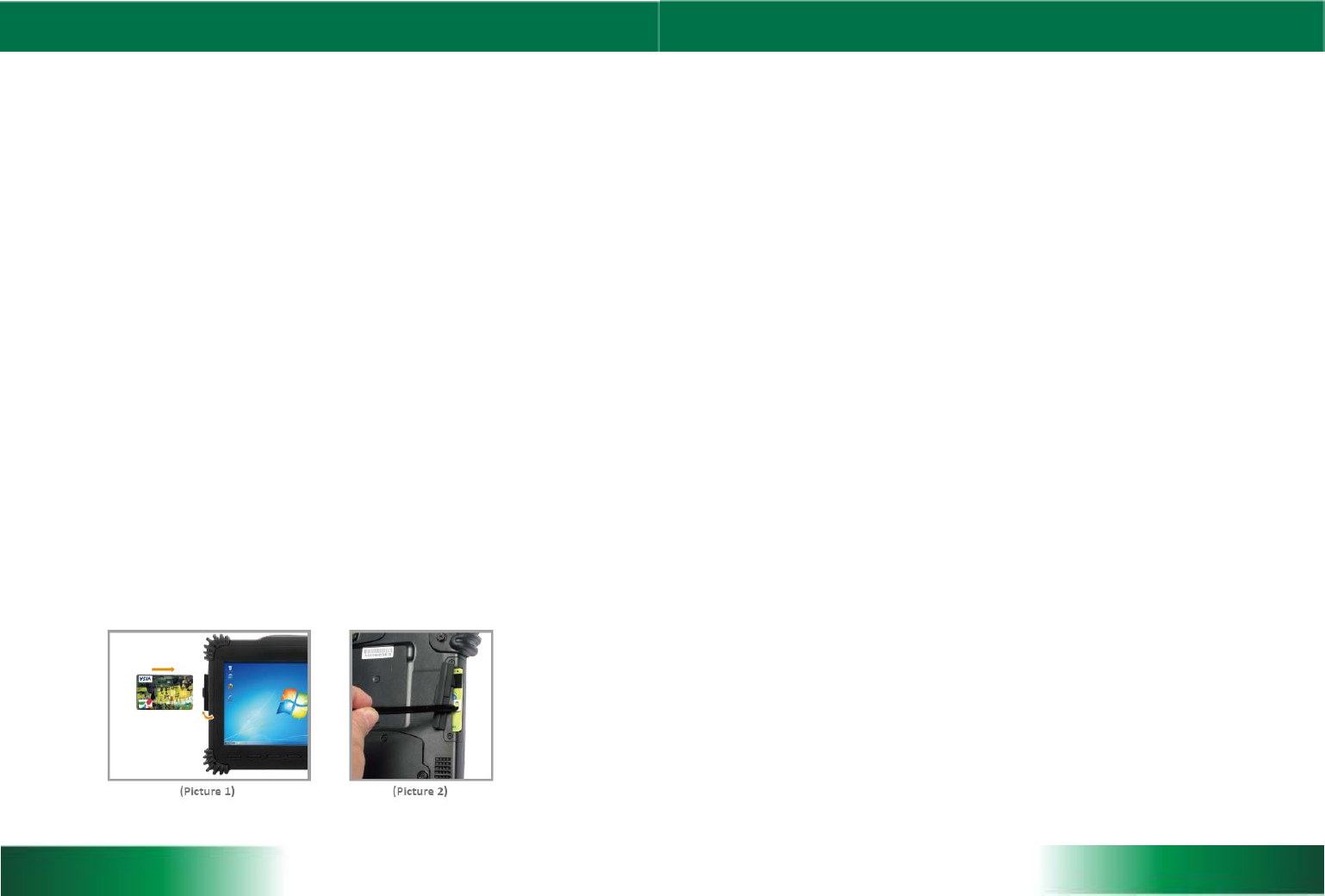

Full Slot Smart Card Reader
The DT395 comes with a full slot smart card reader.
Remove the rubber and insert a card (Picture 1)
Use the stylus to pull the metal pull and then remove the card (Picture 2)
Desktop Cradle (optional)
The DT395 is complemented by an optional Desktop Cradle for support, passthrough
charging, and connection to a range of USB peripherals, including keyboard and mouse.
The Cradle offers the following interfaces: a DC-in port for the AC-DC adapter, an
Ethernet port, and USB ports. Always seat the DT395 securely onto the cradle. The
cradle must be powered by the AC-DC adapter for the Ethernet and USB ports to
function. The battery packs on the DT395 may be recharged by connecting the AC-DC
adapter directly to the DC-in port on the DT395 or through the DC-in port on the Desktop
Cradle while the DT395 is docked to the Cradle.
USING THE DT395
Memory configuration
The DT395 is available with 2GB memory configurations. Storage options currently range
from 32GB to 256GB flash memory.
Peripherals Support
Through its USB port, the DT395 supports a wide range of USB-based peripherals. These
peripherals are applicable for software installation, applications storage, data storage, docking
or software recovery and update.
The DT395 is complemented by an optional Desktop Cradle or Wall/ Vehicle Mount
Cradle for support, pass-through charging, and connection to a range of USB peripherals,
including keyboard and mouse. The Cradles offer the following interfaces: a DC-in port
for the AC-DC adapter, an Ethernet port, a VGA output and USB ports. Always seat the
DT395 securely onto the cradle. The cradle must be powered by the AC-DC adapter for
the Ethernet and USB ports to function. The battery packs on the DT395 may be
recharged by connecting the AC-DC adapter directly to the DC-in port on the DT395 or
through the DC-in port on the Cradle while the DT395 is docked.
For More Support
Users can download the Software Utility and Modules Operation Guides from the DT
Research website.
If the DT395 comes with a 3G module, please contact your product and/or service
provider for the SIM Card Slot Location and Insertion Guide.
ENGLISH 6 7 ENGLISH
