INTRODUCTION

ThankyouforacquiringthelatestadditiontoDTResearch’slineofmobiletablets—theDT395BV.

Featuringan,slimyetrobustenclosure,thetwo‐poundDT395BVwith9"TFTdisplayispowered

bytheIntel®Celeron®dualcoreprocessor,offeringoptimalcombinationsofperformanceand

powersavings.

TheDT395BVisavailablewithWindows®orAndroidoperatingsystem.Eachsoftwareoperating

systemfeatureswebbrowser,client/servercomputingsoftware,mediaplayer,accessories,and

applicationssupport.



PACKAGECONTENTS

•DT395BVwithInternalBatteryPack,StylusandBumpers

•AC‐DCPowerAdapterwithPowerCord

•Handstrap

•BasicOperationGuide



 

DT395BV



DT395BV:



ENGLISH 2



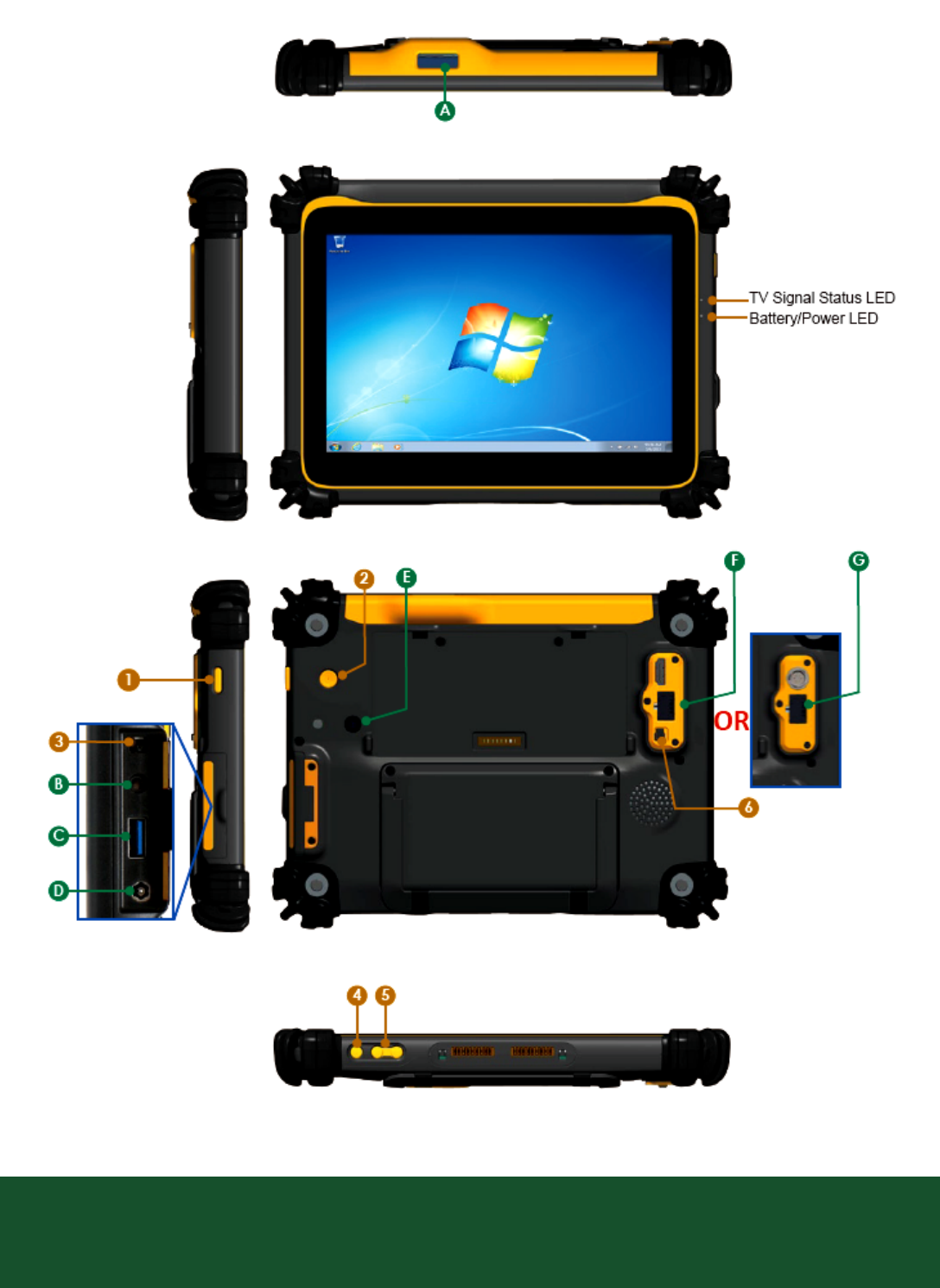

Input/OutputPorts



ABarcodeScanner(optional)

BHeadphoneJack

CUSBPort

DDCPowerInput

ECamera(optional)

FLAN/HDMI(optional)

GLAN/RS232(optional)



ButtonFunctions

BUTTONACTION

1Securitybutton.

Asscannertriggerwhenequippedwiththescannermodule

2Poweron.

Push/releasetypicallyentersStandbymode,orPush/releaseexitsStandbymodeor

restarts(softwaredependent)

Pushandhold(over4seconds)invokeshardwareshutdown

3Wi‐Fiswitch.

4Menubutton.

5Up/downbutton.

Toadjustthemonitorbrightnessandthespeakervolume

6Monitormodeswitch.

ToswitchtodisplaythevideosignalfromHDMIport





BatteryandPowerManagement

TheDT395BVisequippedwithaninternalLi‐Ionbatterypackandanoptionalbatterypackthatclips

(hot‐pluggable)ontothebackofthetablet.Theperiodbetweenbatteryrechargescanbesignificantly

lengthenedbyputtingthetabletintoStandbymodethroughthePowerButton(seeButtonsFunctionTable)

wheneverthetabletisnotinuse.Dependingontheoperatingsoftware,theDT395BVmayalsobeconfigured

toentervariouspower‐savingmodesviathePowerButtonorthroughtimedentry.



ENGLISH 3

DT395BV



OPERATION



Internal Battery

Warning! !

TheInternalbatterypackshouldonlybereplacedbyanauthorizedDTResearchservicerepresentative.

Pleasecontactyourproductand/orserviceproviderforinternalbatteryreplacementservice.

Powering ON and OFF

ToactivatetheDT395BV,pushandquicklyreleasethePowerButton.Thedisplaywillcomeoninafew

seconds.ToputtheDT395BVinStandbymode,pushandquicklyreleasethePowerButton.Toturnthe

DT395BVoffforextendedstorage,poweroffsafelyusinganysoftwarefunctionthat"shutsdowncomputer"

providedinthesoftwareoperatingsystem.



NOTE:

Thebatterypacksshippedwithyourtabletmaybelowinpower—pleaseusetheAC‐DC

adapterwiththeDT395BVwhensettingupforthefirsttimetofullychargetheinternal

batterypack.



NOTE:

Whenthebatterypack(s)is(are)charging,theblue‐coloredBatteryLEDshouldblinkslowly.If

pluggingintheAC‐DCadapterdoesnottriggerthisblinkingactivityandtheLEDstaysdark,

thebatterypack(s)mayhavebeendrainedsubstantially.Tryunplugging/repluggingthe

AC‐DCadaptertotheDT395BVafewtimestoactivatethechargingprocess.



NOTE:

Toconservepower,use(pushandquickrelease)thePowerButtontoputthetabletin

“Standby”modewhilenotinuse.Pushingbrieflyonthesamebuttonwillwakeupthesystem

withinseconds.



NOTE:

AvoidusingthePowerButton(“hold4+seconds”feature)toturnoffthetablet—thisformof

hardwareshutdownisintendedtobeameansofrecoveryfromlockups,andnotasnormal

operation.



ENGLISH 4



StartUp



Ifthepowerup(fromStandbyorotherwise)issuccessful,theappropriateinterfacewillbedisplayedaftera

launchsequenceofseveralseconds.ThewirelessLANconnectionmaytake10‐15secondstobeestablished.



ConfiguringtheDT395BV

Thetabletmaybeconfiguredusingtheutilitiesandmethodsdictatedbythesoftwareoperatingsystem.The

DT395BVshouldbeconfigurableforvariouspropertiessuchasuserprofiles,networkfeatures,andseveral

systemelements.



WirelessNetworking

WirelessLAN

TheDT395BVisoftendeliveredwithanembedded(user‐inaccessible)802.11acWLANadapterequippedwith

ahiddencustomantenna.

•ThroughthesupportoftypicalWLANadapters,theDT395BVshouldbeabletodetectall802.11access

pointsinthevicinityforyoutoselecttheaccesspointofyourchoiceforconnection.

•TheSSIDandWEP/WPA/WPA2(ifenabled)parametersontheDT395BVandtheaccesspointshaveto

match.TheSSIDiscase‐sensitiveanditisrecommendedthatyouenableWEP/WPA/WPA2encryption(or

advancedalternatives)forsecureaccess.

•WhenWEP/WPA/WPA2isenabled,youmayneedtoconsultyournetworkadministratororyour

networkingequipmentliteraturetoproperlyconfigureassociatedsettingssuchasAuthenticationmode,

etc.

•Refertotheaccesspointoperatingmanualsforsettingupthe802.11accesspoints.



Bluetooth

TheBluetoothconfigurationapplicationisenabledfromtheSystemTrayorfromtheWindowsMobility

Center.Followtheinstructionsandoptionsprovidedwithintheapplicationtoconfigureandinvoke

Bluetoothconnectivitywiththecorrespondingperipherals.



ENGLISH 5

DT395BV



Power/BatteryLEDStatus:

•Blueindicatesthebatteryis25%to100%charged

•Blinkingblueindicatesthebatteryischarging

•Orangeindicatesthatthebatteryisbetween11%to25%

•BlinkingOrangeindicatesthatthebatteryisbelow10%

•Blinkingblueandorangealternatelyindicatesthebatteryisbeingwarmedup.

DonotunplugtheAC/DCadapter.



Precautions

•AlwaysexercisecarewhenoperatingandhandlingtheDT395BV.

•DoNOTapplyexcessivepressuretothedisplayscreen.

•Avoidprolongedexposureofthedisplaypaneltoanystrongheatsource.Whereverpossible,the

DT395BVshouldfaceawayfromdirectlighttoreduceglare.

•IftheAC‐DCpoweradapterisusedtorechargeorpowerthetablet,doNOTuseanyAC‐DCadapterother

thantheoneprovidedoracquiredfromthemanufactureroritspartners.

•Intheunlikelyeventthatsmoke,abnormalnoise,orstrangeodorispresent,immediatelypoweroffthe

DT395BVanddisconnectallpowersources.Reporttheproblemtoyourdeviceproviderimmediately.

•NeverattempttodisassembletheDT395BV,asthiswillvoidthewarranty.



THEDT395BV

BasicFeatures



TheDT395BVwirelesstabletintegratesabrightandmulti‐touchdisplay,oneUSBport,andembedded

networkingelementssuchaswirelessLANandBluetooth.



ADT395BVtypicallyintegratesan802.11acwirelessLAN(WLAN)adapterthatmayconnecttootherwireless

devicesoraccesspoints.IfyourDT395BVdoesnotcomewithsuchanetworkadapter,pleaseconsultyour

deviceprovidertoestablishthedesirednetworkconnectivity

ENGLISH 6



RemoteManagement

Dependingonsoftwareconfiguration,theDT395BVcanbecentrallymanagedforassetmonitoringandfor

softwarecontrol.Pleaseconsultyourdeviceprovider.



ForMoreSupport

UserscandownloadtheTabletModulesBasicOperationGuidesfromtheDTResearchwebsite.

IftheDT395BVcomeswitha3Gmodule,pleasecontactyourproductand/orserviceproviderfortheSIM

Cardinstallationprocedures.



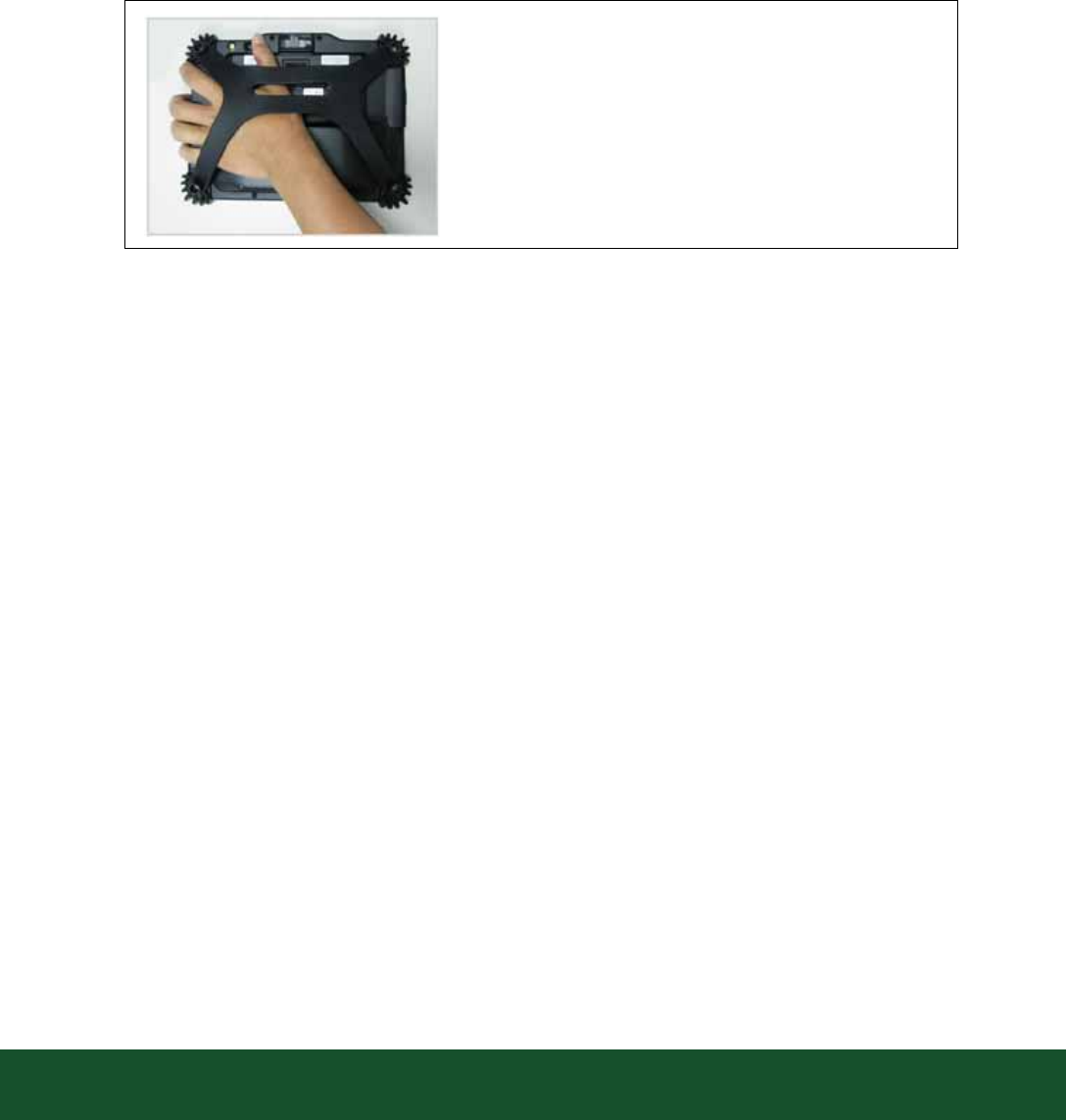

To Hold the Tablet

Lefthand:griptheleftbacksideofthetabletwithyourlefthand

fourindexfingers,withthumbrestingonthetopofthebackside

ofthetabletandpalmsecurelyagainsttheback.

Righthand:griptherightbacksideofthetabletwithyourright

handfourindexfingers,withthumbrestingonthetopoftheback

sideofthetabletandpalmsecurelyagainsttheback.



ENGLISH 7



DT395BV







FederalCommunicationCommissionInterference

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may

causeharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterference

willnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuseris

encouragedtotrytocorrecttheinterferencebyoneofthefollowingmeasures:



•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatethisequipment.

ThisdevicecomplieswithPart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmful

interference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.

Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperatinginconjunctionwithanyother

antennaortransmitter.

ThisClass[B]digitalapparatuscomplieswithCanadianICES‐003.

Cetappareilnumériquedelaclasse[B]estconformeàlanormeNMB‐003duCanada.



ENGLISH 8



DT395BV



Specifications:



System

CPUIntel®Celeron®DualCore,1.58GHz

RAM4GB

Storage64GBflash

OperatingSystemMicrosoft®Windows®EmbeddedStandard7,7Professional,8.1ProIndustryorAndroid

Display9”LED‐backlightscreenwithcapacitivetouch;anti‐reflectionoutdoorviewable

DisplayResolution1280x800(WSVGA)

NetworkInterfaceWi‐Fi802.11ac,2.4GHz/5GHzdualband;Bluetooth4.0LE

ControlSwitchandButtons 1powerbutton,1menubutton,1triggerbutton,1Wi‐Fiswitch,

1monitormodeswitchbutton,1up/downbuttonforbrightnessandvolume

Indicator1power/batterystatusLEDand1TVsignalstatusLED

Microphone Built‐inMicrophone

Speaker1.5Wbuilt‐inspeaker

SDSlot1microSDcardslot

I/OPorts

USBport1(USB3.0)

Headphone‐out1(3.5mm)

DC‐in1

Mechanical

AC/DCAdapterInput:100–240VAC;Output:19VDC,3.42A

BatteryPackInternal7.4V,3760mAh/Optional:External7.4V,3760mAh

EnclosureABS+PCplastics

Styluscapacitivetouchstylus

ProtectiveGripsRubberbumpersoneachcornerforhandlingprotection

Dimensions(HxWxD)7.7x10x1.3in/196x256x33.5mm

Weight2.43lbs/1.1kg

Environmental

WaterandDustResistance IP65

MIL‐STD‐810GShockandvibrationprotection&explosiveatmospherecertified

RegulatoryFCCClassB,CE,RoHScompliant

OperatingTemperatureOperation:‐20°C~40°C;Storage:‐20°C~60°C

Humidity0%–90%non‐condensing



DTResearch,Inc.

2000ConcourseDrive,SanJose,CA95131http://www.dtresearch.com



ENGLISH 9

BOG060815DT395BVENG
