DT Research DT312 Web Pad User Manual WebDT 312 BOG ENG BT 091099
DT Research, Inc. Web Pad WebDT 312 BOG ENG BT 091099
user manual
WebDT 312
WebDT 312
BASIC OPERATION GUIDE
INTRODUCTION
Thank you for acquiring the latest addition to
DT Research’s line of tablet devices— the WebDT 312.
Featuring a slim yet robust enclosure, the two-pound
WebDT 312 with 10.4” TFT display is powered by the
Intel® Atom™ processor, offering optimal combinations of
performance and power savings. An external
battery expansion option provides approximately 3-4 hours of additional battery
operation for up to six hours of mobile usage.
The WebDT 312 is available in Microsoft® Windows® Embedded Standard
7, Windows® 7 Professional, Windows® XP Embedded, Windows® XP Pro for
Embedded Systems or Linux operating systems. Each software operating
system features web browser, client/ server computing software, media player,
accessories, and applications support.
PACKAGE CONTENTS
• One WebDT 312 with Internal Battery Pack (2200mAh), Stylus, Grips and Screen Cover
• AC-DC Power Adapter with Power Cord
• Basic Operation Guide
Major options, depending on configuration:
• Desktop Charging Cradle with DC-inPower Jack and Ethernet, USB and optional VGA Ports
• External Battery Pack
• Internal High Capacity Battery (3760mAh)
• External Battery Charger Kit
* If your WebDT 312 contains MSR, camera or scanner module, please refer to the POS
module operation guide for detailed operation.
SPECIFICATIONS
System
Display 10.4” (diag.) TFT LCD with Resistive Touch;
outdoor-viewable option
Display Resolution 1024 x 768 (XGA)
Processor Intel® Atom™ processor Z530 1.6GHz
Memory (RAM) 1GB to 2GB
Storage 2GB to 16GB Internal Flash Module, 32GB to 64GB
SSD
Operating Systems
Microsoft® Windows® Embedded Standard 7, Windows®
7 Professional, Windows® XP Embedded, Windows® XP
Pro for Embedded Systems or Linux
Network Interface Bluetooth 2.0
Input and Control
Buttons
1 Power button, 7 Front buttons and
1 Trigger button
Indicator 1 Power/ Battery status LED and 1 WLAN active LED
Input/Output Ports 1 DC-in Jack; 1 Microphone-in and
1 Headphone-out Jacks; 2 USB 2.0 port
Audio Built-in speakers
Security
WPA-Personal, WPA2-Personal, WPA-Enterprise,
WPA2-Enterprise, AES-CCMP 128-bit, WEP 128-bit and
64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP,
EAP-FAST, EAPTLS, EAP-TTLS
Mechanical
Enclosure
A
BS + PC Plastic and Magnesium-aluminum alloy
Protective Grips Rubber with handstrap, added drop protection
Dimensions (H x W x D) 8.3 x 10.3 x 0.8 (in); 210 x 261 x 18 (mm)
Weight 2.05 lbs (0.93 kg)
Battery Pack Internal (2S2P; 7.4V, 2200mAh) or (2S2P; 7.4V,
3760mAh) Optional: External (2S2P; 7.2V, 3900mAh)
AC/DC Adapter Input: 100 – 240VAC / Output: 19V DC@2.36A
Power Cords North America, EU, UK, China and Japan
Stylus Non-electronic tip
Regulatory FCC Class B, CE, C-Tick, RoHS compliant
Operating Temperature Operation: 0°C - 40°C / Storage: 0°C - 60°C
Humidity 0% - 90% non-condensing
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131 http://www.dtresearch.com
Copyright © 2010, DT Research, Inc. All Rights Reserved.
DT Research and WebDT are registered trademarks of DT Research, Inc.
ENGLISH 8
WebDT 312

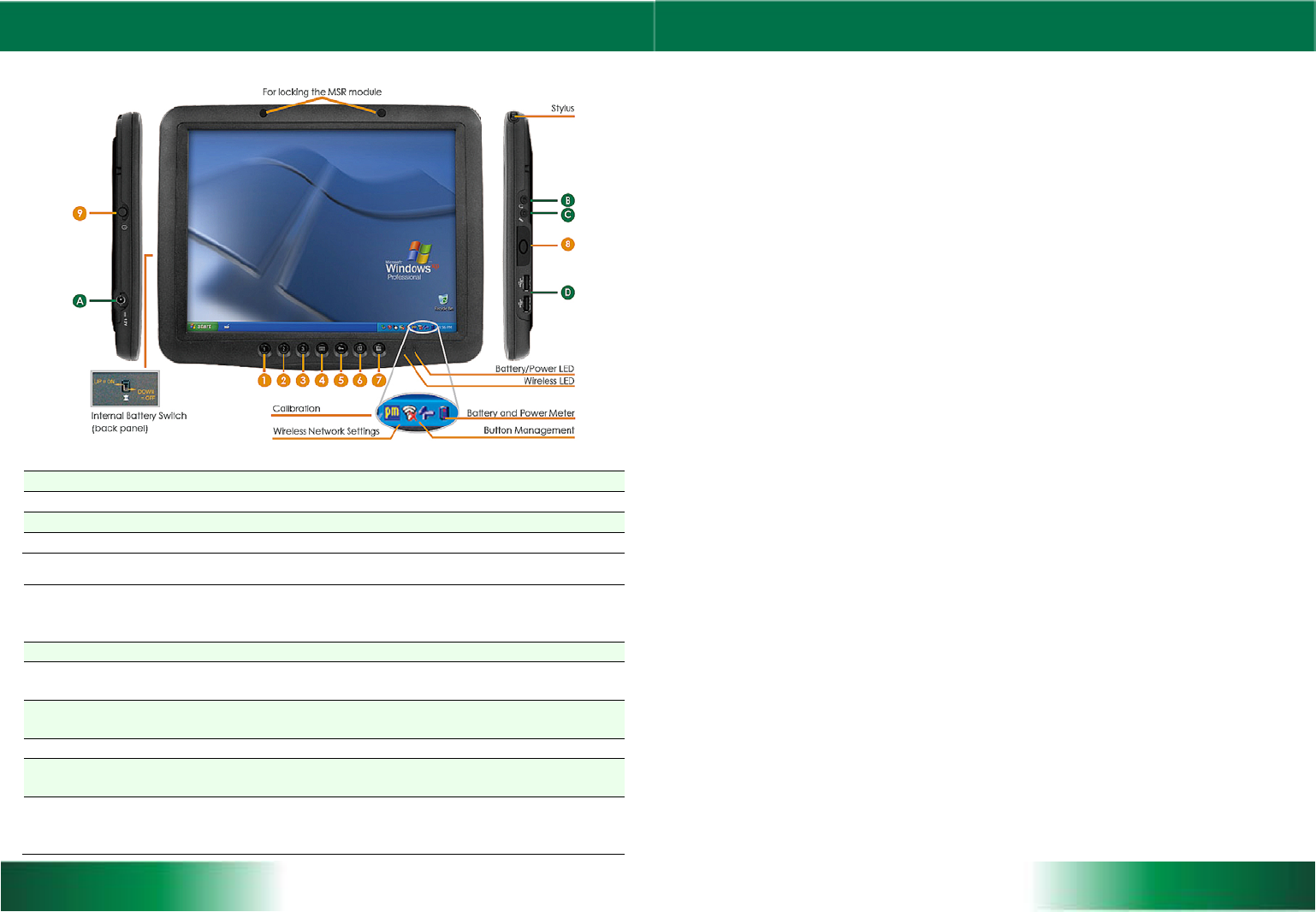

The WebDT 312 (with Windows XP Operating System)
Input/ Output Ports
○
A DC Power Input
○
B Headphone Jack
○
C DC Power Input
○
Ｄ USB Ports (2)
Button Functions (with Windows XP Operating System)
n
o
p
Programmable
q Programmable, launch soft (on-screen) keyboard (default)
r Launch SAS (Secure Attention Sequence)
Generate Ctrl+Alt+Del keys to invoke the security windows defined under Windows XP
s Programmable,
Change display orientation (portrait/ landscape) (default)
t Programmable, system utility menu (default)
u Programmable,
As scanner trigger when equipped with the scanner module
v Push/release typically enters Standby mode, or Push/release exits Standby mode or
restarts device (software dependent)
Push and hold (over 4 seconds) invokes hardware shutdown
Power/Battery LED Status:
• Blue indicates the battery is 25% to 100% charged
• Blinking blue indicates the battery is charging
• Orange indicates that the battery is between 11% to 25%
• Blinking Orange indicates that the battery is below 10%
Precautions
• Always exercise care when operating and handling the WebDT 312.
• Do NOT apply excessive pressure to the display screen.
• We recommend using the Stylus provided to keep the screen clean.
• Avoid prolonged exposure of the display panel to any strong heat source. Wherever
possible, the WebDT 312 should face away from direct light to reduce glare.
• If the AC-DC power adapter is used to recharge or power the device, do NOT use any
AC-DC adapter other than the one provided with the device or acquired from the
manufacturer or its partners.
• In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately
power off the WebDT 312 and disconnect all power sources. Report the problem to your
device provider immediately.
• Never attempt to disassemble the WebDT 312, as this will void the warranty.
THE WebDT 312
Basic Features
The WebDT 312 wireless tablet integrates a bright and responsive touch display, two
USB ports, and embedded networking elements such as Bluetooth. The primary device is
complemented by a suite of accessories, including battery expansion, charging cradles,
and battery charger kit, for a comprehensive user experience.
ENGLISH 2 3 ENGLISH
WebDT 312
OPERATION
Internal Battery Switch
To prevent battery drain during shipping and extended storage, the internal battery may
be turned off. To turn on the internal battery, push the battery button switch (on the back
panel) to the “up” position (see page 2 for photo). The internal battery pack has to be
turned on for it to operate, be charged, and for the optional external battery pack to
function.
Powering ON and OFF
To activate the WebDT 312, push and quickly release the Power Button to the left of the
front bezel. The display will come on in a few seconds. To put the WebDT 312 in Standby
mode, push and quickly release the Power Button. To turn the WebDT 312 off for
extended storage, power off the device safely using any software function that “shuts
down computer” provided in the software
operating system.
NOTE: The battery packs shipped with your device may be low in power—please use the
AC-DC adapter with the WebDT 312 when setting up the device for the first time to fully
charge the internal battery pack. You may charge the external battery pack with it
attached to the WebDT 312, or with the optional external battery charger kit.
NOTE: When the battery pack(s) is (are) charging, the blue-colored Battery LED should
blink slowly. If plugging in the AC-DC adapter does not trigger this blinking activity and
the LED stays dark, the battery pack(s) may have been drained substantially. Try
unplugging/ replugging the AC-DC adapter to the WebDT 312 a few times to activate the
charging process.
NOTE: To conserve power, use (push and quick release) the Power Button to put the
device in “Standby” mode while not in use. Pushing briefly on the same button will wake
up the system within seconds.
NOTE: Avoid using the Power Button (“hold 4+ seconds” feature) to turn off the
device—this form of hardware shutdown is intended to be a means of recovery from
device lockups, and not as normal operation.
Start Up
If the power up (from Standby or otherwise) is successful, the appropriate interface will
be displayed after a launch sequence of several seconds. The wireless LAN connection
may take 10-15 seconds to be established.
Configuring the WebDT 312
The device may be configured using the utilities and methods dictated by the software
operating system. The WebDT 312 should be configurable for various properties such as
user profiles, network features, and several system elements.
Calibration
The touch display for the WebDT 312 is calibrated before shipping. In the event that the
calibration has been modified or is unsatisfactory, the respective calibration routines
(e.g., PenMount (PM) for Windows XP) to calibrate the touch interface may be used.
Such applications are typically executed through touch input via Stylus or through mouse
click via a USB mouse.
ENGLISH 4 5 ENGLISH
WebDT 312
Bluetooth
The WebDT 312 features a built-in Bluetooth adapter that operates on the Microsoft
Windows Bluetooth protocol. The Bluetooth configuration application is invoked from the
System Tray or from the Control Panel for Windows XP. Follow the instructions and
options provided within the application to configure and invoke Bluetooth connectivity
with the corresponding peripherals.
NOTE: Bluetooth devices or accessories that are not compatible with the Microsoft
Windows Bluetooth protocol may not work with the WebDT 312.
Button Management
Where supported by software, many of the hard buttons on the WebDT 312 are
programmable to perform a function of the user’s choice. The exception is the Power
Button and the SAS Button. To activate the button re-assignment application, invoke the
Button Agent application, e.g., in Windows XP Embedded.
Brightness Control
Where supported by device firmware and software, a hard button may be engaged to
manipulate the display brightness. Press the System Menu button (Button 7) on the front
of the WebDT 312. The System screen will display a Brightness control section with up
and down arrows that can be activated with the stylus.
Battery and Power Management
The WebDT 312 is equipped with an internal 2200mAh Li-Ion battery pack that is capable
of supporting approximately 1.5–2 hours of continuous operation. With the optional
internal 3760mAh battery and an external battery pack that clips (hot-pluggable) onto the
back of the device, the maximum period of continuous operation will be approximately
3–4 hours. The period between battery recharges can be significantly lengthened by
putting the device into Standby mode through the Power Button (see Buttons Function
Table) whenever the device is not in use. Depending on the operating software, the
WebDT 312 may also be configured to enter various power-saving modes via the Power
Button or through timed entry.
Desktop Cradle
The WebDT 312 is complemented by an optional Desktop Cradle for support, pass-through
charging, and connection to a range of USB peripherals, including keyboard and mouse.
The Cradle offers the following interfaces: a DC-in port for the AC-DC adapter, an Ethernet
port, a VGA port (optional) and USB ports. Always seat the WebDT 312 securely onto the
cradle. The cradle must be powered by the AC-DC adapter for the Ethernet and USB ports
to function. The battery packs on the WebDT 312 may be recharged by connecting the
AC-DC adapter directly to the DC-in port on the WebDT 312 or through the DC-in port on
the Desktop Cradle while the WebDT 312 is docked to the Cradle.
USING THE WebDT 312
Memory configuration
The WebDT 312 is available with 1GB or 2GB memory configurations. Storage options
currently range from: 2GB to 16GB flash memory or 32GB to 64GB SSD.
Peripherals Support
Through its USB ports, the WebDT 312 supports a wide range of USB-based peripherals.
These peripherals are applicable for software installation, applications storage, data
storage, and system software recovery and updates. The WebDT 312 is also compatible
with custom mountable cradle options. These securable and mountable cradles provide
an interface to VESA mounts and arms, and to ports that may include USB, Ethernet, and
passthrough power.
Remote Management
Depending on software configuration, the WebDT 312 can be centrally managed for
asset monitoring and for software control. Please consult your device provider.
ENGLISH 6 7 ENGLISH
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
