DUNE HD KTTV101W Network Media Player User Manual TV 101 qsg 150x100 lang indd

DUNE HD LTD Network Media Player TV 101 qsg 150x100 lang indd

User Manual

English Quick Start Guide EnglishManufactured under license from Dolby Laboratories.Dolby and the double-D symbol are trademarks of Dolby Laboratories.Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929 & other U.S. and worldwide patents isasued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD High Resolution Audio and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
Dune HD TV 101 Quick Start Guide

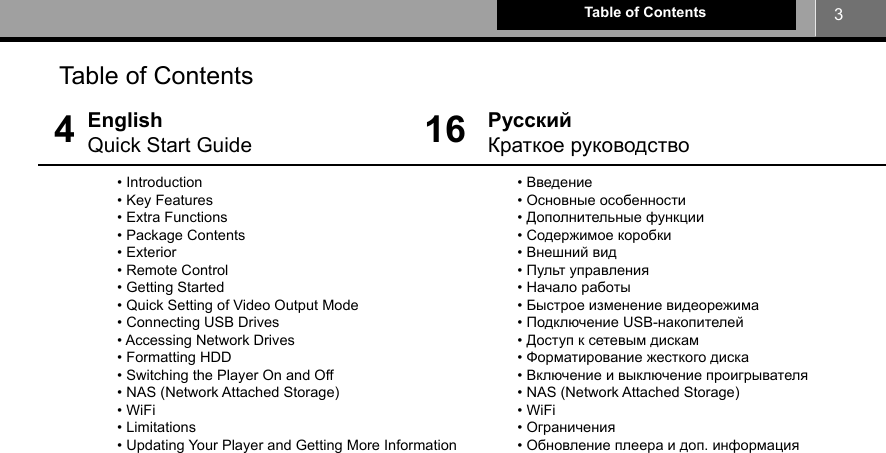

3Table of ContentsTable of ContentsEnglishQuick Start Guide• Introduction• Key Features• Extra Functions• Package Contents • Exterior• Remote Control• Getting Started• Quick Setting of Video Output Mode• Connecting USB Drives• Accessing Network Drives• Formatting HDD• Switching the Player On and Off• NAS (Network Attached Storage)• WiFi• Limitations• Updating Your Player and Getting More InformationРусскийКраткое руководство• Введение• Основные особенности• Дополнительные функции• Содержимое коробки • Внешний вид• Пульт управления• Начало работы• Быстрое изменение видеорежима• Подключение USB-накопителей• Доступ к сетевым дискам• Форматирование жесткого диска• Включение и выключение проигрывателя• NAS (Network Attached Storage)• WiFi• Ограничения• Обновление плеера и доп. информация416

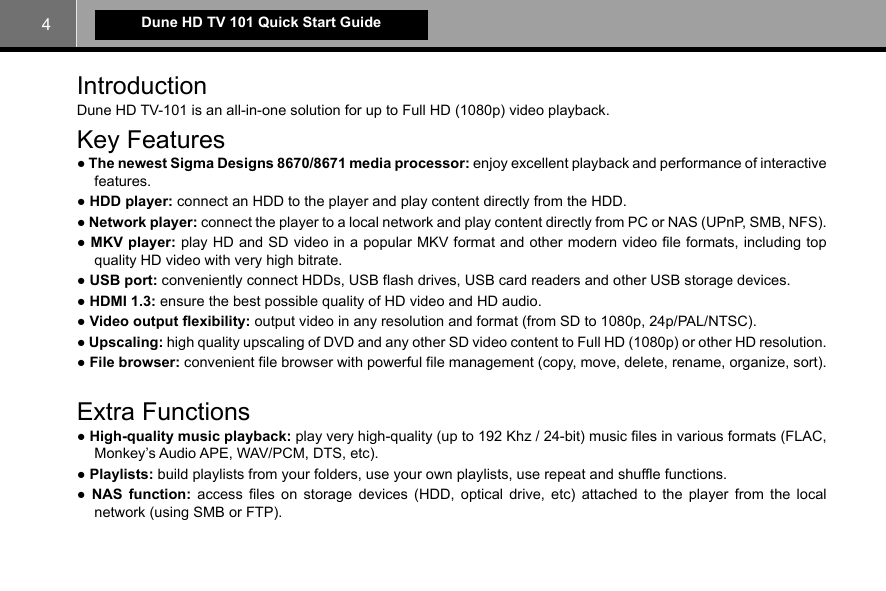

4Dune HD TV 101 Quick Start GuideIntroductionDune HD TV-101 is an all-in-one solution for up to Full HD (1080p) video playback.Key Features● The newest Sigma Designs 8670/8671 media processor: enjoy excellent playback and performance of interactive features.● HDD player: connect an HDD to the player and play content directly from the HDD.● Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).● MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top quality HD video with very high bitrate.● USB port: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.● HDMI 1.3: ensure the best possible quality of HD video and HD audio.● Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).● Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.● File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).Extra Functions● High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, DTS, etc). ● Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.● NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP).

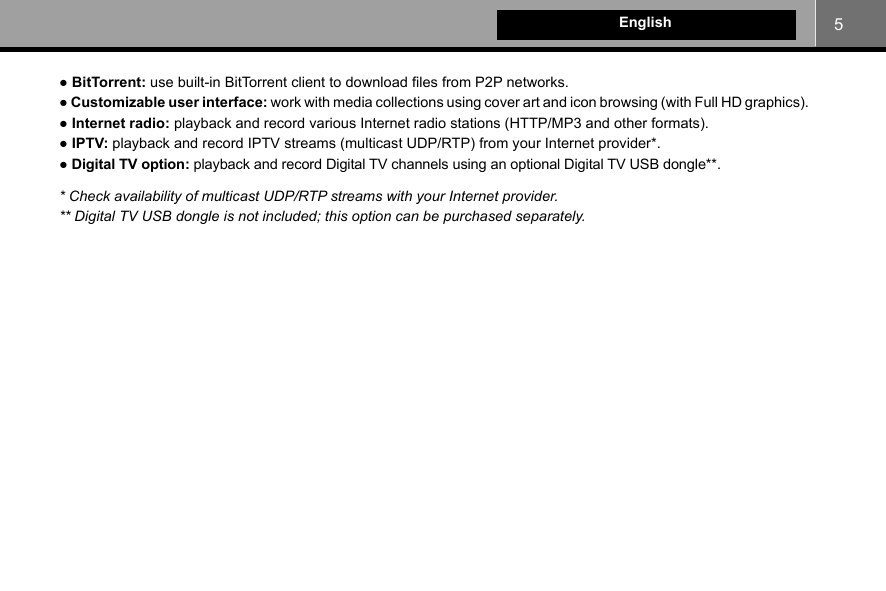

5English● BitTorrent: use built-in BitTorrent client to download files from P2P networks.● Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).● Internet radio: playback and record various Internet radio stations (HTTP/MP3 and other formats).● IPTV: playback and record IPTV streams (multicast UDP/RTP) from your Internet provider*.● Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle**.* Check availability of multicast UDP/RTP streams with your Internet provider.** Digital TV USB dongle is not included; this option can be purchased separately.

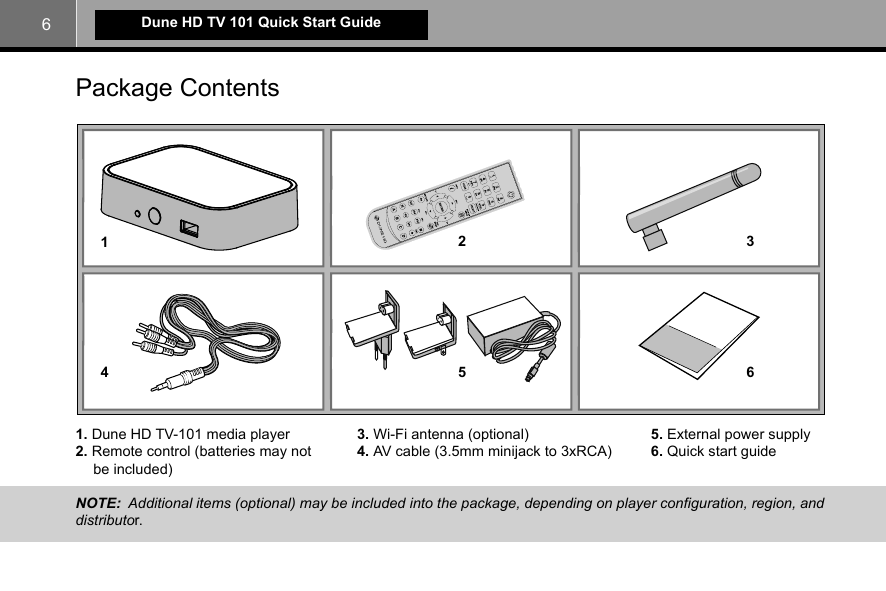

6Dune HD TV 101 Quick Start GuidePackage Contents 1. Dune HD TV-101 media player 2. Remote control (batteries may not be included)3. Wi-Fi antenna (optional)4. AV cable (3.5mm minijack to 3xRCA)5. External power supply6. Quick start guideNOTE: Additional items (optional) may be included into the package, depending on player configuration, region, and distributor.142653

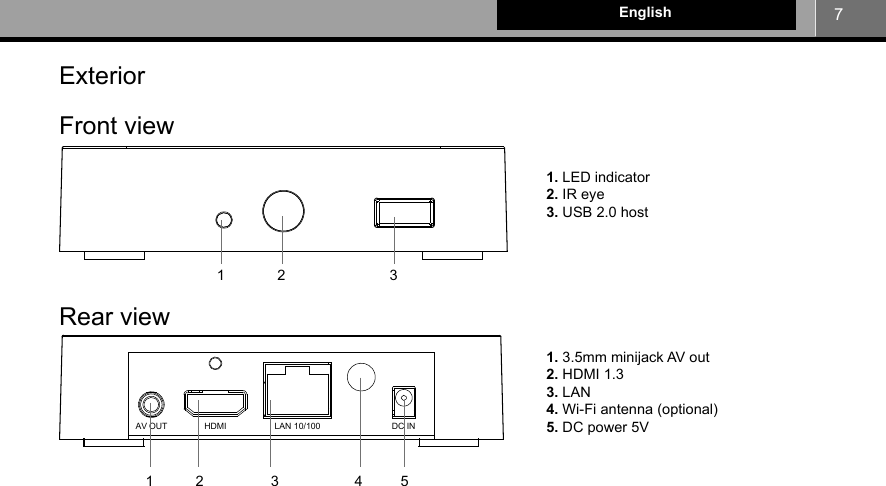

7EnglishFront viewExterior1. LED indicator 2. IR eye3. USB 2.0 host2131. 3.5mm minijack AV out 2. HDMI 1.33. LAN 4. Wi-Fi antenna (optional)5. DC power 5VRear viewAV OUT HDMI LAN 10/100 DC IN21345

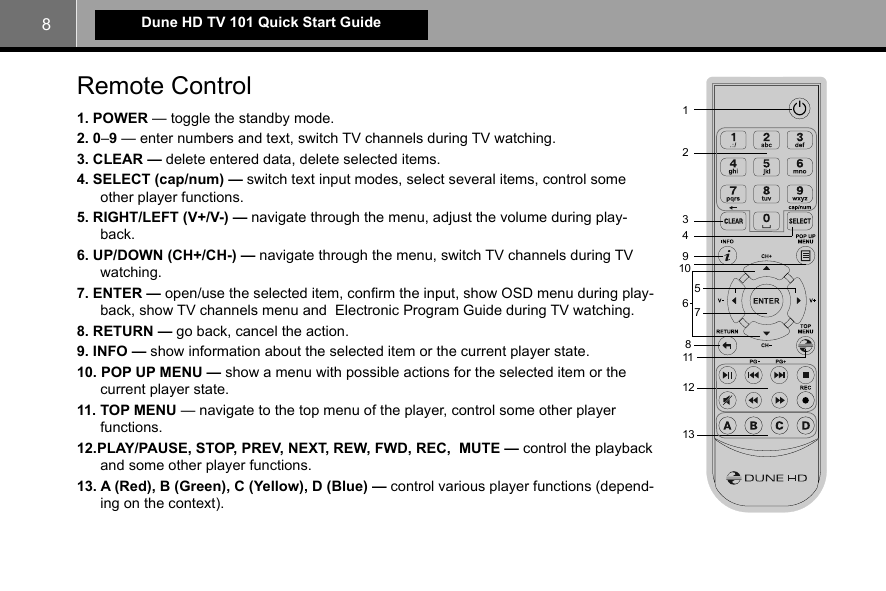

8Dune HD TV 101 Quick Start GuideRemote Control123456781011121391. POWER — toggle the standby mode.2. 0–9 — enter numbers and text, switch TV channels during TV watching.3. CLEAR — delete entered data, delete selected items.4. SELECT (cap/num) — switch text input modes, select several items, control some other player functions.5. RIGHT/LEFT (V+/V-) — navigate through the menu, adjust the volume during play-back.6. UP/DOWN (CH+/CH-) — navigate through the menu, switch TV channels during TV watching.7. ENTER — open/use the selected item, confi rm the input, show OSD menu during play-back, show TV channels menu and Electronic Program Guide during TV watching.8. RETURN — go back, cancel the action.9. INFO — show information about the selected item or the current player state.10. POP UP MENU — show a menu with possible actions for the selected item or the current player state.11. TOP MENU — navigate to the top menu of the player, control some other player functions.12.PLAY/PAUSE, STOP, PREV, NEXT, REW, FWD, REC, MUTE — control the playback and some other player functions.13. A (Red), B (Green), C (Yellow), D (Blue) — control various player functions (depend-ing on the context).

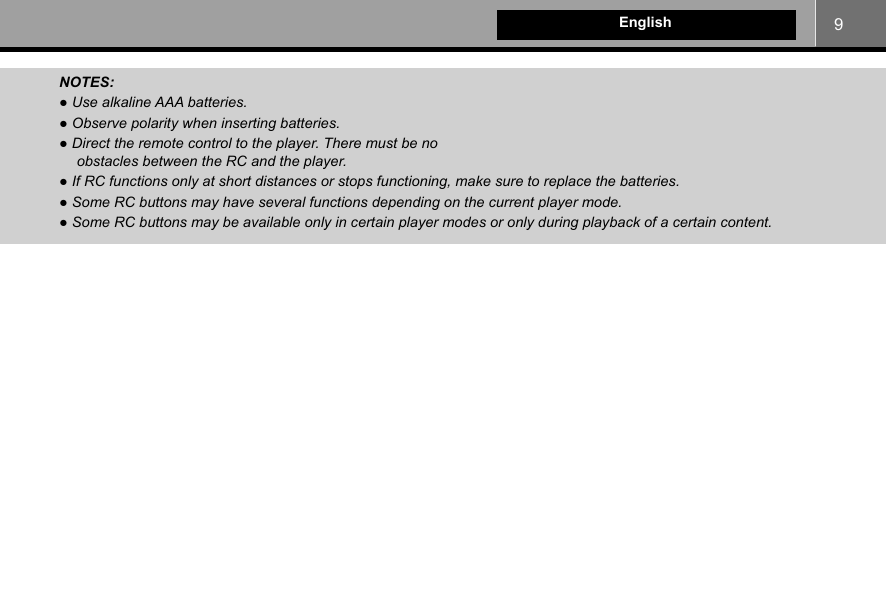

9EnglishNOTES:● Use alkaline AAA batteries.● Observe polarity when inserting batteries.● Direct the remote control to the player. There must be no obstacles between the RC and the player.● If RC functions only at short distances or stops functioning, make sure to replace the batteries.● Some RC buttons may have several functions depending on the current player mode.● Some RC buttons may be available only in certain player modes or only during playback of a certain content.

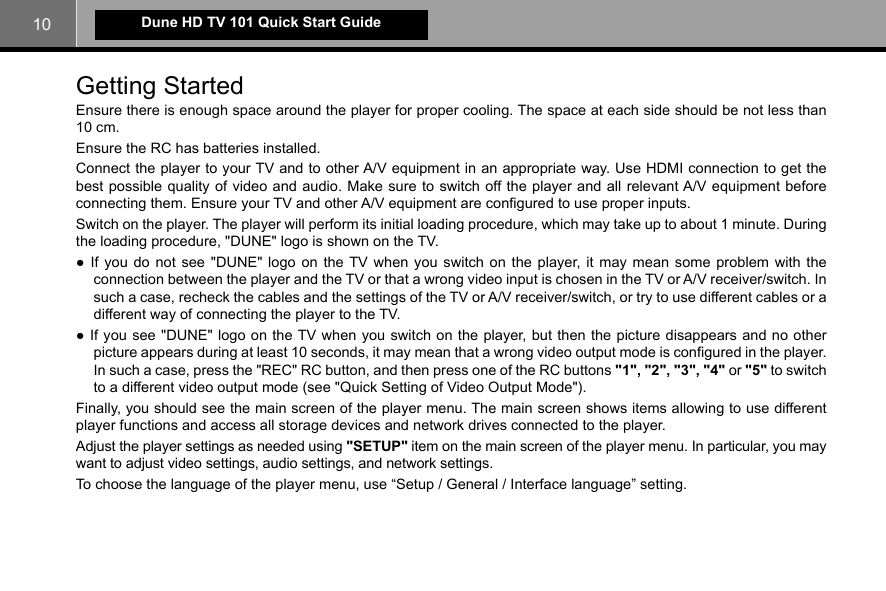

10Dune HD TV 101 Quick Start GuideGetting Started Ensure there is enough space around the player for proper cooling. The space at each side should be not less than 10 cm.Ensure the RC has batteries installed.Connect the player to your TV and to other A/V equipment in an appropriate way. Use HDMI connection to get the best possible quality of video and audio. Make sure to switch off the player and all relevant A/V equipment before connecting them. Ensure your TV and other A/V equipment are configured to use proper inputs.Switch on the player. The player will perform its initial loading procedure, which may take up to about 1 minute. During the loading procedure, "DUNE" logo is shown on the TV.● If you do not see "DUNE" logo on the TV when you switch on the player, it may mean some problem with the connection between the player and the TV or that a wrong video input is chosen in the TV or A/V receiver/switch. In such a case, recheck the cables and the settings of the TV or A/V receiver/switch, or try to use different cables or a different way of connecting the player to the TV.● If you see "DUNE" logo on the TV when you switch on the player, but then the picture disappears and no other picture appears during at least 10 seconds, it may mean that a wrong video output mode is configured in the player. In such a case, press the "REC" RC button, and then press one of the RC buttons "1", "2", "3", "4" or "5" to switch to a different video output mode (see "Quick Setting of Video Output Mode").Finally, you should see the main screen of the player menu. The main screen shows items allowing to use different player functions and access all storage devices and network drives connected to the player.Adjust the player settings as needed using "SETUP" item on the main screen of the player menu. In particular, you may want to adjust video settings, audio settings, and network settings.To choose the language of the player menu, use “Setup / General / Interface language” setting.

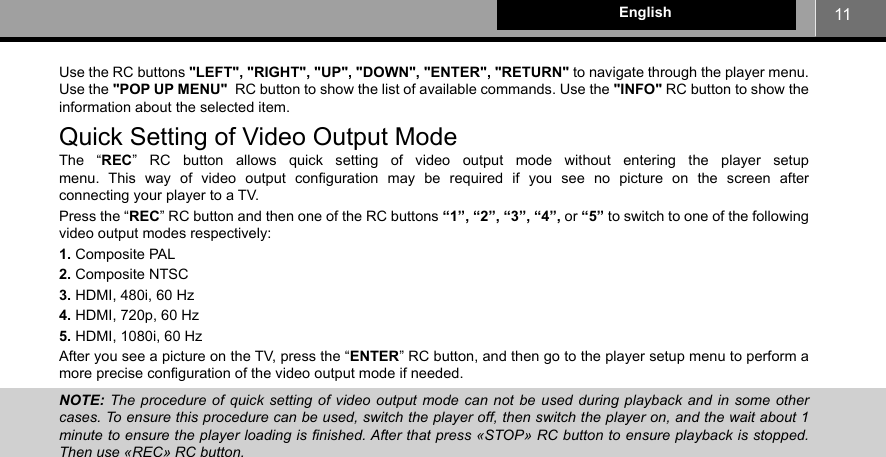

11EnglishUse the RC buttons "LEFT", "RIGHT", "UP", "DOWN", "ENTER", "RETURN" to navigate through the player menu. Use the "POP UP MENU" RC button to show the list of available commands. Use the "INFO" RC button to show the information about the selected item.Quick Setting of Video Output ModeThe “REC” RC button allows quick setting of video output mode without entering the player setup menu. This way of video output confi guration may be required if you see no picture on the screen after connecting your player to a TV. Press the “REC” RC button and then one of the RC buttons “1”, “2”, “3”, “4”, or “5” to switch to one of the following video output modes respectively:1. Composite PAL2. Composite NTSC3. HDMI, 480i, 60 Hz4. HDMI, 720p, 60 Hz5. HDMI, 1080i, 60 HzAfter you see a picture on the TV, press the “ENTER” RC button, and then go to the player setup menu to perform a more precise confi guration of the video output mode if needed.NOTE: The procedure of quick setting of video output mode can not be used during playback and in some other cases. To ensure this procedure can be used, switch the player off, then switch the player on, and the wait about 1 minute to ensure the player loading is finished. After that press «STOP» RC button to ensure playback is stopped. Then use «REC» RC button.
12Dune HD TV 101 Quick Start GuideConnecting USB DrivesTo connect a USB drive, ensure you are on the main screen of the player menu and connect the USB drive to an USB port of the player. The player will recognize the USB drive, and will show an item corresponding to the USB drive on the main screen.When connecting a USB drive requiring signifi cant power (such as USB HDD), use an external power supply for the USB drive. Power provided by the USB ports of the player may not be enough for correct functioning of the USB drive.Do not disconnect or switch off the USB drive when some write operation is in progress.Accessing Network DrivesTo connect a network drive using SMB or NFS protocol, ensure you are on the main screen of the player menu, press the “MENU” RC button, and choose “Create Network Folder”, then fi ll the parameters of the network drive as needed. The player will show an item corresponding to the confi gured network drive on the main screen.To browse the list of network resources accessible via SMB or UPnP protocols, use “Network Browser” item on the main screen of the player menu.NOTE: If some network resources are not shown by the player, you may need to wait some minutes and then retry (or press the “MENU” RC button and choose “Refresh” command).Formatting HDDTo format a HDD attached to the player, select the HDD item on the main screen of the player menu, press the “INFO” RC button and choose “Format Disk” (to format the entire disk) or “Format Partition” (or toformat an already existing disk partition only). The player will format the disk. To format an unformatted HDD, just press the “ENTER” RC button on the HDD item.NOTE: To use disks formatted by the player on a Windows PC, you may need to install additional software on the PC, such as “EXT2FSD” (http://www.ext2fsd.com/).

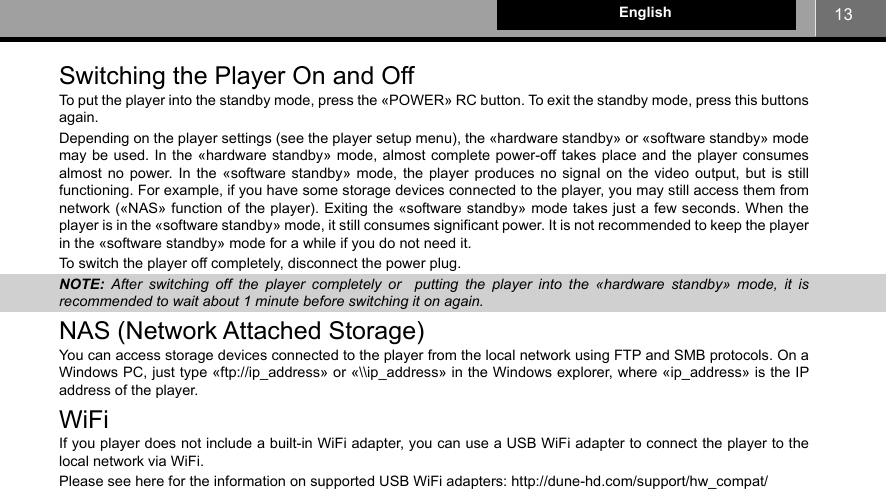

13EnglishSwitching the Player On and Off To put the player into the standby mode, press the «POWER» RC button. To exit the standby mode, press this buttons again.Depending on the player settings (see the player setup menu), the «hardware standby» or «software standby» mode may be used. In the «hardware standby» mode, almost complete power-off takes place and the player consumes almost no power. In the «software standby» mode, the player produces no signal on the video output, but is still functioning. For example, if you have some storage devices connected to the player, you may still access them from network («NAS» function of the player). Exiting the «software standby» mode takes just a few seconds. When the player is in the «software standby» mode, it still consumes significant power. It is not recommended to keep the player in the «software standby» mode for a while if you do not need it.To switch the player off completely, disconnect the power plug.NOTE: After switching off the player completely or putting the player into the «hardware standby» mode, it is recommended to wait about 1 minute before switching it on again.NAS (Network Attached Storage)You can access storage devices connected to the player from the local network using FTP and SMB protocols. On a Windows PC, just type «ftp://ip_address» or «\\ip_address» in the Windows explorer, where «ip_address» is the IP address of the player.WiFiIf you player does not include a built-in WiFi adapter, you can use a USB WiFi adapter to connect the player to the local network via WiFi.Please see here for the information on supported USB WiFi adapters: http://dune-hd.com/support/hw_compat/

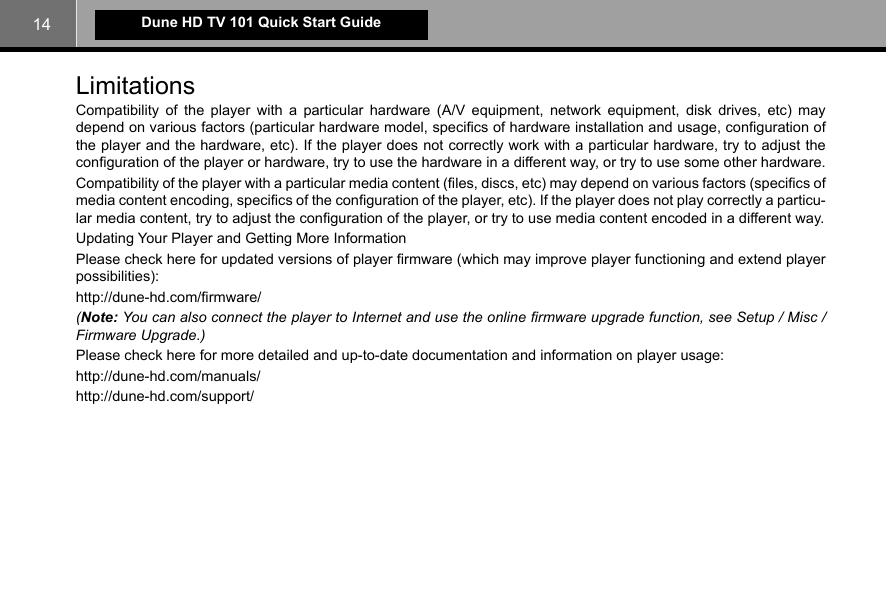

14Dune HD TV 101 Quick Start GuideLimitationsCompatibility of the player with a particular hardware (A/V equipment, network equipment, disk drives, etc) may depend on various factors (particular hardware model, specifi cs of hardware installation and usage, confi guration of the player and the hardware, etc). If the player does not correctly work with a particular hardware, try to adjust the confi guration of the player or hardware, try to use the hardware in a different way, or try to use some other hardware.Compatibility of the player with a particular media content (fi les, discs, etc) may depend on various factors (specifi cs of media content encoding, specifi cs of the confi guration of the player, etc). If the player does not play correctly a particu-lar media content, try to adjust the confi guration of the player, or try to use media content encoded in a different way.Updating Your Player and Getting More InformationPlease check here for updated versions of player fi rmware (which may improve player functioning and extend player possibilities):http://dune-hd.com/fi rmware/(Note: You can also connect the player to Internet and use the online fi rmware upgrade function, see Setup / Misc / Firmware Upgrade.)Please check here for more detailed and up-to-date documentation and information on player usage:http://dune-hd.com/manuals/http://dune-hd.com/support/

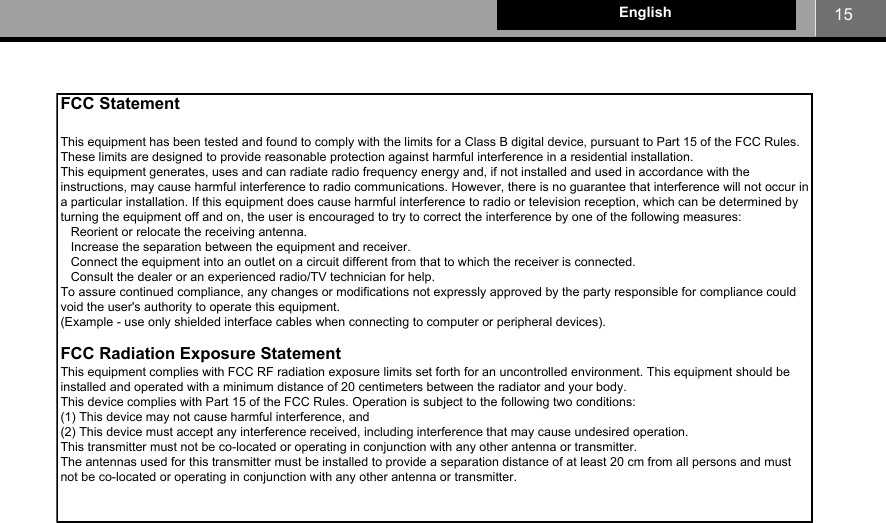

15EnglishFCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

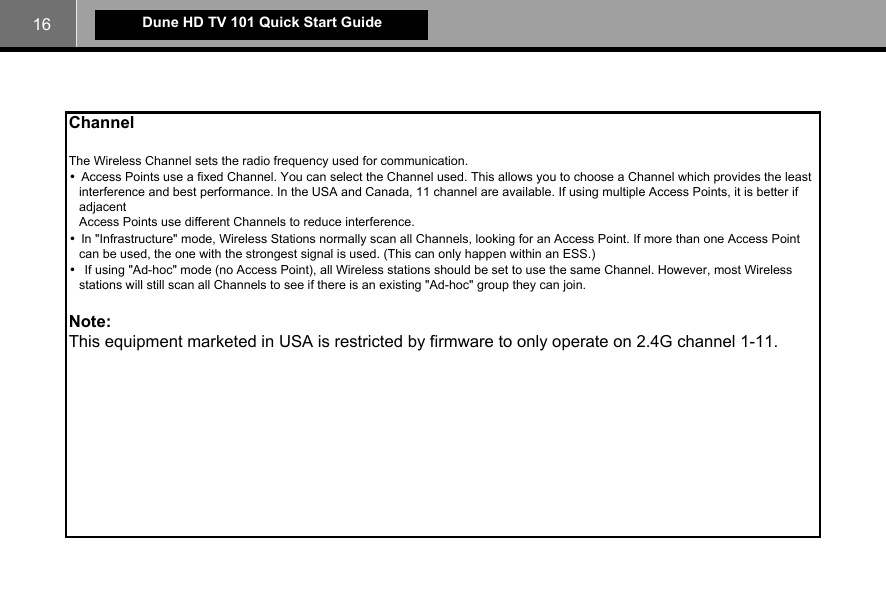

16 Dune HD TV 101 Quick Start GuideChannel The Wireless Channel sets the radio frequency used for communication. •Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. •In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) • If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. Note: This equipment marketed in USA is restricted by firmware to only operate on 2.4G channel 1-11.
