User’s Manual
HD Action Camera
i
Table of Contents
About this manual........................................................ iv
Copyright ..................................................................... iv
Precautions ................................................................... v
Operating conditions.............................................vi
Notes on Waterproof Case............................................ vii
Before You Start.............................................................x
1 Introducing the Camera............................1
1.1
System Requirements...........................................1
1.2
Features..............................................................1
1.3
Unpacking the Camera........................................2
1.4
About the Camera................................................ 4
1.4.1
Camera Views..........................................4
1.4.2
Button Functions..................................... 5
1.4.3
LED Indicators......................................... 6
2 Getting Started ..........................................7
2.1
Installing the Micro SD Card............................... 7
2.1.1
Removing the Micro SD card.................. 8
2.2
Installing the Battery........................................... 8
2.2.1
Removing the battery.............................. 9
2.3
Charging the Battery......................................... 10
2.4
Turning ON/ OFF the Camera.......................... 11
2.5
OLED Screen.................................................... 12
2.6

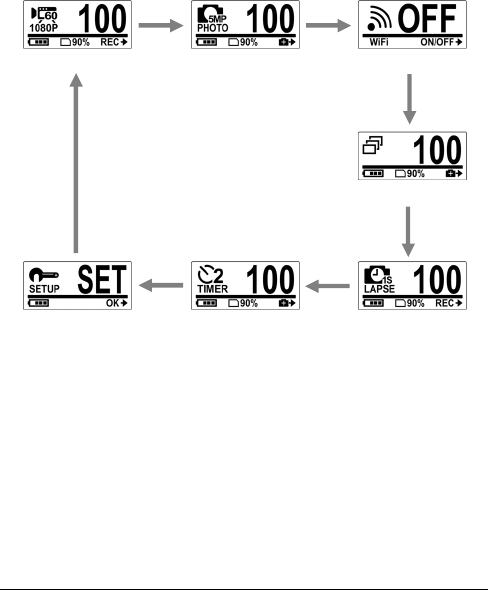

Changing Modes............................................... 15
2.7

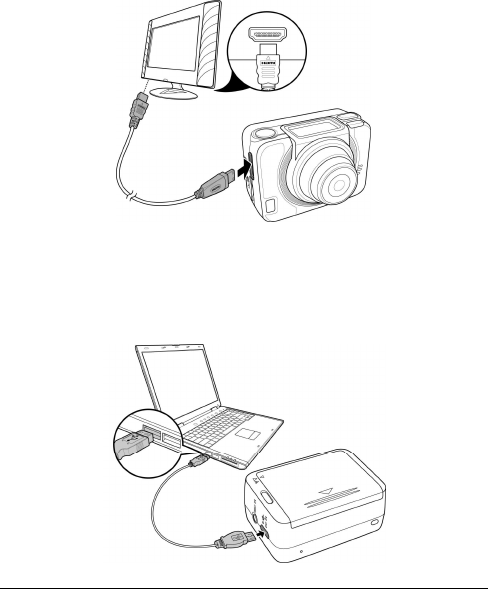

Connecting to TV (HDMI Cable)....................... 16
ii
2.8
Connecting to PC (Micro USB Cable) ............... 16
3 Capturing Videos and Photos..................17
3.1
Recording Videos............................................... 17
3.2
Taking Photos.................................................... 17
3.2.1
WiFi........................................................ 18
3.2.2
Burst Shooting....................................... 18
3.2.3
Time Lapse Shooting............................. 19
3.2.4
Self-Timer............................................... 19
3.2.5
Loop Recording..................................... 20
4 Adjusting the Settings .............................21
4.1
Video Resolution ............................................... 23

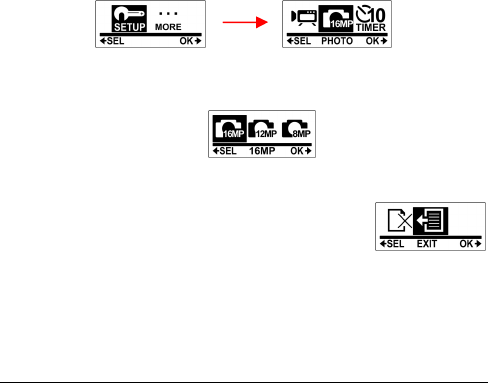

4.2
Photo................................................................. 26

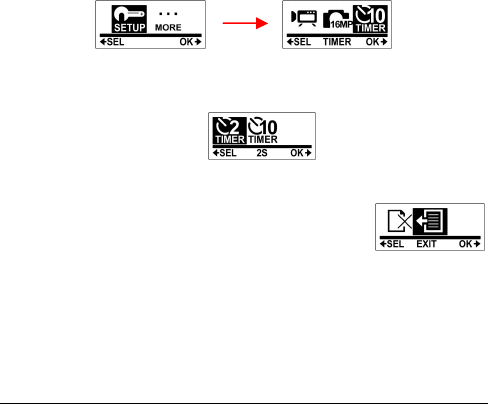

4.3
Timer................................................................. 28
4.4
Shooting Interval............................................... 29
4.5
Up/Down........................................................... 31
4.6

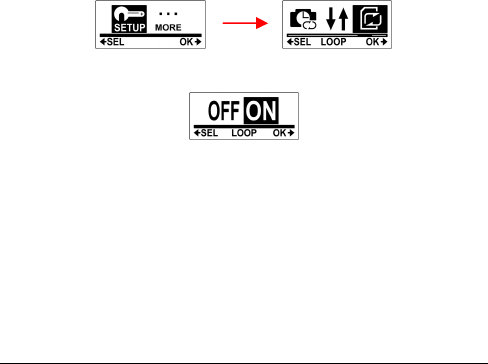

Loop.................................................................. 32
4.7

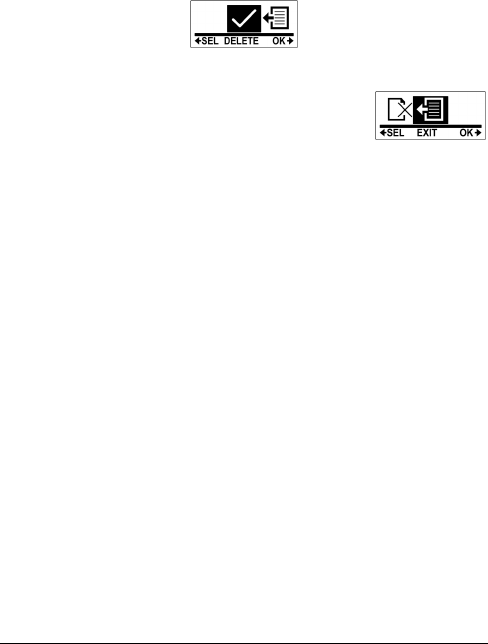

Delete................................................................ 35

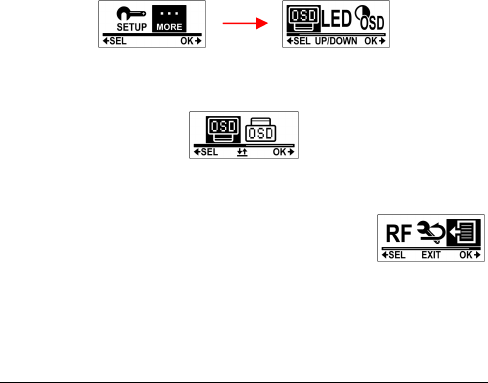

4.8
OSD Up/Down................................................... 37
4.9

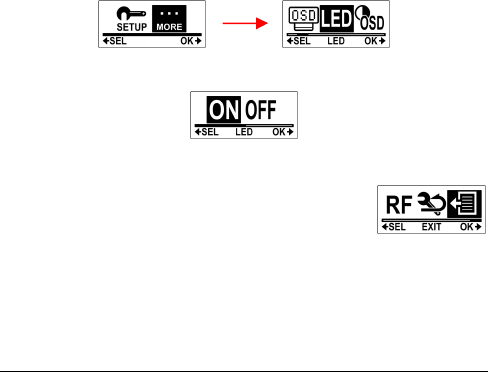

LED .................................................................. 38
4.10

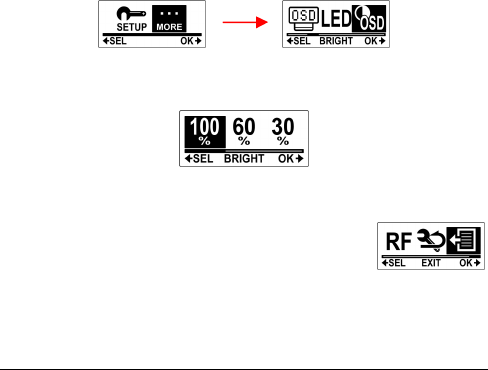

Brightness......................................................... 39
4.11
Beep.................................................................. 40
4.12
Auto-Off............................................................ 41
4.13
Date and Time................................................... 42
4.14

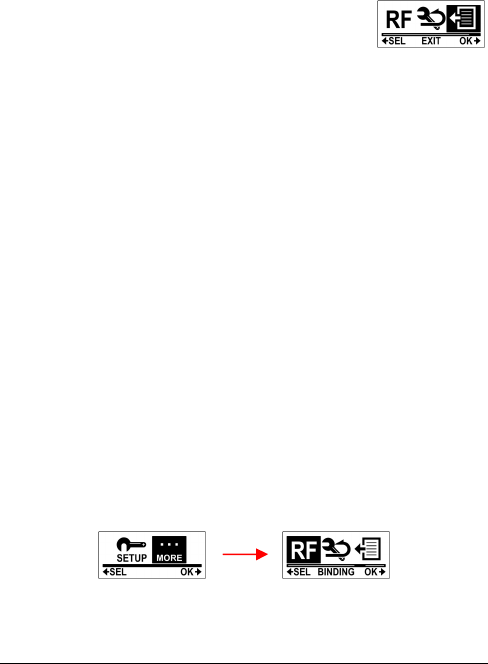

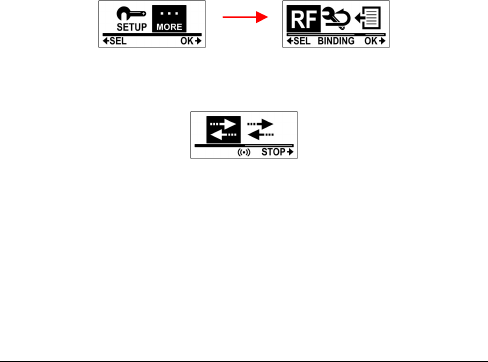

RF..................................................................... 44
iii

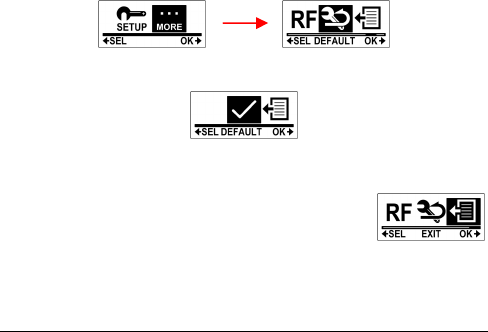

4.15
Factory Default................................................. 46
5 Using the Accessories...............................47
5.1
Waterproof Case................................................ 47
5.1.1
Using the Waterproof Case................... 47
5.1.2
Changing the T Tip Adapter................. 49
5.1.3
Changing the Housing Back Door........ 50
5.2
Velcro Strap....................................................... 50
5.3
Assembling the Camera Accessories.................. 51
5.4
RF Watch Remote Control................................. 52
Appendix..........................................................54
Specifications.............................................................. 54
Troubleshooting .......................................................... 56
FCC Statement ............................................................ 57
Radiation Exposure Statement..................................... 58
iv
Preface
Congratulations on your purchase of this advanced camera. Ensure
that you read this manual carefully and keep it in a safe place for
future reference.
About this manual
Every effort has been made to ensure that the contents of this
manual are correct and up to date. However, no guarantee is made
regarding the accuracy of the contents. The manufacturer reserves
the right to change the contents, technology, and specifications
without notice.
Copyright
© Copyright 2013.
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, manual or
otherwise, without the prior written permission of the
manufacturer.
v
Precautions
General precautions
• Do not store the product in dusty, dirty, or sandy areas, as its
components may be damaged.
• Do not store the product in a hot environment. High
temperatures can shorten the life of electronic devices, damage
batteries and warp or melt certain plastics.
• Do not store the product in cold areas. When the product
warms up to its normal temperature, moisture can form inside,
which may damage the electronic circuits.
• Do not attempt to open the casing or attempt your own repairs.
High-voltage internal components create the risk of electric
shock when exposed.
• Do not drop or knock the product. Rough handling may
damage the internal components.
• Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the product. Wipe the product with a
slightly damp soft cloth.
• Do not open the battery cover while an image is being
recorded. Doing so will not only make storage of the current
image impossible, it can also corrupt other image data already
stored on file.
• If the product or any of its accessories are not working
properly, take them to your nearest qualified service center.
The personnel there will assist you and if necessary, arrange
for the product to be repaired.
• Test for proper operation before using the camera.
vi
Operating conditions
• This camera is designed for use in temperatures ranging from
0°C to 40°C (32°F to 104°F).
• Do not use or keep the camera in the following areas:
- In areas subject to direct sunlight
- In areas subject to high humidity or dust
- Near air conditioners, heaters, or other areas subject to
temperature extremes
- Inside of a closed vehicle, especially one parked in the sun.
- In areas subject to strong vibration
Power supply
• Use only the type of battery that came with your camera.
Using any other type of battery may damage the equipment
and invalidate the warranty.
• Do not short the battery terminals. The battery could overheat.
• Do not attempt to split or peel the outer casing.
• Remove the battery if the camera is not going to be used for a
long time. If the battery is left unused for more than 3 months,
you need to charge the battery before use.
vii
Notes on Waterproof Case
Waterproof Case performance
• The waterproof case performance is equivalent to
IPX8
(60m/1hr).
• Underwater time limit: Do not use the waterproof case
underwater for more than 60 minutes and 60 meters to ensure
water resistance.
• The waterproof case is not dust-proof.
• The camera and other accessories are not waterproof unless
enclosed by the waterproof case.
• When using the camera in cold or humid environments or
when going underwater, use the anti-fog insert to prevent
fogging. The anti-fog insert only provides a certain degree of
prevention, results vary depending on the actual environment.
The anti-fog insert is not for long-term use, it must be replaced
regularly.
Notes before going underwater:
(Do the following actions indoors. Do not do these actions on sandy
or dusty environment or near the water’s edge.)
• Check if the area surrounding the waterproof case lock is clean,
do not allow dirt or sand or foreign objects around it.
• Ensure that the waterproof case is closed.
• Ensure that the waterproof case has no cracks or scratches. If
the waterproof case has been dropped, contact your dealer for
a replacement.
viii
Notes for general use:
• Avoid opening or closing the waterproof case near the water’s
edge (sea, lake, beach, lake, etc.). Do not open or close the
waterproof case lock with wet hands, or hands with sand or
dust.
• The accessories (batteries, etc.) used with the camera are not
water resistant, be careful in using them.
• Do not drop the waterproof case to ensure waterproof
durability.
• Do not place the waterproof case in temperatures above 40°C
or below 0°C to ensure waterproof durability.
• Do not attempt to make alterations on the waterproof case or
seal the vents yourself, doing so may damage its ability to
maintain the camera waterproof.
When using the camera
• The waterproof properties of the waterproof case apply to
fresh water and saltwater only; they do not apply to cleaning
substances, chemicals, or water from spas, etc. Any such
liquids should be wiped off immediately.
• Do not immerse the waterproof case in water at a depth
greater than 60 meters.
• Do not subject the waterproof case to highly pressurized
water.
• Do not immerse in water for longer than 60 minutes. After 60
minutes of use in water, allow the waterproof case to dry for at
least 10 minutes.
• Do not immerse in water warmer than 40°C (104°F).
• Do not open or close the waterproof case lock with wet hands.
• Do not open the waterproof case lock next to water or a pool.
• The waterproof case is not dust-proof.
ix
• Do not bump or knock the waterproof case underwater,
otherwise the lock may open.
Notes on waterproof case maintenance
• The waterproof of sealing material is replaceable for a fee. The
material should be replaced once a year to maintain its water
resistance.
After using the waterproof case
• Be sure to come ashore within 60 minutes after going
underwater, this will maintain the appearance, quality and
water resistance of the waterproof case.
• After taking pictures underwater, clean the waterproof case
with running tap water. Do not use any soapy water, mild
detergents, alcohol or similar liquids to clean the case.
• Wipe off water drops on the waterproof case with a soft
lint-free cloth (avoid fiber). Be sure to wait until the waterproof
case is completely dry before opening the waterproof case
lock.
• After removing the camera from the waterproof case, soak the
waterproof case in a bucket of clean water for about 10
minutes. After 10 minutes, wipe the waterproof case dry with
a lint-free cloth. Place the waterproof case in a well ventilated
cool place to dry naturally (do not place under direct sunlight).
Other notes
• If water accidentally enters the camera or any problem occurs
when it is in water, please get it out of the water immediately
and take proper actions. Dry the camera and send it for repair,
if required.
• Information is subject to change without notice. Refer to the
important notes in the manual supplied with the camera.
x
Before You Start
Take some test shots before you use your camera.
Before taking pictures with this camera, test the camera beforehand
to ensure that it functions properly. Any additional loss caused by
the malfunction of this product (such as costs of photography or
any loss of benefit generated by the photography) is not the
responsibility of the manufacturer and no compensation will be
given for it.
Copyright information
Take care to observe "No Photography" notices in certain locations.
In these cases, you cannot record any live performance,
improvisation or exhibits, even for personal purposes. Any transfer
of pictures or memory card data must be conducted under the
constraints of copyright law.
1
1 Introducing the Camera
Read this section to learn about the features and functions of the
camera. This chapter also covers system requirements, package
contents, and descriptions of the hardware components.
1.1 System Requirements
The camera requires a PC with the following specifications for full
HD 1080p 30fps and 720p 60fps playback:
• Windows
®
8 /Windows
®
7 /Vista / XP (SP2) / MAC OS X
10.5 and later
• Intel
®
/ AMD Dual-Core CPU and later
• At least 1 GB of RAM or higher
• At least DirectX 9 video card, DirectX 10 is recommended
• Standard USB 1.1 port and later
• At least 2GB or greater available hard disk space
1.2 Features
The camera offers a variety of features and functions including:
• Full HD 1080p (60fps.)
• H.264 Video Clip
• 140° Wide Angle Lens
• WLAN 802.11 b/g/n
• 2.4GHz RF remote control
• 16 Megapixel Photos
• Sports Camera functionality
Note:
A USB 1.1 port will enable you to transfer files to and from
your host PC, but transfer speeds will be faster with a USB 2.0
port.
2
• Li-ion Rechargeable Battery
• External Waterproof Case/Standard Mounts/Watch Remote
• Smartphone App Supported
1.3 Unpacking the Camera
The following items should be present in the package. If any item is
missing or appears damaged, contact your dealer immediately.
Camera Li-ion Battery User Manual
CD-ROM Micro USB Cable
HDMI Cable
(optional)
AC Adapter
3
Standard Accessories
Waterproof Case
Vented Housing
Backdoor
Waterproof
Housing Backdoor
T Tip Adapter Flat Adhesive
Socket
Curved Adhesive
Socket
Secure Tether Velcro Strap Swivel T Tip
Anti-fog Inserts Safety Lock
4
1.4 About the Camera
Refer to the following illustrations to familiarize yourself with the
buttons and controls of this camera.
1.4.1 Camera Views
Power/Status
LED 1
Lens
Speaker
HDMI port
Shutter button
Power/Status/
Battery LED
Power / Mode
button
OLED screen
Micro SD
card slot
Battery compartment
cover
Power/Status LED 4
Microphone
jack
Micro
USB
port
Microphone
Power/Status
LED
5
1.4.2 Button Functions
Power / Mode
Button
• Press and hold for 3 seconds to turn the
camera on or off.
• Press to switch to different modes: Video,
Photo, WiFi, Burst, Time Lapse,
Self-timer, and Set mode.
• In Set mode, press to scroll through menu
items.
Shutter Button
• In Video mode, press to start/stop video
recording.
• In Photo mode, press to take a photo.
• In Set mode, press to select an item.
6
1.4.3 LED Indicators
The camera has four LED indicators.
The Power/Status LEDs are located on top, on the bottom, and on
the back of the camera. These LEDs are designed for users to see the
status of the camera whichever way the camera is held or mounted.
LED Color Description
Green During startup
Green Blinking Taking photos/ WiFi initial
setup is complete and
connection is in progress
Red Blinking Video recording in progress
Power / Status
LED
Red Blinking
Rapidly
Self-timer
Red Blinking Battery is charging
Battery LED
Off Full charge
7
2 Getting Started
Read this section to learn how to start using the camera. This
section covers basic functions such as switching on, installing the
battery and micro SD card, and configuring preliminary settings.
See later chapters for advanced functions.
2.1 Installing the Micro SD Card
A micro SD card is required to capture photos and videos. The
camera supports micro SDHC cards up to 32GB.
1. Insert the micro SD card into the card slot with the gold
contacts facing the front of the device.
2. Push the micro SD card until it clicks into place.
Warning: Do not remove the micro SD card while data is being
recorded. Doing so may corrupt the saved data and damage the
card.
8
2.1.1 Removing the Micro SD card
1. Turn off the camera.
2. With a fingertip, push the micro SD card to eject it from
the slot.
3. Remove the micro SD card.
2.2 Installing the Battery
Warning: Use only the supplied battery or a similar battery
recommended by the manufacturer or the dealer.
1. Push down the battery compartment cover to open it.
2. Align the battery contacts and then insert the battery into
the compartment with the ribbon underneath the battery.
9
3. Close the battery compartment cover.
2.2.1 Removing the battery
1. Open the battery compartment cover.
2. Pull the ribbon to remove the battery.
10
2.3 Charging the Battery
You can charge the battery using the micro USB cable that came
with the camera. Follow the steps below to charge the battery.
1. Install the battery into the
battery compartment.
2. Plug the micro-USB
connector to the USB port
of your device.
3. Plug the other end of the
USB cable to a computer.
Note:
The battery LED blinks red. After a full charge, the LED turns
off.
Approximate charging time is 240 minutes with a USB
connection. Actual charging time depends on current battery
capacity and charging conditions.
You may also use the supplied
AC adapter to charge your camera
battery.
11
2.4 Turning ON/ OFF the Camera
• To turn on the camera, press the
Power button. The Power/Status
LED indicator lights green for 3
seconds.
• To turn off the camera, press and
hold the Power button for 3 seconds.
12
2.5 OLED Screen
When the camera is turned on, the OLED screen displays the
following information:
3
1
4
5
Current Mode Displays the current mode of the
camera.
Video
Mode
Use this mode to record videos. The
icon also indicates the current video
recording settings.
Mode
Use this mode to capture photos. The
icon also indicates the current
capture settings.
1
WiFi
Mode
Select to connect the camera to a
smartphone using WiFi connection.
With this feature, videos and photos
recorded from the camera can be
viewed on the smartphone.
13
Burst
Mode
Use this mode to capture 10
continuous photos with one press of
the Shutter button.
Time
Lapse
Mode
In this mode, photos are
continuously captured with a specific
interval time when the Shutter
button is pressed. To stop capturing,
press the Shutter button again. The
icon also indicates the current
capture settings.
Self-timer
Mode
In this mode, photos are taken 10 or 2
seconds after pressing the Shutter
button. The icon also indicates the
current capture settings.
1
Set Mode Use this mode to adjust the settings
of your camera.
2
Battery Indicates the battery capacity.
3
Memory
status Indicates the memory storage status.
4
Number of Files Indicates the total number of shots.
Button Function
Indicates the operation that the
camera will do when the Shutter
button is pressed. The displayed icon
varies depending on the mode.
Record Press the Shutter button to record
videos.
5
Capture Press the Shutter button to capture
photos.
14
On Press the Shutter button to activate
Wi-Fi function.
5
Confirm Press the Shutter button to enter the
SETUP menu.
15
2.6 Changing Modes
Press the Mode button repeatedly to switch modes.
Video Mode Photo Mode WiFi Mode
Setting Mode Self-Timer Mode
Time Lapse Mode
Burst Mode
16
2.7 Connecting to TV (HDMI Cable)
You can also connect the camera to a TV using the HDMI cable
(optional).
2.8 Connecting to PC (Micro USB Cable)
Connect the camera to a computer with the micro USB cable
provided as shown.
17
3 Capturing Videos and Photos
3.1 Recording Videos
Your camera supports Dual Stream recording. When a video is
recorded, two video files of different file size are automatically
saved in the memory card. The smaller file is used to view videos
using a smartphone.
1. Turn on the camera. By default, the
camera automatically opens to Video
mode.
2. Press the Shutter button to start recording.
3. Press the Shutter button to stop recording.
3.2 Taking Photos
1. Turn on the camera.
2. Press the Mode button to switch to
Photo mode.
3. Press the Shutter button to capture a photo.
18
3.2.1 WiFi
This menu allows you to connect your camera to a smartphone
using WiFi connection and view or record the videos and photos
from your camera on the smartphone.
Note: Before using this feature, download the ActionCam! app
from AppStore (iOS) or Google Play (Android OS) on your
smartphone.
1. Press the Mode button repeatedly to
switch to WiFi mode.
2. Press the Shutter button to toggle WiFi ON or OFF.
3. Press the Mode button to exit the WiFi screen.
4. Wait for 30 seconds until the LED flashes to indicate
Wi-Fi connection is established.
5. On your smartphone, enable Wi-Fi connection, then
search and connect to the Wi-Fi network
ActionCam_xxxxxx.
6. When prompted for a password, enter the default
password “1234567890”.
7. Use the ActionCam! app to view videos and photos
from your camera.
3.2.2 Burst Shooting
This feature allows you to capture 7 photos with one press of the
Shutter button.
1. Press the Mode button repeatedly to
switch to Burst mode.
2. Press the Shutter button to start
capturing photos.
19
3.2.3 Time Lapse Shooting
This feature allows you to continuously capture photos with one
press of the Shutter button at the preset interval time
(1/3/5/10/30/60 seconds). Shooting only stops when the Shutter
button is pressed again.
You can use this feature to record videos such as evolution of a
construction project, weather changes, or flower blossom.
For Video lapse function, those continuous shots are combined and
saved into one video automatically. The recorded video is played
back in fast motion (faster than the normal playback speed).
For Photo lapse function, it will continuously capture 16M photos
and you need to use a third party software to create a video clip.
1. Press the Mode button repeatedly to
switch to Time Lapse mode.
2. Press the Shutter button to start capturing photos.
3. Press the Shutter button again to stop capturing photos.
3.2.4 Self-Timer
This feature allows you to capture a photo after a short delay.
1. Press the Mode button repeatedly to
switch to Self-timer mode.
2. Press the Shutter button. The photo is captured after 10
or 2 seconds.
Number of recorded frames
Reco
rding time
20
3.2.5 Loop Recording
This feature allows you to continuously record the video until the
memory card storage is full or the recording is manually stopped.
The system will automatically save one video file every 1 minute of
recording.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Shutter button to enter the SETUP menu.
4. Press the Mode button to highlight LOOP.
5. Press the Shutter button to enter the LOOP submenu.
6. Press the Mode button to select ON and press the Shutter
button to confirm.
7. Press the Shutter button to start
recording.
8. Press the Shutter button to stop
recording.
21
4 Adjusting the Settings
To adjust the camera settings, press the Mode button repeatedly to
switch to Set mode and then press the Shutter button to confirm.
The screen below is displayed:
1
2
4
3
SETUP Menu Select SETUP to adjust capture
settings.
Video Select to adjust the video
resolution.
Photo Select to adjust the image
resolution.
Timer Select to specify the self-timer
delay.
Time Lapse
Select to adjust the interval time
between capturing photos in Time
Lapse mode.
Up/Down
Select to set the camera direction
upside down. This feature is useful
when using the camera as a vehicle
recorder.
1
Loop Select to enable/disable the loop
recording function.
22
Delete Select to delete captured videos or
photos from the micro SD card.
1
Exit Select to close the SETUP menu and
return to the previous menu screen.
MORE Menu Select MORE to adjust basic camera
settings.
Up/Down Select to set the direction of the
OSD screen display.
LED Select to turn the LED on or off.
Bright Select to adjust the screen
brightness.
Beep Select to adjust the beep volume.
Auto-Off
Select to set the time for the camera
to automatically turn off when not
in use.
Time Select to set the camera date and
time.
RF Select to pair with the RF remote
control.
Default Select to set the camera to default
factory settings.
2
Exit Select to close the MORE menu and
return to the previous menu screen.
3
Select Press the Mode button to scroll and
highlight menu items.
4
Confirm Press the Shutter button to confirm
a highlighted item.
23
4.1 Video Resolution
Your camera supports Dual Stream recording. When a video is
recorded, two video files of different file size are automatically
saved in the memory card. The smaller file is used to view videos
using a smartphone. The camera supports nine resolution options
for videos. Set the video resolution before you start recording a
video.
Do the following to select the video resolution.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Shutter button to enter the SETUP menu.
4. Press the Shutter button to enter the VIDEO submenu.
5. Press the Mode button repeatedly to scroll through the
resolution options.
16:9, 1080P (1920x1080, 60fps)
16:9 Ultra Wide,
1080P (1920x1080, 30fps)
16:9 Wide,
1080P (1920x1080, 30fps)
24
16:9 Narrow,
1080P (1920x1080, 30fps)
4:3, 960P (1280x960, 60fps)
4:3, 960P (1280x960, 30fps)
16:9, 720P (1280x720, 120fps)
16:9, 720P (1280x720, 60fps)
16:9, WVGA (848x480, 240fps)
6. Press the Shutter button to confirm.
7. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
8. Press the Shutter button to exit SET mode.
25
Note: The FOV of every resolution is different.
Resolution Resolution Field of view
1080p60 1920*1080 (16:9) 126
1080p30 U 1920*1080 (16:9) 126
1080p30 W 1920*1080 (16:9) 102
1080p30 N 1920*1080 (16:9) 75
720p60 1280*720 (16:9) 126
720p120 1280*720 (16:9) 102
960p 1280*960(4:3) 140
WVGA 848*480 (16:9) 140
26
4.2 Photo
This menu allows you to set the resolution before you capture an
image.
Do the following to select the image resolution.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Shutter button to enter the SETUP menu.
4. Press the Mode button to highlight PHOTO.
5. Press the Shutter button to enter the PHOTO submenu.
6. Press the Mode button repeatedly to scroll through the
image resolution options: 16MP, 12MP, 8MP, and 5MP.
7. Press the Shutter button to confirm.
8. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
9. Press the Shutter button to exit SET mode.
27
Note: The FOV of every resolution is different.
Resolution 4:3 Resolution Field of view
Still image 16M 4632 x 3488, 16M 142
Still image 12M 4000 x 3000, 12M 118
Still image 8M 3264 x 2446, 8M 93
Still image 5M 2592 x 1944, 5M 73
28
4.3 Timer
This menu allows you to set the self-timer delay.
Do the following to select the desired self-timer setting.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Shutter button to enter the SETUP menu.
4. Press the Mode button to highlight TIMER.
5. Press the Shutter button to enter the TIMER submenu.
6. Press the Mode button repeatedly to scroll through the
self-timer options: 2S and 10S.
7. Press the Shutter button to confirm.
8. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
9. Press the Shutter button to exit SET mode.
29
4.4 Shooting Interval
This menu allows you to select the interval options when capturing
photos using Lapse mode.
Do the following to select the shooting interval.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Shutter button to enter the SETUP menu.
4. Press the Mode button to highlight LAPSE.
5. Press the Shutter button to enter the LAPSE submenu.
6. Press the Mode button repeatedly to select LAPSE
MODE or LAPSE TIME.
7. Do the following:
• To select the recording mode, highlight LAPSE MODE
and press the Shutter button. Then press the Mode
button repeatedly to select VIDEO or PHOTO.
30
• To set the shooting interval, highlight LAPSE TIME
and press the Shutter button. Then press the Mode
button repeatedly to scroll through the shooting
interval options: 1 SEC, 3 SEC, 5 SEC, 10 SEC,
30 SEC, and 60 SEC.
8. Press the Shutter button to confirm.
9. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
10. Press the Shutter button to exit SET mode.
31
4.5 Up/Down
This menu allows you to capture videos and photos upside down.
You can enable this feature when you mount the camera upside
down so that the captured shots appear right side up when you
review it on your computer or TV.
Do the following to enable this feature.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Shutter button to enter the SETUP menu.
4. Press the Mode button to highlight UP/DOWN.
5. Press the Shutter button to enter the UP/DOWN
submenu.
6. Press the Mode button to select ON.
7. Press the Shutter button to confirm.
8. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
9. Press the Shutter button to exit SET mode.
32
4.6 Loop
This menu allows you to set the camera to continuously record the
video until the memory card storage is full or the recording is
manually stopped.
Do the following to enable this feature.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Shutter button to enter the SETUP menu.
4. Press the Mode button to highlight LOOP.
5. Press the Shutter button to enter the LOOP submenu.
6. Press the Mode button to select ON.
7. Press the Shutter button to confirm.
33
Looping video mode
• The loop video function is only applicable when the
video resolution is set to 1080p30.
• Multiple small segments are written to the memory card,
and these segments will be overwritten during loop
recording.
• Without any looping files, the system will indicate that
the card is full when the remaining storage is less than
800MB.
• The looping video will perform when the remaining
storage and saved looping files capacity are more than
800MB.
• When looping video mode is enabled, you can do the
following operations in SET menu:
Disable the looping video mode, enable/disable the
upside down function, delete the all looping files.
• When you perform the Delete All operation, only the
looping files will be deleted.
• When the loop recording is enabled the auto power off
time will depend on the Auto Power Off setting. For
example, the Auto Power Off is set to 10 minutes, the
camera will automatically power off after being idle for
10 minutes.
• If you power on the camera manually, you need to start
and stop the video recording manually too.
34
Looping video mode with USB adapter
• When the camera is connected to a USB adapter, the
video recording starts automatically. When the USB
adapter is disconnected, the recording will stop recording
after 30 seconds. Then it will automatically save the file
and turn the device off.
• When the camera is connected to a USB adapter, the
video recording starts automatically.
If you manually stop the recording:
the camera will automatically power off after being
idle for 10 minutes when Auto Power Off is set to
10 minutes.
OR
the camera will automatically power off after 30
seconds when the USB adapter is disconnected or
without power supply.
35
4.7 Delete
This menu allows you to delete all files in the Micro SD card.
Do the following to delete all files.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Shutter button to enter the SETUP menu.
4. Press the Mode button to highlight DELETE.
5. Press the Shutter button to enter the DELETE submenu.
6. Press the Mode button repeatedly to scroll through the
delete options.
To delete the last captured video or
photo.
To delete all files in the micro SD
card.
To format the micro SD card.
7. Press the Shutter button to confirm.
36
8. Press the Mode button to select √ to confirm deletion.
9. Press the Shutter button to confirm.
10. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
11. Press the Shutter button to exit SET mode.
37
4.8 OSD Up/Down
This menu allows you to display the OLED screen upside down.
Do the following to enable this feature.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Shutter button to enter the UP/DOWN
submenu.
6. Press the Mode button to select OSD UP or OSD
DOWN.
7. Press the Shutter button to confirm.
8. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
9. Press the Shutter button to exit SET
mode.
38
4.9 LED
This menu allows you to turn the LED on or off.
Do the following to turn the LED on or off.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Mode button to highlight LED.
6. Press the Shutter button to enter the LED submenu.
7. Press the Mode button to select ON or OFF.
8. Press the Shutter button to confirm.
9. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
10. Press the Shutter button to exit SET mode.
39
4.10 Brightness
This menu allows you to adjust the OLED screen brightness.
Do the following to adjust the screen brightness.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Mode button to highlight BRIGHT.
6. Press the Shutter button to enter the BRIGHT submenu.
7. Press the Mode button repeatedly to select 100%, 60%, or
30%.
8. Press the Shutter button to confirm.
9. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
10. Press the Shutter button to exit SET
mode.
40
4.11 Beep
This menu allows you to enable or disable the beep sound when
you press the Power / Mode or Shutter buttons.
Do the following to enable or disable the beep sound.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Mode button to highlight BEEP.
6. Press the Shutter button to enter the BEEP submenu.
7. Press the Mode button repeatedly to scroll through the
beep options.
To set the beep volume to its
loudest.
To set the beep volume to middle
range.
To turn off beep.
41
8. Press the Shutter button to confirm.
9. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
10. Press the Shutter button to exit SET mode.
4.12 Auto-Off
This menu allows you to program the camera to automatically turn
off after being idle for a specific period of time, or you can set the
setting to OFF to keep the camera on until you manually turn it off.
Do the following to select the auto-off option.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Mode button to highlight AUTO-OFF.
6. Press the Shutter button to enter the AUTO-OFF
submenu.
42
7. Press the Mode button repeatedly to select 1 MIN, 3 MIN,
5 MIN, 10 MIN, 30 MIN, 60 MIN, or OFF.
8. Press the Shutter button to confirm.
9. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
10. Press the Shutter button to exit SET mode.
4.13 Date and Time
This menu allows you to set the camera date and time settings.
Do the following to set the camera date and time.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Mode button to highlight TIME.
6. Press the Shutter button to enter the TIME submenu. The
Year is highlighted.
43
7. Press the Shutter button repeatedly to adjust the year.
8. When done, press the Mode button to go to the month
field.
Year
Hour
Minute
Month
Day
9. Press the Shutter button repeatedly to adjust the month
value, and then press the Mode button to go to the day
field.
10. Press the Shutter button repeatedly to adjust the day
value, and then press the Mode button to go to the hour
field.
11. Press the Shutter button repeatedly to adjust the hour
value (in 24 hr or military time), and then press the Mode
button to go to the minute field.
12. Press the Shutter button repeatedly to adjust the minute
value, and then press the Mode button to highlight OK.
13. Press the Shutter button to complete
the date and time setting.
44
14. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
15. Press the Shutter button to exit SET
mode.
4.14 RF
This menu allows you to pair your camera with the RF watch
remote control (optional accessory). When the devices are paired,
you can record videos or capture photos by pressing the
corresponding buttons on the RF watch remote control.
Do the following to pair your RF watch remote control.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Mode button to highlight BINDING.
6. Press the Shutter button to enter the BINDING
submenu.
45
7. The camera RF antenna is enabled and ready to be paired
with the RF watch remote control.
Note: For details on pairing procedures with the RF watch
remote control, see “RF Watch Remote Control” section or you
can refer to RF Watch Quick Start Guide.
8. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
9. Press the Shutter button to exit SET mode.
46
4.15 Factory Default
This menu allows you to restore the default factory settings of your
camera.
Do the following to restore the factory default settings.
1. Press the Mode button repeatedly to change to SET
mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Mode button to highlight DEFAULT.
6. Press the Shutter button to enter the DEFAULT
submenu.
7. Press the Mode button to select √.
8. Press the Shutter button to confirm.
9. To exit the menu, press the Mode
button repeatedly until the EXIT screen
appears.
10. Press the Shutter button to exit SET
mode.
47
5 Using the Accessories
The camera comes with rugged accessories for all your sporting
needs.
5.1 Waterproof Case
The waterproof case allows you to take underwater shots or use it
with the surface mount, bike mount, or chest strap to capture other
water sports activities.
5.1.1 Using the Waterproof Case
1. Release the case lock and flip open the waterproof case.
2. Install the camera inside the waterproof case.
48
3. Secure the waterproof case lock.
The waterproof case can be used with other accessories such as the
swivel T tip, bike mount, chest mount, head mount, etc.
How to avoid fogging
1. Put 4 Anti-fog Inserts in waterproof case. Be sure to wait
two hours at least before using underwater.
After using the anti-fog inserts, they need to dry or put in
electronic dry cabinet.
2. Use the fogging agent or toothpaste to spray inside the
lens. Cross the water and left to dry to avoid fogging.
3. Put the camera with Li-ion battery in the waterproof case
and don’t close the case, then put them to the electronic
49
dry cabinet for about two hours. Before you use the
machine, close the waterproof case in the electronic dry
cabinet immediately. Don’t open the waterproof case
again to avoid humidity
.
5.1.2 Changing the T Tip Adapter
Depending on the accessories that you want to use with the case,
the T tip adapter may be detached and attached to another housing
back door or location. To detach the T tip adapter, remove the four
screws securing each tip adapter to the case.
50
5.1.3 Changing the Housing Back Door
Depending on the accessories that you want to use with the case,
you may need to change the housing back door. Two back doors
are included in the standard package: the waterproof housing back
door, and the vented housing back door.
Do the following to change the housing back door:
1. Open the back door
completely.
2. Pull to detach the back
door from the case.
3. Detach the T tip adapter
from the current back
door and install the T tip
adapter to the back door
you want to use.
4. Install the back door.
5.2 Velcro Strap
The Velcro strap can be used to secure the waterproof case onto any
object to conveniently record
photos and videos.
To install the Velcro strap,
insert the strap through the
strap holes of the tip adapter
as shown below.
51
5.3 Assembling the Camera Accessories
Lock the T tip adapter to the T tip of the adjoining accessories to
install them to your camera.
Tips on attaching adhesive mounts
• Apply to clean surfaces - wax, dust, and oily essence free.
• Attach the mount at room temperature.
• Mount only on smooth surfaces. To obtain optimum
adhesion, firmly press into place when installing the mount.
• It is highly recommended to attach the mount a minimum
of 24 hours before its initial usage.
• To prevent falls or losing your device, install
the safety lock onto the swivel T tip to secure
the device position into place.
52
5.4 RF Watch Remote Control
Before using the RF watch remote control, you must pair it with the
camera.
Do the following to pair your RF watch remote control.
1. On the camera, press the Mode button repeatedly to
change to SET mode.
2. Press the Shutter button to enter SET mode.
3. Press the Mode button to highlight MORE.
4. Press the Shutter button to enter the MORE menu.
5. Press the Mode button to highlight BINDING.
6. Press the Shutter button to enter the BINDING
submenu.
7. The camera RF antenna is enabled and ready to be paired
with the RF watch remote control.
8. On your RF watch remote control, press the MODE
button to switch to Preview mode. Then press and hold
the SET button to enter to SET mode.
53
MODE
button
LEFT
button
VIDEO button
SET button
RIGHT
button
button
9. Use the LEFT or RIGHT button to select Pairing and
press the VIDEO button to enter Pairing menu.
10. Use the LEFT or RIGHT button to select the preview
window that you want to pair with your camera and
press the VIDEO button to start pairing.
11. When pairing is complete, press the SET button to return
to SET mode. Then press the SET button to switch to
Preview mode.
12. Press the VIDEO button on your RF watch remote
control to start and stop video recording. To take photos,
press the PHOTO button.
Note: The maximum operation distance of the remote control is
approximately 3m when the RF watch remote control is pointed
at the remote control sensor of the camera.
54
Appendix
Specifications
General
OLED Screen
Display
0.83”
Storage (Memory)
Micro SD card, up to 32GB SDHC Class 6
Image Quality Optics: Ultra-sharp F/no=2.8, f=3.4mm
Focus range: 0.8m ~ infinity
Field of view: Ultra wide, Wide
Video 1080p (16:9): 60fps Ultra wide/30fps Ultra
wide, Wide, Narrow FOV
960p (4:3): 60, 30 fps Ultra wide FOV
720p (16:9): 120, 60 fps Ultra wide FOV
WVGA (16:9): 240 fps Ultra wide FOV
Time lapse: 1, 3, 5, 10, 30, 60 seconds
Video format: H.264 mp4
Still Image Resolution: 16MP, 12MP, 8MP, 5MP
Burst (Photo/sec): 7/1
Self-timer: 2, 10 seconds
Interval shooting: 1, 3, 5, 10, 30, 60 seconds
Photo format: JPEG (exif 2.2), DCF
White Balance Auto
Wi-Fi Built-in Yes
RF Remote Built-in
Yes
Looping Video Yes, 1080p30 Ultra wide
55
General
High Video Bitrate
Capture (H.264)
Up to 15 Mbps
Average Record
Time
Video (1080p60): about 90 minutes,
Photo (16MP): about 250 photos
Auto Power Off 1, 3, 5, 10, 30, 60 minutes
Inputs/Outputs Micro USB, Mini HDMI, 2.5mm external
microphone
Battery 1130mAh rechargeable Li-ion
Dimensions 42.7 (H) x 59.2 (W) x 26.4 (D) mm
(without lens)
Weight Approx. 74±3g (without battery)
56
Troubleshooting
Problem Possible Cause Solution
The battery LED
is flashing red.
The battery is almost
used up.
Replace with a new
battery or charge the
battery.
Nothing happens
when the Shutter
button is pressed.
The Micro SD card
is full. You cannot
take photos or
record videos at this
point.
Transfer the Micro SD
card files to the
computer or delete the
files in the Micro SD
card.
Nothing happens
when the Shutter
button is pressed.
“000” appears on
the screen.
The Micro SD card
may have
compatibility issues.
Format the Micro SD
card first using the
camera (Delete menu).
If it still does not work,
format the Micro SD
card using the PC.
Nothing happens
when the Shutter
button is pressed.
“000” appears on
the screen.
The Micro SD card is
not inserted.
Insert the Micro SD
card.
57
FCC Statement
Modifications not approved by the party responsible for
compliance could void user’s authority to operate the equipment.
This equipment has been tested and found to comply with the
limits for Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception, which
can be determined by turning the equipment on and off.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
58
• Consult the dealer or an experienced radio/TV technician for
help.
Radiation Exposure Statement
The product comply with the FCC portable RF exposure limit set
forth for an uncontrolled environment and are safe for intended
operation as described in this manual. The further RF exposure
reduction can be achieved if the product can be kept as far as
possible from the user body or set the device to lower output power
if such function is available.
Trademarks and licenses
SDHC Logo is a trademark of SD-3C, L

Navigation menu
