DXG Technology RWD03001 HD Action Camera User Manual DVS8Q9 UM

DXG Technology Corp. HD Action Camera DVS8Q9 UM

Contents

User Manual

User’s Manual
HD Action Camera 
i
Table of Contents
About this manual ............................................................ iv
Copyright .......................................................................... iv
Precautions ....................................................................... v
Operating conditions .............................................. vi
Notes on Waterproof Case .............................................. vii
Before You Start ................................................................ x
1 Introducing the Camera ............................ 1
1.1 System Requirements ............................................. 1
1.2 Features .................................................................. 1

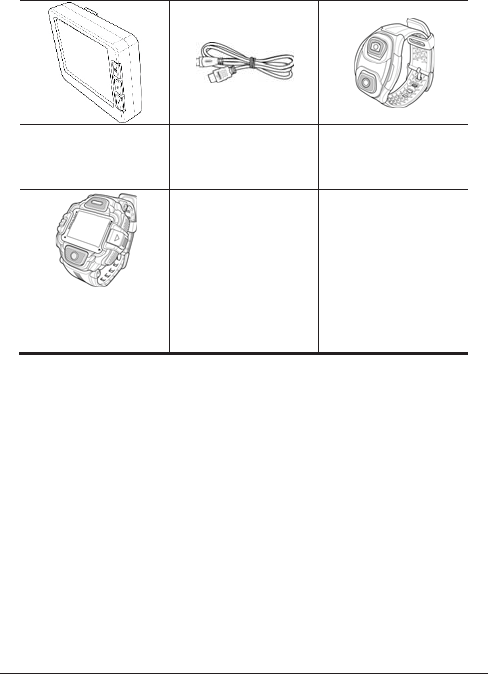

1.3 Unpacking the Camera .......................................... 2
1.4 About the Camera ................................................... 4

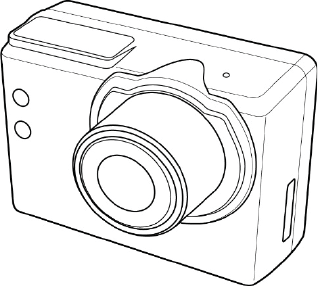

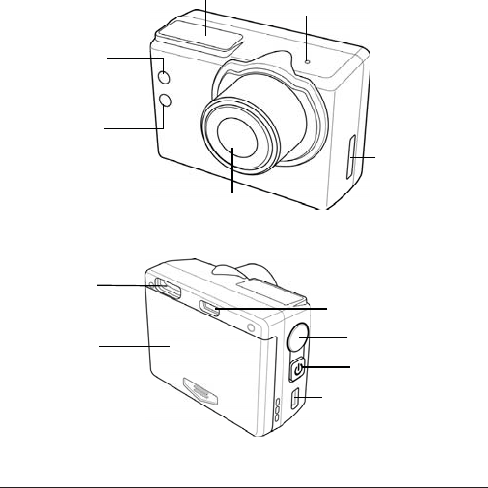

1.4.1 Camera Views ............................................ 4
1.4.2 Button Functions ........................................ 5
1.4.3 LED Indicators ........................................... 6
2 Getting Started ........................................... 7

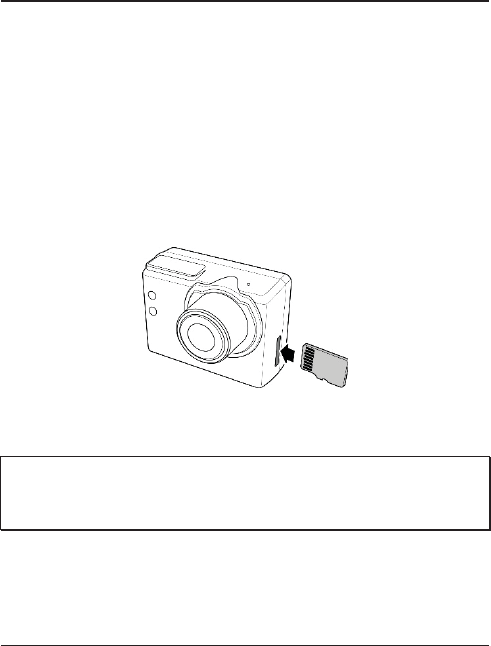

2.1 Installing the Micro SD Card ................................. 7
2.1.1 Removing the Micro SD card ................... 8

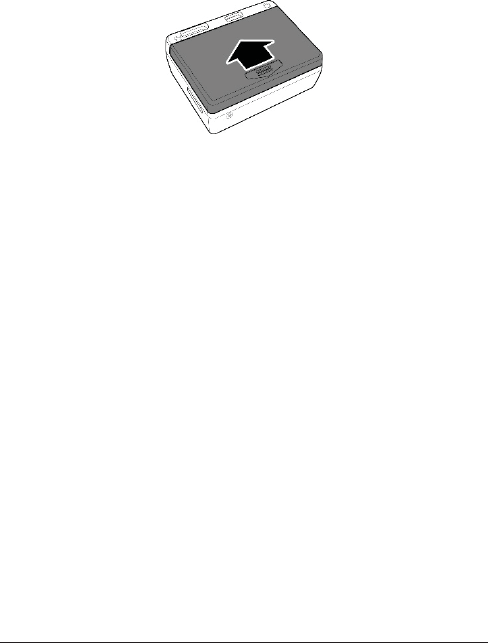

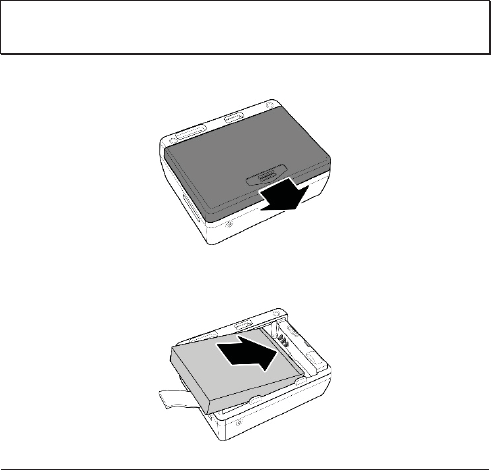

2.2 Installing the Battery .............................................. 8
2.2.1 Removing the battery ................................ 9

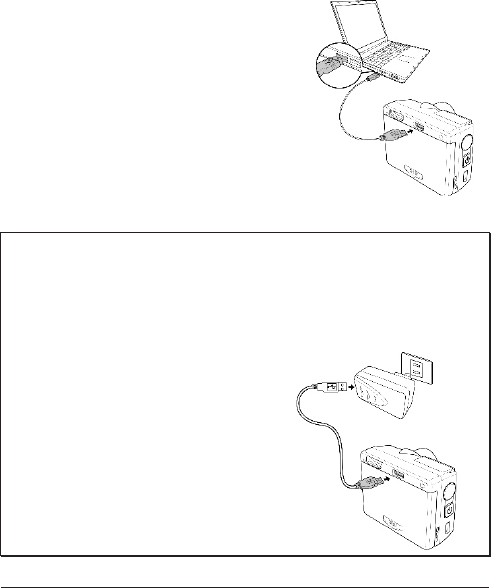

2.3 Charging the Battery ............................................ 10
2.4 Turning ON/ OFF the Camera ............................ 11

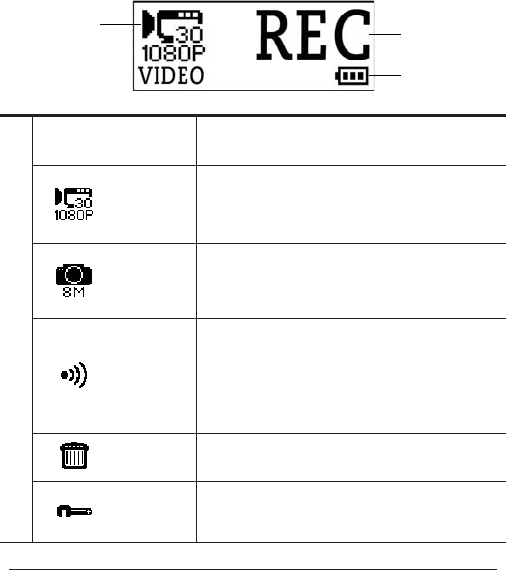

2.5 OLED Screen ....................................................... 12

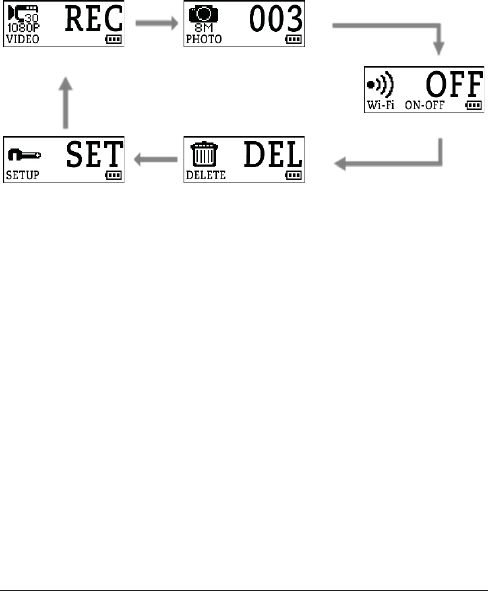

2.6 Changing Modes .................................................. 14

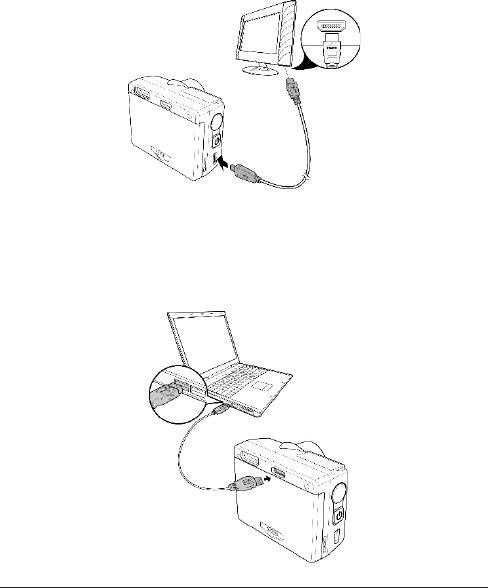

2.7 Connecting to TV (Mini HDMI Cable) ................ 15
ii
2.8 Connecting to PC (Micro USB Cable) ................. 15

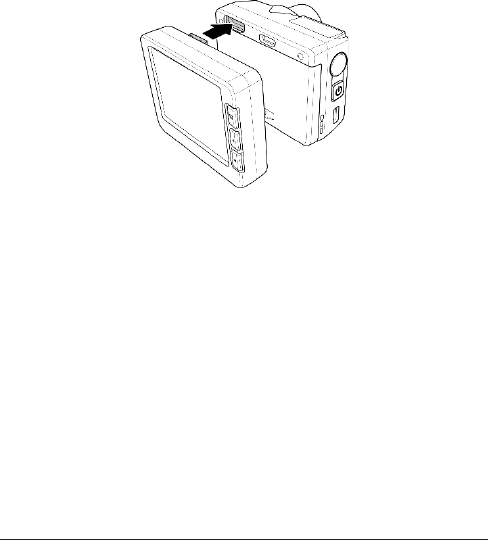

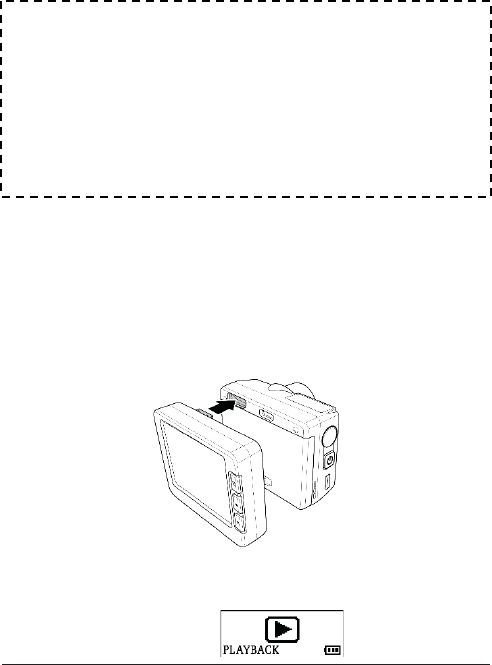

2.9 Connecting to Detachable Panel (Mini HDMI) .. 16
3 Capturing Videos and Photos .................. 17

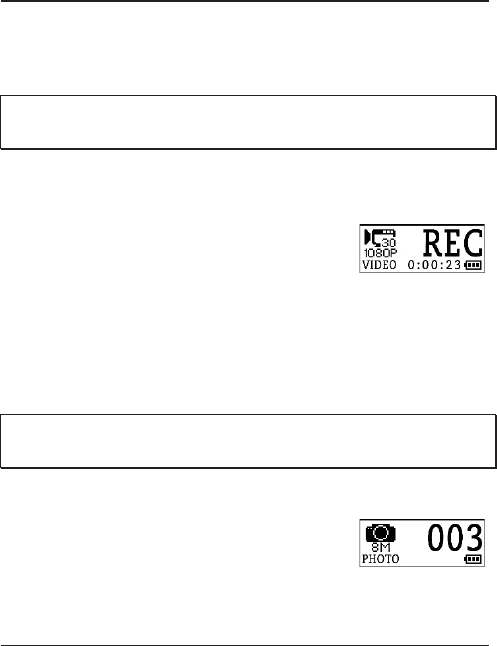

3.1 Recording Videos .................................................. 17
3.2 Taking Photos ....................................................... 17

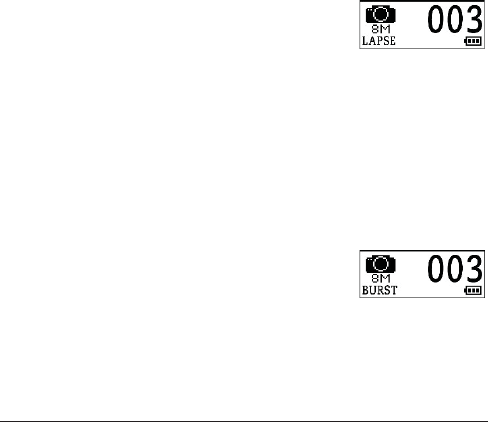

3.2.1 Lapse Shooting ......................................... 18
3.2.2 Burst Shooting .......................................... 18

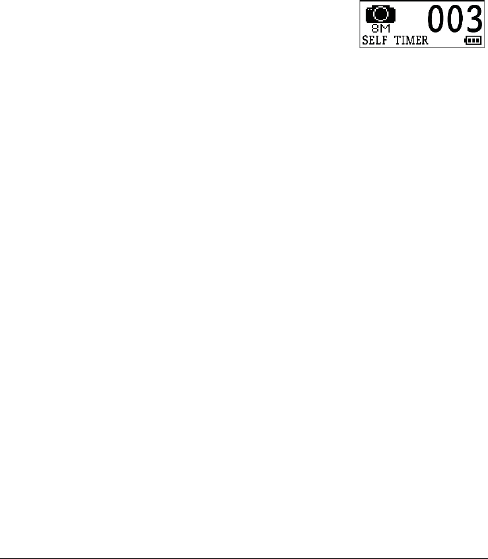

3.2.3 Self-Timer .................................................. 19

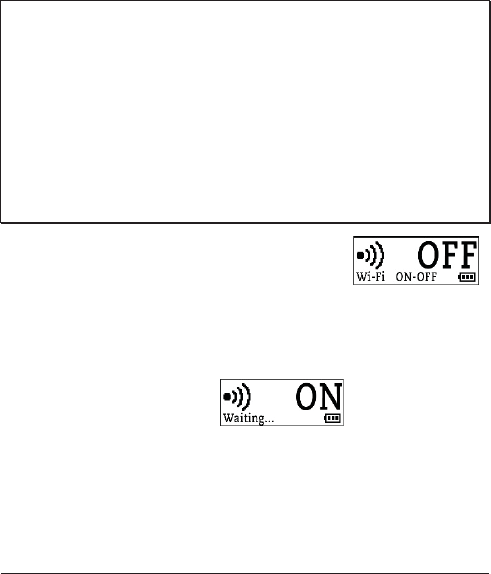

3.3 Wi-Fi ..................................................................... 20

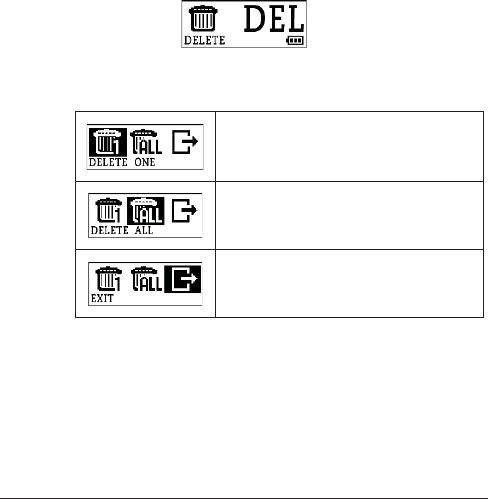

3.4 Delete .................................................................... 22
4 Adjusting the Settings .............................. 23

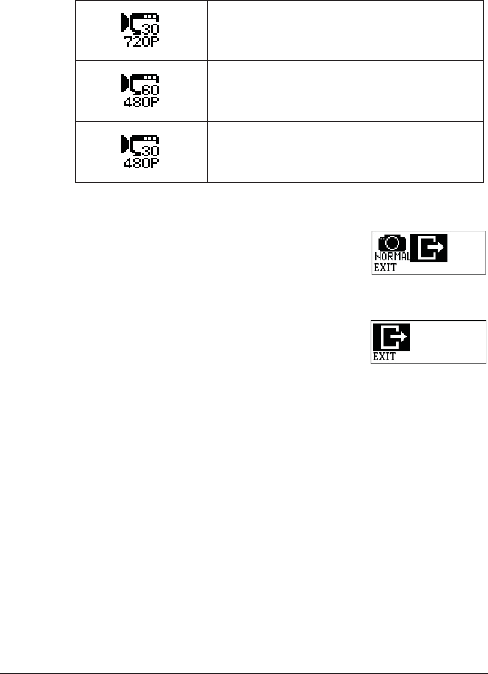

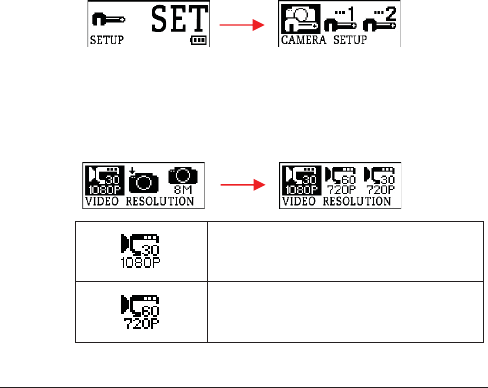

4.1 Video Resolution ................................................... 26
4.2 Photo Mode ........................................................... 29

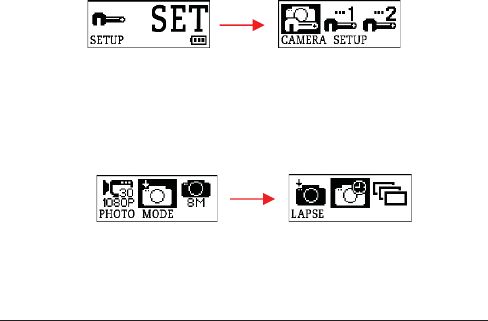

4.2.1 Lapse .......................................................... 29

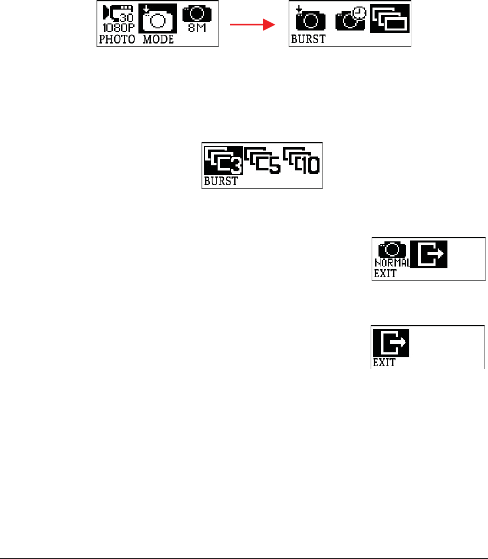

4.2.2 Burst Shooting .......................................... 30

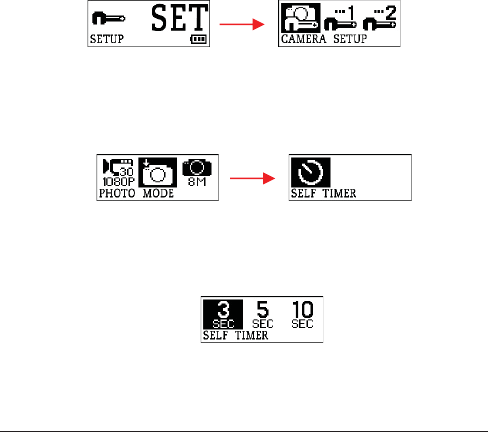

4.2.3 Self-Timer .................................................. 32

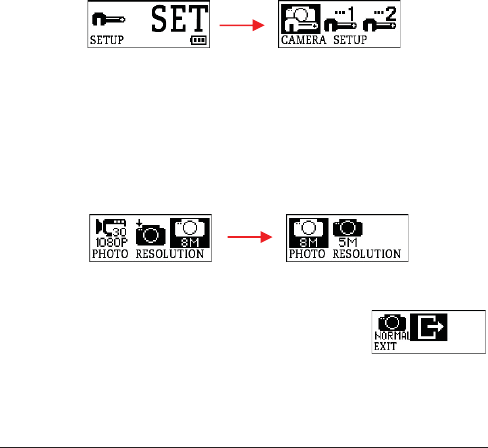

4.3 Photo Resolution .................................................. 34

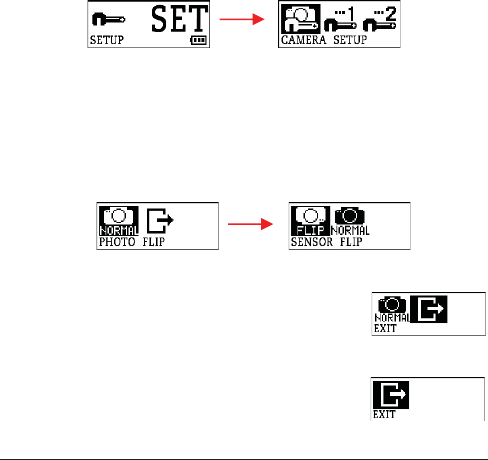

4.4 Sensor Flip ........................................................... 36

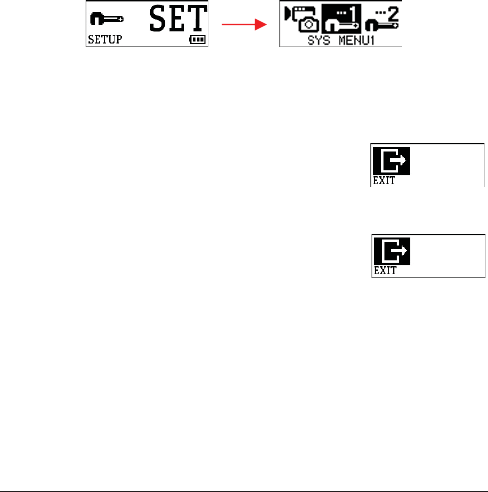

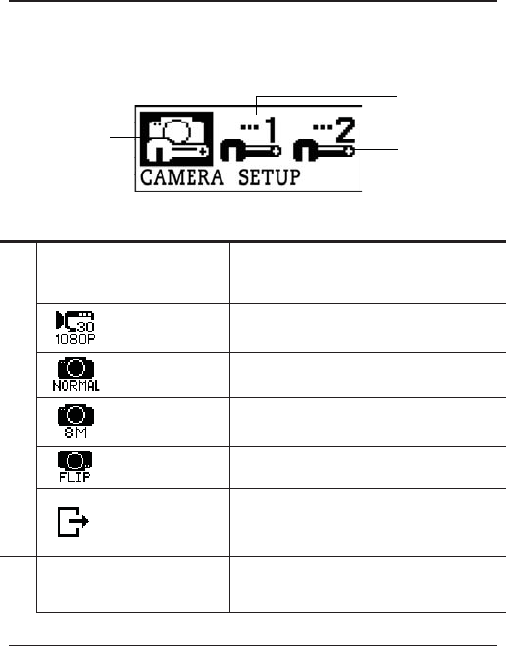

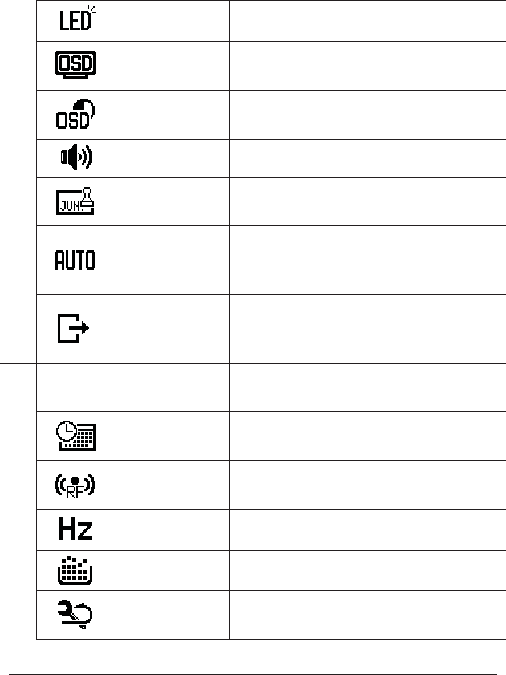

4.5 System Menu 1 ..................................................... 37

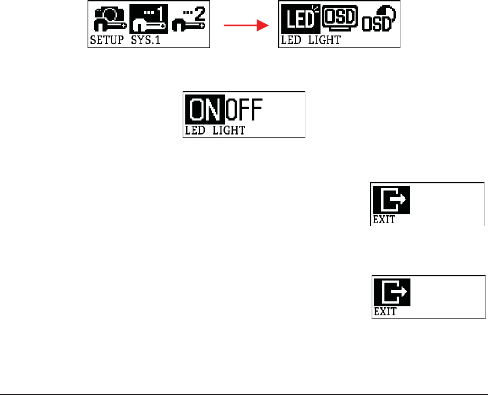

4.5.1 LED Light .................................................. 38

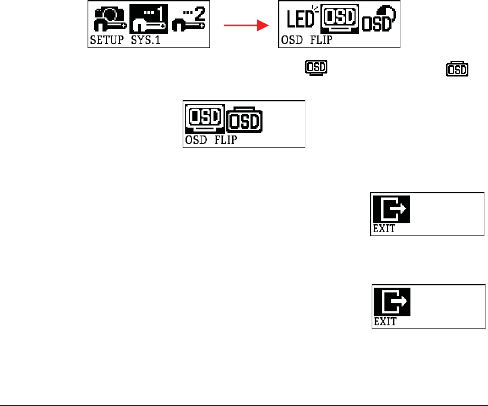

4.5.2 OSD Flip .................................................... 39

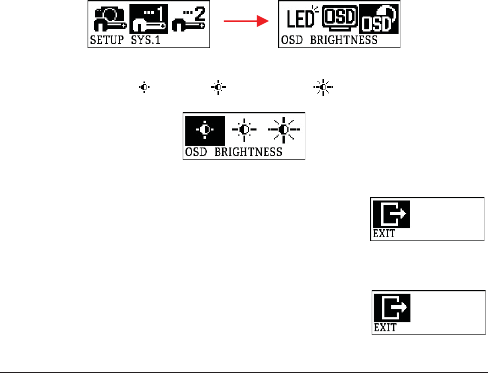

4.5.3 Brightness ................................................. 40

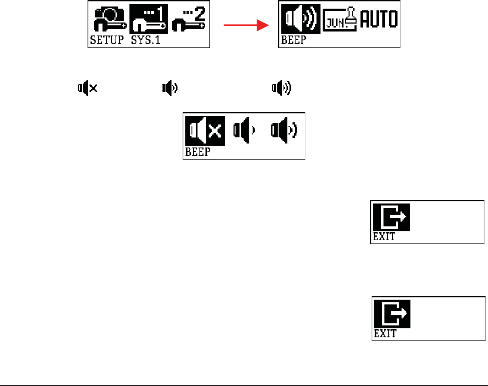

4.5.4 Beep ........................................................... 41

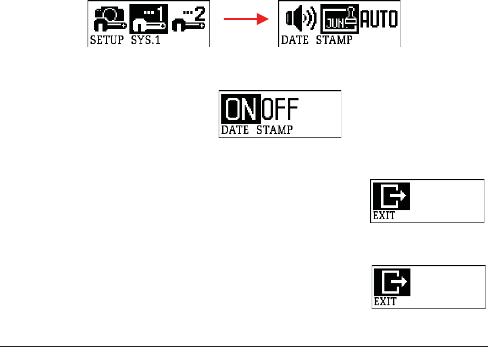

4.5.5 Date Stamp ............................................... 42

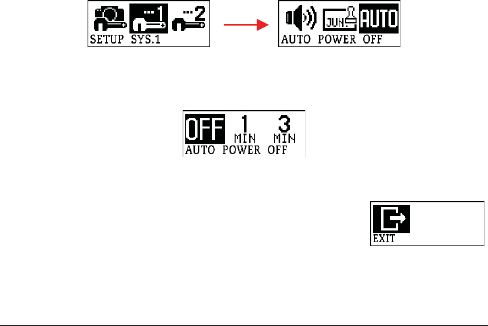

4.5.6 Auto Power Off ........................................ 43
iii

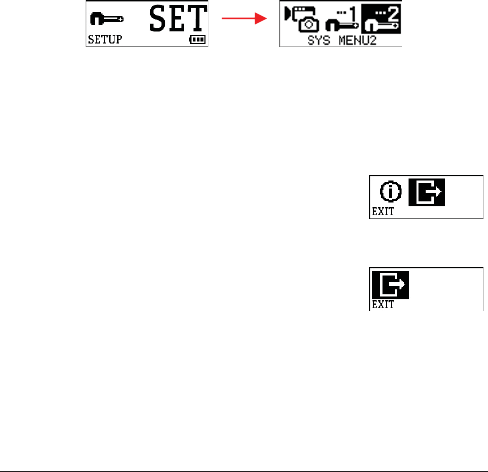

4.6 System Menu 2 ..................................................... 45

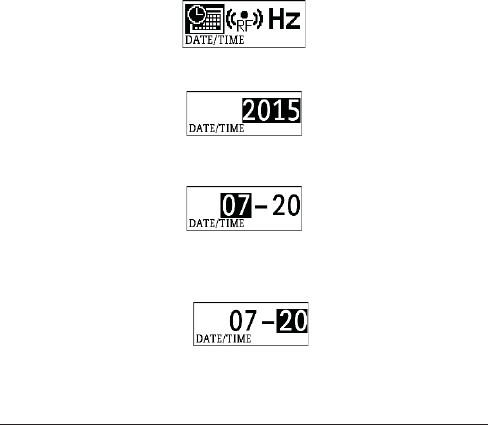

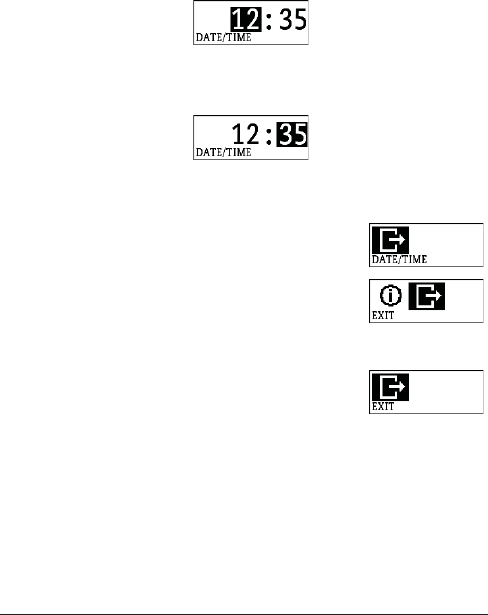

4.6.1 Date and Time .......................................... 46

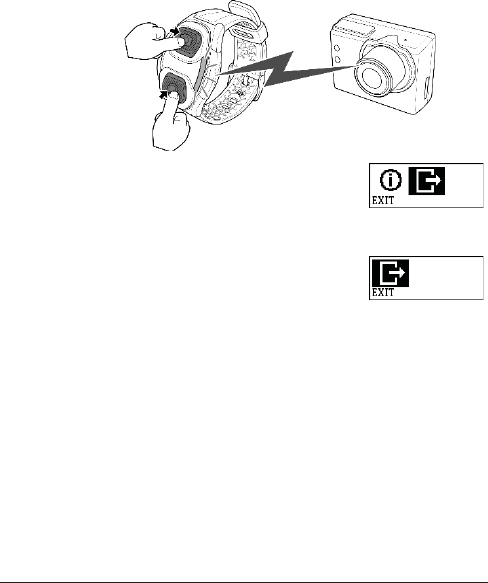

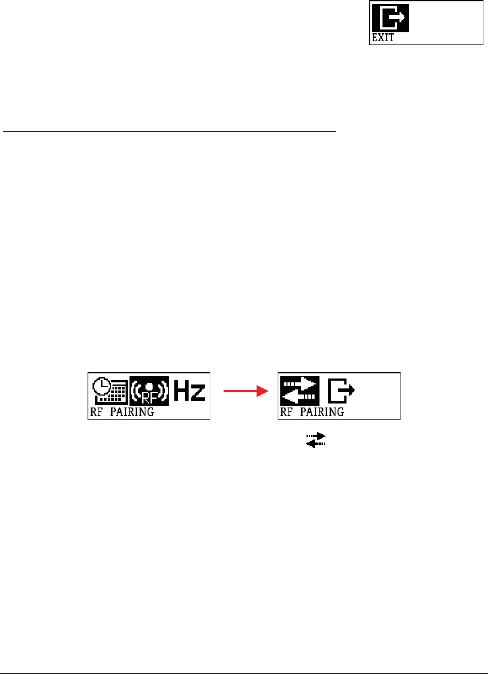

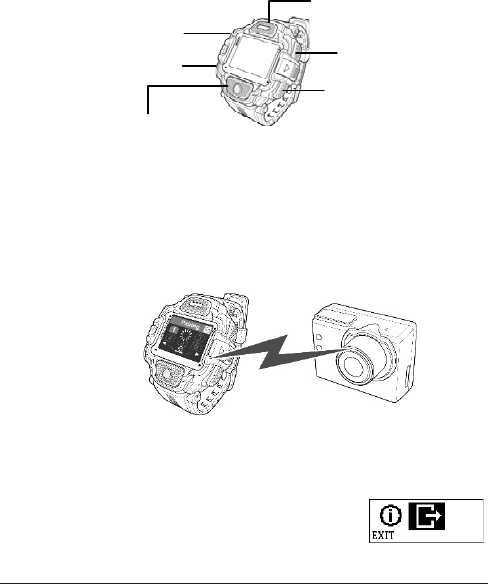

4.6.2 RF Pairing ................................................. 48

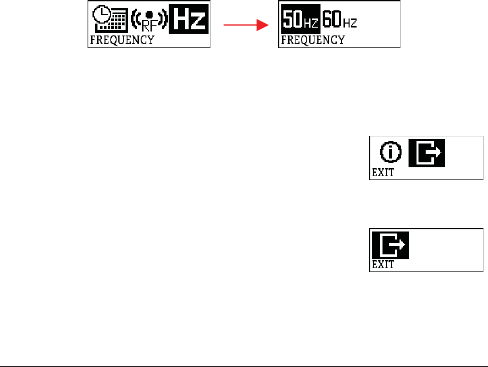

4.6.3 Frequency.................................................. 52

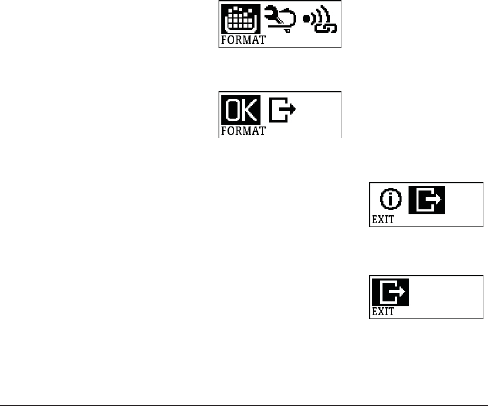

4.6.4 Format ....................................................... 53

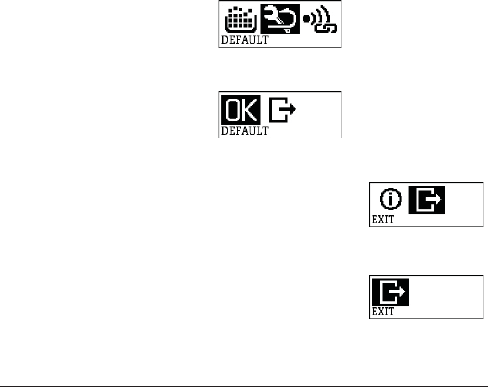

4.6.5 Factory Default ......................................... 54

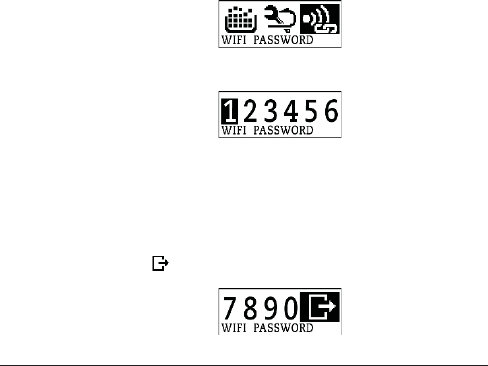

4.6.6 Wi-Fi Password ........................................ 55

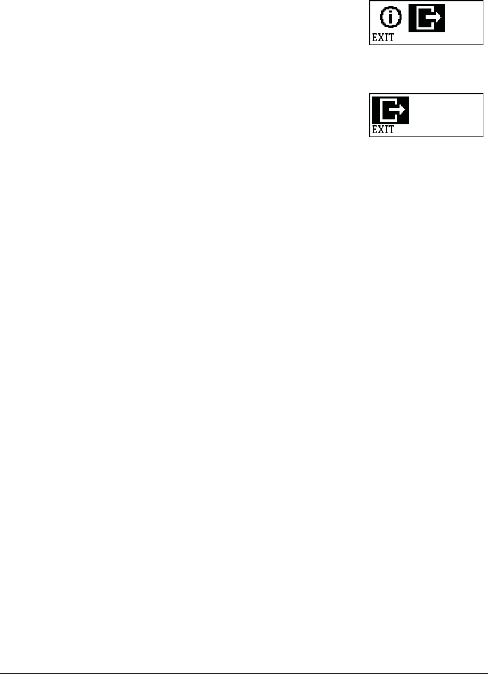

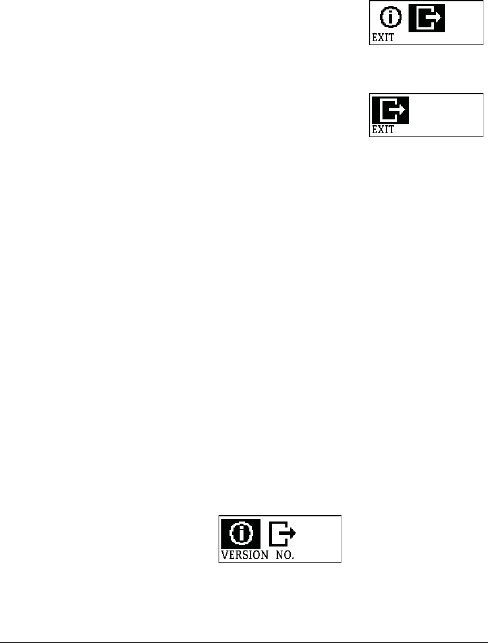

4.6.7 Version Number ....................................... 56
5 Using the Accessories ............................... 58

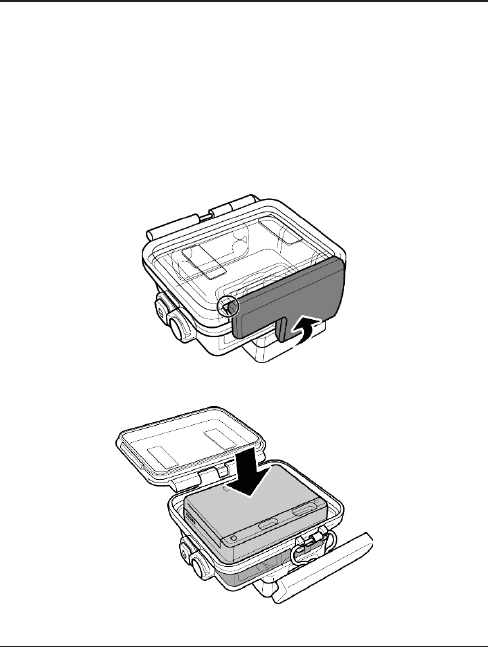

5.1 Waterproof Case ................................................... 58

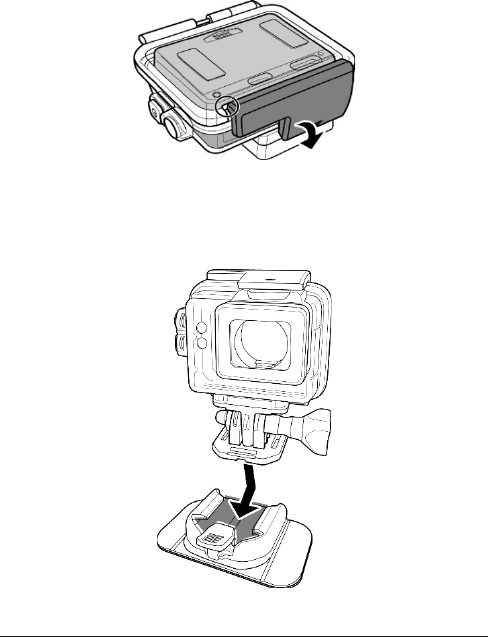

5.2 Assembling the Camera Accessories .................... 59
5.3 Detachable Panel .................................................. 60
Appendix ............................................................ 62
Specifications .................................................................. 62
Troubleshooting .............................................................. 64
FCC Statement ................................................................ 65
Radiation Exposure Statement ....................................... 65
iv
Preface
Congratulations on your purchase of this advanced camera. Ensure
that you read this manual carefully and keep it in a safe place for
future reference.
About this manual
Every effort has been made to ensure that the contents of this
manual are correct and up to date. However, no guarantee is made
regarding the accuracy of the contents. The manufacturer reserves
the right to change the contents, technology, and specifications
without notice.
Copyright
© Copyright 2015.
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, manual or
otherwise, without the prior written permission of the
manufacturer.
v
Precautions
General precautions
• Do not store the product in dusty, dirty, or sandy areas, as its
components may be damaged.
• Do not store the product in a hot environment. High
temperatures can shorten the life of electronic devices, damage
batteries and warp or melt certain plastics.
• Do not store the product in cold areas. When the product
warms up to its normal temperature, moisture can form inside,
which may damage the electronic circuits.
• Do not attempt to open the casing or attempt your own repairs.
High-voltage internal components create the risk of electric
shock when exposed.
• Do not drop or knock the product. Rough handling may
damage the internal components.
• Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the product. Wipe the product with a
slightly damp soft cloth.
• Do not open the battery cover while an image is being recorded.
Doing so will not only make storage of the current image
impossible, it can also corrupt other image data already stored
on file.
• If the product or any of its accessories are not working properly,
take them to your nearest qualified service center. The
personnel there will assist you and if necessary, arrange for the
product to be repaired.
• Test for proper operation before using the camera.
vi
Operating conditions
• This camera is designed for use in temperatures ranging from
0°C to 40°C (32°F to 104°F).
• Do not use or keep the camera in the following areas:
- In areas subject to direct sunlight
- In areas subject to high humidity or dust
- Near air conditioners, heaters, or other areas subject to
temperature extremes
- Inside of a closed vehicle, especially one parked in the sun.
- In areas subject to strong vibration
Power supply
• Use only the type of battery that came with your camera. Using
any other type of battery may damage the equipment and
invalidate the warranty.
• Do not short the battery terminals. The battery could overheat.
• Do not attempt to split or peel the outer casing.
• Remove the battery if the camera is not going to be used for a
long time. If the battery is left unused for more than 3 months,
you need to charge the battery before use.
vii
Notes on Waterproof Case
Waterproof Case performance
• The waterproof case performance is equivalent to IPX8
(60m/1hr).
• Underwater time limit: Do not use the waterproof case
underwater for more than 60 minutes and 60 meters to ensure
water resistance.
• The waterproof case is not dust-proof.
• The camera and other accessories are not waterproof unless
enclosed by the waterproof case.
• When using the camera in cold or humid environments or
when going underwater, use the anti-fog insert to prevent
fogging. The anti-fog insert only provides a certain degree of
prevention, results vary depending on the actual environment.
The anti-fog insert is not for long-term use, it must be replaced
regularly.
Notes before going underwater:
(Do the following actions indoors. Do not do these actions on sandy
or dusty environment or near the water’s edge.)
• Check if the area surrounding the waterproof case lock is clean,
do not allow dirt or sand or foreign objects around it.
• Ensure that the waterproof case is closed.
• Ensure that the waterproof case has no cracks or scratches. If
the waterproof case has been dropped, contact your dealer for a
replacement.
viii
Notes for general use:
• Avoid opening or closing the waterproof case near the water’s
edge (sea, lake, beach, lake, etc.). Do not open or close the
waterproof case lock with wet hands, or hands with sand or
dust.
• The accessories (batteries, etc.) used with the camera are not
water resistant, be careful in using them.
• Do not drop the waterproof case to ensure waterproof
durability.
• Do not place the waterproof case in temperatures above 40°C
or below 0°C to ensure waterproof durability.
• Do not attempt to make alterations on the waterproof case or
seal the vents yourself, doing so may damage its ability to
maintain the camera waterproof.
When using the camera
• The waterproof properties of the waterproof case apply to fresh
water and saltwater only; they do not apply to cleaning
substances, chemicals, or water from spas, etc. Any such
liquids should be wiped off immediately.
• Do not immerse the waterproof case in water at a depth greater
than 60 meters.
• Do not subject the waterproof case to highly pressurized water.
• Do not immerse in water for longer than 60 minutes. After 60
minutes of use in water, allow the waterproof case to dry for at
least 10 minutes.
• Do not immerse in water warmer than 40°C (104°F).
• Do not open or close the waterproof case lock with wet hands.
• Do not open the waterproof case lock next to water or a pool.
• The waterproof case is not dust-proof.
• Do not bump or knock the waterproof case underwater,
otherwise the lock may open.
ix
Notes on waterproof case maintenance
• The waterproof of sealing material is replaceable for a fee. The
material should be replaced once a year to maintain its water
resistance.
After using the waterproof case
• Be sure to come ashore within 60 minutes after going
underwater, this will maintain the appearance, quality and
water resistance of the waterproof case.
• After taking pictures underwater, clean the waterproof case
with running tap water. Do not use any soapy water, mild
detergents, alcohol or similar liquids to clean the case.
• Wipe off water drops on the waterproof case with a soft
lint-free cloth (avoid fiber). Be sure to wait until the waterproof
case is completely dry before opening the waterproof case lock.
• After removing the camera from the waterproof case, soak the
waterproof case in a bucket of clean water for about 10 minutes.
After 10 minutes, wipe the waterproof case dry with a lint-free
cloth. Place the waterproof case in a well ventilated cool place
to dry naturally (do not place under direct sunlight).
Other notes
• If water accidentally enters the camera or any problem occurs
when it is in water, please get it out of the water immediately
and take proper actions. Dry the camera and send it for repair,
if required.
• Information is subject to change without notice. Refer to the
important notes in the manual supplied with the camera.
x
Before You Start
Take some test shots before you use your camera.
Before taking pictures with this camera, test the camera beforehand
to ensure that it functions properly. Any additional loss caused by
the malfunction of this product (such as costs of photography or any
loss of benefit generated by the photography) is not the
responsibility of the manufacturer and no compensation will be
given for it.
Copyright information
Take care to observe "No Photography" notices in certain locations.
In these cases, you cannot record any live performance,
improvisation or exhibits, even for personal purposes. Any transfer
of pictures or memory card data must be conducted under the
constraints of copyright law.
1
1 Introducing the Camera
Read this section to learn about the features and functions of the
camera. This chapter also covers system requirements, package
contents, and descriptions of the hardware components.
1.1 System Requirements
The camera requires a PC with the following specifications for full
HD 1080p 30fps and 720p 60fps playback:
• Windows® 8 /Windows® 7 /Vista / XP (SP2) / MAC OS X 10.5
and later
• Intel® / AMD Dual-Core CPU and later
• At least 2 GB of RAM or higher
• At least DirectX 9 video card, DirectX 10 is recommended
• Standard USB 1.1 port and later
• At least 2GB or greater available hard disk space
1.2 Features
The camera offers a variety of features and functions including:
• Full HD 1080p (30fps)
• H.264 Video Clip
• 143° Wide Angle Lens
• Burst, Self Timer, Lapse
• 8 Megapixel Photos
• Action Camera functionality
• Li-ion Rechargeable Battery
• External Waterproof Case / Standard Mounts
z Note:
A USB 1.1 port will enable you to transfer files to and from your
host PC, but transfer speeds will be faster with a USB 2.0 port.
2
1.3 Unpacking the Camera
The following items should be present in the package. If any item is
missing or appears damaged, contact your dealer immediately.
Camera Waterproof Case Waterproof
Housing Backdoor
Vented Housing
Backdoor
Flat Adhesive
Socket
Curved Adhesive
Socket
Swivel Mount Swivel Mount
Adapter
Li-ion Battery
Micro USB Cable Secure Tether USB Adapter
(optional)
3
Detachable Panel
(optional)
HDMI Cable
(optional)
Wrist Strap Remote
Control – RCW5K8
(optional)
Wrist Strap Remote
Control – RCWD01
(optional)
4
1.4 About the Camera
Refer to the following illustrations to familiarize yourself with the
buttons and controls of this camera.
1.4.1 Camera Views
Microphone
Micro SD card
slot
Power
/
Status LED 1
Power
/
Status LED 2
/
Battery LED
Lens
OLED screen
Shutter button
Micro HDMI port
Mini HDMI
port
Battery
compartment
cover Power / Mode button
Micro USB port
5
1.4.2 Button Functions
Power / Mode
Button
• Press and hold for 3 seconds to turn the
camera on or off.
• Press to switch to different modes: Video,
Photo, Wi-Fi, Delete and Setup mode.
• In Setup mode, press to scroll through
menu items.
Shutter Button
• In Video mode, press to start/stop video
recording.
• In Photo mode, press to take a photo.
• In Setup mode, press to select an item.
6
1.4.3 LED Indicators
These LEDs are designed for users to see the status of the camera
whichever way the camera is held or mounted.
LED Color Description
Power / Status
LED
Green During startup
Green Blinking Taking photos
Red Blinking Video recording in progress
Red Blinking
Rapidly
Self-timer
Battery LED
Red Blinking Battery is charging
Off Full charge
7
2 Getting Started
Read this section to learn how to start using the camera. This section
covers basic functions such as switching on, installing the battery
and micro SD card, and configuring preliminary settings. See later
chapters for advanced functions.
2.1 Installing the Micro SD Card
A micro SD card is required to capture photos and videos. The
camera supports micro SDHC cards up to 32GB.
1. Insert the micro SD card into the card slot with the gold
contacts facing the front of the device.
2. Push the micro SD card until it clicks into place.
Warning: Do not remove the micro SD card while data is being
recorded. Doing so may corrupt the saved data and damage the
card.
8
2.1.1 Removing the Micro SD card
1. Turn off the camera.
2. With a fingertip, push the micro SD card to eject it from
the slot.
3. Remove the micro SD card.
2.2 Installing the Battery
Warning: Use only the supplied battery or a similar battery
recommended by the manufacturer or the dealer.
1. Push down the battery compartment cover to open it.
2. Align the battery contacts and then insert the battery into
the compartment with the ribbon underneath the battery.
9
3. Close the battery compartment cover.
2.2.1 Removing the battery
1. Open the battery compartment cover.
2. Pull the ribbon to remove the battery.
10
2.3 Charging the Battery
You can charge the battery using the micro USB cable that came
with the camera. Follow the steps below to charge the battery.
1. Install the battery into the
battery compartment.
2. Plug the micro-USB connector
to the USB port of your device.
3. Plug the other end of the USB
cable to a computer.
Note:
The battery LED blinks red. After a full charge, the LED turns
off.
Approximate charging time is 240 minutes with a USB
connection. Actual charging time depends on current battery
capacity and charging conditions.
You may also use the supplied
AC adapter to charge your
camera battery.
11

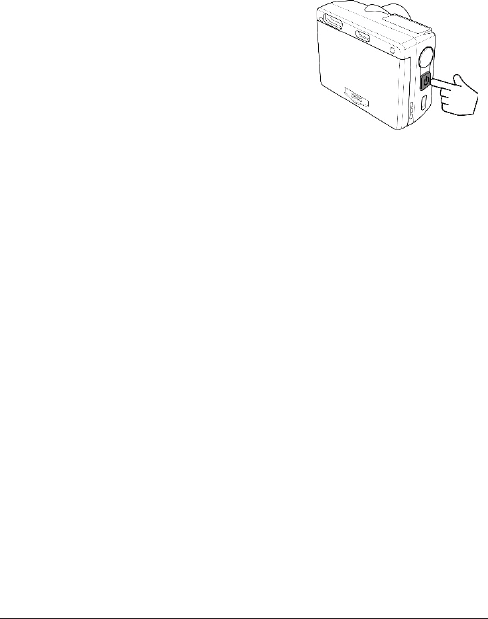

2.4 Turning ON/ OFF the Camera
• To turn on the camera, press the
Power button. The Power/Status
LED indicator lights green for 3
seconds.
• To turn off the camera, press and
hold the Power button for 3 seconds.
12
2.5 OLED Screen
When the camera is turned on, the OLED screen displays the
following information:
12
3
1
Current Mode Displays the current mode of the
camera.
Video
mode
Use this mode to record videos. The icon
also indicates the current video
recording settings.
mode
Use this mode to capture photos. The
icon also indicates the current capture
settings.
Wi-Fi
mode
Select to connect the camera to a
smartphone using Wi-Fi connection.
With this feature, videos and photos
recorded from the camera can be
viewed on the smartphone.
Delete
mode
Use this mode to delete one or all files
stored in the memory card.
Setup
mode
Use this mode to adjust the settings of
your camera.
13
2
Recording Status
/Number of
Files/Wi-Fi
Connection status
• In Video mode, this indicates the
recording status.
• In Photo mode, this indicates the total
number of files.
• In Wi-Fi mode, this indicates the
Wi-Fi connection status.
3 Battery Indicates the battery capacity.
14
2.6 Changing Modes
Press the Mode button repeatedly to switch modes.
Video Mode
Photo Mode
Wi-Fi Mode
Setup Mode
Delete Mode
15
2.7 Connecting to TV (Mini HDMI Cable)
You can also connect the camera to a TV using the mini HDMI cable
(optional).
2.8 Connecting to PC (Micro USB Cable)
Connect the camera to a computer with the micro USB cable
provided as shown.
16

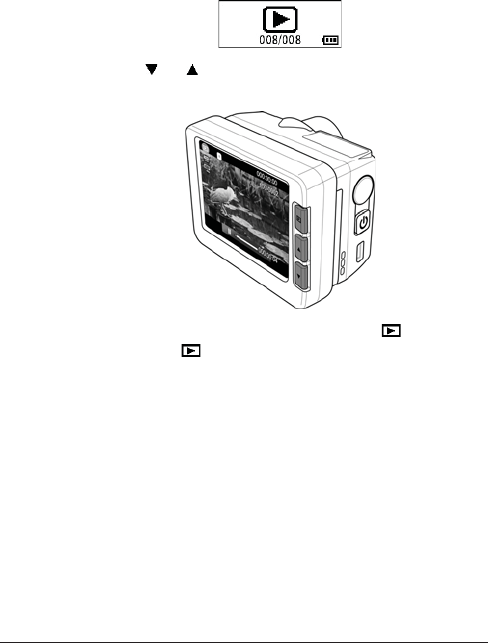

2.9 Connecting to Detachable Panel (Mini
HDMI)
Connect the camera to a detachable panel via the mini HDMI
connection as shown. Using this panel, you can view photos and
play video clips directly on this camera.
17
3 Capturing Videos and Photos
3.1 Recording Videos
When a video is recorded, the video is automatically saved in the
memory card. By default, the camera is in Video mode.
Note: Make sure you have properly installed the micro SD card
(Class 6 or above) before recording a video.
1. Turn on the camera. By default, the camera
automatically opens to Video mode.
2. Press the Shutter button to start
recording.
3. Press the Shutter button to stop recording.
3.2 Taking Photos
Note: Make sure you have properly installed the memory card
before capturing a photo.
Note: Make sure you have properly installed the micro SD card
(Class 6 or above) before capturing a photo.
1. Turn on the camera.
2. Press the Mode button to switch to
Photo mode.
3. Press the Shutter button to capture a photo.
18

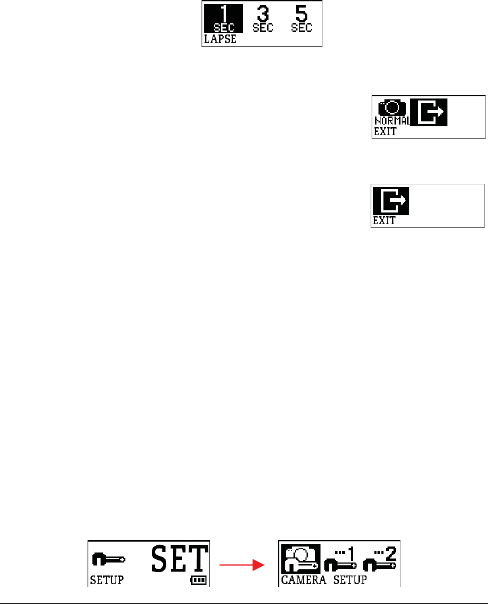

3.2.1 Lapse Shooting
This feature allows you to continuously capture photos with one
press of the Shutter button at the preset interval time
(1/3/5/10/30/60 seconds). Shooting only stops when the Shutter
button is pressed again. Those continuous shots are combined and
saved into one video automatically. The recorded video is played
back in fast motion (faster than the normal playback speed). You can
use this feature to record videos such as evolution of a construction
project, weather changes, or flower blossom.
To switch to this mode, you must set the camera to LAPSE mode,
see Lapse on page 29 for more information.
Once the camera is in LAPSE mode, press the
Shutter button to start capturing photos. Press
the Shutter button again to stop capturing
photos.
3.2.2 Burst Shooting
This feature allows you to capture 3, 5, or 10 photos with one press
of the Shutter button.
To switch to this mode, you must set the camera to BURST mode,
see Burst Shooting on page 30 for more information.
Once the camera is in BURST mode, press the
Shutter button to start capturing photos.
19
3.2.3 Self-Timer
This feature allows you to capture a photo after a short delay.
To switch to this mode, you must set the camera to SELF TIMER
mode, see Self-Timer on page 32 for more information.
Once the camera is in SELF TIMER mode, press
the Shutter button to start capturing photos.
20
3.3 Wi-Fi
This menu allows you to connect your camera to a smartphone
using Wi-Fi connection and view the videos and photos recorded
from your camera on the smartphone.
Note:
Before using this feature, download the ActionCamUp app from
AppStore (iOS) or Google Play (Android OS) on your
smartphone.
Make sure you have properly installed the micro SD card (Class
6 or above) before recording a video.
The ActionCamUp app (installed on your smartphone) does not
support video playback streaming.
When Wi-Fi function is enabled, you cannot use the RF function
to take photos or record videos.
1. Press the Mode button repeatedly to
change to Wi-Fi mode.
2. Press the Shutter button to toggle Wi-Fi ON or OFF.
3. Once the “Waiting…” appears on the screen and the LED
flashes, this indicates Wi-Fi connection is established.
4. On your smartphone, enable Wi-Fi connection, then
search and connect to the Wi-Fi network
DVS8Q9_XXXXXX.
5. When prompted for a password, enter the default
password “1234567890”.
21
6. Use the ActionCamUp app to view videos and photos
from your camera.
22
3.4 Delete
This menu allows you to delete one or all files in the Micro SD card.
Do the following to delete files:
1. Press the Mode button repeatedly to change to DELETE
mode.
2. Press the Shutter button to enter DELETE mode.
3. Press the Mode button repeatedly to scroll through the
delete options.
To delete the last captured video
or photo.
To delete all files in the micro SD
card.
To exit the DELETE menu.
4. Press the Shutter button to confirm.
23
4 Adjusting the Settings
To adjust the camera settings, press the Mode button repeatedly to
switch to Setup mode and then press the Shutter button to confirm.
The screen below is displayed:
1
2
3
1
Camera Menu Select CAMERA SETUP to adjust
capture settings.
Video
Resolution Select to select the video resolution.
Photo Mode Select to set the photo mode.
Resolution
Select to select the image
resolution.
Sensor Flip Select to turn sensor flip on or off.
Exit
Select to close the CAMERA
SETUP menu and return to the
previous menu screen.
2 SYSTEM Menu 1 Select SETUP SYS. 1 to adjust the
display and OSD settings.
24
LED Light Select to turn the LED on or off.
OSD Flip Select to set the direction of the
OSD screen display.
Brightness Select to adjust the screen
brightness.
Beep Select to adjust the beep volume.
Date Stamp Select to set the date stamp on or
off.
Auto-Off
Select to set the time for the camera
to automatically turn off when not
in use.
Exit
Select to close the SETUP SYS. 1
menu and return to the previous
menu screen.
3
SYSTEM Menu 2 Select SETUP SYS. 2 to adjust basic
camera settings.
Date/Time Select to set the camera date and
time.
RF Pairing Select to pair with the RF remote
control.
Frequency Select to set the frequency.
Format Select to format the memory card.
Default Select to set the camera to default
factory settings.
25

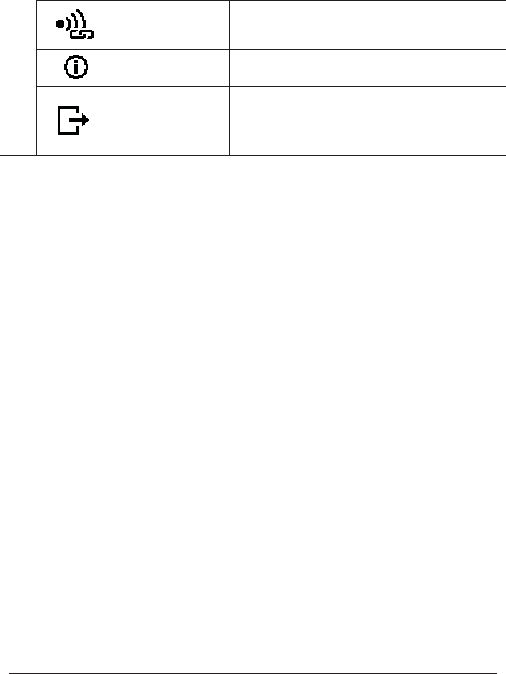

WiFi
Password
Select to change the Wi-Fi
password.
Version No. Select to view the firmware version.
Exit
Select to close the SETUP SYS. 2
menu and return to the previous
menu screen.
26
4.1 Video Resolution
When a video is recorded, the video file is automatically saved in
the memory card. The camera supports several resolution options
for videos. Set the video resolution before you start recording a
video.
Do the following to select the video resolution:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Shutter button to enter the CAMERA SETUP
menu.
4. Press the Shutter button to enter the VIDEO
RESOLUTION submenu.
5. Press the Mode button repeatedly to scroll through the
resolution options.
16:9, 1080P (1920x1080, 30fps)
16:9, 720P (1280x720, 60fps)
27
16:9, 720P (1280x720, 30fps)
16:9, 480P (848x480, 60fps)
16:9, 480P (848x480, 30fps)
6. Press the Shutter button to confirm.
7. To exit the CAMERA SETUP menu,
press the Mode button repeatedly until
the EXIT screen appears. Then press
the Shutter button to confirm.
8. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
28

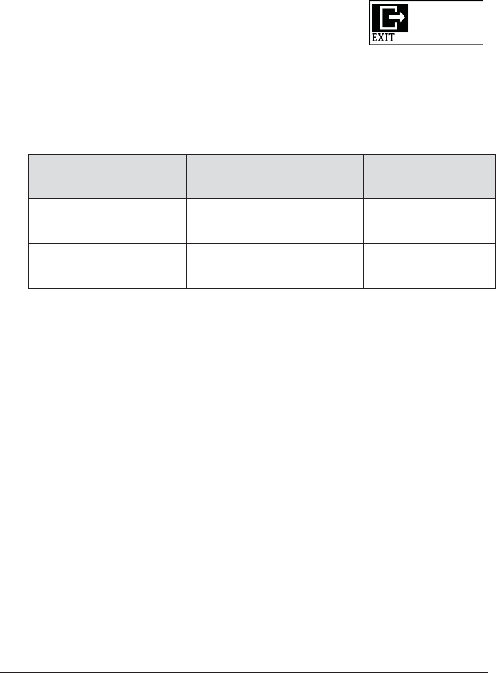

Note: The FOV of every resolution is different.
Resolution Resolution Field of view
1080p30 1080p * 30F 131°
720p30 720P * 30F 132°
720p60 720P * 60F 77°
WVGA 480P * 30F 131°
WVGA 480P * 60F 78°
29
4.2 Photo Mode
This menu allows you to change the capture mode into lapse, burst
or self-timer mode.
4.2.1 Lapse
This menu allows you to select the interval options when capturing
photos using Lapse mode.
Do the following to select the shooting interval:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Shutter button to enter the CAMERA SETUP
menu.
4. Press the Mode button repeatedly to highlight PHOTO
MODE.
5. Press the Shutter button to enter PHOTO MODE.
6. Press the Mode button repeatedly to highlight LAPSE.
7. Press the Shutter button to enter LAPSE.
30
8. Press the Mode button repeatedly to scroll through the
lapse options: 1 SEC, 3 SEC, 5 SEC, 10 SEC, 30 SEC, and
60 SEC.
9. Press the Shutter button to confirm.
10. To exit the CAMERA SETUP menu,
press the Mode button repeatedly until
the EXIT screen appears. Then press
the Shutter button to confirm.
11. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
4.2.2 Burst Shooting
This menu allows you to enable burst shooting and set the number
of photos to capture with one press of the Shutter button.
Do the following to set the burst shooting mode.
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Shutter button to enter the CAMERA SETUP
menu.
31
4. Press the Mode button repeatedly to highlight PHOTO
MODE.
5. Press the Shutter button to enter PHOTO MODE.
6. Press the Mode button repeatedly to highlight BURST.
7. Press the Shutter button to enter BURST.
8. Press the Mode button repeatedly to scroll through the
burst shooting options: 3, 5, and 10.
9. Press the Shutter button to confirm.
10. To exit the CAMERA SETUP menu,
press the Mode button repeatedly until
the EXIT screen appears. Then press
the Shutter button to confirm.
11. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
32
4.2.3 Self-Timer
This menu allows you to enable the self-timer mode and set the
delay of capturing the photo after the Shutter button is pressed.
Do the following to set self-timer:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Shutter button to enter the CAMERA SETUP
menu.
4. Press the Mode button to highlight PHOTO MODE.
5. Press the Shutter button to enter PHOTO MODE.
6. Press the Mode button to highlight SELF TIMER.
7. Press the Shutter button to enter SELF TIMER.
8. Press the Mode button repeatedly to scroll through the
self-timer options: 3 SEC, 5 SEC, and 10 SEC.
9. Press the Shutter button to confirm.
33
10. To exit the CAMERA SETUP menu,
press the Mode button repeatedly until
the EXIT screen appears. Then press
the Shutter button to confirm.
11. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
34
4.3 Photo Resolution
This menu allows you to select the image resolution.
Do the following to select the image resolution:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Shutter button to enter the CAMERA SETUP
menu.
4. Press the Mode button repeatedly to select PHOTO
RESOLUTION.
5. Press the Shutter button to enter the PHOTO
RESOLUTION submenu.
9. Press the Mode button repeatedly to scroll through the
image resolution options: 8M and 5M.
6. Press the Shutter button to confirm.
7. To exit the CAMERA SETUP menu,
press the Mode button repeatedly until
the EXIT screen appears. Then press
the Shutter button to confirm.
35
8. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
Note: The FOV of every resolution is different.
Resolution Resolution Field of view
Still image 8M 3264 x 2448 148°
Still image 5M 2592 x 1944 140°
36
4.4 Sensor Flip
This menu allows you to set the sensor flip to FLIP or NORMAL.
Do the following to set sensor flip:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Shutter button to enter the CAMERA SETUP
menu.
4. Press the Mode button repeatedly to select SENSOR
FLIP.
5. Press the Shutter button to enter the SENSOR FLIP
submenu.
6. Press the Mode button repeatedly to scroll through the
options: FLIP and NORMAL.
7. Press the Shutter button to confirm.

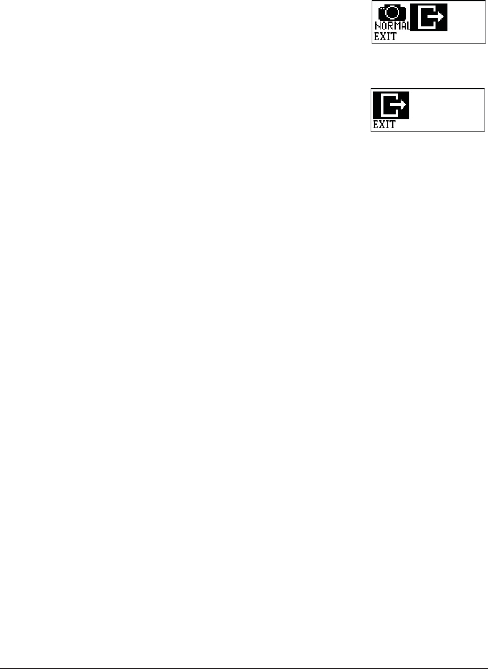

8. To exit the CAMERA SETUP menu,
press the Mode button repeatedly until
the EXIT screen appears. Then press
the Shutter button to confirm.
9. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
37
4.5 System Menu 1
This menu allows you to adjust the display and OSD settings.
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.1.
4. Press the Shutter button to enter the SETUP SYS.1 menu.
5. Press the Mode button repeatedly to scroll through the
submenu options.
6. To exit the SETUP SYS.1 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
7. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
38
4.5.1 LED Light
This menu allows you to turn the LED indicator on or off.
Do the following to enable or disable this feature:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.1.
4. Press the Shutter button to enter the SETUP SYS.1 menu.
5. Press the Shutter button to enter the LED LIGHT
submenu.
6. Press the Mode button to select ON or OFF.
7. Press the Shutter button to confirm.
8. To exit the SETUP SYS.1 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
9. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
39
4.5.2 OSD Flip
This menu allows you to display the OLED screen upside down.
Do the following to set the OLED screen orientation:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.1.
4. Press the Shutter button to enter the SETUP SYS.1 menu.
5. Press the Mode button repeatedly to highlight OSD FLIP.
6. Press the Shutter button to enter the OSD FLIP submenu.
7. Press the Mode button to select (NORMAL) or
(FLIP).
8. Press the Shutter button to confirm.
9. To exit the SETUP SYS.1 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
10. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
40
4.5.3 Brightness
This menu allows you to adjust the OLED screen brightness.
Do the following to adjust the OLED screen brightness:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.1.
4. Press the Shutter button to enter the SETUP SYS.1 menu.
5. Press the Mode button repeatedly to highlight OSD
BRIGHTNESS.
6. Press the Shutter button to enter the OSD BRIGHTNESS
submenu.
7. Press the Mode button to scroll through the brightness
options: (30%), (60%), and (100%).
8. Press the Shutter button to confirm.
9. To exit the SETUP SYS.1 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
10. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
41
4.5.4 Beep
This menu allows you to enable or disable the beep sound when you
press the Power / Mode or Shutter buttons.
Do the following to enable or disable the beep sound:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.1.
4. Press the Shutter button to enter the SETUP SYS.1 menu.
5. Press the Mode button repeatedly to highlight BEEP.
6. Press the Shutter button to enter the BEEP submenu.
7. Press the Mode button to scroll through the beep options:
(OFF), (60%), and (100%).
8. Press the Shutter button to confirm.
9. To exit the SETUP SYS.1 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
10. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
42
4.5.5 Date Stamp
This menu allows you to enable the date when the photo/video is
taken to be shown on the photo/video.
Do the following to enable or disable this feature:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.1.
4. Press the Shutter button to enter the SETUP SYS.1 menu.
5. Press the Mode button repeatedly to highlight DATE
STAMP.
6. Press the Shutter button to enter the DATE STAMP
submenu.
7. Press the Mode button to select ON or OFF.
8. Press the Shutter button to confirm.
9. To exit the SETUP SYS.1 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
10. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
43
4.5.6 Auto Power Off
This menu allows you to program the camera to automatically turn
off after being idle for a specific period of time, or you can set the
setting to OFF to keep the camera on until you manually turn it off.
Do the following to select the auto power off option:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.1.
4. Press the Shutter button to enter the SETUP SYS.1 menu.
5. Press the Mode button repeatedly to highlight AUTO
POWER OFF.
6. Press the Shutter button to enter the AUTO POWER OFF
submenu.
7. Press the Mode button to scroll through the auto power
off options: OFF, 1 MIN, 3 MIN, and 10 MIN.
8. Press the Shutter button to confirm.
9. To exit the SETUP SYS.1 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
44
10. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
45
4.6 System Menu 2
This menu allows you to adjust the basic camera settings such as
date and time, frequency, etc.
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Mode button repeatedly to scroll through the
submenu options.
6. Press the Shutter button to confirm.
7. To exit the SETUP SYS.2 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
8. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
46
4.6.1 Date and Time
This menu allows you to set the camera date and time settings.
Do the following to set the camera date and time:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Shutter button to enter the DATE/ TIME
submenu.
6. Press the Shutter button repeatedly to adjust the year.
7. When done, press the Mode button to go to the month
field.
8. Press the Shutter button repeatedly to adjust the month
value, and then press the Mode button to go to the day
field.
47
9. Press the Shutter button repeatedly to adjust the day
value, and then press the Mode button to go to the hour
field.
10. Press the Shutter button repeatedly to adjust the hour
value, and then press the Mode button to go to the minute
field.
11. Press the Shutter button repeatedly to adjust the minute
value, then press the Mode button to save the setting.
12. Press the Shutter button to complete
the date and time setting.
13. To exit the SETUP SYS.2 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
14. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
48
4.6.2 RF Pairing
This menu allows you to pair your camera with the RF wrist strap
remote control (optional accessory). When the devices are paired,
you can record videos or capture photos by pressing the
corresponding buttons on the RF wrist strap remote control.
Note: When Wi-Fi function is enabled, you cannot use the RF
function to take photos or record videos.
Using Wrist Strap Remote Control (RCWD01)
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Mode button repeatedly to highlight RF
PAIRING.
6. Press the Shutter button to enter the RF PAIRING
submenu.
7. Press the Mode button to select (SCANNING).
8. The camera RF antenna is enabled and ready to be paired
with the RF wrist strap remote control.
49
9. On your RF watch remote control, press the MODE
button to switch to Preview mode. Then press and hold
the SET button to enter to SET mode.
MODE butto
n
LEFT butto
n
VIDEO button
SET button
RIGHT button
PHOTO button
10. Use the LEFT or RIGHT button to select Pairing and
press the VIDEO button to enter Pairing menu.
11. Use the LEFT or RIGHT button to select the preview
window that you want to pair with your camera and
press the VIDEO button to start pairing.
12. When pairing is complete, press the SET button to return
to SET mode. Then press the SET button to switch to
Preview mode.
13. On your camera, to exit the SETUP
SYS.2 menu, press the Mode button
repeatedly until the EXIT screen
appears. Then press the Shutter button to confirm.
50
14. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
Using Wrist Strap Remote Control (RCW5K8)
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Mode button repeatedly to highlight RF
PAIRING.
6. Press the Shutter button to enter the RF PAIRING
submenu.
7. Press the Mode button to select (SCANNING).
8. The camera RF antenna is enabled and ready to be paired
with the RF wrist strap remote control.
51
9. On your RF watch remote control, press both the video
and photo buttons to process pairing. When the red LED
on the RF wrist strap remote control flash once, this
indicates the pairing is complete.
10. On your camera, to exit the SETUP
SYS.2 menu, press the Mode button
repeatedly until the EXIT screen
appears. Then press the Shutter button to confirm.
11. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
52
4.6.3 Frequency
This menu allows you to change the camera frequency.
Do the following to set the camera frequency:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Mode button repeatedly to highlight
FREQUENCY.
6. Press the Shutter button to enter the FREQUENCY
submenu.
7. Press the Mode button to select: 50 Hz or 60 Hz.
8. Press the Shutter button to confirm.
9. To exit the SETUP SYS.2 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
10. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
53
4.6.4 Format
This menu allows you to format the memory card.
Do the following to format the memory card:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Mode button repeatedly to highlight FORMAT.
6. Press the Shutter button to enter the FORMAT submenu.
7. Press the Mode button to select OK.
8. Press the Shutter button to confirm.
9. To exit the SETUP SYS.2 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
10. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
54
4.6.5 Factory Default
This menu allows you to restore the default factory settings of your
camera.
Do the following to restore the factory default settings:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Mode button repeatedly to highlight DEFAULT.
6. Press the Shutter button to enter the DEFAULT submenu.
7. Press the Mode button to select OK.
8. Press the Shutter button to confirm.
9. To exit the SETUP SYS.2 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
10. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
55
4.6.6 Wi-Fi Password
This menu allows you to change the Wi-Fi password.
Do the following to change the password:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Mode button repeatedly to highlight WIFI
PASSWORD.
6. Press the Shutter button to enter the WIFI PASSWORD
submenu.
7. Change the password.
• Press the Shutter button repeatedly to change the
value.
• Press the Mode button to switch to next field.
8. When done, press the Mode button repeatedly to
highlight (EXIT).
56
9. Press the Shutter button to confirm.
10. To exit the SETUP SYS.2 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
11. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
4.6.7 Version Number
This menu allows you to view the current firmware version.
Do the following to view the firmware version:
1. Press the Mode button repeatedly to change to SETUP
mode.
2. Press the Shutter button to enter the SETUP mode.
3. Press the Mode button repeatedly to select SETUP SYS.2.
4. Press the Shutter button to enter the SETUP SYS.2 menu.
5. Press the Mode button repeatedly to highlight VERSION
NO..
6. Press the Shutter button to enter the VERSION NO.
submenu.
7. The firmware version appears on the screen. Press the
Shutter button to exit the submenu.
57
8. To exit the SETUP SYS.2 menu, press
the Mode button repeatedly until the
EXIT screen appears. Then press the
Shutter button to confirm.
9. To exit the SETUP mode, press the
Mode button repeatedly until the EXIT
screen appears. Then press the Shutter
button to confirm.
58
5 Using the Accessories
The camera comes with rugged accessories for all your sporting
needs.
5.1 Waterproof Case
The waterproof case allows you to take underwater shots or use it
with the surface mount.
1. Release the case lock and flip open the waterproof case.
2. Install the camera inside the waterproof case.
59
3. Secure the waterproof case lock.
5.2 Assembling the Camera Accessories
Lock the swivel T tip to the adhesive socket to adjoin the accessories.
60
Tips on attaching adhesive mounts
• Apply to clean surfaces - wax, dust, and oily essence free.
• Attach the mount at room temperature.
• Mount only on smooth surfaces. To obtain optimum
adhesion, firmly press into place when installing the mount.
• It is highly recommended to attach the mount a minimum
of 24 hours before its initial usage.
5.3 Detachable Panel
Using this panel, you can view photos and play video clips directly
on this camera.
1. Connect the camera to a detachable panel via the mini
HDMI connection as shown.
2. Press the Mode button repeatedly to change to
PLAYBACK mode.
61
3. Press the Shutter button to enter the PLAYBACK mode.
4. Press the or button to select the desired photo or
video to view.
• To start the video playback, press the button.
Press the button again to stop.
62
Appendix
Specifications
General
OLED Screen
Display
0.83”
Storage (Memory) Micro SD, up to 32GB SDHC Class 6
Image Quality Optics: Ultra-sharp F/no=2.4, f=2.4mm
Focus range: 0.46m ~ infinity
Field of view: Ultra Wide, Wide, Narrow
Video 1080p (16:9): 30fps (Ultra Wide, Wide,
Narrow)
720p (16:9): 60, 30 fps
WVGA (16:9): 60, 30 fps
Time lapse: 1, 3, 5, 10, 30, 60 seconds
Video format: H.264 (mp4)
Still Image Resolution: 8MP, 5MP
Burst: 3, 5, 10
Self-timer: 3, 5, 10 seconds
Photo format: JPEG (exif 2.2), DCF
White Balance Auto
Average Record
Time
Video (1080p30): about 90 minutes,
Photo (8MP): about 150 photos
Auto Power Off 1, 3, 10 minutes
Inputs/Outputs Micro USB, Micro HDMI, Mini HDMI
Battery 1130mAh rechargeable Li-ion
63
General
Dimensions 54.8 (H) x 42.2 (W) x 36.2 (D) mm
(without lens)
Weight Approx. 74±3g (without waterproof case)
64
Troubleshooting
Problem Possible Cause Solution
The battery LED is
flashing red.
The battery is almost
used up.
Replace with a new
battery or charge the
battery.
Nothing happens
when the Shutter
button is pressed.
The Micro SD card is
full. You cannot take
photos or record
videos at this point.
Transfer the Micro SD
card files to the
computer or delete the
files in the Micro SD
card.
Nothing happens
when the Shutter
button is pressed.
“000” appears on
the screen.
The Micro SD card
may have
compatibility issues.
Format the Micro SD
card first using the
camera (Delete menu).
If it still does not work,
format the Micro SD
card using the PC.
Nothing happens
when the Shutter
button is pressed.
“000” appears on
the screen.
The Micro SD card is
not inserted.
Insert the Micro SD
card.
65
FCC Statement
Modifications not approved by the party responsible for compliance
could void user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits
for Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be
determined by turning the equipment on and off.
The user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Radiation Exposure Statement
The product comply with the FCC portable RF exposure limit set
forth for an uncontrolled environment and are safe for intended
operation as described in this manual. The further RF exposure
reduction can be achieved if the product can be kept as far as
possible from the user body or set the device to lower output power
if such function is available.
7KHGHYLFHLVGHVLJQHGWRPHHWWKHUHTXLUHPHQWV
I
RUH[SRVXUHWRUDGLR
ZDYHVHVWDEOLVKHGE\WKH)HGHUDO&RPPXQLFDWLRQV&RPPLVVLRQ86$ 
7KHVHUHTXLUHPHQWVVHWD6$5OLPLWRI:NJDYHUDJHGRYHURQHJUDP
RIWLVVXH 
7KH)&&KLJKHVW6$5YDOXHVUHSRUWHGXQGHUWKLVVWDQGDUGGXULQJ
3URGXFWFHUWLILFDWLRQIRUXVHDWWKHERG\PPJDSLV:NJ 
7KLVGHYLFHFRPSOLHVZLWK3DUWR
I
WKH)&&UXOHVVWDQGDUG2SHUDWLRQLV
VXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV 
7KLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG 
7KLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJ
LQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQ 
Trademarks and licenses
SDHC Logo is a trademark of SD-3C, L

Navigation menu
