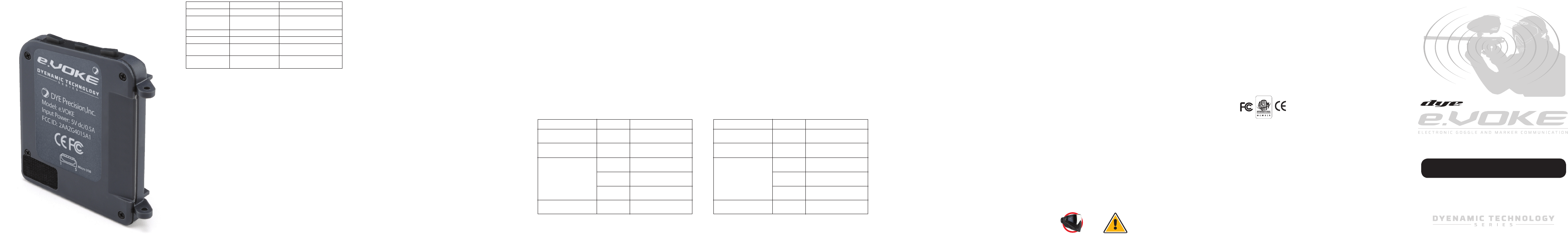

DYE PRECISION 4015A1 e.VOKE User Manual
DYE PRECISION, INC. e.VOKE
User Manual
QUICK START PAGE
The e.VOKE Air Sync system includes:
• e.VOKE i5 Air Sync smart box
• Micro USB charging cable
• M2 Air Sync transmitter board with M2 x 3 mm screw
• User’s manual
The e.VOKE system is compatible with the M2 MOSAir board.
POWER ON
To power on your e.VOKE press and hold the center button for 2 seconds.
To power off hold center button for 3 seconds.
CHARGING
Use a standard mini USB cable to charge your e.VOKE from any power supply.
During charging the Power level is indicated by the LED.
SYNC YOUR M2 WITH MOSAIR AND i5 E.VOKE SYSTEM
• Make sure your M2 is Air Sync compatible and the Air Sync module
is installed.
• Make sure the M2 Air Sync is turned on. Go to “PROFILE SETUP” to turn
Air Sync on.
• Return to play mode on M2.
• Turn e.VOKE on.
• M2 and e.VOKE will automatically sync.
If the e.VOKE and M2 MOSAir do not automatically sync, please follow this
process.
• Turn both e.VOKE and M2 MOSAir on.
• Hold the rear #3 button down on e.VOKE to initiate search for M2 device.
• On M2 go to “PROFILE SETUP”, scroll to the Bluetooth screen select
twice to enter setup menu. Initiate i5 pairing search by pressing
joystick on your M2.
• e.VOKE will verbally alert you when M2 is connected. The i5 logo on the
M2 play screen will turn blue when connected to the i5.
During use, the e.VOKE will alert you when your power level becomes low.
INSTALLING e.VOKE IN YOUR M2
WITH MOSAir BOARD
• The Air Sync module is only compatible
with the M2 MOSAir main Board.
• MOSAir boards are identified by their Blue
color and wireless charging system on the
opposite side of the Prism OLED Screen.
FOR OLDER M2 MODELS BEING
UPGRADED
• M2 markers produced in 2016 will need to
be upgraded with the MOSAir main board
to facilitate the e.VOKE system.
• The MOSAir board comes standard with
CFC wireless charging. The power receiver
is connected and mounted to the main
board, on the opposite side of the OLED
screen.
• The wireless CFC component will only fit
under 2017 v2 sticky grips.
• 2017 v2 Sticky grips are identified by the DYE
M2 label located inside the grip on the back
side of the M2 logo jewel (photo A).
• If you have an older model M2 that does not
have MOSAir and a v2 Sticky grip
contact DYE or your local retailer to order.
• The MOSAir and e.VOKE system can be used
without the wireless charging unit installed,
and can therefore be used with v1 2016
sticky grips
M2 MOSAir “AIR SYNC” BOARD
INSTALLATION
• Make sure your M2 is Air Sync compatible
(needs to be upgraded to MOSAir) and the
Air Sync chip module is installed in the M2
MOSAir board.
• Turn on your M2 by pushing and holding the
center of the joystick until your M2 powers
on.
• M2 Air Sync needs to be turned on.
To perform this operation, push the M2
joystick in the up position until you enter
the “PROFILE SELECT SCREEN”
• Select the profile you plan on using
(examlpe P1, P2 etc..) Enter into the profile
by pushing and holding the joysitck in
for one second. This will put you into
“PROFILE SETTINGS”.
• Once you are in profile settings, using your
joystick, toggle to the right two times, to
reach the “BLUETOOTH ICON”.
• Once on the bluetooth screen, push in
the center of the joystick in until “OFF” is
highlighted white.
• Then pull the joystick down once to turn the
bluetooth to the “ON” mode.
• Then press the center of the joystick in to
save this setting and then the word
“SETUP” will appear.
0 - 10% Solid red
11 - 30% Blinks red once every 2 seconds
31% - 90% Blinks blue once every 2 seconds
91% - 99% Blinks green once every 2 seconds
100% Solid green
LED INDEX DURING CHARGING.
OPERATION/STATUS
Power ON / OFF
Bluetooth Unpaired
Bluetooth Paired/ not connected yet
Bluetooth Paired/ connected
Bluetooth connected status checking
> if disconnected
Bluetooth connected status checking
>if re-connected
LED COLOR
Green
Red
Red
Blue
Red
Blue
LED STATUS
Solid for 3 seconds
Rapid blink 4 times per sec.
Blinks once per second
Blinks once every 3 sec.
Blinks once every 3 sec.
Blinks once per second
LED INDEX CHART

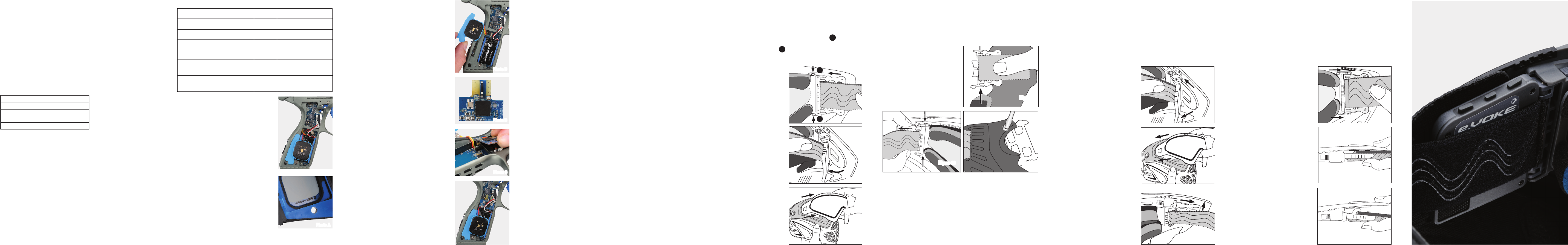

Photo A
Photo B
Photo D
Photo C
Photo D
REMOVING THE i5 LENS
TIP: It is recommended that you replace your lens at least once each year.
Factory applied protective coatings on each lens surface will wear off even
with gentle cleaning and regular use abrasion. You should also always
replace your lens after taking a direct paintball hit from within 10 feet.
1 Removing the i5 lens is a quick two step process. Step 1 depress the
top locking tab on the gray frame retention clip and push this tab forward
in the lens locking channel. Step 2 then depress the lower locking tab
on the gray frame retention clip
and push the gray frame retention
clip forward. Perform this on both
sides of the mask. (See figure 1)
You can also use the cyan locking
hook finger grooves to assist you
in sliding the unit forward when
pushing the tabs to clear the release
hook. (See figure 2)
2 Once both gray frame retention
clips are unlocked and in the
forward position, pivot the cyan lens
locking hook 45 degrees inward on
both sides, to fully release the lens.
(See figure 2)
3 To remove the lens, push forward
on the back radius of the right and
left side of the lens, located behind
the Cyan lens-locking hooks. This
will separate the lens from the
Goggle System frame and be easily
removed.
4 Grab the lens from the front by the
top center and nose bridge. Pull the
lens out of the goggle. (See figure 3)
WARNING: Use only your hands
when changing DYE® lenses. Use of
tools is likely to scratch or damage
the lens, void the warranty and risk
injury.
INSTALLING THE i5 LENS
1 The gray frame retention clip should be in the forward position and the
lens locking hooks should be pivoted 45 degrees inward prior to installing
the lens. (See figure 4)
2 Through the front of the mask, slide the lens through the slots on the left
and right side, so that the lens is fully flush with the frame. (See figure 5)
3 Press the lens down against the frame until it is evenly seated against
the goggle frame. Do not use any tools as it is likely to damage the lens,
void the warranty and risk injury.
4 Make sure the nose tab and lens
perimeter is fully seated into the
groove of the goggle frame.
5 The two upper lens tabs should
be properly aligned and inserted into
the two top frame slots as well as the
nose channel tab. The lens should be
flush into the frame.
6 Visually inspect the lens to ensure
there are no gaps between the lens
and frame.
7 Push the Cyan lens locking hooks
outwards, against the mask and
lens, then pull the lens locking tab
rearward. This will ensure the lens
locking hooks engage the lens to
lock it into place. Visually confirm
the e.VOKE and cyan locking hooks
have engaged the lens. (See figure 6)
8 Starting with the right side locking
clip, pull the top of the cyan clip
rearward, until you hear it click
into the locked position. Repeat
this process for the bottom clip
until you here the tab click into the
locked position. Duplicate this same
process for the left side locking clip.
(see figure 8).
Figure 3
Figure 2
Figure 1
1
2
Figure 6
Figure 5
Figure 4 Figure 7
Figure 8CORRECT
Figure 9
WRONG
9 Visually inspect the top and bottom locking tabs on the frame retention
clip to confirm they have locked into place. The tabs should be fully
rearward in the locking channel. (See figure 7)
10 Visually inspect the back side of the Cyan lens locking hook. Confirm
the locking hooks have extended through the holes in the lens and have
securely locked the lens into place. The Cyan retention clip will sit flush
against the lens, if it is engaged properly (see figure 8).
If the lens is not properly secured (see figure 9) you will see the lens hook
exposed. Do not use your i5 goggle unlesss you are sure your lens is
properly installed.
CONFIRMING PROPER
INSTALLATION OF THE i5 LENS
1 Visually inspect the back side
of the Cyan lens locking hook and
e.VOKE locking hook. Confirm the
locking hooks have extended through
the holes in the lens and has securely
locked the lens in place.
(photo D)
The Cyan retention clip and e.VOKE
will sit flush against the lens, if it is
engaged properly (See Figure 8).
2 If the lens is not properly secured
(See Figure 9) you will see the lens
hook exposed. Do not use your I5
goggle, unless you are 100% certain
that your lens is securely in place
and properly secured. Repeat the
locking process if necessary, to
securely lock the lens in place. If you
should have any difficulty or are not
sure if you have performed the lens
replacement correctly, please call
Dye customer service for help.
e.VOKE INSTALLATION
1 Replace the left Cyan lens locking hook with the e.VOKE
Air Sync smart box.
2 Make sure the buttons and strap logos are facing up.
3 Follow the above steps in reverse to install the frame
retention clip and strap to e.VOKE.
4 Once the e.VOKE is installed it will function as the lens
locking hook, and secure the lens in place.
INSTALL e.VOKE INTO i5 GOGGLE
The e.VOKE is designed to fit on the left side of the i5 (photo D).
REMOVE GSR SYSTEM
1 With the lens removed, pull the left side mask retaining clip rearward,
depress top and bottom locking tabs as you pull, this will allow you to sep-
arate the retaining clip from the mask.
(See Figure 10)
2 Once the clip is separated from
the mask, on the left retention clip
press the steel pin up from the bot-
tom to remove.
(See Figure 11)
3 Unscrew the ear pad retaining
screw. (See Figure 12) Figure 11
Figure 10 Figure 12
• Push the center of the joystick in again for one second to enable your M2
to prompt you to “SYNC” to the I5 e.VOKE unit.
• Push and hold the center of the joystick in again for one second to
“SELECT TO
SYNC”
• This will trigger your M2 to search for the e.VOKE device blutooth signal
and attempt connection.
• You will need to have the M2 and e.VOKE within one foot distance of
eachother to connect.
• Turn on your e.VOKE by pushing and holding the e.VOKE center #2 button,
until it powers on. You will see a green power on light on the e.VOKE unit.
• Then push and hold the e.VOKE rear #3 button and you will hear an
auditory message “SEARCHING FOR DEVICE” from your e.VOKE unit.
• Upon successful connection, you will hear an auditory message from
your e.VOKE stating “PAIRED”.
• Your M2 and e.VOKE are now successfully connected.
IF YOUR e.VOKE DOES NOT CONNECT,
REPEAT THE SYNC PROCESS.
• While on the “CONNECTION FAILED” screen, press the center of the M2
joystick for 1 second “SELECT TO RETRY”, this will allow your M2 to
search for your e.VOKE.
• With your e.VOKE on, press and hold the rear #3 button to allow your
e.VOKE device to search for your M2.
• Upon successful connection, you will hear an auditory message from
your e.VOKE stating “PAIRED”.
DYE Precision, Inc. warrants for one year to the initial retail purchaser, from
the initial date of purchase, that the e.VOKE is free from defects in materials
and workmanship, subject to the requirements, disclaimers and limitations
of this warranty. Disposable parts, normal maintenance and standard wear
and tear parts such as batteries, O-rings and seals are not warrantied.
This warranty does not cover scratches, nicks, improper disassembly,
improper re-assembly, misuse, neglect or improper storage. Modification
to the product will void the warranty. This warranty is limited to repair or
replacement of defective parts with the customer to pay shipping costs.
Warranty card and proof of purchase must be submitted to DYE Precision
for warranty to be in effect. This warranty is not transferable. This warranty
does not cover performance. Paintball markers are non-refundable.
TECHNICAL SUPPORT
Our Technical Support Departments are open Monday through Friday. DYE
Precision, Inc. can be reached at 858-536-5183 ext.0 from 8am to 5pm PST.
DYE Europe can be reached at +44 (0) 20-8649-6330 from 9am to 5pm GMT.
DYE Asia can be reached at 886 (0) 4-2407-9135 from 9am to 5pm GMT +8
hours. Additional support and international contacts are available through
our web site, www.dyepaintball.com
DISCLAIMER
The specifications & photographs in this material are for information and
general guidance purposes only. Our products are continually updated
and changes may be made to specification, design or appearance from
time to time. These are subject to change without notice. Contents of box
may therefore vary from owner’s manual. For details of changes in design,
specification or appearance consult your local distributor or dealer.
e.VOKE, M2, i5, M2 Air Sync, MOSAir , DYEnamic technology Series, and
CFC are registered trademarks. Design rights, copyrights and all other
rights reserved. All patterns, drawings, photographs, instructions or
manuals remain the intellectual property of the manufacturer.
Copyright © 2017 DYE Precision, Inc. The stylized “dye” logo, “sphere” logo,
“e.VOKE” logo, and “M2” logo are either registered trademarks, trademarks, or design
trademarks of DYE Precision, Inc.
DYE Precision, Inc. U.S. Patent AND INT’L PATENTS PENDING. All rights will be strictly
enforced. For a complete list of patents visit www.dyeprecision.com/patents
OWNER’S MANUAL
DYE PRECISION, INC.
USA 10637 Scripps Summit Ct.
San Diego, CA 92131
P 858-536-5183 F 858-536-5191
ASIA
No. 253, Guojhong Rd., Dali Dist.
Taichung City 412, Taiwan (R.O.C.)
P +886 (0) 4-2407-9135
F +886 (0) 4-2407-2090
GERMANY
Albert Einstein Str. 2 B
77656 Offenburg, Germany
P +49 (0) 781 639 349 91
e.VOKE
FCC ID:2AAZG4015A1
M2 Air Sync Board
FCC ID: 2AAZG3045A1
This device complies with part i5 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference,
including interference that may cause undesired
operation of the device.
WARRANTY
FEDERAL COMMUNICATION COMMISSION
INTERFERENCE STATEMENT
CONTACT INFO
FUTURE PROGRAMING:
The e.VOKE has been designed to be upgradeable as well as allow for
different languages to be uploaded.
CHANGE LANGUAGE:
• Visit www.dyem2.com to download different language packs and
additional info.
• Save the language pack of your choice to a flash drive and using a USB
to Micro USB adapter plug into the e.VOKE charging port.
• Turn your e.VOKE on and the LED light will turn white.
• Tap the front #1 button. The LED light will turn purple. This signifies that
the e.VOKE has found the file and is ready to begin the file transfer.
• Press the center #2 button to start transfer. The LED will flash green and
then begin to flicker purple. It will take up to 10 minutes to complete.
• When update is complete LED will flash green once more and return to
a solid purple.
• The update is complete, you can now un-plug the cable from the e.VOKE.
UPDATE FIRMWARE:
• Visit www.dyem2.com to download the latest firmware and additional info
• Save the firmware to a flash drive and using a USB to Micro USB adapter
plug into the e.VOKE charging port.
• Turn your e.VOKE on and the LED light will turn white.
• Tap the rear #3 button. The LED light will turn Blue. This signifies that the
e.VOKE has found the file and is ready to begin the update.
• Press the center #2 button to start update. The LED will flash green and
then begin to flicker Blue. This will take one to two min to complete.
• When update is complete the LED will flash green once more and return
to a solid blue.
• The update is complete, you can now un-plug the cable from the e.VOKE.
AIR SYNC:
With the e.VOKE system installed your M2 and i5 e.VOKE will automatically
pair and sync when both units are powered on, via DYE’s air sync wireless
connection. To un-pair or trouble shoot enter into the configuration menu
on your M2.
GAME TIMER:
The MOSAir will feed game timer info to the e.VOKE and give you alerts
as you become low on time. Set your game timer by entering into the
“PERFORMANCE SETTINGS” menu on your M2 and select the “GAME
TIMER”.
ELIMINATION TRACKER:
The e.VOKE will help you track how many opponents you eliminate. Use
it to track how many bad guys are left in a game, or keep a tally of your
personal eliminations for the whole day. Simply tap the front #1 button each
time you add an elimination to your tally. To retrieve your current count tap
the center #2 button. To reset the count press and hold the front #1 button
for two seconds.
SHOT TRACKER:
Get alerted when your paint supply is running low. Enter the projected
amount of paint you will be shooting by entering the“DATA SETTINGS“
menu on your M2. Go to the “SHOT TRACKER” and Select. Set the
countdown value in increments of 25 until you reach your desired paint
count. The value is the amount of paint you are carrying onto the field for
that game or have budgeted for the day. The MOSAir system will track
your shots and alert you when you are running low. Alerts are automatic
at 500, 250, 100, and 50. You can prompt an update by pressing the middle
#2 button. To reset the shot tracker between games press and hold the M2
joystick to the left for 2 seconds.
POWER LEVEL ALERTS:
You will never have to look at a battery level indicator again; the e.VOKE will
let you know when it is time to recharge your system with plenty of notice
to finish off the day before plugging in.
PRESSURE REPORT:
Get verbal confirmation of your M2’s Hyper Reg and LPR Pressure output.
Tap the joystick to the left and enter the “SYSTEMS CHECK SCREEN” , this
will prompt the e.VOKE to relay your operating pressures to you verbally.
FEATURES:
E.VOKE STATUS
In Program Menu
Language Update Mode
Selected
Language Update
Activated
Language Update
in Process
Language Update
Complete
Language Update
Complete - Unplug
OPERATION/STATUS
Connect Flash Drive
and power on
Tap front #1 button
Tap center #2 button
LED COLOR
Solid
White
Solid
Purple
Single
Green Flash
Flickering
Purple
Single
Green Flash
Solid
Purple
LANGUAGE UPDATE LED INDEX CHART
OPERATION/STATUS
Connect Flash Drive
and power on
Tap rear #3 button
Tap center #2 button
LED COLOR
Solid
White
Solid
Blue
Single
Green Flash
Flickering
Blue
Single
Green Flash
Solid
Blue
E.VOKE STATUS
In Program Menu
Firmware Update Mode
Selected
Firmware Update
Activated
Firmware Update
in Process
Firmware Update
Complete
Firmware Update
Complete - Unplug
FIRMWARE UPDATE LED INDEX CHART
WARNING:
This is not a toy. Misuse may cause serious injury or death.
Eye protection designed specifically for the sport of must
be worn at all times by the user and persons within range.
Recommended age of 18 years or older to purchase. Persons
under 18 years of age must have adult supervision.
READ OWNER’S MANUAL BEFORE USING.
Approved
Paintball Eye
Protection
Required For
Use
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a partic-
ular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modi cations not expressly approved by the
party responsible for compliance could void the user’s authority to operate
this equipment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
RADIATION EXPOSURE STATEMENT:
The product comply with the FCC portable RF exposure limit set forth for
an uncontrolled environment and are safe for intended operation as de-
scribed in this manual. The further RF exposure reduction can be achieved
if the product can be kept as far as possible from the user body or set the
device to lower output power if such function is available.
BUTTON CHART
BUTTON
Button #3 rear
#1 and #3
#1 and #2
#3 and #2
SINGLE CLICK
Add to G-count
Game times updates
Shot tracker update
Motivations
HOLD #2, TAP #1 =
Volume +
HOLD #2, TAP #3 =
Volume -
PRESS/HOLD
Reset G-count
POWER : HOLD 2 SEC =
ON, HOLD 3 SEC = OFF
Search for device for pairing
Button #1 front
Button #2 center
TRAINING MODES:
Activate training mode in your M2 and use the e.VOKE to help walk you
through training. e.VOKE will provide start, stop, and set instructions to
keep you focused and productive while training.
SERVICE ALERTS:
The MOSAir service system is directly linked to the e.VOKE. When your
M2 is due for service, the e.VOKE will communicate to you what system
needs service.
FEATURES:
1 (front)
2 (center)
3 (rear)
Do not modify the lens, goggle, goggle frame, mask, strap or
any other part of the goggle system. Modifying the goggle
system may void the warranty and can lead to serious injury.
Frequency: 2402~2480MHz
