Use & Care
Installation Instructions
Microwave with Built-in Kit
Models: DMT2420B / DMT2420R / DMT2420S
IMPORTANT INFORMATION
Installation Instructions
Operation Instructions
Cooking Guides
Specifications
Please Read Before Using Your Microwave Oven
1.DC/DMT2420 #323 11/14/02, 11:41 AM1
2
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number
located on the unit. We also suggest you record all the information listed and retain for future reference.
MODEL NUMBER ____________________________ SERIAL NUMBER__________________
DATE OF PURCHASE __________________________
DEALER _________________________________ TELEPHONE_____________________
SERVICER________________________________ TELEPHONE_____________________
FOR CUSTOMER ASSISTANCE
TO PHONE: 1(800)793-0093
TO WRITE: DACOR INC.
1440 Bridge Gate Drive
Diamond Bar, CA 91765
Please provide the following information when you write or call: model number, serial number, date of purchase, your
complete mailing address (including zip code), your daytime telephone number (including area code) and description of
the problem.
TO ACCESS INTERNET:
www.dacor.com
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches
(broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
1.DC/DMT2420 #323 11/14/02, 11:41 AM2
3
CONTENTS
2
For Customer Assistance
2
Precautions to Avoid Possible Exposure
to Excessive Microwave Energy
3Contents
4Product Warranty
5
Important Safety Instructions
6-7
Installation Instructions
7
Grounding Instructions
8-10
Information You Need to Know
8About Your Oven
8About Food
9About Utensils and Coverings
9About Children and the Microwave
10 About Microwave Cooking
10 About Safety
11
Part Names
12
Control Panel
13-14
Introduction to Touch Screen
14-15
Before Operating
14 To Set The Clock
15 Stop/Clear
15-16
Manual Operation
15 High Power Cooking
16 Variable Power Cooking
16 Multiple Sequence Cooking
17
SENSOR MODES
17 REHEAT - POPCORN -
BAKED POTATOES
17 SENSOR MODES Cooking Chart
18-19
NEW WAVE COOKBOOK
18 VEGETABLES
18 MEATS - POULTRY - FISH/SEAFOOD -
FROZEN FOOD - PASTA/GRAINS
19 NEW WAVE COOKBOOK Chart
20
-25
MICROWAVE RECIPES AND
INSTRUCTIONS
20 Breakfast Bar / Lunch On The Run
20 Breakfast Bar / Lunch On The Run Chart
21 One Dish Dinners - Low Calorie Entrees
Supper Soups And Sauces -
Delicious Desserts
22 Recipes for One Dish Dinners
23 Recipes for Low Calorie Entrees
24 Recipes for Supper Soups And Sauces
25 Recipes for Delicious Desserts
26-28
DEFROST
26 Super Defrost
26 Super Defrost Chart
27 Auto Defrost
27 Auto Defrost Chart
28 Manual Defrost
28
BEVERAGES
29-30
SET UP
29 1. Clock
29 2. Auto Start
30 3. Sound Adjustment
30 4. Child Lock
30 5. Video Demo
30 6. Screen Contrast
30
-32
Other Convenient Features
30 Easy Minute
31 Time Select
31 Kitchen Timer
32 More or Less Time Adjustment
33
Cleaning and Care
34
Specifications
34
Service Call Check
35-36
Quick Reference
35 SENSOR MODES
35 NEW WAVE COOKBOOK
35 MICROWAVE RECIPES AND
INSTRUCTIONS
35 DEFROST
35 BEVERAGES
35 SET UP
36 Quick Reference
1.DC/DMT2420 #323 11/14/02, 11:41 AM3
4
WHAT IS COVERED
CERTIFICATE OF WARRANTIES
DACOR MICROWAVE OVEN
WITHIN THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND CANADA*:
FULL ONE YEAR WARRANTY
If your DACOR product fails to function within one year of the original date of purchase, due to a defect in
material or workmanship, DACOR will remedy the defect without charge to you or subsequent users. The
owner must provide proof of purchase upon request and have the appliance accessible for service.
* Warranty is null and void if non-CSA approved product is transported from the U.S.
OUTSIDE THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND
CANADA:
LIMITED FIRST YEAR WARRANTY
If your DACOR product fails to function within one year of the original date of purchase, due to a defect in
material or workmanship, DACOR will furnish a new part, F.O.B. factory, to replace the defective part. All
delivery, installation and labor costs are the responsibility of the purchaser. The owner must provide proof of
purchase upon request and have the appliance accessible for service.
WHAT IS NOT COVERED
•Failure of the product caused by faulty installation, improper usage, or neglect of required maintenance.
• Service calls to educate the customer in the proper use and care of the product.
•Failure of the product when used for commercial, business, rental or any application other than for residen-
tial consumer use.
•Replacement of house fuses or fuse boxes, or resetting of circuit breakers.
•Damage to the product caused by accident, fire, flood or other acts of God.
•Breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, porcelain or
other cosmetic finish, caused by improper usage or care, abuse, or neglect.
THE REMEDIES PROVIDED FOR IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES
THEREFORE NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED STATES
AND THE DISTRICT OF COLUMBIA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR
INCIDENTAL EXPENSE OR CONSEQUENTIAL DAMAGES NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY
BUYER FOR RESALE.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights that vary from state to state.
PRODUCT WARRANTY
1.DC/DMT2420 #323 11/14/02, 11:41 AM4
5
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING
- To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
1. Read all instructions before using the
appliance.
2. Read and follow the specific “PRE-
CAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on page 2.
3. This appliance must be grounded. Connect
only to properly grounded outlet. See
“GROUNDING INSTRUCTIONS”
on page 7 and INSTALLATION
INSTRUCTIONS.
4. Install or locate this appliance only in
accordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers — for example, closed
glass jars — may explode and should not
be heated in this oven.
6. Use this appliance only for its intended
use as described in this manual. Do not
use corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision
is necessary when used by children.
8. Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or
dropped.
9. This appliance should be serviced only
by qualified service personnel. Contact
nearest Dacor Authorized Servicer for
examination, repair or adjustment.
10. Do not cover or block any openings on the
appliance.
11.Do not store or use this appliance outdoors.
Do not use this product near water—for
example, near a kitchen sink, in a wet base-
ment or near a swimming pool, and the like.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or
counter.
15. See door surface cleaning instructions on
page 33.
16. To reduce the risk of fire in the oven
cavity:
a. Do not overcook food. Carefully attend
appliance if paper, plastic or other com-
bustible materials are placed inside the
oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven should
ignite, keep oven door closed, turn
oven off, and disconnect the power
cord or shut off power at the fuse or
circuit breaker panel.
d. Do not use the cavity for storage pur-
poses. Do not leave paper products,
cooking utensils or food in the cavity
when not in use.
17. If the oven is installed as a built-in, observe
the following instructions:
a. Do not mount over a sink.
b. Do not store anything directly on top
of the appliance surface when the
appliance is in operation.
1.DC/DMT2420 #323 11/14/02, 11:41 AM5
6
Unpacking and Examining Your Oven
Remove: all packing materials from inside the oven cavity; however,
DO NOT REMOVE THE WAVEGUIDE COVER, which is located
on the right cavity wall. Read enclosures and SAVE the Use and Care
Installation Instructions.
Check the oven for any damage, such as misaligned or bent door,
damaged door seals and sealing surfaces, broken or loose door hinges
and latches and dents inside the cavity or on the door. If there is any
damage, do not operate the oven and contact your dealer or DACOR
AUTHORIZED SERVICER.
Choosing a Location for Your Oven on the counter
You will use the oven frequently so plan its location for ease of use. It’s wise, if possible, to have counter space
on at least one side of the oven. Allow at least 2 inches on the sides, top and at the rear of the oven for air
circulation.
Choosing a Location for Your Oven if built-in
Your oven can be built into a cabinet or wall by itself or above any DACOR wall
oven listed below using DACOR’s Built-in Kits, either the AMTK27 or the
AMTK30. The AMTK27 is for a 27" wall oven, while the AMTK30 accommodates
installation above 30" wall ovens.
The applicable wall ovens and warming ovens are as follows:
OVENS - ECS127, ECS130, MCS127, MCS130, PCS127, PCS130
WARMING OVENS - EWO24, EWO27, EWO30, MWO27, MWO30, PWO24,
PWO27, PWO30, IWO24, IWO27
Do not built-in above any other gas or electric wall oven.
See Built-in Kit Installation Instructions for proper location when building in above the specified wall ovens.
Carefully follow both the wall oven installation instructions and Built-in Kit instructions.
The opening in the wall or cabinet must be within the following dimensions:
AHEIGHT : 16 3/4" to 17"
BWIDTH : 24 3/8" to 24 11/16"
CDEPTH : minimum 20"
INSTALLATION INSTRUCTIONS
OVER OVEN INSTALLATION OVER WARMING OVEN INSTALLATION
1 3/4"
(45MM)
TOP OF
MICROWAVE
SHELF
41"
(1041MM)
MICROWAVE
CUTOUT
EPICURE,
PREFERENCE
AND MILLENNIA
SINGLE WALL
OVEN CUTOUT
1 1/4"
(32MM)
WARMING
OVEN CUTOUT
(ALL MODELS)
RECOMMENDED
HEIGHT 36"
(914MM)
MICROWAVE
CUTOUT
1.DC/DMT2420 #323 11/14/02, 11:41 AM6
7
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding
plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the
National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding
reduces risk of electric shock by providing an escape wire for the electric current.
WARNING – Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more
protected electrical supply. It is recommended that a separate circuit serving only
this appliance be provided.
The oven is equipped with a 3-prong grounding plug. It must be plugged into a
wall receptacle that is properly installed and grounded. Should you only have a
2-prong outlet, have a qualified electrician install a correct wall receptacle.
A 3-prong adapter may be purchased and used temporarily if local codes allow.
Follow package directions.
A short power-supply cord is provided to reduce risk of becoming entangled in or
tripping over a longer cord.
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord that
has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on
the microwave oven. The marked rating of the extension cord should be AC 115-
120 volt, 15 amp. or more.
Be careful not to drape the cord over the countertop or table where it can be pulled
on by children or tripped over accidentally.
Notes: 1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician
or service person.
2. Neither DACOR nor the dealer can accept any liability for damage to the oven or personal injury
resulting from failure to observe the correct electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave
oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check
position and signal of receiving antenna.
GROUNDING INSTRUCTIONS
INSTALLATION INSTRUCTIONS
Outlet should NOT be in the shaded area as indicated.
1.If the dimension of DEPTH (C) is more than 21", the outlet location
may be any area on the rear wall.
2.The floor of the opening should be constructed of plywood strong
enough to support the weight of the oven and floor load (about 100
pounds). The floor should be level for proper operation of the oven.
Be sure to check the local building code as it may require that the
opening be enclosed with sides, ceiling and rear partition. The proper
functioning of the oven does not require the enclosure.
Call toll-free: 1-800-793-0093 for ordering the kit to be sent to your
address.
The kit includes all the necessary parts and easy-to-follow instructions for
installation as well as location of the power supply. The AMTK27 (27") and
AMTK30 (30") kits include simulated frames, which match the DMT2420 microwave oven.
The ease of assembly for these kits will allow installation into an existing wall opening in less than an hour
(if power outlet is already properly located).
All it takes are four steps and a Phillips screw driver.
BC
4"
4"
6"
A
1.DC/DMT2420 #323 11/14/02, 11:41 AM7
8
INFORMATION YOU NEED TO KNOW
ABOUT YOUR OVEN
Condensation is a normal part of microwave cooking.
Room humidity and the moisture in food will
influence the amount of moisture that condenses in
the oven. Generally, covered foods will not cause as
much condensation as uncovered ones. Vents on the
oven back must not be blocked.
The oven is for food preparation only. It should not
be used to dry clothes or newspapers.
Your oven is rated 1200 watts by using the IEC Test
Procedure. In using recipes or package directions,
check food a minute or two before the minimum time
and add time accordingly.
This Operation Manual is valuable: read it carefully
and always save it for reference.
A good microwave cookbook is a valuable asset.
Check it for microwave cooking principles,
techniques, hints and recipes.
NEVER use the oven without the turntable and
support nor turn the turntable over so that a large
dish could be placed in the oven. The turntable will
turn both clockwise and counterclockwise.
ALWAYS have food in the oven when it is on to
absorb the microwave energy.
When using the oven at power levels below 100%,
you may hear the magnetron cycling on and off.
ABOUT FOOD
DON'T
DO
•Puncture egg yolks before cooking to
prevent “explosion”.
•Pierce skins of potatoes, apples, squash,
hot dogs and sausages so that steam es-
capes.
•Use specially bagged popcorn for the
microwave oven.
•Listen while popping corn for the pop-
ping to slow to 1 or 2 seconds or use
special Popcorn pad.
•Transfer baby food to small dish and
heat carefully, stirring often. Check
temperature before serving.
•Put nipples on bottles after heating and
shake thoroughly. “Wrist” test before
feeding.
•Cut baked goods with filling after heat-
ing to release steam and avoid burns.
•Stir liquids briskly before and after
heating to avoid “eruption”.
•Use deep bowl, when cooking liquids
or cereals, to prevent boilovers.
Eggs, sausages,
nuts, seeds,
fruits &
vegetables
Popcorn
Baby food
General
•Cook eggs in shells.
•Reheat whole eggs.
•Dry nuts or seeds in shells.
•Pop popcorn in regular brown bags or
glass bowls.
•Exceed maximum time on popcorn
package.
•Heat baby food in original jars.
•Heat disposable bottles.
•Heat bottles with nipples on.
•Heat or cook in closed glass jars or air
tight containers.
•Can in the microwave as harmful bacte-
ria may not be destroyed.
•Deep fat fry.
•Dry wood, gourds, herbs or wet papers.
•Operate the oven empty.
FOOD
1.DC/DMT2420 #323 11/14/02, 11:41 AM8
9
INFORMATION YOU NEED TO KNOW
ABOUT UTENSILS AND COVERINGS
Children below the age of 7 should use the micro-
wave oven with a supervising person very near to
them. Between the ages of 7 and 12, the supervising
person should be in the same room.
The child must be able to reach the oven comfort-
ably; if not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing
on the oven door.
ABOUT CHILDREN AND THE MICROWAVE
Children should be taught all safety precautions:
use potholders, remove coverings carefully, pay
special attention to packages that crisp food because
they may be extra hot.
Don’t assume that because a child has mastered one
cooking skill he/she can cook everything.
Children need to learn that the microwave oven is
not a toy. See page 30 for Child Lock feature.
The following coverings are ideal:
•Paper towels are good for covering foods for
reheating and absorbing fat while cooking bacon.
•Wax paper can be used for cooking and reheating.
•Plastic wrap that is specially marked for microwave
use can be used for cooking and reheating. DO NOT
allow plastic wrap to touch food. Vent so steam
can escape.
•Lids that are microwave-safe are a good choice
because heat is kept near the food to hasten cooking.
•Oven cooking bags are good for large meats or foods
that need tenderizing. DO NOT use metal twist ties.
Remember to slit bag so steam can escape.
How to use aluminum foil in your microwave oven:
•Small flat pieces of aluminum foil placed smoothly
on the food can be used to shield areas that are
either defrosting or cooking too quickly.
•Foil should not come closer than one inch to any
surface of the oven.
Should you have questions about utensils or
coverings, check a good microwave cookbook or
follow recipe suggestions.
ACCESSORIES There are many microwave
accessories available for purchase. Evaluate carefully
before you purchase so that they meet your needs. A
microwave-safe thermometer will assist you in
determining correct doneness and assure you that
foods have been cooked to safe temperatures. Dacor
is not responsible for any damage to the oven when
accessories are used.
It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used success-
fully in your new microwave oven.
Use these utensils for safe microwave cooking and
reheating:
•glass ceramic (Pyroceram®), such as
Corningware®.
•heat-resistant glass (Pyrex®)
•microwave-safe plastics (some microwave-
safe plastics are not suitable for cooking foods
with high fat and sugar content.)
•paper plates
•microwave-safe pottery, stoneware and
porcelain
•browning dish (Do not exceed recommended
preheating time. Follow manufacturer's
directions.)
These items can be used for short time reheating
of foods that have little fat or sugar in them:
•wood, straw, wicker
DO NOT USE
•metal pans and bakeware
•dishes with metallic trim
•non-heat-resistant glass
•non-microwave-safe plastics (margarine tubs)
•recycled paper products
•brown paper bags
•food storage bags
•metal twist-ties
Should you wish to check if a dish is safe for micro-
waving, place the empty dish in the oven and
microwave on 100% power for 30 seconds. A dish
which becomes very hot should not be used.
1.DC/DMT2420 #323 11/14/02, 11:41 AM9
10
INFORMATION YOU NEED TO KNOW
ABOUT MICROWAVE COOKING
•Arrange food carefully. Place thickest areas toward
outside of dish.
•Watch cooking time. Cook for the shortest amount
of time indicated and add more as needed. Foods
severely overcooked can smoke or ignite.
•Cover foods while cooking. Check recipe or cook-
book for suggestions: paper towels, wax paper,
microwave plastic wrap or a lid. Covers prevent
spattering and help foods to cook evenly.
•Shield with small flat pieces of aluminum foil any
thin areas of meats or poultry to prevent overcook-
ing before dense, thick areas are cooked thoroughly.
•Stir foods from outside to center of dish once or
twice during cooking, if possible.
•Turn foods over once during microwaving to speed
cooking of such foods as chicken and hamburgers.
Large items like roasts must be turned over at
least once.
... for fresh pork, ground meat,
boneless white poultry, fish,
seafood, egg dishes and
frozen prepared food.
... for leftover, ready-to-reheat
refrigerated, and deli and
carry-out “fresh” food.
... white meat of poultry.
... dark meat of poultry.
160˚F
•Check foods to see that they are cooked to the
United States Department of Agriculture’s recom-
mended temperatures:
ABOUT SAFETY
•Always use potholders to prevent burns when
handling utensils that are in contact with hot food.
Enough heat from the food can transfer through
utensils to cause skin burns.
•Avoid steam burns by directing steam away from
the face and hands. Slowly lift the farthest edge of
a dish’s covering and carefully open popcorn and
oven cooking bags away from the face.
•Stay near the oven while it’s in use and check cook-
ing progress frequently so that there is no chance
of overcooking food.
•NEVER use the cavity for storing cookbooks or
other items.
•Select, store and handle food carefully to preserve
its high quality and minimize the spread of
foodborne bacteria.
•Keep waveguide cover clean. Food residue can
cause arcing and/or fires.
•Use care when removing items from the oven so
that the utensil, your clothes or accessories do not
touch the safety door latches.
To test for doneness, insert a meat thermometer in a
thick or dense area away from fat or bone. NEVER
leave the thermometer in food during cooking,
unless it is approved for microwave oven use.
TEMP
•Rearrange foods like meatballs halfway through
cooking both from top to bottom and from the center
of the dish to the outside.
•Add standing time. Remove food from oven and
stir, if possible. Cover for standing time which
allows the food to finish cooking without
overcooking.
•Check for doneness. Look for signs indicating that
cooking temperatures have been reached.
Doneness signs include:
-Food steams throughout, not just at edge.
-Center bottom of dish is very hot to the touch.
-Poultry thigh joints move easily.
-Meats and poultry show no pinkness.
-Fish is opaque and flakes easily with a fork.
FOOD
165˚F
170˚F
180˚F
1.DC/DMT2420 #323 11/14/02, 11:41 AM10
11
PART NAMES
1One touch door open button Push to open door.
2Oven door with see-through window
3Safety door latches
The oven will not operate unless the door is securely closed.
4Door hinges
5Door seals and sealing surfaces
6Turntable motor shaft
7Removable turntable support
Carefully place the turntable support in the center of the oven floor.
8Removable turntable
Place the turntable on the turntable support securely. The turntable will
rotate clockwise or counterclockwise. Only remove for cleaning.
9Ventilation openings (Rear)
10 Oven light
It will light when oven is operating or door is open.
11 Waveguide cover: DO NOT REMOVE.
12 Control panel
13 Touch Screen
1.DC/DMT2420 #323 11/14/02, 11:41 AM11
12

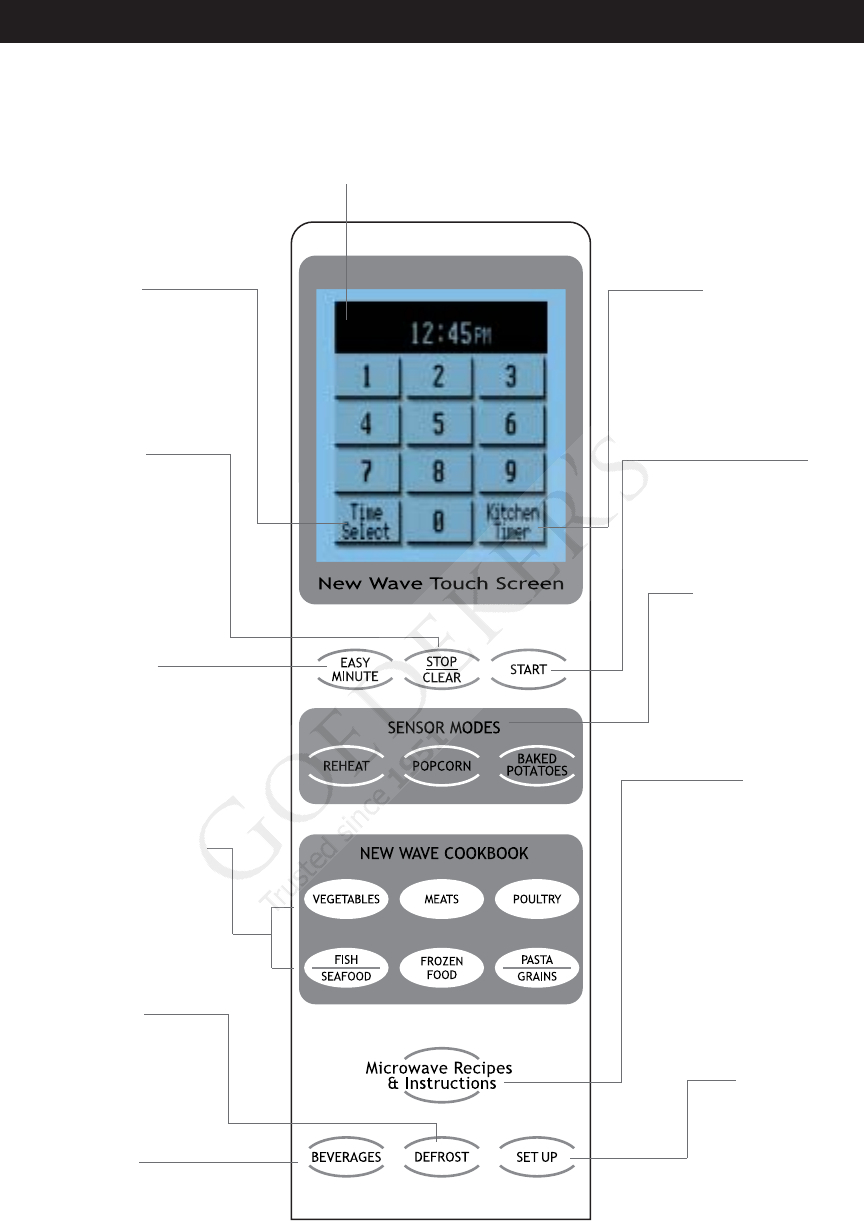

CONTROL PANEL
NEW WAVE TOUCH SCREEN : 13-14
The Home Page is for entering time for cooking or kitchen timer. The TOUCH SCREEN shows cooking
information and recipes and lets the user enter chosen options by simply touching directly on the screen.
Kitchen Timer : 31
Touch Kitchen
Timer, enter desired
time and press
START.

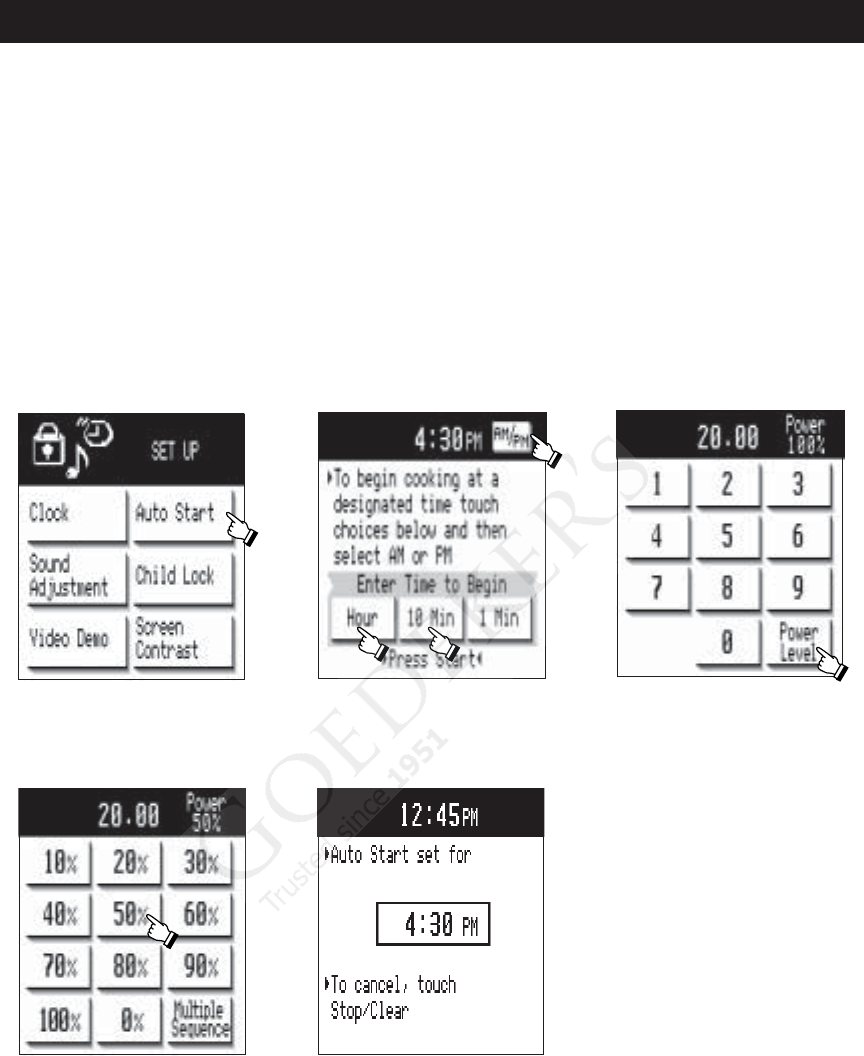

SET UP : 29-30
Press to show
Clock, Child Lock,
Sound Adjustment,
Auto Start, Video
Demo or Screen
Contrast.
STOP/CLEAR : 15
During programming,
press once to return to the
Home Page. During
cooking, press once to stop
cooking or twice to cancel
the cooking program.

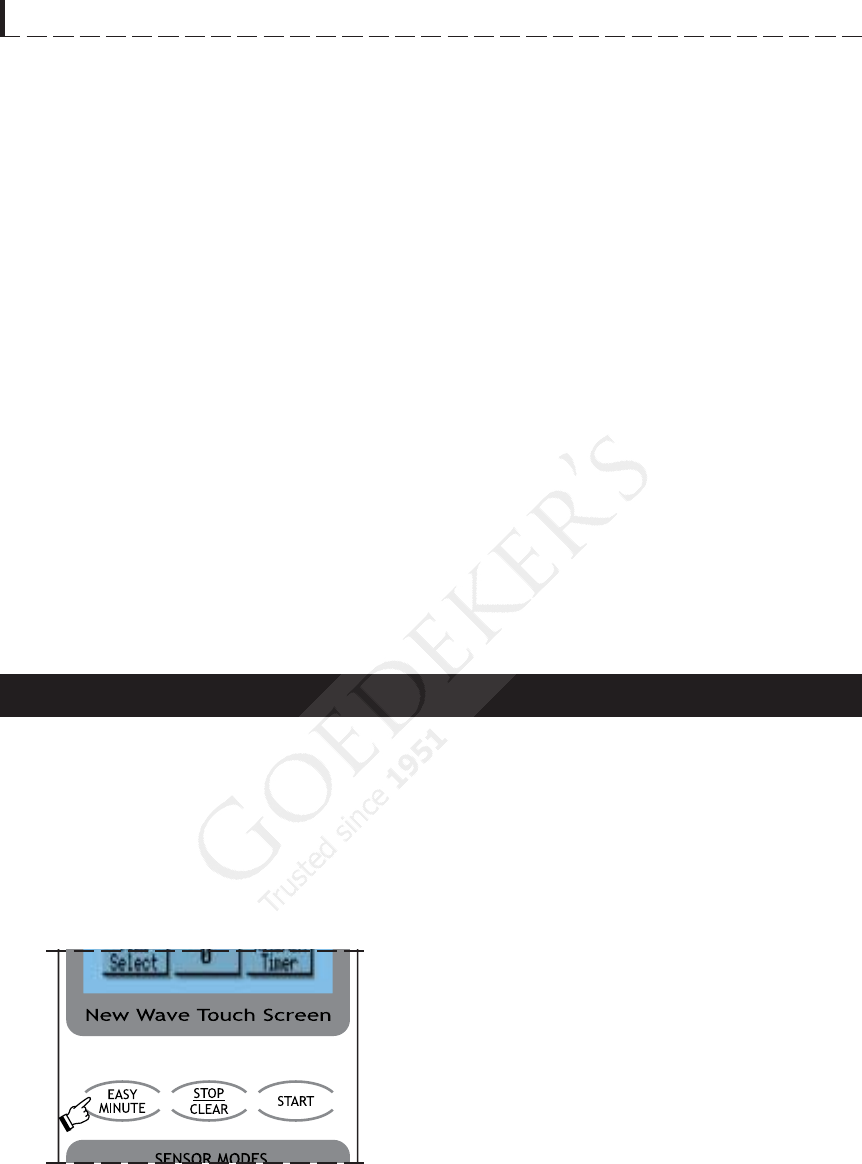

EASY MINUTE : 30
Press once to cook for one
minute at 100% or press
repeatedly to extend
cooking time in multiples
of one minute.
NEW WAVE COOKBOOK :
18-19
Press each pad to show six
selections on the TOUCH
SCREEN.
Time Select : 31
Touch to access screen
where 12 common cooking
times are shown that simply
require one touch to start.

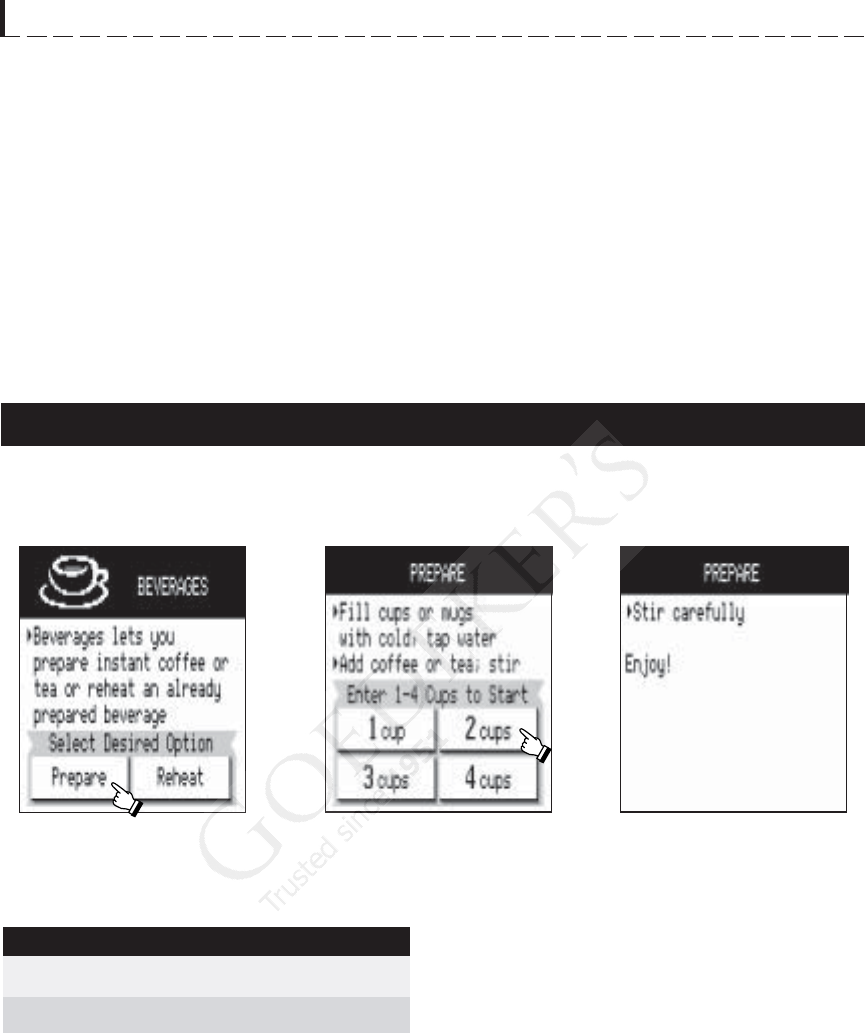

BEVERAGES : 28
Press to prepare or reheat
coffee or tea.
START
Press to start oven
after programming.
MICROWAVE
RECIPES AND
INSTRUCTIONS : 20-25
Press pad to show
six categories, each with
six foods. Breakfast Bar,
Lunch on the Run,
One Dish Dinners,
Low Calorie Entrees,
Supper Soups and
Sauces and Delicious
Desserts are the options.
SENSOR MODES : 17
Select pad to bake
potatoes, pop popcorn
or reheat previously
prepared foods.

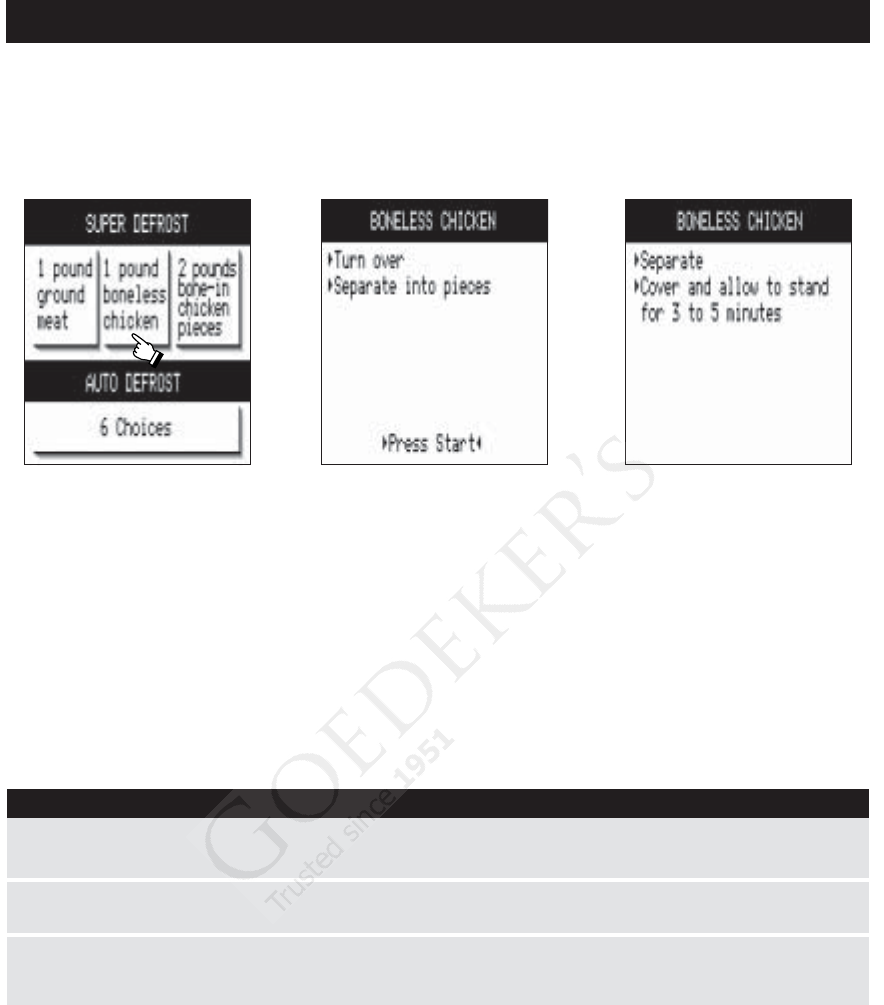

DEFROST : 26-27
Press to select one of three
Super Defrost or one of six
Auto Defrost options.
1.DC/DMT2420 #323 11/14/02, 11:41 AM12
13
INTRODUCTION TO TOUCH SCREEN
The Home Page is the beginning. It shows the time of day, if
the clock has been set. It also shows Time Select, where by
touching the screen the next screen appears, making it easy to
select one of twelve commonly used times. Touching Kitchen
Timer tells the oven that the time set is only for timing, not
for cooking.
Note that if cooking time is touched on the screen, that
Time Select and Kitchen Timer disappear and Power Level
appears. Touching Power Level leads to the next screen for
selecting the desired Power Level.
Your new Microwave Oven features a large screen on the Control Panel which, not only provides much
information to make using the oven easy, but also, is used to input information directly about the food being
cooked, quantity or desired doneness.

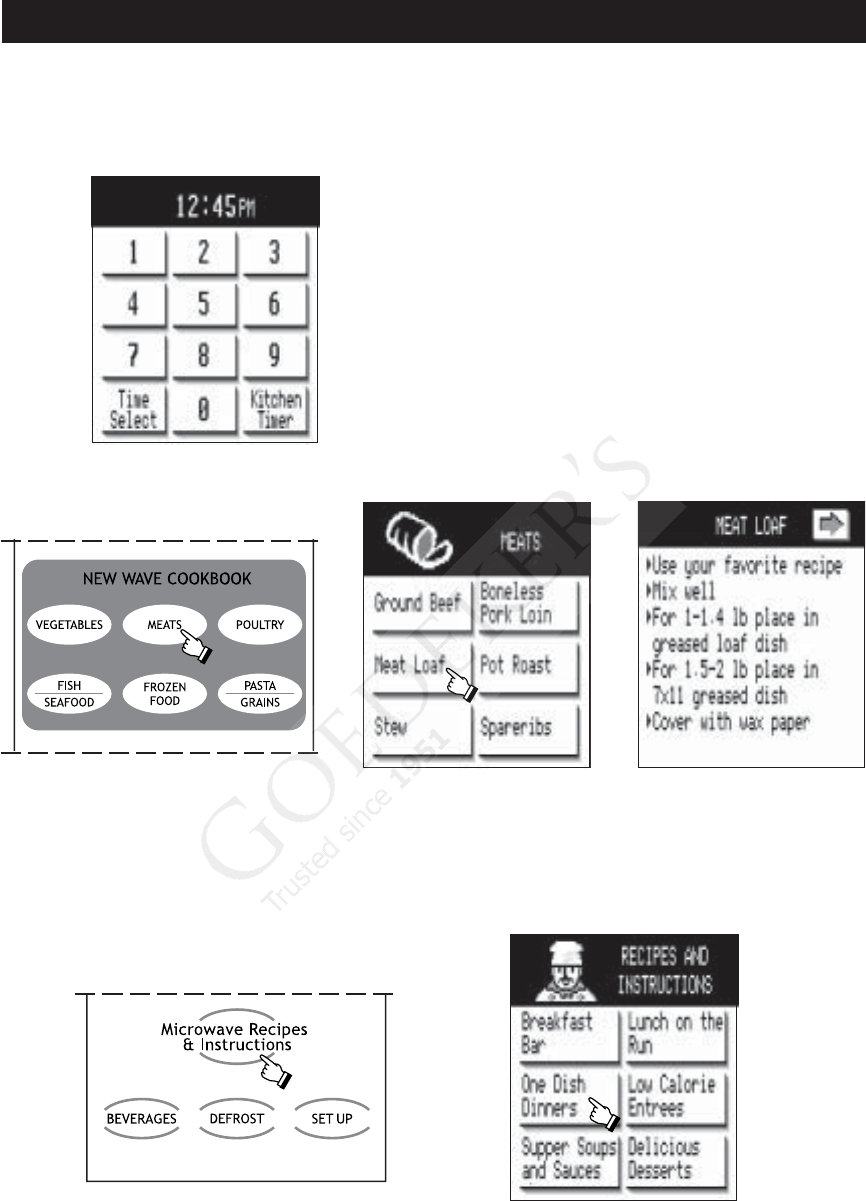

Example 1: Home Page
Example 2: Suppose you want to cook meat loaf in NEW WAVE COOKBOOK:
1Press MEATS on the
Control Panel in NEW
WAVE COOKBOOK.
2Note that six meat
selections appear on the
TOUCH SCREEN.
Touch Meat Loaf.
3Follow directions on the
TOUCH SCREEN.
Example 3: Suppose you want to cook Spicy Couscous in MICROWAVE RECIPES AND INSTRUCTIONS:
1Press Microwave Recipes &
Instructions on the Control Panel. 2Touch One Dish Dinners on
the TOUCH SCREEN.
1.DC/DMT2420 #323 11/14/02, 11:41 AM13
14

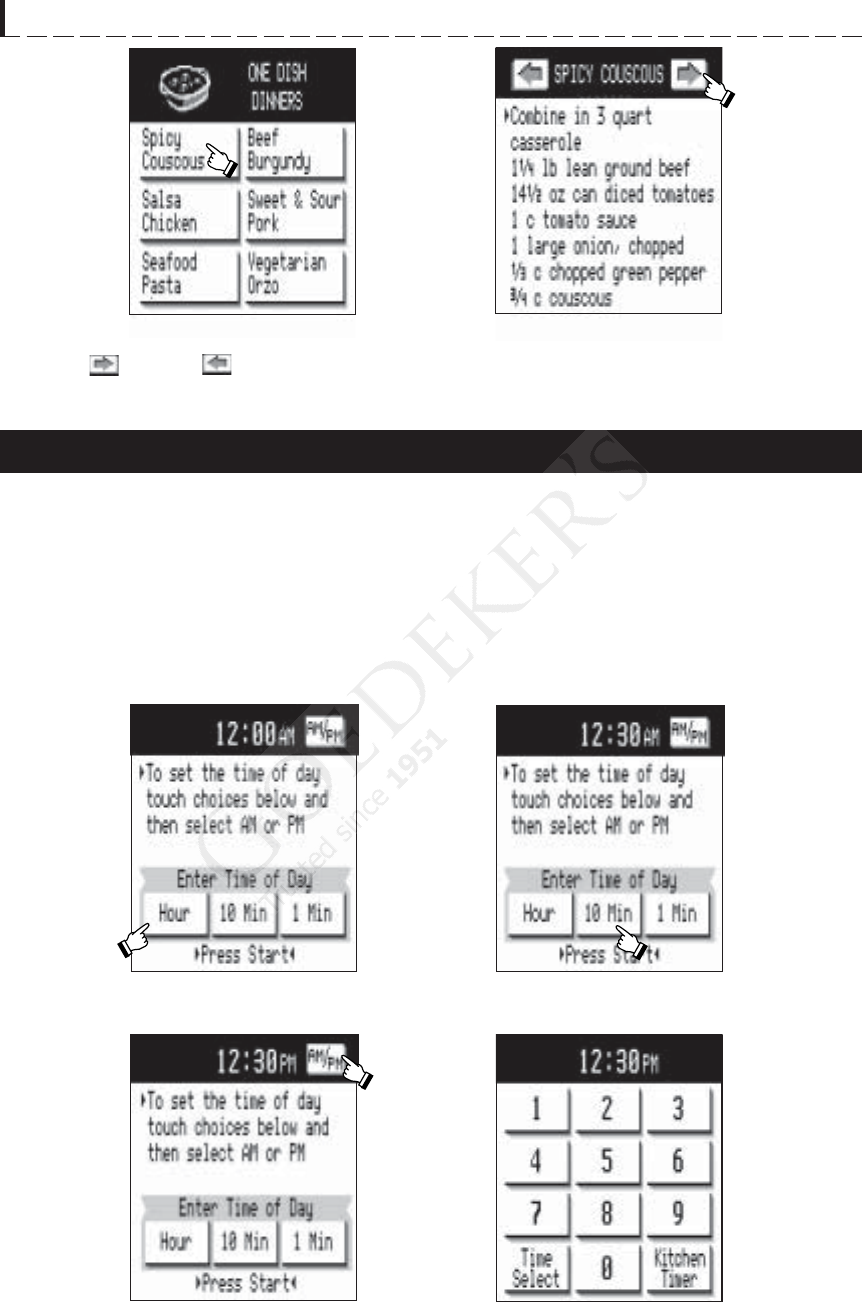

BEFORE OPERATING
TO SET THE CLOCK
•Suppose you want to enter the correct time of day: 12:30 PM.
2Enter the time of day (minutes)
by touching 10 Min. 3 times.
Before operating your microwave oven, be sure to
read and understand this operation manual.
Before the oven can be used, follow the steps:
1. Plug in the oven. Close the door. You can select
either: Video Demo or Set Clock.
2. Touch Set Clock and follow the instructions below.
NOTE:
If no choice is made for 30 seconds, the Video Demo
will begin automatically. To cancel the Video Demo,
press the STOP/CLEAR pad and the display will
return to the Home Page. To set the clock, press the
Set Up pad, touch Clock and follow the directions
on the Touch Screen.
1After touching Set Clock, enter the time
of day (hour) by touching Hour 11 times.
INTRODUCTION TO TOUCH SCREEN
3Select AM or PM and then press the
START pad. 4The clock will start. The display
will return to the Home Page.
*Forward and Back Arrows:
On all recipe screens and some preparation screens, there will be forward and back arrows, located in the
upper corners of the TOUCH SCREEN. Touch to read the entire recipe before beginning any cooking.
4Note Preparation steps. Note arrows*.3Touch Spicy Couscous.
1.DC/DMT2420 #323 11/14/02, 11:41 AM14
15
TIME COOKING
1Enter cooking time, 5, 0, 0 by touching
numbers. Note the top line of the display.
Press the START pad.
2The display will begin counting down the
cooking time. During the cooking, the power
level will appear in the display.
MANUAL OPERATION
Your oven can be programmed for 99 minutes and 99 seconds (99.99). Always enter the seconds after the
minutes, even if they are both zeros.

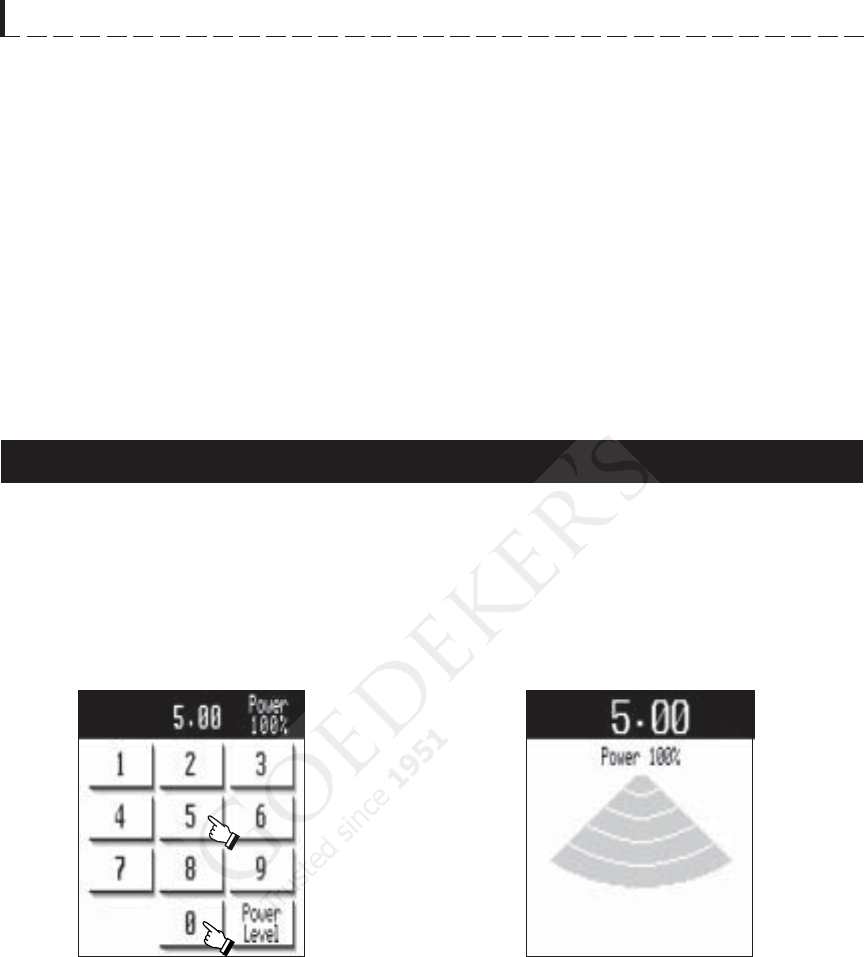

HIGH POWER COOKING
•Suppose you want to cook for five minutes at 100% power:
NOTE :
1. If you make a mistake while setting the clock,
touch STOP/CLEAR pad. The Home Page will
appear. To set clock again, press Set Up pad on
the control panel and Clock. Keep touching the
screen until the desired time of day appears.
2. If you want to change the setting of the time of
day, press Set Up pad and follow the directions.
3. If the electrical power supply to your microwave
oven should be interrupted, the screen will inter-
mittently show Video Demo or Set Clock after the
power is reinstated. If this occurs during cooking,
the program will be erased. Simply touch Set Clock
and follow the directions.
4. If you touch continously the Hour, 10 Min or 1 Min
on the Touch Screen, the time will count up
automatically.
STOP/CLEAR
Touch the STOP/CLEAR pad to:
1. Return the Home Page to the display, if you make
a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel Kitchen Timer/Auto Start.
4. Cancel a program during cooking, touch twice.
BEFORE OPERATING
NOTE:
If the door is opened or STOP/CLEAR pad is pressed
once during cooking process, the cooking time in the
display automatically stops. The cooking time starts
to count down again when the door is closed and
the START pad is pressed.
1.DC/DMT2420 #323 11/14/02, 11:41 AM15
16
MULTIPLE SEQUENCE COOKING
The oven can be programmed for up to four automatic cooking sequences, switching from one power level
setting to another automatically. Sometimes cooking directions tell you to start on one power level and then
change to a different power level. Your oven can do this automatically.
•Suppose you want to cook roast beef for 5 minutes at 70% power and then continue to cook for 30 minutes at
50% power:
MANUAL OPERATION
VARIABLE POWER COOKING
There are eleven preset power levels. To change the power level, touch Power Level after entering the cooking
time. Using lower power levels increases the cooking time which is recommended for foods such as cheese,
milk and long slow cooking of meats. Consult cookbook or recipes for specific recommendations.
•Suppose you want to cook for 5 minutes at 30% power:
1Enter cooking time, 5, 0, 0
by touching numbers.
Touch Power Level.
2Touch 30%. The top line of
the display will show time
and chosen power level.
Press START pad.
3The display will begin counting
down the cooking time. During
the cooking, the power level
will appear in the display.
2Touch 70%. You can omit
this step when you set 100%
power.
1Enter cooking time, 5, 0, 0
by touching numbers.
Touch Power Level.
6The display will begin counting
down the total cooking time.
During the cooking, the power
level will appear in the display.
3Touch Multiple Sequence.
5Touch 50%. Then press the
START pad.
4Touch second cooking
time 3, 0, 0, 0. Touch
Power Level.
1.DC/DMT2420 #323 11/14/02, 11:41 AM16
17
SENSOR MODES
The Sensor is a semi-conductor device that detects
the vapor (moisture and humidity) emitted from the
food as it heats. The sensor adjusts the cooking times
and power level for various foods and quantities.
Using Sensor Settings
1. After oven is plugged in, wait two minutes before
using any Sensor setting.
2. Be sure the exterior of the cooking container and
the interior of the oven are dry. Wipe off any
moisture with a dry cloth or paper towel.
3. The oven works with foods at normal storage
temperature. For example, popcorn would be at
room temperature.
4. Any Sensor Cooking or Reheating selection can
be programmed with More or Less Time
Adjustment. See page 32.
5. More or less food than the quantity listed in the
chart should be cooked following the guidelines
in any microwave cookbook.
6. During the first part of Sensor Cooking or
Reheating, SENSING will appear on the display.
Do not open the oven door or press STOP/
CLEAR pad during this part of the cooking cycle.
The measurement of vapor will be interrupted. If
this occurs, an error message will appear. To
continue cooking, touch the STOP/CLEAR pad
and cook manually.
When the sensor detects the vapor emitted from
the food, remainder of cooking or reheating time
will appear. The door may be opened when
remaining cooking time appears on the display. At
this time, you may stir or season food, as desired.
7. If the sensor does not detect vapor properly when
cooking or reheating foods, error messages will be
displayed, and the oven will turn off.
8. Check food for correct temperature after cooking.
If additional time is needed, continue to cook
manually.
Covering Foods
Some foods work best when covered. Use the cover
recommended in the procedure for these foods.
1. Casserole lid.
2. Plastic wrap: Use plastic wrap recommended for
microwave cooking. Cover dish loosely; allow
approximately 1/2 inch to remain uncovered to
allow steam to escape. Plastic wrap should not
touch food.
3. Wax paper: Cover dish completely; fold excess
wrap under dish to secure. If dish is wider than
paper, overlap two pieces at least one inch to cover.
Be careful when removing any covering to allow
steam to escape away from you.
SENSOR MODES COOKING CHART
POPCORN 1 pkg
1.5 - 3.5 oz
BAKED
POTATOES 1 - 8
REHEAT 4 - 36 oz
FOOD AMOUNT PROCEDURE
Use only popcorn packaged for microwave oven use. Try several brands to
decide which you like the best. Do not try to pop unpopped kernels.
Pierce. Place on paper-towel-lined turntable. After cooking, remove from oven,
wrap in aluminum foil and let stand 5 to 10 minutes.
Place in dish or casserole slightly larger than amount to be reheated. Flatten, if
possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic
wrap or lids with larger quantities of more dense foods such as stews. After
reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes.
Foods should be very hot. If not, continue to heat with variable power and time.
You can cook or reheat many foods by pressing just
one pad. You don't need to calculate cooking time or
power level.
•Suppose you want to cook two baked potatoes:
Press BAKED POTATOES pad and
the oven will start automatically.
When the sensor detects the vapor
emitted from the food, remainder of cooking time
will appear, during which the oven door can be
opened to add ingredients or check foods.
NOTE:
1. After pressing any SENSOR MODES pad, cooking
hints will appear for about 7 seconds, during which
the door may be opened or STOP/CLEAR pressed.
To restart the oven, close the door and press the
START pad.
2. All SENSOR MODES pads can be pressed within
3 minutes after cooking, opening and closing the
door or pressing the STOP/CLEAR pad.
REHEAT - POPCORN -
BAKED POTATOES
BAKED
POTATOES
1.DC/DMT2420 #323 11/14/02, 11:41 AM17
18
3After cooking, follow
instructions.
MEATS - POULTRY - FISH/SEAFOOD
FROZEN FOODS - PASTA/GRAINS
•Suppose you want to cook 2.0 lb boneless pork loin:
2Enter desired weight by
touching the screen. Then
press the START pad.
1Press MEATS pad and then
touch the desired meat:
Boneless Pork Loin.
NEW WAVE COOKBOOK
VEGETABLES
The desired doneness can be selected for any vegetables choice.
• Suppose you want to cook broccoli (normal):
Your oven has six food pads and each pad has six
selections. Many sensor cooked foods are included
in NEW WAVE COOKBOOK. See the sensor
cooking information on page 17. For foods not using
the sensor, follow the directions on the Touch Screen
to enter quantity. When cooking foods with the sensor,
it is not neccessary to enter quantity or weight. The
foods using the sensor are indicated with “*” in the
chart on page 19.
NOTE:
You can also start the cooking by pressing the START pad at step 2. At that time “normal” is selected automatically.
The doneness can be changed after pressing the START pad by touching the desired doneness on the display
within seven seconds.
2Touch the desired doneness, and
the oven will start automatically.
When the sensor detects the vapor
emitted from the food, remaining
cooking time will appear. The
oven door can be opened
whenever the count down time is
displayed on the Touch Screen.
1Press the VEGETABLES
pad and then touch the
desired vegetable:
Broccoli.
3After cooking, follow
instructions.
1.DC/DMT2420 #323 11/14/02, 11:41 AM18
19
NEW WAVE COOKBOOK
FOOD AMOUNT
NEW WAVE COOKBOOK COOKING CHART
NOTE:
1. You can enter the amount only within the range
of the NEW WAVE COOKBOOK COOKING
CHART.
*It is not necessary to enter quantity with these foods
because they are cooked by the sensor.
FOOD AMOUNT
2. NEW WAVE COOKBOOK can be programmed
with More or Less Time Adjustment. See page 32.
.25 - 2.0 lb
.25 - 1.5 lb
.25 - 2.0 lb
.25 - 1.5 lb
.25 - 2.0 lb
.25 - 2.0 lb
.25 - 2.0 lb
2.0 - 3.5 lb
1.0 - 2.0 lb
2.0 - 3.5 lb
1.0 - 2.0 lb
1.0 - 3.0 lb
.5 - 2.0 lb
.5 - 3.0 lb
2.5 - 6.0 lb
3.0 - 6.0 lb
1.0 - 3.0 lb
.25 - 2.0 lb
FISH / SEAFOOD
FISH FILLETS
*
FISH STEAKS
*
SHRIMP
*
SCALLOPS
*
CLAMS & MUSSELS
*
FISH KABOBS
*
weight of fish
FROZEN FOOD
VEGETABLES
*
ENTREES
*
MAIN DISHES
*
SNACKS
*
SOFTEN ICE CREAM
THAW JUICE CONCENTRATE
PASTA / GRAINS
WHITE RICE*
BROWN RICE
*
FRESH PASTA
DRY PASTA
GRITS
COUSCOUS
.25 - 2.0 lb
.25 - 2.0 lb
.25 - 2.0 lb
.25 - 2.0 lb
up to 1
1/2
dozen
.25 - 1.5 lb
.25 - 1.25 lb
6 - 17 oz
24 - 40 oz
3 - 8 oz
Pint, Quart,
Half Gallon
6, 12, 16 oz
.5 - 2.0 cups
.5 - 2.0 cups
8 - 9 oz
2 - 8 oz
.3 - 2.0 cups
.5 - 2.0 cups
VEGETABLES
BROCCOLI / CAULIFLOWER
*
BEANS / CARROTS
*
MUSHROOMS / SPINACH
*
CORN ON THE COB / PEAS
*
SUMMER SQUASH / ZUCCHINI
*
WINTER SQUASH /
ACORN SQUASH
*
MEATS
GROUND BEEF
*
BONELESS PORK LOIN
MEAT LOAF
POT ROAST
STEW
SPARERIBS
POULTRY
BONELESS CHICKEN
BREASTS
*
BONE-IN CHICKEN
PIECES
*
WHOLE CHICKEN
TURKEY BREAST
TURKEY DRUMSTICK
GROUND POULTRY
*
1.DC/DMT2420 #323 11/14/02, 11:41 AM19
20
MICROWAVE RECIPES AND INSTRUCTIONS
• Suppose you want to use Breakfast Bar to cook two servings of hot cereal.
BREAKFAST BAR - LUNCH ON THE RUN
Microwave Recipes and Instructions has six cooking
categories to assist with meal preparation. There are
some foods in the Breakfast Bar and Lunch on the
Run that use the sensor. See sensor cooking information
on page 17. For foods not using the sensor, follow the
directions on the screen to enter quantity.
2Select the desired food:
Hot Cereal.
1Press Microwave Recipes
& Instructions pad and
then touch the desired
category: Breakfast Bar.
3Enter desired quantity by
touching the screen. Then
press START pad. When
the oven stops, follow
instructions.
BREAKFAST BAR CHART LUNCH ON THE RUN CHART
FOOD AMOUNT
** Must enter number of slices on Touch Screen.
Other foods in chart do not require quantity input.
See Touch Screen for directions.
NOTE:
1. You can program with More or Less Time
Adjustment. See page 32.
2. More or less than the quantity listed in the chart
should be cooked following the guidelines in any
microwave book.
3. The final cooking result will vary according to
the food condition (e.g. initial temperature,
shape, quality, covering). Check food for correct
temperature after cooking. If additional time is
needed, continue to cook manually.
*It is not necessary to enter quantity with these foods
because they are cooked by the sensor.
FOOD AMOUNT
Scrambled Eggs
Bacon*
Hot Cereal
Fresh Rolls or Muffins
Frozen Rolls or Muffins
Frozen Breakfast Food*
1 - 9 eggs
2 - 6 slices
1 - 6 servings
1 - 10
1 - 10
1 (3 - 6 oz)
Meal in a Cup*
Hot Dogs in Buns*
Soup*
Microwave Pizza*
Pizza Reheat**
Frozen Sandwich*
1 cup (6 - 8 oz)
1 - 4
1 - 8 cups
1 (6 - 8 oz)
1 - 6 slices
1 (3 - 6 oz)
1.DC/DMT2420 #323 11/14/02, 11:41 AM20
21
ONE DISH DINNERS - LOW CALORIE ENTREES -
SUPPER SOUPS AND SAUCES -
DELICIOUS DESSERTS
MICROWAVE RECIPES AND INSTRUCTIONS
2Select the desired food:
Spicy Couscous.
1Press Microwave Recipes &
Instructions pad and then
touch the desired category:
One Dish Dinners.
4When ready to cook, press
START pad. The oven has
the cooking instructions in it
so it is not necessary for you
to make any decisions!
5When the oven stops, read
the instructions on the
Touch Screen, open the
door, complete the steps
and close door. Press
START pad.
6After cooking, follow
instructions.
3All ingredients for the recipe
and step-by step procedures are
shown. Touch the arrow marks
on the screen to read the recipe
through before cooking. The
forward and back
arrows allow one to check all
steps BEFORE beginning any
cooking.
• Suppose you want to use One Dish Dinners to cook Spicy Couscous.
1.DC/DMT2420 #323 11/14/02, 11:41 AM21
22
Spicy Couscous
11/4lb lean ground beef
141/2oz can diced tomatoes
1c tomato sauce
1large onion, chopped
1/3c chopped green pepper
3/4c couscous
1clove garlic, minced
11/2tbsp chili powder
1tsp ground cumin
1tsp dried oregano leaves
1c raisins
Garnish: yogurt and chopped fresh parsley
Salsa Chicken
11/4oz dry taco seasoning
1lb boneless chicken breast thin strips
6oz pkg yellow rice mix with seasoning
packet
21/2c hot water
21/2c frozen peas
1c canned corn
1/2c apricot preserves
141/2oz can diced tomatoes
RECIPES FOR ONE DISH DINNERS
(Recipes serve 6)
Beef Burgundy
11/2lb 3/4-inch beef rump or chuck cubes
3tbsp flour
2slices of bacon, minced
1large onion, chopped
3cloves garlic, minced
21/2c carrots
1tsp salt
1/2tsp pepper
1tsp thyme
2tsp rosemary
1c red wine
1c beef bouillon
2c sliced mushrooms
2c pearl onions
Sweet & Sour Pork
1c long grain rice
2c pineapple juice
1/2c water
1/4c sweet & sour sauce
2tbsp soy sauce
1tbsp minced fresh ginger
1/4c honey
11/4lb boneless pork loin, cut into thin strips
20 oz can pineapple chunks, drained
3c fresh or frozen stir-fry vegetables
Garnish: toasted sliced almonds
Vegetarian Orzo
1c orzo
31/2c vegetable bouillon
1/4c pesto sauce
1/2c small pieces of sundried tomatoes
1tbsp minced garlic
1tbsp Italian seasoning
3c chopped green, red, orange & yellow
peppers
1large onion, thinly sliced
14 oz can artichoke hearts, drain & quarter
3oz pitted ripe olives, cut in half
Garnish:
1/2c Parmesan cheese, freshly grated
1/4c pinenuts
MICROWAVE RECIPES AND INSTRUCTIONS
Seafood Pasta
8 - 9 oz fresh tortellini
2c water
13/4c creamy Alfredo sauce
11/4lb raw shellfish like shrimp, scallops,
crab
3c thinly sliced fresh vegetables like
carrots, mushrooms, green beans
Garnish: 1/3 c grated Parmesan cheese
1.DC/DMT2420 #323 11/14/02, 11:41 AM22
23
MICROWAVE RECIPES AND INSTRUCTIONS
Stuffed Acorn Squash
3acorn squash each weighing 3/4 lb
11/4lb ground turkey
1/2onion, chopped
2carrots, shredded
1green pepper, chopped
1tbsp catsup
1/2tsp salt
1/4tsp pepper
1/2c instant rice
20 oz can crushed pineapple, drained
save juice
1/2c teriyaki sauce
1/4c sweet and sour sauce
Thai Chicken Kabobs
2tbsp lime juice
1tsp cooking oil
1tsp soy sauce
1/8tsp red pepper
11/4lb boneless chicken, cut into 1-inch cubes
4onions, quartered
2red peppers, cut into 1-inch squares
2tsp light peanut butter
Salmon Romanoff
12 oz dry egg noodles
2c skim milk
1c water
1pint fat free sour cream
11/2oz package dry ranch salad dressing mix
15 oz can salmon, drained and flaked
8oz can sliced mushrooms, drained
1/3c chopped green onions
1tsp dill weed
RECIPES FOR LOW CALORIE ENTREES
(Recipes serve 6)
Steak Fajitas
1lb beef flank steak, cut in diagonal inch
strips
1/2c orange juice
3tbsp lime juice
2tbsp minced garlic
1tbsp Worcestershire sauce
11/2tbsp chili powder
1tsp cumin
2c red, green and yellow pepper strips
1large onion, chopped
1c black beans, rinsed and drained
610-inch warm flour tortillas
1large tomato, chopped
1/2c salsa
1/2c fat free sour cream
Glazed Roast Pork Tenderloin
11/2lb whole pork tenderloin
2tsp rosemary, salt and pepper
11/4lb sweet potatoes, 2-inch cubes
1orange, thinly sliced
Glaze:
8oz whole cranberry sauce
1/2c red wine
2tbsp steak sauce
3tbsp flour
Ratatouille
1/4c olive oil
1medium eggplant, peeled and cut in 1-inch
cubes
1large onion, sliced thinly
4small new potatoes, cut in 3/4-inch cubes
1clove garlic, minced
1zucchini, sliced thinly
1green pepper, cut into thin strips
2c sliced fresh mushrooms
141/2oz can seasoned, diced tomatoes
11/2tsp dried basil
11/2tsp marjoram leaves
salt and pepper to taste
1.DC/DMT2420 #323 11/14/02, 11:41 AM23
24
MICROWAVE RECIPES AND INSTRUCTIONS
Chicken Noodle
1tsp oil
1medium onion, sliced thinly
1c thin sliced celery
2c thin sliced carrots
5c chicken broth
11/2lb bone-in chicken pieces
1c fine egg noodles
1/2c chopped parsley
salt and pepper
Curried Vegetable
2tbsp oil
2c
1/2-inch sweet potato cubes
2c
1/2-inch white potato cubes
1medium zucchini, cut into 1-inch cubes
1medium red pepper, cut into 1/2-inch cubes
1medium green pepper, cut into 1/2-inch
cubes
1 medium onion, cut into 1/2-inch cubes
2tbsp curry powder
1tsp ground cumin
15 oz can garbanzo beans, rinsed and drained
141/2oz can diced tomatoes
15 oz can crushed tomatoes
1tsp salt
4c vegetable or chicken broth
Meat Sauce
1lb ground beef
1/2lb sweet Italian sausage
8oz chopped, canned mushrooms, drained
1medium onion, minced
2cloves garlic, minced
1stalk celery, minced
1carrot, minced
1/2c red wine
1/2c water
28 oz can tomato puree
6oz can tomato paste
1tsp sugar
1tsp dried basil
1tsp oregano
1/4tsp crushed red pepper
1tsp salt
1/4tsp pepper
RECIPES FOR SUPPER SOUPS AND SAUCES
(Recipes serve 6) Bouillabaisse
2tbsp olive oil
2large onions, chopped finely
3cloves garlic, minced
8oz bottle clam juice
21/2c dry white wine
141/2oz can diced tomatoes
21/2c finely chopped fennel
3/4c instant rice
3tbsp chopped parsley
1bay leaf
1tsp dried thyme
1/2tsp ground pepper
8 oz boneless white fish, cut into 4 pieces
8oz scallops
8oz shrimp, peeled and deveined
Split Pea
3c water
3c vegetable bouillon
1c dried split peas
1/2c chopped onion
1clove garlic, minced
1/2tsp dried marjoram
1/2tsp dried thyme leaves
1bay leaf
1/8tsp cayenne pepper
1c sliced carrots
1c diced potatoes
1/2c sliced celery
Vegetarian Chili
1c sliced carrots
1c sliced celery
1/2c chopped red pepper
1/2c chopped green pepper
1/2c sliced green beans
1large onion, minced
2cloves garlic, minced
28 oz can crushed tomatoes
19 oz can kidney beans, rinsed and drained
19 oz can black beans, rinsed and drained
11/2c water
1/2c barley
2tbsp chili powder
1tsp cumin
2 tsp Italian seasoning
1tsp salt
1/4tsp pepper
Garnish: Parmesan cheese or sour cream
1.DC/DMT2420 #323 11/14/02, 11:41 AM24
25
MICROWAVE RECIPES AND INSTRUCTIONS
Almond Bread Pudding
2c half and half
2tbsp unsalted butter, melted
2large eggs, beaten
3/4c sugar
1tsp almond extract
1/2c golden raisins
1/2c slivered, blanched almonds, toasted
6c 2-inch cubed French or Challah bread
Sauce:
1/4c unsalted butter, melted
1/2c sifted confectioners’ sugar
1large egg
2 tbsp bourbon
Chocolate Zucchini Cake
1/4c soft butter
1/2c sugar
1c all-purpose flour
2tbsp cocoa
1/4tsp baking soda
1tsp baking powder
1/4tsp cinnamon
1c shredded zucchini
1/2c buttermilk
1egg
1tsp vanilla
1/2c chopped pecans
1/2c semisweet chocolate chips
confectioners' sugar
Pumpkin Pie
101/2oz bag marshmallows
11/2c canned pumpkin
1/2tsp pumpkin pie spice
1/4tsp salt
1tsp grated orange rind
8oz thawed, non-dairy whipped topping
9-inch prepared graham cracker crust
RECIPES FOR DELICIOUS DESSERTS
(Recipes serve 6) Caribbean Cake
2tbsp butter, melted
1/4c brown sugar
1/4c apricot preserves
8oz can crushed pineapple drained well
2tbsp sliced, blanched almonds
1/3c dried, sweetened cranberries (Craisins)
19 oz pkg yellow cake mix or 1/2 box
regular size
1egg
2tbsp rum
6tbsp pineapple juice and/or water
Cherry Pie Pudding
21 oz cherry pie filling
4c sponge or angel food cake cubes
2c milk
4eggs
1tbsp sugar
1/2tsp almond extract
116 oz can drained, Bing cherries
Turtle Bars
11/2c quick oatmeal
1/2c light brown sugar
1/2c all-purpose flour
1/2c melted butter
20 caramel candies
1tbsp milk
1/2c milk chocolate chips
1/2c pecan pieces
1.DC/DMT2420 #323 11/14/02, 11:41 AM25
26
SUPER DEFROST
Super Defrost rapidly defrosts specific foods and weights found in the SUPER DEFROST CHART.
• Suppose you want to defrost 1.0 pound boneless chicken.
DEFROST pad has two special defrosting methods.
DEFROST
NOTE:
1. To defrost foods above or below the weights
allowed on the SUPER DEFROST CHART, use
Auto Defrost or Manual Defrost. See Auto Defrost
on page 27 and Manual Defrost on page 28.
2. Super Defrost can be programmed with More or
Less Time Adjustment. See page 32.
FOOD AMOUNT
SUPER DEFROST CHART
PROCEDURE
At pause, turn over, remove any thawed pieces and break remainder
apart. At end, let stand, covered, for 3 to 5 minutes.
At pause, turn over and separate into pieces. At end, let stand, covered,
for 3 to 5 minutes.
At pause, turn over and separate into pieces. At end, let stand, covered,
for 3 to 5 minutes.
Ground meat
Boneless
Chicken
Bone-in
Chicken Pieces
1.0 lb
1.0 lb
2.0 lb
NOTE:
Super Defrost provides just enough defrosting that the foods can be used in recipes or for cooking. There will
be some ice crystals remaining.
1Press DEFROST pad and
then touch desired food:
1 pound boneless chicken.
The oven will start
automatically.
2When the oven stops, read
instructions on the screen,
open the door, complete the
instructions and close the
door. Press START pad.
3After the defrost cycle ends,
read the screen. Remove the
food from oven, cover and
let stand for the suggested
time to allow defrosting to
be completed.
1.DC/DMT2420 #323 11/14/02, 11:41 AM26
27
DEFROST
AUTO DEFROST CHART
NOTE:
1. You can input the amount only within the range
of the AUTO DEFROST CHART.
2. Auto Defrost can be programmed with More or
Less Time Adjustment. See page 32.
3. To defrost other foods or foods above or below
the weights allowed on AUTO DEFROST
CHART, use time and 30% power. See Manual
Defrost on page 28.

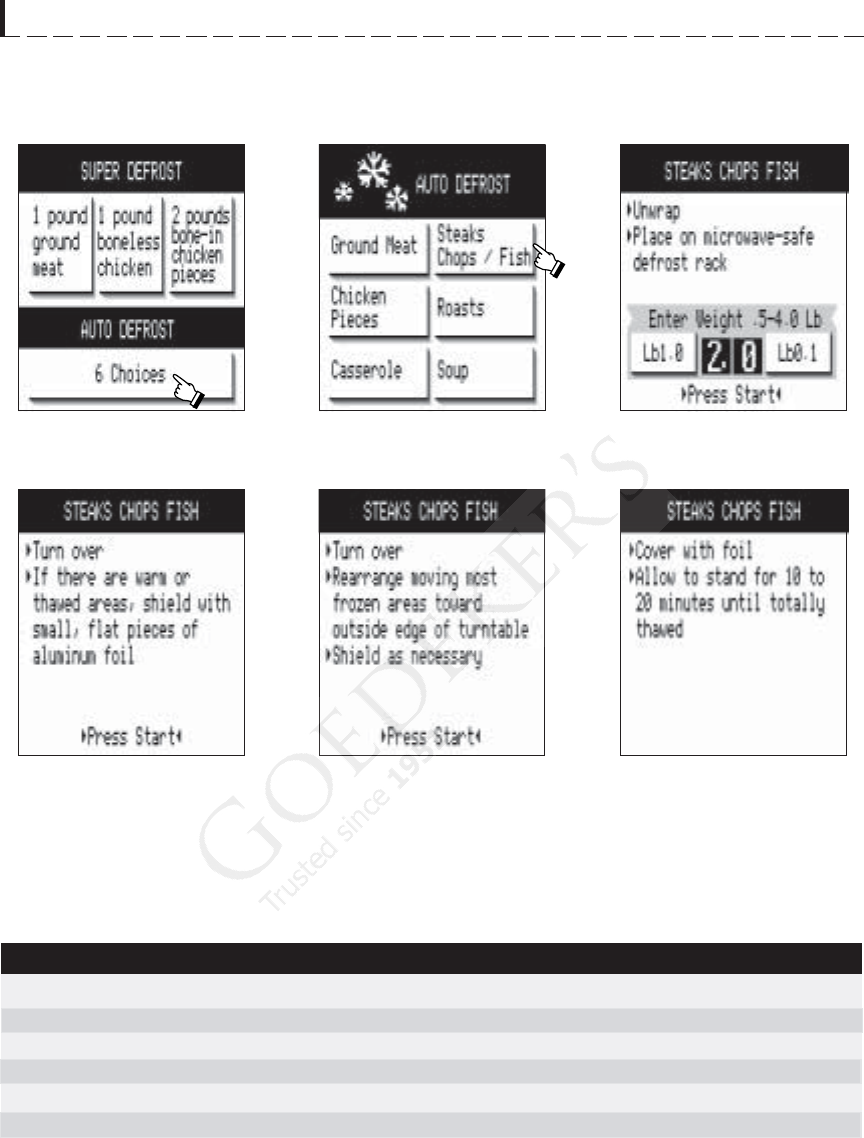

AUTO DEFROST
Auto Defrost automatically defrosts all the foods found in the AUTO DEFROST CHART below.
•Suppose you want to defrost a 2.0 pound steak.
4When the oven stops, read
instructions on the screen,
open the door, complete the
instructions and close the
door. Press START pad.
5When the oven stops, read
instructions on the screen,
open the door, complete the
instructions and close the
door. Press START pad.
1Press DEFROST pad and
then touch AUTO
DEFROST 6 Choices.
2Touch the desired food:
Steaks. 3Enter desired weight by
touching the screen. Then
press START pad.
6After the defrost cycle ends,
read the screen. Remove the
food from oven, cover and
let stand for the suggested
time to allow defrosting to
be completed.
Ground Meat
Steaks, Chops / Fish
Chicken Pieces
Roasts
Casserole
Soup
5-10 min.
10 - 20 min.
10 - 20 min.
30 - 45 min.
5-15 min.
5-15 min.
.
5-3.0 lb
.5 - 4.0 lb
.5 - 3.0 lb
2.0 - 4.0 lb
2-8 cups
1-8 cups
FOOD STANDING TIMEAMOUNT
1.DC/DMT2420 #323 11/14/02, 11:41 AM27
28
If the food that you wish to defrost is not listed
on the AUTO DEFROST or SUPER DEFROST
CHARTS is above or below the limits in the
AMOUNT column on the AUTO DEFROST or
SUPER DEFROST CHARTS, you need to defrost
manually.
You can defrost any frozen food, either raw or
previously cooked, by using 30% power. Follow
the exact procedure found on page 16. Estimate
defrosting time, enter it. Then touch Power Level on
the Touch Screen and select 30%.
For either raw or previously cooked frozen food the
rule of thumb is approximately four minutes per
pound. For example, defrost four minutes for one
pound of frozen spaghetti sauce.
Always stop the oven periodically to remove or
separate the portions that are defrosted. If food is
not defrosted at the end of the estimated defrosting
time, program the oven in one minute increments on
30% power until totally defrosted.
When using plastic containers from the freezer,
defrost only long enough to remove from the plastic
in order to place in a microwave-safe dish.
MANUAL DEFROST
•Suppose you want to make two cups of coffee.
Beverages enables you to restore coffee or tea to a more suitable drinking temperature or to prepare instant
coffee or tea.
1Press BEVERAGES pad
and then touch Prepare. 2Touch desired number on
the screen. The oven will
start automatically.
3When oven stops, follow
instructions on the screen.
BEVERAGES
BEVERAGES CHART
FOOD AMOUNT
Prepare coffee/tea 1 - 4 cups
Reheat 1/2 - 2 cups
DEFROST
1.DC/DMT2420 #323 11/14/02, 11:41 AM28
29
SET UP
SET UP has six functions.
1.CLOCK
Press the SET UP pad, touch Clock and follow the directions on the screen. See page 14.
2.AUTO START
The Auto Start function allows you to set your oven to start automatically at a later time.
•Suppose you want to start cooking a stew for 20 minutes on 50% power at 4:30 P.M. Before setting, check to
make sure the clock is showing the correct time of day.
2Enter start time (4:30) using
the screen choices and then
touch PM. Press START pad.
1. Clock
2. Auto Start
3. Sound Adjustment
4. Child Lock
5. Video Demo
6. Screen Contrast
1Press SET UP pad and then
touch the desired function:
Auto Start.
4Touch 50%. The top line of
the display will show time
and chosen power level.
Press START pad.
3Enter cooking time, 2, 0, 0,
0 by using numbers on the
screen. Touch Power Level.
5Auto Start time will appear.
NOTE:
1. Auto Start can be used for manual cooking only, if
clock is set. 2. Be sure to choose foods that can be left in the oven
safely until the Auto Start time. Acorn or butternut
squash are often a good choice.
To use any function, press SET UP, touch desired function and follow directions on the screen.
1.DC/DMT2420 #323 11/14/02, 11:41 AM29
30
3.SOUND ADJUSTMENT
The oven offers a choice of Simple Beep, Melody
or No Sound. The oven comes set for Melody.
Touch your choice on the screen and then press
START. The selected sound does not change even if
the electrical power supply is interrupted. Note that
even when No Sound is chosen, there will be a sound
for the Kitchen Timer, if it was set.
Reminder:
An audible signal reminds you that cooking,
defrosting or reheating has finished. The sound will
repeat every 60 seconds and continue for 30 minutes
unless you touch STOP/CLEAR or open the door. To
set the Reminder, touch On on the End of Cooking
Reminder screen. The setting does not change even
if the electrical power supply is interrupted. The
Reminder cannot be set if “No Sound” was selected.
4.CHILD LOCK
The Child Lock prevents unwanted oven operation
such as by small children. The oven can be set so
that the control panel is deactivated or locked.
5.VIDEO DEMO
The Video Demo is an automated “tour” through
many of the features of the microwave oven. You may
wish to observe it when the oven is new or when you
are teaching family members how to use the oven.
There are five short segments in the Video Demo.
6.SCREEN CONTRAST
Normally there is no need to change the display
contrast; however, should you wish to do so, touch
Lighter or Darker until the contrast is as desired.
And then press START pad. Be cautious when
touching Lighter so that the display is always read-
able. The selected contrast will not change even if
the electrical power supply is interrupted.
OTHER CONVENIENT FEATURES
EASY MINUTE
EASY MINUTE allows you to cook for a minute at 100% power by simply touching the EASY MINUTE pad.
You can also extend cooking time in multiples of one minute by repeatedly touching the EASY MINUTE pad
during manual cooking.
• Suppose you want to heat a cup of soup for one minute using 100% power.
Touch EASY MINUTE
pad on control panel.
SET UP
NOTE:
To use EASY MINUTE, touch pad within three
minutes after cooking, closing the door, touching the
STOP/CLEAR pad or during cooking.
1.DC/DMT2420 #323 11/14/02, 11:41 AM30
31
OTHER CONVENIENT FEATURES
KITCHEN TIMER
Use this feature as a general purpose timer. You can enter any time up to 99 minutes and 99 seconds. If you
want to cancel the timer during the count down phase, simply press STOP/CLEAR and the display will return
to the Home Page.
•Suppose you want to time a three minute long distance phone call:
TIME SELECT
Touch Time Select on the screen to access a new screen with 12 common cooking times at 100% power. Touch
desired time and the oven starts automatically.
• Suppose you want to melt butter for 30 seconds.
1Touch Kitchen Timer. 3The Kitchen Timer will
start counting down.
NOTE:
Even if all sound is off, the oven will beep when the Kitchen Timer ends.
2Enter desired time by
touching numbers : 3, 0, 0.
Press START pad.
2Touch desired time: 30 seconds.1Touch Time Select. 3The oven will start
automatically.
1.DC/DMT2420 #323 11/14/02, 11:41 AM31
32
The programmed cooking times are tailored to the most popular tastes. To adjust the cooking time to your
individual preference use the “more” or “less” feature to either add or reduce cooking time.
•Suppose you want to cook Ground Beef for more time:
MORE OR LESS TIME ADJUSTMENT
NOTE:
1. Once you have selected either More Time or Less
Time, it cannot be changed. 2. Choosing More Time or Less Time must be done
within seven seconds after touching START.
OTHER CONVENIENT FEATURES
1Press Meats pad in the
NEW WAVE COOKBOOK
and then touch Ground Beef.
3After pressing the START
pad, Less Time and More
Time will appear. Touch
desired choice, if any.
2Prepare the food following
the information on the screen.
And press START pad.
1.DC/DMT2420 #323 11/14/02, 11:41 AM32
33
DOOR
Wipe the window on both sides with a damp cloth to
remove any spills or spatters. Metal parts will be
easier to maintain if wiped frequently with a damp
cloth. Avoid the use of harsh abrasives.
EXTERIOR
The outside surface is painted. Clean the outside with
mild soap and water; rinse and dry with a soft cloth.
Do not use any type of household or abrasive
cleaner.
INTERIOR
Cleaning is easy because no heat is generated to the
interior surfaces; therefore, there is no baking and
setting of spills or spattering. To clean the interior
surfaces, wipe with a soft cloth and warm water. DO
NOT USE ABRASIVE OR HARSH CLEANERS
OR SCOURING PADS. For heavier soil, use baking
soda or a mild soap; rinse thoroughly with hot water.
NEVER SPRAY OVEN CLEANERS DIRECTLY
ONTO ANY PART OF THE OVEN.
ODOR REMOVAL
Occasionally, a cooking odor may remain in the oven.
To remove, combine 1 cup water, grated peel and juice
of 1 lemon and several whole cloves in a 2 cup glass
measuring cup. Boil for several minutes using 100%
power. Allow to set in oven until cool. Wipe interior
with a soft cloth.
CLEANING AND CARE
Turntable
Turntable Support
WAVEGUIDE COVER
Carefully wash any food particles from the waveguide
cover located on the right side in the oven cavity. Do
not remove the waveguide cover.
CONTROL PANEL
Care should be taken in cleaning the control panel. If
the control panel becomes soiled, open the oven door
before cleaning. Wipe the panel with a cloth
dampened slightly with water only. Dry with a soft
cloth. Do not scrub or use any sort of chemical
cleaners. Close door and touch STOP/CLEAR.
TOUCH SCREEN
Wipe the touch screen with a damp cloth and then
dry with a soft cloth. Do not allow soil to accumulate
on the touch screen.
TURNTABLE / TURNTABLE
SUPPORT
The turntable and turntable support can be removed
for easy cleaning. Wash them in mild, sudsy water;
for stubborn stains use a mild cleanser and scouring
sponge as described above. They are also dishwasher-
proof. Use upper rack of dishwasher. The turntable
motor shaft is not sealed, so excess water or spills
should be wiped up immediately.
Exterior Interior
1.DC/DMT2420 #323 11/14/02, 11:41 AM33
34
SPECIFICATIONS
DMT2420S, DMT2420B, DMT2420R
SERVICE CALL CHECK
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the oven and close the door securely.
Operate the oven for one minute at HIGH 100%.
A
Does the oven light come on? YES _______ NO _______
B
Does the cooling fan work? YES _______ NO _______
(Put your hand over the rear ventilating openings.)
C
Does the turntable rotate? YES _______ NO _______
It is normal for the turntable to turn in either direction.
D
Is the water in the oven warm? YES _______ NO _______
If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit breaker.
If they are functioning properly, CONTACT YOUR NEAREST DACOR AUTHORIZED SERVICER.
A microwave oven should never be serviced by a “do-it-yourself” repair person.
NOTE: If count-down time is appearing on the screen and counting down very rapidly, follow directions below
to cancel Hidden Demo.
Press STOP/CLEAR pad and hold for four seconds until an audible signal is heard.
Quickly press STOP/CLEAR key four times within the next two seconds.
AC Line Voltage:
AC Power Required:
Output Power:
Frequency:
Outside Dimensions:
Cavity Dimensions:
Oven Capacity:
Cooking Uniformity:
Weight:
Single phase 120V, 60Hz, AC only
1700 watts, 14.3 amps.
1200 watts* (IEC Test Procedure)
2450 MHz
24"(W) x 13 3/8"(H) x 19 1/8"(D)
17 3/8"(W) x 10 1/2"(H) x 18 5/8"(D)
2.0 Cu. Ft.
Turntable system
Approx. 46 lb
*The International Electrotechnical Commission’s standardized method for measuring output wattage.
This test method is widely recognized.
In compliance with standards set by:
FCC –Federal Communications Commission Authorized.
DHHS –Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter
I, Subchapter J.
–This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
REGISTERED CORPORATION
1.DC/DMT2420 #323 11/14/02, 11:41 AM34
35
QUICK REFERENCE
SENSOR MODES 17
REHEAT............................................. 17
POPCORN .......................................... 17
BAKED POTATOES................................. 17
NEW WAVE COOKBOOK 18 - 19
VEGETABLES....................................... 18
Broccoli/Cauliflower
Beans/Carrots
Mushrooms/Spinach
Corn on the Cob/Peas
Summer Squash/Zucchini
Winter Squash/Acorn Squash
MEATS.............................................. 18
Ground Beef
Boneless Pork Loin
Meat Loaf
Pot Roast
Stew
Spareribs
POULTRY ........................................... 18
Boneless Chicken Breast
Bone-in Chicken Pieces
Whole Chicken
Turkey Breast
Turkey Drumstick
Ground Poultry
FISH/SEAFOOD .................................... 18
Fish Fillets
Fish Steaks
Shrimp
Scallops
Clams & Mussels
Fish Kabobs
FROZEN FOOD ..................................... 18
Vegetables
Entrees
Main Dishes
Snacks
Soften Ice Cream
Thaw Juice Concentrate
PASTA/GRAINS .................................... 18
White Rice
Brown Rice
Fresh Pasta
Dry Pasta
Grits
Couscous
MICROWAVE RECIPES AND INSTRUCTIONS 20 - 25
Breakfast Bar ..................................... 20
Scrambled Eggs
Bacon
Hot Cereal
Fresh Rolls or Muffins
Frozen Rolls or Muffins
Frozen Breakfast Food
Lunch On The Run ................................ 20
Meal in a Cup
Hot Dogs in Buns
Soup
Microwave Pizza
Pizza Reheat
Frozen Sandwich
One Dish Dinners ................................. 22
Spicy Couscous
Beef Burgundy
Salsa Chicken
Sweet and Sour Pork
Seafood Pasta
Vegetarian Orzo
Low Calorie Entrees ............................. 23
Stuffed Acorn Squash
Steak Fajitas
Thai Chicken Kabobs
Glazed Pork Tenderloin
Salmon Romanoff
Ratatouille
Supper Soups and Sauces ...................... 24
Chicken Noodle
Bouillabaisse
Curried Vegetable
Split Pea
Meat Sauce
Vegetarian Chili
Delicious Desserts ............................... 25
Almond Bread Pudding
Caribbean Cake
Chocolate Zucchini Cake
Cherry Pie Pudding
Pumpkin Pie
Turtle Bars
DEFROST 26 - 28
SUPER DEFROST .................................. 26
1 pound Ground Meat
1 pound Boneless Chicken
2 pounds Bone-in Chicken Pieces
AUTO DEFROST.................................... 27
Ground Meat
Steaks, Chops / Fish
Chicken Pieces
Roasts
Casserole
Soup
BEVERAGES 28
Prepare ............................................ 28
Reheat ............................................. 28
SET UP 29 - 30
Clock ............................................... 29
Auto Start.......................................... 29
Child Lock ......................................... 30
Sound Adjustment................................ 30
Video Demo ....................................... 30
Screen Contrast .................................. 30
1.DC/DMT2420 #323 11/14/02, 11:41 AM35
1
Press the Microwave
Recipes and Instructions
pad and then touch the
desired category.
2
Select the desired food from the screen.
3
Follow directions on the screen.
4
When the oven stops, follow instructions.
MICROWAVE RECIPES AND
INSTRUCTIONS
Microwave Recipes
& Instructions
QUICK REFERENCE
The Auto Start function allows you to set the
oven to start automatically at a later time.
1
Press the SET UP pad and then
touch Auto Start on the screen.
2
Follow instuctions.
For foods not using the sensor, follow the direc-
tions on the screen to enter quantity. When cooking
foods with the sensor, it is not neccessary to enter
quantity or weight.
1
Press the VEGETABLES pad
and then touch the desired
vegetable.
2
Touch the desired doneness and
the oven will start automatically.
3
After cooking, follow instructions.
If the oven has just been plugged in, touch Set
Clock on the screen and follow the directions. To
reset the clock, press Set Up pad on the control panel.
Then touch Clock on screen.
1
Enter the time of day (hour).
2
Enter the time of day (minutes).
3
Select AM or PM and then
press START pad.
High Power Cooking
1
Enter cooking time by touching
numbers on the home page.
2
Press START pad.
Variable Power Cooking
1
After Step 1 above, touch Power
Level on the screen.
2
Touch desired Power Level
(Ex: 30%).
3
Press START pad.
Easy Minute allows you to cook for
one minute at 100% power by
simply touching the EASY
MINUTE pad on the control panel.
1
Press the DEFROST pad and
then touch AUTO DEFROST
6 Choices.
2
Select the desired food and weight
by touching the screen.
3
Press START pad.
4
Follow instructions.
5
After the defrost cycle ends, read the
screen. Remove the food from oven, cover
and let stand for the suggested time to
allow defrosting to be completed.
Touch Time Select on the screen to access a new
screen with 12 common cooking times at 100%
power. Touch desired time and the oven starts
automatically.
For more complete information and safety precautions, refer to your Operation Manual.
START
START
START
NEW WAVE COOKBOOK
VEGETABLES
DACOR INC. • 1440 Bridge Gate Drive, Diamond Bar, CA 91765
1-800-793-0093 • www.dacor.com
REGISTERED CORPORATION
TINSEB323MRR0
SENSOR MODES: REHEAT
Press REHEAT pad. Follow the
directions on the TOUCH SCREEN.
The oven will start automatically.
When sensor detects the vapor
emitted from the food, remainder of
cooking timewill appear.
SET CLOCK
MANUAL OPERATION
EASY MINUTE
DEFROST: AUTO DEFROST
TIME SELECT
SET UP: AUTO START
EASY
MINUTE
START
SET UP
REHEAT
DEFROST
1.DC/DMT2420 #323 11/14/02, 11:41 AM36

Navigation menu
