Refrigerator

S/M No: RNU20IB001

- May, 2006

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center

FRN-U20IB*

FRS-U20IB*

FRN-U20DB*

FRN-U20EB*

FRS-U20DB*

FRS-U20EB*

FRN-U20FB*

FRN-U20GB*

FRS-U20FB*

FRS-U20GB*

FRU-577I~ FRU-547D/E~ FRU-547F/G~

1

C O N T E N T S

1. WARNINGS AND PRECAUTIONS FOR SAFETY ----------------------------2

2. EXTERNAL VIEW

2-1. External Size ---------------------------------------------------3

2-2. Name of Each Parts ------------------------------------------6

2-3. Cold Air Circulation ----------------------------------------------8

3. SPECIFICATION --------------------------------------------------9

4. OPERATION AND FUNCTIONS --------------------------------------11

5. CIRCUIT OPERATION

5-1. Power Circuit Diagram --------------------------------------------31

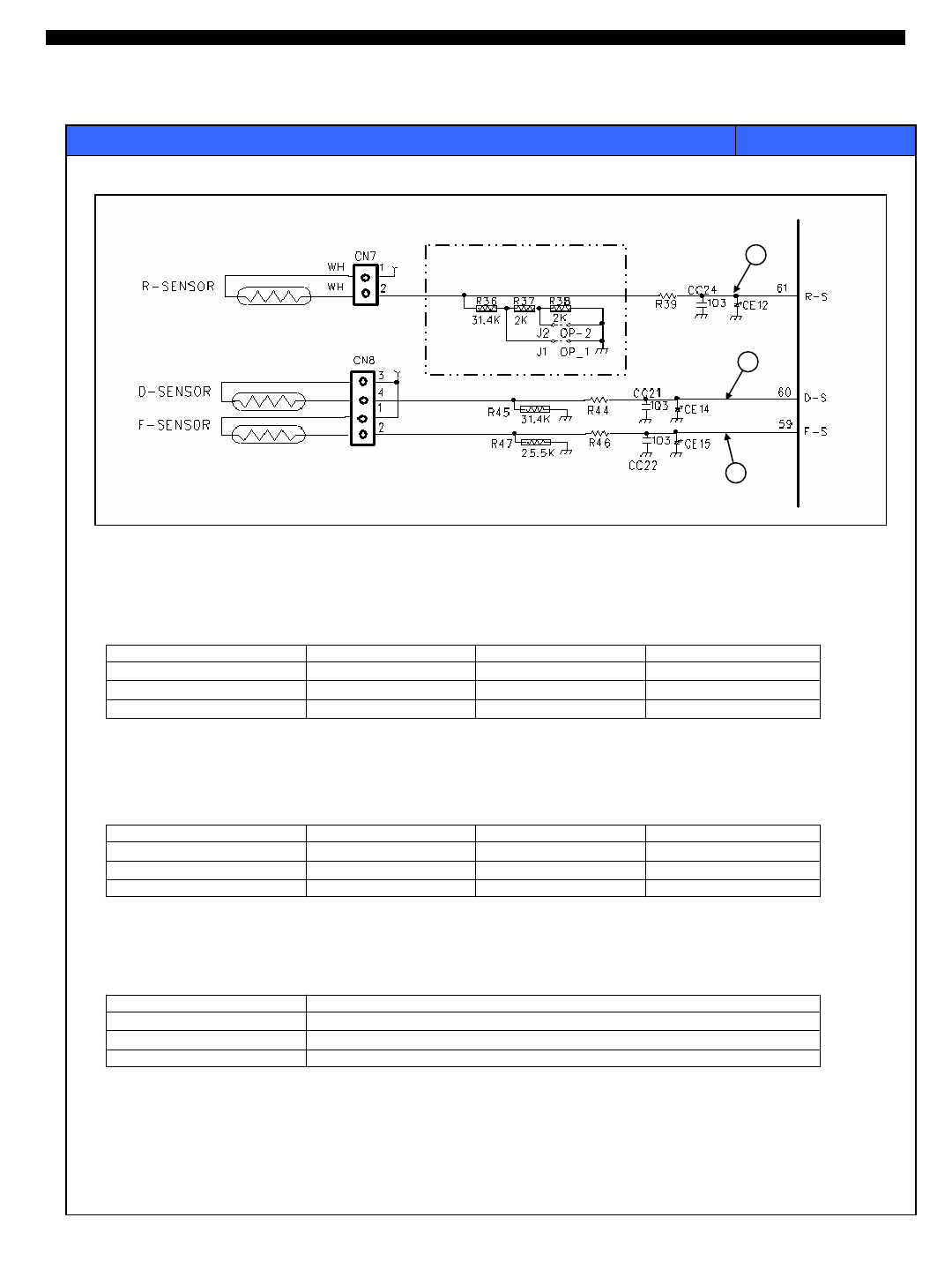

5-2. Function of Each Sensor ------------------------------------------32

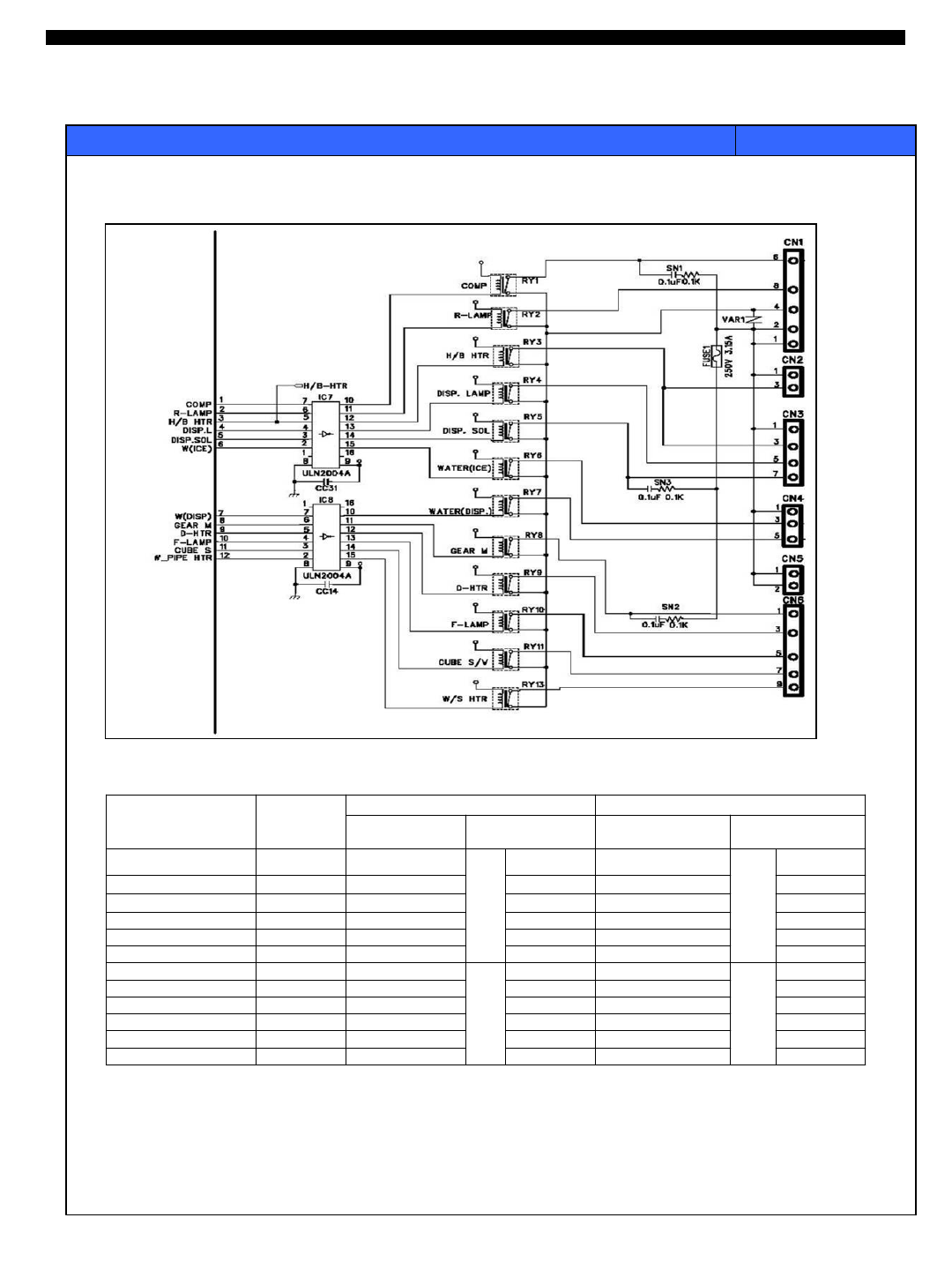

5-3. Relay Function --------------------------------------------------34

5-4. Fan Function ---------------------------------------------------36

6. DIAGRAM

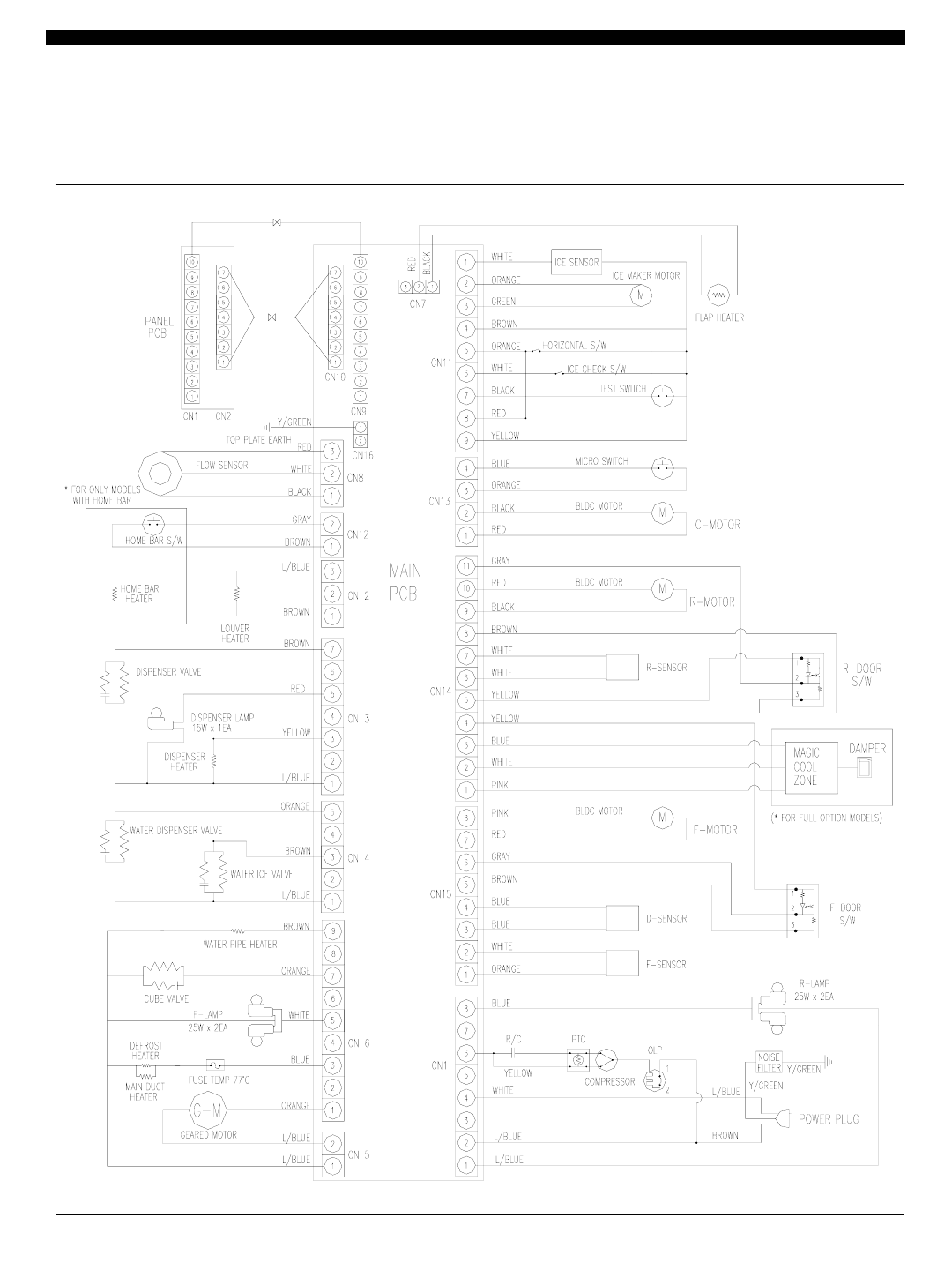

6-1. Wiring Diagram --------------------------------------------------37

6-2. Circuit Diagram of Main PCB ---------------------------------------39

7. COMPONENT LOCATE VIEW -----------------------------------------43

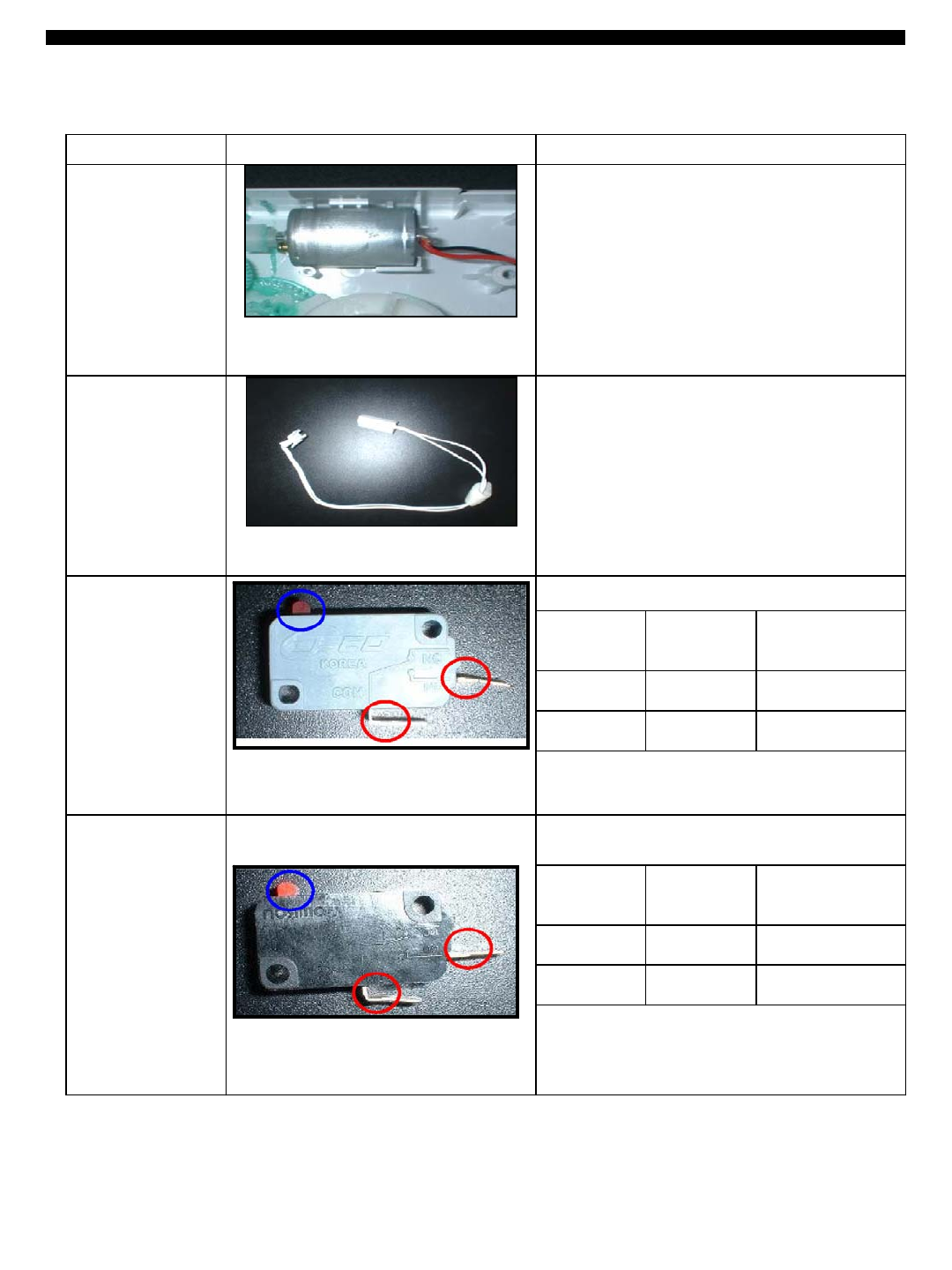

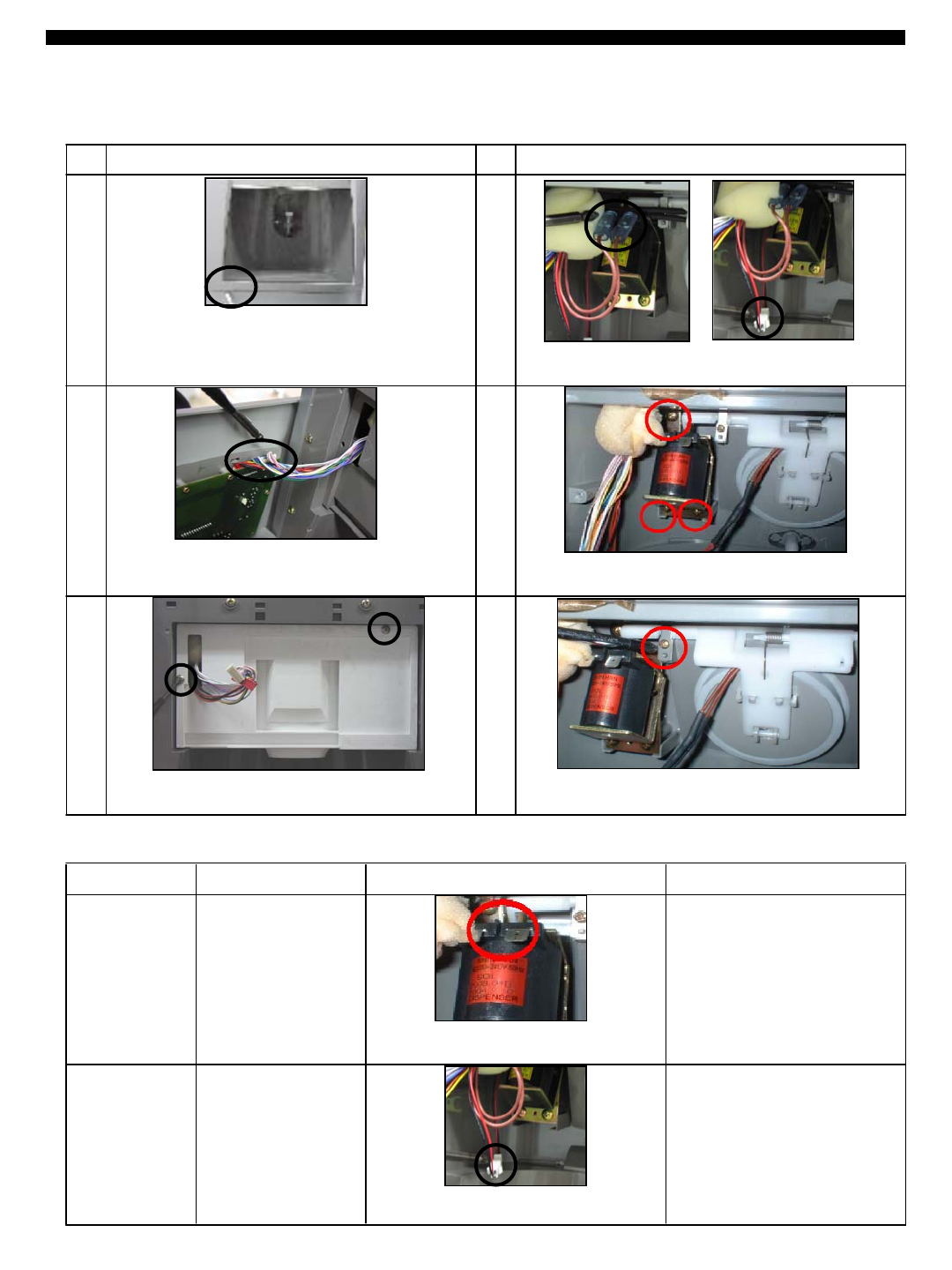

8. HOW TO CHECK EACH PARTS

8-1. Hose Ice Maker Tube ---------------------------------------------45

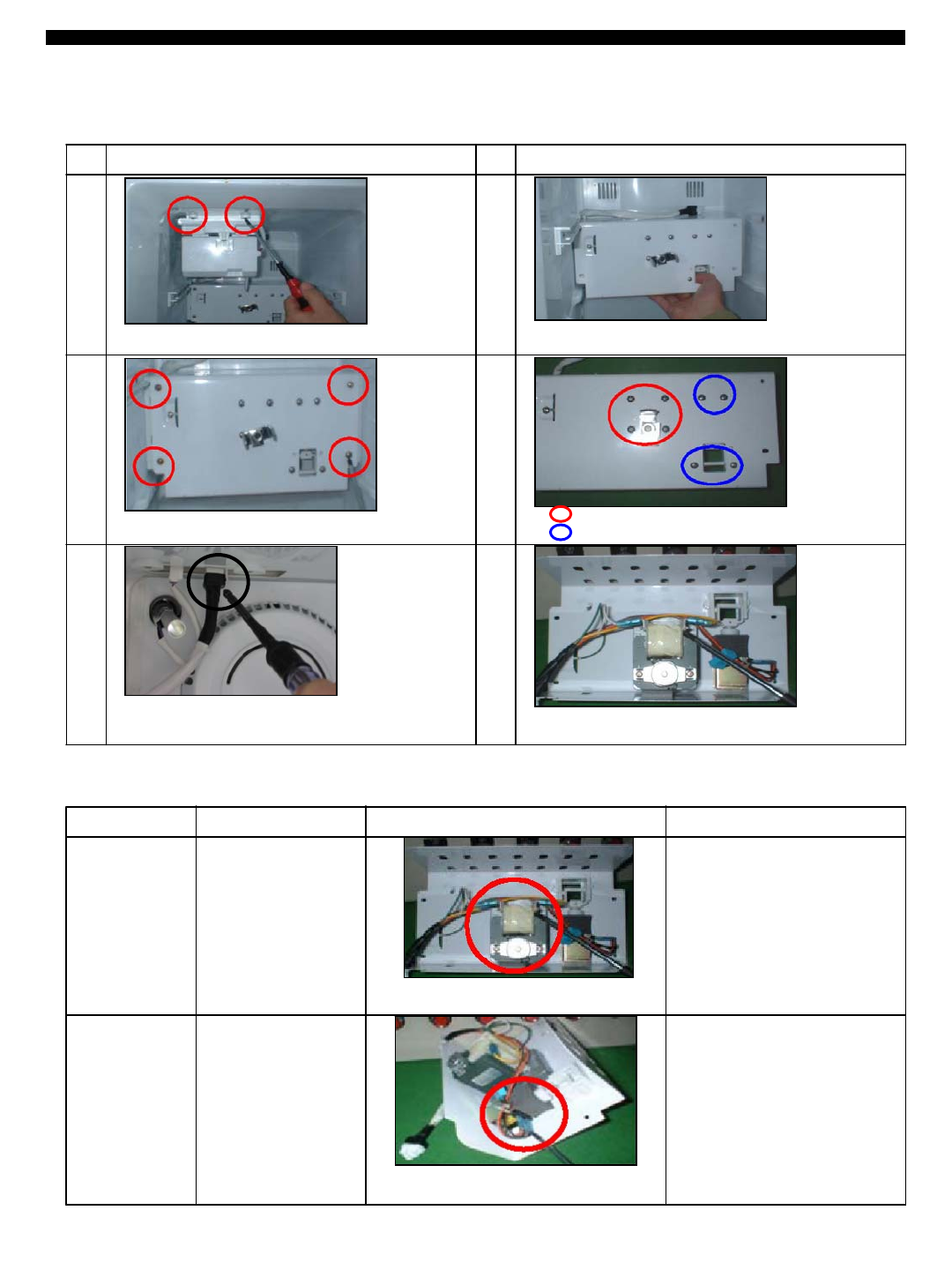

8-2. Bracket Geared Motor ---------------------------------------------46

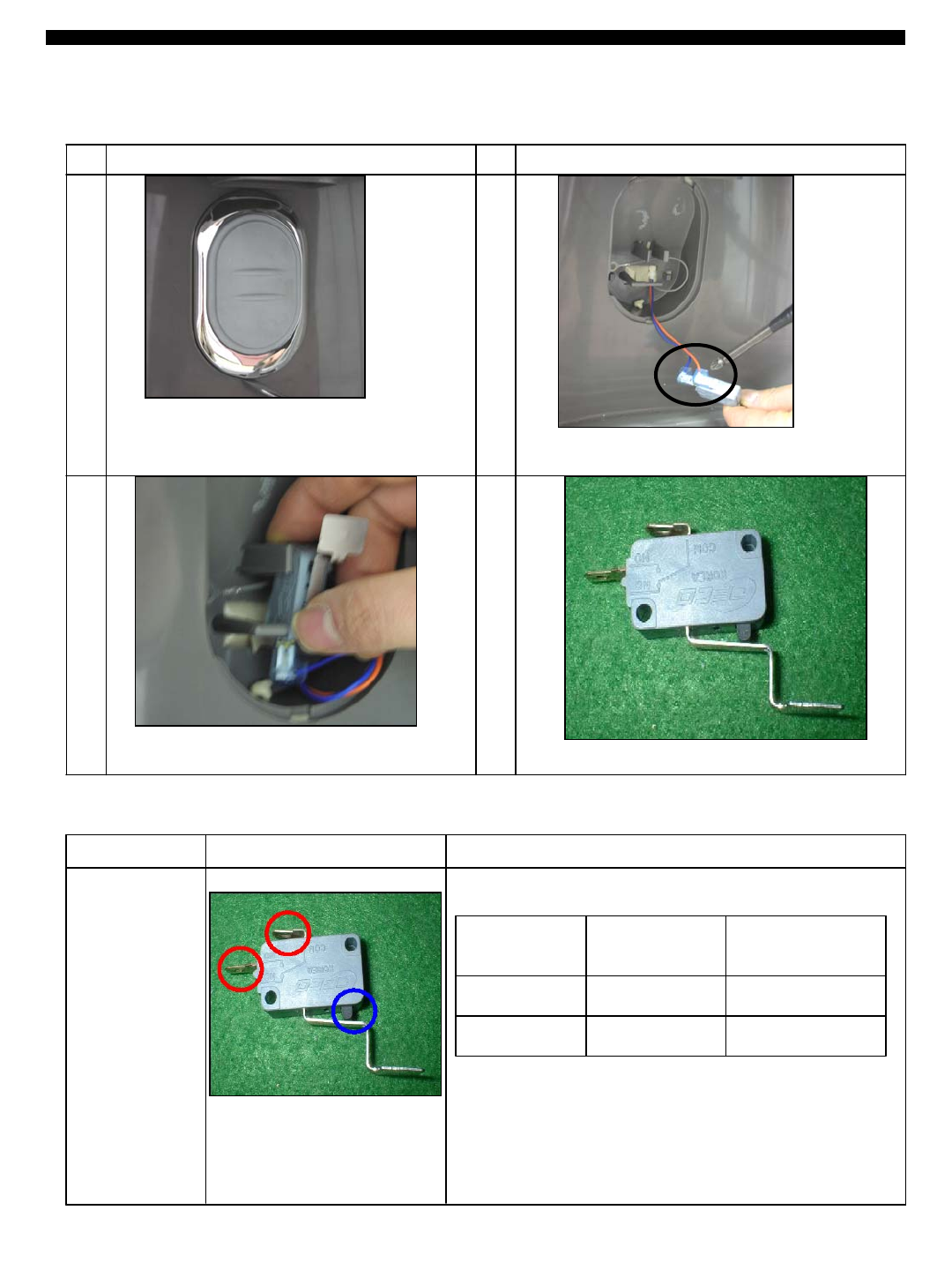

8-3. Dispenser Micro Switch --------------------------------------------47

8-4. Dispenser Solenoid Valve ------------------------------------------48

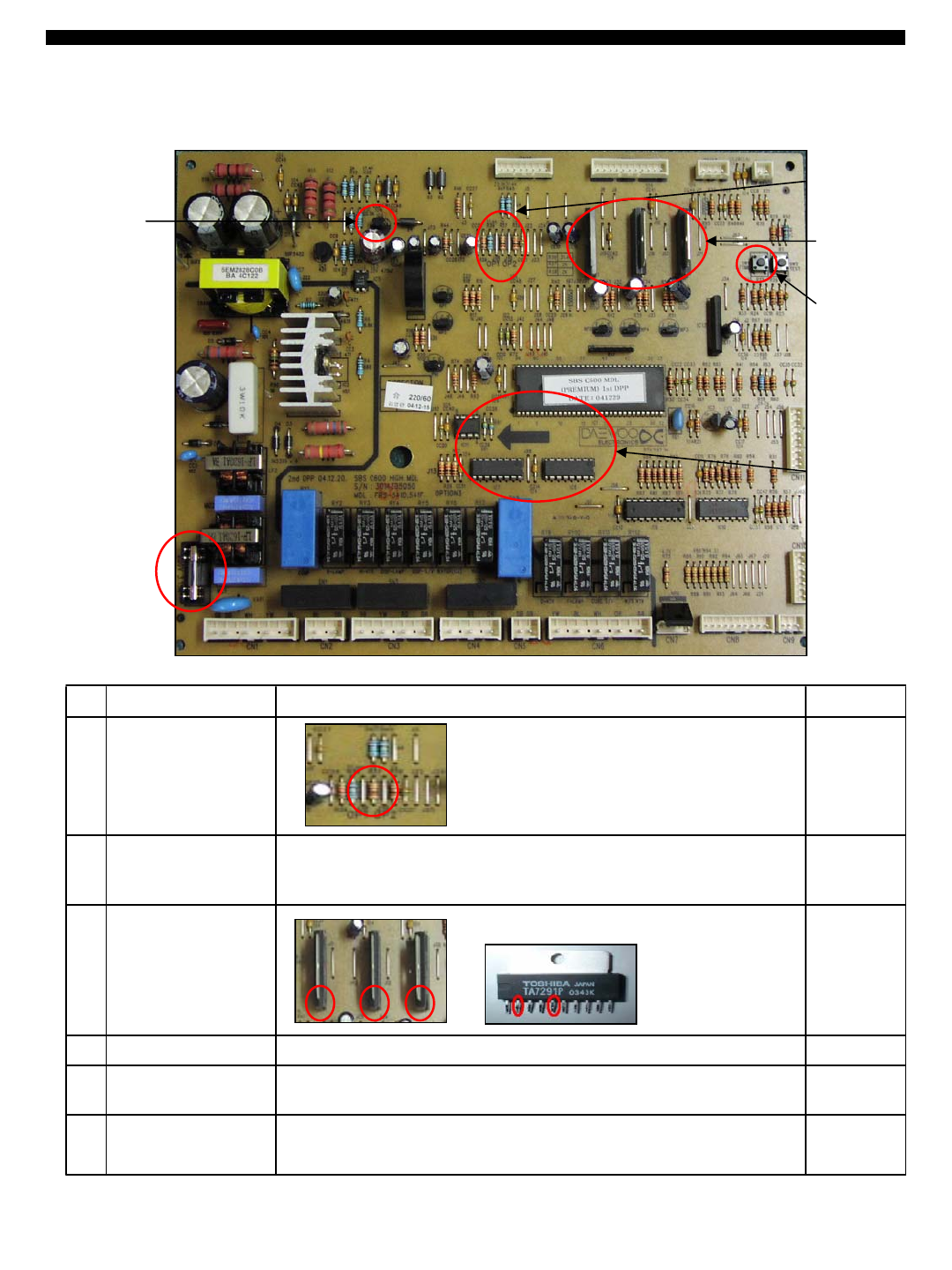

8-5. Main PCB ------------------------------------------------------49

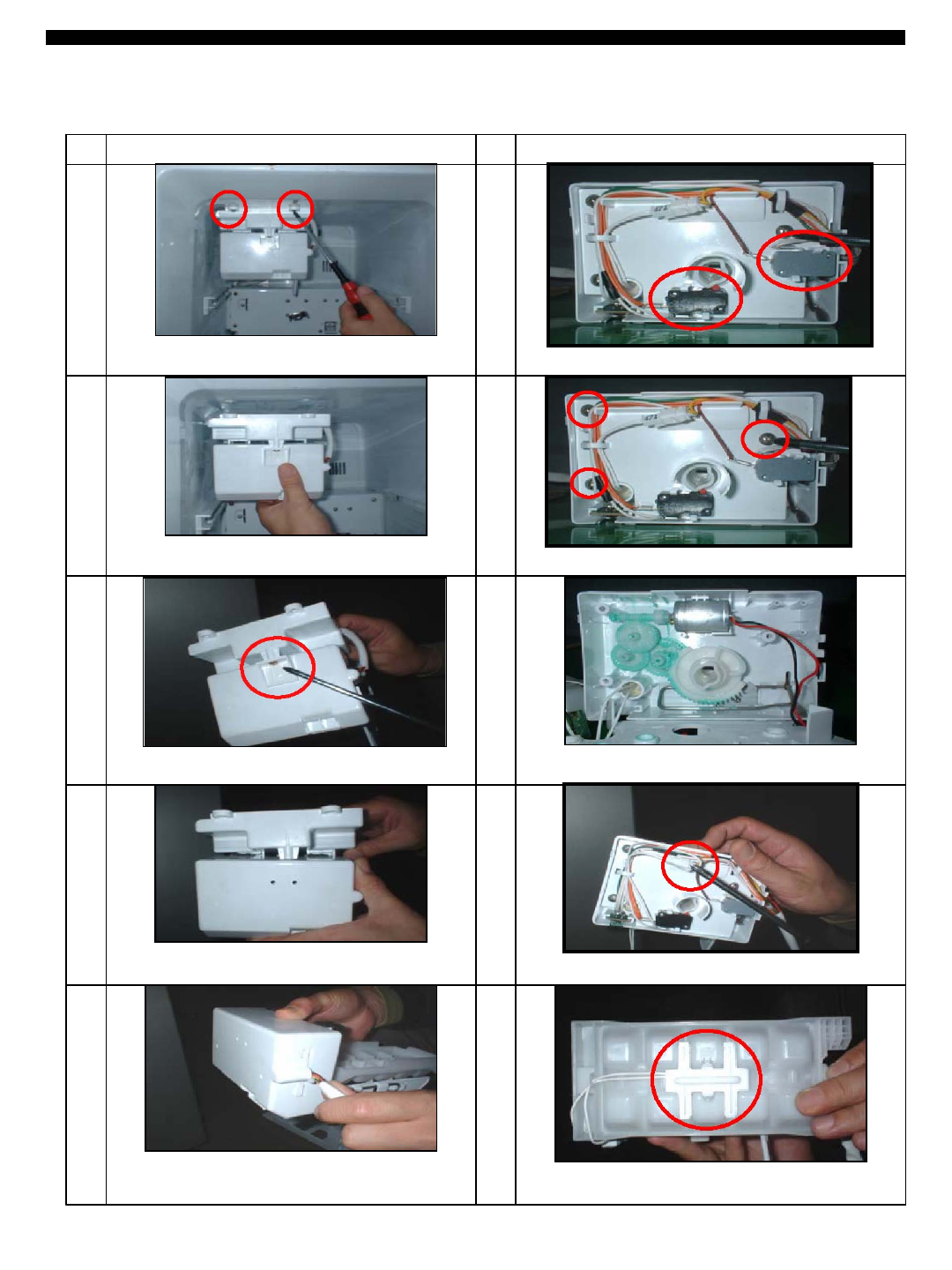

8-6. Ice Maker ------------------------------------------------------51

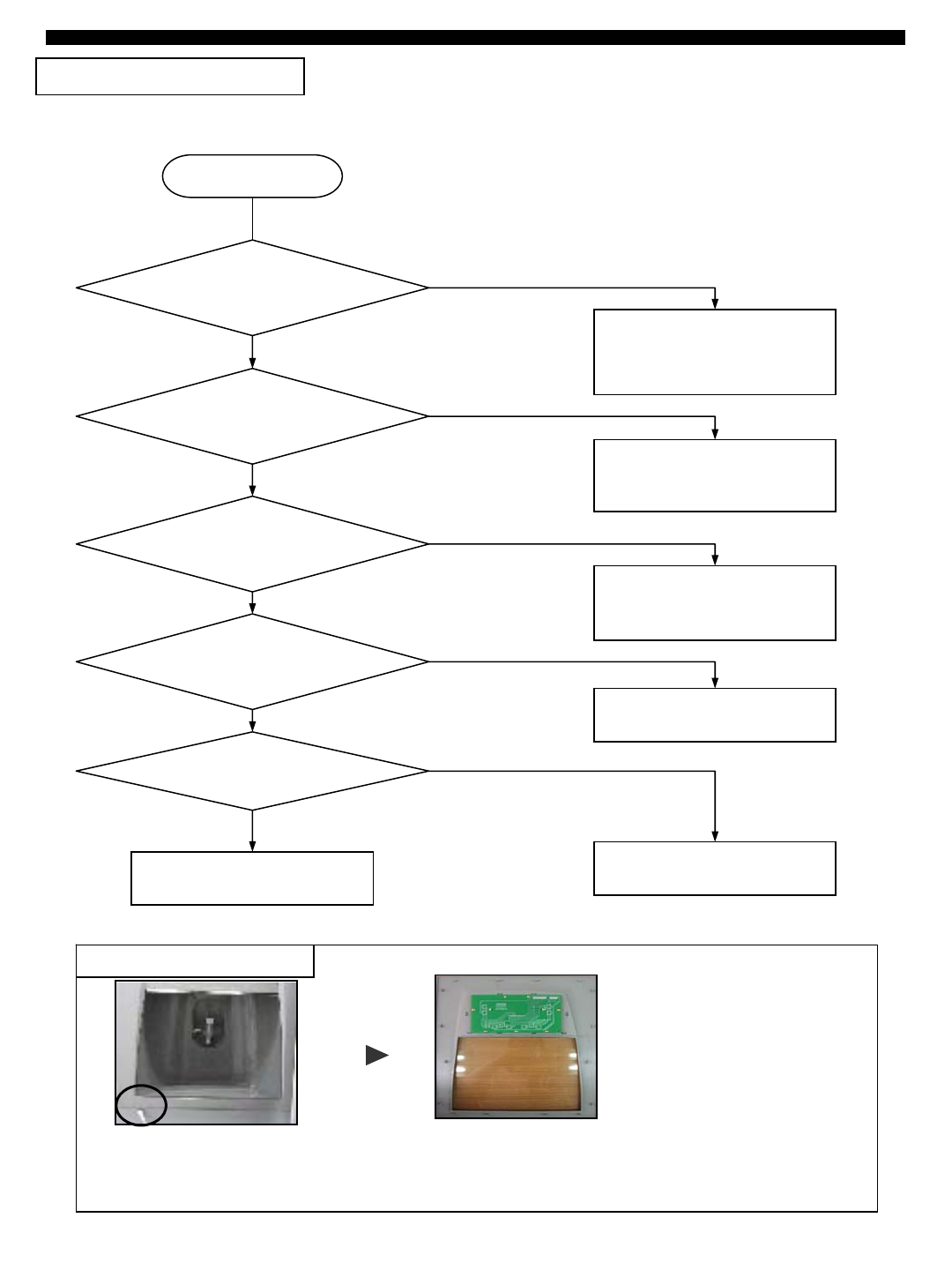

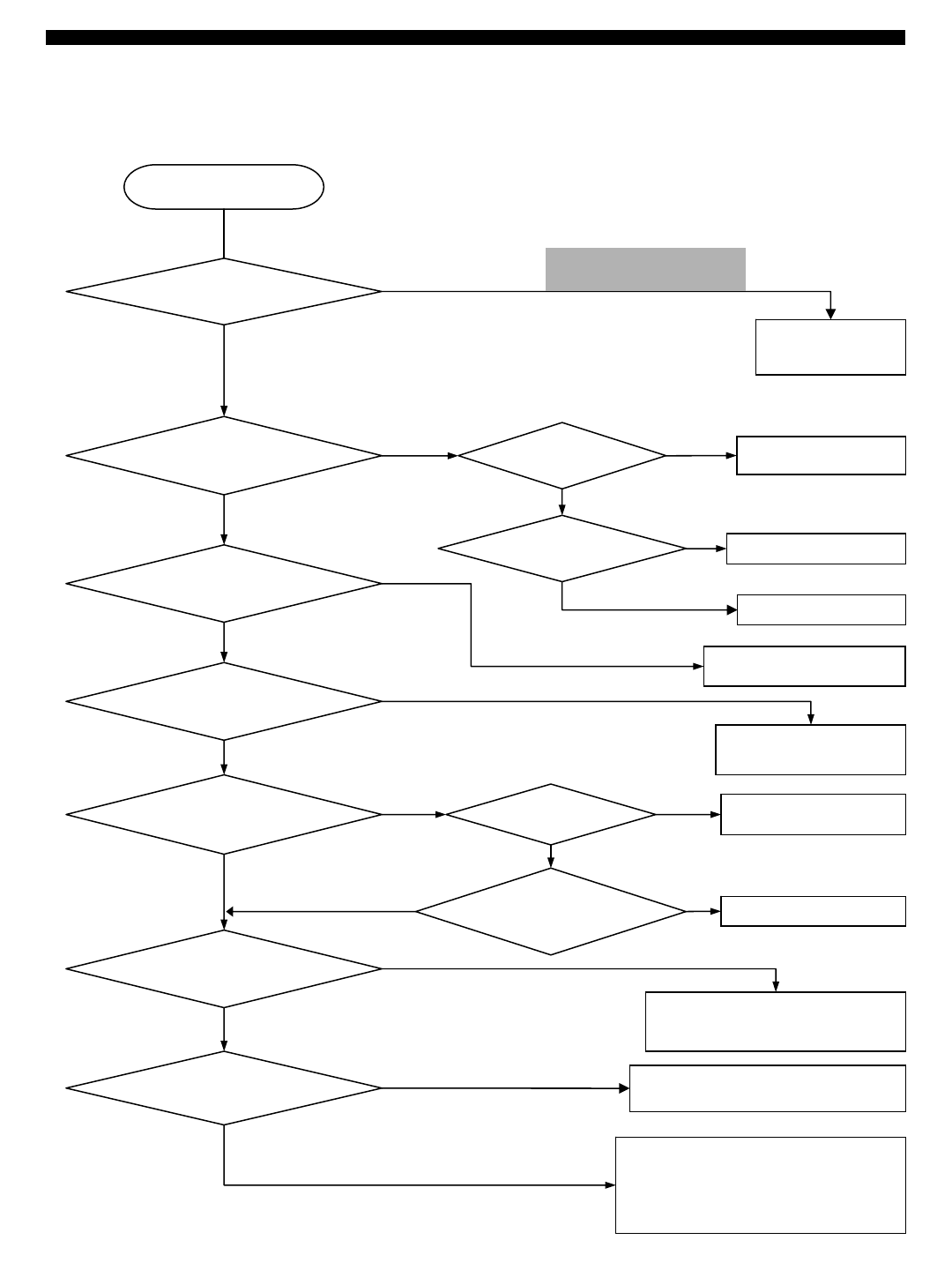

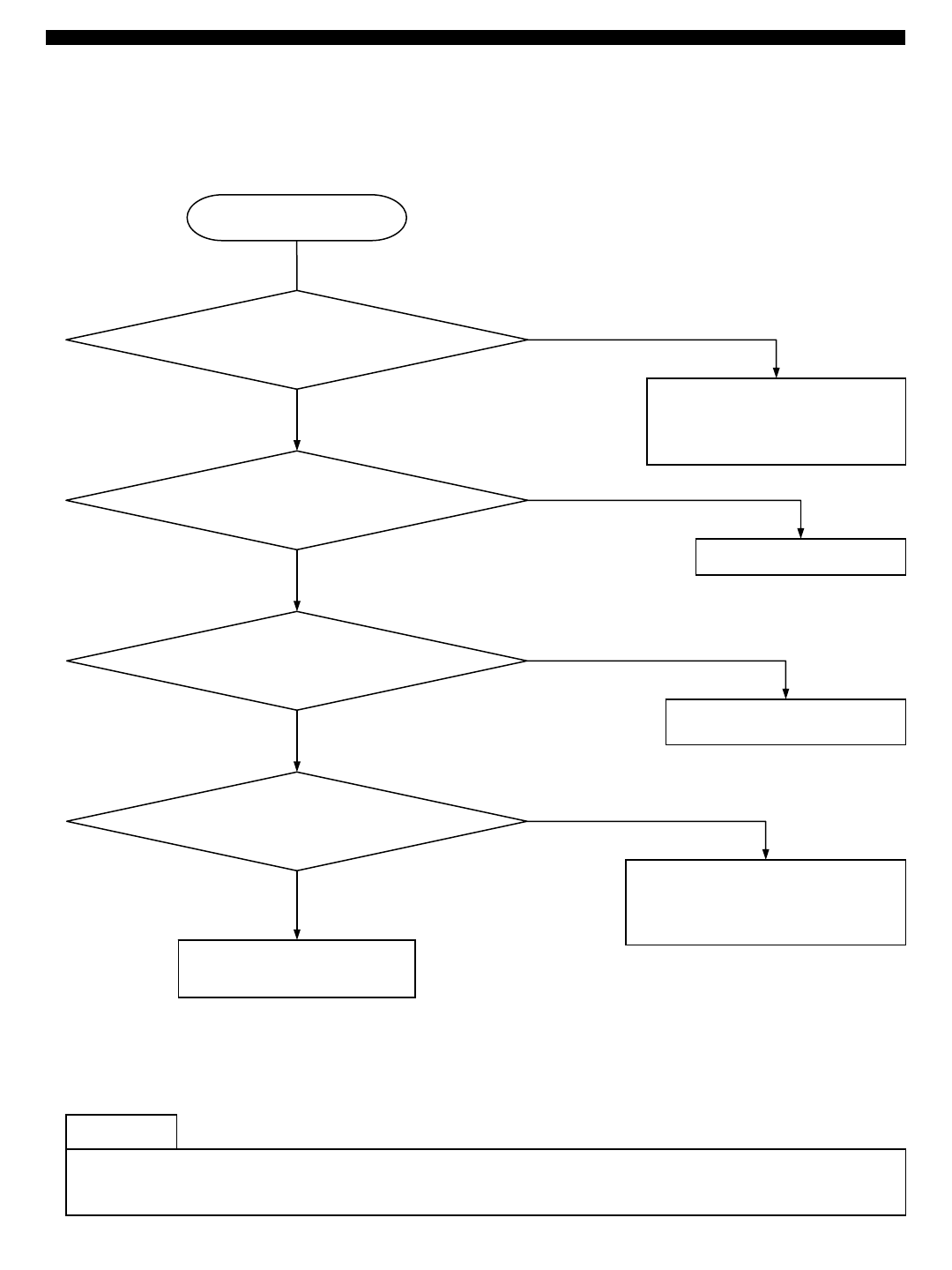

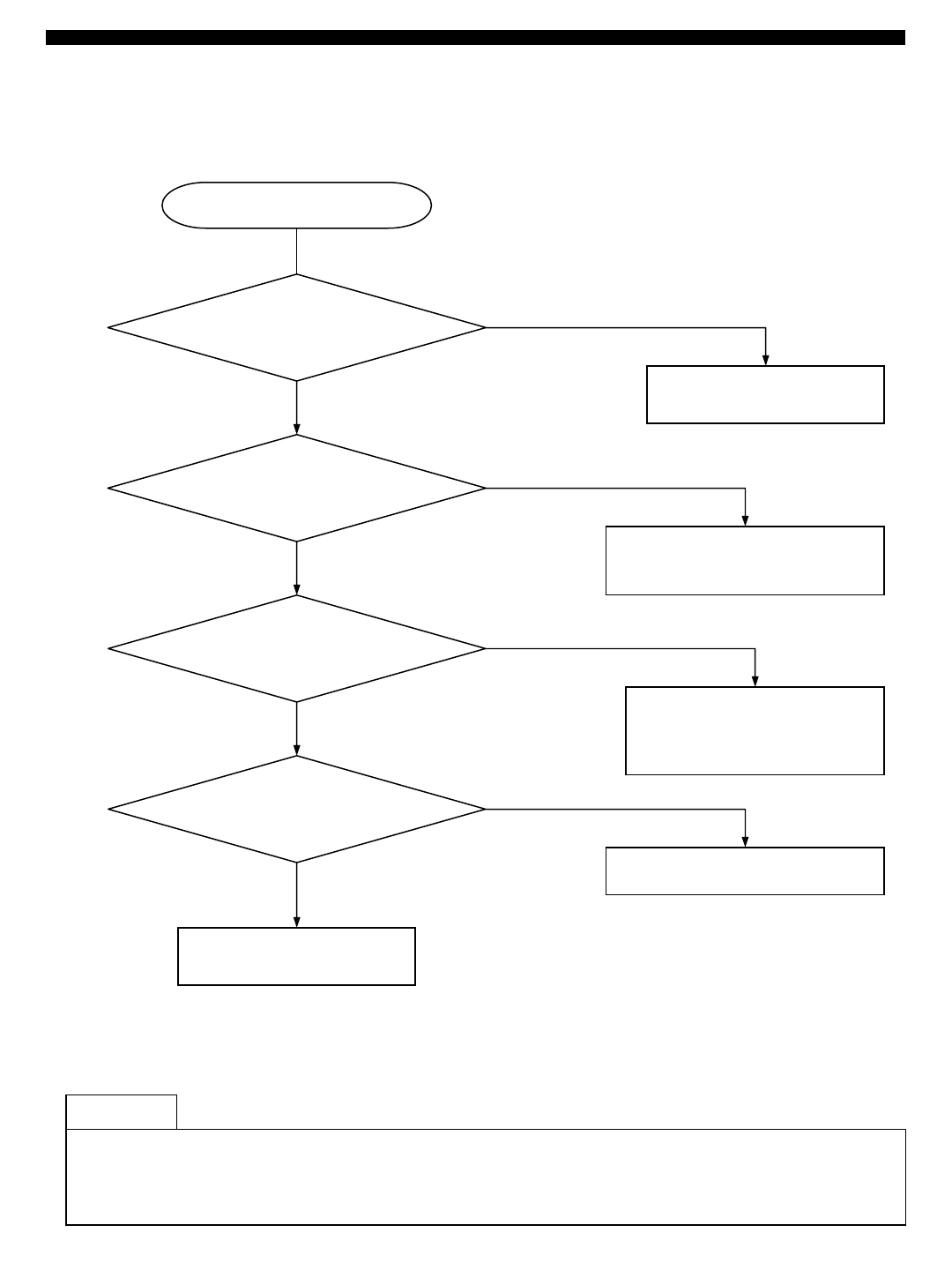

9. TROUBLE DIAGNOSIS

9-1. Power Failure ----------------------------------------------------53

9-2. Freezer Compartment ---------------------------------------------54

9-3. Refrigerator Compartment ------------------------------------------60

9-4. Operation Noise of Refrigerator --------------------------------------65

9-5. Door -----------------------------------------------------------71

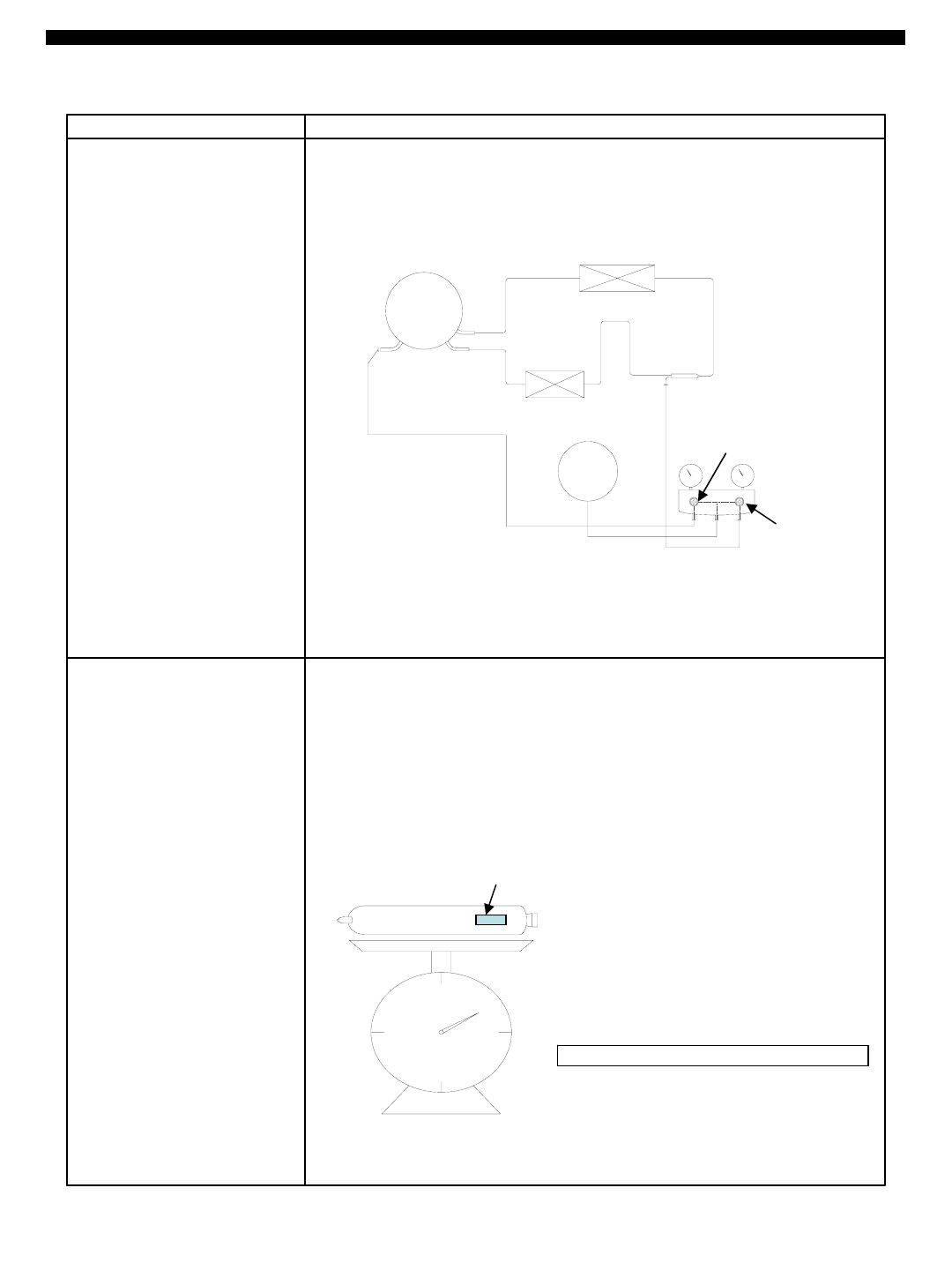

10. COOLING CYCLE HEAVY REPAIR

10-1. Summary of Heavy Repair ------------------------------------------72

10-2. Precaution during Heavy Repair --------------------------------------73

10-3. Practical Work for Heavy Repair --------------------------------------74

10-4. Standard Regulations for Heavy Repair --------------------------------76

10-5. Brazing Reference Drawing -----------------------------------------77

11. INSTALLATION GUIDE

11-1. Installation Preparation -------------------------------------------- 78

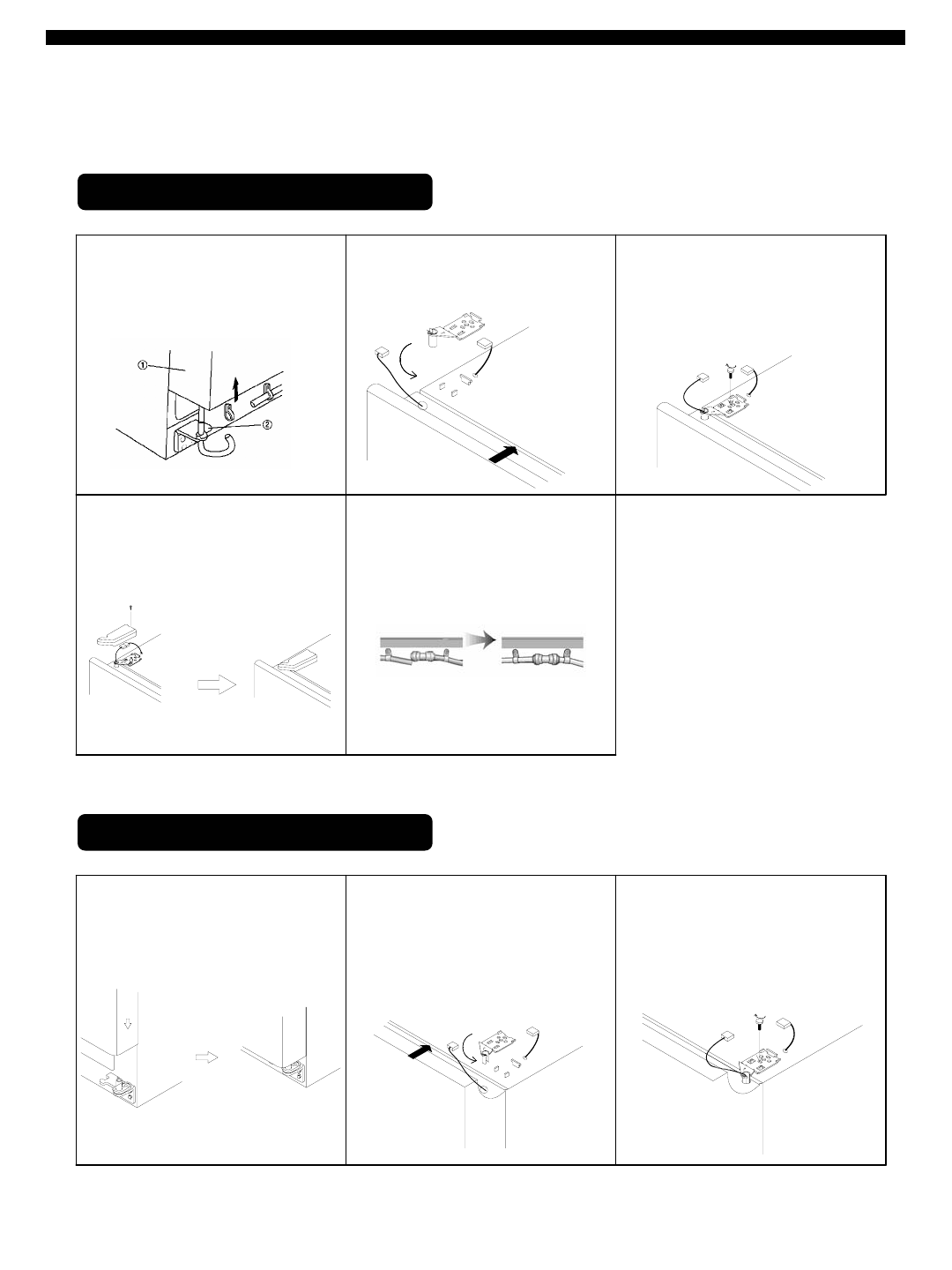

11-2. If the Refrigerator can not enter the Door ------------------------------ 79

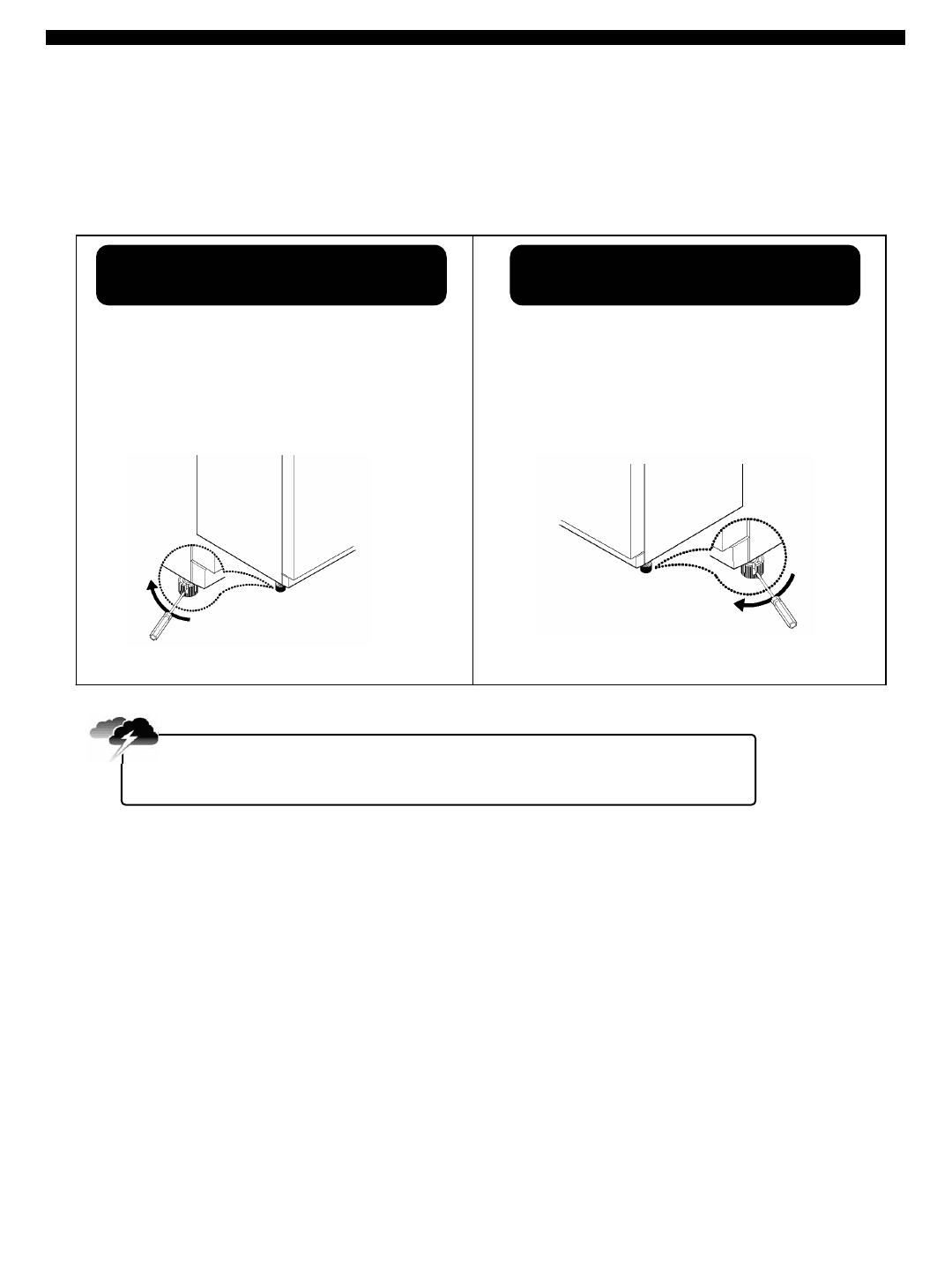

11-3. Refrigerator Leveling & Door Adjustment -------------------------------80

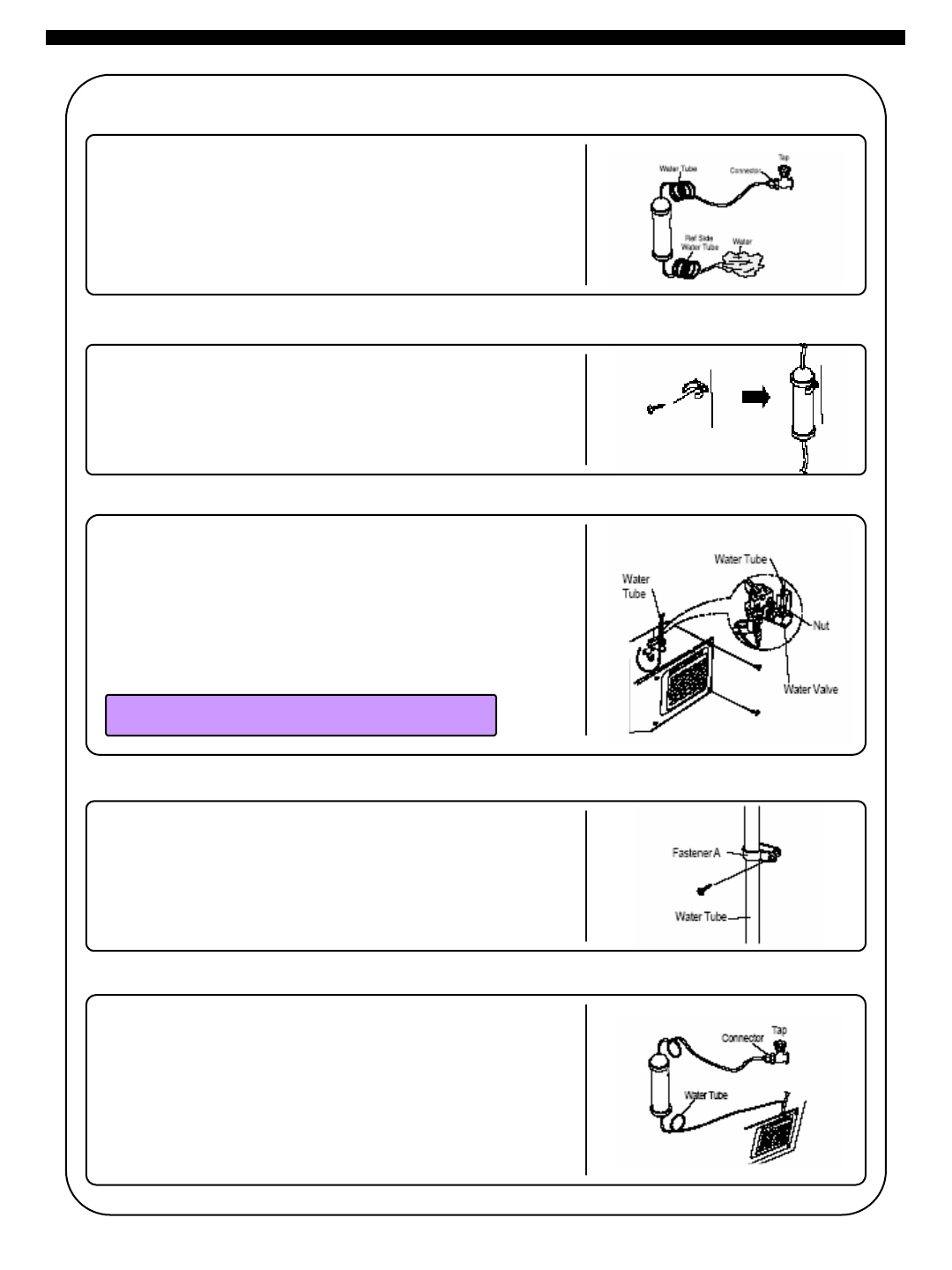

11-4. Water Line Installation --------------------------------------------- 82

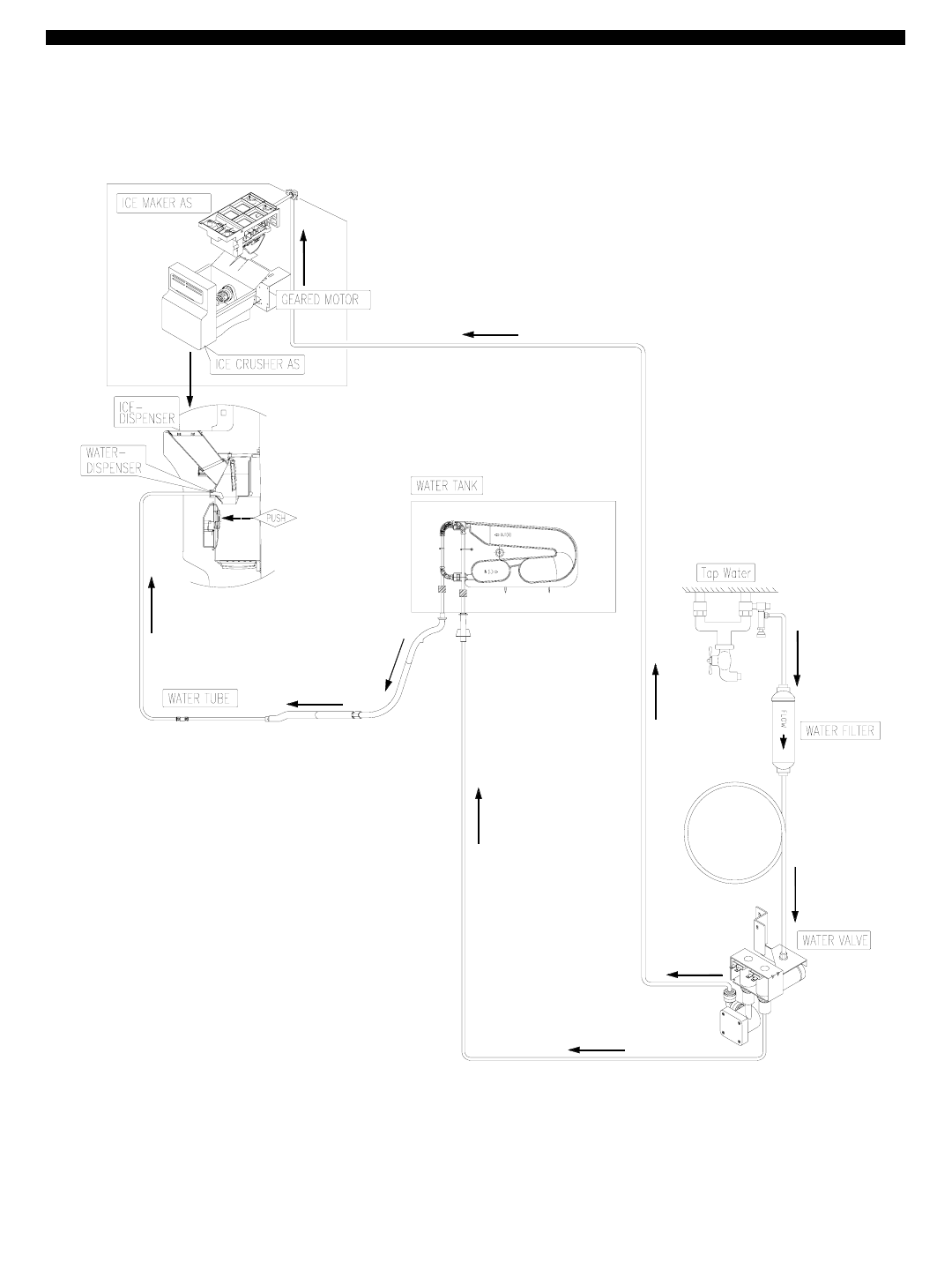

11-5. Dispenser Water Flow --------------------------------------------- 84

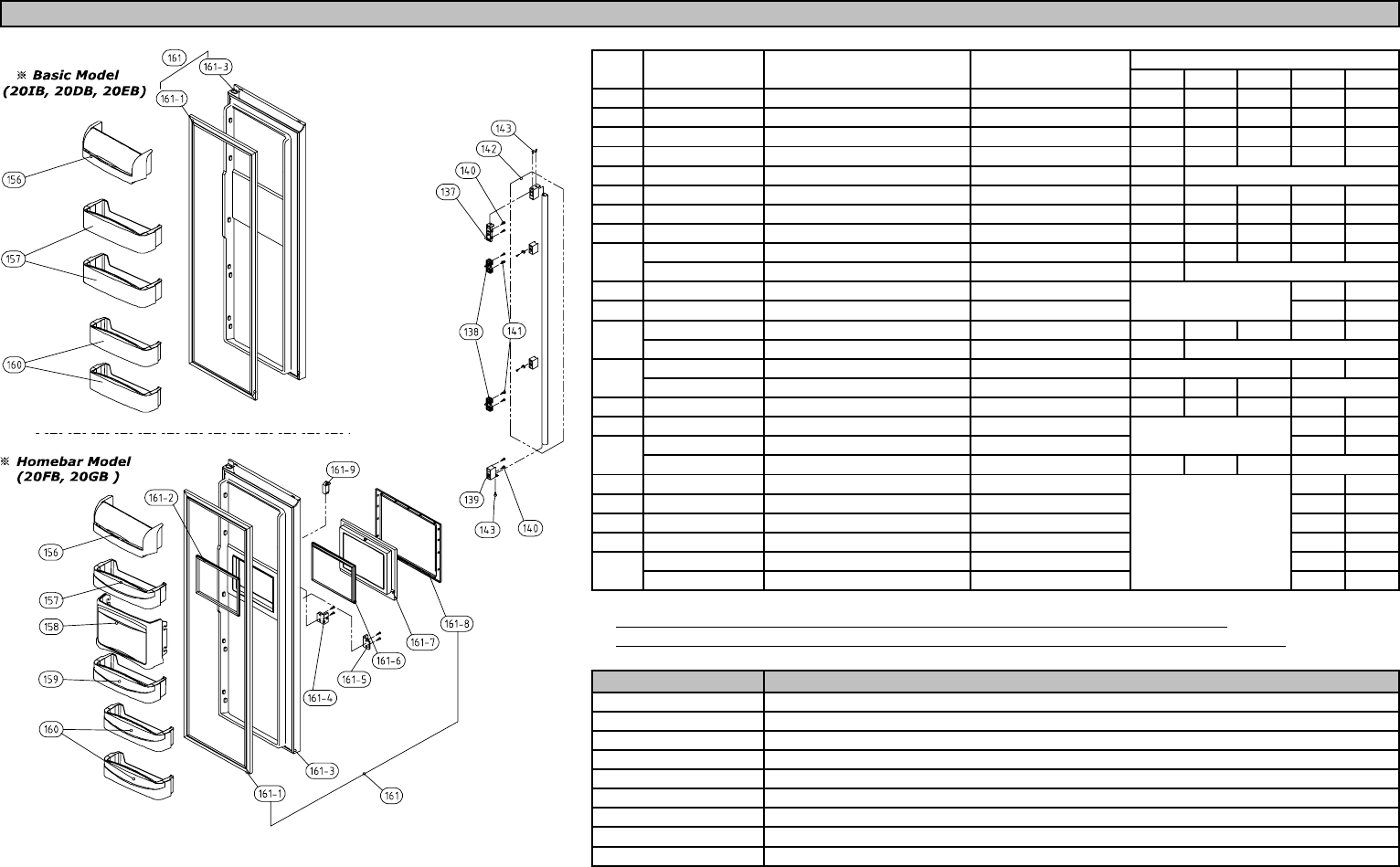

12. EXPLODED VIEW & PARTS LIST -------------------------------------85

2

Please observe the following safety precautions in order to use safely and correctly the refrigerator

and to prevent accident and danger during repair.

1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than

three minutes before replacing PCB parts.

Shut off the power whenever replacing and repairing electric components.

2. When connecting power cord, please wait for more than five minutes after power cord was

disconnected from the wall outlet.

3. Please check if the power plug is pressed down by the refrigerator against the wall.

If the power plug was damaged, it may cause fire or electric shock.

4. If the wall outlet is over loaded, it may cause fire.

Please use its own individual electrical outlet for the refrigerator.

5. Please make sure the outlet is properly earthed, particularly in wet or damp area.

6. Use standard electrical components when replacing them.

7. Make sure the hook is correctly engaged.

Remove dust and foreign materials from the housing and connecting parts.

8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.

9. Please check the evidence of moisture intrusion in the electrical components.

Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.

10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.

11. Do not let the customers repair, disassemble and reconstruct the refrigerator for themselves.

It may cause accident, electric shock, or fire.

12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or

medicine in the refrigerator.

13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water

on the top of the refrigerator.

14. Do not put glass bottles with full of water into the freezer.

The contents shall freeze and break the glass bottles.

15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it

where children are not accessible.

1. WARNINGS AND PRECAUTIONS FOR SAFETY

3

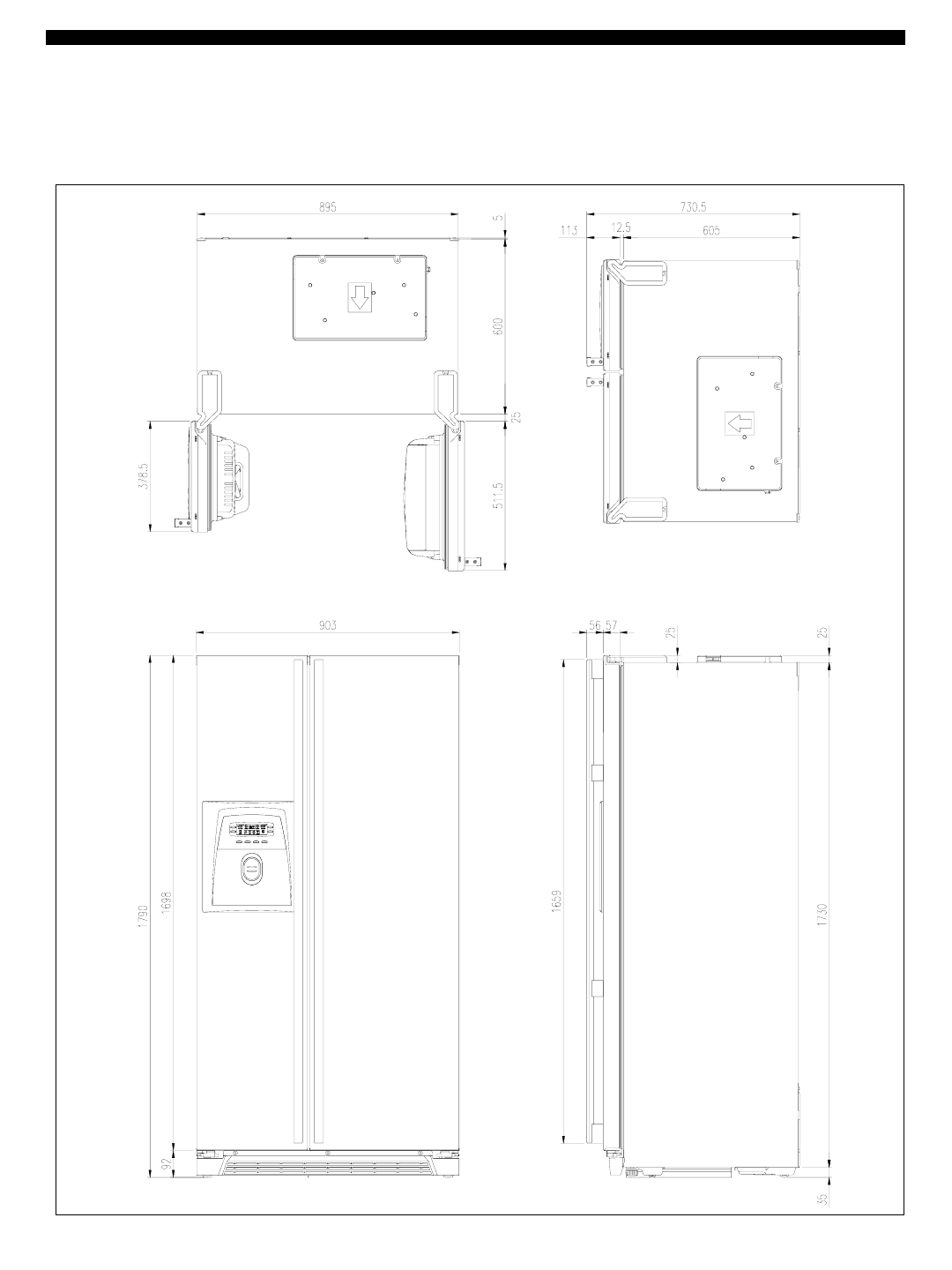

2-1. External Size

2. EXTERNAL VIEWS

- FRS(N)-U20IB

4

- FRS(N)-U20DB / EB

5

- FRS(N)-U20FB / GB

6

12. Refrigerator case

11. Refrigerator pocket

10. Refrigerator shelf 5. Freezer case

9. Movable Egg case4. Freezer shelf

8. Chilled case3. Ice tray

7. Refrigerator light2. Freezer pocket

6. Dairy pocket1. Freezer light

Refrigerator CompartmentFreezer Compartment

1

2

4

3

5

7

8

9

10

11

12

6

2-2. Name of Each Parts

- Basic Model

- Wine Rack is option

7

12. Refrigerator pocket6. Freezer case

7. Dairy pocket1. Ice cubes storage case

13. Magic room (option)

11. Refrigerator shelf5. Freezer pocket

10. Movable Egg case4. Freezer shelf

9. Wine Rack3. Water/Ice Dispenser

8. Refrigerator light2. Freezer light

Refrigerator CompartmentFreezer Compartment

1

2

4

3

6

8

9

10

12

13

7

5

- Full option Model

11

-Full option Model illustrated.

-Features are model dependent.

8

Freezer

Compartment Refrigerator

Compartment

2-3. Cold Air Circulation

9

3. SPECIFICATION

3-1. Specification

117kg115kg113kg 115kg

330 Li

170 Li

500 Li

352 Li

184 Li

536 Li

FRS(N)-

U20GB

334 Li

170 Li

504 Li

357 Li

184 Li

541Li

FRS(N)-

U20FB

334 Li

170 Li

504 Li

357 Li

184 Li

541 Li

FRS(N)-

U20DB

C

Y

C

L

E

IDΦ0.7 ×T0.55 ×L2200Capillary Tube

Molecular Sieve XH-9Dryer

Fan Cooling SystemCondenser

Fin TypeEvaporator

525 Li570 LiTotal

ISO Gross

Volume

(Li) 178 Li209 LiFreezer

337 Li361 LiRefrigerator

903 mm x 734.5mm x 1790 mm

104kg

339 Li

198 Li

537 Li

FRS(N)-

U20IB

External Dimension

(Width x Depth x Height)

Weight

334 LiRefrigerator

170 LiFreezer

504 LiTotal

ISO Storage

Volume

(Li)

FRS(N)-

U20EB

Model Name

SpecificationItem

※( ) is the specification for the model which use R-600a(refrigerant)

R-600a (76g)R-134a (190g)R-134a (190g)Refrigerant ( g )

39561452503956183D50395S130R50Part Code

MK4A5Q-R1U

3011402100

265RHB, S330

MK183Q-L2UHPL30YG-5Description

Compressor

3018129810

308NHB, S330

Part Code

Description

SWITCH

P RELAY AS

10

DC13V / 1100±100 rpm

Condenser

Fan Motor

DC13V / 1950±100 rpmR-Fan Motor

DC13V / 2050±100 rpmF-Fan Motor

E

L

E

C

T

R

I

C

A

L

P

A

R

T

S

Dispenser Model

Specification ( 220~240V Models only )Item

Basic ModelModel Name

AC250V , 10A , 77℃Fuse Temp (Defrost)

PBN-38F-Sensor

D-Sensor

D

E

F

O

R

E

S

T

AC220V / 5W-Water Pipe Heater

AC220V / 5W-Dispenser Heater

AC220V / 8WLouver Heater

H

E

A

T

E

R

SP201R-7DL / SP201R-7DR

(SPF101B-2D / SPF101B-1D)

AC230~240V / 25W (2EA)

AC230~240V / 25W (2EA)

R-Lamp

Door Switch , F / R

F-Lamp

AC250V 15AMain Fuse (Power cord)

AC220V / 7WMain Duct Heater

AC220V / 192WDefrost Heater

PBN-43

PBN-43

R-Sensor

11

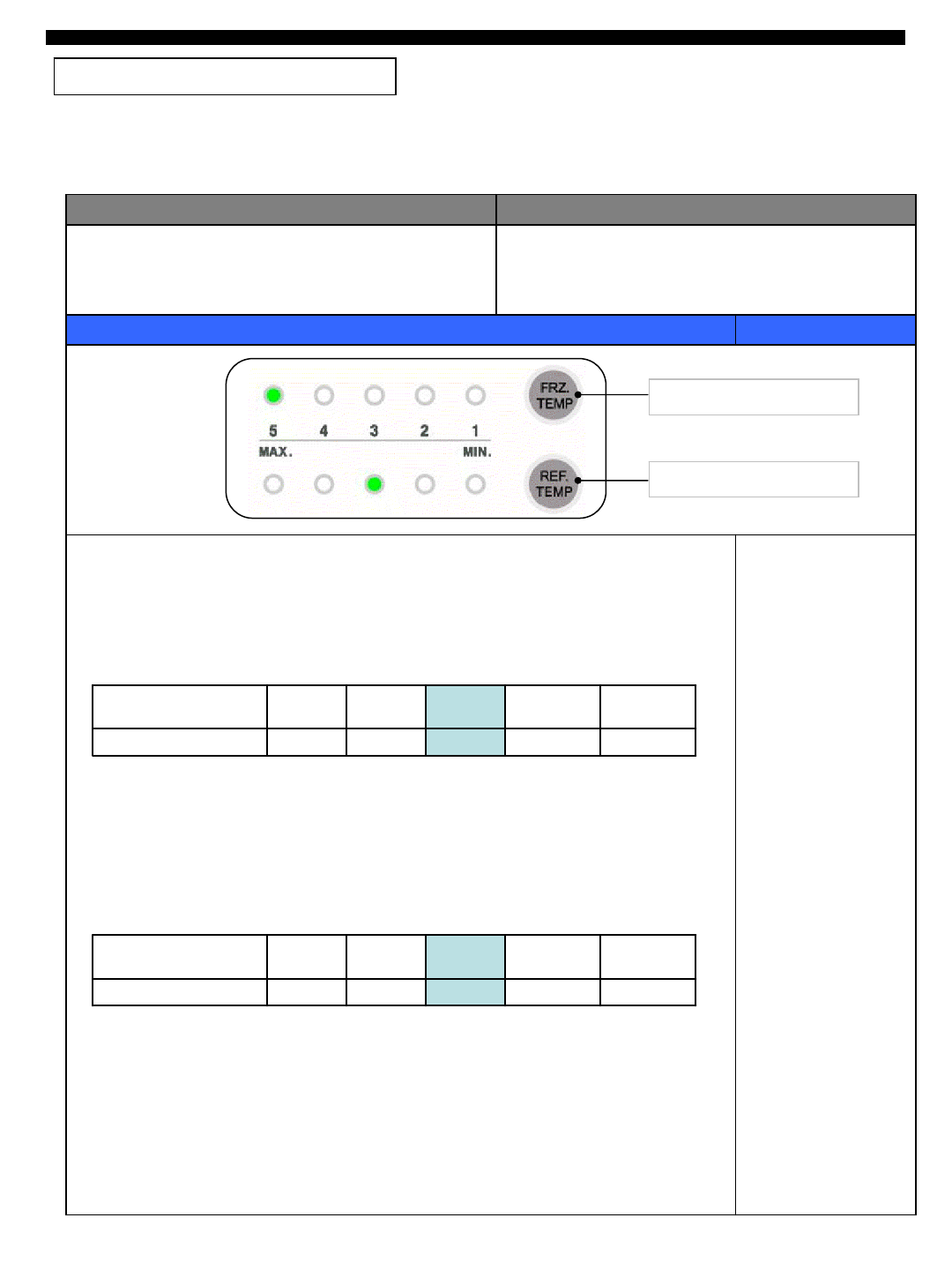

4-1. Display

54321Temp indication

Max

Medium

Max

Mid

Medium

Min

MinTemperature Chang

54321Temp indication

Max

Medium

Max

Mid

Medium

Min

MinTemperature Change

1. “FRZ.TEMP” Button

1) Temperature control of Freezer compartment

2) 5 step mode of successive temperature mode.

3) Initial mode by power input : “3”

※Whenever pressing button, setting is repeated in the order of

Medium(3) →Medium Max(4) →Max(5) →Min(1) →Medium Min(2).

2. “REF.TEMP” button.

1) Temperature control of Refrigerator compartment

2) 5 step mode of successive temperature mode.

3) Initial mode by power input : “3”

※Whenever pressing button, setting is repeated in the order of

Medium(3) →Medium Max(4) →Max(5) →Min(1) →Medium Min(2).

INPUT CONTROL OBJECT

CONTENTS REMARKS

FRZ.TEMP, REF.TEMP Inner Control (Lamp-LED)

4-1-1. Basic Model

※The actual inner temperature varies depending on the food status, as the indicated setting

temperature is a target temperature, not actual temperature within refrigerator.

※Refrigeration function is weak in the initial time.

Please adjust temperature as above after using refrigerator for minimum2~3 days.

Temperature adjustment button

for refrigerator compartment.

Temperature adjustment button

for freezer compartment.

4. OPERATION AND FUNCTIONS

12

1. Display control

2. “FREEZER SET” Button

1) Temperature control of freezer compartment

2) 7 step mode of successive temperature mode.

3) Initial mode by power input : “Medium(-19℃)”

※Whenever pressing button, setting is repeated in the order of

Medium (-19℃) →Medium Max 1 (-20℃) →Medium Max 2 (-21℃)→Max (-22℃)

→Min (-16℃) →Medium Min 2 (-17℃) →Medium Min 2 (-18℃).

INPUT CONTROL OBJECT

CONTENTS REMARKS

Front PCB button

FREEZER SET, REFRIGERATOR SET

SUPER FREEZER, SUPER REFRIGERATOR

RESET FILTER, WATER / ICE, ICE MAKER LOCK

,LOCK

FCP C-LED

3. “SUPER FREEZER” Button

When this mode is chosen, the icon (FREEZER QUICK) is ON.

After six month, LED ONFILTER CHANGE ICON

DialICE MAKER LOCK ICON

DialLOCK ICON

DialWATER / CUBED ICE/ CRUSHED ICE ICON

Always ONFUZZY, DEODORIZER ICON

Dial

SUPER FREEZER,SUPER

REFRIGERATOR ICON

Initial mode : Freezer & Refrigerator set→

Medium (-19℃/4℃)

88 DISPLAY (SET TEMP.)

ControlFCP-LED

-21℃

Medium

Max 2

-18℃

Medium

Min 2

-19℃

Medium

-22℃

Max

-20℃-17℃-16℃

Temp

indication

Medium

Max 1

Medium

Min 1

Min

Temperature

Change

4-1-2. Dispenser Model

Temperature adjustment button

for freezer compartment.

Super freezer

Temperature adjustment button

for refrigerator compartment.

Super Refrigerator

Lock buttonWater filter reset Dispenser select button Ice maker lock button

Letters are indicated on 88 Display LED

13

CONTENTS REMARKS

4. “REFRIGERATOR SET” button.

1) Temperature control of Refrigerator compartment

2) 5 step mode of successive temperature mode.

3) Initial mode by power input : “Medium (4℃)”

※Whenever pressing button, setting is repeated in the order of

Medium (4℃) →Medium Max (3℃) →Max (2℃) →Min (6℃) →Medium Min (5℃).

2℃3℃

4℃5℃6℃Temp indication

Max

Medium

Max

Mid

Medium

Min

MinTemperature Change

5. “SUPER REFRIGERATOR” button.

When this mode is chosen, the icon (REFRIGERATOR QUICK) is ON.

6. “WATER / ICE” button

1) Select Water / Cubed Ice / Crushed Ice.

2) Icon lights up to show your selection is on.

Initial mode by power input : “Water” mode.

3) The mode of Cubed Ice or Crushed Ice continues for 1 hour and then changes

to Water. (Water icon turns ON)

7. “ICE MAKER LOCK” button

1) Start by pushing “ICE MAKER LOCK” button

①“ICE MAKER LOCK” icon is on

②“WATER” icon is always on

2) Stop by pushing “ICE MAKER LOCK” button again

①“ICE MAKER LOCK” icon is off

②“WATER” icon is on

8. “RESET WATER FILTER” button

1) The normal (ICON OFF) is on for 6 month after are first power input.

2) After sic months, icon is ON.

3) How to reset Filter information

①Push the “RESET WATER FILTER” button for 3 seconds after change.

9. “LOCK” button

1) This button stops operation of different button.

①“LOCK” icon is on

②Press this button to lock out this case and to keep temperature and

function setting.

2) Push “LOCK” button again for more than a second to stop it.

※The actual inner temperature varies depending on the food status, as the indicated setting

temperature is a target temperature, not actual temperature within refrigerator.

※Refrigeration function is weak in the initial time.

Please adjust temperature as above after using refrigerator for minimum2~3 days.

Letters are indicated on 88 Display LED

REFERENCE : Please wait

for 2-3 seconds in order

to take final ice or drops

of water when taking out

cup from the pressing

switches after taking ice

or water.

14

1. Defrost Mode

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. Defrosting Cycle

1. Comp

2. F-Fan

3. R-Fan

4. D-Heater

Pre-Cool

Pause

Fan-Delay

Heater

Defrosting

Pre-Cool

1) Time : 50 minutes

2) Comp , F-fan : ON

R-fan : Control

D-HTR : OFF

3) If F-sensor ≤-27℃, then Pre-Cool becomes. OFF

Heater

Defrosting

1) Comp, F-fan, R-fan : OFF

D-HTR : ON

2) Time limit

30 seconds : Heater is ON regardless of D-sensor

temperature right after defrosting start

30 minutes : in case of D1- Error

80 minutes : in normal control state

3) If D-sensor ≥13℃, Heater Defrosting is OFF

Pause

Time : 7 minutes

Comp, F-fan, R-fan, Heater etc. : OFF

Fan-Delay

1) Time : 5 minutes

Comp : ON and F-fan, R-fan, Heater : OFF

4-2. Defrost Mode

2.The defrost mode start with the following conditions

1) Total operation time of comp. becomes : 6,8,10,……… 24 hours.

①Comp. operating rate : more 85%

②Total door open time : 2 minutes

(Any door, F or R open time is over 2 minutes.)

③Any error mode : R1, F1, D1, F3, RT/S, Door-switch etc.)

2) Defrosting mode starts unconditionally as long as total comp. work time is

24 hours, even if the above conditions 1) are not satisfied.

3) Defrosting mode starts immediately as long as total time of [comp. ON +

comp. OFF] is over 60 hours, even if the above 1) and 2) conditions are not

satisfied.

3. In providing initial power (or returning power failure)

If D-sensor temp. ≤3.5℃, defrosting mode starts .

15

CONTENTS REMARKS

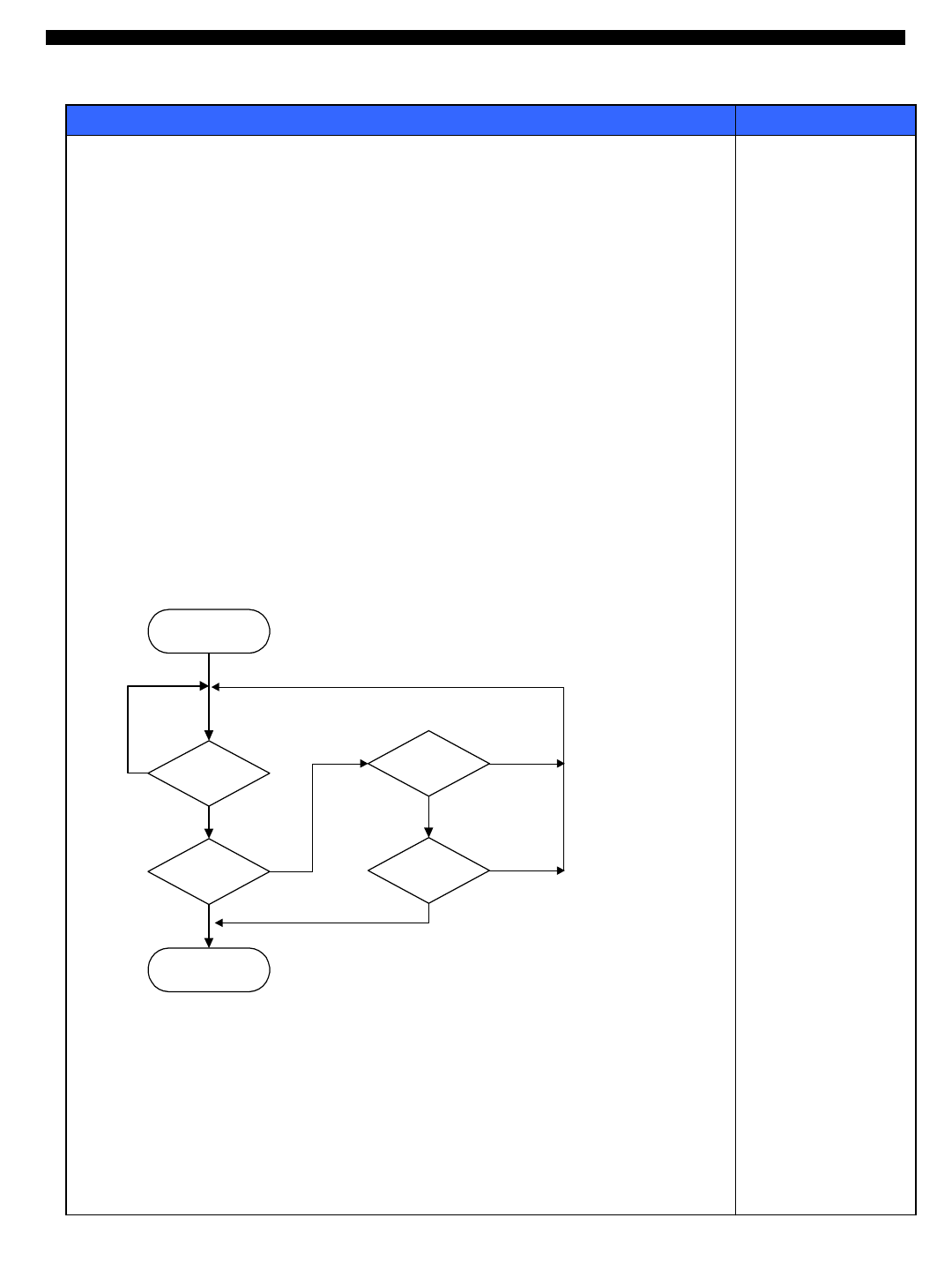

4. Flow Chart of Defrosting Start

Start

Comp. operating time

is over 24 hours?

Total time is

over 60 hours?

Comp. operating time

is over 6 hours?

EndDefrosting start

Comp. operating time

is over 2 hours?

Any error ?

NO

YES

NO

NO

YES

Total door open

time is over 2 min?

YES

YES

YES

YES

NO

NO

NO

Comp. operating rate

is more 85%?

NO

YES

16

1. A/S Defrosting Mode (Heater defrost →Pause →Fan Delay)

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. Defrosting Cycle

1. Comp

2. F-Fan

3. R-Fan

4. D-Heater

Heater

Defrosting

1) Comp, F-fan, R-fan : OFF

D-HTR : ON

2) Time limit

30 seconds : Heater is ON regardless of D-sensor

temperature right after defrosting start

30 minutes : in case of D1-Error

80 minutes : in normal control state

3) If D-sensor ≥13℃, Heater Defrosting is OFF

Pause

Time : 7 minutes

Comp, F-fan, R-fan, Heater etc. : OFF

Fan-Delay

1) Time : 5 minutes

Comp : ON

F-fan, R-fan, Heater : OFF

Pause

Fan-Delay

Heater

Defrosting

2. How to start

1) Push “REF.TEMP” button 5 times while pushing “FRZ.TEMP” button simultaneously.

--------- FRS-U20IA

2) In “LOCK” mode, push “REFRIGERATOR SET” button 5 times while pushing “FREEZER SET”

button simultaneously. ------ FRS(N)-U20DA

3. How to proceed

1) Delete Pre-cool mode. (Others are same as normal defrosting)

2) Heater is ON regardless of D-sensor temp. at first 30 seconds.

(Check of defrosting current)

4-3. (Forced Defrosting) Mode

1. Fan voltage of control mode

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. F-Sensor

2. R-Sensor 1. F-FAN, R-FAN, C-FAN

13 V13 V13 VVoltage

C-FANR-FANF-FANFAN

4-4. Fan Voltage of Control Mode

※Refer to the 5-4. (Fan Function )

17

It is linked with comp.

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. Comp Louver Heater

1. Buzzer sounds if any button of Inner Control is pushed.

2. Buzzer sounds 4 times 3 seconds after initial power input.

3. Buzzer sounds for 3 or 1 times in case of A/S forced defrosting and short (pull down)

operation or explanation mode.

4. If door is open, buzzer sounds after every 1 minutes for 5 minutes (Door open alarm)

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. Control (Inner or F-PCB) buttons

2. Door Switch

3. Initial Power Input

Buzzer

4-5. Louver Heater Control

4-6. Buzzer or Alarm Control

1. Control refrigerator compartment lights

R-Lights turn ON/OFF by R-door switch ON/OFF

(※For 10 minutes after sensing door open, the lights turn off automatically

through door close is not sensed.)

2. Control of freezer compartment lights.

F-Light turn ON/OFF by F-door switch ON/OFF

(※For 10 minutes after sensing door open, the lights turn off automatically

through door close is not sensed.)

3. R-lights ON/OFF by home bar door switch ON/OFF. ( for only model with home bar )

R-lights turn ON for 10 minutes after sensing home bar door switch open.

4. Dispenser lamp control ( for only model with water/ice dispenser )

Dispenser lamp turns ON/OFF by Dispenser switch.

Dispenser lamp turns ON for 4 seconds after sensing switch close.

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. Refrigerator door switch

2. Freezer door switch

3. Home bar door switch

4. Dispenser switch

Lamp

4-7. Control of Interior Lights (FRS(N)-U20DA)

18

1. Start

Open and close “Freezer door switch” 5 times while pushing “FRZ. TEMP” button

simultaneously.

2. Control

1) All other electrical components are OFF except for F-fan / R-fan

2) Fan Control

Door open →Fan ON / Door close →Fan OFF.

3) Display control

“FRZ. LED” and “REF. LED” are ON in good order

3. Stop

1) During Demo mode, push “Freezer door switch” open and close 5 times while pushing

“FRZ. TEMP” button simultaneously.

2) Power in again

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. FRZ. TEMP

2. Door Switch

Comp

F/R-Fan

Heater

4-8. Demonstration

1. Start

Push “ICE/WATER” button 5 times while pushing “FREEZER SET” button

simultaneously.

2. Control

1) All other electrical components are OFF except for F-fan / R-fan

2) Fan Control

Door OPEN →Fan ON / Door close →Fan OFF.

3. Stop or termination

1) During Demo mode, push “ICE/WATER” button 5 times while pushing “FREEZER

SET” button simultaneously.

2) Power in again

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. “FREEZER SET, WATER/ICE” Button , Door switch Comp

F/R-Fan

Heater

4-8-1. Basic Model

4-8-2. Dispenser Model

19

Compensation of R-sensor ON/OFF temp. (down)

In case temperature of refrigerator compartment is weak or insufficient,

take the following action.

INPUT CONTROL OBJECT

CONTENTS REMARKS

Main PCB Resistance of R-sensor Mid ON/OFF Point

R36 : R-SENSOR standard resistance in normal mode (31.4K)

R37 : In case of weak ref., cut J1 (or J18) to down the standard resistance by 1.5deg(2K)

R38 : In case of weak ref., cut J2 (or J19) to down the standard resistance by 1.5deg(2K)

4-9. Compensation of R-sensor ON/OFF Point

FRS(N)-U20IA FRS(N)-U20DA

R-SENSOR

J2

R36

R37

R38 J1

R-SENSOR

J19

R36

R37

R38 J18

J1

J2

J18,19

※Refer to the 5-2.

(Function of each sensor)

3℃

-1.5℃

0℃

Temperature

compensation

cut--J19

cutcut-J18

FRS(N)

-U20DA

3℃

-1.5℃

0℃

Temperature

compensation

cut--J2

cutcut-J1

FRS(N)

-U20IA

20

1. How to start

1) Press “FRZ.TEMP” button 5 times while pressing

“REF.TEMP” button at the same time.

2. How to stop

1) Push “FRZ.TEMP” button 1 time.

2) It stops automatically in 4 minutes from the start.

3. All the error codes are reset if they turn to be normal.

4. Error display

INPUT CONTROL OBJECT

CONTENTS REMARKS

Temperature Control Buttons Lamp LED of Inner control

(Full down mode and forced defrost mode are displayed while pressing

“REF.TEMP” button at the error display mode)

REF. LED “1” is on and off (twice)Forced defrost mode for A/S

REF. LED “1” is onFull Down mode

REF. LED “1” is on and offEEPROM : defective

REF. LED “2” is on and offReturn after defrosting : defective

REF. LED “3” is on and offCycle : defective

REF. LED “5” is on and offF-Door Switch : defective

FRZ. LED “1” is on and offR-Door Switch : defective

FRZ. LED “2” is on and offD-sensor : open (“Lo”), short (“Hi”)

FRZ. LED “3” is on and offRT-sensor : open (“Lo”), short (“Hi”)

FRZ. LED “4” is on and offR-sensor : open (“Lo”), short (“Hi”)

FRZ. LED “5” is on and off F-sensor : open (“Lo”), short (“Hi”)

DisplayCONTENTS

4-10. Error Display

4-10-1. Basic Model (LED Display of Inner Control)

21

5. Control way of Errors (if any)

1) “F-sensor” error

Cause : F-sensor open or short

Control : Condition of ambient temperature

How to reset : If F-sensor is normal, the error is terminal temperature.

CONTENTS REMARKS

2) “R-sensor” error

Cause : R-sensor open or short

Control : Condition of ambient temperature

How to reset : If R-sensor is normal, the error is terminal temperature.

3) “RT-sensor” error

Cause : RT-sensor open or short (full down)

Control : Normal operation, deletion of control by RT-sensor

If RT-sensor is normal, the error is terminated automatically.

4) “D-sensor” error

Cause : D-sensor open or short (full down)

Control : Time limit (30 min) of defrosting return

If D-sensor is normal, the error is terminated automatically.

5) “Door” error

Cause : in case it senses that door is open for more than 1 hour.

Control : Deletion of function related door switch sensing

If door switch (open & close) is sensed, the error is terminated automatically.

6) “Cycle” error

Cause : in case comp. works for over 3 hours when D-sensor temp. is over -5℃

Control : normal operation

When D-sensor temp. is below -5℃in comp. off it is terminated.

7) “Return after defrosting” error

Cause : in case defrosting return is done by time limit of 80 min

Control : Deletion of Pre-cool mode in defrosting mode

If defrosting return is done by D-sensor, it is terminated.

8) A/S forced defrosting mode

Push “REFRIGERATOR SET” button 5 times while pushing “FREEZER SET” button

Simultaneously.

Control : A/S forced defrosting control (Pre-cool is deleted)

If D-sensor temp. is over 10℃, the mode is terminated automatically.

When all error code is normal, the Refrigerator reset

35 / 2035 / 2026 / 2227 / 4516 / 4114 / 50ON/OFF (min)

Over 41℃~ 41℃~ 31℃~ 21℃~ 15℃~ 9℃RT-S

6 / 44 / 63 / 72 / 103 / 50OFFON/OFF (min)

Over 41℃~ 41℃~ 31℃~ 21℃~ 15℃~ 9℃RT-S

22

1. How to start

1) Under “LOCK” mode, press “SUPER FREEZER” button 5 times while pressing

“FREEZER SET” button at the same time.

2) The front CLED displays as the right diagram shows

( [Ex.] Time Display of 0003 signifies 3 minutes of power on time.)

3) Press “FREEZER SET” button and the following value is displayed successively.

①Time

②F-Sensor temperature

③D-Sensor temperature

④R-Sensor temperature

⑤RT-Sensor temperature

⑥P Factor display (Refer to water supply mode of automatic icemaker)

⑦Filter remaining time until change (First check ; 4,320Hr)

Refer to Filter Information Reset of CLED of front control panel.

4) Error is displayed only if there is any ; it is skipped if no error.

2. How to stop

1) Push “LOCK” button 1 time.

2) It stops automatically in 4 minutes from the start.

3. All the error Codes are reset if they turn to be normal.

4. Error code

INPUT CONTROL OBJECT

CONTENTS REMARKS

Temperature Control Buttons 88 Display CLED

Display forced defrost mode for A/SD2

Display Full Down modeCo

Return after defrosting : abnormal or defectiveF3

Cycle : abnormal or defectiveC1

Full ice switch : errorEu

Drop the ice while EtEA

Micro switch : errorES

Water supply : errorEg

Horizontal switch : errorEt

Flow sensor : defectiveEF

I-sensor : disconnection (“Lo”), short (“Hi”)EI

Home bar Door Switch : defectivedH

F-Door Switch : defectivedF

R-Door Switch : defectivedr

D-sensor : disconnection (“Lo”), short (“Hi”)d1

RT-sensor : disconnection (“Lo”), short (“Hi”)rt

R-sensor : disconnection (“Lo”), short (“Hi”)r1

F-sensor : disconnection (“Lo”), short (“Hi”)F1

CONTENTSERROR CODE

4-10-2. Dispenser Model (CLED Display of Front PCB)

23

1) “F1” error

Cause : F-sensor disconnection or short

Check point : Measure the resistance between both terminals after separating CN8 (or CN15)

of the Main PCB. (Refer to the 5-2.)

If F-sensor is disconnected or shorted , change the F-sensor in the freezer compartment.

How to reset : If F-sensor is normal, the error is terminal temperature.

CONTENTS REMARKS

2) “R1” error

Cause : R-sensor disconnection or short

Check point : Measure the resistance between both terminals after separating CN7 (or CN14)

of the Main PCB. (Refer to the 5-2.)

If R-sensor is disconnected or shorted , change the F-sensor in the refrigerator compartment.

How to reset : If R-sensor is normal, the error is terminal temperature.

7) “F3” error

Cause : in case defrosting return is done by time limit of 80 min

Check point : Measure the resistance between both terminals of the defrost heater.

(Assembled with evaporator)

If the resistance is ∞Ω (disconnected) or 0Ω(short) change the

3) “rt” error

Cause : RT-sensor disconnection or short (full down)

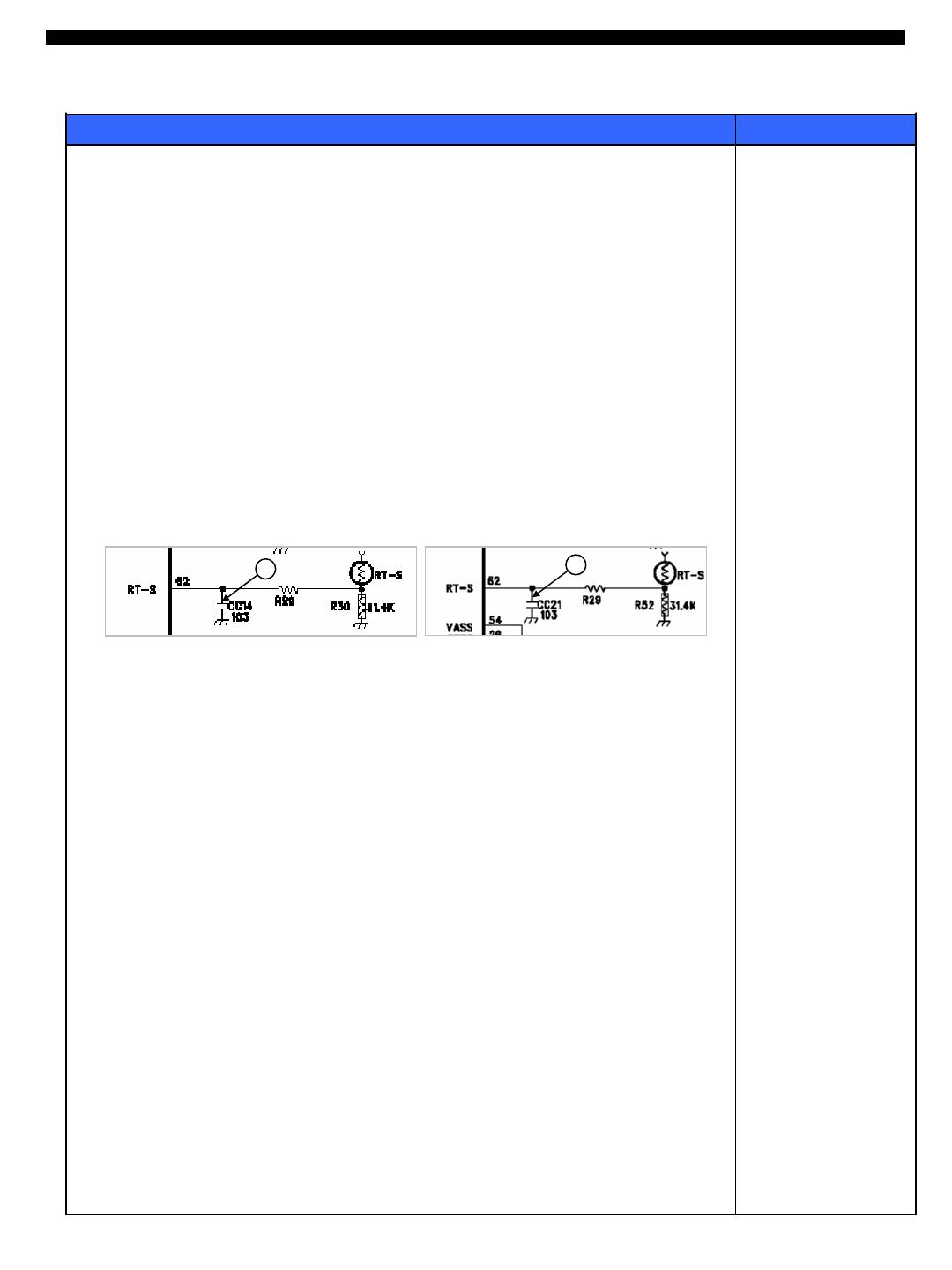

Check point : Measure the voltage of “A” part on the Main PCB.

If the voltage is 0.5V~4.5V, it is normal.

If the voltage is 0V (short) or 5V (disconnected), change the RT-sensor on the Main PCB

How to reset : If RT-sensor is normal, the error is terminated automatically.

< Basic Model >

A

< Dispenser Model >

A

4) “d1” error

Cause : D-sensor disconnection or short (full down)

Check point : Measure the resistance between both terminals after separating CN8 (or CN15)

of the Main PCB. (Refer to the 5-2.)

If D-sensor is disconnected or shorted , change the D-sensor on the evaporator.

How to reset : If D-sensor is normal, the error is terminated automatically.

5) Door error (“dF” “dR” “dH” on display)

Cause : in case it senses that door is open for more than 1 hour.

Check point : F/R door is opened or not.

6) “C1” error

Cause : in case comp. works for over 3 hours when D-sensor temp. is over -5℃

Check point : Refrigerant leakage.

8) “d2” mode (A/S forced defrosting mode)

Push “REFRIGERATOR SET” button 5 times while pushing “FREEZER SET” button

simultaneously.

Control : A/S forced defrosting control (Pre-cool is deleted)

If D-sensor temp. is over 10℃, the mode is terminated automatically.

Refer to the 4-3. .

5. Control way of Error (if any)

24

9) “EI”ERROR

Cause : I-SENSOR disconnection / short

Check point : Measure the resistance between both terminals after separating CN11

of the Main PCB. (Refer to the 5-2.)

If F-sensor is disconnected or shorted , change the I-sensor in the automatic ice maker.

CONTENTS REMARKS

10) “EF” ERROR

Cause : When Flow-sensor ERROR (There is no Pulse during some time)

The number of pulse signal is below 10 by 1 sec during water supply.

Check point : Water supply line

13) “Ea” error

Cause : Malfunction of ice drop motor.

Check the motor by pushing test switch.

11) “Eg” ERROR

Cause : I-sensor temp (5min after water supply) doesn’t go up.

Check the I-sensor or water supply line.

12) “ES” error (MICRO switch error)

Cause : When it senses 1min continuously

Check the MICRO switch of the dispenser.

14) “Eu” error

Cause : Switch (which senses if the ice is full or not) is in error.

Control : When dropping the ice, the motor just rotates 90 degree.

Termination : When the switch is in normal.

15)“EA“ ERROR

Cause : When sensing Ice dropping by time 3 times in level sensor SW Error.

Control : Stop of Ice Maker

Termination : With normal level switch.

Re-input of power or push if icemaker test switch.

16)“Et” ERROR

Cause : Level switch error (No pulse is sensed for some time)

Control : By time (Supply mode is skipped)

Termination : Normal condition.

* When all ERROR CODE is normal, the Refrigerator reset

25

Element A/S Function

INPUT CONTROL OBJECT

CONTENTS REMARKS

Each button Resistance of R-sensor Mid ON/OFF Point

“REF.TEMP”+ “FRZ.TEMP” 5 timesError display

“FRZ.TEMP”+ “FRZ.DOOR” OPEN/CLOSE 5 timesDemo function

“REF.TEMP”+ “FRZ.DOOR” OPEN/CLOSE 5 timesPull Down

“FRZ.TEMP” + “REF.TEMP” 5 timesForced Defrosting

1. All the modes are started “LOCK” mode (except “FILTER RESET” mode)

2. Element A/S Function

INPUT CONTROL OBJECT

CONTENTS REMARKS

Each button Resistance of R-sensor Mid ON/OFF Point

“WATER/ICE” + “ICE MAKER LOCK” 5 timesIce maker test

“WATER/ICE”+ “RESET WATER FILTER” 5timesEEPROM clear

“FREEZER SET”+ “SUPER FREEZER” 5 timesError display

“REFRIGERATOR SET”+ “FREEZER SET”+ “WATER/ICE”5 timesPull Down

“REFRIGERATOR SET” + “WATER/ICE” 5 timesDemo function

Push “RESET WATER FILTER” for 3 secondsReset water filter

“FREEZER SET” + “REFRIGERATOR SET” 5 timesForced Defrosting

4-11. Summary of Function

4-11-1. Basic Model (Inner Control)

4-11-2. Dispenser Model (Front PCB)

26

1. Filter Exchange Information : Record as a real-time from the point of

power input

2. P Factor (Information about Ice Maker)

INPUT CONTROL OBJECT

CONTENTS REMARKS

None 1. F-FAN, R-FAN, C-FAN

INPUT CONTROL OBJECT

CONTENTS REMARKS

Full ice sensing switch

Ice Maker Lock

Sensors Ice separating motor

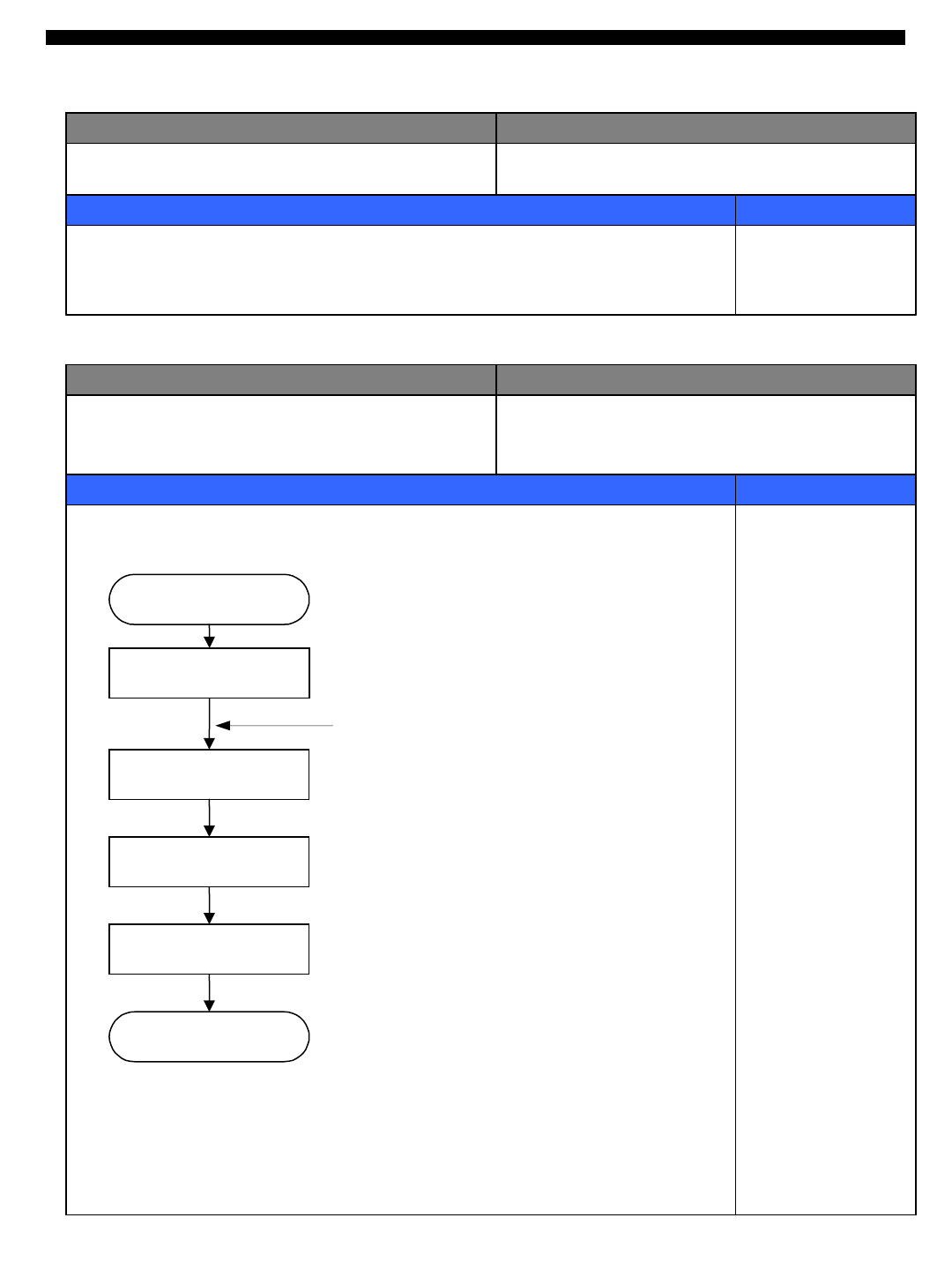

1. Flow of ice making

1) Press TEST switch under the Icemaker for more than 1 second and test starts.

* Test mode starts from ice separating mode.

* In case test switch has an error of short, test is done only once.

START

Ice making mode

Ice separating mode

Water supply mode

Water supply

check mode

RETURN

Ice is being made

▶

▶Ice tray is twisted to separate

ice cubes

▶Water is supplied to ice tray

▶Check is water is supplied OK.

(water supply stand by)

4-12. Back up Function (Basic Model)

4-13. Automatic Icemaker ( Dispenser Model)

27

CONTENTS REMARKS

2) With the initial power input, Ice tray turns to be horizontal and ice making

mode starts.

3) Control of water hose heater

* Heater is always ON if RT-sensor has an error or RT is below 15 degree.

* Heater is always ON for 60 minutes (max. Limit time) if Flow-sensor has

an error

4) Water supply stand-by

Condition : if ice is sensed full

Operation : proceeds to Ice making mode (Ice separating and water supply Modes stop)

5) Crusher Function

It stops operation when freezer door is open

It operates if freezer door is closed.

2 Ice making mode

START

130 min passed?

I-S＜－12.5℃

Ice saparating mode

I-S＜-9.5℃

15 min passed?

NO

NO

YES

YES

YES

NO

NO

YES

1) Ice making stops if ice-sensor is below -12.5℃after 130 minutes.

2) Ice making also stops if ice-sensor is below -9.5℃for 15 minutes, though

ice-sensor is not below -12.5℃after 130 minutes.

3) In case of ice sensor, ice making stops after 4.8 hours.

28

CONTENTS REMARKS

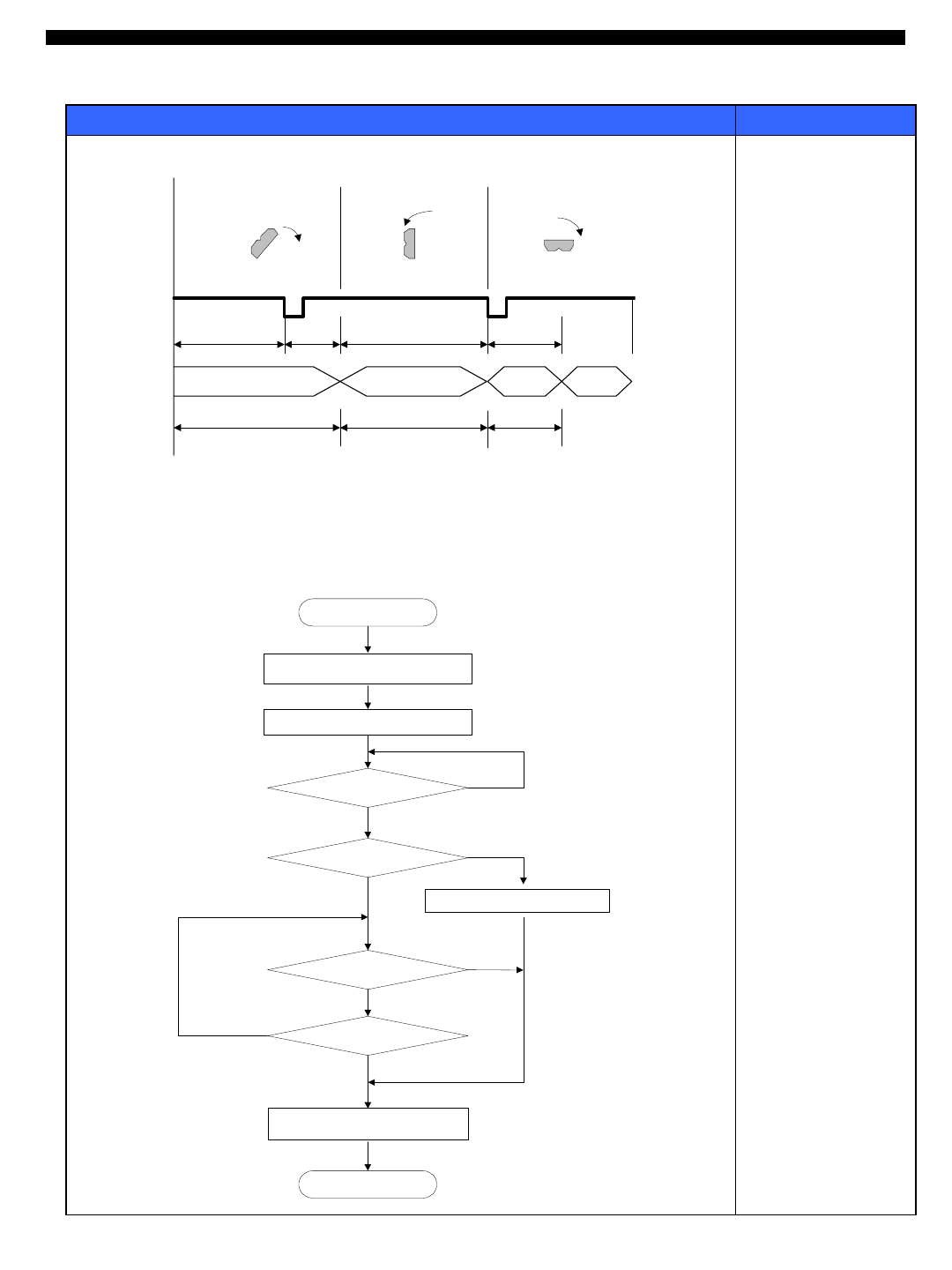

3. Ice separating (drop) mode

CCW CW STOP

CW

motor

revolution

level SW

status of

ice tray

Horizontal position

Ice separation start

8~11sec MAX1.1sec 8.5~12.2sec 0.2sec

normal

level SW

level SW

error

1.1 sec11 sec10 sec

1) Time of each zone used to verify level switch error

2) The rotation of motor is sensed at each zone

3) In case of level switch error, ice separation is done by time.

4) If ice separating motor has error, the mode stop.

4. Water supply mode

START

Water supply valve ON

Water flow Pulse Count = 0

N

Water flow Pulse spec

〉Pulse spec

END

water supply time 〉time spec

water supply valve OFF

Y

1sec passed after

water valve ON ?

Water flow Pulse > 10

Flow-Sensor Error mode operation

Y

N

Y

Y

N

N

29

CONTENTS REMARKS

1) Water supply valve is open when water supply mode starts after separation of ices.

2) Water is supplied by time in case sensor has error.

3) Factor valve is variable which can be useful in AS action

①Water flow pulse is set to 238 if flow sensor is in normal condition.

(If water is supplied by time, maximum water supply time 165 seconds)

②In case water flow sensor has error, water time is 5.5 seconds.

5. Water supply check mode

5 minutes after water supply the status can be checked by RT-sensor and increase

of temp. Ice sensor.

-5℃-6℃-7℃-8℃-9℃-10℃I-S

41℃↑~41℃~31℃~21℃~15℃9℃↓RT-S

4-14. Dispenser Control Function

INPUT CONTROL OBJECT

CONTENTS REMARKS

Dispenser switch

WATER/ICE Button

ICE MAKER LOCK Button

Freezer Door Switch

Dispenser Lamp

Crusher Motor

Flap Solenoid

Crusher Solenoid

Dispenser Water Valve

1) Initial mode : water

(Mode change : Water →Cubed ice →Crushed ice)

- Selected icon LED turns ON and others are OFF.

2) ICE MAKER LOCK Button

Icemaker Lock function and its ICON Turn ON/OFF by pressing the button.

3) Display

①Water ICON turns ON as default mode

②The ICON of each mode turns ON by pressing its button.

(If display switch makes error during operation of a mode, its ICON turns OFF)

③When Icemaker Lock ICON turns ON.

- ICE MAKER LOCK ICON turns ON

- If it is in the mode of Cubed Ice or Crushed Ice, the mode is changed to

Water and Water ICON turns ON

- If there is no button input for 1 hour after selecting Cubed Ice or Crushed

Ice the mode turns to Water (default)

30

CONTENTS REMARKS

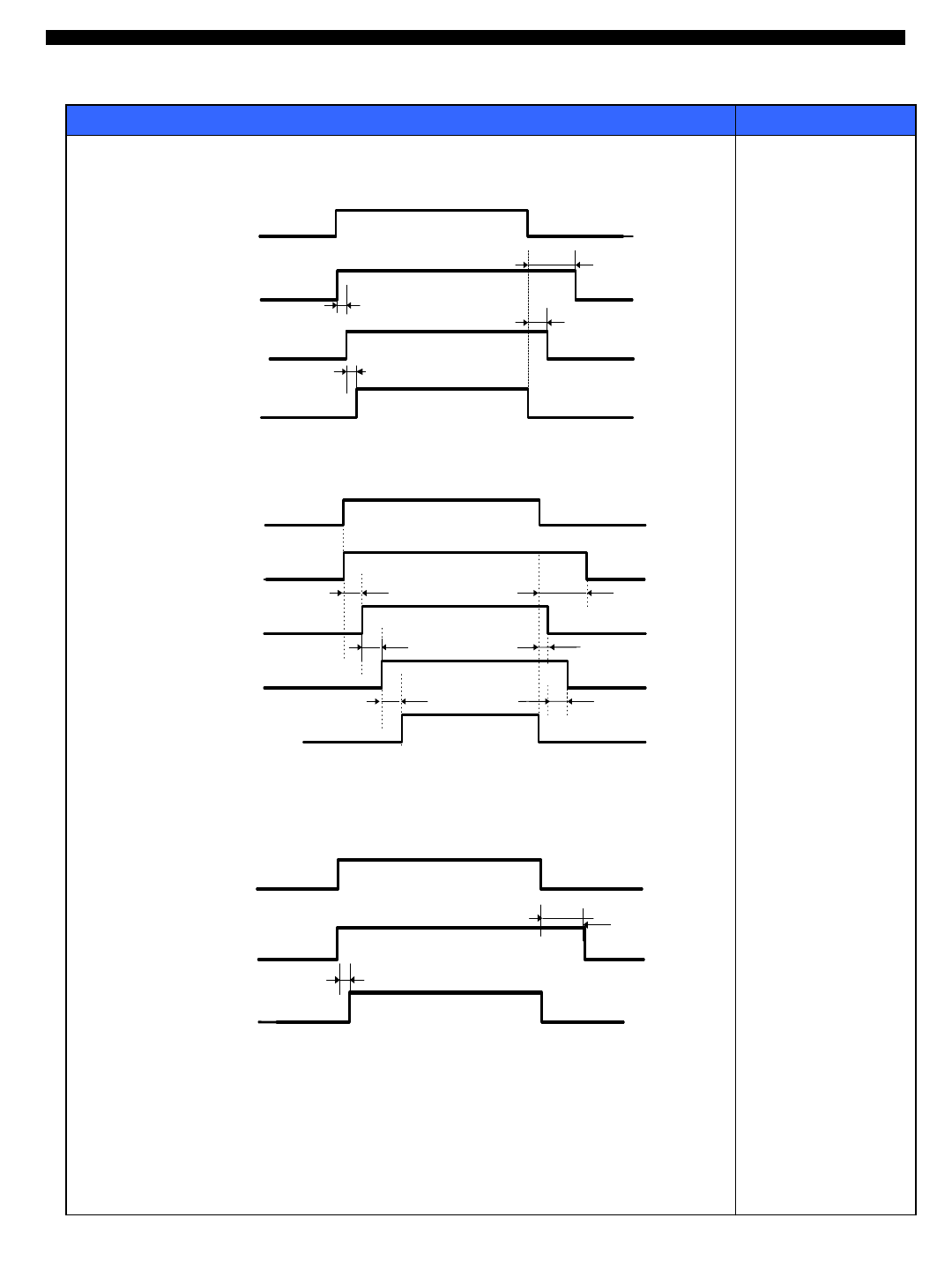

4) Control Flow & Timing Chart

①Crushed Ice

②Cubed Ice

③Water

Delay time : A = 500ms, B = 500ms, C = 2.0s, D = 5.0s

D.P SW

Gear Motor

D.P Lamp

D.P S/V

(Flap)

D

A

A

C

D.P SW

Cube S/V

D.P S/V

(Flap)

Gear Motor

D.P Lamp A

C

A

A

B

D

D.P Lamp

D.P SW

Water S/V

D

A

31

5-1. Power Circuit Diagram

5. CIRCUIT OPERATION

- Basic Model

5Vdc14.5Vdc12Vdc310Vac230VdcVoltage

CE6CE4CE3CE1MC1

EDCBA

Parts

A

- Dispenser Model

B

D

C

E

AB

C

D

E

※Voltage of every part

※Caution : Since high voltage (DC310V) is maintained at the power terminal, please take a measure after more

than 3minutes have passed after removing power cords in the abnormal operation of a circuit.

32

[F-sensor]

1) It senses the temperature of freezer compartment and control Comp., F-fan ON/OFF

2) How it works;

-19℃-16℃-11℃Working Temp.

≒3.24V

≒9.32㏀

Low ON

≒2.73V≒2.93VSensing Voltage

≒15.58㏀≒15.19㏀Resistance

High OFFMid OFFWorking Point

[R-sensor]

1) It senses the temperature of refrigerator compartment and control R-fan ON/OFF

2) How it works;

3.2℃5.2℃7.7℃Working Temp.

≒2.96V

≒23.33㏀

Low ON

≒2.72V≒2.83VSensing Voltage

≒24.76㏀≒24.05㏀Resistance

High OFFMid OFFWorking Point

[D-sensor]

1) It senses return point of defrosting heater.

2) How it works;

13℃Working Temp.

≒3.08V

≒22.56㏀

Return point of defrosting heater

Sensing Voltage

Resistance

Working Point

CONTENTS REMARKS

5-2. Function of Each Sensor

- Dispenser Model

* In case temperature of refrigerator compartment is weak or insufficient though comp.

and R-fan operate in normal way;

1) Cut J1 on the M-PCB, then temp. is lowered 1.5℃than [Mid OFF point]

2) Cut J1 and J2 on the M-PCB, then the temp, is lowered 3℃.

IC1

(MICOM)

Compensation of

R-sensor ON/OFF temp.

A

C

B

33

CONTENTS REMARKS

- Dispenser Model

[F-sensor (A)]

1) It senses the temperature of freezer compartment and control Comp., F-fan ON/OFF

2) How it works;

-19℃-16℃-11℃Working Temp.

≒3.24V

≒9.32㏀

Low ON

≒2.73V≒2.93VSensing Voltage

≒15.58㏀≒15.19㏀Resistance

High OFFMid OFFWorking Point

[R-sensor (B)]

1) It senses the temperature of refrigerator compartment and control R-fan ON/OFF

2) How it works;

3.2℃5.2℃7.7℃Working Temp.

≒2.96V

≒23.33㏀

Low ON

≒2.72V≒2.83VSensing Voltage

≒24.76㏀≒24.05㏀Resistance

High OFFMid OFFWorking Point

[D-sensor (C)]

1) It senses return point of defrosting heater.

2) How it works;

13℃Working Temp.

≒3.08V

≒22.56㏀

Return point of defrosting heater

Sensing Voltage

Resistance

Working Point

* In case temperature of refrigerator compartment is weak or insufficient,

though comp. and R-fan operate in normal way;

1) Cut J18 on the M-PCB, then temp. is lowered 1.5℃than [Mid OFF point]

2) Cut J18 and J19 on the M-PCB, then the temp, is lowered 3 ℃

IC1

(MICOM)

Compensation of

R-sensor ON/OFF temp.

A

B

C

D

34

1. Circuit Diagram

#14≒12V

#12≒12V

#10≒12V

#14≒0.7V

#12≒0.7V

#10≒0.7V

IC7

#3≒0V#3≒5.0VRelay 3Louver Heater

OFF ConditionON Condition

#5≒0V#5≒5.0VRelay 5D-Heater

Relay 1

Control Mode

Method

IC7

IC ULN2004

Output pin

#1≒5.0V

MICOM Port

#1≒0V

MICOM Port

Comp

IC ULN2004

Output pin

Control

CONTENTS REMARKS

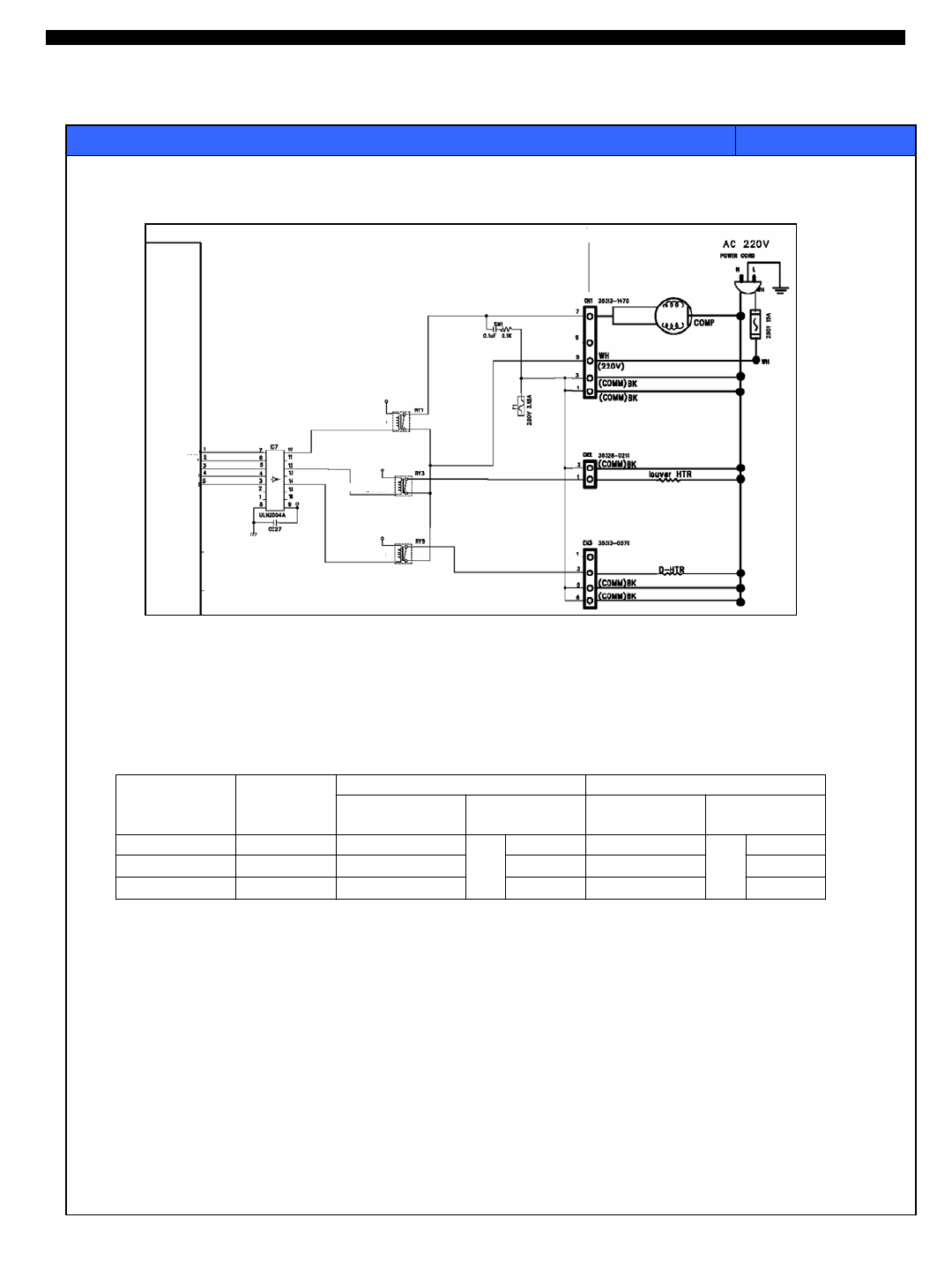

5-3. Relay Function

- Basic Model

2. How it works;

IC1

(MICOM)

Comp

D-Heater

Louver Heater

D-Heater

Louver Heater

Comp

R-Lamp

F-Lamp

35

1. Circuit Diagram

CONTENTS REMARKS

- Dispenser Model

2. How it works;

#15≒12V

#14≒12V

#13≒12V

#12≒12V

#11≒12V

#10≒12V

#15≒12V

#14≒12V

#13≒12V

#12≒12V

#11≒12V

#10≒12V

#15≒0.7V

#14≒0.7V

#13≒0.7V

#12≒0.7V

#11≒0.7V

#10≒0.7V

#15≒0.7V

#14≒0.7V

#13≒0.7V

#12≒0.7V

#11≒0.7V

#10≒0.7V

OFF ConditionON Condition

#3≒0V#3≒5.0VRelay 3H/B Heater

IC8

#7≒0V

IC8

#7≒5.0VRelay 7Water (Dispenser) #6≒0V#6≒5.0VRelay 6Water (Ice) #5≒0V#5≒5.0VRelay 5Dispenser-Solenoid #4≒0V#4≒5.0VRelay 4Dispenser-Lamp

#9≒0V#9≒5.0VRelay 9D-Heater #8≒0V#8≒5.0VRelay 8Geared-Motor

#10≒0V#10≒5.0VRelay 10F-Lamp #11≒0V#11≒5.0VRelay 11Cube-Solenoid Relay 12

Relay 2

Relay 1

Control Mode

Method

IC7

IC ULN2004

Output pin

#12≒5.0V

#2≒5.0V

#1≒5.0V

MICOM Port

#12≒0V

#2≒0V

#1≒0V

MICOM Port

IC7

Comp

IC ULN2004

Output pin

Water Pipe Heater

R-Lamp

Control

IC1

(MICOM)

D-Heater

Louver Heater

Comp

R-Lamp

F-Lamp

36

5-4. Fan Function

- Basic Model

- Dispenser Model

- Vref is the reference voltage for the adjustment of the output voltage by the voltage

distribution of Vs (Maximum output voltage), and the output voltage applied to the fan

is determined by the PWM control using the software.

2. Explanation for the operation

* TA7291P is the drive IC for the only DC motor, and used for control of the fan motor

* One input and output is used for the control of the fan motor

Motor IC No.2 Pin

(R:MT2/F:MT3/C:MT1)

Motor IC No.5 Pin

(R:MT2/F:MT3/C:MT1)

Low

High

Output

StopLow

13VHigh

Remark

Input

1. Circuit Diagram

37

6-1. Wiring Diagram

6. DIAGRAM

- Basic Model

38

- Dispenser Model

39

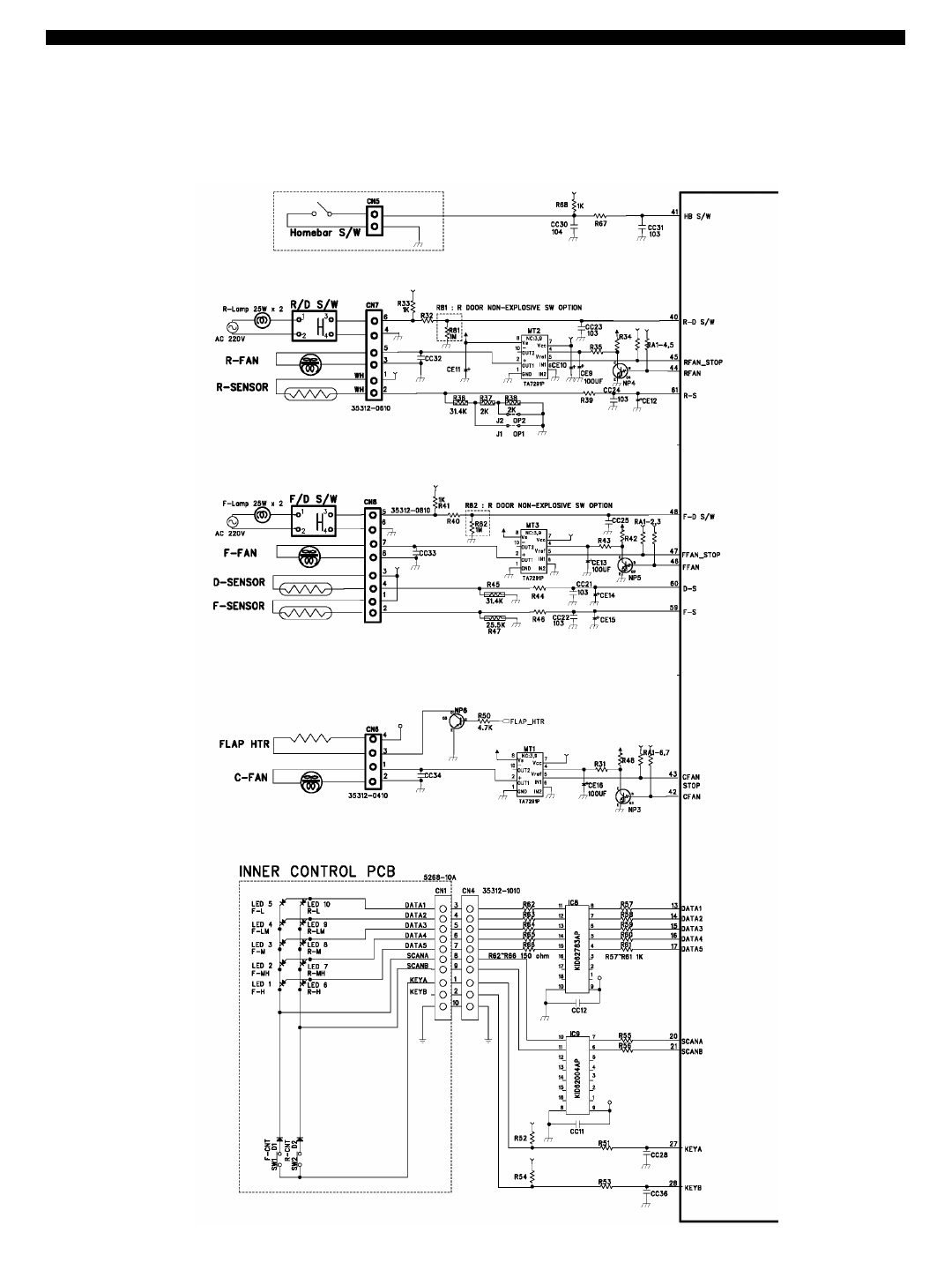

6-2. Circuit Diagram of Main PCB

- Basic Model

40

41

- Dispenser Model

42

43

7. COMPONENT LOCATE WIEW

7-1. Front View ( Dispenser + Home bar Model )

F-Sensor

Automatic

Ice Maker Geared

Motor R-Sensor R-Sensor Inner

Controller

F-Door

Switch R-Door

Switch R-Door

Switch

Freezer Compartment

(Dispenser Model)

F-Lamp

F-Fan

Motor R-Lamp

R-Fan

Motor

7-2. Inner View

Refrigerator

Compartment

(Dispenser Model)

Refrigerator

Compartment

(Basic Model)

Front PCB

Dispenser

Button

Home bar

Door

(Option)

44

D-Sensor

Temp

Fuse

Defrost

Heater

Water Pipe

Evaporator

Compressor Condenser

DryerRunning

Capacitor OLP

& PTC Water

Valve

Condenser

Fan-Motor Tray Drip

Power cord

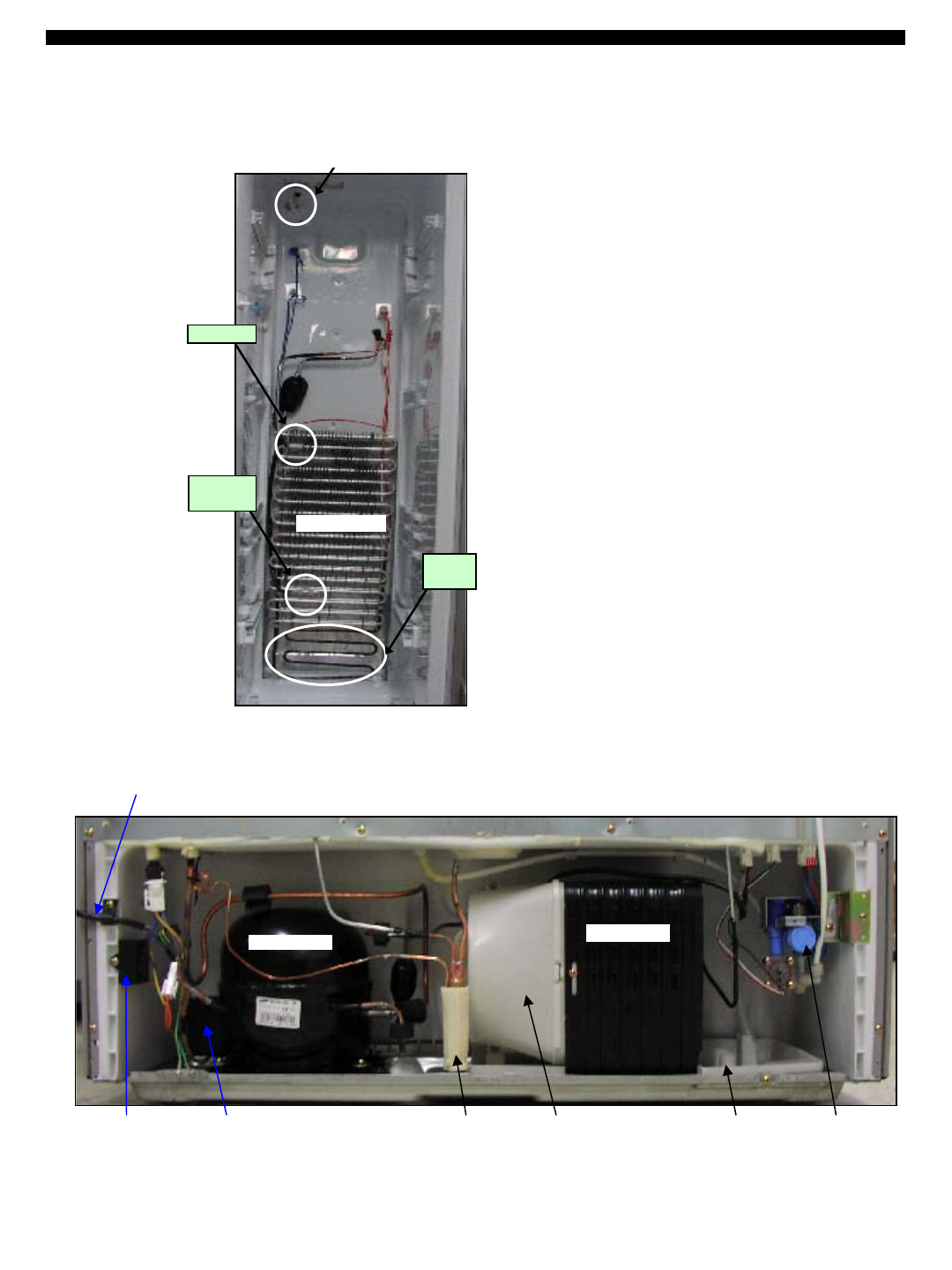

7-3. Evaporator

7-4. Machine Compartment

45

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

15

26

37

48

▷Pull forward Ice Storage Case ▷Remove 2 screws at the Cove

Guide Cab W/Tube A.

▷Remove 2 screws. ▷Disassemble Cover Guide Cab W/Tube A

▷Pull forward Ice Maker. ▷Pull forward Hose Ice Maker Tube As.

▷Remove Water Hose Heater's 2P housing. ▷Check Hose Ice Maker Tube As.

2) How to check Hose Ice Maker Tube As.

How to check CRITERION

▷Measure the resistance

of two wire

▷Good: 9680Ω(±8%)

(8900 ~ 10456Ω)

▷If defective, change

8. HOW TO CHECK EACH PARTS

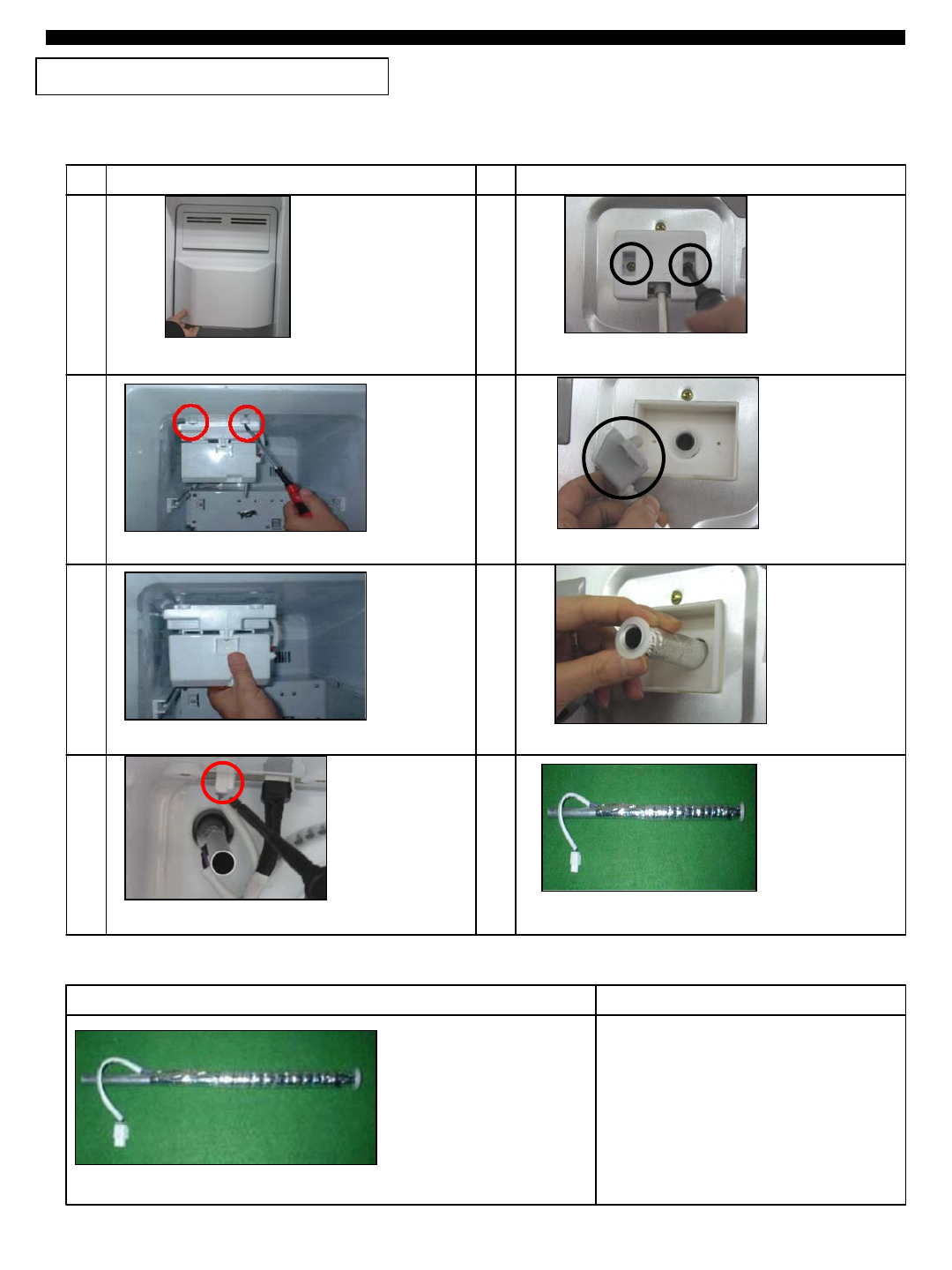

8-1. Hose Ice Maker Tube Assembly

1) Disassembling Procedure

46

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

14

25

36

▷Remove 2 screws. ▷Pull forward Bracket Geared Motor.

▷Unscrew (4 points).

▷Separate 6 pin housing of Bracket

Geared Motor from the top connector. ▷Check Solenoid Valve and Geared Motor.

2) How to Check Hose Ice Maker Tube Assembly

SPEC. CRITERION

▷GOOD : 11.3Ω(±10%)

(10.8 ~ 12.7Ω)

▷DEFECTIVE ;

Change the Geared Motor.

PARTS HOW TO CHECK

▷GOOD : 145Ω(±8%)

(133 ~ 156Ω)

▷DEFECTIVE ;

Change the Cube Sol Valve.

▷Check resistance value of

2 terminals with a Multi Tester.

▷SPEC. NAME

:DAG-6502DEC

▷VOLTAGE

:220/240V,50Hz

▷SPEC. NAME

:Cube SN8

▷VOLTAGE

:220/240V,50Hz

▷Check resistance value of

2 terminals with a Multi Tester.

Geared Motor

Cube Sol Valve

8-2. Bracket Geared Motor Assembly

1) Disassembling Procedure

Unscrew (red 4 screws).

Unscrew (blue 4 screws).

47

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

13

2

▷Insert (-) screw driver into bottom hole of

Dispenser Button Guide.

Pull up forward to remove the guide.

(Be careful not to damage guide surface.)

▷Remove Micro switch.

2) How to Check Micro Switch

CRITERION

▷GOOD :

▷DEFECTIVE :

Change Micro Switch.

PARTS HOW TO CHECK

SPEC. NAME

: VP333A-OD-8

VOLTAGE

:125V,3A

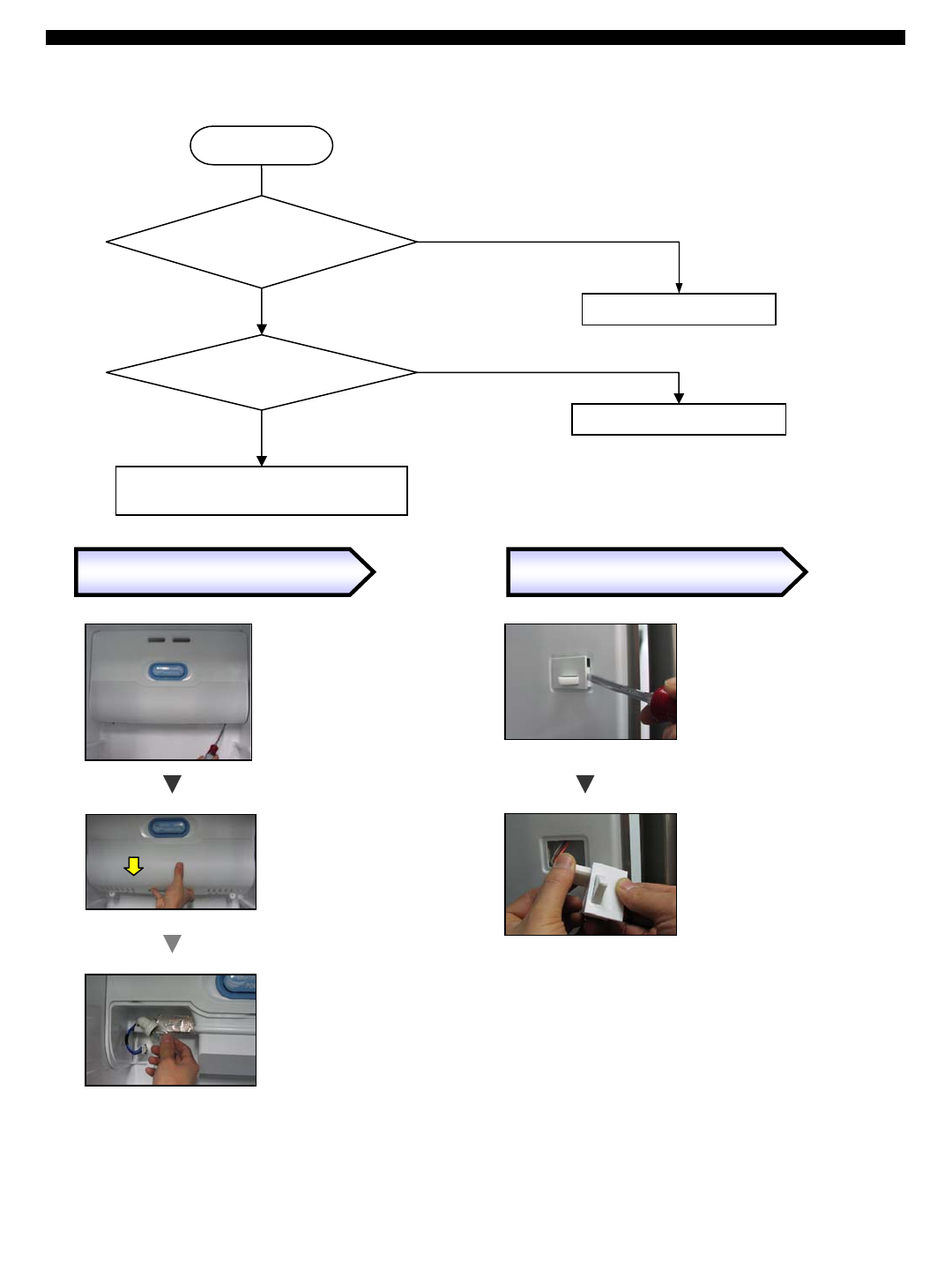

8-3. Dispenser Micro Switch

1) Disassembling Procedure

▷Check both terminals

(red circle) with a Multi Tester

(Tester Mode : Resistance (Ω).

Tact Switch

(Blue Circle) Terminals

(Red circle) Tester Result

(Resistance Mode)

ON (Close) Connected Some Value

OFF (Open) Disconnected No value (0)

▷Check Micro Switch.

▷Separate wire connectors

from Micro Switch.

4

48

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

14

36

▷Separate 2 housings of 10P / 7P

from Front PCB.

(Do not hold only wires to pull out.)

▷Unscrew (3 points) to remove Sol Valve.

▷Unscrew (2 points) to remove Box

Dispenser Shut.

▷Unscrew (1 point) to remove Cover Ice Flap.

2) How to Check Micro Switch

8-4. Dispenser Solenoid Valve

1) Disassembling Procedure

SPEC. CRITERION

▷Good : 215Ω(±10%)

(193 ~ 236Ω)

▷DEFECTIVE : 0

Change Sol Valve.

PARTS HOW TO CHECK

▷GOOD : 96Ω(±8%)

(88 ~ 104Ω)

▷DEFECTIVE ;

Change Flap Heater AS.

▷SPEC. NAME

:SOL2003-01B

▷VOLTAGE

:220/240V,50Hz

▷VOLTAGE

:DC 12V,1.5W

▷Check resistance value of

both terminals with a tester.

Dispenser

Sol Valve

Flap Heater

Assembly

▷Check resistance value of

both terminals with a tester.

25

▷Insert (-) screw driver into bottom left groove

of Cover Dispenser Box. Pull forward with a

snap.(Be careful not to damage cover and

door surface.) ▷Separate 2 terminals from Sol Valve and

2P Housings from Cover Ice Flap.

49

8-5. Main PCB

1

2

3

4

5

6

ITEM REMARKNO CHECK POINT

Compensation of

Weak Refrigeration

→Making R-temp

cooler

1* Used when making R-temp. down

to compensate for weak refrigeration

without changing FCP temp. setting.

▷Cutting of J1 ; down by 1.5℃

▷Cutting of J1, J2 ; down by 3℃

Relay Power

Controller

2* To check normal voltage of each electrical devices

to & from Mi-com.

▷Check input & output voltage of MICOM and IC7

Fan Power

Controller

3* To check input & output voltage of Fan

▷#2 : Input

▷#5 : Output

Electric Current Fuse

4 * To check when each device does not work (250V,3.15A)

Time Shortening

Switch

5 * To shorten time in PCB checkup

(Pressing 1 time is regarded as 1 minute has passed.)

Regulator IC(5V)6 * To check voltage of MICOM and IC

Voltage check of IC#6 (Input :12V,Output : 5V)

J1

J2

- Basic Model

F R C

50

ITEM REMARKNO CHECK POINT

Compensation of

Weak Refrigeration

→Making R-temp

cooler

1* Used when making R-temp. down

to compensate for weak refrigeration

without changing FCP temp. setting.

▷Cutting of J18 ; down by 1.5 ℃

▷Cutting of J18, J19 ; down by 3℃

Relay Power

Controller

2 * To check normal voltage of each electrical devices

to & from Mi-com.

▷Check input & output voltage of MICOM and IC7, 8.

Fan Power

Controller

3* To check input & output voltage of Fan

Electric Current Fuse

4 * To check when each device does not work (250V,3.15A)

Time Shortening

Switch

5 * To shorten time in PCB checkup

(Pressing 1 time is regarded as 1 minute has passed.)

Regurator IC(5V)

6 * To check voltage of MICOM and IC

Voltage check of IC#6 (Input :12V,Output : 5V)

1

2

3

4

5

6

J18,19

- Dispenser Model

▷#2 : Input

▷#5 : Output

F R C

51

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

16

38

▷Pull forward ice maker. ▷Unscrew (3 points) Plate Gear Fixture.

▷Unscrew Fixture of Frame Ice Maker. ▷Check if ice dropping motor is normal (OK).

8-6. Ice Maker

1) Disassembling Procedure

27

▷Remove 2 screws on top front of ice maker. ▷Remove full ice sensing switch and level switch.

49

▷Separate Ice Maker Assembly from

Frame Ice Maker. ▷Remove 2 pin housing from Plate Gear Fixture.

510

▷Separate Cover I/M (A) from Cover I/M (B)

with a (-) screw driver.

▷Remove I-sensor (ice sensor) from

Case Icing As.

* Follow the reverse order when assembling.

52

PARTS HOW TO CHECK CRITERION

Ice Dropping Motor

2) How to Check Ice Maker

▷Check resistance value of 2 wires

with a Multi Tester.

▷GOOD : RS-360RH-14250

: 6 ~ 14Ω

▷DEFECTIVE :

Change the motor.

I-Sensor

(Ice Sensor)

▷Check resistance value of 2 wires

with a Multi Tester.

▷GOOD : 4.4 ~ 50kΩ

(It depends on surround temp.)

▷DEFECTIVE :

Change the sensor.

Full Ice

Sensing Switch

▷Check resistance value of 2 terminals

with a Multi Tester.

▷GOOD :

▷DEFECTIVE :

Change the switch.

Level Switch

▷Check resistance value of 2 terminals

with a Multi Tester.

▷GOOD :

▷DEFECTIVE :

Change the switch.

Tact Switch

(Blue Circle) Terminals

(Red circle) Tester Result

(Resistance Mode)

ON (Close) Connected Some Value

OFF (Open) Disconnected No value (0)

Tact Switch

(Blue Circle) Terminals

(Red circle) Tester Result

(Resistance Mode)

ON (Close) Connected Some Value

OFF (Open) Disconnected No value (0)

53

1) Insert a flat tip driver into the left down groove of panel frame and snap it out smoothly.

2) Separate 2 housings of 10P / 7P from Front PCB. (Do not hold only wires to pull out.)

3) Unscrew (7 points) to remove Front PCB.

* Follow the reverse order when assembling.

※How to replace Front PCB

Change the Main Fuse

(AC250V 15A)

(In the left side of

machine compartment)

Start

Power cord or Fuse

is disconnected ?

1’st power of SMPS

is on?

Main PCB Fuse is

disconnected?

Voltage

(DC12V/14.5V/5V) on

Main PCB is OK?

Wire connection

of F-PCB is OK?

Check power Cord connection

from machine compartment and

to CN1 of M-PCB.

Change F-PCB AS.

Change Main PCB

Change the Fuse

(AC250V 3.15A)

(on the Main PCB)

Y

N

N

Y

N

Y

Y

N

Y

N

Checkup and connect

F-PCB wires.

9-1. Faulty Start (F/R lights OFF , F-PCB Power OFF)

※Refer to the 5-1.

(Power circuit diagram)

9. TROUBLE DIAGNOSIS

54

Refer to error display

in operation and function

Start

Change the

Comp.

Change Fuse. Temp

Y

N

N

Y

N

Y

Y

N

Y

N

Change OLP/PTC

Change F/C-Motor

Change M-PCB

Check lead wire

Change the

Defrost Heater

Check ice formation on Eva.

And if refrigerant leak

is found, repair it.

N

N

Y

Y

Y

N

N

Defrost Heater : 192W (252 Ω)

※Left-lower side of Evaporator

(4th pipe from buttom)

OLP/PTC

is OK?

Does Comp.

work?

Any Error code

on F-PCB?

F/C-Motor

works OK? F/C-Motor

is OK?

Wiring connection

Is OK?

Temp. Fuse

Is OK?

Defrost Heater

Is Ok?

Ice formation on Eva.

Is OK?

Y

9-2-1. Freezing failure . (Foods are not frozen / cold.)

9-2. Freezer Compartment

※Refer to the 4-10.

(Error Display)

55

1) Remove foods.

2) Remove Ice Bucket,

shelves and cases in

Freezer compartment.

(1)

Removing and replacing Freezer parts

* Remove 2 screws

of Ice Maker.

* Remove the Housing

of Ice Maker AS.

(Right side)

* Remove 4 screws

of Geared Motor.

* Remove the Housing

of Geared Motor AS.

(Center)

(2)

(3)

(4)

(5)

56

* Remove light cover screws.

* Pull down smoothly the

bottom of light cover to

remove.

* Remove the screw of

bracket F-Lamp.

* Remove the left housing.

* Hold the end of F-Fan cover

and pull forward slowly.

* Remove the screw cap on

the F-Louver A with a flat

tip driver.

Removing and replacing Freezer parts

* Pull out smoothly the

bracket F-Lamp AS.

to remove.

* Remove 3 screws of

F-Louver A.

* Hold the end of F-Louver A

and pull forward slowly.

* Remove the housing.

* Remove the screw of

F-Return cover

and pull out cover.

* Hold the end of F-Louver B

and pull forward slowly.

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17

57

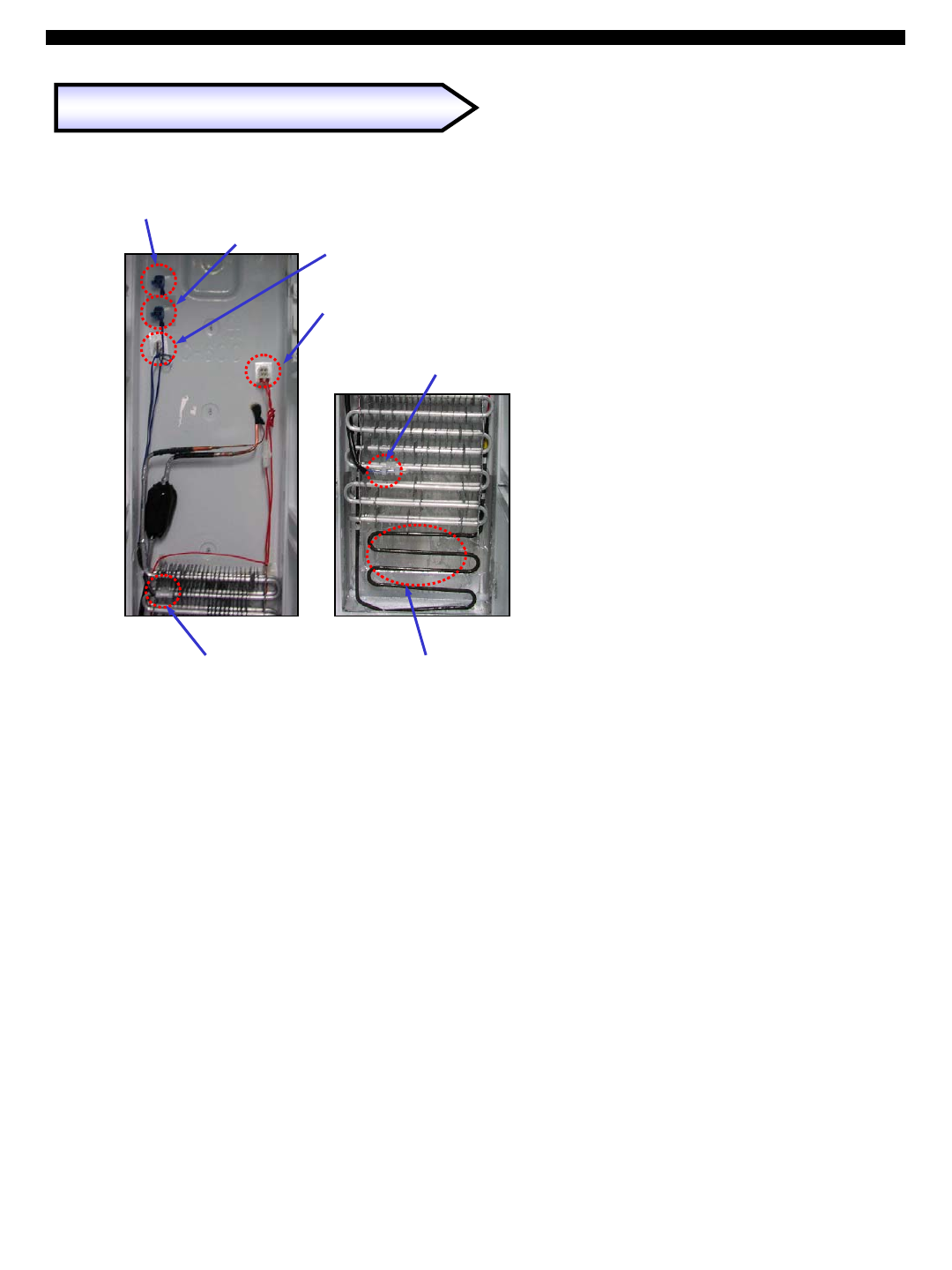

Removing and replacing Freezer parts

F-Louver B Heater Housing

D-Sensor Housing

1st : F-Louver B Heater Housing

2nd : None.

3rd : Defrost Heater Housing.

Temp. Fuse

Defrost Heater

D-Sensor Defrost Heater

Temp. Fuse Housing

58

Reassemble the door.

Start

Explain not to open

doors too frequently.

Y

N

N

Y

Remove the gap.

Wipe out dews on the

louver surface and run

the refrigerator again.

Change the louver assembly.

Y

N

Y

Y

Y

N

N

Make enough distance

between heat appliances

and refrigerator.

Y

N

N

9-2-2. Ice Formation on F-Louver

Dews are formed on the

gasket surface inside F

compartment ?

Gasket has a gap

between cabinet ?

Door is hanged

down ?

Door is open and closed

too frequently ?

Heat appliances are too

close to the refrigerator ?

Watery or hot foods are

stored in refrigerator

compartment ?

Louver heater is

disconnected ?

59

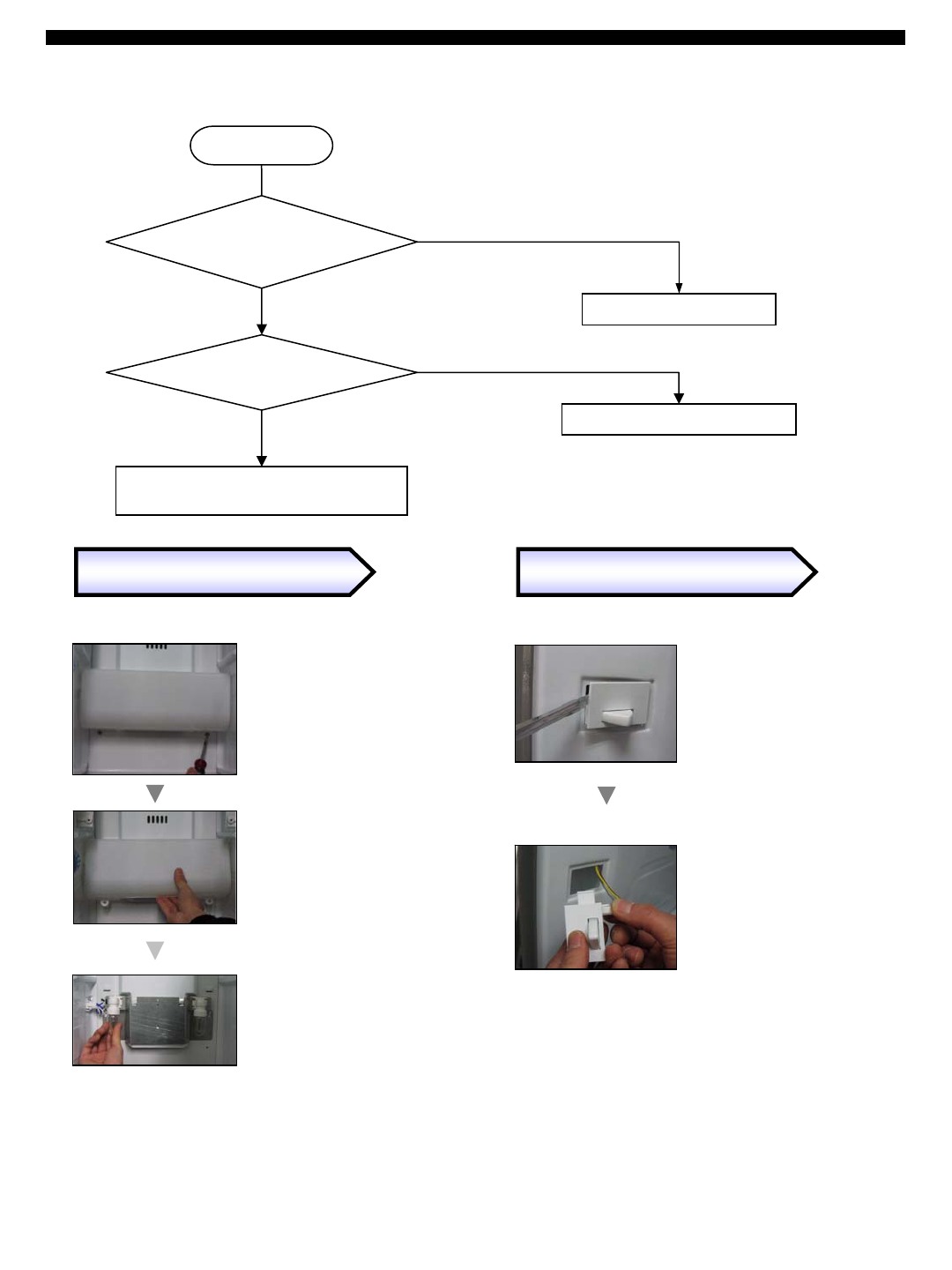

Change the light bulb.

Start

Repair the F-door switch.

Check the F door switch

connection and F-light socket.

Y

N

N

Y

Change of F Lights Change of F Door Switch

* Remove 2 screws

of light cover.

* Hold the bottom of light

cover and pull forward

to remove.

* Change the light bulb.

(AC240V 25W)

* Insert a flat tip screw

driver Into a gap of door

switch to pull forward.

* Disconnect the housing

and change the switch

for a new one.

①

②

③

①

②

9-2-3. Disconnection / breaking of Freezer Lights Wires

Freezer light filament is

disconnected or breaking ?

Connection of F door

switch is OK ?

※Be careful when changing

the switch. F and R door

switch are different in type

and shape.

※Follow the reverse order

of disassembling after

changing the switch.

※Follow the reverse order

of disassembling after

changing the light.

60

9-3. Refrigerator Compartment

Solve error code

problem, if any.

Start

Y

N

N

Y

N

N

Y

Y

Change

the R-Motor.

Change the Main PCB.

Check the wirings.

Explain not to place foods close to

R-sensor or cold air spout.

Explain not to open doors

unnecessarily or frequently.

N

Y

N

Y

Y

Refer to “Freezing

does not work.”

N

Reassemble doors.

Repair to eliminate

the gap of gasket.

Y

N

Y

N

Change the R-Sensor

and check connector.

Y

Y

N

N

9-3-1. Refrigeration failure (Foods does not get cool or cold soon.)

Any error mode

on F-PCB?

R-Motor works OK ? R-Motor is OK ?

Wiring connection

Is OK ?

R-Sensor is OK

(normal) ?

Freezer compartment

Is OK ?

Refrigerator gasket

have gap ? Gasket have

any gap ?

Door is hanged down

to make gap between

cabinet ?

Foods are placed just

close to R-Sensor ?

Refrigerator door

openings are too often ?

* Advise to use in “HIGH” mode

* Jumper cutting of Main PCB to

prevent weak refrigeration ;

→Option 1 : cut J18 to down 1.5℃.

→Option 2 : cut J19 to down 1.5℃.

※Refer to the 4-10.

(Error Display)

61

* Remove screws

of light cover.

* Hold the bottom

of cover and pull

forward to remove.

①

②

③* Change the light

bulbs.

(AC240V 25W)

Change the light bulb.

Start

Repair the R-door switch.

Check the R-door switch

connection and R-light socket.

Y

N

N

Y

Freezer light filament is

disconnected or breaking ?

Connection of R door

switch is OK ?

9-3-2. Disconnection / Breaking of Refrigerator Lights Wires

Change of R Lights Change of F Door Switch

※Follow the reverse order

of disassembling after

changing the light.

①

②

* Insert a flat tip screw

driver into a gap of door

switch to pull forward.

* Disconnect the housing

and change the switch

for a new one.

※Be careful when changing

the switch. F and R door

switch are different in type

and shape.

※Follow the reverse order

of disassembling after

changing the switch.

62

Reassemble the doors.

Start

Explain not to open

doors unnecessarily.

Y

Y

Repair to eliminate the gap.

Make enough distance between

the appliances and refrigerator.

Advise to cool down foods, wrap

or cover foods with much water

before storing in the compartment.

Repair and change R-motor.

Y

N

Y

Y

Y

N

N

N

N

Explain not to open doors

too long.

Y

N

N

N

Y

9-3-3. Dews on Refrigerator Compartment

Dews are formed

on the gasket inside

R-compartment?

Gasket has

Any gap ?

Door is

hanged down ?

Door is open too long ?

Door is open and closed

too frequently ?

Heat appliances are

used near the refrigerator ?

Watery or hot foods are

stored in the R-compartment?

R-fan works OK ?

63

Start

Explain the temperature modes.

Advise to set the temp. to

“Middle” or “LOW” mode.

N

Repair and/or Change

the R-check valve.

Change the R-sensor.

Y

N

N

Y

Check the R-sensor connection.

(Check the connector to Main PCB.)

N

Y

※Refer to “Repair /Change

of Check Valve”.

Y

9-3-4. Excessive Refrigeration of Vegetable Case

Refrigerator temp.

mode is “HIGH” ?

R-check valve

Works OK ?

Is there any

R-sensor error code ? R-sensor is OK ?

64

* Hold the bottom and

right of damper to pull

down to remove.

* Lift up a piece of Check Valve

Flap and insert a finger to the

valve frame to hold out.

⑤

⑦

⑥

⑧

Removing of Check Valve

* Remove screws

of light cover.

* Hold the bottom

of cover and pull

forward to remove.

①

②

③

④

* Disconnect light

housing.

* Remove screws with a

(+)screw driver.

65

Start

Level the refrigerator by

adjusting wheels.

☞Refer to User’s Guide

and SVC Manual.

Y

N

Set it right.

Y

N

Change the Rubber absorber.

Y

N

Attach a restrainer on the comp.

head to reduce vibration and

high frequency noise.

Y

N

Change the compressor.

Remarks

●Compressor sound is somewhat normal because it works like a heart to circulate the refrigerant in

the pipes during the refrigerator operation.

●Rattling or metallic touch sound of motor, piston of comp. can be heard when it starts or stops.

9-4. Operation Noise of Refrigerator

9-4-1. Comp. operation Noise

Refrigerator is leveled ?

Front cover or door gasket

is assembled wrong ?

Rubber absorber comp

is distorted or aged ?

Sound from Comp itself

or Vibration ?

66

Start

Attach an absorber gum

on the capillary tube.

N

Y

Apply a gum on the

accumulator.

Y

N

Apply a gum on the

accumulator.

Y

N

Fasten the evaporator in F-

compartment tightly against

touching (liner) surfaces.

N

Y

Explain refrigerator work

mechanism and sound to the

users or customers.

Remarks

●Water flowing sound, hiss or sizzling sound can make while refrigerant in the pipes is changing from

liquid to gas state when comp. starts or stops.

It is normal to the refrigerator.

9-4-2. Refrigerant Flow Sound

Water flowing or hiss sounds

from the refrigerator ?

Refrigerant sound of hiss or

sizzling sound when comp. starts ?

Refrigerant sound of hiss or

sizzling when comp. stops ?

Any shaking sound from

F-compartment

when comp. works ?

67

Troubleshooting of Evaporator Sound

1. Hiss Sound from Capillary Tube

1) “I” tube is used to connect the

capillary tube and evaporator.

(2 welding points : ①, ②)

2. Sizzling Sound from Accumulator

3. Shaking or trembling Sound of Evaporator

1 2

2) When such a sound is made,

attach a absorber on the tube

including 2 welding points.

Attach a absorber on point ③(accumulator).

1) Check whether evaporator is fastened tight

with the fasteners of ①, ②.

2) Insert a soft spacer (EPS) between left and right wall.

Evaporator not to be shaken or trembled during

refrigerator operation.

1

3

“I” tube 2

68

Remarks

●The fan is sending out cold air to circulate it through the compartments.

When the air is touching the surface of louver or liner wall, such sound can make.

Start

Change the fan.

N

Y

Set it right not to touch.

Y

N

Set it right not to move.

Y

N

Change the motor

assembly.

N

Y

Explain to the customers

how fan is working to

circulate cold air in the

compartments.

9-4-3. Fan Noise

Fan is damaged

or transformed ?

Fan is touching

the surround ?

Fan-motor assembly

is moving or shaking ?

Motor has its own noise

or vibration when working ?

69

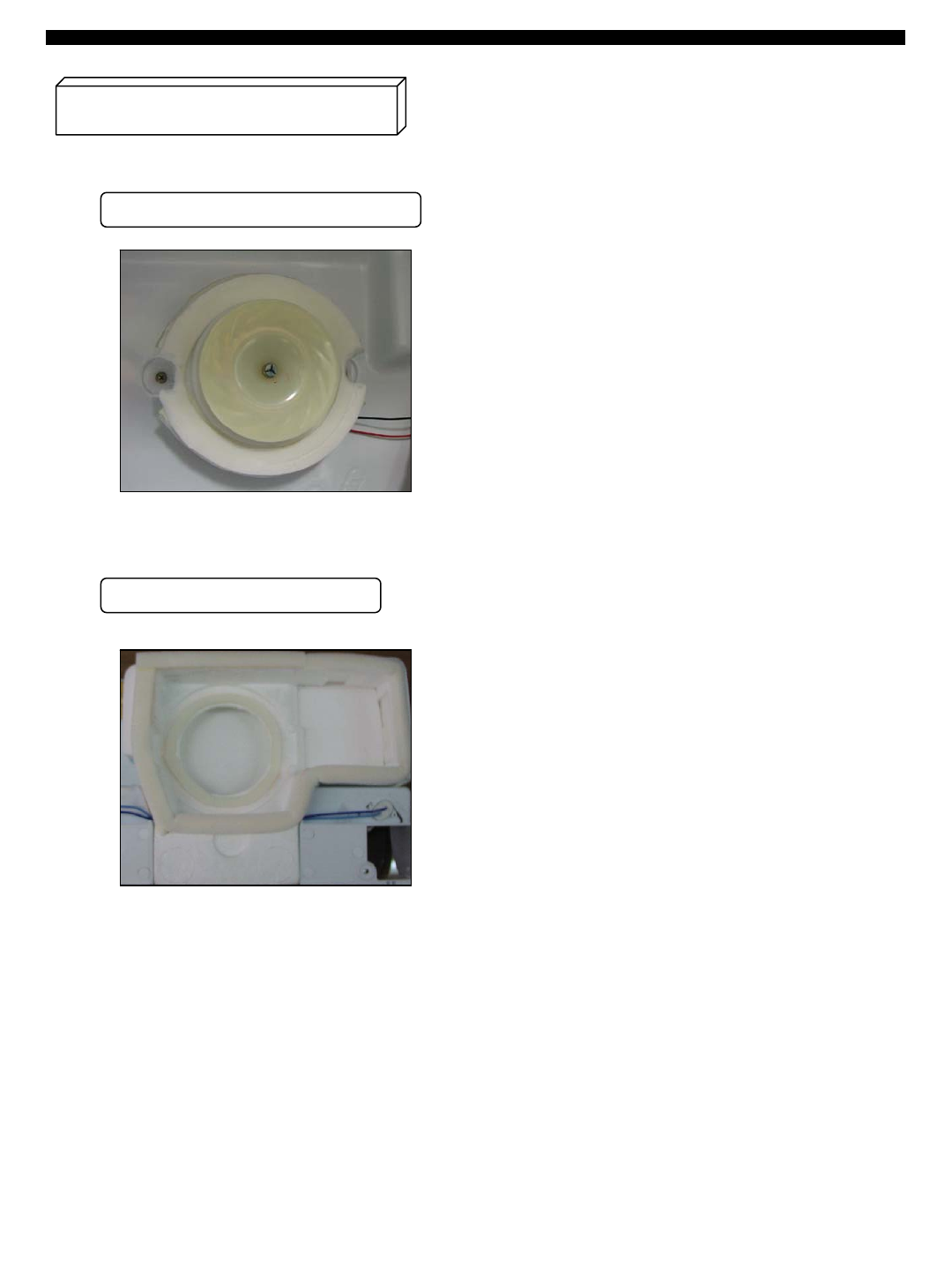

2) Check if fan motor and fan are hanged down.

Fan working sound can be louder if they are

not set right.

2. Any Touch Sound from Fan

Troubleshooting of Fan Noise

1. Fixing or Fastening of Fan Motor

1) Check if fan motor frame of the assembly is

fastened tightly with screws to the liner wall.

Unless it is tight, vibration of shaking can make.

1) Check if sealing sponge on the insulator

touches the fan.

If so, set it again not to touch it.

2) If any damage on the insulator around the fan

rotation is found, set the fan motor assembly right

not to touch it.

70

Remarks

●Refrigerant is erupting rapidly from the compressor to circulate pipes, so pipe shaking noise

can make to some degree.

●In case compressor vibration is sent to a pipe directly, apply vibration absorber rubbers to welding

points of the pipe and comp. or to a much bent point on the pipe.

Start

Separate the touching

pipes, if any.

N

Y

Apply cushion material between

Comp. base and Tray drip.

Y

N

Move or change the points of

vibration absorber rubbers on

the pipes to reduce the shaking.

Y

N

Attach a absorber

on the comp. head.

N

Y

Explanation to the users.

9-4-4. Pipe Noise

Pipes are touching

in the machine compartment ?

Tray drip makes

noise by Condenser shaking ?

Pipe itself is

shaking much ?

Compressor itself

is shaking much ?

71

Door switch is soaked with

water or there is water in

the switch ?

PCB input is OK ?

Start

Change the door switch.

N

Y

Repair any disconnection

of wires and defective

Door switch.

Y

Connector insertion to

Main PCB is OK ?

N

Repair the defective

connection.

Y

Door switch itself is

OK ?

N

Change the switch.

N

Y

Check it up.

Door switch is pushed

well ?

YAttach a thin pad on the

door liner or change the

door assembly.

Check if interior light is ON.

N

9-5. Door

9-5-1. Door Opening Alarm Continues though the door is closed.

Check #5,6 of CN8 (F-Door)

and #4,6 of CN7 (F-Door).

→Open : 5V, Close : 0V

72

10-1. Summary of Heavy Repair

* Installation should be conducted in accordance with

the standard installation procedure. (Leave space of

more than 5 cm from the wall for compressor

compartment cooling fan mounted model.)

Transportation

and

installation

* Copper brush, Rag, Tool box

* Remove flux from the silver weld joints with soft

brusher wet rag. (Flux may be the cause of corrosion

and leaks.)

*Clean tools and store them in a clean tool box

or in their place.

Compressor

compartment

and tools

arrangement

* Electronic Leak Detector,

Driver.

* Check leak at weld joints.

Note :Do not use soapy water for check.

* Check cooling capacity

→Check condenser manually to see if warm.

→Check hot pipe manually to see if warm.

→Check frost formation on the whole surface of the

evaporator.

Check

refrigerant leak

and cooling

capacity

* Bombe (mass cylinder),

refrigerant manifold gauge,

electronic scales, punching

off flier, gas welding machine

* Weigh and control the bombe in a vacuum conditions

with electronic scales and charge through compressor

inlet (Process tube).

* Charge while refrigerator operates).

* Weld carefully after inlet pinching.

Refrigerant

charging and

charging

inlet welding

* Vacuum pump

, Manifold gauge.

* Evacuate for more than forty minutes after connecting

manifold gauge hose and vacuum pump to high (drier)

and low (compressor) pressure sides.

Vacuum

* Pipe Cutter, Gas welder,

N2 gas

* Confirm refrigerant (R-134a or R-600a) and oil for

compressor and drier.

* Confirm N2 sealing and packing conditions before use.

Use good one for welding and assembly.

* Weld under nitrogen gas atmosphere.

* Repair in a clean and dry place.

Parts

replacement

and welding

* Nipper, side cutters

* Cut charging pipe ends (Comp. & Dryer) and

discharge refrigerant from drier and compressor.

Remove

refrigerant

Residuals

ToolsContentsProcess

10. COOLING CYCLE HEAVY REPAIR

73

1) Nitrogen only should be used when cleaning inside of cycle pipes

inside and sealing.

2) Check leakage with an electronic leakage tester.

3) Be sure to use a pipe cutter when cutting pipes.

4) Be careful not the water let intrude into the inside of the cycle.

Others.

1) Weld under nitrogen atmosphere in order to prevent oxidation

inside a pipe. (Nitrogen pressure : 0.1~0.2 kg/cm2.)

Nitrogen blowing

welding.

1) Be sure to replace drier when repairing pipes

and injecting refrigerant.

Replacement of drier.

1) Remove retained refrigerant more than 5 minutes after turning off

a refrigerator. (If not, oil will leak inside.)

2) Remove retained refrigerant by cutting first high pressure side

(drier part) with a nipper and then cut low pressure side.

(If the order is not observed, oil leak will happen.)

Removal of retained

refrigerant.

1) Use special parts and tools for R-134a or R-600aUse of tools.

PrecautionsItems

10-2. Precautions During Heavy Repair

Process tube

Compressor

Evaporator

Dryer

High Pressure side

Low pressure

side

Suction tube

Discharge tube Condenser

Hot Pipe

74

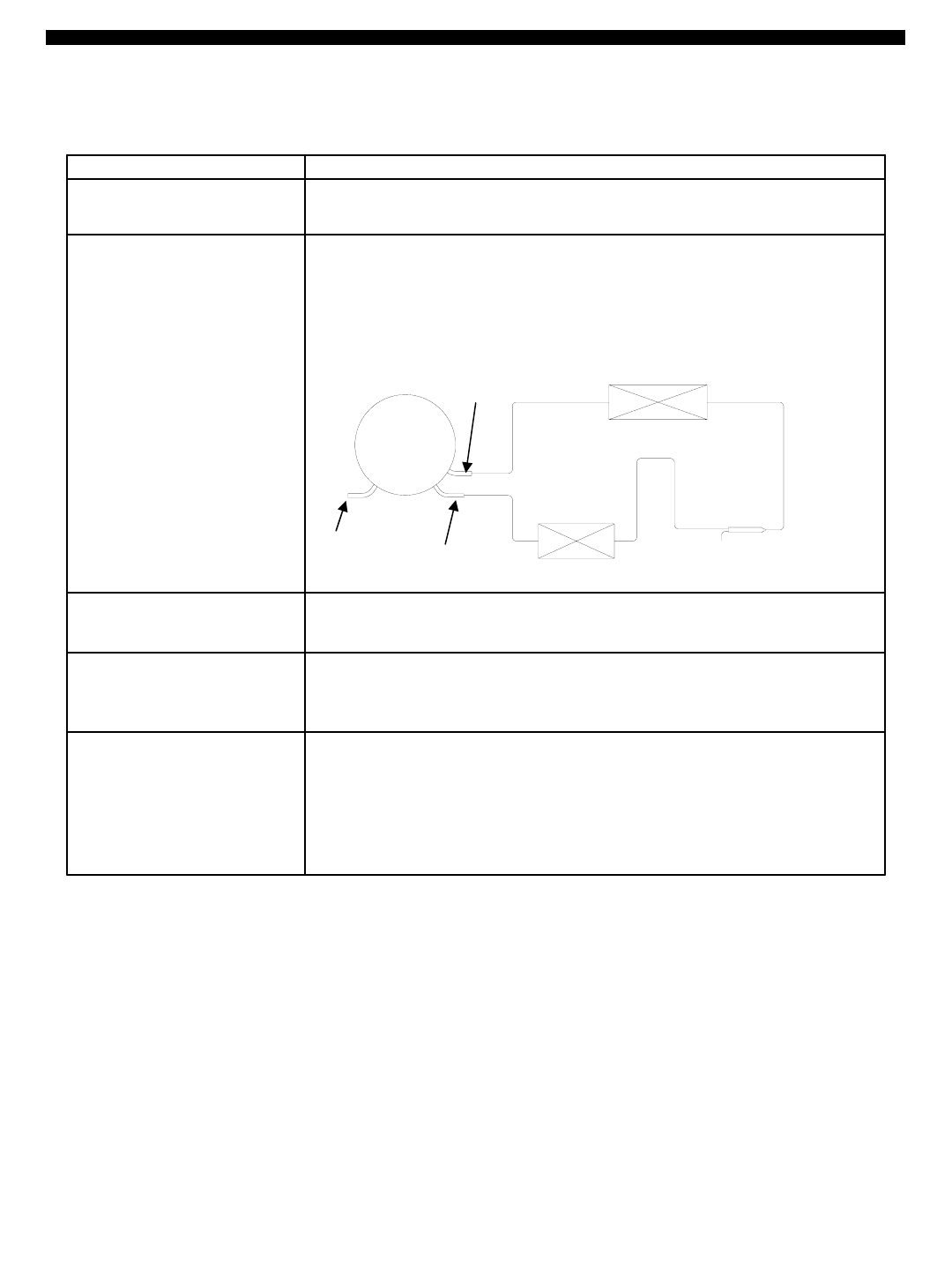

1) Remove residual refrigerant more than 5 minutes later after

turning off the refrigerator. ( If not, compressor oil may leak inside.)

2) Remove retained refrigerant slowly by cutting first high pressure

side (drier part) with a nipper and then cut low pressure side.

1. Removal of residual

refrigerant.

PrecautionsItems

10-3. Practical Work for Heavy Repair

* When replacing a drier:

Weld ①and②parts by blowing nitrogen (0.1~0.2kg/cm2) to high

pressure side after assembling a drier.

* When replacing a compressor:

Weld ③and④parts by blowing nitrogen to the low pressure side.

Note) For other parts, nitrogen blowing is not necessary because it

does not produce oxidized scales inside pipe because of its short

welding time.

2. Nitrogen blowing

welding.

※KEYPOINTING

Welding without nitrogen blowing produces oxidized scales inside

a pipe, Which affect on performance and reliability of a product.

Process tube

Compressor

Evaporator

Dryer

High Pressure side

Low pressure

side

Suction tube

Discharge tube Condenser

Hot Pipe

Process tube

Compressor

Evaporator

Dryer

High Pressure side

Low pressure

side

①

Condenser

②

③

④

Hot Pipe

75

* Pipe Connection

Connect a red hose to the high pressure side and a blue hose

to the low pressure side.

* Vacuum Sequence

Open ①,②valves and evacuate for 40 minutes.

Close valve ①.

3.Vacuum degassing.

PrecautionsItems

* Charging sequence

1) Check the amount of refrigerant supplied to each model after

completing vacuum degassing.

2) Evacuate bombe with a vacuum pump.

3) Measure the amount of refrigerant charged.

- Measure the weight of an evacuated bombe with an electronic scale.

- Charge refrigerant into a bombe and measure the weight. Calculate

the weight of refrigerant charged into the bombe by subtracting the

weight of an evacuated bombe.

4.Refrigerant charging.

Compressor

Evaporator

DryerCondenser

Vaccum

Pump

Hot Pipe

Blue

Yellow Red

High

Pressure

Low

Pressure

①

②

※KEYPOINTING

1) If power is applied during vacuum degassing, vacuum degassing

shall be more effective.

2) Operate compressor while charging refrigerant. (It is easier and

more certain to do like this.)

the amount of refrigerant charged

= a weight after charging

- a weight before charging

(a weight of an evacuated cylinder)

Calculation of amount of refrigerant charged

※KEYPOINTING

1) Be sure to charge

the refrigerant at

around 25°C.

2) Be sure to keep

-5g in the winter

and +5g in summer.

Indicate the weight of

an evacuated bombe

76

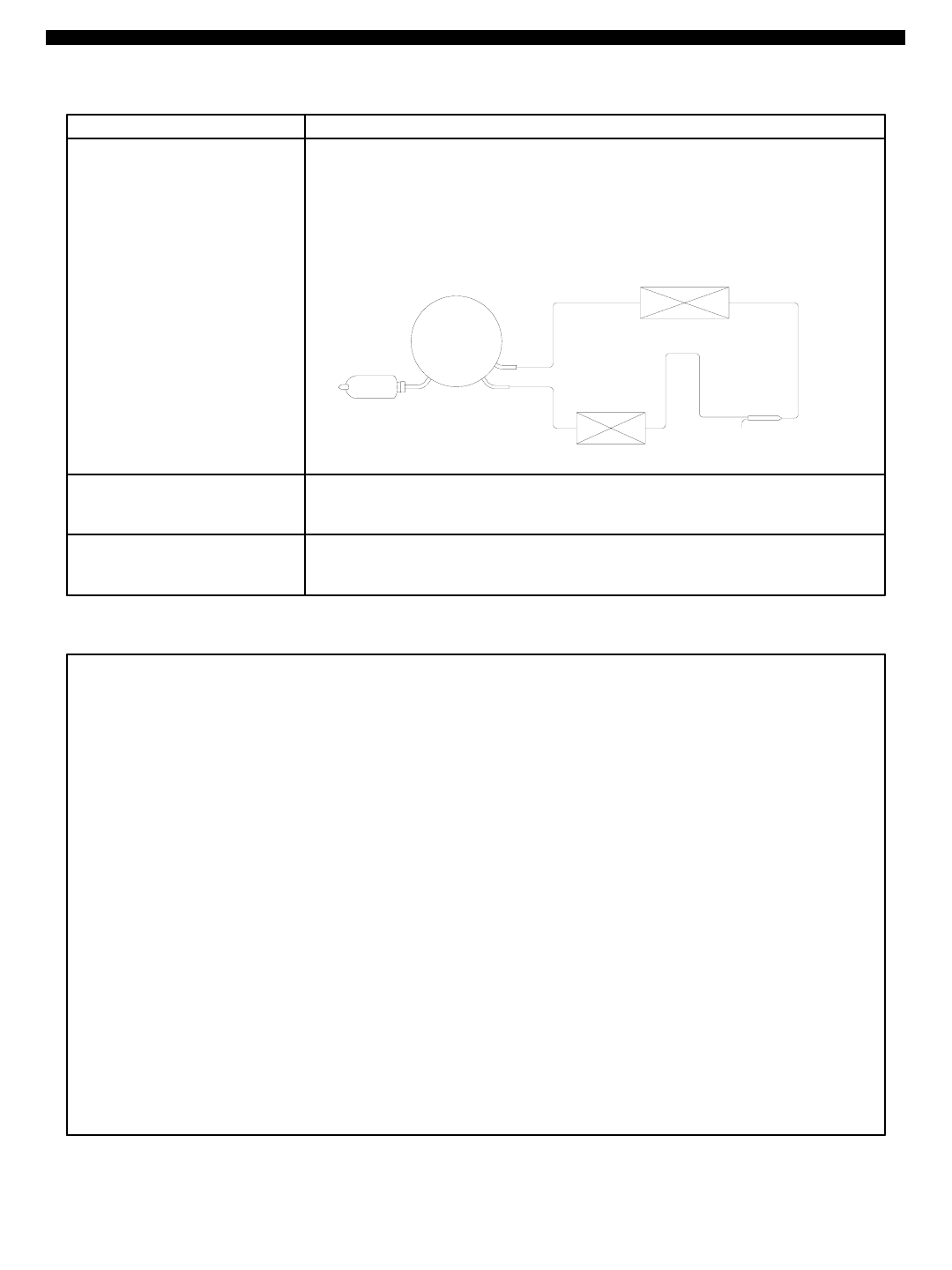

PrecautionsItems

4) Refrigerant Charging

Charge refrigerant while operating a compressor as shown above.

5) Pinch a charging pipe with a pinch-off plier after completion of charging.

6) Braze the end of a pinched charging pipe with copper brazer and take

a gas leakage test on the welded parts.

4.Refrigerant charging.

Bombe

Compressor Evaporator

Condenser Dryer

Hot Pipe

* Take a leakage test on the welded or suspicious area with an

electronic leakage tester.

5. Gas-leakage test

* Check each pipe is placed in its original place before closing

a cover back-M/C after completion of work.

6. Pipe arrangement

in each cycle

10-4. Standard Regulations for Heavy Repair

1) Observe the safety precautions for gas handling.

2) Use JIG (or wet towel) in order to prevent electric wires from burning during welding.

(In order to prevent insulation break and accident.)

3) The inner case shall be melted and insulation material (polyurethane) shall be burnt

if not cared during welding inner case parts.

4) The copper pipe shall be oxidized by overheating if not cared during welding.

5) Not allow the aluminum pipes to contact to copper pipes. (In order to prevent corrosion.)

6) Make sure that the inner diameter should not be distorted while cutting a capillary tube.

7) Be sure that a suction pipe and a filling tube should not be substituted each other during welding.

( High efficiency pump.)

77

10-5. Brazing Reference Drawings.

▶Welding Point

●

■

Copper Welding (Ag 5%) 7 Points

3 Points

Silver Welding (Ag 35%)

Hot Pipe

F

R

Evaporator

Condenser

I-Pipe

Accumulator

Suction Pipe

Dryer

Capi-Tube

Pipe Suc Conn

Pipe Conn B

Compressor

▶Flow of Refrigeration Cycle

Compressor

Pipe Conn. B

Wire-Con. Pipe

Hot Pipe

Dryer

Capillary Tube

Evaporator

Accumulator

Pipe Suction Conn

Suction Pipe

High Low

78

11-1. Installation Preparation

11. INSTALLATION GUIDE

Check if the refrigerator can pass

a doorway or enter a door first.

Dimensions( including Door Handles)

(Width*Depth*Height) 903mm X 734.5mm X 1790mm

Find a suitable place to install

Sufficient space from refrigerator back to the

※wall for free air ventilation

※Avoid direct sunlight.

Once the installation place is ready follow the installation instructions.

If surround temperature of refrigerator is low (below 10℃)),

foods can be frozen or the refrigerator can work in abnormal way.

79

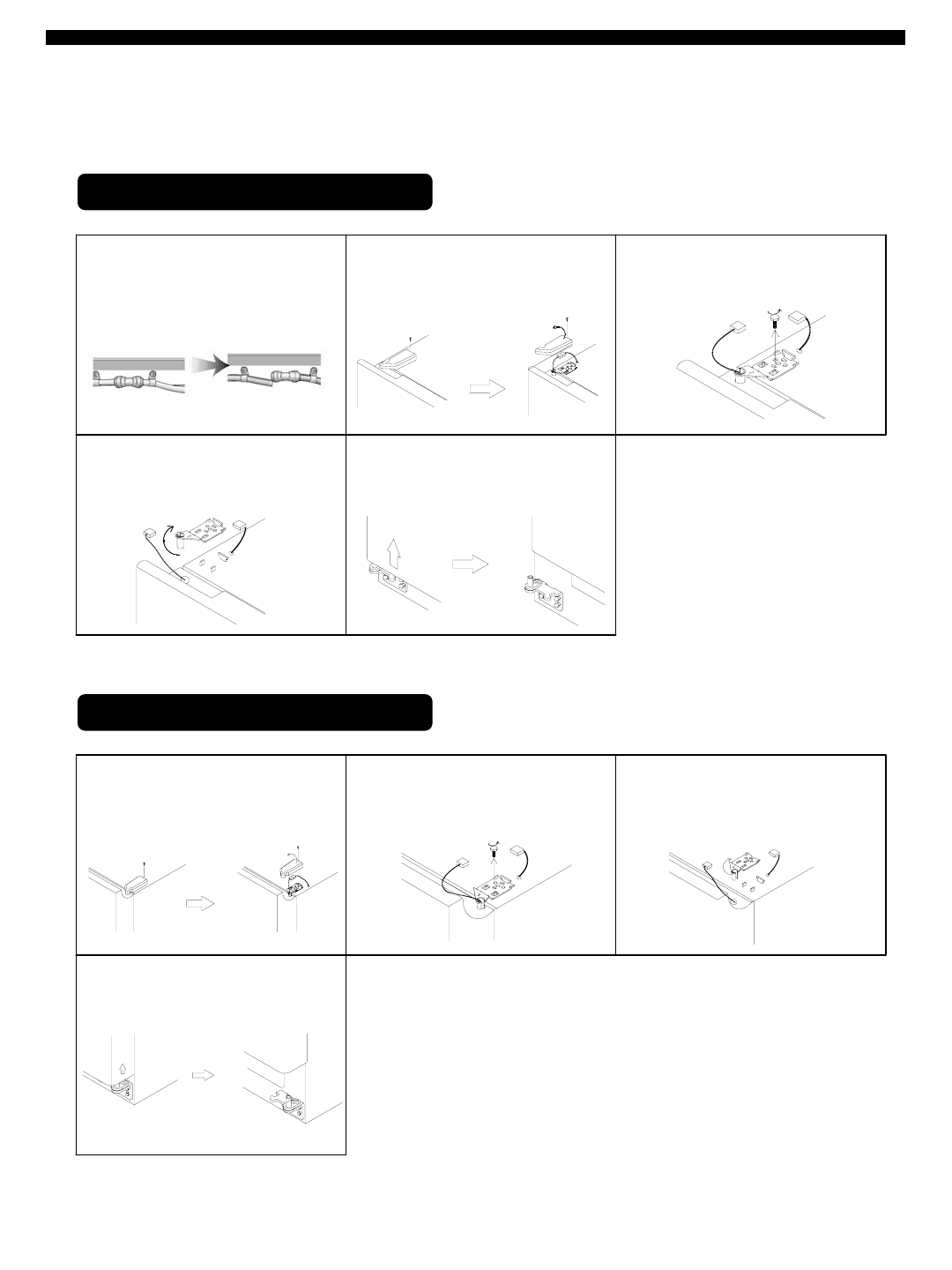

11-2. If the refrigerator can not enter the door

Removing Freezer Door

1

※Remove front bottom cover first, if it is attached.

Remove front bottom cover first,

Pull out the left collar of the

coupling first, then hold the

coupling and pull out the left

water tube.

2Unscrew top hinge cover with a

screw driver.

Remove the hinge cover.

3Turn top hinge bolt

counterclockwise .

Disconnect the harness wires.

4Lift up the front of hinge to remove.

( After the hinge is removed the

door can fall down forward.

Be careful !)

5Be careful not to damage the

water line when removing the

door.

Removing Refrigerator Door

1Unscrew top hinge cover with a

screw driver.

Remove the hinge cover.

2Turn top hinge fastener

counterclockwise.

Disconnect harness wires.

3Lift up the front of hinge to remove.

(After the hinge is removed the

door can fall down forward.

Be careful !)

4Lift the door straight up to remove.

80

Replacing Freezer Door

1Insert the water tube into the hole

Of the bottom hinge pin first, then

Insert the bottom of freezer door

Into the bottom hinge pin.

2Insert the bottom hole of freezer

door straight to the bottom hinge

pin.

3Let the top of door close to the

cabinet and insert the top hinge

pin to the top hole of freezer door.

( Insert the back of hinge to the

groove of protrusion first, then

front to the top hole of door.)

4Turn the hinge fastener tightly to

The end.

Connect harness wire and screw

ground wire.

5Insert the water tube far into the

coupling.

Replacing Refrigerator Door

1Insert the bottom hole of

refrigerator door straight to the

bottom hinge pin.

2Let the top of door close to the

cabinet and insert the top hinge

pin to the top hole of refrigerator

door.

( Insert the back of hinge to the

groove of protrusion first, then

front to the top hole of door.)

3Turn the hinge fastener tightly to

the end.

Connect harness wirings and

screw ground wire.

Click and screw the top hinge

cover.

81

11-3. Refrigerator Leveling & Door Adjustment

In case freezer door is lower

than refrigerator door

Insert a screw driver (flat tip) into a groove of the

left wheel (bottom of freezer) and turn it clockwise

until the door is balanced.

(clockwise to raise freezer door ;

counterclockwise to lower)

※Refrigerator must be level in order to maintain optimal performance and desirable front appearance.

(If the floor beneath the refrigerator is uneven, freezer and refrigerator doors look unbalanced.)

Insert a screw driver (flat tip) into a groove of the

right wheel (bottom of refrigerator) and turn it

clockwise until the door is balanced.

(clockwise to raise refrigerator door ;

counterclockwise to lower)

The front of refrigerator needs to be higher just a little than the back for easy

door closing, but if the wheel is raised too much for door balance, i.e. front of

refrigerator is too higher than the back, it can be difficult to open the door.

Caution

In case refrigerator door is lower

than refrigerator door

82

11-4. Water Line Installation

1.The water pressure should be 3kgf/cm2 or more to run the

automatic icemaker.

※Checkup your tap water pressure ; if a cup of 180cc is full

within 10 seconds, the pressure is OK.

2.When installing the water tubes, ensure they are not close to

Any hot surface.

3.The water filter only “filters” water ; it does not eliminate any

bacteria or microbes.

4.If the water pressure is not so high to run the icemaker, call the

local plumber to get an additional water pressure pump.

5.The filter life depends on the amount of use. We recommend

you replace the filter at least once every 6months.

※When attaching the filter, place it for easy access (removing

& replacing)

6.After installation of refrigerator and water line system, select

[WATER] on your control panel and press it for 2~3 minutes to

supply water into the water tank and dispense water.

7.Use sealing tape to every connection of pipes/tubes to ensure

there is no water leak.

8.The water tube should be connected to the cold water line.

How to install Water Line

1. Join connector to water tap

Installation Procedure

2. Get ready to install water line

1) Measure an approximate distance between the filter and the

Water Tube and cut the tube off filter vertically.

2) Connect the tubes to the filter as the figure shows.

Leave a sufficient distance when cutting the tubes.

83

3. Remove any substance from filter

1) Open the main tap water valve and check if water comes out of

the Water Tube.

2) Check if the Water Valve is open in case water does not come out.

3) Leave the valve open until clean water is coming out.

※Initial water may contain some substances out of filter

(manufacturing process).

4. Attach the filter box

1)Screw and fasten the filter holder to the left/right side of the back of

refrigerator.

※In case the holder is not fastened well, remove the back paper

of the tape on the filter holder and attach it.

2)Insert the filter box into the holder.

5. Connect water tube

1)Remove the rear cover at the bottom back of the refrigerator.

2)Insert the fastening ring into the Water tube.

(Be careful to follow the direction of the nut.)

3)Insert the Water Tube into the top of Water Valve, turn the nut

clockwise to fasten it. (The Water valve is to the right of the motor.)

4)Check for any bent tubes or water leaks; if so, re-check installation

procedure.

5)Replace the rear cover. (The Water Tube should be placed

between the groove of the refrigerator back and motor cover.)

Set the tube upright as the figure shows.

6. Fasten water tube

1) Fasten the Water Tube with the [Fastener A] .

2) Check if the tube is bent or sqeezed. If so, set it right to

prevent any water leak.

7. After installation

1) Plug the refrigerator, press the [WATER] button on the control

panel for 2~3 minutes to remove any air (bubble) in the pipes

and drain out the initial water.

2) Check the water leak again through the water supply system

(tubes, connectors and pipes) Rearrange the tubes again

and do not move the refrigerator.

84

11-5. Dispenser Water Flow

20IB 20DB 20EB 20FB 20GB

1 ASSY CAB URT 11111

23012924400 HINGE *T *R AS PO T3.0+PAINT 11111

33012924300 HINGE *T *L AS PO T3.0+PAINT 11111

43016042300 SPECIAL *T HI BOLT 6X13 SWCH18A 22222

57051401065 SCREW MACHINE PAN 4X10 SW BSNI 11111

63011446200 COVER *T HI *R PP 11111

73011446100 COVER *T HI *L PP 11111

87112401211 SCREW TAPPING T1 TRS 4X12 MFZN 22222

93010968400 CAP CAB COVER PP 22222

10 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 22222

30143D6061 PCB MAIN AS FRU-571I (R-134a) 1

30143D5072 PCB MAIN AS FRU-541F (R-134a) -1111

12 3011446000 COVER MAIN PCB BOX PP(V-235) 11111

13 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 44444

14 3013224800 HOSE ICE MAKER TUBE AS FRU-541D 1111

15 3012530200 GUIDE CAB W/TUBE A AS FRU-541D 1111

16 3011444100 COVER GUIDE CAB W/T A HIPS 1111

17 3011202000 CLAMP WATER TUBE A PA-66, 5N 2222

18 3019974800 S/PAER FILTER WATER AS FR-S660CW 1111

19 3012924000 HINGE *U *R AS P/O T5.0 + PAINT 11111

20 3012923900 HINGE *U *L AS P/O T5.0 + PAINT 11111

21 3016001240 SPECIAL BOLT *T 6X22 SWCH22A(YL) 66666

22 3010657200 BRACKET ADJ FOOT SPCC T3.0 22222

23 3012105100 FOOT ADJ AS PP 22222

24 3016001240 SPECIAL BOLT *T 6X22 SWCH22A(YL) 22222

25 3013064200 HOLDER TUBE A ACETAL 11111

26 3012019500 FIXTURE TUBE FIT B PP 22222

27 3011447200 COVER CAB BRKT PP 11111

28 7142401511 SCREW TAPPING T2 TRS 4X16 MFZN 33333

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

Q'ty

Cabine

t

NO PART-CODE PART NAME SPEC.

85

Date

A

mendment Note

11 -

-

20IB 20DB 20EB 20FB 20GB

29 3010340400 BASE COMP AS FRU-571I 11111

30 3016003300 SPEICAL BOLT T2 M6.5X20 44444

31 CORD POWER AS 11111

32 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 11111

33 7051401065 SCREW MACHINE PAN 4X10 SW BSNI 11111

34 CAPACITOR RUN Model dependent 11111

35 COMP Model dependent 11111

36 3016002500 SPECIAL WASHER SK-5, T0.8 44444

37 3010101600 RUBBER ABSORBER COMP NBR 22222

38 3010101480 ABSORBER COMP AS FRU-541D 22222

39 SWITCH P RELAY AS Model dependent 11111

40 COVER RELAY Model dependent 11111

41 3011181300 CASE VAPORI AS PP 11111

42 3013201710 HOSE DRN B PE FRB-5350NT 11111

3015402800 110~127V 60Hz

3015402300 220~240V 50,60Hz

44 3014461510 PIPE WICON AS TSW OD4.76XT0.7 11111

45 3012021700 FIXTURE MOTR PP 11111

46 3015916100 MOTOR C FAN AS DC-2213DWCA-3 11111

47 3018500300 M/BELL B PP 11111

48 3018500200 M/BELL A PP 11111

49 3011834700 FAN ABS OD3.17XD150 11111

50 3011200500 CLAMP FAN SUS 304 11111

51 3016808100 DRYER AS C1220T 11111

52 3011497000 COVER MACH ROOM AS SBHG T0.35 11111

53 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN 77777

95 3017053500 EVA AS FRU-571I 11111

3012818300 AC220V/ 192W

3012818400 AC115V/ 192W

95-2 3014806900 SENSOR D AS PBN-43 11111

95-3 3012023600 FIXTURE D SENS PP 11111

95-4 301720200 FUSE TEMP AS AC250V 10A 77C 11111

95-5 4017Z90590 FIXTURE FUSE TEMP PP 11111

- Some parts can be chaged for improving their perfomance without notice.

-

A

bove

p

arts number doesn't describe

y

our own colour &

p

rintin

g

. Please remind!

11

86

HEATER SHEATH AS 111

Date

A

mendment Note

95-1

111

43 VALVE WATER AS -1

Q'ty

Machine Room / Eva Par

t

NO PART-CODE PART NAME SPEC.

20IB 20DB 20EB 20FB 20GB

60 3011492810 COVER DAMP AS FRU-571I 1

60-1 3014235200 PANEL CONTL *I AS 1

61 3012214100 FRAME CHECK VALVE AS FRU-571I 11111

62 3012024200 FIXTURE MOTR AS 11111

62-1 3015916000 MOTOR R FAN D4612AAA20 11111

63 3011495100 COVER DAMP AS FRU-541D -1111

63-1 3014807100 SENSOR R AS PBN-43B 11111

64 3012514500 GUIDE CASE A *L AS ABS 1

65 3011185740 CASE CHILD GPPS(CRYSTAL) 1

66 3012514600 GUDIE CASE A *R AS ABS 1

3013602500 AC 240V 25W(S)

3013602800 AC 125V 25W

69 3015510800 WINDOW R LAMP MIPS 11111

71 3018124000 SWITCH DR SP201R-7DR (R-134a) 11111

3017842810 NUDE GLASS 2

3017842800 PRINTED GLASS - 2 2 2 2

73 3017844220 SHELF WINE FRU-54,57 SUS304

3017843300 NUDE GLASS 1

3017843310 PRINTED GLASS -1111

3017842910 NUDE GLASS 1

3017842900 PRINTED GLASS -1111

76 3012514500 GUIDE CASE A *L AS ABS 1 1 1 1 1

77 3012514600 GUDIE CASE A *R AS ABS 1 1 1 1 1

79 3011114630 CASE VEGETB B AS NANO 1 1 1 1 1

80 3018701800 DEO ANTI AS W40XT5XL40 1 1 1 1 1

81 3011445900 COVER RETURN DUCT PP 1 1 1 1 1

82 3011446700 COVER VEGETB CASE B GPPS 1 1 1

83 3012529700 GUIDE CASE C *L AS ABS 1 1 1

84 3012529800 GUIDE CASE C *R AS ABS 1 1 1

85 3011114730 CASE VEGETB C AS NANO 1 1 1

86 3011446800 COVER CHANGE RM GPPS 1 1

87 3010548200 BOX CHANGE RM HIPS 1 1

88 3016767100 DAMPER AS DU24-012 1 1

89 3011450901 COVER DUCT CH RM AS PP+SEAL 1 1

90 3012529500 GUDIE CHANGE RM *L ABS 1 1

91 3012529600 GUDIE CHANGE RM *R ABS 1 1

92 3010551000 BOX CONTL CH RM AS 1 1

93 3011115040 CASE CHANGE RM AS FRU-547E, CASE+FRAME 1 1

93 3011170050 CASE EGG AS CASE+TRAY+VINYL 1 1 1 1 1

94 3018201000 TANK WATER AS FRU-541D - 1 1 1 1

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

87

SHELF R A AS

SHELF R C AS

SHELF R B AS

-

-

-

-- -

72

74

75

O

p

tion

--

Refrigerator Room

NO PART-CODE PART NAME SPEC. Q'ty

67 LAMP F/R

-

-

22222

20IB 20DB 20EB 20FB 20GB

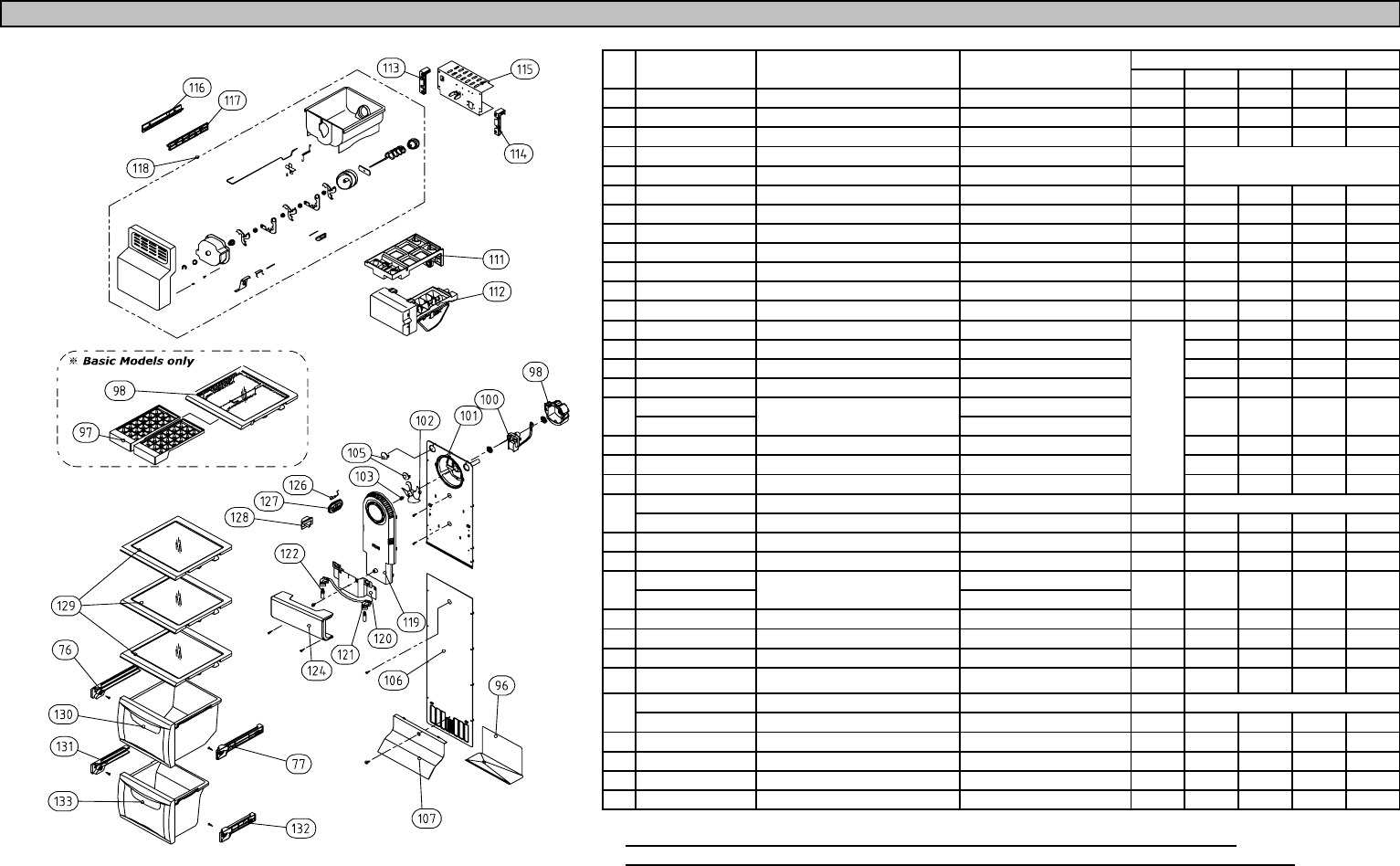

76 3012514500 GUIDE CASE A *L AS ABS 11111

77 3012514600 GUDIE CASE A *R AS ABS 11111

96 3012529000 GUIDE DRN GA 11111

97 3017842700 SHELF F ICE AS NUDE GLASS 1

98 3011186300 CASE ICE PP 1

100 3015915900 MOTOR F FAN D4612AAA21 11111

101 3018921300 LOUVER F A ABS 11111

102 3011834500 FAN ABS OD3.17XD130 11111

103 3011200510 CLAMP FAN SUS 304 11111

105 3010968600 CAP F LOUVER B HIPS 22222

106 3018921500 LOUVER F B AS HIPS 11111

107 3011443200 COVER F RETURN HIPS 11111

111 3012205600 FRAME ICE MAKER HIPS 1111

112 3000025910 CASE I/MAKER AS FRU-541D 1111

113 3012517800 GUIDE G/MOTR BRKT *L ABS 1111

114 3012517900 GUIDE G/MOTR BRKT *R ABS 1111

3010656500 120V/60Hz

3010658110 220~240/50Hz

116 3012520510 GUIDE ICE CRUSHER *L ABS 1111

117 3012517710 GUIDE ICE CRUSHER *R ABS 1111

118 3011115202 CASE I/CRUSHER AS FRU-541D 1111

3001401701 COVER F FAN AS FRU-571I 1

3001401711 COVER F FAN AS FRU-541D -1111

120 3014531900 PLATE F LAMP SGCC T0.8 11111

121 3017906600 SOCKET F LAMP AS FRU-571I 11111

3013602500 AC 240V 25W(S)

3013602800 AC 125V 25W

124 3015510700 WINDOW F LAMP MIPS 11111

126 3014807000 SENSOR F AS PT-38 11111

127 3011442600 COVER F SENS ABS 11111

128 3018124010 SWITCH DR SP201R-7DL (R-134a) 11111

3017842610 SHELF F AS NUDE GLASS 3

3017842600 SHELF F AS PRINTED GLASS -3333

130 3011114800 CASE F A AS NANO 11111

131 3012529700 GUIDE CASE C *L AS ABS 11111

132 3012529800 GUIDE CASE C *R AS ABS 11111

133 3011114900 CASE F B AS NANO 11111

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

115

119

122

129

Q'ty

Freezer Room

NO PART-CODE PART NAME SPEC.

BRACKET GEARED MOTR AS

-

-

-1111

22

-

88

LAMP F/R 222

20IB 20DB 20EB 20FB 20GB

134 3019026700 POCKET F *T HIPS 11111

3019027401 POCKET F AS FRU-541D -3333

3019026600 POCKET F FRU-571I 5

3000067600 ASSY F DR FRU-547E, SUS -1111

3000067610 ASSY F DR FRU-577I, SUS 1

136-1 3010964600 CAP ICE PATH FRAME HIPS -1111

136-2 3012318800 GASKET F DR AS PVC 11111

3000057940 ASSY F DR URT FRU-547F -1111

3000057930 ASSY F DR URT FRU-577I 1

137 3012027200 FIXTURE HNDL SUPORT *T HIPS 11111

138 3012018700 FIXTURE HNDL SUPORT *M HIPS 22222

139 3015311500 SUPPORTER HNDL *U ABS+SPRAY 11111

140 7002401011 SCREW MACHINE TRS 4X10 MFZN 44444

141 3016040100 SPECIAL SCREW HNDL M5X20 44444

142 3012645300 HANDLE BAR AS FRU-577/547 11111

143 3016040200 SPECIAL SCREW FRAME 4X14, S18C 22222

144 3017903702 SOCKET DISP LAMP AS 250V 1A 14BASE 1111

3013600020 240V/15W

3013600050 110V/15W

146 3010544000 BOX DISPNS ICE SHUT AS FRU-541D 1111

147 3011494700 COVER DISPNS BOX AS FRU-541D 1111

148 3015102200 SPRING ICE D/LEVER SUS 1111

149 3011495300 COVER ICE FLAP AS FRU-541D 1111

150 3012019700 FIXTURE ICE SHUT LVR SUS 1111

3015404100 VALVE SOL DISP 110~115V/60Hz

3015403200 VALVE SOL DISP 230V/50Hz

152 3018125800 SWITCH MICRO VP333A-2D 1111

153 3012213200 FRAME DISPNS BUTTON ABS 1111

154 3016304600 BUTTON DISPNS SILICON 1111

155 3012406900 GRILL DISPENSER ABS 1111

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

111

89

-

151

LAMP AS

1

-

-

-

1111

135

136

136-3

145

A

mendment Note

Q'ty

Date

Freezer Doo

r

NO PART-CODE PART NAME SPEC.

20IB 20DB 20EB 20FB 20GB

137 3012027200 FIXTURE HNDL SUPORT *T HIPS 11111

138 3012018700 FIXTURE HNDL SUPORT *M HIPS 22222

139 3015311500 SUPPORTER HNDL *U ABS+SPRAY 11111

140 7002401011 SCREW MACHINE TRS 4X10 MFZN 44444

141 3016040100 SPECIAL SCREW HNDL M5X20 44444

142 3012645300 HANDLE BAR AS FRU-577/547 11111

143 3016040200 SPECIAL SCREW FRAME 4X14, S18C 22222

156 3019027500 POCKET DAIRY AS FRU-571I 11111

3019027200 POCKET R *M AS FRU-541D -2211

3019026800 POCKET R FRU-571I 2

158 3011187000 CASE H/BAR AS FRU-541F 11

159 3019027700 POCKET R H/BAR AS FRU-541F 11

3019027300 POCKET R *S AS FRU-541D -2222

3019026900 POCKET R *S FRU-571I 2

3000067700 ASSY R DR FRU-547F, SUS 11

3000067710 ASSY R DR FRU-571I, SUS 111

161-1 3012318900 GASKET R DR AS PVC 11111

161-2 3012319300 GASKET H/BAR B AS PVC 11

3000058050 ASSY R DR URT FRU-547F 11

3000058060 ASSY R DR URT FRU-577I 111

161-4 3015204500 STOPPER H/BAR DR *R PO T4.0 11

161-5 3015204400 STOPPER H/BAR DR *L PO T4.0 11

161-6 3012319400 GASKET H/BAR A AS PVC 11

161-7 3011765000 DOOR H/BAR URT AS FRU-541F 11

161-8 3011497200 COVER FRAME H/BAR ABS 11

161-9 3018125600 SWITCH H/BAR DR AS SP101B-2D1(T) 11

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

Q'ty

Refrigerator Doo

r

NO PART-CODE PART NAME SPEC.

Date

A

mendment Note

-

157

160 -

161-3

-

-

-

-

-

-

90

161

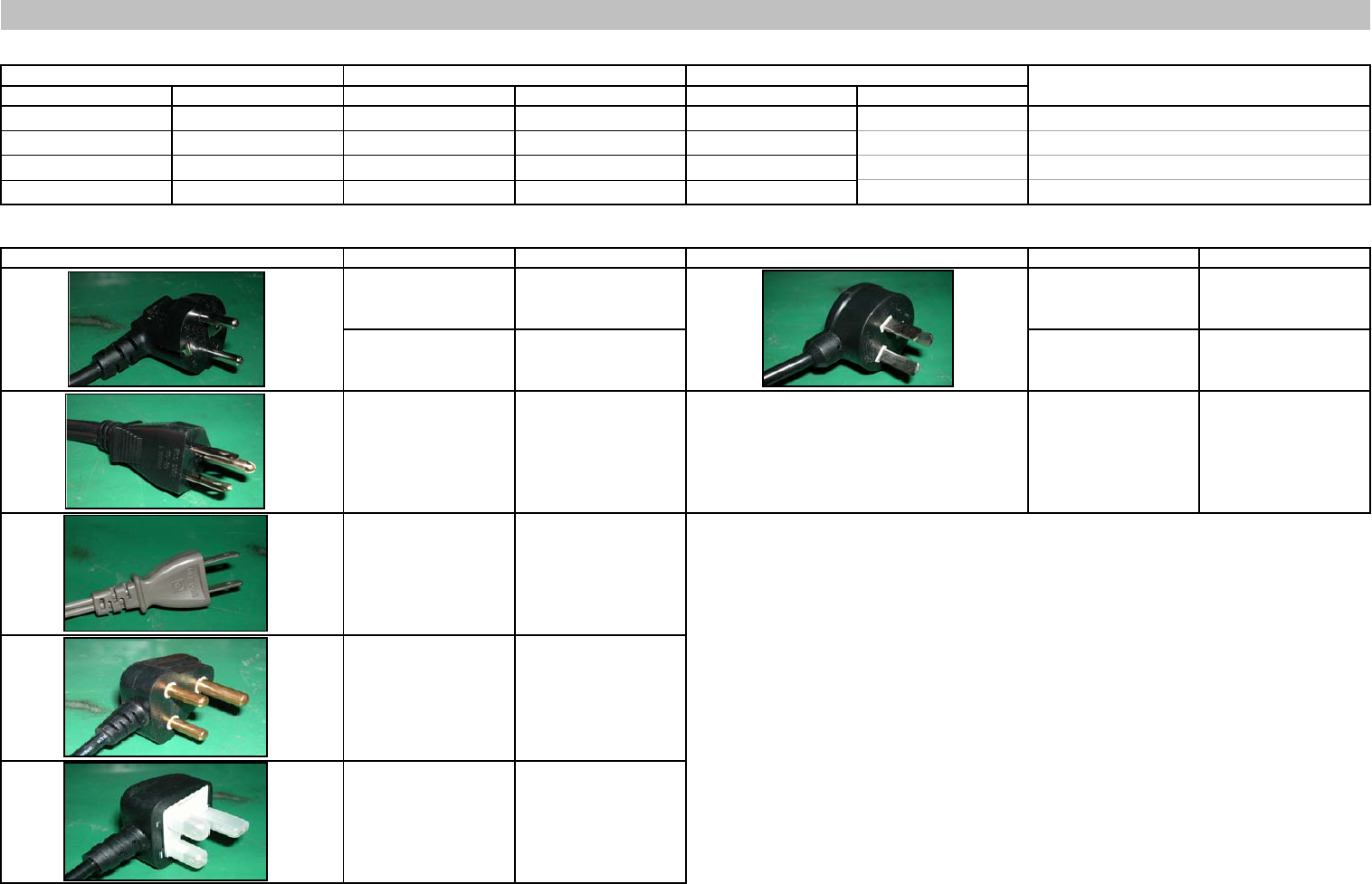

1.

1. Electric Device

Specification Part Code Specification Part Code Specification Part Code

HPL30YG-5 395S130R50 400VAC/ 5㎌3016401920 308NHB, S330 3018129810

MK183Q-L2U 3956183D50 350VAC/ 5㎌3016401170 265RHB, S330 3018129600

MK183C-L2U 3956183D10 250VAC/ 12㎌3016405000 445PHB, 4R7M 3018129610

MK4A5Q-R1U 3956145250 350VAC/ 5㎌3016401170 265RHB, S330 3018129600

2. Power Cord Descri

p

tion Part Code Descri

p

tion Part Code

91

KP-550 (China) 3011301070

KP-550 (Australia) 3011301080

Com

p

resso

r

Ca

p

acitor Run Switch P Rela

y

AS

Sha

p

e Sha

p

e

CP-2PIN

Reference

Remark

220~240V/50Hz

220~240V/50Hz

110`115V/60Hz

220~240V/50Hz(R-600a)

KP-211

SA16A

( South Africa)

KP-30 3011348300

3011302170

BS-1363 (U.K) 3011347300

CP-2PIN(Ferrite)

3011304100

3011346701

MP5004

(SINGAPORE) 3011302870
