TetraFlex® 7.5 Manual - Introduction
TetraFlex® 7.5 Manual 2
http://www.damm.dk
INTRODUCTION
This manual is intended for installation and maintenance of BS4xx TetraFlex® Base Station,
including additional units, installation software, and how to configure the system for
operational use.
Remark: TetraFlex® ver. 7.5 is not compatible with earlier versions! Please follow the update
instructions or contact DAMM support if you have systems with older software versions.
Doc. No.
Rev.
Date
DRAFT
1.01
2012-01-27
Damm Cellular Systems A/S, Denmark
TetraFlex® 7.5 Manual - Introduction
TetraFlex® 7.5 Manual 3

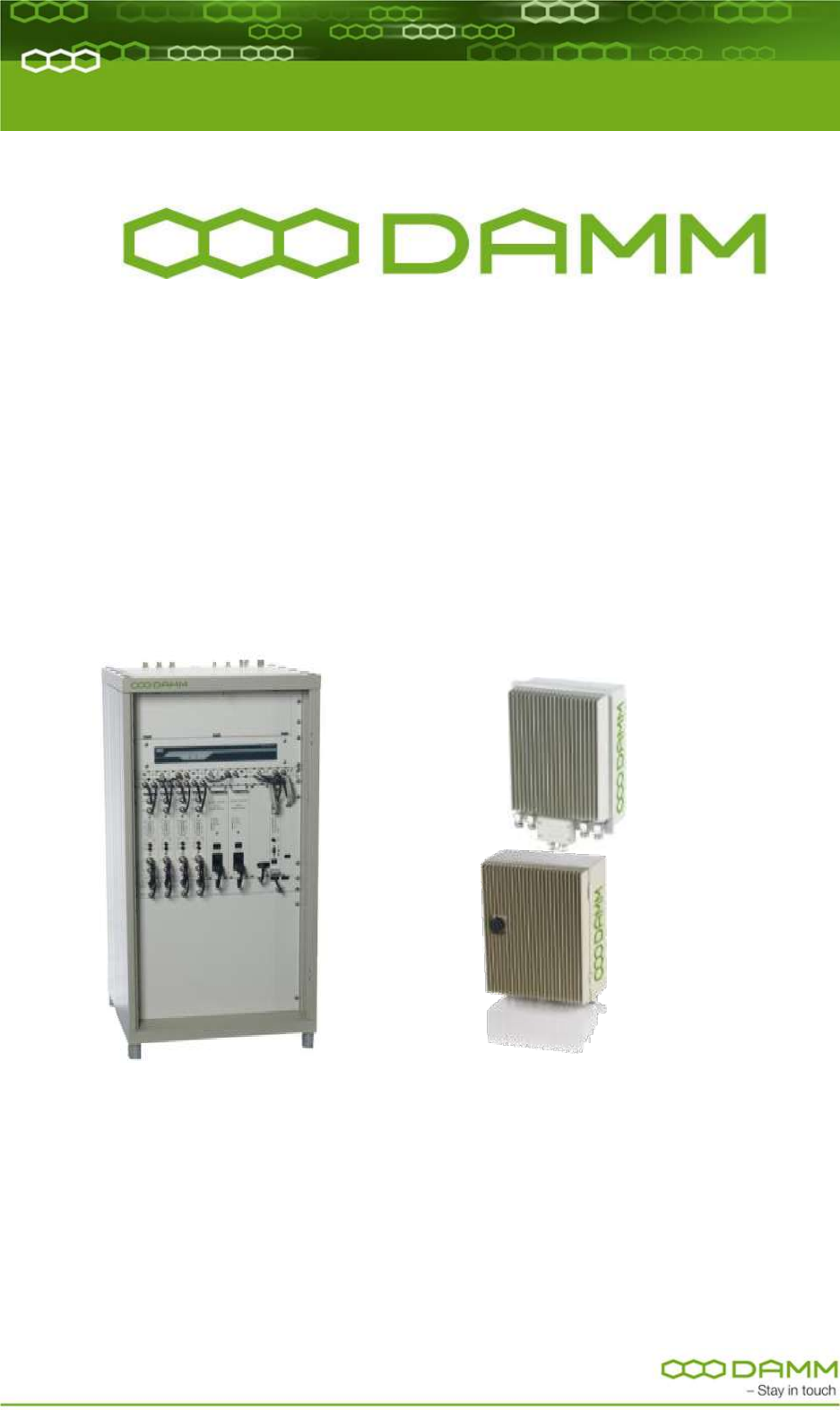

Indoor Base station models
BS411
BS414
Max. 8 carriers Max. 4 carriers
Max. 16 carriers
Outdoor station
BS421 + SB 421
It is recommended that engineers doing the installation and configuration of a BS4xx have
practical experience in installation of radio and computer systems, and have made
themselves familiar with the BS4xx equipment through appropriate DAMM training courses
and study of the content of this manual.
This installation guide covers the installation of indoor as well as outdoor Base Stations as
well as single units. Please skip the sections, which are not relevant for the actual case.
Max. 4 carriers
Doc. No.
Rev.
Date
DRAFT
1.01
2012-01-27
Damm Cellular Systems A/S, Denmark
TetraFlex® 7.5 Manual - Introduction
TetraFlex® 7.5 Manual 4
The manual is divided into more sections which may be printed separately. When doing so
please print the Table of contents, introduction, update sheets and Index (all pages prior to
page 1-1 and after page 4-x) and insert these in the printed section
IMPORTANT:
Updates / changes / important information related to the TetraFlex® system and software
may be downloaded from the protected part of www.damm.dk
Please check this URL for updated information before attempting to install or correct errors
NOTE: Chapters marked with a indicate areas where special care must be taken to
avoid personal injury or damage to the equipment.
Before starting installation and configuration, please read the entire
manual carefully.
NOTE: It is the responsibility of the system owner / operator to ensure
that only authorized service persons has access to the keys / inside
circuits of the SB412 / BS4xx.
NOTE: It is the responsibility of the system owner / operator to ensure
that all local legislation, rules and regulations are complied with.
The SB412 / BS4xx are protected by internal fuses. Always replace with
fuses of equivalent value and type.
General Warning
This manual contains important safety and operational information. Please read and follow
the instructions in this manual. Failure to do so could be hazardous and result in damage to
your device.
Changes and modifications to this device not expressly proved by DAMM could void the
user’s authorization to operate this device
FCC Regulations
The DAMM developed device mentioned in this User Manual fulfills the below statements
according to FCC/IC warning statements:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation
Doc. No.
Rev.
Date
DRAFT
1.01
2012-01-27
Damm Cellular Systems A/S, Denmark
TetraFlex® 7.5 Manual - Reference documents
TetraFlex® 7.5 Manual 5
RF Exposure
The DAMM developed transmitting devices mentioned in this User Manual have the Nemko
approval concerning “Maximum Permissible Exposure Calculations” which are the European
limits for maximum permissible exposure defined in the document 1995/519/EC, Council
Recommendation of 12. July 1999. The results are to be found in the Nemko Document
128948/5 in the appendix of this User Manual.
Antennas
The outside antenna connected to this device must be installed on an outdoor permanent
structure with a separation of at least 20 feet from all persons during normal operation.
Notice
Do not modify any part of this device for any reason
Do not place any combustible material near the transceiver
Do not spray any liquid over the device
Ensure that the power and antenna connections are securely made, using cables
recommended and with excess capacity for the power being utilized.
REFERENCE DOCUMENTS
For detailed information’s regarding the TetraFlex® release and features supported, please
consult the documents listed below:
No.:
Document Title
Document Contents
1
TetraFlex v7.5 System description.pdf *
TetraFlex® system overview
2
TetraOM_7.5.pdf
TetraFlex® OM manual
3
TetraFlex_RN_7.52_2011-09-30_02.pdf *
TetraFlex® system release note
4
TetraFlex 7.4x to 7.5 update.pdf
Update guideline for ver.7.4x to 7.5
5
TetraFlex 7.5 BS41x redundant setup.pdf
Redundancy sw setup guideline for
BS41x
*) These documents is a part of the TetraFlex® release and placed in the C:\tetra\Active\Doc directory
All documents can be found on www.damm.dk extranet.
TETRAFLEX® MANUAL BREAKDOWN
Section
Description
Level
Part 1
Physical hardware installation
Tech
Part 2
Software installation and configuration of software and system
Tech
Part 3
User manual intended for operators and non technical personnel
User
Part 4
Technical reference
Tech
Part 5
Hardware Units Ref.
Tech
Part 6
List of figures and Alphabetic index
All
Doc. No.
Rev.
Date
DRAFT
1.01
2012-01-27
Damm Cellular Systems A/S, Denmark
TetraFlex® 7.5 Manual - TetraFlex® Manual breakdown
TetraFlex® 7.5 Manual 6
Doc. No.
Rev.
Date
DRAFT
1.01
2012-01-27
Damm Cellular Systems A/S, Denmark
TetraFlex® 7.5 Manual - TetraFlex® Manual breakdown
TetraFlex® 7.5 Manual 7
