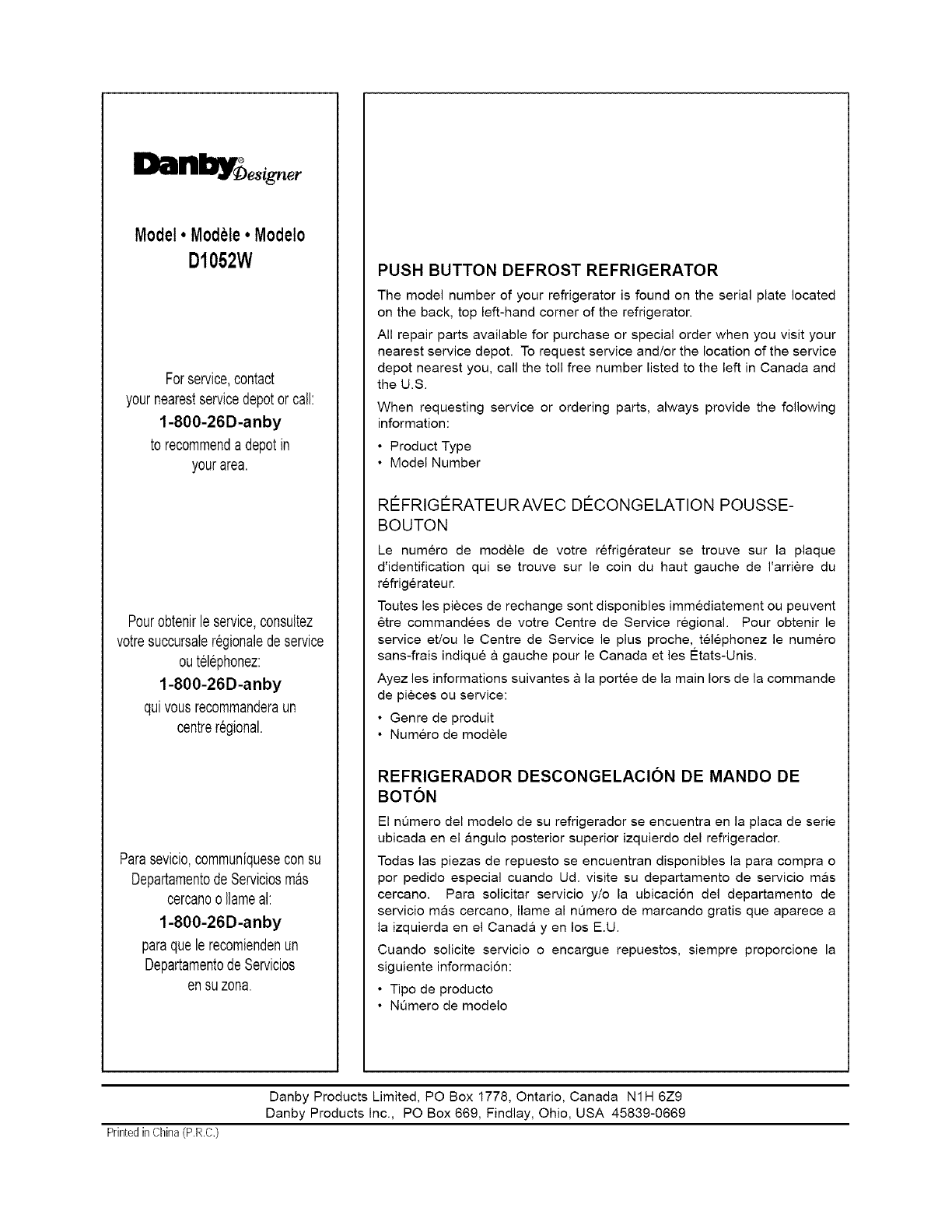

Model, Mod(_le,Modelo
D1052W
Forservice,contact
your nearestservicedepotor call:
1-800-26D-anby
to recommenda depotin
yourarea.
Pourobtenirle service,consultez
votresuccursaleregionaledeservice
out61ephonez:
1-800-26D-anby
quivousrecommanderaun
centreregional.
Parasevicio,communiquesecon su
DepartamentodeServiciosmas
cercanoo Ilameal:
1-800-26D-anby
paraquele recomiendenun
DepartamentodeServicios
ensu zona.
PUSH BUTTON DEFROST REFRIGERATOR
The model number of your refrigerator is found on the serial plate located
on the back, top left-hand corner of the refrigerator.
All repair parts available for purchase or special order when you visit your
nearest service depot. To request service and/or the location of the service
depot nearest you, call the toll free number listed to the left in Canada and
the U.S.
When requesting service or ordering parts, always provide the following
information:
• Product Type
• Model Number
REFRIGERATEURAVEC DECONGELATION POUSSE-
BOUTON
Le numero de modele de votre r6frigerateur se trouve sur la plaque
d'identification qui se trouve sur le coin du haut gauche de I'arriere du
r6frigerateur.
Toutes les pieces de rechange sont disponibles immediatement ou peuvent
6tre commandees de votre Centre de Service regional. Pour obtenir le
service ettou le Centre de Service le plus proche, tel6phonez le numero
sans-frais indique & gauche pour le Canada et les Etats-Unis.
Ayez les informations suivantes a la portee de la main Iors de la commande
de pieces ou service:
• Genre de produit
• Numero de modele
REFRIGERADOR DESCONGELACION DE MANDO DE
BOTON
El numero del modelo de su refrigerador se encuentra en la placa de serie
ubicada en el angulo posterior superior izquierdo del refrigerador.
Todas las piezas de repuesto se encuentran disponibles la para compra o
por pedido especial cuando Ud. visite su departamento de servicio mas
cercano. Para solicitar servicio y/o la ubicacion del departamento de
servicio mas cercano, Ilame al nQmero de marcando gratis que aparece a
la izquierda en el Canada yen los E.U.
Cuando solicite servicio o encargue repuestos, siempre proporcione la
siguiente informacion:
• Tipo de producto
• NQmero de modelo
Danby Products Limited, PO Box 1778, Ontario, Canada N1H 6Z9
Danby Products Inc., PO Box 669, Findlay, Ohio, USA 45839-0669
Printedin China(P.R.C.)
OWNER'SMANUAL
MANUEL
D'UTILISATION
MANUALDEL
PROPIETARIO
Model, Modele, Modelo
D1052W
CAUTION:
Read and follow all safety rules
and operating instructionsbefore
first useof this product.
PRECAUTION:
Veuillez lire attentivement les
consignes de securite et les
instructions d'utilisation avant
rutilisation initialede ce produit.
PRECAUCION:
Lea y observetodas las reglas de
seguridady las instruccionesde
operacion antes de usar este
productopor primeravez.
PUSH BUTTON DEFROST REFRIGERATOR
Owner's Manual ........................
•Safety Instructions
• Installation
• Operation
• Care and Maintenance
• Trouble Shooting
1-6
R¢:FRIG¢:RATEUR AVEC D¢:CONGELATION POUSSE-BOUTON
Manuel d'utilisation ................... 7-12
• Consignes de securite
• Instructions
• Fonctionnement
• Soins et entretien
• En cas de problem
REFRIGERADOR DESCONGELACION DE MANDO DE BOTON
Manual del propietario ................ 13-18
• Instrucciones de seguridad
• Instalaci6n
• Operaci6n
• Cuidado y Mantenimiento
• Soluci6n Sugerida
Danby Products Limited, PO Box 1778, Ontario, Canada N1H 6Z9
Danby Products Inc., PO Box 669, Findlay, Ohio, USA 45839-0669
1052.06.02

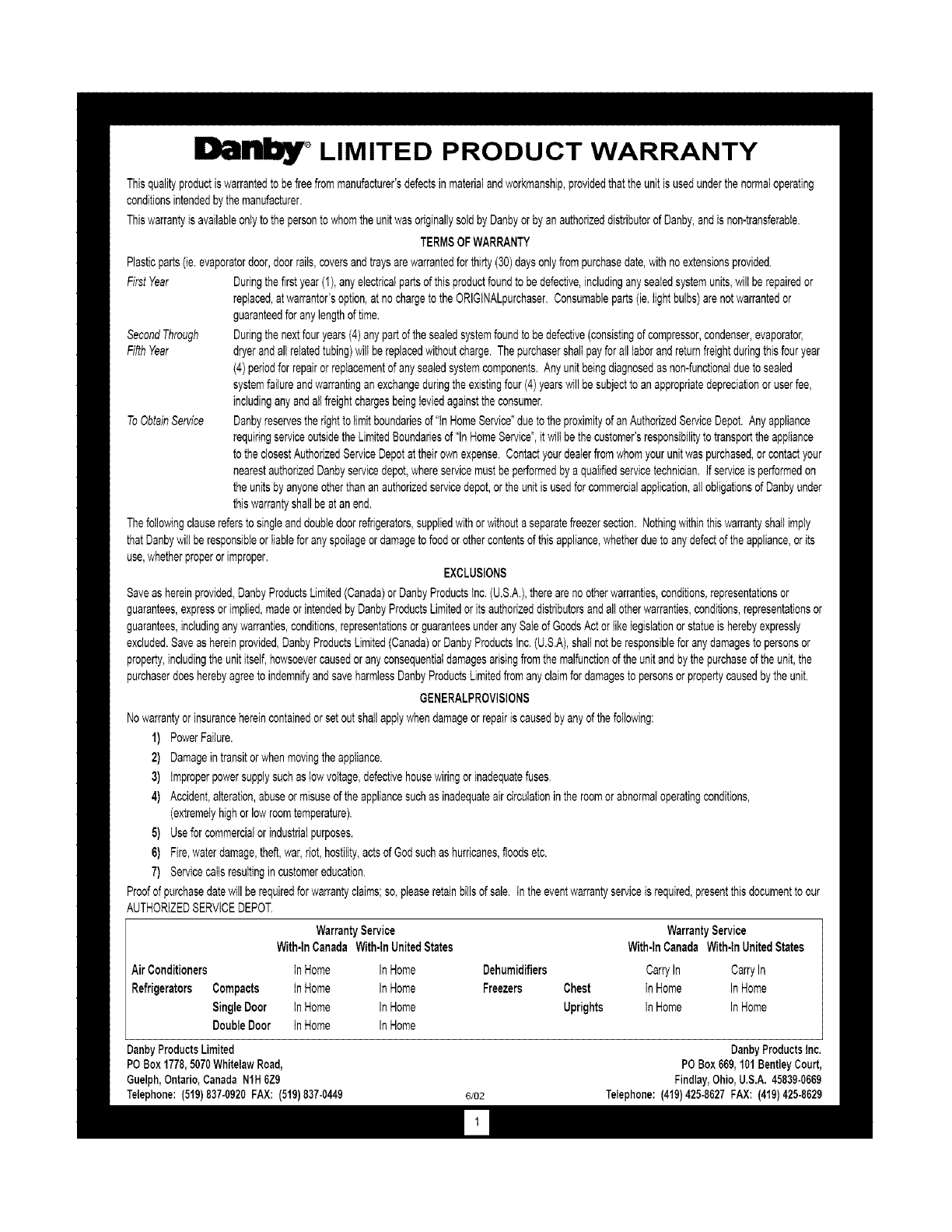

oanl °LIMITED PRODUCT WARRANTY
Thisqualityproductis warrantedto be free frommanufacturer'sdefectsin materialandworkmanship,providedthat theunitis usedunderthe normaloperating
conditionsintendedby themanufacturer.
Thiswarrantyis availableonly tothe personto whomthe unitwasoriginallysoldby Danbyor byan authorizeddistributorof Danby,andis non-transferable.
TERMSOFWARRANTY
Plasticparts(ie. evaporatordoor,door rails,coversandtraysarewarrantedforthirty(30)daysonly frompurchasedate,withno extensionsprovided.
FirstYear Duringthefirstyear(1), anyelectricalpartsof thisproductfoundto bedefective,includinganysealedsystemunits,will berepairedor
replaced,at warrantor'soption,at no chargeto theORIGINALpurchaser.Consumableparts(ie. lightbulbs)are notwarrantedor
guaranteedforanylengthof time.
SecondThrough Duringthenextfour years(4)anypart ofthe sealedsystemfoundto bedefective(consistingof compressor,condenser,evaporator,
FifthYear dryerandallrelatedtubing)wilIbereplacedwithoutcharge.Thepurchasershallpayforall laborand returnfreightduringthisfour year
(4)periodfor repairor replacementof anysealedsystemcomponents.Anyunitbeingdiagnosedas non-functionaldueto sealed
systemfailureandwarrantingan exchangeduringthe existingfour(4) yearswill be subjectto an appropriatedepreciationor userfee,
includinganyandaIIfreightchargesbeingleviedagainsttheconsumer.
ToObtainService Danbyreservesthe rightto limitboundariesof"tn HomeService"dueto the proximityof an AuthorizedServiceDepot.Any appliance
requiringserviceoutsidethe LimitedBoundariesof "In HomeService",itwill be thecustomer'sresponsibilityto transporttheappliance
to the closestAuthorizedServiceDepotat theirown expense.Contactyourdealerfromwhomyourunitwaspurchased,or contactyour
nearestauthorizedDanbyservicedepot,whereservicemust be performedbya qualifiedservicetechnician.If serviceis performedon
the unitsby anyoneotherthanan authorizedservicedepot,orthe unitisusedfor commercialappIication,all obligationsof Danbyunder
this warrantyshallbeat anend.
Thefollowingclauserefersto singleanddoubledoor refrigerators,suppliedwithor withouta separatefreezersection. Nothingwithinthis warrantyshallimply
thatDanbywill be responsibleor liableforany spoilageor damageto foodor othercontentsof this appliance,whetherdueto anydefectof the appliance,orits
use,whetherproperor improper. EXCLUSIONS
Saveas hereinprovided,DanbyProductsLimited(Canada)or DanbyProductsinc. (U.S.A.),thereare no otherwarranties,conditions,representationsor
guarantees,expressor implied,madeorintendedby DanbyProductsLimitedoritsauthorizeddistributorsandall otherwarranties,conditions,representationsor
guarantees,includinganywarranties,conditions,representationsorguaranteesunderanySaleof GoodsAct orlikelegislationorstatueis herebyexpressly
excluded.Saveashereinprovided,DanbyProductsLimited(Canada)or DanbyProductsInc.(U.S.A),shallnotbe responsiblefor anydamagesto personsor
property,includingthe unititself,howsoevercausedoranyconsequentiaIdamagesarisingfromthe malfunctionof theunitand bythe purchaseof the unit,the
purchaserdoesherebyagreeto indemnifyandsaveharmlessDanbyProductsLimitedfrom anyclaimfordamagesto personsor propertycausedbythe unit.
GENERALPROVISIONS
Nowarrantyorinsurancehereincontainedor setoutshallappIywhendamageor repairis causedbyanyof thefollowing:
1) PowerFailure.
2) Damageintransitorwhenmovingthe appliance.
3) improperpowersupplysuchaslowvoltage,defectivehousewiringorinadequatefuses.
4) Accident,alteration,abuseor misuseof theappliancesuchas inadequateair circulationin theroomor abnormaloperatingconditions,
(extremelyhighorlow roomtemperature).
5) Useforcommercialor industrialpurposes.
6) Fire,waterdamage,theft,war,riot,hostility,acts of Godsuchas hurricanes,floodsetc.
7) Servicecallsresultingincustomereducation.
Proofof purchasedatewill be requiredforwarrantyclaims;so,pleaseretainbillsof sale. inthe eventwarrantyserviceis required,presentthis documentto our
AUTHORIZEDSERVICEDEPOT.
WarrantyService WarrantyService
With-InCanada With-InUnitedStates With-ln Canada With-InUnitedStates
Air Conditioners in Home In Home Dehumidifiers Carryin CarryIn
Refrigerators Compacts tn Home In Home Freezers Chest tn Home In Home
Single Door tn Home In Home Uprights inHome In Home
DoubleDoor in Home In Home
DanbyProductsLimited
POBox 1778,5070WhitelawRoad,
Guelph,Ontario,Canada N1H6Z9
Telephone:(519)837-0920FAX: (519)837-0449 6/O2
DanbyProductsInc.
POBox669,101BentleyCourt,
Findlay,Ohio,U.S.A.45839-0669
Telephone:(419)425-8627FAX: (419)425-8629

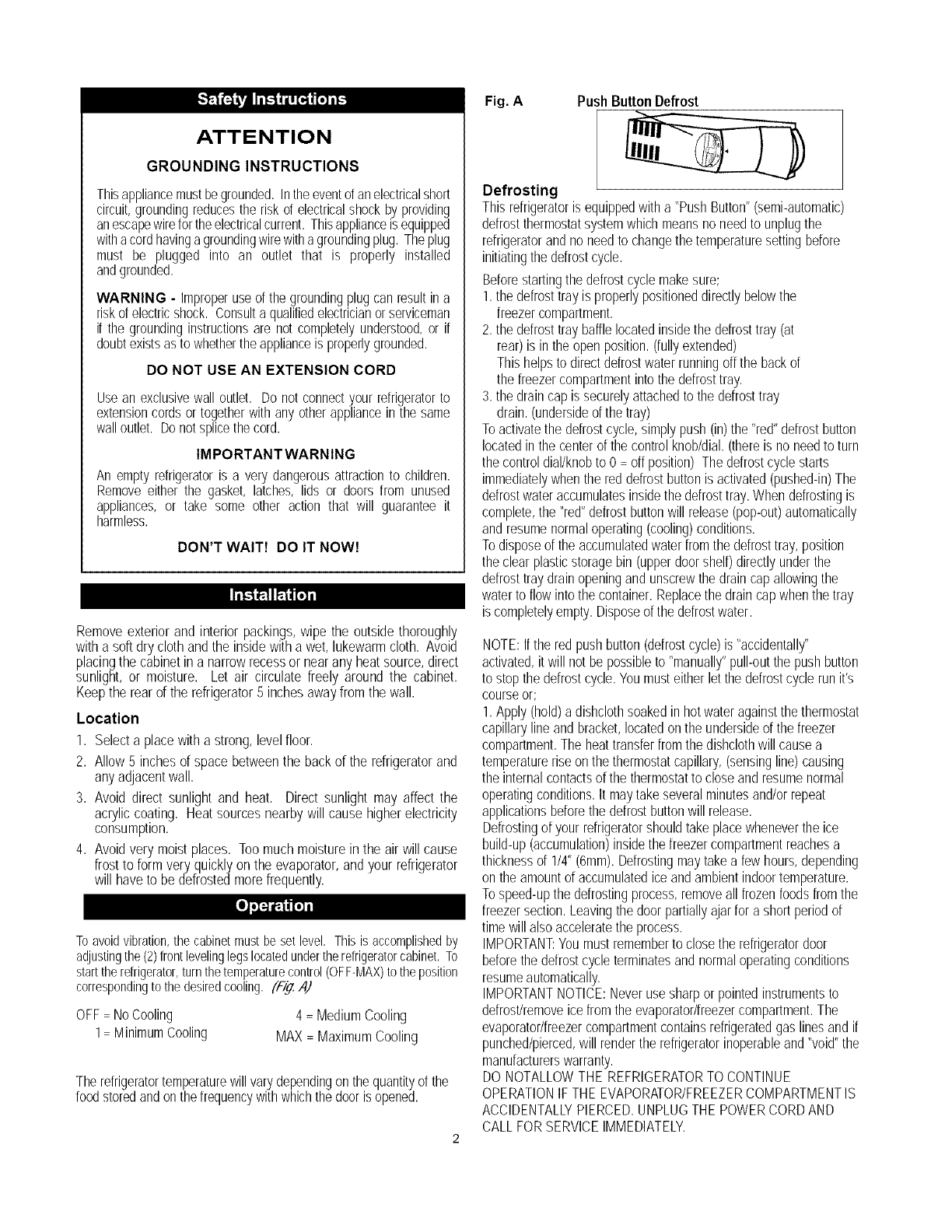

ATTENTION
GROUNDING INSTRUCTIONS
Thisappliancemustbegrounded.Intheeventofanelectricalshort
circuit,groundingreducesthe riskdelectricalshockby providing
anescapewirefortheelectricalcurrent.Thisapplianceisequipped
withacordhavingagroundingwirewithagroundingplug.Theplug
must be plugged into an outlet that is properly installed
andgrounded.
WARNING - Improperuseofthe groundingplugcanresultina
riskofelectricshock.Consulta qualifiedelectricianorserviceman
if the groundinginstructionsarenot completelyunderstood,or if
doubtexistsasto whetherthe applianceis properlygrounded.
DO NOT USE AN EXTENSION CORD
Usean exclusivewall outlet. Do notconnectyourrefrigeratorto
extensioncordsortogetherwithany otherapplianceinthe same
walloutlet. Donotsplicethe cord.
IMPORTANTWARNING
An emptyrefrigeratoris a verydangerousattractionto children.
Removeeitherthe gasket,latches,lids or doorsfrom unused
appliances,or take some other actionthat will guaranteeit
harmless.
DON'T WALT! DO IT NOW!
EI'_J_ I_lt;Tit
Removeexteriorandinteriorpackings,wipethe outsidethoroughly
witha softdry clothandthe insidewitha wet,lukewarmcloth. Avoid
placingthe cabinetina narrowrecessor nearanyheatsource,direct
sunlight,or moisture. Let air circulatefreely aroundthe cabinet.
Keepthe rearof the refrigerator5 inchesawayfromthe wall.
Location
1. Selecta placewithastrong,levelfloor.
2. Allow5 inchesof spacebetweenthe backof the refrigeratorand
anyadjacentwall.
3. Avoiddirect sunlightand heat. Direct sunlightmay affectthe
acryliccoating. Heatsourcesnearbywill causehigherelectricity
consumption.
4. Avoidverymoistplaces. Toomuchmoisturein the airwill cause
frostto formveryquicklyonthe evaporator,andyour refrigerator
willhaveto bedefrostedmorefrequently.
To avoidvibration,the cabinetmust be set level. This is accomplishedby
adjustingthe(2) frontlevelinglegslocatedundertherefrigeratorcabinet.To
starttherefrigerator,turn thetemperaturecontrol(OFF-MAX)to the position
correspondingto the desiredcooling, ffTg..4)
OFF= No Cooling
1= Minimum Cooling
4= MediumCooling
MAX= MaximumCooling
Therefrigeratortemperaturewillvarydependingonthequantityof the
foodstoredandonthefrequencywithwhichthedooris opened.
Fig. A PushButton Defrost
Defrosting
Thisrefrigeratorisequippedwitha "PushButton"(semi-automatic)
defrostthermostatsystemwhichmeansnoneedto unplugthe
refrigeratorandnoneedto changethetemperaturesettingbefore
initiatingthedefrostcycle.
Beforestartingthedefrostcyclemakesure;
1.the defrosttrayis properlypositioneddiredly belowthe
freezercompartment.
2.the defrosttraybafflelocatedinsidethe defrosttray(at
rear)is inthe openposition.(fullyextended)
Thishelpsto directdefrostwaterrunningoffthe backof
thefreezercompartmentintothe defrosttray.
3.the draincap issecurelyattachedto the defrosttray
drain.(undersideofthe tray)
Toactivatethe defrostcycle,simplypush(in)the"red"defrostbutton
locatedinthe centerof thecontrolknob/dial.(thereis no needtoturn
the controldial/knobto 0 = offposition)Thedefrostcyclestarts
immediatelywhenthe reddefrostbuttonisactivated(pushed-in)The
defrostwateraccumulatesinsidethe defrosttray.Whendefrostingis
complete,the "red"defrostbuttonwill release(pop-out)automatically
andresumenormaloperating(cooling)conditions.
Todisposeof the accumulatedwaterfromthe defrosttray,position
the clearplasticstoragebin (upperdoorshelf)diredlyunderthe
defrosttraydrainopeningandunscrewthe draincapallowingthe
waterto flowintothecontainer.Replacethedraincapwhenthetray
iscompletelyempty.Disposeofthe defrostwater.
NOTE:Ifthe redpushbutton(defrostcycle)is"accidentally"
activated,itwill not bepossibleto "manually"pull-outthe pushbutton
to stopthe defrostcycle.Youmusteitherletthedefrostcyclerunit's
courseor;
1.Apply(hold)adishclothsoakedinhotwateragainstthethermostat
capillarylineandbracket,locatedonthe undersideofthe freezer
compartment.Theheattransferfromthedishclothwillcausea
temperatureriseonthethermostatcapillary,(sensingline)causing
the internalcontactsof thethermostatto closeandresumenormal
operatingconditions.Itmaytakeseveralminutesand/orrepeat
applicationsbeforethedefrostbuttonwill release.
Defrostingof yourrefrigeratorshouldtakeplacewheneverthe ice
build-up(accumulation)insidethefreezercompartmentreachesa
thicknessof 114"(6ram).Defrostingmaytakea fewhours,depending
onthe amountof accumulatediceandambientindoortemperature.
Tospeed-upthedefrostingprocess,removeallfrozenfoodsfromthe
freezersection.Leavingthe doorpartiallyajarfora shortperiodof
timewill alsoacceleratethe process.
IMPORTANT:Youmustrememberto closethe refrigeratordoor
beforethedefrostcycleterminatesandnormaloperatingconditions
resumeautomatically.
IMPORTANTNOTICE:Neverusesharporpointedinstrumentsto
defrost/removeicefromthe evaporator/freezercompartment.The
evaporator/freezercompartmentcontainsrefrigeratedgaslinesandif
punched/pierced,willrenderthe refrigeratorinoperableand"void"the
manufacturerswarranty.
DO NOTALLOWTHEREFRIGERATORTOCONTINUE
OPERATIONIFTHEEVAPORATOR/FREEZERCOMPARTMENTIS
ACCIDENTALLYPIERCED.UNPLUGTHEPOWERCORDAND
CALLFORSERVICEIMMEDIATELY.

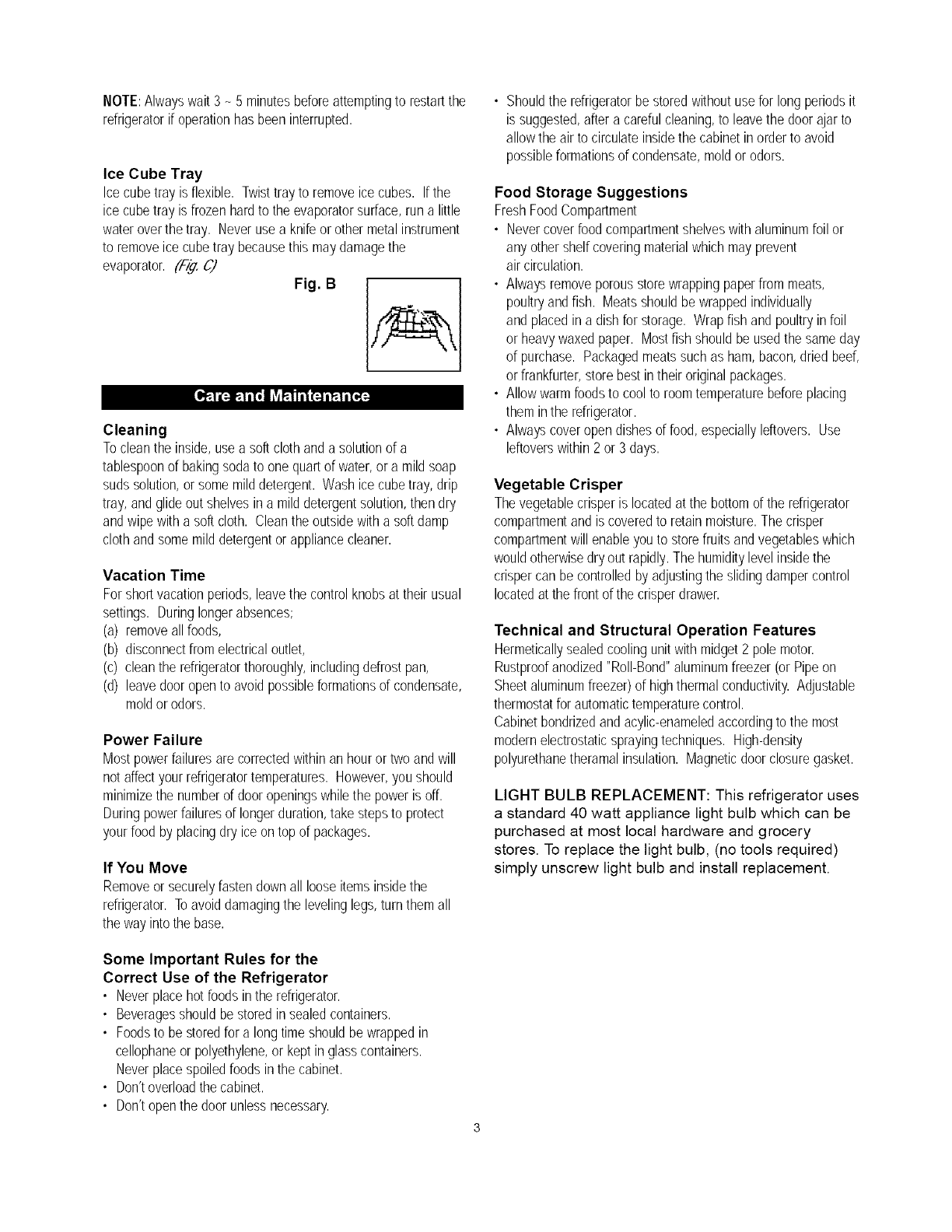

NOTE:Alwayswait3~5minutesbeforeattemptingtorestartthe
refrigeratorifoperationhasbeeninterrupted.
Ice Cube Tray
Icecubetrayis flexible. Twisttrayto removeice cubes. Ifthe
ice cubetrayis frozenhardto theevaporatorsurface,runa little
wateroverthe tray. Neverusea knifeor othermetalinstrument
to removeice cubetray becausethis maydamagethe
evaporator,ff)g. d'J
Fig. B
Cleaning
Tocleanthe inside,usea softclothanda solutionof a
tablespoonof bakingsodato onequartof water,or a mildsoap
sudssolution,orsomemilddetergent.Washice cubetray,drip
tray, andglideout shelvesina milddetergentsolution,thendry
andwipewitha soft cloth. Cleanthe outsidewitha softdamp
clothandsomemilddetergentorappliancecleaner.
Vacation Time
Forshortvacationperiods,leavethe controlknobsat their usual
settings. Duringlongerabsences;
(a) removeallfoods,
(b) disconnectfromelectricaloutlet,
(c) cleanthe refrigeratorthoroughly,includingdefrostpan,
(d) leavedooropento avoidpossibleformationsof condensate,
moldor odors.
Power Failure
Mostpowerfailuresarecorrectedwithinan hourortwoandwill
not affectyour refrigeratortemperatures.However,you should
minimizethe numberof dooropeningswhilethe poweris off.
Duringpowerfailuresof longerduration,takestepsto protect
yourfoodby placingdry iceontop of packages.
If You Move
Removeor securelyfastendownall looseitemsinsidethe
refrigerator.Toavoiddamagingthe levelinglegs,turnthemall
the wayintothebase.
•Shouldthe refrigeratorbestoredwithoutusefor longperiodsit
is suggested,aftera carefulcleaning,to leavethe doorajarto
allowthe airto circulateinsidethe cabinetinorderto avoid
possibleformationsof condensate,moldorodors.
Food Storage Suggestions
FreshFoodCompartment
• Nevercoverfoodcompartmentshelveswithaluminumfoilor
anyothershelfcoveringmaterialwhichmayprevent
aircirculation.
• Alwaysremoveporousstorewrappingpaperfrommeats,
poultryandfish. Meatsshouldbewrappedindividually
andplacedin a dishfor storage.Wrapfishandpoultryinfoil
or heavywaxedpaper. Mostfishshouldbeusedthe sameday
of purchase.Packagedmeatssuchas ham,bacon,driedbeef,
orfrankfurter,storebestintheiroriginalpackages.
• Allowwarmfoodsto coolto roomtemperaturebeforeplacing
theminthe refrigerator.
• Alwayscoveropendishesof food,especiallyleftovers. Use
leftoverswithin2 or 3days.
Vegetable Crisper
Thevegetablecrisperis locatedatthe bottomof the refrigerator
compartmentand iscoveredto retainmoisture.The crisper
compartmentwill enableyouto storefruitsandvegetableswhich
wouldotherwisedryout rapidly.Thehumiditylevelinsidethe
crispercanbecontrolledby adjustingthe slidingdampercontrol
locatedat the frontofthe crisperdrawer.
Technical and Structural Operation Features
Hermeticallysealedcoolingunitwithmidget2 polemotor.
Rustproofanodized"Roll-Bond"aluminumfreezer(orPipeon
Sheetaluminumfreezer)of highthermalconductivity.Adjustable
thermostatfor automatictemperaturecontrol.
Cabinetbondrizedandacylic-enameledaccordingto the most
modernelectrostaticsprayingtechniques.High-density
polyurethanetheramalinsulation.Magneticdoorclosuregasket.
LIGHT BULB REPLACEMENT: This refrigerator uses
a standard 40 watt appliance light bulb which can be
purchased at most local hardware and grocery
stores. To replace the light bulb, (no tools required)
simply unscrew light bulb and install replacement.
Some Important Rules for the
Correct Use of the Refrigerator
• Neverplacehotfoodsinthe refrigerator.
• Beveragesshouldbestoredin sealedcontainers.
• Foodsto bestoredfor a longtimeshouldbewrappedin
cellophaneor polyethylene,or keptinglasscontainers.
Neverplacespoiledfoodsinthe cabinet.
• Don'toverloadthecabinet.
• Don'topenthe doorunlessnecessary.
Frequently,aproblemisminorandaservicecallmaynotbenecessary,usethistroubleshootingguideforapossiblesolution.If
theunitcontinuestooperateimproperly,callanauthorizedservicedepotorDanby'sTollFreeNumberforassistance.
Doesnotwork Nopowertounit. Checkconnectionofpowercordto
Coolstoofrequently
Internaltemperature
toocold
Nopowertounit.Internaltemperature
notcoldenough
Freezerisnotcold
enough
Lightwillnotwork
Powercordisunplugged.
Wrongvoltageisbeingused.
Temperaturecontroltoohigh.
Doorisnotclosed.
Hotfoodinserted.
Dooropenedtoolong
ortoooften.
Closeproximitytoheatsource
ordirectsunlight.
Temperaturecontroltoohigh.
Powercordisunplugged.
Temperaturecontroltoolow.
Doorisnotclosed.
Hotfoodinserted.
Dooropenedtoolong
ortoooften.
Airflowobstruction.
Wrongvoltageisbeingused.
Closeproximitytoheatsource
ordirectsunlight.
Temperaturecontroltoolow.
Doornotclosed.
Hotfoodisinserted.
Dooropenedtoolong
ortoooften.
Wrongvoltageisbeingused.
Nopowertounit.
Powercordisunplugged.
Bulbisloose,needsreplacing
orthedoorswitchisstuck.
powersource.
Pluginunit.
Usepropervoltage,
Checksettingandadjustasneeded,
Closedoorsecurely.
Besurethatfoodiscoolbeforeinserting.
DONOTkeepdooropenfortoolong.
MINIMIZEdooropenings.
DONOTplaceunitclosetoheatsources
ordirectsunlight.
Checksettingandadjustasneeded,
Checkconnectionofpowercordto
powersource.
Pluginunit.
Checksettingandadjustasneeded.
Closedoorsecurely.
Besurethatfoodiscoolbeforeinserting.
DONOTkeepdooropenfortoolong.
MINIMIZEdooropenings.
Allowroomforairtocirculatearoundunit.
Usepropervoltage.
DONOTplaceunitclosetoheatsources
ordirectsunlight.
Checksettingandadjustasneeded.
Closedoorsecurely.
Besurethatfoodiscoolbeforeinserting.
DONOTkeepdooropenfortoolong.
Usepropervoltage.
Checkconnectionofpowercordto
powersource.
Pluginunit.
Tightenorreplacethebulb.Checkthe
switchforobstructionsandclean.

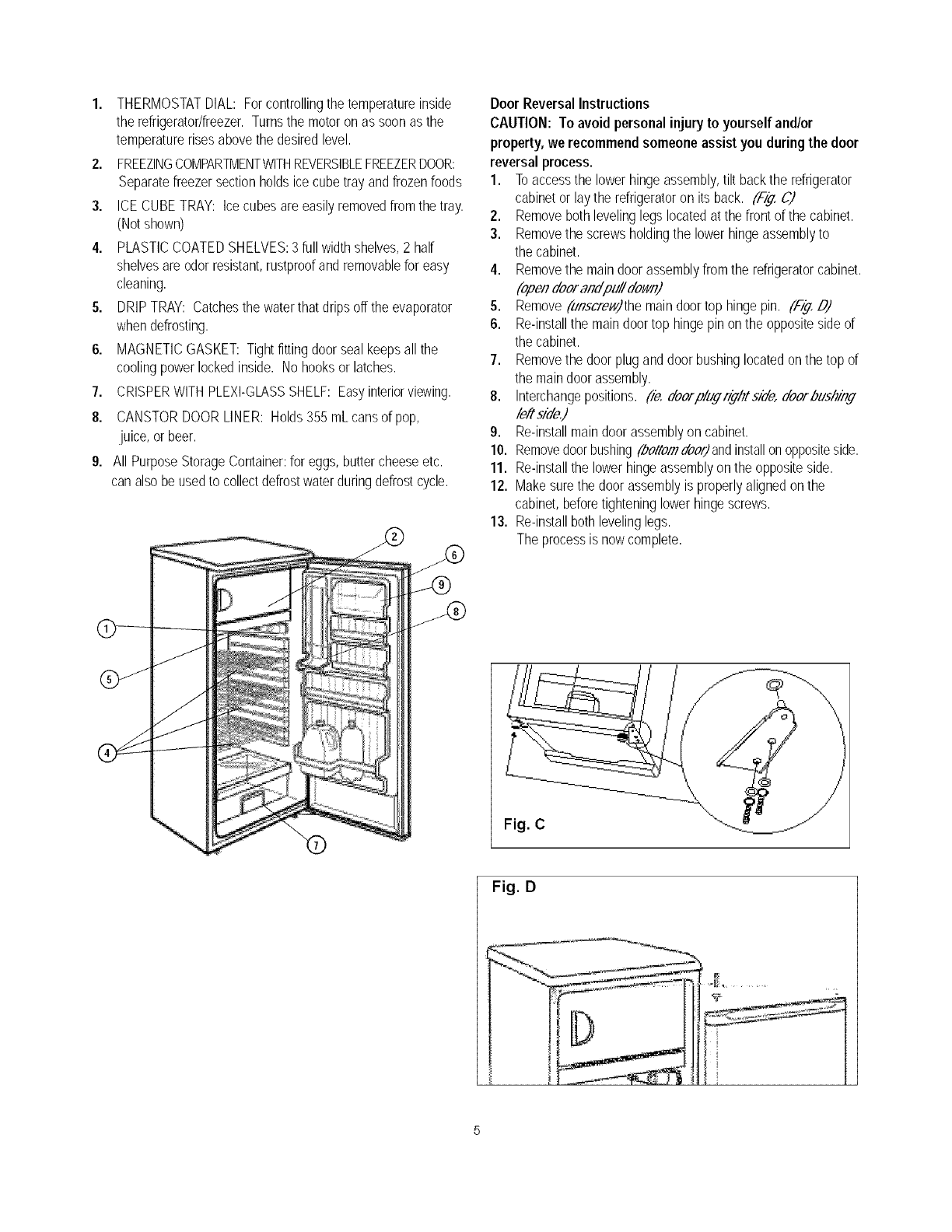

1. THERMOSTATDIAL:Forcontrollingthetemperatureinside
therefrigerator/freezer.Turnsthemotoronassoonasthe
temperaturerisesabovethedesiredlevel.
2. FREEZINGCOMPARTMENTWlTHREVERSIBLEFREEZERDOOR:
Separatefreezersectionholdsicecubetrayandfrozenfoods
3. ICECUBETRAY:Icecubesareeasilyremovedfromthetray.
(Notshown)
4. PLASTICCOATEDSHELVES:3fullwidthshelves,2half
shelvesareodorresistant,rustproofandremovableforeasy
cleaning.
5. DRIPTRAY:Catchesthewaterthatdripsofftheevaporator
whendefrosting.
6. MAGNETICGASKET:Tightfittingdoorsealkeepsallthe
coolingpowerlockedinside.Nohooksorlatches.
7. CRISPERWITHPLEXI-GLASSSHELF:Easyinteriorviewing.
8. CANSTORDOORLINER:Holds355mLcansofpop,
juice,orbeer.
9. AllPurposeStorageContainer:foreggs,buttercheeseetc.
canalsobeusedtocollectdefrostwaterduringdefrostcycle.
DoorReversalInstructions
CAUTION:To avoidpersonalinjuryto yourselfand/or
property,we recommendsomeoneassistyouduringthedoor
reversalprocess.
1. Toaccessthe lowerhingeassembly,tilt backthe refrigerator
cabinetor laythe refrigeratoron its back. (f_g.O)
2. Removebothlevelinglegslocatedat the frontof the cabinet.
3. Removethescrewsholdingthe lowerhingeassemblyto
the cabinet.
4. Removethe maindoorassemblyfromthe refrigeratorcabinet.
(opendoorandpu//down)
5. Remove(unscre_the maindoortop hingepin. (f_g.D)
6. Re-installthe maindoortop hingepinonthe oppositesideof
the cabinet.
7. Removethedoorpluganddoorbushinglocatedonthetop of
the maindoorassembly.
8. Interchangepositions. #b..doorp/ugri,dhts/de,doorbushing
left.sTate.)
9. Re-installmaindoorassemblyon cabinet.
I0.Removedoorbushing(hottomdoofJandinstallonoppositeside.
11. Re-installthe lowerhingeassemblyonthe oppositeside.
12. Makesurethe doorassemblyis properlyalignedonthe
cabinet,beforetighteninglowerhingescrews.
13. Re-installbothlevelinglegs.
Theprocessis nowcomplete.
/
Fig. C
Fig. D

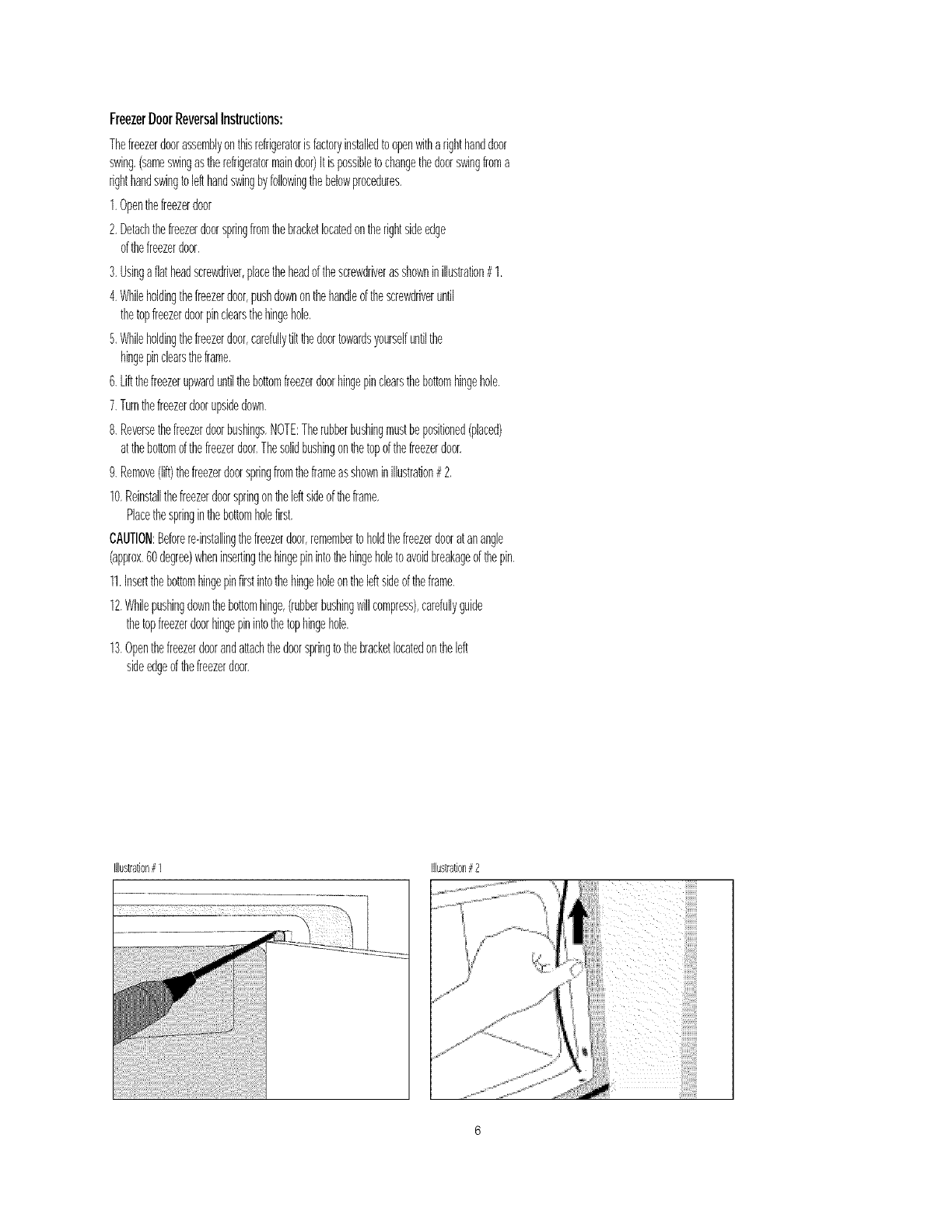

FreezerDoorReversalInstructions:
Thefreezerdoorassemblyonthisrefrigeratorisfactor),installedtoopenwitharighthanddoor
swing.(sameswingastherefrigeratormaindoor)itispossibletochangethedoorswingfroma
righthandswingtoIdthandswingbyfollowingthebelowprocedures.
1.Openthefreezerdoor
2,Detachthefreezerdoorspringfromthebracketlocatedontherightsideedge
ofthefreezerdoor.
3.Usingafiatheadscrewdriver,placetheheadofthescrewdriverasshowninillustration#1.
4.Whileholdingthefreezerdoor,pushdownonthehandleofthescrewdriveruntil
thetopfreezerdoorpinclearsthehingehole,
5,Whileholdingthefreezerdoor,carefullytiltthedoortowardsyourselfuntilthe
hingepinclearstheframe,
6.Liftthefreezerupwarduntilthebottomfreezerdoorhingepinclearsthebottomhingehole.
7.Turnthefreezerdoorupsidedown.
8.Reversethefreezerdoorbushings,NOTE:Therubberbushingmustbepositioned(placed)
atthebottomofthefreezerdoor,Thesolidbushingonthetopofthefreezerdoor,
9.Remove(lift)thefreezerdoorspringfromtheframeasshowninillustration#2,
10,Reinstallthefreezerdoorspringontheleftsideoftheframe,
Placethespringinthebottomholefirst,
CAUTION:Beforere-installingthefreezerdoor,remembertoholdthefreezerdooratanangle
(approx.60degree)wheninsertingthehingepinintothehingeholetoavoidbreakageofthepin.
11.insertthebottomhingepinfirstintothehingeholeontheleftsideoftheframe.
12.Whilepushingdownthebottomhinge,(rubberbushingwillcompress),carefullyguide
thetopfreezerdoorhingepinintothetophingehole.
13.Openthefreezerdoorandattachthedoorspringtothebracketlocatedontheleft
sideedgeofthefreezerdoor,
illustration#1

Navigation menu
