Darfon Electronics DHN0 Dongle User Manual

Darfon Electronics Corp Dongle

User manual

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) Table of Contents 1 PRODUCT DESCRIPTION .........................................................................................................................................................4 1.1 INTRODUCTION ...............................................................................................................................................................................4 1.2 FEATURE DESCRIPTION.................................................................................................................................................................4 1.2.1 Keyboard ......................................................................................................................................................................................4 1.2.2 Mouse............................................................................................................................................................................................ 5 1.2.3 Dongle .......................................................................................................................................................................................... 5 1.2.4 Anti-Interference 2.4Ghz Radio Frequency........................................................................................................................... 6 2 PHYSICAL SPECIFICATION..................................................................................................................................................... 6 2.1 DIMENSION ......................................................................................................................................................................................6 2.1.1 Keyboard PART: ...................................................................................................................................................................... .7 2.1.2 MOUSE PART:..........................................................................................................................................................................7 2.1.3 DONGLE PART:...................................................................................................................................................................... 7 2.2 PCB………………………………………………………………………………………………………….8 2.3 WEIGHT ...........................................................................................................................................................................................8 2.4 ENCLOSURE ....................................................................................................................................................................................8 2.5 FOOT PAD.........................................................................................................................................................................................8 3 MECHANICAL SPECIFICATIONS..........................................................................................................................................8 3.1 KEYBOARD MECHANICAL SPECIFICATIONS ............................................................................................................................8 3.1.1 Key switch Specifications....................................................................................................................................................... ..9 3.1.2 Other Specifications ................................................................................................................................................................ 10 3.2 MOUSE...........................................................................................................................................................................................11 4 ELECTRICAL SPECIFICATIONS..........................................................................................................................................11 4.1 POWER RATING............................................................................................................................................................................11 4.2.1 Keyboard unit: ..........................................................................................................................................................................11 4.2.2 Mouse unit..................................................................................................................................................................................11 4.2.3 Receiver unit ........................................................................................................................................................................... ..12 4.3 BATTERY LIFE ..............................................................................................................................................................................12 4.4 MOUSE TRACKING ..................................................................................................................................................................................................13 4.5 RF SPECIFICATIONS ................................................................................................................................................................................................13 4.6 KEYBOARD LED INDICATION ..............................................................................................................................................................................13 4.7 MOUSE LED INDICATION......................................................................................................................................................................................13 6 REGULATIONS AND CERTIFICATIONS.......................................................................................................................26 6.1 EMI TEST (CONDUCTION AND RADIATION) ..................................................................................................................................................26 6.2 ESD TEST .............................................................................................................................................................................................................27 6.2.1 Keyboard unit: .................................................................................................................................................................................................27 6.2.2 Mouse unit:........................................................................................................................................................................................................27 6.2.3 Dongle unit: ..................................................................................................................................................................................................28
Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 6.3 EFT TEST..........................................................................................................................................................................................................28 9 GREEN REQUIREMENT....................................................................................................................................................29 10 KEYBOARD LAYOUT.....................................................................................................................................................29 10.1 104 KEYS LAYOUT (US) ..............................................................................................................................................................................29 10.2 105 KEYS LAYOUT (UK)..............................................................................................................................................................................30

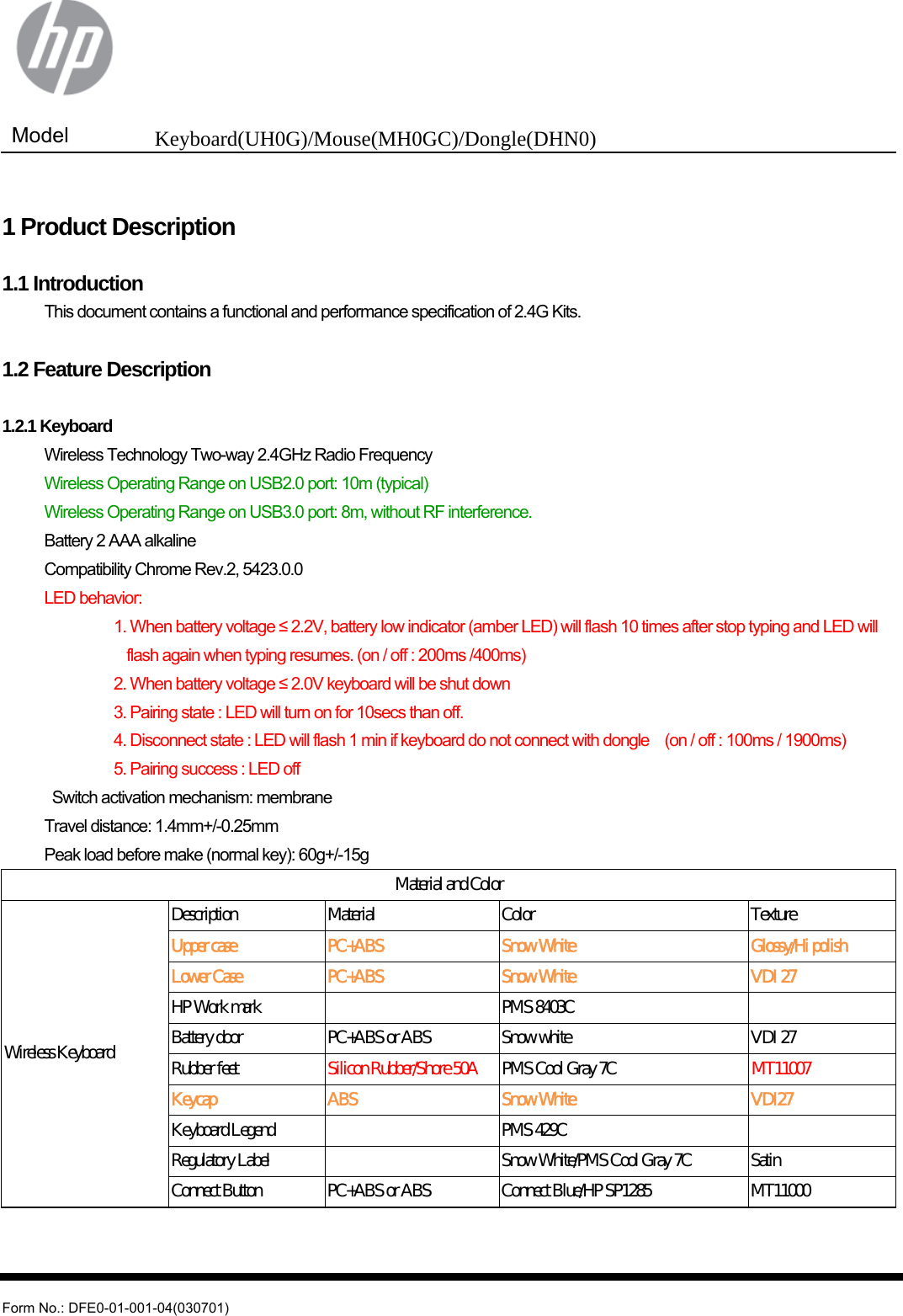

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 1 Product Description 1.1 Introduction This document contains a functional and performance specification of 2.4G Kits. 1.2 Feature Description 1.2.1 Keyboard Wireless Technology Two-way 2.4GHz Radio Frequency Wireless Operating Range on USB2.0 port: 10m (typical) Wireless Operating Range on USB3.0 port: 8m, without RF interference. Battery 2 AAA alkaline Compatibility Chrome Rev.2, 5423.0.0 LED behavior: 1. When battery voltage ≤ 2.2V, battery low indicator (amber LED) will flash 10 times after stop typing and LED will flash again when typing resumes. (on / off : 200ms /400ms) 2. When battery voltage ≤ 2.0V keyboard will be shut down 3. Pairing state : LED will turn on for 10secs than off. 4. Disconnect state : LED will flash 1 min if keyboard do not connect with dongle (on / off : 100ms / 1900ms) 5. Pairing success : LED off Switch activation mechanism: membrane Travel distance: 1.4mm+/-0.25mm Peak load before make (normal key): 60g+/-15g Material and Color Wireless Keyboard Description Material Color Texture Upper case PC+ABS Snow White Glossy/Hi polish Lower Case PC+ABS Snow White VDI 27 HP Work mark PMS 8403C Battery door PC+ABS or ABS Snow white VDI 27 Rubber feet Silicon Rubber/Shore 50A PMS Cool Gray 7C MT11007 Keycap ABS Snow White VDI27 Keyboard Legend PMS 429C Regulatory Label Snow White/PMS Cool Gray 7C Satin Connect Button PC+ABS or ABS Connect Blue/HP SP1285 MT11000

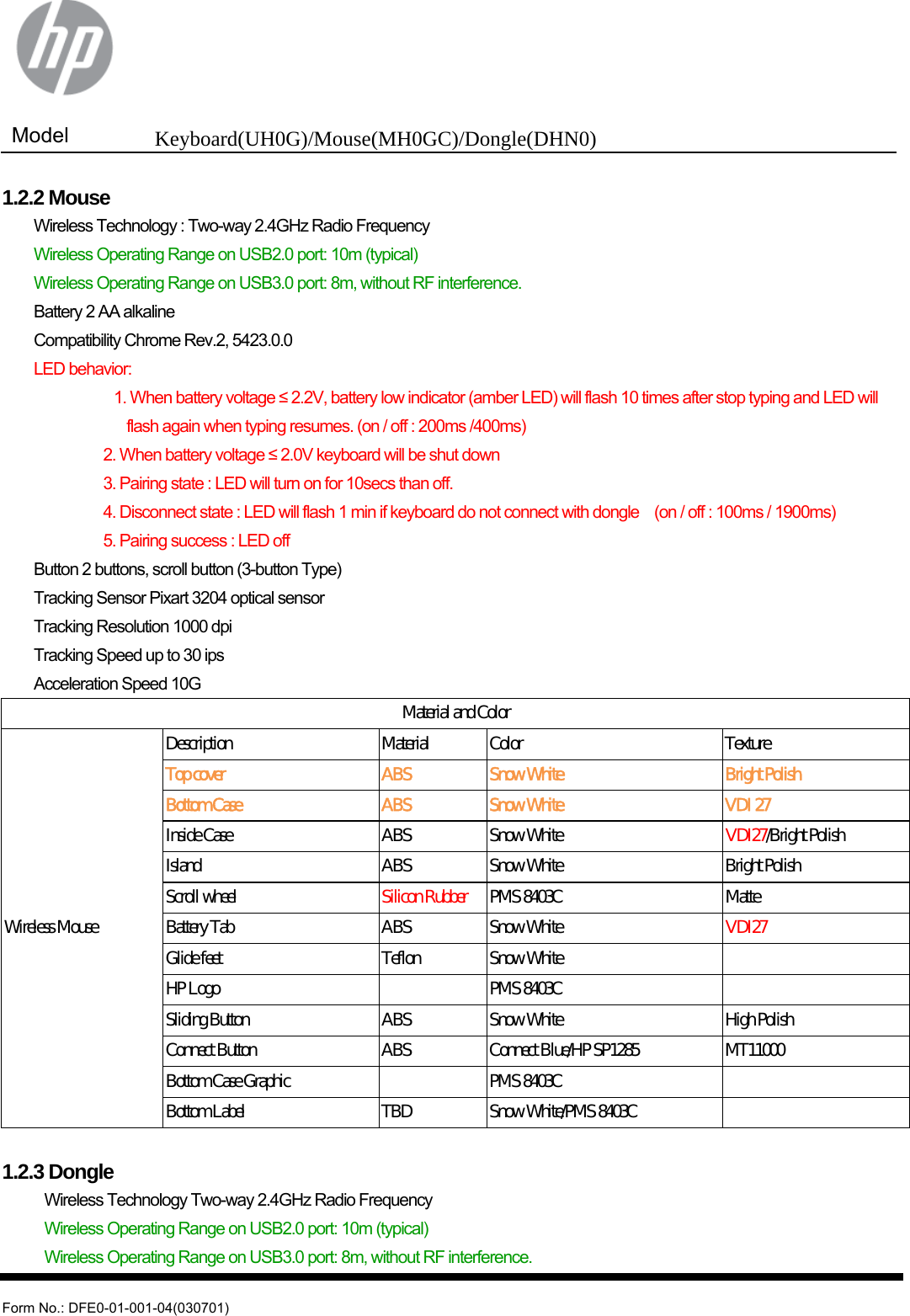

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 1.2.2 Mouse Wireless Technology : Two-way 2.4GHz Radio Frequency Wireless Operating Range on USB2.0 port: 10m (typical) Wireless Operating Range on USB3.0 port: 8m, without RF interference. Battery 2 AA alkaline Compatibility Chrome Rev.2, 5423.0.0 LED behavior: 1. When battery voltage ≤ 2.2V, battery low indicator (amber LED) will flash 10 times after stop typing and LED will flash again when typing resumes. (on / off : 200ms /400ms) 2. When battery voltage ≤ 2.0V keyboard will be shut down 3. Pairing state : LED will turn on for 10secs than off. 4. Disconnect state : LED will flash 1 min if keyboard do not connect with dongle (on / off : 100ms / 1900ms) 5. Pairing success : LED off Button 2 buttons, scroll button (3-button Type) Tracking Sensor Pixart 3204 optical sensor Tracking Resolution 1000 dpi Tracking Speed up to 30 ips Acceleration Speed 10G Material and Color Wireless Mouse Description Material Color Texture Top cover ABS Snow White Bright Polish Bottom Case ABS Snow White VDI 27 Inside Case ABS Snow White VDI27/Bright Polish Island ABS Snow White Bright Polish Scroll wheel Silicon Rubber PMS 8403C Matte Battery Tab ABS Snow White VDI27 Glide feet Teflon Snow White HP Logo PMS 8403C Sliding Button ABS Snow White High Polish Connect Button ABS Connect Blue/HP SP1285 MT11000 Bottom Case Graphic PMS 8403C Bottom Label TBD Snow White/PMS 8403C 1.2.3 Dongle Wireless Technology Two-way 2.4GHz Radio Frequency Wireless Operating Range on USB2.0 port: 10m (typical) Wireless Operating Range on USB3.0 port: 8m, without RF interference.

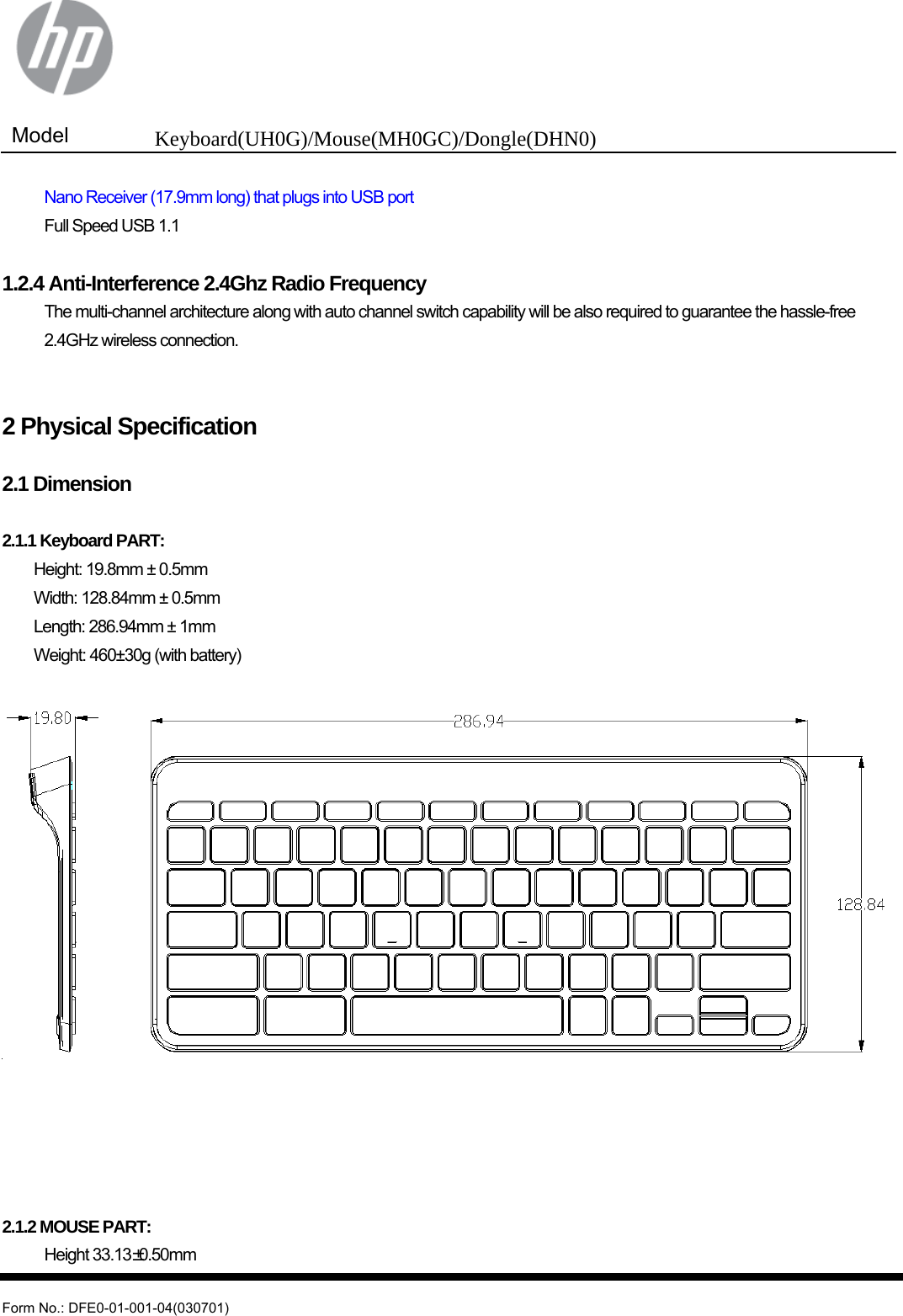

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) Nano Receiver (17.9mm long) that plugs into USB port Full Speed USB 1.1 1.2.4 Anti-Interference 2.4Ghz Radio Frequency The multi-channel architecture along with auto channel switch capability will be also required to guarantee the hassle-free 2.4GHz wireless connection. 2 Physical Specification 2.1 Dimension 2.1.1 Keyboard PART: Height: 19.8mm ± 0.5mm Width: 128.84mm ± 0.5mm Length: 286.94mm ± 1mm Weight: 460±30g (with battery) 2.1.2 MOUSE PART: Height 33.13±0.50mm

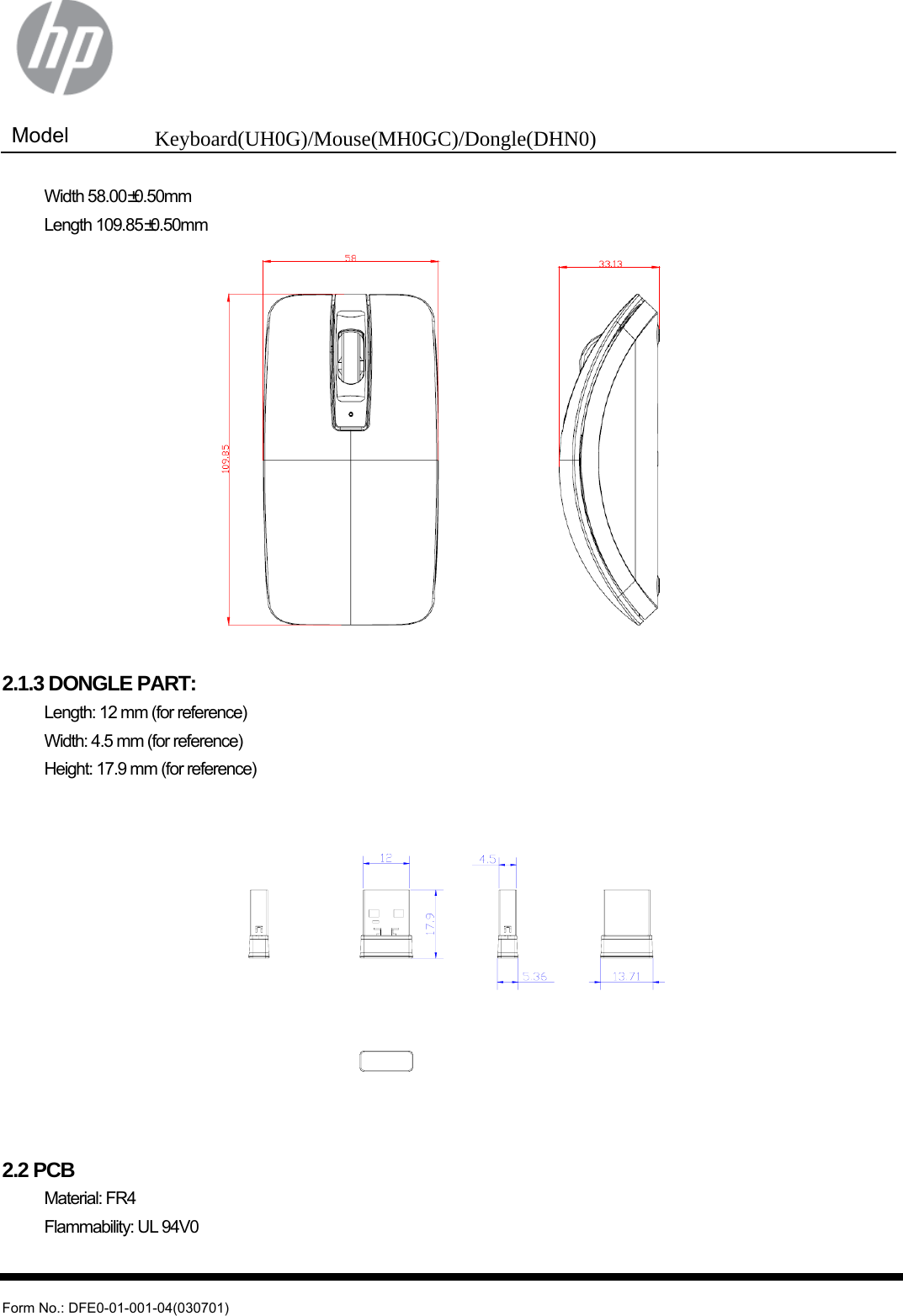

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) Width 58.00±0.50mm Length 109.85±0.50mm 2.1.3 DONGLE PART: Length: 12 mm (for reference) Width: 4.5 mm (for reference) Height: 17.9 mm (for reference) 2.2 PCB Material: FR4 Flammability: UL 94V0

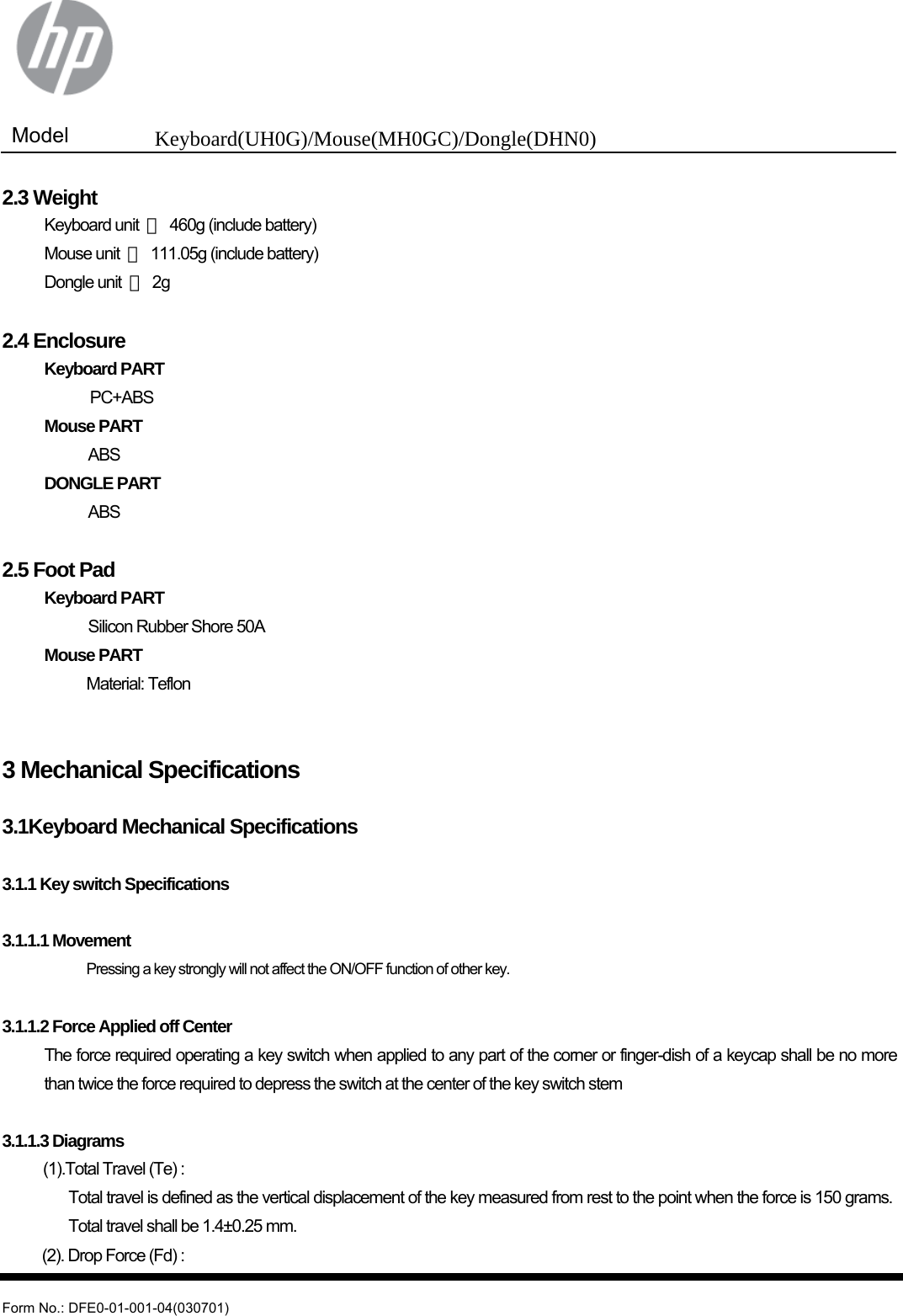

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 2.3 Weight Keyboard unit ： 460g (include battery) Mouse unit ： 111.05g (include battery) Dongle unit ： 2g 2.4 Enclosure Keyboard PART PC+ABS Mouse PART ABS DONGLE PART ABS 2.5 Foot Pad Keyboard PART Silicon Rubber Shore 50A Mouse PART Material: Teflon 3 Mechanical Specifications 3.1Keyboard Mechanical Specifications 3.1.1 Key switch Specifications 3.1.1.1 Movement Pressing a key strongly will not affect the ON/OFF function of other key. 3.1.1.2 Force Applied off Center The force required operating a key switch when applied to any part of the corner or finger-dish of a keycap shall be no more than twice the force required to depress the switch at the center of the key switch stem 3.1.1.3 Diagrams (1).Total Travel (Te) : Total travel is defined as the vertical displacement of the key measured from rest to the point when the force is 150 grams. Total travel shall be 1.4±0.25 mm. (2). Drop Force (Fd) :

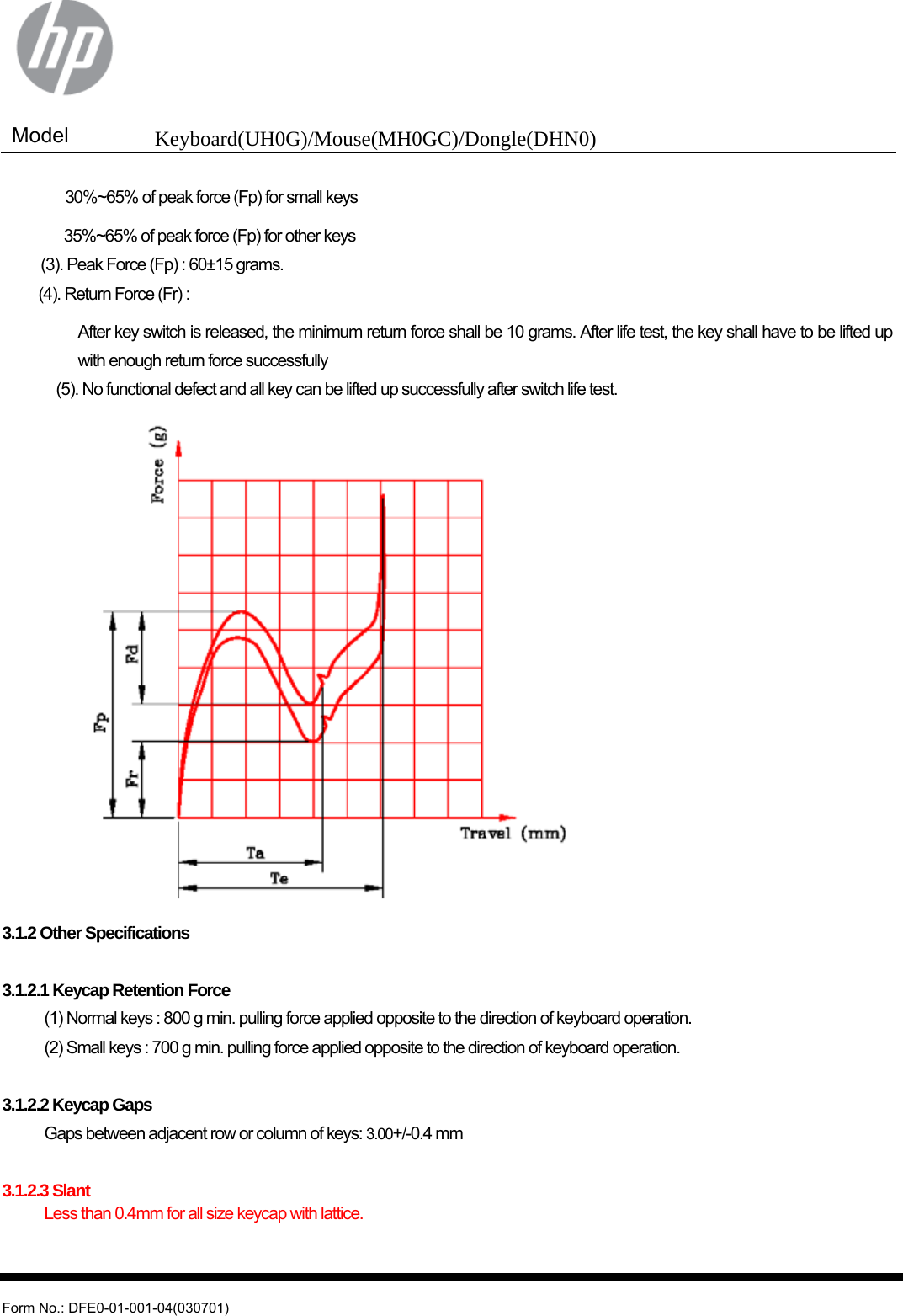

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 30%~65% of peak force (Fp) for small keys 35%~65% of peak force (Fp) for other keys (3). Peak Force (Fp) : 60±15 grams. (4). Return Force (Fr) : After key switch is released, the minimum return force shall be 10 grams. After life test, the key shall have to be lifted up with enough return force successfully (5). No functional defect and all key can be lifted up successfully after switch life test. 3.1.2 Other Specifications 3.1.2.1 Keycap Retention Force (1) Normal keys : 800 g min. pulling force applied opposite to the direction of keyboard operation. (2) Small keys : 700 g min. pulling force applied opposite to the direction of keyboard operation. 3.1.2.2 Keycap Gaps Gaps between adjacent row or column of keys: 3.00+/-0.4 mm 3.1.2.3 Slant Less than 0.4mm for all size keycap with lattice.

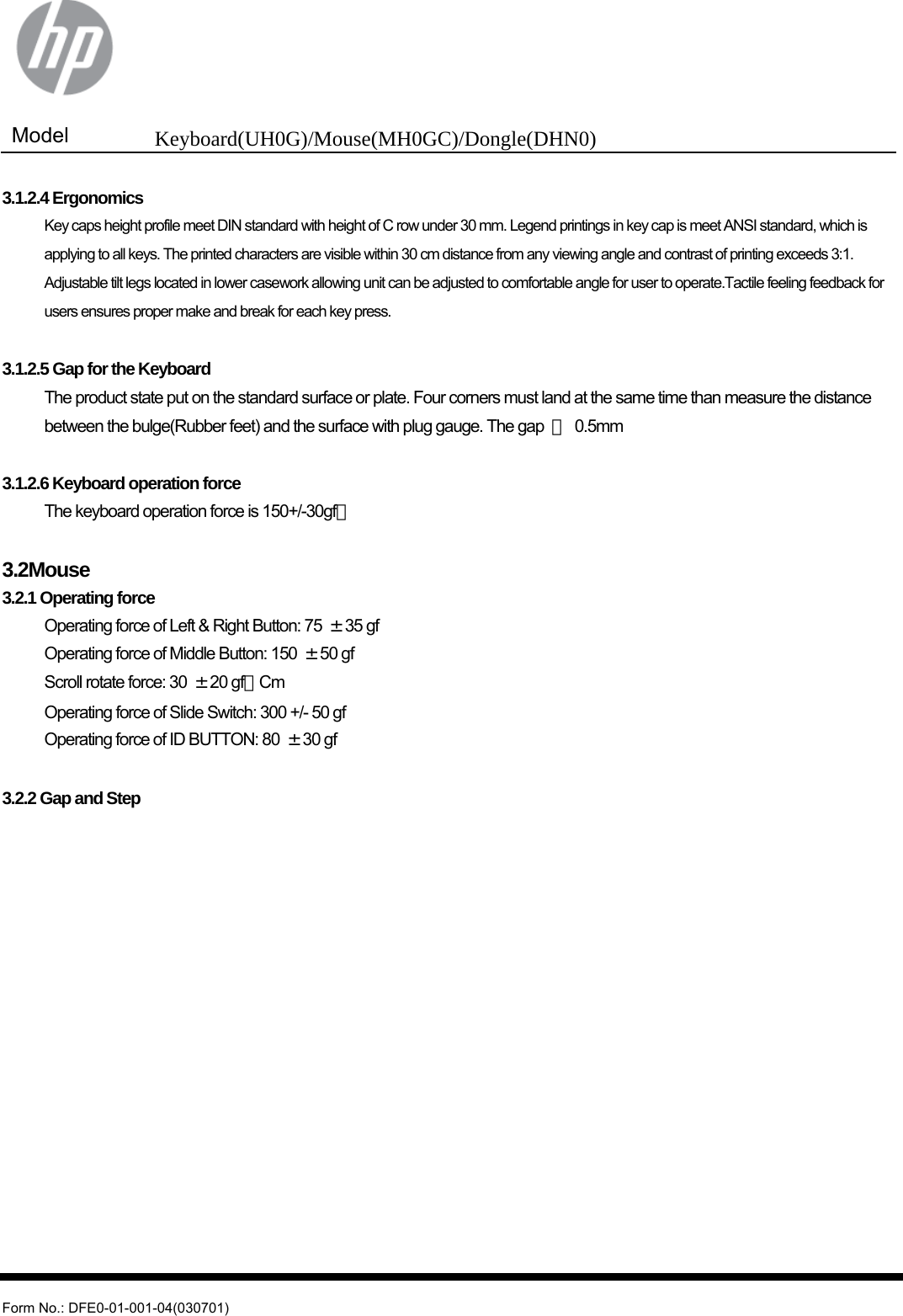

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 3.1.2.4 Ergonomics Key caps height profile meet DIN standard with height of C row under 30 mm. Legend printings in key cap is meet ANSI standard, which is applying to all keys. The printed characters are visible within 30 cm distance from any viewing angle and contrast of printing exceeds 3:1. Adjustable tilt legs located in lower casework allowing unit can be adjusted to comfortable angle for user to operate.Tactile feeling feedback for users ensures proper make and break for each key press. 3.1.2.5 Gap for the Keyboard The product state put on the standard surface or plate. Four corners must land at the same time than measure the distance between the bulge(Rubber feet) and the surface with plug gauge. The gap ≦ 0.5mm 3.1.2.6 Keyboard operation force The keyboard operation force is 150+/-30gf。 3.2Mouse 3.2.1 Operating force Operating force of Left & Right Button: 75 ± 35 gf Operating force of Middle Button: 150 ± 50 gf Scroll rotate force: 30 ± 20 gf．Cm Operating force of Slide Switch: 300 +/- 50 gf Operating force of ID BUTTON: 80 ± 30 gf 3.2.2 Gap and Step

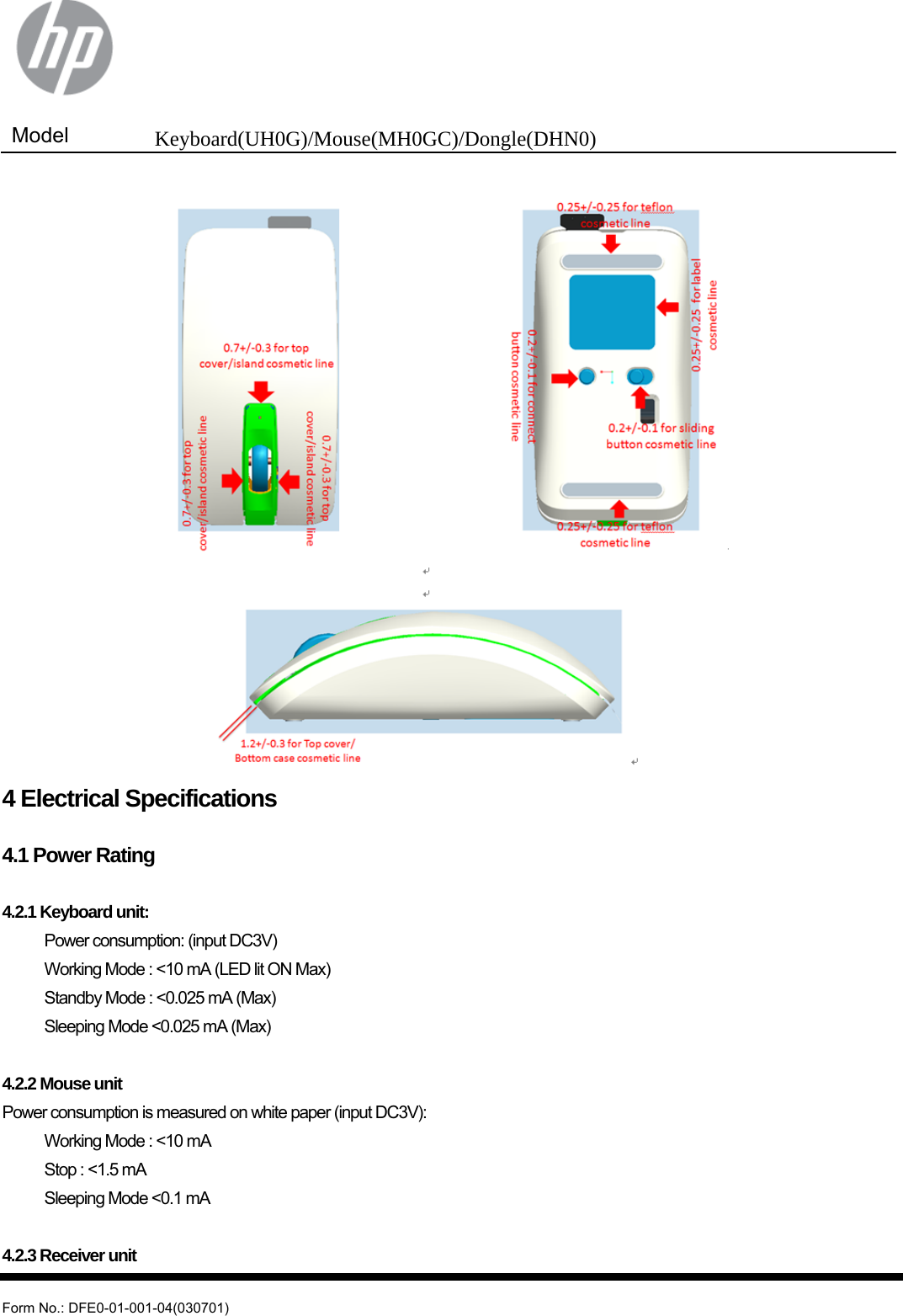

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 4 Electrical Specifications 4.1 Power Rating 4.2.1 Keyboard unit: Power consumption: (input DC3V) Working Mode : <10 mA (LED lit ON Max) Standby Mode : <0.025 mA (Max) Sleeping Mode <0.025 mA (Max) 4.2.2 Mouse unit Power consumption is measured on white paper (input DC3V): Working Mode : <10 mA Stop : <1.5 mA Sleeping Mode <0.1 mA 4.2.3 Receiver unit

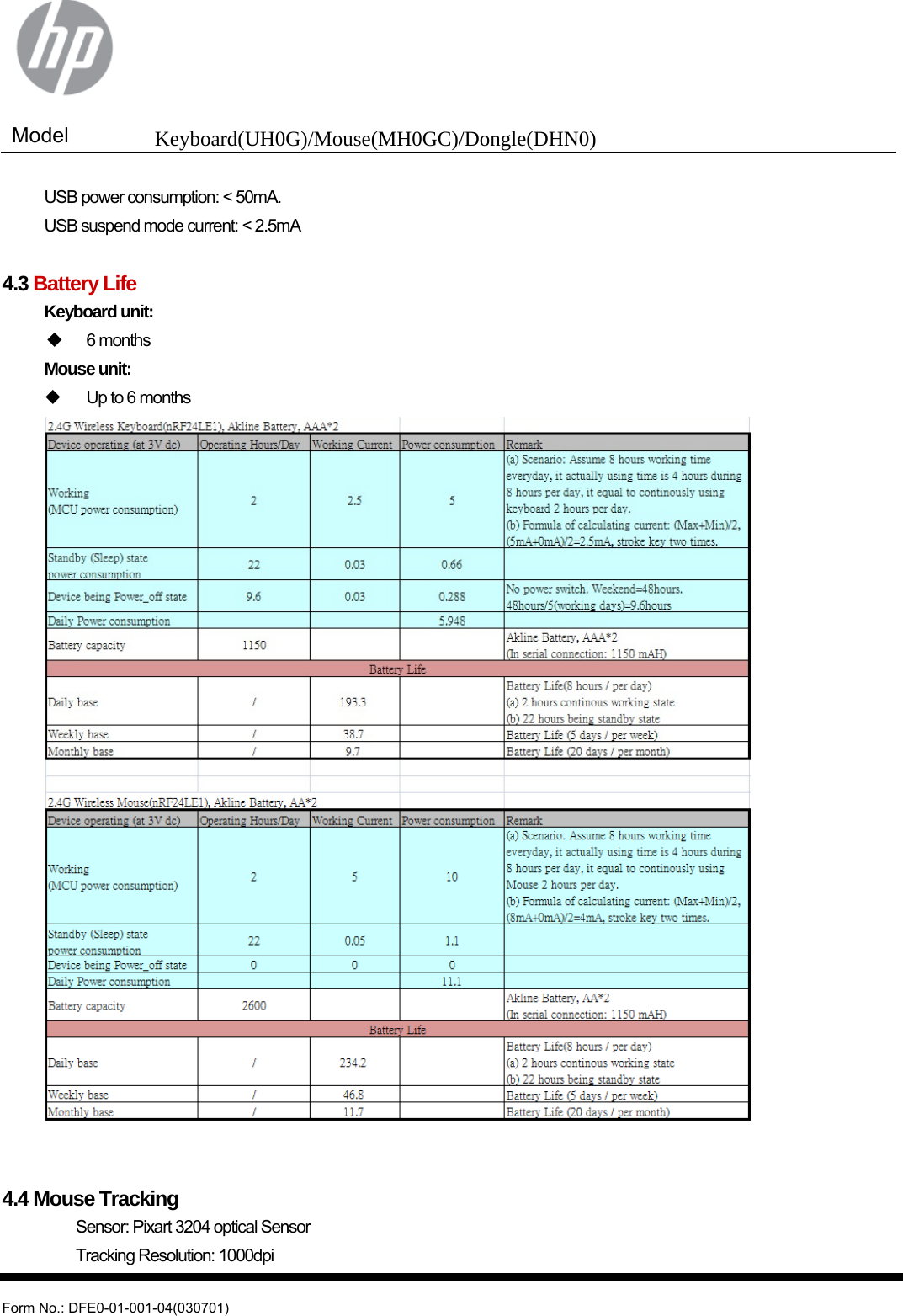

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) USB power consumption: < 50mA. USB suspend mode current: < 2.5mA 4.3 Battery Life Keyboard unit:  6 months Mouse unit:  Up to 6 months 4.4 Mouse Tracking Sensor: Pixart 3204 optical Sensor Tracking Resolution: 1000dpi

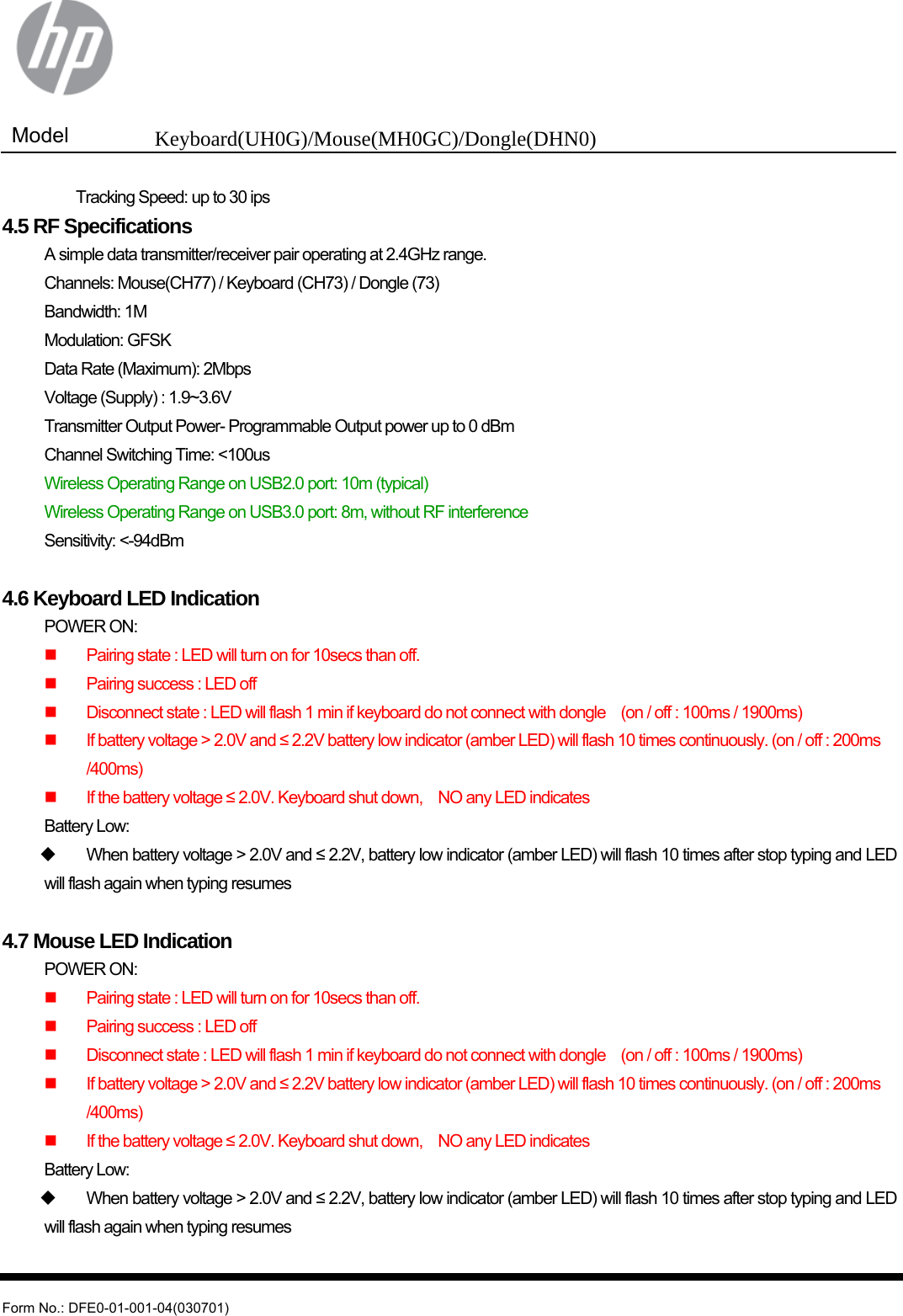

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) Tracking Speed: up to 30 ips 4.5 RF Specifications A simple data transmitter/receiver pair operating at 2.4GHz range. Channels: Mouse(CH77) / Keyboard (CH73) / Dongle (73) Bandwidth: 1M Modulation: GFSK Data Rate (Maximum): 2Mbps Voltage (Supply) : 1.9~3.6V Transmitter Output Power- Programmable Output power up to 0 dBm Channel Switching Time: <100us Wireless Operating Range on USB2.0 port: 10m (typical) Wireless Operating Range on USB3.0 port: 8m, without RF interference Sensitivity: <-94dBm 4.6 Keyboard LED Indication POWER ON:  Pairing state : LED will turn on for 10secs than off.  Pairing success : LED off  Disconnect state : LED will flash 1 min if keyboard do not connect with dongle (on / off : 100ms / 1900ms)  If battery voltage > 2.0V and ≤ 2.2V battery low indicator (amber LED) will flash 10 times continuously. (on / off : 200ms /400ms)  If the battery voltage ≤ 2.0V. Keyboard shut down, NO any LED indicates Battery Low:  When battery voltage > 2.0V and ≤ 2.2V, battery low indicator (amber LED) will flash 10 times after stop typing and LED will flash again when typing resumes 4.7 Mouse LED Indication POWER ON:  Pairing state : LED will turn on for 10secs than off.  Pairing success : LED off  Disconnect state : LED will flash 1 min if keyboard do not connect with dongle (on / off : 100ms / 1900ms)  If battery voltage > 2.0V and ≤ 2.2V battery low indicator (amber LED) will flash 10 times continuously. (on / off : 200ms /400ms)  If the battery voltage ≤ 2.0V. Keyboard shut down, NO any LED indicates Battery Low:  When battery voltage > 2.0V and ≤ 2.2V, battery low indicator (amber LED) will flash 10 times after stop typing and LED will flash again when typing resumes

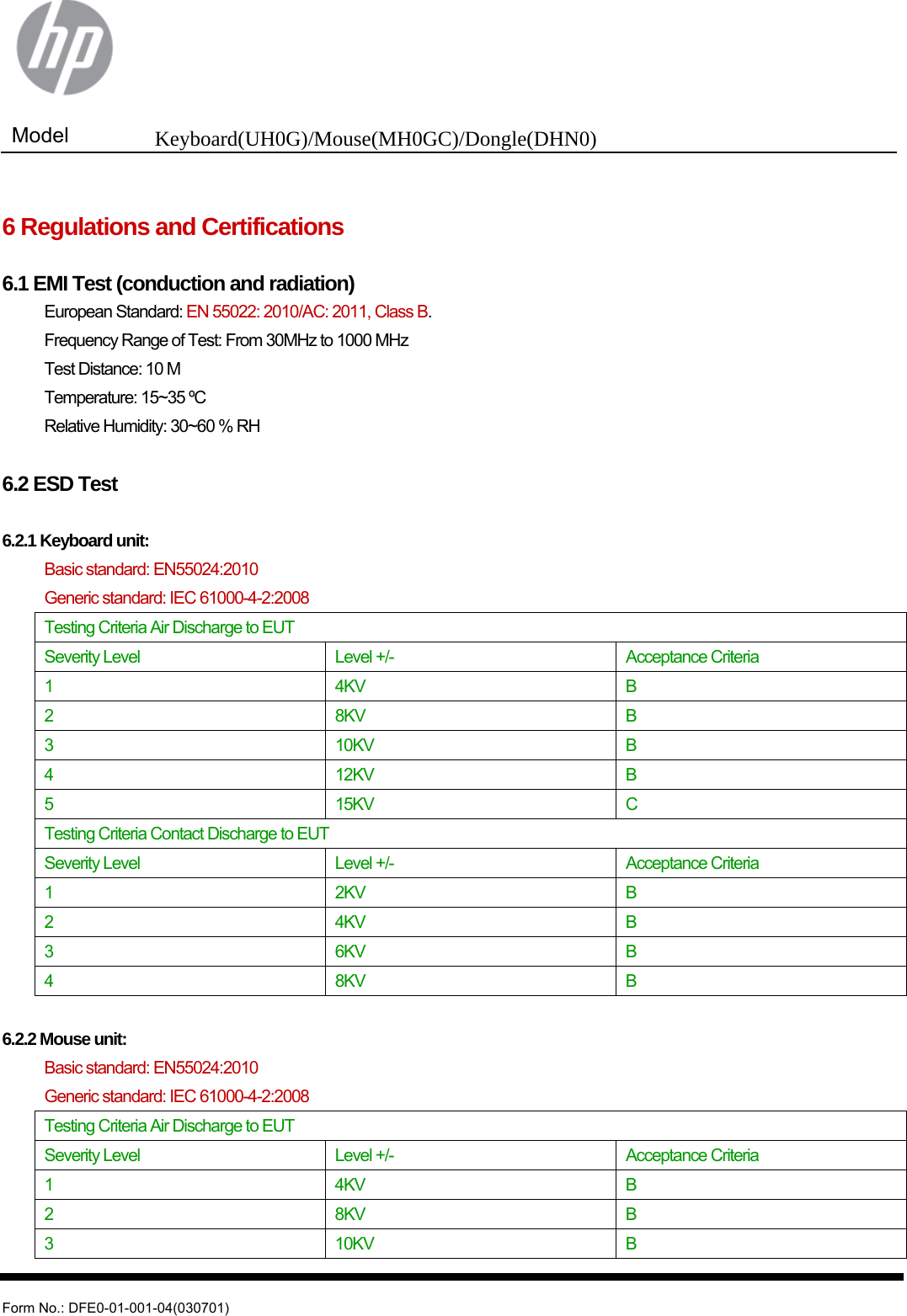

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 6 Regulations and Certifications 6.1 EMI Test (conduction and radiation) European Standard: EN 55022: 2010/AC: 2011, Class B. Frequency Range of Test: From 30MHz to 1000 MHz Test Distance: 10 M Temperature: 15~35 ºC Relative Humidity: 30~60 % RH 6.2 ESD Test 6.2.1 Keyboard unit: Basic standard: EN55024:2010 Generic standard: IEC 61000-4-2:2008 Testing Criteria Air Discharge to EUT Severity Level Level +/- Acceptance Criteria 1 4KV B 2 8KV B 3 10KV B 4 12KV B 5 15KV C Testing Criteria Contact Discharge to EUT Severity Level Level +/- Acceptance Criteria 1 2KV B 2 4KV B 3 6KV B 4 8KV B 6.2.2 Mouse unit: Basic standard: EN55024:2010 Generic standard: IEC 61000-4-2:2008 Testing Criteria Air Discharge to EUT Severity Level Level +/- Acceptance Criteria 1 4KV B 2 8KV B 3 10KV B

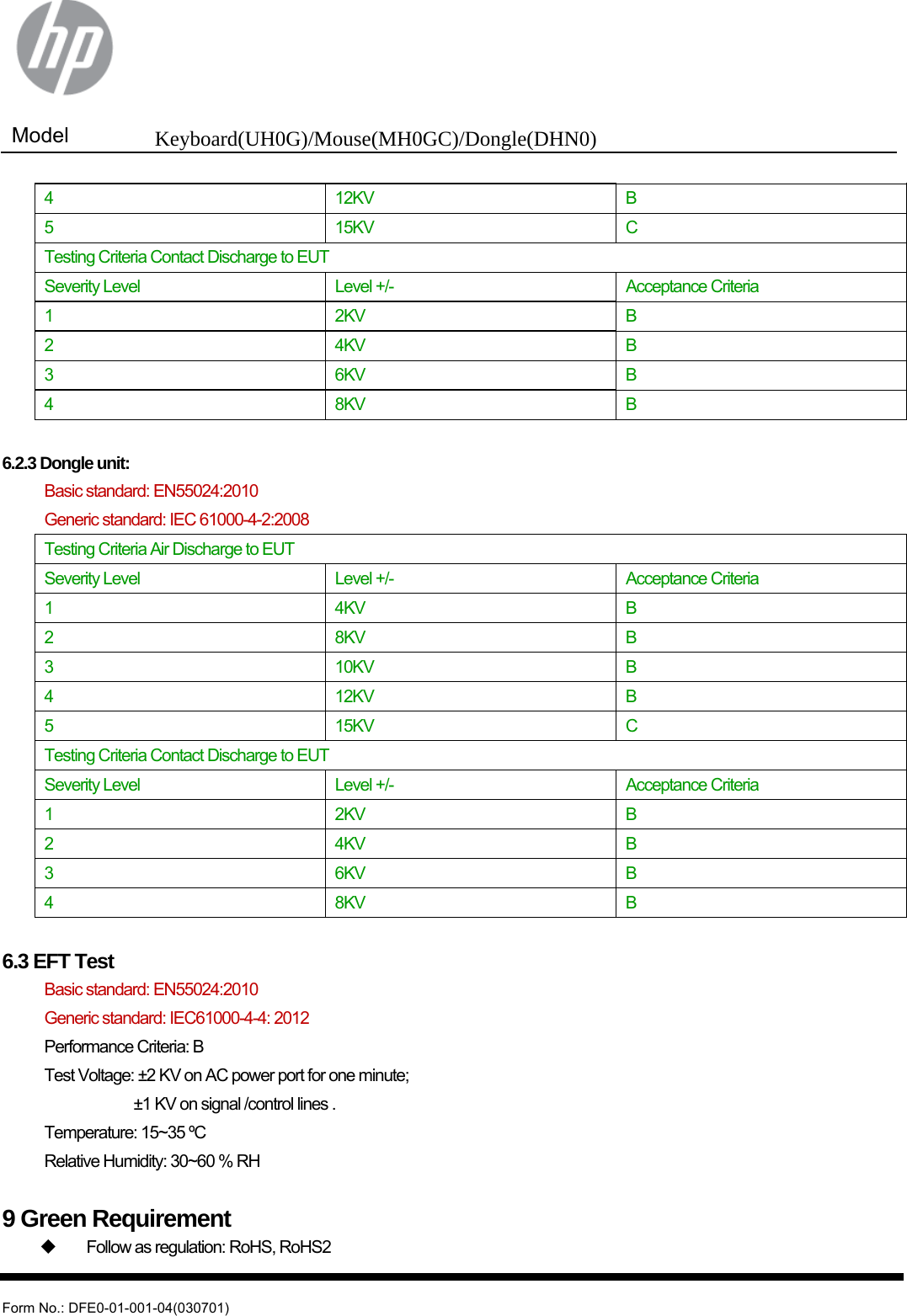

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) 4 12KV B 5 15KV C Testing Criteria Contact Discharge to EUT Severity Level Level +/- Acceptance Criteria 1 2KV B 2 4KV B 3 6KV B 4 8KV B 6.2.3 Dongle unit: Basic standard: EN55024:2010 Generic standard: IEC 61000-4-2:2008 Testing Criteria Air Discharge to EUT Severity Level Level +/- Acceptance Criteria 1 4KV B 2 8KV B 3 10KV B 4 12KV B 5 15KV C Testing Criteria Contact Discharge to EUT Severity Level Level +/- Acceptance Criteria 1 2KV B 2 4KV B 3 6KV B 4 8KV B 6.3 EFT Test Basic standard: EN55024:2010 Generic standard: IEC61000-4-4: 2012 Performance Criteria: B Test Voltage: ±2 KV on AC power port for one minute; ±1 KV on signal /control lines . Temperature: 15~35 ºC Relative Humidity: 30~60 % RH 9 Green Requirement  Follow as regulation: RoHS, RoHS2
Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701)  Requirement of Primax Green part: Comply with Primax QW-5Q002”Green product Chemical Substances Specification”. Follow customer’s specification as required. China ROHS Require.  Products must meet HP Standard 011 General Specification for the Environment - Countries - Worldwide - ESTAR5.0 - Somemodels - EPEATLevel - Somemodels - EUPLot3(Late2011) - Yes - EUPLot6Tier2(<.5W) - TBD - EUPLot6Tier1(<1W) - Yes - BFR/CFR/PVCFree - no - ROHS2Compliance - Yes - RecycledPackaging - Yes - RecycledPlasticcontent - TBD**** 10 Keyboard Layout 10.1 74 keys layout (US) 10.2 75 keys layout (UK)
Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701)

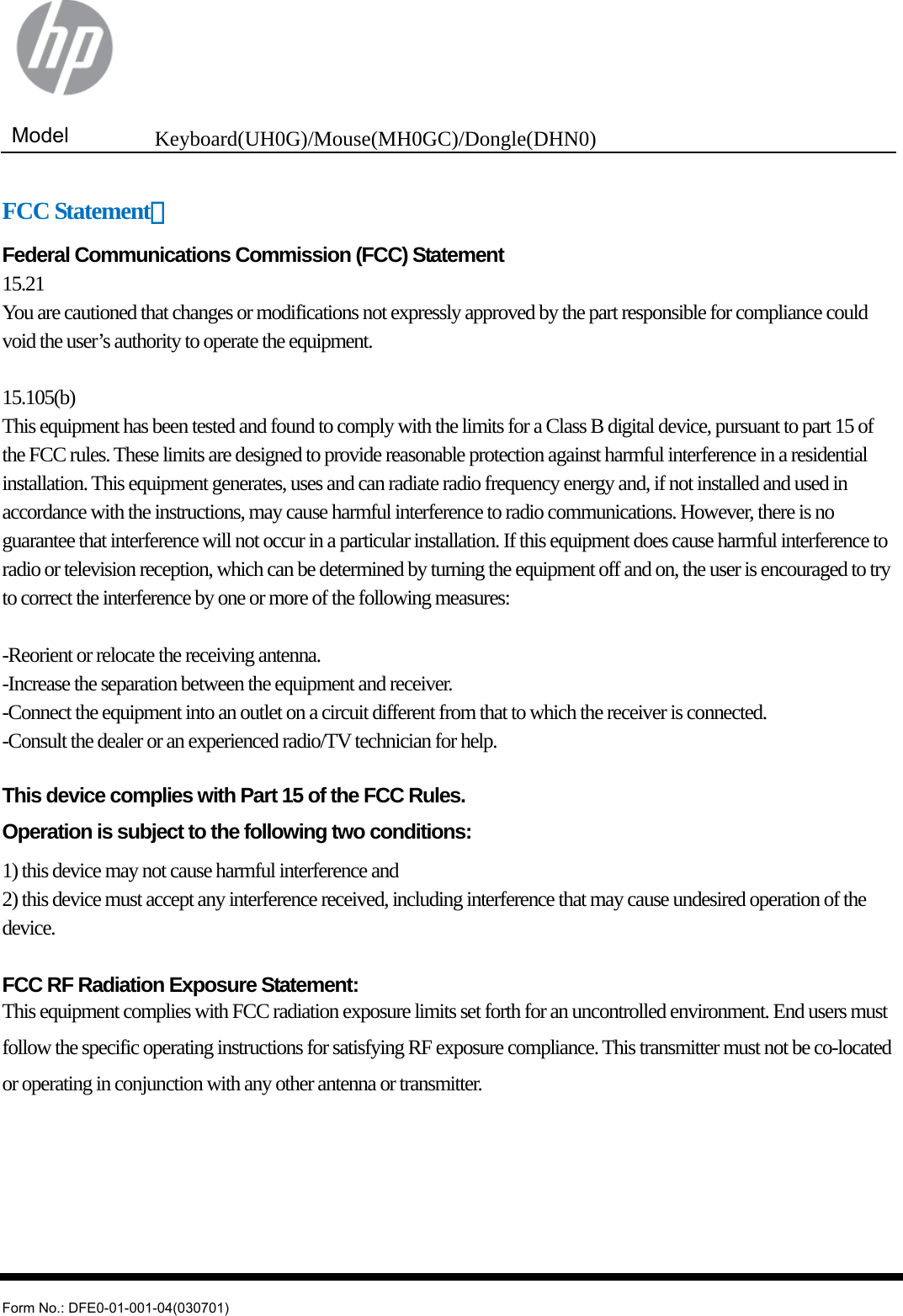

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) FCC Statement： Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

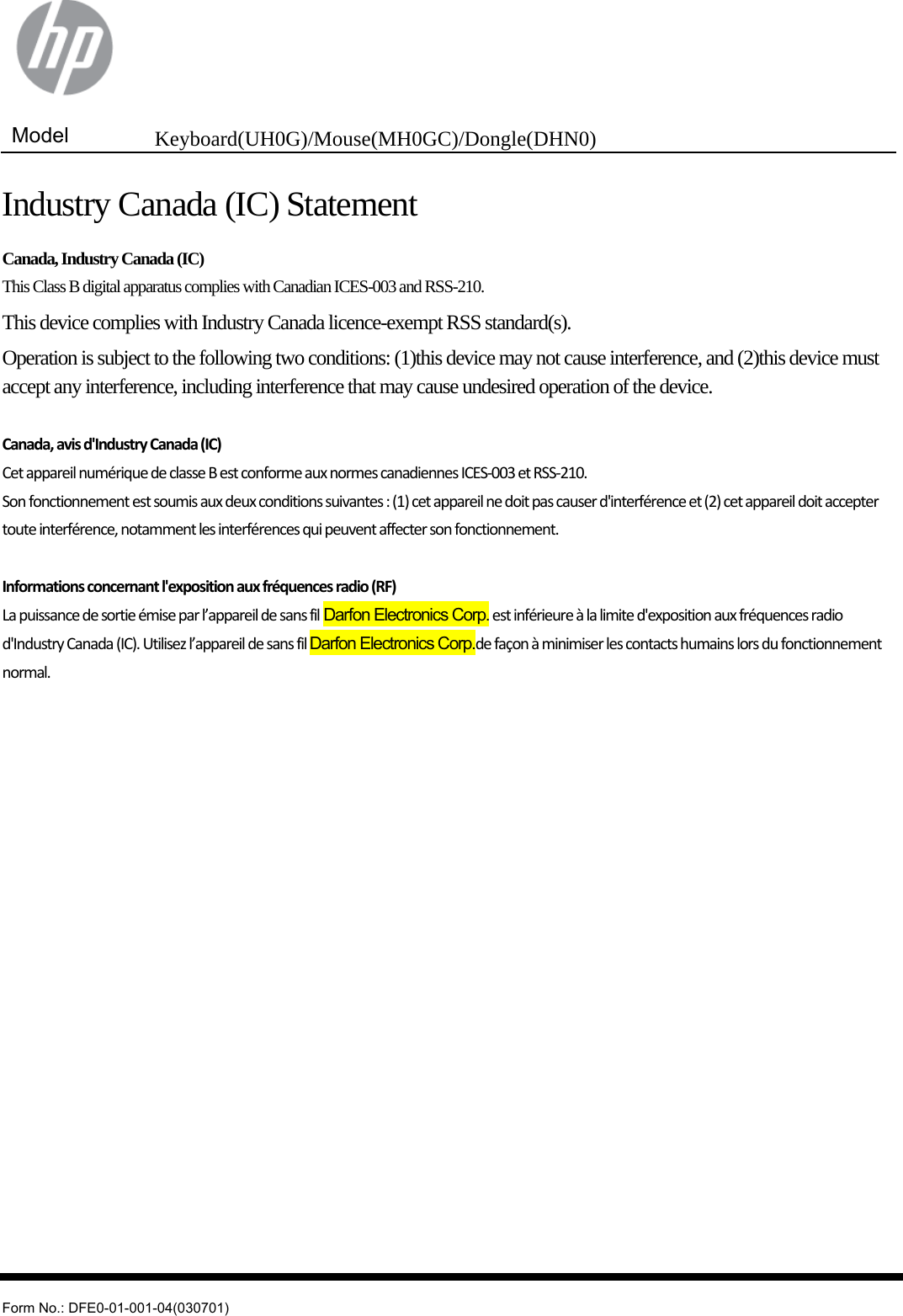

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) Industry Canada (IC) Statement Canada, Industry Canada (IC) This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the device. Canada,avisd'IndustryCanada(IC)CetappareilnumériquedeclasseBestconformeauxnormescanadiennesICES‐003etRSS‐210.Sonfonctionnementestsoumisauxdeuxconditionssuivantes:(1)cetappareilnedoitpascauserd'interférenceet(2)cetappareildoitacceptertouteinterférence,notammentlesinterférencesquipeuventaffectersonfonctionnement.Informationsconcernantl'expositionauxfréquencesradio(RF)Lapuissancedesortieémiseparl’appareildesansfil Darfon Electronics Corp.estinférieureàlalimited'expositionauxfréquencesradiod'IndustryCanada(IC).Utilisezl’appareildesansfilDarfon Electronics Corp.defaçonàminimiserlescontactshumainslorsdufonctionnementnormal.

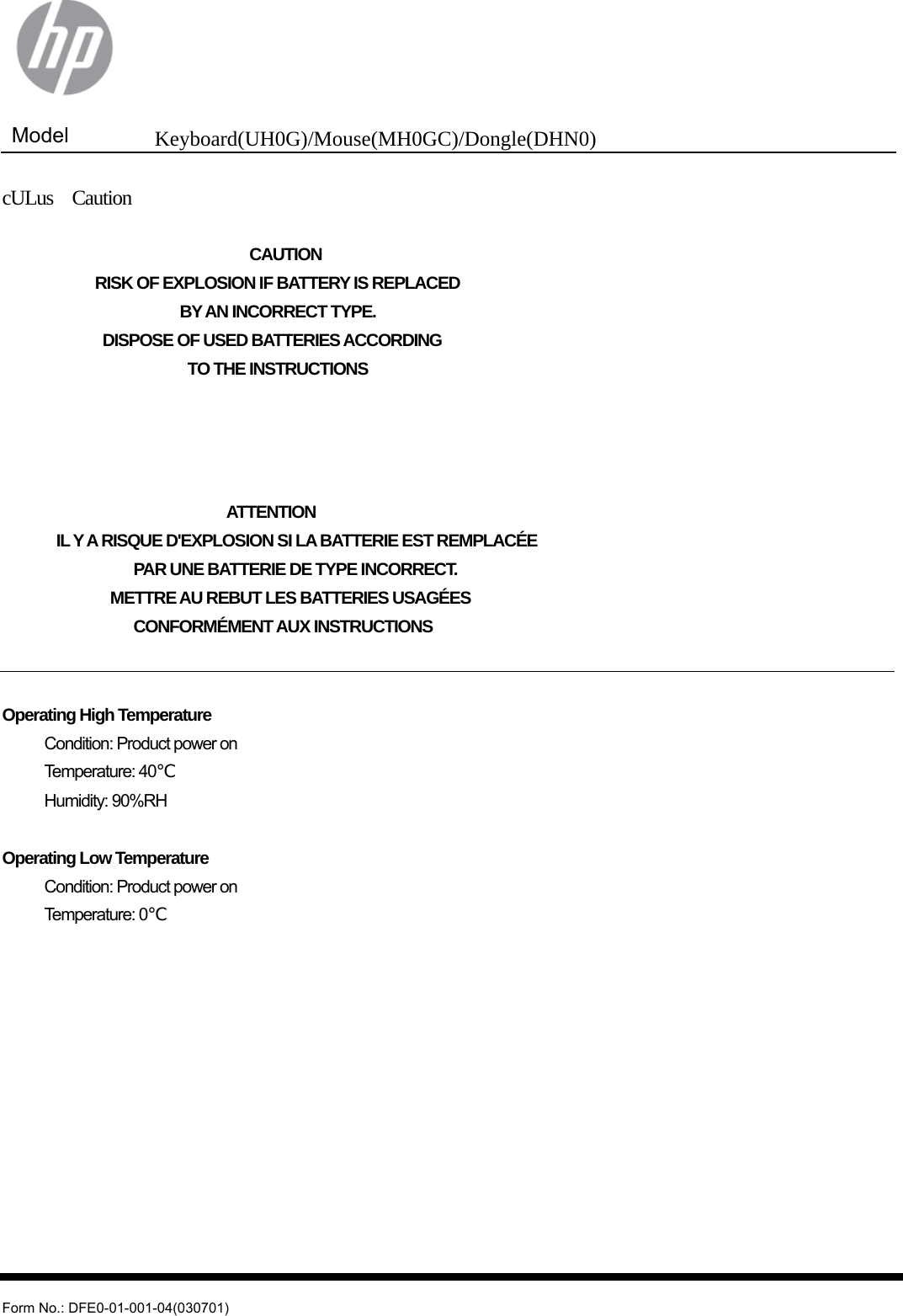

Model Keyboard(UH0G)/Mouse(MH0GC)/Dongle(DHN0) Form No.: DFE0-01-001-04(030701) cULus Caution CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS ATTENTION IL Y A RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE TYPE INCORRECT. METTRE AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS Operating High Temperature Condition: Product power on Temperature: 40℃ Humidity: 90%RH Operating Low Temperature Condition: Product power on Temperature: 0℃
