Darfon Electronics M310 Wireless optical mouse User Manual M310 English

Darfon Electronics Corp Wireless optical mouse M310 English

User Manual

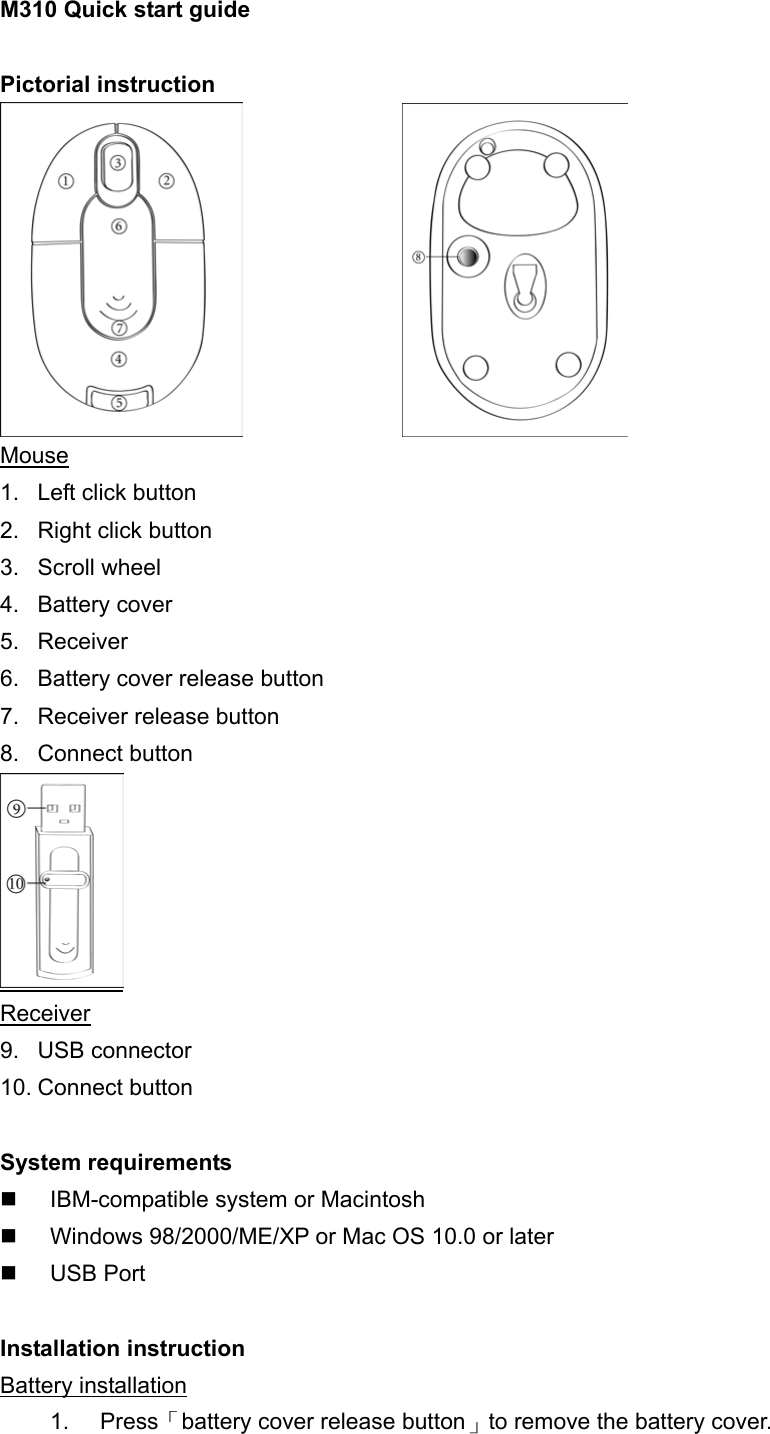

M310 Quick start guide Pictorial instruction Mouse 1. Left click button 2. Right click button 3. Scroll wheel 4. Battery cover 5. Receiver 6. Battery cover release button 7. Receiver release button 8. Connect button Receiver 9. USB connector 10. Connect button System requirements  IBM-compatible system or Macintosh  Windows 98/2000/ME/XP or Mac OS 10.0 or later  USB Port Installation instruction Battery installation 1. Press「battery cover release button」to remove the battery cover.

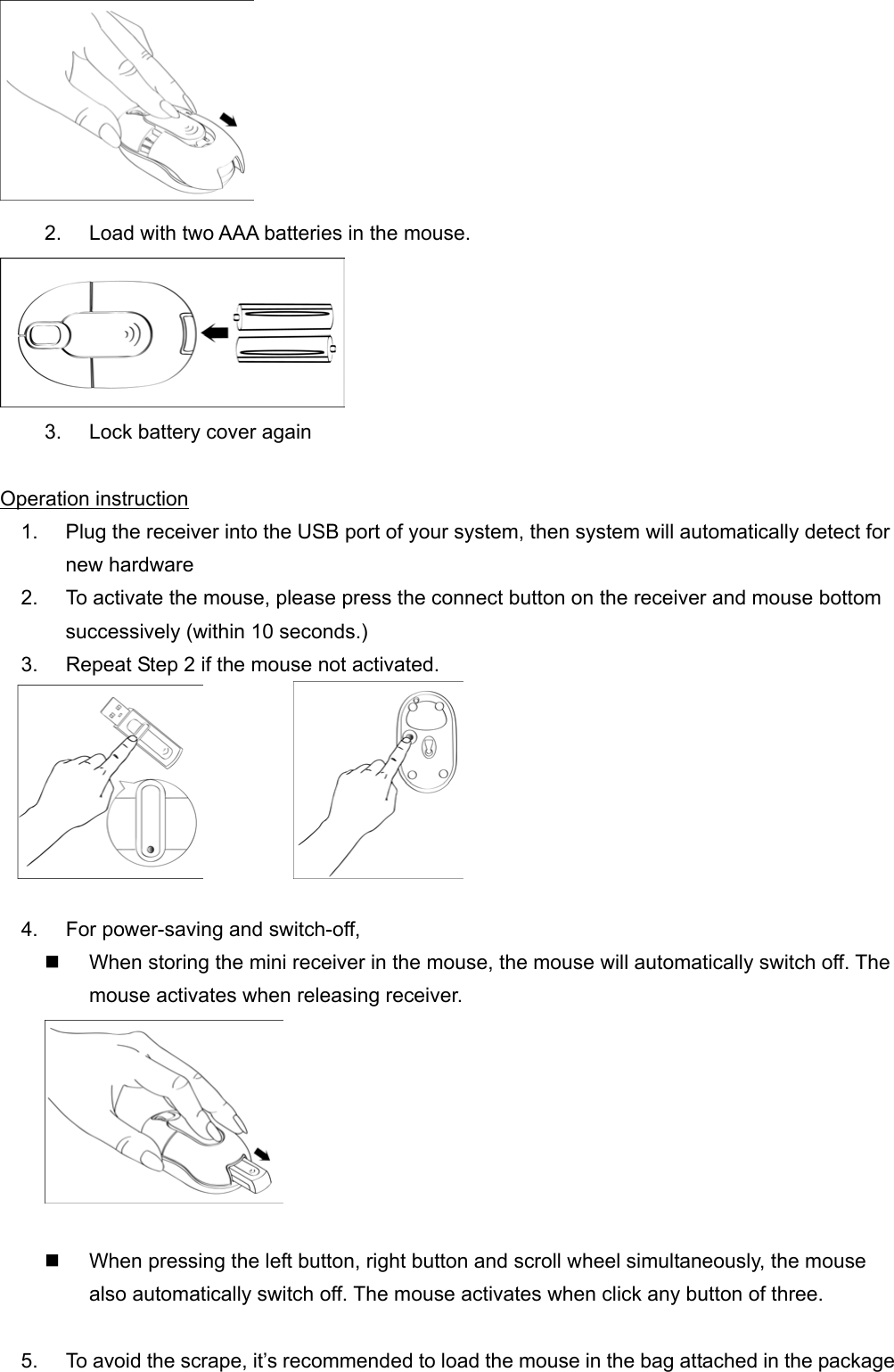

2. Load with two AAA batteries in the mouse. 3. Lock battery cover again Operation instruction 1. Plug the receiver into the USB port of your system, then system will automatically detect for new hardware 2. To activate the mouse, please press the connect button on the receiver and mouse bottom successively (within 10 seconds.) 3. Repeat Step 2 if the mouse not activated. 4. For power-saving and switch-off,  When storing the mini receiver in the mouse, the mouse will automatically switch off. The mouse activates when releasing receiver.  When pressing the left button, right button and scroll wheel simultaneously, the mouse also automatically switch off. The mouse activates when click any button of three. 5. To avoid the scrape, it’s recommended to load the mouse in the bag attached in the package

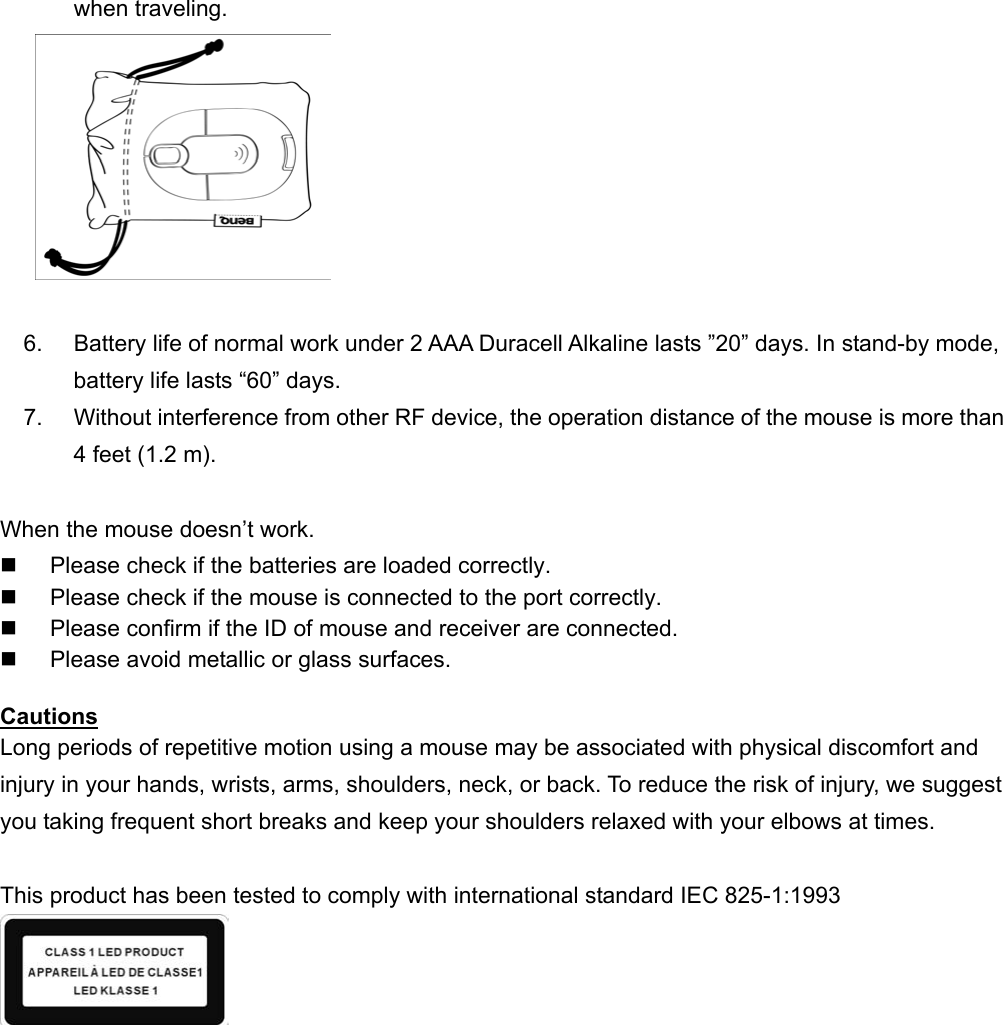

when traveling. 6. Battery life of normal work under 2 AAA Duracell Alkaline lasts ”20” days. In stand-by mode, battery life lasts “60” days. 7. Without interference from other RF device, the operation distance of the mouse is more than 4 feet (1.2 m). When the mouse doesn’t work.  Please check if the batteries are loaded correctly.  Please check if the mouse is connected to the port correctly.  Please confirm if the ID of mouse and receiver are connected.  Please avoid metallic or glass surfaces. Cautions Long periods of repetitive motion using a mouse may be associated with physical discomfort and injury in your hands, wrists, arms, shoulders, neck, or back. To reduce the risk of injury, we suggest you taking frequent short breaks and keep your shoulders relaxed with your elbows at times. This product has been tested to comply with international standard IEC 825-1:1993

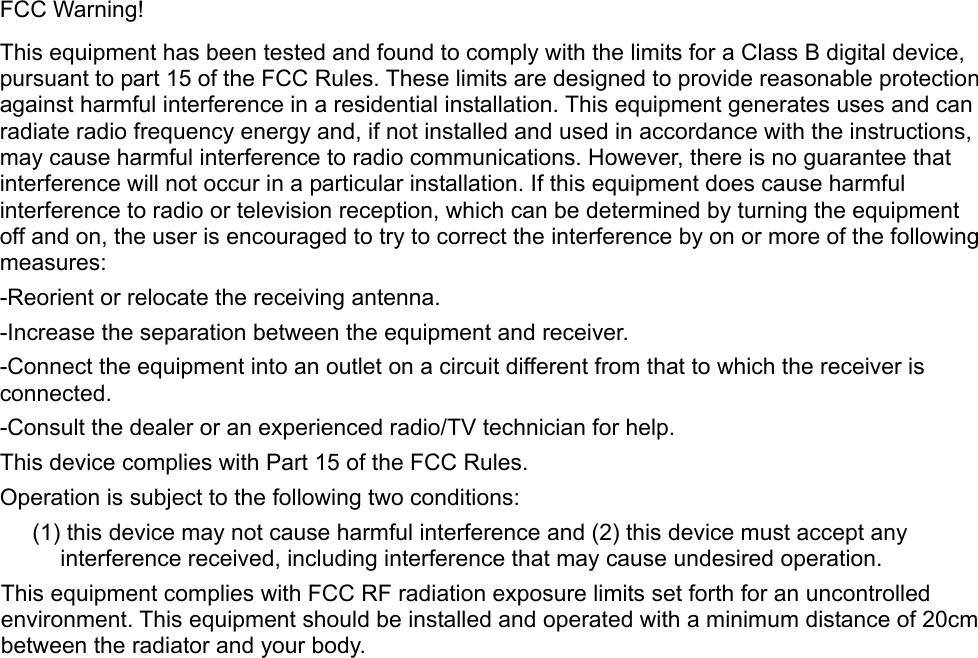

FCC Warning! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

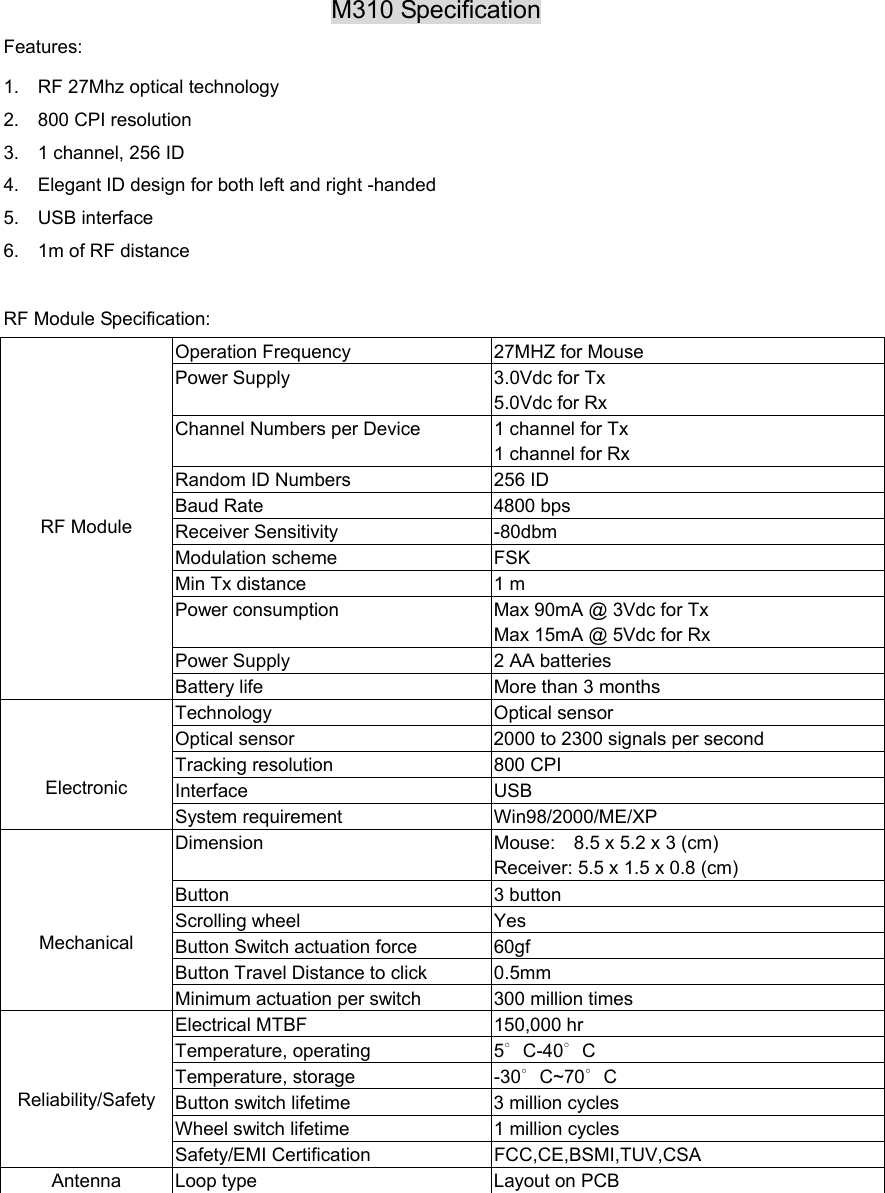

M310 Specification Features: 1. RF 27Mhz optical technology 2. 800 CPI resolution 3. 1 channel, 256 ID 4. Elegant ID design for both left and right -handed 5. USB interface 6. 1m of RF distance RF Module Specification: Operation Frequency 27MHZ for Mouse Power Supply 3.0Vdc for Tx 5.0Vdc for Rx Channel Numbers per Device 1 channel for Tx 1 channel for Rx Random ID Numbers 256 ID Baud Rate 4800 bps Receiver Sensitivity -80dbm Modulation scheme FSK Min Tx distance 1 m Power consumption Max 90mA @ 3Vdc for Tx Max 15mA @ 5Vdc for Rx Power Supply 2 AA batteries RF Module Battery life More than 3 months Technology Optical sensor Optical sensor 2000 to 2300 signals per second Tracking resolution 800 CPI Interface USB Electronic System requirement Win98/2000/ME/XP Dimension Mouse: 8.5 x 5.2 x 3 (cm) Receiver: 5.5 x 1.5 x 0.8 (cm) Button 3 button Scrolling wheel Yes Button Switch actuation force 60gf Button Travel Distance to click 0.5mm Mechanical Minimum actuation per switch 300 million times Electrical MTBF 150,000 hr Temperature, operating 5∘C-40∘C Temperature, storage -30∘C~70∘C Button switch lifetime 3 million cycles Wheel switch lifetime 1 million cycles Reliability/Safety Safety/EMI Certification FCC,CE,BSMI,TUV,CSA Antenna Loop type Layout on PCB
