Darfon Electronics N535 27MHz Optical Mouse User Manual 1

Darfon Electronics Corp 27MHz Optical Mouse 1

Users Manual

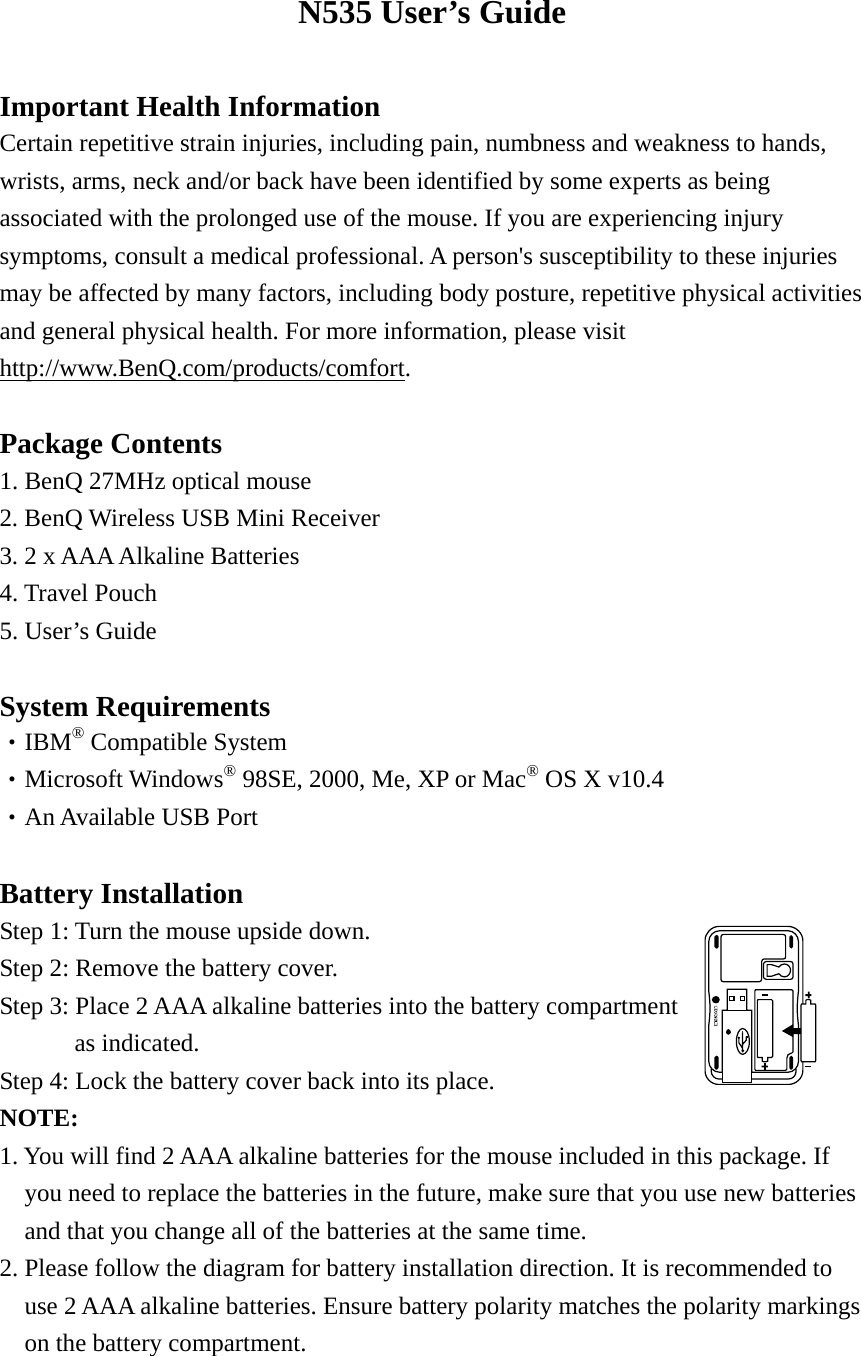

N535 User’s Guide Important Health Information Certain repetitive strain injuries, including pain, numbness and weakness to hands, wrists, arms, neck and/or back have been identified by some experts as being associated with the prolonged use of the mouse. If you are experiencing injury symptoms, consult a medical professional. A person's susceptibility to these injuries may be affected by many factors, including body posture, repetitive physical activities and general physical health. For more information, please visit http://www.BenQ.com/products/comfort. Package Contents 1. BenQ 27MHz optical mouse 2. BenQ Wireless USB Mini Receiver 3. 2 x AAA Alkaline Batteries 4. Travel Pouch 5. User’s Guide System Requirements ‧IBM® Compatible System ‧Microsoft Windows® 98SE, 2000, Me, XP or Mac® OS X v10.4 ‧An Available USB Port Battery Installation Step 1: Turn the mouse upside down. Step 2: Remove the battery cover. Step 3: Place 2 AAA alkaline batteries into the battery compartment as indicated. Step 4: Lock the battery cover back into its place. NOTE: 1. You will find 2 AAA alkaline batteries for the mouse included in this package. If you need to replace the batteries in the future, make sure that you use new batteries and that you change all of the batteries at the same time. 2. Please follow the diagram for battery installation direction. It is recommended to use 2 AAA alkaline batteries. Ensure battery polarity matches the polarity markings on the battery compartment.

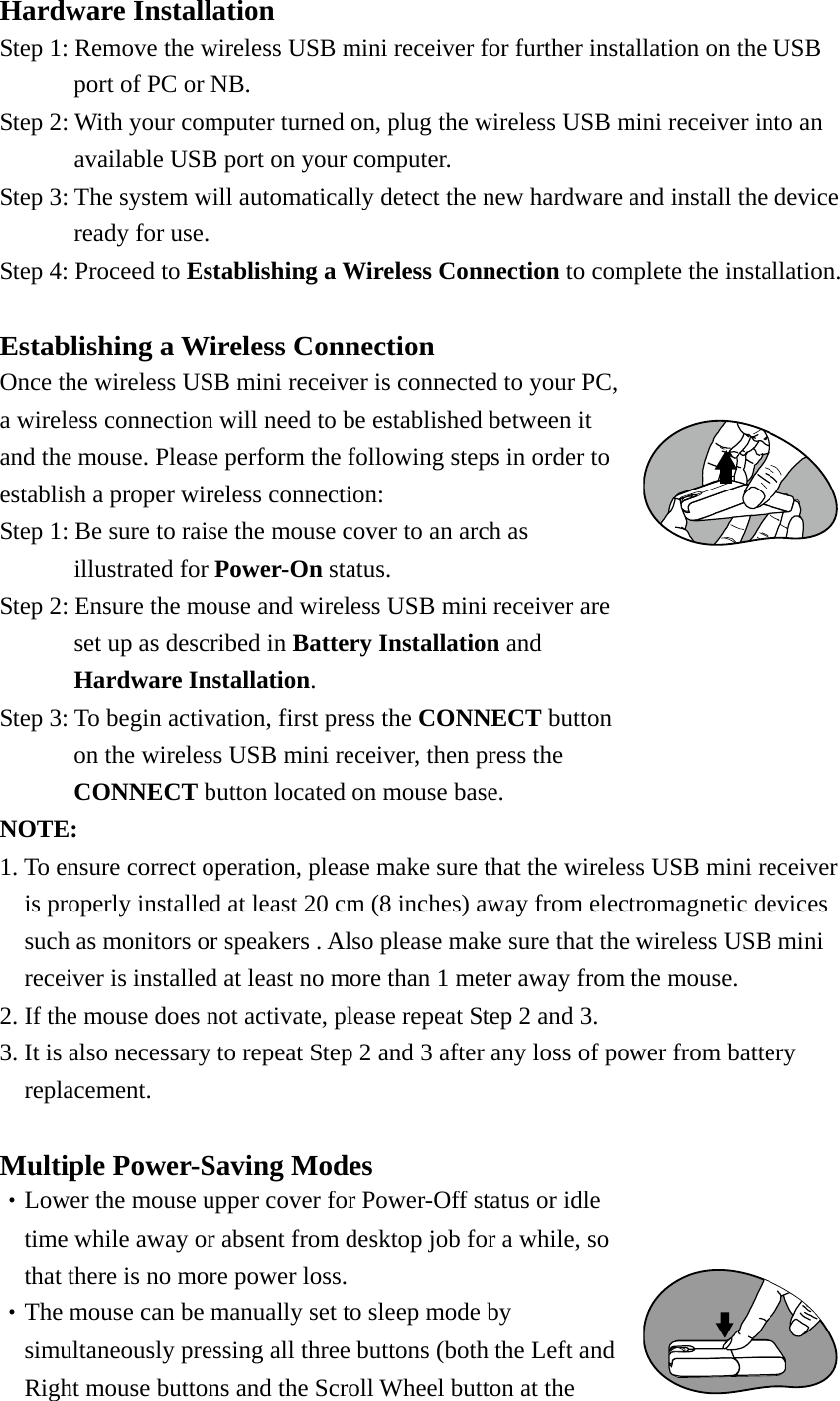

Hardware Installation Step 1: Remove the wireless USB mini receiver for further installation on the USB port of PC or NB. Step 2: With your computer turned on, plug the wireless USB mini receiver into an available USB port on your computer. Step 3: The system will automatically detect the new hardware and install the device ready for use. Step 4: Proceed to Establishing a Wireless Connection to complete the installation. Establishing a Wireless Connection Once the wireless USB mini receiver is connected to your PC, a wireless connection will need to be established between it and the mouse. Please perform the following steps in order to establish a proper wireless connection: Step 1: Be sure to raise the mouse cover to an arch as illustrated for Power-On status. Step 2: Ensure the mouse and wireless USB mini receiver are set up as described in Battery Installation and Hardware Installation. Step 3: To begin activation, first press the CONNECT button on the wireless USB mini receiver, then press the CONNECT button located on mouse base. NOTE: 1. To ensure correct operation, please make sure that the wireless USB mini receiver is properly installed at least 20 cm (8 inches) away from electromagnetic devices such as monitors or speakers . Also please make sure that the wireless USB mini receiver is installed at least no more than 1 meter away from the mouse. 2. If the mouse does not activate, please repeat Step 2 and 3. 3. It is also necessary to repeat Step 2 and 3 after any loss of power from battery replacement. Multiple Power-Saving Modes ‧Lower the mouse upper cover for Power-Off status or idle time while away or absent from desktop job for a while, so that there is no more power loss. ‧The mouse can be manually set to sleep mode by simultaneously pressing all three buttons (both the Left and Right mouse buttons and the Scroll Wheel button at the

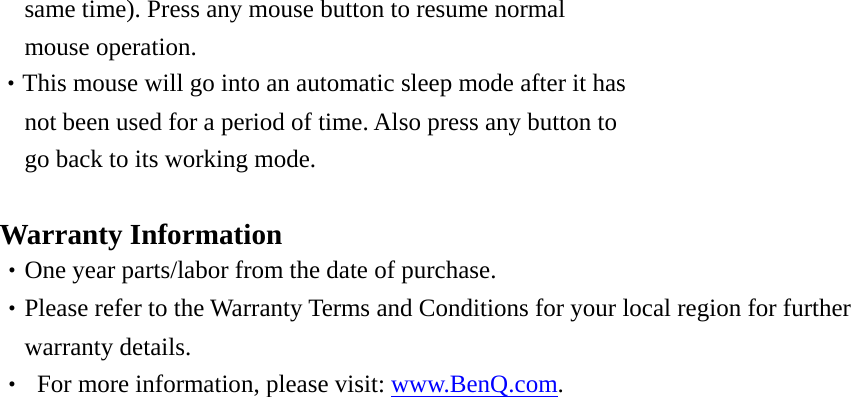

same time). Press any mouse button to resume normal mouse operation. ‧This mouse will go into an automatic sleep mode after it has not been used for a period of time. Also press any button to go back to its working mode. Warranty Information ‧One year parts/labor from the date of purchase. ‧Please refer to the Warranty Terms and Conditions for your local region for further warranty details. ‧ For more information, please visit: www.BenQ.com.

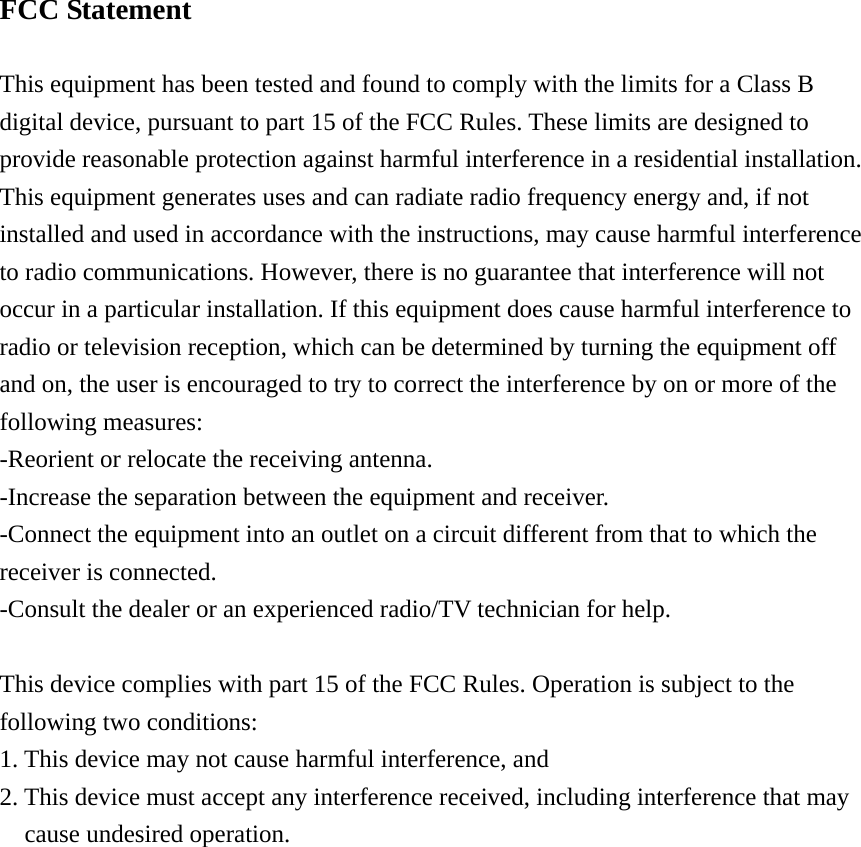

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

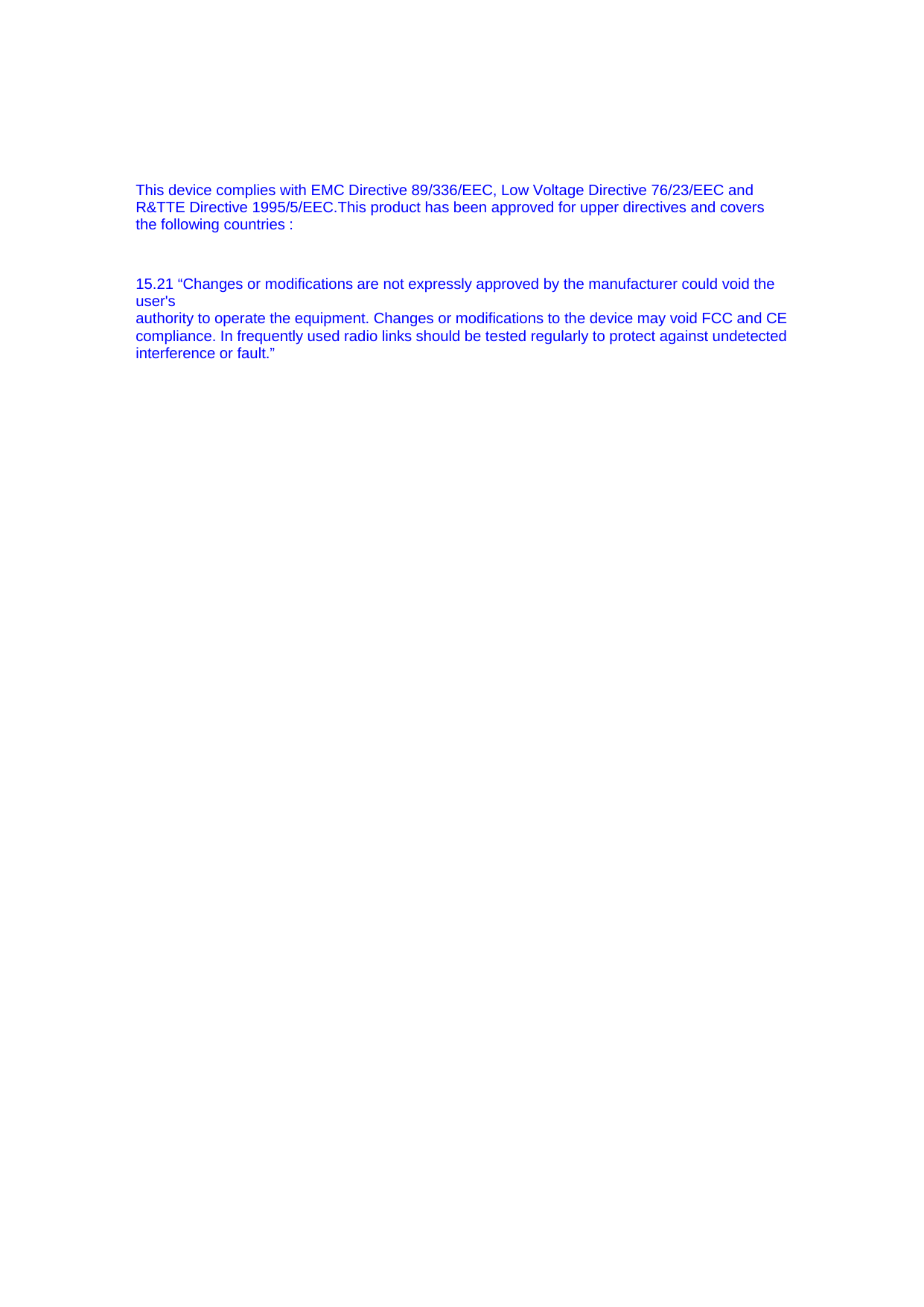

This device complies with EMC Directive 89/336/EEC, Low Voltage Directive 76/23/EEC and R&TTE Directive 1995/5/EEC.This product has been approved for upper directives and covers the following countries : 15.21 “Changes or modifications are not expressly approved by the manufacturer could void the user's authority to operate the equipment. Changes or modifications to the device may void FCC and CE compliance. In frequently used radio links should be tested regularly to protect against undetected interference or fault.”
