Darfon Electronics N737 27MHz Wireless Mouse User Manual The charging station is a two in one device

Darfon Electronics Corp 27MHz Wireless Mouse The charging station is a two in one device

Manual

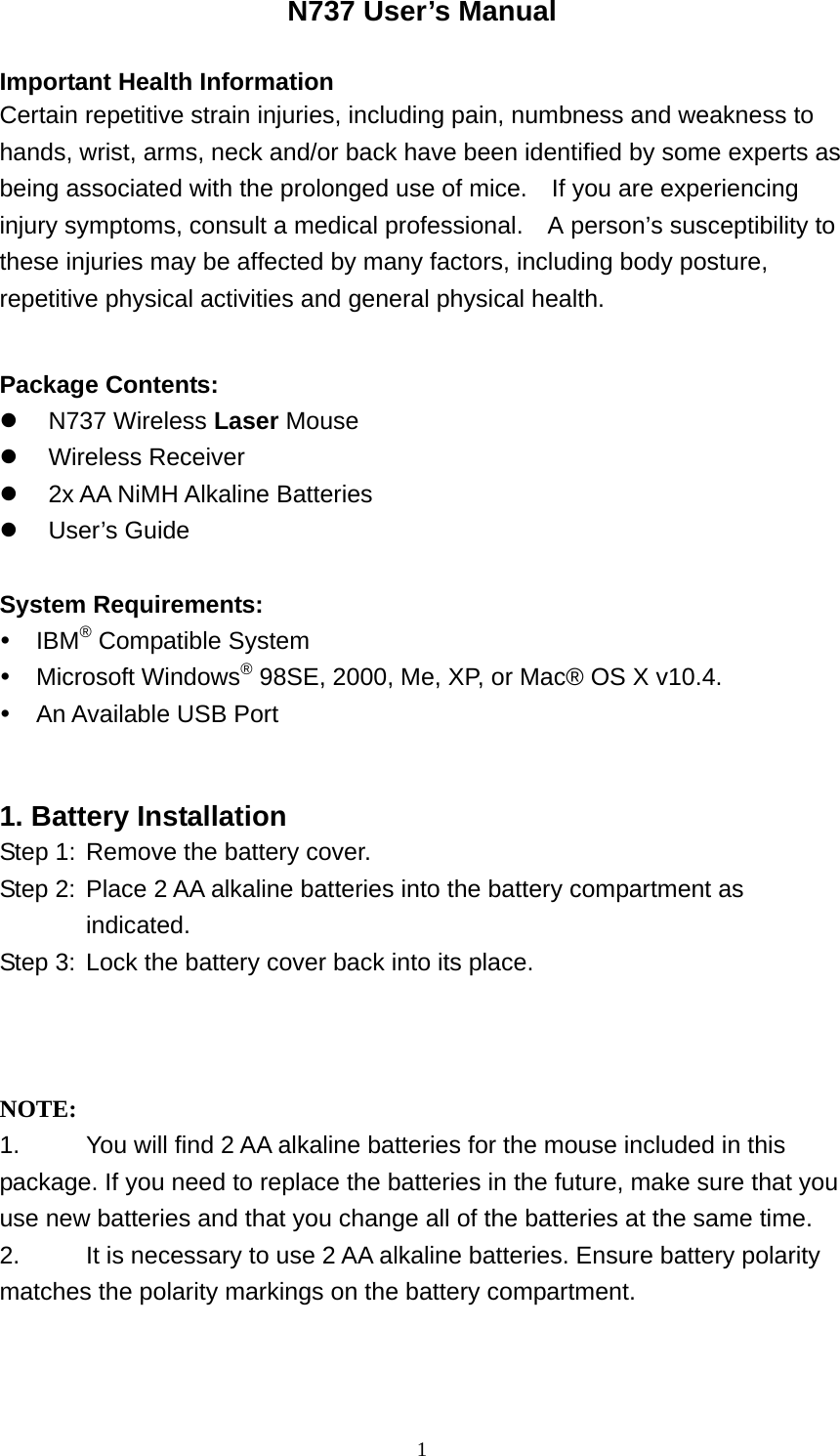

N737 User’s Manual Important Health Information Certain repetitive strain injuries, including pain, numbness and weakness to hands, wrist, arms, neck and/or back have been identified by some experts as being associated with the prolonged use of mice. If you are experiencing injury symptoms, consult a medical professional. A person’s susceptibility to these injuries may be affected by many factors, including body posture, repetitive physical activities and general physical health. Package Contents:  N737 Wireless Laser Mouse  Wireless Receiver  2x AA NiMH Alkaline Batteries  User’s Guide System Requirements:  IBM® Compatible System  Microsoft Windows® 98SE, 2000, Me, XP, or Mac® OS X v10.4.  An Available USB Port 1. Battery Installation Step 1: Remove the battery cover. Step 2: Place 2 AA alkaline batteries into the battery compartment as indicated. Step 3: Lock the battery cover back into its place. NOTE: 1. You will find 2 AA alkaline batteries for the mouse included in this package. If you need to replace the batteries in the future, make sure that you use new batteries and that you change all of the batteries at the same time. 2. It is necessary to use 2 AA alkaline batteries. Ensure battery polarity matches the polarity markings on the battery compartment. 1

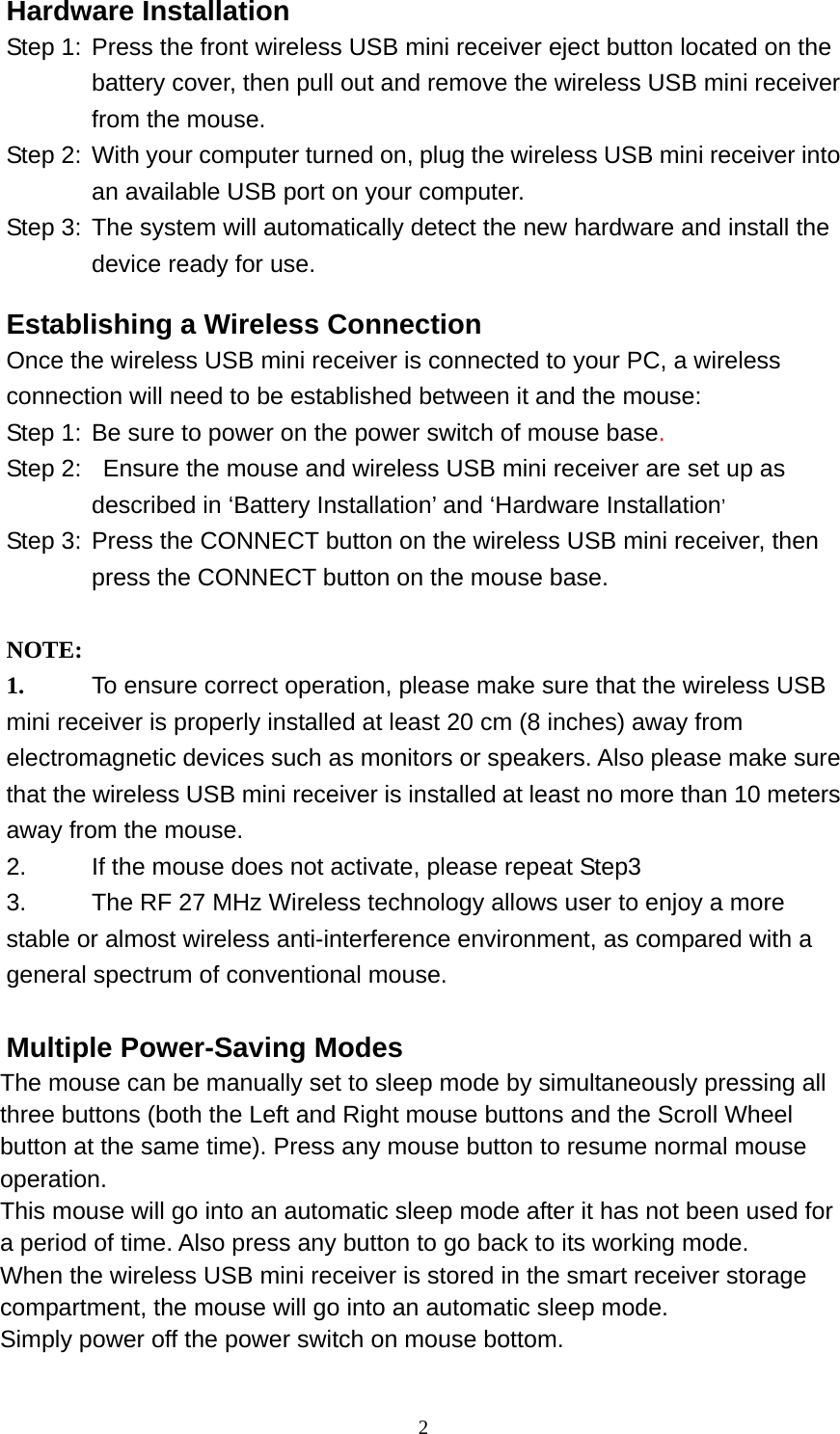

Hardware Installation Step 1: Press the front wireless USB mini receiver eject button located on the battery cover, then pull out and remove the wireless USB mini receiver from the mouse. Step 2: With your computer turned on, plug the wireless USB mini receiver into an available USB port on your computer. Step 3: The system will automatically detect the new hardware and install the device ready for use. Establishing a Wireless Connection Once the wireless USB mini receiver is connected to your PC, a wireless connection will need to be established between it and the mouse: Step 1: Be sure to power on the power switch of mouse base. Step 2: Ensure the mouse and wireless USB mini receiver are set up as described in ‘Battery Installation’ and ‘Hardware Installation’ Step 3: Press the CONNECT button on the wireless USB mini receiver, then press the CONNECT button on the mouse base. NOTE: 1. To ensure correct operation, please make sure that the wireless USB mini receiver is properly installed at least 20 cm (8 inches) away from electromagnetic devices such as monitors or speakers. Also please make sure that the wireless USB mini receiver is installed at least no more than 10 meters away from the mouse. 2. If the mouse does not activate, please repeat Step3 3. The RF 27 MHz Wireless technology allows user to enjoy a more stable or almost wireless anti-interference environment, as compared with a general spectrum of conventional mouse. Multiple Power-Saving Modes The mouse can be manually set to sleep mode by simultaneously pressing all three buttons (both the Left and Right mouse buttons and the Scroll Wheel button at the same time). Press any mouse button to resume normal mouse operation. This mouse will go into an automatic sleep mode after it has not been used for a period of time. Also press any button to go back to its working mode. When the wireless USB mini receiver is stored in the smart receiver storage compartment, the mouse will go into an automatic sleep mode. Simply power off the power switch on mouse bottom. 2

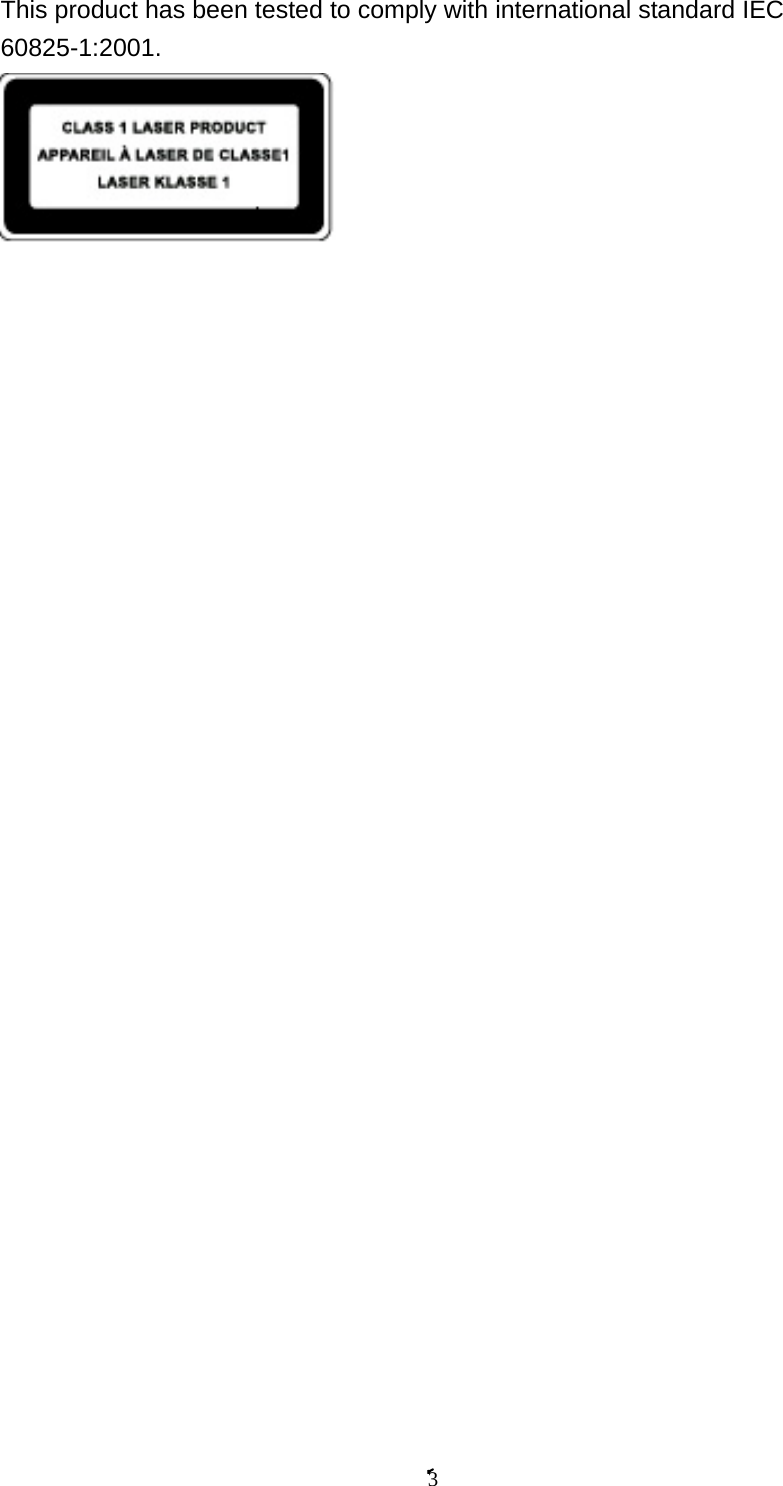

This product has been tested to comply with international standard IEC 60825-1:2001. 3

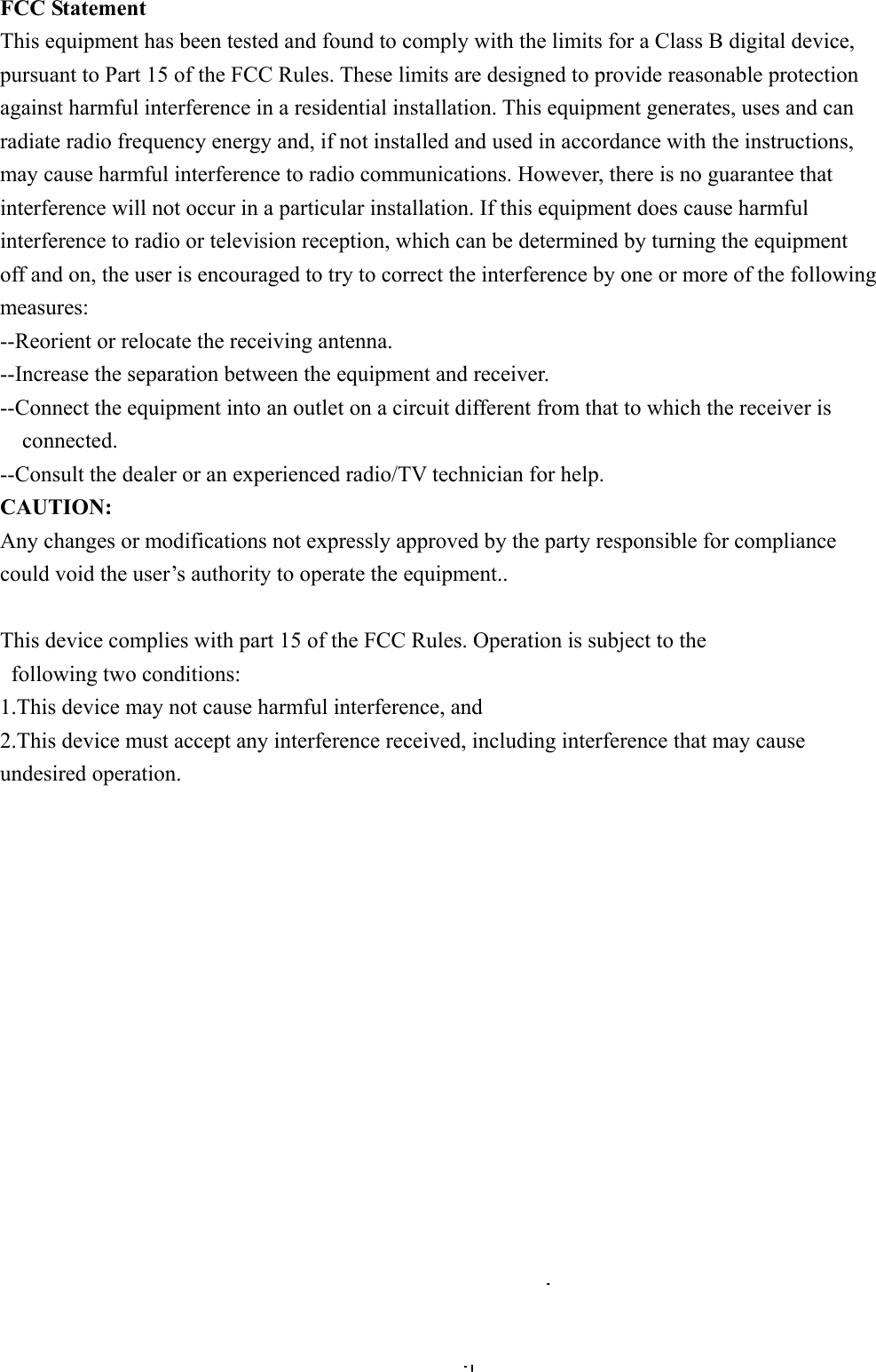

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation.
