Users Manual

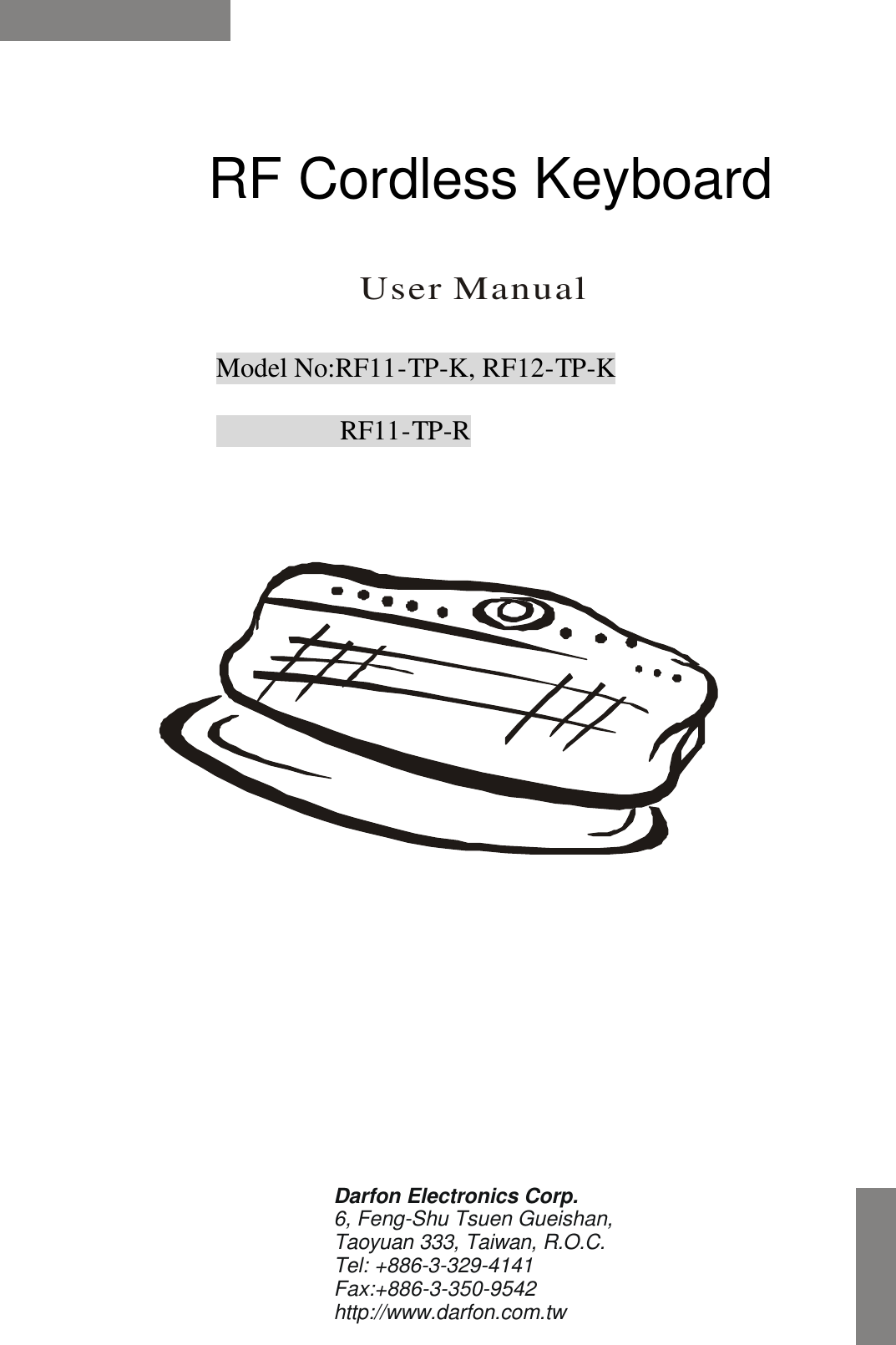

Multimedia KeyboardUser ManualDarfon Electronics Corp. 6, Feng-Shu Tsuen Gueishan,Taoyuan 333, Taiwan, R.O.C.Tel: +886-3-329-4141Fax:+886-3-350-9542http://www.darfon.com.twRF Cordless Keyboard Model No:RF11-TP-K, RF12-TP-K RF11-TP-R

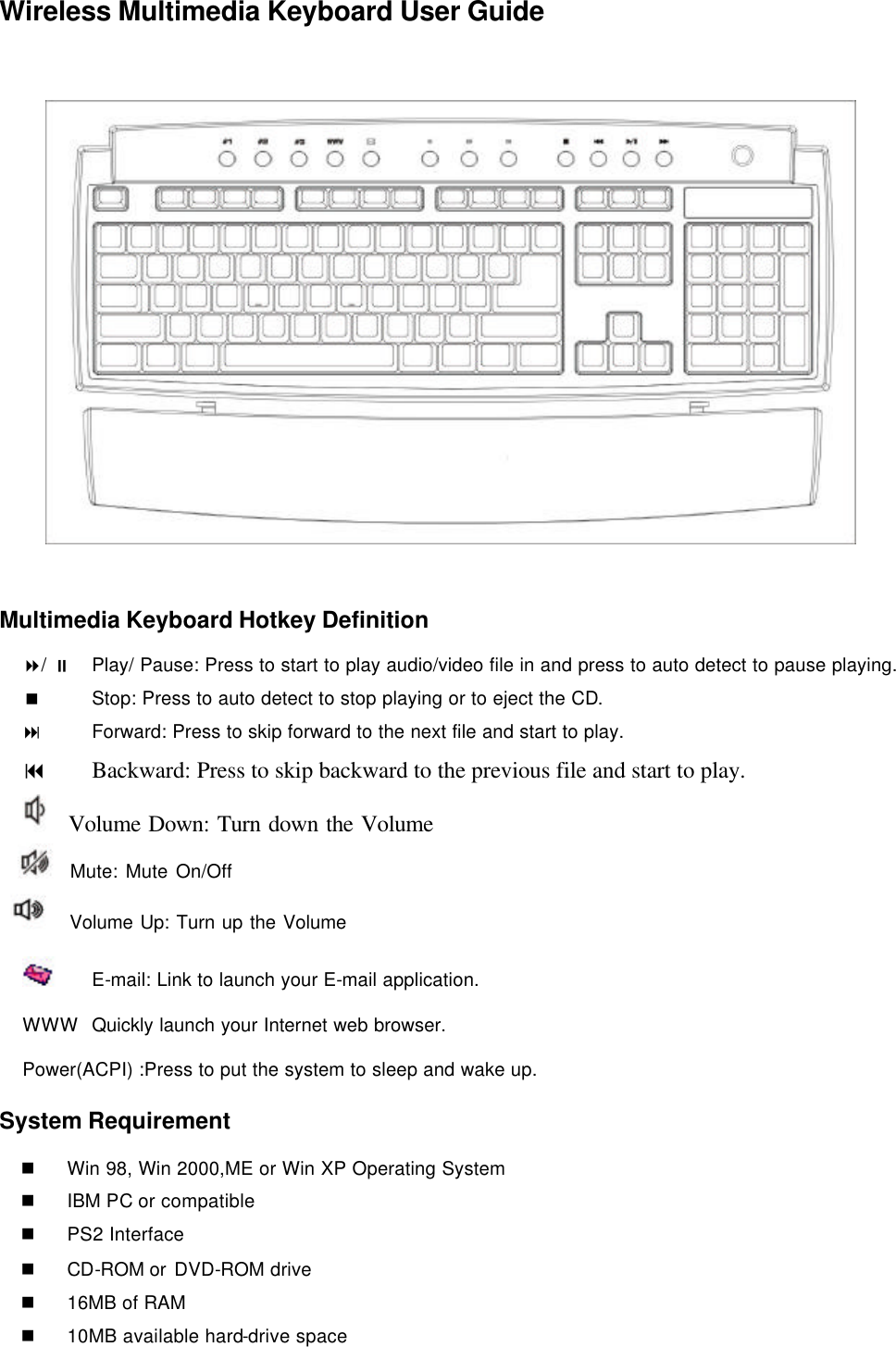

Wireless Multimedia Keyboard User Guide Multimedia Keyboard Hotkey Definition 8/ ; Play/ Pause: Press to start to play audio/video file in and press to auto detect to pause playing. < Stop: Press to auto detect to stop playing or to eject the CD. : Forward: Press to skip forward to the next file and start to play. 9 Backward: Press to skip backward to the previous file and start to play. Volume Down: Turn down the Volume Mute: Mute On/Off Volume Up: Turn up the Volume E-mail: Link to launch your E-mail application. WWW Quickly launch your Internet web browser. Power(ACPI) :Press to put the system to sleep and wake up. System Requirement n Win 98, Win 2000,ME or Win XP Operating System n IBM PC or compatible n PS2 Interface n CD-ROM or DVD-ROM drive n 16MB of RAM n 10MB available hard-drive space

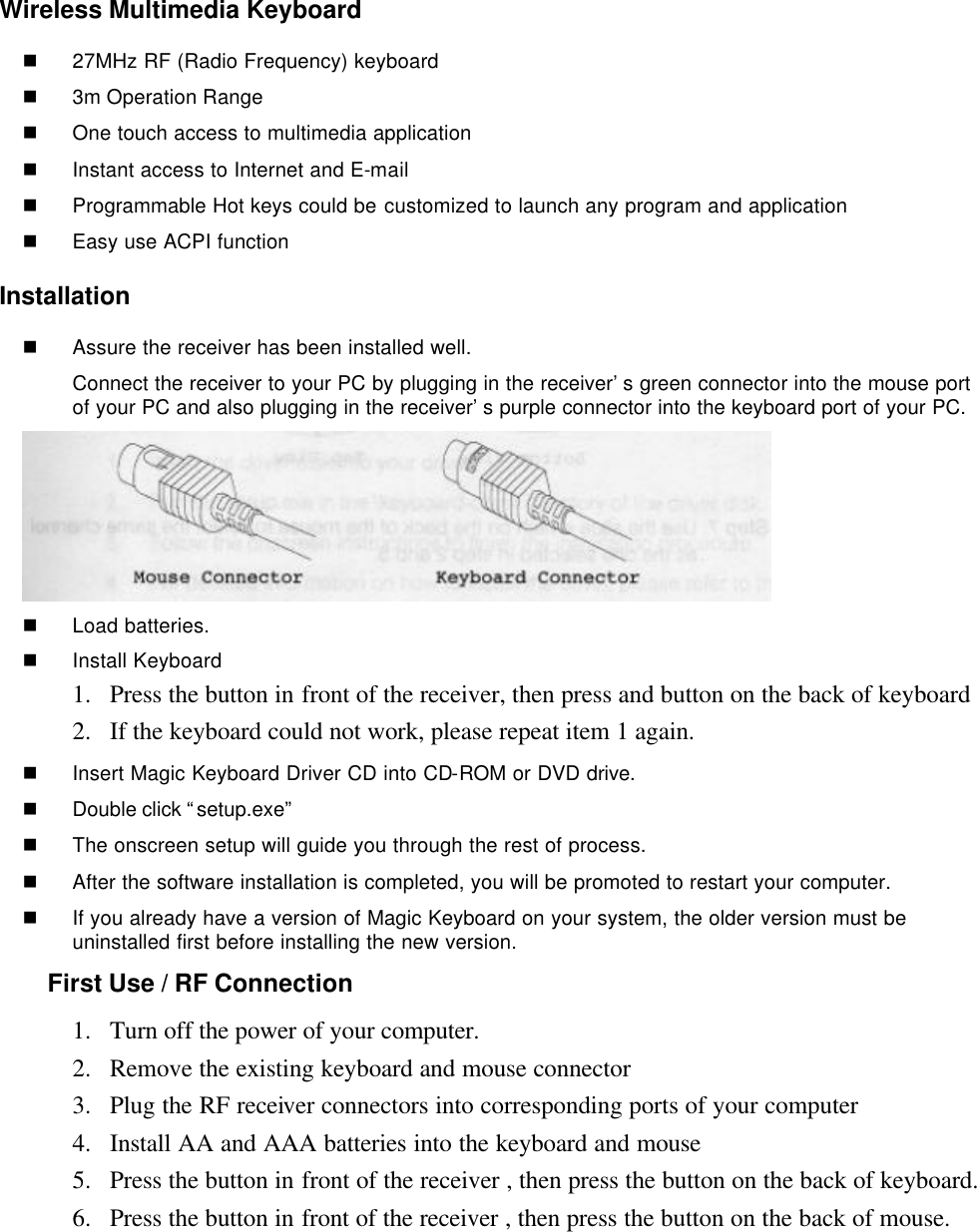

Wireless Multimedia Keyboard n 27MHz RF (Radio Frequency) keyboard n 3m Operation Range n One touch access to multimedia application n Instant access to Internet and E-mail n Programmable Hot keys could be customized to launch any program and application n Easy use ACPI function Installation n Assure the receiver has been installed well. Connect the receiver to your PC by plugging in the receiver’s green connector into the mouse port of your PC and also plugging in the receiver’s purple connector into the keyboard port of your PC. n Load batteries. n Install Keyboard 1. Press the button in front of the receiver, then press and button on the back of keyboard 2. If the keyboard could not work, please repeat item 1 again. n Insert Magic Keyboard Driver CD into CD-ROM or DVD drive. n Double click “setup.exe” n The onscreen setup will guide you through the rest of process. n After the software installation is completed, you will be promoted to restart your computer. n If you already have a version of Magic Keyboard on your system, the older version must be uninstalled first before installing the new version. First Use / RF Connection 1. Turn off the power of your computer. 2. Remove the existing keyboard and mouse connector 3. Plug the RF receiver connectors into corresponding ports of your computer 4. Install AA and AAA batteries into the keyboard and mouse 5. Press the button in front of the receiver , then press the button on the back of keyboard. 6. Press the button in front of the receiver , then press the button on the back of mouse.
Configuring Your Programmable Hot Keys Your Magic keyboard comes with five programmable hot keys that you can assign to applications, files, shortcut or your favorite web site address. Right click Magic Keyboard icon and chose Option to configure your buttons. Please right click your Magic Keyboard icon on system tray and chose Help to find more function instruction. If you have any questions, please contact us through our web site at http://www.darfon.com.tw FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
