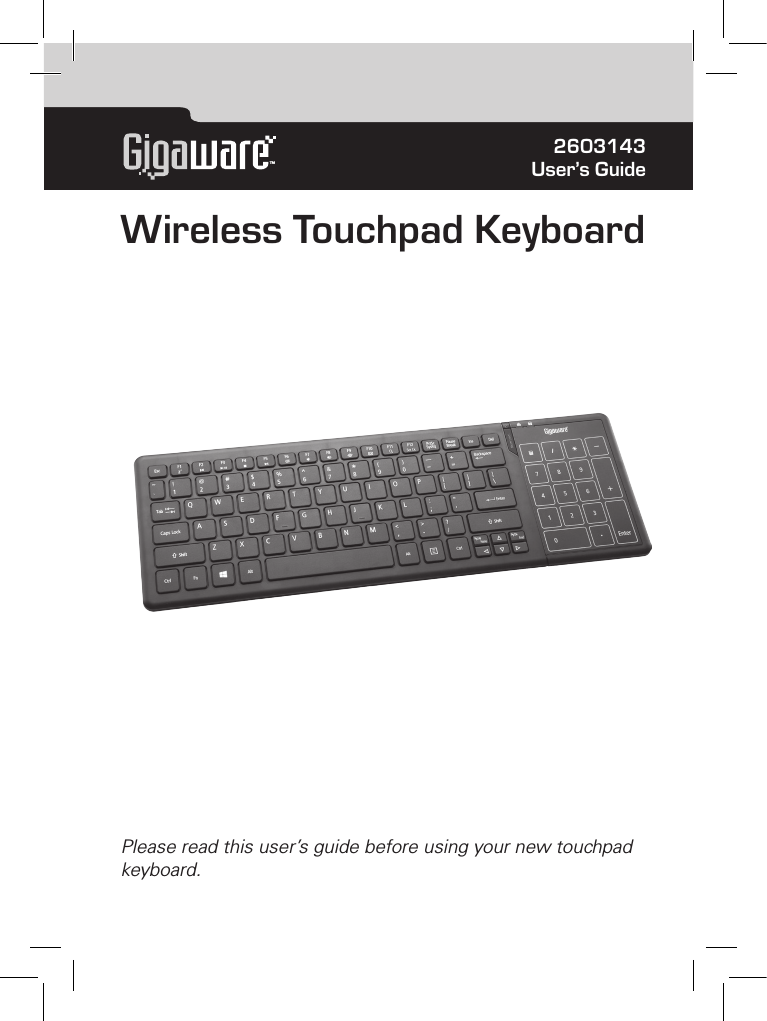

TM2603143User’s GuidePlease read this user’s guide before using your new touchpad keyboard.Wireless Touchpad Keyboard
TM2Package Contents• Touchpad Keyboard• USB Receiver• Touchpad Driver CD (Windows® 8 only)• User’s Guide Features• Provides the convenience of both a touchpad and a numeric keypad• Ultra-compact USB receiver• Ideal for Windows 8 to take advantage of multi-touch gestures to move the cursors, zoom in and out, rotate, scroll, and moreSystem Compatibility• Windows 8/7• Windows Vista®• Windows XP

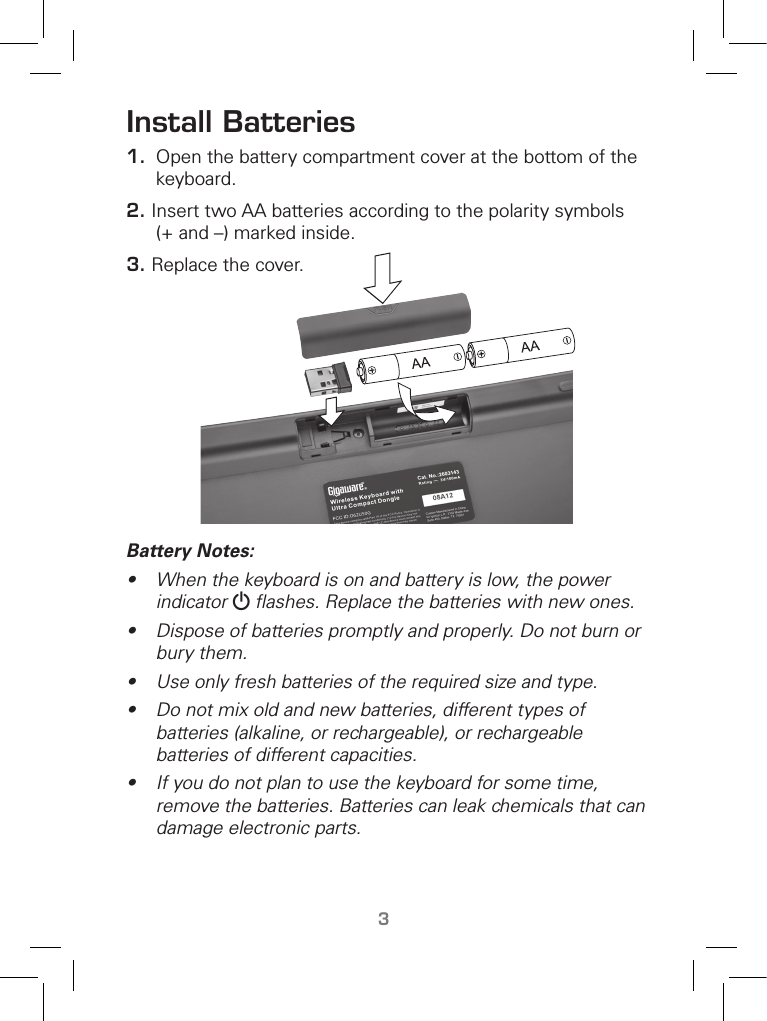

TM3Install Batteries1. Open the battery compartment cover at the bottom of the keyboard. 2. Insert two AA batteries according to the polarity symbols (+ and –) marked inside.3. Replace the cover. Battery Notes:• When the keyboard is on and battery is low, the power indicator G flashes. Replace the batteries with new ones.• Dispose of batteries promptly and properly. Do not burn or bury them.• Use only fresh batteries of the required size and type.• Do not mix old and new batteries, different types of batteries (alkaline, or rechargeable), or rechargeable batteries of different capacities.• If you do not plan to use the keyboard for some time, remove the batteries. Batteries can leak chemicals that can damage electronic parts.

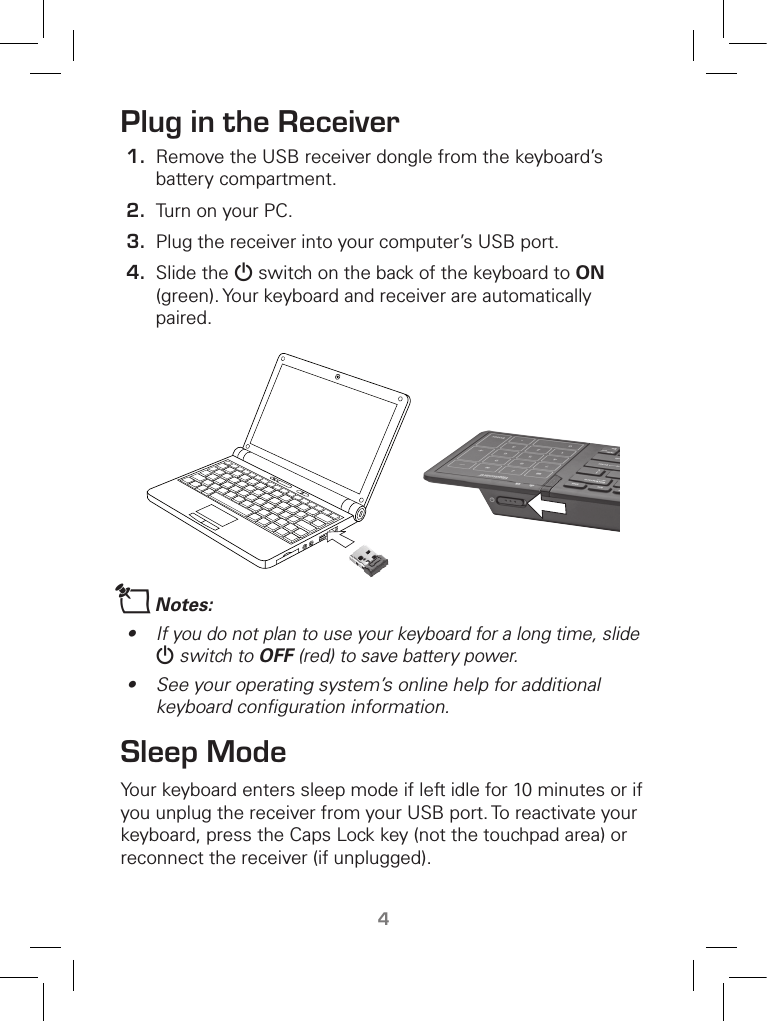

TM4Plug in the Receiver1. Remove the USB receiver dongle from the keyboard’s battery compartment.2. Turn on your PC.3. Plug the receiver into your computer’s USB port. 4. Slide the G switch on the back of the keyboard to ON (green). Your keyboard and receiver are automatically paired.nNotes:• If you do not plan to use your keyboard for a long time, slide G switch to OFF (red) to save battery power.• See your operating system’s online help for additional keyboard configuration information.Sleep ModeYour keyboard enters sleep mode if left idle for 10 minutes or if you unplug the receiver from your USB port. To reactivate your keyboard, press the Caps Lock key (not the touchpad area) or reconnect the receiver (if unplugged).

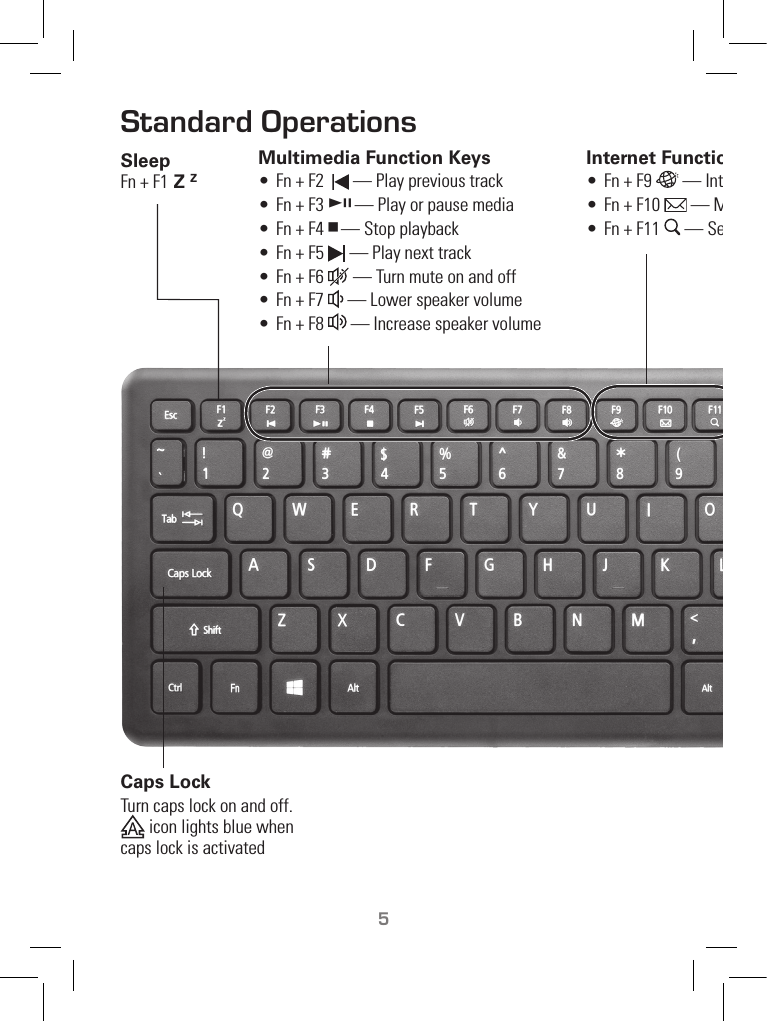

TM5Standard OperationsMultimedia Function Keys• Fn + F2 — Play previous track• Fn + F3 ; — Play or pause media• Fn + F4 D — Stop playback• Fn + F5 — Play next track• Fn + F6 — Turn mute on and off• Fn + F7 — Lower speaker volume• Fn + F8 — Increase speaker volumeInternet Function Keys• Fn + F9 — Internet• Fn + F10 — Mail• Fn + F11 — SearchSleepFn + F1 Z ZCaps LockTurn caps lock on and off. icon lights blue when caps lock is activated

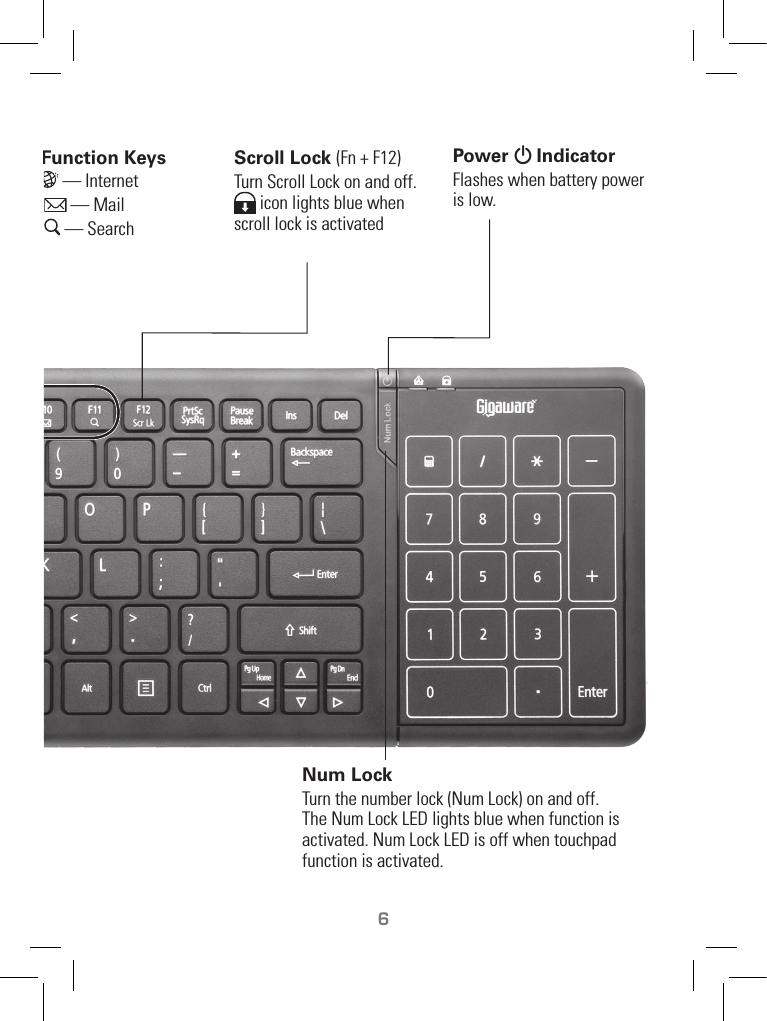

TM6Internet Function Keys• Fn + F9 — Internet• Fn + F10 — Mail• Fn + F11 — SearchScroll Lock (Fn + F12)Turn Scroll Lock on and off. icon lights blue when scroll lock is activatedNum LockTurn the number lock (Num Lock) on and off. The Num Lock LED lights blue when function is activated. Num Lock LED is off when touchpad function is activated.Power G IndicatorFlashes when battery power is low.

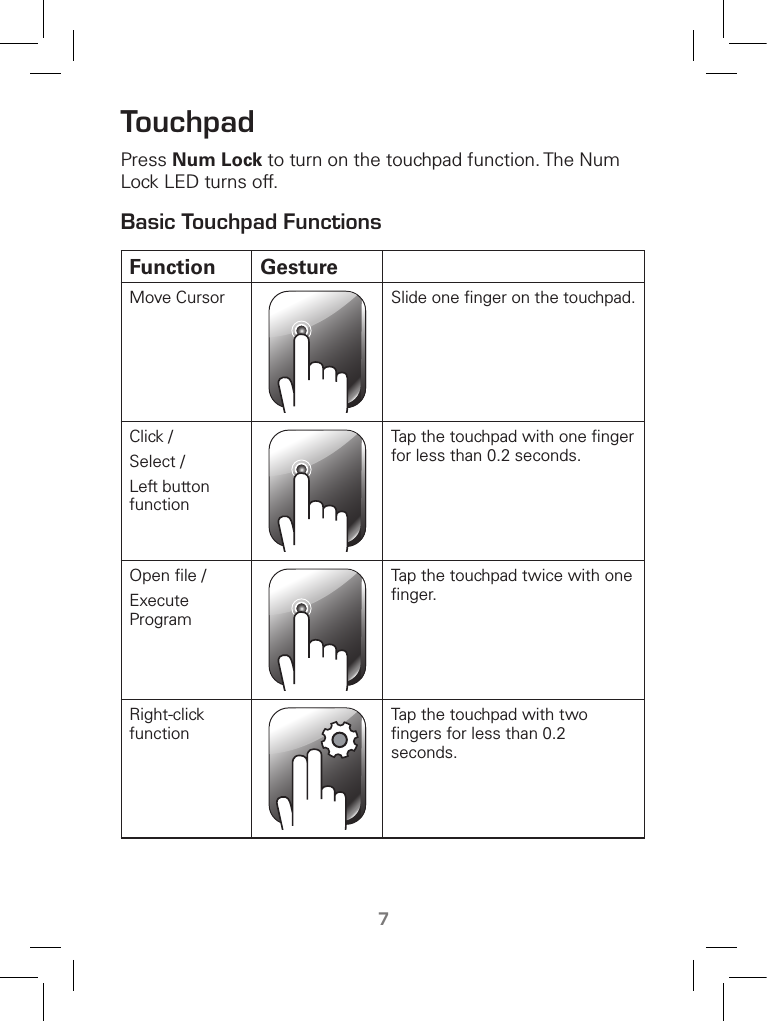

TM7Touchpad Press Num Lock to turn on the touchpad function. The Num Lock LED turns off.Basic Touchpad Functions Function GestureMove Cursor Slide one finger on the touchpad.Click / Select /Left button functionTap the touchpad with one finger for less than 0.2 seconds.Open file / Execute ProgramTap the touchpad twice with one finger.Right-click functionTap the touchpad with two fingers for less than 0.2 seconds.

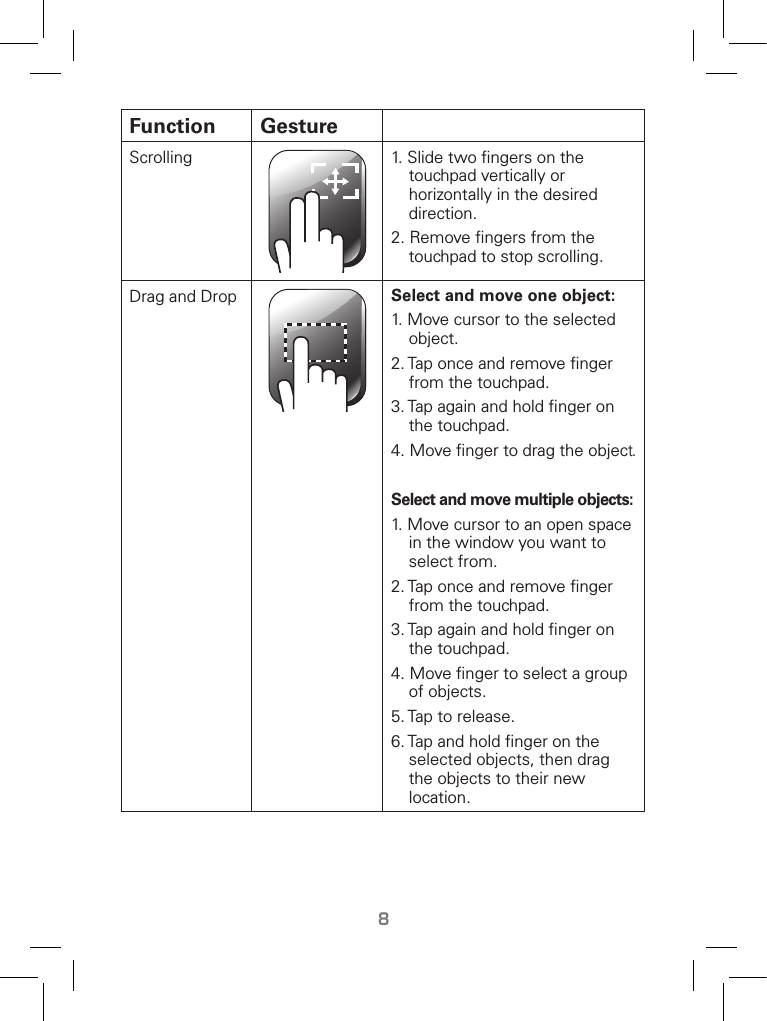

TM8Function GestureScrolling 1. Slide two fingers on the touchpad vertically or horizontally in the desired direction.2. Remove fingers from the touchpad to stop scrolling.Drag and Drop Select and move one object:1. Move cursor to the selected object.2. Tap once and remove finger from the touchpad.3. Tap again and hold finger on the touchpad.4. Move finger to drag the object.Select and move multiple objects:1. Move cursor to an open space in the window you want to select from. 2. Tap once and remove finger from the touchpad.3. Tap again and hold finger on the touchpad.4. Move finger to select a group of objects.5. Tap to release.6. Tap and hold finger on the selected objects, then drag the objects to their new location.

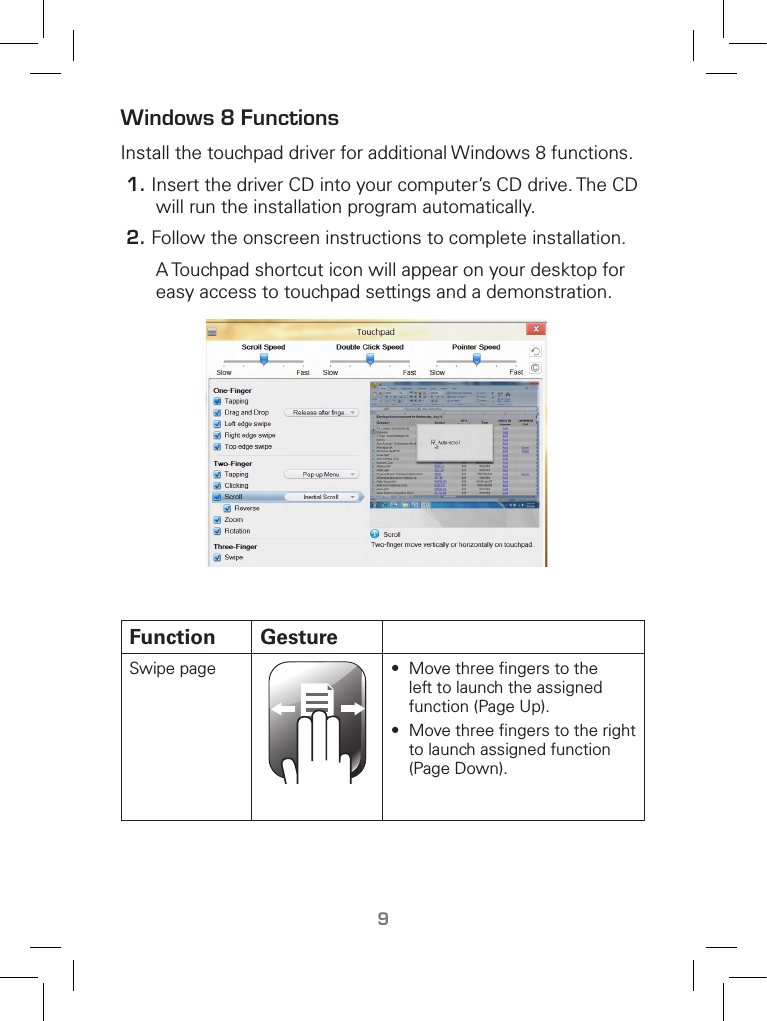

9Windows 8 FunctionsInstall the touchpad driver for additional Windows 8 functions.1. Insert the driver CD into your computer’s CD drive. The CD will run the installation program automatically.2. Follow the onscreen instructions to complete installation. A Touchpad shortcut icon will appear on your desktop for easy access to touchpad settings and a demonstration. Function GestureSwipe page • Move three fingers to the left to launch the assigned function (Page Up).• Move three fingers to the right to launch assigned function (Page Down).

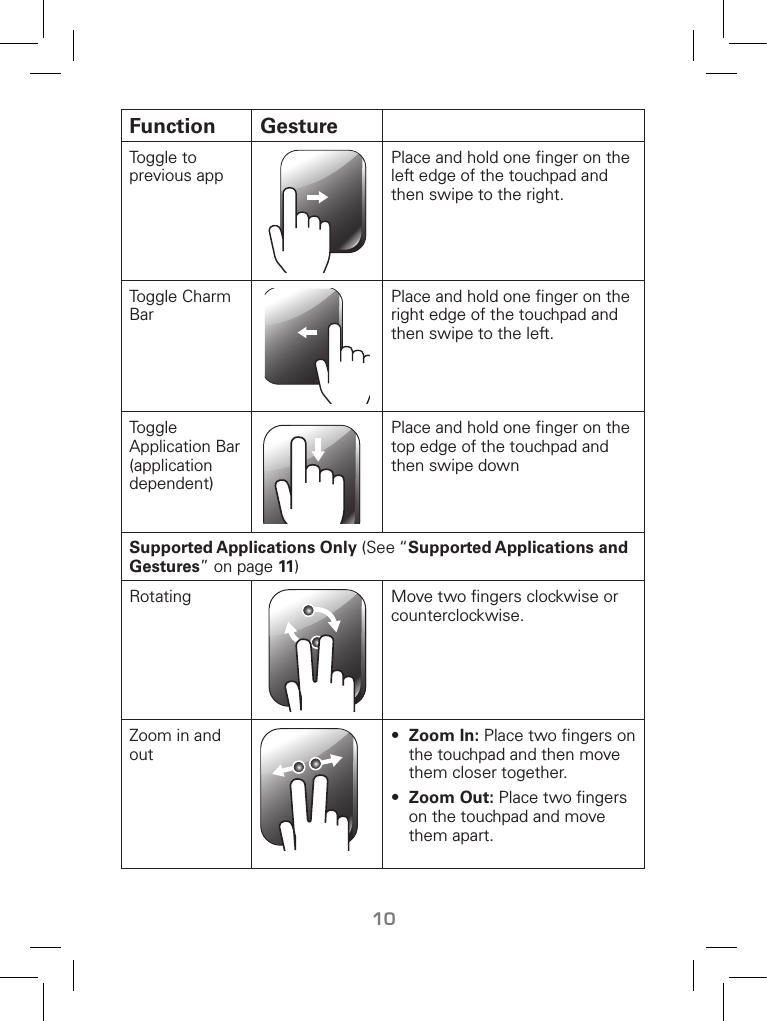

10Function GestureToggle to previous appPlace and hold one finger on the left edge of the touchpad and then swipe to the right.Toggle Charm BarPlace and hold one finger on the right edge of the touchpad and then swipe to the left.Toggle Application Bar (application dependent)Place and hold one finger on the top edge of the touchpad and then swipe down Supported Applications Only (See “Supported Applications and Gestures” on page 11)Rotating Move two fingers clockwise or counterclockwise.Zoom in and out• Zoom In: Place two fingers on the touchpad and then move them closer together. • Zoom Out: Place two fingers on the touchpad and move them apart.

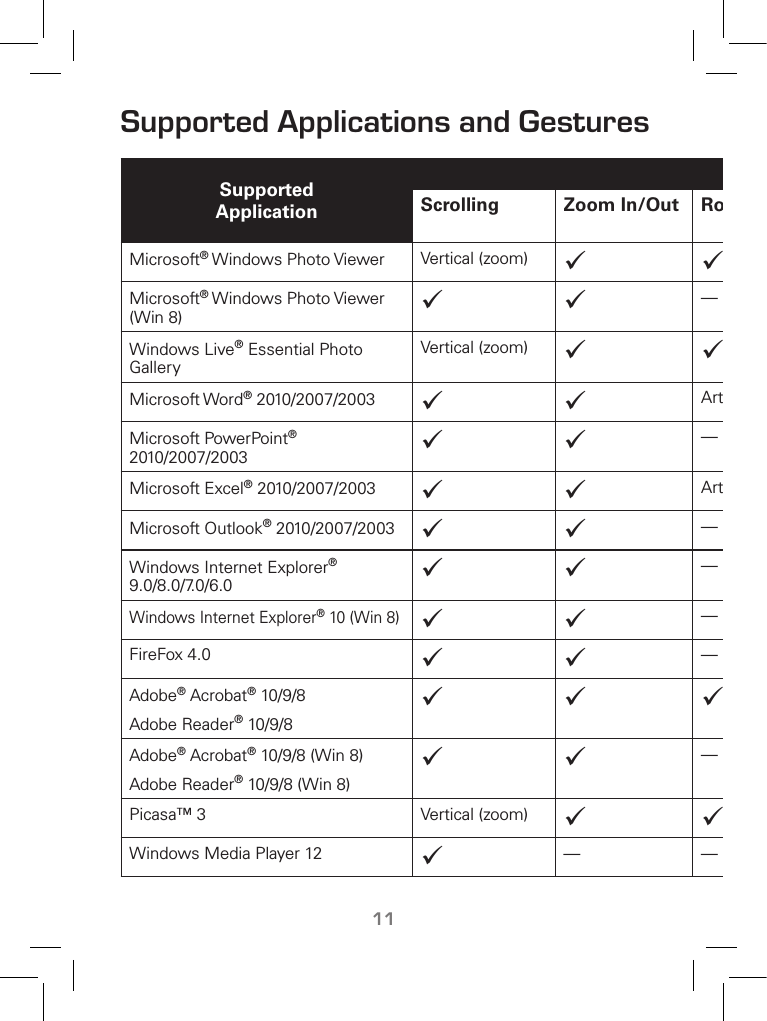

11Supported Applications and GesturesSupported ApplicationSupported GesturesScrolling Zoom In/OutRotation Swipe Left/RightSwipe Up/DownSwipe PageMicrosoft® Windows Photo Viewer Vertical (zoom) Page up/down — —Microsoft® Windows Photo Viewer (Win 8)   —— — —Windows Live® Essential Photo GalleryVertical (zoom) Page up/down — —Microsoft Word® 2010/2007/2003  Artwork Page up/down — —Microsoft PowerPoint® 2010/2007/2003   —Page up/down — —Microsoft Excel® 2010/2007/2003  Artwork Page up/down — —Microsoft Outlook® 2010/2007/2003   —Previous/next e-mail — —Windows Internet Explorer® 9.0/8.0/7.0/6.0   —Back/forward — —Windows Internet Explorer® 10 (Win 8)  —— — —FireFox 4.0   —Back/forward — —Adobe® Acrobat® 10/9/8Adobe Reader® 10/9/8 Back/forward — —Adobe® Acrobat® 10/9/8 (Win 8)Adobe Reader® 10/9/8 (Win 8)  —— — —Picasa™ 3 Vertical (zoom) Page up/down — —Windows Media Player 12 — —Previous/next — —

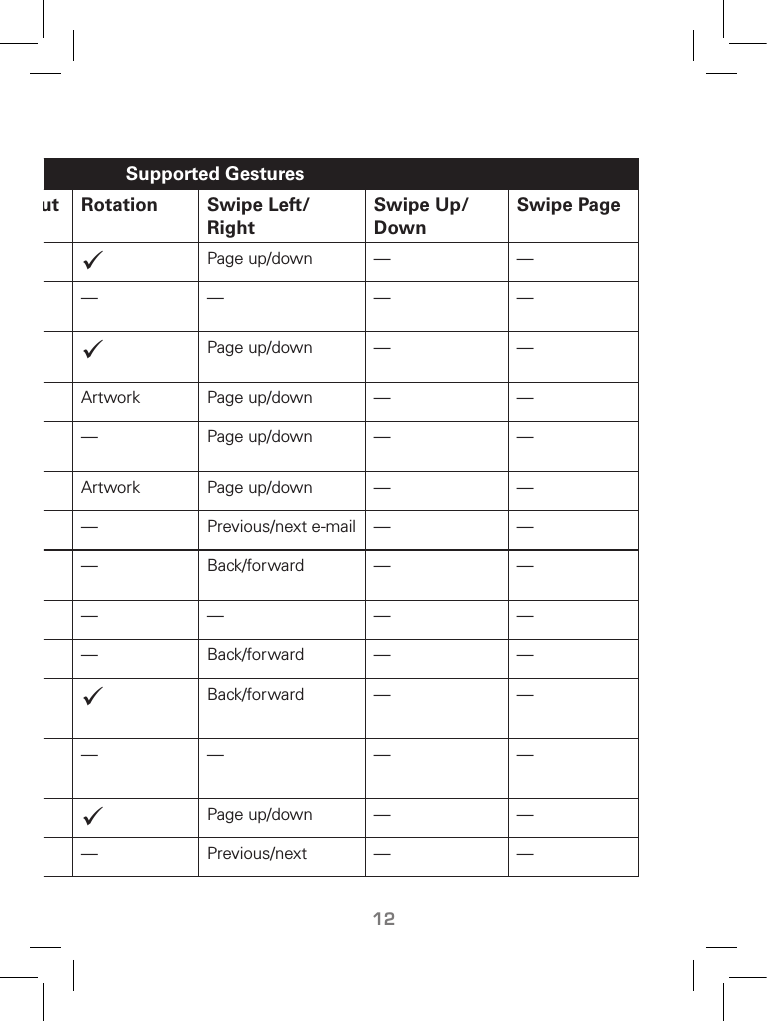

12Supported Applications and GesturesSupported ApplicationSupported GesturesScrolling Zoom In/OutRotation Swipe Left/RightSwipe Up/DownSwipe PageMicrosoft® Windows Photo Viewer Vertical (zoom) Page up/down — —Microsoft® Windows Photo Viewer (Win 8)  — — — —Windows Live® Essential Photo GalleryVertical (zoom) Page up/down — —Microsoft Word® 2010/2007/2003  Artwork Page up/down — —Microsoft PowerPoint® 2010/2007/2003  — Page up/down — —Microsoft Excel® 2010/2007/2003  Artwork Page up/down — —Microsoft Outlook® 2010/2007/2003  — Previous/next e-mail — —Windows Internet Explorer® 9.0/8.0/7.0/6.0  — Back/forward — —Windows Internet Explorer® 10 (Win 8) — — — —FireFox 4.0  — Back/forward — —Adobe® Acrobat® 10/9/8Adobe Reader® 10/9/8 Back/forward — —Adobe® Acrobat® 10/9/8 (Win 8)Adobe Reader® 10/9/8 (Win 8) — — — —Picasa™ 3 Vertical (zoom) Page up/down — —Windows Media Player 12 —— Previous/next — —

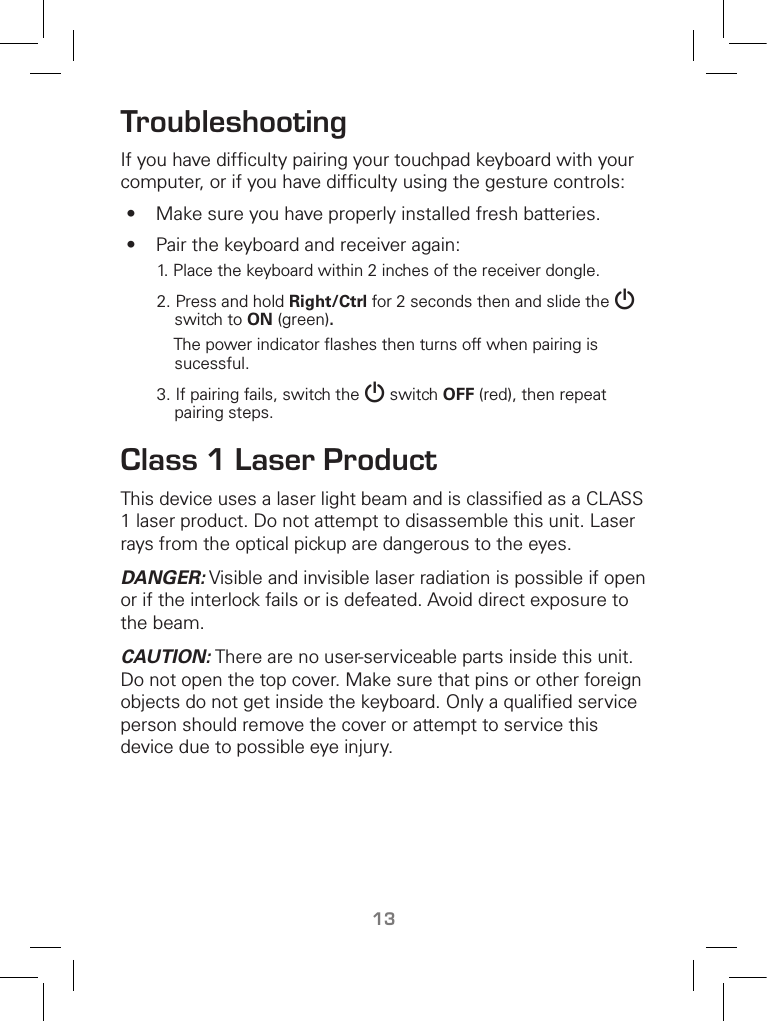

13TroubleshootingIf you have difficulty pairing your touchpad keyboard with your computer, or if you have difficulty using the gesture controls:• Make sure you have properly installed fresh batteries.• Pair the keyboard and receiver again:1. Place the keyboard within 2 inches of the receiver dongle.2. Press and hold Right/Ctrl for 2 seconds then and slide the G switch to ON (green). The power indicator flashes then turns off when pairing is sucessful. 3. If pairing fails, switch the G switch OFF (red), then repeat pairing steps. Class 1 Laser ProductThis device uses a laser light beam and is classified as a CLASS 1 laser product. Do not attempt to disassemble this unit. Laser rays from the optical pickup are dangerous to the eyes.DANGER: Visible and invisible laser radiation is possible if open or if the interlock fails or is defeated. Avoid direct exposure to the beam.CAUTION: There are no user-serviceable parts inside this unit. Do not open the top cover. Make sure that pins or other foreign objects do not get inside the keyboard. Only a qualified service person should remove the cover or attempt to service this device due to possible eye injury.
14Important Information• Do not place the keyboard or the receiver on a metal surface. Metal may impair the RF communication.• For optimal performance, place the keyboard closer to the receiver.• Do not place the receiver on the top of computer, wireless router, or monitor to avoid interference.• If nearby RF devices cause interference, move them away from your keyboard and receiver.• Do not modify or tamper with your keyboard’s internal components. It may cause a malfunction and invalidate the warranty.• Use and store the keyboard only in room temperature environments.• Keep the keyboard dry; if it gets wet, wipe it dry immediately.• Keep the keyboard away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new.• Handle the keyboard carefully; do not drop it.SpecificationsRF Distance .......................................................................... 9.8 ft. (3 m)RF Frequency ..............................................................................2.4 GHzRF Modulation ............................................................................... GFSKUSB .......................................................................................2.0 VersionDimensions ..................................................14.52 × 4.88 × 0.92 inches ...............................................................(369mm × 124 mm × 23.5mm)Power SupplyKeyboard ................................................................. 3V, 2 × AA BatteriesReceiver ................................................................................ 4.4 – 5.25VSpecifications are subject to change and improvement without notice. Actual product may vary from the images found in this document.

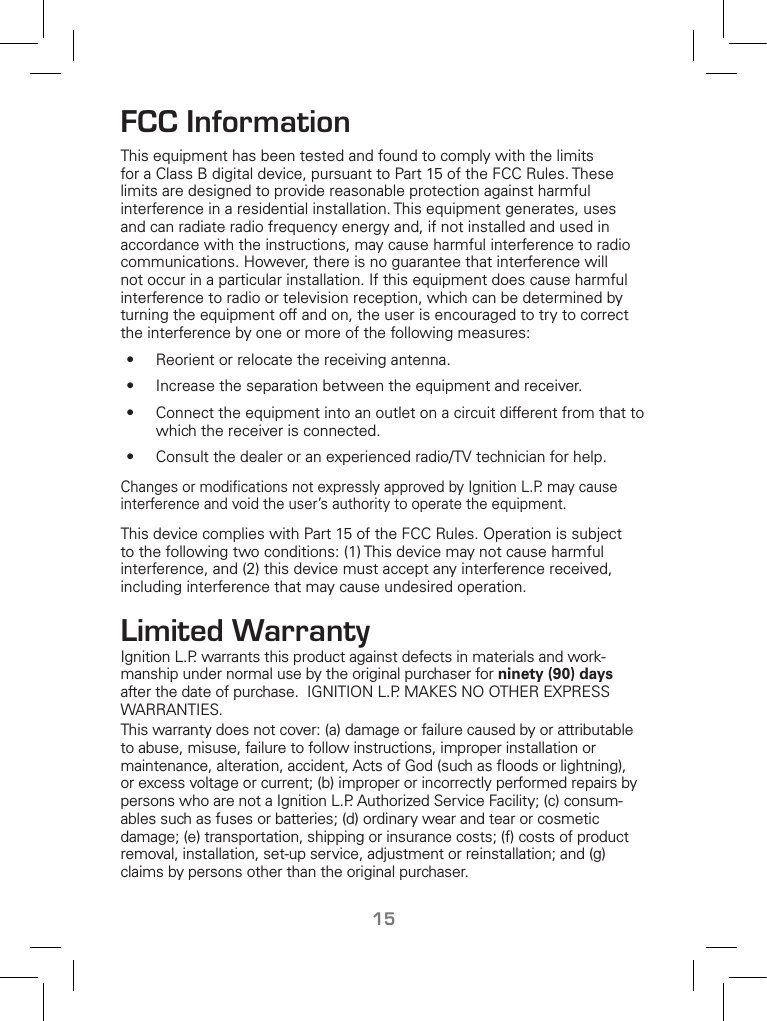

15FCC InformationThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by Ignition L.P. may cause interference and void the user’s authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Limited WarrantyIgnition L.P. warrants this product against defects in materials and work-manship under normal use by the original purchaser for ninety (90) days after the date of purchase. IGNITION L.P. MAKES NO OTHER EXPRESS WARRANTIES.This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a Ignition L.P. Authorized Service Facility; (c) consum-ables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser.

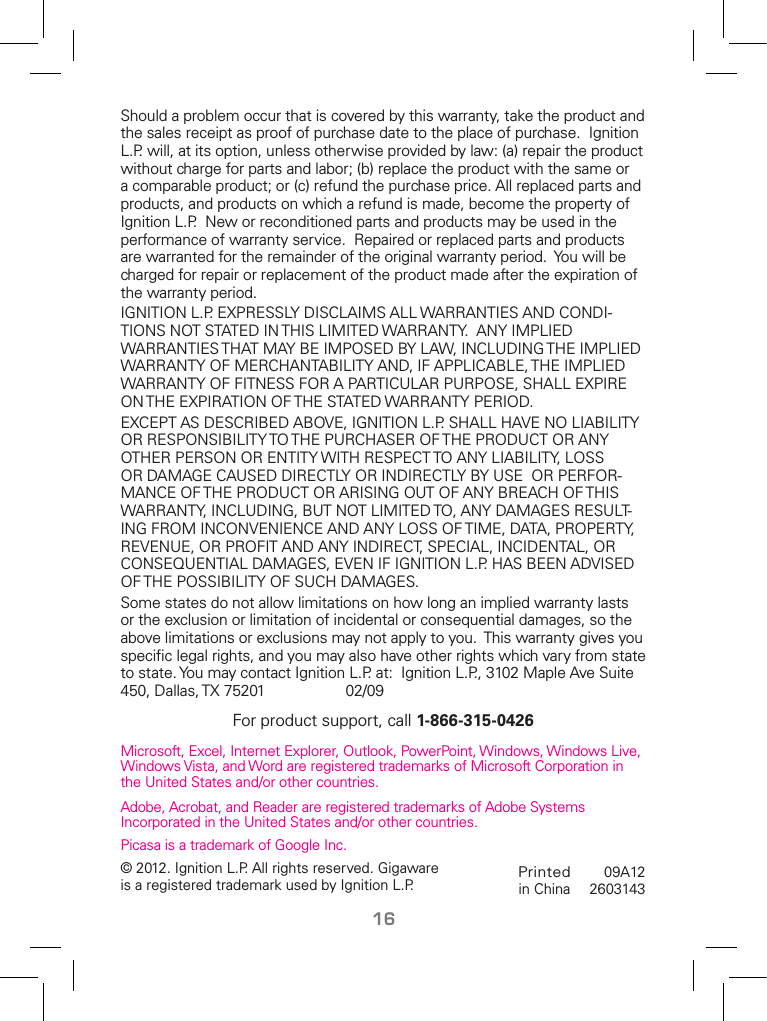

16Printed in China09A122603143© 2012. Ignition L.P. All rights reserved. Gigaware is a registered trademark used by Ignition L.P.Should a problem occur that is covered by this warranty, take the product and the sales receipt as proof of purchase date to the place of purchase. Ignition L.P. will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Ignition L.P. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.IGNITION L.P. EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDI-TIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, IGNITION L.P. SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFOR-MANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULT-ING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF IGNITION L.P. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact Ignition L.P. at: Ignition L.P., 3102 Maple Ave Suite 450, Dallas, TX 75201 02/09For product support, call 1-866-315-0426Microsoft, Excel, Internet Explorer, Outlook, PowerPoint, Windows, Windows Live, Windows Vista, and Word are registered trademarks of Microsoft Corporation in the United States and/or other countries. Adobe, Acrobat, and Reader are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.Picasa is a trademark of Google Inc.
