Dastmalchi COMMUTER01 Commuter User Manual

Dastmalchi LLC Commuter

User Manual

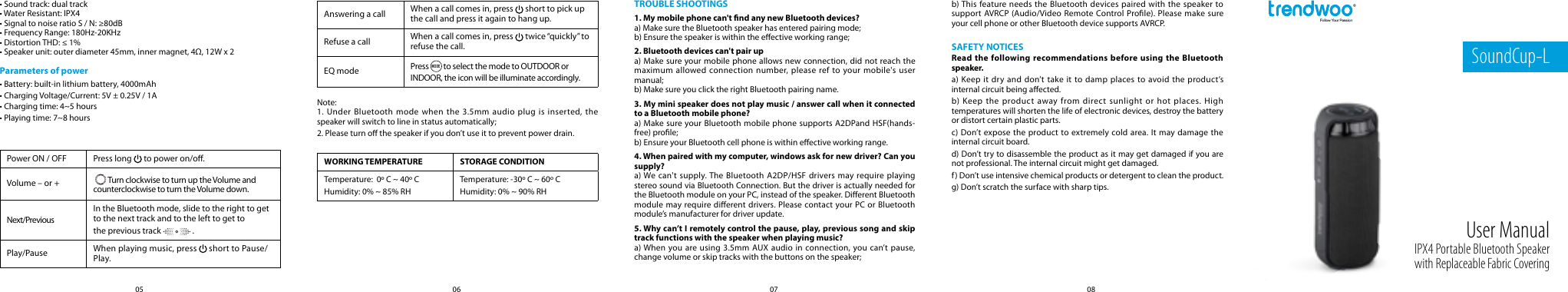

08070605SoundCup-LIPX4 Portable Bluetooth Speaker with Replaceable Fabric CoveringUser Manual• Sound track: dual track• Water Resistant: IPX4• Signal to noise ratio S / N: ≥80dB• Frequency Range: 180Hz-20KHz• Distortion THD: ≤ 1%• Speaker unit: outer diameter 45mm, inner magnet, 4Ω, 12W x 2Parameters of power• Battery: built-in lithium battery, 4000mAh• Charging Voltage/Current: 5V ± 0.25V / 1A• Charging time: 4~5 hours• Playing time: 7~8 hoursPower ON / OFF Press long   to power on/o.Volume – or +   Turn clockwise to turn up the Volume and counterclockwise to turn the Volume down.Next/PreviousIn the Bluetooth mode, slide to the right to get to the next track and to the left to get to the previous track   .Play/Pause When playing music, press   short to Pause/Play.Note:1. Under Bluetooth mode when the 3.5mm audio plug is inserted, the speaker will switch to line in status automatically;2. Please turn o the speaker if you don’t use it to prevent power drain.TROUBLE SHOOTINGS1. My mobile phone can't nd any new Bluetooth devices?a) Make sure the Bluetooth speaker has entered pairing mode;b) Ensure the speaker is within the eective working range;2. Bluetooth devices can't pair upa) Make sure your mobile phone allows new connection, did not reach the maximum allowed connection number, please ref to your mobile's user manual;b) Make sure you click the right Bluetooth pairing name.3. My mini speaker does not play music / answer call when it connected to a Bluetooth mobile phone?a) Make sure your Bluetooth mobile phone supports A2DPand HSF(hands-free) prole;b) Ensure your Bluetooth cell phone is within eective working range.4. When paired with my computer, windows ask for new driver? Can you supply?a) We can't supply. The Bluetooth A2DP/HSF drivers may require playing stereo sound via Bluetooth Connection. But the driver is actually needed for the Bluetooth module on your PC, instead of the speaker. Dierent Bluetooth module may require dierent drivers. Please contact your PC or Bluetooth module’s manufacturer for driver update.5. Why can’t I remotely control the pause, play, previous song and skip track functions with the speaker when playing music?a) When you are using 3.5mm AUX audio in connection, you can’t pause, change volume or skip tracks with the buttons on the speaker;WORKING TEMPERATURE STORAGE CONDITIONTemperature:  0º C ~ 40º CHumidity: 0% ~ 85% RHTemperature: -30º C ~ 60º CHumidity: 0% ~ 90% RHb) This feature needs the Bluetooth devices paired with the speaker to support AVRCP (Audio/Video Remote Control Prole). Please make sure your cell phone or other Bluetooth device supports AVRCP.SAFETY NOTICESRead the following recommendations before using the Bluetooth speaker.a) Keep it dry and don’t take it to damp places to avoid the product’s internal circuit being aected.b) Keep the product away from direct sunlight or hot places. High temperatures will shorten the life of electronic devices, destroy the battery or distort certain plastic parts.c) Don’t expose the product to extremely cold area. It may damage the internal circuit board.d) Don’t try to disassemble the product as it may get damaged if you are not professional. The internal circuit might get damaged.f) Don’t use intensive chemical products or detergent to clean the product.g) Don’t scratch the surface with sharp tips.Answering a call When a call comes in, press   short to pick up the call and press it again to hang up.Refuse a call When a call comes in, press   twice “quickly” to refuse the call.EQ mode Press MODE to select the mode to OUTDOOR or INDOOR, the icon will be illuminate accordingly.

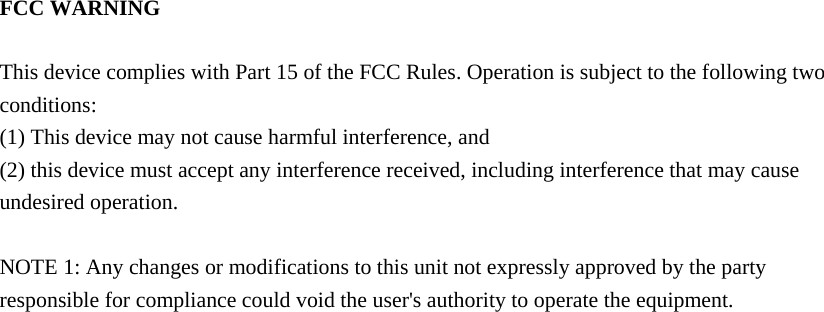

  FCC WARNING  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

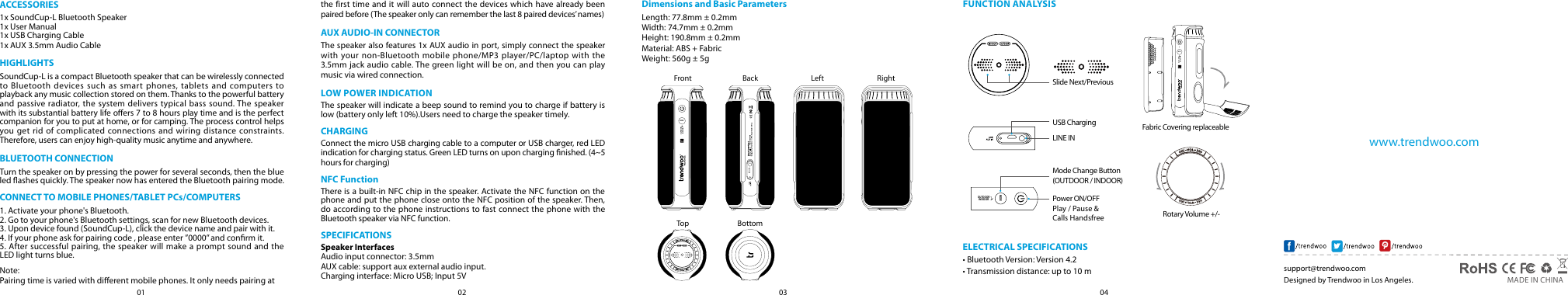

04030201support@trendwoo.com     MADE IN CHINADesigned by Trendwoo in Los Angeles.www.trendwoo.comACCESSORIES1x SoundCup-L Bluetooth Speaker1x User Manual1x USB Charging Cable1x AUX 3.5mm Audio CableHIGHLIGHTSSoundCup-L is a compact Bluetooth speaker that can be wirelessly connected to Bluetooth devices such as smart phones, tablets and computers to playback any music collection stored on them. Thanks to the powerful battery and passive radiator, the system delivers typical bass sound. The speaker with its substantial battery life oers 7 to 8 hours play time and is the perfect companion for you to put at home, or for camping. The process control helps you get rid of complicated connections and wiring distance constraints. Therefore, users can enjoy high-quality music anytime and anywhere.BLUETOOTH CONNECTIONTurn the speaker on by pressing the power for several seconds, then the blue led ashes quickly. The speaker now has entered the Bluetooth pairing mode.CONNECT TO MOBILE PHONES/TABLET PCs/COMPUTERS1. Activate your phone's Bluetooth.2. Go to your phone's Bluetooth settings, scan for new Bluetooth devices.3. Upon device found (SoundCup-L), click the device name and pair with it.4. If your phone ask for pairing code , please enter ”0000” and conrm it.5. After successful pairing, the speaker will make a prompt sound and the LED light turns blue.Note:Pairing time is varied with dierent mobile phones. It only needs pairing atthe first time and it will auto connect the devices which have already been paired before (The speaker only can remember the last 8 paired devices’ names)AUX AUDIO-IN CONNECTORThe speaker also features 1x AUX audio in port, simply connect the speaker with your non-Bluetooth mobile phone/MP3 player/PC/laptop with the 3.5mm jack audio cable. The green light will be on, and then you can play music via wired connection.LOW POWER INDICATIONThe speaker will indicate a beep sound to remind you to charge if battery is low (battery only left 10%).Users need to charge the speaker timely.CHARGINGConnect the micro USB charging cable to a computer or USB charger, red LED indication for charging status. Green LED turns on upon charging nished. (4~5 hours for charging)NFC FunctionThere is a built-in NFC chip in the speaker. Activate the NFC function on the phone and put the phone close onto the NFC position of the speaker. Then, do according to the phone instructions to fast connect the phone with the Bluetooth speaker via NFC function.SPECIFICATIONSSpeaker InterfacesAudio input connector: 3.5mmAUX cable: support aux external audio input.Charging interface: Micro USB; Input 5VDimensions and Basic ParametersLength: 77.8mm ± 0.2mm Width: 74.7mm ± 0.2mmHeight: 190.8mm ± 0.2mmMaterial: ABS + FabricWeight: 560g ± 5gELECTRICAL SPECIFICATIONS• Bluetooth Version: Version 4.2• Transmission distance: up to 10 mFUNCTION ANALYSISFrontTop BottomBack Left RightMODEOUTDOORINDOORPlay / Pause & Calls HandsfreeSlide Next/PreviousUSB ChargingLINE INPower ON/OFFMode Change Button (OUTDOOR / INDOOR)Rotary Volume +/- Fabric Covering replaceableMODEOUTDOORINDOORMODEOUTDOORINDOOR
