Quick Reference Guidewww.scanning.datalogic.comQuickScan™ MobileDatalogic Scanning, Inc.959 Terry StreetEugene, OR 97402Telephone: (541) 683-5700Fax: (541) 345-7140AustraliaDatalogic Scanning Pty LtdNorth Ryde, AustraliaTelephone: [61] (2) 9870 3200Fax: [61] (2) 9878 8688France and BeneluxDatalogic Scanning SarlLES ULIS Cedex, FranceTelephone: [33].01.64.86.71.00Fax: [33].01.64 46.72.44GermanyDatalogic Scanning GmbHDarmstadt, GermanyTelephone: 49 (0) 61 51/93 58-0Fax: 49 (0) 61 51/93 58 58ItalyDatalogic Scanning SpAVimercate (MI), ItalyTelephone: [39] (0) 39/62903.1Fax: [39] (0) 39/6859496JapanDatalogic Scanning KKShinagawa, Tokyo, JapanTelephone: 81 (0)3 3491 6761Fax: 81 (0)3 3491 6656Latin AmericaDatalogic Scanning, IncMiami, Florida, USATelephone: (305) 591-3222Fax: (305) 591-3007Spain and PortugalDatalogic Scanning SarlSucursal en EspañaMadrid, SpainTelephone: 34 91 746 28 60Fax: 34 91 742 35 33United KingdomDatalogic Scanning LTDWatford, EnglandTelephone: 44 (0) 1923 809500Fax: 44 (0) 1923 809 505©2007 Datalogic Scanning, Inc. 820001830 10/07

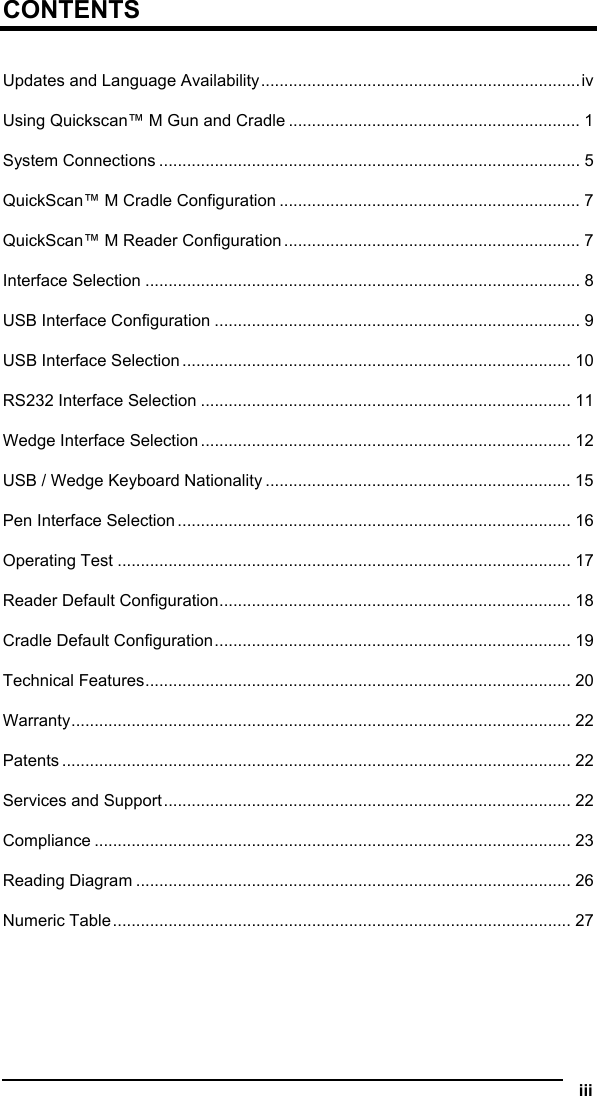

CONTENTS Updates and Language Availability.....................................................................iv Using Quickscan™ M Gun and Cradle ............................................................... 1 System Connections ........................................................................................... 5 QuickScan™ M Cradle Configuration ................................................................. 7 QuickScan™ M Reader Configuration ................................................................ 7 Interface Selection .............................................................................................. 8 USB Interface Configuration ............................................................................... 9 USB Interface Selection .................................................................................... 10 RS232 Interface Selection ................................................................................ 11 Wedge Interface Selection ................................................................................ 12 USB / Wedge Keyboard Nationality .................................................................. 15 Pen Interface Selection ..................................................................................... 16 Operating Test .................................................................................................. 17 Reader Default Configuration............................................................................ 18 Cradle Default Configuration............................................................................. 19 Technical Features............................................................................................ 20 Warranty............................................................................................................ 22 Patents .............................................................................................................. 22 Services and Support........................................................................................ 22 Compliance ....................................................................................................... 23 Reading Diagram .............................................................................................. 26 Numeric Table................................................................................................... 27 iii

UPDATES AND LANGUAGE AVAILABILITY UK/US The latest drivers and documentation updates for this product are available on Internet. Log on to: www.scanning.datalogic.com I Su Internet sono disponibili le versioni aggiornate di driver e documentazione di questo prodotto. Questo manuale è disponibile anche nella versione italiana. Collegarsi a: www.scanning.datalogic.com F Les versions mises à jour de drivers et documentation de ce produit sont disponibles sur Internet. Ce manuel est aussi disponible en version française. Cliquez sur: www.scanning.datalogic.com D Im Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation von diesem Produkt. Die deutschsprachige Version dieses Handbuches ist auch verfügbar. Adresse : www.scanning.datalogic.com E En Internet están disponibles las versiones actualizadas de los drivers y documentación de este producto. También está disponible la versión en español de este manual. Dirección Internet: www.scanning.datalogic.com iv

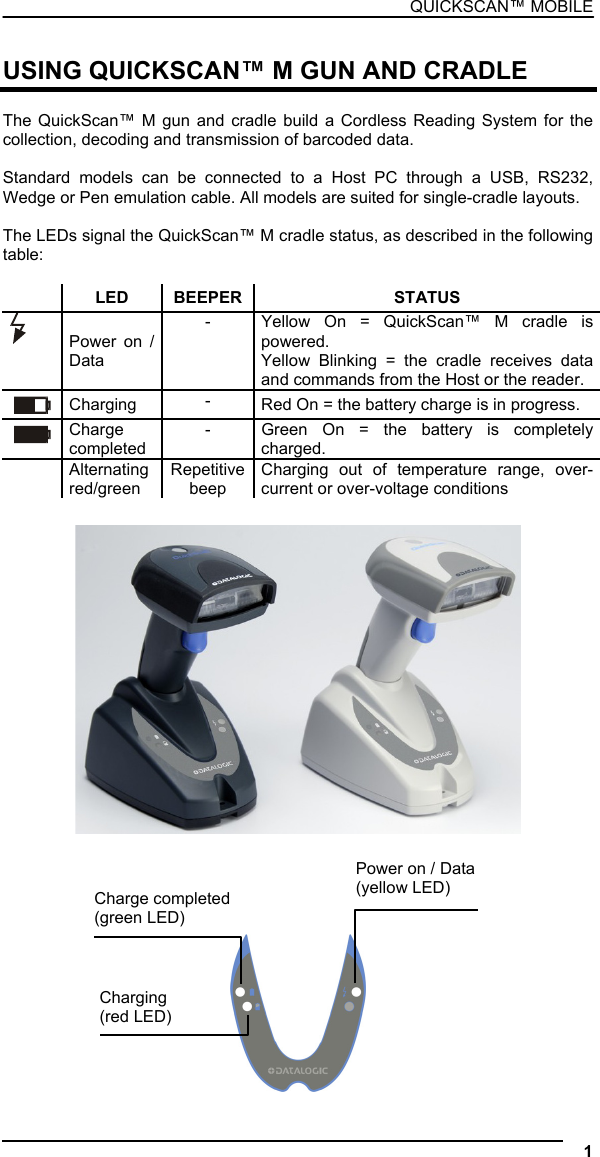

QUICKSCAN™ MOBILE USING QUICKSCAN™ M GUN AND CRADLE The QuickScan™ M gun and cradle build a Cordless Reading System for the collection, decoding and transmission of barcoded data. Standard models can be connected to a Host PC through a USB, RS232, Wedge or Pen emulation cable. All models are suited for single-cradle layouts. The LEDs signal the QuickScan™ M cradle status, as described in the following table: LED BEEPER STATUS Power on / Data - Yellow On = QuickScan™ M cradle is powered. Yellow Blinking = the cradle receives data and commands from the Host or the reader. Charging - Red On = the battery charge is in progress. Charge completed - Green On = the battery is completely charged. Alternating red/green Repetitive beep Charging out of temperature range, over-current or over-voltage conditions Power on / Data(yellow LED) Charge completed (green LED) Charging (red LED) 1

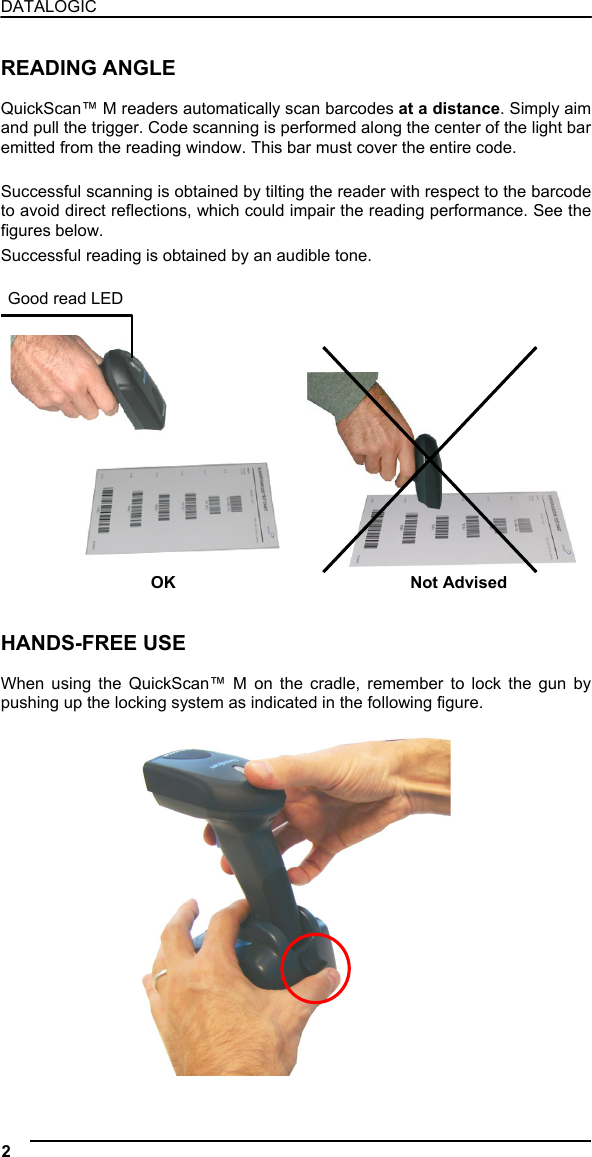

DATALOGIC READING ANGLE QuickScan™ M readers automatically scan barcodes at a distance. Simply aim and pull the trigger. Code scanning is performed along the center of the light bar emitted from the reading window. This bar must cover the entire code. Successful scanning is obtained by tilting the reader with respect to the barcode to avoid direct reflections, which could impair the reading performance. See the figures below. Successful reading is obtained by an audible tone. Good read LED OK Not Advised HANDS-FREE USE When using the QuickScan™ M on the cradle, remember to lock the gun by pushing up the locking system as indicated in the following figure. 2

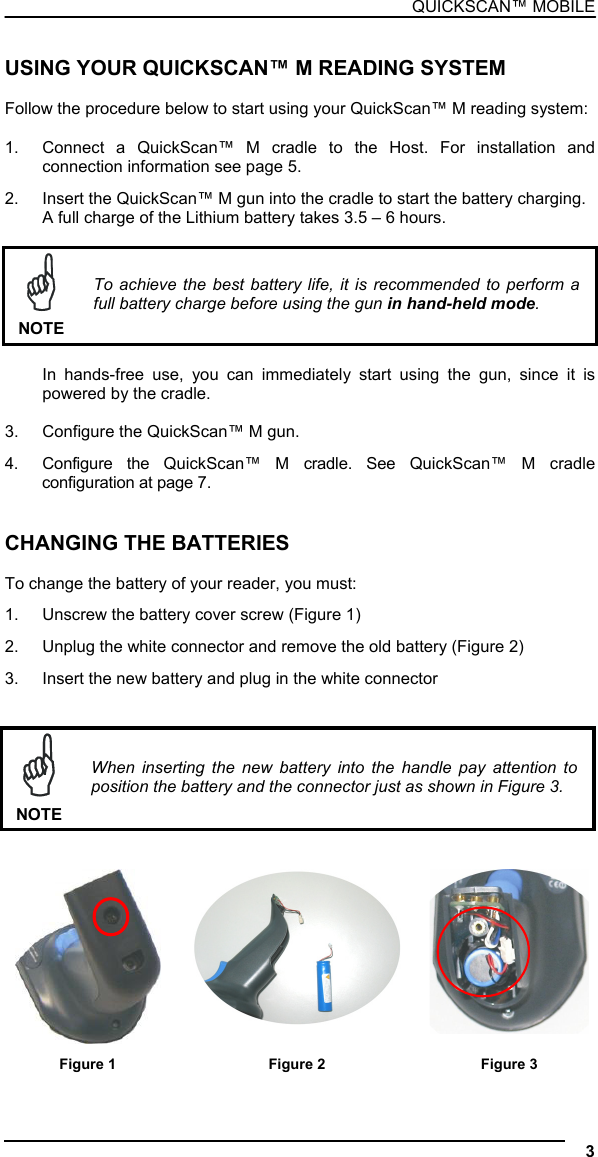

QUICKSCAN™ MOBILE USING YOUR QUICKSCAN™ M READING SYSTEM Follow the procedure below to start using your QuickScan™ M reading system: 1. Connect a QuickScan™ M cradle to the Host. For installation and connection information see page 5. 2. Insert the QuickScan™ M gun into the cradle to start the battery charging. A full charge of the Lithium battery takes 3.5 – 6 hours. NOTE To achieve the best battery life, it is recommended to perform a full battery charge before using the gun in hand-held mode. In hands-free use, you can immediately start using the gun, since it is powered by the cradle. 3. Configure the QuickScan™ M gun. 4. Configure the QuickScan™ M cradle. See QuickScan™ M cradle configuration at page 7. CHANGING THE BATTERIES To change the battery of your reader, you must: 1. Unscrew the battery cover screw (Figure 1) 2. Unplug the white connector and remove the old battery (Figure 2) 3. Insert the new battery and plug in the white connector NOTE When inserting the new battery into the handle pay attention to position the battery and the connector just as shown in Figure 3. Figure 1 Figure 2 Figure 3 3

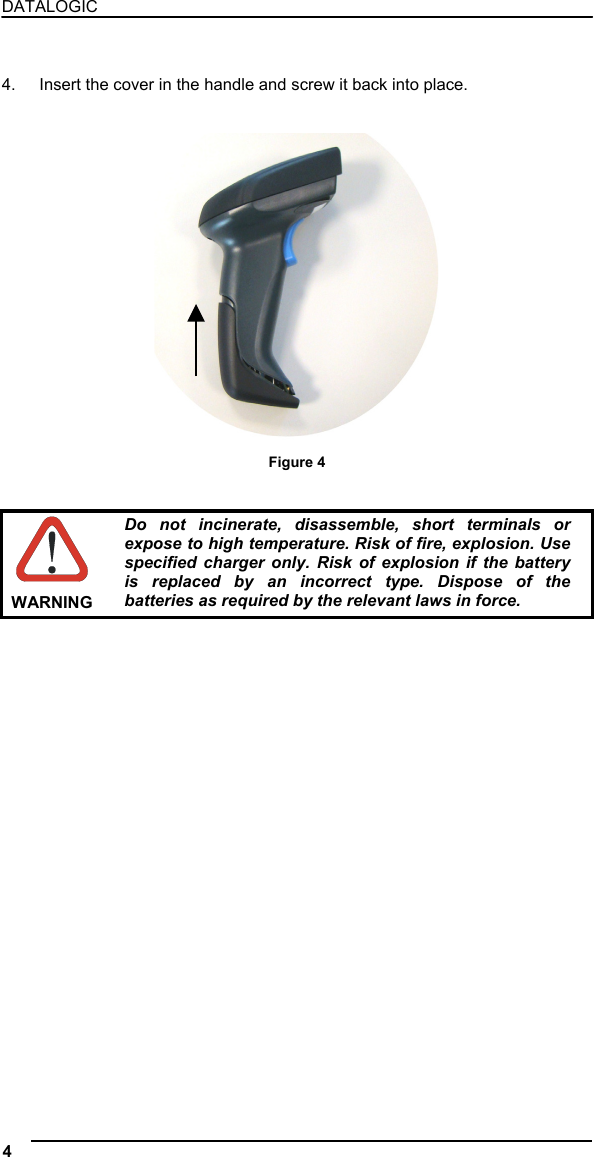

DATALOGIC 4. Insert the cover in the handle and screw it back into place. Figure 4 WARNING Do not incinerate, disassemble, short terminals or expose to high temperature. Risk of fire, explosion. Use specified charger only. Risk of explosion if the battery is replaced by an incorrect type. Dispose of the batteries as required by the relevant laws in force. 4

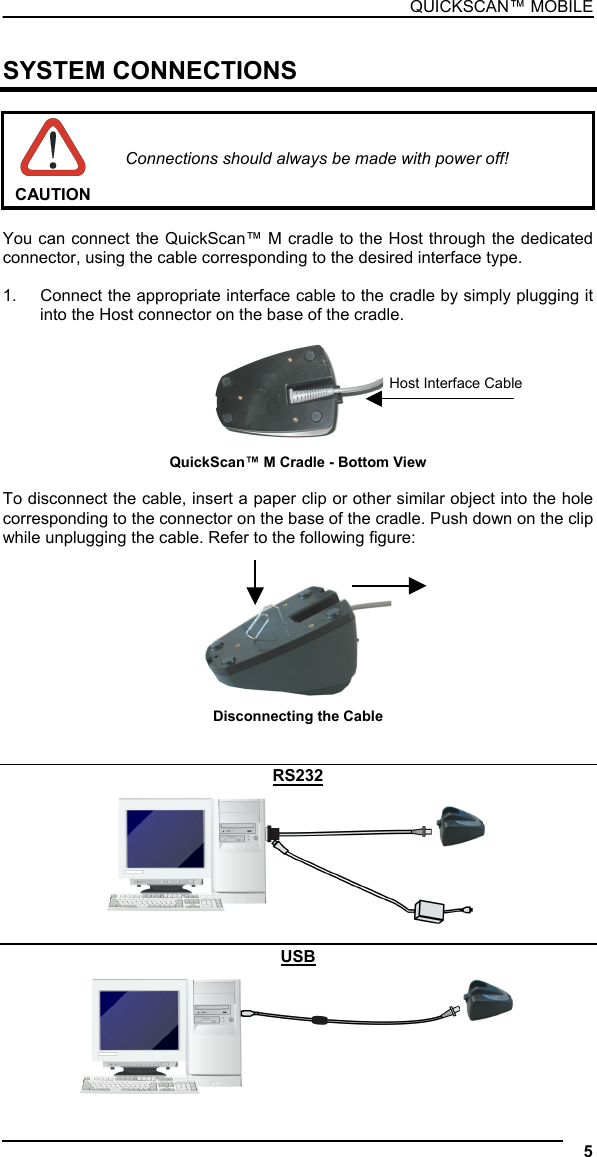

QUICKSCAN™ MOBILE SYSTEM CONNECTIONS CAUTION Connections should always be made with power off! You can connect the QuickScan™ M cradle to the Host through the dedicated connector, using the cable corresponding to the desired interface type. 1. Connect the appropriate interface cable to the cradle by simply plugging it into the Host connector on the base of the cradle. Host Interface CableQuickScan™ M Cradle - Bottom View To disconnect the cable, insert a paper clip or other similar object into the hole corresponding to the connector on the base of the cradle. Push down on the clip while unplugging the cable. Refer to the following figure: Disconnecting the Cable RS232 USB 5

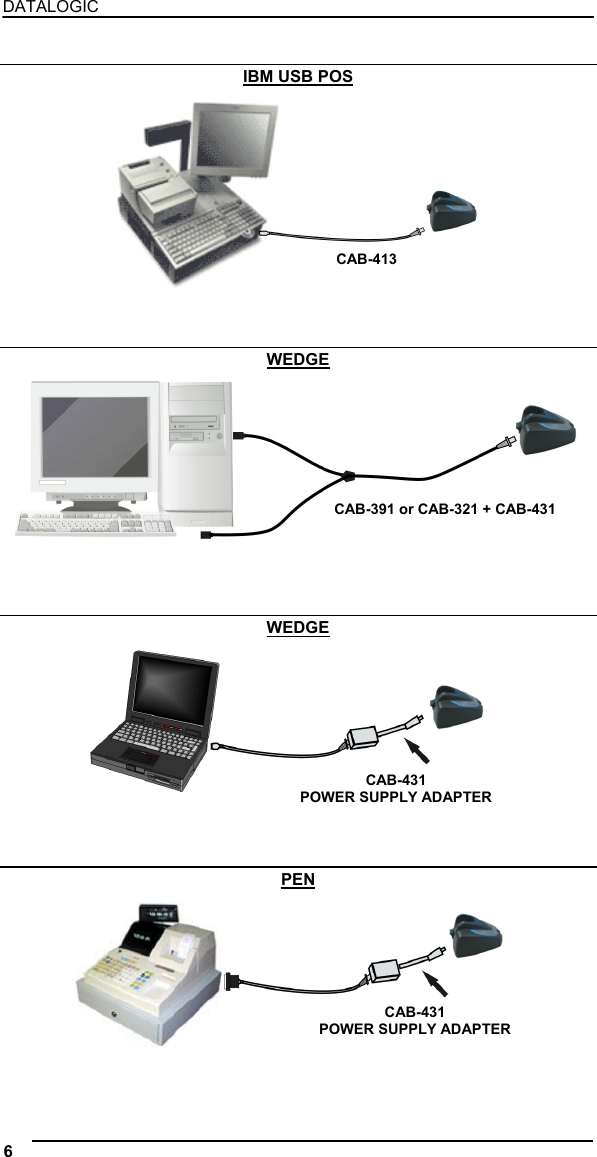

DATALOGIC IBM USB POS CAB-413 WEDGE CAB-391 or CAB-321 + CAB-431 WEDGE CAB-431 POWER SUPPLY ADAPTER PEN CAB-431 POWER SUPPLY ADAPTER 6

QUICKSCAN™ MOBILE QUICKSCAN™ M CRADLE CONFIGURATION The QuickScan™ M cradle configuration can be performed in two ways: either by sending configuration strings from the Host via the RS232 or USB-COM interface or by reading configuration barcodes with the reader. Serial/USB COM Configuration By connecting the QuickScan™ M cradle to a PC through an RS232 or USB cable (only USB-COM interface) it is possible to send configuration strings from the PC to the reader. Using this method you can also send new configuration strings from the PC to the reader or upgrade application software onto the reader. QUICKSCAN™ M READER CONFIGURATION When the QuickScan™ M cradle is connected and powered, configure the QuickScan™ M reader by reading the following codes in the given sequence and follow the instructions. Note: for the numeric code selection of step 3, use the table at the end of this Quick Reference Guide. Restore QuickScan™ M default 1. Ì$+$*oÎ Enter configuration 2. Ì$+;Î Set Radio Address 3. ÌRF8Î + four digits for the QuickScan™ M Address (from 0000 to 1999). All readers used in the same area must have different addresses. Exit and Save configuration 4. Ì$-?Î 7

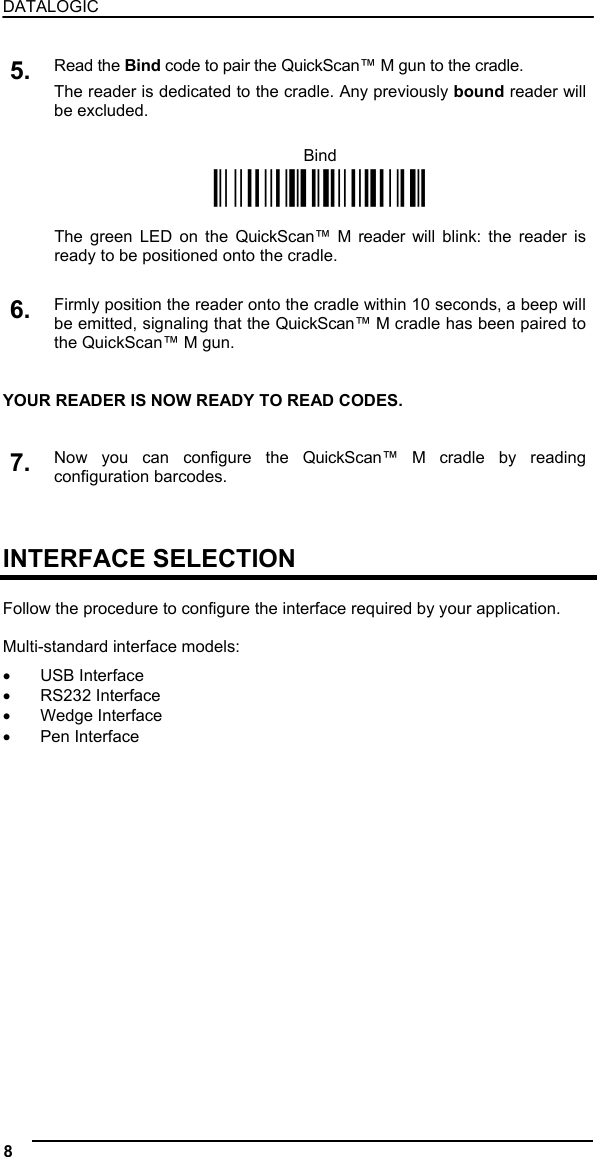

DATALOGIC 5. Read the Bind code to pair the QuickScan™ M gun to the cradle. The reader is dedicated to the cradle. Any previously bound reader will be excluded. Bind Ì$+RN0$-IÎ The green LED on the QuickScan™ M reader will blink: the reader is ready to be positioned onto the cradle. 6. Firmly position the reader onto the cradle within 10 seconds, a beep will be emitted, signaling that the QuickScan™ M cradle has been paired to the QuickScan™ M gun. YOUR READER IS NOW READY TO READ CODES. 7. Now you can configure the QuickScan™ M cradle by reading configuration barcodes. INTERFACE SELECTION Follow the procedure to configure the interface required by your application. Multi-standard interface models: • USB Interface • RS232 Interface • Wedge Interface • Pen Interface 8

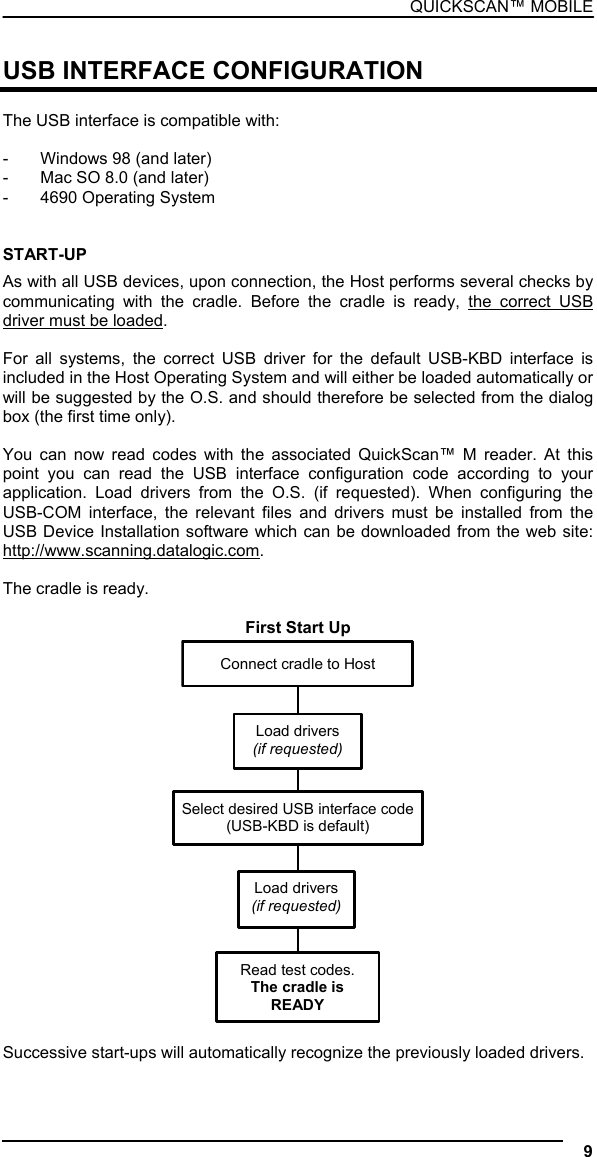

QUICKSCAN™ MOBILE USB INTERFACE CONFIGURATION The USB interface is compatible with: - Windows 98 (and later) - Mac SO 8.0 (and later) - 4690 Operating System START-UP As with all USB devices, upon connection, the Host performs several checks by communicating with the cradle. Before the cradle is ready, the correct USB driver must be loaded. For all systems, the correct USB driver for the default USB-KBD interface is included in the Host Operating System and will either be loaded automatically or will be suggested by the O.S. and should therefore be selected from the dialog box (the first time only). You can now read codes with the associated QuickScan™ M reader. At this point you can read the USB interface configuration code according to your application. Load drivers from the O.S. (if requested). When configuring the USB-COM interface, the relevant files and drivers must be installed from the USB Device Installation software which can be downloaded from the web site: http://www.scanning.datalogic.com. The cradle is ready. First Start Up Connect cradle to Host Select desired USB interface code(USB-KBD is default) Read test codes. The cradle is READYLoad drivers(if requested)Load drivers (if requested) Successive start-ups will automatically recognize the previously loaded drivers. 9

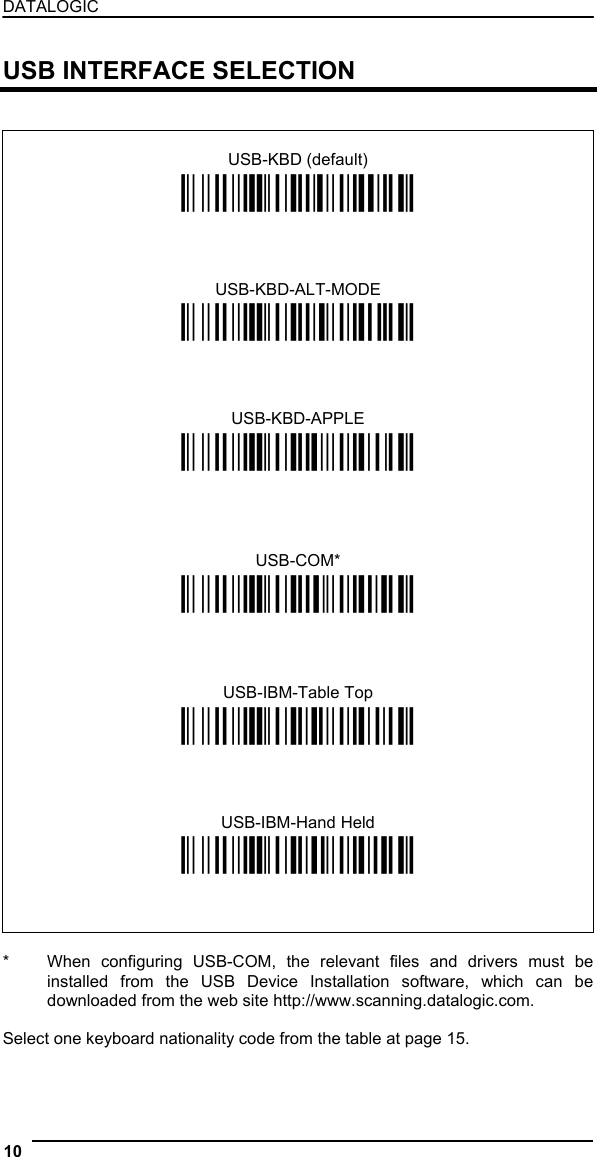

DATALOGIC USB INTERFACE SELECTION USB-KBD (default) Ì$+UA03$-:Î USB-KBD-ALT-MODE Ì$+UA04$-@Î USB-KBD-APPLE Ì$+UA05$-FÎ USB-COM* Ì$+UA02$-4Î USB-IBM-Table Top Ì$+UA00$-(Î USB-IBM-Hand Held Ì$+UA01$-.Î * When configuring USB-COM, the relevant files and drivers must be installed from the USB Device Installation software, which can be downloaded from the web site http://www.scanning.datalogic.com. Select one keyboard nationality code from the table at page 15. 10

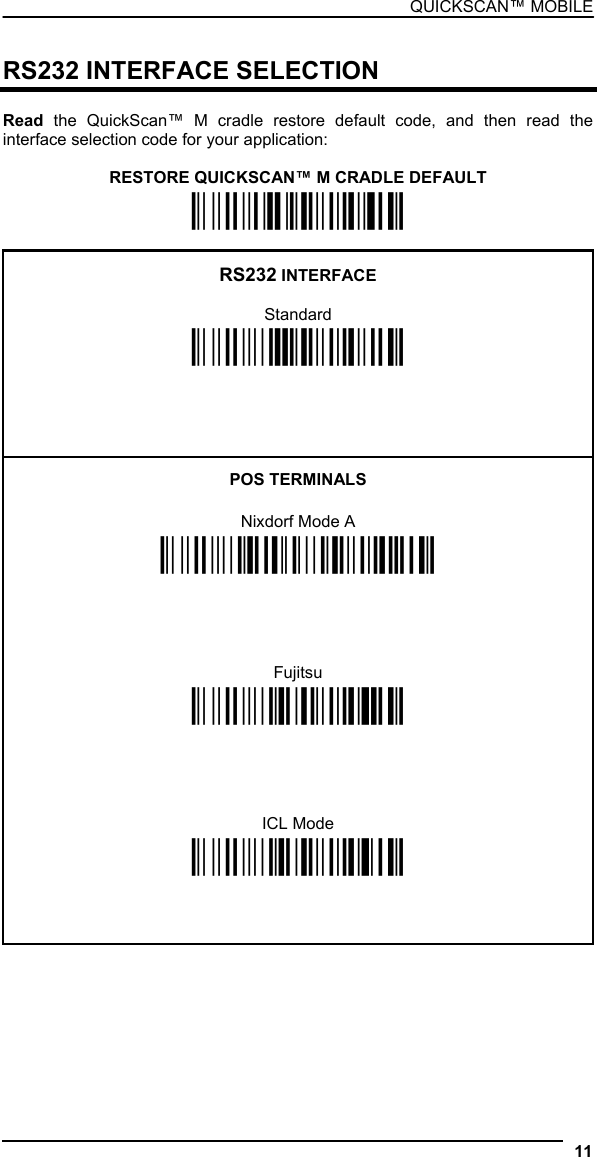

QUICKSCAN™ MOBILE RS232 INTERFACE SELECTION Read the QuickScan™ M cradle restore default code, and then read the interface selection code for your application: RESTORE QUICKSCAN™ M CRADLE DEFAULT Ì$+RX0$-qÎ RS232 INTERFACE Standard Ì$+CP0$-$Î POS TERMINALS Nixdorf Mode A Ì$+CM2EC0$->Î Fujitsu Ì$+CM1$-ÈÎ ICL Mode Ì$+CM0$-ÃÎ 11

DATALOGIC WEDGE INTERFACE SELECTION Read the QuickScan™ M cradle restore default code, then read the interface selection code for your application: RESTORE QUICKSCAN™ M CRADLE DEFAULT Ì$+RX0$-qÎ WEDGE INTERFACE IBM AT or PS/2 PCs Ì$+CP500$-aÎ IBM XT Ì$+CP503$-vÎ PC Notebook Ì$+CP505$-ÈÎ IBM SURE1 Ì$+CP506$-$Î IBM Terminal 3153 Ì$+CP504$-}Î 12

QUICKSCAN™ MOBILE WEDGE INTERFACE (CONTINUED) IBM Terminals 31xx, 32xx, 34xx, 37xx: To select the interface for these IBM Terminals, read the correct KEY TRANSMISSION code. Select the KEYBOARD TYPE if necessary (default = advanced keyboard). KEY TRANSMISSION MODE make-only keyboard Ì$+CP502$-oÎ make-break keyboard Ì$+CP501$-hÎ KEYBOARD TYPE advanced keyboard Ì$+FK1$-ÉÎ typewriter keyboard Ì$+FK0$-ÄÎ ALT MODE The following interface selection allows barcodes sent to the PC to be interpreted correctly independently from the Keyboard Nationality used. You do not need to make a Keyboard Nationality selection. (default = Num Lock Unchanged) Make sure the Num Lock key on your keyboard is ON. IBM AT - ALT mode Ì$+CP507$-+Î PC Notebook - ALT mode Ì$+CP508$-2Î 13

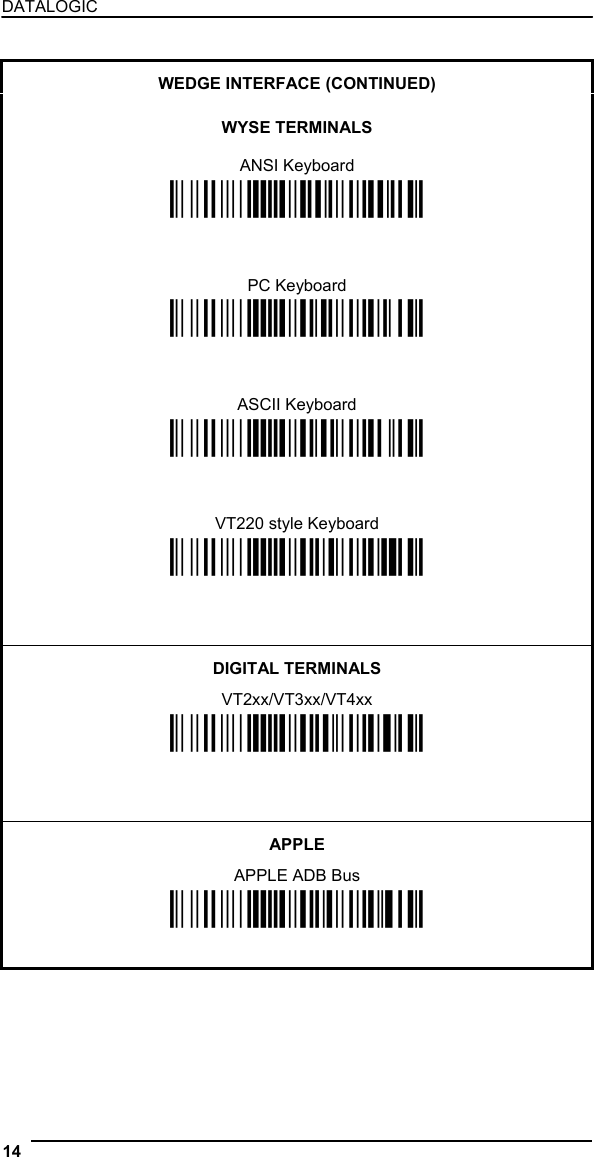

DATALOGIC WEDGE INTERFACE (CONTINUED) WYSE TERMINALS ANSI Keyboard Ì$+CP509$-9Î PC Keyboard Ì$+CP510$-gÎ ASCII Keyboard Ì$+CP511$-nÎ VT220 style Keyboard Ì$+CP514$-ÇÎ DIGITAL TERMINALS VT2xx/VT3xx/VT4xx Ì$+CP512$-uÎ APPLE APPLE ADB Bus Ì$+CP513$-|Î 14

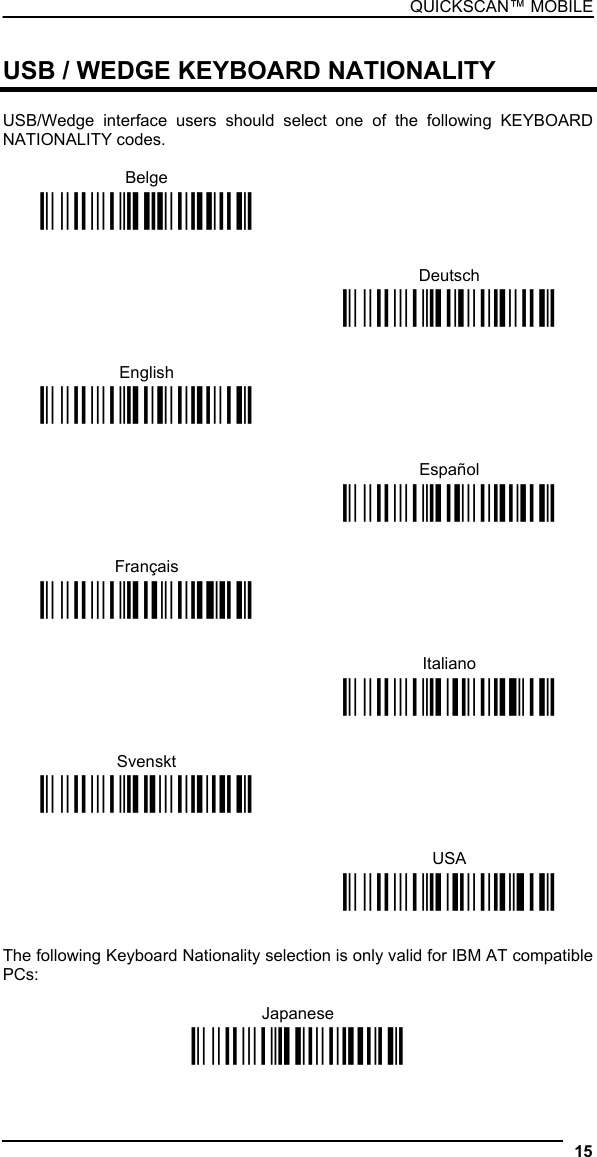

QUICKSCAN™ MOBILE USB / WEDGE KEYBOARD NATIONALITY USB/Wedge interface users should select one of the following KEYBOARD NATIONALITY codes. Belge Ì$+FJ7$-8Î Deutsch Ì$+FJ3$-$Î English Ì$+FJ4$-)Î Español Ì$+FJ6$-3Î Français Ì$+FJ2$-ÊÎ Italiano Ì$+FJ1$-ÅÎ Svenskt Ì$+FJ5$-.Î USA Ì$+FJ0$-|Î The following Keyboard Nationality selection is only valid for IBM AT compatible PCs: Japanese Ì$+FJ8$-=Î 15

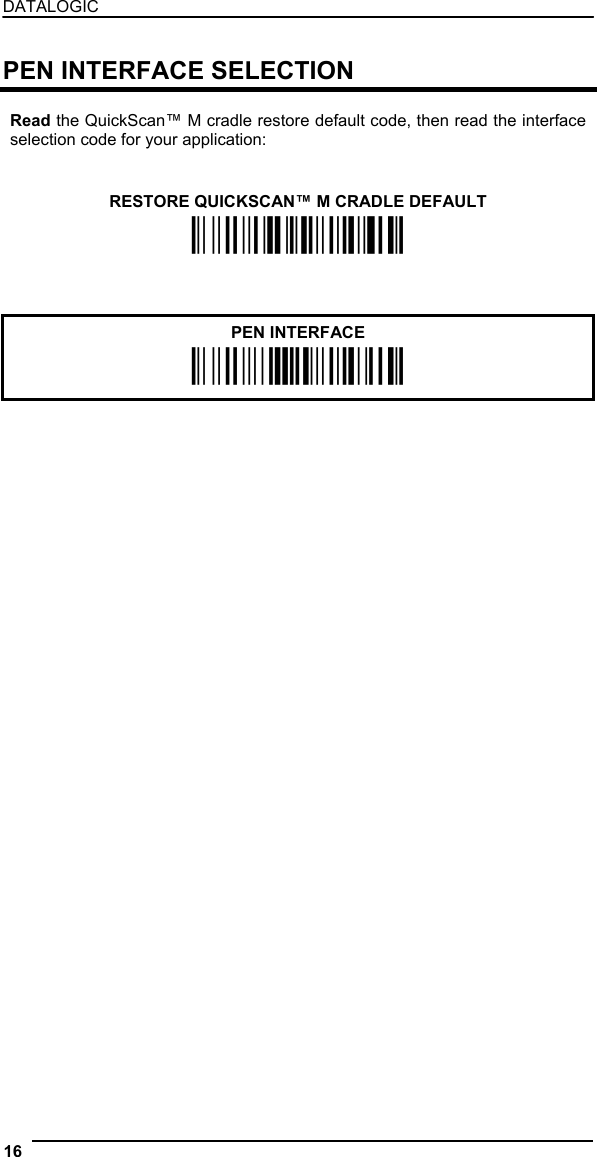

DATALOGIC PEN INTERFACE SELECTION Read the QuickScan™ M cradle restore default code, then read the interface selection code for your application: RESTORE QUICKSCAN™ M CRADLE DEFAULT Ì$+RX0$-qÎ PEN INTERFACE Ì$+CP6$-BÎ 16

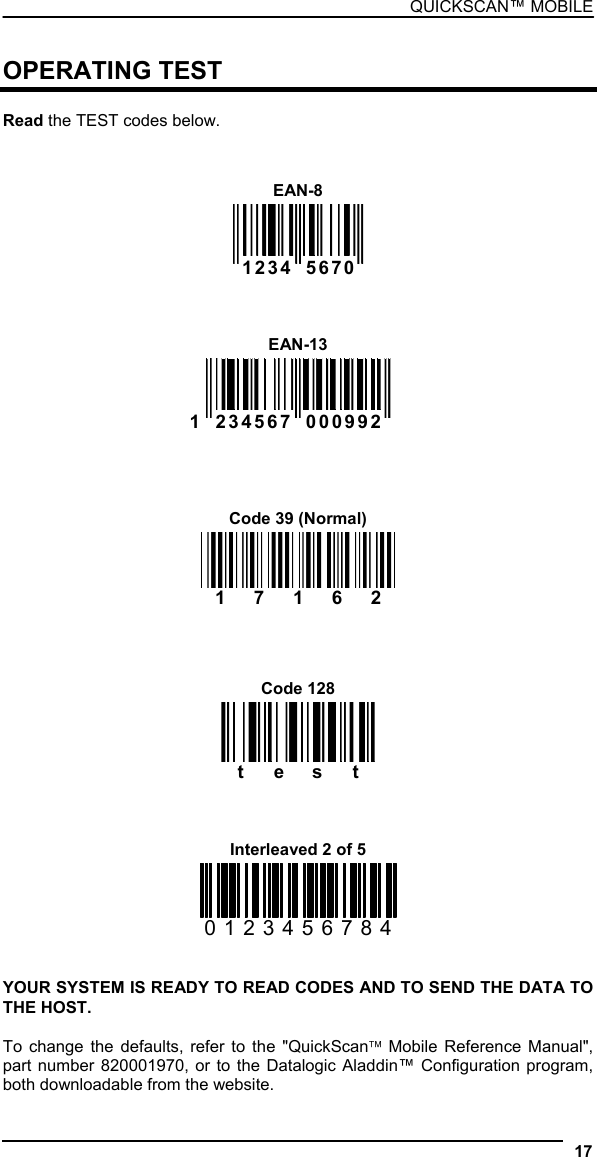

QUICKSCAN™ MOBILE OPERATING TEST Read the TEST codes below. EAN-8 1234 5670 EAN-13 1 234567 000992 Code 39 (Normal) 17162 Code 128 test Interleaved 2 of 5 0123456784 YOUR SYSTEM IS READY TO READ CODES AND TO SEND THE DATA TO THE HOST. To change the defaults, refer to the "QuickScan™ Mobile Reference Manual", part number 820001970, or to the Datalogic Aladdin™ Configuration program, both downloadable from the website. 17

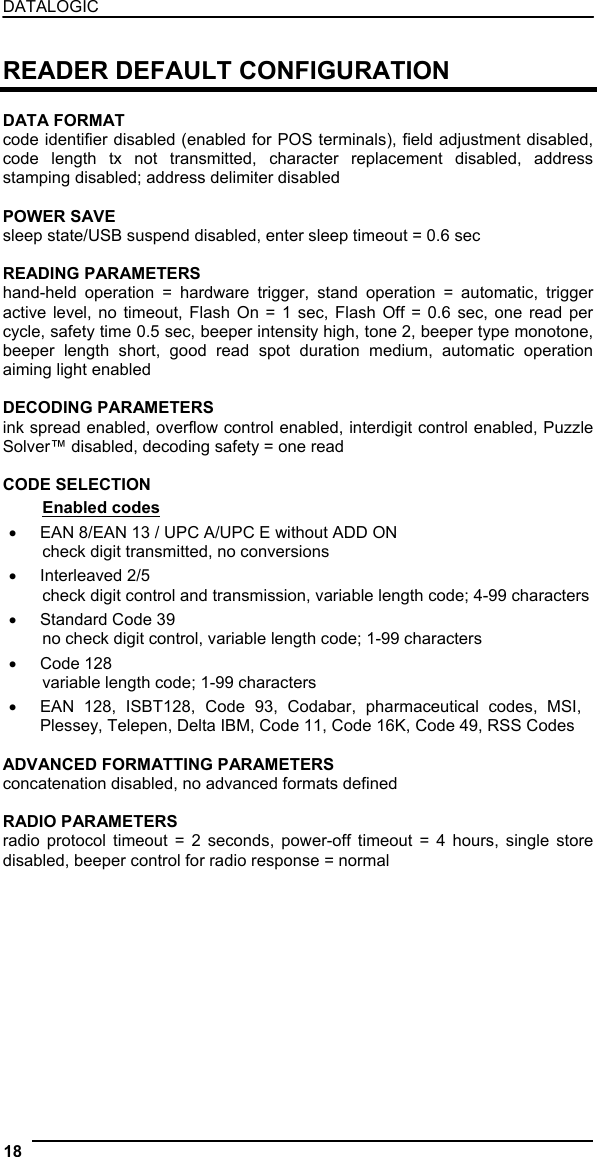

DATALOGIC READER DEFAULT CONFIGURATION DATA FORMAT code identifier disabled (enabled for POS terminals), field adjustment disabled, code length tx not transmitted, character replacement disabled, address stamping disabled; address delimiter disabled POWER SAVE sleep state/USB suspend disabled, enter sleep timeout = 0.6 sec READING PARAMETERS hand-held operation = hardware trigger, stand operation = automatic, trigger active level, no timeout, Flash On = 1 sec, Flash Off = 0.6 sec, one read per cycle, safety time 0.5 sec, beeper intensity high, tone 2, beeper type monotone, beeper length short, good read spot duration medium, automatic operation aiming light enabled DECODING PARAMETERS ink spread enabled, overflow control enabled, interdigit control enabled, Puzzle Solver™ disabled, decoding safety = one read CODE SELECTION Enabled codes • EAN 8/EAN 13 / UPC A/UPC E without ADD ON check digit transmitted, no conversions • Interleaved 2/5 check digit control and transmission, variable length code; 4-99 characters • Standard Code 39 no check digit control, variable length code; 1-99 characters • Code 128 variable length code; 1-99 characters • EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes, MSI, Plessey, Telepen, Delta IBM, Code 11, Code 16K, Code 49, RSS Codes ADVANCED FORMATTING PARAMETERS concatenation disabled, no advanced formats defined RADIO PARAMETERS radio protocol timeout = 2 seconds, power-off timeout = 4 hours, single store disabled, beeper control for radio response = normal 18

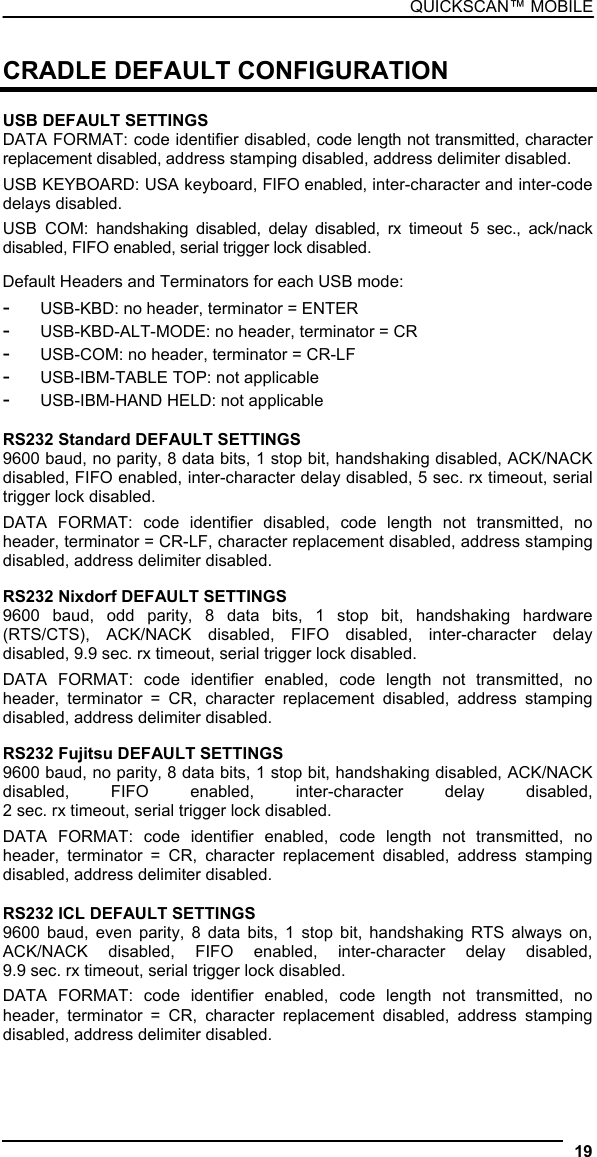

QUICKSCAN™ MOBILE CRADLE DEFAULT CONFIGURATION USB DEFAULT SETTINGS DATA FORMAT: code identifier disabled, code length not transmitted, character replacement disabled, address stamping disabled, address delimiter disabled. USB KEYBOARD: USA keyboard, FIFO enabled, inter-character and inter-code delays disabled. USB COM: handshaking disabled, delay disabled, rx timeout 5 sec., ack/nack disabled, FIFO enabled, serial trigger lock disabled. Default Headers and Terminators for each USB mode: - USB-KBD: no header, terminator = ENTER - USB-KBD-ALT-MODE: no header, terminator = CR - USB-COM: no header, terminator = CR-LF - USB-IBM-TABLE TOP: not applicable - USB-IBM-HAND HELD: not applicable RS232 Standard DEFAULT SETTINGS 9600 baud, no parity, 8 data bits, 1 stop bit, handshaking disabled, ACK/NACK disabled, FIFO enabled, inter-character delay disabled, 5 sec. rx timeout, serial trigger lock disabled. DATA FORMAT: code identifier disabled, code length not transmitted, no header, terminator = CR-LF, character replacement disabled, address stamping disabled, address delimiter disabled. RS232 Nixdorf DEFAULT SETTINGS 9600 baud, odd parity, 8 data bits, 1 stop bit, handshaking hardware (RTS/CTS), ACK/NACK disabled, FIFO disabled, inter-character delay disabled, 9.9 sec. rx timeout, serial trigger lock disabled. DATA FORMAT: code identifier enabled, code length not transmitted, no header, terminator = CR, character replacement disabled, address stamping disabled, address delimiter disabled. RS232 Fujitsu DEFAULT SETTINGS 9600 baud, no parity, 8 data bits, 1 stop bit, handshaking disabled, ACK/NACK disabled, FIFO enabled, inter-character delay disabled, 2 sec. rx timeout, serial trigger lock disabled. DATA FORMAT: code identifier enabled, code length not transmitted, no header, terminator = CR, character replacement disabled, address stamping disabled, address delimiter disabled. RS232 ICL DEFAULT SETTINGS 9600 baud, even parity, 8 data bits, 1 stop bit, handshaking RTS always on, ACK/NACK disabled, FIFO enabled, inter-character delay disabled, 9.9 sec. rx timeout, serial trigger lock disabled. DATA FORMAT: code identifier enabled, code length not transmitted, no header, terminator = CR, character replacement disabled, address stamping disabled, address delimiter disabled. 19

DATALOGIC WEDGE DEFAULT SETTINGS USA keyboard, caps lock off, caps lock auto-recognition enabled; num lock unchanged, inter-character and inter-code delay disabled. DATA FORMAT: code identifier disabled, code length not transmitted, no header, terminator = ENTER, character replacement disabled, address stamping disabled, address delimiter disabled. PEN DEFAULT SETTINGS Interpret operating mode, minimum output pulse 600 µs, conversion to Code 39, overflow medium, output level normal, idle level normal, inter-block delay disabled. TECHNICAL FEATURES QuickScan™ M Reader and Cradle Electrical Features - GUN Battery Type 1 Lithium battery 700 mAh Time of recharge Lithium max 6 hours with USB cable Operating autonomy typical 20000 reads Indicators LED, Beeper Max scan rate 235 scans/sec Electrical Features - CRADLE Supply voltage 5 Vdc ± 5% Power consumption max. 4 W (charging) LED Indicators Battery charging red Charge completed green Power / Data yellow Optical Features Sensor CCD solid state (2088 pixels) Illuminator LED array Wavelength 630 ~ 670 nm Max. LED Output Power 0.33 mW LED safety class Class 1 EN 60825-1 Reading field see reading diagram Max. resolution 0.10 mm, 4 mils PCS minimum 20% (Datalogic Test Chart) 20

QUICKSCAN™ MOBILE Environmental Features – GUN Working Temperature 0°to + 40 °C (32° to 104 °F) Storage Temperature (without battery) -20° to 70 °C (-4° to 158 °F) Humidity 90% non condensing Drop resistance IEC 68-2-32 Test ED 1.5 m (4 ft 9 in) Protection class IP30 Environmental Features - CRADLE Working temperature 0° to 40 °C (32° to 104 °F) Storage temperature -20° to 70 °C (-4° to 158 °F) Humidity 90 % non condensing Protection class IP30 Mechanical Features – GUN Weight (without batteries) about 189 g (6.66 oz) Dimensions 171 x 90 x 68 mm (6.72 x 3.54 x 2.80 in) Material Cycoloy C 2800 with desmopan 3855 Mechanical Features – CRADLE Weight 181 gr (6.38 oz) Dimensions 80 x 130 x 90 mm (3.15 x 5.11 x 3.54 in) Material Cycoloy C 2800 with desmopan 3855 QuickScan™ M Radio Features Radio Features European Models USA Models Working Frequency 433.92 MHz 910 MHz Bit rate 19200 baud 36800 baud Effective Radiated Power <10 mW <1 mW Range (in open air) 12 m 12 m RF Modulation FSK 21

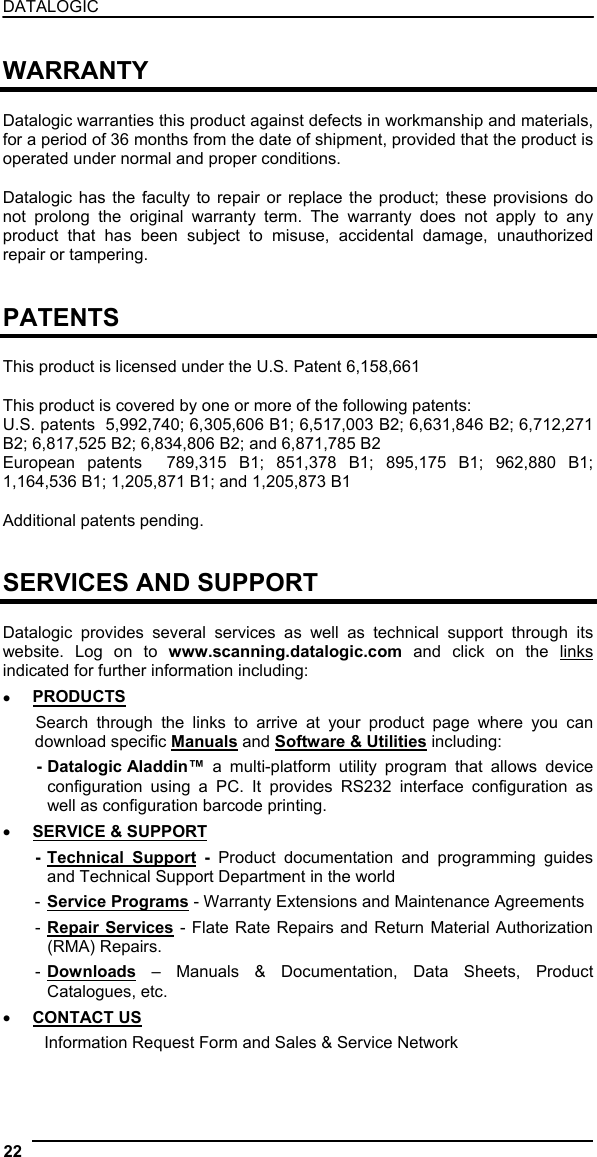

DATALOGIC WARRANTY Datalogic warranties this product against defects in workmanship and materials, for a period of 36 months from the date of shipment, provided that the product is operated under normal and proper conditions. Datalogic has the faculty to repair or replace the product; these provisions do not prolong the original warranty term. The warranty does not apply to any product that has been subject to misuse, accidental damage, unauthorized repair or tampering. PATENTS This product is licensed under the U.S. Patent 6,158,661 This product is covered by one or more of the following patents: U.S. patents 5,992,740; 6,305,606 B1; 6,517,003 B2; 6,631,846 B2; 6,712,271 B2; 6,817,525 B2; 6,834,806 B2; and 6,871,785 B2 European patents 789,315 B1; 851,378 B1; 895,175 B1; 962,880 B1; 1,164,536 B1; 1,205,871 B1; and 1,205,873 B1 Additional patents pending. SERVICES AND SUPPORT Datalogic provides several services as well as technical support through its website. Log on to www.scanning.datalogic.com and click on the links indicated for further information including: • PRODUCTS Search through the links to arrive at your product page where you can download specific Manuals and Software & Utilities including: - Datalogic Aladdin™ a multi-platform utility program that allows device configuration using a PC. It provides RS232 interface configuration as well as configuration barcode printing. • SERVICE & SUPPORT - Technical Support - Product documentation and programming guides and Technical Support Department in the world - Service Programs - Warranty Extensions and Maintenance Agreements - Repair Services - Flate Rate Repairs and Return Material Authorization (RMA) Repairs. - Downloads – Manuals & Documentation, Data Sheets, Product Catalogues, etc. • CONTACT US Information Request Form and Sales & Service Network 22

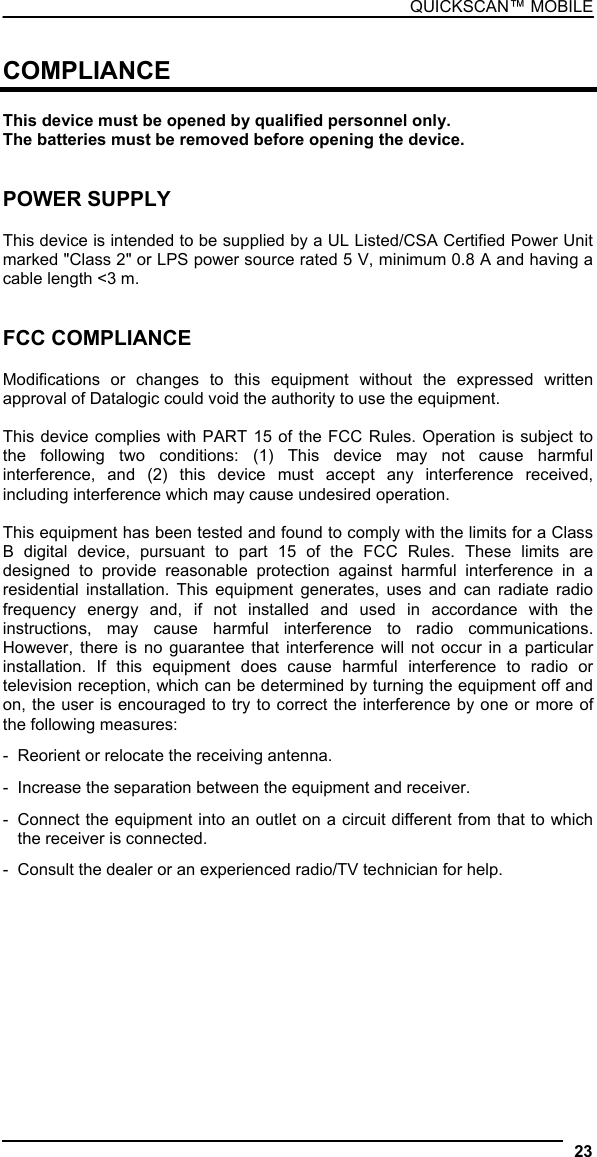

QUICKSCAN™ MOBILE COMPLIANCE This device must be opened by qualified personnel only. The batteries must be removed before opening the device. POWER SUPPLY This device is intended to be supplied by a UL Listed/CSA Certified Power Unit marked "Class 2" or LPS power source rated 5 V, minimum 0.8 A and having a cable length <3 m. FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 23

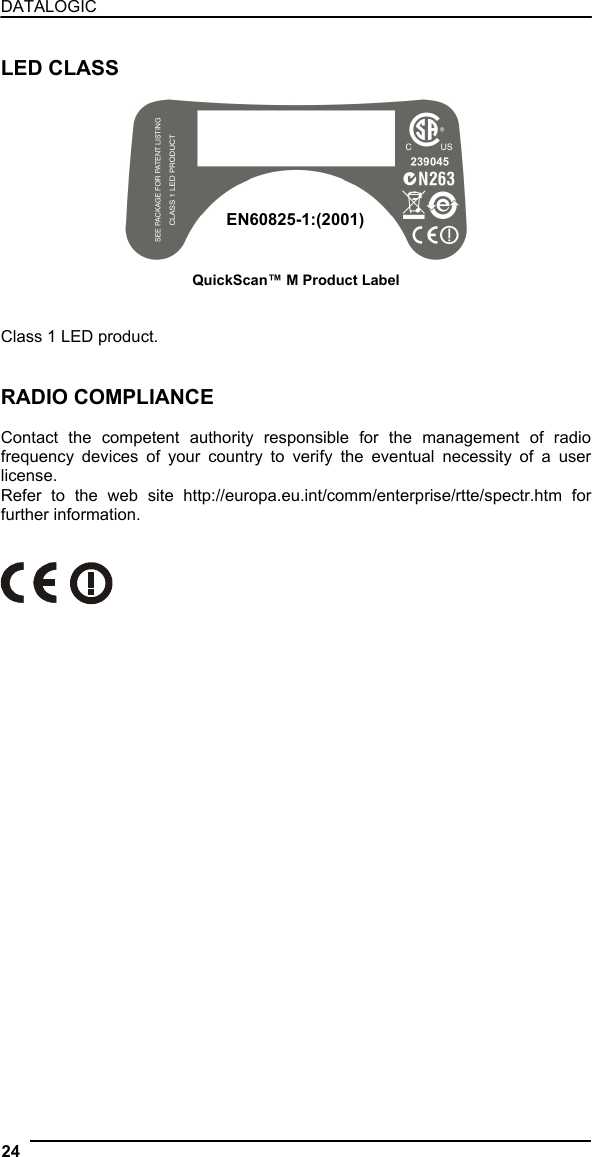

DATALOGIC LED CLASS EN60825-1:(2001)QuickScan™ M Product Label Class 1 LED product. RADIO COMPLIANCE Contact the competent authority responsible for the management of radio frequency devices of your country to verify the eventual necessity of a user license. Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for further information. 24

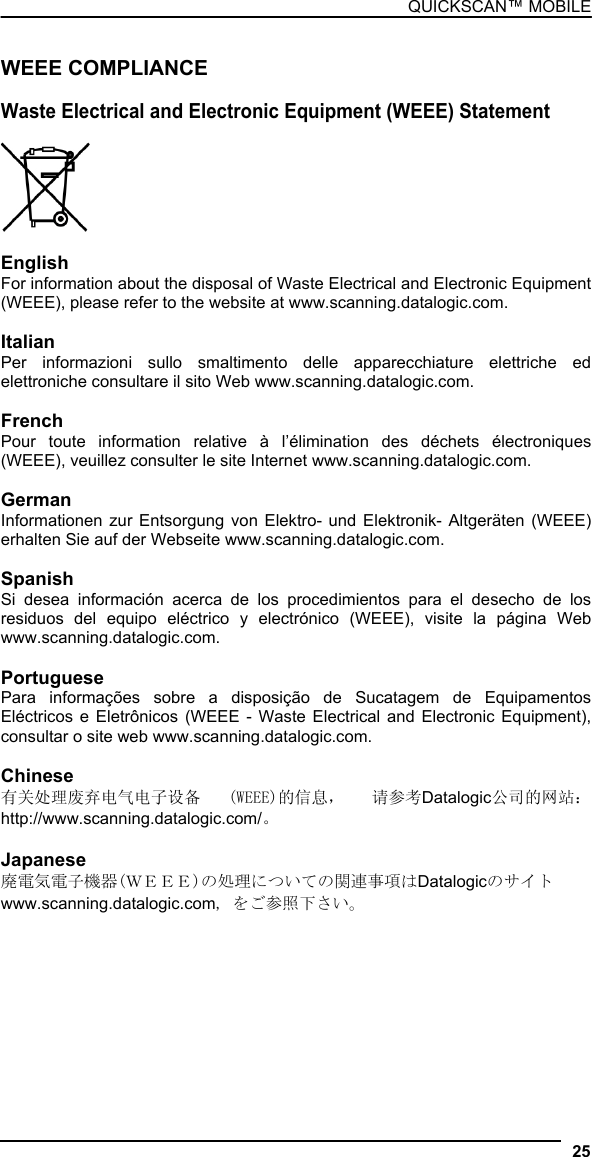

QUICKSCAN™ MOBILE WEEE COMPLIANCE Waste Electrical and Electronic Equipment (WEEE) Statement English For information about the disposal of Waste Electrical and Electronic Equipment (WEEE), please refer to the website at www.scanning.datalogic.com. Italian Per informazioni sullo smaltimento delle apparecchiature elettriche ed elettroniche consultare il sito Web www.scanning.datalogic.com. French Pour toute information relative à l’élimination des déchets électroniques (WEEE), veuillez consulter le site Internet www.scanning.datalogic.com. German Informationen zur Entsorgung von Elektro- und Elektronik- Altgeräten (WEEE) erhalten Sie auf der Webseite www.scanning.datalogic.com. Spanish Si desea información acerca de los procedimientos para el desecho de los residuos del equipo eléctrico y electrónico (WEEE), visite la página Web www.scanning.datalogic.com. Portuguese Para informações sobre a disposição de Sucatagem de Equipamentos Eléctricos e Eletrônicos (WEEE - Waste Electrical and Electronic Equipment), consultar o site web www.scanning.datalogic.com. Chinese 有关处理废弃电气电子设备 (WEEE)的信息，请参考Datalogic公司的网站： http://www.scanning.datalogic.com/。 Japanese 廃電気電子機器(ＷＥＥＥ)の処理についての関連事項はDatalogicのサイト www.scanning.datalogic.com, をご参照下さい。 25

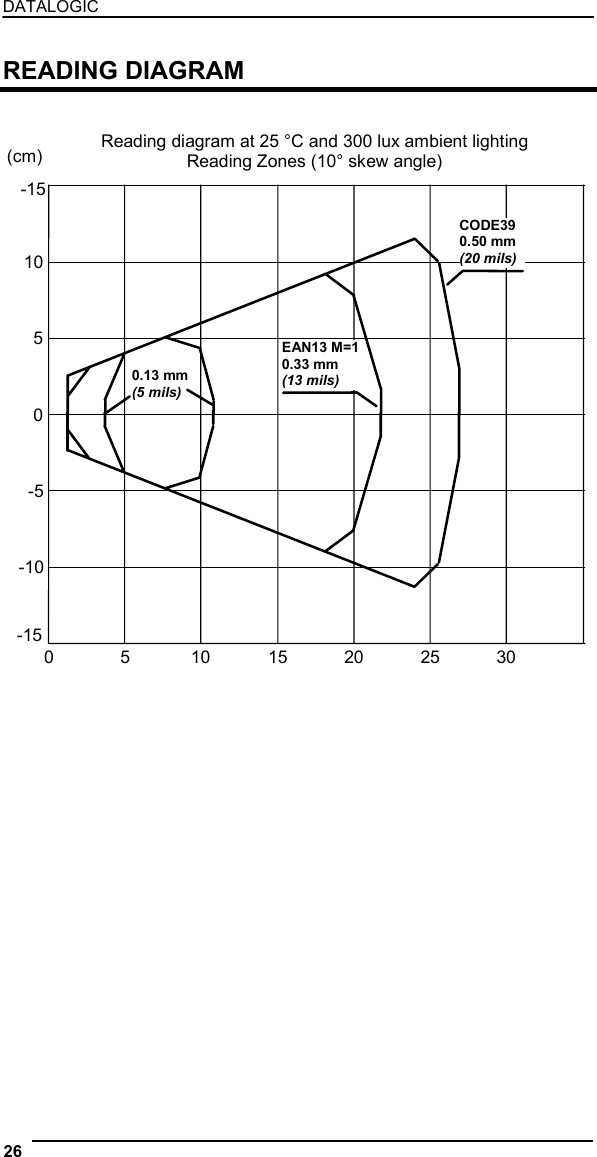

DATALOGIC READING DIAGRAM Reading diagram at 25 °C and 300 lux ambient lighting Reading Zones (10° skew angle) 0 5 10 15 20 25 30-10-50510(cm)EAN13 M=10.33 mm (13 mils) CODE390.50 mm (20 mils) 0.13 mm (5 mils) -15-15 26

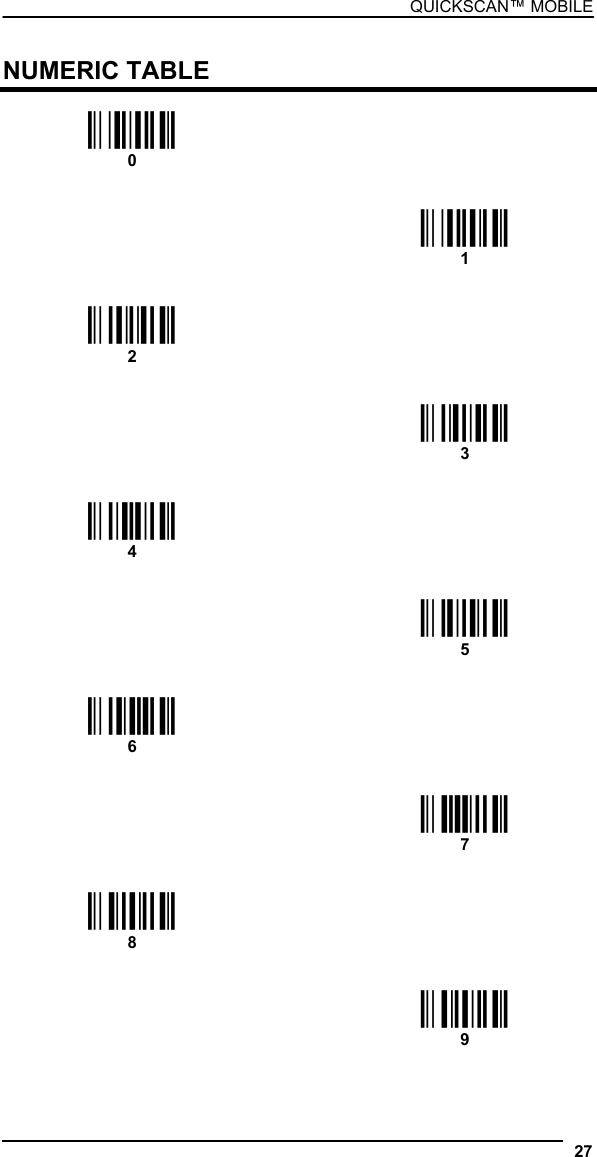

QUICKSCAN™ MOBILE NUMERIC TABLE Ì01Î 0 Ì12Î 1 Ì23Î 2 Ì34Î 3 Ì45Î 4 Ì56Î 5 Ì67Î 6 Ì78Î 7 Ì89Î 8 Ì9:Î 9 27

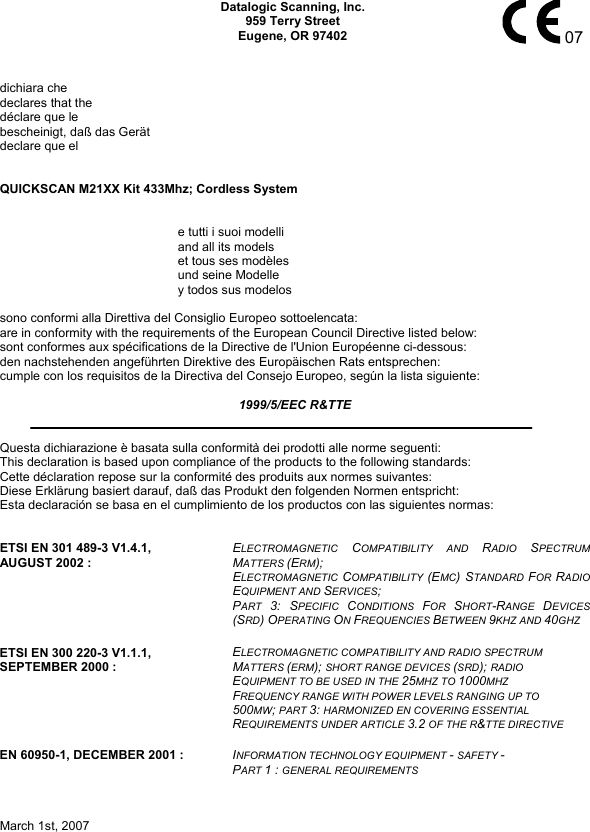

Datalogic Scanning, Inc. 959 Terry Street Eugene, OR 97402 07 dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el QUICKSCAN M21XX Kit 433Mhz; Cordless System e tutti i suoi modelli and all its models et tous ses modèles und seine Modelle y todos sus modelos sono conformi alla Direttiva del Consiglio Europeo sottoelencata: are in conformity with the requirements of the European Council Directive listed below: sont conformes aux spécifications de la Directive de l'Union Européenne ci-dessous: den nachstehenden angeführten Direktive des Europäischen Rats entsprechen: cumple con los requisitos de la Directiva del Consejo Europeo, según la lista siguiente: 1999/5/EEC R&TTE Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti: This declaration is based upon compliance of the products to the following standards: Cette déclaration repose sur la conformité des produits aux normes suivantes: Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht: Esta declaración se basa en el cumplimiento de los productos con las siguientes normas: ETSI EN 301 489-3 V1.4.1, AUGUST 2002 : ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM MATTERS (ERM); ELECTROMAGNETIC COMPATIBILITY (EMC) STANDARD FOR RADIO EQUIPMENT AND SERVICES; PART 3: SPECIFIC CONDITIONS FOR SHORT-RANGE DEVICES (SRD) OPERATING ON FREQUENCIES BETWEEN 9KHZ AND 40GHZ ETSI EN 300 220-3 V1.1.1, SEPTEMBER 2000 : ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM MATTERS (ERM); SHORT RANGE DEVICES (SRD); RADIO EQUIPMENT TO BE USED IN THE 25MHZ TO 1000MHZ FREQUENCY RANGE WITH POWER LEVELS RANGING UP TO 500MW; PART 3: HARMONIZED EN COVERING ESSENTIAL REQUIREMENTS UNDER ARTICLE 3.2 OF THE R&TTE DIRECTIVE EN 60950-1, DECEMBER 2001 : INFORMATION TECHNOLOGY EQUIPMENT - SAFETY - PART 1 : GENERAL REQUIREMENTS March 1st, 2007

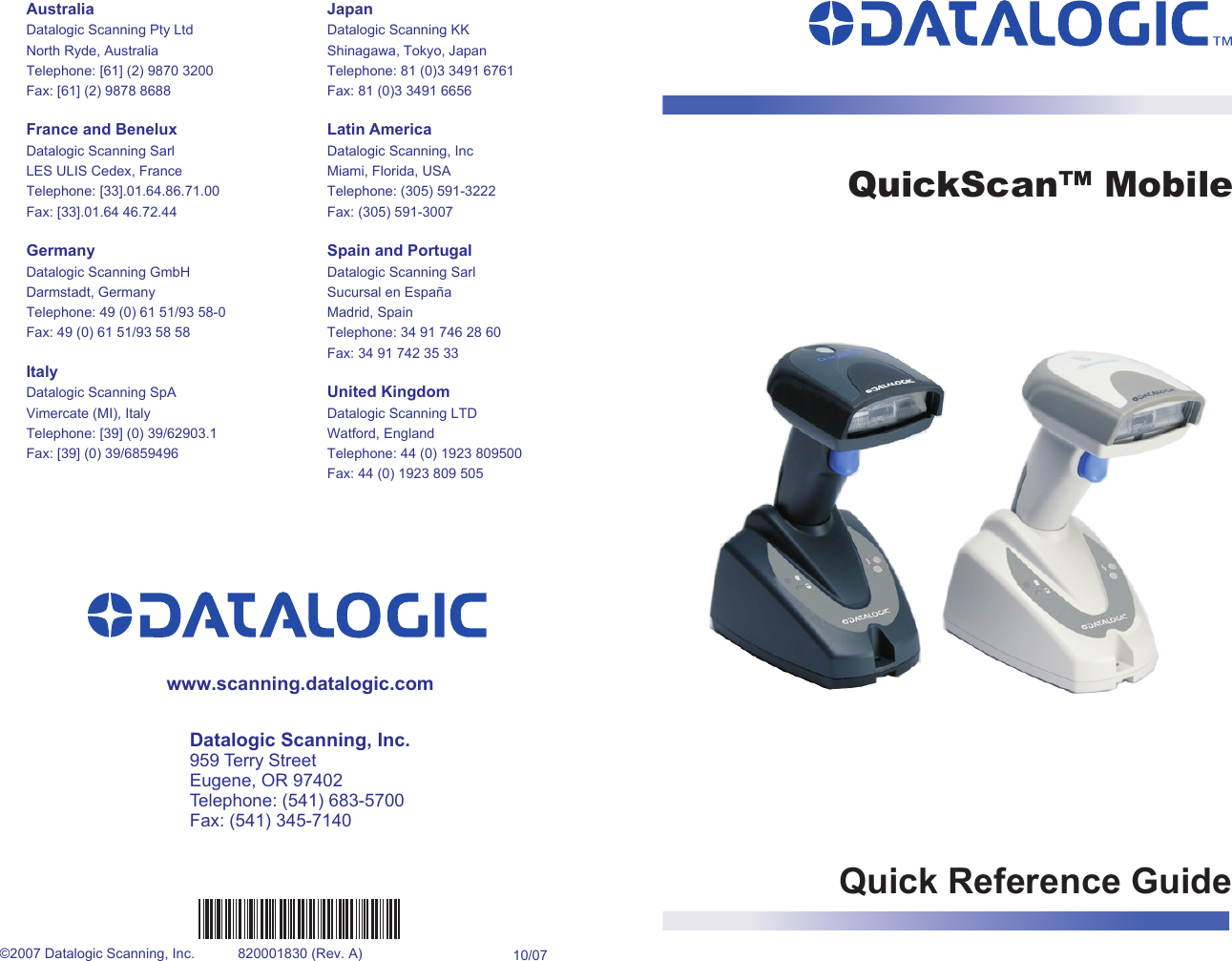

Quick Reference Guidewww.scanning.datalogic.comQuickScan™ MobileDatalogic Scanning, Inc.959 Terry StreetEugene, OR 97402Telephone: (541) 683-5700Fax: (541) 345-7140AustraliaDatalogic Scanning Pty LtdNorth Ryde, AustraliaTelephone: [61] (2) 9870 3200Fax: [61] (2) 9878 8688France and BeneluxDatalogic Scanning SarlLES ULIS Cedex, FranceTelephone: [33].01.64.86.71.00Fax: [33].01.64 46.72.44GermanyDatalogic Scanning GmbHDarmstadt, GermanyTelephone: 49 (0) 61 51/93 58-0Fax: 49 (0) 61 51/93 58 58ItalyDatalogic Scanning SpAVimercate (MI), ItalyTelephone: [39] (0) 39/62903.1Fax: [39] (0) 39/6859496JapanDatalogic Scanning KKShinagawa, Tokyo, JapanTelephone: 81 (0)3 3491 6761Fax: 81 (0)3 3491 6656Latin AmericaDatalogic Scanning, IncMiami, Florida, USATelephone: (305) 591-3222Fax: (305) 591-3007Spain and PortugalDatalogic Scanning SarlSucursal en EspañaMadrid, SpainTelephone: 34 91 746 28 60Fax: 34 91 742 35 33United KingdomDatalogic Scanning LTDWatford, EnglandTelephone: 44 (0) 1923 809500Fax: 44 (0) 1923 809 505©2007 Datalogic Scanning, Inc. 820001830 (Rev. A) 10/07
