Datalogic S r l 0017 Quickscan Cradle User Manual QuickScan M Quick Reference Guide
Datalogic ADC S.r.l. Quickscan Cradle QuickScan M Quick Reference Guide
User Manual
Quick Reference Guide
www.scanning.datalogic.com
QuickScan™ Mobile
Datalogic Scanning, Inc.
959 Terry Street
Eugene, OR 97402
Telephone: (541) 683-5700
Fax: (541) 345-7140
Australia
Datalogic Scanning Pty Ltd
North Ryde, Australia
Telephone: [61] (2) 9870 3200
Fax: [61] (2) 9878 8688
France and Benelux
Datalogic Scanning Sarl
LES ULIS Cedex, France
Telephone: [33].01.64.86.71.00
Fax: [33].01.64 46.72.44
Germany
Datalogic Scanning GmbH
Darmstadt, Germany
Telephone: 49 (0) 61 51/93 58-0
Fax: 49 (0) 61 51/93 58 58
Italy
Datalogic Scanning SpA
Vimercate (MI), Italy
Telephone: [39] (0) 39/62903.1
Fax: [39] (0) 39/6859496
Japan
Datalogic Scanning KK
Shinagawa, Tokyo, Japan
Telephone: 81 (0)3 3491 6761
Fax: 81 (0)3 3491 6656
Latin America
Datalogic Scanning, Inc
Miami, Florida, USA
Telephone: (305) 591-3222
Fax: (305) 591-3007
Spain and Portugal
Datalogic Scanning Sarl
Sucursal en España
Madrid, Spain
Telephone: 34 91 746 28 60
Fax: 34 91 742 35 33
United Kingdom
Datalogic Scanning LTD
Watford, England
Telephone: 44 (0) 1923 809500
Fax: 44 (0) 1923 809 505
©2007 Datalogic Scanning, Inc. 820001830 10/07
Datalogic Scanning, Inc.
959 Terry Street
Eugene, Oregon 97402
Telephone: (541) 683-5700
Fax: (541) 345-7140
An Unpublished Work - All rights reserved. No part of the contents of this
documentation or the procedures described therein may be reproduced or
transmitted in any form or by any means without prior written permission of
Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic
Scanning”). Owners of Datalogic products are hereby granted a non-exclusive,
revocable license to reproduce and transmit this documentation for the
purchaser's own internal business purposes. Purchaser shall not remove or
alter any proprietary notices, including copyright notices, contained in this
documentation and shall ensure that all notices appear on any reproductions of
the documentation.
Should future revisions of this manual be published, you can acquire printed
versions by contacting your Datalogic representative. Electronic versions may
either be downloadable from the Datalogic website
(www.scanning.datalogic.com) or provided on appropriate media. If you visit our
website and would like to make comments or suggestions about this or other
Datalogic publications, please let us know via the "Contact Datalogic" page.
DISCLAIMER
Datalogic has taken reasonable measures to provide information in this manual
that is complete and accurate, however, Datalogic reserves the right to change
any specification at any time without prior notice. Datalogic is a registered
trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a
trademark of Datalogic S.p.A. all licensed to Datalogic Scanning, Inc. All other
trademarks and trade names referred to herein are property of their respective
owners.
CONTENTS
Updates and Language Availability.....................................................................iv
Using Quickscan™ M Gun and Cradle ............................................................... 1
System Connections ........................................................................................... 5
QuickScan™ M Cradle Configuration ................................................................. 7
QuickScan™ M Reader Configuration ................................................................ 7
Interface Selection .............................................................................................. 8
USB Interface Configuration ............................................................................... 9
USB Interface Selection .................................................................................... 10
RS232 Interface Selection ................................................................................ 11
Wedge Interface Selection ................................................................................ 12
USB / Wedge Keyboard Nationality .................................................................. 15
Pen Interface Selection ..................................................................................... 16
Operating Test .................................................................................................. 17
Reader Default Configuration............................................................................ 18
Cradle Default Configuration............................................................................. 19
Technical Features............................................................................................ 20
Warranty............................................................................................................ 22
Patents .............................................................................................................. 22
Services and Support........................................................................................ 22
Compliance ....................................................................................................... 23

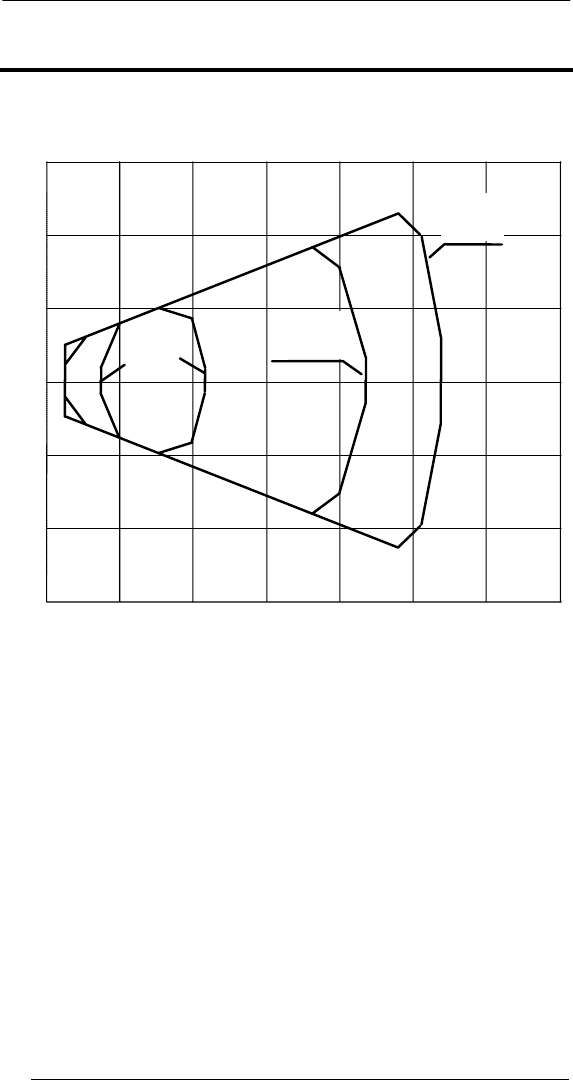

Reading Diagram .............................................................................................. 26
Numeric Table................................................................................................... 27
iii
UPDATES AND LANGUAGE AVAILABILITY
UK/US
The latest drivers and documentation updates for this product are available on
Internet.
Log on to: www.scanning.datalogic.com
I
Su Internet sono disponibili le versioni aggiornate di driver e documentazione di
questo prodotto. Questo manuale è disponibile anche nella versione italiana.
Collegarsi a: www.scanning.datalogic.com
F
Les versions mises à jour de drivers et documentation de ce produit sont
disponibles sur Internet. Ce manuel est aussi disponible en version française.
Cliquez sur: www.scanning.datalogic.com
D
Im Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation
von diesem Produkt. Die deutschsprachige Version dieses Handbuches ist
auch verfügbar.
Adresse : www.scanning.datalogic.com
E
En Internet están disponibles las versiones actualizadas de los drivers y
documentación de este producto. También está disponible la versión en
español de este manual.
Dirección Internet: www.scanning.datalogic.com
iv

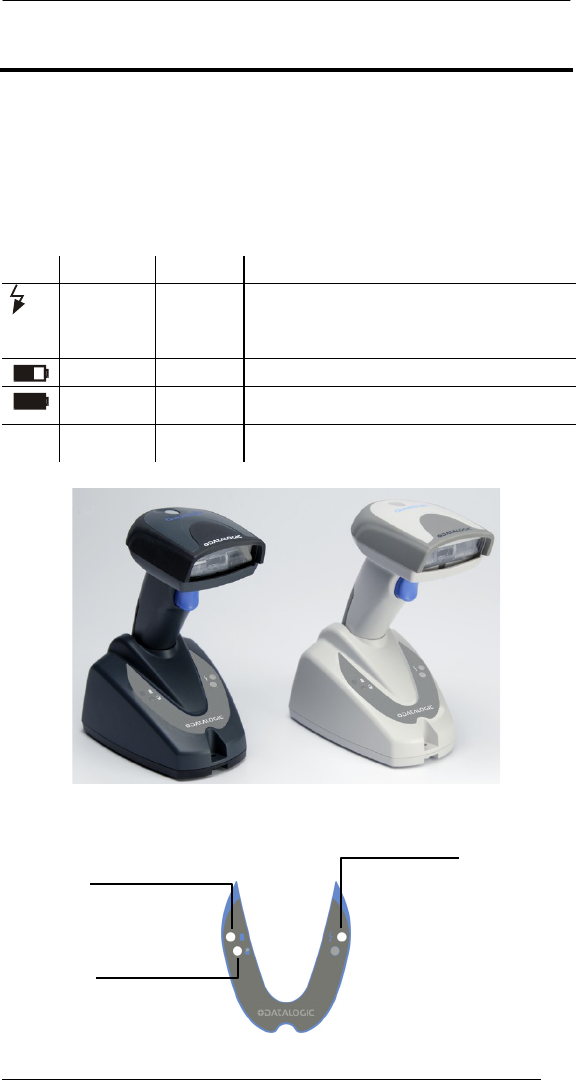

QUICKSCAN™ MOBILE
USING QUICKSCAN™ M GUN AND CRADLE
The QuickScan™ M gun and cradle build a Cordless Reading System for the
collection, decoding and transmission of barcoded data.
Standard models can be connected to a Host PC through a USB, RS232,
Wedge or Pen emulation cable. All models are suited for single-cradle layouts.
The LEDs signal the QuickScan™ M cradle status, as described in the following
table:
LED BEEPER STATUS
Power on /
Data
- Yellow On = QuickScan™ M cradle is
powered.
Yellow Blinking = the cradle receives data
and commands from the Host or the reader.
Charging - Red On = the battery charge is in progress.
Charge
completed
- Green On = the battery is completely
charged.
Alternating
red/green
Repetitive
beep
Charging out of temperature range, over-
current or over-voltage conditions
Power on / Data
(yellow LED)
Charge completed
(green LED)
Charging
(red LED)
1
DATALOGIC

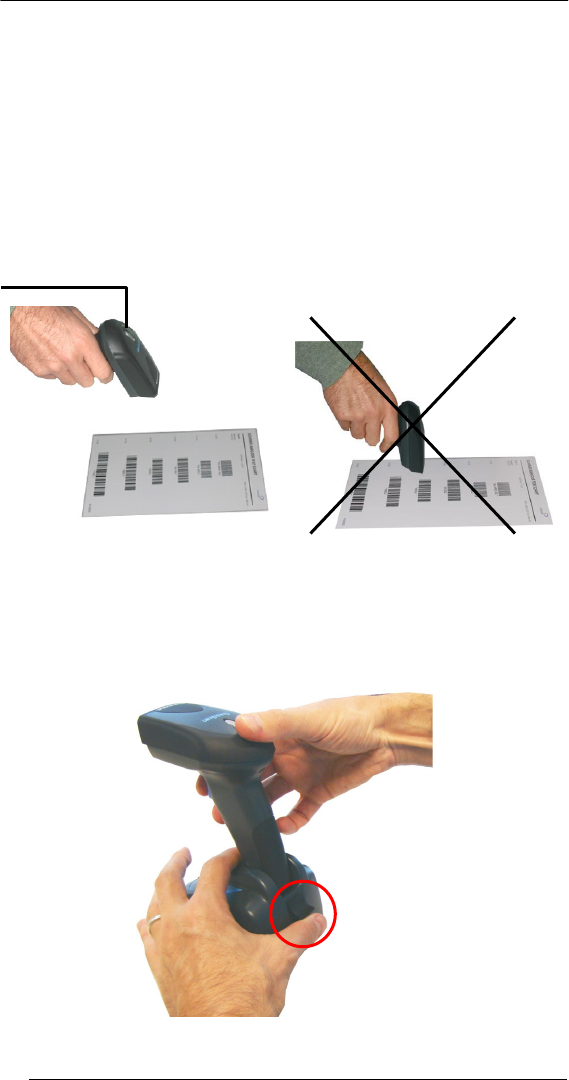

READING ANGLE
QuickScan™ M readers automatically scan barcodes at a distance. Simply aim
and pull the trigger. Code scanning is performed along the center of the light bar
emitted from the reading window. This bar must cover the entire code.
Successful scanning is obtained by tilting the reader with respect to the barcode
to avoid direct reflections, which could impair the reading performance. See the
figures below.
Successful reading is obtained by an audible tone.
Good read LED
OK Not Advised
HANDS-FREE USE
When using the QuickScan™ M on the cradle, remember to lock the gun by
pushing up the locking system as indicated in the following figure.
2
QUICKSCAN™ MOBILE
USING YOUR QUICKSCAN™ M READING SYSTEM
Follow the procedure below to start using your QuickScan™ M reading system:
1. Connect a QuickScan™ M cradle to the Host. For installation and
connection information see page 5.
2. Insert the QuickScan™ M gun into the cradle to start the battery charging.
A full charge of the Lithium battery takes 3.5 – 6 hours.
NOTE
To achieve the best battery life, it is recommended to perform a
full battery charge before using the gun in hand-held mode.
In hands-free use, you can immediately start using the gun, since it is
powered by the cradle.
3. Configure the QuickScan™ M gun.
4. Configure the QuickScan™ M cradle. See QuickScan™ M cradle
configuration at page 7.

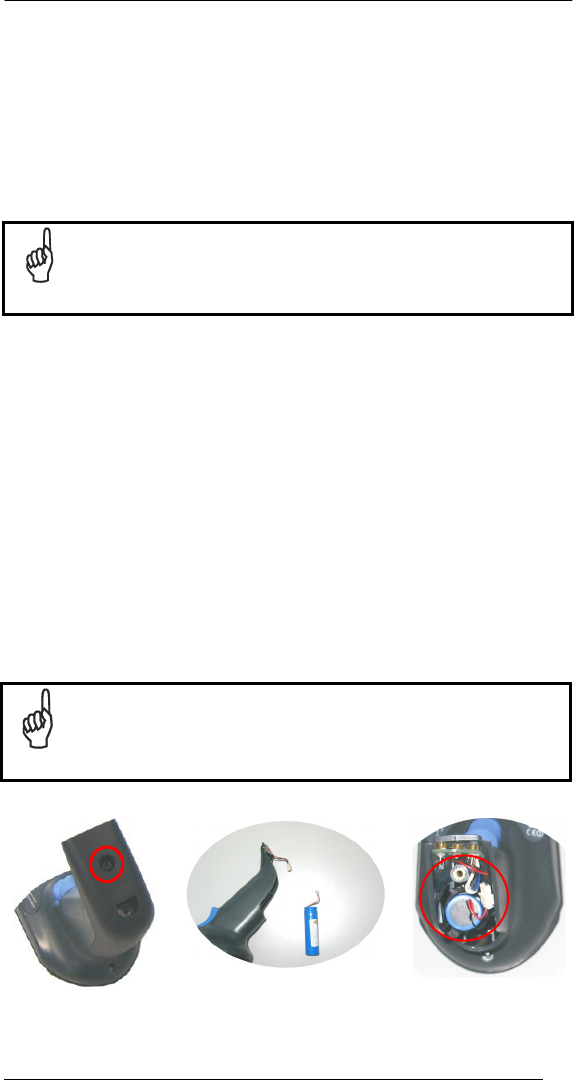

CHANGING THE BATTERIES
To change the battery of your reader, you must:
1. Unscrew the battery cover screw (Figure 1)
2. Unplug the white connector and remove the old battery (Figure 2)
3. Insert the new battery and plug in the white connector
NOTE
When inserting the new battery into the handle pay attention to
position the battery and the connector just as shown in Figure 3.
Figure 1 Figure 2 Figure 3
3
DATALOGIC

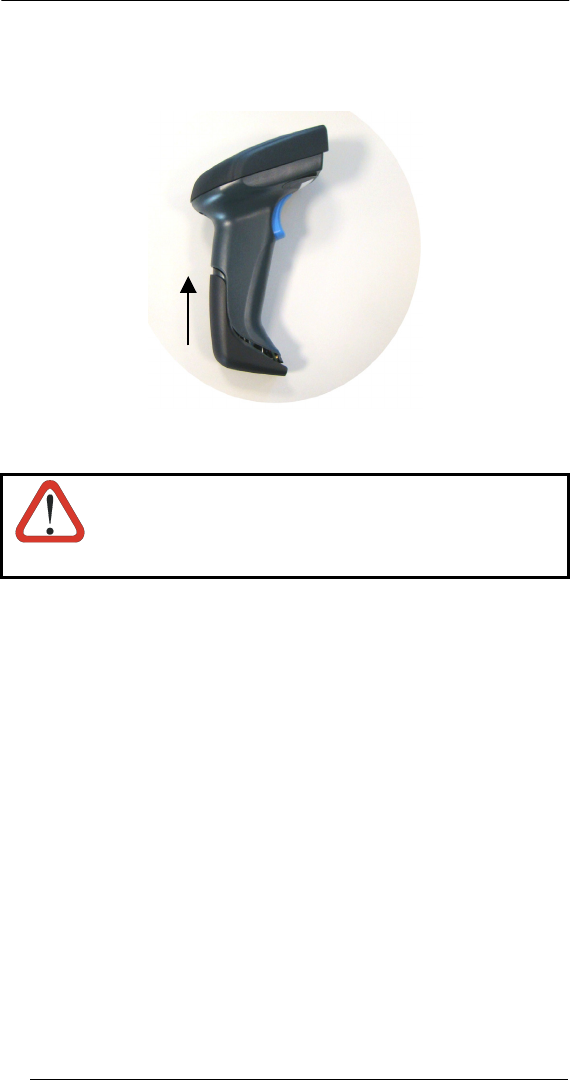

4. Insert the cover in the handle and screw it back into place.
Figure 4
WARNING
Do not incinerate, disassemble, short terminals or
expose to high temperature. Risk of fire, explosion. Use
specified charger only. Risk of explosion if the battery
is replaced by an incorrect type. Dispose of the
batteries as required by the relevant laws in force.
4
QUICKSCAN™ MOBILE
SYSTEM CONNECTIONS
CAUTION
Connections should always be made with power off!
You can connect the QuickScan™ M cradle to the Host through the dedicated
connector, using the cable corresponding to the desired interface type.
1. Connect the appropriate interface cable to the cradle by simply plugging it
into the Host connector on the base of the cradle.
Host Interface Cable
QuickScan™ M Cradle - Bottom View
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the connector on the base of the cradle. Push down on the clip
while unplugging the cable. Refer to the following figure:
Disconnecting the Cable
RS232
USB
5
DATALOGIC

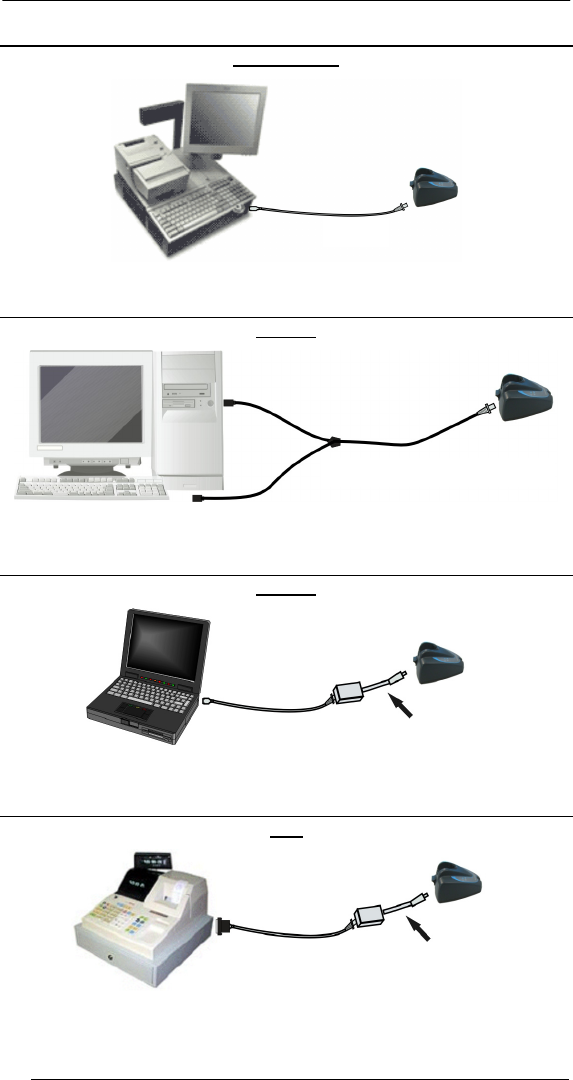

IBM USB POS
CAB-413
WEDGE
CAB-391 or CAB-321 + CAB-431
WEDGE
CAB-431
POWER SUPPLY ADAPTER
PEN
CAB-431
POWER SUPPLY ADAPTER
6
QUICKSCAN™ MOBILE
QUICKSCAN™ M CRADLE CONFIGURATION
The QuickScan™ M cradle configuration can be performed in two ways: either
by sending configuration strings from the Host via the RS232 or USB-COM
interface or by reading configuration barcodes with the reader.
Serial/USB COM Configuration
By connecting the QuickScan™ M cradle to a PC through an RS232 or USB
cable (only USB-COM interface) it is possible to send configuration strings from
the PC to the reader. Using this method you can also send new configuration
strings from the PC to the reader or upgrade application software onto the
reader.

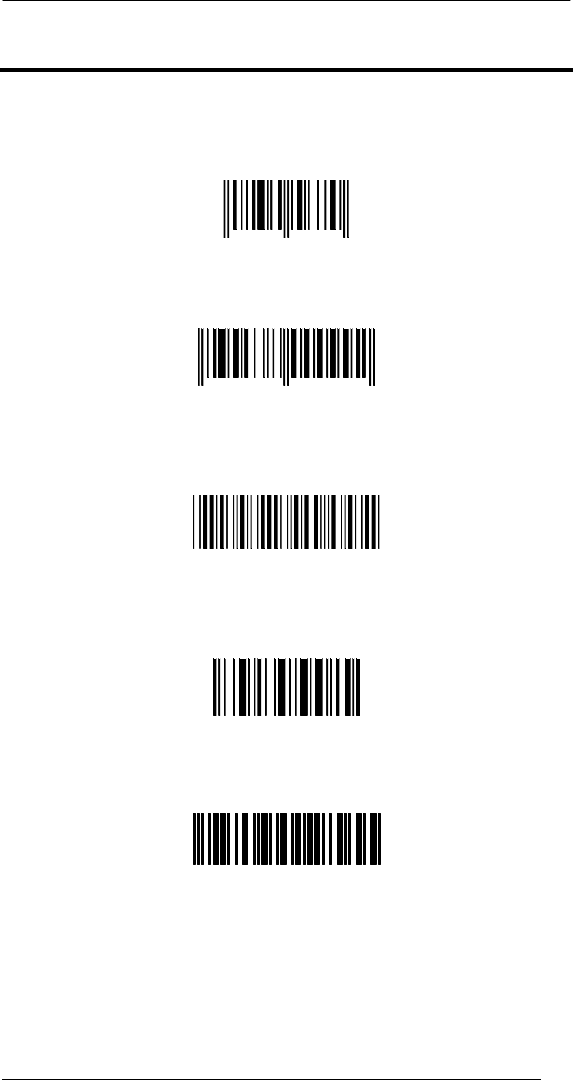

QUICKSCAN™ M READER CONFIGURATION
When the QuickScan™ M cradle is connected and powered, configure the
QuickScan™ M reader by reading the following codes in the given sequence and
follow the instructions.
Note: for the numeric code selection of step 3, use the table at the end of this
Quick Reference Guide.
Restore QuickScan™ M default
1. Ì$+$*oÎ
Enter configuration
2. Ì$+;Î
Set Radio Address
3.
ÌRF8Î
+
four digits for the QuickScan™ M Address
(from 0000 to 1999).
All readers used in the same area must have different addresses.
Exit and Save configuration
4. Ì$-?Î
7
DATALOGIC
5. Read the Bind code to pair the QuickScan™ M gun to the cradle.
The reader is dedicated to the cradle. Any previously bound reader will
be excluded.
Bind
Ì$+RN0$-IÎ
The green LED on the QuickScan™ M reader will blink: the reader is
ready to be positioned onto the cradle.
6. Firmly position the reader onto the cradle within 10 seconds, a beep will
be emitted, signaling that the QuickScan™ M cradle has been paired to
the QuickScan™ M gun.
YOUR READER IS NOW READY TO READ CODES.
7. Now you can configure the QuickScan™ M cradle by reading
configuration barcodes.
INTERFACE SELECTION
Follow the procedure to configure the interface required by your application.
Multi-standard interface models:
• USB Interface
• RS232 Interface
• Wedge Interface
• Pen Interface
8
QUICKSCAN™ MOBILE
USB INTERFACE CONFIGURATION
The USB interface is compatible with:
- Windows 98 (and later)
- Mac SO 8.0 (and later)
- 4690 Operating System
START-UP
As with all USB devices, upon connection, the Host performs several checks by
communicating with the cradle. Before the cradle is ready, the correct USB
driver must be loaded.
For all systems, the correct USB driver for the default USB-KBD interface is
included in the Host Operating System and will either be loaded automatically or
will be suggested by the O.S. and should therefore be selected from the dialog
box (the first time only).
You can now read codes with the associated QuickScan™ M reader. At this
point you can read the USB interface configuration code according to your
application. Load drivers from the O.S. (if requested). When configuring the
USB-COM interface, the relevant files and drivers must be installed from the
USB Device Installation software which can be downloaded from the web site:
http://www.scanning.datalogic.com.
The cradle is ready.
First Start Up
Connect cradle to Host
Select desired USB interface code
(USB-KBD is default)
Read test codes.
The cradle is
READ
Y
Load drivers
(if requested)
Load drivers
(if requested)
Successive start-ups will automatically recognize the previously loaded drivers.
9
DATALOGIC
USB INTERFACE SELECTION
USB-KBD (default)
Ì$+UA03$-:Î
USB-KBD-ALT-MODE
Ì$+UA04$-@Î
USB-KBD-APPLE
Ì$+UA05$-FÎ
USB-COM*
Ì$+UA02$-4Î
USB-IBM-Table Top
Ì$+UA00$-(Î
USB-IBM-Hand Held
Ì$+UA01$-.Î
* When configuring USB-COM, the relevant files and drivers must be
installed from the USB Device Installation software, which can be
downloaded from the web site http://www.scanning.datalogic.com.
Select one keyboard nationality code from the table at page 15.
10
QUICKSCAN™ MOBILE
RS232 INTERFACE SELECTION
Read the QuickScan™ M cradle restore default code, and then read the
interface selection code for your application:
RESTORE QUICKSCAN™ M CRADLE DEFAULT
Ì$+RX0$-qÎ
RS232 INTERFACE
Standard
Ì$+CP0$-$Î
POS TERMINALS
Nixdorf Mode A
Ì$+CM2EC0$->Î
Fujitsu
Ì$+CM1$-ÈÎ
ICL Mode
Ì$+CM0$-ÃÎ
11
DATALOGIC
WEDGE INTERFACE SELECTION
Read the QuickScan™ M cradle restore default code, then read the interface
selection code for your application:
RESTORE QUICKSCAN™ M CRADLE DEFAULT
Ì$+RX0$-qÎ
WEDGE INTERFACE
IBM AT or PS/2 PCs
Ì$+CP500$-aÎ
IBM XT
Ì$+CP503$-vÎ
PC Notebook
Ì$+CP505$-ÈÎ
IBM SURE1
Ì$+CP506$-$Î
IBM Terminal 3153
Ì$+CP504$-}Î
12
QUICKSCAN™ MOBILE
WEDGE INTERFACE (CONTINUED)
IBM Terminals 31xx, 32xx, 34xx, 37xx:
To select the interface for these IBM Terminals, read the correct KEY
TRANSMISSION code. Select the KEYBOARD TYPE if necessary (default =
advanced keyboard).
KEY TRANSMISSION MODE
make-only keyboard
Ì$+CP502$-oÎ
make-break keyboard
Ì$+CP501$-hÎ
KEYBOARD TYPE
advanced keyboard
Ì$+FK1$-ÉÎ
typewriter keyboard
Ì$+FK0$-ÄÎ
ALT MODE
The following interface selection allows barcodes sent to the PC to be
interpreted correctly independently from the Keyboard Nationality used. You
do not need to make a Keyboard Nationality selection.
(default = Num Lock Unchanged)
Make sure the Num Lock key on your keyboard is ON.
IBM AT - ALT mode
Ì$+CP507$-+Î
PC Notebook - ALT mode
Ì$+CP508$-2Î
13
DATALOGIC
WEDGE INTERFACE (CONTINUED)
WYSE TERMINALS
ANSI Keyboard
Ì$+CP509$-9Î
PC Keyboard
Ì$+CP510$-gÎ
ASCII Keyboard
Ì$+CP511$-nÎ
VT220 style Keyboard
Ì$+CP514$-ÇÎ
DIGITAL TERMINALS
VT2xx/VT3xx/VT4xx
Ì$+CP512$-uÎ
APPLE
APPLE ADB Bus
Ì$+CP513$-|Î
14
QUICKSCAN™ MOBILE
USB / WEDGE KEYBOARD NATIONALITY
USB/Wedge interface users should select one of the following KEYBOARD
NATIONALITY codes.
Belge
Ì$+FJ7$-8Î
Deutsch
Ì$+FJ3$-$Î
English
Ì$+FJ4$-)Î
Español
Ì$+FJ6$-3Î
Français
Ì$+FJ2$-ÊÎ
Italiano
Ì$+FJ1$-ÅÎ
Svenskt
Ì$+FJ5$-.Î
USA
Ì$+FJ0$-|Î
The following Keyboard Nationality selection is only valid for IBM AT compatible
PCs:
Japanese
Ì$+FJ8$-=Î
15
DATALOGIC
PEN INTERFACE SELECTION
Read the QuickScan™ M cradle restore default code, then read the interface
selection code for your application:
RESTORE QUICKSCAN™ M CRADLE DEFAULT
Ì$+RX0$-qÎ
PEN INTERFACE
Ì$+CP6$-BÎ
16
QUICKSCAN™ MOBILE
OPERATING TEST
Read the TEST codes below.
EAN-8
1234 5670
EAN-13
1 234567 000992
Code 39 (Normal)
17162
Code 128
test
Interleaved 2 of 5
0123456784
YOUR SYSTEM IS READY TO READ CODES AND TO SEND THE DATA TO
THE HOST.
To change the defaults, refer to the "QuickScan™ Mobile Reference Manual",
part number 820001970, or to the Datalogic Aladdin™ Configuration program,
both downloadable from the website.
17
DATALOGIC
READER DEFAULT CONFIGURATION
DATA FORMAT
code identifier disabled (enabled for POS terminals), field adjustment disabled,
code length tx not transmitted, character replacement disabled, address
stamping disabled; address delimiter disabled
POWER SAVE
sleep state/USB suspend disabled, enter sleep timeout = 0.6 sec
READING PARAMETERS
hand-held operation = hardware trigger, stand operation = automatic, trigger
active level, no timeout, Flash On = 1 sec, Flash Off = 0.6 sec, one read per
cycle, safety time 0.5 sec, beeper intensity high, tone 2, beeper type monotone,
beeper length short, good read spot duration medium, automatic operation
aiming light enabled
DECODING PARAMETERS
ink spread enabled, overflow control enabled, interdigit control enabled, Puzzle
Solver™ disabled, decoding safety = one read
CODE SELECTION
Enabled codes
• EAN 8/EAN 13 / UPC A/UPC E without ADD ON
check digit transmitted, no conversions
• Interleaved 2/5
check digit control and transmission, variable length code; 4-99 characters
• Standard Code 39
no check digit control, variable length code; 1-99 characters
• Code 128
variable length code; 1-99 characters
• EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes, MSI,
Plessey, Telepen, Delta IBM, Code 11, Code 16K, Code 49, RSS Codes
ADVANCED FORMATTING PARAMETERS
concatenation disabled, no advanced formats defined
RADIO PARAMETERS
radio protocol timeout = 2 seconds, power-off timeout = 4 hours, single store
disabled, beeper control for radio response = normal
18
QUICKSCAN™ MOBILE
CRADLE DEFAULT CONFIGURATION
USB DEFAULT SETTINGS
DATA FORMAT: code identifier disabled, code length not transmitted, character
replacement disabled, address stamping disabled, address delimiter disabled.
USB KEYBOARD: USA keyboard, FIFO enabled, inter-character and inter-code
delays disabled.
USB COM: handshaking disabled, delay disabled, rx timeout 5 sec., ack/nack
disabled, FIFO enabled, serial trigger lock disabled.
Default Headers and Terminators for each USB mode:
- USB-KBD: no header, terminator = ENTER
- USB-KBD-ALT-MODE: no header, terminator = CR
- USB-COM: no header, terminator = CR-LF
- USB-IBM-TABLE TOP: not applicable
- USB-IBM-HAND HELD: not applicable
RS232 Standard DEFAULT SETTINGS
9600 baud, no parity, 8 data bits, 1 stop bit, handshaking disabled, ACK/NACK
disabled, FIFO enabled, inter-character delay disabled, 5 sec. rx timeout, serial
trigger lock disabled.
DATA FORMAT: code identifier disabled, code length not transmitted, no
header, terminator = CR-LF, character replacement disabled, address stamping
disabled, address delimiter disabled.
RS232 Nixdorf DEFAULT SETTINGS
9600 baud, odd parity, 8 data bits, 1 stop bit, handshaking hardware
(RTS/CTS), ACK/NACK disabled, FIFO disabled, inter-character delay
disabled, 9.9 sec. rx timeout, serial trigger lock disabled.
DATA FORMAT: code identifier enabled, code length not transmitted, no
header, terminator = CR, character replacement disabled, address stamping
disabled, address delimiter disabled.
RS232 Fujitsu DEFAULT SETTINGS
9600 baud, no parity, 8 data bits, 1 stop bit, handshaking disabled, ACK/NACK
disabled, FIFO enabled, inter-character delay disabled,
2 sec. rx timeout, serial trigger lock disabled.
DATA FORMAT: code identifier enabled, code length not transmitted, no
header, terminator = CR, character replacement disabled, address stamping
disabled, address delimiter disabled.
RS232 ICL DEFAULT SETTINGS
9600 baud, even parity, 8 data bits, 1 stop bit, handshaking RTS always on,
ACK/NACK disabled, FIFO enabled, inter-character delay disabled,
9.9 sec. rx timeout, serial trigger lock disabled.
DATA FORMAT: code identifier enabled, code length not transmitted, no
header, terminator = CR, character replacement disabled, address stamping
disabled, address delimiter disabled.
19
DATALOGIC
WEDGE DEFAULT SETTINGS
USA keyboard, caps lock off, caps lock auto-recognition enabled; num lock
unchanged, inter-character and inter-code delay disabled.
DATA FORMAT: code identifier disabled, code length not transmitted, no
header, terminator = ENTER, character replacement disabled, address
stamping disabled, address delimiter disabled.
PEN DEFAULT SETTINGS
Interpret operating mode, minimum output pulse 600 µs, conversion to Code 39,
overflow medium, output level normal, idle level normal, inter-block delay
disabled.
TECHNICAL FEATURES
QuickScan™ M Reader and Cradle
Electrical Features - GUN
Battery Type 1 Lithium battery 700 mAh
Time of recharge Lithium max 6 hours with USB cable
Operating autonomy typical 20000 reads
Indicators LED, Beeper
Max scan rate 235 scans/sec
Electrical Features - CRADLE
Supply voltage 5 Vdc ± 5%
Power consumption max. 4 W (charging)
LED Indicators Battery charging red
Charge completed green
Power / Data yellow
Optical Features
Sensor CCD solid state (2088 pixels)
Illuminator LED array
Wavelength 630 ~ 670 nm
Max. LED Output Power 0.33 mW
LED safety class Class 1 EN 60825-1
Reading field see reading diagram
Max. resolution 0.10 mm, 4 mils
PCS minimum 20% (Datalogic Test Chart)
20
QUICKSCAN™ MOBILE
Environmental Features – GUN
Working Temperature 0°to + 40 °C (32° to 104 °F)
Storage Temperature
(without battery) -20° to 70 °C (-4° to 158 °F)
Humidity 90% non condensing
Drop resistance IEC 68-2-32 Test ED 1.5 m (4 ft 9 in)
Protection class IP30
Environmental Features - CRADLE
Working temperature 0° to 40 °C (32° to 104 °F)
Storage temperature -20° to 70 °C (-4° to 158 °F)
Humidity 90 % non condensing
Protection class IP30
Mechanical Features – GUN
Weight (without batteries) about 189 g (6.66 oz)
Dimensions 171 x 90 x 68 mm (6.72 x 3.54 x 2.80 in)
Material Cycoloy C 2800 with desmopan 3855
Mechanical Features – CRADLE
Weight 181 gr (6.38 oz)
Dimensions 80 x 130 x 90 mm (3.15 x 5.11 x 3.54 in)
Material Cycoloy C 2800 with desmopan 3855
QuickScan™ M Radio Features
Radio Features European Models USA Models
Working Frequency 433.92 MHz 910 MHz
Bit rate 19200 baud 36800 baud
Effective Radiated Power <10 mW <1 mW
Range (in open air) 12 m 12 m
RF Modulation FSK
21
DATALOGIC
WARRANTY
Datalogic warranties this product against defects in workmanship and materials,
for a period of 36 months from the date of shipment, provided that the product is
operated under normal and proper conditions.
Datalogic has the faculty to repair or replace the product; these provisions do
not prolong the original warranty term. The warranty does not apply to any
product that has been subject to misuse, accidental damage, unauthorized
repair or tampering.
PATENTS
This product is licensed under the U.S. Patent 6,158,661
This product is covered by one or more of the following patents:
U.S. patents 5,992,740; 6,305,606 B1; 6,517,003 B2; 6,631,846 B2; 6,712,271
B2; 6,817,525 B2; 6,834,806 B2; and 6,871,785 B2
European patents 789,315 B1; 851,378 B1; 895,175 B1; 962,880 B1;
1,164,536 B1; 1,205,871 B1; and 1,205,873 B1
Additional patents pending.
SERVICES AND SUPPORT
Datalogic provides several services as well as technical support through its
website. Log on to www.scanning.datalogic.com and click on the links
indicated for further information including:
• PRODUCTS
Search through the links to arrive at your product page where you can
download specific Manuals and Software & Utilities including:
- Datalogic Aladdin™ a multi-platform utility program that allows device
configuration using a PC. It provides RS232 interface configuration as
well as configuration barcode printing.
• SERVICE & SUPPORT
- Technical Support - Product documentation and programming guides
and Technical Support Department in the world
- Service Programs - Warranty Extensions and Maintenance Agreements
- Repair Services - Flate Rate Repairs and Return Material Authorization
(RMA) Repairs.
- Downloads – Manuals & Documentation, Data Sheets, Product
Catalogues, etc.
• CONTACT US
Information Request Form and Sales & Service Network
22
QUICKSCAN™ MOBILE
COMPLIANCE
This device must be opened by qualified personnel only.
The batteries must be removed before opening the device.
POWER SUPPLY
This device is intended to be supplied by a UL Listed/CSA Certified Power Unit
marked "Class 2" or LPS power source rated 5 V, minimum 0.8 A and having a
cable length <3 m.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written
approval of Datalogic could void the authority to use the equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference which may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
23
DATALOGIC
LED CLASS
EN60825-1:(2001)

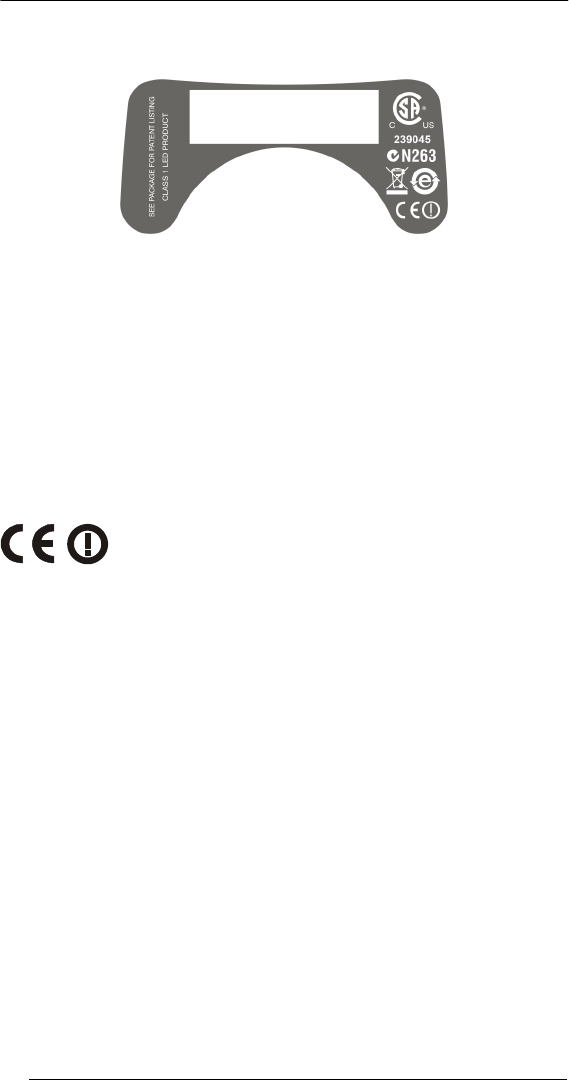

QuickScan™ M Product Label
Class 1 LED product.
RADIO COMPLIANCE
Contact the competent authority responsible for the management of radio
frequency devices of your country to verify the eventual necessity of a user
license.
Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for
further information.
24
QUICKSCAN™ MOBILE
WEEE COMPLIANCE
Waste Electrical and Electronic Equipment (WEEE) Statement
English
For information about the disposal of Waste Electrical and Electronic Equipment
(WEEE), please refer to the website at www.scanning.datalogic.com.
Italian
Per informazioni sullo smaltimento delle apparecchiature elettriche ed
elettroniche consultare il sito Web www.scanning.datalogic.com.
French
Pour toute information relative à l’élimination des déchets électroniques
(WEEE), veuillez consulter le site Internet www.scanning.datalogic.com.
German
Informationen zur Entsorgung von Elektro- und Elektronik- Altgeräten (WEEE)
erhalten Sie auf der Webseite www.scanning.datalogic.com.
Spanish
Si desea información acerca de los procedimientos para el desecho de los
residuos del equipo eléctrico y electrónico (WEEE), visite la página Web
www.scanning.datalogic.com.
Portuguese
Para informações sobre a disposição de Sucatagem de Equipamentos
Eléctricos e Eletrônicos (WEEE - Waste Electrical and Electronic Equipment),
consultar o site web www.scanning.datalogic.com.
Chinese
有关处理废弃电气电子设备 (WEEE)的信息， 请参考Datalogic公司的网站：
http://www.scanning.datalogic.com/。
Japanese
廃電気電子機器(ＷＥＥＥ)の処理についての関連事項はDatalogicのサイト
www.scanning.datalogic.com, をご参照下さい。
25
DATALOGIC
READING DIAGRAM
Reading diagram at 25 °C and 300 lux ambient lighting
Reading Zones (10° skew angle)
0 5 10 15 20 25 30
-10
-5
0
5
10
(cm)
EAN13 M=1
0.33 mm
(13 mils)
CODE39
0.50 mm
(20 mils)
0.13 mm
(5 mils)
-15
-15
26
QUICKSCAN™ MOBILE
NUMERIC TABLE
Ì01Î
0
Ì12Î
1
Ì23Î
2
Ì34Î
3
Ì45Î
4
Ì56Î
5
Ì67Î
6
Ì78Î
7
Ì89Î
8
Ì9:Î
9
27
Datalogic Scanning, Inc.
959 Terry Street
Eugene, OR 97402
07
dichiara che
declares that the
déclare que le
bescheinigt, daß das Gerät
declare que el
QUICKSCAN M21XX Kit 433Mhz; Cordless System
e tutti i suoi modelli
and all its models
et tous ses modèles
und seine Modelle
y todos sus modelos
sono conformi alla Direttiva del Consiglio Europeo sottoelencata:
are in conformity with the requirements of the European Council Directive listed below:
sont conformes aux spécifications de la Directive de l'Union Européenne ci-dessous:
den nachstehenden angeführten Direktive des Europäischen Rats entsprechen:
cumple con los requisitos de la Directiva del Consejo Europeo, según la lista siguiente:
1999/5/EEC R&TTE
Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:
This declaration is based upon compliance of the products to the following standards:
Cette déclaration repose sur la conformité des produits aux normes suivantes:
Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:
Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:
ETSI EN 301 489-3 V1.4.1,
AUGUST 2002 :
ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRU
M
MATTERS (ERM);
ELECTROMAGNETIC COMPATIBILITY (EMC) STANDARD FOR R
A
DIO
EQUIPMENT AND SERVICES;
PART 3: SPECIFIC CONDITIONS FOR SHORT-RANGE DEVICES
(SRD) OPERATING ON FREQUENCIES BETWEEN 9KHZ AND 40GHZ
ETSI EN 300 220-3 V1.1.1,
SEPTEMBER 2000 :
ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM
MATTERS (ERM); SHORT RANGE DEVICES (SRD); RADIO
EQUIPMENT TO BE USED IN THE 25MHZ TO 1000MHZ
FREQUENCY RANGE WITH POWER LEVELS RANGING UP TO
500MW; PART 3: HARMONIZED EN COVERING ESSENTIAL
REQUIREMENTS UNDER ARTICLE 3.2 OF THE R&TTE DIRECTIVE
EN 60950-1, DECEMBER 2001 :
INFORMATION TECHNOLOGY EQUIPMENT - SAFETY -
PART 1 : GENERAL REQUIREMENTS
March 1st, 2007
Quick Reference Guide
www.scanning.datalogic.com
QuickScan™ Mobile
Datalogic Scanning, Inc.
959 Terry Street
Eugene, OR 97402
Telephone: (541) 683-5700
Fax: (541) 345-7140
Australia
Datalogic Scanning Pty Ltd
North Ryde, Australia
Telephone: [61] (2) 9870 3200
Fax: [61] (2) 9878 8688
France and Benelux
Datalogic Scanning Sarl
LES ULIS Cedex, France
Telephone: [33].01.64.86.71.00
Fax: [33].01.64 46.72.44
Germany
Datalogic Scanning GmbH
Darmstadt, Germany
Telephone: 49 (0) 61 51/93 58-0
Fax: 49 (0) 61 51/93 58 58
Italy
Datalogic Scanning SpA
Vimercate (MI), Italy
Telephone: [39] (0) 39/62903.1
Fax: [39] (0) 39/6859496
Japan
Datalogic Scanning KK
Shinagawa, Tokyo, Japan
Telephone: 81 (0)3 3491 6761
Fax: 81 (0)3 3491 6656
Latin America
Datalogic Scanning, Inc
Miami, Florida, USA
Telephone: (305) 591-3222
Fax: (305) 591-3007
Spain and Portugal
Datalogic Scanning Sarl
Sucursal en España
Madrid, Spain
Telephone: 34 91 746 28 60
Fax: 34 91 742 35 33
United Kingdom
Datalogic Scanning LTD
Watford, England
Telephone: 44 (0) 1923 809500
Fax: 44 (0) 1923 809 505
©2007 Datalogic Scanning, Inc. 820001830 (Rev. A) 10/07
