Datalogic ADC S.r.l. Small Size Star Module L.C. 910MHz Integration Guide
Contents
- 1. User manual
- 2. Integration Guide
Integration Guide

Integration Guide.docIG Revision: 1.0 08/09/2009 Confidential page 1 of 4
DATALOGIC PROPRIETARY INFORMATIONS
StarModuleSLC910
Integration Guide
Rev 1.0
Author:
Luciano Ruggiero

StarM
odule
SLC
910
Integration Guide.doc
Preliminary
Confidential page 2 of 4
DATALOGIC PROPRIETARY INFORMATIONS
Introduction
The StarModuleSLC910 is an FSK RF half-duplex transceiver working at 910MHz, made to be
installed on fixed or mobile devices.
Digital interface
Digital Interface with host system:
Data communication with host is implemented using a UART @38400, N, 8, 1
Control is implemented using IDLE/RX line and receiving Carrier Detect indication
.

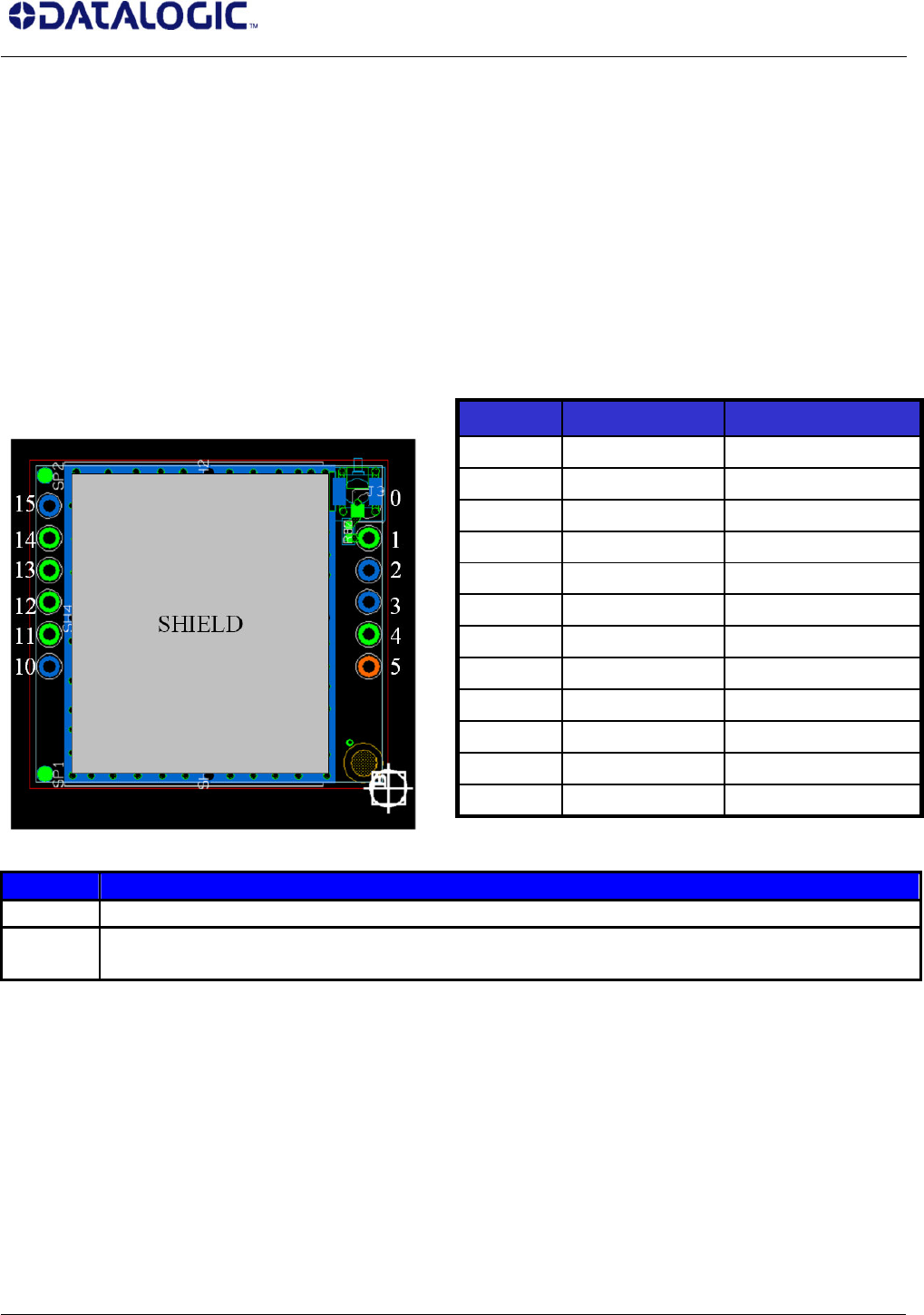

Pinout
TOP VIEW
IDLE/RX
Function
HIGH Sleep
LOW Rx mode
Receive data on TX_DATA, CD# asserted means RF channel is busy
RF interface
StarModuleSLC910 has 50 Ohm impedance on RF out in TX and RX mode, therefore impedance
matching is required for antenna system of host.
Care must be taken for the proximity of conductive materials or the user’s hand that will cause a
mismatch of the antenna, decreasing the transceiver RF characteristics.
Moreover, care must be taken to ensure that the host system doesn’t have spurious emissions in the
range 910MHz+/-100kHz, that could cripple receiver sensitivity: it is advised to put a ground plane
under the RF module and to filter the power supply.
Noisy parts, like system buses, must be shielded in order not to irradiate spurious fields.
RF CONNECTOR - 0
GND - 15
CD# (active low) Output 14
IDLE/RX Input 13
TX_DATA Output 12
RX_DATA Input 11
GND - 10
Vcc(5.5 – 3.1V) - 5
RESET Input 4
GND - 3
GND - 2
NC - 1
Desc
ription
Direction
Number

StarM
odule
SLC
910
Integration Guide.doc
Preliminary
Confidential page 3 of 4
DATALOGIC PROPRIETARY INFORMATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any change or modification to the product not expressly approved by Datalogic Scanning Group
S.r.l. could void the user's authority to operate the device.

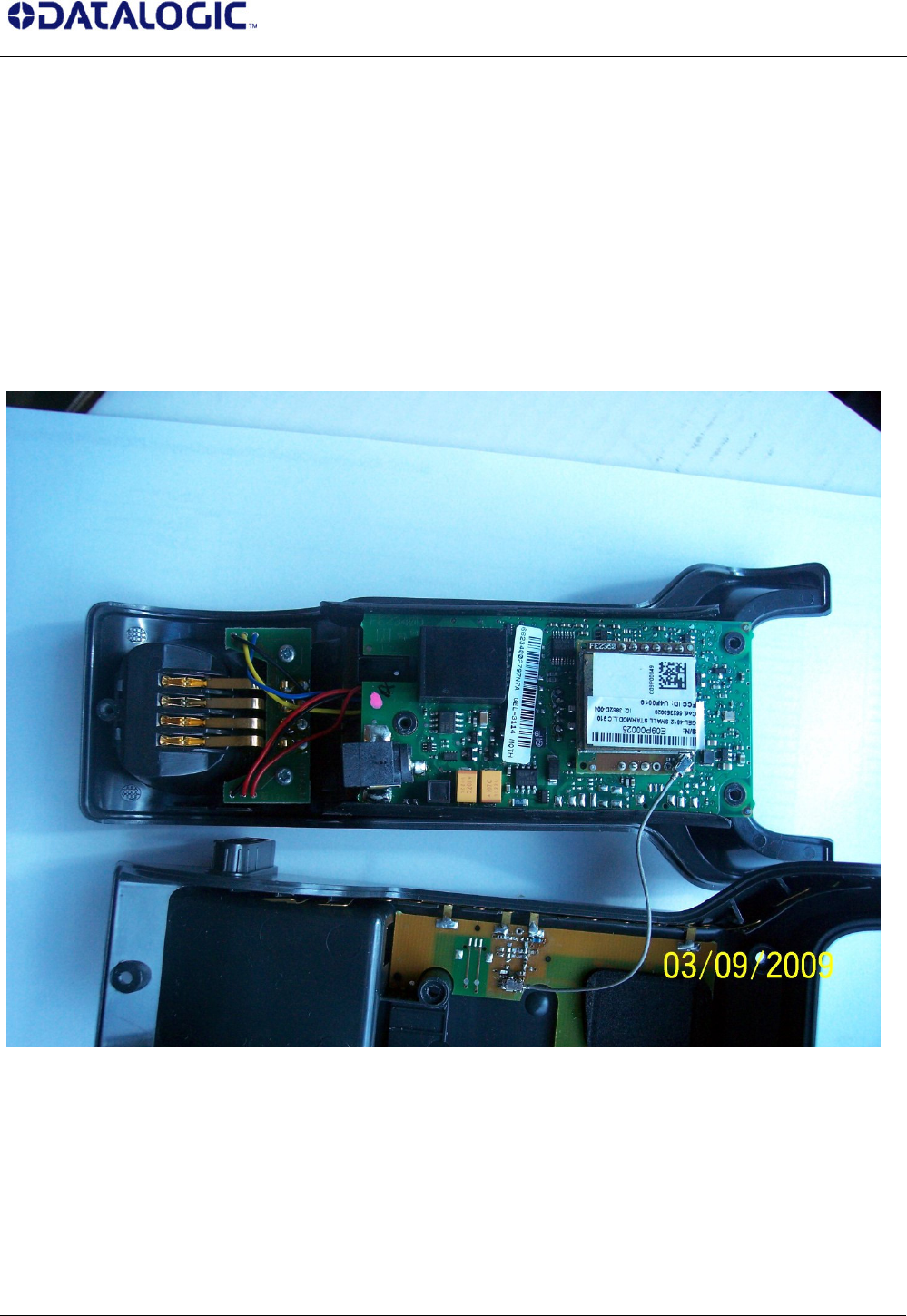

Examples
BC40X0

StarM
odule
SLC
910
Integration Guide.doc
Preliminary
Confidential page 4 of 4
DATALOGIC PROPRIETARY INFORMATIONS
GM4100
