Datalogic S r l 0053 DL-Skorpio Mobile Computer User Manual

Datalogic ADC S.r.l. DL-Skorpio Mobile Computer Users Manual

User Manual

            Datalogic Mobile S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara di Reno Bologna - Italy   Datalogic Skorpio™ and Skorpio-GUN™ - User's Manual  Software Version: 4.00  Ed.: 12/2009           ©  2006-2009  Datalogic  Mobile  S.r.l.  • All rights reserved.  •  Protected  to  the  fullest extent under  U.S.  and international laws. • Copying, or altering of this document is prohibited without express written consent from Datalogic Mobile S.r.l.  Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.  Datalogic Skorpio and Datalogic Skorpio-GUN are trademarks of Datalogic Mobile S.r.l.   All  other  brand  and  product  names  mentioned  herein  are  for  identification  purposes  only  and  may  be trademarks or registered trademarks of their respective owners.  Datalogic reserves the right to make modifications and improvements without prior   notification.  Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.
iiiCONTENTSREFERENCES ............................................................................................. vConventions.................................................................................................. vReference Documentation ............................................................................ vServices and Support.................................................................................... vSAFETY REGULATIONS............................................................................ viGeneral Safety Rules....................................................................................viBluetooth® Approval......................................................................................viPower Supply...............................................................................................viiLaser Safety.................................................................................................viiLED Class................................................................................................... xiiiRadio Compliance....................................................................................... xiiiFCC Compliance..........................................................................................xvSAR Compliance..........................................................................................xvIndustry Canada Compliance.......................................................................xvPatents........................................................................................................xviWEEE Compliance .....................................................................................xviGENERAL VIEW ..................................................................................... xviii1 INTRODUCTION .......................................................................................... 11.1 Datalogic Skorpio™ Description ................................................................... 11.1.1 Datalogic Skorpio™ ...................................................................................... 11.1.2 Datalogic Skorpio-GUN™ ............................................................................. 21.2 Available Models........................................................................................... 31.3 Package Contents......................................................................................... 31.4 Inserting Mini SD card................................................................................... 51.5 Using the Belt Clip ........................................................................................ 71.6 Stylus Holder................................................................................................. 91.7 Attaching the Wrist Strap .............................................................................. 91.8 Accessories................................................................................................. 101.9 Operating System ....................................................................................... 112 CONNECTIONS ......................................................................................... 122.1 USB Connection ......................................................................................... 122.2 Connection to USB peripherals................................................................... 132.3 RS232 Connection...................................................................................... 142.4 Modem Connection..................................................................................... 162.5 Ethernet Connection ................................................................................... 162.6 WPAN Connections .................................................................................... 172.7 WLAN Connection ...................................................................................... 182.8 Wireless and Radio Frequencies Warnings ................................................ 203 USE AND FUNCTIONING.......................................................................... 22
 iv 3.1 Startup ........................................................................................................ 223.2 Windows Mobile Welcome Wizard.............................................................. 243.3 Using the Stylus.......................................................................................... 253.4 Data Capture............................................................................................... 263.4.1 Laser Data Capture..................................................................................... 263.5 Description of the Keys ............................................................................... 273.5.1 Alphanumeric Keyboard (38-Key Model) .................................................... 273.5.2 Numeric Keyboard (28-Key Model)............................................................. 303.5.3 Resetting the SkorpioTM .............................................................................. 333.6 Status Indicators ......................................................................................... 363.6.1 LED Status.................................................................................................. 363.6.2 Taskbar....................................................................................................... 373.7 Data Capture Configuration ........................................................................ 393.7.1 Configure .................................................................................................... 393.7.2 Capture ....................................................................................................... 443.8 Control Panel .............................................................................................. 453.8.1 Buttons........................................................................................................ 463.8.2 Registry....................................................................................................... 473.8.3 Files Admin ................................................................................................. 483.8.4 Wireless Communications........................................................................... 503.8.5 Ethernet Settings ........................................................................................ 523.8.6 Stylus Calibration ........................................................................................ 553.9 Windows Connections ................................................................................ 593.9.1 Microsoft® ActiveSync®............................................................................... 593.9.2 Uploading/Downloading Files through an RS232 Connection..................... 613.9.3 Bluetooth® Manager Device Setup.............................................................. 633.9.4 FTP Server Setup ....................................................................................... 713.10 Backup Directory File Management ............................................................ 733.11 Firmware Update For Windows CE............................................................. 744 MAINTENANCE ......................................................................................... 754.1 Charging the Battery Pack .......................................................................... 754.2 Replacing the Battery Pack......................................................................... 774.2.1 Datalogic Skorpio™ Models........................................................................ 774.2.2 Datalogic Skorpio-GUN™ Models............................................................... 784.3 Compact Flash and Secure Storage Cards................................................. 834.4 Cleaning the Mobile Computer.................................................................... 835 TECHNICAL FEATURES........................................................................... 845.1 Technical Data ............................................................................................ 845.2 Reading Diagrams ...................................................................................... 866 TEST CODES ............................................................................................. 88GLOSSARY................................................................................................ 91INDEX......................................................................................................... 93
 vREFERENCES  CONVENTIONS  This manual uses the following conventions:  If  not  otherwise  specified,  the  term  Datalogic  Skorpio™  refers  to  both  Datalogic Skorpio™ and Skorpio-GUN™ mobile computers. “User” refers to anyone using a Datalogic Skorpio™ mobile computer. “Mobile computer” refers to Datalogic Skorpio™ mobile computer. “You”  refers  to  the  System  Administrator  or  Technical  Support  person  using  this manual to install, configure, operate, maintain or troubleshoot a Datalogic Skorpio™ mobile computer.   REFERENCE DOCUMENTATION  For further information regarding Datalogic Skorpio™ refer to the SDK Help on-Line.   SERVICES AND SUPPORT  Datalogic provides several services as well as technical support through its website. Log  on  to  www.mobile.datalogic.com  and  click  on  the  links  indicated  for  further information including: -  PRODUCTS Search through the links to arrive at your product page where you can download specific Manuals and Software & Utilities -  SERVICES & SUPPORT -  Datalogic Services Warranty Extensions and Maintenance Agreements -  Authorised Repair Centres -  CONTACT US E-mail form and listing of Datalogic Subsidiaries
 vi SAFETY REGULATIONS    NOTERead this manual carefully before performing any type of connection to the Datalogic Skorpio™ mobile computer. The user is responsible for any damages caused by incorrect use of the  equipment  or  by  inobservance  of  the  indication  supplied  in  this manual.   GENERAL SAFETY RULES   Use  only  the  components  supplied  by  the  manufacturer  for  the  specific Datalogic Skorpio™ being used.  Do not attempt to  disassemble  the Datalogic  Skorpio™  mobile  computer, as it does  not  contain  parts  that  can  be  repaired  by  the  user.  Any  tampering  will invalidate the warranty.  When  replacing  the  battery  pack  or  at  the  end  of  the  operative  life  of  the Datalogic Skorpio™ mobile computer, disposal must be performed in compliance with the laws in force.   Before using the devices and the battery packs, read par. 4.2.  Do not submerge the Datalogic Skorpio™ in liquid products.  For further information, refer to this manual and to the Datalogic Mobile web site: www.mobile.datalogic.com.   BLUETOOTH® APPROVAL  This product is equipped with the following certified Bluetooth® module: Product  Name:  Datalogic  controller  subsystem  based  on  LBMALCS2  MURATA module  for  Windows  CE  and  Windows  Mobile  for  portable  barcode  readers application  Bluetooth ID: B016407  Product ID: DLBTLCS2

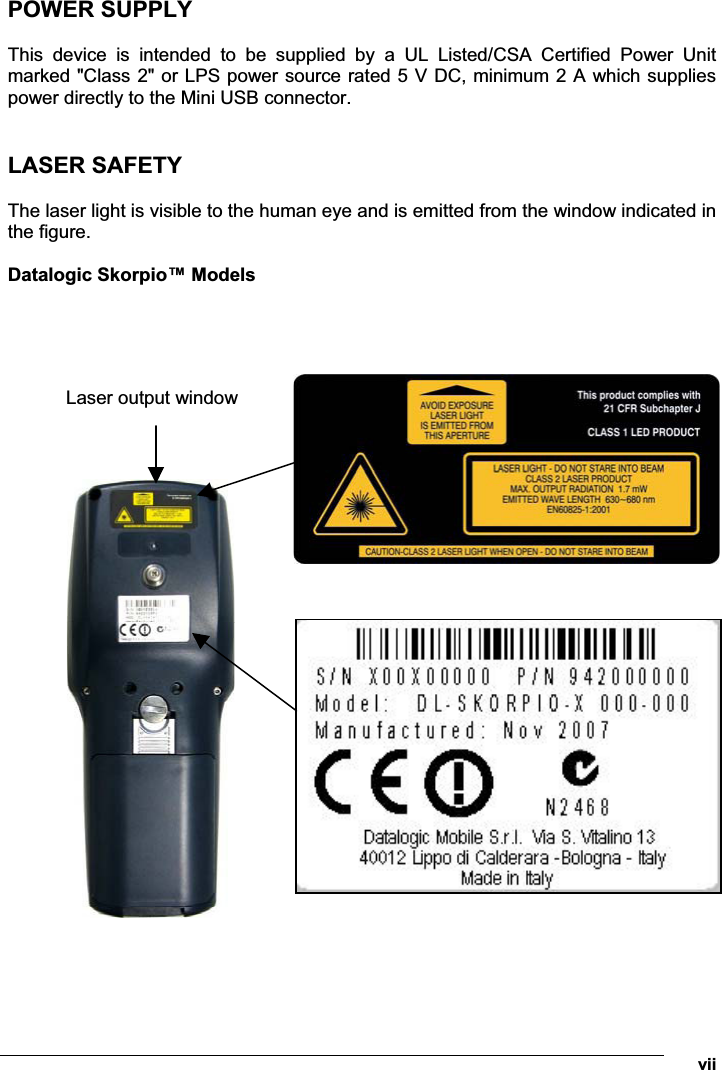

 vii POWER SUPPLY  This  device  is  intended  to  be  supplied  by  a  UL  Listed/CSA  Certified  Power  Unit marked "Class 2" or LPS power source rated 5 V DC, minimum 2 A which supplies power directly to the Mini USB connector.   LASER SAFETY  The laser light is visible to the human eye and is emitted from the window indicated in the figure.  Datalogic Skorpio™ Models            Laser output window
 viii Datalogic Skorpio-GUN™ Models                  I  D  F  E La luce laser è visibile all'occhio umano e viene emessa dalla finestra indicata nella figura. Die Laserstrahlung ist für das menschliche Auge sichtbar und wird am Strahlaustrittsfenster ausgesendet (siehe Bild).Le rayon laser est visible à l'oeil nu et il est émis par la fenêtre désignée sur l'illustration dans la figure. La luz láser es visible al ojo humano y es emitida por la ventana indicada en la figura. LUCE LASER NON FISSARE IL FASCIO APPARECCHIO LASER DI CLASSE 2  MINIMA POTENZA DI USCITA: 1.7mW LUNGHEZZA D'ONDA EMESSA: 650nm CONFORME A EN 60825-1 (2001) LASERSTRAHLUNG NICHT IN DER STRAHL BLINKEN PRODUKT DER LASERKLASSE 2 MAXIMALE AUSGANGLEISTUNG: 1.7mW  WELLENLÄNGE: 650nm ENTSPR. EN 60825-1 (2001) RAYON LASER EVITER DE REGARDER LE RAYON  APPAREIL LASER DE CLASSE 2 PUISSANCE DE SORTIE: 1.7mW LONGUER D'ONDE EMISE: 650nm CONFORME A EN 60825-1 (2001) RAYO LÁSER NO MIRAR FIJO EL RAYO APARATO LÁSER DE CLASE 2 MÁXIMA POTENCIA DE SALIDA: 1.7mW LONGITUD DE ONDA EMITIDA: 650nm CONFORME A EN 60825-1 (2001) Laser Output Window
 ixENGLISHThe  following  information  is  provided  to  comply  with  the  rules  imposed  by international authorities and refers to the correct use of your mobile computer. STANDARD LASER SAFETY REGULATIONS This product conforms to  the  applicable requirements of both CDRH 21 CFR 1040 Subchapter J and EN 60825-1:2001 at the date of manufacture. For installation, use and maintenance, it is not necessary to open the device.  CAUTION Do not attempt to open or otherwise service any components in the optics cavity. Opening or servicing any part of the optics cavity by unauthorized  personnel  may  violate  laser  safety  regulations.  The optics system is a factory only repair item.   CAUTION Use of controls or adjustments or performance of procedures other than  those  specified  herein  may  result  in  exposure  to  hazardous visible laser light.  The  product  utilizes  a  low-power  laser  diode.  Although  staring  directly  at  the  laser beam momentarily causes no known biological damage, avoid staring at the beam as one  would  with any very strong  light source,  such  as  the  sun.  Avoid that  the  laser beam hits the eye of an observer, even through reflective surfaces such as mirrors, etc.   CAUTION Use of optical systems with the scanner will increase eye hazard. Optical instruments include binoculars, microscopes, eye glasses and magnifying glasses.   ITALIANO Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e si riferiscono all’uso corretto del terminale. NORMATIVE STANDARD PER LA SICUREZZA LASER Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data di produzione: CDRH 21 CFR 1040 sezione J e EN 60825-1:2001. Non si rende mai necessario aprire l’apparecchio per motivi di installazione, utilizzo o manutenzione.

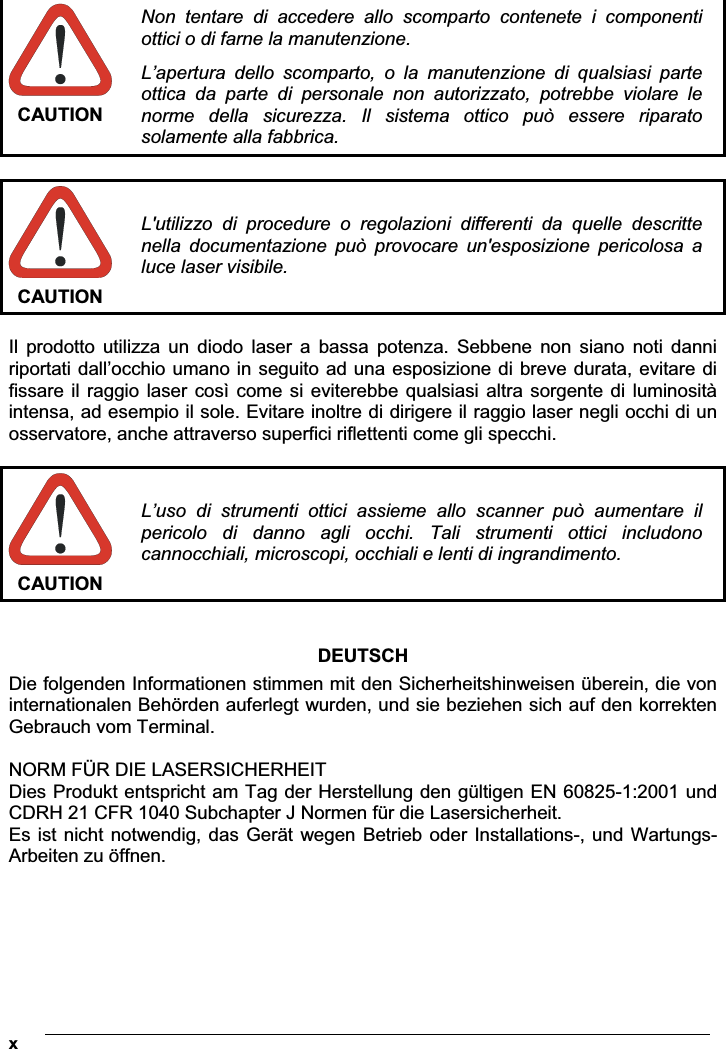

 x CAUTION Non  tentare  di  accedere  allo  scomparto  contenete  i  componenti ottici o di farne la manutenzione. L’apertura  dello  scomparto,  o  la  manutenzione  di  qualsiasi  parte ottica  da  parte  di  personale  non  autorizzato,  potrebbe  violare  le norme  della  sicurezza.  Il  sistema  ottico  può  essere  riparato solamente alla fabbrica.  CAUTION L'utilizzo  di  procedure  o  regolazioni  differenti  da  quelle  descritte nella  documentazione  può  provocare  un'esposizione  pericolosa  a luce laser visibile.  Il  prodotto  utilizza  un  diodo  laser  a  bassa  potenza.  Sebbene  non  siano  noti  danni riportati dall’occhio umano in seguito ad una esposizione di breve durata, evitare di fissare il  raggio  laser  così come si eviterebbe qualsiasi altra sorgente di luminosità intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio laser negli occhi di un osservatore, anche attraverso superfici riflettenti come gli specchi.  CAUTION L’uso  di  strumenti  ottici  assieme  allo  scanner  può  aumentare  il pericolo  di  danno  agli  occhi.  Tali  strumenti  ottici  includono cannocchiali, microscopi, occhiali e lenti di ingrandimento.   DEUTSCHDie folgenden Informationen stimmen mit den Sicherheitshinweisen überein, die von internationalen Behörden auferlegt wurden, und sie beziehen sich auf den korrekten Gebrauch vom Terminal.  NORM FÜR DIE LASERSICHERHEIT Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1:2001 und CDRH 21 CFR 1040 Subchapter J Normen für die Lasersicherheit. Es ist nicht notwendig, das Gerät wegen Betrieb oder Installations-, und Wartungs-Arbeiten zu öffnen.
 xi CAUTION Unter keinen Umständen darf versucht werden, die Komponenten im  Optikhohlraum  zu  öffnen  oder  auf  irgendwelche  andere  Weise zu  warten.  Das  Öffnen  bzw.  Warten  der  Komponenten  im Optikhohlraum  durch  unbefugtes  Personal  verstößt  gegen  die Laser-Sicherheitsbestimmungen.  Das  Optiksystem  darf  nur werkseitig repariert werden.  CAUTION Jegliche Änderungen am Gerät sowie Vorgehensweisen, die nicht in  dieser  Betriebsanleitung  beschrieben  werden,  können  ein gefährliches Laserlicht verursachen.  Der  Produkt  benutzt  eine  Laserdiode.  Obwohl  zur  Zeit  keine  Augenschäden  von kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere Zeit in den Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B. die Sonne). Vermeiden Sie es, den Laserstrahl weder gegen die Augen eines Beobachters, noch gegen reflektierende Oberflächen zu richten.  CAUTION Die  Verwendung  von  Optiksystemen  mit  diesem  Scanner  erhöht die  Gefahr  einer  Augenbeschädigung.  Zu  optischen  Instrumenten gehören  unter  anderem  Ferngläser,  Mikroskope,  Brillen  und Vergrößerungsgläser.   FRANÇAIS Les  informations  suivantes  sont  fournies  selon  les  règles  fixées  par  les  autorités internationales et se réfèrent à une correcte utilisation du terminal. NORMES DE SECURITE LASER Ce  produit  est  conforme  aux  normes  de  sécurité  laser  en  vigueur  à  sa  date  de fabrication: CDRH 21 CFR 1040 sous-chapitre J et EN 60825-1:2001. Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou l’entretien.  CAUTION Ne pas essayer d’ouvrir ou de réparer les composants de la cavité optique.  L’ouverture  de  la  cavité  optique  ou  la  réparation  de  ses composants  par  une  personne  non  qualifiée  peut  entraîner  le nonrespect  des  règles  de  sécurité  relatives  au  laser.  Le  système optique ne peut être réparé qu’en usine.
 xii CAUTION L'utilisation de  procédures  ou  réglages  différents  de  ceux  donnés ici peut entraîner une dangereuse exposition à lumière laser visible.  Le  produit  utilise  une  diode  laser.  Aucun  dommage  aux  yeux  humains  n’a  été constaté à  la  suite  d’une  exposition  au  rayon  laser.  Eviter  de  regarder  fixement  le rayon, comme toute autre source lumineuse intense telle  que  le soleil. Eviter aussi de  diriger  le  rayon  vers  les  yeux  d’un  observateur,  même  à  travers  des  surfaces réfléchissantes (miroirs, par exemple).  CAUTION L’utilisation  d’instruments  optiques  avec  le  scanneur  augmente  le danger  pour  les  yeux.  Les  instruments  optiques  comprennent  les jumelles, les microscopes, les lunettes et les verres grossissants.   ESPAÑOL Las informaciones siguientes son presentadas en conformidad con las disposiciones de las autoridades internacionales y se refieren al uso correcto del terminal. NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER Este  aparato  resulta  conforme  a  las  normativas  vigentes  de  seguridad  láser  a  la fecha de producción: CDRH 21 CFR 1040 Sección J y EN 60825-1:2001. No es necesario abrir el aparato para la instalación, la utilización o la manutención.  CAUTION No intente abrir o de ninguna manera dar servicio a ninguno de los componentes  del  receptáculo  óptico.  Abrir  o  dar  servicio  a  las piezas del receptáculo óptico por parte del personal no autorizado podría  ser  una  violación  a  los  reglamentos  de  seguridad.  El sistema óptico se puede reparar en la fábrica solamente.  CAUTION La  utilización  de  procedimientos  o  regulaciones  diferentes  de aquellas  describidas  en  la  documentación  puede  causar  una exposición peligrosa a la luz láser visible.
 xiiiEl aparato utiliza un diodo láser a baja potencia. No son notorios daños a los ojos humanos a consecuencia de una exposición de corta duración. Eviten de mirar fijo el rayo  láser  así  como  evitarían  cualquiera  otra  fuente  de  luminosidad  intensa,  por ejemplo  el  sol.  Además,  eviten  de  dirigir  el  rayo  láser  hacia  los  ojos  de  un observador, también a través de superficies reflectantes como los espejos.  CAUTION El uso de sistemas ópticos con el escáner aumentará el riesgo de daños  oculares.  Los  instrumentos  ópticos  incluyen  binoculares, microscopios, lentes y lupas.   LED CLASS  According to EN60825-1:2001, the Datalogic Skorpio™ models which use the good read spot LED are also CLASS 1 LED PRODUCTS.  APPARECCHIO LED CLASSE 1 PRODUIT LED DE CLASSE 1 PRODUKT LED KLASSE 1 PRODUCTO LED DE CLASE 1  RADIO COMPLIANCE  In  radio  systems  configured  with  mobile  computers  and  access  points,  the frequencies to be used must be allowed by the spectrum authorities of the specific country  in  which  the  installation  takes  place.  Be  absolutely  sure  that  the  system frequencies are correctly set to be compliant with the spectrum requirements of the country. The Radio modules used in this product automatically adapt to the frequencies set by the system and do not require any parameter settings.  The  following  shows  the  correspondence  between  the  Datalogic  Skorpio™  models and the Radio modules:  Datalogic Skorpio™ 5XX-XXX 802.11b (WLAN) radio card (Datalogic Skorpio™ models only)  Datalogic Skorpio™ 7XX-XXX 802.11b/g (WLAN) radio card
 xiv Information for the User  ENGLISHContact the competent authority responsible for the management of radio frequency devices of your country to verify any possible restrictions or licenses required. Refer to  the  web  site  http://europa.eu.int/comm/enterprise/rtte/spectr.htm  for  further information.  ITALIANO Contatta l'autorità competente per la gestione degli apparati a radio frequenza del tuo paese,  per  verificare  eventuali  restrizioni  o  licenze.  Ulteriori  informazioni  sono disponibili sul sito: http://europa.eu.int/comm/enterprise/rtte/spectr.htm.  FRANÇAIS Contactez  l'autorité  compétente  en  la  gestion  des  appareils  à  radio  fréquence  de votre  pays  pour  vérifier  d'éventuelles  restrictions  ou  licences.  Pour  tout renseignement vous pouvez vous adresser au site web: http://europa.eu.int/comm/enterprise/rtte/spectr.htm.  DEUTSCHWenden Sie sich an die für Radiofrequenzgeräte zuständige Behörde Ihres Landes, um zu prüfen ob es Einschränkungen gibt, oder eine Lizenz erforderlich ist. Weitere Informationen finden Sie auf der Web Seite: http://europa.eu.int/comm/enterprise/rtte/spectr.htm. ESPAÑOL Contacta  la  autoridad  competente  para  la  gestión  de  los  dispositivos  de  radio frecuencia  de  tu  país,  para  verificar cualesquiera  restricciones  o  licencias  posibles requerida. Además se puede encontrar mas información en el sitio web: http://europa.eu.int/comm/enterprise/rtte/spectr.htm.
          FCC COMPLIANCE  Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment.  This device has been tested and found to comply with the limits for a CLASS A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.  FCC ID: U4G0020 for models with only 802.11b/g radio FCC ID: U4G0053 for models with 802.11b/g radio and Bluetooth®  All 7XX-XXX WLAN models contain FCC ID TWG-SDCCF10G.  All 5XX-XXX WLAN models are not FCC certified (Datalogic Skorpio™ models only).  SAR COMPLIANCE  This product has been tested and found to comply with the following standards:   −  OET BULLETIN 65 SUPPLEMENT C: evaluating compliance with FCC guidelines for human exposure to radio frequency electromagnetic fields.   − Australian  Radiation  Protection  And  Nuclear  Safety  Agency  (ARPANSA): radiation protection series publication No. 3: maximum exposure levels to radio frequency fields 3 KHz TO 300 GHz.   − EN  50392:2004:  generic  standard  to  demonstrate  the  compliance  of  electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields (0 Hz- 300 GHZ).  INDUSTRY CANADA COMPLIANCE  Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.  The highest measured SAR level is 0.269 W/Kg      xv
 xvi PATENTS  This product is covered by one or more of the following patents: U.S. patents Nos: 5,992,740; 6,808,114 B1; 6,997,385 B2; 7,387,246 B2. European  patents  Nos:  681,257  B1;  789,315  B1;  1,128,315  B1;  1,396,811  B1; 1,413,971 B1 Additional patents pending.   WEEE COMPLIANCE      Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC  L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della sua vita utile, separatamente dai rifiuti urbani.  Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di:  evitare  possibili  conseguenze  negative  per  l’ambiente  e  per  la  salute  umana  che potrebbero invece essere causati dall’errato smaltimento dello stesso;  recuperare materiali di cui è composto al fine di ottenere un importante risparmio di energia e di risorse.  Per  maggiori  dettagli  sulle  modalità  di  smaltimento,  contattare  il  Fornitore  dal  quale  è  stata acquistata  l’apparecchiatura  o  consultare  la  sezione  dedicata  sul  sito www.mobile.datalogic.com.    Information  for  the  user  in  accordance  with  the  European  Commission  Directive 2002/96/EC At the end of its useful life, the product marked with the crossed out wheeled wastebin must be disposed of separately from urban waste.  Disposing of the product according to this Directive:  avoids  potentially  negative  consequences  to  the  environment  and  human  health which otherwise could be caused by incorrect disposal  enables  the  recovery  of  materials  to  obtain  a  significant  savings  of  energy  and resources.
 xvii For  more  detailed  information  about  disposal,  contact  the  supplier  that  provided  you  with  the product in question or consult the dedicated section at the website www.mobile.datalogic.com.    Information aux utilisateurs concernant la Directive Européenne 2002/96/EC  Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas être éliminé avec les déchets urbains.  Éliminer ce produit selon cette Directive permet de:  éviter  les  retombées  négatives  pour  l'environnement  et  la  santé  dérivant  d'une élimination incorrecte  récupérer les matériaux dans le but d'une économie importante en termes d'énergie et de ressources  Pour  obtenir  des  informations  complémentaires  concernant  l'élimination,  veuillez  contacter  le fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site Web www.mobile.datalogic.com.    Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE  Al final  de su vida  útil, el producto marcado con un  simbolo de contenedor de bassura móvil tachado no debe eliminarse junto a los desechos urbanos.  Eliminar este producto de accuerdo con la Directiva permite de:  evitar posibles consecuencias negativas para el medio ambiente y la salud derivadas de una eliminación inadecuada  recuperar los materiales obteniendo así un ahorro importante de energía y recursos  Para  obtener  una  información  más  detallada  sobre  la  eliminación,  por  favor,  póngase  en contacto  con  el  proveedor  donde  lo  compró  o  consultar  la  sección  dedicada  en  el  Web  site www.mobile.datalogic.com.    Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen Kommission  Am  Ende  des  Gerätelebenszyklus  darf  das  Produkt  nicht  über  den  städtischen  Hausmüll entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich.   Beseitigung des Produkts entsprechend der Richtlinie:  verhindert negative Auswirkungen für die Umwelt und die Gesundheit der Menschen  ermöglicht  die  Wiederverwendung  der  Materialien  und  spart  somit  Energie  und Resourcen  Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkt  erworben  haben,  oder  besuchen  sie  unsere  Hompage  unter www.mobile.datalogic.com.

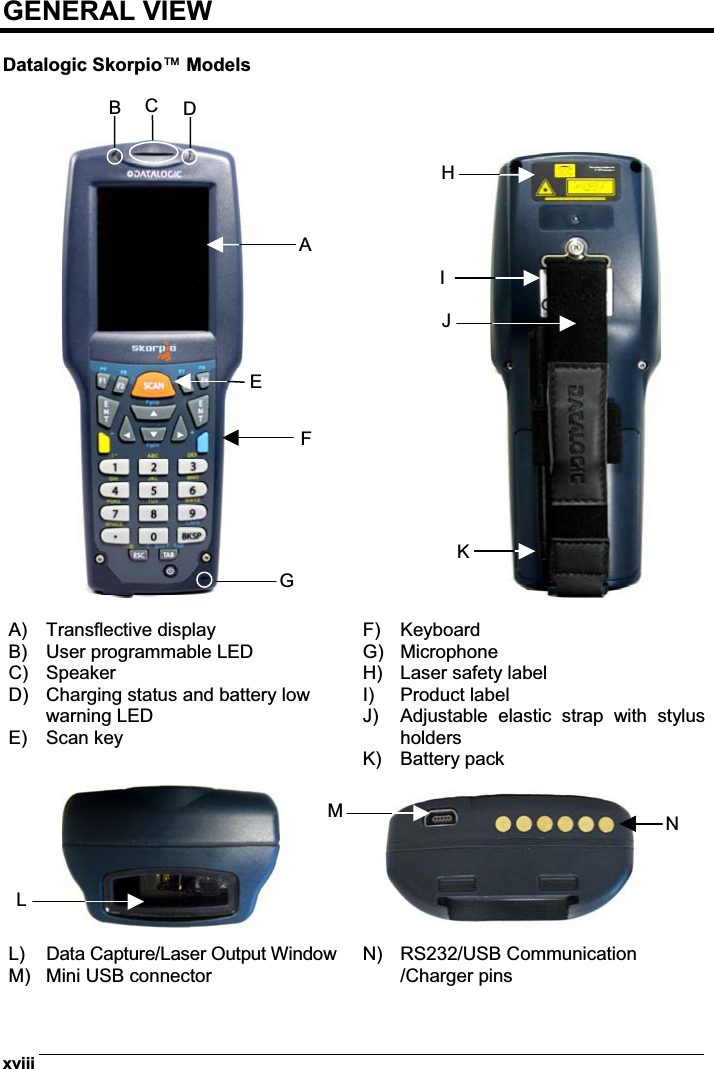

 xviii GENERAL VIEW  Datalogic Skorpio™ Models         A)  Transflective display B)  User programmable LED C)  Speaker D)  Charging status and battery low warning LED E)  Scan key F)  Keyboard G)  Microphone H)  Laser safety label I)  Product label J)  Adjustable  elastic  strap  with  stylus holders K)  Battery pack                         L)  Data Capture/Laser Output Window M)  Mini USB connector N)  RS232/USB Communication /Charger pins HIJKL MN B AC  D EFG

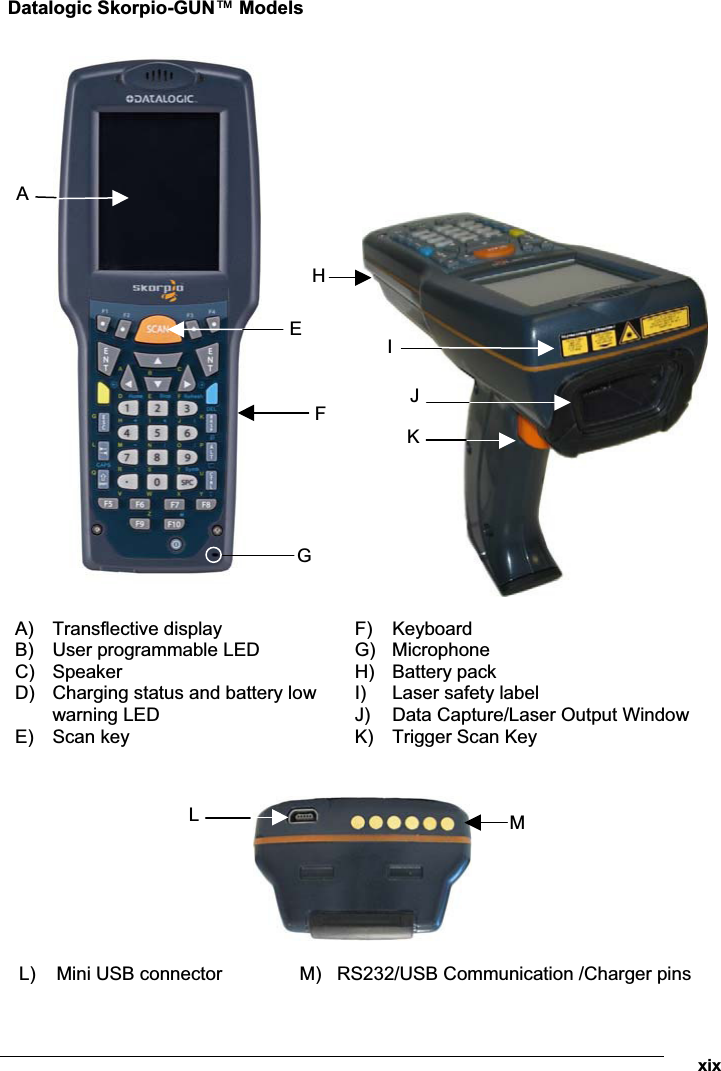

 xixDatalogic Skorpio-GUN™ Models      A)  Transflective display B)  User programmable LED C)  Speaker D)  Charging status and battery low warning LED E)  Scan key F)  Keyboard G)  Microphone H)  Battery pack I)  Laser safety label J)  Data Capture/Laser Output Window K)  Trigger Scan Key     L)  Mini USB connector  M)  RS232/USB Communication /Charger pins  L  MIKHJA EFG
 xx

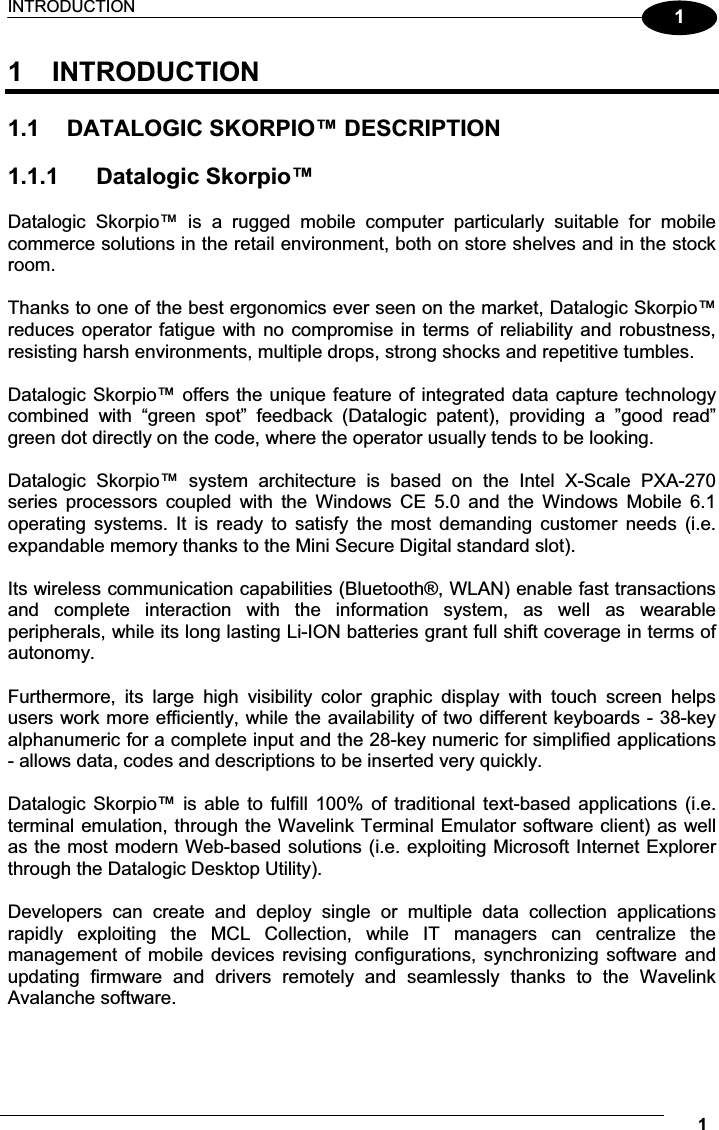

INTRODUCTION 111  INTRODUCTION  1.1  DATALOGIC SKORPIO™ DESCRIPTION  1.1.1  Datalogic Skorpio™  Datalogic  Skorpio™  is  a  rugged  mobile  computer  particularly  suitable  for  mobile commerce solutions in the retail environment, both on store shelves and in the stock room.  Thanks to one of the best ergonomics ever seen on the market, Datalogic Skorpio™ reduces operator fatigue with no compromise in terms of reliability and robustness, resisting harsh environments, multiple drops, strong shocks and repetitive tumbles.  Datalogic Skorpio™ offers the unique feature of integrated data capture technology combined  with  “green  spot”  feedback  (Datalogic  patent),  providing  a  ”good  read” green dot directly on the code, where the operator usually tends to be looking.  Datalogic  Skorpio™  system  architecture  is  based  on  the  Intel  X-Scale  PXA-270 series  processors  coupled  with  the  Windows  CE  5.0  and  the  Windows  Mobile  6.1 operating  systems.  It  is  ready  to  satisfy  the  most  demanding  customer  needs  (i.e. expandable memory thanks to the Mini Secure Digital standard slot).  Its wireless communication capabilities (Bluetooth®, WLAN) enable fast transactions and  complete  interaction  with  the  information  system,  as  well  as  wearable peripherals, while its long lasting Li-ION batteries grant full shift coverage in terms of autonomy.  Furthermore,  its  large  high  visibility  color  graphic  display  with  touch  screen  helps users work more efficiently, while the availability of two different keyboards - 38-key alphanumeric for a complete input and the 28-key numeric for simplified applications - allows data, codes and descriptions to be inserted very quickly.  Datalogic Skorpio™ is able to fulfill 100%  of traditional text-based  applications (i.e. terminal emulation, through the Wavelink Terminal Emulator software client) as well as the most modern Web-based solutions (i.e. exploiting Microsoft Internet Explorer through the Datalogic Desktop Utility).  Developers  can  create  and  deploy  single  or  multiple  data  collection  applications rapidly  exploiting  the  MCL  Collection,  while  IT  managers  can  centralize  the management of mobile  devices  revising configurations, synchronizing  software and updating  firmware  and  drivers  remotely  and  seamlessly  thanks  to  the  Wavelink Avalanche software.
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 21Datalogic  Skorpio™  offers retailers  the  best  mobile  commerce  solution  to  gain  the greatest benefit in the least time for those “selling and serving on the move”!   1.1.2  Datalogic Skorpio-GUN™  Datalogic  Skorpio-GUN™  is  a  compact,  lightweight  and  robust  pistol  grip  mobile computer,  particularly  suitable  for  warehousing  solutions  and  bar  code  scanning intensive applications, especially in the retail environment.  Datalogic  Skorpio-GUN™  does  not  compromise  in  reliability  and  ruggedness.  It  is designed  for  use  in  hostile  environments  and  can  resist  multiple  drops,  repeated knocks and accidental bumps.  Excellent  ergonomics  and  lightweight  make  the  operator’s  job  less  tiring,  while  its long lasting Li-ION batteries grant full shift coverage in terms of autonomy.  The powerful laser reader combined with a “green spot” (Datalogic patent) for good read feedback directly on the code simplify the  operator’s activities, while the Long Range  reading  option  allows  codes  to  be  read  from  near  contact  to  several  meter distances.  Datalogic Skorpio-GUN™ system architecture is based on the Intel X-Scale PXA-270 series  processors  coupled  with  the  Windows  CE  5.0  and  the  Windows  Mobile  6.1 operating systems.  Its wireless communication capabilities (Bluetooth®, WLAN certified IEEE 802.11 b/g) enable fast transactions and complete interaction with information systems including the newest RF security protocols such as WPA™ and WPA2™.  Datalogic Skorpio-GUN™ large high visibility color graphic display with touch screen helps users  work  more  efficiently,  while the availability  of two different  keyboards  - 38-key  alphanumeric  for  a  complete  input  and  the  28-key  numeric  for  simplified applications - allows data, codes and descriptions to be inserted very quickly.  Datalogic Skorpio™ is able to fulfill 100%  of traditional text-based  applications (i.e. terminal emulation, through the Wavelink Terminal Emulator software client) as well as the most modern Web-based solutions (i.e. exploiting Microsoft Internet Explorer through the Datalogic Desktop Utility).  Developers  can  create  and  deploy  single  or  multiple  data  collection  applications rapidly exploiting MCL Collection™, while IT managers can centralize mobile device management  by  revising  configurations,  synchronizing  software  and  updating firmware  and  drivers  remotely  and  seamlessly  thanks  to  the  Wavelink  Avalanche software.
INTRODUCTION 31Datalogic Skorpio-GUN™ responds to market  needs for a device with a pistol grip, which is light  and  well balanced,  compact  and robust,  with  the  latest generation  of hardware and software and wireless communication.   1.2  AVAILABLE MODELS  The brand new Datalogic Skorpio™ is available in different models depending on the options it is equipped with. Options are listed below: x communication options: IEEE 802.11b/g, Bluetooth® x capture  options:  Miniature  Laser  Modules,  Long  Range  Modules  (Datalogic Skorpio-GUN™ models only)  For  further  details  about  the  Datalogic  Skorpio™  models  refer  to  the  web  site: http://www.mobile.datalogic.com.   1.3  PACKAGE CONTENTS  The Datalogic Skorpio™ package contains:  -  1 Datalogic Skorpio™ mobile computer -  1 CD-ROM Datalogic SDK -  1 CD-ROM Getting Started Disk only for Windows Mobile -  1 stylus -  1 user’s manual -  1 rechargeable battery pack -  1 elastic strap with stylus holder -  1 belt clip -  1 belt clip pivot  The Datalogic Skorpio-GUN™ package contains:  -  1 Datalogic Skorpio-GUN™ mobile computer -  1 CD-ROM Datalogic SDK -  1 CD-ROM Getting Started Disk only for Windows Mobile -  1 stylus -  1 stylus cord (small) -  1 wrist strap -  1 user’s manual -  1 rechargeable battery pack  Other  accessories  necessary  for  the  Datalogic  Skorpio™  connection  to  the  host computer and to the network, must be ordered separately: the cradle, power supply, and one or more connection cables.
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 41 Remove all the components from their packaging; check their integrity and congruity with the packing documents.   CAUTION Keep the  original packaging  for use  when  sending products  to the technical  assistance  center.  Damage  caused  by  improper packaging is not covered under the warranty.   NOTERechargeable  battery  packs  are  not  initially  charged.  Therefore  the first operation to perform is to charge them. See paragraph 4.1.

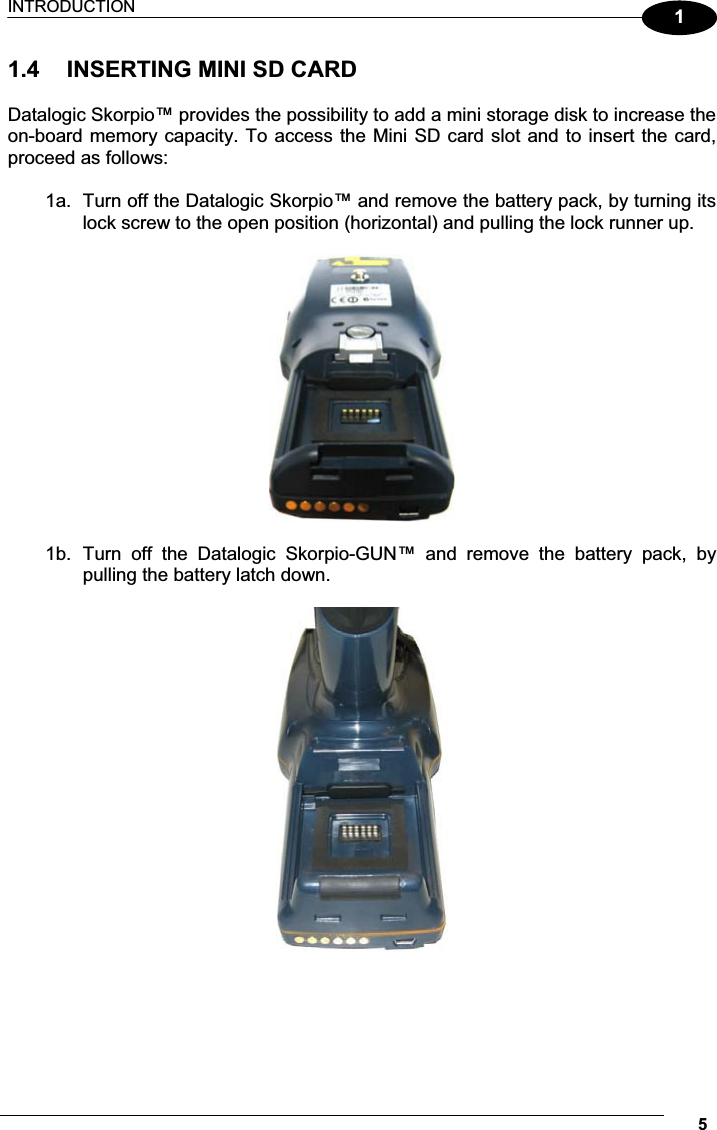

INTRODUCTION 511.4  INSERTING MINI SD CARD  Datalogic Skorpio™ provides the possibility to add a mini storage disk to increase the on-board memory capacity. To access the Mini SD card slot and to insert the card, proceed as follows:  1a.  Turn off the Datalogic Skorpio™ and remove the battery pack, by turning its lock screw to the open position (horizontal) and pulling the lock runner up.    1b.  Turn  off  the  Datalogic  Skorpio-GUN™  and  remove  the  battery  pack,  by pulling the battery latch down.

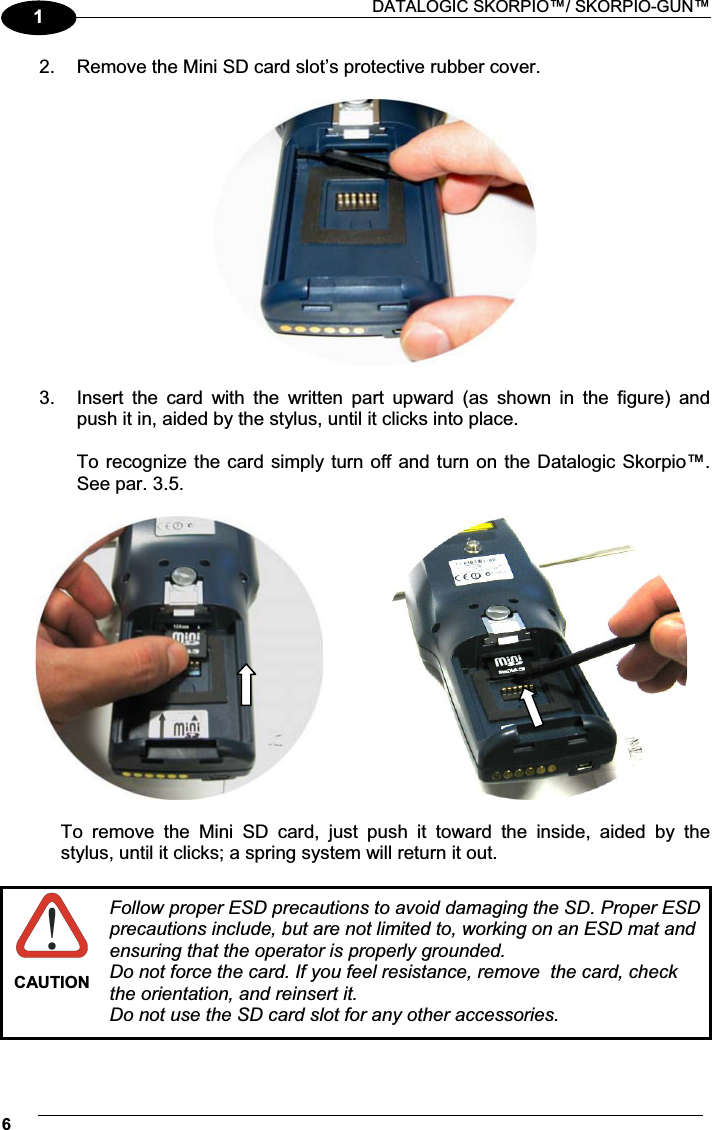

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 612.  Remove the Mini SD card slot’s protective rubber cover.    3.  Insert  the  card  with  the  written  part  upward  (as  shown  in  the  figure)  and push it in, aided by the stylus, until it clicks into place.  To recognize the card simply turn off and turn on the Datalogic Skorpio™. See par. 3.5.       To  remove  the  Mini  SD  card,  just  push  it  toward  the  inside,  aided  by  the stylus, until it clicks; a spring system will return it out.   CAUTION Follow proper ESD precautions to avoid damaging the SD. Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.  Do not force the card. If you feel resistance, remove  the card, check the orientation, and reinsert it.   Do not use the SD card slot for any other accessories.
INTRODUCTION 711.5  USING THE BELT CLIP  To use the belt clip (in Datalogic Skorpio™ models only), proceed as follows:  1.  Remove the elastic strap and unscrew the strap pivot.         2.  Screw the belt clip pivot on the terminal by using the fixing screw.

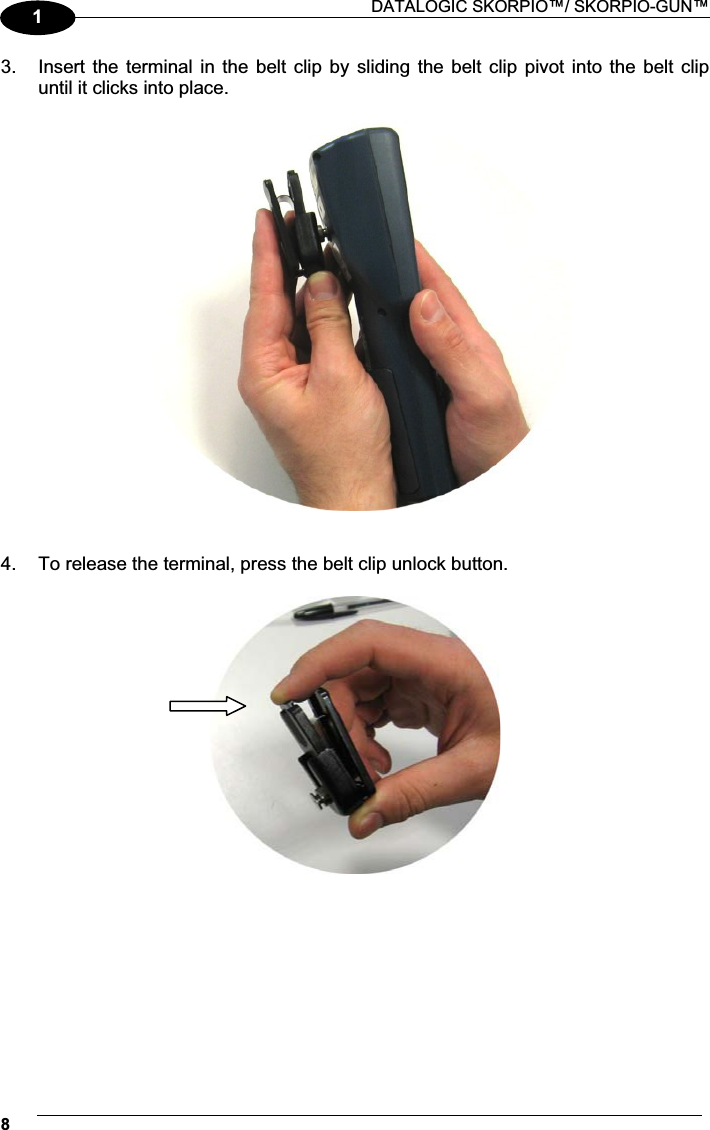

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 813.  Insert the  terminal  in the belt clip by  sliding  the  belt  clip  pivot  into  the  belt clip until it clicks into place.     4.  To release the terminal, press the belt clip unlock button.
INTRODUCTION 911.6  STYLUS HOLDER  The Stylus holder is located  in  the  handle  of  the  Datalogic Skorpio-GUN™ models only:      1.7  ATTACHING THE WRIST STRAP  Attach  the  Wrist  Strap  (in  Datalogic  Skorpio-GUN™  models  only)  as  shown  in  the figures below:    1    2     3
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 1011.8  ACCESSORIES   Cradles 94A151117 Datalogic Skorpio™ Single  Cradle Desk for USB and RS232 communication with spare battery charger 94A151118 Datalogic Skorpio™ Single Cradle Ethernet for USB and Ethernet connection with spare battery charger 94A151119 Datalogic Skorpio™ Single Cradle Modem for RS232 and Modem connection 94A151112 Datalogic Skorpio™ Ethernet Multi Cradle for Ethernet connection 94A151091 Datalogic Skorpio™/F-Color Multiple Cradle for RS232 communication only   Charger94A151114 Datalogic Skorpio™ Multi-Battery Pack Charger (4 slots)   Batteries 94ACC1309  Datalogic  Skorpio™  Standard  Battery  Pack  (Li-Ion  battery  pack  2100 mAh@3.7 V) 94ACC1329  Datalogic  Skorpio-GUN™  Standard  Battery  PacK  (Li-Ion  battery  pack  3300 mAh@3.7 V)    Power Supply 94ACC1312 PG5-20 MiniUSB AC/DC Power Supply (without Cord) 94ACC1322 PG5-20 MiniUSB AC/DC Power Supply EU KIT 94ACC4595  FPS18  Power  Supply  without  power  cord  for  Single  Cradle  Desk,  for MBC8600 Multi-Battery Charger 94ACC1150 Power Cord EU 3-pin (5pcs)   Cables 94A051016 CAB-421 USB Type A-B Mini Straight 94A051017 CAB-381 USB Type A-B Straight 94A051024 CAB USB Type Standard A (4 pin F) to Mini A (5 pin M)   Various 94ACC1311 Datalogic Skorpio™ Functional Case 94ACC1301 Stylus Pen (20 pcs)   NOTEUse only a Datalogic Mobile-approved power supply and cables. Use of  an  alternative  power  supply  will  invalidate  any  approval  given  to this device and may be dangerous.

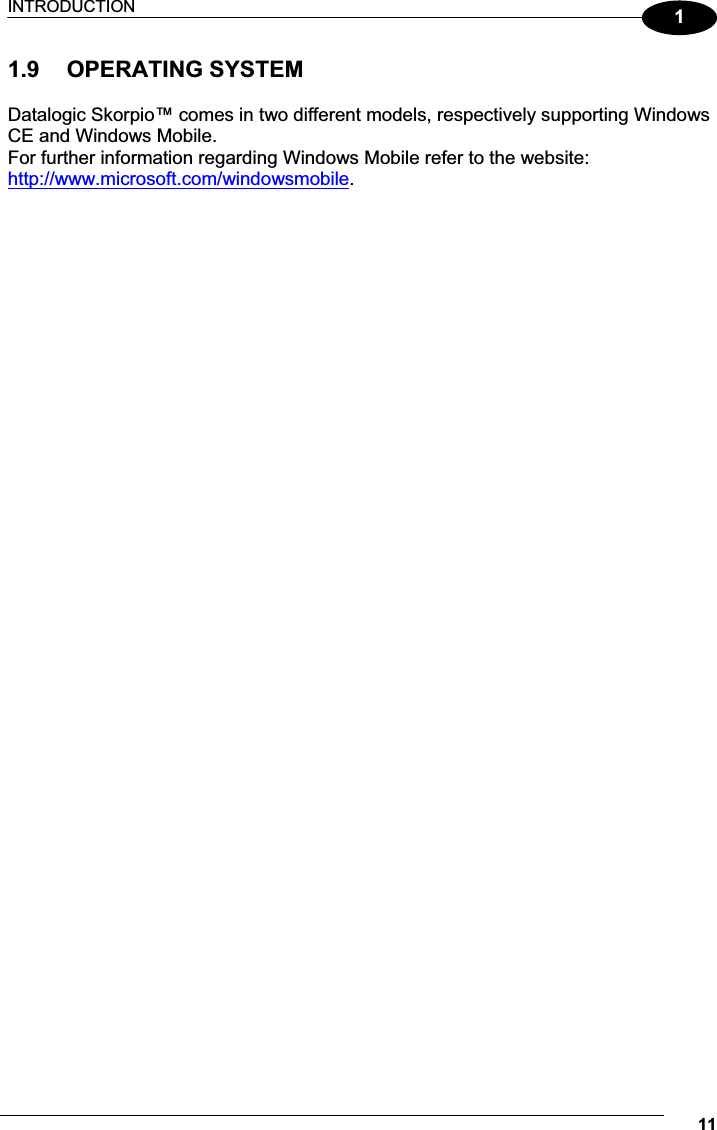

INTRODUCTION 1111.9  OPERATING SYSTEM  Datalogic Skorpio™ comes in two different models, respectively supporting Windows CE and Windows Mobile. For further information regarding Windows Mobile refer to the website: http://www.microsoft.com/windowsmobile.

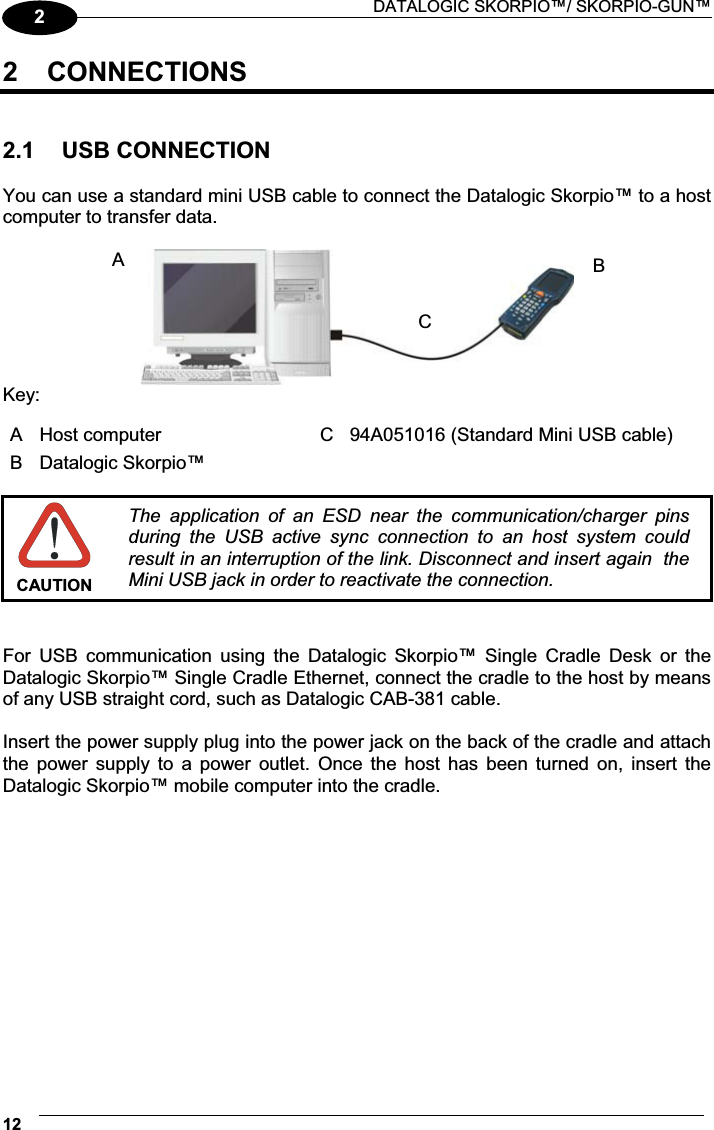

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 1222  CONNECTIONS   2.1  USB CONNECTION  You can use a standard mini USB cable to connect the Datalogic Skorpio™ to a host computer to transfer data.   Key: A  Host computer  C  94A051016 (Standard Mini USB cable)  B  Datalogic Skorpio™     CAUTION The  application  of  an  ESD  near  the  communication/charger  pins during  the  USB  active  sync  connection  to  an  host  system  could result in an interruption of the link. Disconnect and insert again  the Mini USB jack in order to reactivate the connection.     For  USB  communication  using  the  Datalogic  Skorpio™  Single  Cradle  Desk  or  the Datalogic Skorpio™ Single Cradle Ethernet, connect the cradle to the host by means of any USB straight cord, such as Datalogic CAB-381 cable.  Insert the power supply plug into the power jack on the back of the cradle and attach the  power  supply  to  a  power  outlet.  Once  the  host  has  been  turned  on,  insert  the Datalogic Skorpio™ mobile computer into the cradle. A BC
CONNECTIONS 132   Key: A  Host computer  C  Datalogic Skorpio™ Single Cradle Desk/        Datalogic Skorpio™ SIngle Cradle        Ethernet B  94A051017 CAB-381 USB type A-B Straight Cable D  Power Supply*  * Recommended Power Supply: FPS18 AC/DC Power Supply (94ACC4595).   2.2  CONNECTION TO USB PERIPHERALS  You can use a standard A (4 pin female) to mini A (5 pin male) USB cable to connect the Datalogic Skorpio™ to a keyboard or a memory. For all these devices maximum current withdrawal must be below 100mA.   Key: A  Keyboard with USB interface  C  94A051024 (Standard A  to Mini A USB        cable) B  Datalogic Skorpio™     BDCAABC
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 142 Key: A  Memory with USB interface  C  94A051024 (Standard A to Mini A USB           cable) B  Datalogic Skorpio™     NOTEDatalogic Skorpio™ works with most of mentioned USB peripherals. In any  case,  we  can’t  guarantee  good  operations  with  all  devices available on market place.   2.3  RS232 CONNECTION  The  Datalogic  Skorpio  Single  Cradle  Desk,  the  Datalogic  Skorpio  Single  Cradle Modem and the Datalogic Skorpio/F-Color Multiple Cradle can be connected to the Host by cable 94A054000 for 9-pin connections. The RJ45 connector of the desired cable must be connected to the RS232 port of the cradle.  Insert the power supply plug into the power jack on the base of the cradle and attach the power supply to a power outlet.  Once the Host has been turned on, insert the Datalogic Skorpio-GUN™ terminal into the cradle. A  BC

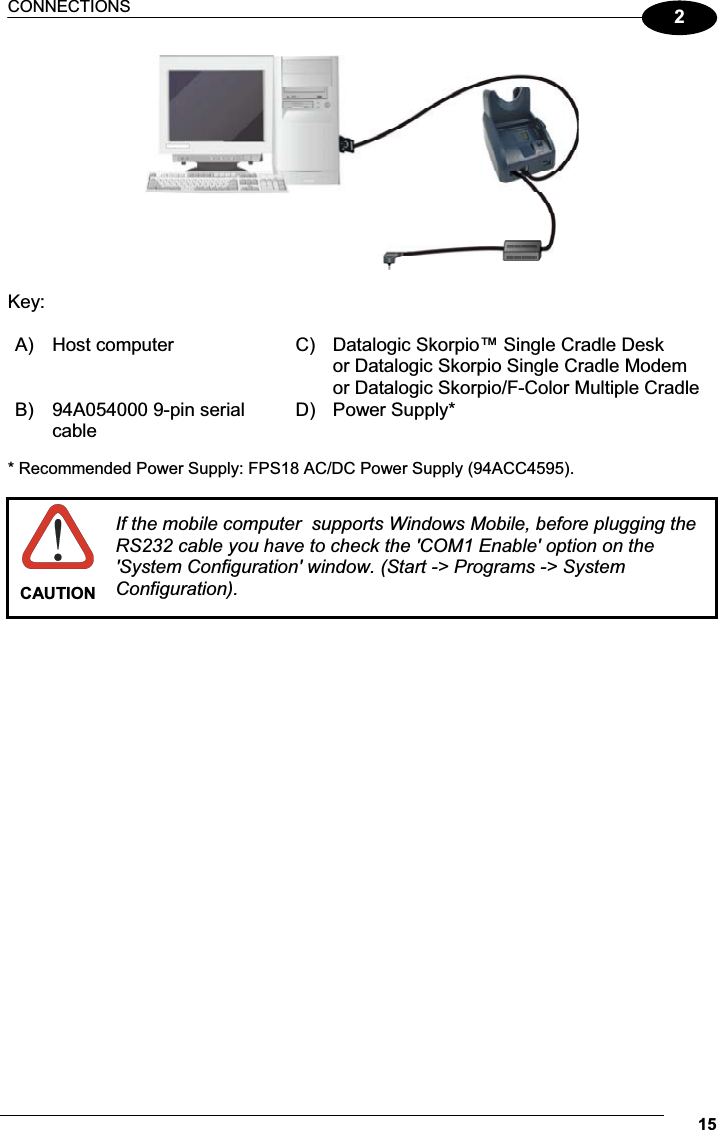

CONNECTIONS 152  Key:  A)  Host computer  C)  Datalogic Skorpio™ Single Cradle Desk   or Datalogic Skorpio Single Cradle Modem       or Datalogic Skorpio/F-Color Multiple Cradle B)  94A054000 9-pin serial   cable D)  Power Supply*  * Recommended Power Supply: FPS18 AC/DC Power Supply (94ACC4595).   CAUTION If the mobile computer  supports Windows Mobile, before plugging the RS232 cable you have to check the 'COM1 Enable' option on the 'System Configuration' window. (Start -> Programs -> System Configuration).
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 1622.4 MODEM CONNECTION  The  Datalogic  Skorpio™  Single  Cradle  Modem  has  an  integrated  modem  and provides a modem connector, which can be used with an RJ11 connector. It can be connected to a telephone line to transfer data to a Host.   Key: A)  Datalogic Skorpio™ Single Cradle Modem  C)  Power Supply* B)  Phone line to remote Hos    * Recommended Power Supply: FPS18 AC/DC Power Supply (94ACC4595). It is mandatory to use an appropriate custom software application that calls the DLDEVICE_SetCradleModem  function  in  the  SDK  in  order  to  use  the  cradle integrated modem port. Refer to the Datalogic Skorpio™ Single Cradle Modem instructions for further details.   2.5  ETHERNET CONNECTION  The  Datalogic  Skorpio™  Single  Cradle  Ethernet  and  the  Datalogic  Skorpio™ Ethernet Multi Cradle provide an Ethernet connection. Connect the Ethernet cradle to an Ethernet hub or switch. Connect the power jack to power supply*.   Key: A)  Datalogic Skorpio™ Single Cradle Ethernet/ Datalogic Skorpio™ Ethernet Multi Cradle C)   Power Supply* B)  Ethernet hub    * Recommended Power Supply: FPS18 AC/DC Power Supply (94ACC4595). Refer to the Datalogic Skorpio™ Single Cradle Ethernet or to the Datalogic Skorpio™ Ethernet Multi Cradle instructions for further details. AC  BABC

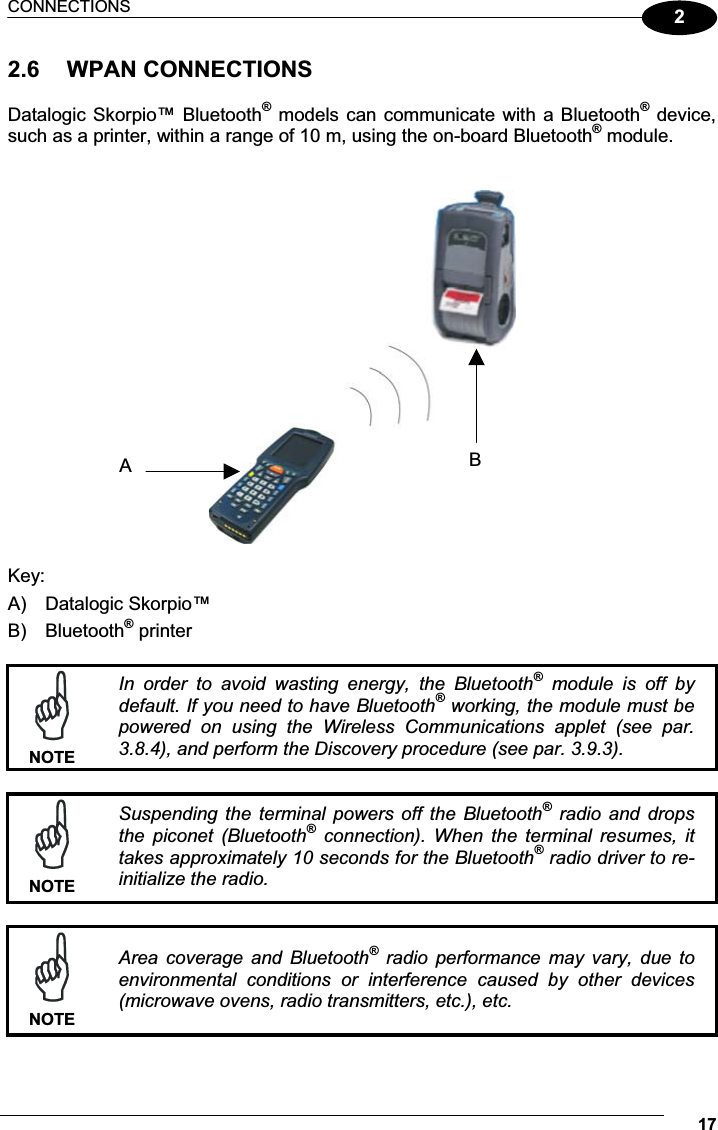

CONNECTIONS 1722.6  WPAN CONNECTIONS  Datalogic Skorpio™ Bluetooth® models can communicate with a Bluetooth® device, such as a printer, within a range of 10 m, using the on-board Bluetooth® module.     Key: A)  Datalogic Skorpio™ B)  Bluetooth® printer   NOTEIn  order  to  avoid  wasting  energy,  the  Bluetooth®  module  is  off  by default. If you need to have Bluetooth® working, the module must be powered  on  using  the  Wireless  Communications  applet  (see  par. 3.8.4), and perform the Discovery procedure (see par. 3.9.3).   NOTESuspending  the  terminal  powers  off  the  Bluetooth®  radio  and  drops the  piconet  (Bluetooth®  connection).  When  the  terminal  resumes,  it takes approximately 10 seconds for the Bluetooth® radio driver to re-initialize the radio.   NOTEArea  coverage  and  Bluetooth®  radio  performance  may  vary,  due  to environmental  conditions  or  interference  caused  by  other  devices (microwave ovens, radio transmitters, etc.), etc.  BA

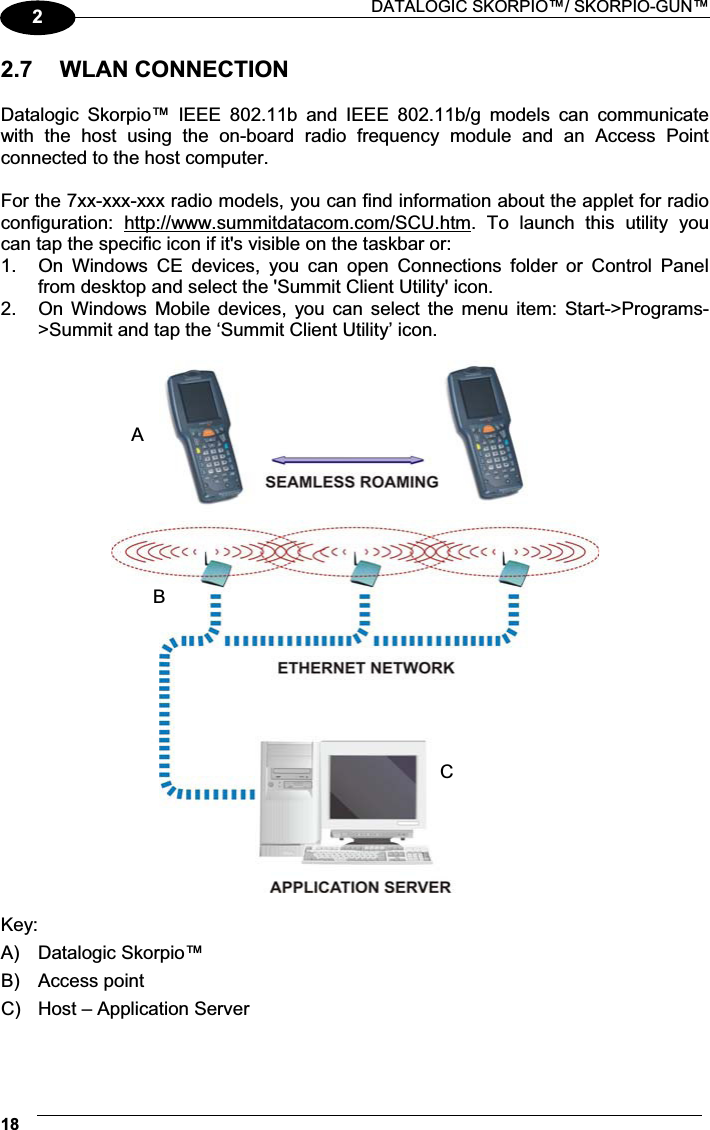

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 1822.7  WLAN CONNECTION  Datalogic  Skorpio™  IEEE  802.11b  and  IEEE  802.11b/g  models  can  communicate with  the  host  using  the  on-board  radio  frequency  module  and  an  Access  Point connected to the host computer.  For the 7xx-xxx-xxx radio models, you can find information about the applet for radio configuration:  http://www.summitdatacom.com/SCU.htm.  To  launch  this  utility  you can tap the specific icon if it's visible on the taskbar or: 1.  On  Windows  CE  devices,  you  can  open  Connections  folder  or  Control  Panel from desktop and select the 'Summit Client Utility' icon. 2.  On Windows  Mobile devices,  you can  select  the menu  item:  Start->Programs->Summit and tap the ‘Summit Client Utility’ icon.    Key: A)  Datalogic Skorpio™ B)  Access point C)  Host – Application Server  A B C

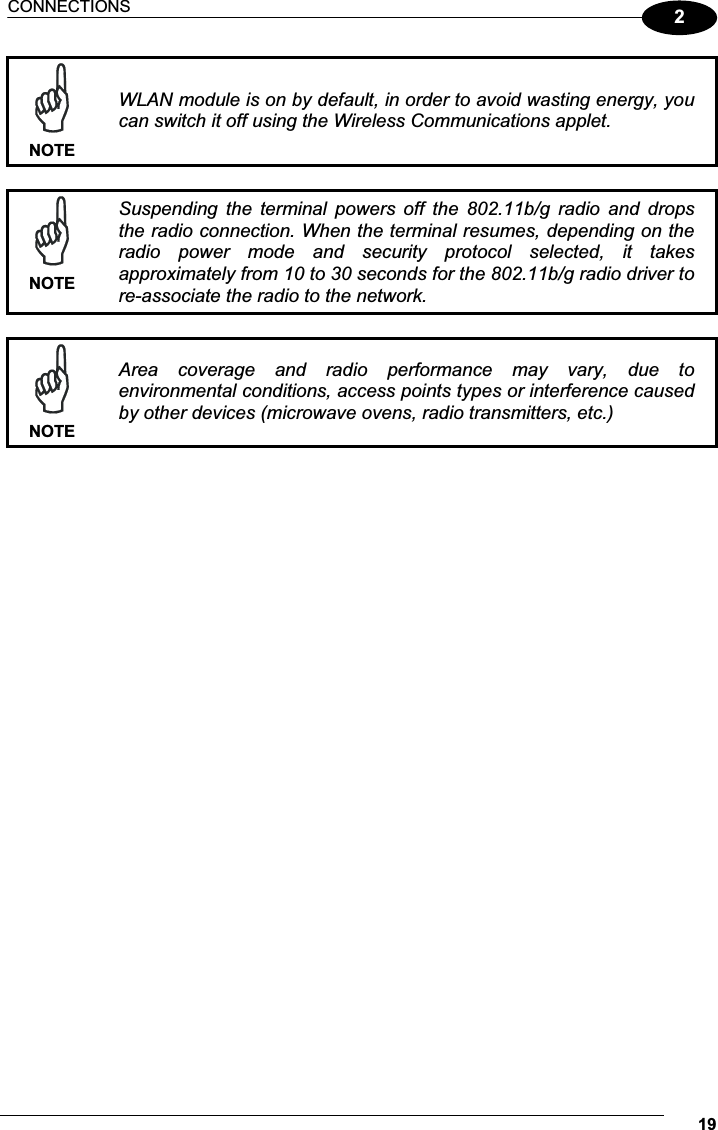

CONNECTIONS 192 NOTEWLAN module is on by default, in order to avoid wasting energy, you can switch it off using the Wireless Communications applet.    NOTESuspending  the  terminal  powers  off  the  802.11b/g  radio  and  drops the radio connection. When the terminal resumes, depending on the radio  power  mode  and  security  protocol  selected,  it  takes approximately from 10 to 30 seconds for the 802.11b/g radio driver to re-associate the radio to the network.   NOTEArea  coverage  and  radio  performance  may  vary,  due  to environmental conditions, access points types or interference caused by other devices (microwave ovens, radio transmitters, etc.)
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 2022.8  WIRELESS AND RADIO FREQUENCIES WARNINGS   WARNING Use  only  the  supplied  or  an  approved  replacement  antenna. Unauthorized  antennas,  modifications  or  attachments  could damage the product and may violate laws and regulations.  WARNING Most  modern  electronic  equipment  is  shielded  from  RF  signals. However, certain electronic equipment may not be shielded against the RF signals generated by Datalogic Skorpio™.  WARNING Datalogic  recommends  persons  with  pacemakers  or  other  medical devices  to  follow  the  same  recommendations  provided  by  Health Industry Manufacturers Associations for mobile phones. Persons with pacemakers: x Should ALWAYS  keep this  device more  than twenty five  (25) cm from their pacemaker and/or any other medical device; x Should not carry this device in a breast pocket; x Should  keep  the  device  at  the  opposite  side  of  the  pacemaker and/or any other medical device; x Should turn this device OFF or move it immediately AWAY  if there is any reason to suspect that interference is taking place. x Should  ALWAYS  read  pacemaker  or  any  other  medical  device guides or should consult the manufacturer of the medical device to determine if it is adequately shielded from external RF energy. In  case  of  doubt  concerning  the  use  of  wireless  devices  with  an implanted medical device, contact your doctor.  WARNING Turn this device OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may use equipment that could be sensitive to external RF energy.
CONNECTIONS 212WARNING RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or  its  representative  regarding  your  vehicle.  You  should  also consult the manufacturer of any equipment that has been added to your vehicle.  WARNING An  air  bag  inflates  with  great  force.  DO  NOT  place  objects, including either installed or portable wireless equipment, in the area over  the  air  bag  or  in  the  air  bag  deployment  area.  If  vehicle’s wireless equipment is improperly installed and the air bag  inflates, serious injury could result.  WARNING Turn  off  the  device  when  in  any  area  with  a  potentially  explosive atmosphere.  Observe  restrictions  and  follow  closely  any  laws, regulations, warnings and best practices on the use of radio equipment near  fuel  storage  areas  or  distribution  fuel  areas,  chemical  plants  or where some operation involves use of explosive materials. Do  not  store or  carry  flammable  liquids,  explosive  gases  or  materials with the device or its parts or accessories. Areas  with  a  potentially  explosive  atmosphere  are  often,  but  not always, clearly marked or showed. Sparks  in  such  areas  could  cause  an  explosion  or  fire,  resulting  in injury or even death.

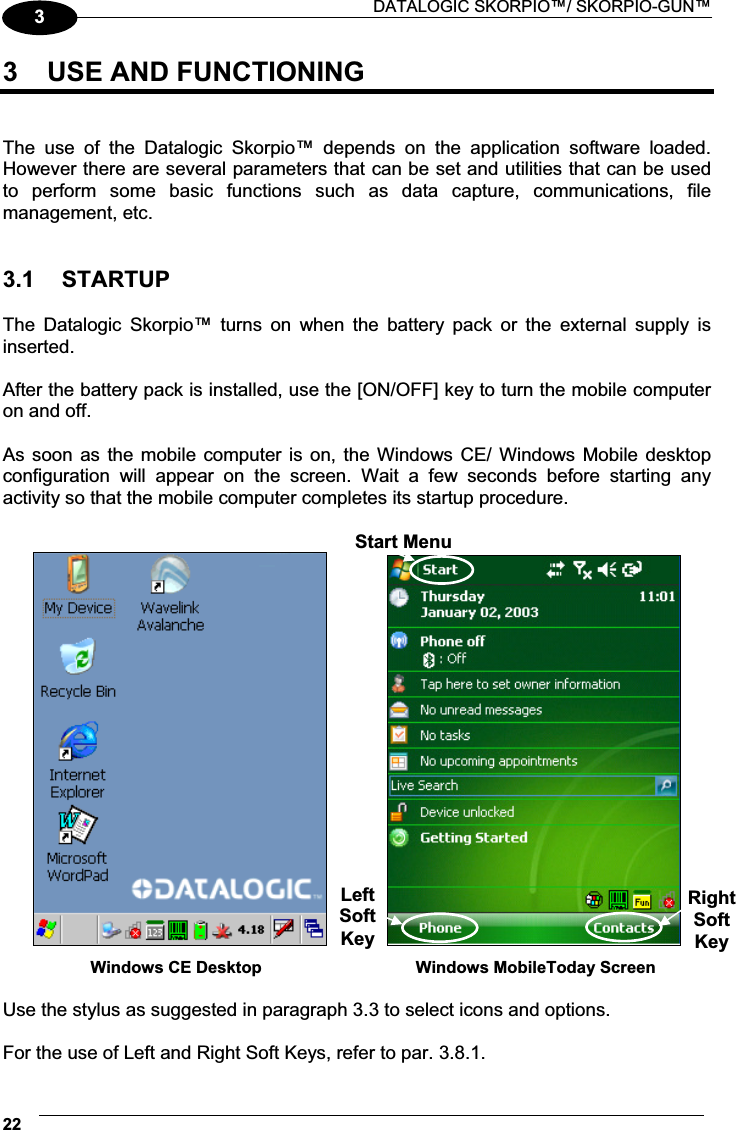

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 2233  USE AND FUNCTIONING   The  use  of  the  Datalogic  Skorpio™  depends  on  the  application  software  loaded. However there are several parameters that can be set and utilities that can be used to  perform  some  basic  functions  such  as  data  capture,  communications,  file management, etc.   3.1  STARTUP  The  Datalogic  Skorpio™  turns  on  when  the  battery  pack  or  the  external  supply  is inserted.  After the battery pack is installed, use the [ON/OFF] key to turn the mobile computer on and off.  As soon as  the  mobile computer is on, the Windows CE/  Windows Mobile desktop configuration  will  appear  on  the  screen.  Wait  a  few  seconds  before  starting  any activity so that the mobile computer completes its startup procedure.                  Windows CE Desktop         Windows MobileToday Screen  Use the stylus as suggested in paragraph 3.3 to select icons and options.  For the use of Left and Right Soft Keys, refer to par. 3.8.1. Start MenuRightSoftKey LeftSoftKey
USE AND FUNCTIONING 233The mobile computer goes into power-off (low power with display backlight off), when it is no longer used for more than a programmable timeout, which is  defined in the POWER  applet  of  the  Control  Panel.  In  this  mode  it  can  be  awakened  (resuming operation) by the [ON/OFF] key or SCAN key if enabled (see par. 3.8.1).   NOTEThe  mobile  computer  can  also  be  awakened  or  turned  off  by  the application program.

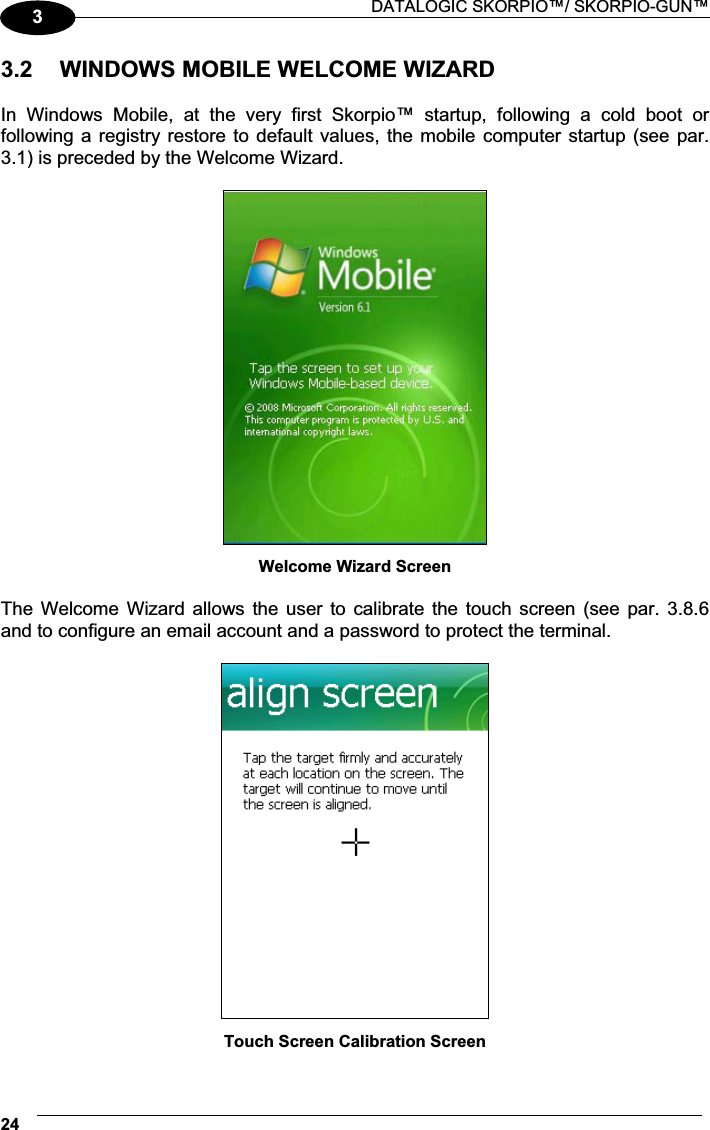

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 2433.2  WINDOWS MOBILE WELCOME WIZARD  In  Windows  Mobile,  at  the  very  first  Skorpio™  startup,  following  a  cold  boot  or following a  registry restore to default values, the mobile computer startup (see par. 3.1) is preceded by the Welcome Wizard.   Welcome Wizard Screen  The Welcome  Wizard  allows the user  to  calibrate the touch  screen  (see par. 3.8.6 and to configure an email account and a password to protect the terminal.   Touch Screen Calibration Screen

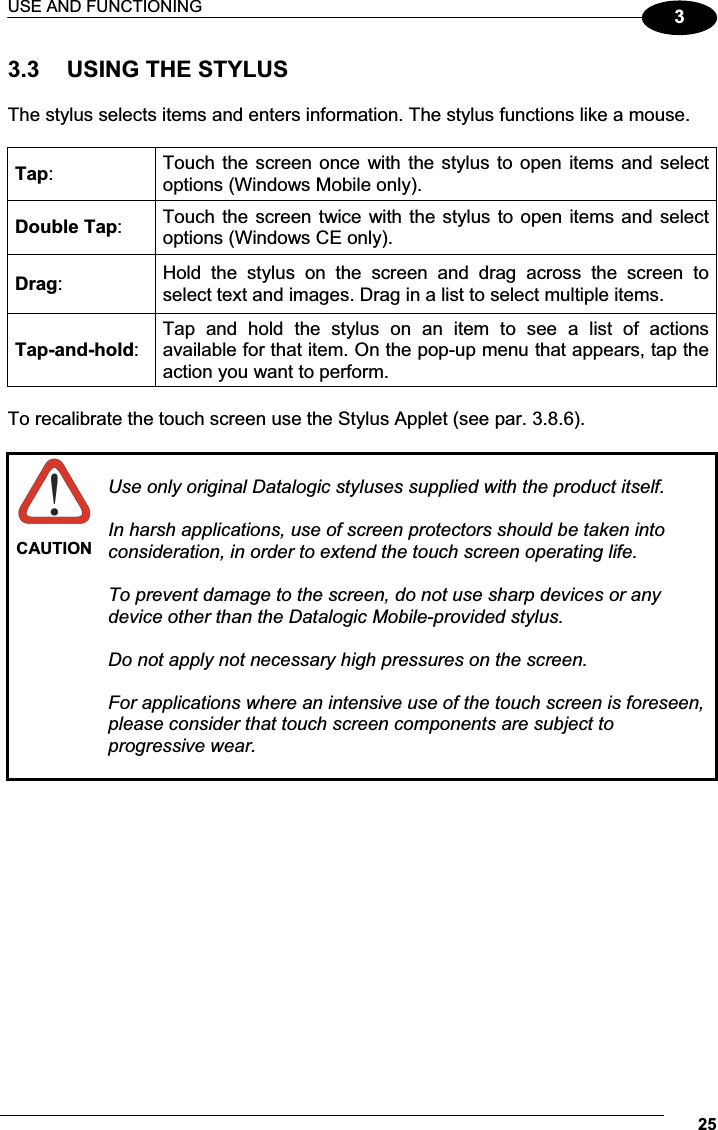

USE AND FUNCTIONING 2533.3  USING THE STYLUS  The stylus selects items and enters information. The stylus functions like a mouse.  Tap:  Touch the screen  once  with the stylus to open  items and select options (Windows Mobile only). Double Tap:  Touch the screen twice with the stylus to open items and select options (Windows CE only). Drag:  Hold  the  stylus  on  the  screen  and  drag  across  the  screen  to select text and images. Drag in a list to select multiple items. Tap-and-hold: Tap  and  hold  the  stylus  on  an  item  to  see  a  list  of  actions available for that item. On the pop-up menu that appears, tap the action you want to perform.  To recalibrate the touch screen use the Stylus Applet (see par. 3.8.6).   CAUTION Use only original Datalogic styluses supplied with the product itself. In harsh applications, use of screen protectors should be taken into consideration, in order to extend the touch screen operating life.  To prevent damage to the screen, do not use sharp devices or any device other than the Datalogic Mobile-provided stylus. Do not apply not necessary high pressures on the screen. For applications where an intensive use of the touch screen is foreseen, please consider that touch screen components are subject to progressive wear.

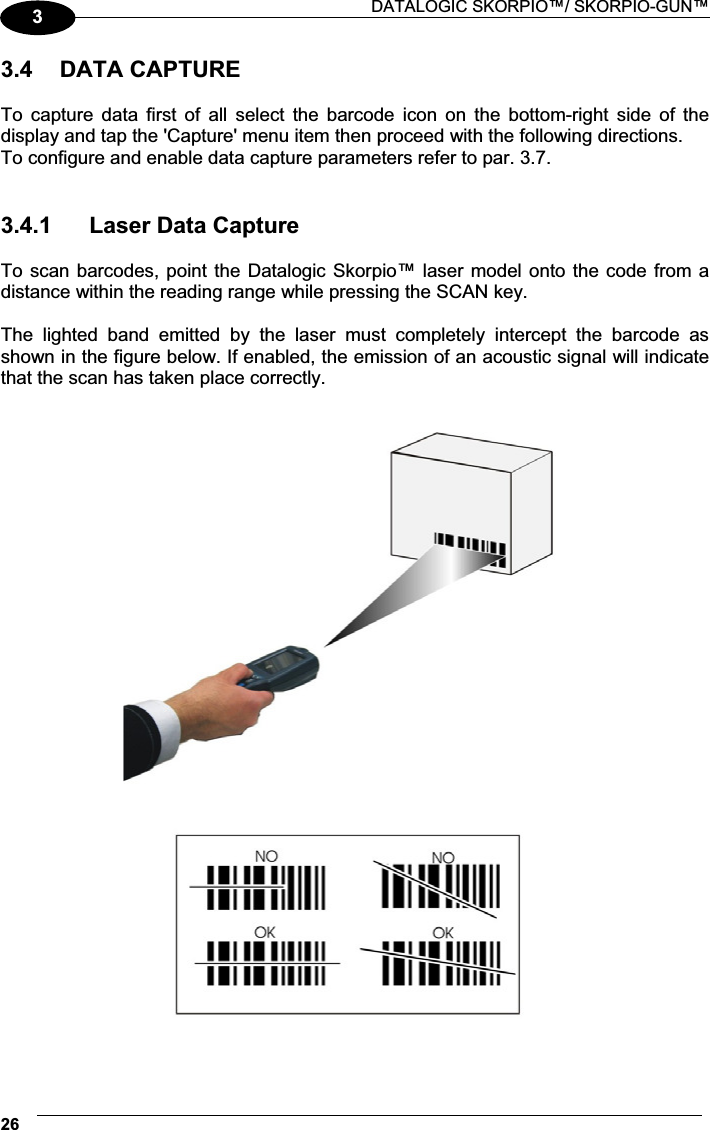

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 2633.4  DATA CAPTURE  To  capture  data  first  of  all  select  the  barcode  icon  on  the  bottom-right  side  of  the display and tap the 'Capture' menu item then proceed with the following directions. To configure and enable data capture parameters refer to par. 3.7.   3.4.1  Laser Data Capture  To scan barcodes, point the Datalogic Skorpio™ laser model onto the code from a distance within the reading range while pressing the SCAN key.  The  lighted  band  emitted  by  the  laser  must  completely  intercept  the  barcode  as shown in the figure below. If enabled, the emission of an acoustic signal will indicate that the scan has taken place correctly.

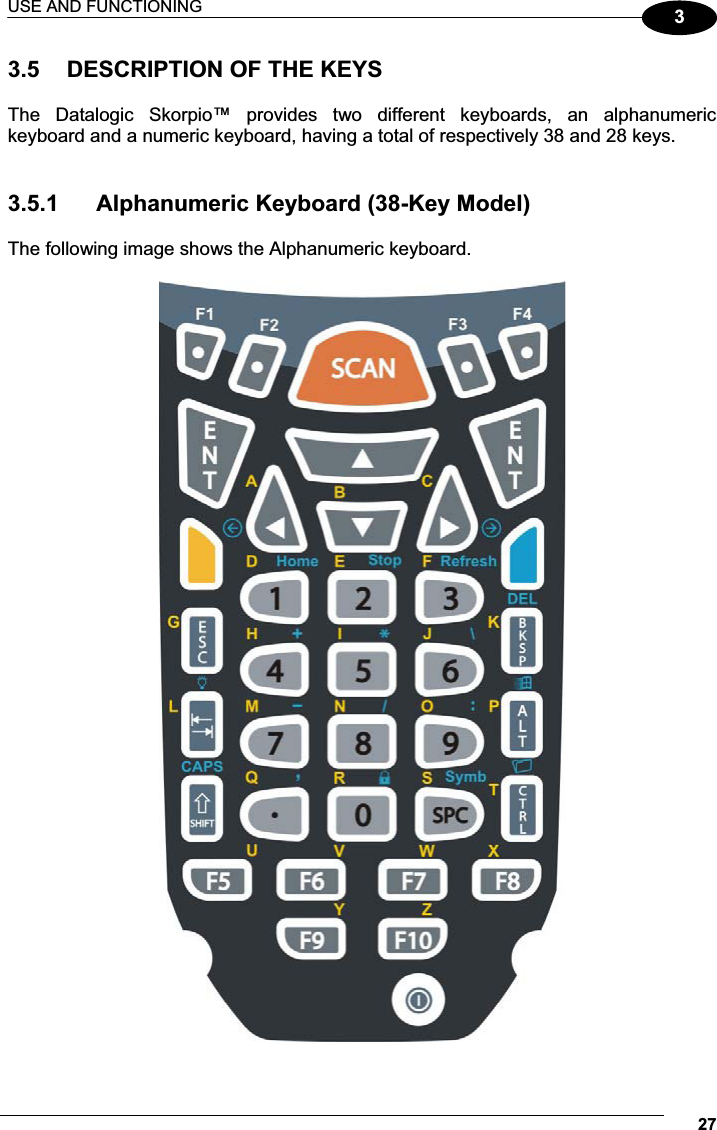

USE AND FUNCTIONING 2733.5  DESCRIPTION OF THE KEYS  The  Datalogic  Skorpio™  provides  two  different  keyboards,  an  alphanumeric keyboard and a numeric keyboard, having a total of respectively 38 and 28 keys.   3.5.1  Alphanumeric Keyboard (38-Key Model)  The following image shows the Alphanumeric keyboard.

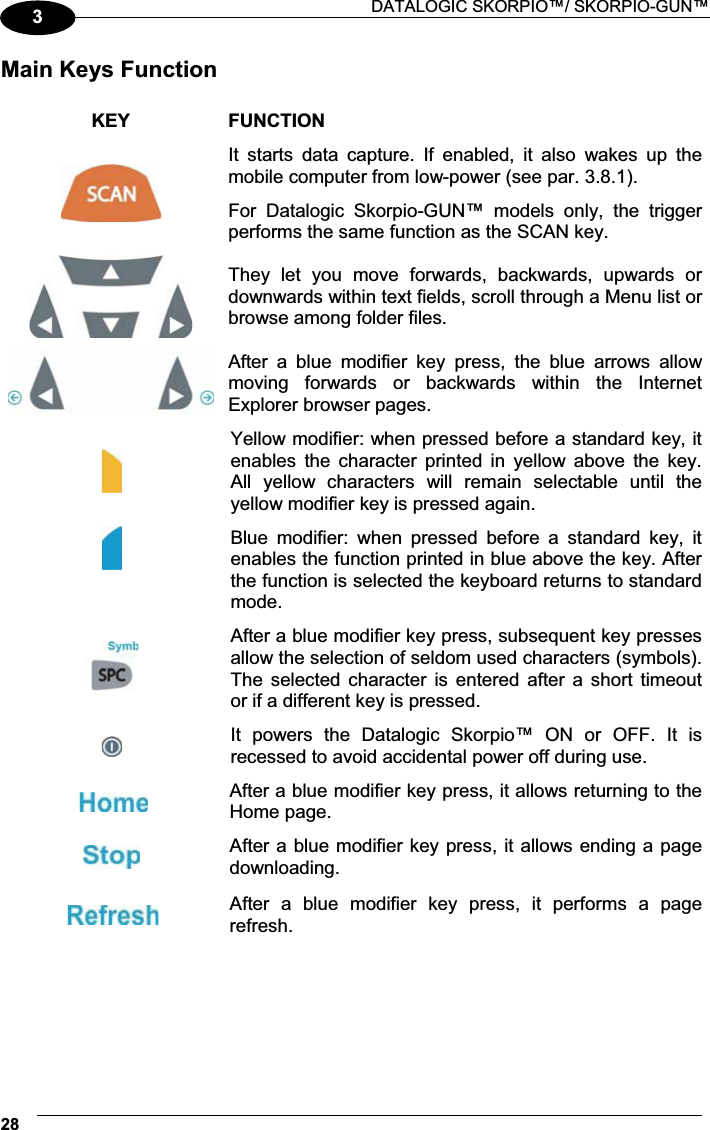

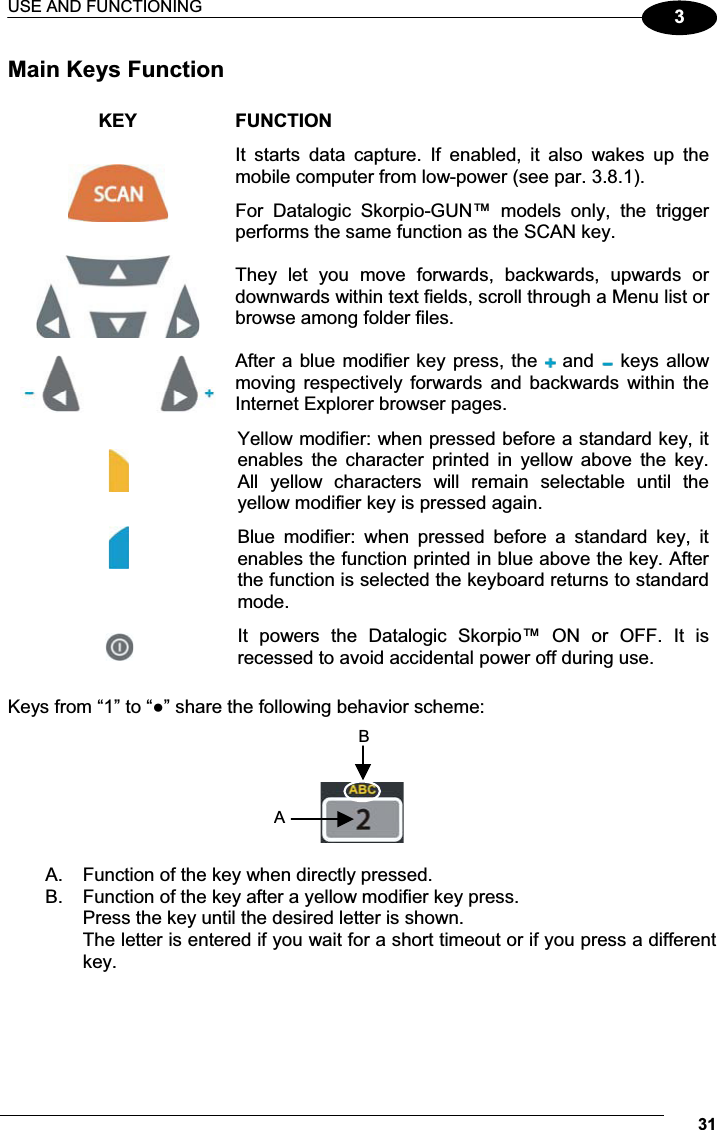

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 283Main Keys Function  KEY  FUNCTION  It  starts  data  capture.  If  enabled,  it  also  wakes  up  the mobile computer from low-power (see par. 3.8.1). For  Datalogic  Skorpio-GUN™  models  only,  the  trigger performs the same function as the SCAN key.  They  let  you  move  forwards,  backwards,  upwards  or downwards within text fields, scroll through a Menu list or browse among folder files.  After  a  blue  modifier  key  press,  the  blue  arrows  allow moving  forwards  or  backwards  within  the  Internet Explorer browser pages.  Yellow modifier: when pressed before a standard key, it enables  the  character  printed  in  yellow  above  the  key. All  yellow  characters  will  remain  selectable  until  the yellow modifier key is pressed again.  Blue  modifier:  when  pressed  before  a  standard  key,  it enables the function printed in blue above the key. After the function is selected the keyboard returns to standard mode.  After a blue modifier key press, subsequent key presses allow the selection of seldom used characters (symbols). The  selected  character  is  entered  after a  short  timeout or if a different key is pressed.  It  powers  the  Datalogic  Skorpio™  ON  or  OFF.  It  is recessed to avoid accidental power off during use.  After a blue modifier key press, it allows returning to the Home page.  After a blue modifier key press, it allows ending a page downloading.  After  a  blue  modifier  key  press,  it  performs  a  page refresh.

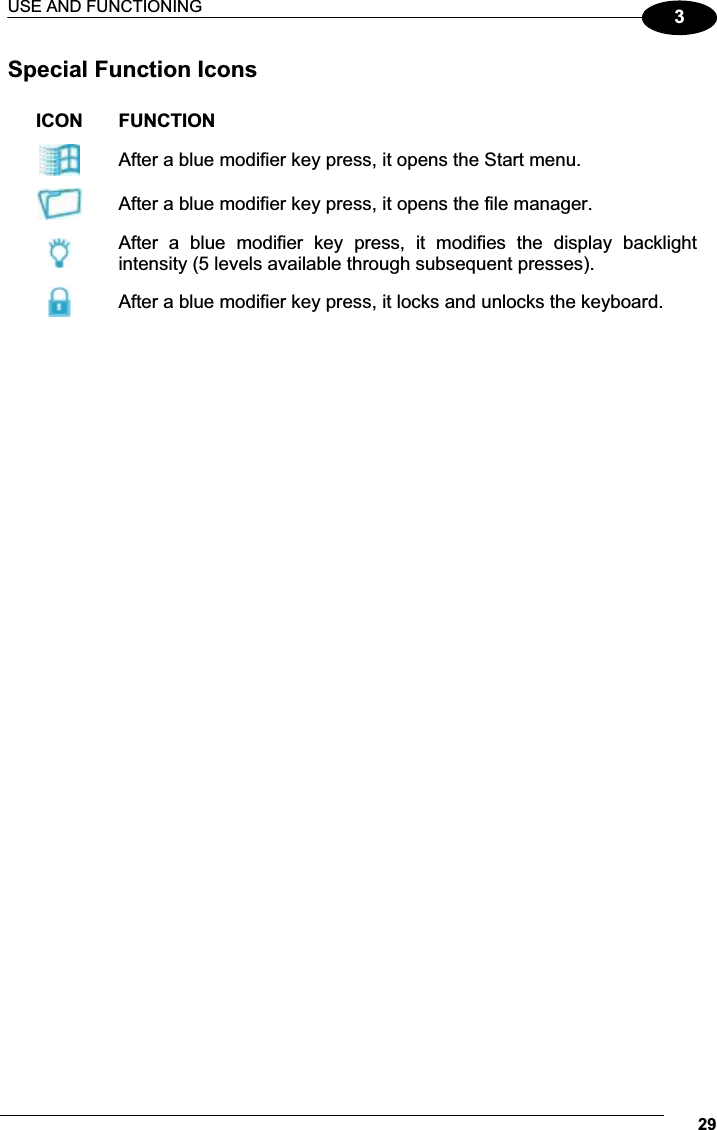

USE AND FUNCTIONING 293Special Function Icons  ICON  FUNCTION  After a blue modifier key press, it opens the Start menu. After a blue modifier key press, it opens the file manager.  After  a  blue  modifier  key  press,  it  modifies  the  display  backlight intensity (5 levels available through subsequent presses).  After a blue modifier key press, it locks and unlocks the keyboard.

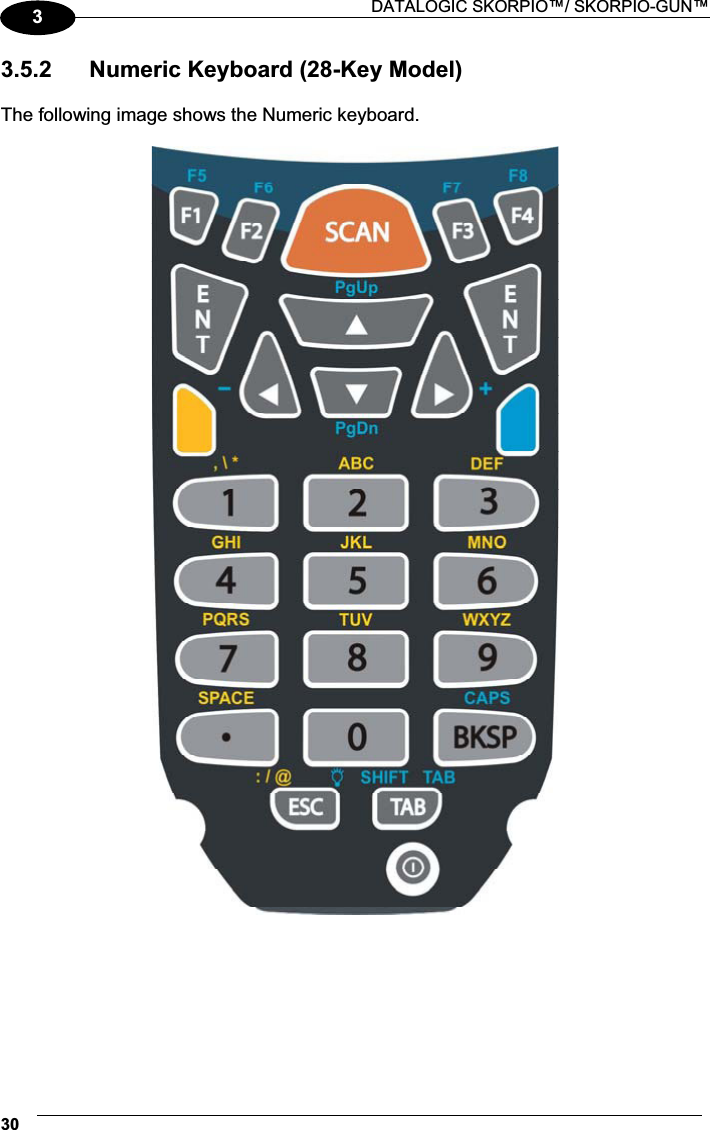

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 3033.5.2  Numeric Keyboard (28-Key Model)  The following image shows the Numeric keyboard.
USE AND FUNCTIONING 313Main Keys Function  KEY  FUNCTION  It  starts  data  capture.  If  enabled,  it  also  wakes  up  the mobile computer from low-power (see par. 3.8.1). For  Datalogic  Skorpio-GUN™  models  only,  the  trigger performs the same function as the SCAN key.  They  let  you  move  forwards,  backwards,  upwards  or downwards within text fields, scroll through a Menu list or browse among folder files.  After a blue modifier key  press, the   and   keys allow moving  respectively  forwards  and  backwards  within the Internet Explorer browser pages.  Yellow modifier: when pressed before a standard key, it enables  the  character  printed  in  yellow  above  the  key. All  yellow  characters  will  remain  selectable  until  the yellow modifier key is pressed again.  Blue  modifier:  when  pressed  before  a  standard  key,  it enables the function printed in blue above the key. After the function is selected the keyboard returns to standard mode.  It  powers  the  Datalogic  Skorpio™  ON  or  OFF.  It  is recessed to avoid accidental power off during use.  Keys from “1” to “Ɣ” share the following behavior scheme:      A.  Function of the key when directly pressed. B.  Function of the key after a yellow modifier key press. Press the key until the desired letter is shown. The letter is entered if you wait for a short timeout or if you press a different key.  AB
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 323Special Function Icons  ICON  FUNCTION  After  a  blue  modifier  key  press,  it  modifies  the  display backlight  intensity  (5  levels  available  through  subsequent presses).

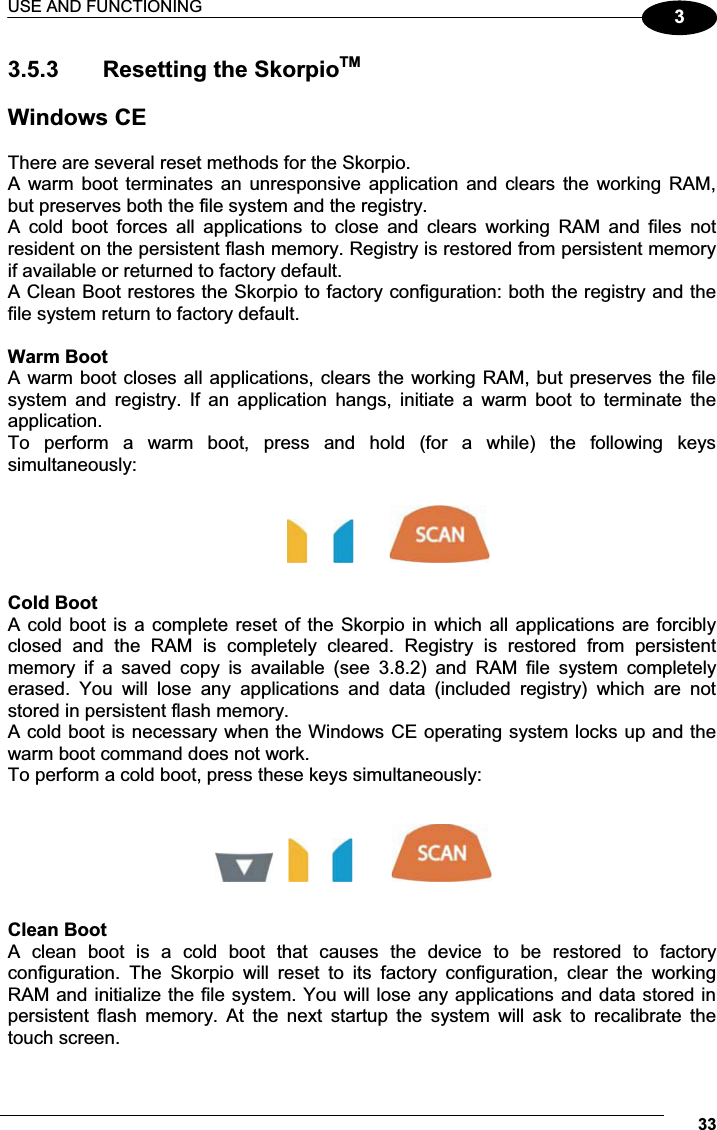

USE AND FUNCTIONING 3333.5.3   Resetting the SkorpioTM Windows CE  There are several reset methods for the Skorpio. A  warm boot  terminates  an unresponsive  application  and  clears the  working  RAM, but preserves both the file system and the registry. A  cold  boot  forces  all  applications  to  close  and  clears  working  RAM  and  files  not resident on the persistent flash memory. Registry is restored from persistent memory if available or returned to factory default.  A Clean Boot restores the Skorpio to factory configuration: both the registry and the file system return to factory default.  Warm Boot A warm boot closes all applications, clears the working RAM, but preserves the file system  and  registry.  If  an  application  hangs,  initiate  a  warm  boot  to  terminate  the application. To  perform  a  warm  boot,  press  and  hold  (for  a  while)  the  following  keys simultaneously:                                Cold Boot A cold boot is a complete  reset of the Skorpio in which all  applications  are forcibly closed  and  the  RAM  is  completely  cleared.  Registry  is  restored  from  persistent memory  if  a  saved  copy  is  available  (see  3.8.2)  and  RAM  file  system  completely erased.  You  will  lose  any  applications  and  data  (included  registry)  which  are  not stored in persistent flash memory. A cold boot is necessary when the Windows CE operating system locks up and the warm boot command does not work. To perform a cold boot, press these keys simultaneously:            Clean Boot A  clean  boot  is  a  cold  boot  that  causes  the  device  to  be  restored  to  factory configuration.  The  Skorpio  will  reset  to  its  factory  configuration,  clear  the  working RAM and initialize the file system. You will lose any applications and data stored in persistent  flash  memory.  At  the  next  startup  the  system  will  ask  to  recalibrate  the touch screen.
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 343To perform a clean boot, follow these steps:  1.  Perform a Cold Boot (see Cold Boot). 2.  Quickly release all the keys when the screen goes black.  3.  Within 1 second press and hold down the Esc and 0 keys until the left orange led starts blinking.  4.  Release the Esc and 0 keys.  5.  Enter 1 to proceed with the Clean Boot sequence. Enter 0 to cancel the Clean Boot and proceed with a Cold Boot.   Warm BootCold Boot  Clean Boot Registry  Preserved  Restored  from  flash  (if available) Factory default Flash  Disk  (Backup Folder) Preserved  Preserved  Clean disk  RAM File System  Preserved  Reinitialized (factory default)  Factory default   CAUTION Before performing a reset, it is recommended to: -  execute  a  system  backup  to  keep  your  more  important  files and applications persistent. See par. 3.10; -  save  the  registry  to  non-volatile  memory  to  guarantee  the persistence of the Windows configuration. See par. 3.8.2.   Windows Mobile  There are several reset methods for the Skorpio. A  warm boot  terminates  an unresponsive  application  and  clears the  working  RAM, but  preserves  the  file  system.  Registry  are  restored  from  persistent  memory  if available or returned to factory default. A  cold  boot  forces  all  applications  to  close  reinitializing  completely  the  system.  It clears the working RAM, but the file system is preserved. Registry are restored from persistent memory if available or returned to factory default.  A clean boot restores the Skorpio to a clean configuration: both the registry and the file system return to a clean  status  that  conform to factory default, unless the user has installed an additional package.  Warm Boot A warm boot closes all applications and clears the working RAM, but preserves the file system. Registry are restored from persistent memory if a saved copy is available (see  Registry  Applet,  par.  3.8.2)  or  returned  to  factory  default.  If  an  application hangs, initiate a warm boot to terminate the application.

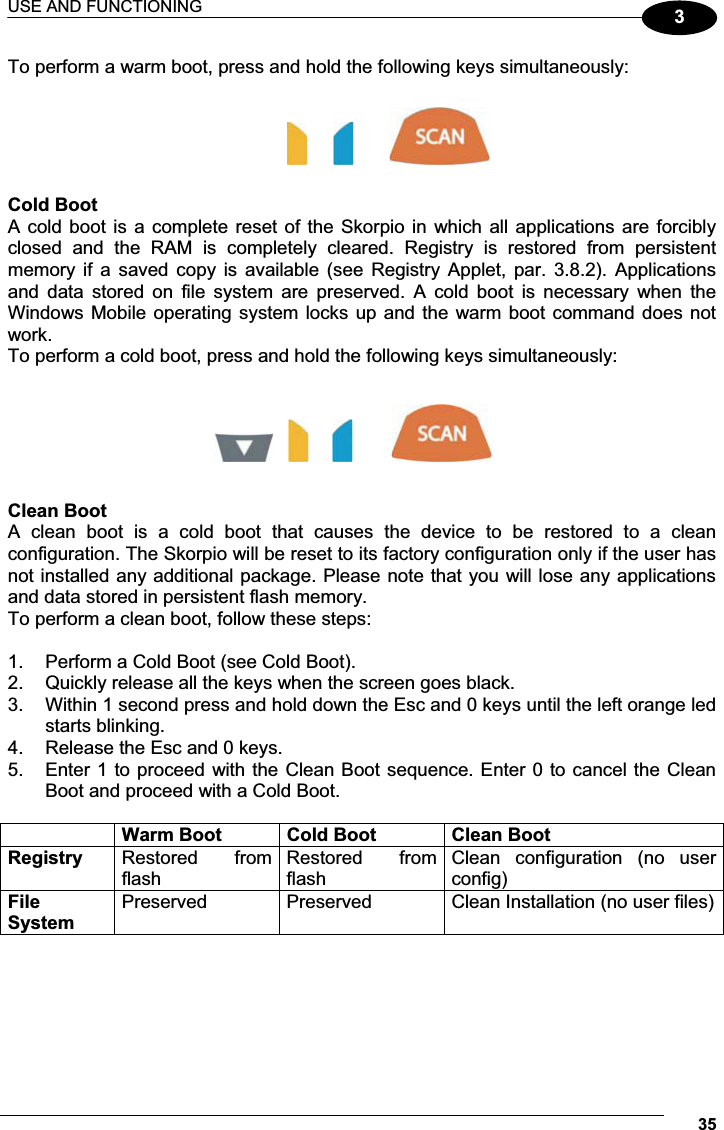

USE AND FUNCTIONING 353To perform a warm boot, press and hold the following keys simultaneously:                                Cold Boot A cold boot is a complete  reset of the Skorpio in which all  applications  are forcibly closed  and  the  RAM  is  completely  cleared.  Registry  is  restored  from  persistent memory if  a  saved  copy  is  available  (see  Registry  Applet,  par.  3.8.2). Applications and  data  stored  on  file  system  are  preserved.  A  cold  boot  is  necessary  when  the Windows Mobile operating system locks up and the warm boot command does not work. To perform a cold boot, press and hold the following keys simultaneously:            Clean Boot A  clean  boot  is  a  cold  boot  that  causes  the  device  to  be  restored  to  a  clean configuration. The Skorpio will be reset to its factory configuration only if the user has not installed any additional package. Please note that you will lose any applications and data stored in persistent flash memory. To perform a clean boot, follow these steps:  1.  Perform a Cold Boot (see Cold Boot). 2.  Quickly release all the keys when the screen goes black.  3.  Within 1 second press and hold down the Esc and 0 keys until the left orange led starts blinking.  4.  Release the Esc and 0 keys.  5.  Enter 1 to proceed with the Clean Boot sequence. Enter 0 to cancel the Clean Boot and proceed with a Cold Boot.   Warm Boot  Cold Boot  Clean Boot Registry  Restored  from flash Restored  from flash Clean  configuration  (no  user config) FileSystem Preserved  Preserved  Clean Installation (no user files)

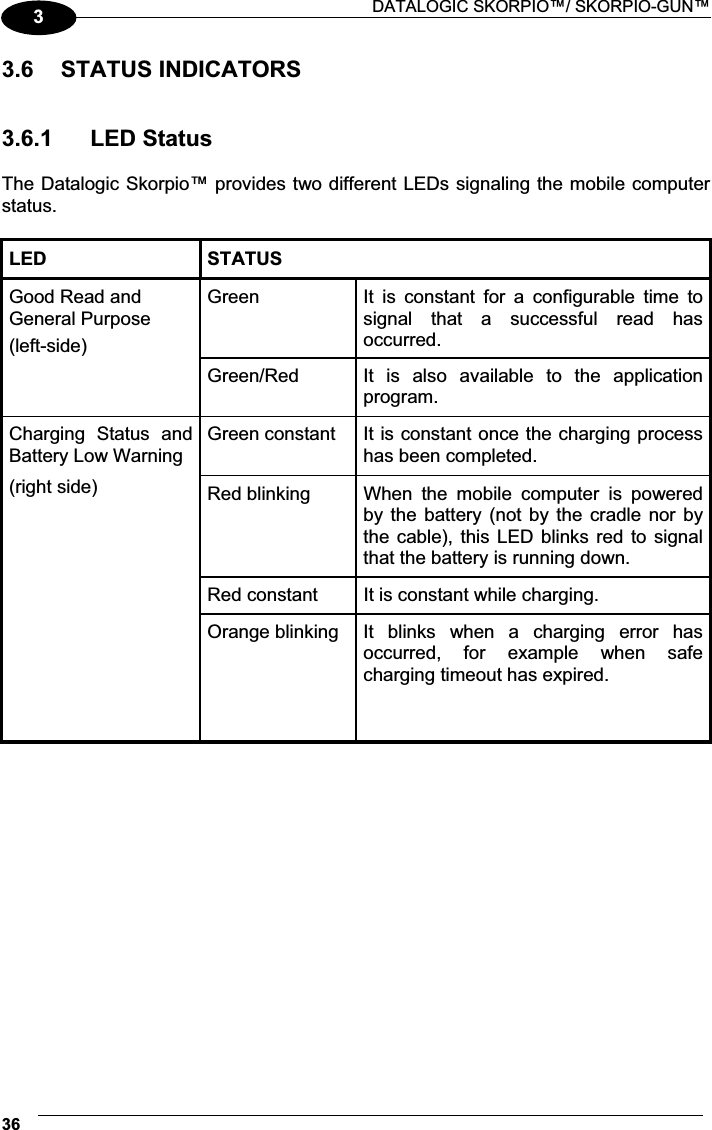

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 3633.6  STATUS INDICATORS   3.6.1  LED Status  The Datalogic Skorpio™ provides two different LEDs signaling the mobile computer status.  LED  STATUS Good Read and General Purpose (left-side) Green  It  is  constant  for  a  configurable  time  to signal  that  a  successful  read  has occurred.   Green/Red  It  is  also  available  to  the  application program. Charging  Status  and Battery Low Warning Green constant  It is constant once the charging process has been completed. (right side)  Red blinking  When  the  mobile  computer  is  powered by the battery (not by the cradle nor by the cable), this  LED  blinks red to signal that the battery is running down.   Red constant  It is constant while charging.   Orange blinking  It  blinks  when  a  charging  error  has occurred,  for  example  when  safe charging timeout has expired.

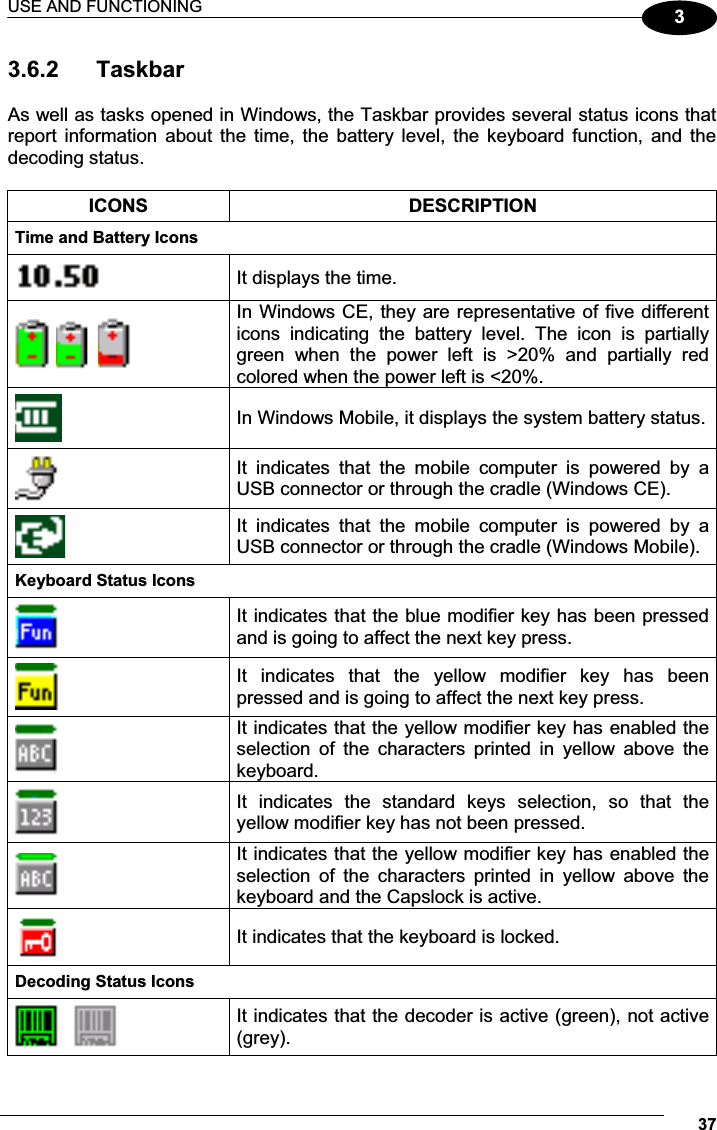

USE AND FUNCTIONING 3733.6.2  Taskbar  As well as tasks opened in Windows, the Taskbar provides several status icons that report information  about  the time,  the  battery  level,  the  keyboard  function,  and  the decoding status.  ICONS  DESCRIPTION Time and Battery Icons    It displays the time.  In Windows CE, they are representative of five different icons  indicating  the  battery  level.  The  icon  is  partially green  when  the  power  left  is  >20%  and  partially  red colored when the power left is <20%. In Windows Mobile, it displays the system battery status. It  indicates  that  the  mobile  computer  is  powered  by  a USB connector or through the cradle (Windows CE). It  indicates  that  the  mobile  computer  is  powered  by  a USB connector or through the cradle (Windows Mobile). Keyboard Status Icons   It indicates that the blue modifier key has been pressed and is going to affect the next key press.  It  indicates  that  the  yellow  modifier  key  has  been pressed and is going to affect the next key press.  It indicates that the yellow modifier key has enabled the selection  of  the  characters  printed  in  yellow  above  the keyboard.  It  indicates  the  standard  keys  selection,  so  that  the yellow modifier key has not been pressed.  It indicates that the yellow modifier key has enabled the selection  of  the  characters  printed  in  yellow  above  the keyboard and the Capslock is active.  It indicates that the keyboard is locked. Decoding Status Icons     It indicates that the decoder is active (green), not active (grey).
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 383 Windows CE Taskbar     Windows Mobile Taskbars

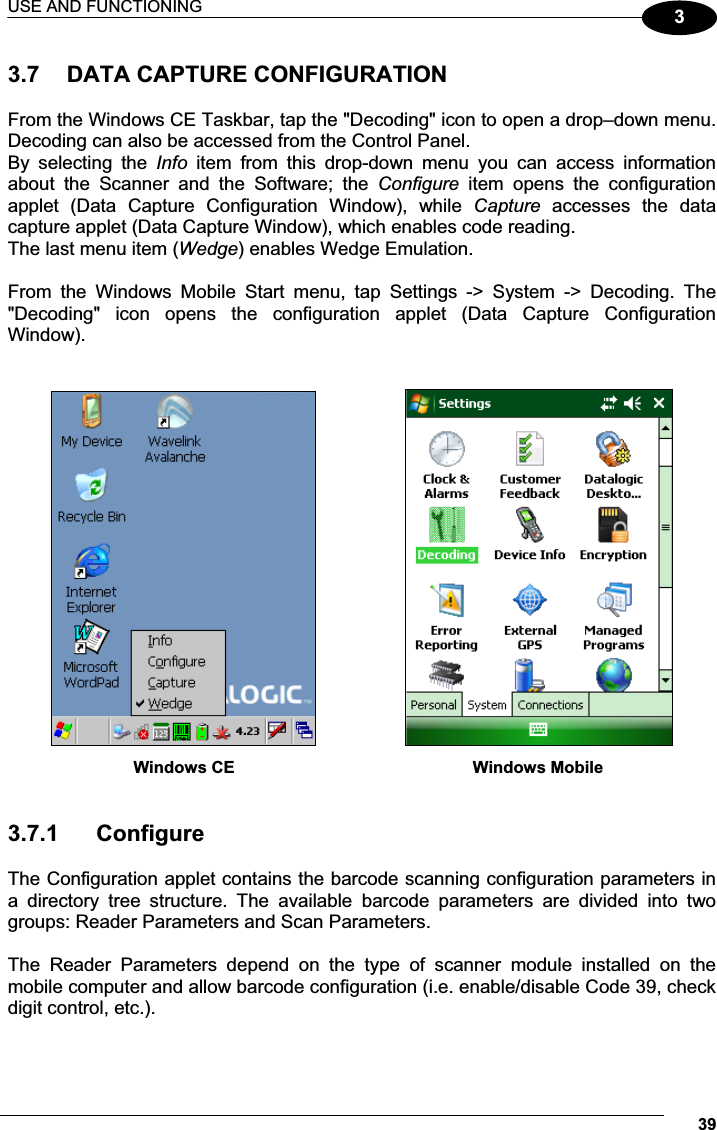

USE AND FUNCTIONING 393 3.7  DATA CAPTURE CONFIGURATION  From the Windows CE Taskbar, tap the "Decoding" icon to open a drop–down menu. Decoding can also be accessed from the Control Panel. By  selecting  the  Info item  from  this  drop-down  menu  you  can  access  information about  the  Scanner  and  the  Software;  the  Configure  item  opens  the  configuration applet  (Data  Capture  Configuration  Window),  while  Capture  accesses  the  data capture applet (Data Capture Window), which enables code reading. The last menu item (Wedge) enables Wedge Emulation.  From  the  Windows  Mobile  Start  menu,  tap  Settings  ->  System  ->  Decoding.  The "Decoding"  icon  opens  the  configuration  applet  (Data  Capture  Configuration Window).                        Windows CE           Windows Mobile   3.7.1  Configure  The Configuration applet contains the barcode scanning configuration parameters in a  directory  tree  structure.  The  available  barcode  parameters  are  divided  into  two groups: Reader Parameters and Scan Parameters.  The  Reader  Parameters  depend  on  the  type  of  scanner  module  installed  on  the mobile computer and allow barcode configuration (i.e. enable/disable Code 39, check digit control, etc.).

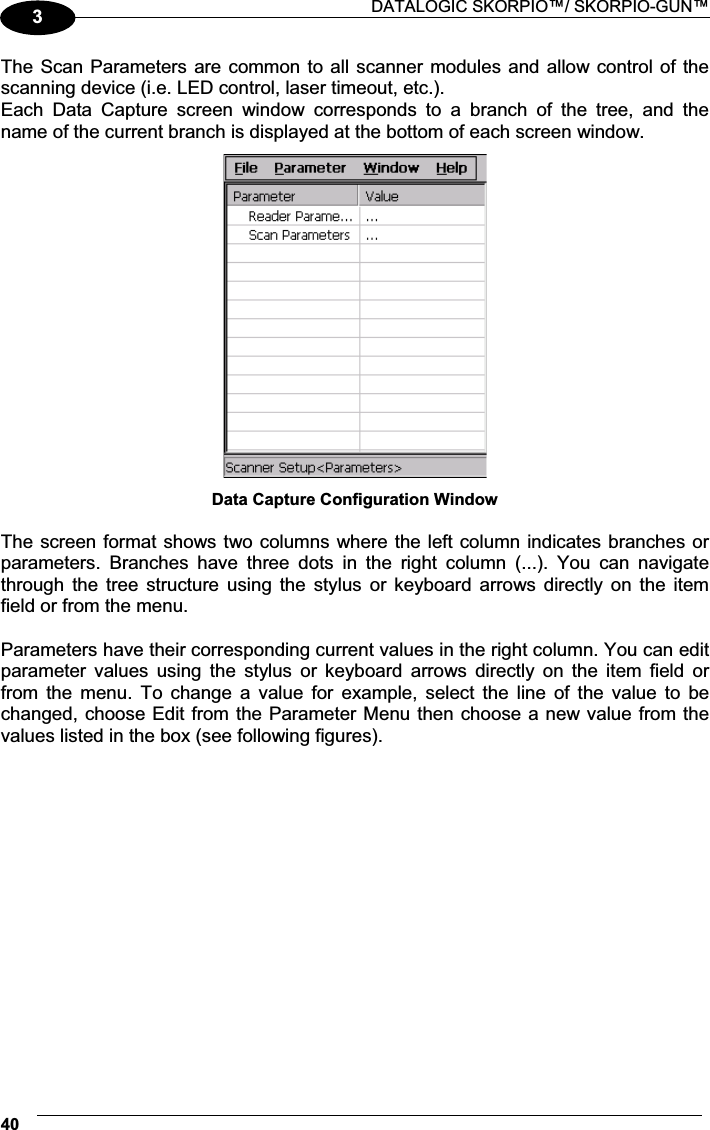

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 403The Scan Parameters are common to all scanner modules and allow control of the scanning device (i.e. LED control, laser timeout, etc.). Each  Data  Capture  screen  window  corresponds  to  a  branch  of  the  tree,  and  the name of the current branch is displayed at the bottom of each screen window.  Data Capture Configuration Window  The screen format shows two columns where the left column indicates branches or parameters.  Branches  have  three  dots  in  the  right  column  (...).  You  can  navigate through  the  tree  structure  using  the  stylus  or  keyboard  arrows  directly  on  the  item field or from the menu.  Parameters have their corresponding current values in the right column. You can edit parameter  values  using  the  stylus  or  keyboard  arrows  directly  on  the  item  field  or from  the  menu.  To  change  a  value  for  example,  select  the  line  of  the  value  to  be changed, choose Edit from the Parameter Menu then choose a new value from the values listed in the box (see following figures).
USE AND FUNCTIONING 413     Selecting Data Capture Setup Parameters  Alternatively  using  the  stylus,  you  can  tap  once  directly  on  the  value  on  the  right column; continue tapping until the desired value is reached.  To  activate  a  new  configuration  select  the  File  ->Save  Menu  to  send  the  new configuration to the barcode decoding software and save the new configuration. This will save the configuration to non-volatile memory preventing loss at the next system reset.  Reader Parameters  The barcode reading parameters and values are dependent upon the type of scanner module mounted in  your  mobile computer. For  a  detailed list of  parameters and of their configuration procedures, please refer to the SDK Help file on the CD.   Scan Parameters  The Scan Parameters are common to all scanner modules and allow control of the scanning device. The Scan parameters are described as follows:  ScanTimeout: the maximum time, in milliseconds, during which the scanner remains on without decoding any barcode.  GoodReadSound:  is  the  filename  of  a .wav  file played  when the scanner  reads a code.  LedDuration: the length of the good-read led pulse, in milliseconds.  LedPulses:  the  number  of  times  the  good-read  led  pulse  is  emitted  when  the scanner reads a code.

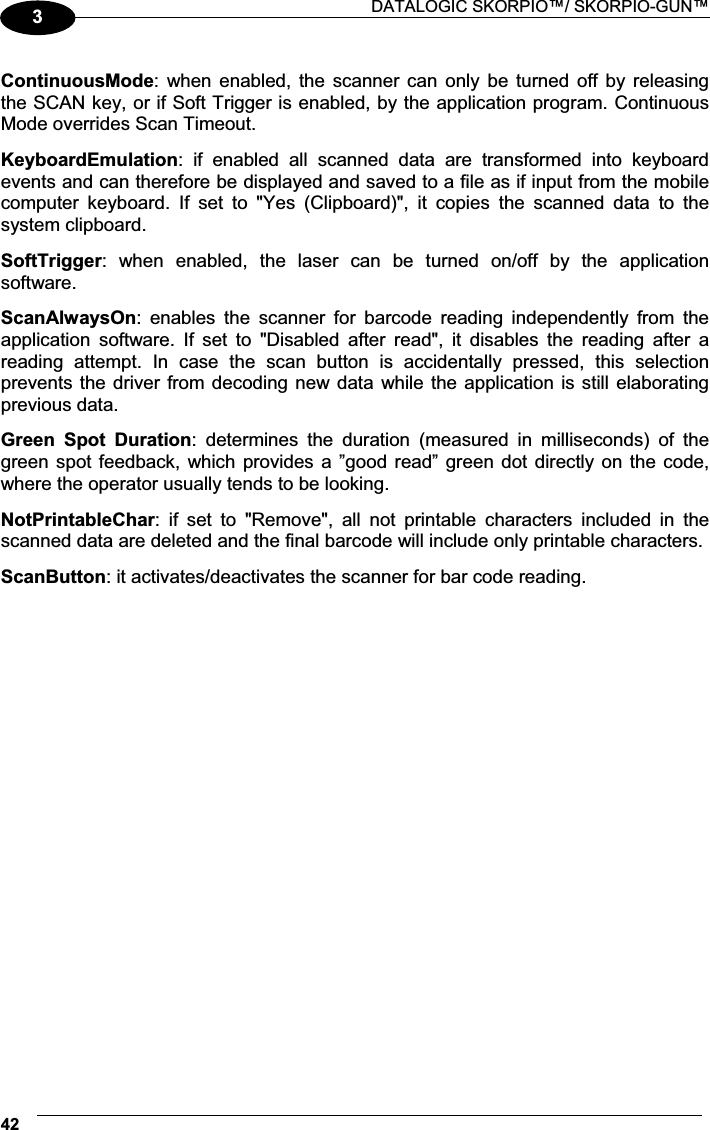

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 423 ContinuousMode:  when enabled,  the scanner  can  only  be turned  off  by releasing the SCAN key, or if Soft Trigger is enabled, by the application program. Continuous Mode overrides Scan Timeout.  KeyboardEmulation:  if  enabled  all  scanned  data  are  transformed  into  keyboard events and can therefore be displayed and saved to a file as if input from the mobile computer  keyboard.  If  set  to  "Yes  (Clipboard)",  it  copies  the  scanned  data  to  the system clipboard.  SoftTrigger:  when  enabled,  the  laser  can  be  turned  on/off  by  the  application software.  ScanAlwaysOn:  enables  the  scanner  for  barcode  reading  independently  from  the application  software.  If  set  to  "Disabled  after  read",  it  disables  the  reading  after  a reading  attempt.  In  case  the  scan  button  is  accidentally  pressed,  this  selection prevents the driver from decoding new data  while the application is still elaborating previous data.  Green  Spot  Duration:  determines  the  duration  (measured  in  milliseconds)  of  the green spot feedback, which provides a ”good read” green dot directly on the code, where the operator usually tends to be looking.  NotPrintableChar:  if  set  to  "Remove",  all  not  printable  characters  included  in  the scanned data are deleted and the final barcode will include only printable characters.  ScanButton: it activates/deactivates the scanner for bar code reading.

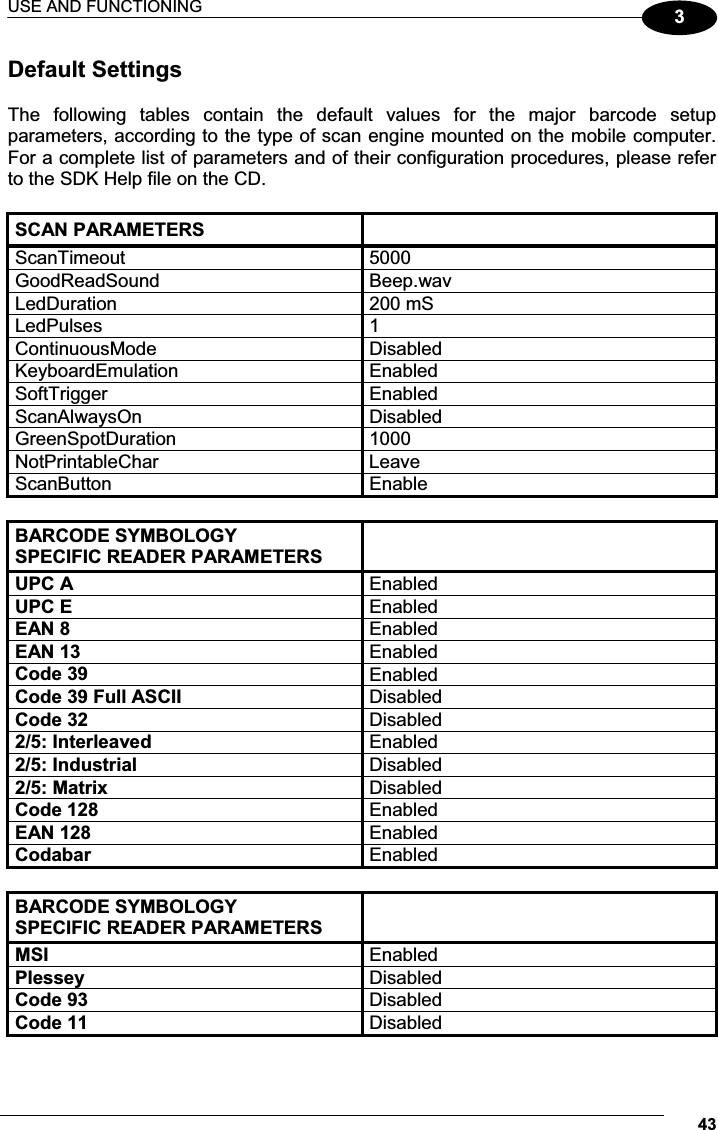

USE AND FUNCTIONING 433Default Settings  The  following  tables  contain  the  default  values  for  the  major  barcode  setup parameters, according to the type of scan engine mounted on the mobile computer. For a complete list of parameters and of their configuration procedures, please refer to the SDK Help file on the CD.  SCAN PARAMETERS   ScanTimeout  5000 GoodReadSound  Beep.wav LedDuration  200 mS LedPulses  1 ContinuousMode  Disabled KeyboardEmulation  Enabled SoftTrigger  Enabled ScanAlwaysOn  Disabled GreenSpotDuration  1000 NotPrintableChar  Leave ScanButton  Enable  BARCODE SYMBOLOGY SPECIFIC READER PARAMETERS UPC A  Enabled UPC E  Enabled EAN 8  Enabled EAN 13  Enabled Code 39  Enabled Code 39 Full ASCII  Disabled Code 32  Disabled 2/5: Interleaved  Enabled 2/5: Industrial  Disabled 2/5: Matrix  Disabled Code 128   Enabled EAN 128   Enabled Codabar  Enabled  BARCODE SYMBOLOGY SPECIFIC READER PARAMETERS MSI Enabled Plessey  Disabled Code 93  Disabled Code 11  Disabled

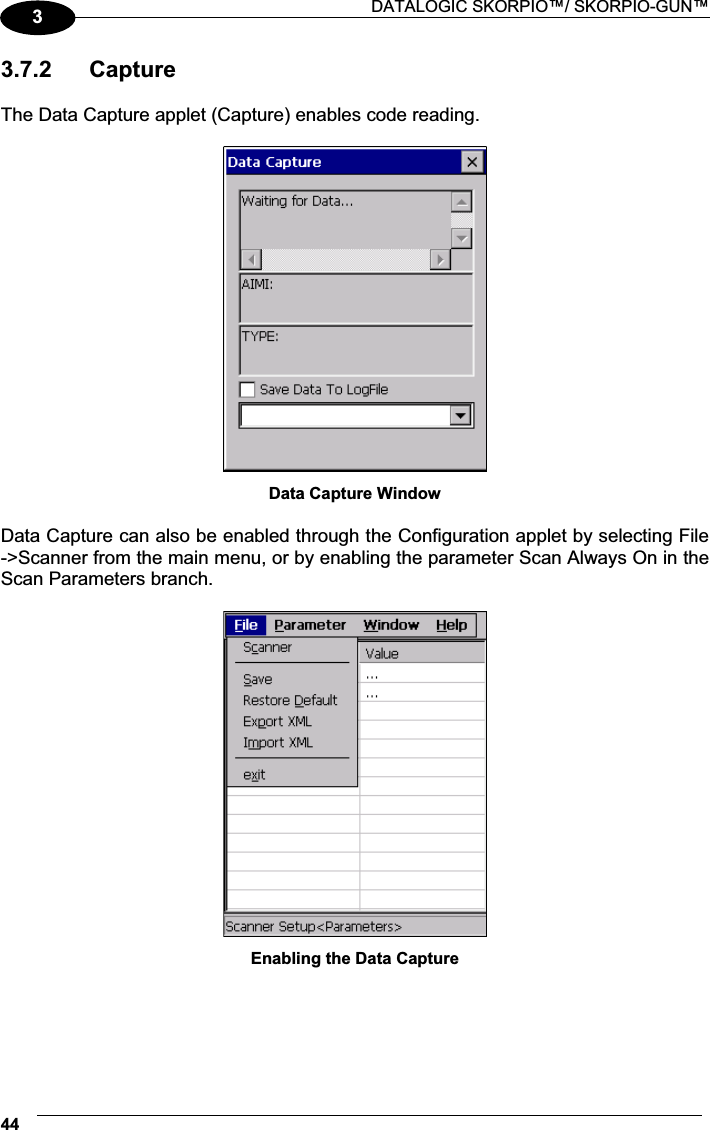

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 4433.7.2  Capture  The Data Capture applet (Capture) enables code reading.   Data Capture Window  Data Capture can also be enabled through the Configuration applet by selecting File ->Scanner from the main menu, or by enabling the parameter Scan Always On in the Scan Parameters branch.   Enabling the Data Capture

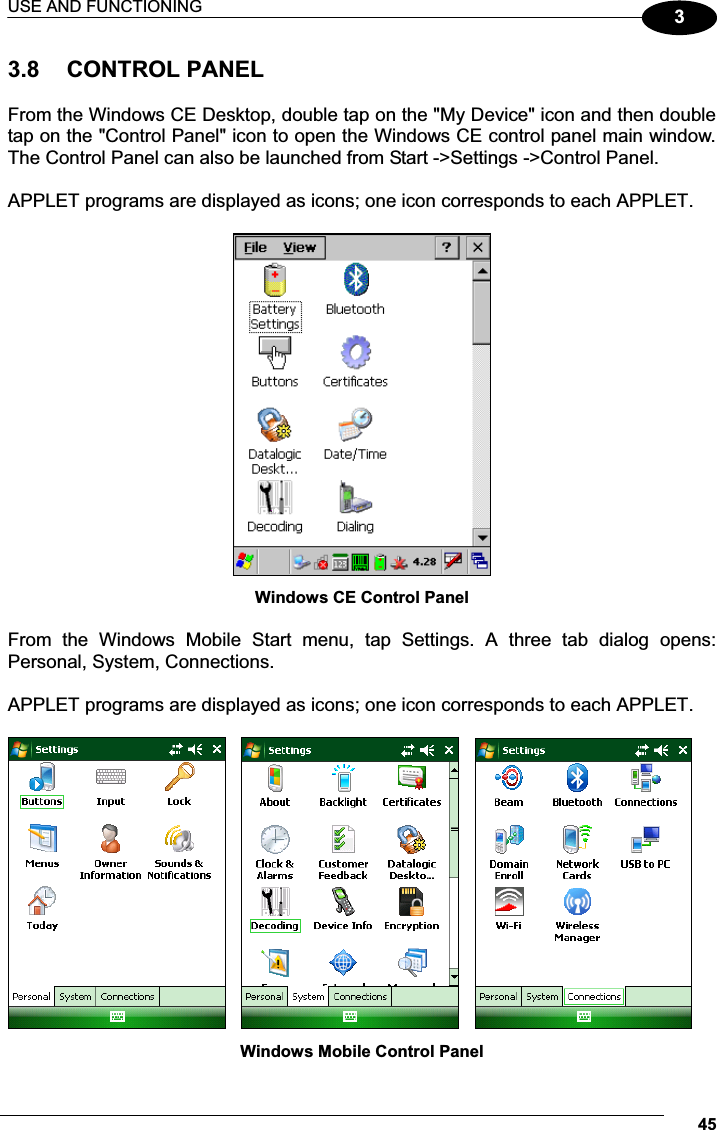

USE AND FUNCTIONING 4533.8  CONTROL PANEL  From the Windows CE Desktop, double tap on the "My Device" icon and then double tap on the "Control Panel" icon to open the Windows CE control panel main window. The Control Panel can also be launched from Start ->Settings ->Control Panel.  APPLET programs are displayed as icons; one icon corresponds to each APPLET.   Windows CE Control Panel  From  the  Windows  Mobile  Start  menu,  tap  Settings.  A  three  tab  dialog  opens: Personal, System, Connections.  APPLET programs are displayed as icons; one icon corresponds to each APPLET.           Windows Mobile Control Panel
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 4633.8.1  Buttons  To configure the way up/down and the rest of keys control repeats, use the Up/Down  Control  applet  (Start  ->  Settings  ->  Personal  ->  Buttons  ->  Up/Down Control).    Windows CE Buttons Icon  Windows Mobile Buttons Icon      On both Windows CE and Windows Mobile models, you can also select to wake up the terminal by the SCAN key and trigger key (for Datalogic Skorpio-GUN™ only).  To assign desired applications to be launched by one of the keys, refer to DFU Reference Guide.

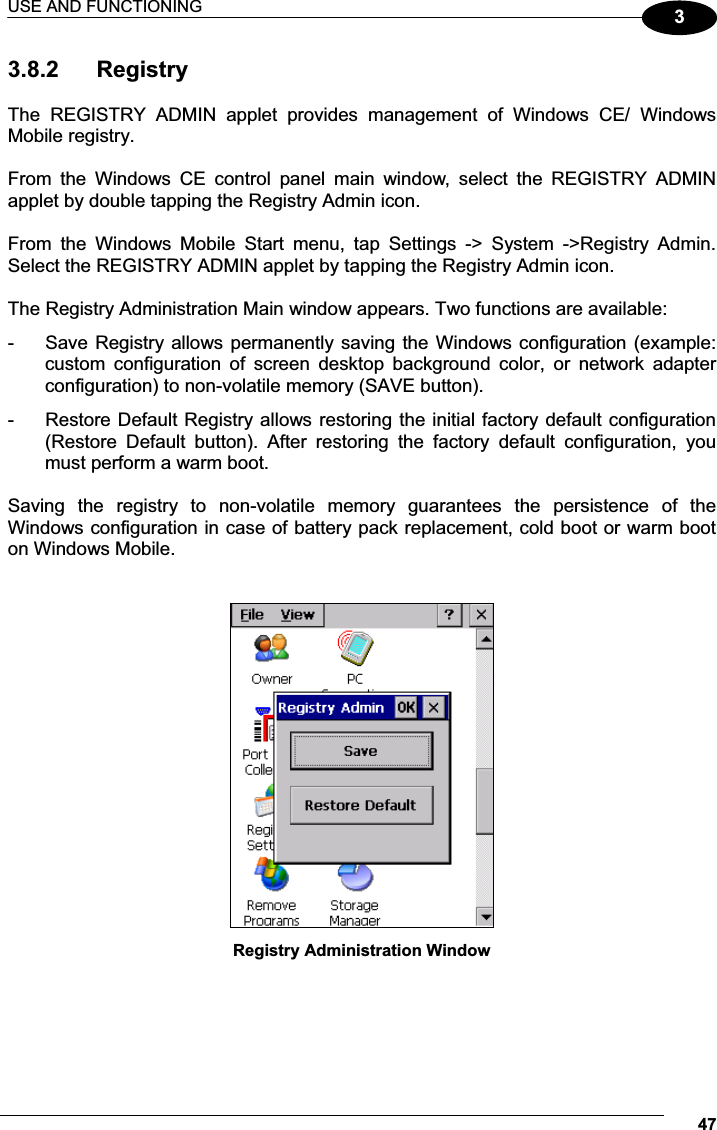

USE AND FUNCTIONING 4733.8.2  Registry  The  REGISTRY  ADMIN  applet  provides  management  of  Windows  CE/  Windows Mobile registry.  From  the  Windows  CE  control  panel  main  window,  select  the  REGISTRY  ADMIN applet by double tapping the Registry Admin icon.  From  the  Windows  Mobile  Start  menu,  tap  Settings  ->  System  ->Registry  Admin. Select the REGISTRY ADMIN applet by tapping the Registry Admin icon.  The Registry Administration Main window appears. Two functions are available: -  Save Registry allows permanently saving the Windows configuration (example: custom  configuration  of  screen  desktop  background  color,  or  network  adapter configuration) to non-volatile memory (SAVE button). -  Restore Default Registry allows restoring the initial factory default configuration (Restore  Default  button).  After  restoring  the  factory  default  configuration,  you must perform a warm boot.  Saving  the  registry  to  non-volatile  memory  guarantees  the  persistence  of  the Windows configuration in case of battery pack replacement, cold boot or warm boot on Windows Mobile.    Registry Administration Window

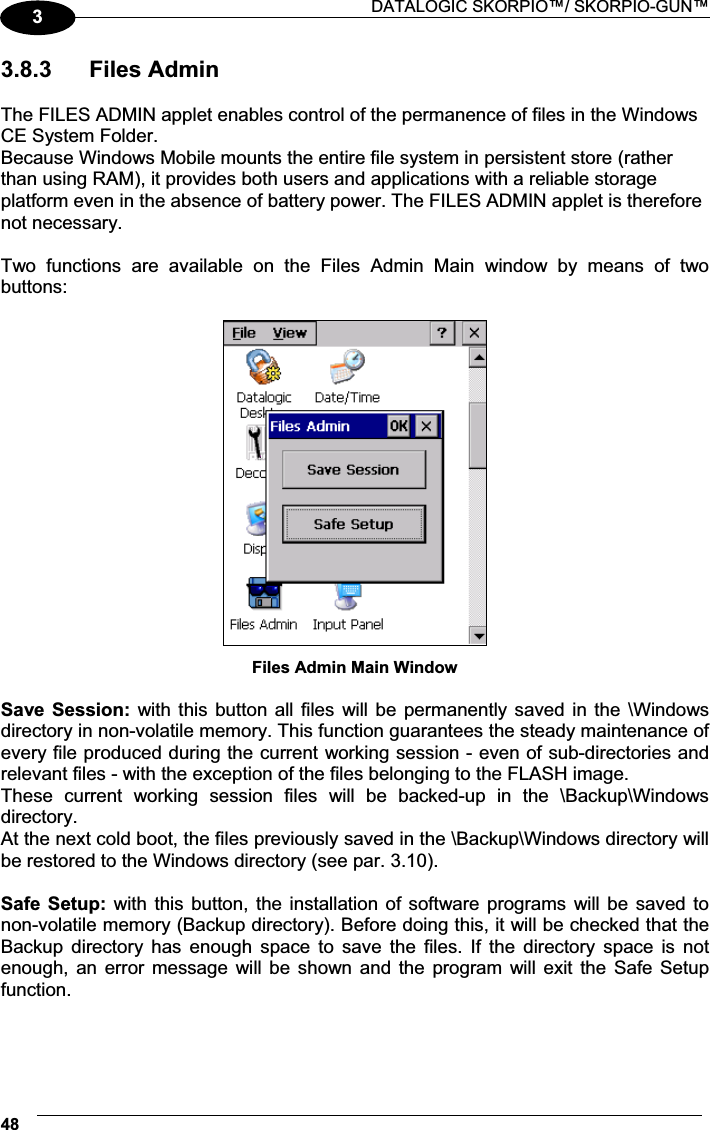

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 4833.8.3  Files Admin  The FILES ADMIN applet enables control of the permanence of files in the Windows CE System Folder. Because Windows Mobile mounts the entire file system in persistent store (rather than using RAM), it provides both users and applications with a reliable storage platform even in the absence of battery power. The FILES ADMIN applet is therefore not necessary.  Two  functions  are  available  on  the  Files  Admin  Main  window  by  means  of  two buttons:   Files Admin Main Window  Save  Session: with this button all files  will be permanently saved in the \Windows directory in non-volatile memory. This function guarantees the steady maintenance of every file produced during the current working session - even of sub-directories and relevant files - with the exception of the files belonging to the FLASH image. These  current  working  session  files  will  be  backed-up  in  the  \Backup\Windows directory. At the next cold boot, the files previously saved in the \Backup\Windows directory will be restored to the Windows directory (see par. 3.10). Safe  Setup:  with this button, the installation of software programs will be saved to non-volatile memory (Backup directory). Before doing this, it will be checked that the Backup  directory  has  enough  space  to  save  the  files.  If  the  directory  space  is  not enough, an  error  message  will be shown  and  the program  will exit  the  Safe Setup function.

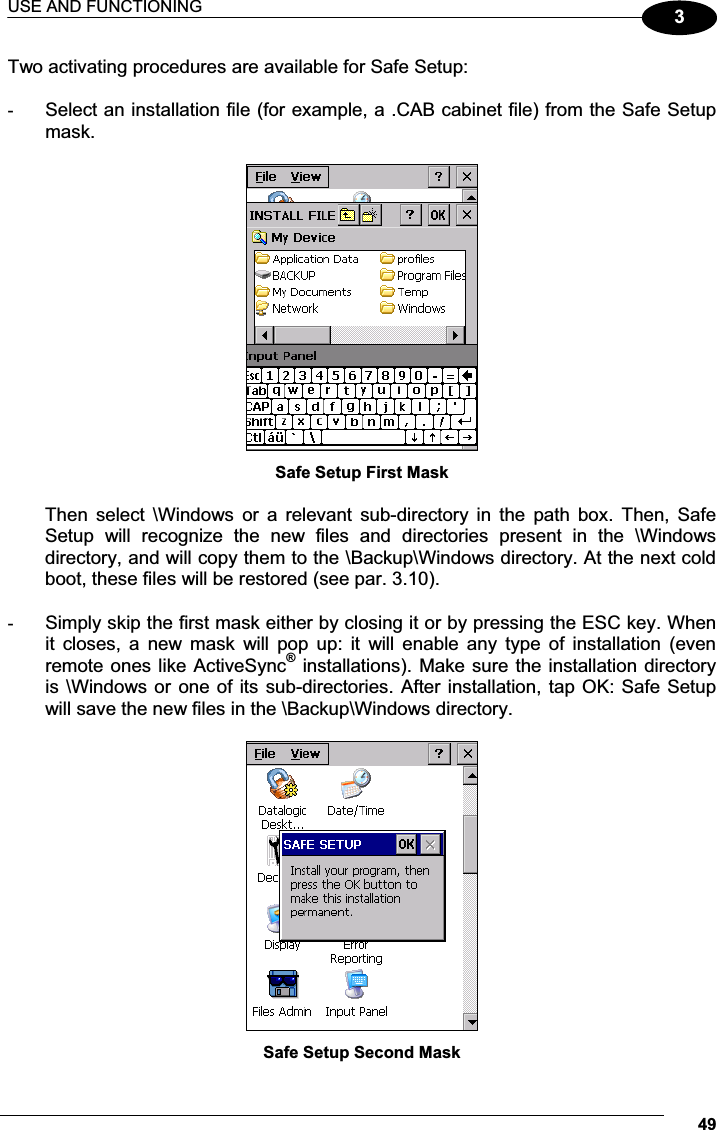

USE AND FUNCTIONING 493Two activating procedures are available for Safe Setup:  -  Select an installation file (for example, a .CAB cabinet file) from the Safe Setup mask.   Safe Setup First Mask  Then  select  \Windows  or  a  relevant  sub-directory  in  the  path  box.  Then,  Safe Setup  will  recognize  the  new  files  and  directories  present  in  the  \Windows directory, and will copy them to the \Backup\Windows directory. At the next cold boot, these files will be restored (see par. 3.10).  -  Simply skip the first mask either by closing it or by pressing the ESC key. When it  closes,  a  new  mask  will  pop  up:  it  will  enable  any  type  of  installation  (even remote ones like ActiveSync® installations). Make sure the installation directory is \Windows or one of its sub-directories. After installation, tap OK: Safe Setup will save the new files in the \Backup\Windows directory.   Safe Setup Second Mask

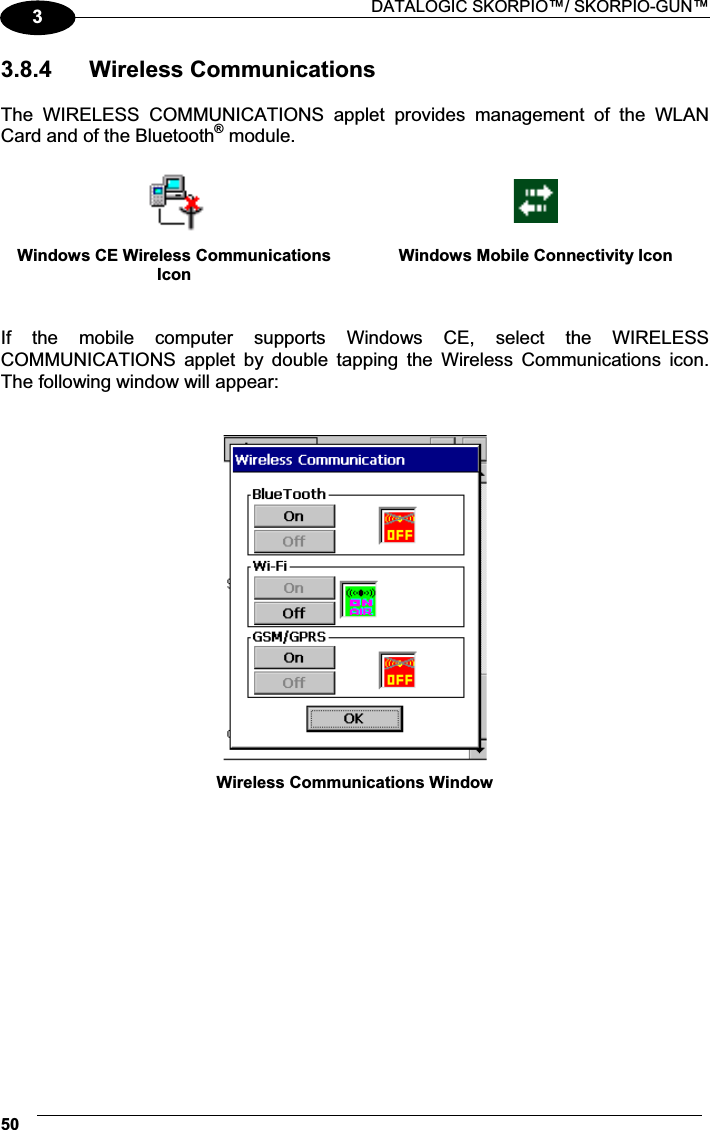

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 5033.8.4  Wireless Communications  The  WIRELESS  COMMUNICATIONS  applet  provides  management  of  the  WLAN Card and of the Bluetooth® module.    Windows CE Wireless Communications IconWindows Mobile Connectivity Icon   If  the  mobile  computer  supports  Windows  CE,  select  the  WIRELESS COMMUNICATIONS  applet  by  double  tapping  the  Wireless  Communications  icon. The following window will appear:    Wireless Communications Window

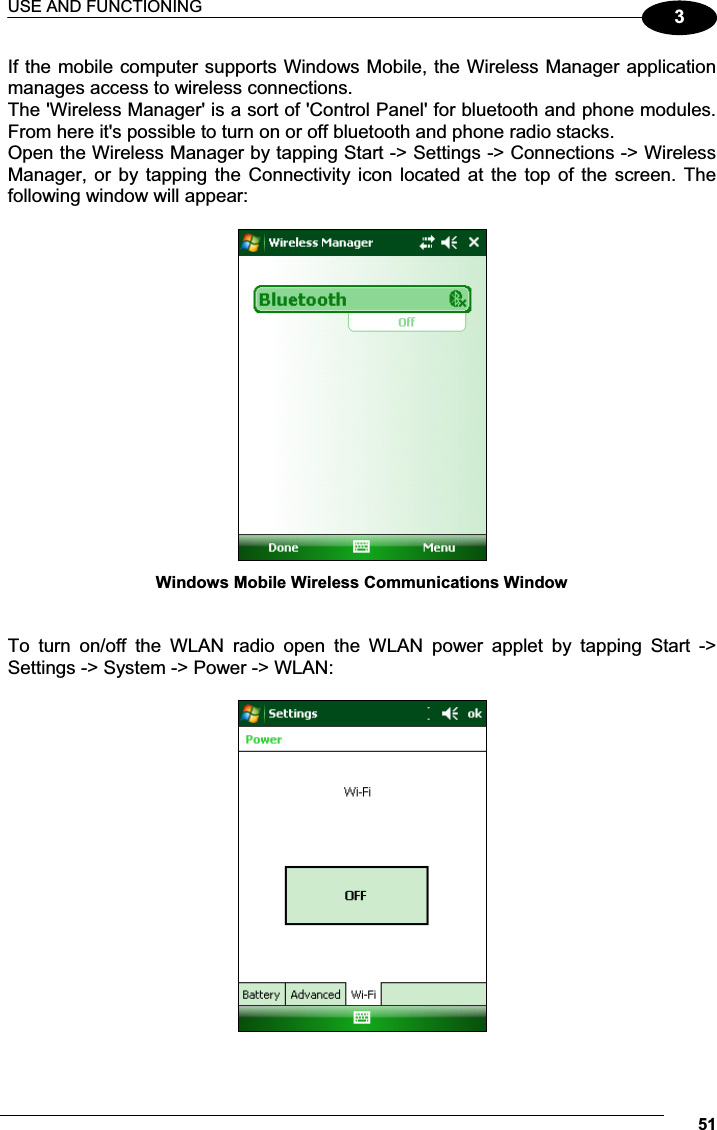

USE AND FUNCTIONING 513If the mobile computer supports Windows Mobile, the Wireless Manager application manages access to wireless connections. The 'Wireless Manager' is a sort of 'Control Panel' for bluetooth and phone modules. From here it's possible to turn on or off bluetooth and phone radio stacks. Open the Wireless Manager by tapping Start -> Settings -> Connections -> Wireless Manager, or by tapping the Connectivity icon located at the top  of the screen. The following window will appear:   Windows Mobile Wireless Communications Window   To  turn  on/off  the  WLAN  radio  open  the  WLAN  power  applet  by  tapping  Start  -> Settings -> System -> Power -> WLAN:

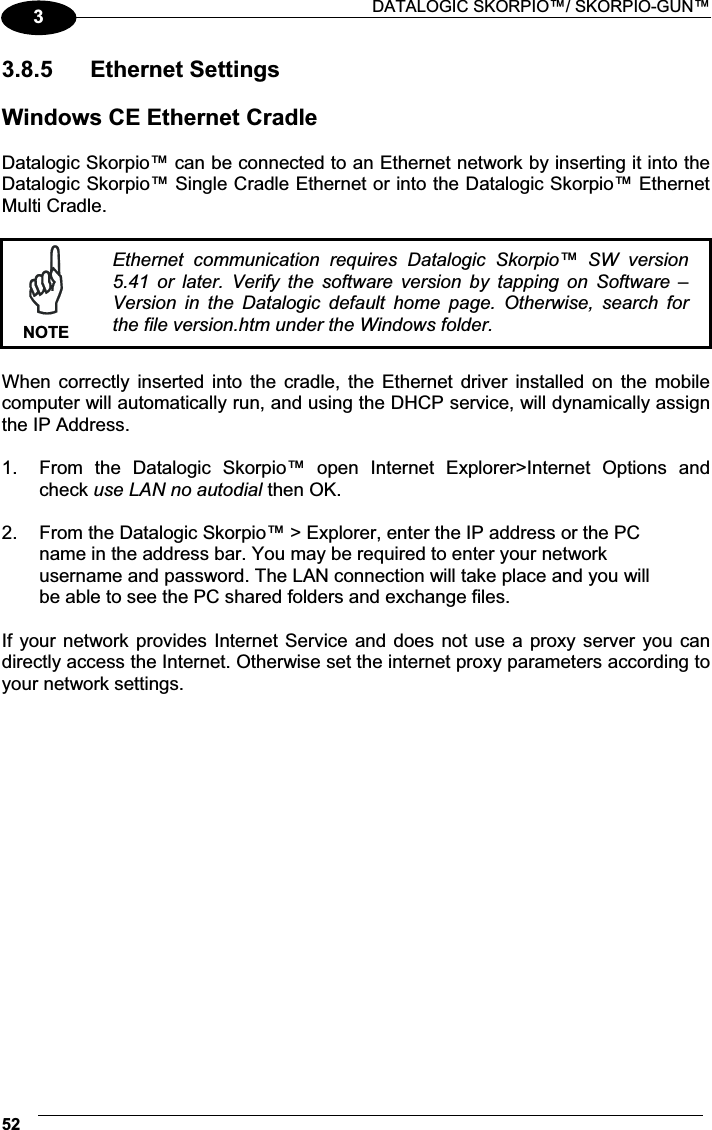

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 5233.8.5  Ethernet Settings  Windows CE Ethernet Cradle  Datalogic Skorpio™ can be connected to an Ethernet network by inserting it into the Datalogic Skorpio™ Single Cradle Ethernet or into the Datalogic Skorpio™ Ethernet Multi Cradle.   NOTEEthernet  communication  requires  Datalogic  Skorpio™  SW  version 5.41  or  later.  Verify  the  software  version  by  tapping  on  Software  – Version  in  the  Datalogic  default  home  page.  Otherwise,  search  for the file version.htm under the Windows folder.  When  correctly  inserted  into  the  cradle,  the  Ethernet  driver  installed  on the  mobile computer will automatically run, and using the DHCP service, will dynamically assign the IP Address.  1.  From  the  Datalogic  Skorpio™  open  Internet  Explorer>Internet  Options  and check use LAN no autodial then OK.  2.  From the Datalogic Skorpio™ > Explorer, enter the IP address or the PC name in the address bar. You may be required to enter your network username and password. The LAN connection will take place and you will be able to see the PC shared folders and exchange files.  If your network provides Internet Service and does not use a proxy server you can directly access the Internet. Otherwise set the internet proxy parameters according to your network settings.
USE AND FUNCTIONING 533The LAN icon will appear on the Taskbar indicating the LAN connection status.  By double tapping on the LAN icon in the Taskbar,  the  LANNDS1  applet  allows visualizing the TCP/IP information. Other information such as the MAC Address is available by tapping the Details... button. If  it  is  necessary  to  set  static  TCP/IP parameters,  you  must  open  the LANNDS1  applet  from  the  Network  and Dial-up  Connections  applet  in  the Control Panel. This applet is only visible when  the  mobile  computer  is  correctly inserted into the cradle.   Ethernet LANNDS1 Communications Window  The IP Address belongs to Datalogic Skorpio™ while the MAC address is specific to each cradle slot. LAN icon

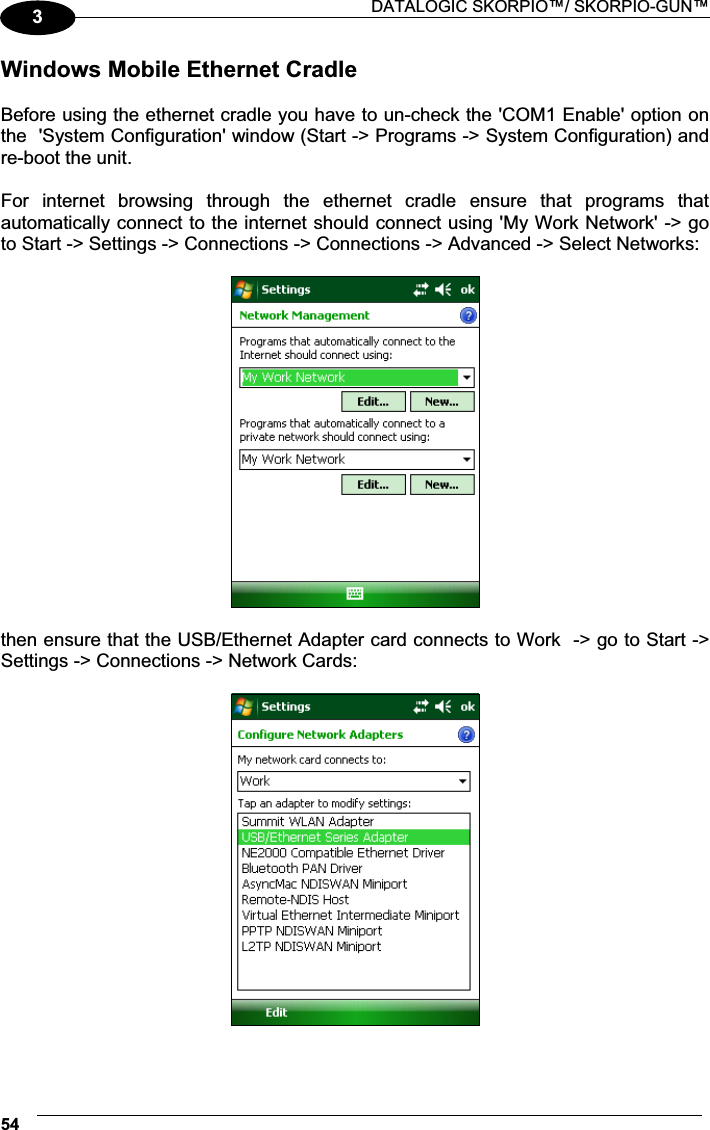

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 543Windows Mobile Ethernet Cradle  Before using the ethernet cradle you have to un-check the 'COM1 Enable' option on the  'System Configuration' window (Start -> Programs -> System Configuration) and re-boot the unit.  For  internet  browsing  through  the  ethernet  cradle  ensure  that  programs  that automatically connect to the internet should connect using 'My Work Network' -> go to Start -> Settings -> Connections -> Connections -> Advanced -> Select Networks:    then ensure that the USB/Ethernet Adapter card connects to Work  -> go to Start -> Settings -> Connections -> Network Cards:

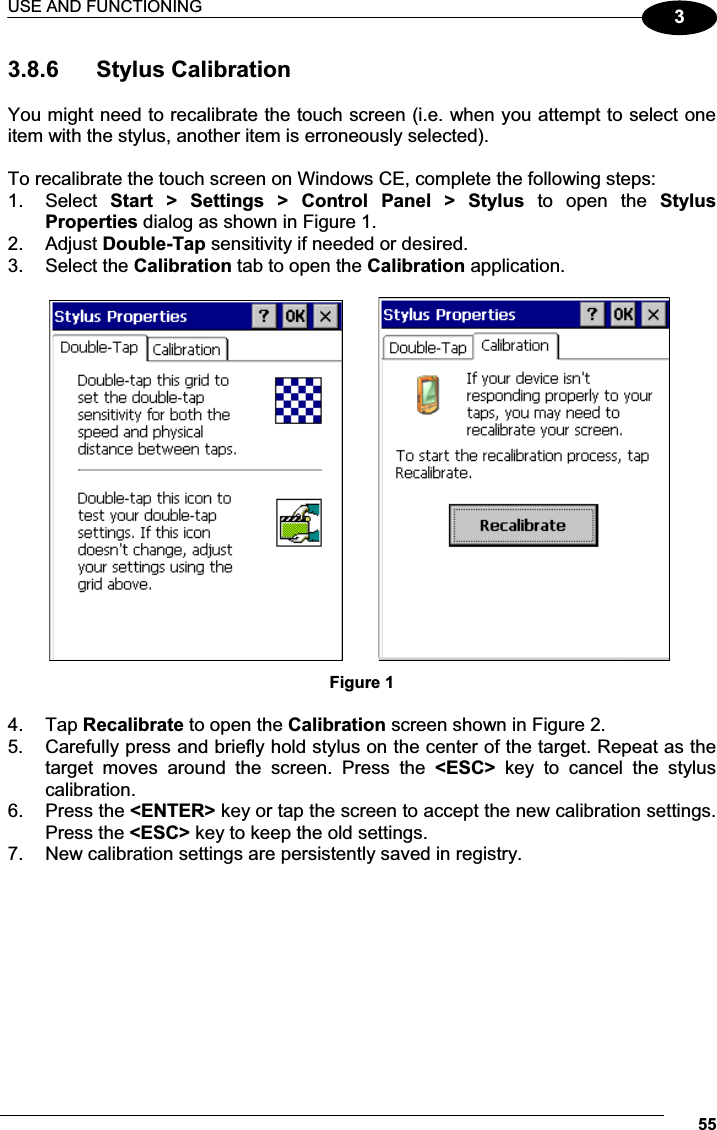

USE AND FUNCTIONING 5533.8.6  Stylus Calibration  You might need to recalibrate the touch screen (i.e. when you attempt to select one item with the stylus, another item is erroneously selected).  To recalibrate the touch screen on Windows CE, complete the following steps: 1.  Select  Start  >  Settings  >  Control  Panel  >  Stylus  to  open  the  Stylus Properties dialog as shown in Figure 1. 2.  Adjust Double-Tap sensitivity if needed or desired. 3.  Select the Calibration tab to open the Calibration application.                   Figure 1  4.  Tap Recalibrate to open the Calibration screen shown in Figure 2. 5.  Carefully press and briefly hold stylus on the center of the target. Repeat as the target  moves  around  the  screen.  Press  the  <ESC>  key  to  cancel  the  stylus calibration.  6.  Press the <ENTER> key or tap the screen to accept the new calibration settings. Press the <ESC> key to keep the old settings. 7.  New calibration settings are persistently saved in registry.
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 563 Figure 2  To recalibrate the touch screen on Windows Mobile, complete the following steps: 1.  Select  Start > Settings > System > Screen to open the Screen  Settings dialog as shown in Figure 3.   Figure 3

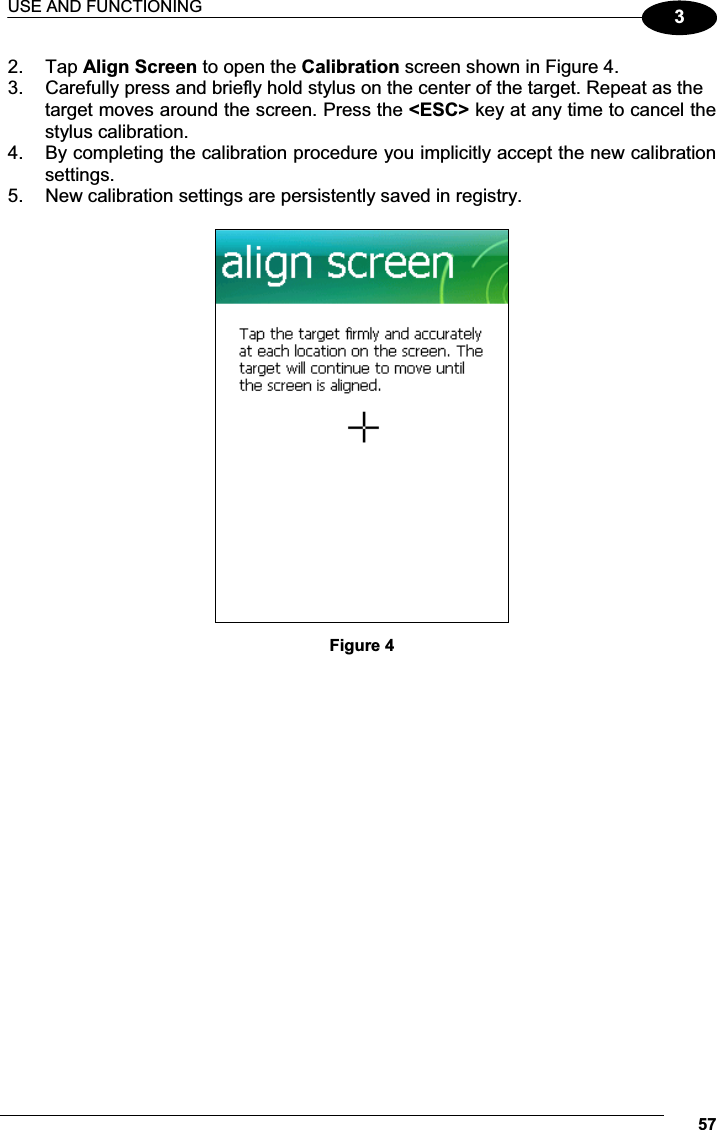

USE AND FUNCTIONING 5732.  Tap Align Screen to open the Calibration screen shown in Figure 4. 3.  Carefully press and briefly hold stylus on the center of the target. Repeat as the target moves around the screen. Press the <ESC> key at any time to cancel the stylus calibration. 4.  By completing the calibration procedure you implicitly accept the new calibration settings. 5.  New calibration settings are persistently saved in registry.   Figure 4

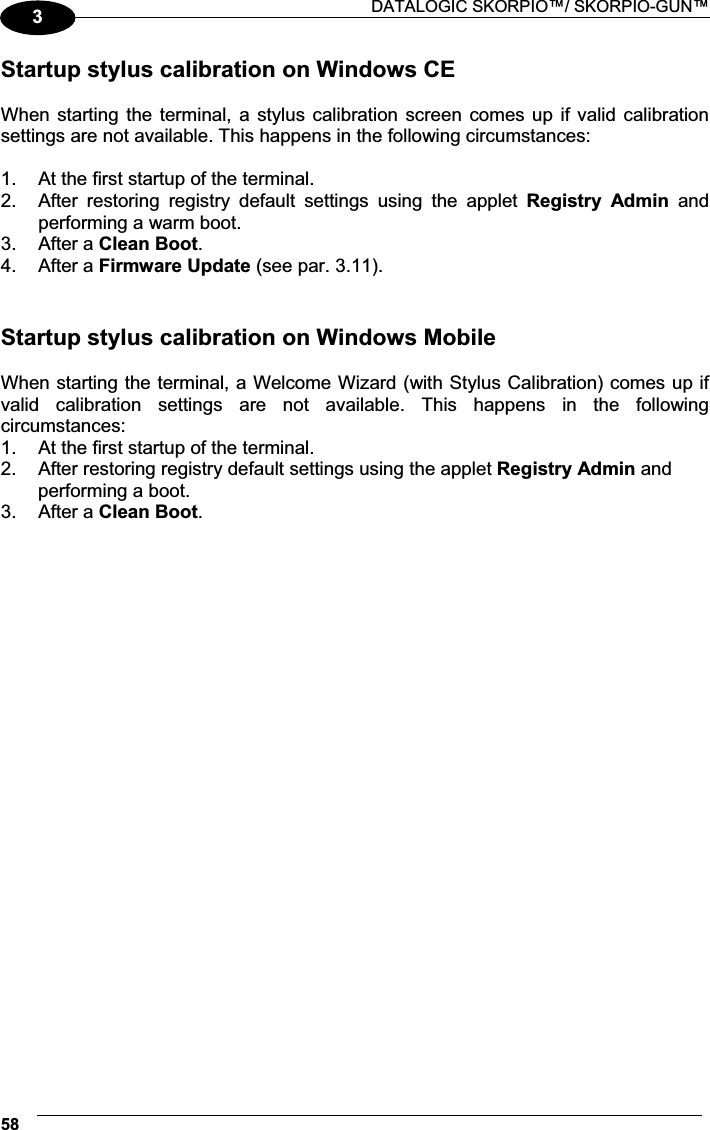

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 583Startup stylus calibration on Windows CE  When starting the terminal, a stylus calibration screen comes up if valid calibration settings are not available. This happens in the following circumstances:  1.  At the first startup of the terminal. 2.  After  restoring  registry  default  settings  using  the  applet  Registry  Admin  and performing a warm boot. 3.  After a Clean Boot. 4.  After a Firmware Update (see par. 3.11).  Startup stylus calibration on Windows Mobile  When starting the terminal, a Welcome Wizard (with Stylus Calibration) comes up if valid  calibration  settings  are  not  available.  This  happens  in  the  following circumstances: 1.  At the first startup of the terminal. 2.  After restoring registry default settings using the applet Registry Admin and performing a boot. 3.  After a Clean Boot.

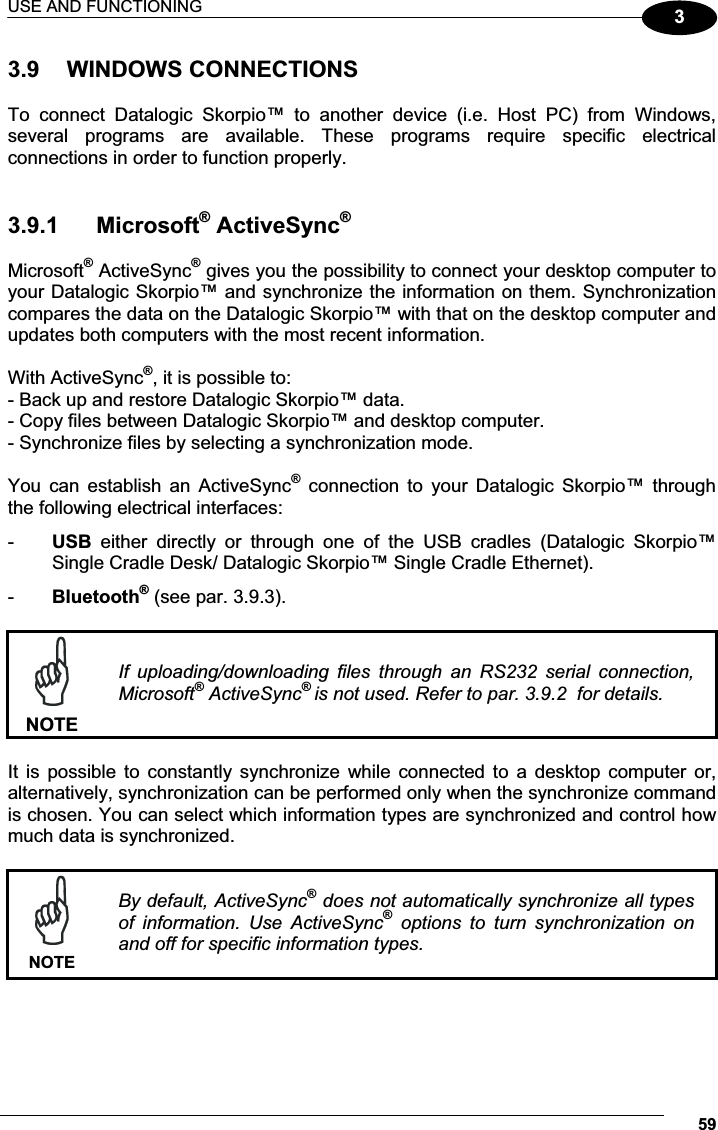

USE AND FUNCTIONING 5933.9  WINDOWS CONNECTIONS  To  connect  Datalogic  Skorpio™  to  another  device  (i.e.  Host  PC)  from  Windows, several  programs  are  available.  These  programs  require  specific  electrical connections in order to function properly.    3.9.1  Microsoft® ActiveSync® Microsoft® ActiveSync® gives you the possibility to connect your desktop computer to your Datalogic Skorpio™ and synchronize the information on them. Synchronization compares the data on the Datalogic Skorpio™ with that on the desktop computer and updates both computers with the most recent information.  With ActiveSync®, it is possible to: - Back up and restore Datalogic Skorpio™ data. - Copy files between Datalogic Skorpio™ and desktop computer. - Synchronize files by selecting a synchronization mode.  You  can  establish  an  ActiveSync®  connection  to  your  Datalogic  Skorpio™  through the following electrical interfaces: -  USB  either  directly  or  through  one  of  the  USB  cradles  (Datalogic  Skorpio™ Single Cradle Desk/ Datalogic Skorpio™ Single Cradle Ethernet). -  Bluetooth® (see par. 3.9.3).   NOTEIf  uploading/downloading  files  through  an  RS232  serial  connection, Microsoft® ActiveSync®is not used. Refer to par. 3.9.2  for details.  It  is  possible  to  constantly  synchronize  while connected  to  a  desktop  computer  or, alternatively, synchronization can be performed only when the synchronize command is chosen. You can select which information types are synchronized and control how much data is synchronized.   NOTEBy default, ActiveSync® does not automatically synchronize all types of  information.  Use  ActiveSync®  options  to  turn  synchronization  on and off for specific information types.

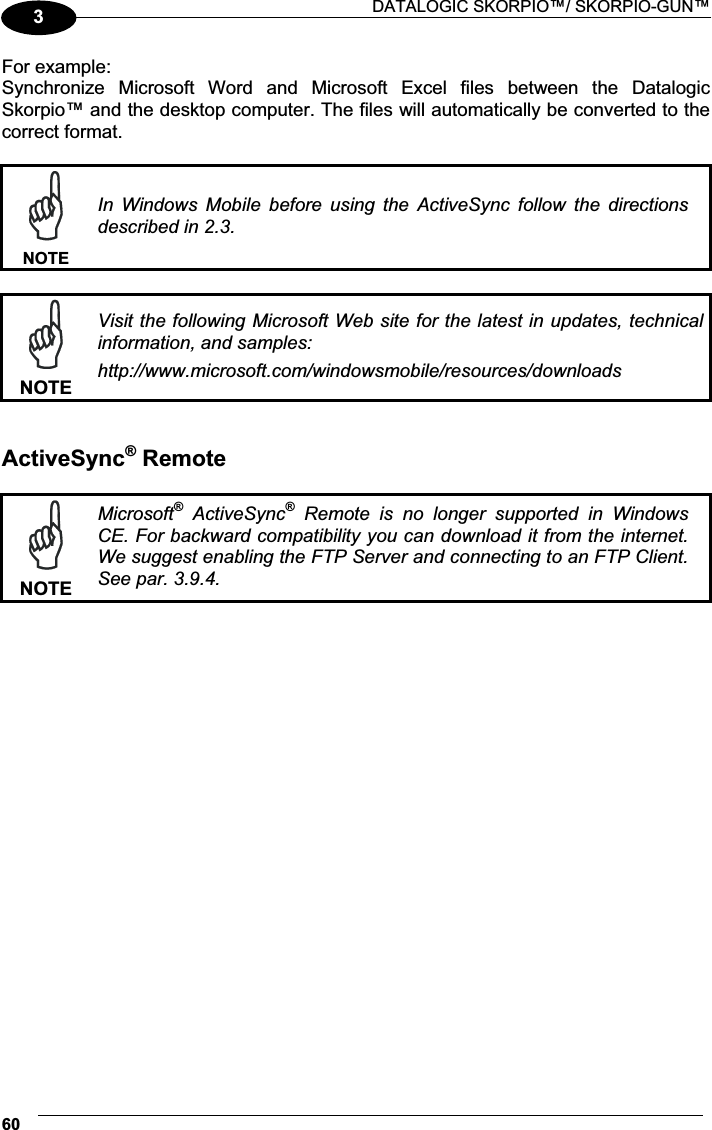

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 603For example: Synchronize  Microsoft  Word  and  Microsoft  Excel  files  between  the  Datalogic Skorpio™ and the desktop computer. The files will automatically be converted to the correct format.   NOTEIn  Windows  Mobile  before  using  the  ActiveSync  follow  the  directions described in 2.3.   NOTEVisit the following Microsoft Web site for the latest in updates, technical information, and samples: http://www.microsoft.com/windowsmobile/resources/downloads  ActiveSync® Remote   NOTEMicrosoft®  ActiveSync®  Remote  is  no  longer  supported  in  Windows CE. For backward compatibility you can download it from the internet. We suggest enabling the FTP Server and connecting to an FTP Client. See par. 3.9.4.

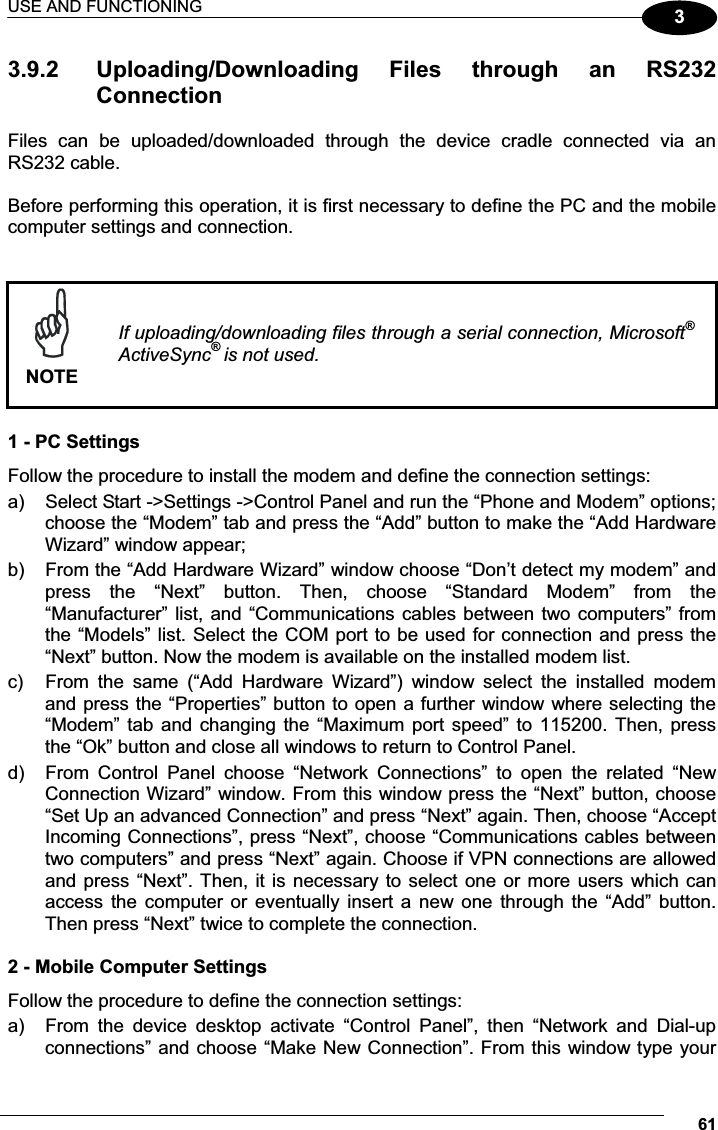

USE AND FUNCTIONING 6133.9.2  Uploading/Downloading  Files  through  an  RS232 Connection Files  can  be  uploaded/downloaded  through  the  device  cradle  connected  via  an RS232 cable.  Before performing this operation, it is first necessary to define the PC and the mobile computer settings and connection.    NOTEIf uploading/downloading files through a serial connection, Microsoft®ActiveSync®is not used.  1 - PC Settings Follow the procedure to install the modem and define the connection settings: a)  Select Start ->Settings ->Control Panel and run the “Phone and Modem” options; choose the “Modem” tab and press the “Add” button to make the “Add Hardware Wizard” window appear; b)  From the “Add Hardware Wizard” window choose “Don’t detect my modem” and press  the  “Next”  button.  Then,  choose  “Standard  Modem”  from  the “Manufacturer” list, and “Communications cables between two computers” from the “Models” list. Select the COM port to be used for connection and press the “Next” button. Now the modem is available on the installed modem list. c)  From  the  same  (“Add  Hardware  Wizard”)  window  select  the  installed  modem and press the “Properties” button to open a further window where selecting the “Modem” tab and changing the “Maximum port speed” to 115200. Then, press the “Ok” button and close all windows to return to Control Panel. d)  From  Control  Panel  choose  “Network  Connections”  to  open  the  related  “New Connection Wizard” window. From this window press the “Next” button, choose “Set Up an advanced Connection” and press “Next” again. Then, choose “Accept Incoming Connections”, press “Next”, choose “Communications cables between two computers” and press “Next” again. Choose if VPN connections are allowed and press “Next”. Then, it is necessary to select one or more users which can access the computer  or  eventually  insert  a  new one through  the “Add”  button. Then press “Next” twice to complete the connection.  2 - Mobile Computer Settings Follow the procedure to define the connection settings: a)  From  the  device  desktop  activate  “Control  Panel”,  then  “Network  and  Dial-up connections” and choose “Make New Connection”. From this window type your
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 623connection name, select “Direct Connection” and press “Next”. From the device list select “Serial cable on COM1” and change the communication speed under “Configure”  to  115200  baud.  Then,  press  “Security  Settings”  and  select  the “Preview user name and password” flag. Press “Finish” to save the configuration and close all windows.  3 - PC Connection Follow the procedure to start the connection from the PC side: a)  Connect the device cradle to the PC through a serial cable (refer to the cradle Instruction Manual); b)  Share the desired directories as if working in a typical network connection.  4 - Mobile Computer Connection Follow the procedure to start the connection from the mobile computer side: a)  Insert the mobile computer into the cradle. b)  Activate “Control Panel”->“Network and Dial-up connections”->“<your connection name>”.  Within  the  “Enter  Network  Password”  window  insert  user  name  and password (among  those allowed  in  step  d)  of the  PC  Settings procedure)  and press the “Ok” button. If the connection succeeds, the “Connected” message will appear within the “<your connection name>Status” window. c)  Activate  “My  Device”;  then,  select  “Address  Bar”  from  the  “View”  menu,  insert \\<host name> and press “Enter” from the keyboard. Insert user name, password and host domain within the new window.  Now, the directory list will display those directories previously shared by the PC. All directories can be managed as if working in a typical LAN connection.

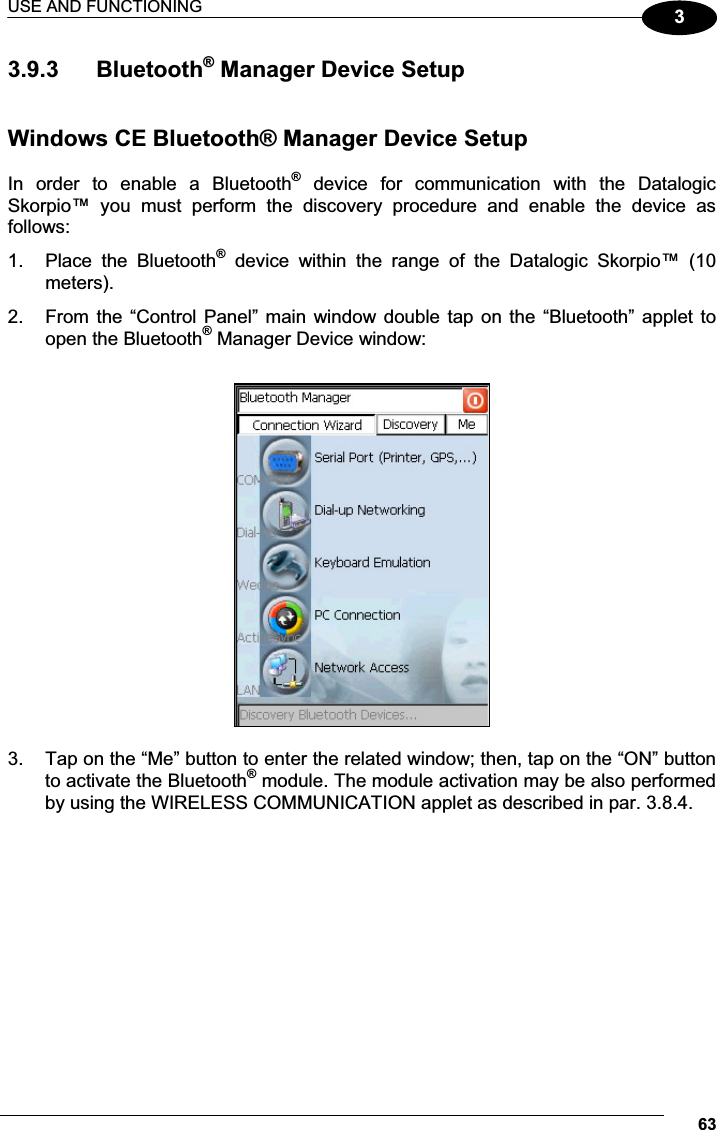

USE AND FUNCTIONING 6333.9.3  Bluetooth® Manager Device Setup   Windows CE Bluetooth® Manager Device Setup  In  order  to  enable  a  Bluetooth®  device  for  communication  with  the  Datalogic Skorpio™  you  must  perform  the  discovery  procedure  and  enable  the  device  as follows: 1.  Place  the  Bluetooth®  device  within  the  range  of  the  Datalogic  Skorpio™  (10 meters). 2.  From the “Control Panel”  main  window double tap on the “Bluetooth” applet to open the Bluetooth® Manager Device window:    3.  Tap on the “Me” button to enter the related window; then, tap on the “ON” button to activate the Bluetooth® module. The module activation may be also performed by using the WIRELESS COMMUNICATION applet as described in par. 3.8.4.

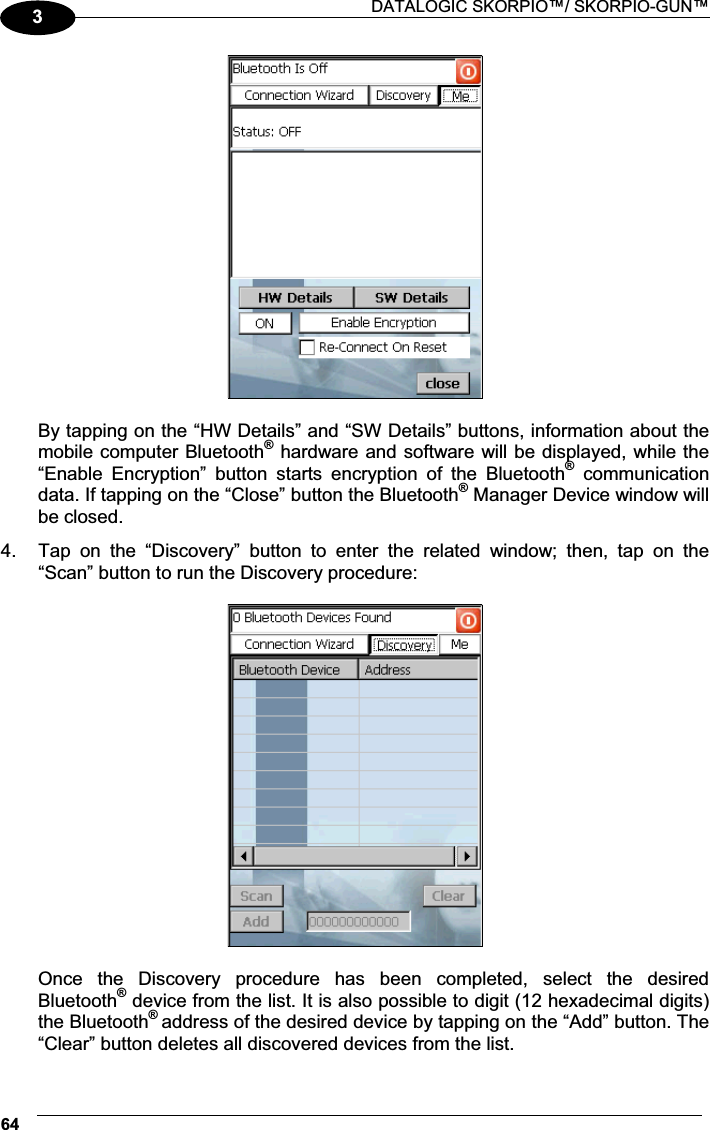

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 643  By tapping on the “HW Details” and “SW Details” buttons, information about the mobile computer Bluetooth® hardware and software will be displayed, while the “Enable  Encryption”  button  starts  encryption  of  the  Bluetooth®  communication data. If tapping on the “Close” button the Bluetooth® Manager Device window will be closed. 4.  Tap  on  the  “Discovery”  button  to  enter  the  related  window;  then,  tap  on  the “Scan” button to run the Discovery procedure:    Once  the  Discovery  procedure  has  been  completed,  select  the  desired Bluetooth® device from the list. It is also possible to digit (12 hexadecimal digits) the Bluetooth® address of the desired device by tapping on the “Add” button. The “Clear” button deletes all discovered devices from the list.

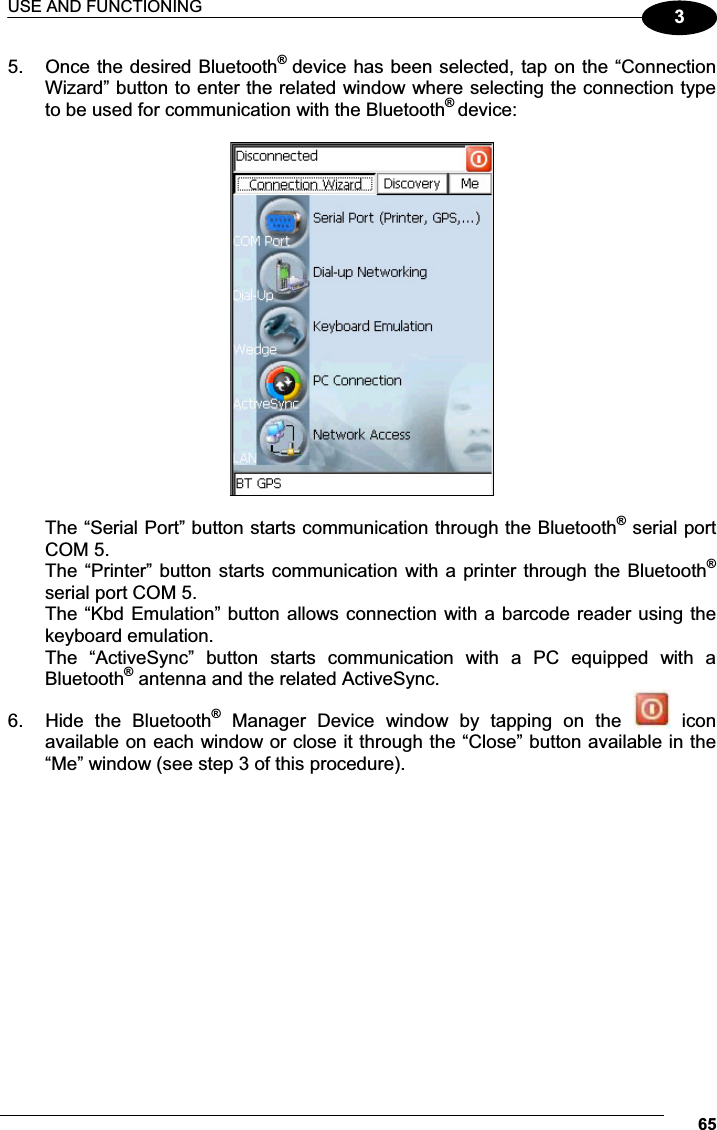

USE AND FUNCTIONING 6535.  Once the desired Bluetooth®  device has been selected, tap on the “Connection Wizard” button to enter the related window where selecting the connection type to be used for communication with the Bluetooth® device:    The “Serial Port” button starts communication through the Bluetooth® serial port COM 5. The “Printer” button starts communication with a printer through the Bluetooth® serial port COM 5. The “Kbd Emulation” button allows connection with a barcode reader using the keyboard emulation. The  “ActiveSync”  button  starts  communication  with  a  PC  equipped  with  a Bluetooth® antenna and the related ActiveSync. 6.  Hide  the  Bluetooth®  Manager  Device  window  by  tapping  on  the    icon available on each window or close it through the “Close” button available in the “Me” window (see step 3 of this procedure).

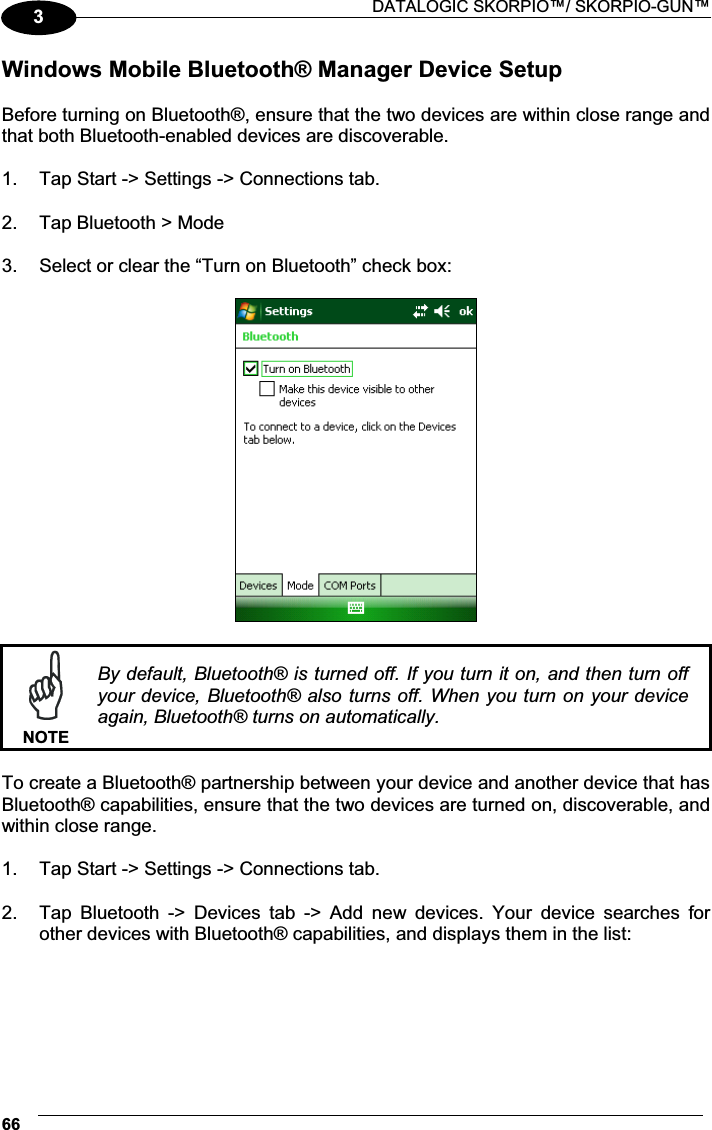

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 663Windows Mobile Bluetooth® Manager Device Setup  Before turning on Bluetooth®, ensure that the two devices are within close range and that both Bluetooth-enabled devices are discoverable.  1.  Tap Start -> Settings -> Connections tab.   2.  Tap Bluetooth > Mode   3.  Select or clear the “Turn on Bluetooth” check box:     NOTEBy default, Bluetooth® is turned off. If you turn it on, and then turn off your device, Bluetooth® also turns off.  When you turn on  your device again, Bluetooth® turns on automatically.  To create a Bluetooth® partnership between your device and another device that has Bluetooth® capabilities, ensure that the two devices are turned on, discoverable, and within close range.  1.  Tap Start -> Settings -> Connections tab.   2.  Tap  Bluetooth  ->  Devices  tab  ->  Add  new  devices.  Your  device  searches  for other devices with Bluetooth® capabilities, and displays them in the list:

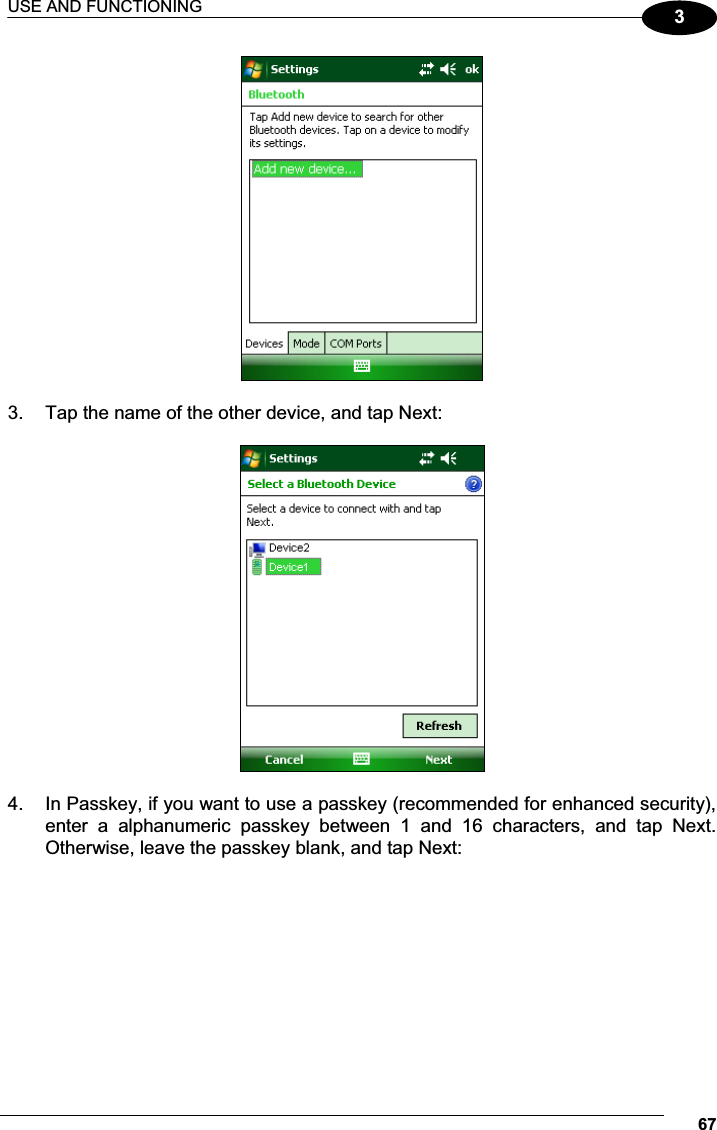

USE AND FUNCTIONING 673  3.  Tap the name of the other device, and tap Next:    4.  In Passkey, if you want to use a passkey (recommended for enhanced security), enter  a  alphanumeric  passkey  between  1  and  16  characters,  and  tap  Next. Otherwise, leave the passkey blank, and tap Next:

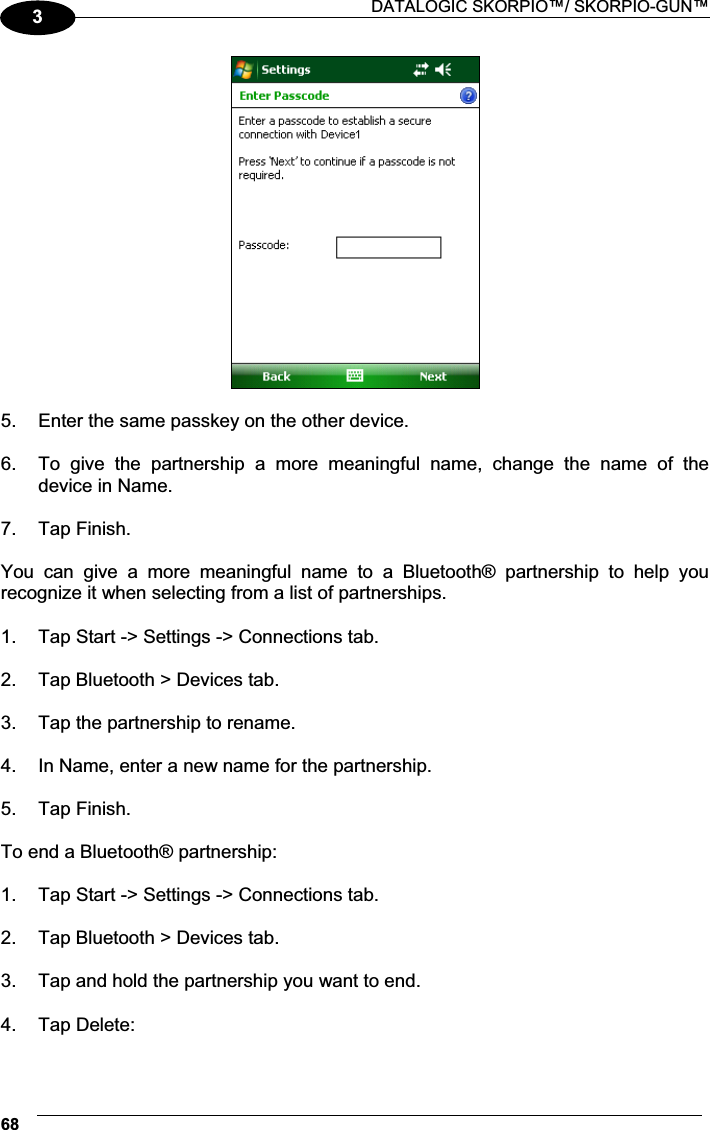

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 683  5.  Enter the same passkey on the other device.  6.  To  give  the  partnership  a  more  meaningful  name,  change  the  name  of  the device in Name.  7.  Tap Finish.  You  can  give  a  more  meaningful  name  to  a  Bluetooth®  partnership  to  help  you recognize it when selecting from a list of partnerships.  1.  Tap Start -> Settings -> Connections tab.   2.  Tap Bluetooth > Devices tab.  3.  Tap the partnership to rename.  4.  In Name, enter a new name for the partnership.  5.  Tap Finish.  To end a Bluetooth® partnership:  1.  Tap Start -> Settings -> Connections tab.   2.  Tap Bluetooth > Devices tab.  3.  Tap and hold the partnership you want to end.  4.  Tap Delete:

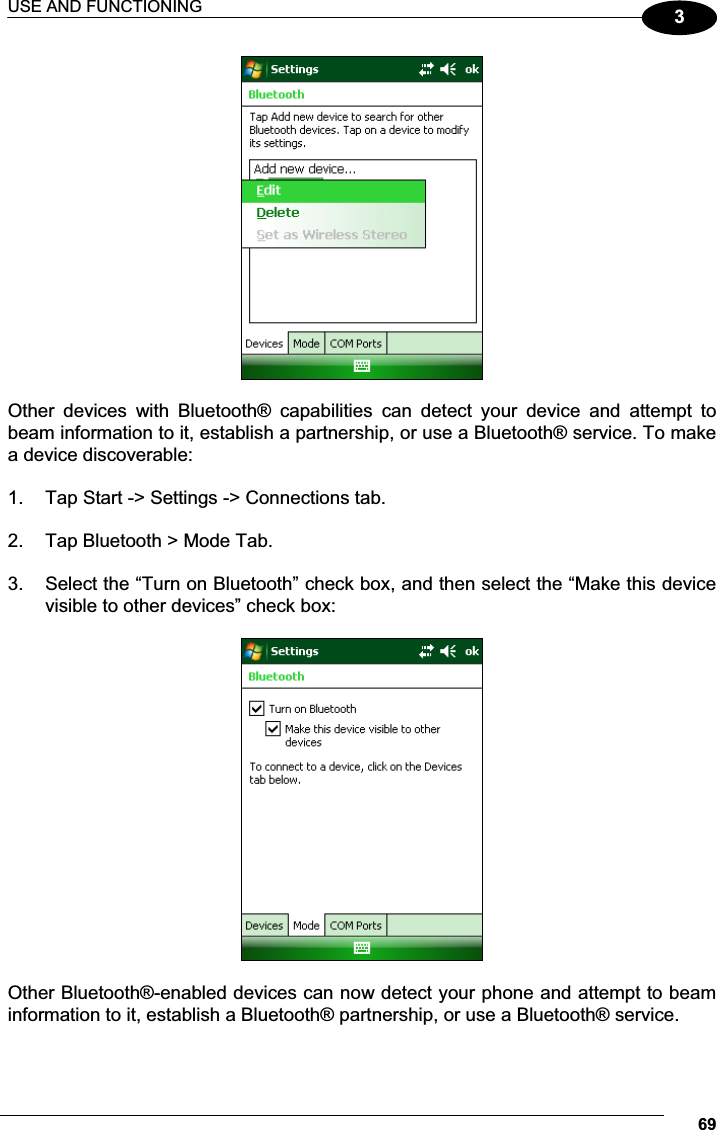

USE AND FUNCTIONING 693  Other  devices  with  Bluetooth®  capabilities  can  detect  your  device  and  attempt  to beam information to it, establish a partnership, or use a Bluetooth® service. To make a device discoverable:  1.  Tap Start -> Settings -> Connections tab.   2.  Tap Bluetooth > Mode Tab.  3.  Select the “Turn on Bluetooth” check box, and then select the “Make this device visible to other devices” check box:    Other Bluetooth®-enabled devices can now detect your phone and attempt to beam information to it, establish a Bluetooth® partnership, or use a Bluetooth® service.
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 703If  you  no  longer  want  your  device  to  be  discoverable,  clear  the  “Make  this  device visible to other devices” check box.  Your device will not detect and notify you of incoming Bluetooth® beams unless you set it up to do this. To receive a Bluetooth® beam:  1.  Tap Start -> Settings -> Connections tab -> Beam:    2.  Select the “Receive all incoming beams” check box:    3.  Ensure that your device is turned on, discoverable, and within close range of the device that is beaming the information.  When  prompted  to  receive  an  incoming  beam,  tap  “Yes”  to  receive  the  beamed information.

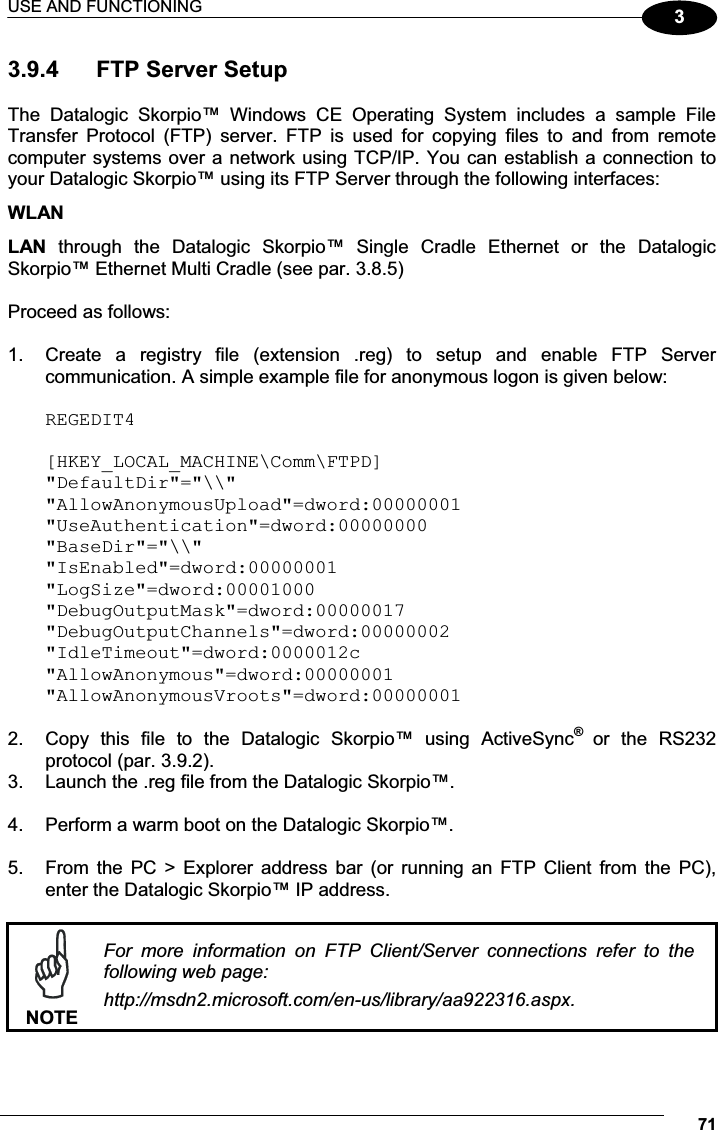

USE AND FUNCTIONING 7133.9.4  FTP Server Setup  The  Datalogic  Skorpio™  Windows  CE  Operating  System  includes  a  sample  File Transfer  Protocol  (FTP)  server.  FTP  is  used  for  copying  files  to  and  from  remote computer systems over a network using TCP/IP. You can establish a connection to your Datalogic Skorpio™ using its FTP Server through the following interfaces: WLAN  LAN  through  the  Datalogic  Skorpio™  Single  Cradle  Ethernet  or  the  Datalogic Skorpio™ Ethernet Multi Cradle (see par. 3.8.5)  Proceed as follows:  1.  Create  a  registry  file  (extension  .reg)  to  setup  and  enable  FTP  Server communication. A simple example file for anonymous logon is given below:  REGEDIT4[HKEY_LOCAL_MACHINE\Comm\FTPD]"DefaultDir"="\\""AllowAnonymousUpload"=dword:00000001"UseAuthentication"=dword:00000000"BaseDir"="\\""IsEnabled"=dword:00000001"LogSize"=dword:00001000"DebugOutputMask"=dword:00000017"DebugOutputChannels"=dword:00000002"IdleTimeout"=dword:0000012c"AllowAnonymous"=dword:00000001"AllowAnonymousVroots"=dword:00000001 2.  Copy  this  file  to  the  Datalogic  Skorpio™  using  ActiveSync®  or  the  RS232 protocol (par. 3.9.2). 3.  Launch the .reg file from the Datalogic Skorpio™.  4.  Perform a warm boot on the Datalogic Skorpio™.  5.  From the  PC >  Explorer  address  bar  (or  running  an  FTP  Client  from  the  PC), enter the Datalogic Skorpio™ IP address.   NOTEFor  more  information  on  FTP  Client/Server  connections  refer  to  the following web page: http://msdn2.microsoft.com/en-us/library/aa922316.aspx.

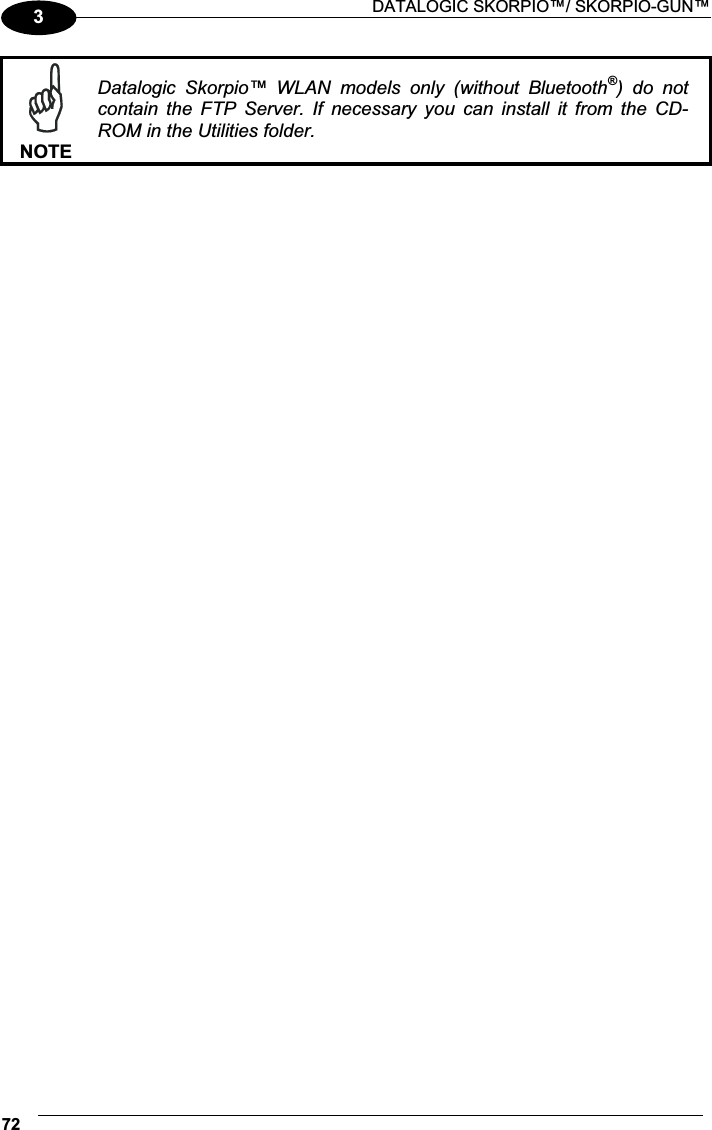

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 723 NOTEDatalogic  Skorpio™  WLAN  models  only  (without  Bluetooth®)  do  not contain  the  FTP  Server.  If  necessary  you  can  install  it  from  the  CD-ROM in the Utilities folder.

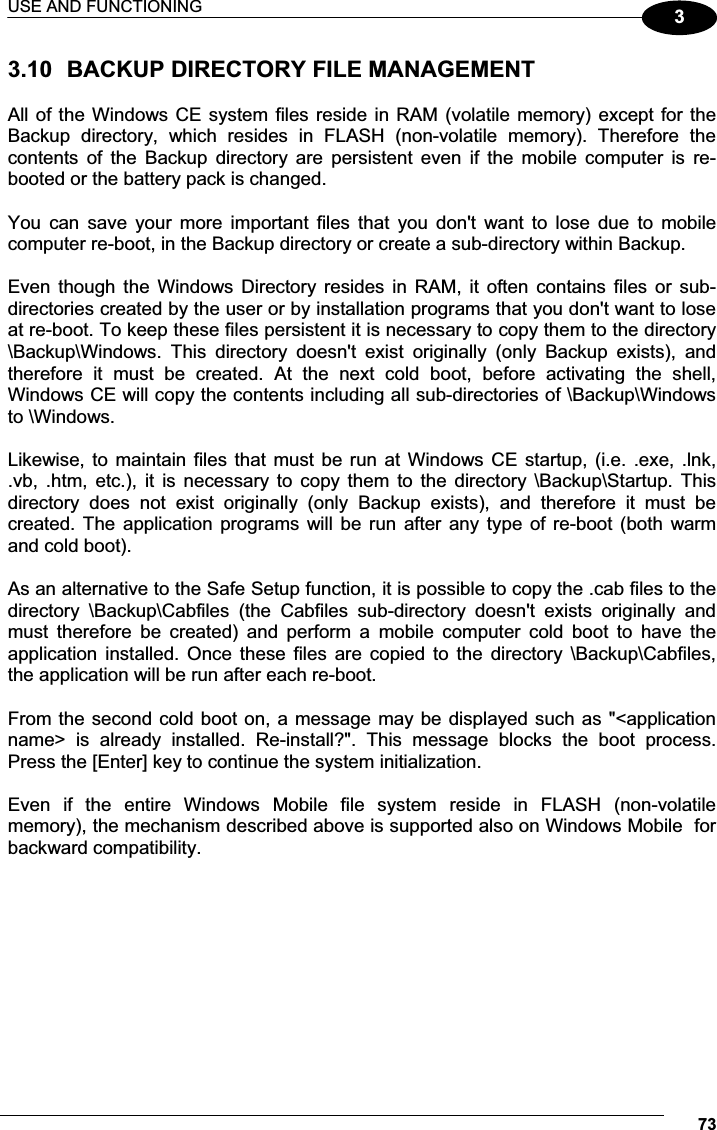

USE AND FUNCTIONING 7333.10  BACKUP DIRECTORY FILE MANAGEMENT  All of the Windows CE system files reside in RAM (volatile memory) except for the Backup  directory,  which  resides  in  FLASH  (non-volatile  memory).  Therefore  the contents  of  the  Backup  directory  are  persistent  even  if  the  mobile  computer  is  re-booted or the battery pack is changed.  You  can  save  your  more  important  files  that  you  don't  want  to  lose  due  to  mobile computer re-boot, in the Backup directory or create a sub-directory within Backup.  Even though  the  Windows Directory  resides  in  RAM,  it  often  contains  files  or  sub-directories created by the user or by installation programs that you don't want to lose at re-boot. To keep these files persistent it is necessary to copy them to the directory \Backup\Windows.  This  directory  doesn't  exist  originally  (only  Backup  exists),  and therefore  it  must  be  created.  At  the  next  cold  boot,  before  activating  the  shell, Windows CE will copy the contents including all sub-directories of \Backup\Windows to \Windows.  Likewise, to maintain files that must be run at Windows CE startup, (i.e. .exe, .lnk, .vb,  .htm,  etc.),  it  is  necessary to  copy them  to  the  directory \Backup\Startup.  This directory  does  not  exist  originally  (only  Backup  exists),  and  therefore  it  must  be created. The application programs  will  be  run after any type  of  re-boot  (both  warm and cold boot).  As an alternative to the Safe Setup function, it is possible to copy the .cab files to the directory  \Backup\Cabfiles  (the  Cabfiles  sub-directory  doesn't  exists  originally  and must  therefore  be  created)  and  perform  a  mobile  computer  cold  boot  to  have  the application  installed.  Once  these  files  are  copied  to  the  directory  \Backup\Cabfiles, the application will be run after each re-boot.  From the second cold boot on, a message may be displayed such as "<application name>  is  already  installed.  Re-install?".  This  message  blocks  the  boot  process. Press the [Enter] key to continue the system initialization.  Even  if  the  entire  Windows  Mobile  file  system  reside  in  FLASH  (non-volatile memory), the mechanism described above is supported also on Windows Mobile  for backward compatibility.

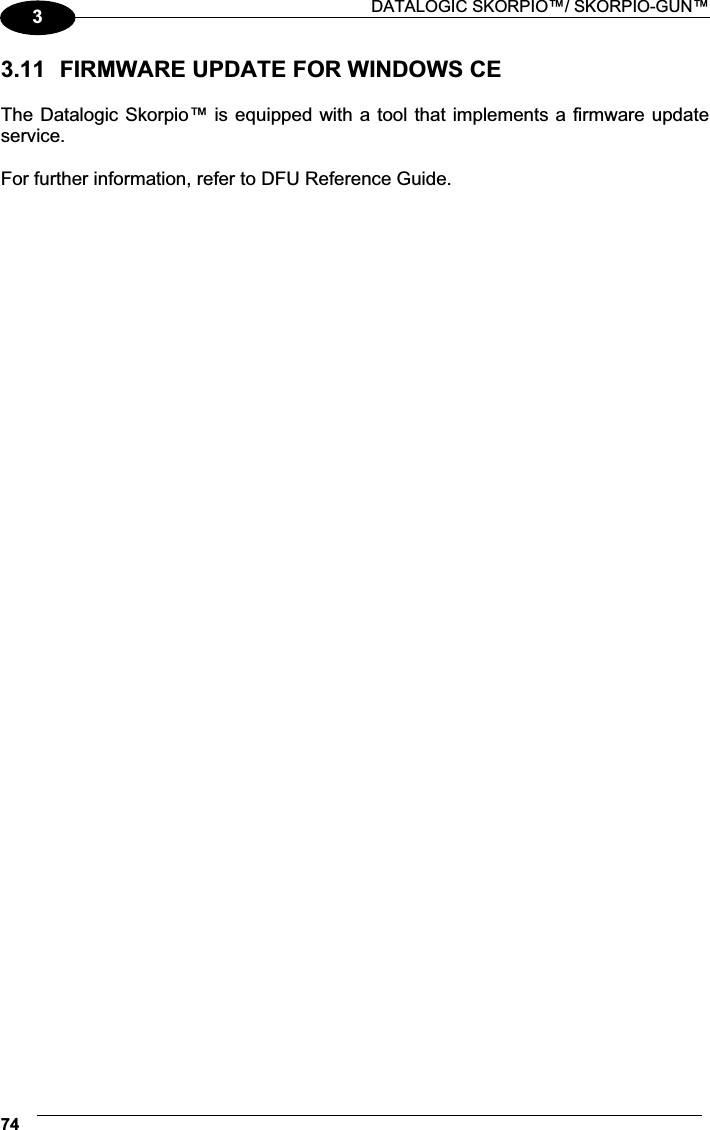

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 7433.11  FIRMWARE UPDATE FOR WINDOWS CE  The Datalogic Skorpio™ is equipped with a tool that implements a firmware update service.   For further information, refer to DFU Reference Guide.
MAINTENANCE 7544  MAINTENANCE    NOTERechargeable battery packs are not initially charged. Therefore the first operation to perform is to charge them. See below.   CAUTION By default,  the battery  pack is  disconnected  at the  factory to  avoid damage  due  to  excessive  draining.  Annual  replacement  of rechargeable  battery  pack  avoids  possible  risks  or  abnormalities and ensures maximum performance.   4.1  CHARGING THE BATTERY PACK  The  battery  pack  autonomy  varies  according  to  factors,  such  as  the  frequency  of barcode scanning, RF usage, etc.  When  the  battery  pack  is  low,  the  LED  positioned  at  the  right  side  of  the  display blinks red.  It  is  possible  to  recharge  the  battery  pack  by  using  the  PG5-20  MiniUSB  AC/DC Power Supply directly connected to the Datalogic Skorpio™.  Alternatively,  it  is  also  possible  to  recharge  the  battery  pack  by  using  one  of  the  Datalogic Skorpio™ single or multiple cradles.  During the charging process the LED positioned at the right side of the display is red constant. Once the charging process has been completed this LED is green constant (see par. 3.6).  If  the  battery  pack  is  removed  from  the  mobile  computer,  it  can  be  recharged  by inserting it into the MBC8600 Multi-Battery Charger.   NOTEThe  battery  pack  autonomy  varies  according  to  many  factors,  such  as the  frequency  of  barcode  scanning,  RF  usage,  battery  life,  storage, environmental conditions, etc.

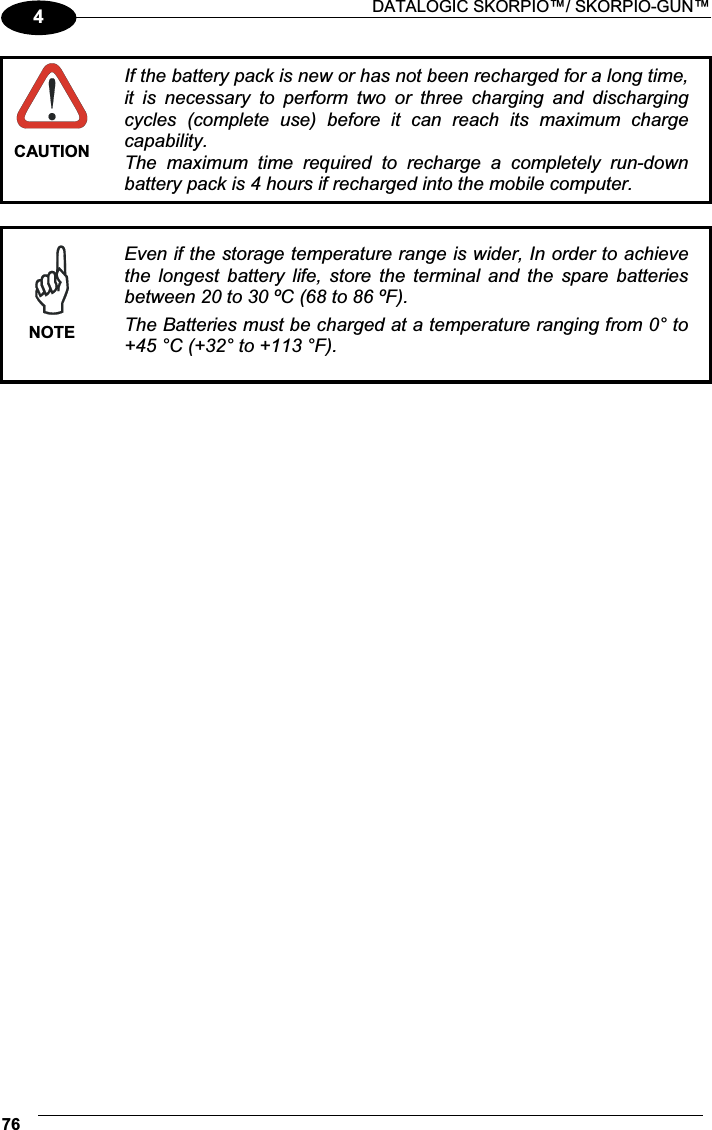

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 764 CAUTION If the battery pack is new or has not been recharged for a long time, it  is  necessary  to  perform  two  or  three  charging  and  discharging cycles  (complete  use)  before  it  can  reach  its  maximum  charge capability. The  maximum  time  required  to  recharge  a  completely  run-down battery pack is 4 hours if recharged into the mobile computer.   NOTEEven if the storage temperature range is wider, In order to achieve the  longest  battery  life,  store  the  terminal  and  the  spare  batteries between 20 to 30 ºC (68 to 86 ºF). The Batteries must be charged at a temperature ranging from 0° to +45 °C (+32° to +113 °F).

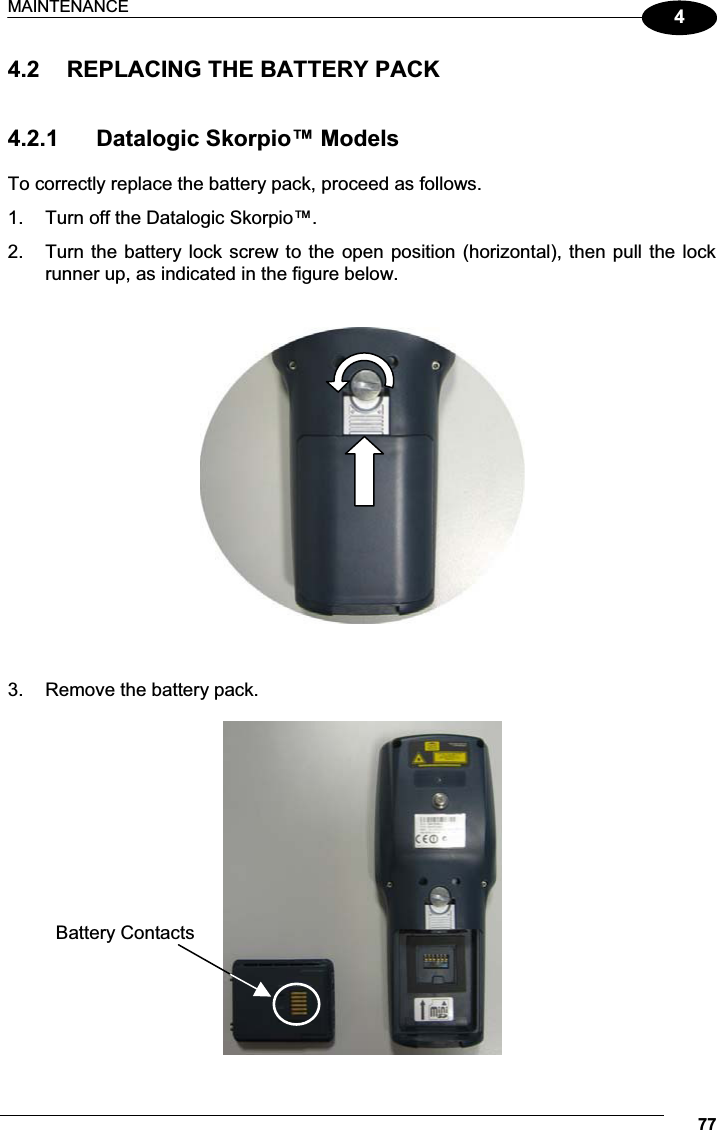

MAINTENANCE 7744.2  REPLACING THE BATTERY PACK   4.2.1  Datalogic Skorpio™ Models  To correctly replace the battery pack, proceed as follows. 1.  Turn off the Datalogic Skorpio™. 2.  Turn the battery lock screw to the  open position (horizontal), then pull the lock runner up, as indicated in the figure below.      3.  Remove the battery pack.   Battery Contacts

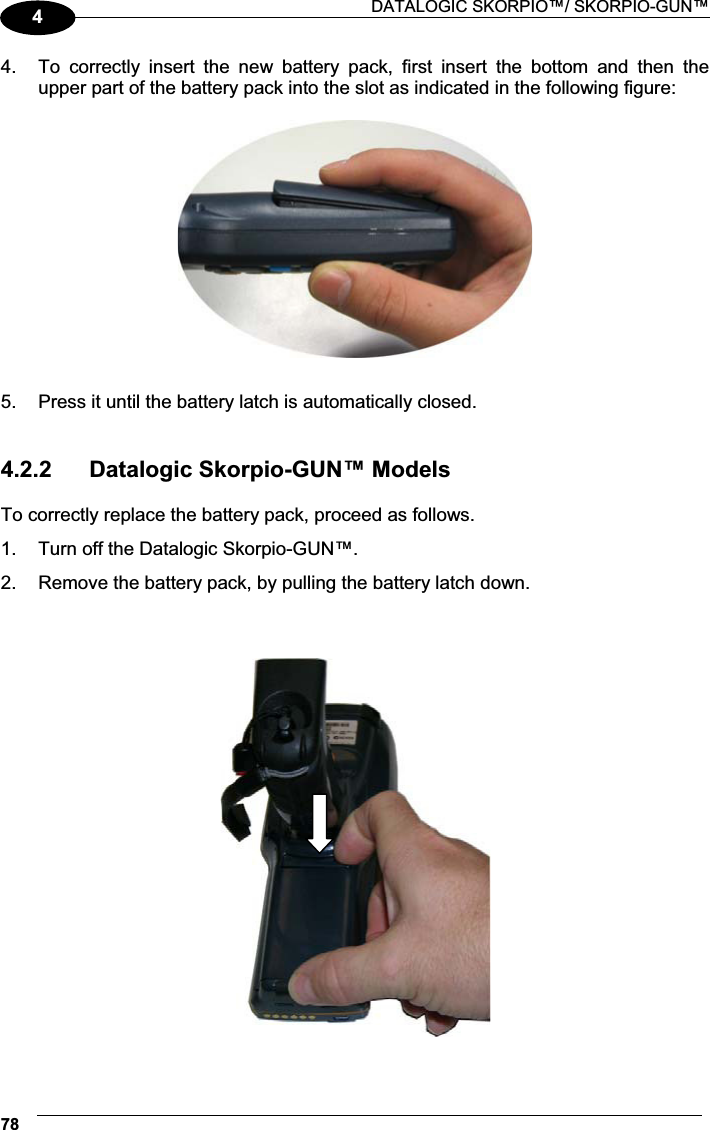

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 7844.  To  correctly  insert  the  new  battery  pack,  first  insert  the  bottom  and  then  the upper part of the battery pack into the slot as indicated in the following figure:    5.  Press it until the battery latch is automatically closed.   4.2.2  Datalogic Skorpio-GUN™ Models  To correctly replace the battery pack, proceed as follows. 1.  Turn off the Datalogic Skorpio-GUN™. 2.  Remove the battery pack, by pulling the battery latch down.
MAINTENANCE 794    3.  To  correctly  insert  the  new  battery  pack,  first  insert  the  bottom  and  then  the upper part of the battery pack into the slot as indicated in the following figure:    4.  Press it until the battery latch is automatically closed.   Battery Contacts
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 804 WARNING Installing, charging and/or any other action should be done by authorized personnel and following this manual.  The battery pack may get hot, explode, ignite, and/or cause serious injury if exposed to abusive conditions.  If the battery pack is replaced with an improper type, there is risk of explosion.  Do not place the battery pack in or near a fire or heat; do not place the battery pack in direct sunlight, or use or store the battery pack inside unventilated areas in hot weather; do not place the battery pack in microwave ovens, dryer, high pressure containers, on induction cookware or similar device. Doing so may cause the battery pack to generate heat, explode or ignite. Using the battery pack in this manner may also result in a loss of performance and a shortened life expectancy.  Use only a Datalogic Mobile approved power supply. The use of an alternative power supply will void the product warranty, may cause product damage and may cause heat, explode or ignite.  The area in which the units are charged should be clear of debris and combustible materials or chemicals.  Do not use the battery pack of this terminal for power devices different from this mobile computer.  Immediately discontinue use of the battery pack if, while using, charging or storing the battery pack, the battery pack emits an unusual smell, feels hot, changes colour or shape, or appears abnormal in any other way. Do not short-circuit the battery pack contacts connecting the positive terminal and negative terminal. This might happen, for example, when you carry a spare battery pack in your pocket or purse; accidental short–circuiting can occur when a metallic object such as a coin, clip, or pen causes direct connection of the contacts of the battery pack (these look like metal strips on the battery pack). Short–circuiting the terminals may damage the battery pack or the connecting object. Do not apply voltages to the battery pack contacts.

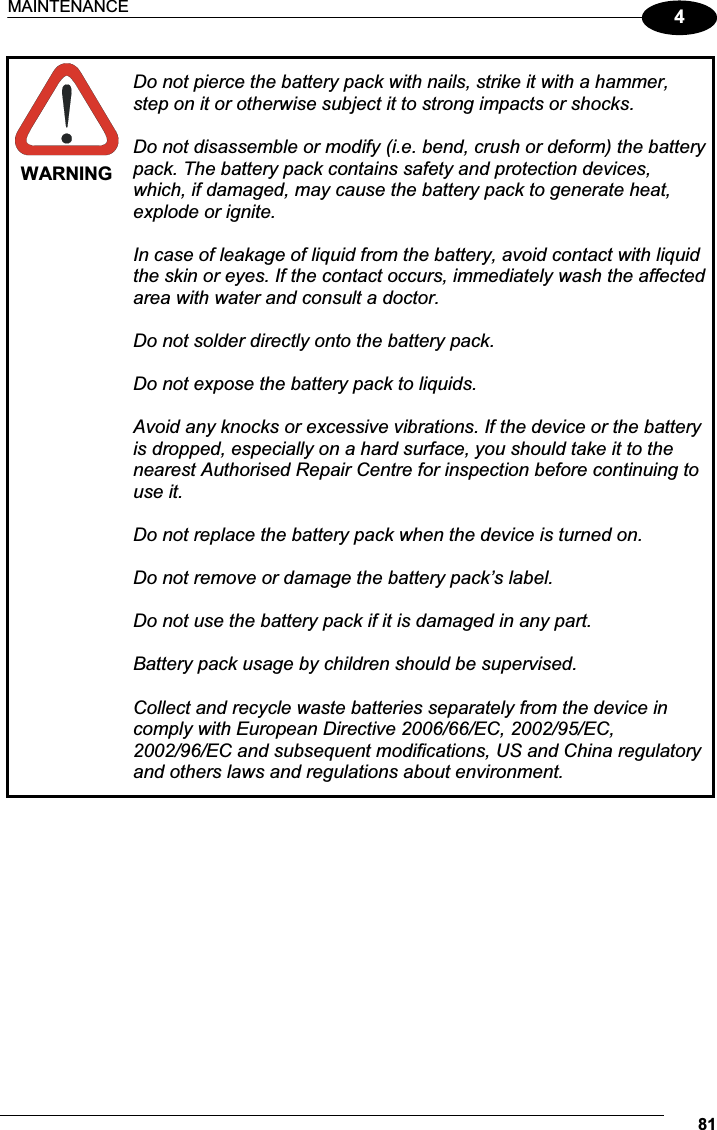

MAINTENANCE 814WARNING Do not pierce the battery pack with nails, strike it with a hammer, step on it or otherwise subject it to strong impacts or shocks. Do not disassemble or modify (i.e. bend, crush or deform) the battery pack. The battery pack contains safety and protection devices, which, if damaged, may cause the battery pack to generate heat, explode or ignite.  In case of leakage of liquid from the battery, avoid contact with liquid the skin or eyes. If the contact occurs, immediately wash the affected area with water and consult a doctor. Do not solder directly onto the battery pack. Do not expose the battery pack to liquids.  Avoid any knocks or excessive vibrations. If the device or the battery is dropped, especially on a hard surface, you should take it to the nearest Authorised Repair Centre for inspection before continuing to use it.  Do not replace the battery pack when the device is turned on. Do not remove or damage the battery pack’s label.  Do not use the battery pack if it is damaged in any part.  Battery pack usage by children should be supervised.  Collect and recycle waste batteries separately from the device in comply with European Directive 2006/66/EC, 2002/95/EC, 2002/96/EC and subsequent modifications, US and China regulatory and others laws and regulations about environment.

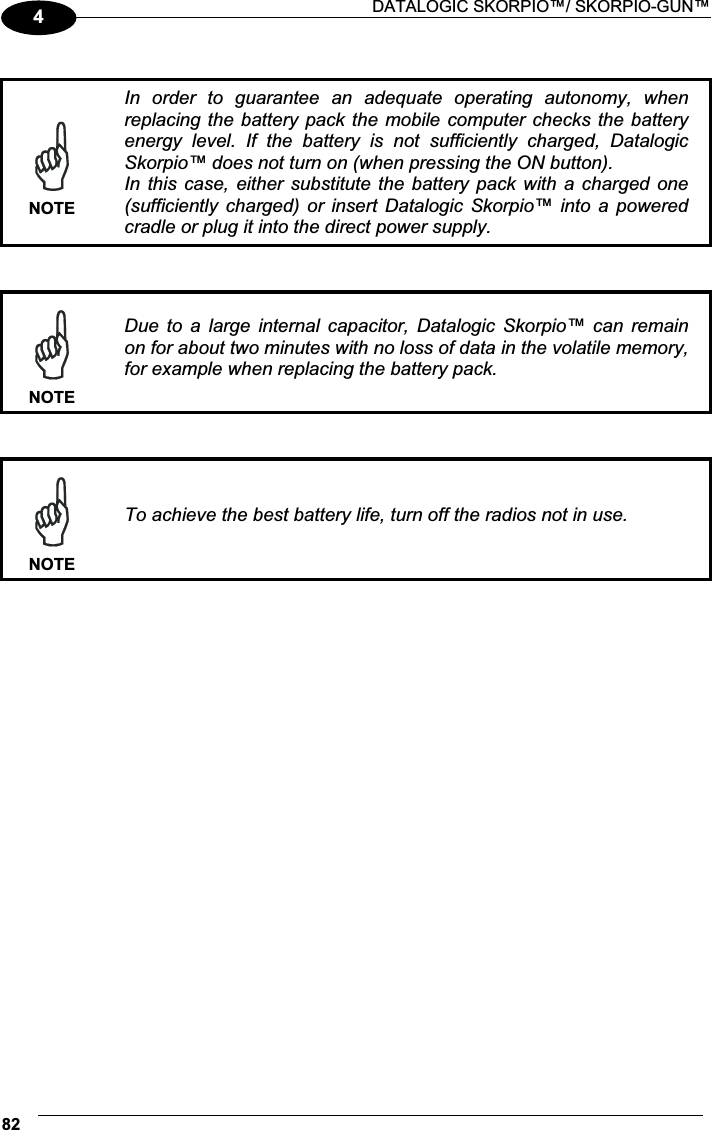

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 824  NOTEIn  order  to  guarantee  an  adequate  operating  autonomy,  when replacing the battery pack the  mobile computer checks the  battery energy  level.  If  the  battery  is  not  sufficiently  charged,  Datalogic Skorpio™ does not turn on (when pressing the ON button). In this case,  either  substitute  the battery pack  with  a  charged  one (sufficiently charged)  or  insert  Datalogic  Skorpio™  into  a  powered cradle or plug it into the direct power supply.    NOTEDue  to  a  large  internal  capacitor,  Datalogic  Skorpio™  can  remain on for about two minutes with no loss of data in the volatile memory, for example when replacing the battery pack.    NOTETo achieve the best battery life, turn off the radios not in use.

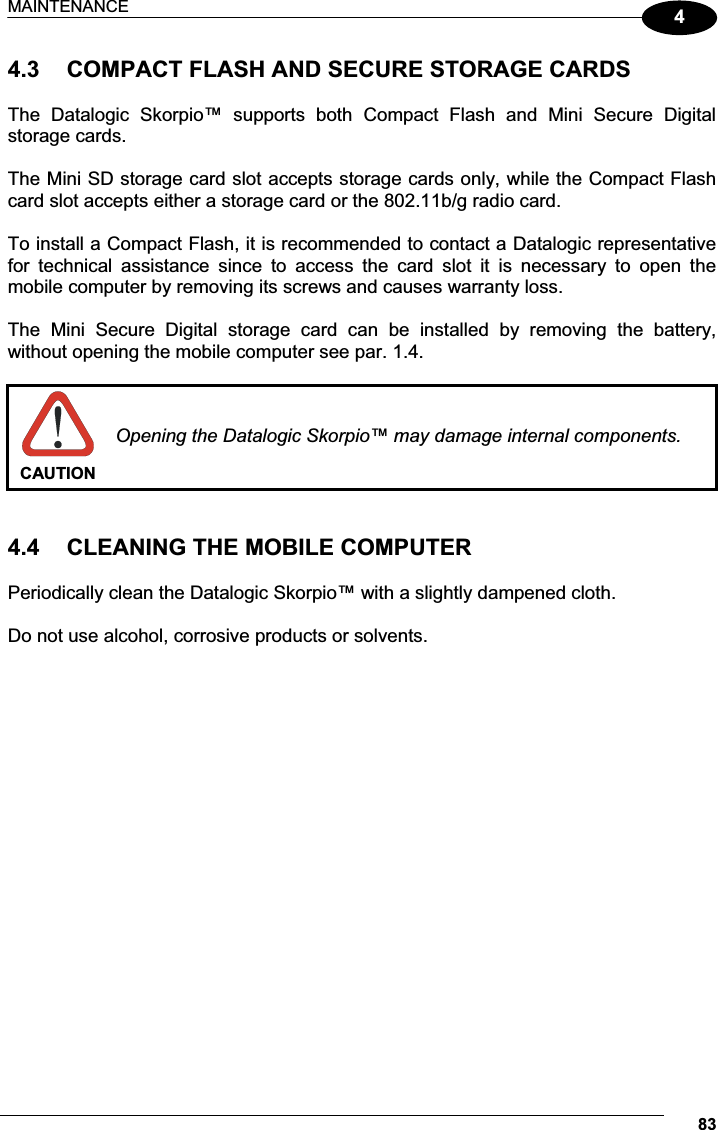

MAINTENANCE 8344.3  COMPACT FLASH AND SECURE STORAGE CARDS  The  Datalogic  Skorpio™  supports  both  Compact  Flash  and  Mini  Secure  Digital storage cards.  The Mini SD storage card slot accepts storage cards only, while the Compact Flash card slot accepts either a storage card or the 802.11b/g radio card.  To install a Compact Flash, it is recommended to contact a Datalogic representative for  technical  assistance  since  to  access  the  card  slot  it  is  necessary  to  open  the mobile computer by removing its screws and causes warranty loss.  The  Mini  Secure  Digital  storage  card  can  be  installed  by  removing  the  battery, without opening the mobile computer see par. 1.4.   CAUTION Opening the Datalogic Skorpio™ may damage internal components.   4.4  CLEANING THE MOBILE COMPUTER  Periodically clean the Datalogic Skorpio™ with a slightly dampened cloth.  Do not use alcohol, corrosive products or solvents.

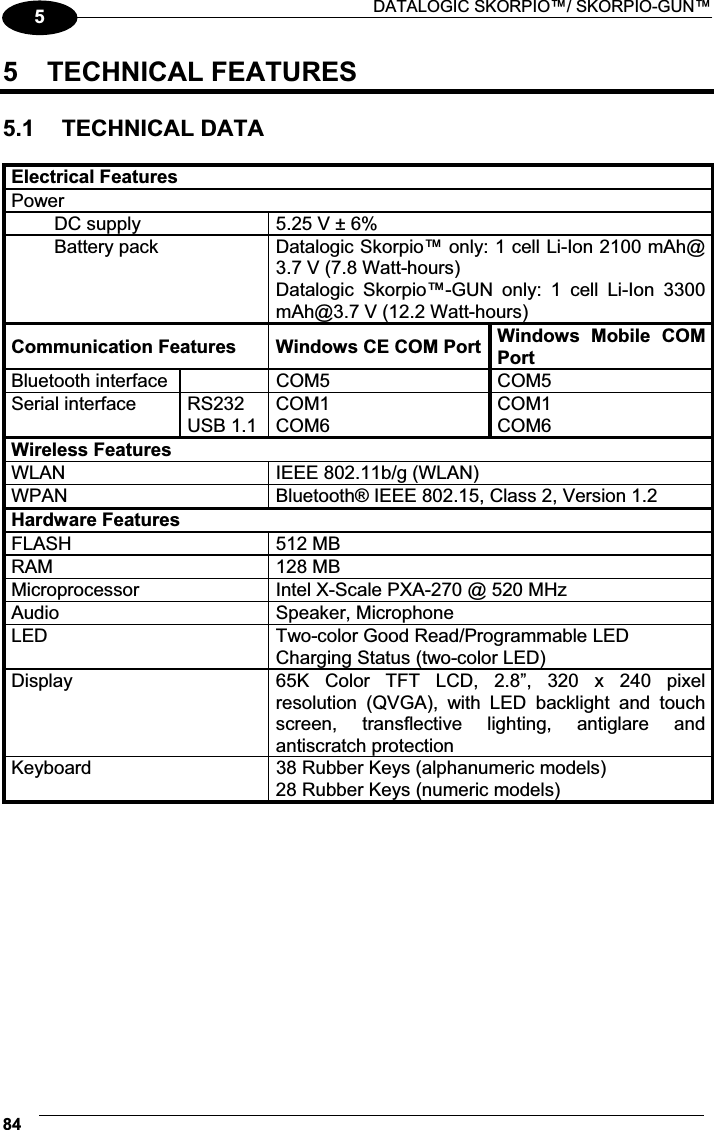

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 8455  TECHNICAL FEATURES  5.1  TECHNICAL DATA  Electrical Features Power     DC supply  5.25 V ± 6%   Battery pack  Datalogic Skorpio™ only: 1 cell Li-Ion 2100 mAh@ 3.7 V (7.8 Watt-hours)  Datalogic  Skorpio™-GUN  only:  1  cell  Li-Ion  3300 mAh@3.7 V (12.2 Watt-hours)  Communication Features  Windows CE COM Port Windows  Mobile  COM PortBluetooth interface    COM5  COM5 Serial interface  RS232 USB 1.1 COM1 COM6 COM1 COM6 Wireless Features WLAN  IEEE 802.11b/g (WLAN)  WPAN  Bluetooth® IEEE 802.15, Class 2, Version 1.2 Hardware Features FLASH  512 MB  RAM  128 MB  Microprocessor  Intel X-Scale PXA-270 @ 520 MHz  Audio  Speaker, Microphone LED  Two-color Good Read/Programmable LED Charging Status (two-color LED) Display  65K  Color  TFT  LCD,  2.8”,  320  x  240  pixel resolution  (QVGA),  with  LED  backlight  and  touch screen,  transflective  lighting,  antiglare  and antiscratch protection Keyboard  38 Rubber Keys (alphanumeric models) 28 Rubber Keys (numeric models)
TECHNICAL FEATURES 855 Environmental Features Working temperature**  -10° to + 50 °C / 14° to +122 °F Storage temperature  -20° to +70 °C / -4° to +158 °F Humidity***  90% non condensing for temperatures<40°C Protection  IP64 ESD protection  4 KV contact discharge, 8 KV air discharge Drop resistance****  1.5 m / 5 ft Mechanical Features Dimensions (LxWxH)  Datalogic Skorpio™ only: 19.6 x 7.7 x 3.3 cm / 7.7 x 3.0 x 1.3 in Datalogic Skorpio-GUN™ only: 19.6 x 7.7 x 15.8 cm / 7.7 x 3.0 x 6.2 in Weight (depending on model) Datalogic Skorpio™ only: 310 - 360 g / 10.9 - 12.7 oz (incl. battery) Datalogic  Skorpio-GUN™  only: about  560  g  / 19.7 oz (incl. battery)  **  Close  to  the  limits  of  the  working  temperature,  some  display  and/or  battery  performance  degradation may occur. ***  Multiple rapid humidity and/or temperature variations may cause condensing. **** Multiple drops can permanently damage the device.  Programming Features Operating system*  Windows CE 5.0 Professional / Windows Mobile 6.1 Professional  Laser Models   Decoded barcodes 1D   UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39 Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI, Plessey, Code 93, Code 11 Laser Optical Features 7XX-9XX/ 5XX-9XX   7XX-2XX  Maximum resolution  0.10 mm / 4 mils  0.25 mm / 10 mils Skew angle  ± 50° Pitch angle  ± 65° Scan rate - bidirectional  104 ± 12 scan/sec  35 ± 5 scan/sec Light source laser scanner  VLD, wavelength in the range 630 to 680 nm Safety class  Class II EN 60825-1/CDRH  *  Depending on models.

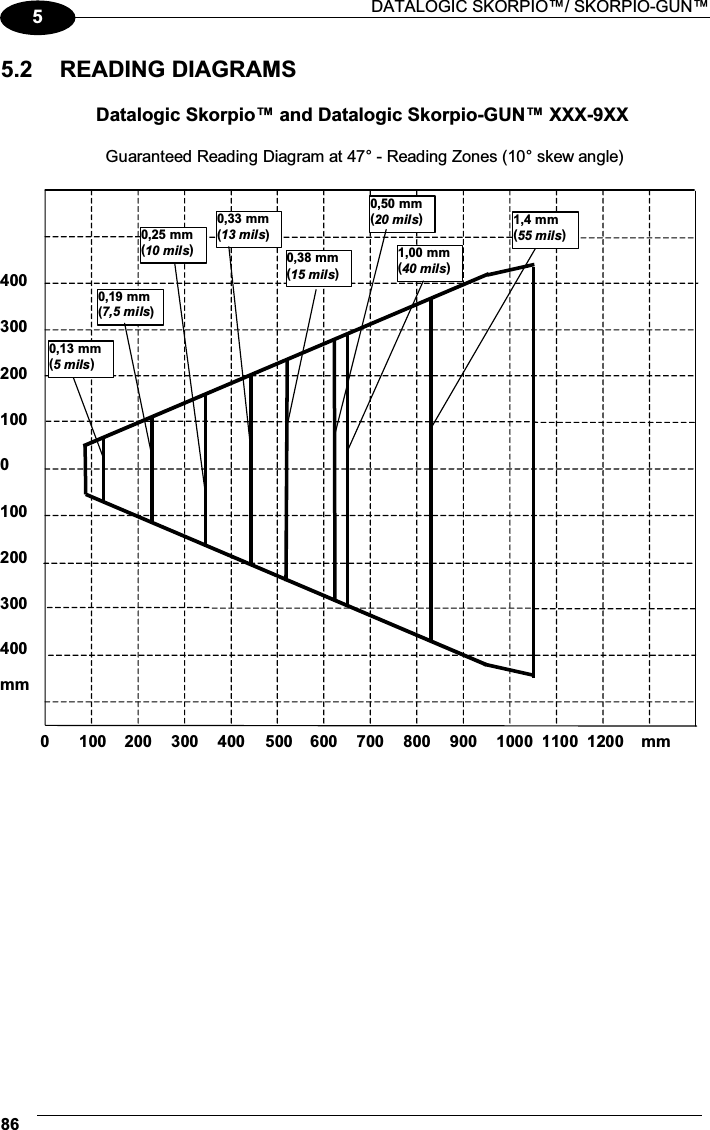

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 8655.2  READING DIAGRAMS  Datalogic Skorpio™ and Datalogic Skorpio-GUN™ XXX-9XX     Guaranteed Reading Diagram at 47° - Reading Zones (10° skew angle) 100 200 300 400 0200 100 300 400 mm0,13 mm(5 mils) 0,19 mm (7,5 mils) 1,4 mm(55 mils) 0,25 mm (10 mils) 0,33 mm(13 mils) 0,50 mm(20 mils) 1,00 mm(40 mils) 0 100  300 200  400  500  600  700  800  900  1100  1200 1000  mm0,38 mm(15 mils)

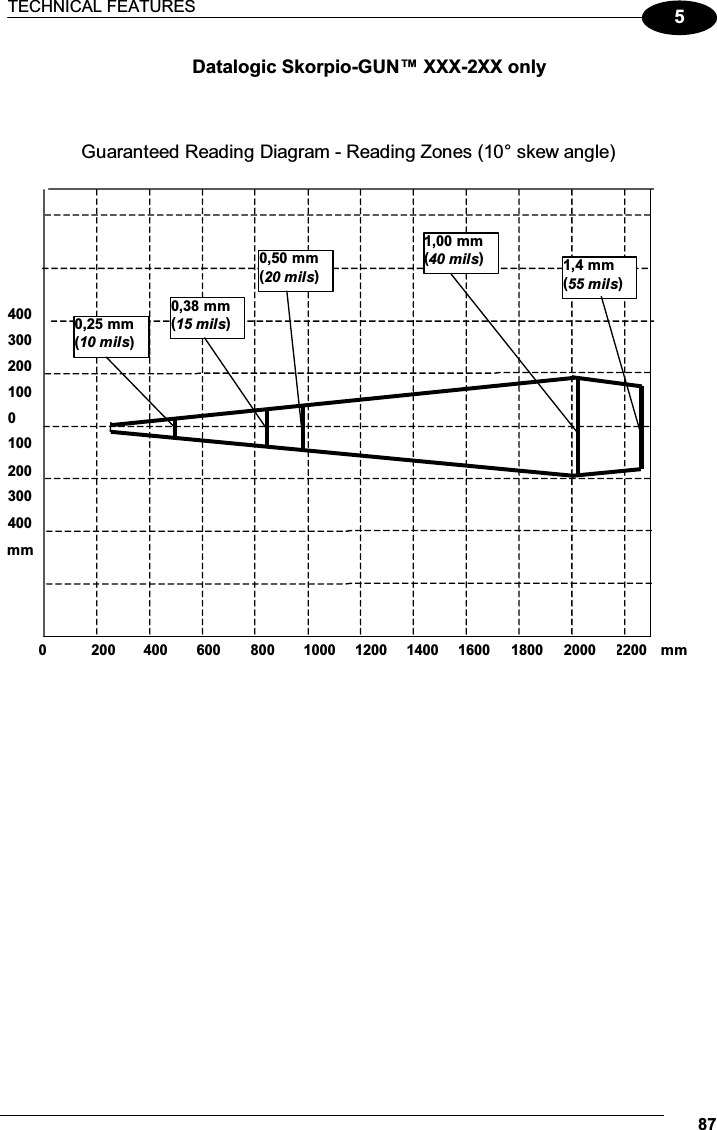

TECHNICAL FEATURES 875Datalogic Skorpio-GUN™ XXX-2XX only   mm 100 200 300 400 0200 100 300 400 0,25 mm (10 mils) 0,50 mm(20 mils) 1,00 mm(40 mils) Guaranteed Reading Diagram - Reading Zones (10° skew angle) 0 200  600400 800  1000  1200  1400  1600  1800  2200 2000  mm 0,38 mm (15 mils) 1,4 mm(55 mils)
 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 8866  TEST CODES   High Density Codes 0.25 mm (10 mils)      Code 39 !17162H!   17162                  2/5 Interleaved Ë"8NduÌ   0123456784                  Code 128 ÌtestwÎ  test            80%  EAN 13  x(0B2DE5*KKKKLM(            80%  EAN 8  (6450*TRMN(

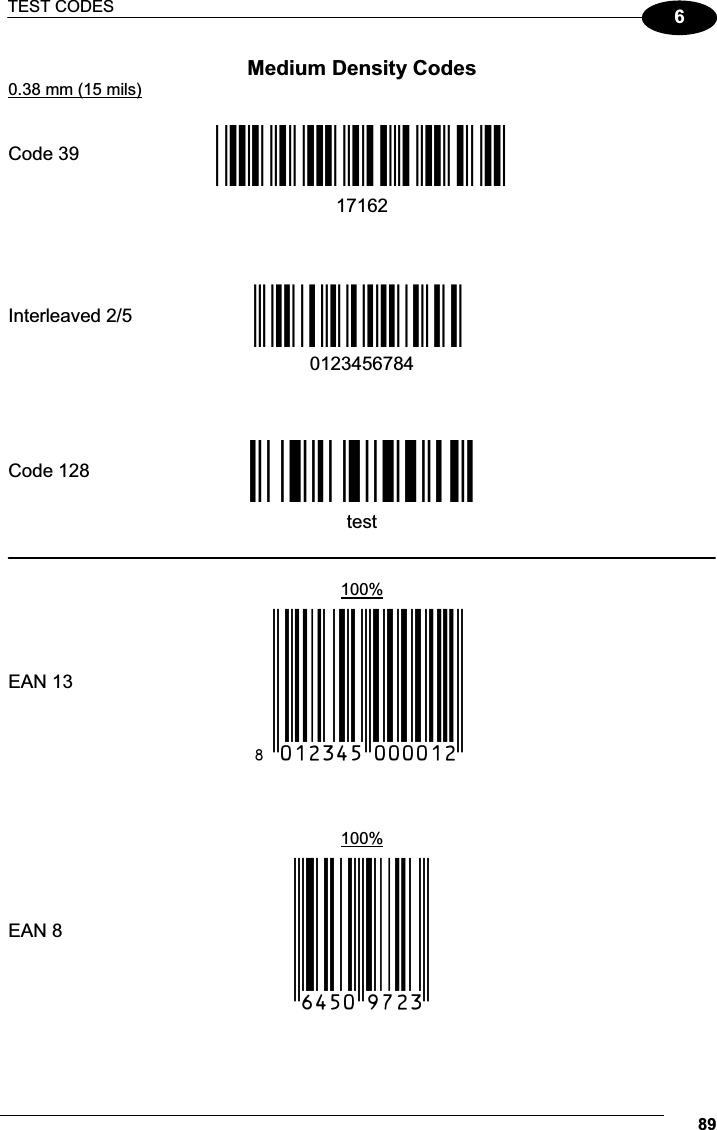

TEST CODES 896Medium Density Codes 0.38 mm (15 mils)       Code 39 !17162H!  17162                  Interleaved 2/5 Ë"8NduÌ  0123456784                  Code 128 ÌtestwÎ  test              100%  EAN 13  x(0B2DE5*KKKKLM(                  100%  EAN 8  (6450*TRMN(

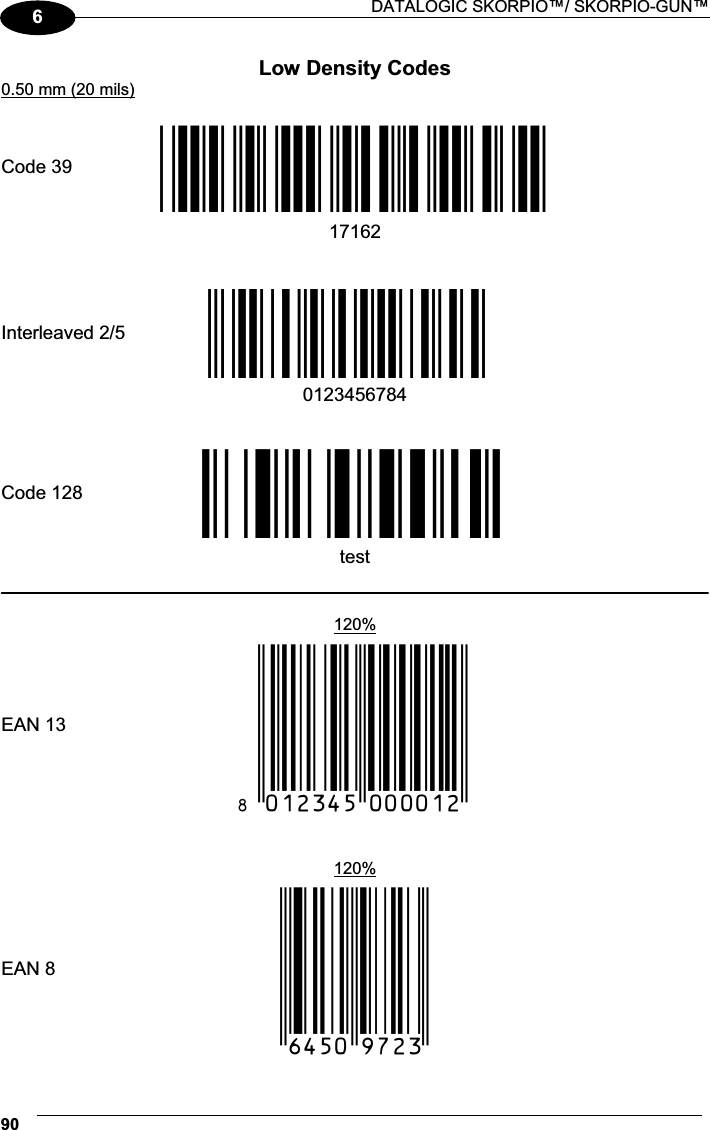

 DATALOGIC SKORPIO™/ SKORPIO-GUN™ 906Low Density Codes 0.50 mm (20 mils)       Code 39 !17162H!  17162             Interleaved 2/5 Ë"8NduÌ   0123456784             Code 128 ÌtestwÎ  test              120%  EAN 13  x(0B2DE5*KKKKLM(              120%  EAN 8  (6450*TRMN(

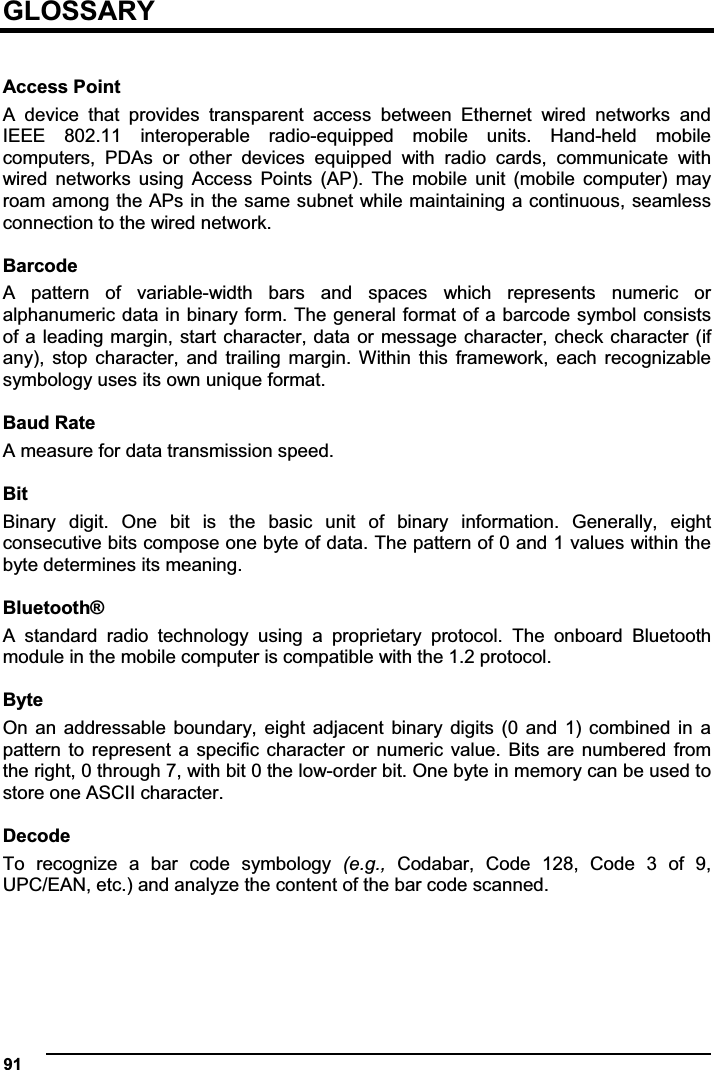

 91  GLOSSARY  Access Point A  device  that  provides  transparent  access  between  Ethernet  wired  networks  and IEEE  802.11  interoperable  radio-equipped  mobile  units.  Hand-held  mobile computers,  PDAs  or  other  devices  equipped  with  radio  cards,  communicate  with wired  networks  using  Access  Points  (AP).  The  mobile  unit  (mobile  computer)  may roam among the APs in the same subnet while maintaining a continuous, seamless connection to the wired network.  Barcode A  pattern  of  variable-width  bars  and  spaces  which  represents  numeric  or alphanumeric data in binary form. The general format of a barcode symbol consists of a leading  margin, start character, data  or message character, check character (if any),  stop  character,  and  trailing  margin.  Within  this  framework,  each  recognizable symbology uses its own unique format.  Baud Rate A measure for data transmission speed.  BitBinary  digit.  One  bit  is  the  basic  unit  of  binary  information.  Generally,  eight consecutive bits compose one byte of data. The pattern of 0 and 1 values within the byte determines its meaning.  Bluetooth® A  standard  radio  technology  using  a  proprietary  protocol.  The  onboard  Bluetooth module in the mobile computer is compatible with the 1.2 protocol.  Byte On  an  addressable  boundary,  eight  adjacent  binary  digits  (0  and  1)  combined  in  a pattern to represent  a  specific  character  or  numeric  value.  Bits  are  numbered  from the right, 0 through 7, with bit 0 the low-order bit. One byte in memory can be used to store one ASCII character.  Decode To  recognize  a  bar  code  symbology  (e.g., Codabar,  Code  128,  Code  3  of  9, UPC/EAN, etc.) and analyze the content of the bar code scanned.

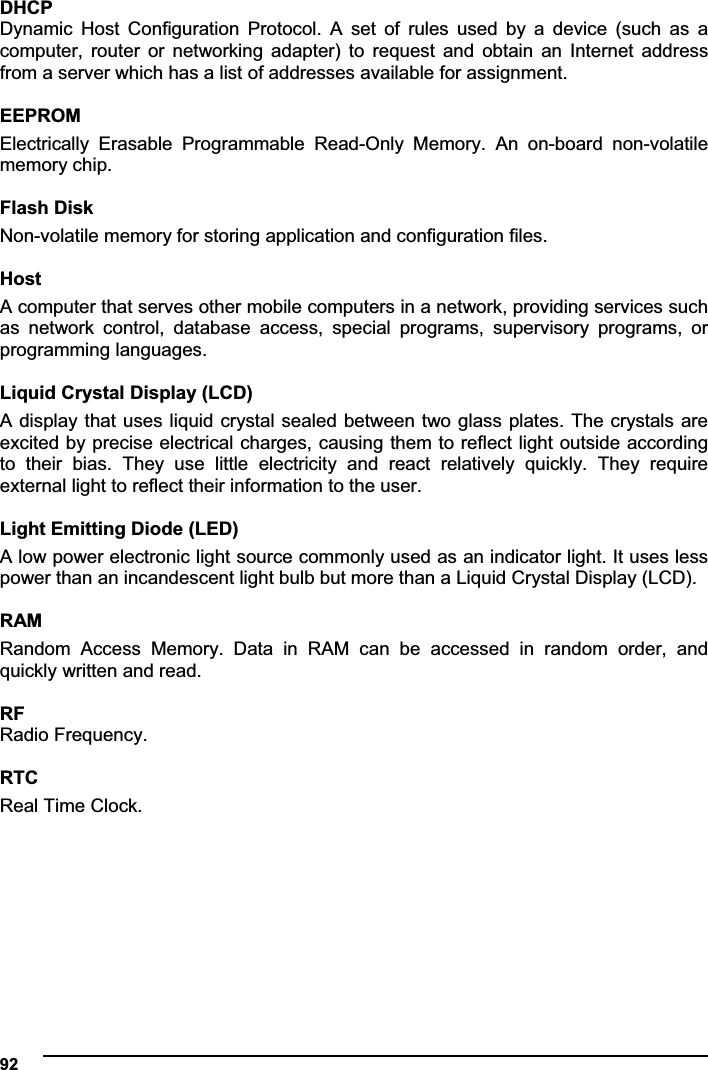

 92DHCPDynamic  Host  Configuration  Protocol.  A  set  of  rules  used  by  a  device  (such  as  a computer,  router  or  networking  adapter)  to  request  and  obtain  an  Internet  address from a server which has a list of addresses available for assignment.  EEPROMElectrically  Erasable  Programmable  Read-Only  Memory.  An  on-board  non-volatile memory chip.  Flash Disk Non-volatile memory for storing application and configuration files.  HostA computer that serves other mobile computers in a network, providing services such as  network  control,  database  access,  special  programs,  supervisory  programs,  or programming languages.  Liquid Crystal Display (LCD) A display that  uses liquid crystal sealed  between two glass plates. The crystals are excited by precise electrical charges, causing them to reflect light outside according to  their  bias.  They  use  little  electricity  and  react  relatively  quickly.  They  require external light to reflect their information to the user.  Light Emitting Diode (LED) A low power electronic light source commonly used as an indicator light. It uses less power than an incandescent light bulb but more than a Liquid Crystal Display (LCD).  RAM Random  Access  Memory.  Data  in  RAM  can  be  accessed  in  random  order,  and quickly written and read.  RFRadio Frequency.  RTCReal Time Clock.
 93  INDEX AAccessories; 10 Alphanumeric Keyboard; 27 Available Models; 3 BBackup Directory File Management; 73 Belt Clip; 7 Bluetooth Approval; vi Bluetooth® Manager Device Setup; 63 Buttons; 46 CCapture; 44 Charging the Batteries; 75 Cleaning the Mobile Computer; 83 Compact Flash and Secure Storage Cards; 83 Connections; 12 Connection to USB peripherals; 13 Ethernet Connection; 16 Modem Connection; 16 RS232 Connection; 14 USB Connection; 12 WLAN Connection; 18 WPAN Connections; 17 Control Panel; 45 DData Capture; 26 Laser Data Capture; 26 Data Capture Configuration; 39 Datalogic Skorpio™ Description; 1 Default Settings; 43 Description of the Keys; 27 EEthernet Cradle Settings; 52 FFCC Compliance; xv Files Admin; 48 Firmware Update; 74 FTP Server Setup; 71 GGeneral View; xviii Glossary; 91 IIndustry Canada Compliance; xv LLaser Safety; vii LED Class; xiii LED Status; 36 MMaintenance; 75 Microsoft® ActiveSync®; 59 Mini SD card; 5 NNumeric Keyboard; 30 OOperating System; 11 PPackage Contents; 3 Patents; xvi Power Supply; vii RRadio Compliance; xiii
 94Reader Parameters; 41 Reading Diagrams; 86 References; v Registry; 47 Replacing the Batteries; 77 Resetting the Skorpio; 33 SSafe Setup; 48 Safety Regulations; vi SAR Compliance; xv Save Session; 48 Scan Parameters; 41 Services and Support; v Startup; 22 Status Indicators; 36 Stylus; 9 Stylus Calibration; 55 TTaskbar; 37 Technical Data; 84 Technical Features; 84 Test Codes; 88 UUploading/Downloading Files through an RS232 Connection; 61 Using the Stylus; 25 WWEEE Compliance; xvi Windows CE Bluetooth® Manager Device Setup; 63 Windows CE Ethernet cradle; 52 Windows Connections; 59 Windows Mobile Bluetooth® Manager Device Setup; 66 Windows Mobile Ethernet cradle; 54 Windows Mobile Welcome Wizard; 24 Wireless Communication; 50 Wrist Strap; 9
   09Datalogic Mobile S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt ,daß das Gerät declare que el  DL-SKORPIO XXX-YYY-ZZZ  e tutti i suoi modelli     and all its models   et tous les modèles   und seine modelle   y todos sus modelos  sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below sont conformes aux spécifications des Directives de l’Union Européenne ci-dessous: der nachstehend angeführten Direktiven des Europäischen Rats: cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:  1999/5/EEC R&TTE  Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti: This declaration is based upon compliance of the products to the following standards: Cette déclaration repose sur la conformité des produits aux normes suivantes: Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht: Esta declaración se basa en el cumplimiento de los productos con la siguientes normas:   ETSI EN 301 489-17 V1.2.1, AUGUST 2002 : ELECTROMAGNETIC  COMPATIBILITY  AND  RADIO  SPECTRUM  MATTERS  (ERM); ELECTROMAGNETIC  COMPATIBILITY  (EMC)  STANDARD  FOR  RADIO  EQUIPMENT AND  SERVICES;  PART  17:  SPECIFIC  CONDITIONS  FOR  2,4GHZ  WIDEBAND TRANSMISSION SYSTEMS AND 5GHZ HIGH PERFORMANCE RLAN EQUIPMENT  ETSI EN 300 328 V1.7.1, OCTOBER 2006 : ELECTROMAGNETIC  COMPATIBILITY  AND  RADIO  SPECTRUM  MATTERS  (ERM); WIDEBAND  TRANSMISSION  SYSTEMS;  DATA  TRANSMISSION  EQUIPMENT OPERATING  IN  THE  2,4GHZISM  BAND  AND  USING  WIDE  BAND  MODULATION TECHNIQUES;  HARMONIZED  EN COVERING  ESSENTIAL  REQUIREMENTS  UNDER ARTICLE 3.2 OF THE R&TTE DIRECTIVE  EN 60950-1, DECEMBER 2001 :  INFORMATION TECHNOLOGY EQUIPMENT - SAFETY -PART 1 : GENERAL REQUIREMENTS  EN 50392:2004 :  GENERIC  STANDARD  TO  DEMONSTRATE  THE  COMPLIANCE  OF  ELECTRONIC  AND ELECTRICAL  APPARATUS  WITH  THE  BASIC  RESTRICTIONS  RELATED  TO  HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS (0 MHZ - 300 GHZ).    Lippo di Calderara, February 18th, 2009     Paola Chientaroli   Quality Assurance Manager
  09Datalogic Mobile S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt ,daß das Gerät declare que el  DL-SKORPIO G XXX-YYY-ZZZ e tutti i suoi modelli     and all its models   et tous les modèles   und seine modelle   y todos sus modelos sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below sont conformes aux spécifications des Directives de l’Union Européenne ci-dessous: der nachstehend angeführten Direktiven des Europäischen Rats: cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:  1999/5/EEC R&TTE  Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti: This declaration is based upon compliance of the products to the following standards: Cette déclaration repose sur la conformité des produits aux normes suivantes: Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht: Esta declaración se basa en el cumplimiento de los productos con la siguientes normas:   ETSI EN 301 489-17 V1.2.1, AUGUST 2002 : ELECTROMAGNETIC  COMPATIBILITY  AND  RADIO  SPECTRUM  MATTERS  (ERM); ELECTROMAGNETIC  COMPATIBILITY  (EMC)  STANDARD  FOR  RADIO  EQUIPMENT AND  SERVICES;  PART  17:  SPECIFIC  CONDITIONS  FOR  2,4GHZ  WIDEBAND TRANSMISSION SYSTEMS AND 5GHZ HIGH PERFORMANCE RLAN EQUIPMENT  ETSI EN 300 328 V1.7.1, OCTOBER 2006 : ELECTROMAGNETIC  COMPATIBILITY  AND  RADIO  SPECTRUM  MATTERS  (ERM); WIDEBAND  TRANSMISSION  SYSTEMS;  DATA  TRANSMISSION  EQUIPMENT OPERATING  IN  THE  2,4GHZISM  BAND  AND  USING  WIDE  BAND  MODULATION TECHNIQUES;  HARMONIZED  EN COVERING  ESSENTIAL  REQUIREMENTS  UNDER ARTICLE 3.2 OF THE R&TTE DIRECTIVE  EN 60950-1, DECEMBER 2001 : INFORMATION  TECHNOLOGY  EQUIPMENT  -  SAFETY  -  PART  1  :  GENERAL REQUIREMENTS  EN 50392:2004 GENERIC  STANDARD  TO  DEMONSTRATE  THE  COMPLIANCE  OF  ELECTRONIC  AND ELECTRICAL  APPARATUS  WITH  THE  BASIC  RESTRICTIONS  RELATED  TO  HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS (0 MHZ - 300 GHZ).  Lippo di Calderara, February 18th, 2009     Paola Chientaroli   Quality Assurance Manager
