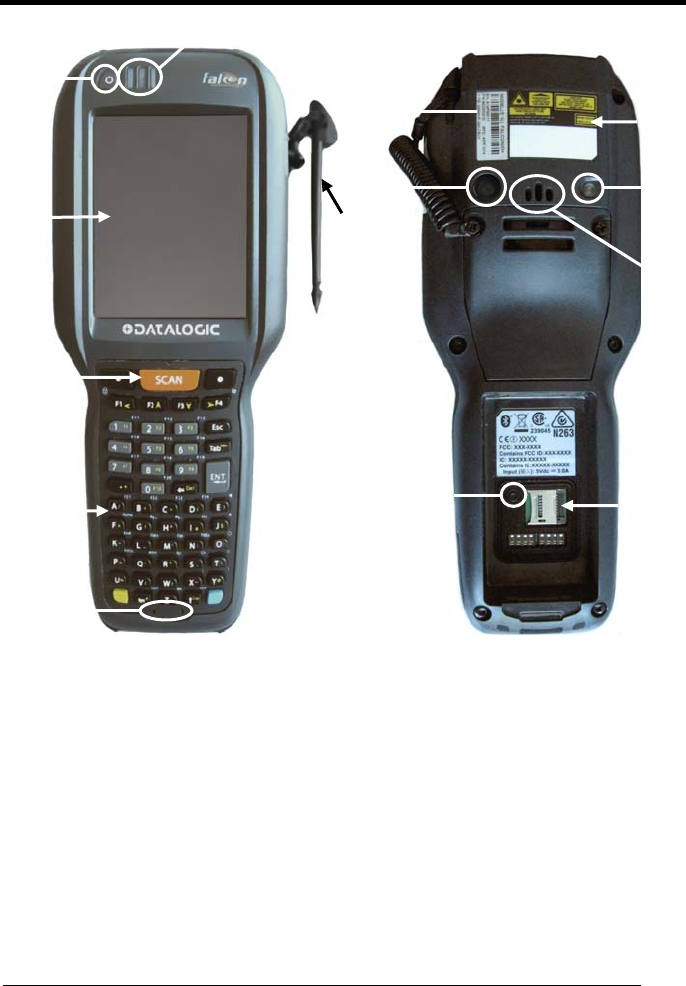

GENERAL VIEW
A) VGA Color Display*
B) ON/OFF Power Key
C) LEDs
D) Microphone
E) Front Scan Key
F) Keyboard
G) Stylus
H) Laser Safety Label
I) Product Label
J) Color Camera
K) Flash
L) Loudspeaker
M) Reset Key (under battery)
N) Micro-SD Card Slot (under battery)
Remove protective film cover before use
G
B
C
A
E
F
D
N
H
K
J
L
I
M
1
viii
O) Data Capture Window*

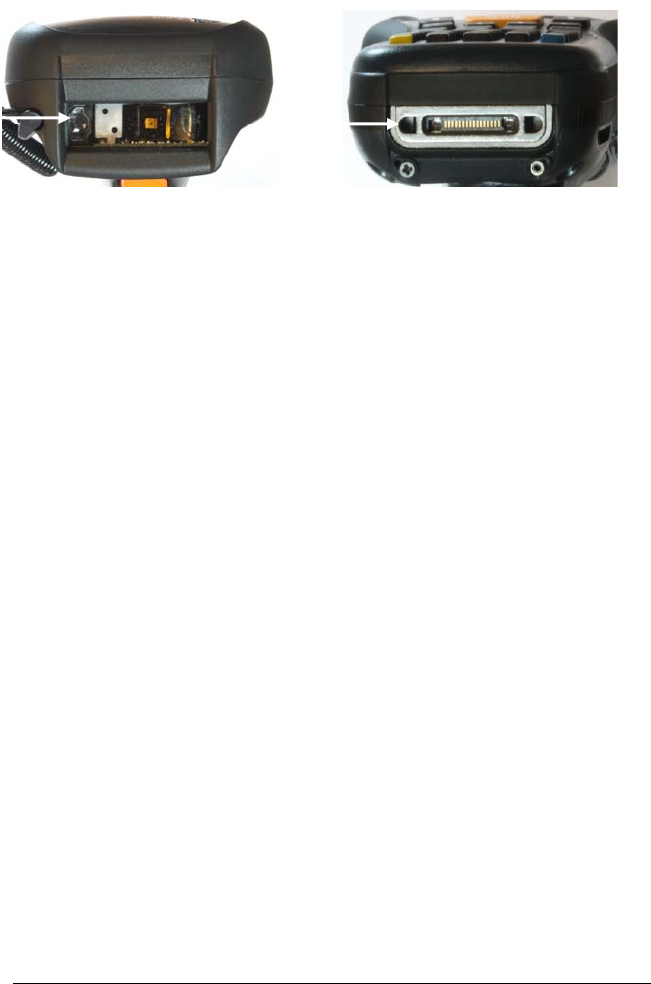

P) Handylink™ Connector (host/slave)
Remove protective film cover before use
O P
INTRODUCTION
1
1
1 INTRODUCTION
1.1 FALCON X3+ DESCRIPTION
The new Datalogic Falcon X3+ mobile computer delivers the ultimate in ruggedness,
ergonomics, computing and data capture technologies. Falcon X3+ options provide a
tailored solution for demanding environments needing real time transaction visibility.
The Falcon X3+ delivers rugged construction, laser and image data capture, along
with real time communications in a product that is effortless to develop for, deploy
and manage.
Enterprises rely on accurate inventories to both plan and manage activities. Four
data capture options optimize the Falcon X3+ to the application. A laser scanner
tackles high volume environments where speed is essential to receiving and shipping
operations. The imager captures linear, stacked and 2D codes to reduce failed reads
due to damaged and poor quality barcodes. An optional camera takes pictures for the
documentation of damaged or returned goods. Datalogic’s patented Green Spot
good read feedback reduces errors in both noisy and quiet environments. For
applications like cross docking where bar codes can be close at hand or far away, an
auto ranging laser and an extended long range imager offer aggressive scanning
solutions.
The parallel computer architecture of the Falcon X3 melds the strengths of an
XScale™ PXA310 microprocessor with a Cortex-M3 coprocessor. This combination
gears the device for real time information management. Memory of 256 MB RAM / 1
GB Flash accommodates multiple simultaneous applications, for managing large
databases or enabling off-line autonomy of thick applications. A Micro SD Card Slot
provides a simple way for users to increase memory storage capacity as needed.
The Falcon X3+ tailors itself to the information technology practices of the enterprise
through either the Microsoft Windows CE 6.0 or Microsoft Windows Mobile 6.5
operating system.
As information is collected the Falcon X3 turns to the task of communication via a
Summit IEEE 802.11 a/b/g/n radio. Complimented by a CCX v4 certification from
Cisco, the Falcon X3+ provides infrastructure compatibility focused on enterprise
requirements for encrypted communication and seamless roaming. Voice
applications leverage the internet protocol connection for hands-free voice picking
and push to talk communications. Bluetooth® Wireless Technology connects
headsets, printers and other peripherals eliminating cumbersome wires. An extensive
accessory offering accommodates existing installation needs for USB, RS232,
modem or Ethernet communications.
1 FALCON™ X3+
2
1
The Falcon X3+ comes in two form factors to tackle the differing scanning intensities
found in an enterprise. A pistol grip version with numeric keypad tackles the high
volume scan and quantity entry found at the receiving dock. While a hand held with
alpha numeric keypad better suits the lighter pick and pack duty of preparing goods
for shipment. The Falcon’s low weight balances a large 3.5” display with a full size
keyboard and a single piece 5200 mAh battery into both of these packages.
The Falcon X3+ must do more than function for a full shift, it must survive daily abuse
and trauma. The new Falcon X3+ survives drops from 6 feet (1.8 meter) to concrete.
Coupled with an IP65 sealing against water and dust, and featuring Gorilla Glass 3 ®
on the scan window, allows the Falcon X3+ to literally take an industrial pounding.
Plastic key caps with metal snap dome actuation withstand not only the abusive
environment but the heavy use found in third party logistics centers, literally millions
of cycles per year.
Falcon delivers Datalogic’s trademark ergonomics in a contoured package. An
arched pistol grip handle and ergonomic trigger make the rapid receiving of goods
comfortable throughout the day. Falcon X3+ numeric and alphanumeric keyboards
use a phone key layout placing numeric keys at the device top with navigation, scan
and enter keys. This highly functional layout places high use keys at the user’s finger
tips. Maximized key sizes drive additional user efficiency with or without gloves. A
choice of crystal clear full VGA and QVGA displays and the back lit keyboard make
the Falcon X3+ readable in dark back corners or full sunlight.
The Falcon X3+ leverages Datalogic’s software development kit (SDK) for creating
applications. The Datalogic™ SDK provides a set of libraries allowing easy
application development using C++, .NET and Java programming languages. Both
MCL Collection and Wavelink® Studio™ offer additional solutions to enable
development. For terminal emulation environments available tools include the
Wavelink Industrial Browser™, Wavelink Terminal Emulation, and Wavelink
Speakeasy.
Wavelink Avalanche™ device management tools make the Falcon X3+ an easy
device to both deploy and maintain. Datalogic Desktop, Configuration and Firmware
Utilities deliver unprecedented ability to customize and update device configuration to
the use environment or process. For small or remote installations, Scan to Configure
provides simple barcodes that anyone can use to configure the Falcon X3+. Wavelink
Remote Control allows an administrator to remotely diagnose and remedy both
applications and device settings. For added security the Falcon X3+ can be
implemented with Wavelink CE Secure and Wavelink Certificate Manager.
INTRODUCTION
3
1
1.2 AVAILABLE MODELS
The Falcon X3+ is available in different models depending on the options it is
equipped with. All options are listed below:
communication options: 802.11 a/b/g/n/n radio, Bluetooth®
data capture options: high performance laser with green spot, 2D imager with
green spot, 2D extended range imager (XLR) with green spot, auto ranging laser
(XLR), camera
operating system: Windows CE 6.0, Windows Embedded Handheld 6.5
form factor: hand held, pistol grip
keyboard options: numeric, alphanumeric.
For further details about the Falcon X3+ models refer to the website:
http://www.datalogic.com.
For further information regarding Windows Embedded Handheld refer to the website:
http://www.microsoft.com/windowsembedded.
The currently available models are:
945200030 FALCONX3+ 00A0HP-2N0-CEU1
Falcon X3+ Hand held, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 29-Key Numeric, High Performance Laser w Green
Spot, Windows CE 6.0
945200031 FALCONX3+ 00A0WI-2N0-CEU1
Falcon X3+ Hand held, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 29-Key Numeric, Standard Range Imager w Green
Spot, Windows CE 6.0
945200032 FALCONX3+ 00A0HP-2N1-MEN1
Falcon X3+ Hand held, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 29-Key Numeric, High Performance Laser w Green Spot,
Camera 3.1MP, WEHH 6.5
945200033 FALCONX3+ 00A0WI-2N1-MEN1
Falcon X3+ Hand held, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 29-Key Numeric, Standard Range Imager w Green Spot,
Camera 3.1MP, WEHH 6.5
945200034 FALCONX3+ 00A0HP-2F0-CEU1
Falcon X3+ Hand held, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 52-Key Alpha Numeric, High Performance Laser w
Green Spot, Windows CE 6.0
1 FALCON™ X3+
4
1
945200035 FALCONX3+ 00A0WI-2F0-CEU1
Falcon X3+ Hand held, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 52-Key Alpha Numeric, Standard Range Imager w
Green Spot, Windows CE 6.0
945200036 FALCONX3+ 00A0HP-2F1-MEN1
Falcon X3+ Hand held, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 52-Key Alpha Numeric, High Performance Laser w
Green Spot, Camera 3.1MP, WEHH 6.5
945200037 FALCONX3+ 00A0WI-2F1-MEN1
Falcon X3+ Hand held, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 52-Key Alpha Numeric, Standard Range Imager w Green
Spot, Camera 3.1MP, WEHH 6.5
945250051 FALCONX3+ 00A0HP-3N0-CEU1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 29-Key Numeric, High Performance Laser w Green
Spot, Windows CE 6.0
945250052 FALCONX3+ 00A0HP-3F0-CEU1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 52-Key Alpha Numeric, High Performance Laser w
Green Spot, Windows CE 6.0
945250053 FALCONX3+ 00A0XL-3N0-CEU1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 29-Key Numeric, Auto ranging Laser (XLR), Windows
CE 6.0
945250054 FALCONX3+ 00A0XL-3F0-CEU1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 52-Key Alpha Numeric, Auto ranging Laser (XLR),
Windows CE 6.0
945250055 FALCONX3+ 00A0WI-3N0-CEU1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 29-Key Numeric, Standard Range Imager w Green
Spot, Windows CE 6.0
945250056 FALCONX3+ 00A0WI-3F0-CEU1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 52-Key Alpha Numeric, Standard Range Imager w
Green Spot, Windows CE 6.0
INTRODUCTION
5
1
945250057 FALCONX3+ 00A0LR-3N0-CEU1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 29-Key Numeric, Extended Range Imager (XLR),
Windows CE 6.0
945250058 FALCONX3+ 00A0LR-3F0-CEU1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, QVGA, 52-Key Alpha Numeric, Extended Range Imager (XLR),
Windows CE 6.0
945250059 FALCONX3+ 00A0HP-3N1-MEN1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 29-Key Numeric, High Performance Laser w Green Spot,
Camera 3.1MP, WEHH 6.5
945250060 FALCONX3+ 00A0HP-3F1-MEN1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 52-Key Alpha Numeric, High Performance Laser w
Green Spot, Camera 3.1MP, WEHH 6.5
945250061 FALCONX3+ 00A0XL-3N1-MEN1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 29-Key Numeric, Auto ranging Laser (XLR), Camera
3.1MP, WEHH 6.5
945250062 FALCONX3+ 00A0XL-3F1-MEN1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 52-Key Alpha Numeric, Auto ranging Laser (XLR),
Camera 3.1MP, WEHH 6.5
945250063 FALCONX3+ 00A0WI-3N1-MEN1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 29-Key Numeric, Standard Range Imager w Green Spot,
Camera 3.1MP, WEHH 6.5
945250064 FALCONX3+ 00A0WI-3F1-MEN1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 52-Key Alpha Numeric, Standard Range Imager w Green
Spot, Camera 3.1MP, WEHH 6.5
945250065 FALCONX3+ 00A0LR-3N1-MEN1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 29-Key Numeric, Extended Range Imager (XLR),
Camera 3.1MP, WEHH 6.5
1 FALCON™ X3+
6
1
945250066 FALCONX3+ 00A0LR-3F1-MEN1
Falcon X3+ Pistol Grip, 802.11 a/b/g /n CCX v4, Bluetooth v2.1, 256MB
RAM/1GB Flash, VGA, 52-Key Alpha Numeric, Extended Range Imager (XLR),
Camera 3.1MP, WEHH 6.5
INTRODUCTION
7
1
1.3 PACKAGE CONTENTS
The Falcon X3+ package contains:
1 Falcon X3+ mobile computer
1 rechargeable battery pack
1 blank keypad overlay
1 Falcon X3+ Quick Start Guide
1 Wavelink Avalanche Insert
1 End User License Agreement (EULA) Sheet
Accessories necessary for the Falcon X3+ connection to the host computer and to
the network are packaged separately: the cradle and/or one or more connection
cables.
Remove all the components from their packaging; check their integrity and compare
them with the packing documents.
Keep the original packaging for use when sending products to the
technical assistance center. Damage caused by improper
packaging is not covered under the warranty.
CAUTION
Rechargeable battery packs are not initially charged. Therefore the
first operation to perform is to charge them. See paragraph 2.1.
NOTE
1 FALCON™ X3+
8
1
1.4 INSERTING A MICROSD CARD
Falcon supports microSD memory cards. To access the microSD card slot and insert
the card, proceed as follows:
1. Turn off the Falcon X3+.

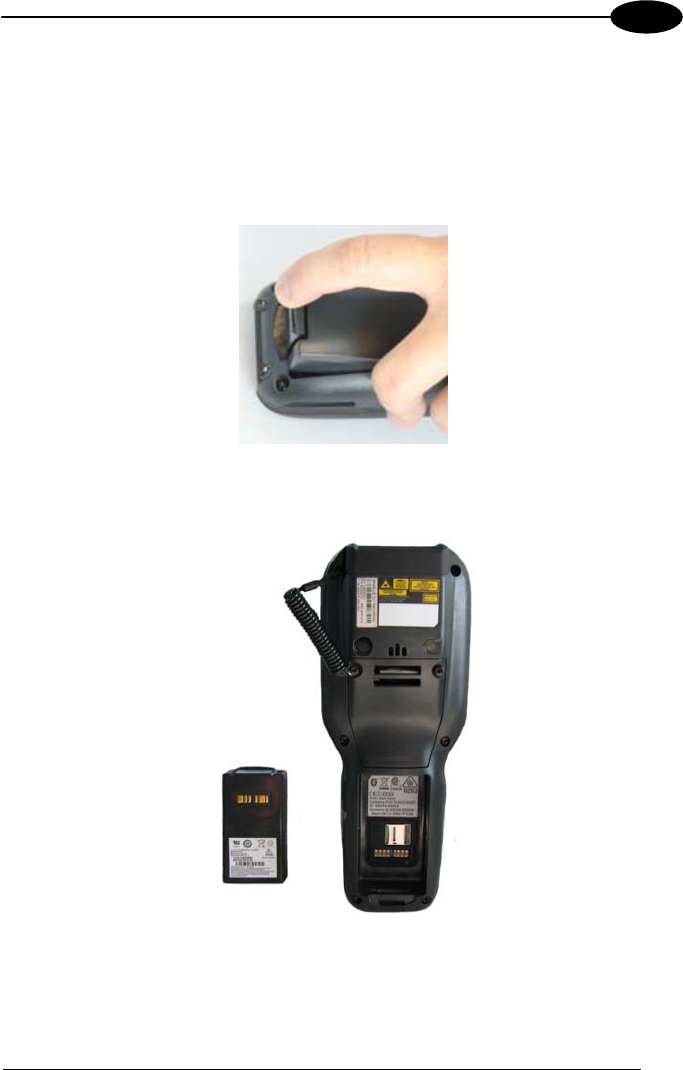

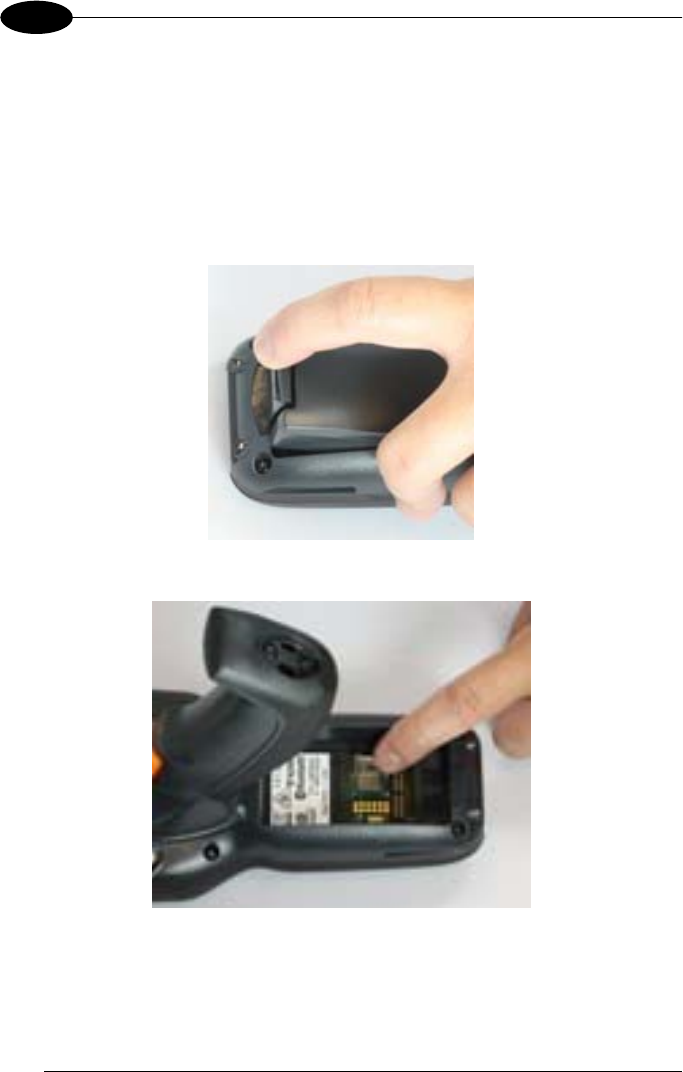

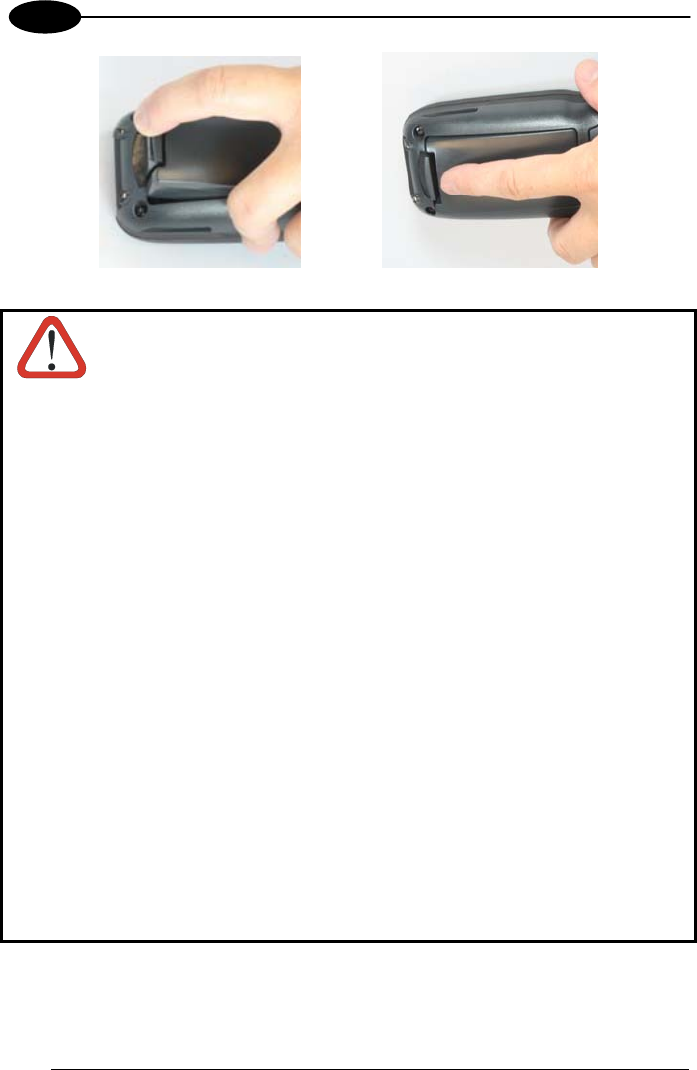

2. Press the latch release and lift the battery from the enclosure, as indicated in the
figure below:
3. Open the microSD card slot by pulling up the locking plate:
INTRODUCTION
9
1
4. Insert the microSD card with the written part upward. Lock the card into place by
pushing the cardholder down:
5. Replace battery.
1.4.1 Removing the MicroSD Card
To remove the microSD card, follow the steps above to access the SD area, and
remove it from its slot.
Follow proper ESD precautions to avoid damaging the SD. Proper
ESD precautions include, but are not limited to, working on an ESD
mat and ensuring that the operator is properly grounded.
Do not force the card. If you feel resistance, remove the card, check
the orientation, and reinsert it.
Do not use the microSD card slot for any other accessories.
It is highly recommended to lock the card holder even if the card is
not present.
CAUTION
1 FALCON™ X3+
10
1
1.5 ACCESSORIES
Cradles
94A150057 Dock, Single Slot, FalconX3
94A151131 Dock, Powered Mobile, FalconX3
94A150056 Dock, Ethernet 4 Slot, FalconX3
94A151135 Charger, 4 Slot Dock, FalconX3
94A151137 Charger, 4 Slot Battery, FalconX3
Batteries
94ACC1386 Battery, High Capacity, FalconX3
Power Supply
94ACC1381 Power Supply, Dock, PWR Plug 2.1mm
94ACC1385 Power Supply, Charger, MBC and Dock
Cables
94A051970 Cable, USB Handylink, Client
94A051971 Cable, USB Handylink, Host
94A051972 Cable, RS232 Handylink, Client
94A051973 Cable, RS232 Handylink, Host
94A051968 Cable, MicroUSB, Client
94A051969 Cable, MicroUSB, Host
Various
94ACC0104 Rubber Shell, FalconX3+
95ACC1056 Holster, FalconX3
94ACC1371 Module, Ethernet, Single Slot Dock
94ACC1372 Module, Modem, Single Slot Dock
94ACC1388 Softcase, FalconX3
94ACC1390 Handle Kit, Falcon X3+
94ACC1391 Coverplate Kit, FalconX3
94ACC1392 Stylus, FalconX3 Pen with Tether (5pcs)
Use only Datalogic approved power supply and cables. Use of an
alternative power supply will invalidate any approval given to this
device and may be dangerous.
NOTE
INTRODUCTION
11
1
1 FALCON™ X3+
12
2
2 BATTERIES AND MAINTENANCE
Rechargeable backup batteries and battery packs are not initially
fully charged. Therefore the initial operation to perform is to charge
them. See below.
NOTE
By default, the battery pack is disconnected at the factory to avoid
damage due to excessive draining.
NOTE
Annual replacement of rechargeable battery pack avoids possible
risks or abnormalities and ensures maximum performance.
CAUTION
2.1 CHARGING THE BATTERY PACK
The battery pack autonomy varies according to many factors, such
as the frequency of barcode scanning, RF usage, battery life,
storage, environmental conditions, etc.
NOTE
The battery icon on the Taskbar indicates when the battery pack is low.
It is possible to recharge the battery pack by connecting the power supply directly to
the Falcon X3+.
Alternatively, it is also possible to recharge the battery pack by inserting the Falcon
X3+ into the single slot dock or the multi battery charger.
Moreover recharging is possible by USB Direct connection with the host computer,
but with longer charging times and only if the mobile computer off.
During the charging process the LED positioned at the right side of the display is red
constant. Once the charging process has been completed this LED is green
constant.
BATTERIES AND MAINTENANCE
13
2
The stand-alone battery pack may be recharged outside a Falcon X3+ using the
spare battery charging slot on the back of the single slot dock or the multi battery
charger.
Do not use the Falcon X3+ until batteries are charged for minimum 4
hours.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
CAUTION
Il y a risque d’explosion si la batterie est remplacée par une batterie
de type incorrect.
Mettre au rebut les batteris usagées conformément aux instructions.
CAUTION
Avoid storing batteries for long periods in a state of full charge or very
low charge.
We recommend charging the battery pack every two to three months
to keep its charge at a moderate level to maximize battery life.
CAUTION
Even if the storage temperature range is wider, in order to achieve
the longest battery life, store the terminal and the spare batteries
between -30 to 70 ºC (-22 to 158 ºF).
Falcon X3+ should be charged at an ambient temperature between 0
- 35º C (32 to 95 ºF) to achieve the maximum charging rate.
Never charge the main device or spare batteries in a closed space
where excessive heat can build up.
Close to the limits of the working temperature, some display and/or
battery performance degradation may occur.
NOTE
The battery level may display incorrectly for several minutes after the
Falcon X3+ is disconnected from its charger if the charging cycle is
not completed.
NOTE
1 FALCON™ X3+
14
2
The Falcon X3+ may get warm during charging, this is normal and
does not mean a malfunction.
NOTE
Use only a USB-IF compliant USB port as a charging source.
NOTE
When the battery is very low, the audio feature and the scanning
feature of imager, long range and XLR laser models are disabled.
They will be re-enabled a few minutes after the charging starts.
NOTE
BATTERIES AND MAINTENANCE
15
2
2.2 REPLACING THE BATTERY PACK
To correctly replace the battery pack, proceed as follows.
1. Turn off the Falcon X3+.
2. Press the latch release and lift battery from the enclosure as indicated in the
figure below:
3. Install the new battery pack, first insert the top end, then the latch bottom as
indicated in the following figure:
1 FALCON™ X3+
16
2
WARNING
Installing, charging and/or any other action should be done by
authorized personnel and following this manual.
The battery pack may get hot, explode, ignite, and/or cause serious
injury if exposed to abusive conditions.
If the battery pack is replaced with an improper type, there is risk of
explosion and/or fire.
Do not place the battery pack in or near a fire or other heat source;
do not place the battery pack in direct sunlight, or use or store the
battery pack inside unventilated areas in hot weather; do not place
the battery pack in microwave ovens, in clothes dryers, in high
pressure containers, on induction cook surfaces or similar devices.
Doing so may cause the battery pack to generate heat, explode or
ignite. Using the battery pack in this manner may also result in a loss
of performance and a shortened life expectancy.
Use only a Datalogic approved power supply. The use of an
alternative power supply will void the product warranty, may cause
product damage and may cause heat, an explosion, or fire.
The area in which the units are charged should be clear of debris
and combustible materials or chemicals.
Do not use the battery pack of this terminal to power devices other
than this mobile computer.
Immediately discontinue use of the battery pack if, while using,
charging or storing the battery pack, the battery pack emits an
unusual smell, feels hot, changes colour or shape, or appears
abnormal in any other way.
BATTERIES AND MAINTENANCE
17
2
WARNING
Do not short-circuit the battery pack contacts connecting the positive
terminal and negative terminal. This might happen, for example,
when you carry a spare battery pack in your pocket or purse;
accidental short–circuiting can occur when a metallic object such as
a coin, clip, or pen causes direct connection of the contacts of the
battery pack (these look like metal strips on the battery pack). Short–
circuiting the terminals may damage the battery pack or the
connecting object.
Do not apply voltages to the battery pack contacts.
Do not pierce the battery pack with nails, strike it with a hammer,
step on it or otherwise subject it to strong impacts, pressures, or
shocks.
Do not disassemble or modify (i.e. bend, crush or deform) the battery
pack. The battery pack contains safety and protection devices,
which, if damaged, may cause the battery pack to generate heat,
explode or ignite.
In case of leakage of liquid from the battery, avoid contact with liquid
the skin or eyes. If the contact occurs, immediately wash the affected
area with water and consult a doctor.
Do not solder directly onto the battery pack.
Do not expose the battery pack to liquids.
Avoid any knocks or excessive vibrations. If the device or the battery
is dropped, especially on a hard surface, you should take it to the
nearest Authorised Repair Centre for inspection before continuing to
use it.
Do not replace the battery pack when the device is turned on.
Do not remove or damage the battery pack’s label.
Do not use the battery pack if it is damaged in any part.
Battery pack usage by children should be supervised.
Collect and recycle waste batteries separately from the device in
compliance with European Directive 2006/66/EC, 2011/65,
2002/96/EC and subsequent modifications, with US and China
regulatory laws and regulations about the environment.
1 FALCON™ X3+
18
2
In order to maximize operating autonomy, the Falcon X3+ checks
its battery level at all times. If the battery is not sufficiently
charged, the Falcon X3+ will not turn on when the ON/OFF
Power button is pressed.
In this case, either substitute a sufficiently charged battery, insert
the Falcon X3+ into a powered cradle, or plug it into a wall
charger.
NOTE
To maximize battery life, turn off radios when they are not
needed.
NOTE
BATTERIES AND MAINTENANCE
19
2
2.3 CLEANING THE MOBILE COMPUTER
Periodically clean the Falcon X3+ with a slightly dampened cloth.
Do not use alcohol, corrosive products or solvents.
1 FALCON™ X3+
20
3
3 CONNECTIONS
3.1 USB CONNECTION
You can use the Datalogic Handylink cable 94A051970 to directly connect the Falcon
X3+ to a host computer to transfer data through the USB interface.
Key:
A Host computer C Falcon X3+
B 94A051970 Handylink USB Client
Cable
Connection through the cable complies to USB 2.0 standard.
NOTE
A
B
C
CONNECTIONS
21
3

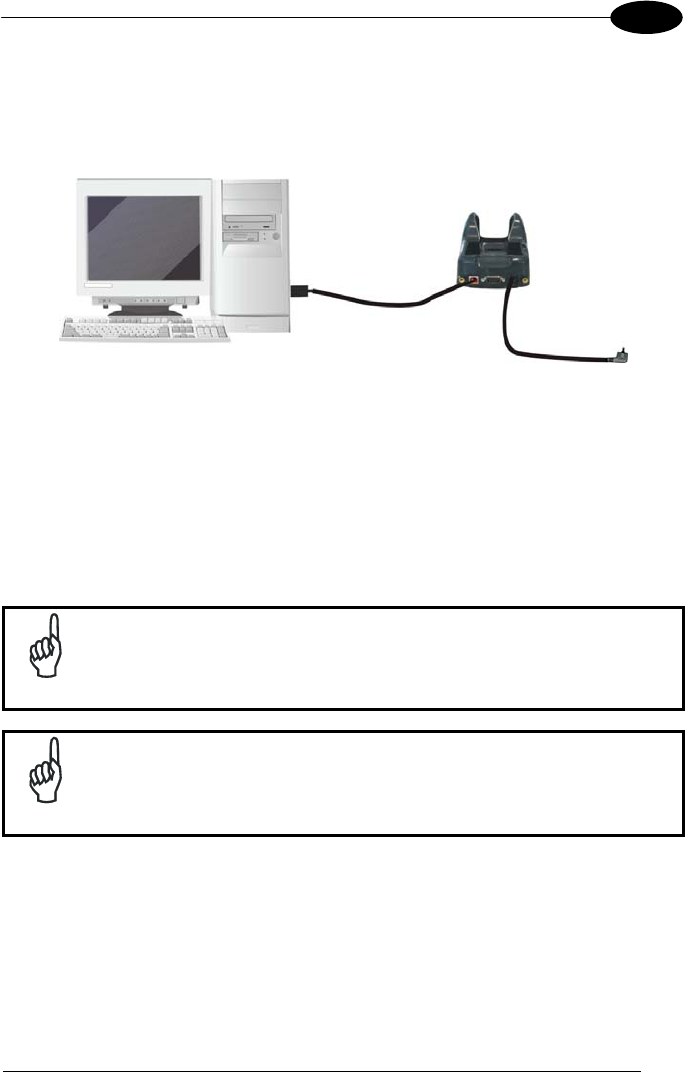

The Single Dock can be connected to the Host using the A to B USB cord included in
the box.
Once the host has been turned on, insert the Falcon X3+ into the dock.
Key:
A Host computer A) 94A150057 Falcon X3+ Single Slot
Dock
B) A to B USB straight cable
(included in the box)
D 94ACC1381 Power Adapter
Connection through the cradle complies to USB 2.0 standard.
NOTE
The actual data transfer speed can be appreciably lower than the
maximum theoretical speed.
NOTE
B
D
C
A
1 FALCON™ X3+
22
3
3.2 CONNECTION TO USB PERIPHERALS

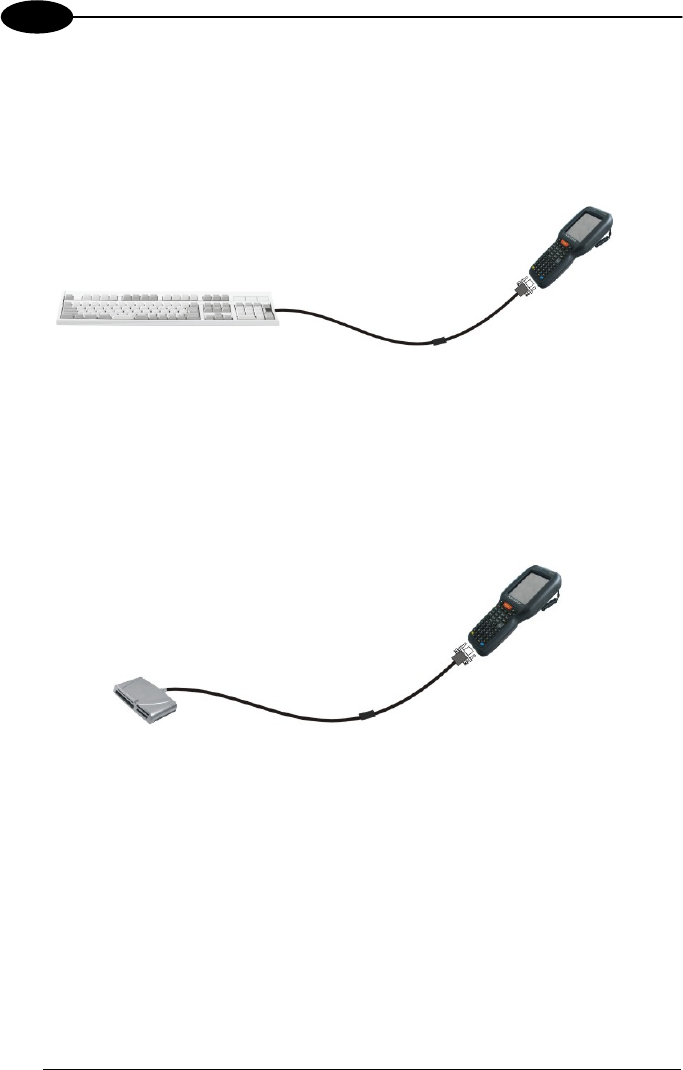

To connect the Falcon X3+ to a USB keyboard or a memory device, connect the
terminal to the Datalogic 94A051969 cable or to the Datalogic 94A051971 cable
(together with a standard A to micro A USB cable).
For all these devices maximum current withdrawal must be below 100mA.
Key:
A Keyboard with USB interface C 94A051969 Micro USB Host Cable/
94A051971 Handylink Micro USB Host
Cable
B Falcon X3+ D Standard A to Micro A USB Cable
Key:
A USB hard drive/ external
memory source
C 94A051971 Handylink Micro USB Host
Cable
B Falcon X3+ D Standard A to Micro A USB Cable
A
B
C
D
A
B
C
D
CONNECTIONS
23
3
Connect the Single Slot Dock to the peripheral using the A to B USB cord included in
the box (together with a standard USB cable if needed).
A USB Peripheral (memory) D 94A150057 Falcon X3+ Single Slot Dock
B Standard A to Micro A USB
Cable
E 94ACC1381 Power Adapter
C A to B USB straight cable
(included in the box)
Falcon X3+ works with most of the mentioned USB peripherals. In
any case, we can’t guarantee the interoperability of Falcon X3+ with
all devices on the market.
NOTE
Connection complies to USB 2.0 standard.
NOTE
The actual data transfer speed can be appreciably lower than the
maximum theoretical speed.
NOTE
B
D
C
A
E
1 FALCON™ X3+
24
3
3.3 RS232 CONNECTION

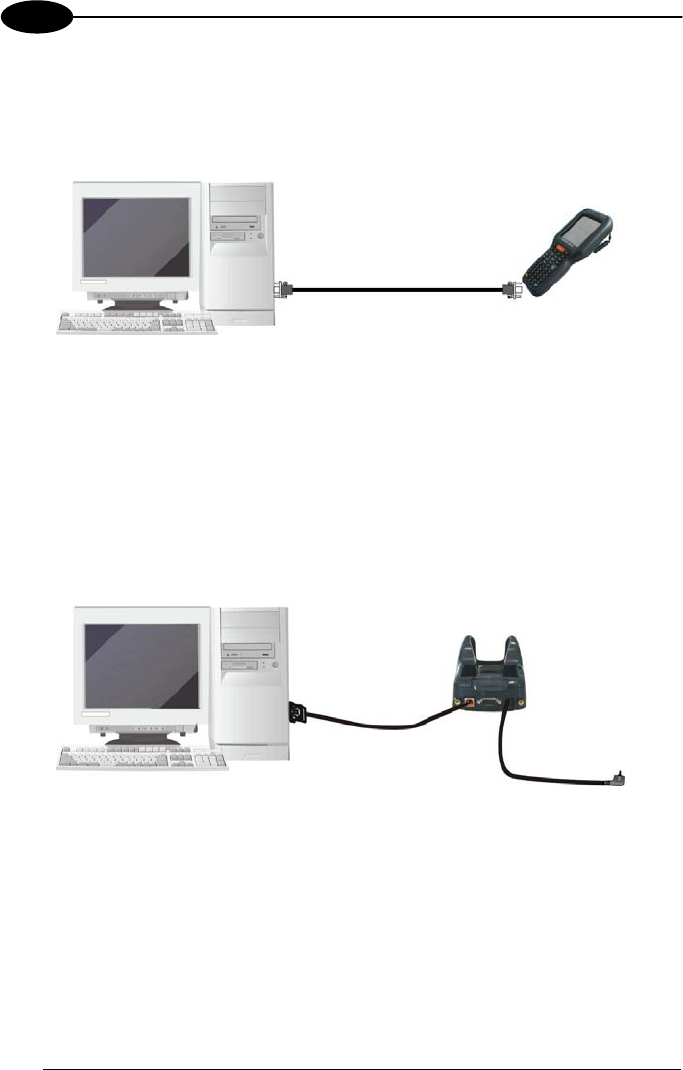

You can use the Datalogic 94A051972 cable to directly connect the Falcon X3+ to a
host computer to transfer data through the RS232 interface.
Key:
A Host computer C Falcon X3+
B 94A051972 Handylink Micro RS232
Client Cable
The Single Slot Dock can be connected to the Host by means of a standard null
modem cable such as Datalogic 94A051020 CAB-427 for 9-pin connections.
Once the Host has been turned on, insert the Falcon X3+ into the dock.
Key:
A Host Computer C 94A150057 Falcon X3+ Single
Slot Dock
B 94A051020 CAB-427 RS232
Null Modem Cable
D 94ACC1381 Power Adapter
A
B
C
A
B
C
D
CONNECTIONS
25
3
3.4 WLAN CONNECTION
Falcon X3+ 802.11 a/b/g/n radio models can communicate with the host using the
on-board radio frequency component and an Access Point connected to the host
computer.

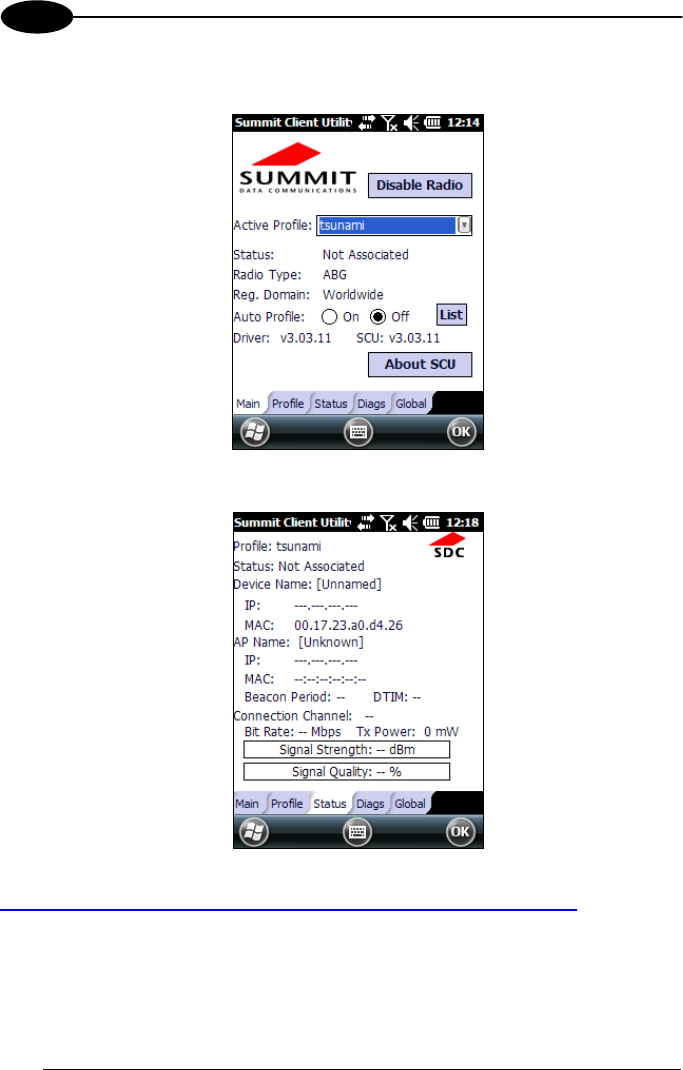

For models using the 802.11 a/b/g/n radio, you can find information about the applet
for radio configuration: http://www.summitdatacom.com/SCU.htm.

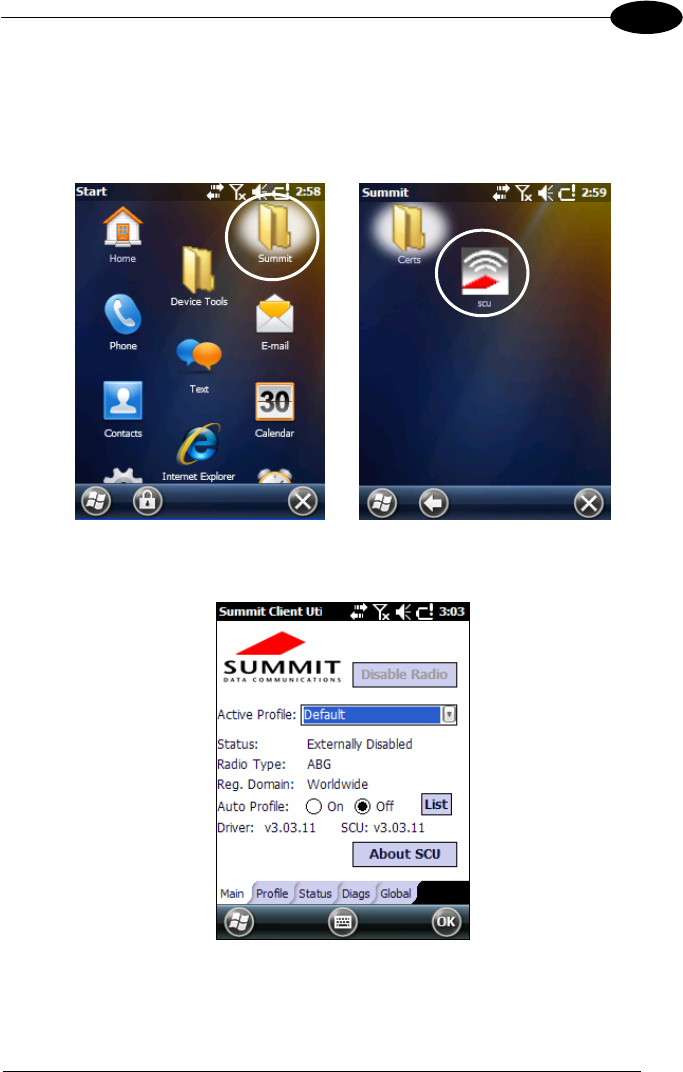

To launch this utility you can tap the specific icon if it is visible on the taskbar or you

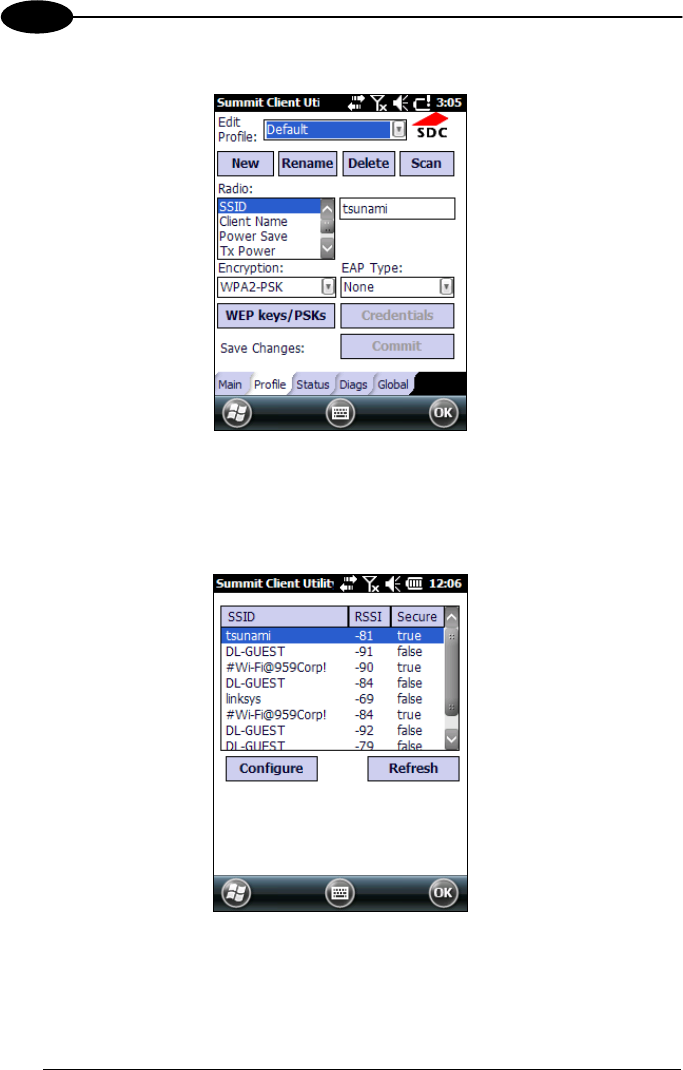

can select the menu item: Start-> Summit and tap the ‘Summit Client Utility’ icon.
Key:

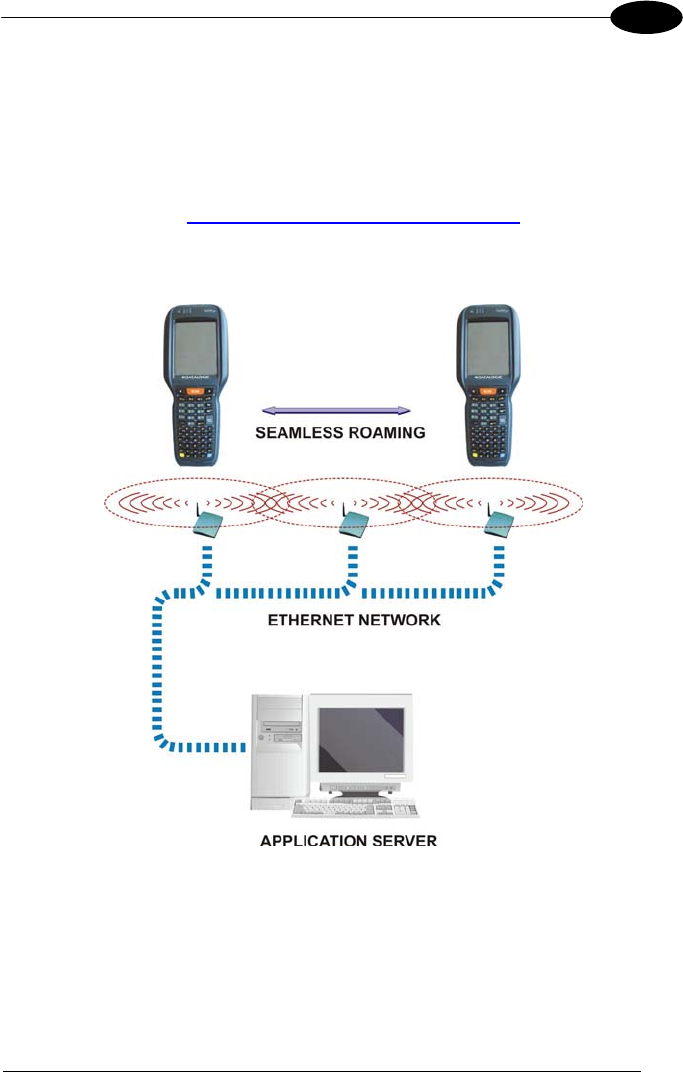

A) Falcon X3+
B) Access point
C) Host – Application Server
A
B
C
A
1 FALCON™ X3+
26
3
802.11 a/b/g/n radio module is on by default, in order to avoid
wasting energy, you can switch it off using the Wireless
Communications applet.
NOTE
Suspending the terminal powers off the 802.11 a/b/g/n radio and
drops the radio connection. When the terminal resumes, depending
on the radio power mode and security protocol selected, it may take
up to 30 seconds for the 802.11 a/b/g/n radio driver to re-associate
the radio to the network.
NOTE
Area coverage and radio performance may vary, due to
environmental conditions, access point types or interference caused
by other devices (microwave ovens, radio transmitters, etc.).
NOTE
In case of heavy usage the Falcon X3+ may get warm; this is normal
and does not mean a malfunction.
NOTE
CONNECTIONS
27
3
3.5 WPAN CONNECTIONS
Falcon X3+ models with Bluetooth can communicate with other Bluetooth
devices, such as a printer, within a range of 10 m, using the on-board Bluetooth
module.

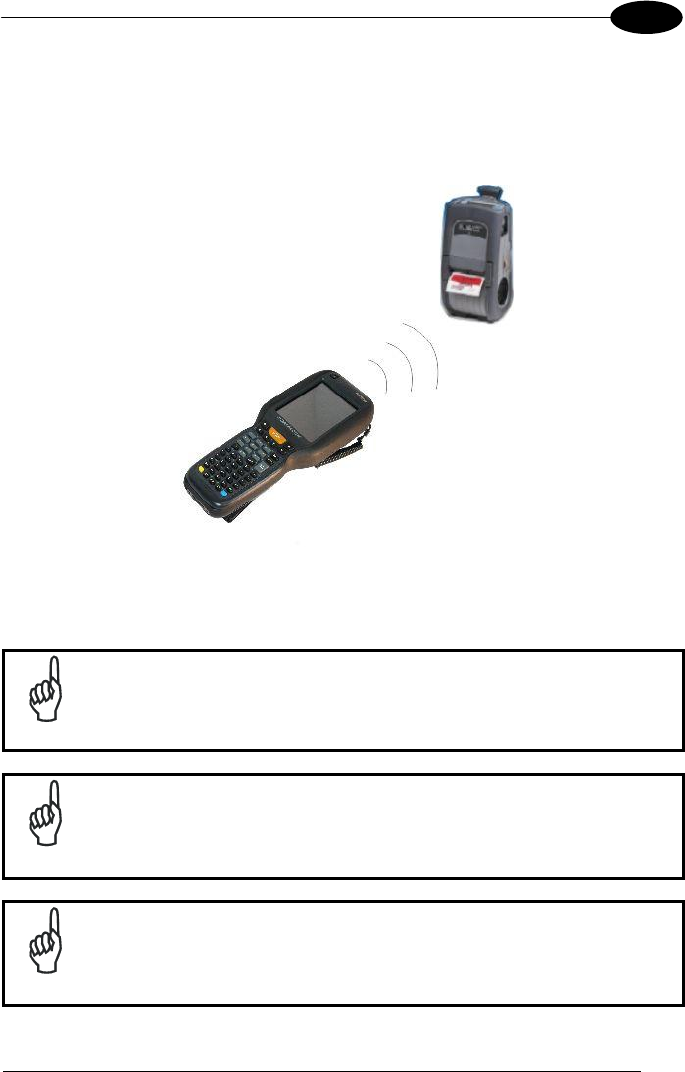

Key:
A) Falcon X3+
B) Bluetooth printer
In order to extend battery life, the Bluetooth
module is off by
default. If you need to have Bluetooth
working, the module must be

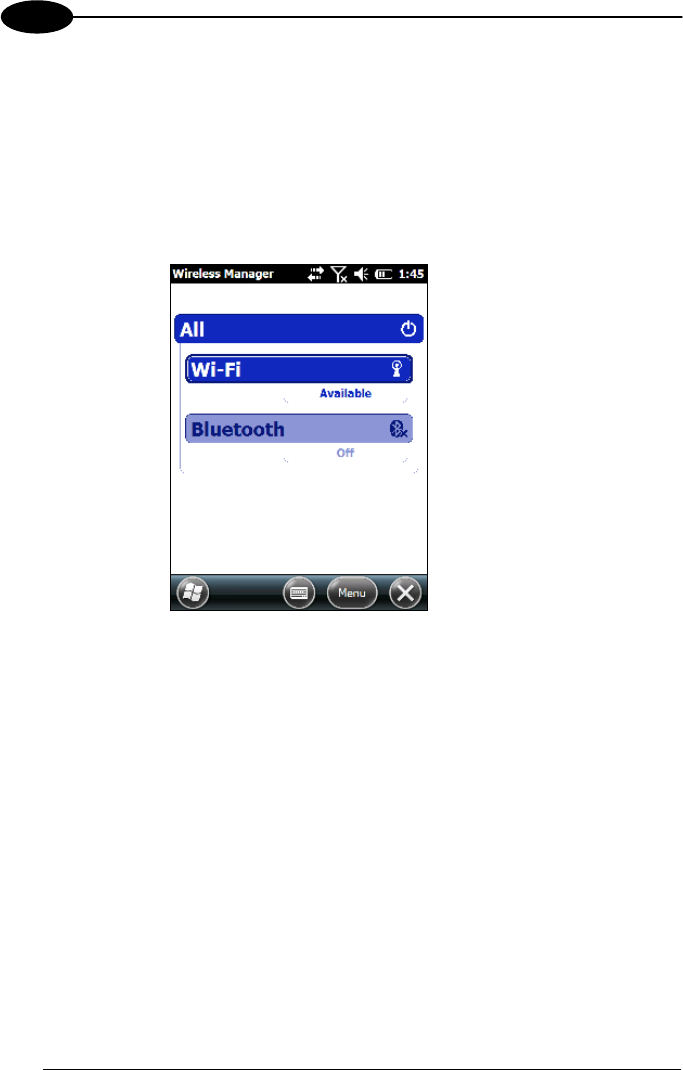

powered on using the Wireless Manager applet (see par. 4.6.6), and

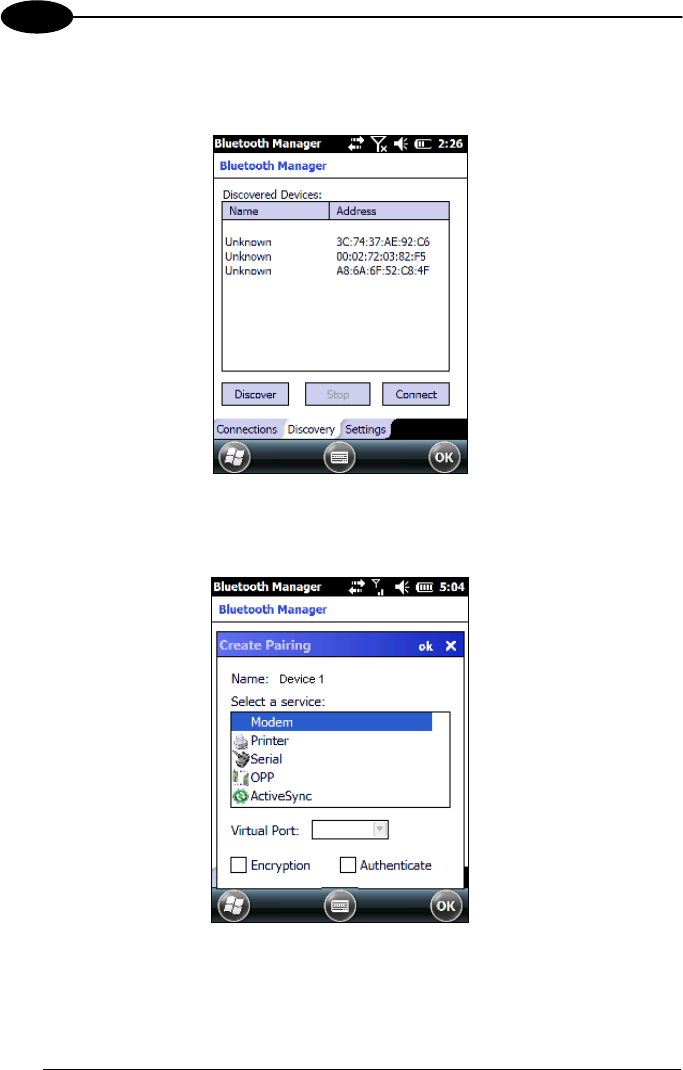

perform the Discovery procedure (see par. 4.7.2).
NOTE
Suspending the terminal powers off the Bluetooth
radio and drops
the piconet (Bluetooth
connection). When the terminal resumes, it
takes approximately 10 seconds for the Bluetooth
radio driver to re-
initialize the radio.
NOTE
Area coverage and Bluetooth
radio performance may vary, due to
environmental conditions or interference caused by other devices
(microwave ovens, radio transmitters, etc.).
NOTE
B
A
1 FALCON™ X3+
28
3
3.6 WIRELESS AND RADIO FREQUENCIES WARNINGS
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications or attachments could
damage the product and may violate laws and regulations.
WARNING
Most modern electronic equipment is shielded from RF signals.
However, certain electronic equipment may not be shielded against
the RF signals generated by Falcon X3+.
WARNING
Datalogic recommends persons with pacemakers or other medical
devices to follow the same recommendations provided by Health
Industry Manufacturers Associations for mobile phones.
Persons with pacemakers:
Should ALWAYS keep this device more than twenty five (25) cm
from their pacemaker and/or any other medical device;
Should not carry this device in a breast pocket;
Should keep the device at the opposite side of the pacemaker
and/or any other medical device;
Should turn this device OFF or move it immediately AWAY if
there is any reason to suspect that interference is taking place.
Should ALWAYS read pacemaker or any other medical device
guides or should consult the manufacturer of the medical device
to determine if it is adequately shielded from external RF energy.
In case of doubt concerning the use of wireless devices with an
implanted medical device, contact your doctor.
WARNING
Turn this device OFF in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care
facilities may use equipment that could be sensitive to external RF
energy.
WARNING
CONNECTIONS
29
3
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer
or its representative regarding your vehicle. You should also
consult the manufacturer of any equipment that has been added to
your vehicle.
WARNING
An air bag inflates with great force. DO NOT place objects,
including either installed or portable wireless equipment, in the area
over the air bag or in the air bag deployment area. If a vehicle’s
wireless equipment is improperly installed and the air bag inflates,
serious injury could result.
WARNING
Turn off the device when in any area with a potentially explosive
atmosphere. Observe restrictions and follow closely any laws,
regulations, warnings and best practices on the use of radio
equipment near fuel storage areas or fuel distribution areas,
chemical plants or where any operation involves use of explosive
materials.
Do not store or carry flammable liquids, explosive gases or
materials with the device or its parts or accessories.
Areas with a potentially explosive atmosphere are often, but not
always, clearly marked or shown.
Sparks in such areas could cause an explosion or fire, resulting in
injury or even death.
WARNING
1 FALCON™ X3+
30
3
4 USE AND FUNCTIONING
The use of the Falcon X3+ depends on the application software loaded. However
there are several parameters that can be set and utilities that can be used to perform
some basic functions such as data capture, communications, file management, etc.
4.1 STARTUP
The Falcon X3+ turns on when the battery pack or the external supply is inserted and
the ON/OFF Power button is pressed.
After the battery pack is installed, use the [ON/OFF] key to turn the mobile computer
on and off.
As soon as the mobile computer is on, the Windows Embedded Handheld 6.5
desktop configuration will appear on the screen. Wait a few seconds before starting
any activity so that the mobile computer completes its startup procedure.
Today Screen Start Menu
Use the stylus (par. 4.1.1) as suggested to select icons and options.
The mobile computer goes into power-off (low power with display and keyboard
backlight off), when it is not used for more than a programmable timeout, which is
USE AND FUNCTIONING
31
4
defined in the POWER applet of the Control Panel. In this mode it can be awakened
(resuming operation) by the [ON/OFF] key.
The mobile computer can also be awakened or suspended
programmatically.
NOTE
4.1.1 Using the Stylus
The stylus selects items and enters information. The stylus functions like a mouse.
Tap: Touch the screen once with the stylus to open items and select
options.
Drag: Hold the stylus on the screen and drag across the screen to
select text and images. Drag in a list to select multiple items.
Tap-and-hold:
Tap and hold the stylus on an item to see a list of actions
available for that item. On the pop-up menu that appears, tap the
action you want to perform.

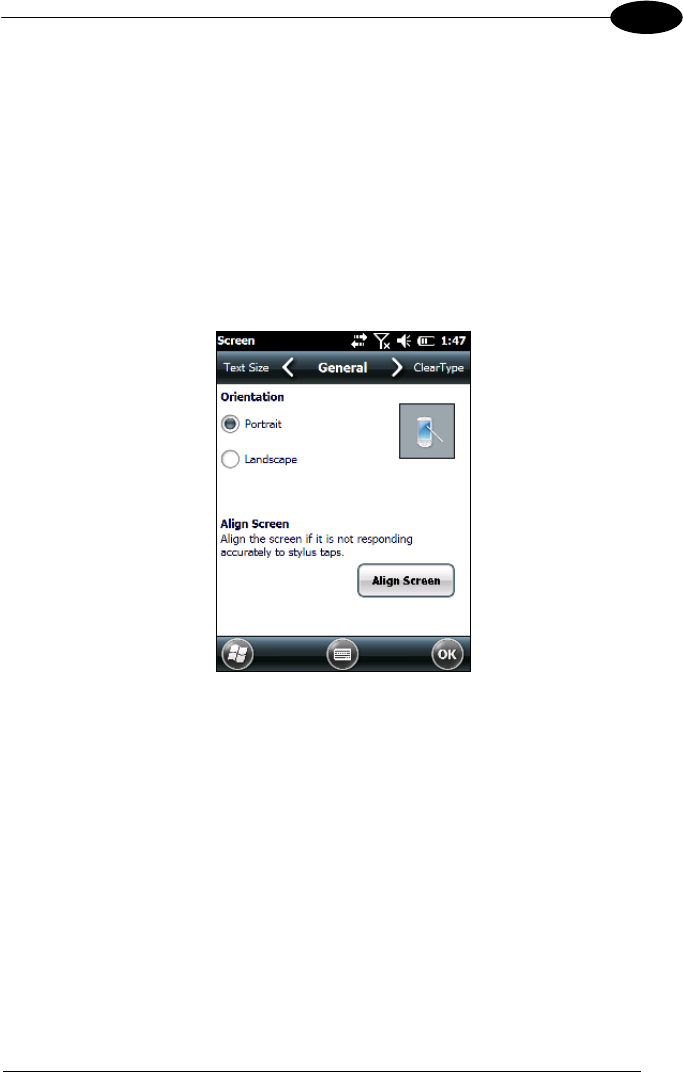

To recalibrate the touch screen use the Screen Applet (see par. 4.6.7).
Use only original Datalogic styluses supplied with the product itself.
In harsh applications, use of screen protectors should be taken into
consideration, in order to extend the touch screen operating life.
To prevent damage to the screen, do not use sharp objects or any
tool other than the Datalogic provided stylus.
Do not apply too much pressure when touching the screen.
For applications where an intensive use of the touch screen is
foreseen, please consider that touch screen components are subject
to progressive wear.
CAUTION
1 FALCON™ X3+
32
4

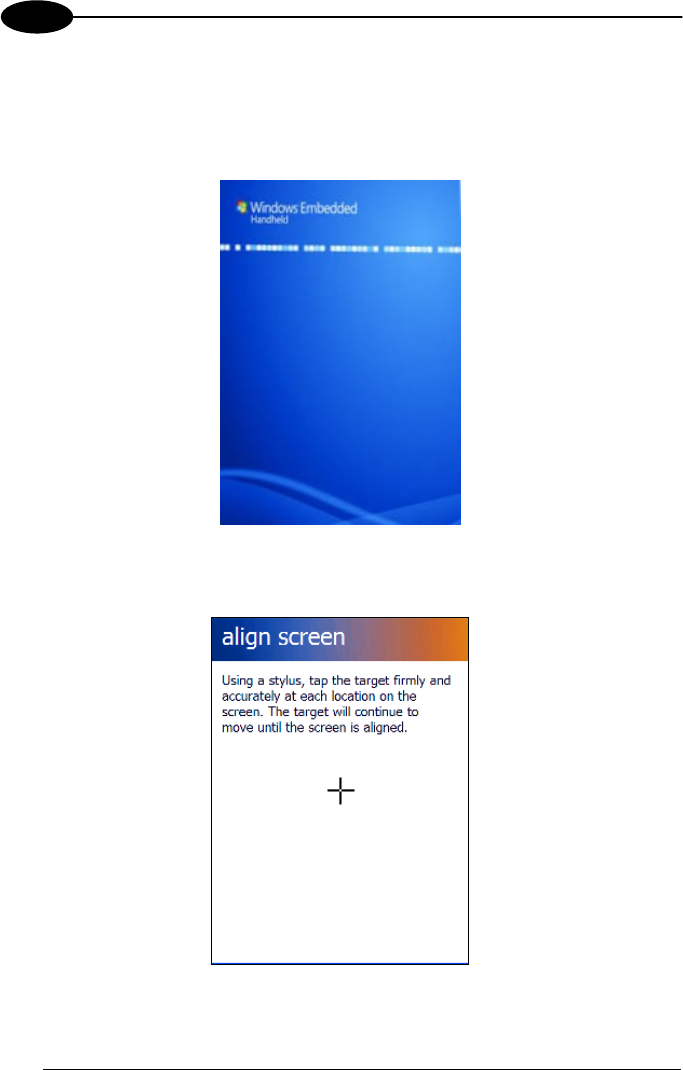

4.2 WINDOWS EMBEDDED HANDHELD WELCOME WIZARD
In Windows Embedded Handheld, at the very first Falcon X3+ startup, following a
clean boot or following a Registry restore to default values, the mobile computer
startup (see par. 4.1) is preceded by the Welcome Wizard.
Welcome Wizard Screen

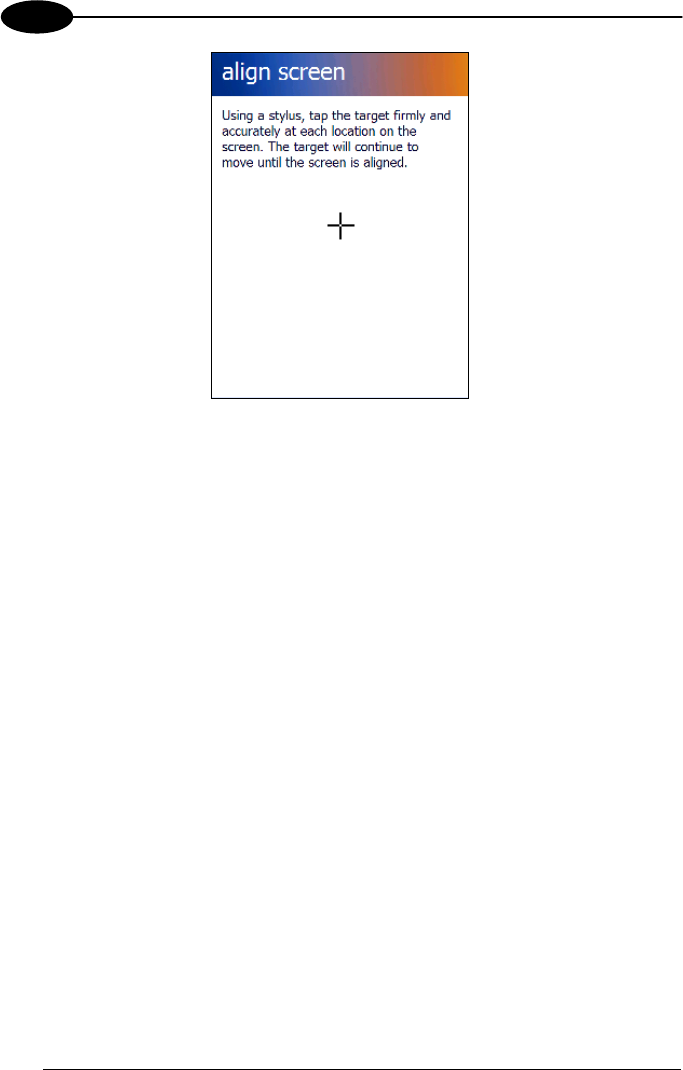

The Welcome Wizard allows the user to calibrate the touch screen (see par. 4.6.7)
Touch Screen Calibration Screen
USE AND FUNCTIONING
33
4

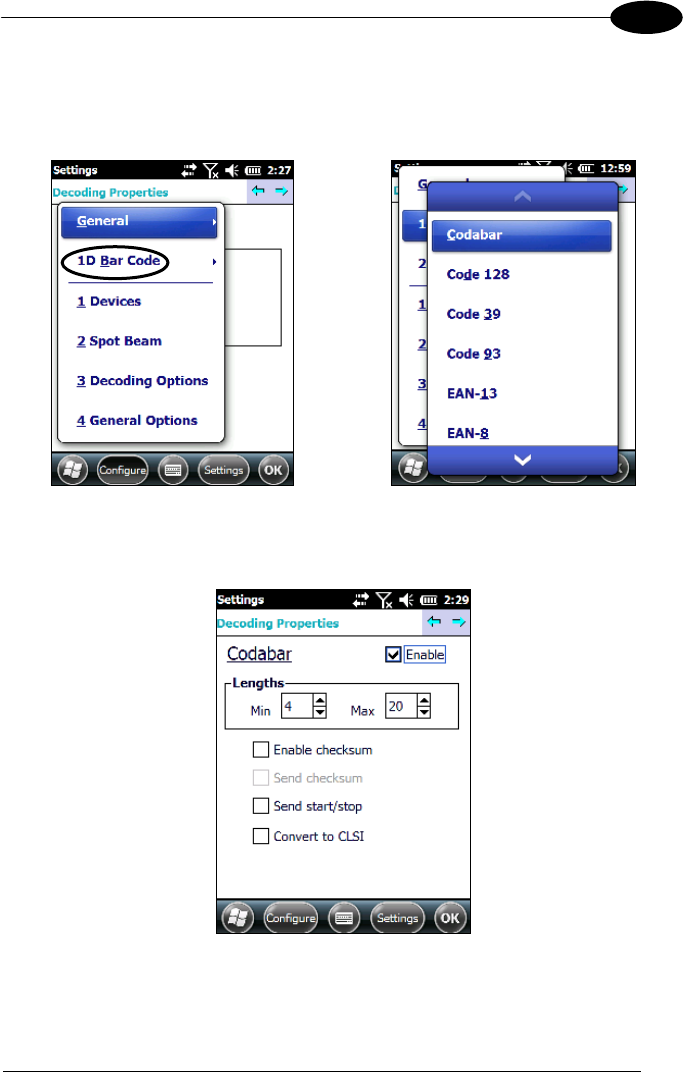

4.3 DATA CAPTURE

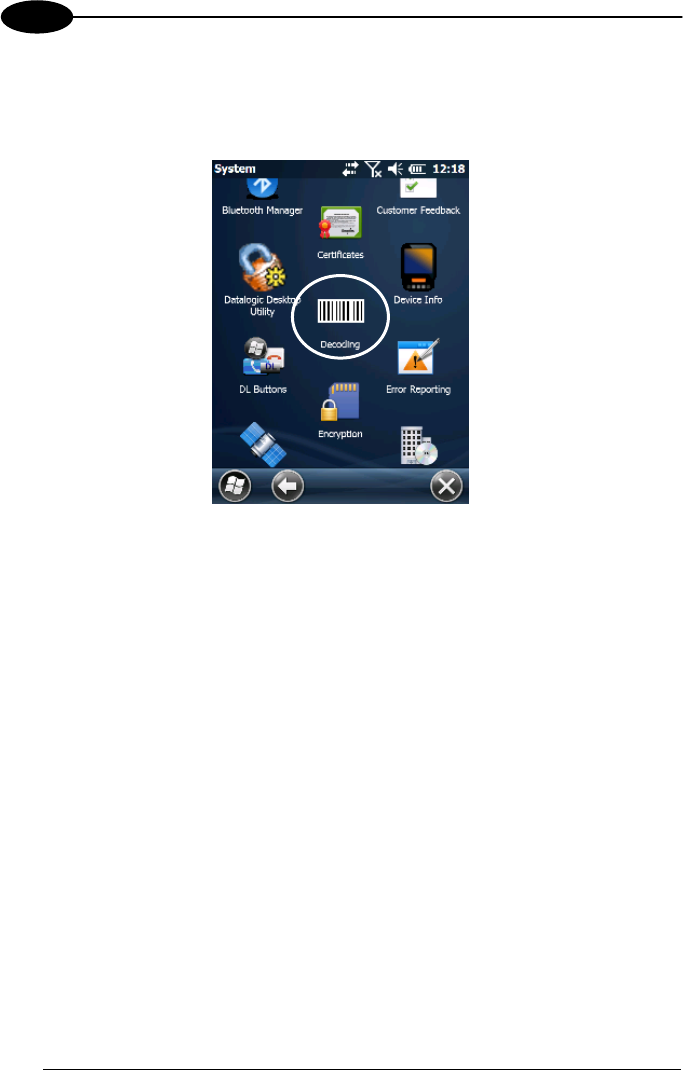

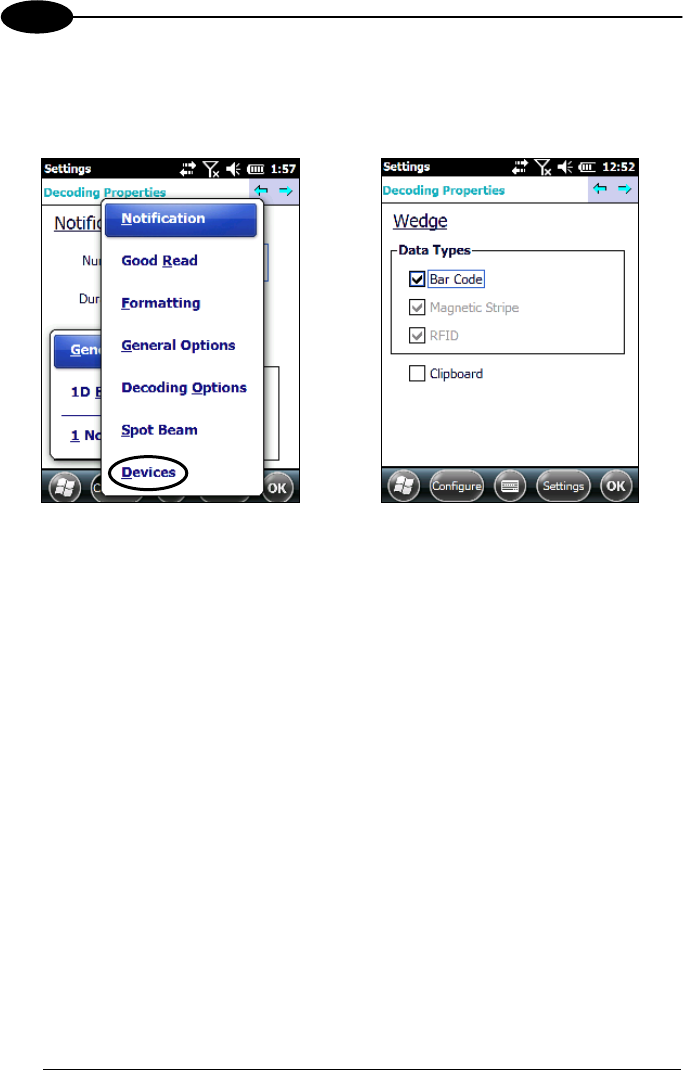

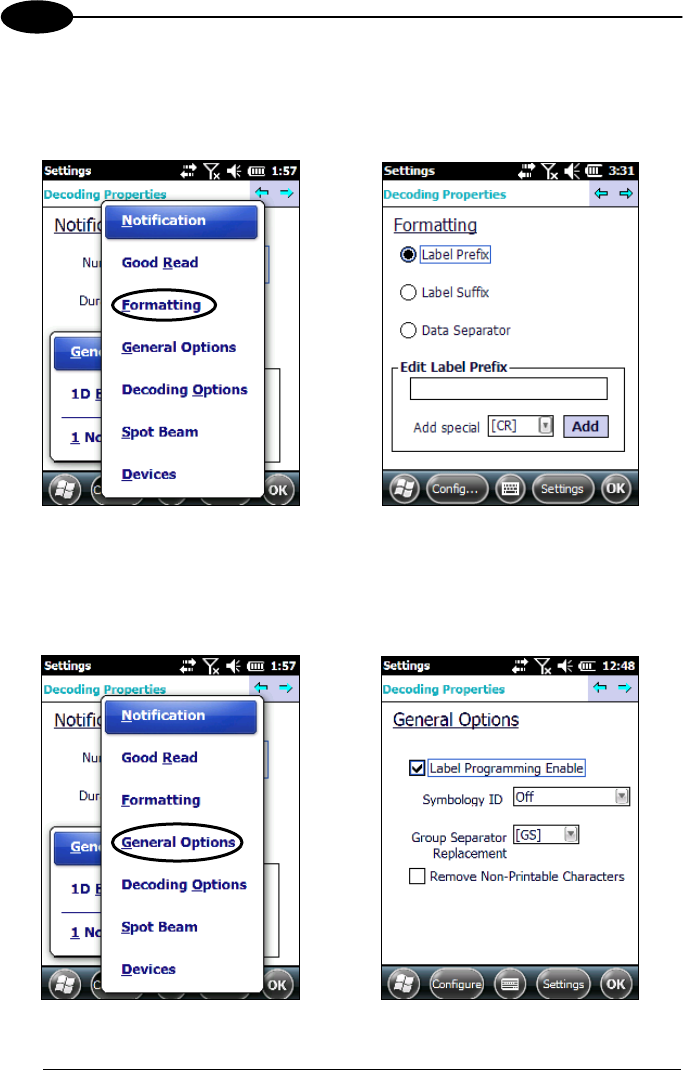

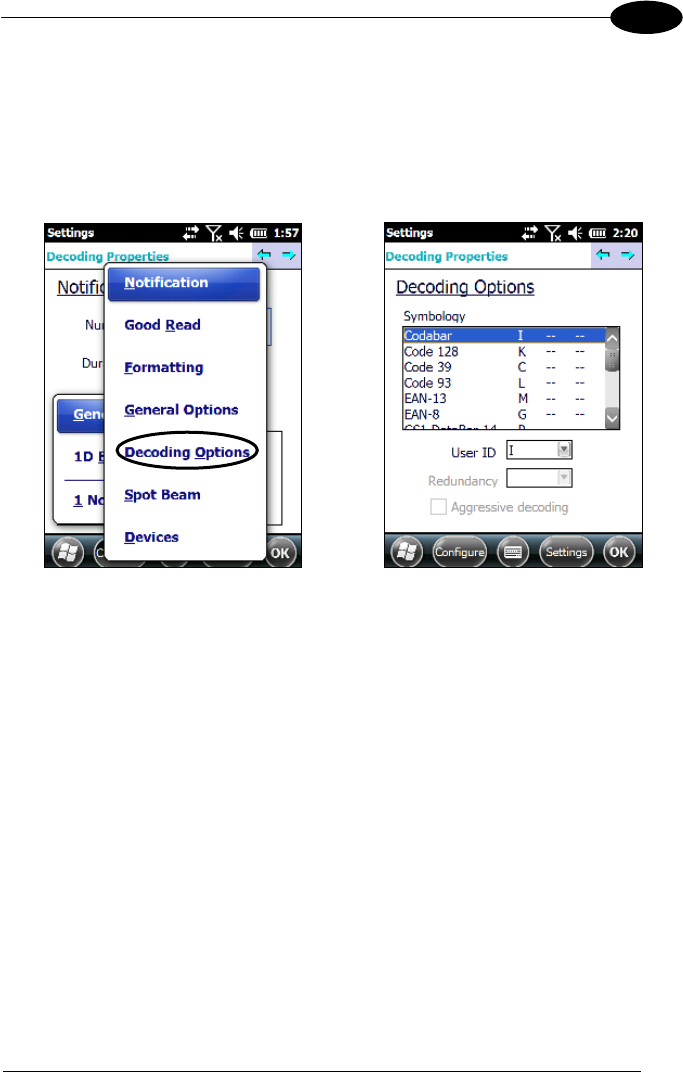

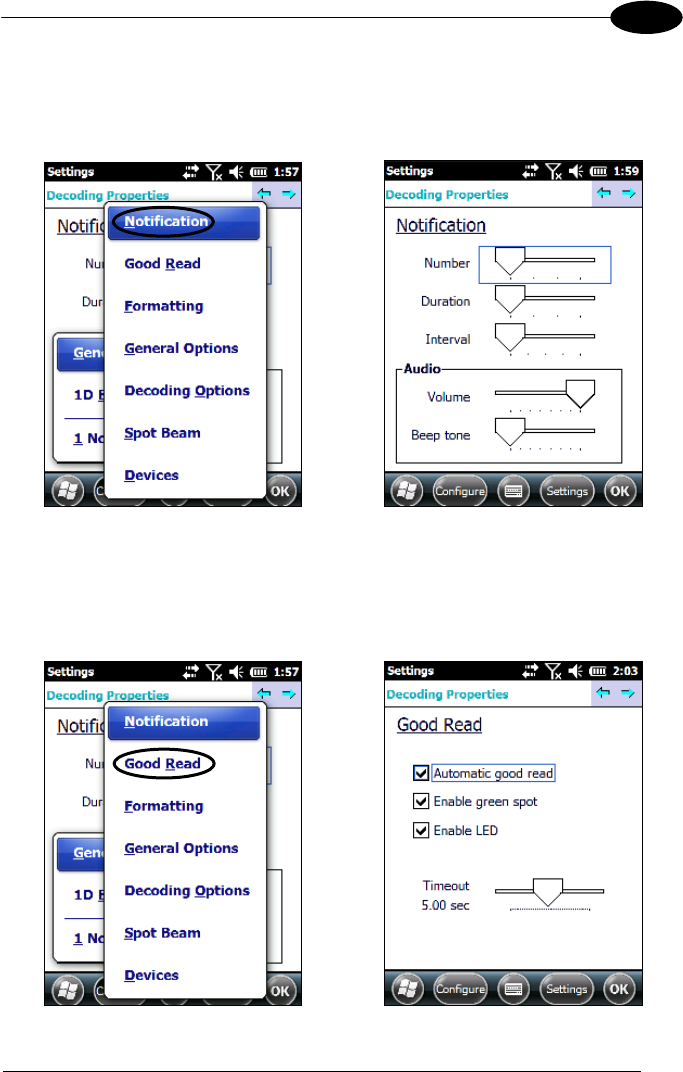

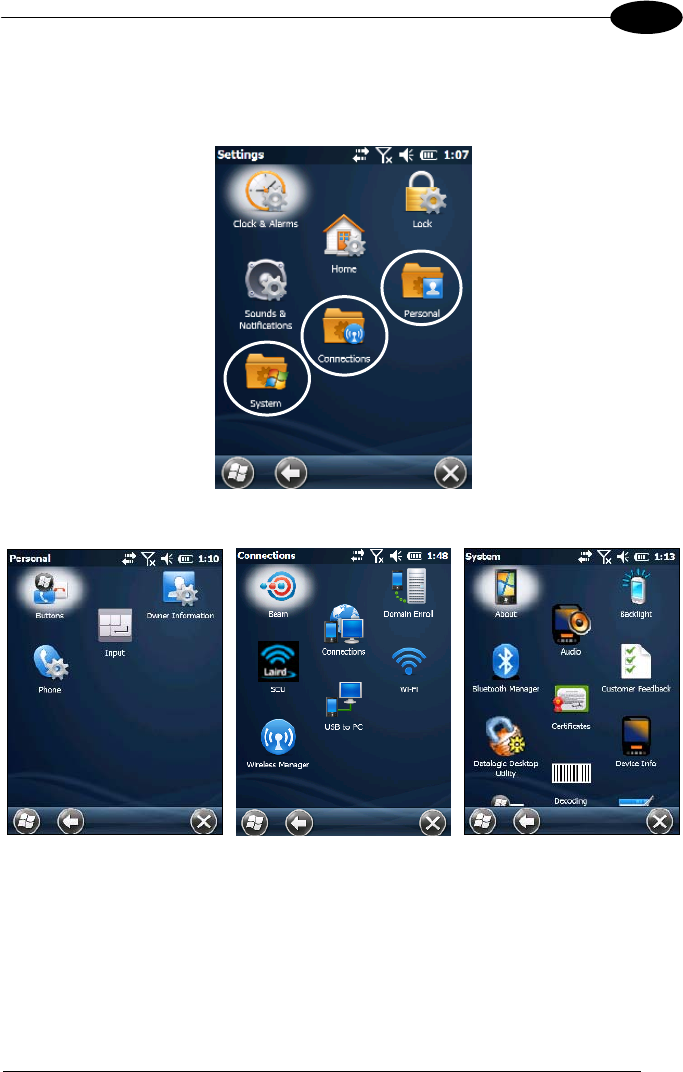

To capture data first of all tap Start > Settings > System > Decoding:

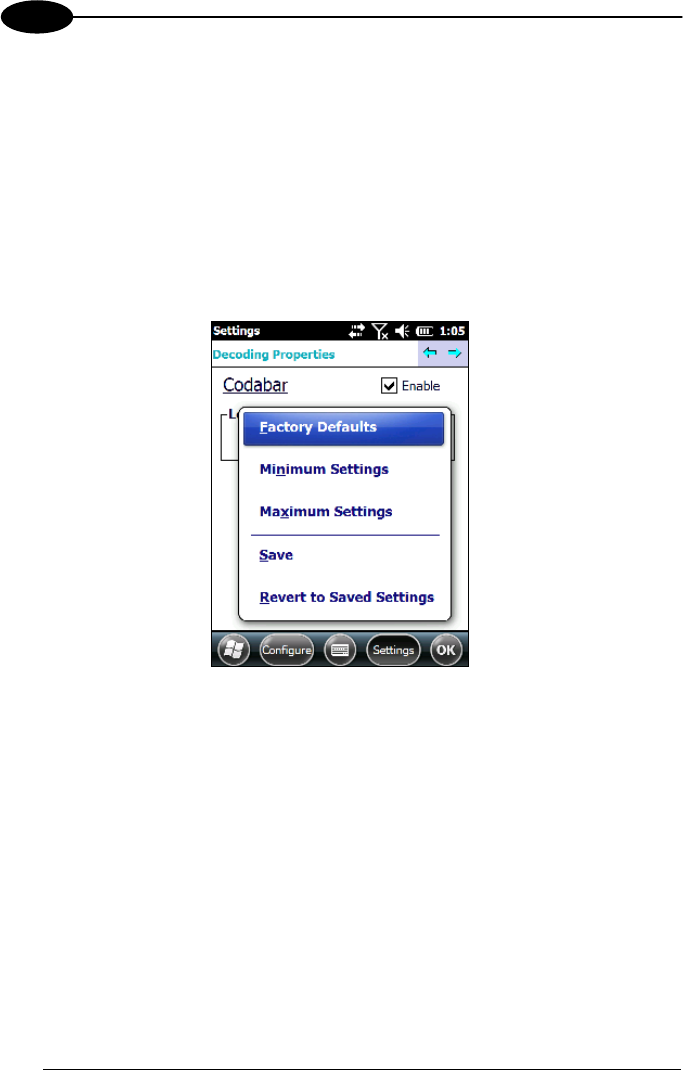

To configure and enable data capture parameters refer to par. 4.6.1.
1 FALCON™ X3+
34
4
4.3.1 Laser Data Capture

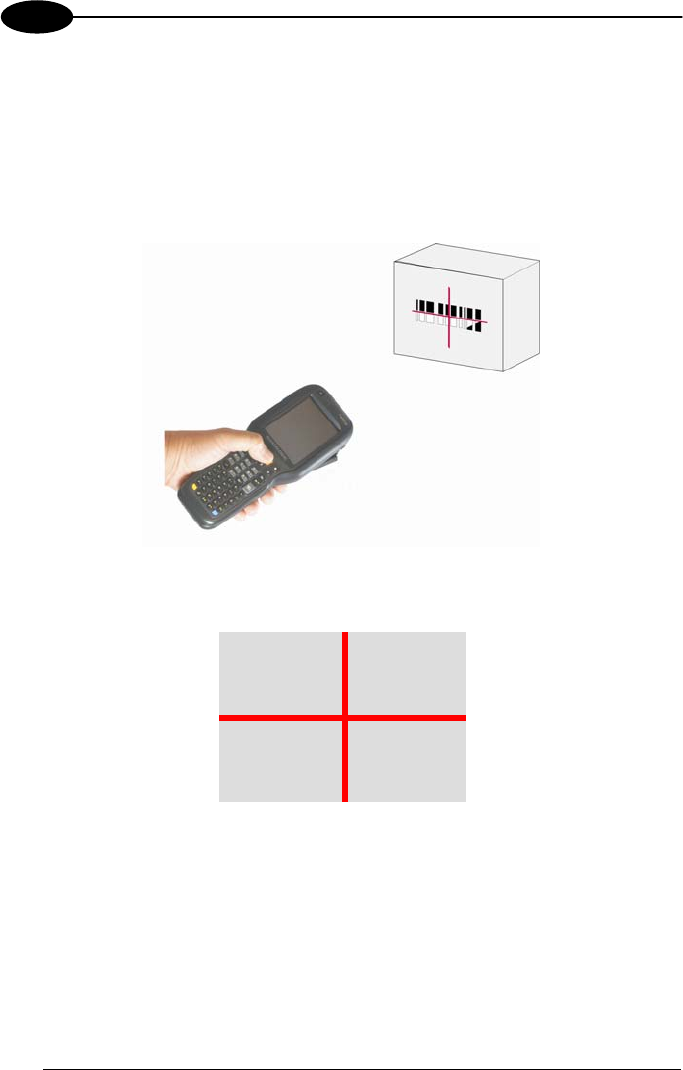

To scan barcodes, point the Falcon X3+ laser model onto the code from a distance
within the reading range while pressing the SCAN key or the pistol trigger.

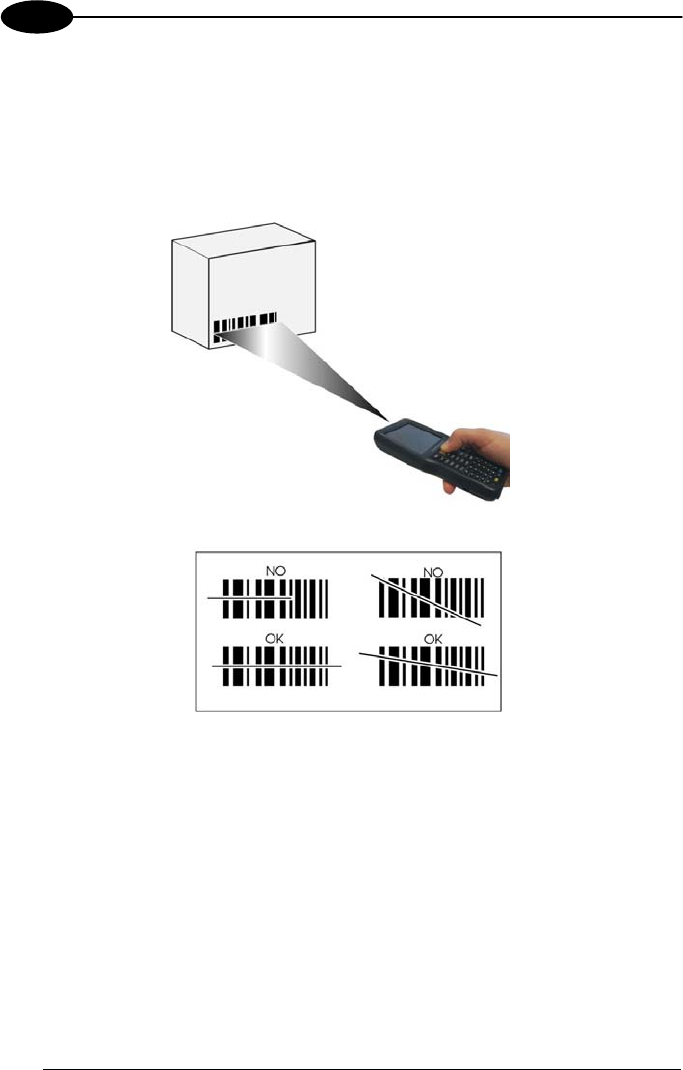

The lighted band emitted by the laser must completely cross the barcode as shown in
the figure below.
The XLR engine includes a pointer mode that projects a highly visible scan line at
longer ranges to make it easier to accurately target bar codes. The user simply holds
the trigger down until the aimer is on the appropriate code. Releasing the trigger then
initiates the bar code scan.
If the scan has taken place correctly:
the Good Read LED glows steadily Green for a configurable time;
if enabled, the Good Read Beep plays;
if enabled, the GreenSpot projects a green spot onto the bar code image.
USE AND FUNCTIONING
35
4
Remove the protective film cover over the Laser Output Window
before use.
NOTE
1 FALCON™ X3+
36
4
4.3.2 Imager Data Capture
The Falcon X3+ Imager captures a picture of the entire bar code. The omni-
directional scanning does not require that the operator orient the bar code to align
with the scan pattern.
To read a 1D or 2D code, simply point the Falcon X3+ Imager model onto the code
and press the SCAN Key or the pistol trigger.
The Falcon X3+ Imager uses an intelligent aiming system pattern, similar to those on
cameras, indicating the field of view, which should be positioned over the code:
Aiming System
If the aiming system pattern is centered over the entire symbology as shown in the
following figure, either wait for the timeout or release the Scan key to capture the
image.
A red beam illuminates the code, which is captured and decoded. You will get a good
read.
USE AND FUNCTIONING
37
4

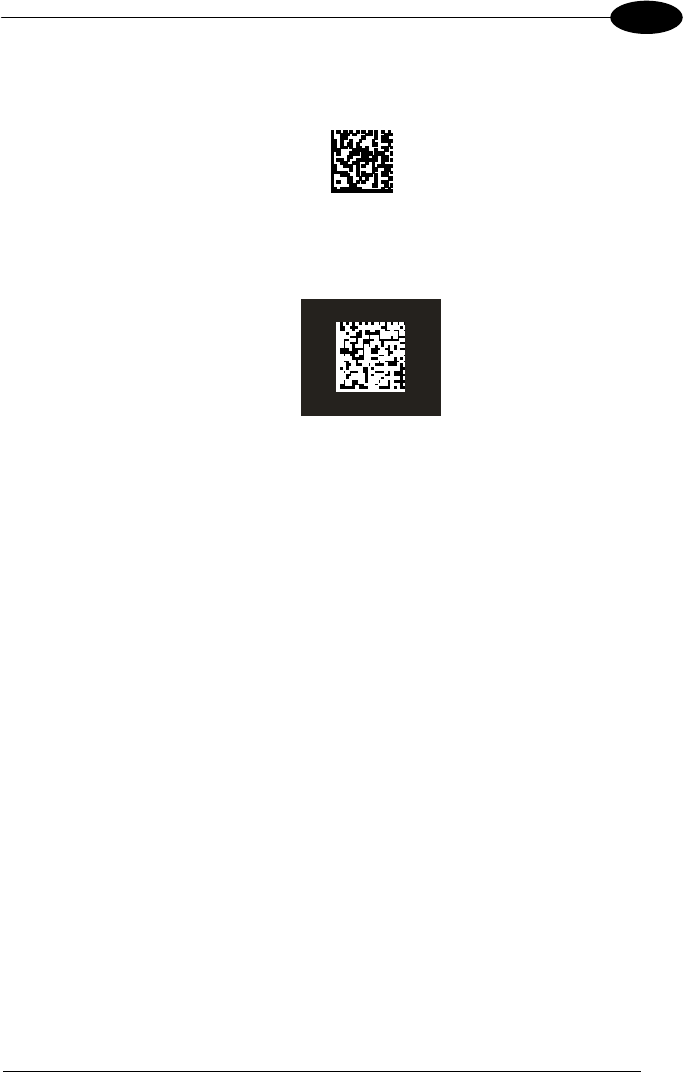

Linear barcode 2D Matrix symbol
ÌBX3ÉÎ
Relative Size and Location of Aiming System Pattern

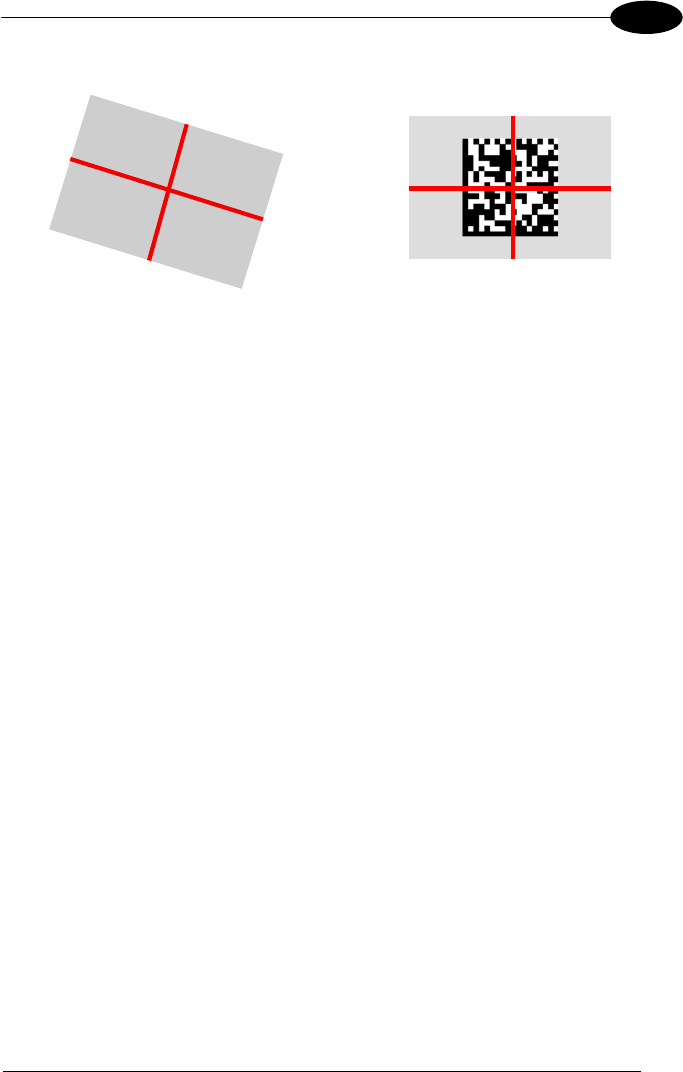

The field of view changes its size as you move the reader closer or farther away from
the code. The field of view indicated by the aiming system pattern will be smaller
when the Falcon X3+ Imager is closer to the code and larger when it is farther from
the code.
Symbologies with smaller bars or elements (mil size) should be read closer to the
unit. Symbologies with larger bars or elements (mil size) should be read farther from
the unit (see par. 5.1 for further details).
If the scan has taken place correctly:
the Good Read LED glows steadily Green for a configurable time;
if enabled, the GoodReadSound emits an acoustic signal;
If enabled, the Good Read Beep plays.
1 FALCON™ X3+
38
4
4.4 DESCRIPTION OF THE KEYS
The Falcon X3+ comes with three different keyboards:
- a 52-key alphanumeric keyboard

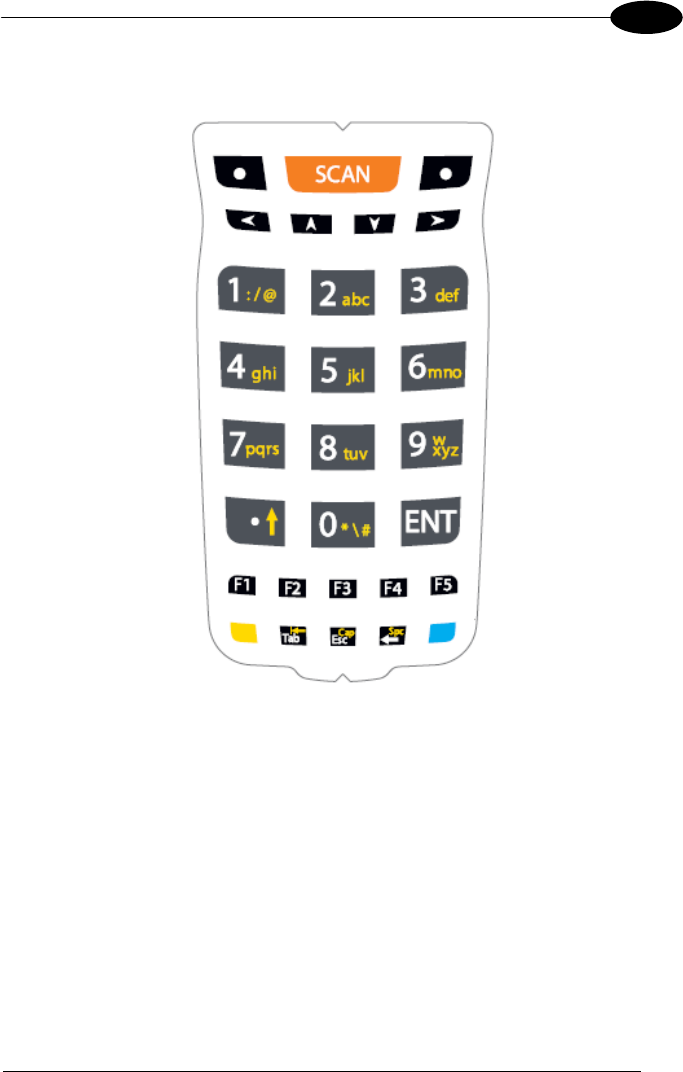

- a 29-key numeric keyboard.
4.4.1 52-Key Alphanumeric Keyboard
USE AND FUNCTIONING
39
4

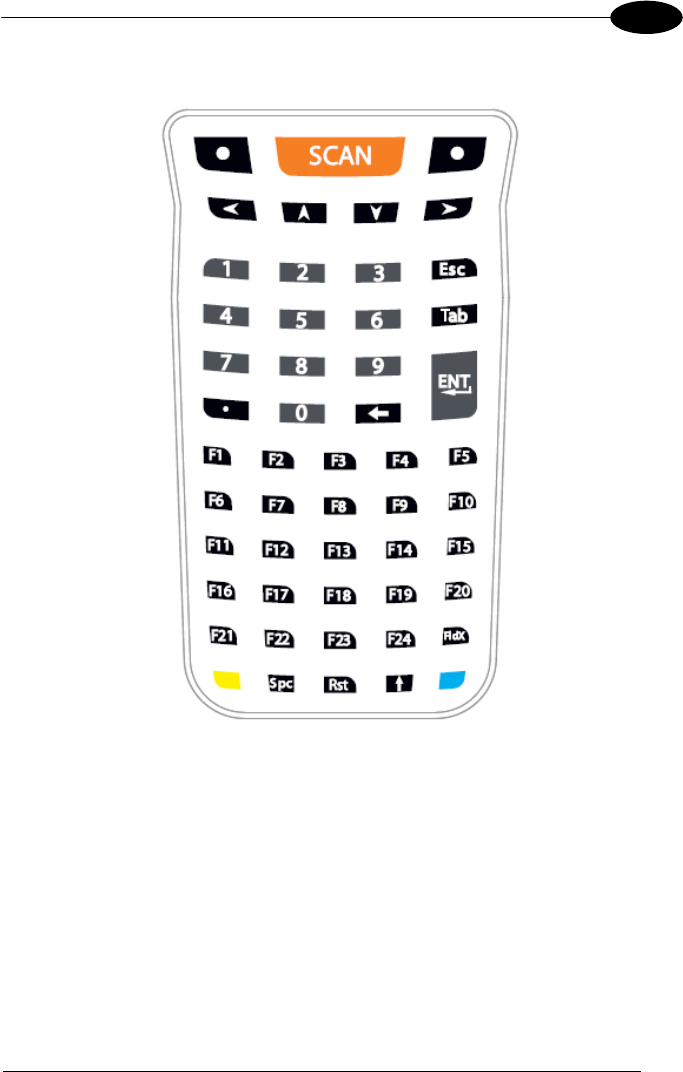

4.4.2 52-Key Terminal Emulation 5250 Keyboard
1 FALCON™ X3+
40
4
Main Keys Function
KEY FUNCTION
Pressing the SCAN key starts barcode data capture.
Direct access to F1-F4.
If pressed after the Yellow toggle, these keys let you to
move forwards, backwards, upwards or downwards within
text fields, scroll through a Menu list or browse among
folder files.
Yellow modifier (toggle key): when pressed before a
standard key, it enables the character or function printed in
yellow above the key.
Blue modifier (one shot key): when pressed before a
standard key, it enables the character or function printed in
blue above the key.
It powers the Falcon X3+ on or off. it is placed on the upper
left side of the terminal.
USE AND FUNCTIONING
41
4
4.4.3 Numeric Keyboard
1 FALCON™ X3+
42
4

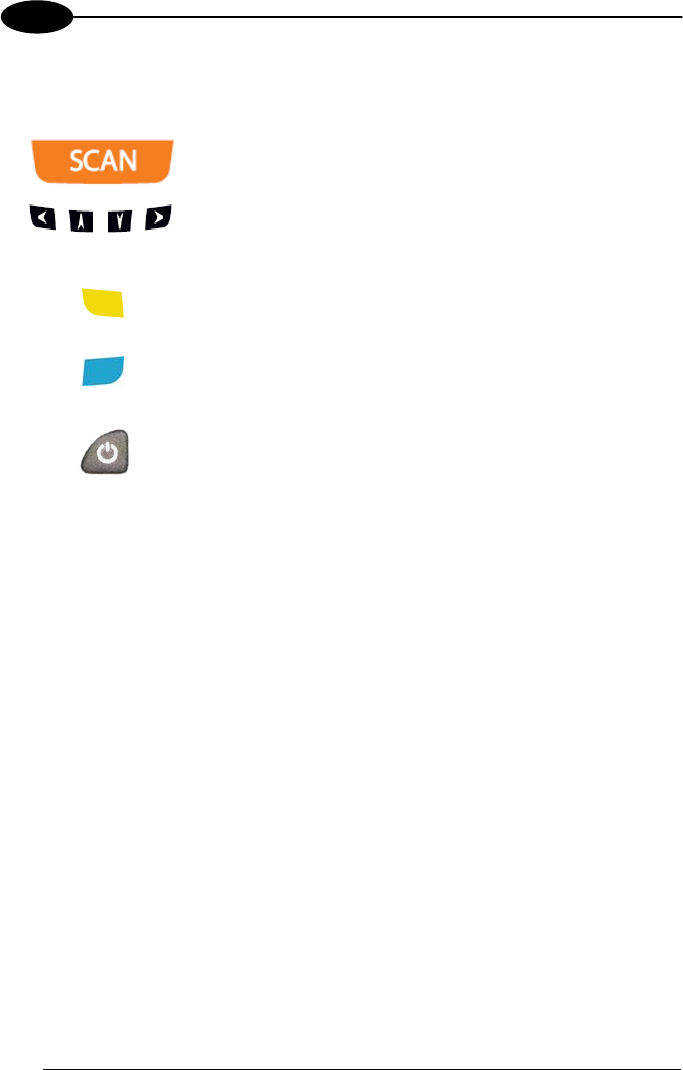

Main Keys Function
KEY FUNCTION
Pressing the SCAN key starts barcode data capture.
Pressing cursor keys let you move forwards, backwards,
upwards or downwards within text fields, scroll through a
Menu list or browse among folder files.
Yellow modifier (toggle key): when pressed before a
standard key, it enables the character or function printed
in yellow above the key.
Blue modifier (one shot key): when pressed before a
standard key, it enables the character or function printed
in blue above the key.
It powers the Falcon X3+ ON or OFF. It is placed on the
upper left side of the terminal.
USE AND FUNCTIONING
43
4
4.4.4 Resetting the Falcon X3+
There are several reset methods for the Falcon X3+.
A warm boot terminates an unresponsive application and clears the working RAM,
but preserves the file system. Registry is restored from persistent memory if available
or returned to factory default.
A cold boot forces all applications to close, completely reinitializing the system. It
clears the working RAM, but the file system is preserved. Registry is restored from
persistent memory.
A clean boot restores the Falcon X3+ to a clean configuration: both the Registry and
the file system returns to a clean status that conforms to factory default.
Warm Boot
To perform a warm boot, press and hold the following keys simultaneously:
+ +
Cold Boot
To perform a cold boot, do the following steps:
1. Turn off the Falcon X3+ by pressing the on-off key.
2. Pull the battery latch down and remove the battery pack.
3. Press and hold the scan button and then press the reset button.
4. Insert the battery pack.
5. Turn on the Falcon X3+ by pressing the on-off key.
1 FALCON™ X3+
44
4
Clean Boot
To perform a clean boot, do the following steps:
1. Perform a Cold Boot (see Cold Boot)

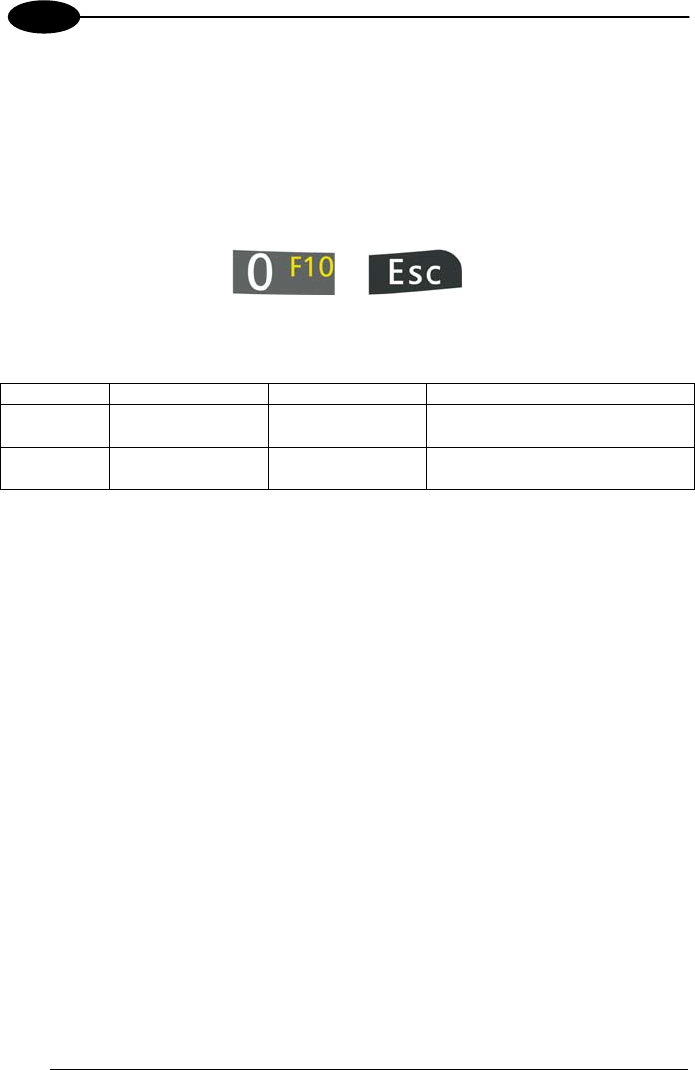

2. Press and hold down the 0 and Esc keys simultaneously and then press the on-
off key:
+
A dialog box will appear asking for confirmation. Press the Enter Key.
Warm Boot Cold Boot Clean Boot
Registry Restored from
flash
Restored from
flash
Clean configuration (no user
config)
File
System Preserved Preserved Clean Installation (no user files)
USE AND FUNCTIONING
45
4
4.5 STATUS INDICATORS
4.5.1 LED Status
The Falcon X3+ provides three different LEDs signaling the mobile computer status.
LED STATUS
Good Read
(right side)
Red
Scanning LED is ON from the time the
user hits the scan button or the trigger
button until the bar code is decoded
(laser models)
Time-out (imager models).
Green
Scanning LED is ON, showing a good
decode.
Charging Status
(left side) Green It is solid once the charging process has
been completed (full charge).
Red It is solid while charging.
Red blinking It blinks in case of charge fault.
Keyboard Status
(center) Off Keyboard in primary.
Yellow solid Yellow alternate key mode.
Blue solid Blue alternate key mode
Pink CapsLock enabled.
1 FALCON™ X3+
46
4
4.5.2 Taskbar
The title bar provides information about the time, the battery level, the keyboard
function, and the decoding status.
Windows Embedded Handheld Taskbar
ICONS DESCRIPTION
Zooms the screen.
Opens the Connections balloon, which includes hypertext links
to the Wireless Manager and the Connections applet. (see
par.4.6.6).
Displays the system battery status.
Opens the Volume balloon, which allows the user to control the
main volume, in-call volume, to mute all volumes, and to control
the vibrator.
Opens Clock & Alarms control panel applet. It allows the user to
set date, time and alarms.
USE AND FUNCTIONING
47
4
4.6 SETTINGS
From the Start menu, tap Settings. The settings are organized hierarchically.
Control panel applets are displayed as icons; each icon corresponds to one applet:
Windows Embedded Handheld Control Panel
1 FALCON™ X3+
48
4
4.6.1 Data Capture Configuration
You can configure the Falcon X3+’s decoding options by tapping Start -> Settings ->
System -> Decoding:
There are two sections in the Decoding control panel, each containing additional
pages. There are seven General Configuration pages and multiple Barcode
symbology pages.
Decoding configuration pages
Select the desired configuration from the options shown in the figure below, and the
other Decoding Properties figures on the following pages.
Select General, 1D Bar Code or 2D Bar Code, then use the menu or tap the left and
right arrow keys to navigate the different pages of the Decoding utility. The menu
options will change to reflect the items most recently selected.
USE AND FUNCTIONING
49
4
Notification
From the Decoding menu, tap Configure > General > Notification. Use it to set
volume, tone, duration, and number of various types of beeps.
Good Read
From the Decoding Properties applet, tap Configure > General > Good Read. Use it
to enable Good Read indications, the LED, the use of Green Spot and a to set the
decoding timeout for decoding labels.
1 FALCON™ X3+
50
4
Formatting
From the Decoding Properties page, tap Configure > General > Formatting. Use it to
configure prefix, suffix and data separator character strings.
General Options
From the Decoding menu, tap Configure > General > General Options. Select from
Label Programming Enable, Symbology IDs and Group Separator Replacement.
USE AND FUNCTIONING
51
4
Decoding Options
From the Decoding Properties applet, tap Configure > General > Decoding Options.
Use it to configure the User ID for symbologies, Redundancy and Aggressive
Decoding (if supported by the decoding module). Select a symbology to view or
change the available properties settings.
1 FALCON™ X3+
52
4

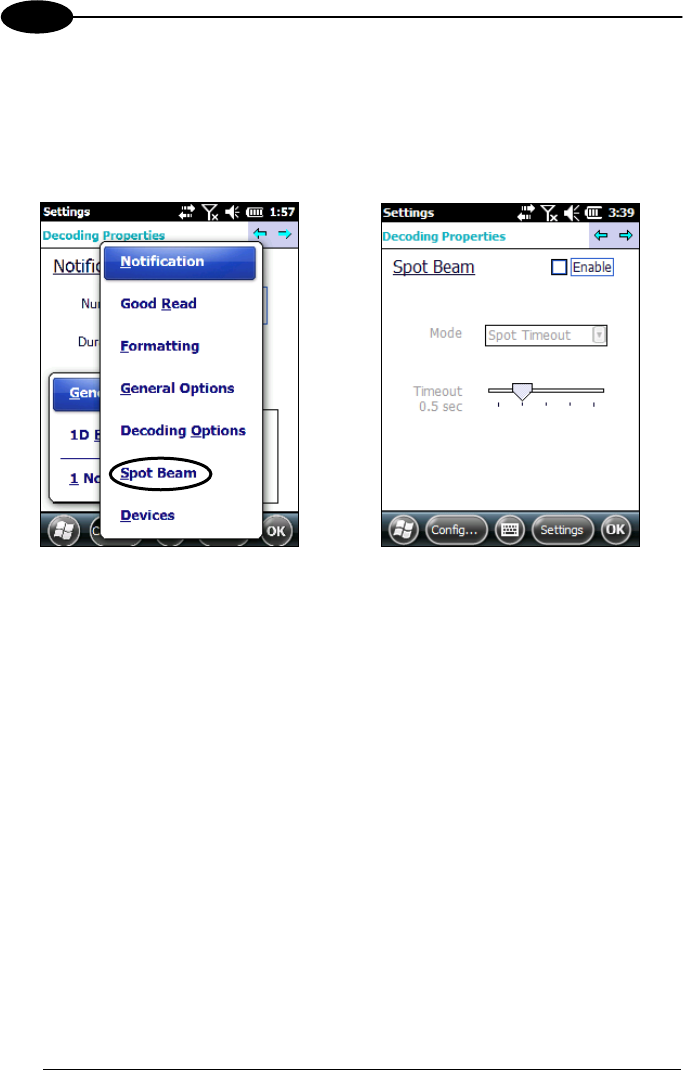

Spot Beam
From the Decoding Properties applet, tap Configure > General > Spot Beam. It
allows enabling and configuration of Spot Beam and triggering modes.
It is only available on devices equipped with laser and advanced long range laser
decoding modules that support the Spot Beam Feature.
USE AND FUNCTIONING
53
4
Imager Options
From the Decoding Properties applet, tap Configure > General > Imager Options. It
configures illumination, target beam and Pick List mode, and triggering modes.
It is only available on devices equipped with 2D decoding engines.
1 FALCON™ X3+
54
4
Devices
From the Decoding Properties applet, tap Configure > General > Devices. Use it to
enable or disable the keyboard wedge for Barcode scanner.
USE AND FUNCTIONING
55
4
1D Barcode Symbology Pages
Use the drop-down menus from Configure > 1D Barcode, or tap the left and right
arrow keys to navigate the different pages of the barcode symbology pages.
Each barcode symbology opens to its own page, as shown in the figure below. Refer
to the sample symbology control panels for examples of the types of fields and
options you can modify.
Codabar: Select Enable, Min/Max Lengths, Enable Checksum, Send Checksum,
Send Start/Stop, Convert to CLSI and Wide Gaps.
1 FALCON™ X3+
56
4
Decoding Settings
Select from the Decoding Properties Settings menu to restore previous
configurations and/or other available default settings. Choose from:
Factory Defaults
Minimum Settings
Maximum Settings
Save (New Settings)
Revert to Saved Settings
The settings are saved when you tap ‘Yes’.
When open, Decoding Properties acts as a simple barcode test tool that provides the
Data decoded and the Data Type of the barcode scanned.
USE AND FUNCTIONING
57
4
4.6.2 Buttons
From the Start menu, tap Settings > Personal > Buttons.
On the Program Buttons tab, customize the program hardware buttons to launch your
most used applications. Under ‘Select a button’, tap the button you want to assign a
program to, and then select a program from ‘Assign a program’.
To configure the way the up/down control repeats, use the Up/Down Control applet
(Start > Settings > Personal > Buttons and then tap Up/Down Control).
1 FALCON™ X3+
58
4
4.6.3 DL Buttons
In Windows Embedded Handheld devices, <F1>-<F10> buttons (excluding F5) are
assigned by Windows to default applications. F5 is commonly used by applications to
refresh the few, but is not explicitly controlled by default.

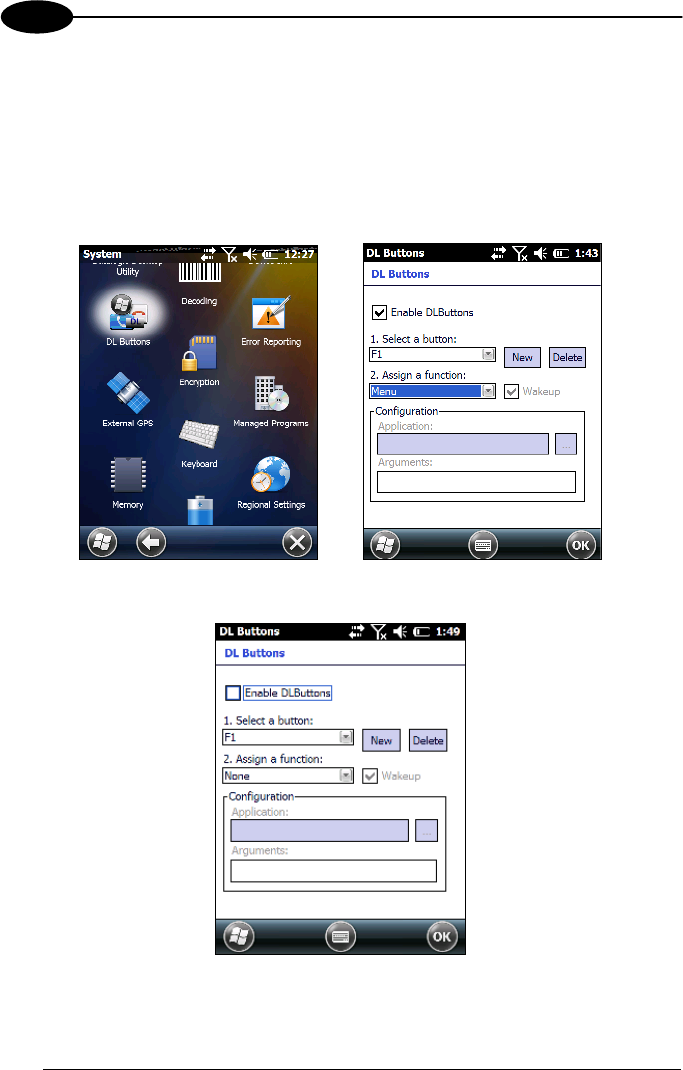

To disable an assigned function, tap Start > Settings > System > DL Buttons to
display the DL Buttons window:
Select the button you want to disable. Select the function ‘None’ and the tap OK.
USE AND FUNCTIONING
59
4

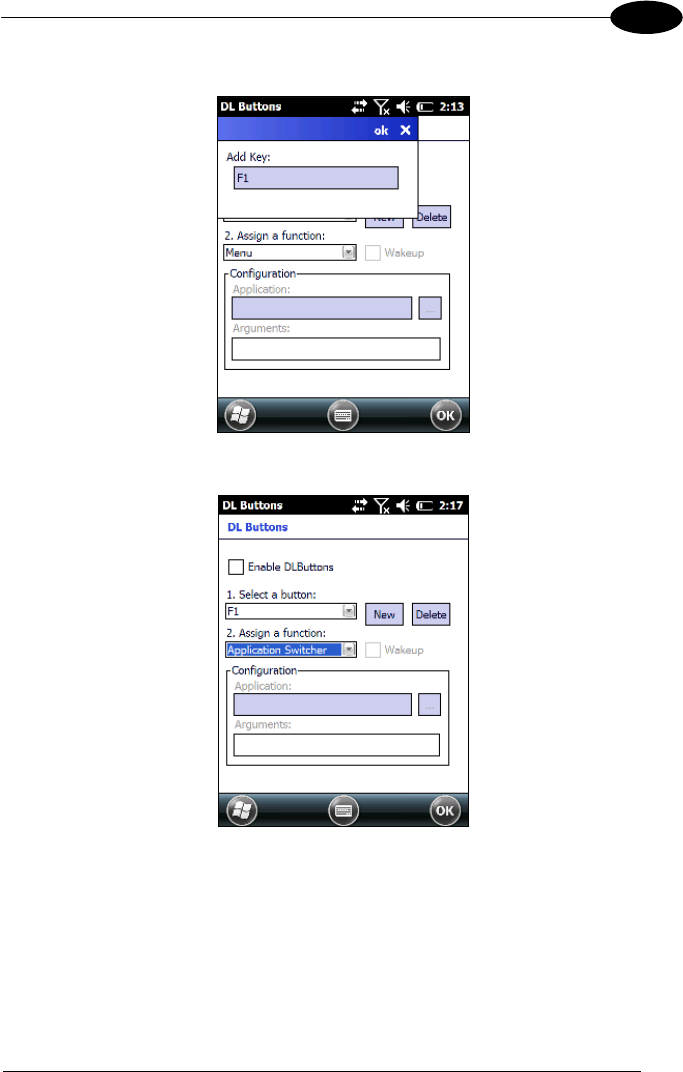

To add the button, tap ‘New’ and then press the button you wish to add:
To assign a new function to the button, select the desired function and then tap ‘OK’:
To restore the old settings, do a clean boot
1 FALCON™ X3+
60
4

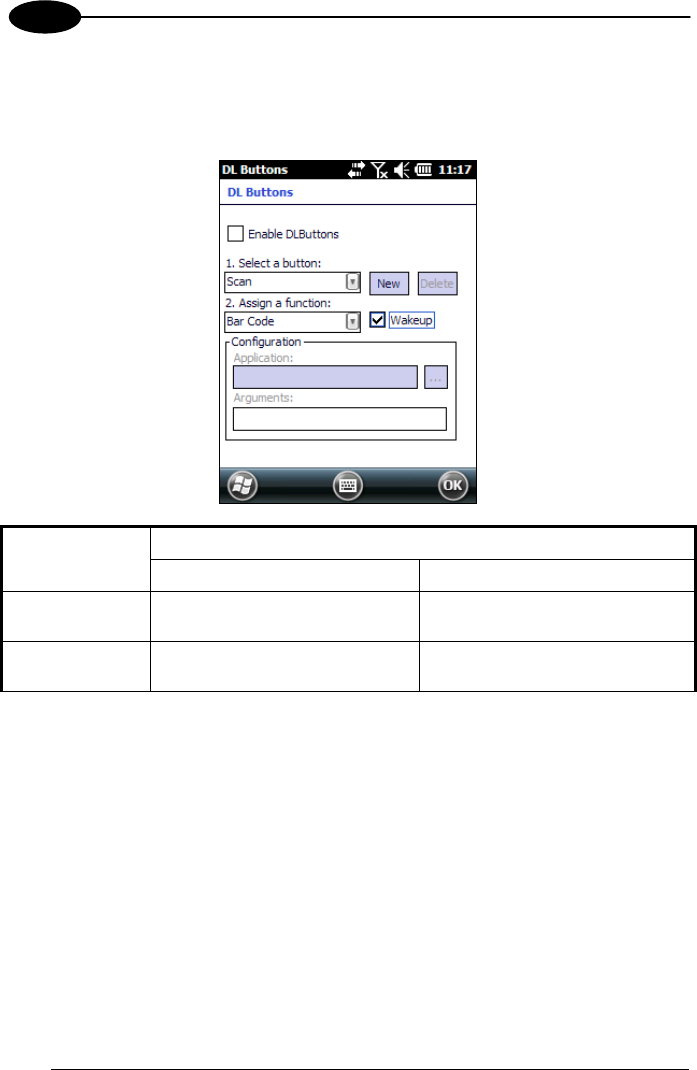

4.6.4 Triggers
Triggers are special customizable buttons that are mapped by default by DL Buttons.
Also, they can be set as wakeup buttons:
TRIGGERS DEFAULT CONFIGURATION
Assigned Function Wake-up
Scan Bar Code Disabled
Pistol Trigger Bar Code Enabled
USE AND FUNCTIONING
61
4
4.6.5 Application Switcher
The application switcher provides the same functionality as the standard Windows®
Alt+Tab function. This allows the user to switch between the various open
applications.
The application switcher can be activated via an assigned shortcut key specified in
the “DL Buttons” tab (refer to par. 4.6.3). When the assigned button is pressed, the
dialog shown below will be displayed:
The <Esc> key can be used to close the Application Switcher.
NOTE
Press the assigned button to open the application switcher. Press the assigned
button to cycle through the running applications when the dialog is open. Press
<Enter> to switch to the selected application or <Esc> to close the application
switcher.
1 FALCON™ X3+
62
4
4.6.6 Wireless Communications
The Wireless Manager application is a sort of 'Control Panel' for wireless
connections. From here it's possible to turn on or off bluetooth® and radio modules.
Open the Wireless Manager by tapping Start > Settings > Connections > Wireless
Manager, or by tapping the connectivity icon on the taskbar and then tapping the
"Wireless Manager" hypertext link (see par. 4.5.2). The following window will appear:
USE AND FUNCTIONING
63
4
Summit Client Utility (SCU)
Wireless networking has a customized control, Summit Client Utility (SCU). From the
Start menu, tap: Summit > SCU:
The SCU will open to the “Main” tab:
Summit Client Utility
1 FALCON™ X3+
64
4
1. To create a new profile, tap the "Profile" tab:
Information about the wireless network can be entered directly in the profile tab or by
pressing “Scan” when the desired network SSID is in range.
2. At the "Scan" screen, select the desired SSID:
USE AND FUNCTIONING
65
4
3. Tap the "Configure" button
4. Follow the on-screen instructions to configure security parameters for your
network. For more detailed settings specific to your installation please contact
your wireless network administrator.
5. When finished, tap “Commit” to save your settings.
6. Return to the “Main” tab, if you have not previously selected “Commit” you will be
prompted to save your changes.
1 FALCON™ X3+
66
4
7. At the “Main” tab select the profile you just created. If you used the “scan” button
the desired profile will have the same name as the SSID.
8. Use the “Status” tab to check connectivity to the network.
More detailed information about the applet for radio configuration can be found at
http://www.summitdata.com/Documents/summit_users_guide_3_03.html.
USE AND FUNCTIONING
67
4
4.6.7 Stylus Calibration
You might need to recalibrate the touch screen (i.e. when you attempt to select one
item with the stylus, another item is erroneously selected).
To recalibrate the touch screen, complete the following steps:
1. Select Start > Settings > System > Screen to open the Screen
Settings.
2. Tap Align Screen to open the Calibration screen shown in the figure below:
3. Carefully press and briefly hold stylus on the center of the target. Repeat as the
target moves around the screen.
New calibration settings are persistently saved in Registry.
1 FALCON™ X3+
68
4
Startup Stylus Calibration
When clean booting the terminal, a Welcome Wizard (with Stylus Calibration) comes
up if valid calibration settings are not available.
USE AND FUNCTIONING
69
4
4.6.8 Audio Settings
There are two applets that control volume: Audio and Volume & Sounds.
Audio
From the Start Menu, tap Settings > System > Audio:
The audio control panel can be used to independently set the playback or recording
volume for different types of audio inputs and outputs, such as a headset, powered
mobile dock, or the internal speakers and microphone.
Audio Windows
1 FALCON™ X3+
70
4

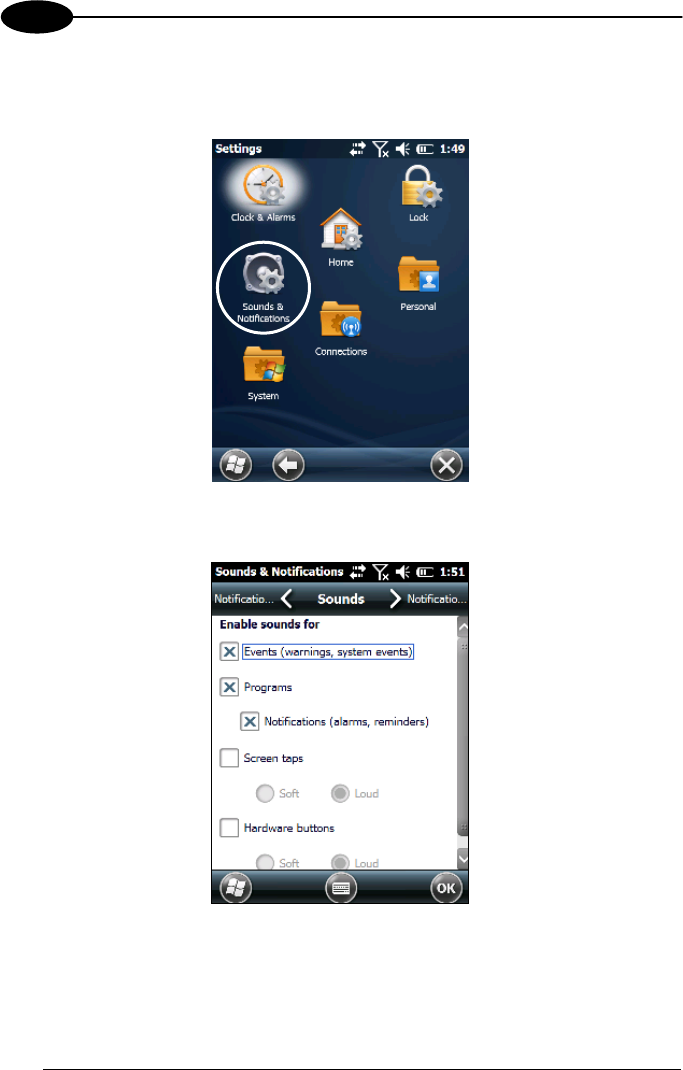

Sounds & Notifications
From the Start Menu, tap Settings > Sounds and Notifications:
The Sounds & Notifications applet configures audio features of all speakers and
headphones:
Sounds Tab
USE AND FUNCTIONING
71
4
You can also set the volume of a paired Bluetooth®headset. Tap:
Start > Settings > System > Bluetooth Manager, select the Connections tab and then
select the headset pairing in the Paired Devices list. The following window will
appear:
1 FALCON™ X3+
72
4
4.7 CONNECTING TO OTHER COMPUTERS
To connect the Falcon X3+ to another device (i.e. Host PC) which run Windows,
several programs are available. These programs require specific electrical
connections in order to function properly.
4.7.1 Windows Mobile® Device Center
The desktop application Windows Mobile® Device Center gives you the ability to
synchronize information between a desktop computer and your Falcon X3+.
Synchronization compares the data on the Falcon X3+ with that on the desktop
computer and updates both with the most recent information.
Windows Mobile® Device Center can be downloaded from Microsoft website
www.microsoft.com. It is only compatible with Windows Vista and Windows 7; if you
run Windows XP or earlier, you have to download Microsoft ActiveSync.
You can establish a connection to your Falcon X3+ through the following interfaces:
USB either directly or through the Single Dock
RS232 either directly or through the Single Dock
Bluetooth® (see par. 4.7.2)
To establish a partnership between the Falcon X3+and a host PC, start Windows
Mobile® Device Center and follow the steps below:
1. Connect the Falcon X3+ to the host PC. Windows Mobile® Device Center
configures itself and then opens.
2. On the license agreement screen, click Accept.
3. On the Windows Mobile® Device Center’s Home screen, click Set up your
device.
4. Select the information types that you want to synchronize, then click Next.
5. Enter a device name and click Set Up.
When you finish the setup wizard, Windows Mobile® Device Center synchronizes the
mobile computer automatically. Microsoft® Office Outlook® emails and other
information will appear on your device after synchronization.
USE AND FUNCTIONING
73
4
4.7.2 Bluetooth® Manager Device Setup
Using the Falcon X3+ to connect to another device
To create a Bluetooth® pairing between your device and another device that has
Bluetooth® capabilities, ensure that the two devices are turned on, discoverable, and
within close range.

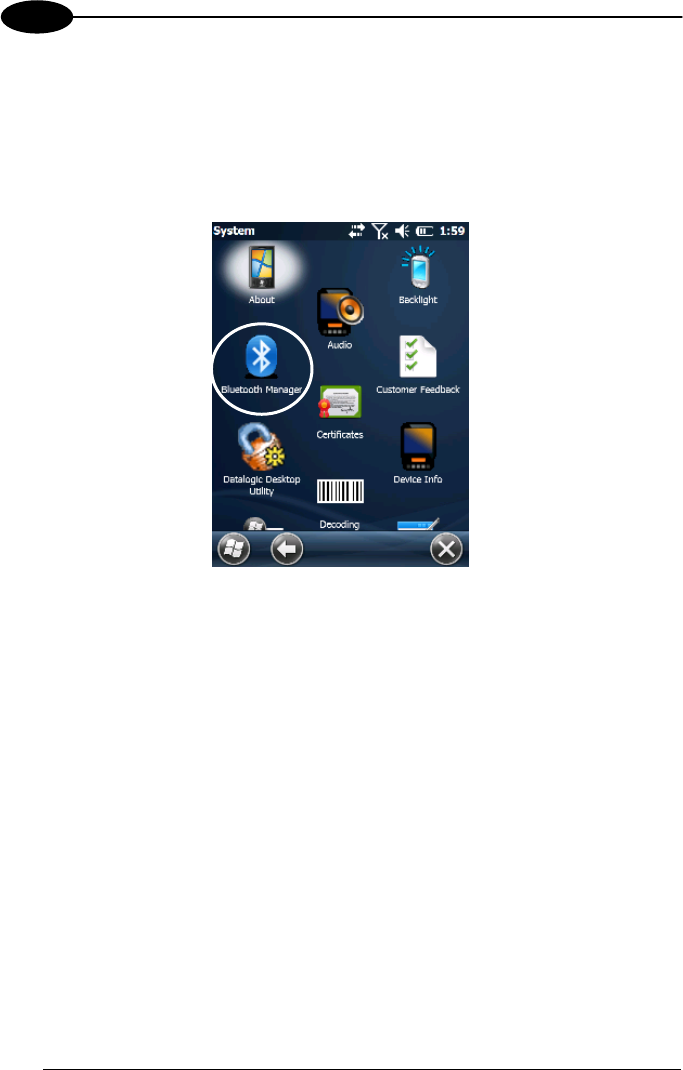

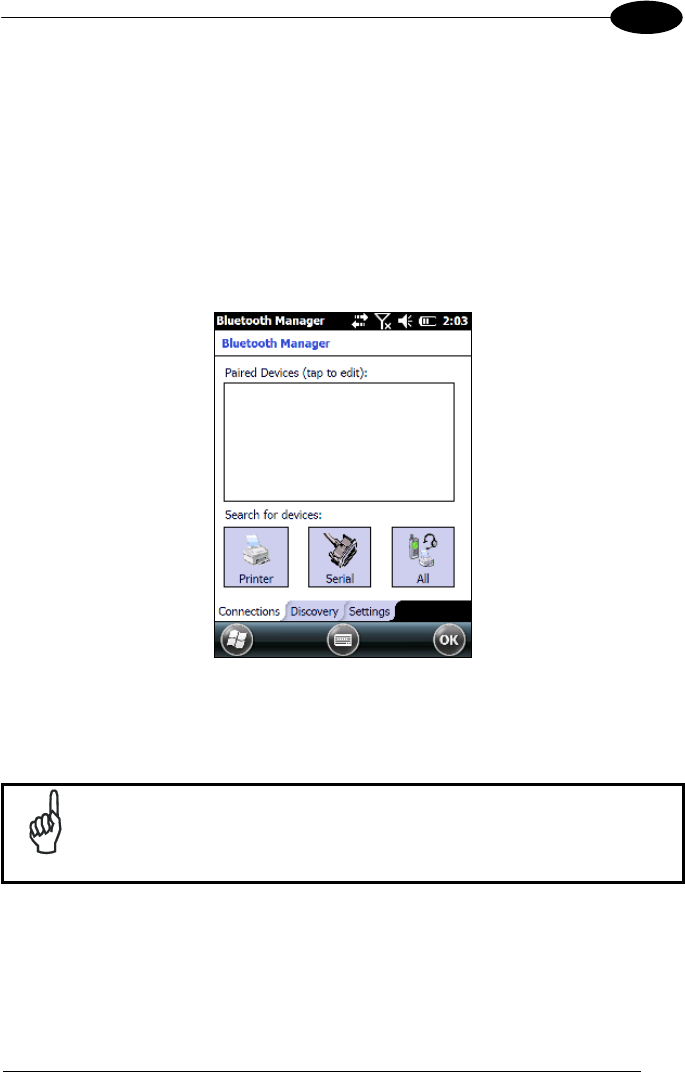

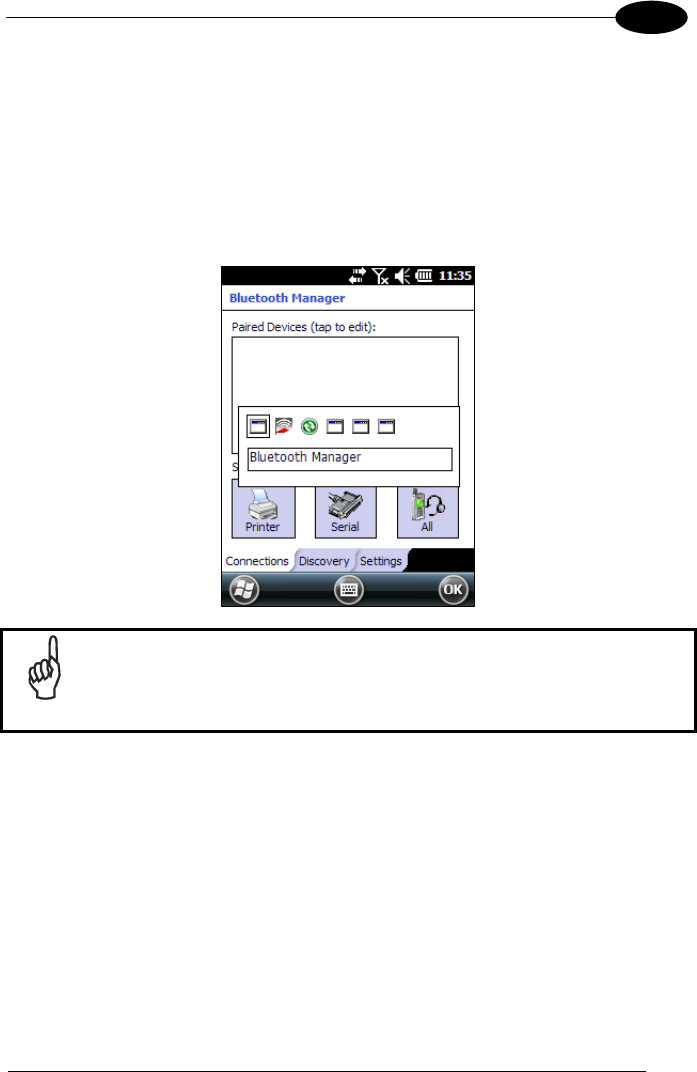

1. Open the Bluetooth® control panel by tapping Start > Settings > System >
Bluetooth Manager:
2. Search for available Bluetooth® devices by tapping the button for the type of
device you want (Printer, Serial or All) or tap the Discovery tab and then tap the
Discover button to skip this step. The Falcon X3+ will search for Bluetooth®
devices within range.
If you attempt to set up a connection when the Bluetooth® radio is
disabled, you will receive a message reminding you that the radio is
turned off, and asking if you want to turn it on. Tap Yes if you need to
enable the Bluetooth® radio.
NOTE
1 FALCON™ X3+
74
4
3. Once searching is complete, Bluetooth® devices will be displayed in the
Discovery tab. You can set up a connection to a device in the list by selecting
the device and then tapping the 'Connect' button:
To create a pairing:
1. Select a service:
2. Configure any encryption, authentication, or virtual port options required by the
service selected.
USE AND FUNCTIONING
75
4

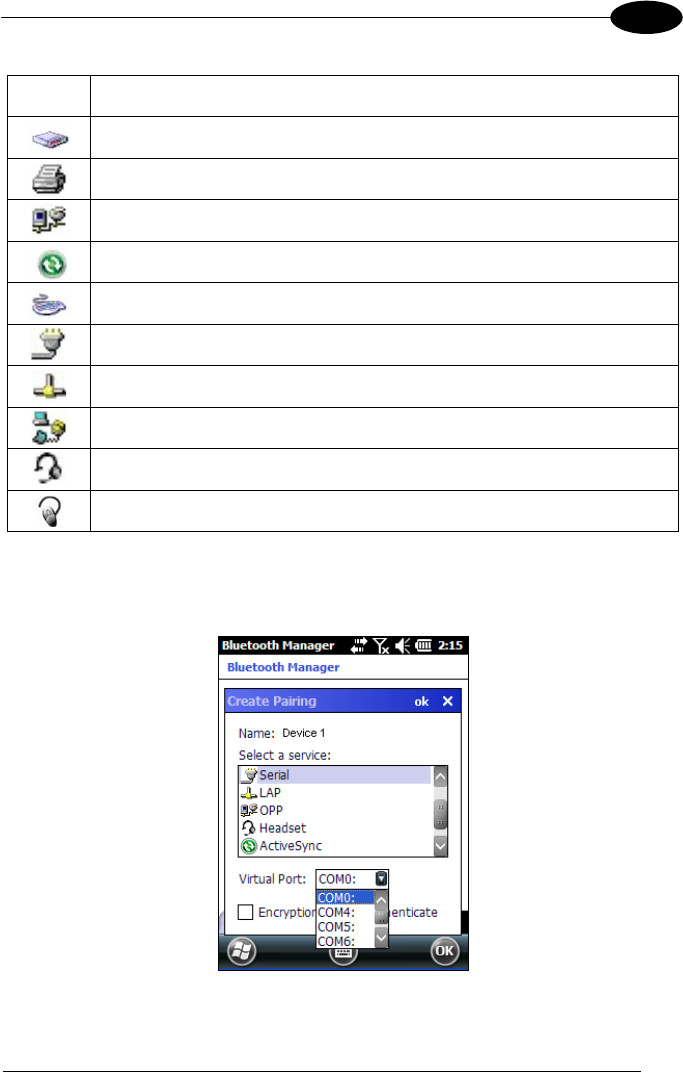

Icon Service
Dialup Networking
Printer
Object Push (OPP) or Object Exchange (OBEX)
ActiveSync
Human Interface Device (HID) - Keyboard
Serial
Personal Area Network (PAN)
Modem
Headset
Handsfree
Virtual Port allows you to specify the incoming port, which is used to communicate
serially with an incoming device just as if it were a physical COM port. This option is
available only if you have selected a Printer or Serial service.
1 FALCON™ X3+
76
4
You can also select Encrypt or Authenticate from the Bluetooth® control panel to
apply or modify those settings.

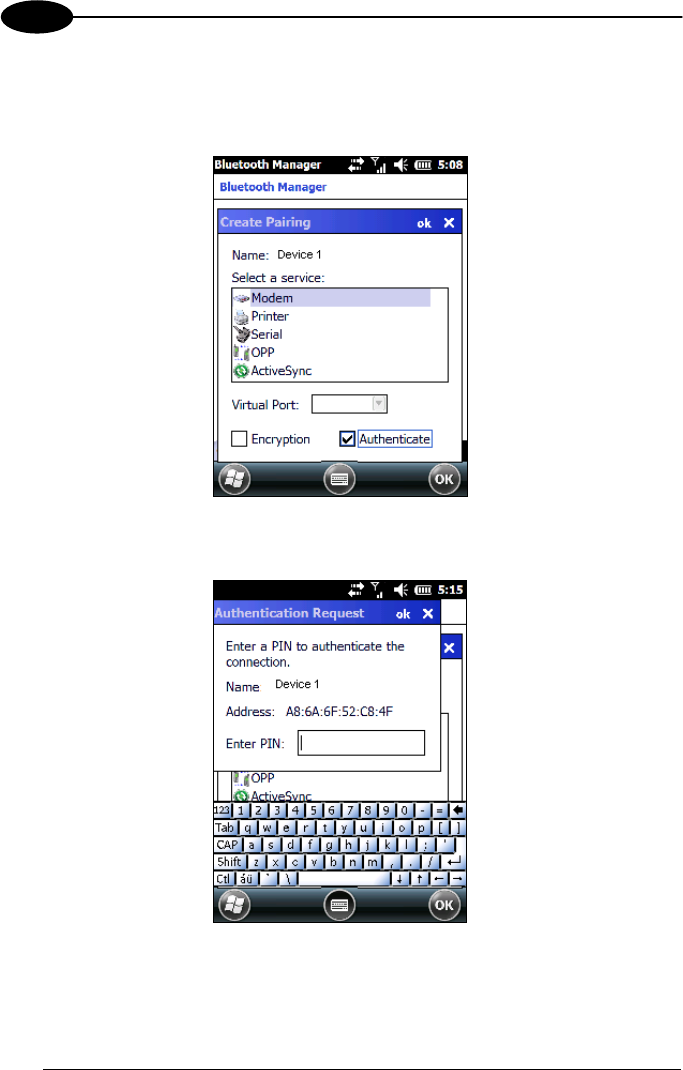

1. To require Authentication, check the checkbox, then tap OK.
2. If required, the Authentication Request dialog will then open, requesting that you
enter a PIN. Use the Input Panel or the keyboard to type the PIN.
3. Tap OK to complete.
USE AND FUNCTIONING
77
4
The dialog will also appear when an Authentication request is received from another
device.

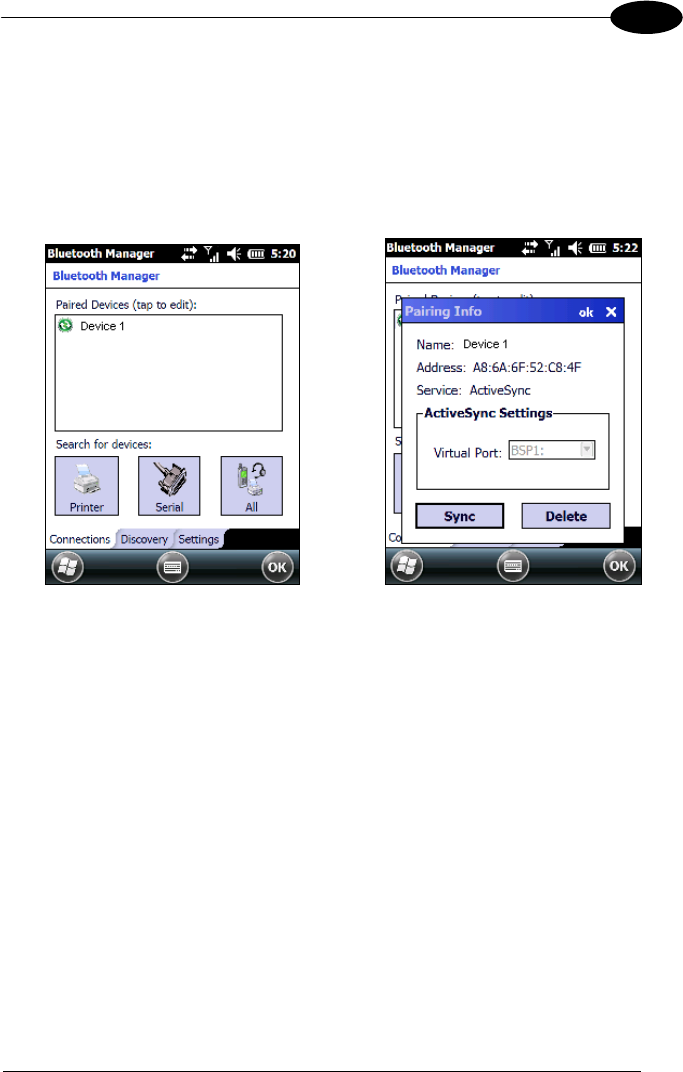

Once you have set up a Pairing, you can view the settings by double-tapping its
name in the Connections tab. Tap the arrow to change the Virtual Port, or Delete to
remove the device pairing. Tap Sync to initiate a Sync (available only if the service is
an ActiveSync connection).
1 FALCON™ X3+
78
4
Using your device to connect to the Falcon X3+
Before turning on Bluetooth® ensure that the two devices are within close range and
that both Bluetooth-enabled devices are discoverable.
1. Tap Start > Settings > System > Bluetooth Manager to open the Bluetooth®
control panel.
2. Tap Settings. The Settings tab allows you to enable or disable the Bluetooth®
radio and specify settings for Incoming Connections.
USE AND FUNCTIONING
79
4

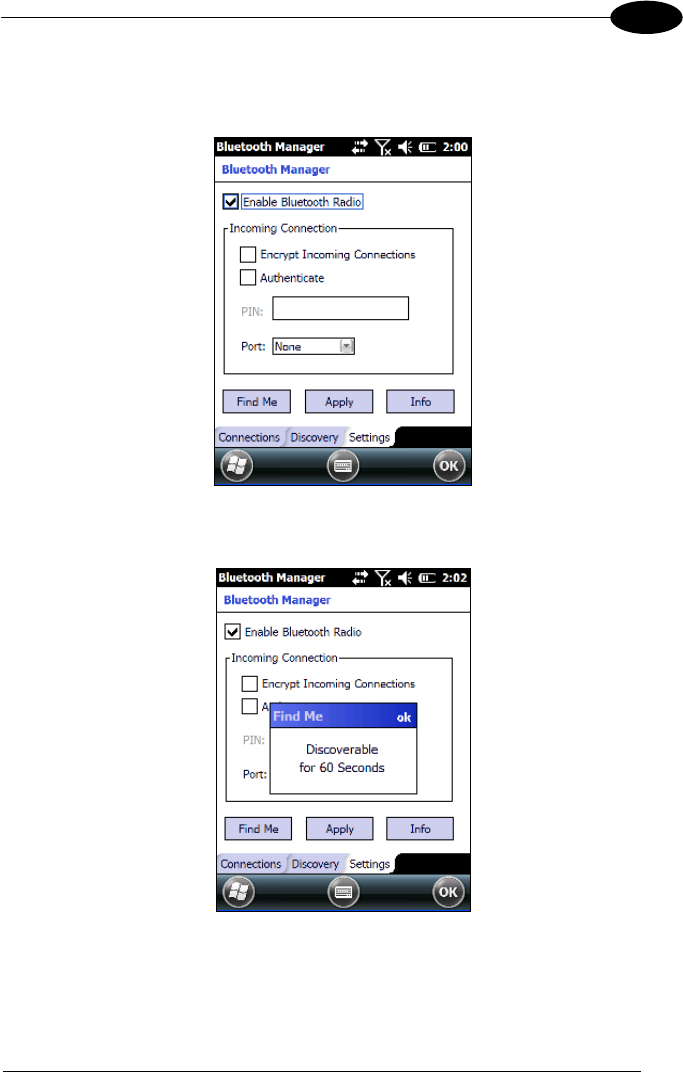

3. Select or clear the “Enable Bluetooth Radio” check box. If you’re going to be
attaching a serial device (i.e. a scanner) to the Falcon X3+, use the Port control
to select a virtual COM port to use for the connection.
4. Tap ‘Find Me’ if you want to make the Falcon X3+ visible to other Bluetooth®
devices for 60 seconds, allowing them to set up a connection.
1 FALCON™ X3+
80
4
By default, Bluetooth® is turned off. If you turn it on, and then turn off
your device, Bluetooth® also turns off. When you turn on your device
again, Bluetooth® turns on automatically.
NOTE
USE AND FUNCTIONING
81
4
4.8 DATALOGIC FIRMWARE UTILITY
The Datalogic devices are equipped with a field upgradeable firmware mechanism.
Firmware updates are available on the Datalogic website:
http://www.datalogic.com/eng/support-services/automatic-data-
capture/downloads/software-utilities-sw-2.html.
After you have downloaded the desired update, there are several ways you can
update the firmware on your device.
Use Wavelink Avalanche™ if you have multiple Datalogic devices to update.
For more information refer to the dedicated section of the Wavelink website:
http://www.wavelink.com/Datalogic-device-downloads.
If Wavelink Avalanche™ is not available or you have only a few Datalogic
devices to update, use the Datalogic Firmware Utility (DFU), described below,
to install or update the firmware using an ActiveSync connection.
The following sections provide procedures for the retrieval and installation of the
most current firmware image onto a Datalogic device.
4.8.1 Retrieving a Firmware Image Update
The following instructions use Internet Explorer to retrieve the most current firmware
image.
1. Launch Internet Explorer on your PC and navigate to the Datalogic website.
2. Navigate to the Downloads section of the website.
3. Using the device selection fields, select the file you want to download, then
click Save to begin copying the files to your local machine (or local network
location).
1 FALCON™ X3+
82
4
4.8.2 Installing DFU on the Host PC
The Datalogic Firmware Utility (DFU) provides administrators with a field upgrade
mechanism. You must have Microsoft® ActiveSync (for Windows XP devices) or
Windows Mobile® Device Center (for Windows 7 and Vista devices) already loaded
and running on the host PC to use DFU. Refer to par. 4.7.1 for more information
about Windows Mobile® Device Center.
Prior to installing, you must remove any previous versions of DFU
installed on the host PC.
NOTE
To install the Datalogic Firmware Utility, complete the following steps on the PC:
1. Go to the Datalogic website and download the most current version of the
Datalogic Firmware Utility. Unzip the file, then double-click to run DFU_Setup.
exe.
2. Click OK to continue once you have removed previous versions of DFU.
3. The Welcome to DFU Setup Program screen opens.
Please exit all Windows applications before running this installer.
Click Next to continue the Setup.
4. Follow the onscreen instructions to complete the installation.
USE AND FUNCTIONING
83
4
4.8.3 Updating the Firmware
After copying the firmware image to the host PC (see par. 4.10.1) and installing DFU
(see par. 4.8.2), you can upgrade the firmware on your Datalogic device.
The following steps require that you have already established an
ActiveSync or Windows Mobile® Device Center connection between
the host computer and the Datalogic device.
NOTE

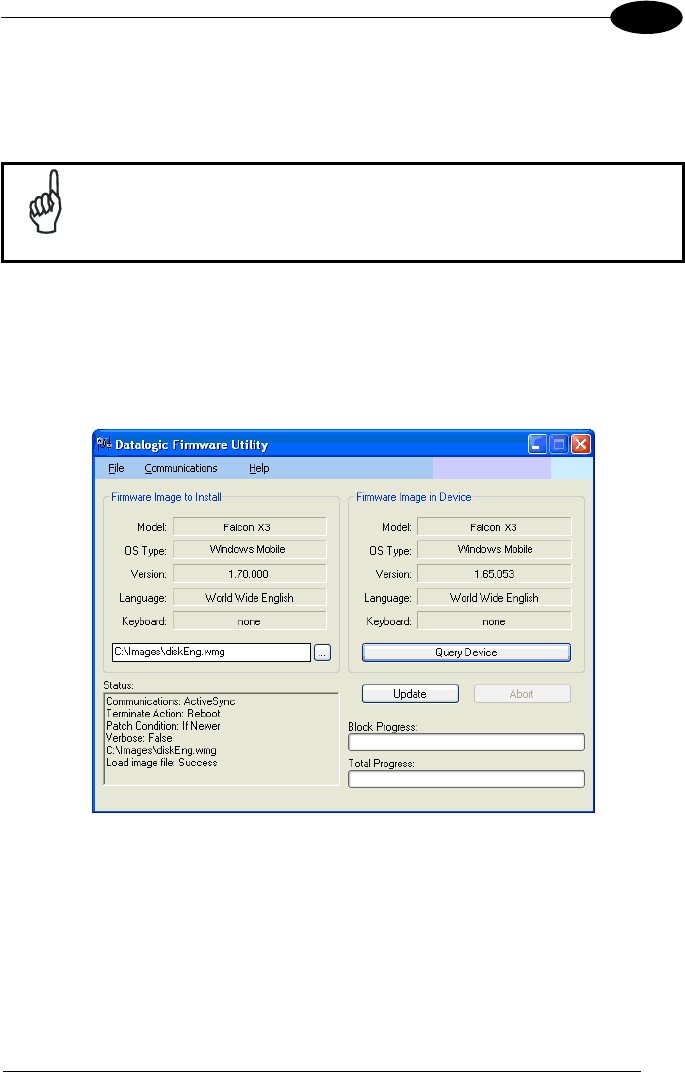

1. Go to Start > Programs > Datalogic > DFU > Datalogic Firmware Utility.
2. Verify that ActiveSync is selected by clicking Communications > WMDC/
ActiveSync.
3. Click browse (...) and navigate to the location where you saved the firmware
file for your terminal.
4. Select the current *.out file and click Open.
5. Click Update.
6. DFU will compare the selected firmware image with the firmware already
loaded on the device; if the image is compatible with the connected device,
DFU will proceed to update the firmware image on your device.
7. After the firmware of your device has been updated, DFU will automatically
perform a warm reset of the device.
1 FALCON™ X3+
84
4
4.9 DATALOGIC CONFIGURATION UTILITY
Datalogic Configuration Utility (DCU) is a Datalogic Windows-based utility tool
allowing the uploading, modifying and downloading of the configuration of a Datalogic
device. Configuration settings include Scanner, Control Panel, and Datalogic
Desktop Utility (DDU). The DCU installer is downloadable from the Datalogic website
(http://www.datalogic.com/eng/support-services/automatic-data-
capture/downloads/software-utilities-sw-2.html).
DCU functions in both direct (with an ActiveSync connection) and indirect (with
Wavelink Avalanche™) modes.
In direct mode, connect a device through ActiveSync and then click on the Get from
Device icon to receive the device’s current configuration.
Once loaded, the Configuration Tree (on the left side of the window) is used to
navigate the device’s configuration. The right side of the window is a work area
where the values of different parameters may be set for each branch of the
configuration tree. Click on the parameter group branch to open it and inspect the
parameters you wish to modify.
After altering the device’s configuration, the new configuration can be sent to the
terminal by clicking on the Send to Device icon.
Reference the Wavelink Avalanche™ documentation on the Wavelink website
(www.wavelink.com/Datalogic-device-downloads) for a description of indirect mode
for DCU, which will allow you to update the configuration of multiple devices
simultaneously over Wi-Fi.
USE AND FUNCTIONING
85
4
4.10 DATALOGIC DESKTOP UTILITY
Datalogic Desktop Utility (DDU) allows administrators to configure Windows® CE and
Embedded Handheld devices to control individual user access. This includes the
ability to:
• Prevent users from changing your device OS settings.
• Use the Application Selector to replace the desktop with a selection of
authorized applications.
• Restrict user access in Internet Explorer.
• Set up configuration and customized error recovery mechanisms.
• Create quick access hot keys and configure trigger actions.

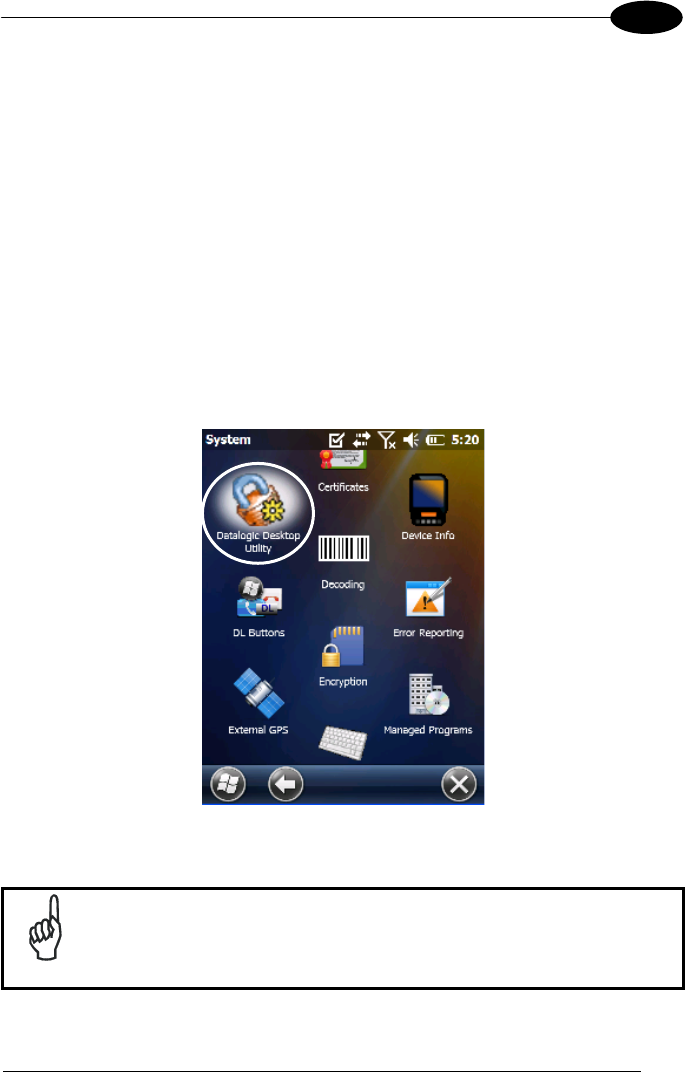

To open DDU for the first time, tap Start > Settings > System > and then tap the icon
for “Datalogic Desktop Utility”.
You can also open DDU by pressing the appropriate key shortcut. The default is “Alt
+ 6”.
The key combination can be changed by using DL Buttons to
redefine the association for specific keys (such as <F1>-<F10>). See
par.4.6.3. for more information.
NOTE
1 FALCON™ X3+
86
4

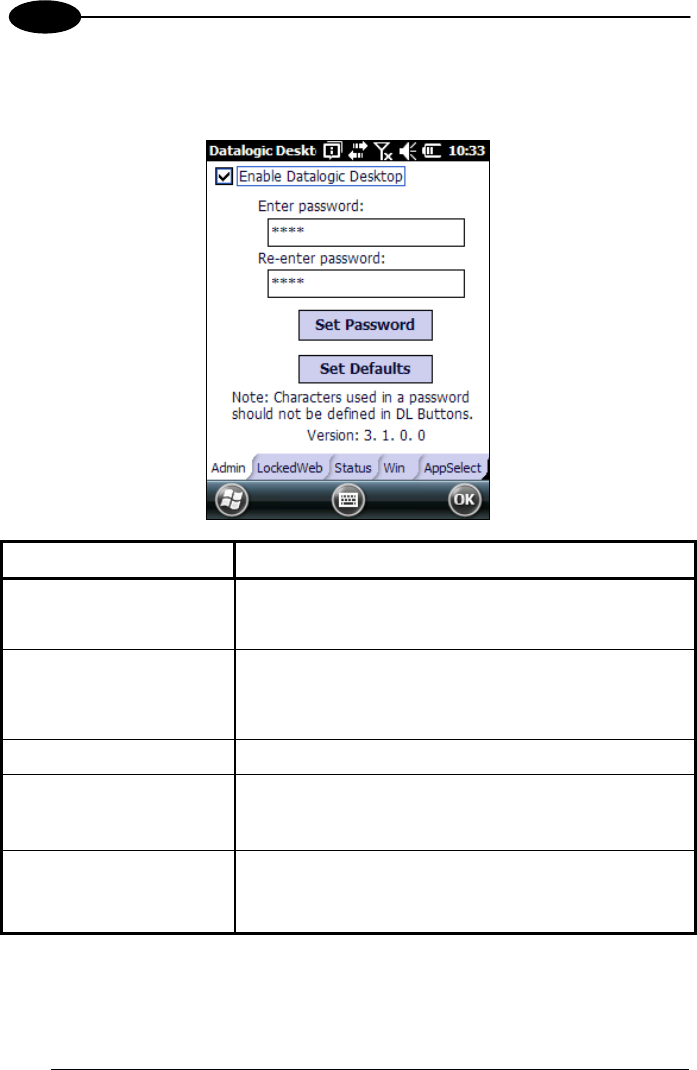

4.10.1 Administrative Options (Admin tab)
When you open the DDU control panel, the “Admin” tab appears.
COMMAND DESCRIPTION
Enable Datalogic Desktop Select/tap this checkbox to activate the DDU functions
such as Windows Access Restrictions and Application
Selector.
Enter Password Enter a password in the text box. This allows the user to
specify a password when this utility is launched. By
default the password is “1234”. A password can consist
of all standard keyboard characters.
Re-Enter Password Carefully re-enter the password in the second text box.
Set Password Select/tap “Set Password” to enable the password.
To change or remove the password, enter a new value,
re-enter the new value, and select/tap “Set Password”.
Set Defaults Select/tap “Set Defaults” to reset the default values of
all the functions on all the tabs. After you select this
option, you will receive a prompt to verify this selection.
USE AND FUNCTIONING
87
4
Setting a Password
To set a password:
1. Enter a password in the field. This allows the user to specify a password when
this utility is launched. By default the password is “1234”.
Be sure to record the Password for future reference.
NOTE
2. Re-enter the password in the second field.
3. Select/tap “Set Password” to enable the password.
4. Select/tap “OK” to close the “Set Password Confirmation” dialog.
You must select/tap “Set Password” prior to exiting DDU in order to
store and activate your new password. It is not necessary to select
“Enable Datalogic Desktop”.
NOTE
If you select/tap “Set Defaults” it will remove all custom settings and
restore all the factory default settings, except a previously set
password.
CAUTION
Changing a Password
To change to a new password:
1. Enter a new value in the “Enter Password field”.
2. Re-enter the new value in the “Re-enter Password” field.
3. Select/tap “Set Password”.
1 FALCON™ X3+
88
4
Removing a Password
To remove a password:
1. Enter blanks in both “Password” fields.
2. Select/tap “Set Password”.

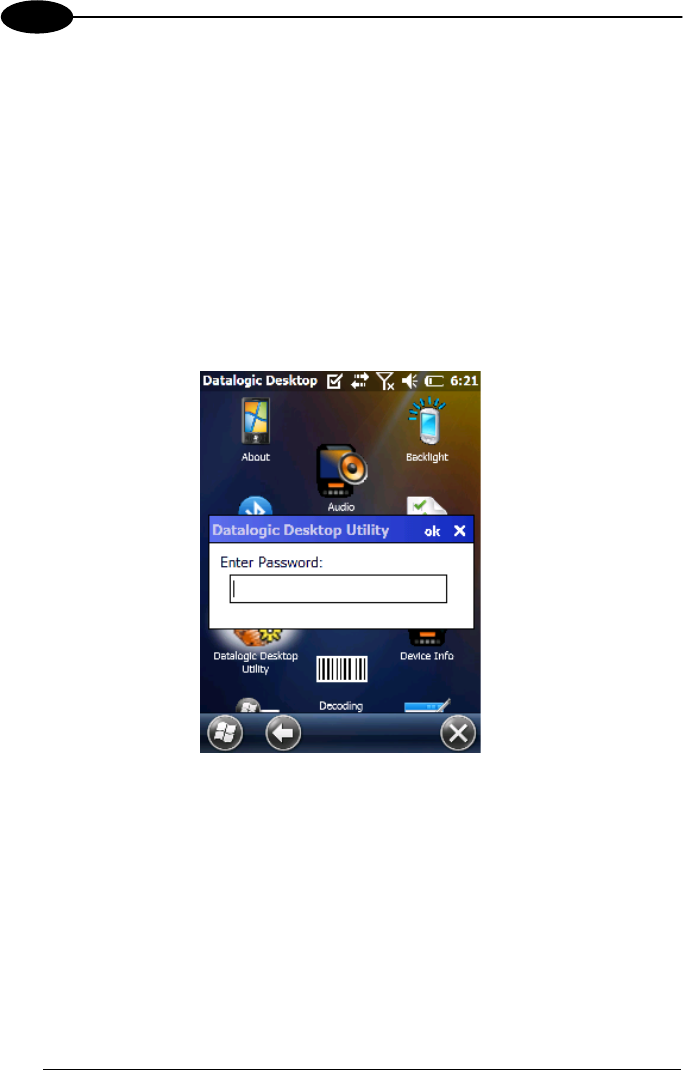

Password Request Dialog Box
Once the password is set, the next time you open the “Datalogic Desktop Utility”, the
DDU Password dialog box opens.
This dialog box will only open if a password was defined.
1. Type in your password using either the keypad on the unit, or using the stylus on
the soft input panel (SIP).
If you enter an incorrect password, the system will prompt you to input the
correct one.
2. Select/tap “OK” to verify the password. Or tap “X” to cancel.
USE AND FUNCTIONING
89
4
4.10.2 Locked Web Browser Options (LockedWeb tab)
Tap the LockedWeb tab to access the Locked Web Browser Configuration.
Locked Web Browser is disabled by default. To enable, go to
“Advanced settings” on the next page for more information.
NOTE
For additional information about Locked Web Browser commands and metatags, see
section 4.12, “Locked Web Browser”.
Error Page Redirection
Use the Error Redirection option to provide customized recovery from common
errors. When an error occurs, the browser can redirect access to a specified error
page with instructions on how to recover from the problem.

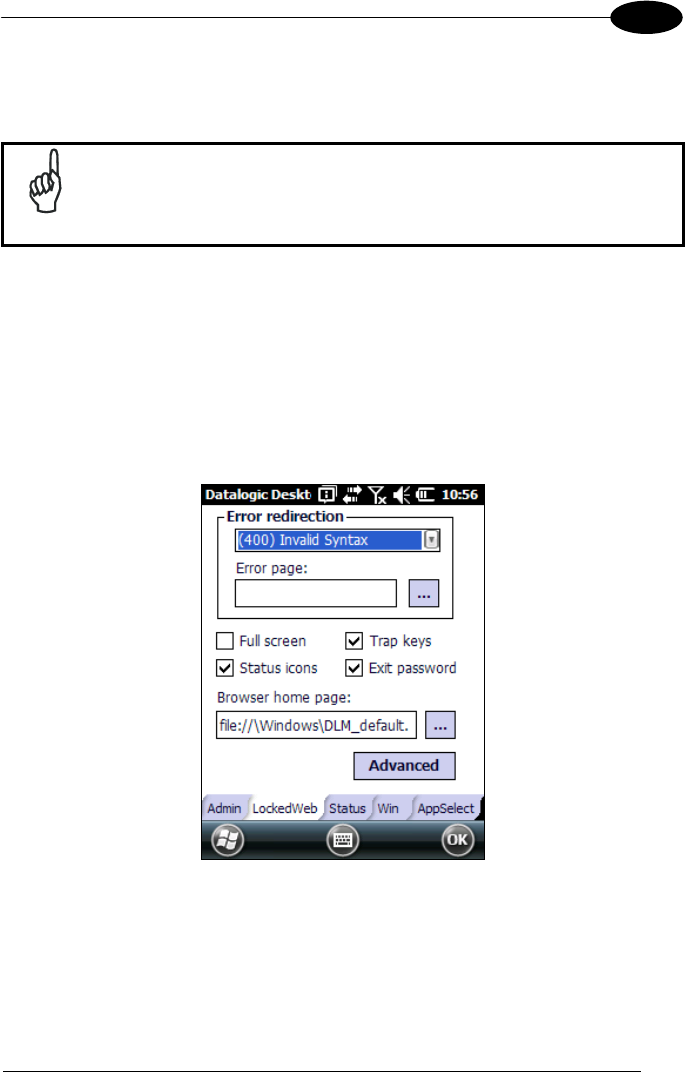

Locked Web Configuration Tab
1 FALCON™ X3+
90
4
Error Redirection options
Error Type The “Error Type” pull-down list displays available Error Types:
(400) Invalid Syntax, (403) Request Forbidden, (404) Object Not
Found, (406) No Response Format, (410) Page Doesn't Exist, (500)
Internal Server Error, (501) Server Can't Do That, Generic Error,
Network Disconnected
Error Page Edit this textbox to associate a website or html file with the specified
error.
Other options
Full Screen Set the web browser in full screen mode. This is the only option
available for Windows Mobile.
Status Icon Enable or disable the status icons view (see par. 4.10.3). The status
icons can be configured on the Status tab of DDU.
Trap Keys When checked:
all key presses will be trapped by the Locked Web Browser to
prevent the user from accessing unsafe parts of the system. For
example, pressing Ctrl+O to Open a File will not work;
safe key presses (e.g. Alpha numeric) will still get processed by the
Locked Web Browser as normal. For example entering a number in
a text field on a web page;
DL Buttons keys will not work in the LockedWeb Browser;
all Locked Web Browser command keys will work (e.g. Ctrl+0 to
exit).
When unchecked:
all keys will be processed normally by the system and the browser;
DL Buttons keys will work normally;
all Locked Web Browser command keys will work (e.g. Ctrl+0 to
exit).
Exit
Password
When checked, a password will be required before the Locked Web
Browser can exit. This password is different than the DDU exit
password, with a default value of “0000”, and can be changed in the
“Advanced” settings.
Browser
Home Page
This sets the Internet Explorer home page, regardless of the enable
state of the Locked Web Browser.
Advanced Pressing this button will launch a dialog used to enable Locked Web
Browser and to configure Advanced settings.
USE AND FUNCTIONING
91
4

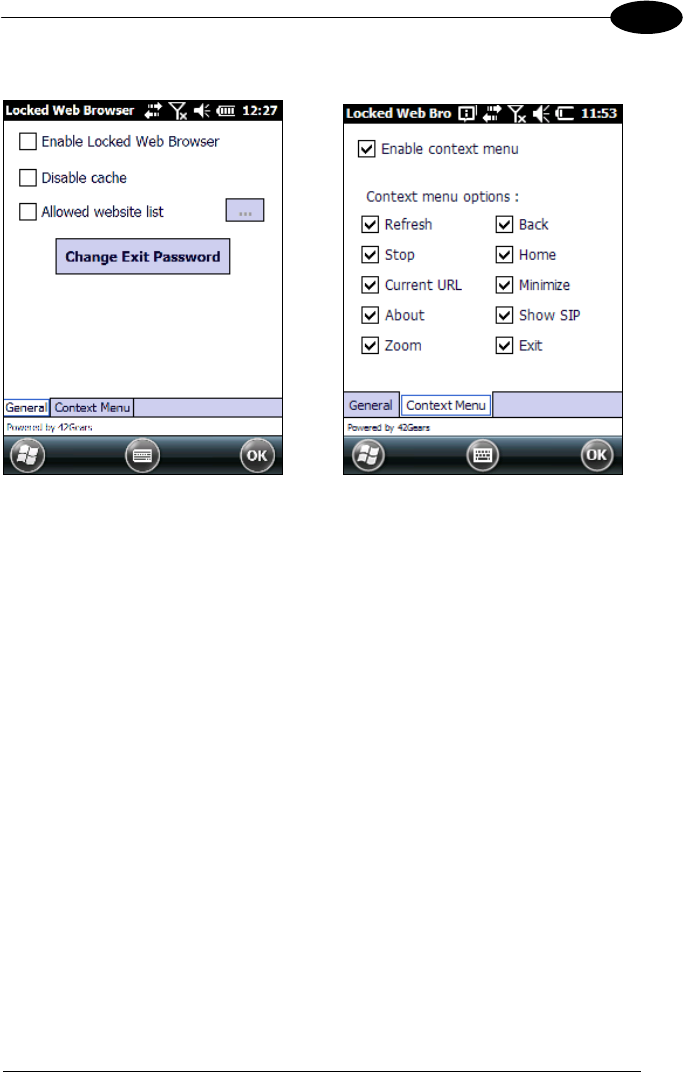

Advanced settings
General Tab Context Menu
1 FALCON™ X3+
92
4
Advanced Locked Web Browser options
General
Enable Locked
Web Browser
When checked, enables the Locked Web Browser when Internet
Explorer is launched.
Disable Cache Prevents the browser from loading the local intranet page from
cache instead of navigating to the “Network Disconnected” error
redirection page.
Allowed Website
List
Enables a “white list,” which restricts browsing only to files and
URLs in the Allowed Website list (accessed by the “…” button).
The following dialog appears:

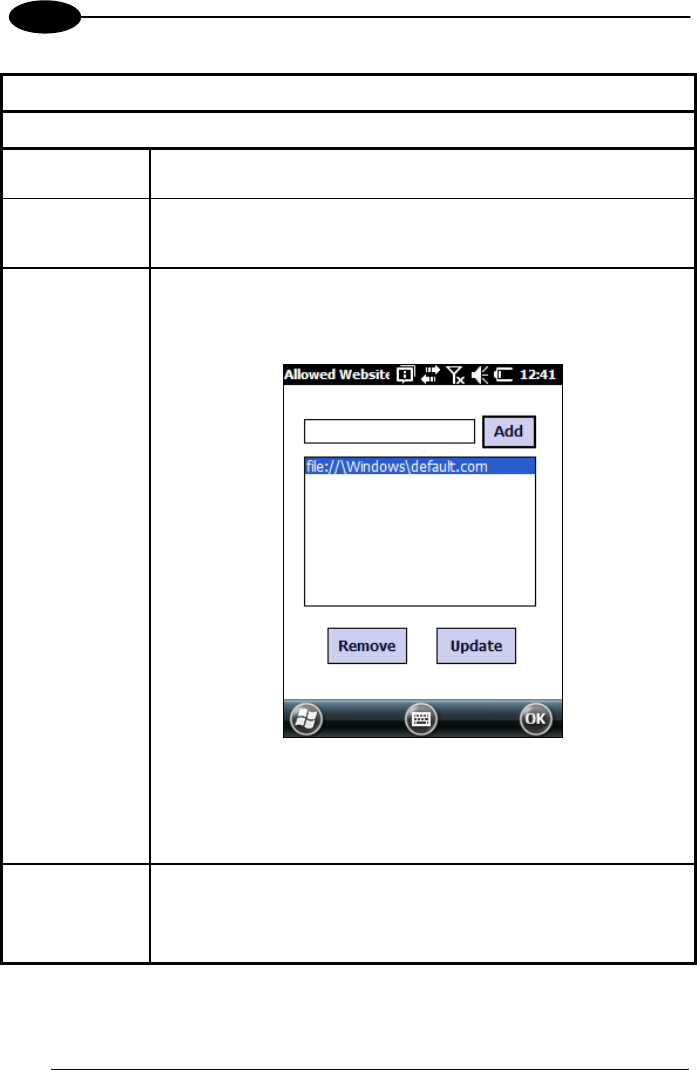

Allowed Website List
Click the “Add” button to add allowed URLs to the white list. Other
sites will be restricted when the option is enabled. Domain names
must be exactly specified.
Change Exit
Password
Pressing this button brings up a dialog which allows the user to
change the password required to exit the Locked Web Browser
(when the “Exit password” option is selected on the LockedWeb
tab in DDU).
USE AND FUNCTIONING
93
4
Context Menu
Enable Context
Menu
Enables the context menu accessed by a touch screen press in
the Locked Web Browser.
Refresh Adds a “Refresh” item to the Locked Web Browser context menu.
Selecting the “Refresh” item refreshes the web page.
Stop Adds a “Stop” item to the Locked Web Browser context menu.
Selecting during navigation stops the downloading of a page.
Current URL Adds a “Current URL” item to the Locked Web Browser context
menu. Selecting the item pops up a dialog displaying the URL for
the current web page.
About Adds an “About” item to the Locked Web Browser context menu.
Selecting the “About” item pops up the “About” dialog.
Zoom (WEHH only) Adds a “Zoom” item to the Locked Web Browser
context menu. Selecting the item brings up the IE Zoom Tool.
Back Adds a “Back” item to the Locked Web Browser context menu.
Selecting the “Back” item performs a navigation to the previous
page.
Home Adds a “Home” item to the Locked Web Browser context menu.
Selecting the “Home” item navigates to the IE home page.
Minimize Adds a “Minimize” item to the Locked Web Browser context menu.
Selecting the item minimizes the Locked Web Browser and allows
access to other programs.
Show SIP Adds a “Show SIP” item to the Locked Web Browser context
menu. Selecting the “Show SIP” item toggles the show state of
the SIP.
Exit Adds an “Exit” item to the Locked Web Browser context menu.
Selecting the item exits the Locked Web Browser with an optional
password (set in the Locked Web Browser Advanced options).
1 FALCON™ X3+
94
4

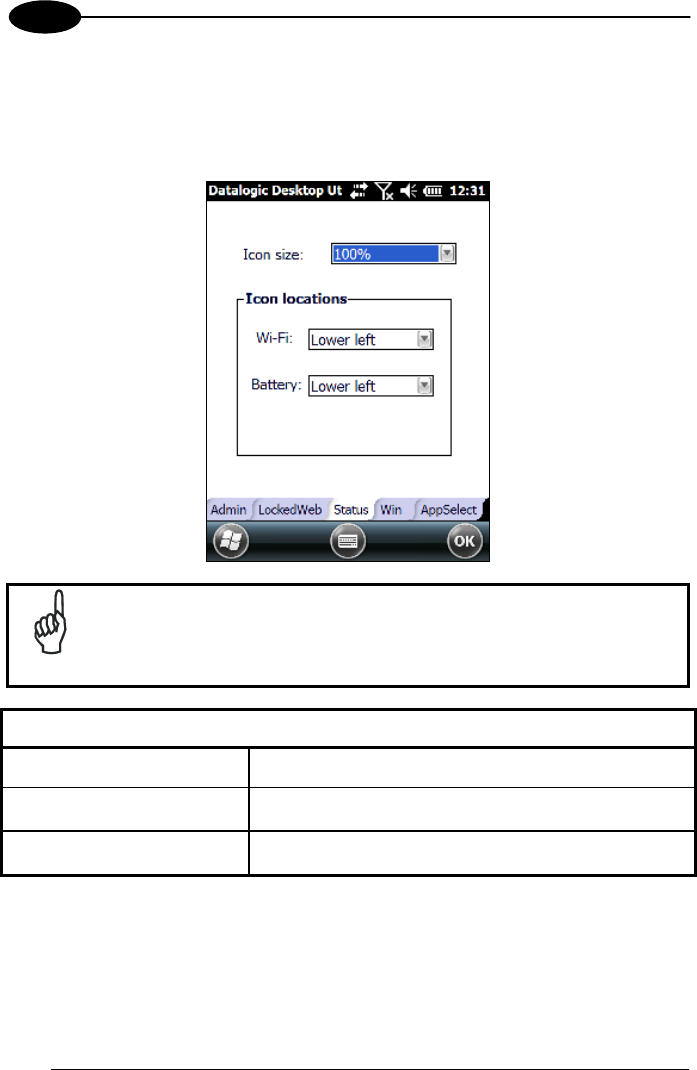

4.10.3 Status Icons Options (Status Tab)
Tap the “Status” tab to access the Status Icons option. You can configure the view of
some status icons that are used in “LockedWeb” and in “Application Selector” to
display the status of: wi-fi radio and battery.
The GSM status icon feature is available only on devices that support
GSM.
NOTE
Status Icons Options
Set Status Icon Defaults Restores the status icons’ factory settings.
Icon Size Sets the status icons’ size.
Icon Location Selects the preferred location for each status icon.
USE AND FUNCTIONING
95
4
4.10.4 Windows Controls
Select/tap the “Win” (Windows Controls) tab to access the Windows Controls option.
Use Windows controls to allow or restrict access to Windows system functions.
You can disable normal Windows functions such as the taskbar, leaving nothing but
a blank workspace. This allows applications to be run in full screen mode and
prevents users from accidental or unauthorized use of the taskbar, Internet Explorer,
and any other resident applications.
1 FALCON™ X3+
96
4
Windows Controls
Taskbar Enabled Select/tap “Taskbar Enabled” to specify whether the
taskbar is accessible.
AutoSIP Enabled Enables the AutoSIP Windows feature.
Scroll Bars Enabled This control only take effects in WebAppLock.
When checked, displays horizontal and vertical scroll
bars to help view large web pages which do not fit the
screen. When unckecked, those scrolls will not be
present.
Hide Start Button Select/tap “Hide Start Button” to specify whether the
Start Button is displayed or not. This option works
only when “Task Bar Enabled” is checked.
Windows Wifi Error Dialog This control only takes effects in WebAppLock and
Internet Explorer.
When checked, the device will display a warning
dialog when the WiFi connected device moves out of
range of an access point and the user attempts to
navigate to a web page. This dialog box allows the
user to reconfigure the wifi on the device.
When unchecked, that dialog box will not appear and
the “Network Disconnected” error page redirection is
used to prevent users from reconfiguring the wifi on
the device. Tap the “WebAppLock Configuration Tab”
to configure the “Network Disconnected” error page
redirection (see par 4.10.2).
Changes require a device reboot.
NOTE
USE AND FUNCTIONING
97
4

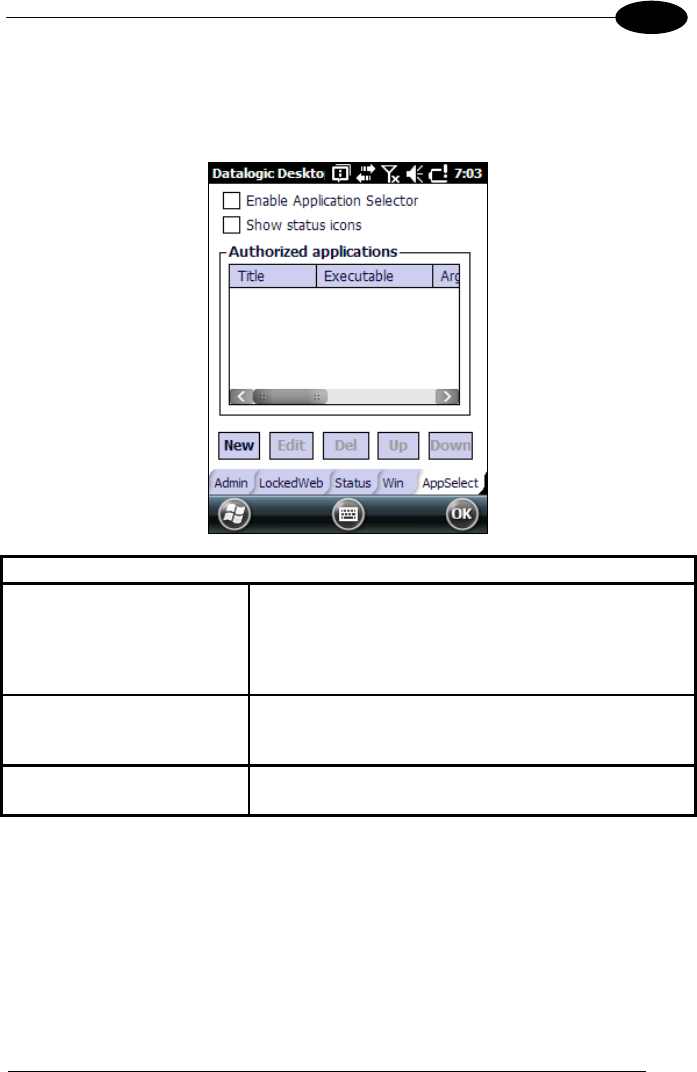

4.10.5 AppSelector Options (AppSelect tab)
Tap the Application Selector (“AppSelect” Tab) to edit, add, or delete applications for
the application selector.
Application Selector Options
Enable Application Selector Select/tap “Enable Application Selector” to
enable/disable the application selector. When
enabled, the Application Selector replaces the
desktop and allows only authorized use of
applications.
Show status icons Enable or disable the status icons view (see par.
4.10.3). The status icons can be configured on the
Status tab of DDU.
Authorized Applications Displays a list of applications that the user may
access.
1 FALCON™ X3+
98
4
Application Selector Commands
New Select/tap “New” to create a new application entry.
Edit Select/tap “Edit” to edit the selected entry.
Del Select/tap “Del” to delete the selected entry.
Up/Down Select/tap “Up/Down” to move an entry up or down in
the Authorized Applications list.
USE AND FUNCTIONING
99
4

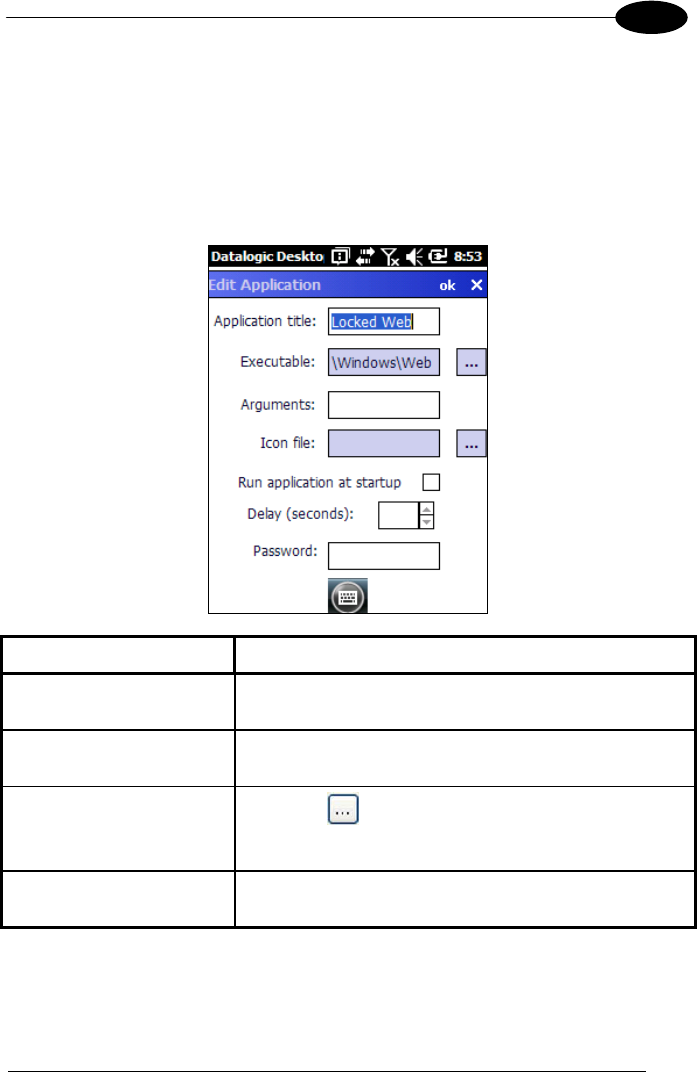

Add Applications
The “Add Application” dialog opens when you tap either “New” or “Edit”. From the
“Add Application” dialog the administrator can configure and/or add/change a new
application entry in the list.
Applications with the “Run Application at Startup” option enabled will start
automatically when the Application Selector starts up.
COMMAND DESCRIPTION
Application Title Type the name of the application in this textbox in the
way you wish it to appear for the user.
Executable Displays the path for the executable file which you want
to run.
Browse Select/tap to browse for the desired executable file.
The results of this search are placed in the “Executable”
textbox.
Arguments Type any command line arguments to be used when an
application is executed.
1 FALCON™ X3+
100
4
COMMAND DESCRIPTION
Icon File Displays the path/link to the desired icon file.
Browse Select/tap to browse for the desired icon file. The
results of this search are placed in the “Icon File”
textbox.
Run Application at Startup
Select/tap this box to force this application to auto start
when the Application Selector starts up. Applications
will be started in the order listed in the authorized
application list.
Delay
Enter a delay duration in seconds in the combo box.
This option delays auto start of application(s) to allow
drivers to load prior to starting applications.
OK Select/tap “OK” to add/save changes.
X Select/tap “X” to cancel the creation of this entry.
USE AND FUNCTIONING
101
4
4.11 APPSELECTOR (APPLICATION SELECTOR)
The Application Selector is an application that allows a device to run in kiosk mode.
The administrator can choose for the user to have access to the desktop or not. The
Application Selector can replace the desktop and limit the user to the specified list of
applications.
By default, the Application Selector comes with the LockedWeb preset.

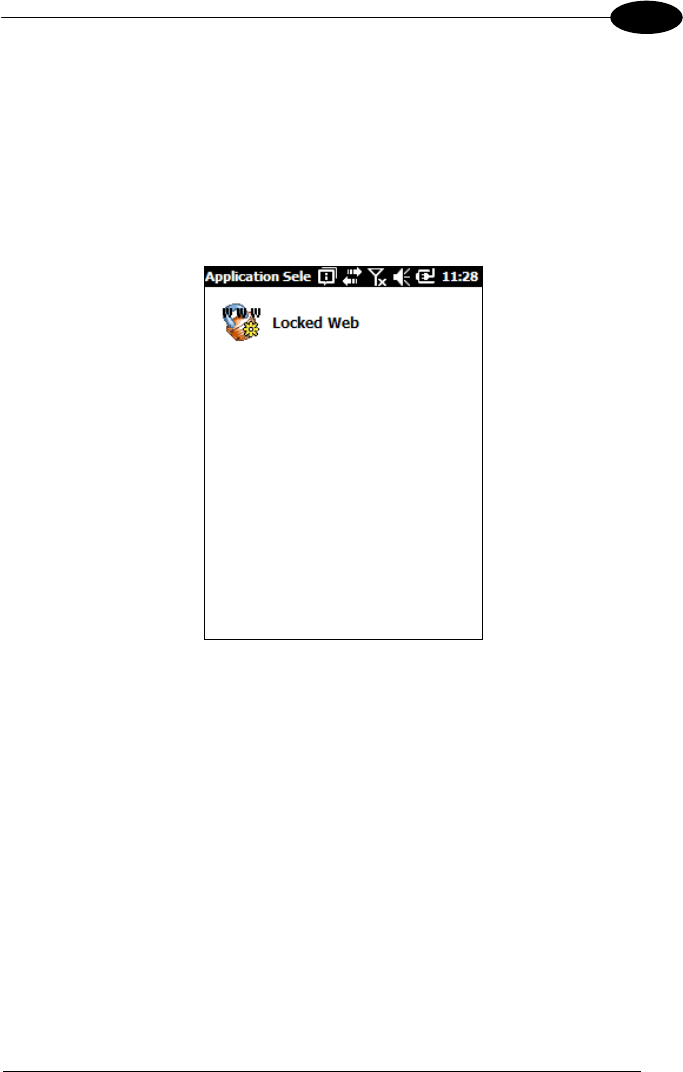

Application Selector
The administrator can customize this list as shown in chapter 4.10.5. To run an
application, tap on its name.
Additionally, the page template can be modified to display a different background.
Contact your Datalogic representative for more information on this feature.
To exit from Application Selector, press ALT + 6, uncheck the ‘Enable Application
Selector’ check box on the AppSelect tab and press OK to exit DDU.
1 FALCON™ X3+
102
4

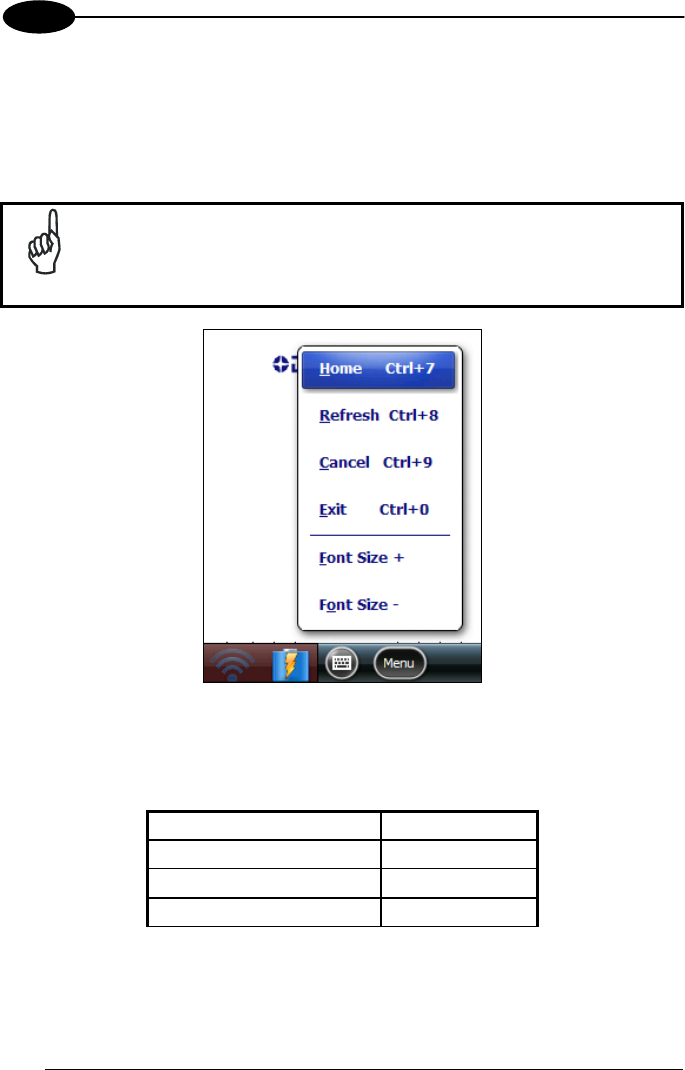

4.12 LOCKED WEB BROWSER
The Locked Web Browser is a web browser helper object for Internet Explorer. It
allows an administrator to define a restricted internet usage environment. Once in the
restricted environment, a password is required to exit. This means users can only
access web applications and websites set by the administrator.
Configuration is set up through the DDU control panel. See section
4.10.2 for more information.
NOTE
If the taskbar has been disabled, the Settings menu is not displayed. However, the
user can still navigate within the web application by using the following keyboard
shortcuts:
Home Ctrl + 7
Refresh Ctrl + 8
Cancel Ctrl + 9
Exit Ctrl + 0
USE AND FUNCTIONING
103
4
For firmware versions 1.60 and newer, the following command line arguments are
supported:
- /E optional parameter which allows for Exit without entering a password
- @URL optional parameter which specifies a URL to use as a home page.
- /C optional parameter which disables the ctrl keys (including the one to exit).
1 FALCON™ X3+
104
4
4.12.1 Locked Web Browser Special Meta-tags
General Metatag Comments
A metatag is a special HTML tag that stores information about a Web page but does
not display in a Web browser. For example, metatags provide information such as
the program used to create the page, a description of the page, and keywords
relevant to the page.
As per the HTML specification, all metatags must be contained within a <head> …
</head> tag set.
Also, the head tag set must be complete within the first 15K of the web page.
The Datalogic Locked Web Browser defines some special metatags that allow the
web application to interact with the device:
In particular, the special metatags allow it to:
- enable/disable scan engine triggers
- enable/disable specific symbologies in the scan engine
- easily assign a key press to a javascript function.
Metatag settings of trigger enable, symbology enable, or DL_Key assignments
persist past the page in which they are loaded. The settings stay in effect until they
are changed by another metatag.
Trigger Metatag
DL_Triggers – “Enable” or “Disable” all triggers
If the page contains this tag, the triggers are enabled or disabled, depending on the
“content=” value.
Example:
<meta http-equiv="DL_Triggers" content="Disable">
USE AND FUNCTIONING
105
4
GetSerialNumber Metatag
DL_GetSerialNumber – Obtains the device serial number and sends it as an
argument to a customer’s javascript function.
Content – name of function to pass serial number to. Example:
<meta http-equiv="DL_GetSerialNumber" content="Javascript:CustomerFunction">
When a page with this metatag is loaded, the content should be a javascript function
that receives one parameter, the serial number. An example would be function
CustomerFunction(SerialNumber).
Reboot – Warm boot device Metatag
DL_Reboot – Warm boot device.
Content – “OnPageLoad” – Warm boot immediately upon page load.
Example:
<meta http-equiv="DL_Reboot" content=" OnPageLoad ">
Exit Metatag
DL_Exit – Exit the Locked Web Browser.
Content – “OnPageLoad” – Exit immediately upon page load. If “Exit password” has
been enabled in the Locked Web Browser options, the Exit password will be required
before exit.
Example:
<meta http-equiv="DL_ Exit " content=" OnPageLoad ">
1 FALCON™ X3+
106
4
Decoding Metatags:
Each decoding metatag has a possible content of “Enable” or “Disable”. The settings
are valid for the entire page (enables/disables each symbology).
DL_Code_39
DL_Code_128
DL_Code_I25
DL_Code_S25
DL_Code_M25
DL_Code_CODABAR
DL_Code_93
DL_Code_UPCA
DL_Code_UPCE
DL_Code_EAN13
DL_Code_EAN8
DL_Code_MSI
DL_Code_MSR
DL_Code_GS1_14
DL_Code_GS1_LIMIT
DL_Code_GS1_EXP
DL_Code_PDF417
DL_Code_DATAMATRIX
DL_Code_MAXICODE
DL_Code_TRIOPTIC
DL_Code_PHARMA39
DL_Code_RFID
DL_Code_MICROPDF417
DL_Code_COMPOSITE
DL_Code_QRCODE
DL_Code_AZTEC
DL_Code_POSTAL
Examples:
<meta http-equiv="DL_Code_39" content="Disable">
<meta http-equiv="DL_Code_I25" content="Enable">
USE AND FUNCTIONING
107
4
Key press Metatags
The key press metatags can be used to call JavaScript functions. They have the
name structure: “DL_Key_xxx” where xxx is the VKey code.
Example:
<meta http-equiv="DL_Key_13" content="Javascript:CheckEnter();">
Assigning a key press via a DL_Key metatag overrides its use on the page. For
instance, when entering data in a text box a character assigned as a DL_Key would
not be entered in the text box. Instead, the javascript action would occur.
Refer to the Microsoft website to find the list of all the possible Vkey codes:
http://msdn.microsoft.com/en-us/library/bb431750.aspx
http://msdn.microsoft.com/en-us/library/aa243025(VS.60).aspx
Because DL_Keys persist past the page in which they were loaded,
the DL_Clear metatag is provided to clear the settings on subsequent
page loads.
NOTE
Scanning Metatags
DL_Scan – Captures scan results and sends barcode/tag value to a javascript
function on the web page.
If the “content=” value is a javascript function the device will be taken out of keyboard
wedge mode and start listening for scan events. A scanned barcode/tag result will be
used as an argument to that javascript function which is then invoked.
If the “content=” value is “Wedge” then the device will stop listening for scanned
event and enter keyboard wedge mode.
If the “content=” value is “Disable” then the device will stop listening for scanned
events but not enter keyboard wedge mode.
Example:
<meta http-equiv=”DL_Scan” content=”Javascript:ValidateInput()”>
1 FALCON™ X3+
108
4
4.13 AUTOSTART
The AutoStart program provides three functions:
- Allows you to create a list of applications (with optional command line
arguments) to run automatically prior to loading CAB files.
- Automatically reinstalls specified CAB files when the Falcon X3+ is cold booted.
- Allows you to create a list of applications (with optional command line
arguments) to run automatically after lo\ading CAB files.
AutoStart launches each time the Falcon X3+ is rebooted executing each line with
the specified command line arguments. It will take into account any AutoStart options
at the beginning of the line.
Upon a Cold Boot, AutoStart installs all the CAB files located in the \CAB folder. If the
CAB folder does not exist, no CAB files will be installed.
AutoStart will then run the Autostart.ini from the \root directory, executing
each line with the specified command line arguments. It will take into account any
AutoStart options at the beginning of the line.
4.13.1 Installing CAB files
Copy any CAB files you want to install into the \CAB folder. These CAB files will then
be automatically in-stalled in alphabetical order the next time you start the device.
USE AND FUNCTIONING
109
4
4.13.2 How AutoStart Uses Wceload
If you intend to create highly interactive installers, you should either
install the CABs manually or review the section on “Interactive CAB
Install” in this chapter..
NOTE
In certain environments, CAB files will be deleted after execution.
To prevent the CAB file from being deleted, write protect the file
before copying the file onto the device.
CAUTION
CAB files are installed by AutoStart using the Wceload.exe application. The
following table shows available command line option:
Option Description
/noui
Specifies that you will not be prompted for any input during the
installation. If the CAB file is signed, any responses will automatically
be answered ‘Yes.’ If the CAB is unsigned, then any responses will
be answered ‘No.’
/silent Suppresses dialog boxes during the installation.
Please refer to the Microsoft documentation on your device for further details on
Wceload.exe.
Sample:
\Windows\Wceload.exe /delete 1 /noui /silent
“\CAB\<cab file>”
1 FALCON™ X3+
110
4
4.13.3 Interactive CAB Install
If the CAB installer requires user interaction that must be performed
during the AutoStart CAB installation process, you can specify a special
file name to disable the silent mode installation. If this mode is specified,
the CAB file will be installed with Wceload without any command line
arguments specified.
An example of what AutoStart would execute is:
\Windows\Wceload.exe <cab file>
To force this mode of installation via AutoStart, rename the CAB file to include a ‘_’
character before the “.cab” extension of the file.
Example:
“File.cab” should be renamed “File_.cab” to force AutoStart to not
install the CAB in silent mode. This specially-named CAB file should be placed in the
AutoStart folder with other CAB files intended for installation on the next reboot.
4.13.4 Autostart.ini
A file named ‘PreAuto.ini’ can also be created in addition to or
instead of Autostart.ini. PreAuto.ini is executed before CAB files in
the \Cab folder are installed. Autostart.ini is executed after CAB files
in the \Cab folder are installed. The format for the PreAuto.ini is
identical to that of Autostart.ini..”
NOTE
Autostart.ini is a text file that AutoStart will run upon startup of the Falcon X3+, and
after any CAB files are installed. This file should be placed in the \root folder.
AutoStart will run the Autostart.ini file on each reboot of the device.
Line Formatting
Each line of the Autostart.ini can consist of Autostart options, an
executable, and any command line arguments.
< Autostart option(s)> <full path to executable>
<command line arguments>
Sample:
- \windows\pword.exe \file.doc
USE AND FUNCTIONING
111
4
The following table breaks down the sample Autostart.ini line:
Autostart option(s) Full path to executable Command line arguments
- \windows\pword.exe \file.doc
Spaces must be placed between each component of the line in the Autostart.ini.
If the executable path is in a folder that contains spaces in the name, quotes are
required to distinguish what the actual executable name is. The following is an
example of this:
“\Program Files\ScannerApp.exe” /run
(valid)
\Program Files\ScannerApp.exe /run
(invalid)
The second line is an invalid line because there is no way to distinguish the
executable from the argument.
1 FALCON™ X3+
112
4
AutoStart Options
The table below shows options you can use when writing a line in the Autostart.ini
file.
Description Character Comments
Comment: This line will not be
executed. ‘#’ OR ‘ ‘ (space)
This may only be used as the
first character of the line. If the
comment option is specified in
the options elsewhere, it is
ignored.
Do not wait on line completion:
This will cause the line to
execute and immediately move
onto the next line.
‘-’
Query: Request user
confirmation when running the
executable.
‘?’
This will halt parsing the
Autostart.ini until the
confirmation is answered. This
is intended for debugging the
Autostart.ini file.
Execute only on Cold Reset ‘!’
Execute only after a warm boot %
Cold Reset Only: This will cause the line to execute only after a Cold Reset.
An empty line will be treated as a comment line.
NOTE
USE AND FUNCTIONING
113
4
Combining Options
Autostart options can be combined together as shown in the following sample:
?- \Windows\Pword.exe
This line would:
Request confirmation before executing the line. The next line would not be
processed before the confirmation is answered.
Run the next line without waiting on the current line to complete execution.
Query Option
The query option is intended for use when debugging the autostart.ini. When a line
with this option is executed, the following dialog will appear with the specified
executable and command line arguments. The populated fields shown in the
AutoStart Execute Query are described the next table:
Field Description
Line Number This is the line number in the script being executed.
Exe The executable as parsed by AutoStart.
Args The argument as parsed by AutoStart.
1 FALCON™ X3+
114
4

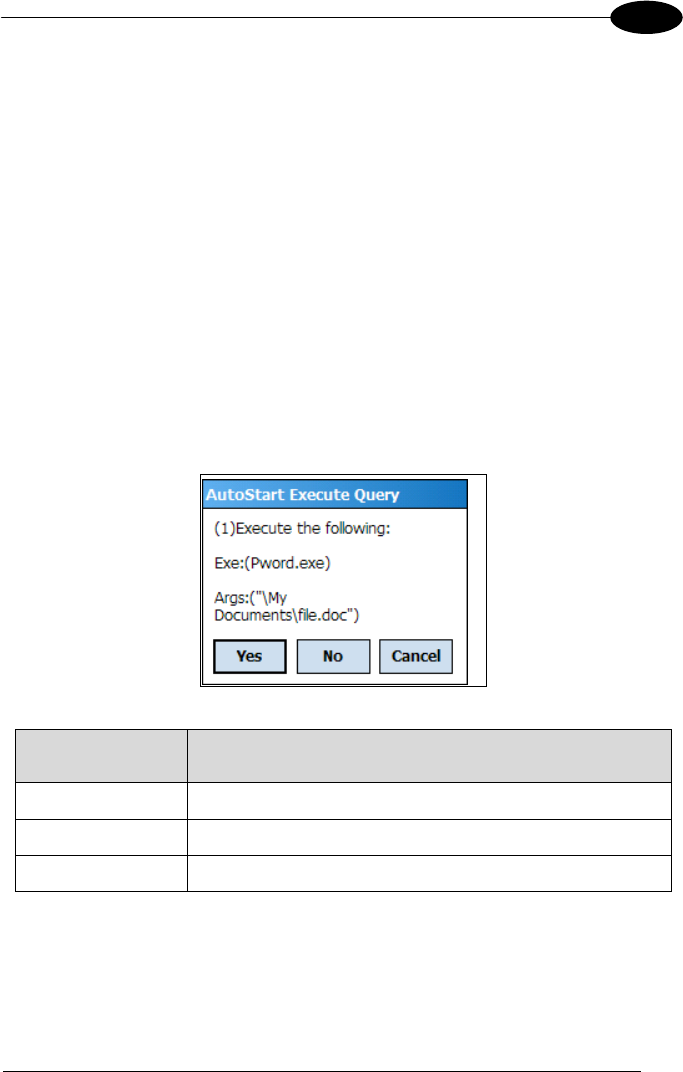

The fields may be broken up into multiple lines (as shown in the
example) due to limited space in the dialog.
NOTE
AutoStart Query Options
Parentheses are used to surround the given field and make it very clear what the
value of the field is.
The following table describes the results of each choice:
Button Action
Yes The current line will execute.
No The current line will not execute. AutoStart will continue
parsing the Autostart.ini.
Cancel The current line will not execute and AutoStart will
discontinue parsing the Autostart.ini.
USE AND FUNCTIONING
115
4
Autostart.ini Samples
The next table is a collection of sample Autostart.ini lines:
Line Description
? \windows\wceload.exe “\My
Documents\Sample.cab”
This will confirm the execution of
\Windows\wceload.exe with specified argument
“\My Documents\Sample.cab”
\Program Files\App.exe (invalid) This will execute \Program with the
argument Files\App.exe.
\Program Files\App.exe /run (invalid) This will execute \Program with the
argument Files\App.exe /run.
“\Program Files\App.exe” /run This will execute the program \Program
Files\App.exe with the argument /run.
?- \Windows\Pword.exe
This will confirm the execution of
\Windows\Pword.exe. If the execution is confirmed,
AutoStart will immediately process the next line.
!”\Program Files\App.exe” /run
This will execute the program \Program
Files\App.exe with the argument /run ONLY after a
Cold Reset.
1 FALCON™ X3+
116
5
5 TECHNICAL FEATURES
5.1 TECHNICAL DATA
Falcon X3+ Common Features
PHYSICAL CHARACTERISTICS
DIMENSIONS (LXWXH)
Hand held: 225 x 88 x 55 mm, 64 x 40 mm at
keyboard (8.9 x 3.5 x 2.2 in, 2.5 x 1.6 in)
Pistol grip: 225 x 88 x 168 mm (8.9 x 3.5 x 6.6 in)
WEIGHT
(DEPENDING ON MODEL)
Hand held: 608 g (21.4 oz)
Pistol Grip: 674 g (23.8 oz) Hand held: 626 g (22.08
oz)
Pistol Grip: 699 g (24.66 oz)
AUDIO Integrated microphone; high volume lLoudspeaker;
Microphone
LEDS Three LEDs Decoding Status/ Keyboard Status/
Charging Status
DISPLAY
Reflective TFT daylight readable color display, 320 x
240 pixels (CE only) or 640 x 480 (WEHH only), 8.9
cm / 3.5 in diagonal, 65K colors, backlight, touch
screenTransflective TFT daylight readable color
display, 240 x 320 pixels, 3.5 inch diagonal, 64 K
colors, 200 nit backlight, touch screen
KEYBOARD
Polycarbonate hard cap keyboards with backlight;
29- key numeric or 52- key alpha numeric with
discrete navigation
OPERATING
TEMPERATURE* -20ºC to 50ºC (-4ºF to 122ºF)
STORAGE TEMPERATURE -30 to 70 ºC (-22 to 158 ºF)
-40ºC to +70ºC (-40ºF to 158ºF)
DROP RESISTANCE Withstands 18 drops from 1.8 m (6 ft) onto concrete
ENVIROMENTAL SEALING Complies to EU RoHSIP64 standard for water and
dust resistance
ESD PROTECTION 4 KV contact discharge, 8 KV air discharge
* Falcon X3 should be charged at an ambient temperature between 0 - 35º C to achieve the
maximum charging rate. Never charge the main device or spare batteries in a closed space
where excessive heat can build up. Close to the limits of the working temperature, some display
and/or battery performance degradation may occur.
TECHNICAL FEATURES
117
5
SYSTEM
OPERATING SYSTEM
Microsoft Windows Embedded Handheld 6.5 with
Office Mobile 2010: Text, Messaging, Word Mobile,
Excel Mobile, PowerPoint Mobile, One Note Mobile
and Internet Explorer Mobile 6.0
MICROPROCESSOR XScale™ PXA310 @ 806 MHz
COPROCESSOR Cortex-M3, 32 bit @ 72 MHz
SYSTEM RAM MEMORY 256 MB
SYSTEM FLASH MEMORY 1 GB
EXPANSION SLOTS MicroSD card slot compatible with microSD-HC
cards, user-accessible
REAL-TIME CLOCK Time and date stamping under software control
POWER SUPPLY*
Removable battery pack with rechargeable Li-ion
batteries;
3.7 V 5200 mAh (19.2 Watt hours)Removable battery
pack with rechargeable Li-ion batteries;
3.7 V 5000 mAh (18.5 Watt hours)
COMMUNICATIONS
INTERFACES
Main connector with USB 1.1 Host, USB 2.0 Hi-
Speed Client, RS-232 up to 115.2 Kbps
Ethernet: via single-slot or multi-slot docks
(external modules)
Main connector with USB Host, USB Client, RS232
up to 115.2 Kbps, and audio headset support
LOCAL AREA NETWORK
(LAN)
Laird/Summit IEEE 802.11 a/b/g/n
Frequency range: Country dependent, typically
2.4 GHz and 5.2 GHz;
Cisco Compatible CCX v4 SecuritySummit IEEE
802.11a/b/g
Frequency range: Country dependent, typically 2.4
and 5.2 GHz
Cisco Compatible CCX v4 Security
PERSONAL AREA
NETWORK (PAN)
Bluetooth® Wireless Technology IEEE 802.15
Class 2.1 with EDR
Bluetooth® Wireless Technology IEEE 802.15
Class 2 with EDR
* Use only DL approved power adapters.
1 FALCON™ X3+
118
5
READING OPTIONS
LASER CHARACTERISTICS High Performance Laser (HPL) with Green
Spot, Auto Long-Rangeing Laser (XLR)
SCANNING RATE HPL: 104 +/- 12 scans/sec.40 ± 6 scan/sec
XLR: 31-41 scans/sec.
MINIMUM RESOLUTION 0.20 mm / 7.5 mils0.20 mm / 7.5 mils
DEPTH OF FIELD
HPL: 1 to 83 cm / 1 to 32 in, depending on bar
code and density;7 - 91 cm (3 - 36 inches)
depending on bar code density
XLR: Non-reflective labels from 9 to 490 cm /
3.5 to 192 in, depending on bar code density;
Reflective labels: up to 1509 cm / 594 in. Near
range determined by degree of reflectivity and
width of the bar code. All ranges dependent on
bar code size and densityNon reflective labels
from 18 - 393 cm (7 to 154 in) depending on bar
code density; Reflective labels to 1376 cm (542
in)
All ranges dependent bar code size and density.
Near range on reflective bar codes determined
by degree of reflectivity and width of bar code
BAR CODES
GS1 Databar, EAN/UPC, Code 39, Code 32,
2/5 Codes, Codabar, Code 128, EAN128, MSI,
Code 93
IMAGER CHARACTERISTICS Standard Range Imager (2D) with Green Spot
Extra-Long Range Imager (2D XLR)
SCANNING RATE 60 frames/sec maximum
MINIMUM RESOLUTION
2D: Linear codes: 5 mils; 2D codes: 6.7 mils;
2D XLR: Linear codes: 5 mils; 2D codes: 10
mils
DEPTH OF FIELD
2D: 2 to 60 cm / 1 to 24 in, depending on bar
code size and density;
2D XLR: 17 to 952 cm / 7 to 375 in, depending
on bar code size and density
BAR CODES
PDF417, Micro PDF, Datamatrix, QR Code,
Micro QR, Maxicode, Aztec, Postnet, Planet,
Japan Post, Aztec, Australia Post, KIX Code,
Royal Mail, Intelligent Mail and UPU FICS, GS1
Databar, EAN/UPC, Code 32, Code 39, 2/5
Codes, Codabar, Code 128, EAN128, MSI,
Code 93, ISBT 128, Bookland EAN and ISSN
EAN
TECHNICAL FEATURES
119
5
READING OPTIONS
SCAN WINDOW All scan engines feature Corning® Gorilla®
Glass II exit window
CAMERA 3.1 Megapixel color with auto-focus and LED
flash (WEHH only); Image Formats: BMP, JPEG
SAFETY AND REGULATORY
LASER CLASSIFICATION
VLD - Class 2 IEC/EN60825-10. Compliant with
21 CFR 1040.10 except for deviations pursuant to
laser notice Number 50, dated June 24, 2007
LED CLASSIFICATION Exempt Risk Group IEC/EN62471
SOFTWARE
DEVELOPMENT
Windows SDK,
Datalogic SDK (C/C++, .NET, Java);
Wavelink Studio®;
MCL-Collection™;
Java Virtual MachineDatalogic Windows SDK™
Wavelink® Studio™
MCL-Collection™
Java Virtual Machine
TERMINAL EMULATION
Wavelink Terminal Emulation pre-licensed, Wavelink
Industrial Browser™Wavelink® Industrial Browser™
Wavelink® Terminal Emulation™ prelicensed
CONFIGURATION &
MAINTENANCE
Wavelink Avalanche pre-licensed, Avalanche Remote
Control™, Datalogic Firmware Utility (DFU), Datalogic
Desktop Utility (DDU), Datalogic Configuration Utility
(DCU)Wavelink Avalanche® MC prelicensed
Wavelink Avalanche® SE prelicensed
Avalanche Remote Control™
Datalogic Firmware Utility
Datalogic Desktop Utility
Datalogic Configuration Utility
SECURITY
Wavelink SecurePlus; Wavelink Certificate
ManagerWavelink CE Secure
Wavelink Certificate Manager
VOICE
Vo-CE™;
Wavelink SpeakEasy™Vo-CE™ (voice recognition)
Wavelink® SpeakEasy (voice recognition)
APPLICATIONS Pal Application Library pre-licensedPal Application
Library
1 FALCON™ X3+
120
5
5.2 READING DIAGRAMS
HIGH PERFORMANCE LASER 1D
Symbol Density/
Bar Code Type/
W-N Ratio
Far Guaranteed
Working Ranges
5.0 mil
Code 128;
1.97 in
4.99 cm
5.0 mil
Code 39; 2.5:1
7.47 in
18.96 cm
7.5 mil
Code 39; 2.5:1
15.67 in
39.79 cm
10 mil
Code 128;
14.77 in
37.51 cm
13 mil
100% UPC
22.62 in
57.45 cm
15 mil
Code 128
23.87 in
60.62 cm
20 mil
Code 39; 2.2:1
41.87 in
106.34 cm
55 mil
Code 39; 2.2:1
75.37 in
191.43 cm
100 mil
Code 39; 3.0:1
reflective
178.87 in
454.32 cm
TECHNICAL FEATURES
121
5
AUTO RANGING LASER (XLR) 1D
Symbol Density/
Bar Code Type/
W-N Ratio
Far Guaranteed
Working Ranges
7.5 mil
Code 39; 2.5:1
14.37 in
36.49 cm
10 mil
Code 39; 2.5:1
29.37 in
74.59 cm
15 mil
Code 39; 2.5:1
49.37 in
125.39 cm
20 mil
Code 39; 2.2:1
69.37 in
176.19 cm
40 mil
Code 39; 2.2:1
149.37 in
379.39 cm
55 mil
Code 39; 2.2:1
169.37 in
429.89 cm
70 mil reflective
Code 39; 3:1
299.37 in
760.39 cm
100 mil reflective
Code 39; 3:1
431.37 in
1095.67 cm
1 FALCON™ X3+
122
5
WIDE ASPECT IMAGER 1D/2D
Symbol Density/
Bar Code Type/
W-N Ratio
Far Guaranteed
Working Ranges
5.0 mil
Code 39
6.21 in
15.77 cm
6.67 mil
PDF417
5.61 in
14.25 cm
7.5 mil
Code 39
9.01 in
22.88 cm
10 mil
PDF417
8.41 in
21.36 cm
13 mil
UPC-A
13.61 in
34.57 cm
15 mil
PDF417
12.61 in
32.02 cm
15 mil
Data Matrix
in n.a.
cm n.a.
20 mil
Code 39
21.21 in
53.87 cm
TECHNICAL FEATURES
123
5
LONG RANGE IMAGER 2D
Symbol Density/
Bar Code Type/
W-N Ratio
Far Guaranteed
Working Ranges
5.0 mil
Code 39
25.11 in
63.78 cm
7.5 mil
Code 39
37.11 in
94.26 cm
10 mil
Code 39
43.11 in
109.5 cm
15 mil
Code 128
48.11 in
122.2 cm
20 mil
Code 39
99.11 in
251.74 cm
40 mil
Code 39
169.11 in
429.54 cm
55 mil
Code 39
229.11 in
581.94 cm
100 mil
Code 39
359.11 in
912.14 cm
70 mil Reflective
Code 39*
287.11 in
729.26 cm
100 mil Reflective
Code 39*
359.11 in
912.14 cm
Data Matrix 10 mil 23.11 in
58.7 cm
Data Matrix 55 mil 129.11 in
327.94 cm
Data Matrix 100 mil 209.11 in
531.14 in
* Mount reflective bar codes on white or black background with minimum 4” border. Luminance
in the line-of-sight direction should be 50-120 cd/mm2. Ensure there is no extraneous
illumination or shadow on the bar code and that it is centered within the aiming pattern.
1 FALCON™ X3+
124
6
6 TEST CODES
High Density Codes
0.25 mm (10 mils)
Code 39
!17162H!
17162
2/5 Interleaved
Ë"8NduÌ
0123456784
Code 128
ÌtestwÎ
test
80%
EAN 13 x(0B2DE5*KKKKLM(
80%
EAN 8 (6450*TRMN(
TEST CODES
125
6
Medium Density Codes
0.38 mm (15 mils)
Code 39
!17162H!
17162
Interleaved 2/5
Ë"8NduÌ
0123456784
Code 128
ÌtestwÎ
test
100%
EAN 13 x(0B2DE5*KKKKLM(
100%
EAN 8 (6450*TRMN(
1 FALCON™ X3+
126
6
Low Density Codes
0.50 mm (20 mils)
Code 39
!17162H!
17162
Interleaved 2/5
Ë"8NduÌ
0123456784
Code 128
ÌtestwÎ
test
120%
EAN 13 x(0B2DE5*KKKKLM(
120%
EAN 8 (6450*TRMN(
TEST CODES
127
6
2D Codes
Datamatrix ECC200
Example
Inverse
Datamatrix ECC200
Example
6
128
REGULATORY INFORMATION
Read this manual carefully before performing any type of connection
to the Falcon X3+ mobile computer.
The user is responsible for any damage caused by incorrect use of
the equipment or by inobservance of the indication supplied in this
manual.
NOTE
GENERAL SAFETY RULES
Use only the components supplied by the manufacturer for the specific
Falcon X3+ being used.
Do not attempt to disassemble the Falcon X3+ mobile computer, as it does not
contain parts that can be repaired by the user. Any tampering will invalidate the
warranty.
When replacing the battery pack or at the end of the operative life of the
Falcon X3+ mobile computer, disposal must be performed in compliance with the
laws in force in your jurisdiction.
Before using the devices and the battery packs, read par.2.
Do not submerge the Falcon X3+in liquid products.
For further information, refer to this manual and to the Datalogic website:
www.datalogic.com.
POWER SUPPLY
This device is intended to be connected to a UL Listed/CSA Certified computer which
supplies power directly to the Falcon X3+ or else be supplied by a UL Listed/CSA
Certified Power Unit marked “Class 2” or LPS power source rated 5 V, 3.0 A, which
supplies power directly to the Falcon X3+ via the power connector of the cable.
The package includes three international plug adapters. The adapters must be
plugged into the power supply before the power supply itself is plugged on the wall
outlet.
129
LASER SAFETY
The laser light is visible to the human eye and is emitted from the window indicated in
the figure.
This information applies to both laser models and the Falcon X3+ Imager Aiming
System.
Laser out
p
ut
6
130
I D F E
La luce laser è visibile
all'occhio umano e viene
emessa dalla finestra
indicata nella figura.
Die Laserstrahlung ist für
das menschliche Auge
sichtbar und wird am
Strahlaustrittsfenster
ausgesendet (siehe Bild).
Le rayon laser est visible
à l'oeil nu et il est émis par
la fenêtre désignée sur
l'illustration dans la figure.
La luz láser es visible al
ojo humano y es emitida
por la ventana indicada
en la figura.
LUCE LASER
NON FISSARE IL
FASCIO
APPARECCHIO
LASER DI CLASSE 2
MASSIMA POTENZA
DI USCITA: 1 mW
LUNGHEZZA D'ONDA
EMESSA: 630~680 nm
CONFORME A EN
60825-1 (2007)
LASERSTRAHLUNG
NICHT IN DER STRAHL
BLINKEN
PRODUKT DER
LASERKLASSE 2
MAXIMALE
AUSGANGLEISTUNG:
1 mW
WELLENLÄNGE:
630~680 nm
ENTSPR. EN 60825-1
(2007)
RAYON LASER
EVITER DE
REGARDER
LE RAYON
APPAREIL LASER DE
CLASSE 2
MAXIMUM PUISSANCE
DE SORTIE: 1 mW
LONGUER D'ONDE
EMISE: 630~680 nm
CONFORME A EN
60825-1 (2007)
RAYO LÁSER
NO MIRAR FIJO EL
RAYO
APARATO LÁSER DE
CLASE 2
MÁXIMA POTENCIA
DE SALIDA: 1 mW
LONGITUD DE ONDA
EMITIDA: 630~680 nm
CONFORME A EN
60825-1 (2007)
131
ENGLISH
The following information is provided to comply with the rules imposed by
international authorities and refers to the correct use of your mobile computer.
STANDARD LASER SAFETY REGULATIONS
This product conforms to the applicable requirements of both CDRH 21 CFR 1040
Subchapter J and EN 60825-1:2007 at the date of manufacture.
For installation, use and maintenance, it is not necessary to open the device.
Do not attempt to open or otherwise service any components in the
optics cavity. Opening or servicing any part of the optics cavity by
unauthorized personnel may violate laser safety regulations. The
optics system is a factory only repair item.
CAUTION
Use of controls or adjustments or performance of procedures other
than those specified herein may result in exposure to hazardous
visible laser light.
CAUTION
The product utilizes a low-power laser diode. Although staring directly at the laser
beam momentarily causes no known biological damage, avoid staring at the beam as
one would with any very strong light source, such as the sun. Avoid that the laser
beam hits the eye of an observer, even through reflective surfaces such as mirrors,
etc.
Use of optical systems with the scanner will increase eye hazard.
Optical instruments include binoculars, microscopes, eye glasses and
magnifying glasses.
CAUTION
ITALIANO
Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e
si riferiscono all’uso corretto del terminale.
NORMATIVE STANDARD PER LA SICUREZZA LASER
Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data
di produzione: CDRH 21 CFR 1040 sezione J e EN 60825-1:2007.
Non si rende mai necessario aprire l’apparecchio per motivi di installazione, utilizzo o
manutenzione.
6
132
Non tentare di accedere allo scomparto contenete i componenti
ottici o di farne la manutenzione.
L’apertura dello scomparto, o la manutenzione di qualsiasi parte
ottica da parte di personale non autorizzato, potrebbe violare le
norme della sicurezza. Il sistema ottico può essere riparato
solamente alla fabbrica.
ATTENZIONE
L'utilizzo di procedure o regolazioni differenti da quelle descritte
nella documentazione può provocare un'esposizione pericolosa a
luce laser visibile.
ATTENZIONE
Il prodotto utilizza un diodo laser a bassa potenza. Sebbene non siano noti danni
riportati dall’occhio umano in seguito ad una esposizione di breve durata, evitare di
fissare il raggio laser così come si eviterebbe qualsiasi altra sorgente di luminosità
intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio laser negli occhi di un
osservatore, anche attraverso superfici riflettenti come gli specchi.
L’uso di strumenti ottici assieme allo scanner può aumentare il
pericolo di danno agli occhi. Tali strumenti ottici includono
cannocchiali, microscopi, occhiali e lenti di ingrandimento.
ATTENZIONE
DEUTSCH
Die folgenden Informationen stimmen mit den Sicherheitshinweisen überein, die von
internationalen Behörden auferlegt wurden, und sie beziehen sich auf den korrekten
Gebrauch vom Terminal.
NORM FÜR DIE LASERSICHERHEIT
Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1:2007 und
CDRH 21 CFR 1040 Subchapter J Normen für die Lasersicherheit.
Es ist nicht notwendig, das Gerät wegen Betrieb oder Installations-, und Wartungs-
Arbeiten zu öffnen.
133
Unter keinen Umständen darf versucht werden, die Komponenten
im Optikhohlraum zu öffnen oder auf irgendwelche andere Weise zu
warten. Das Öffnen bzw. Warten der Komponenten im
Optikhohlraum durch unbefugtes Personal verstößt gegen die
Laser-Sicherheitsbestimmungen. Das Optiksystem darf nur
werkseitig repariert werden.
ACHTUNG
Jegliche Änderungen am Gerät sowie Vorgehensweisen, die nicht in
dieser Betriebsanleitung beschrieben werden, können ein
gefährliches Laserlicht verursachen.
ACHTUNG
Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden von
kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere Zeit in den
Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B. die Sonne).
Vermeiden Sie es, den Laserstrahl weder gegen die Augen eines Beobachters, noch
gegen reflektierende Oberflächen zu richten.
Die Verwendung von Optiksystemen mit diesem Scanner erhöht die
Gefahr einer Augenbeschädigung. Zu optischen Instrumenten
gehören unter anderem Ferngläser, Mikroskope, Brillen und
Vergrößerungsgläser.
ACHTUNG
FRANÇAIS
Les informations suivantes sont fournies selon les règles fixées par les autorités
internationales et se réfèrent à une correcte utilisation du terminal.
NORMES DE SECURITE LASER
Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de
fabrication: CDRH 21 CFR 1040 sous-chapitre J et EN 60825-1:2007.
Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou
l’entretien.
Ne pas essayer d’ouvrir ou de réparer les composants de la cavité
optique. L’ouverture de la cavité optique ou la réparation de ses
composants par une personne non qualifiée peut entraîner le
nonrespect des règles de sécurité relatives au laser. Le système
optique ne peut être réparé qu’en usine.
ATTENTION
6
134
L'utilisation de procédures ou réglages différents de ceux donnés ici
peut entraîner une dangereuse exposition à lumière laser visible.
ATTENTION
Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été
constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement le
rayon, comme toute autre source lumineuse intense telle que le soleil. Eviter aussi
de diriger le rayon vers les yeux d’un observateur, même à travers des surfaces
réfléchissantes (miroirs, par exemple).
L’utilisation d’instruments optiques avec le scanneur augmente le
danger pour les yeux. Les instruments optiques comprennent les
jumelles, les microscopes, les lunettes et les verres grossissants.
ATTENTION
ESPAÑOL
Las informaciones siguientes son presentadas en conformidad con las disposiciones
de las autoridades internacionales y se refieren al uso correcto del terminal.
NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER
Este aparato resulta conforme a las normativas vigentes de seguridad láser a la
fecha de producción: CDRH 21 CFR 1040 Sección J y EN 60825-1:2007.
No es necesario abrir el aparato para la instalación, la utilización o la manutención.
No intente abrir o de ninguna manera dar servicio a ninguno de los
componentes del receptáculo óptico. Abrir o dar servicio a las
piezas del receptáculo óptico por parte del personal no autorizado
podría ser una violación a los reglamentos de seguridad. El sistema
óptico se puede reparar en la fábrica solamente.
ATENCIÓN
La utilización de procedimientos o regulaciones diferentes de
aquellas describidas en la documentación puede causar una
exposición peligrosa a la luz láser visible.
ATENCIÓN
135
El aparato utiliza un diodo láser a baja potencia. No son notorios daños a los ojos
humanos a consecuencia de una exposición de corta duración. Eviten de mirar fijo el
rayo láser así como evitarían cualquiera otra fuente de luminosidad intensa, por
ejemplo el sol. Además, eviten de dirigir el rayo láser hacia los ojos de un
observador, también a través de superficies reflectantes como los espejos.
El uso de sistemas ópticos con el escáner aumentará el riesgo de
daños oculares. Los instrumentos ópticos incluyen binoculares,
microscopios, lentes y lupas.
ATENCIÓN
LED CLASS
LED illuminator integrated in the Falcon X3+ models with imager engines are
compliant with exempt risk group requirements according to IEC62471.
6
136
RADIO COMPLIANCE
In radio systems configured with mobile computers and access points, the
frequencies to be used must be allowed by the spectrum authorities of the specific
country in which the installation takes place. Be absolutely sure that the system
frequencies are correctly set to be compliant with the spectrum requirements of the
country.
The Radio modules used in this product automatically adapt to the frequencies set by
the system and do not require any parameter settings.
Česky
[Czech]
Datalogic ADC S.r.l. tímto prohlašuje, že tento FALCONX3+ je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede Datalogic ADC S.r.l. erklærer herved, at følgende udstyr
FALCONX3+ overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch
[German]
Hiermit erklärt Datalogic ADC S.r.l., dass sich das Gerät FALCONX3+ in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab Datalogic ADC S.r.l. seadme FALCONX3+ vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English Hereby, Datalogic ADC S.r.l., declares that this FALCONX3+ is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.
Español
[Spanish]
Por medio de la presente Datalogic ADC S.r.l. declara que el FALCONX3+
cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Datalogic ADC S.r.l. ∆ΗΛΩΝΕΙ ΟΤΙ FALCONX3+
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Datalogic ADC S.r.l. déclare que l'appareil FALCONX3+ est
conforme aux exigences essentielles et aux autres dispositions pertinentes de
la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Datalogic ADC S.r.l. dichiara che questo FALCONX3+ è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla
direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo Datalogic ADC S.r.l. deklarē, ka FALCONX3+ atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Datalogic ADC S.r.l. deklaruoja, kad šis FALCONX3+ atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
137
Nederlan
ds [Dutch]
Hierbij verklaart Datalogic ADC S.r.l. dat het toestel FALCONX3+ in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, Datalogic ADC S.r.l., jiddikjara li dan FALCONX3+ jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-
Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Datalogic ADC S.r.l. nyilatkozom, hogy a FALCONX3+ megfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
Polski
[Polish]
Niniejszym Datalogic ADC S.r.l. oświadcza, że FALCONX3+ jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Portuguê
s
[Portuguese]
Datalogic ADC S.r.l. declara que este FALCONX3+ está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensk
o [Slovenian]
Datalogic ADC S.r.l. izjavlja, da je ta FALCONX3+ v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensk
y [Slovak]
Datalogic ADC S.r.l. týmto vyhlasuje, že FALCONX3+ spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
Datalogic ADC S.r.l. vakuuttaa täten että FALCONX3+ tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden
ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Datalogic ADC S.r.l. att denna FALCONX3+ står I
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/EG.
6
138
Information for the User
ENGLISH
Contact the competent authority responsible for the management of radio frequency
devices of your country to verify any possible restrictions or licenses required. Refer
to the website http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-
points/spectr/ for further information.
ITALIANO
Contatta l'autorità competente per la gestione degli apparati a radio frequenza del tuo
paese, per verificare eventuali restrizioni o licenze. Ulteriori informazioni sono
disponibili sul sito:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/.
FRANÇAIS
Contactez l'autorité compétente en la gestion des appareils à radio fréquence de
votre pays pour vérifier d'éventuelles restrictions ou licences. Pour tout
renseignement vous pouvez vous adresser au site web:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/.
DEUTSCH
Wenden Sie sich an die für Radiofrequenzgeräte zuständige Behörde Ihres Landes,
um zu prüfen ob es Einschränkungen gibt, oder eine Lizenz erforderlich ist. Weitere
Informationen finden Sie auf der Web Seite:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/.
ESPAÑOL
Contacta la autoridad competente para la gestión de los dispositivos de radio
frecuencia de tu país, para verificar cualesquiera restricciones o licencias posibles
requerida. Además se puede encontrar mas información en el sitio web:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/.
139
FCC COMPLIANCE
FCC Label
FCC label is placed underneath the main battery. The label is accessible by
removing the main battery.
FCC Interference Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz
frequency range.
6
140
IMPORTANT NOTE:
FCC Radiation Exposure Statement
This model device meets the government’s requirements for exposure to radio
waves. This device is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating positions accepted by the
FCC with the device transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well below the
maximum value. This is because the device is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the power output.
While there may be differences between the SAR levels of various devices and at
various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model device is on file with the FCC and can be
found under the Display Grant section of http://www.fcc.gov/oet/fccid
after searching on the below FCC ID: U4GFX3P.
This device is compliant with SAR for general population /uncontrolled exposure
limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the
measurement methods and procedures specified in OET Bulletin 65
Supplement C.
For body worn operation, this device has been tested and meets the FCC RF
exposure guidelines for use with an accessory that contains no metal and the
positions the handset a minimum of 1.5 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF exposure guidelines. If you
do not use a body-worn accessory and are not holding the device at the ear, position
the handset a minimum of 1.5 cm from your body when the device is switched on.
141
INDUSTRY CANADA COMPLIANCE
IC Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003. This device and its
antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter. The County Code Selection feature is disabled for products marketed
in the US/Canada.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz
and 5470-5725 MHz shall comply with the e.i.r.p. limit; and.
(iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz
shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point
operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as primary
users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable,
et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada. Ce dispositif et ses antennes ne doivent pas être co-implantés ou utilisés
avec une autre antenne ou an autre émetteur. La fonction de sélection de code de
pays est désactivée pour les produits commercialisés en Etats-Unis / Canada.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions
précises sur les restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
6
142
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5
350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5
825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à
point et non point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars
de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité)
pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient
causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This EUT is compliant with SAR for general population/uncontrolled exposure limits
in IC RSS-102 and had been tested in accordance with the measurement methods
and procedures specified in IEEE 1528. This equipment can be installed and
operated with minimum distance of 1.5 cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Ce EUT est conforme au DAS (Débit d'absorption spécifique) pour l’exposition de la
population à des limites non contrôlée en IC RSS-102 et il a été testé conformément
aux méthodes de mesure et aux procédures spécifiées dans la norme IEEE 1528.
Cet équipement peut être installé et utilisé à une distance minimale de 1,5 cm entre
le radiateur et votre corps.
143
SAR COMPLIANCE
This product has been tested and found to comply with the following standards:
- OET BULLETIN 65 SUPPLEMENT C: evaluating compliance with FCC
guidelines for human exposure to radio frequency electromagnetic fields.
- IC RSS 102 Issue 4: Radio Frequency (RF) Exposure Compliance of
Radiocommunication Apparatus (All Frequency Bands).
- The portable device FalconX3+ from Datalogic is in compliance European
Standard EN 50566: Product standard to demonstrate compliance of radio
frequency fields from handheld and body-mounted wireless communication
devices used by the general public (30 MHz - 6 GHz).
6
144
WEEE COMPLIANCE
Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC
L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della
sua vita utile, separatamente dai rifiuti urbani.
Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di:
evitare possibili conseguenze negative per l’ambiente e per la salute umana che
potrebbero invece essere causati dall’errato smaltimento dello stesso;
recuperare materiali di cui è composto al fine di ottenere un importante risparmio di
energia e di risorse.
Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata
acquistata l’apparecchiatura o consultare la sezione dedicata sul sito www.datalogic.com.
Information for the user in accordance with the European Commission Directive
2002/96/EC
At the end of its useful life, the product marked with the crossed out wheeled wastebin must be
disposed of separately from urban waste.
Disposing of the product according to this Directive:
avoids potentially negative consequences to the environment and human health
which otherwise could be caused by incorrect disposal
enables the recovery of materials to obtain a significant savings of energy and
resources.
For more detailed information about disposal, contact the supplier that provided you with the
product in question or consult the dedicated section at the website www.datalogic.com.
145
Information aux utilisateurs concernant la Directive Européenne 2002/96/EC
Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas
être éliminé avec les déchets urbains.
Éliminer ce produit selon cette Directive permet de:
éviter les retombées négatives pour l'environnement et la santé dérivant d'une
élimination incorrecte
récupérer les matériaux dans le but d'une économie importante en termes d'énergie
et de ressources
Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le
fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site
Web www.datalogic.com.
Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE
Al final de su vida útil, el producto marcado con un simbolo de contenedor de bassura móvil
tachado no debe eliminarse junto a los desechos urbanos.
Eliminar este producto de accuerdo con la Directiva permite de:
evitar posibles consecuencias negativas para el medio ambiente y la salud derivadas
de una eliminación inadecuada
recuperar los materiales obteniendo así un ahorro importante de energía y recursos
Para obtener una información más detallada sobre la eliminación, por favor, póngase en
contacto con el proveedor donde lo compró o consultar la sección dedicada en el website
www.datalogic.com.
Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen Kommission
Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen Hausmüll
entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich.
Beseitigung des Produkts entsprechend der Richtlinie:
verhindert negative Auswirkungen für die Umwelt und die Gesundheit der Menschen
ermöglicht die Wiederverwendung der Materialien und spart somit Energie und
Resourcen
Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das
Produkt erworben haben, oder besuchen sie unsere Hompage unter www.datalogic.com.
146
GLOSSARY
Access Point
A device that provides transparent access between Ethernet wired networks and
IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile
computers, PDAs or other devices equipped with radio cards, communicate with
wired networks using Access Points (AP). The mobile unit (mobile computer) may
roam among the APs in the same subnet while maintaining a continuous, seamless
connection to the wired network.
Applet
Diminutive form of app (application), it refers to simple, single-function programs that
often ship with a larger product. Programs such as Windows' Calculator, File
Manager, and Notepad are examples of applets.
Barcode
A pattern of variable-width bars and spaces which represents numeric or
alphanumeric data in binary form. The general format of a barcode symbol consists
of a leading margin, start character, data or message character, check character (if
any), stop character, and trailing margin. Within this framework, each recognizable
symbology uses its own unique format.
Baud Rate
A measure for data transmission speed.
Bit
Binary digit. One bit is the basic unit of binary information. Generally, eight
consecutive bits compose one byte of data. The pattern of 0 and 1 values within the
byte determines its meaning.
Bluetooth®
A standard radio technology using a proprietary protocol. The onboard Bluetooth
module in the device is compatible with the 2.1 protocol with Enhanced Data Rate
(EDR).
Byte
On an addressable boundary, eight adjacent binary digits (0 and 1) combined in a
pattern to represent a specific character or numeric value. Bits are numbered from
the right, 0 through 7, with bit 0 the low-order bit. One byte in memory can be used to
store one ASCII character.
147
Decode
To recognize a bar code symbology (e.g., Codabar, Code 128, Code 3 of 9,
UPC/EAN, etc.) and convert the content of the bar code scanned from a visual
pattern into electronic data.
Depth of Field (DOF)
The portion of a scene that appears acceptably sharp in the image. Although a lens
can precisely focus at only one distance, the decrease in sharpness is gradual on
each side of the focused distance, so that within the DOF, the unsharpness is
imperceptible under normal viewing conditions.
EEPROM
Electrically Erasable Programmable Read-Only memory. An on-board non-volatile
memory chip.
Ethernet
The standard local area network (LAN) access method. A reference to "LAN," "LAN
connection" or "network card" automatically implies Ethernet. Defined by the IEEE as
the 802.3 standard, Ethernet is used to connect computers in a company or home
network as well as to connect a single computer to a cable modem or DSL modem
for Internet access.
Firmware
Firmware is a software program or set of instructions programmed on a hardware
device. It provides the necessary instructions for how the device communicates with
the other computer hardware. Firmware is typically stored in the flash ROM of a
hardware device. While ROM is "read-only memory," flash ROM can be erased and
rewritten because it is actually a type of flash memory.
Flash Disk
Non-volatile memory for storing application and configuration files.
Host
A computer that serves other mobile computers in a network, providing services such
as network control, database access, special programs, supervisory programs, or
programming languages.
148
IEEE 802.11
A set of standards carrying out wireless local area network (WLAN) computer
communication in the 2.4, 3.6 and 5 GHz frequency bands. They are created and
maintained by the IEEE LAN/MAN Standards Committee.
Light Emitting Diode (LED)
A low power electronic light source commonly used as an indicator light. It uses less
power than an incandescent light bulb but more than a Liquid Crystal Display (LCD).
Liquid Crystal Display (LCD)
A display that uses liquid crystal sealed between two glass plates. The crystals are
excited by precise electrical charges, causing them to reflect light outside according
to their bias. They use little electricity and react relatively quickly. They require
external light to reflect their information to the user.
Null modem cable
RS-232 serial cable where the transmit and receive lines are crosslinked. In some
cables there are also handshake lines crosslinked. In many situations a straight
through serial cable is used, together with a null modem adapter. The adapter
contains the necessary crosslinks between the signals.
Pairing
A Bluetooth pairing occurs when two Bluetooth devices agree to communicate with
each other and establish a connection.
Piconet
A piconet is a Bluetooth PAN that links up to eight devices. Each piconet is controlled
by one master device, and up to seven slave devices at any one time. Any device
may be a member of more than one piconet, changing its membership as a user
moves from one area to another.
RAM
Random Access memory. Data in RAM can be accessed in random order, and
quickly written and read.
RF
Radio Frequency.
RTC
Real Time Clock.
149
TDMA
Time division multiple access (TDMA) is digital transmission technology that allows a
number of users to access a single radio-frequency (RF) channel without interference
by allocating unique time slots to each user within each channel. The TDMA digital
transmission scheme multiplexes three signals over a single channel. The current
TDMA standard for cellular divides a single channel into six time slots, with each
signal using two slots, providing a 3 to 1 gain in capacity over advanced mobile-
phone service (AMPS). Each caller is assigned a specific time slot for transmission.
USB
Universal Serial Bus. Type of serial bus that allows peripheral devices (disks,
modems, printers, digitizers, data gloves, etc.) to be easily connected to a computer.
A “plug-and-play” interface, it allows a device to be added without an adapter card
and without rebooting the computer (the latter is known as hot-plugging). The USB
standard, developed by several major computer and telecommunications companies,
supports data-transfer speeds up to 12 megabits per second, multiple data streams,
and up to 127 peripherals.
WLAN
A Wireless Local Area Network links devices via a wireless distribution method
(typically spread-spectrum or OFDM radio), and usually provides a connection
through an access point to the wider internet. This gives users the mobility to move
around within a local coverage area and still be connected to the network.
WPAN
A Wireless Personal Area Network is a personal area network - a network for
interconnecting devices centered around an individual person's workspace - in which
the connections are wireless. Typically, a wireless personal area network uses some
technology that permits communication within about 10 meters - in other words, a
very short range
WWAN
Stands for "Wide Area Network." It is similar to a Local Area Network (LAN), but it is
not limited to a single location and it uses Mobile telecommunication cellular network
technologies such as UMTS, GPRS, CDMA2000, GSM, CDPD, Mobitex, HSDPA or
3G to transfer data. WWAN connectivity allows a user with a laptop and a WWAN
card to surf the web, check email, or connect to a Virtual Private Network (VPN) from
anywhere within the regional boundaries of cellular service.
150
INDEX
A
Accessories; 9
Audio Settings; 66
Autostart; 105
Available Models; 3
B
Batteries and Maintenance; 10
Bluetooth® Manager Device Setup;
70
Buttons; 54
C
Charging the Batteries; 10
Cleaning the Mobile Computer; 17
Connecting to other Computers; 69
Connections; 18
Connection to USB peripherals; 20
RS232 Connection; 22
USB Connection; 18
WLAN Connection; 23
WPAN Connections; 25
D
Data Capture; 31
Imager Data Capture; 34
Laser Data Capture; 32
Data Capture Configuration; 45
Datalogic Configuration Utility; 81
Datalogic Desktop Utility; 82
Datalogic Firmware Utility; 78
Description of the Keys; 36
F
Falcon X3+ Description; 1
FCC Compliance; 134
G
General View; vii
Glossary; 139
I
Industry Canada Compliance; 136
L
Laser Safety; 125
LED Class; 131
LED Status; 42
M
MicroSD Card Insertion; 7
P
Package Contents; 6
Power Supply; 124
R
Radio Compliance; 132
Reading Diagrams; 117
References; vi
Replacing the Batteries; 13
Resetting the Falcon X3+; 40
RF Exposure Information (SAR); 135
S
Safety Regulations; 124
SAR Compliance; 136
Services and Support; vi
Settings; 44
Startup; 28
Status Indicators; 42
Stylus Calibration; 64
151
T
Taskbar; 43
Technical Data; 113
Technical Features; 113
Test Codes; 120
U
Using the Stylus; 29
W
WEEE Compliance; 137
Windows Embedded Handheld
Welcome Wizard; 30
Windows Mobile® Device Center; 69
Wireless and Radio Frequencies
Warnings; 26
Wireless Communications; 59
152
14
DECLARATION OF CONFORMITY
Datalogic ADC S.r.l.
Via S. Vitalino 13
40012 - Lippo di Calderara
Bologna - Italy
dichiara che
declares that the
déclare que le
bescheinigt ,daß das Gerät
declare que el
FALCON X3+ modelli con funzionalità radio 802.11a/b/g/n+BT
models with 802.11a/b/g/n+BT radio feature
modèles avec 802.11a/b/g/n+BT radio intégrés
modelle mit 802.11a/b/g/n+BT radio-funktionalität
modelos con funcionalidad radio 802.11a/b/g/n+BT
sono conformi alle Direttive del Consiglio Europeo sottoelencate:
are in conformity with the requirements of the European Council Directives listed below
sont conformes aux spécifications des Directives de l’Union Européenne ci-dessous:
der nachstehend angeführten Direktiven des Europäischen Rats:
cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:
1999/5/EC R&TTE and 2011/65/EU RoHS
La presente dichiarazione di conformità è rilasciata sotto la responsabilità esclusiva del fabbricante ed è basata
sulla conformità dei prodotti alle norme seguenti:
This declaration of conformity is issued under the sole responsibility of the manufacturer and is based upon
compliance of the products to the following standards:
Cette déclaration de conformité est établie sous la seule responsabilité du fabricant et repose sur la conformité
des produits aux normes suivantes:
Diese Konformitätserklärung wurde unter alleiniger Verantwortung des Herstellers ausgestellt und basiert darauf
daß das Produkt den folgenden Normen entspricht:
La presente declaración de conformidad se expide bajo la exclusiva responsabilidad del fabricante y se basa en
el cumplimiento de los productos con la siguientes normas:
EN 55022: 2010 +
A
C 2011 (CLASS B ITE)
INFORMATION TECHNOLOGY EQUIPMENT RADIO DISTURBANCE
CHARACTERISTICS LIMITS AND METHODS OF MEASUREMENTS
EN 55024: 1998
AMENDMENT A1:2001
AMENDMENT A2:2003
INFORMATION TECHNOLOGY EQUIPMENT IMMUNITY
CHARACTERISTICS
LIMITS AND METHODS OF MEASUREMENT
ETSI EN 301 489-1 V1.9.2, SEPTEMBER 2011: ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM
MATTERS (ERM); ELECTROMAGNETIC COMPATIBILITY (EMC)
STANDARD FOR RADIO EQUIPMENT AND SERVICES; PART1:
COMMON TECHNICAL REQUIREMENTS
ETSI EN 301 489-17 V2.1.1 MAY 2009: ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM
MATTERS (ERM); ELECTROMAGNETIC COMPATIBILITY (EMC)
STANDARD FOR RADIO EQUIPMENT; PART 17: SPECIFIC
CONDITIONS FOR 2,4 GHZ WIDEBAND TRANSMISSION SYSTEMS, 5
GHZ HIGH PERFORMANCE RLAN EQUIPMENT AND 5,8 GHZ
BROADBAND DATA TRANSMITTING SYSTEMS
ETSI EN 301 489-17 V2.1.1 MAY 2009: ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM
MATTERS (ERM); ELECTROMAGNETIC COMPATIBILITY (EMC)
STANDARD FOR RADIO EQUIPMENT; PART 17: SPECIFIC
CONDITIONS FOR 2,4 GHZ WIDEBAND TRANSMISSION SYSTEMS, 5
GHZ HIGH PERFORMANCE RLAN EQUIPMENT AND 5,8 GHZ
BROADBAND DATA TRANSMITTING SYSTEMS
ETSI EN 300 328 V1.7.1, OCTOBER 2006 :
ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM
MATTERS (ERM); WIDEBAND TRANSMISSION SYSTEMS; DATA
TRANSMISSION EQUIPMENT OPERATING IN THE 2,4GHZ ISM BAND
AND USING WIDE BAND MODULATION TECHNIQUES; HARMONIZED
EN COVERING ESSENTIAL REQUIREMENTS UNDER ARTICLE 3.2 OF
THE R&TTE DIRECTIVE
ETSI EN 301 893 V1.6.1, NOVEMBER 2011 BROADBAND RADIO ACCESS NETWORKS (BRAN);5 GHZ HIGH
PERFORMANCE RLAN;HARMONIZED EN COVERING THE
ESSENTIAL REQUIREMENTS OF ARTICLE 3.2 OF THE R&TTE
DIRECTIVE
EN 60950-1:2006
AMENDMENT A11:2009
AMENDMENT A1:2010
AMENDMENT A12:20111
AMENDMENT A2:2013
INFORMATION TECHNOLOGY EQUIPMENT - SAFETY - PART 1 :
GENERAL REQUIREMENTS
EN 50360:2001+AC:2006+A1:2012
PRODUCT STANDARD TO DEMONSTRATE THE COMPLIANCE OF
MOBILE PHONES WITH THE BASIC RESTRICTIONS RELATED TO
HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS (300 MHZ -
3 GHZ)
EN 62209-1:2006
HUMAN EXPOSURE TO RADIO FREQUENCY FIELDS FROM HAND-
HELD AND BODY-MOUNTED WIRELESS COMMUNICATION DEVICES -
HUMAN MODELS, INSTRUMENTATION, AND PROCEDURES - PART 1:
PROCEDURE TO DETERMINE THE SPECIFIC ABSORPTION RATE
(SAR) FOR HAND-HELD DEVICES USED IN CLOSE PROXIMITY TO
THE EAR (FREQUENCY RANGE OF 300 MHZ TO 3 GHZ)
EN 62209-2:2010
HUMAN EXPOSURE TO RADIO FREQUENCY FIELDS FROM HAND-
HELD AND BODY-MOUNTED WIRELESS COMMUNICATION DEVICES -
HUMAN MODELS, INSTRUMENTATION, AND PROCEDURES - PART 2:
PROCEDURE TO DETERMINE THE SPECIFIC ABSORPTION RATE
(SAR) FOR WIRELESS COMMUNICATION DEVICES USED IN CLOSE
PROXIMITY TO THE HUMAN BODY (FREQUENCY RANGE OF 30 MHZ
TO 6 GHZ)
EN 62311:2008 ASSESSMENT OF ELECTRONIC AND ELECTRICAL EQUIPMENT
RELATED TO HUMAN EXPOSURE RESTRICTIONS FOR
ELECTROMAGNETIC FIELDS (0 HZ - 300 GHZ)
EN50581:2012 TECHNICAL DOCUMENTATION FOR THE ASSESSMENT OF
ELECTRICAL AND ELECTRONIC PRODUCTS WITH RESPECT TO THE
RESTRICTION OF HAZARDOUS SUBSTANCES
Lippo di Calderara di Reno, August 5th, 2014
Ruggero Cacioppo
Quality & Reliability MGR
Datalogic ADC S.r.l.
