Datalogic ADC S.r.l. JOYA TOUCH 3-SLOT CRADLE 822002151
Contents
- 1. User Manual safety and regulatory addendum
- 2. User Manual
User Manual
Datalogic ADC S.r.l.
Via S. Vitalino, 13
40012 Lippo di Calderara di Reno
Bologna - Italy
Telephone: (+39) 051-3147011
Fax: (+39) 051-3147205
©2016 Datalogic ADC S.r.l.
An Unpublished Work - All rights reserved. No part of the contents of this documentation or
the procedures described therein may be reproduced or transmitted in any form or by any
means without prior written permission of Datalogic ADC Inc. or its subsidiaries or affiliates
("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non-
exclusive, revocable license to reproduce and transmit this documentation for the
purchaser's own internal business purposes. Purchaser shall not remove or alter any
proprietary notices, including copyright notices, contained in this documentation and shall
ensure that all notices appear on any reproductions of the documentation.
Should future revisions of this manual be published, you can acquire printed versions by
contacting your Datalogic representative. Electronic versions may either be downloadable
from the Datalogic website (www.datalogic.com) or provided on appropriate media. If you
visit our website and would like to make comments or suggestions about this or other
Datalogic publications, please let us know via the "Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that is
complete and accurate, however, Datalogic reserves the right to change any specification at
any time without prior notice.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many
countries, including the U.S.A. and the E.U.
JOYA TOUCH is a trademark of Datalogic ADC S.r.l. and the JOYA logo is a registered
trademark of Datalogic ADC S.r.l. in the U.S.A. and the E.U.
All other brand and product names may be trademarks of their respective owners.
Patents
See www.patents.datalogic.com for patent list.
Reference Documentation
For further information regarding the JOYA TOUCH 3-Slot Cradle refer to the JOYA TOUCH 3-
Slot Cradle Installation Guide, downloadable from our website www.datalogic.com.
Service and Support
Datalogic provides several services as well as technical support through its website. Please
check our website at www.datalogic.com. under “Support & Services”, then “Automatic
Data Capture”, and click on the links indicated for further information including:
• Downloads
•Manuals for the latest versions of user manuals and product guides.
•Software & Utilities for the latest firmware release for your product. You can also
click on the following link for direct access to this section: www.datalogic.com/
products_updates.
•Service Program for warranty extensions and maintenance agreements.
•Repair Centers for a list of authorised repair centers.
•Technical Support Automatic Data Capture email form to contact our technical sup-
port.
Warranty Terms and Conditions
The warranty period is 1 year for the device and 90 days for consumables (e.g. battery,
power supply, cable etc.) from date of purchase at our company.

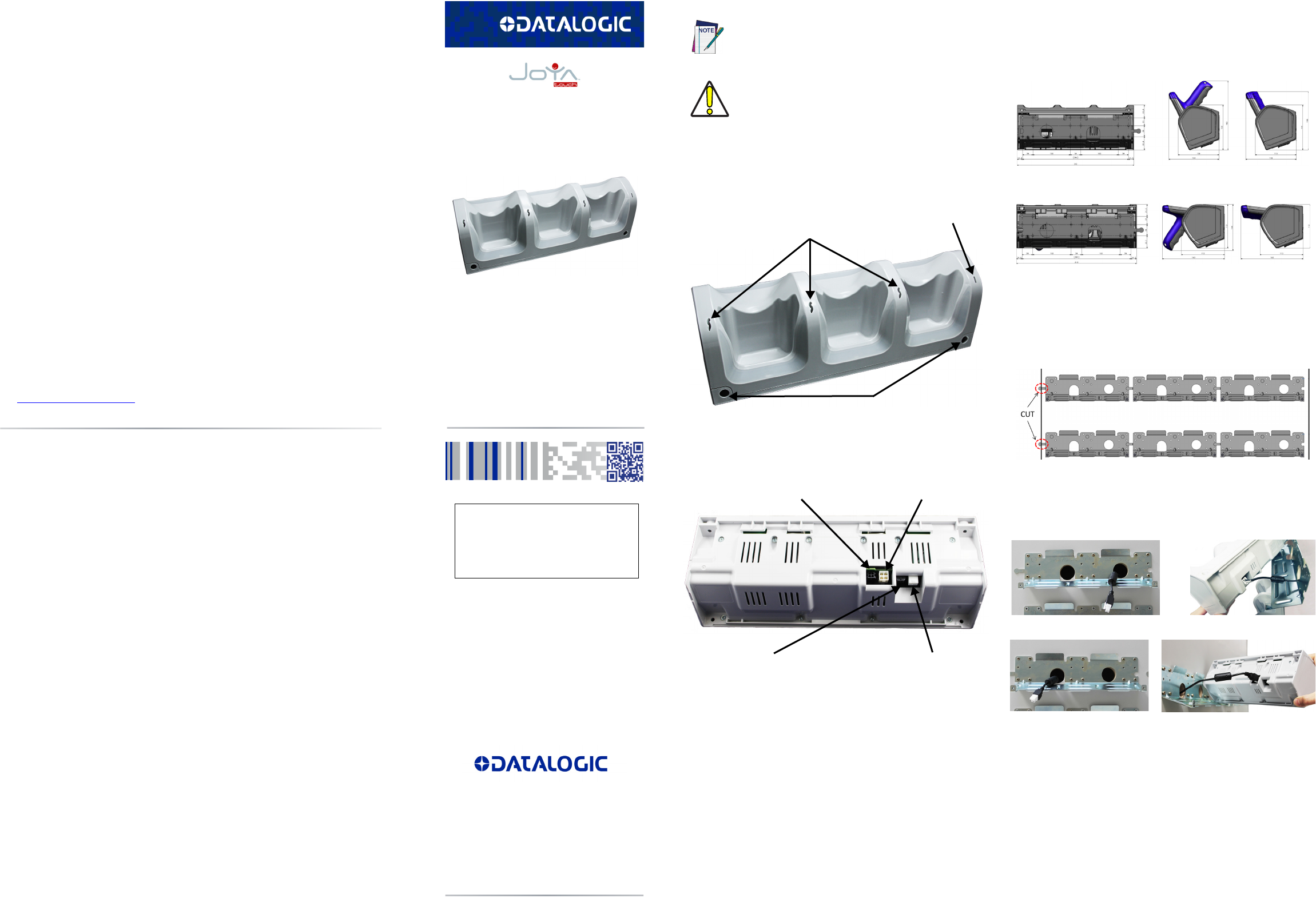

3-Slot Cradle
Quick Start Guide
822002151 (Rev. A) Sept. 2016
General View
Front View
Bottom View
Accessories
91ACC0045 JOYA TOUCH Cradle Unlock Key (5 PCS)
91ACC0048 JOYA TOUCH 3-Slot Cradle Power Supply. Line Cord
required (max 2 cradles on standard charge, max 1 cradle on
fast charge)
91ACC0049 JOYA TOUCH Cradle Power Jumper (5 PCS)
91ACC0050 JOYA TOUCH 3-Slot Cradle Wall Bracket
91ACC0051 Blue Kit to convert Plus Handheld to a Pistol Grip
91ACC0052 Blue Kit to convert Plus Pistol Grip to a Handheld
91ACC0053 Blue Kit to convert Basic Handheld to a Pistol Grip
91ACC0054 Blue Kit to convert Basic Pistol Grip to a Handheld
NOTE
Read this manual carefully before using the JOYA TOUCH 3-Slot
Cradle. The user is responsible for any damages caused by
incorrect use of the equipment or by inobservance of the
indication supplied in this manual.
CAUTION
Keep the original packaging for use when sending products to
the technical assistance center. Damage caused by improper
packaging is not covered under the warranty.
Unlocking Key Openings
Mounting Holes
Power On LED
Connector for Power
Supply (Visible Display)
Connector for Power Jumper
(Visible Display)
Connector for Power
Supply (High Density)
Connector for Power Jumper
(High Density)
JOYA TOUCH 3-Slot Cradle Installation
There are basically two different solutions organizing the disposition of
the devices:
• Visible Display Configuration
• High Density Configuration
To mount the cradle on the cabinet, follow the steps below:
1. Mount the JOYA TOUCH 3-Slot Cradle Wall Bracket on the cabinet. The
red-circled spacer in the figure below is used to set the horizontal
pitch in case the panel is not pre-drilled. Remove it from the last
bracket of the row by cutting along the engraving line.
2. Insert the power supply cable through the proper hole (the right hole
is for visible display configuration, the left hole is for high density
configuration). Connect the cradle to the power supply (see Powering
the Cradle).

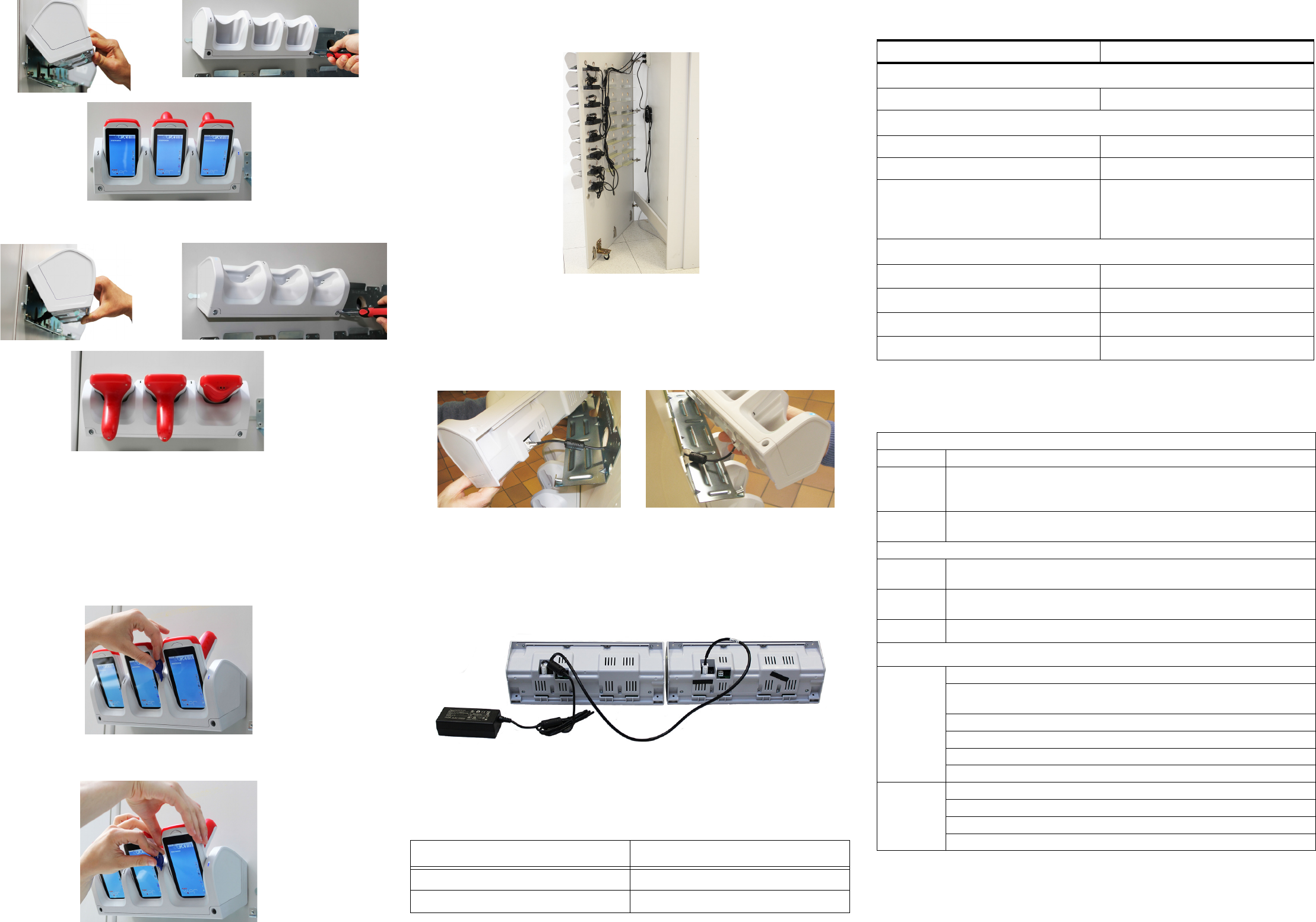

Visible Display Configuration
High Density Configuration
3. Place the cradle on the mounting bracket as shown in the following
pictures. Ensure there is no gap between the bracket and the cradle.
Fix the cradle to the bracket using the two screws included in the
bracket’s box.
See the Regulatory Addendum
included with your product for
additional regulatory, safety and
legal information.
©2016 Datalogic ADC S.r.l. • All rights
reserved.
Datalogic and the Datalogic logo are
registered trademarks of Datalogic S.p.A.
in many countries, including the U.S.A.
and the E.U. JOYA TOUCH is a trademark
of Datalogic ADC S.r.l. and the JOYA logo
is a registered trademark of Datalogic
ADC S.r.l. in the U.S.A. and the E.U.
www.datalogic.com
Visible Display Configuration
High Density Configuration
Remove the JOYA TOUCH from the 3-Slot Cradle
The JOYA TOUCH 3-Slot Cradle can be remotely unlocked via a JOYA TOUCH command or locally
unlocked using the JOYA TOUCH Cradle Unlock Key.
The Unlock Key can be used only by service.
To locally unlock the cradle and remove the JOYA TOUCH:
1. Insert the unlock key into the opening and gently press it all the way down:
2. Remove the JOYA TOUCH while keeping the unlock key pressed:
Powering the Cradle
Each power supply must be mounted on its bracket inside the cabinet, as shown in the figure below:
There are two options to connect the cradle to the power supply: fast charge and standard charge.
Fast Charge
The fast charge connection allows to power one cradle with one power supply.
Plug the power supply cable into the power connector on the back of the cradle as shown in the figure
below:
Standard Charge
The standard charge connection allows to power two cradles with one power supply.
To connect a second cradle use the JOYA TOUCH Cradle Power Jumper.
Connect the power supply to the first cradle and then use the power jumper to connect the first
cradle to the second cradle as shown in the figure below:
Radio Technologies and Frequency Bands
JOYA TOUCH 3-SLOT CRADLE incorporates the following radio technologies and supports the
corresponding frequencies, as specified below:
Radio Technology Frequency Bands
NFC (Near Field Communication) 13.56MHz
Wireless Charging (Transmitter) 130kHz
Visible Display High Density
LED Indicators
Technical Specifications
LED Status
Power On (External)
Solid blue Dock is powered.
User LED (Internal)
Flash green for 150 ms (all slots in sequence) Cradle application start.
Flash green for 300 ms (single slot) Device properly locked in.
Solid green (single slot)
JOYA TOUCH command protocol specific
commands:
CMD_UNLOCK_WITH_LED_ON
CMD_LOCK_WITH_LED_OFF
Maintenance LED (Internal)
Blink red slow (single slot) WLC fail.
Blink red slow (single slot) Generic Hw fail.
Blink red every 150 ms (all slots) Generic logic error.
Solid red (middle slot only) Firmware update.
Electrical Features
Consumption 12V 5A
Indicators
Power on LED (blue)
User LED (green)
Maintenance LED (red)
Charge Time Fast charge: 1h 40min
Standard charge: 6h
Environmental Features
Operating
Temperature*
*The JOYA TOUCH should be charged at an ambient temperature between 0 - 35º C to achieve the maximum
charging rate. Never charge the main device in a closed space where excessive heat can build up. Close to the
limits of the working temperature, some display and/or battery performance degradation may occur.
-10º +50ºC (14º to 122ºF)
Storage
Temperature -20/70°C
Humidity**
** Multiple rapid humidity and/or temperature variations may cause condensing.
95% non condensing for temperatures < 40 °C
Mechanical Features
Dimensions
Cradle - Visible Display: 313x120x110mm/ 12.32x4.72x4.33in
Cradle with JOYA TOUCH Handheld - Visible Display: 313x155x136mm/
12.32x6.10x5.35in
Cradle with JOYA TOUCH Gun - Visible Display: 313x183x134mm/ 12.32x7.20x5.28in
Cradle - High Density: 313x113x113mm/ 12.32x4.45x4.45in
Cradle with JOYA TOUCH Handheld - High Density: 313x113x162/ 12.32x4.45x6.38in
Cradle with JOYA TOUCH Gun - High Density: 313x113x162/ 12.32x4.45x6.38in
Weight
Cradle: 1280g/ 45.15oz
Cradle with Bracket: 1690g/ 59.61oz
Cradle with Bracket and n.3 JOYA TOUCH Gun inserted: 2590g/ 91.36oz
Cradle with Bracket and n.3 JOYA TOUCH Handheld inserted: 2545g/ 89.77oz
