Datalogic S.r.l. JOYA TOUCH SINGLE SLOT DOCK LOCKING Users Guide

Contents

Users Guide

Datalogic S.r.l.Via San Vitalino 1340012 Calderara di Reno (BO) ItalyTel. +39 051 3147011Fax +39 051 31472052016-2017 Datalogic S.p.A. and/or its affiliates  All rights reserved.  Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A. and/or its affiliates. Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and shall ensure that all notices appear on any reproductions of the documentation. Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.DisclaimerDatalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. The Joya logo is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. andthe E.U. All other trademarks and brands are property of their respective owners.PatentsSee www.patents.datalogic.com for patent list.Support Through the WebsiteDatalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT > STORE AUTOMATION categorylink. From this page you can select your product model from the dropdown list which givesyou access to:Downloads including Data Sheets, Manuals, Software & Utilities, and Drawings;Repair Program for On-Line Return Material Authorizations (RMAs) plus Repair Centercontact information;Service Program containing details about Maintenance Agreements;Technical Support through email or phone.Warranty Terms and ConditionsThe warranty period is 1 year for the device and 90 days for consumables (e.g. battery,power supply, cable etc.) from date of purchase at our company. Single Slot Dock Locking Quick Start Guide 822002520 (Rev. A) July 2017Out of the BoxThe JOYA TOUCH Single Slot Dock Locking package contains:• 1 JOYA TOUCH Single Slot Dock Locking •1 metal plate•1 unlock key• 4 cross pan head screws • 1 round washer head screw •1 Quick Start Guide• 1 Safety & Regulatory AddendumGeneral ViewFront ViewBottom ViewNOTERead this manual carefully before using the JOYA TOUCH SingleSlot Dock Locking. The user is responsible for any damagescaused by incorrect use of the equipment or by inobservance ofthe indication supplied in this manual.CAUTIONKeep the original packaging for use when sending products tothe technical assistance center. Damage caused by improperpackaging is not covered under the warranty.Unlocking Key OpeningBattery Charger LED Connector for Power Supply Mounting HolesAccessories91ACC0045 JOYA TOUCH Cradle Unlock Key (5 PCS) 91ACC0048 JOYA TOUCH 3-Slot Cradle Power Supply. Line CordrequiredFast the Dock to a SurfaceTo securely fasten the JOYA TOUCH Single Slot Dock Locking to tables,desks and other surfaces, and to prevent the dock from moving when youremove the device, use the metal plate included in the box.1. Secure the metal plate to the desired surface with the 4 providedcross pan head screws. We recommend to use a torx-10 screwdriver.2. Insert the dock into the metal plate. Each protrusion on the metalplate is aligned with a slot in the dock to prevent incorrect insertion.3. Push the dock backward until it snaps into place.4. Secure the dock with the provided round washer head screw. Use across screwdriver.See the Regulatory Addendumincluded with your product foradditional regulatory, safety andlegal information.©2016-2017 Datalogic S.r.l. • All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. www.datalogic.com

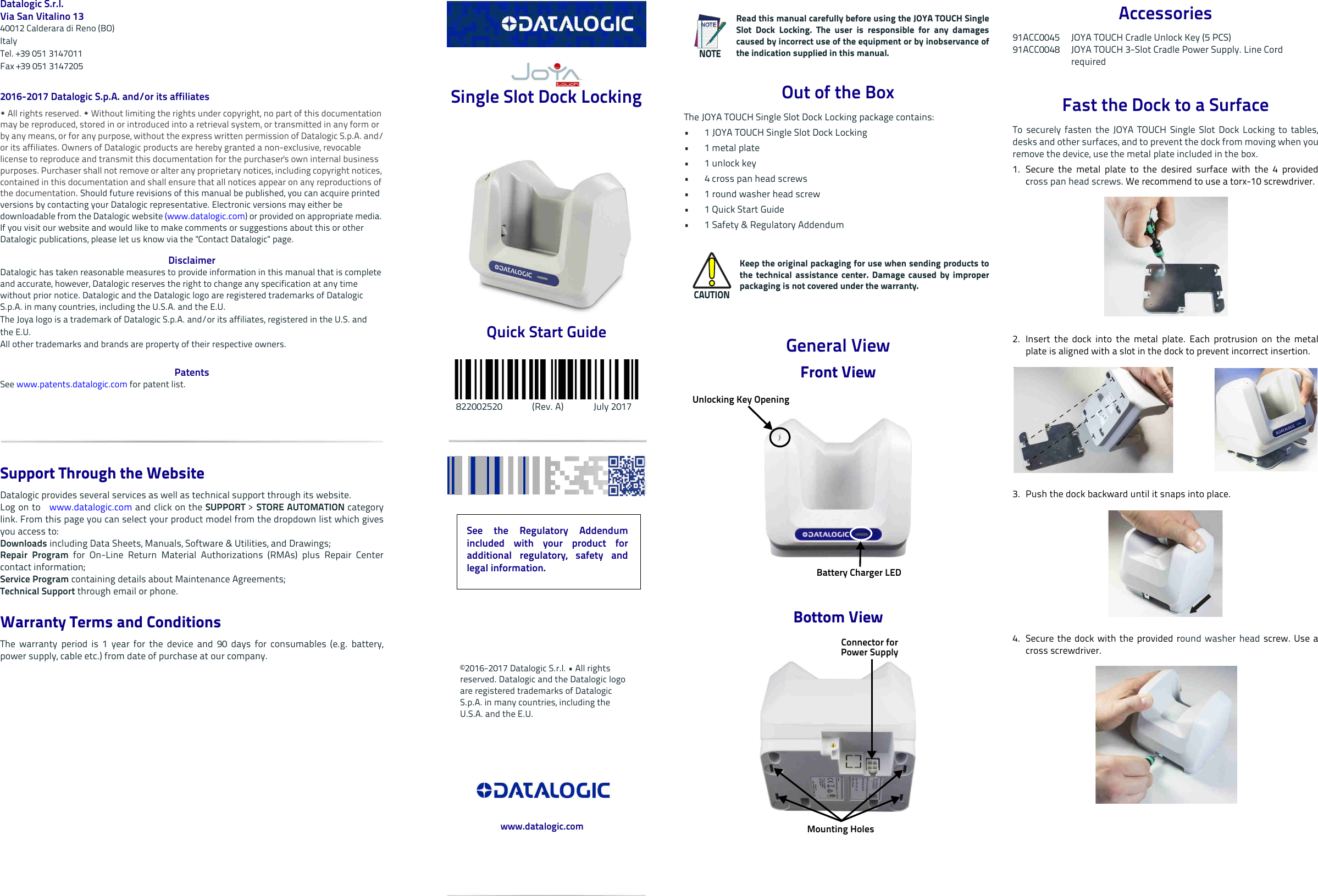

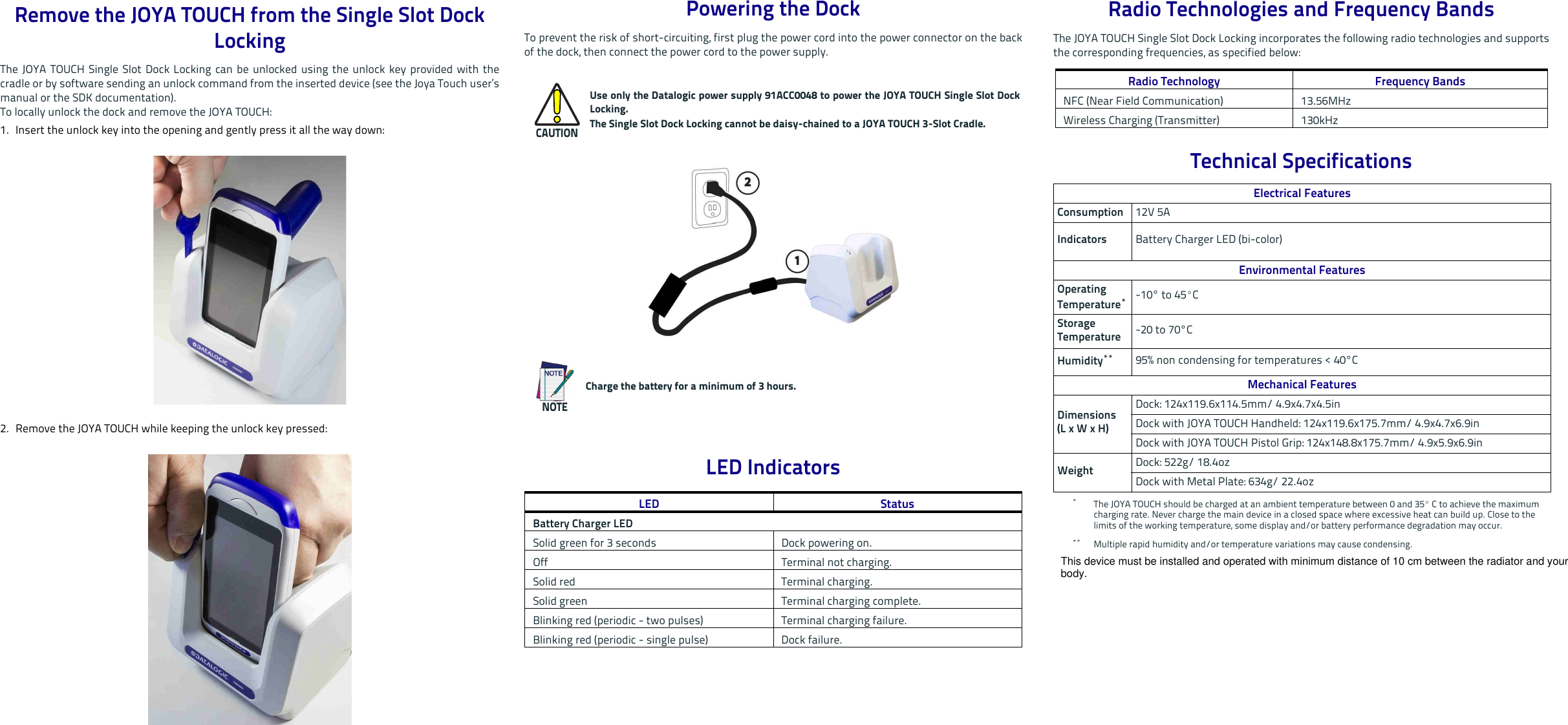

Remove the JOYA TOUCH from the Single Slot Dock Locking The JOYA TOUCH Single Slot Dock Locking can be unlocked using the unlock key provided with thecradle or by software sending an unlock command from the inserted device (see the Joya Touch user’smanual or the SDK documentation).To locally unlock the dock and remove the JOYA TOUCH:1. Insert the unlock key into the opening and gently press it all the way down:2. Remove the JOYA TOUCH while keeping the unlock key pressed: Powering the DockTo prevent the risk of short-circuiting, first plug the power cord into the power connector on the backof the dock, then connect the power cord to the power supply. LED IndicatorsCAUTIONUse only the Datalogic power supply 91ACC0048 to power the JOYA TOUCH Single Slot DockLocking.The Single Slot Dock Locking cannot be daisy-chained to a JOYA TOUCH 3-Slot Cradle.NOTECharge the battery for a minimum of 3 hours.LED StatusBattery Charger LEDSolid green for 3 seconds Dock powering on.Off Terminal not charging.Solid red Terminal charging.Solid green Terminal charging complete. Blinking red (periodic - two pulses) Terminal charging failure.Blinking red (periodic - single pulse) Dock failure.Radio Technologies and Frequency BandsThe JOYA TOUCH Single Slot Dock Locking incorporates the following radio technologies and supportsthe corresponding frequencies, as specified below:Technical SpecificationsRadio Technology Frequency BandsNFC (Near Field Communication) 13.56MHzWireless Charging (Transmitter) 130kHzElectrical FeaturesConsumption 12V 5AIndicators Battery Charger LED (bi-color)Environmental FeaturesOperating Temperature**The JOYA TOUCH should be charged at an ambient temperature between 0 and 35º C to achieve the maximum charging rate. Never charge the main device in a closed space where excessive heat can build up. Close to the limits of the working temperature, some display and/or battery performance degradation may occur.-10° to 45ºC Storage Temperature -20 to 70°CHumidity**** Multiple rapid humidity and/or temperature variations may cause condensing.95% non condensing for temperatures < 40°CMechanical FeaturesDimensions(L x W x H)Dock: 124x119.6x114.5mm/ 4.9x4.7x4.5inDock with JOYA TOUCH Handheld: 124x119.6x175.7mm/ 4.9x4.7x6.9inDock with JOYA TOUCH Pistol Grip: 124x148.8x175.7mm/ 4.9x5.9x6.9inWeight Dock: 522g/ 18.4ozDock with Metal Plate: 634g/ 22.4ozThis device must be installed and operated with minimum distance of 10 cm between the radiator and your body.

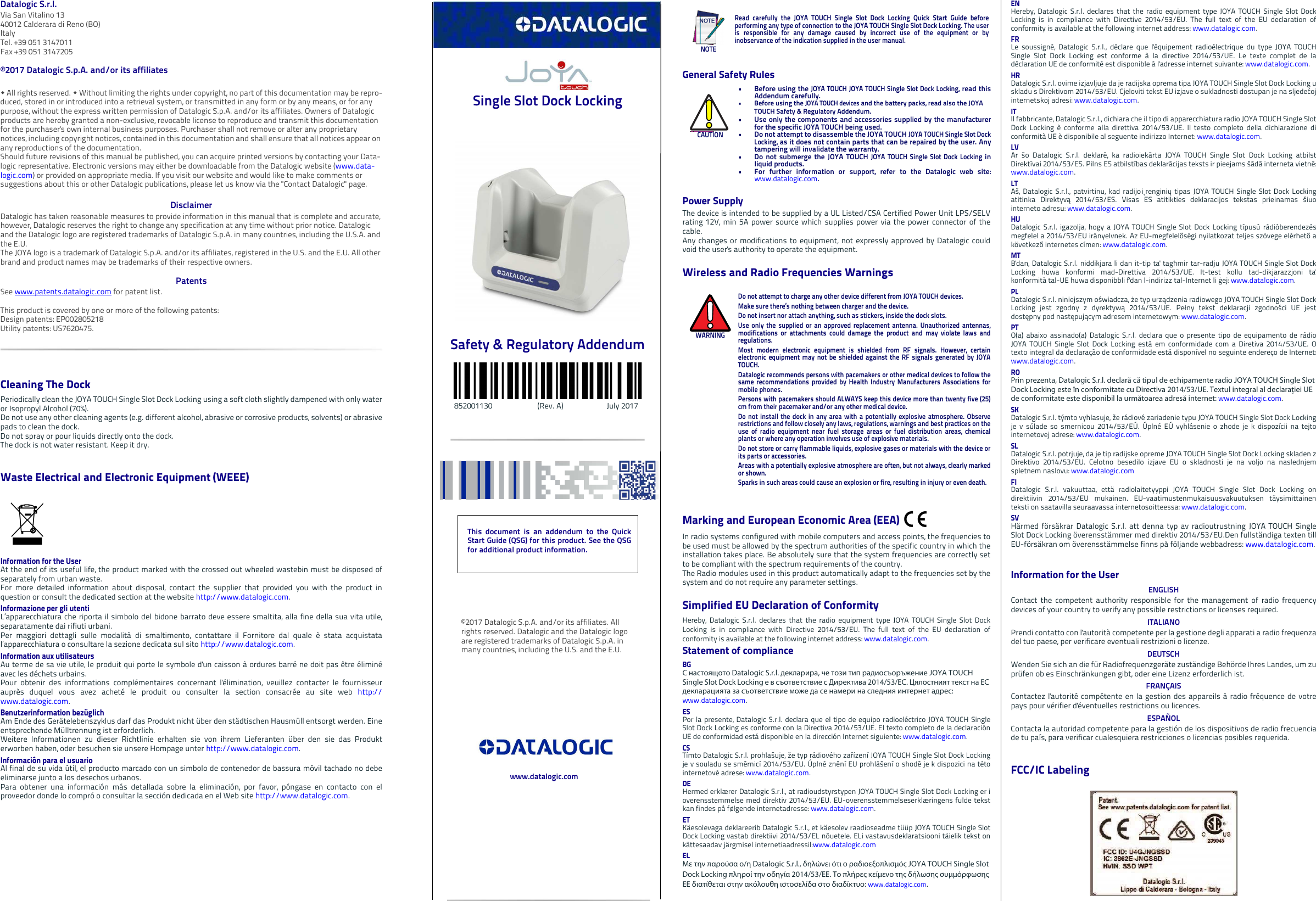

Datalogic S.r.l.Via San Vitalino 1340012 Calderara di Reno (BO) ItalyTel. +39 051 3147011Fax +39 051 3147205©2017 Datalogic S.p.A. and/or its affiliates  All rights reserved.  Without limiting the rights under copyright, no part of this documentation may be repro-duced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A. and/or its affiliates. Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and shall ensure that all notices appear on any reproductions of the documentation.Should future revisions of this manual be published, you can acquire printed versions by contacting your Data-logic representative. Electronic versions may either be downloadable from the Datalogic website (www.data-logic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.DisclaimerDatalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. The JOYA logo is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. and the E.U. All other brand and product names may be trademarks of their respective owners.PatentsSee www.patents.datalogic.com for patent list.This product is covered by one or more of the following patents:Design patents: EP002805218 Utility patents: US7620475. Cleaning The DockPeriodically clean the JOYA TOUCH Single Slot Dock Locking using a soft cloth slightly dampened with only wateror Isopropyl Alcohol (70%).Do not use any other cleaning agents (e.g. different alcohol, abrasive or corrosive products, solvents) or abrasivepads to clean the dock. Do not spray or pour liquids directly onto the dock. The dock is not water resistant. Keep it dry.Waste Electrical and Electronic Equipment (WEEE) Information for the UserAt the end of its useful life, the product marked with the crossed out wheeled wastebin must be disposed ofseparately from urban waste.For more detailed information about disposal, contact the supplier that provided you with the product inquestion or consult the dedicated section at the website http://www.datalogic.com.Informazione per gli utentiL’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della sua vita utile,separatamente dai rifiuti urbani.Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata acquistatal’apparecchiatura o consultare la sezione dedicata sul sito http://www.datalogic.com.Information aux utilisateursAu terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas être éliminéavec les déchets urbains.Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le fournisseurauprès duquel vous avez acheté le produit ou consulter la section consacrée au site web http://www.datalogic.com.Benutzerinformation bezüglich Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen Hausmüll entsorgt werden. Eineentsprechende Mülltrennung ist erforderlich. Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkterworben haben, oder besuchen sie unsere Hompage unter http://www.datalogic.com.Información para el usuarioAl final de su vida útil, el producto marcado con un simbolo de contenedor de bassura móvil tachado no debeeliminarse junto a los desechos urbanos.Para obtener una información más detallada sobre la eliminación, por favor, póngase en contacto con elproveedor donde lo compró o consultar la sección dedicada en el Web site http://www.datalogic.com. Single Slot Dock Locking Safety & Regulatory Addendum 852001130 (Rev. A) July 2017General Safety RulesPower SupplyThe device is intended to be supplied by a UL Listed/CSA Certified Power Unit LPS/SELVrating 12V, min 5A power source which supplies power via the power connector of thecable. Any changes or modifications to equipment, not expressly approved by Datalogic couldvoid the user's authority to operate the equipment.Wireless and Radio Frequencies WarningsMarking and European Economic Area (EEA) In radio systems configured with mobile computers and access points, the frequencies tobe used must be allowed by the spectrum authorities of the specific country in which theinstallation takes place. Be absolutely sure that the system frequencies are correctly setto be compliant with the spectrum requirements of the country.The Radio modules used in this product automatically adapt to the frequencies set by thesystem and do not require any parameter settings.Simplified EU Declaration of ConformityHereby, Datalogic S.r.l. declares that the radio equipment type JOYA TOUCH Single Slot DockLocking is in compliance with Directive 2014/53/EU. The full text of the EU declaration ofconformity is available at the following internet address: www.datalogic.com.Statement of complianceBGС настоящото Datalogic S.r.l. декларира, че този тип радиосъоръжение JOYA TOUCH Single Slot Dock Locking е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: www.datalogic.com.ESPor la presente, Datalogic S.r.l. declara que el tipo de equipo radioeléctrico JOYA TOUCH SingleSlot Dock Locking es conforme con la Directiva 2014/53/UE. El texto completo de la declaraciónUE de conformidad está disponible en la dirección Internet siguiente: www.datalogic.com.CSTímto Datalogic S.r.l. prohlašuje, že typ rádiového zařízení JOYA TOUCH Single Slot Dock Lockingje v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na tétointernetové adrese: www.datalogic.com.DEHermed erklærer Datalogic S.r.l., at radioudstyrstypen JOYA TOUCH Single Slot Dock Locking er ioverensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekstkan findes på følgende internetadresse: www.datalogic.com.ETKäesolevaga deklareerib Datalogic S.r.l., et käesolev raadioseadme tüüp JOYA TOUCH Single SlotDock Locking vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst onkättesaadav järgmisel internetiaadressil:www.datalogic.comΕLΜε την παρούσα ο/η Datalogic S.r.l., δηλώνει ότι ο ραδιοεξοπλισμός JOYA TOUCH Single Slot Dock Locking πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: www.datalogic.com.NOTERead carefully the JOYA TOUCH Single Slot Dock Locking Quick Start Guide beforeperforming any type of connection to the JOYA TOUCH Single Slot Dock Locking. The useris responsible for any damage caused by incorrect use of the equipment or byinobservance of the indication supplied in the user manual.CAUTION• Before using the JOYA TOUCH JOYA TOUCH Single Slot Dock Locking, read thisAddendum carefully.• Before using the JOYA TOUCH devices and the battery packs, read also the JOYA TOUCH Safety & Regulatory Addendum.• Use only the components and accessories supplied by the manufacturerfor the specific JOYA TOUCH being used.• Do not attempt to disassemble the JOYA TOUCH JOYA TOUCH Single Slot DockLocking, as it does not contain parts that can be repaired by the user. Anytampering will invalidate the warranty.• Do not submerge the JOYA TOUCH JOYA TOUCH Single Slot Dock Locking inliquid products.• For further information or support, refer to the Datalogic web site:www.datalogic.com. WARNINGDo not attempt to charge any other device different from JOYA TOUCH devices.Make sure there’s nothing between charger and the device. Do not insert nor attach anything, such as stickers, inside the dock slots.Use only the supplied or an approved replacement antenna. Unauthorized antennas,modifications or attachments could damage the product and may violate laws andregulations.Most modern electronic equipment is shielded from RF signals. However, certainelectronic equipment may not be shielded against the RF signals generated by JOYATOUCH.Datalogic recommends persons with pacemakers or other medical devices to follow thesame recommendations provided by Health Industry Manufacturers Associations formobile phones.Persons with pacemakers should ALWAYS keep this device more than twenty five (25)cm from their pacemaker and/or any other medical device.Do not install the dock in any area with a potentially explosive atmosphere. Observerestrictions and follow closely any laws, regulations, warnings and best practices on theuse of radio equipment near fuel storage areas or fuel distribution areas, chemicalplants or where any operation involves use of explosive materials.Do not store or carry flammable liquids, explosive gases or materials with the device orits parts or accessories.Areas with a potentially explosive atmosphere are often, but not always, clearly markedor shown.Sparks in such areas could cause an explosion or fire, resulting in injury or even death.ENHereby, Datalogic S.r.l. declares that the radio equipment type JOYA TOUCH Single Slot DockLocking is in compliance with Directive 2014/53/EU. The full text of the EU declaration ofconformity is available at the following internet address: www.datalogic.com.FRLe soussigné, Datalogic S.r.l., déclare que l'équipement radioélectrique du type JOYA TOUCHSingle Slot Dock Locking est conforme à la directive 2014/53/UE. Le texte complet de ladéclaration UE de conformité est disponible à l'adresse internet suivante: www.datalogic.com.HRDatalogic S.r.l. ovime izjavljuje da je radijska oprema tipa JOYA TOUCH Single Slot Dock Locking uskladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećojinternetskoj adresi: www.datalogic.com.ITIl fabbricante, Datalogic S.r.l., dichiara che il tipo di apparecchiatura radio JOYA TOUCH Single SlotDock Locking è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione diconformità UE è disponibile al seguente indirizzo Internet: www.datalogic.com.LVAr šo Datalogic S.r.l. deklarē, ka radioiekārta JOYA TOUCH Single Slot Dock Locking atbilstDirektīvai 2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē:www.datalogic.com.LTAš, Datalogic S.r.l., patvirtinu, kad radijo įrenginių tipas JOYA TOUCH Single Slot Dock Lockingatitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuointerneto adresu: www.datalogic.com.HUDatalogic S.r.l. igazolja, hogy a JOYA TOUCH Single Slot Dock Locking típusú rádióberendezésmegfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető akövetkező internetes címen: www.datalogic.com.MTB'dan, Datalogic S.r.l. niddikjara li dan it-tip ta' tagħmir tar-radju JOYA TOUCH Single Slot DockLocking huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta'konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: www.datalogic.com.PLDatalogic S.r.l. niniejszym oświadcza, że typ urządzenia radiowego JOYA TOUCH Single Slot DockLocking jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jestdostępny pod następującym adresem internetowym: www.datalogic.com.PTO(a) abaixo assinado(a) Datalogic S.r.l. declara que o presente tipo de equipamento de rádioJOYA TOUCH Single Slot Dock Locking está em conformidade com a Diretiva 2014/53/UE. Otexto integral da declaração de conformidade está disponível no seguinte endereço de Internet:www.datalogic.com.ROPrin prezenta, Datalogic S.r.l. declară că tipul de echipamente radio JOYA TOUCH Single Slot Dock Locking este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: www.datalogic.com.SKDatalogic S.r.l. týmto vyhlasuje, že rádiové zariadenie typu JOYA TOUCH Single Slot Dock Lockingje v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejtointernetovej adrese: www.datalogic.com.SLDatalogic S.r.l. potrjuje, da je tip radijske opreme JOYA TOUCH Single Slot Dock Locking skladen zDirektivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjemspletnem naslovu: www.datalogic.comFIDatalogic S.r.l. vakuuttaa, että radiolaitetyyppi JOYA TOUCH Single Slot Dock Locking ondirektiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainenteksti on saatavilla seuraavassa internetosoitteessa: www.datalogic.com.SVHärmed försäkrar Datalogic S.r.l. att denna typ av radioutrustning JOYA TOUCH SingleSlot Dock Locking överensstämmer med direktiv 2014/53/EU.Den fullständiga texten tillEU-försäkran om överensstämmelse finns på följande webbadress: www.datalogic.com.Information for the UserENGLISHContact the competent authority responsible for the management of radio frequencydevices of your country to verify any possible restrictions or licenses required. ITALIANOPrendi contatto con l'autorità competente per la gestione degli apparati a radio frequenzadel tuo paese, per verificare eventuali restrizioni o licenze. DEUTSCHWenden Sie sich an die für Radiofrequenzgeräte zuständige Behörde Ihres Landes, um zuprüfen ob es Einschränkungen gibt, oder eine Lizenz erforderlich ist. FRANÇAISContactez l'autorité compétente en la gestion des appareils à radio fréquence de votrepays pour vérifier d'éventuelles restrictions ou licences. ESPAÑOLContacta la autoridad competente para la gestión de los dispositivos de radio frecuenciade tu país, para verificar cualesquiera restricciones o licencias posibles requerida. FCC/IC Labeling This document is an addendum to the QuickStart Guide (QSG) for this product. See the QSGfor additional product information.©2017 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U.www.datalogic.com
">
