Datalogic S r l JNGSSDLITE Joya Touch Single Slot Dock Charge Only User Manual 822002530

Datalogic S.r.l. Joya Touch Single Slot Dock Charge Only 822002530

Contents

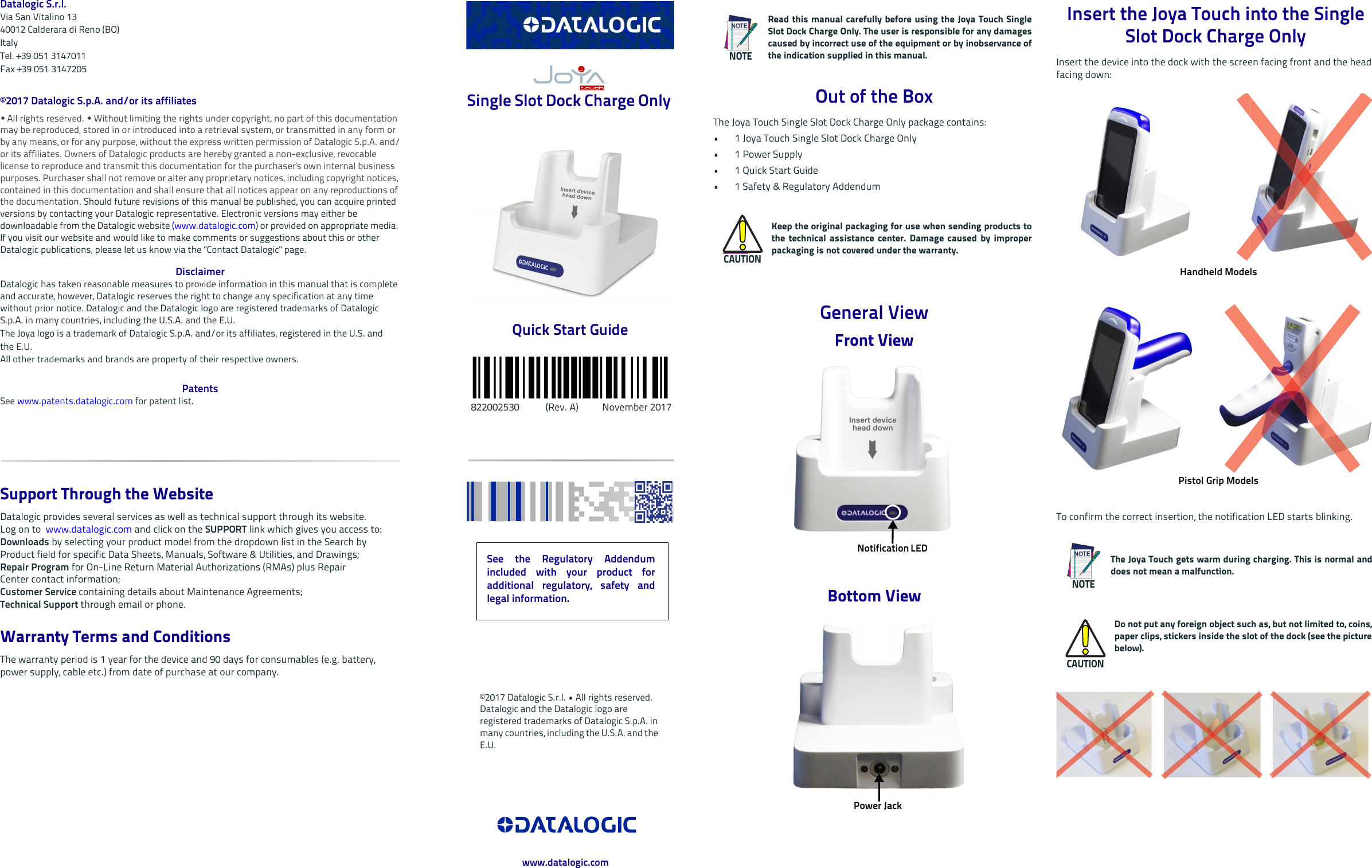

Quick start guide

Datalogic S.r.l.Via San Vitalino 1340012 Calderara di Reno (BO) ItalyTel. +39 051 3147011Fax +39 051 3147205©2017 Datalogic S.p.A. and/or its affiliates  All rights reserved.  Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A. and/or its affiliates. Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and shall ensure that all notices appear on any reproductions of the documentation. Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.DisclaimerDatalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. The Joya logo is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. andthe E.U. All other trademarks and brands are property of their respective owners.PatentsSee www.patents.datalogic.com for patent list.Support Through the WebsiteDatalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT link which gives you access to:Downloads by selecting your product model from the dropdown list in the Search byProduct field for specific Data Sheets, Manuals, Software & Utilities, and Drawings;Repair Program for On-Line Return Material Authorizations (RMAs) plus RepairCenter contact information;Customer Service containing details about Maintenance Agreements;Technical Support through email or phone.Warranty Terms and ConditionsThe warranty period is 1 year for the device and 90 days for consumables (e.g. battery, power supply, cable etc.) from date of purchase at our company. Single Slot Dock Charge Only Quick Start Guide 822002530 (Rev. A) November 2017Out of the BoxThe Joya Touch Single Slot Dock Charge Only package contains:• 1 Joya Touch Single Slot Dock Charge Only• 1 Power Supply •1 Quick Start Guide• 1 Safety & Regulatory AddendumGeneral ViewFront ViewBottom ViewNOTERead this manual carefully before using the Joya Touch SingleSlot Dock Charge Only. The user is responsible for any damagescaused by incorrect use of the equipment or by inobservance ofthe indication supplied in this manual.CAUTIONKeep the original packaging for use when sending products tothe technical assistance center. Damage caused by improperpackaging is not covered under the warranty.Notification LED Power Jack Insert the Joya Touch into the Single Slot Dock Charge Only Insert the device into the dock with the screen facing front and the head facing down:To confirm the correct insertion, the notification LED starts blinking.NOTEThe Joya Touch gets warm during charging. This is normal anddoes not mean a malfunction.CAUTIONDo not put any foreign object such as, but not limited to, coins,paper clips, stickers inside the slot of the dock (see the picturebelow).Handheld ModelsPistol Grip ModelsSee the Regulatory Addendumincluded with your product foradditional regulatory, safety andlegal information.©2017 Datalogic S.r.l. • All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. www.datalogic.com

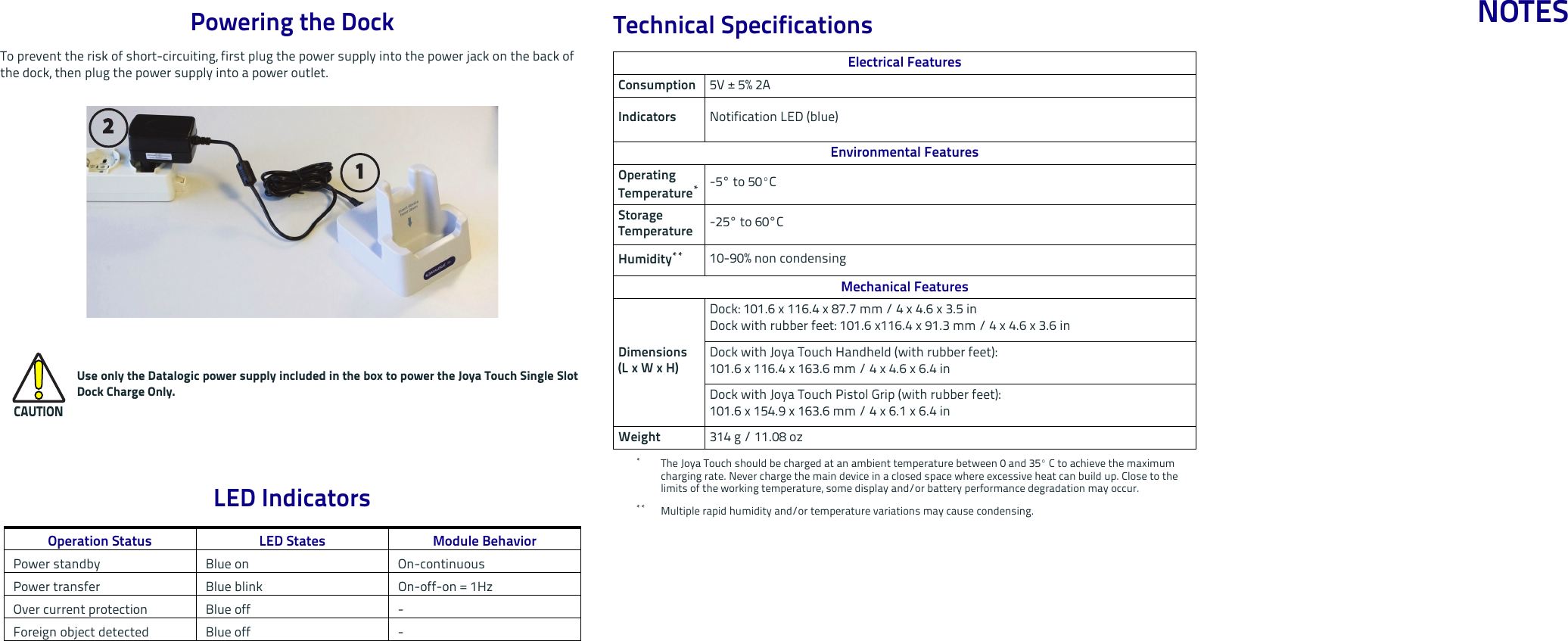

Powering the DockTo prevent the risk of short-circuiting, first plug the power supply into the power jack on the back of the dock, then plug the power supply into a power outlet. LED IndicatorsCAUTIONUse only the Datalogic power supply included in the box to power the Joya Touch Single SlotDock Charge Only.Operation Status LED States Module BehaviorPower standby Blue on On-continuousPower transfer Blue blink On-off-on = 1HzOver current protection Blue off -Foreign object detected Blue off -112Technical SpecificationsElectrical FeaturesConsumption 5V ± 5% 2A Indicators Notification LED (blue)Environmental FeaturesOperating Temperature**The Joya Touch should be charged at an ambient temperature between 0 and 35º C to achieve the maximum charging rate. Never charge the main device in a closed space where excessive heat can build up. Close to the limits of the working temperature, some display and/or battery performance degradation may occur.-5° to 50ºC Storage Temperature -25° to 60°CHumidity**** Multiple rapid humidity and/or temperature variations may cause condensing.10-90% non condensing Mechanical FeaturesDimensions(L x W x H)Dock: 101.6 x 116.4 x 87.7 mm / 4 x 4.6 x 3.5 inDock with rubber feet: 101.6 x116.4 x 91.3 mm / 4 x 4.6 x 3.6 inDock with Joya Touch Handheld (with rubber feet): 101.6 x 116.4 x 163.6 mm / 4 x 4.6 x 6.4 inDock with Joya Touch Pistol Grip (with rubber feet): 101.6 x 154.9 x 163.6 mm / 4 x 6.1 x 6.4 inWeight 314 g / 11.08 ozNOTES
