Datalogic S r l JTADG Multi-purpose mobile computer with barcode reader User Manual 822002700

Datalogic S.r.l. Multi-purpose mobile computer with barcode reader 822002700

Contents

Users Manual quick guide

Datalogic S.r.l.Via San Vitalino 1340012 Calderara di Reno (BO) ItalyTel. +39 051 3147011Fax +39 051 3147205©2018 Datalogic S.p.A. and/or its affiliates  All rights reserved.  Without limiting the rights under copyright, no part of thisdocumentation may be reproduced, stored in or introduced into a retrieval system, ortransmitted in any form or by any means, or for any purpose, without the express writtenpermission of Datalogic S.p.A. and/or its affiliates. Owners of Datalogic products are herebygranted a non-exclusive, revocable license to reproduce and transmit this documentationfor the purchaser's own internal business purposes. Purchaser shall not remove or alterany proprietary notices, including copyright notices, contained in this documentation andshall ensure that all notices appear on any reproductions of the documentation. Shouldfuture revisions of this manual be published, you can acquire printed versions by contactingyour Datalogic representative. Electronic versions may either be downloadable from theDatalogic website (www.datalogic.com) or provided on appropriate media. If you visit ourwebsite and would like to make comments or suggestions about this or other Datalogicpublications, please let us know via the "Contact Datalogic" page.DisclaimerDatalogic has taken reasonable measures to provide information in this manual that iscomplete and accurate, however, Datalogic reserves the right to change any specification atany time without prior notice.Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in manycountries, including the U.S.A. and the E.U. The Joya logo is a trademark of Datalogic S.p.A.and/or its affiliates, registered in the U.S. and the E.U. All other trademarks and brands areproperty of their respective owners.PatentsSee www.patents.datalogic.com for patent list.Reference DocumentationFor further information regarding Joya Touch A6 refer to the SDK Help on-line and to theJoya Touch A6 User’s Manual, downloadable from our website www.datalogic.com.Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT link which gives you access to:Downloads by selecting your product model from the dropdown list in the Search byProduct field for specific Data Sheets, Manuals, Software & Utilities, and Drawings;Repair Program for On-Line Return Material Authorizations (RMAs) plus RepairCenter contact information;Customer Service containing details about Maintenance Agreements;Technical Support through email or phone.Warranty Terms and ConditionsThe warranty period is 1 year for the device and 90 days for consumables (e.g. battery,power supply, cable etc.) from date of purchase at our company. Multi-Purpose Device for Retail Quick Start Guide 822002700 (Rev. A) March 2018Out of the BoxThe Joya Touch A6 package contains: • Joya Touch A6 (device with battery included)•Quick Start Guide•Safety & Regulatory AddendumRemove all the components from their packaging; check their integrityand compare them with all the packing documents.General ViewFront ViewBack ViewTop ViewCAUTIONKeep the original packaging for use when sending products tothe technical assistance center. Damage caused by improperpackaging is not covered under the warranty.Touch Panel DisplayScan KeyLaser Safety LabelProduct LabelPower KeyData Capture WindowSide ViewPistol Grip ModelsHandheld ModelsMicro USB PortScan TriggerSee the Safety & Regulatory Addendumincluded with your product for additionalregulatory, safety and legal information.©2018 Datalogic S.p.A. and/or itsaffiliates. All rights reserved. Datalogicand the Datalogic logo are registeredtrademarks of Datalogic S.p.A. in manycountries, including the U.S. and the E.U.www.datalogic.com

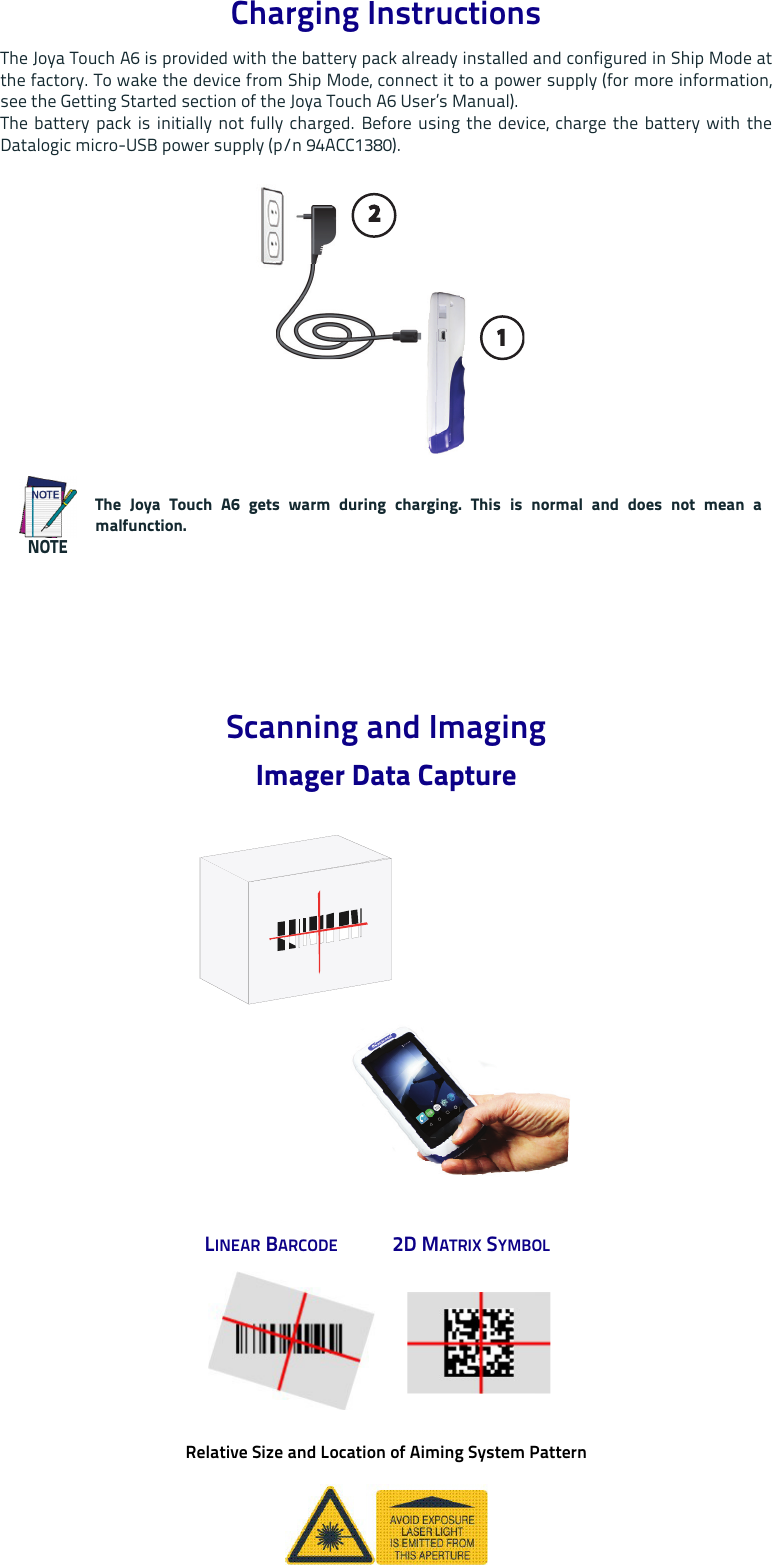

Charging InstructionsThe Joya Touch A6 is provided with the battery pack already installed and configured in Ship Mode atthe factory. To wake the device from Ship Mode, connect it to a power supply (for more information,see the Getting Started section of the Joya Touch A6 User’s Manual).The battery pack is initially not fully charged. Before using the device, charge the battery with theDatalogic micro-USB power supply (p/n 94ACC1380).Scanning and ImagingImager Data CaptureRelative Size and Location of Aiming System PatternNOTEThe Joya Touch A6 gets warm during charging. This is normal and does not mean amalfunction.LINEAR BARCODE 2D MATRIX SYMBOL112
