User Manual
1

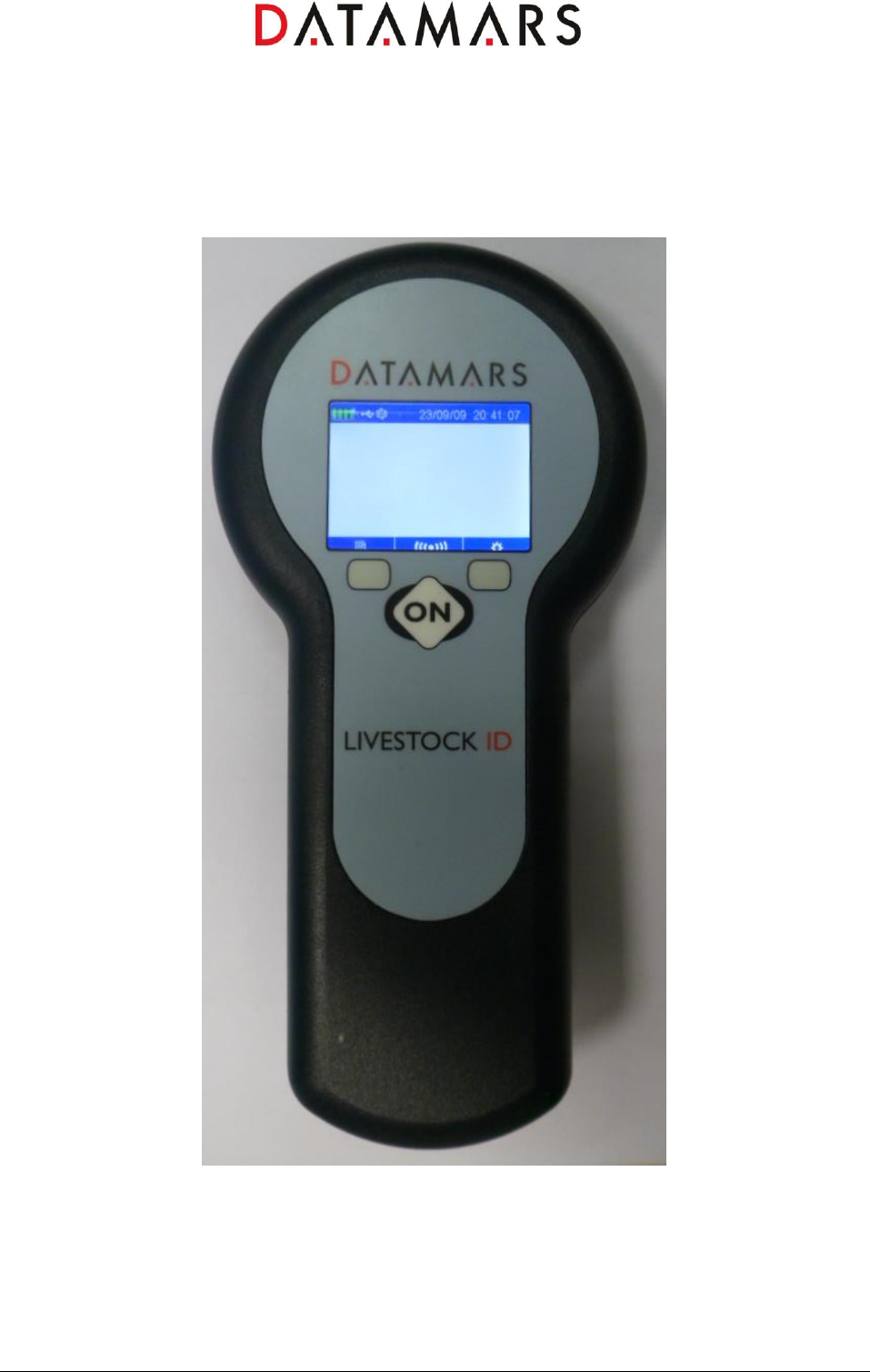

TracKing-1 User Manual
Portable Reader for Livestock ID
TracKing-1 Manual – v. 1.0 December 2013 2
Contents :
1 DESCRIPTION ................................................................................................................................. 3
2 SCREEN NAVIGATION .................................................................................................................... 4
2.1 DESCRIPTION .......................................................................................................................................4
2.2 ICON DESCRIPTION ...............................................................................................................................5
3 MAIN FEATURES ............................................................................................................................. 6
3.1 READ AND STORE UID ..........................................................................................................................6
3.2 USB CONNECTION ...............................................................................................................................6
3.3 DISPLAY VIEW ......................................................................................................................................7
4 CONNECT YOUR TRACKING-1 TO A PC ...................................................................................... 8
4.1 INTRODUCTION ....................................................................................................................................8
4.2 USB MASS STORAGE ..........................................................................................................................8
4.3 USB VIRTUAL COM PORT ....................................................................................................................8
4.4 USB KEYBOARD WEDGE ......................................................................................................................8
5 TAKE CARE OF YOUR READER .................................................................................................... 9
6 SPECIFICATIONS .......................................................................................................................... 10
7 DO YOU HAVE A PROBLEM IDENTIFYING AN ANIMAL? .......................................................... 11
7.1 THE READING DISTANCE IS TOO SHORT ............................................................................................... 11
7.2 THE SCANNER DOES NOT READ THE TRANSPONDER ............................................................................ 11
7.3 THE SCANNER DOES NOT WORK ......................................................................................................... 11
8 INFORMATION TO USER .............................................................................................................. 12
8.1 FCC PART 15 ................................................................................................................................... 12
8.2 IC RSS 210 ..................................................................................................................................... 12
9 CERTIFICATIONS .......................................................................................................................... 13
9.1 EUROPEAN DIRECTIVES ..................................................................................................................... 13
9.2 AMERICAN DIRECTIVES ...................................................................................................................... 13
10 END OF LIFE .................................................................................................................................. 14
10.1 DISASSEMBLY INSTRUCTIONS FOR TRACKING-1 READER ................................................................. 14
10.2 TOOLS REQUIRED ......................................................................................................................... 14
10.3 PRODUCT DISASSEMBLY PROCESS ................................................................................................ 14
TracKing-1 Manual – v. 1.0 December 2013 3

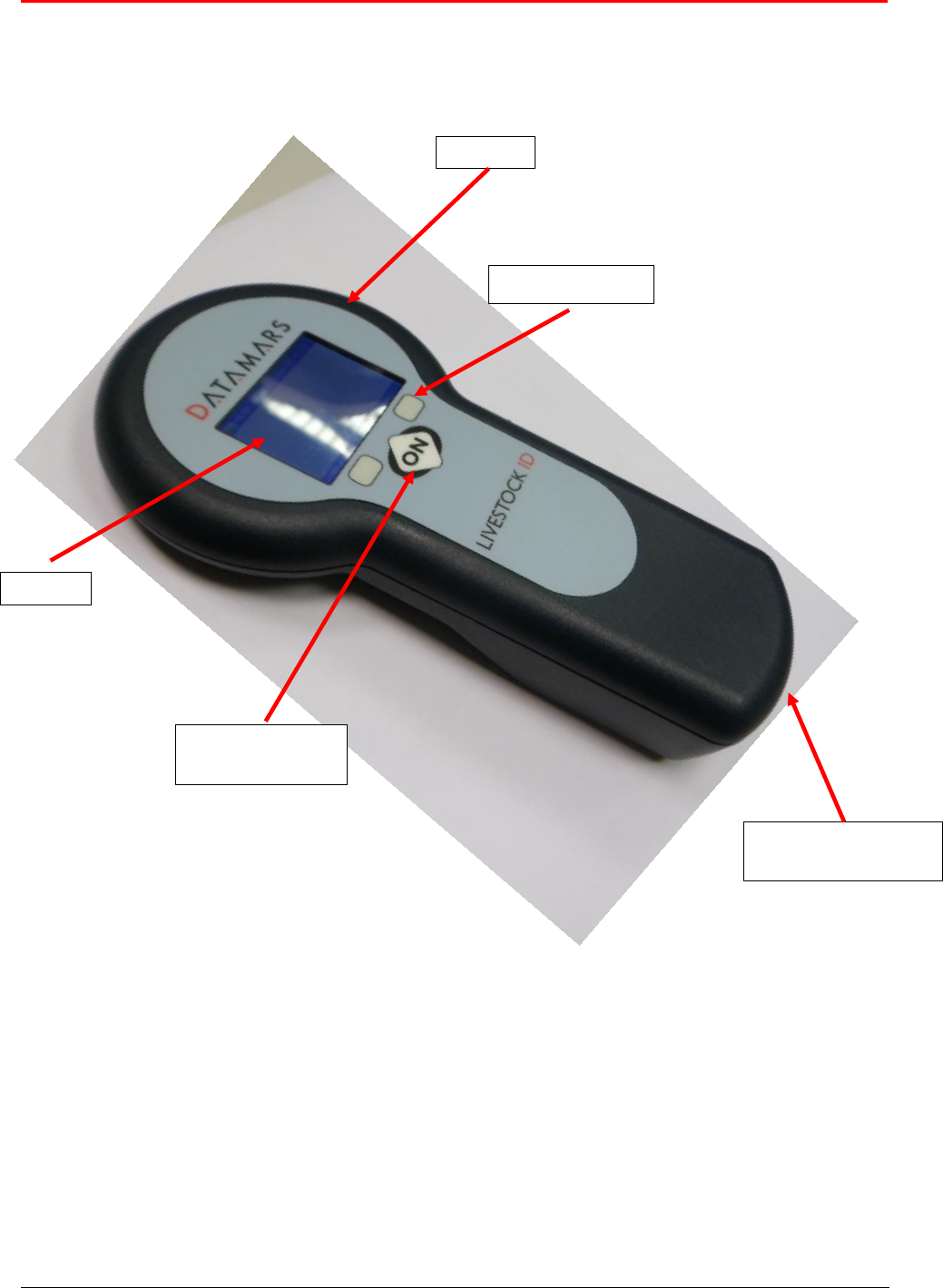

1 Description
Antenna
Contextual keys
Display
Power ON & Start
reading button
Mini USB
communication port
TracKing-1 Manual – v. 1.0 December 2013 4

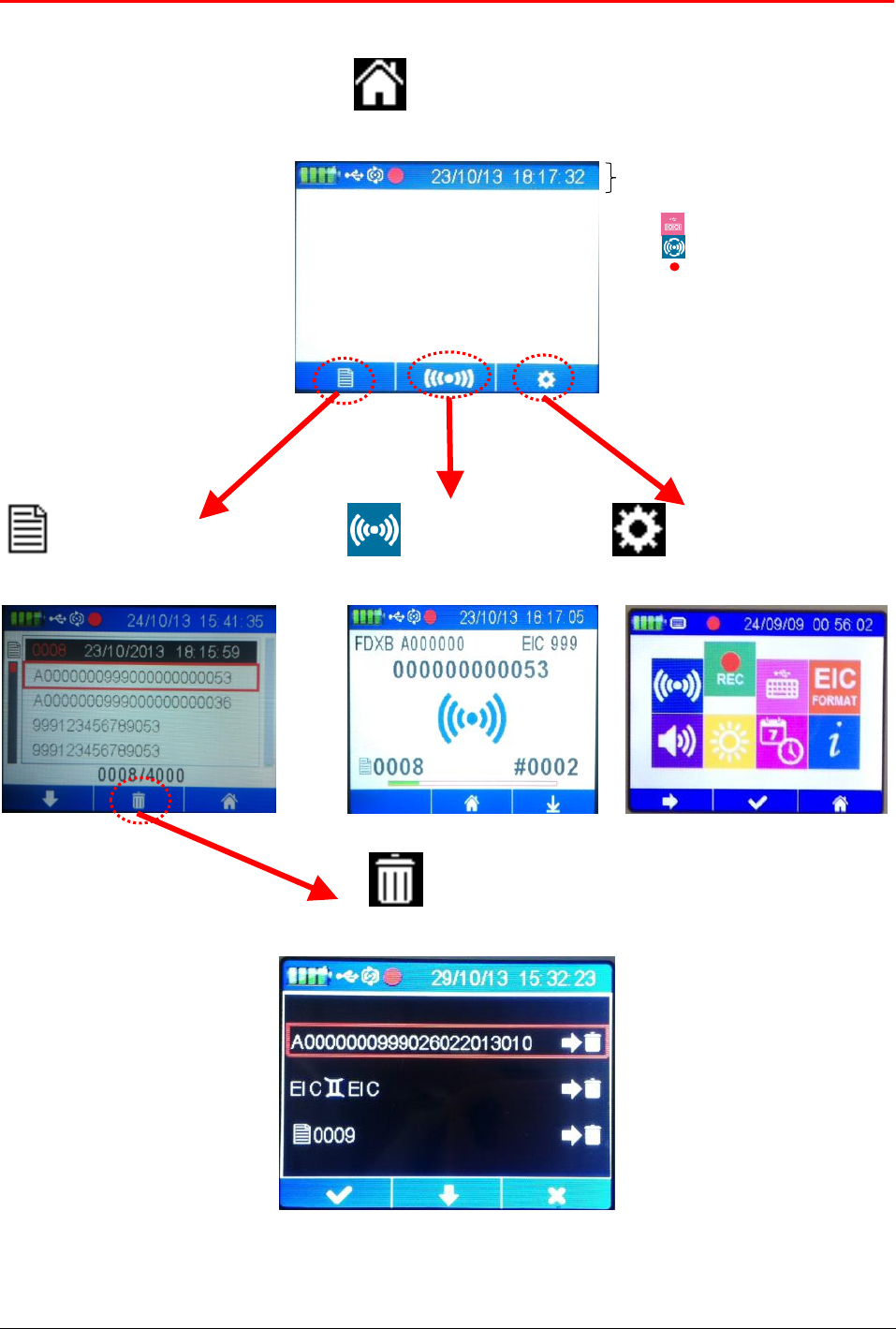

2 Screen navigation
2.1 Description
HOME
Active screen after power up.
EID Memory File Read Settings
Shows codes stored in memory Display when a tag is read Gives access to reader settings
Delete
To delete one code, duplicate codes or the whole memory
Setting status bar
Current example:
USB in VCP mode
Continuous reading mode
Data recording turned ON
TracKing-1 Manual – v. 1.0 December 2013 5

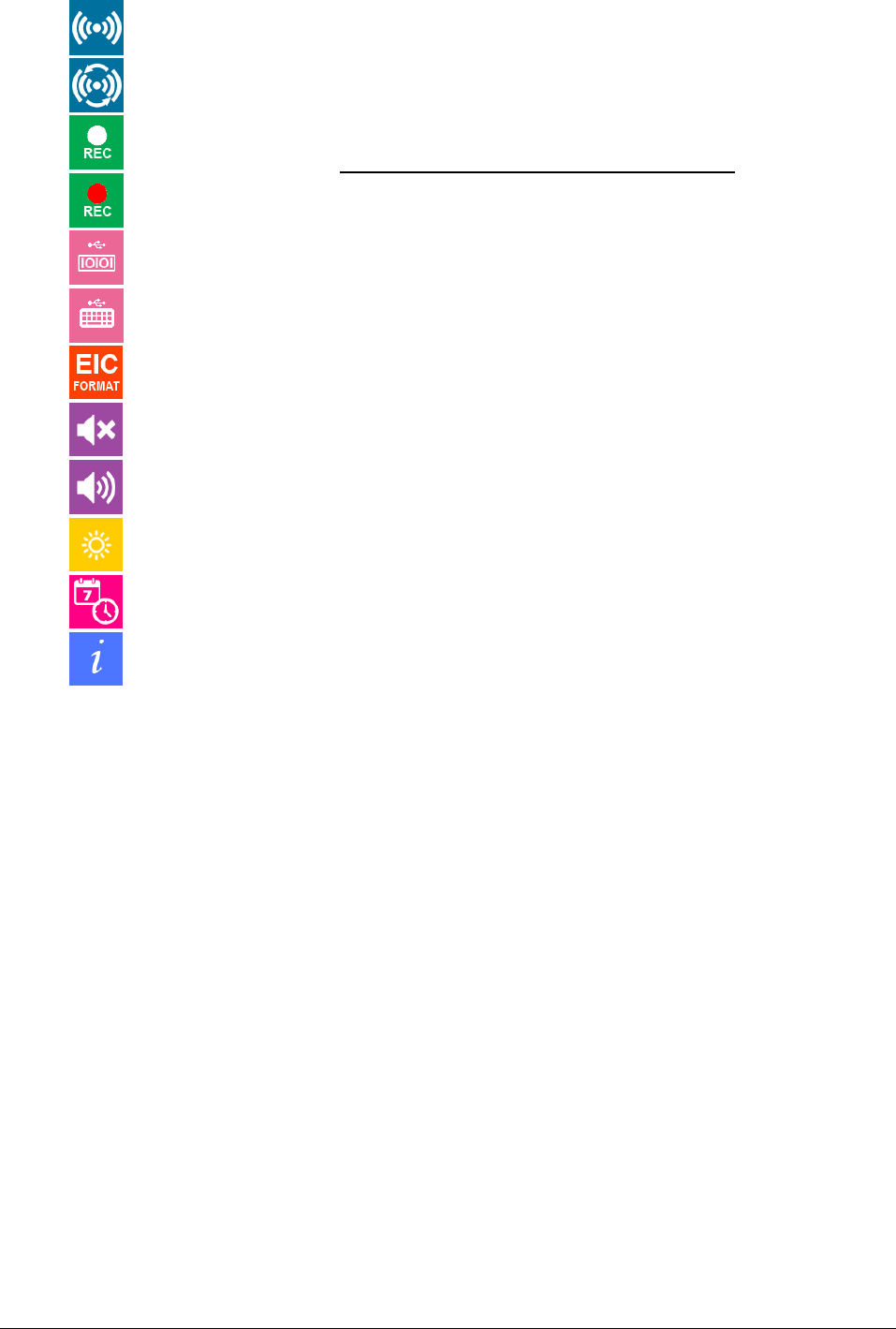

2.2 Icon description
Single reading mode
Continuous reading mode
Code recording OFF Warning: if Rec is OFF, codes are not stored
Code recording ON
USB connection in Virtual Com Port mode
USB connection in Keyboard Wedge mode
Format of the electronic code
Audio OFF
Audio ON
Display brightness
Time and Date settings
Firmware version
TracKing-1 Manual – v. 1.0 December 2013 6
3 Main features
3.1 Read and store UID
Code recording OFF Warning: if Rec is OFF, codes are not stored
Code recording ON
Single reading mode: Each click of the ON button will start a reading session if present read a tag
and reading will turned OFF.
Continuous reading mode: One click of the ON button will start a reading session and it will stay ON
until the ON button will clicked again or time-out occurs.
3.2 USB connection
To read the ID codes stored in the reader’s memory via USB, THE READER MUST BE TURNED OFF.
If the reader is turned ON while connected to a PC, the reader will behave as a PC peripheral and ID
Codes will be sent to the PC via the USB cable at each reading. Support two interfaces:
Keyboard wedge: the TracKing-1 is see by the PC as a keyboard. The codes will displayed on the
PC screen in any window where a mouse cursor is active. No configuration on the PC is need.
VCP: TracKing-1 is connect to one of the Virtual Com Ports of the PC and sends the codes using
RS232 protocol. Codes are received on a hyper-terminal or using Datamars S-ID companion SW.
(Requires a specific PC driver that can be downloaded from www.datamars.com)
TracKing-1 Manual – v. 1.0 December 2013 7

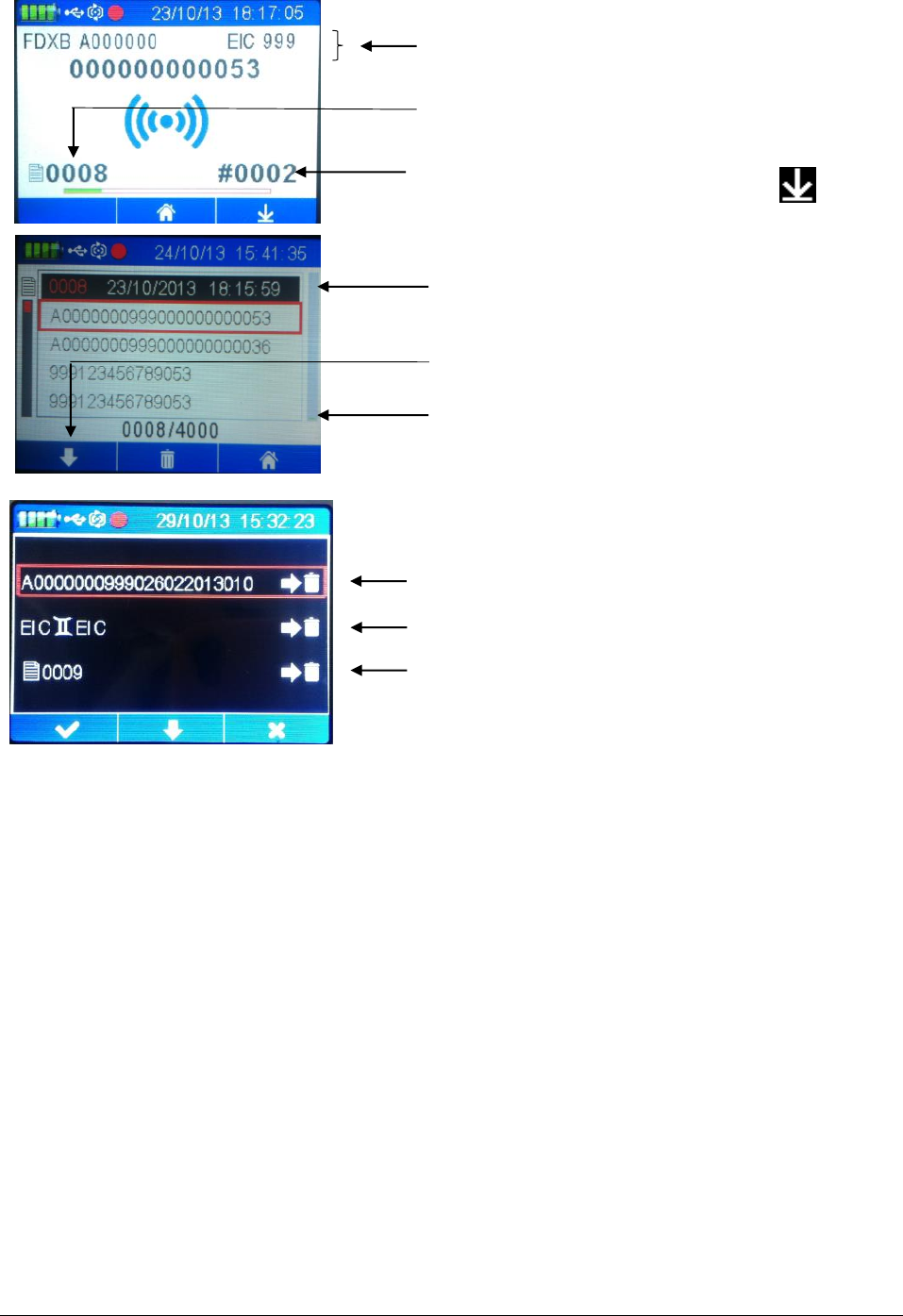

3.3 Display view
EID code
File index: shows how many codes are stored in memory
User Counter: It is incremented when a new code is read
and it can be reset anytime by clicking on .
Shows the position of the code in the memory file (0008th in
this example) and when the code has been read (on the 23th
of October 2013 at 18:15:59)
The arrow allows moving from 1 code to the other. A longer
press will invert the arrow’s direction
Shows the TracKing-1 memory usage (8 codes stored out of
4’000 available)
Delete a given code
Delete duplicate codes
Delete the entire memory (in this example the memory contains
9 codes)
TracKing-1 Manual – v. 1.0 December 2013 8
4 Connect your TracKing-1 to a PC
4.1 Introduction
There are two principally reasons to connect your TracKing-1 reader to a PC. Once is to recharge your
TracKing-1 reader and the other is to communicate with him. You have three possibility to communicate with
the USB port, two are real time and the last one show the memory of the reader:
USB Mass Storage (MS)
USB Virtual Com Port (VCP)
USB Keyboard Wedge (KW)
4.2 USB Mass Storage
With this function you are able to connect the reader to the PC in order to have it same as a USB storage
pen.
Always when you connect the reader to the PC, the battery will be go in charging mode, but in this state, you
cannot use the reader for reading sessions.
4.3 USB Virtual Com Port
This function allows communicating with the PC as with a serial cable, but you do not need a RS232 serial
cable.
Also with this functionality when connected to the PC will be charging the battery of the reader, with the
difference respect the USB Mass Storage you can use the reader also for reading sessions.
4.4 USB Keyboard Wedge
This function allows using the reader as a keyboard, in order to print in your database the UI just read.
Also with this functionality when connected to the PC will be charging the battery of the reader, with the
difference respect the USB Mass Storage you can use the reader also for reading sessions.
TracKing-1 Manual – v. 1.0 December 2013 9
5 Take care of your reader
Ensure that the reader was not be damaged. Do not drop it onto a hard surface or subject it to very wet
conditions.
If the outer casing of the reader becomes soiled, it can cleaned with a damp cloth. First, ensure that it is not
connect to the charger.
If for any reason the reader is not working, please do not attempt to repair it, but return it for repair to your
local dealer.
The TracKing-1 reader is equipped with Li-Ion type battery. This battery lasts longer and does not contain
Cadmium or lead, which makes it much safer for the environment. If the reader has to be destroyed, please
return it to a battery specialist for battery recycling.
The display of the reader TracKing-1 may change color if exposed to temperatures higher than 50°C. It will
return to its original color as soon as the temperature gets below 50°C.
At very low temperatures, the display may lose its contrast, but at normal temperatures, it will return to its
normal contrast.
TracKing-1 Manual – v. 1.0 December 2013 10
6 Specifications
1. Storage temperature: -20 to +65 °C, 85% RH, non-condensing
2. Normal operating temperature: -5 to +55 °C, 85% RH non-condensing
3. Standards: ISO11784/5, ISO11784-AMD1 and ISO24631-2
4. External power supply: USB cable
5. Dimensions: 223 x 108 x 41 mm
6. TAG compatibility: FDX-B, HDX
7. Transmission frequency: 134.2 kHz
8. Battery life: >500 cycles
9. Weight: 326 g
10. Interfaces to host PC: USB
TracKing-1 Manual – v. 1.0 December 2013 11
7 Do you have a problem identifying an animal?
7.1 The reading distance is too short
The maximum reading distance is obtained with the transponder (tag) perpendicular to the antenna and
aimed at the center of the antenna coil. If the tag is implanted into an animal its orientation may not be optimal
and therefore the reading distance may be reduced.
You might be close to a source of electromagnetic disturbances like video or TV. Move a few meters away
and try again.
Do not use the scanner on a steel table. The metal will reduce the performance of the antenna.
The reading distance is reduced if the transponder is still in the needle.
7.2 The scanner does not read the transponder
Change the angle of the scanner and try again.
Some types of transponders from other manufacturers are disturbed if placed in the center of the reader-
antenna. It is possible that some tags will not function if placed in parallel and at the center of the antenna.
Change the direction of the tag or of the antenna.
7.3 The scanner does not work
Check the ambient temperature: it has to be between -5ºC and +45º C.
If you’re still having problems, please contact your dealer.
The TracKing-1 reader is a product developed and produced by DATAMARS, Switzerland.
Should you have any suggestions or require information regarding this or other DATAMARS products, please
contact your dealer.
TracKing-1 Manual – v. 1.0 December 2013 12
8 Information to user
8.1 FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Attention: The final product must have the ferrite fixed permanently to the power supply cable.
8.2 IC RSS 210
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
TracKing-1 Manual – v. 1.0 December 2013 13
9 Certifications
9.1 European directives
Datamars SA, Via ai Prati, CH-6930 Bedano declares, under its own responsibility, that the product TracKing-
1 is in accordance with the following standards:
ETSI EN 300 330-1 /
ETSI EN 300 330-2
Electromagnetic compatibility and Radio spectrum matters
(ERM) - Short Range Devices.
ETSI EN 301 489-1 /
ETSI EN 301 489-3
Electromagnetic compatibility (EMC) standard for radio
equipment and services.
IEC/EN 61000-4-2 /
IEC/EN 61000-4-3/
IEC/EN 61000-4-4/
IEC/EN 61000-4-6
Electrostatic discharge, electromagnetic field, electrical fast
transient/burst, radio-frequency fields’ immunity.
TracKingr-1 satisfies the essential requirements of directives 99/5/EC.
9.2 American directives
Datamars SA, Via ai Prati, CH-6930 Bedano declares, under its own responsibility, that the product
TracKingr-1 is in accordance with the following standards:
FCC Part 15B
Part 15 Class B Computing Device Peripheral
FCC Part 15C
Part 15 Low Power Transmitter Below 1705 kHz
TracKing-1 Manual – v. 1.0 December 2013 14
10 End of life
10.1 Disassembly Instructions for TracKing-1 reader
Product Name / Model
Description
TracKing-1 / Any models
Universal portable reader
Only authorized recyclers are permitted to use these disassembly instructions. Any attempted disassembly
by a user or unauthorized party will void the product warranty and may irreparably damage the product.
10.2 Tools Required
Tool Description
Tool Size (if applicable)
Nipper
Medium
Philips screwdriver (0)
Small
Cutter pliers
Medium
Hot Air Gun
Big

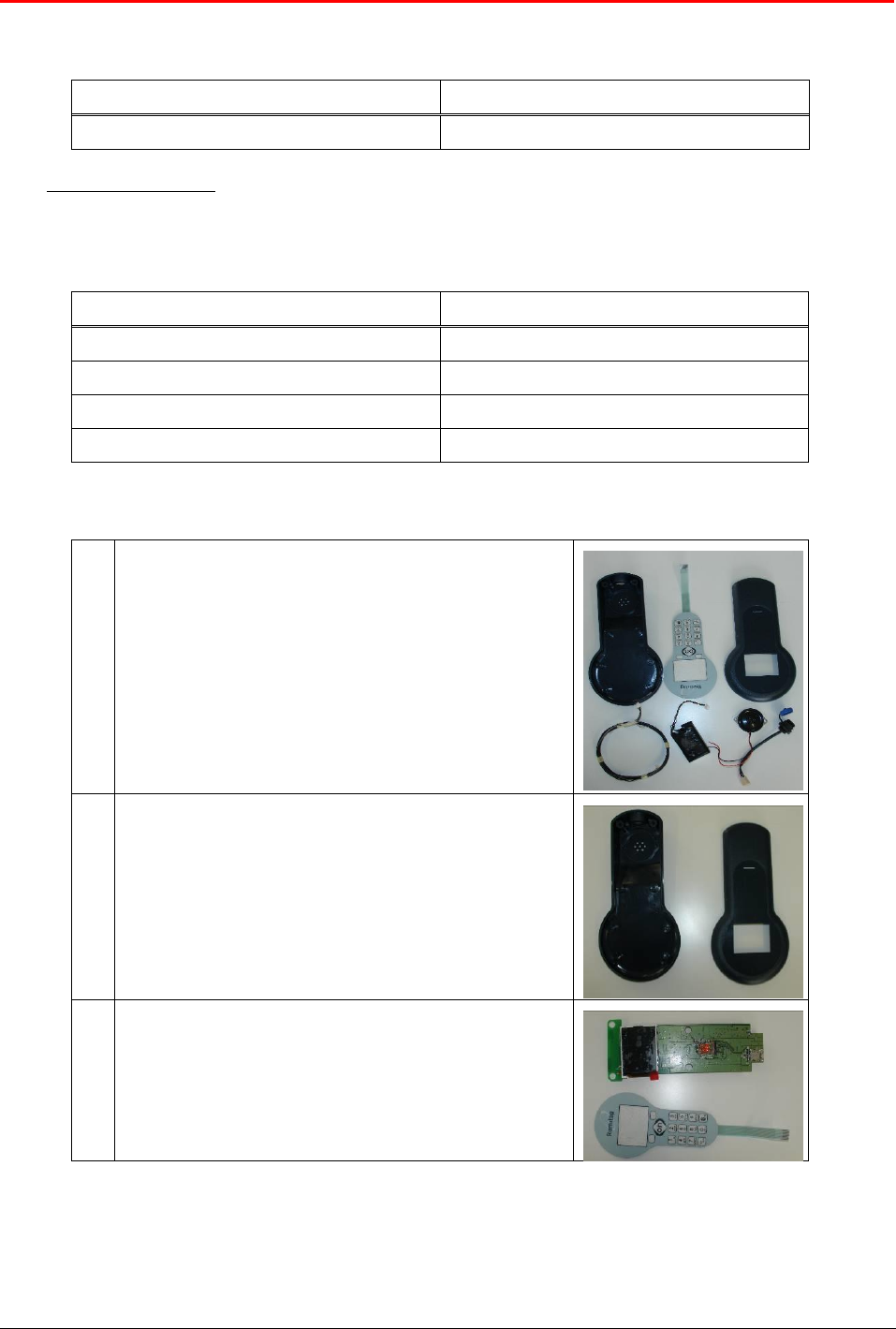

10.3 Product Disassembly Process
1
All external plastics have to be removed from the
reader (use Philips screwdriver to remove all
screws).
The Keypad has to be removed from the top
cover casing (use the Hot Air Gun with the cutter
pliers in order to easily remove the keypad).
The Mini USB cable and the battery have to be
removed from the bottom cover casing.
2
Dispose plastic parts of the reader in
accordance with local recycling laws.
3
Dispose electronics parts of the reader in
accordance with local recycling laws.
TracKing-1 Manual – v. 1.0 December 2013 15

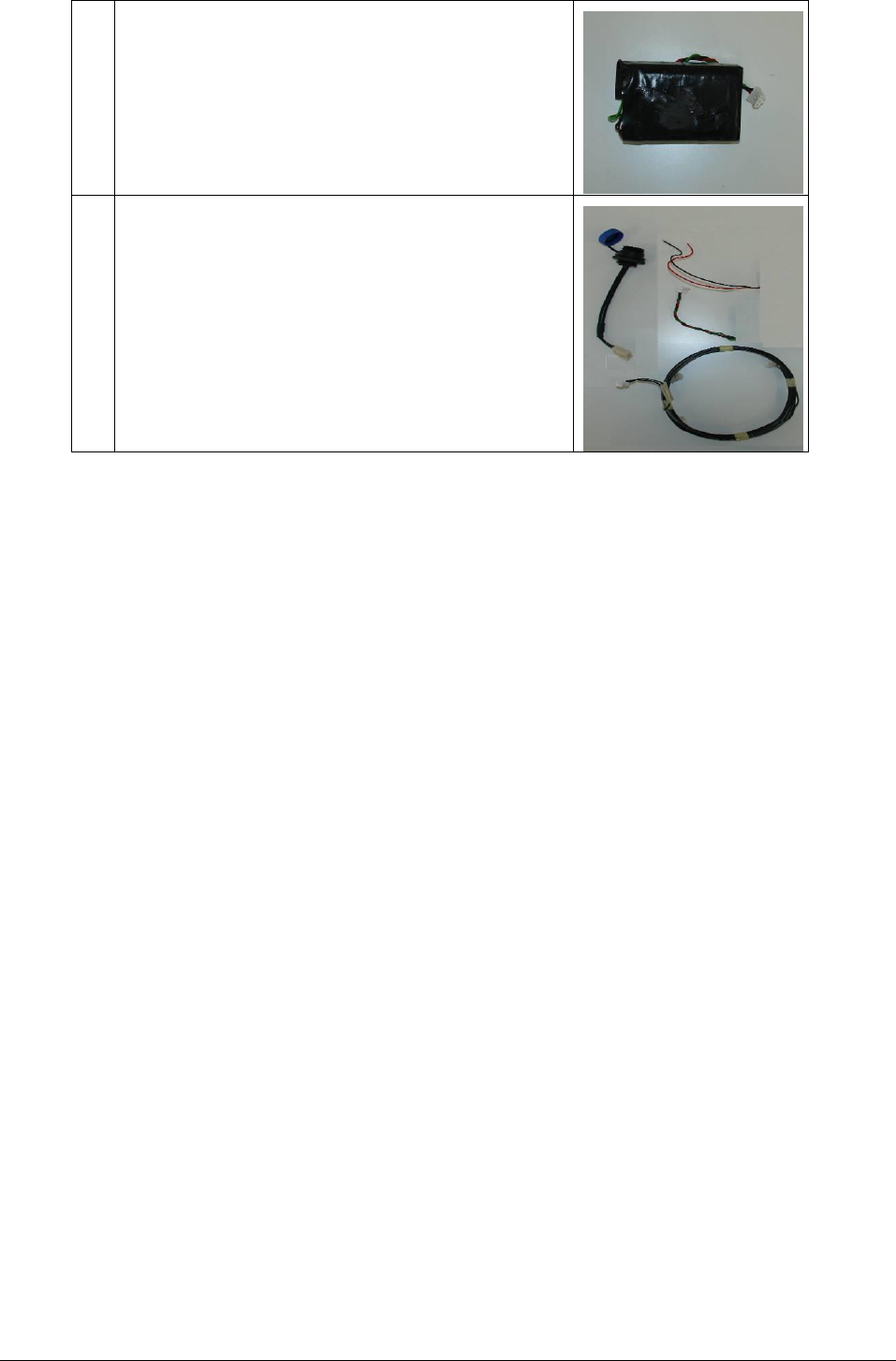

4
Remove cables from batteries (use the nipper to
do this operation).
Dispose batteries of the reader in accordance
with local recycling laws.
5
Dispose cables of the reader in accordance with
local recycling laws.
