Datamatic D4200 Spread Spectrum Tx User Manual Manual
Datamatic, Ltd Spread Spectrum Tx Manual
Manual
MOSAIC ENERGY FIREFLY®
USER TRAINING GUIDE
1.0.38.4
(Includes up to RR CX v3.26.4; FIREFLY D4200; D4300 CXMI 1.3)
Datamatic, LTD. System Training Manual Version 06.09.09
- 2 - Confidential Datamatic, Ltd. 2009
MOSAIC™ regulations and Warranty information....................................................................................3
FCC Regulations ......................................................................................................................................4
Introduction...............................................................................................................................................6
Equipment.................................................................................................................................................7
MOSAIC FIREFLY...............................................................................................................................7
Unique Features..................................................................................................................................7
FIREFLY Meter Interface Unit (MIU) – Electric ...................................................................................7
FIREFLY Meter Interface Unit (MIU) – MOSAIC Gas .........................................................................8
ROADRUNNER Handheld Computer..................................................................................................8
Installation Considerations........................................................................................................................9
Installation Supplies................................................................................................................................10
Electric Meter Install Kits ...................................................................................................................11
Gas FIREFLY Installation Equipment................................................................................................12

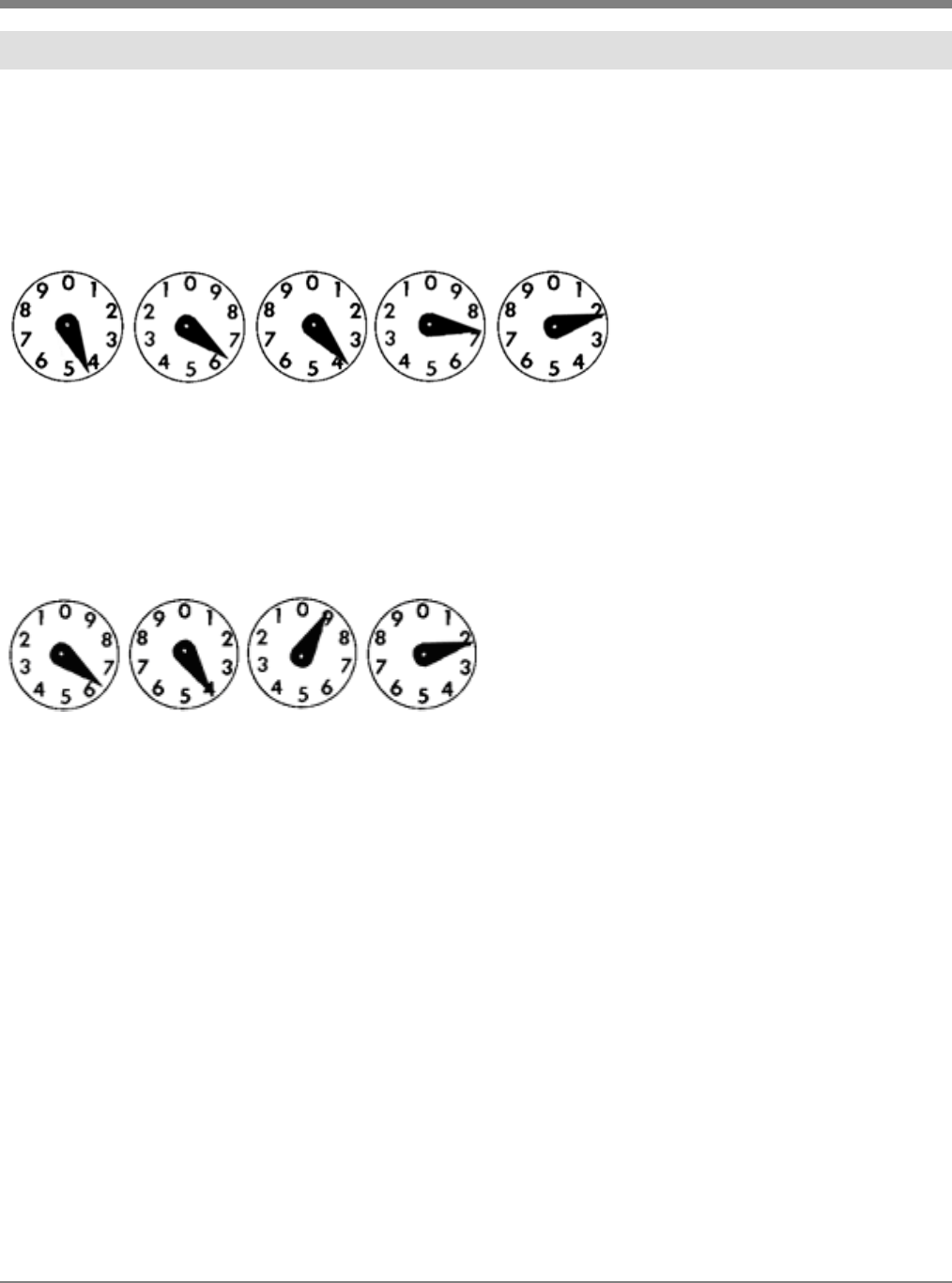

Reading an Electric or Gas Meter...........................................................................................................13
American Gas FIREFLY Kit...............................................................................................................16

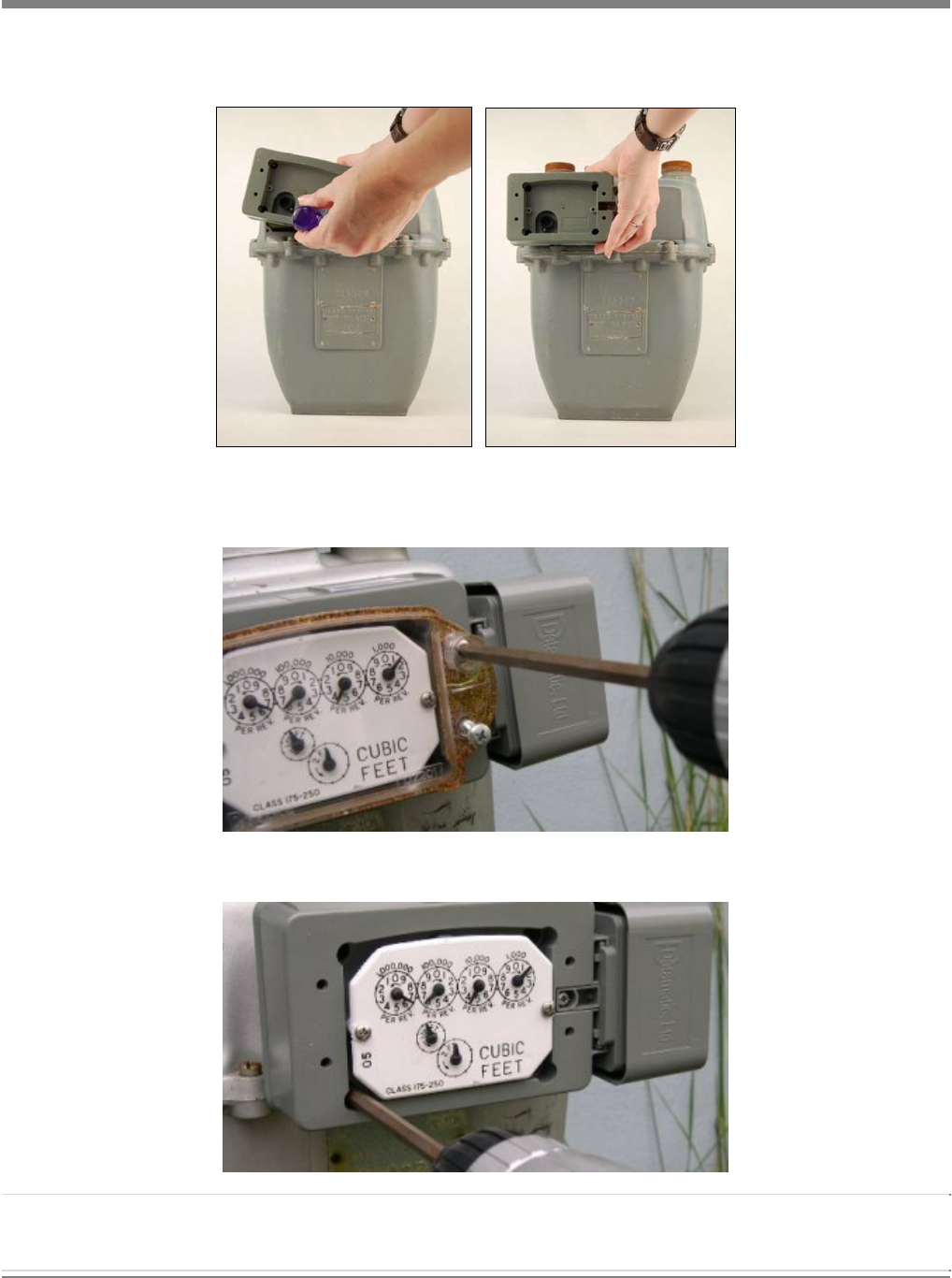

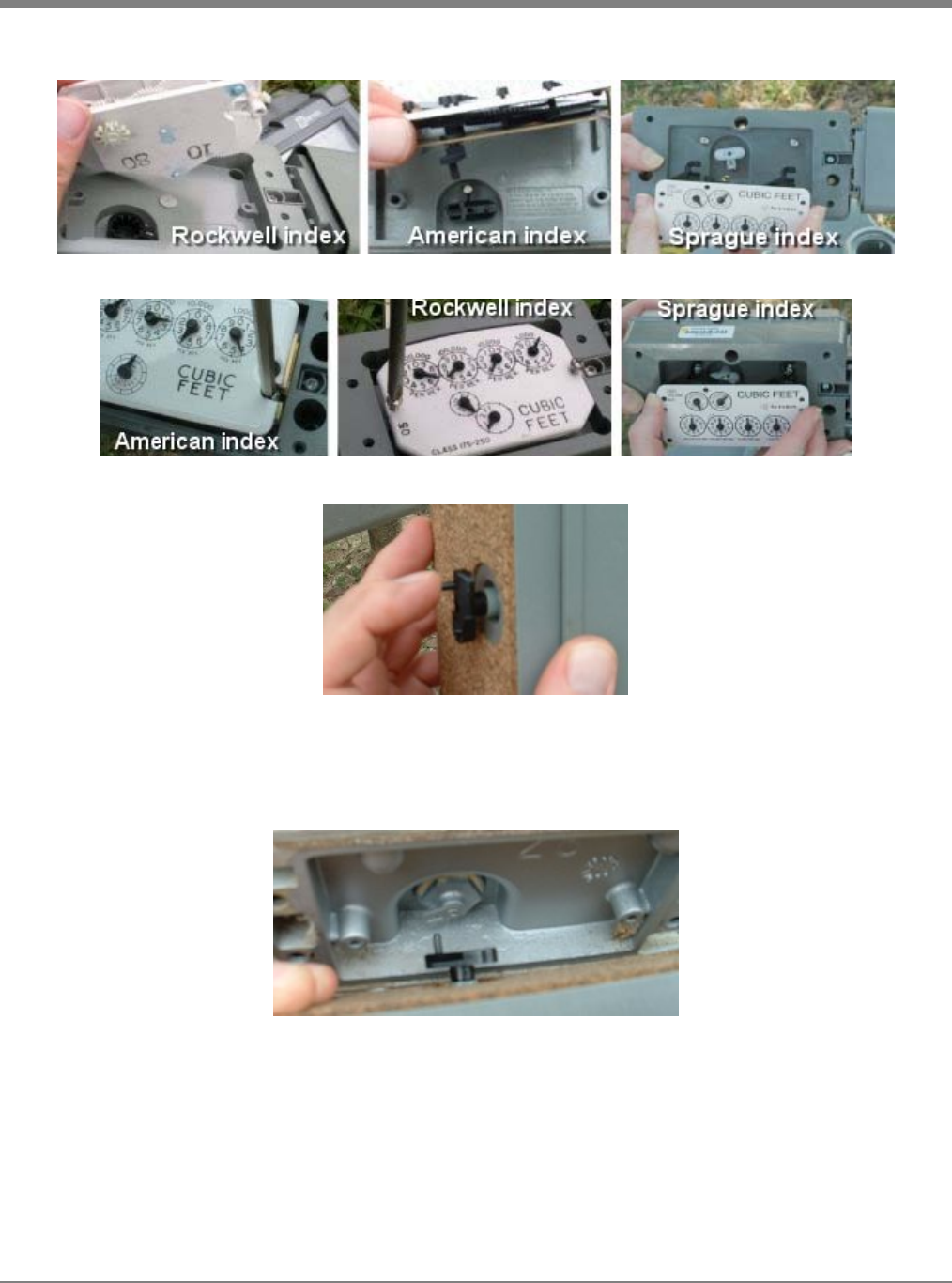

Installing the Gas FIREFLY ....................................................................................................................17
Programming FIREFLYs in Mesh Mode.................................................................................................21

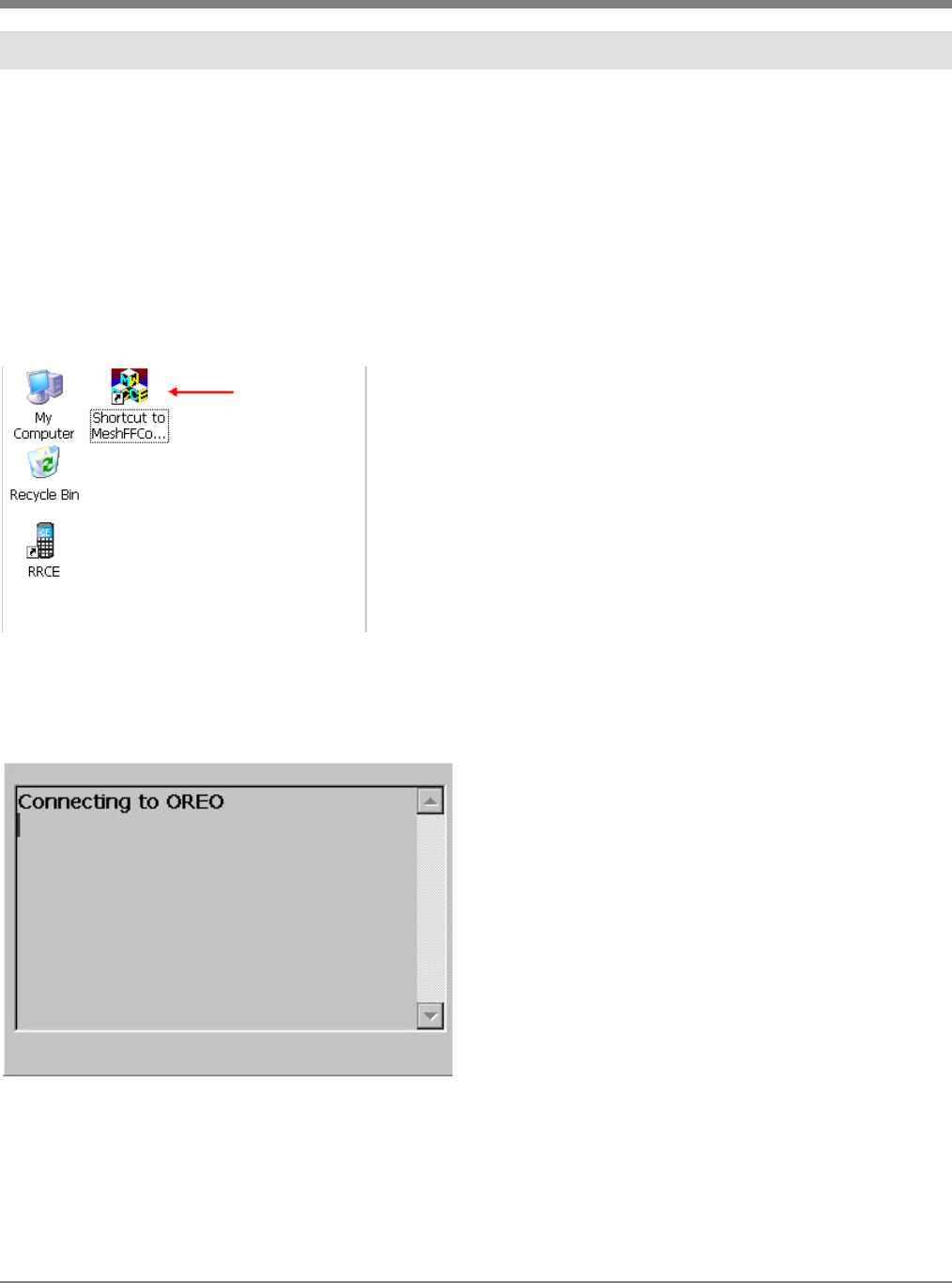

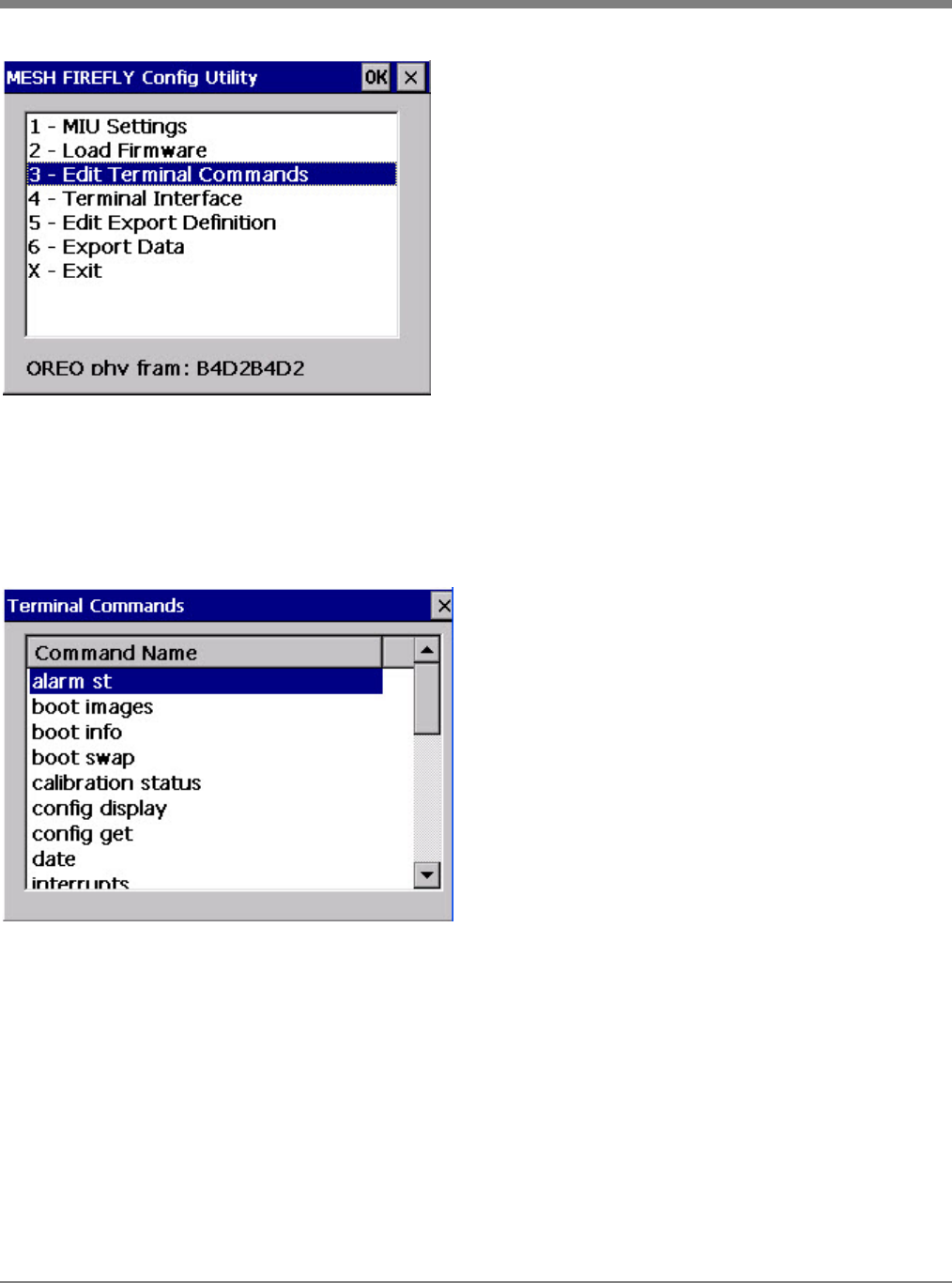

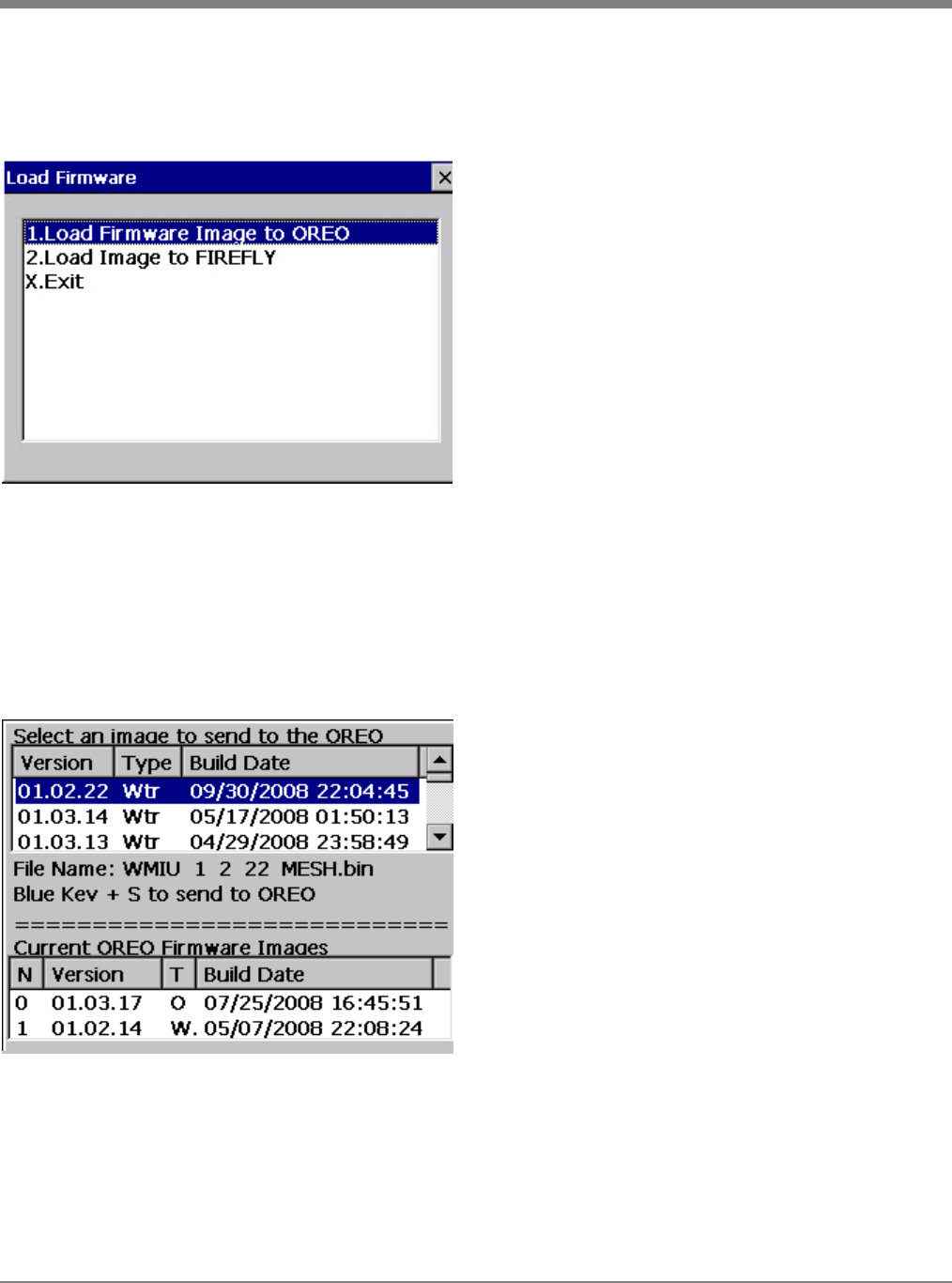

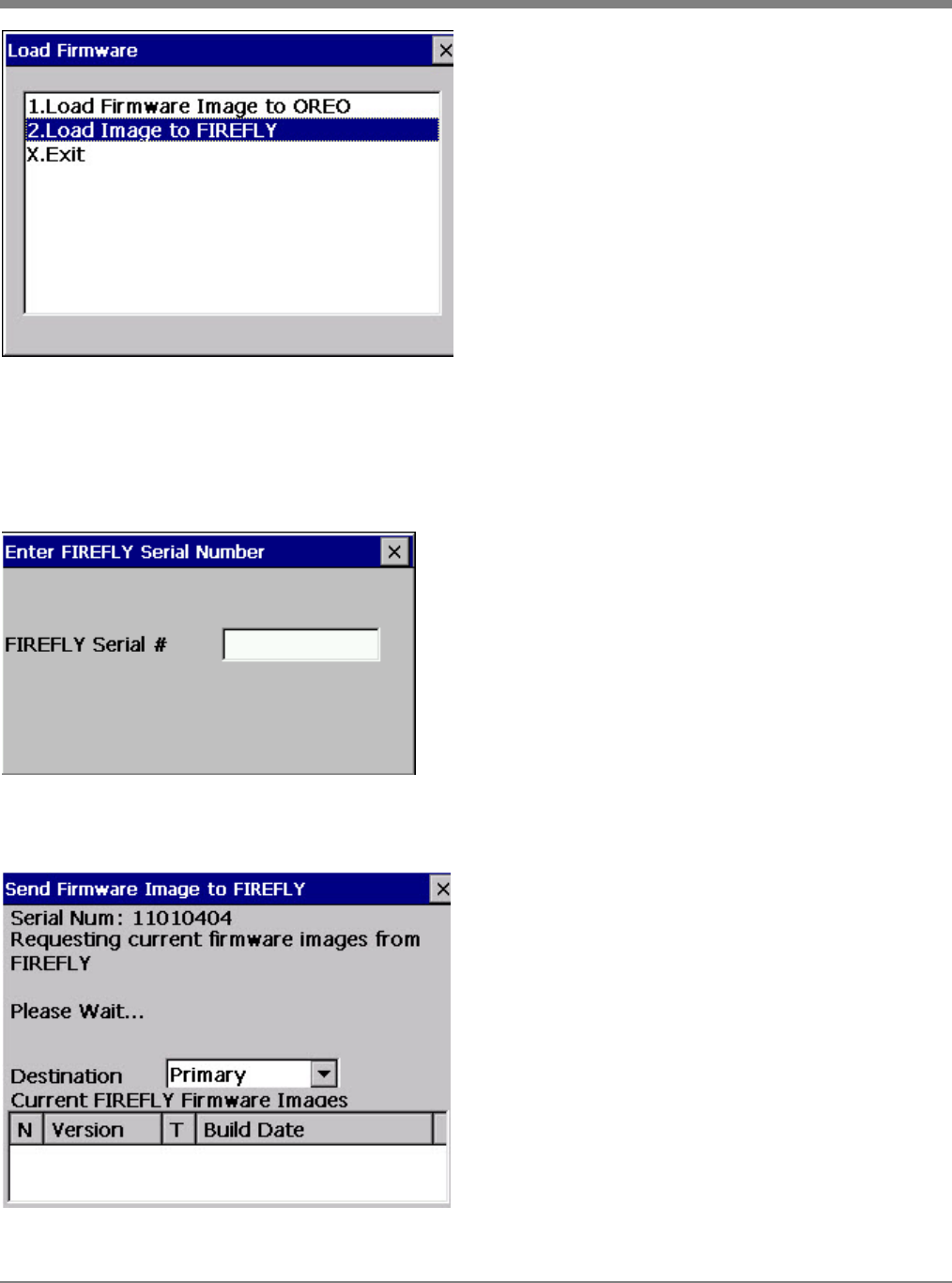

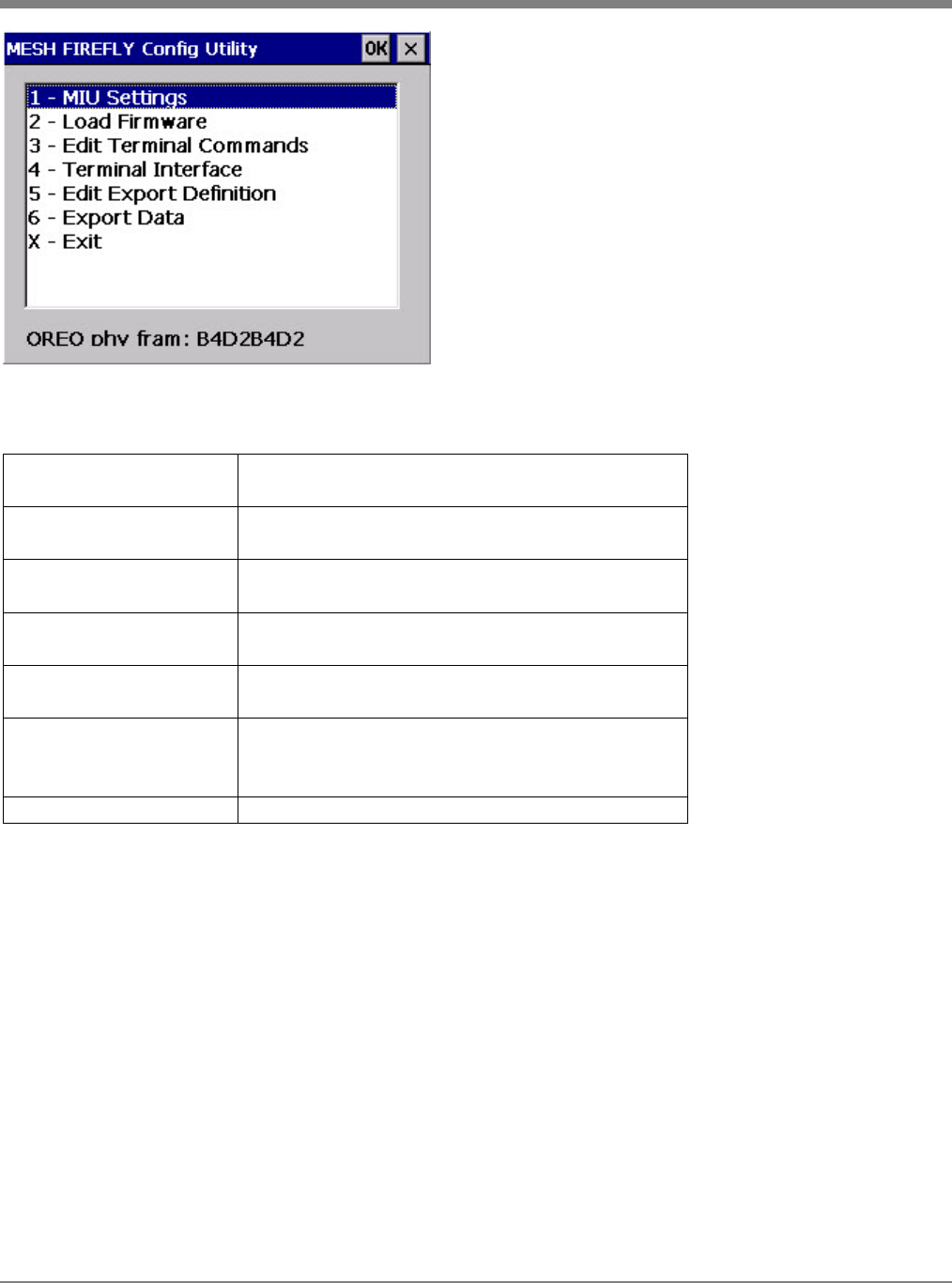

Mesh FF Config Utility (CXMI)...........................................................................................................21
Installing the MOSAIC Electric FIREFLY................................................................................................29
Read and Verify (RV) Procedure............................................................................................................32
Before Leaving the Office..................................................................................................................32
Read and Verify Field Procedure ......................................................................................................32
Entering a Trouble or Skip Code ............................................................................................................33

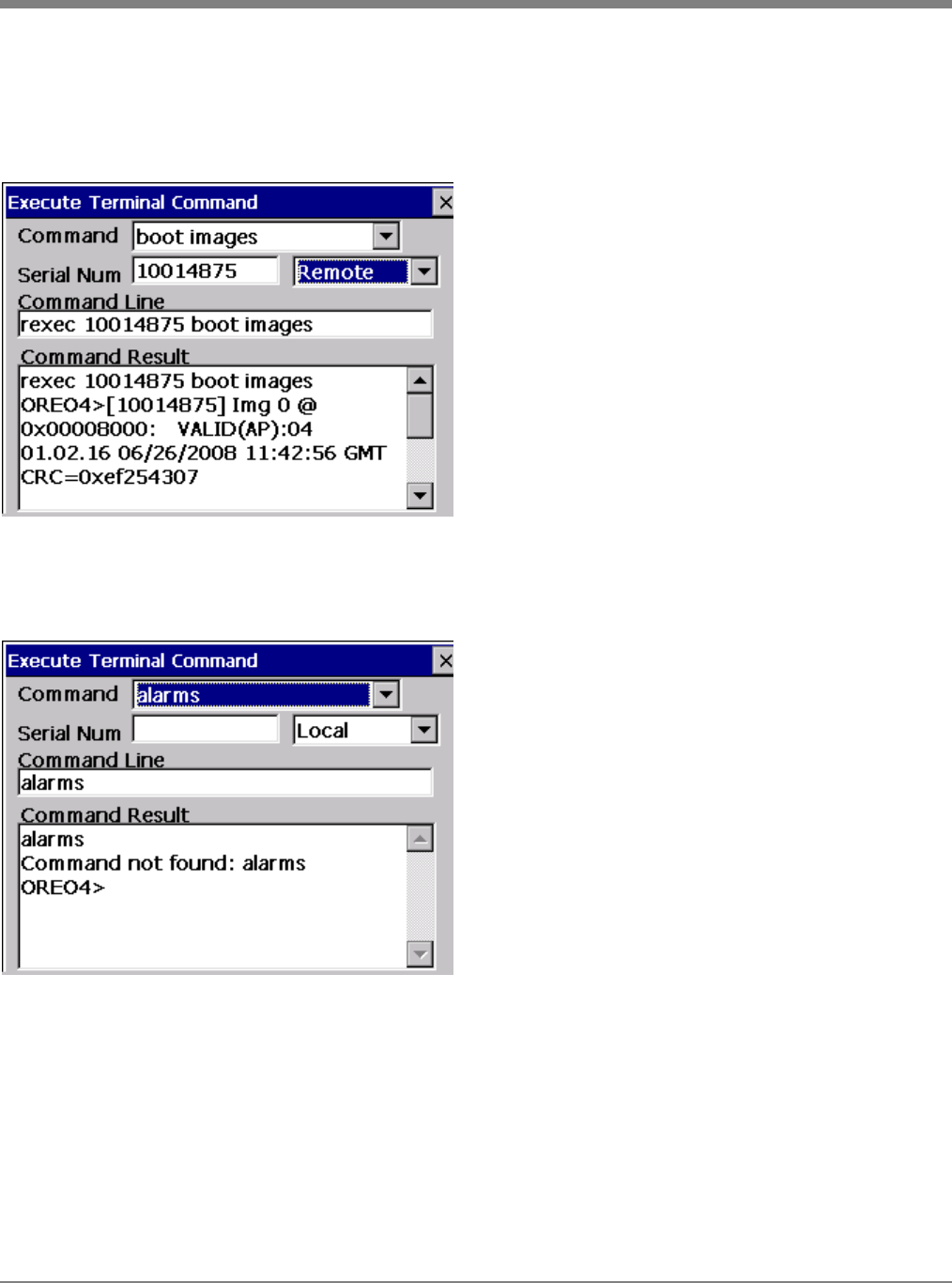

Terminal Interface..............................................................................................................................41

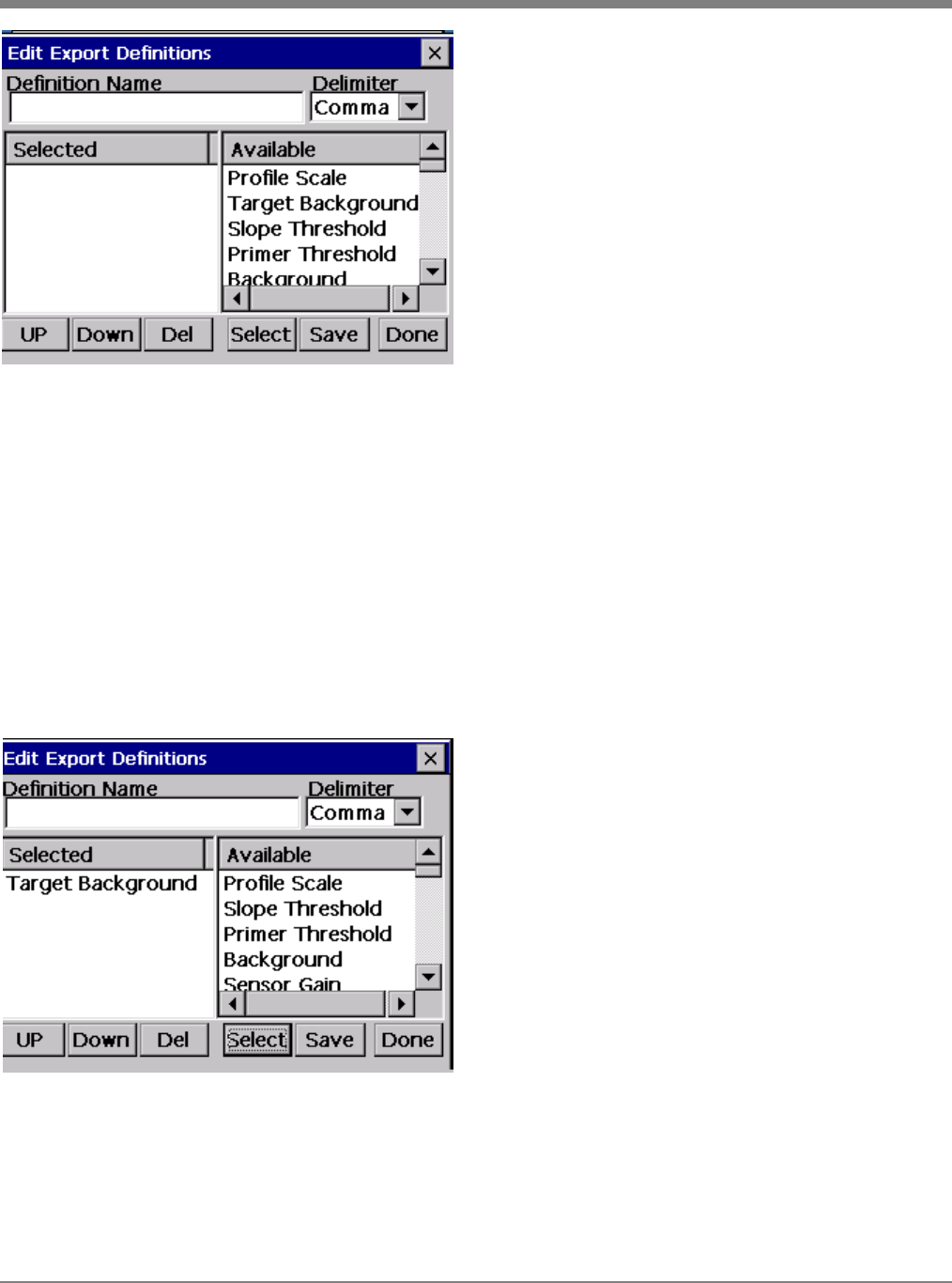

Edit Export Definition.........................................................................................................................44
Export Data........................................................................................................................................47
MOSAIC FIREFLYs as Repeaters (Mesh Mode) ..............................................................................49
Troubleshooting Electric and Gas FIREFLYs.........................................................................................50
Before Leaving Office........................................................................................................................50
Troubleshooting Field Procedure ......................................................................................................50
Troubleshooting Details.....................................................................................................................50
Receiving no RF signal from a FIREFLY...........................................................................................50
Inaccurate Undercounting FIREFLY.......................................................................................................51
Tightening Gas FIREFLY onto register .............................................................................................51
Troubleshooting Procedures...................................................................................................................52
MOSAIC FIREFLY Codes .................................................................................................................52
Connection Troubleshooting..............................................................................................................52
Unread Meters Troubleshooting........................................................................................................53
FIREFLY File Emailing Instructions........................................................................................................54
FAQ’s......................................................................................................................................................56
Contacting Datamatic .............................................................................................................................63
Datamatic, LTD. System Training Manual Version 06.09.09
- 3 - Confidential Datamatic, Ltd. 2009
MOSAIC™ regulations and Warranty information
The MOSAIC System is intended to be operated to manufacturer's specifications. As such, Customer understands
that electronic communication between Datamatic and your MOSAIC System is required to provide software
updates, to conduct support activities and to validate proper configuration and operation. Any blocking or
prevention of such access may prevent the System from operating as intended and may void coverage under your
Maintenance Agreement and/or your Warranty.
Any change to RF settings, other than by a Datamatic Administrator, may void your MOSIAC FIREFLY
Warranty. Do not change RF communication settings without consulting Datamatic first.
Datamatic, LTD. System Training Manual Version 06.09.09
- 4 - Confidential Datamatic, Ltd. 2009
FCC Regulations
FCC Part 15 requires that the Manual include the following statement:
“Caution: Changes or modifications not expressly approved by the manufacture could void the user's
authority to operate the equipment.”
“NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
To comply with FCC RF exposure requirements, the device and the antenna for this device must be installed
to ensure a minimum separation distance of 20 cm or more from a person’s body. Other operating
configurations should be avoided.
Datamatic, LTD. System Training Manual Version 06.09.09
- 5 - Confidential Datamatic, Ltd. 2009
FCC ID: ODYD4200 and ODYD4300
Datamatic, Ltd.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING: These devices operate under Part 15 of the FCC rules. Modifications to these
devices not expressly authorized by Datamatic, Ltd. may affect your ability to legally operate
these devices.
Electrostatic Discharge (ESD) Warning
Electrostatic Discharge (ESD) is the enemy of electronic devices. You should always take precautions to eliminate any electrostatic charge
from your body and clothing before touching any semiconductor device or card by using an electrostatic wrist strap and/or rubber mat.
Static electricity can harm system boards. Perform installation at an ESD workstation and follow proper ESD precautions to reduce the risk
of damage to devices. Datamatic strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks,
when servicing equipment.
You can also take the following steps to prevent damage from electrostatic discharge (ESD):
o When unpacking a static-sensitive device from its shipping carton, do not remove the device’s anti-static packaging material until you
are ready to install the device. Just before unwrapping the anti-static packaging, be sure you are at an ESD workstation or grounded.
o When transporting a sensitive device, first place it in an antistatic container or packaging.
o Handle all sensitive devices at an ESD workstation. If possible, use anti-static floor pads and workbench pads.
Handle devices and boards with care. Don’t touch the devices or contacts on a board. Hold a board by its edges or by its metal mounting
bracket.
Datamatic, LTD. System Training Manual Version 06.09.09
- 6 - Confidential Datamatic, Ltd. 2009
Introduction
The Datamatic MOSAIC Mesh System is an automatic meter reading system designed for reading meter
data remotely and wirelessly. This is accomplished using the Datamatic MOSAIC Mesh system that
forms a mesh network with neighboring MOSAIC FIREFLYs and reports data to the MOSAIC Software
Interface through strategically placed MOSAIC Gateway devices.
MOSAIC FIREFLYs can be deployed using walk-by, mobile, and MOSAIC Mesh collection platforms.
The main benefits of using The Datamatic MOSAIC Mesh system are:
• Real time access to meter reading data
• Built in logging of up to 240 days of hourly consumption data WATER?
• Meter lids do not have to be removed for reads WATER?
• Meter pits do not have to be dug out or pumped out for reads WATER?
• Safer meter reading procedure
• Visiting the site is not necessary for data collection
Please consult the MOSAIC Software Guide for user instructions regarding data access, configuring or
upgrading the MOSAIC Mesh FIREFLY System. After reviewing this guide you should be able to
successfully deploy the MOSAIC FIREFLYs for your system.
MOSAIC Software MOSAIC
Database MOSAIC Gateway MOSAIC
FIREFLYs
Datamatic, LTD. System Training Manual Version 06.09.09
- 7 - Confidential Datamatic, Ltd. 2009
Equipment
MOSAIC FIREFLY
The MOSAIC FIREFLY tracks and transmits meter reading data. Each MOSAIC FIREFLY records up to
240 days of hourly consumption readings, thereby enabling the resolution of billing disputes. The
MOSAIC FIREFLY signal includes the meter reading, leak indicators and trouble codes upon detection.
(Refer to the troubleshooting section)
• Batteries: Dual 3.6-volt lithium-thionyl chloride D-cell
• Material: Polycarbonate
• Construction: silicon-lubricated gasket sealed tourqued to 12’ lbs
• Operating Temperature Range: -40 F to 185 F
• Radio Communication Frequency: 902-928 MHz frequency hopping spread spectrum
Unique Features
• Use existing meters
• Maintain the freedom to choose meters without the constraints of a proprietary AMR system
• Internally potted, gasket sealed and designed to withstand constant submersion
• Supports direct-read, pulse and encoded registers
• Leak Detection
• Tamper Detection
• Battery Status Indicator
• Above ground or through the lid installation
FIREFLY Meter Interface Unit (MIU) – Electric
The FIREFLY Meter Interface Unit (MIU) tracks and transmits meter reading data. Each FIREFLY can
be configured to record 169+ days of quarter-hourly consumption, thereby enabling the resolution of
billing disputes. The FIREFLY signal includes the meter number, meter reading, battery voltage, and
tamper flag.
Backup Power Supply: Two 3V CR2032 batteries
Operating Temperature Range: -40°F to 185°F
Radio Communication Frequency: 916.5 MHz

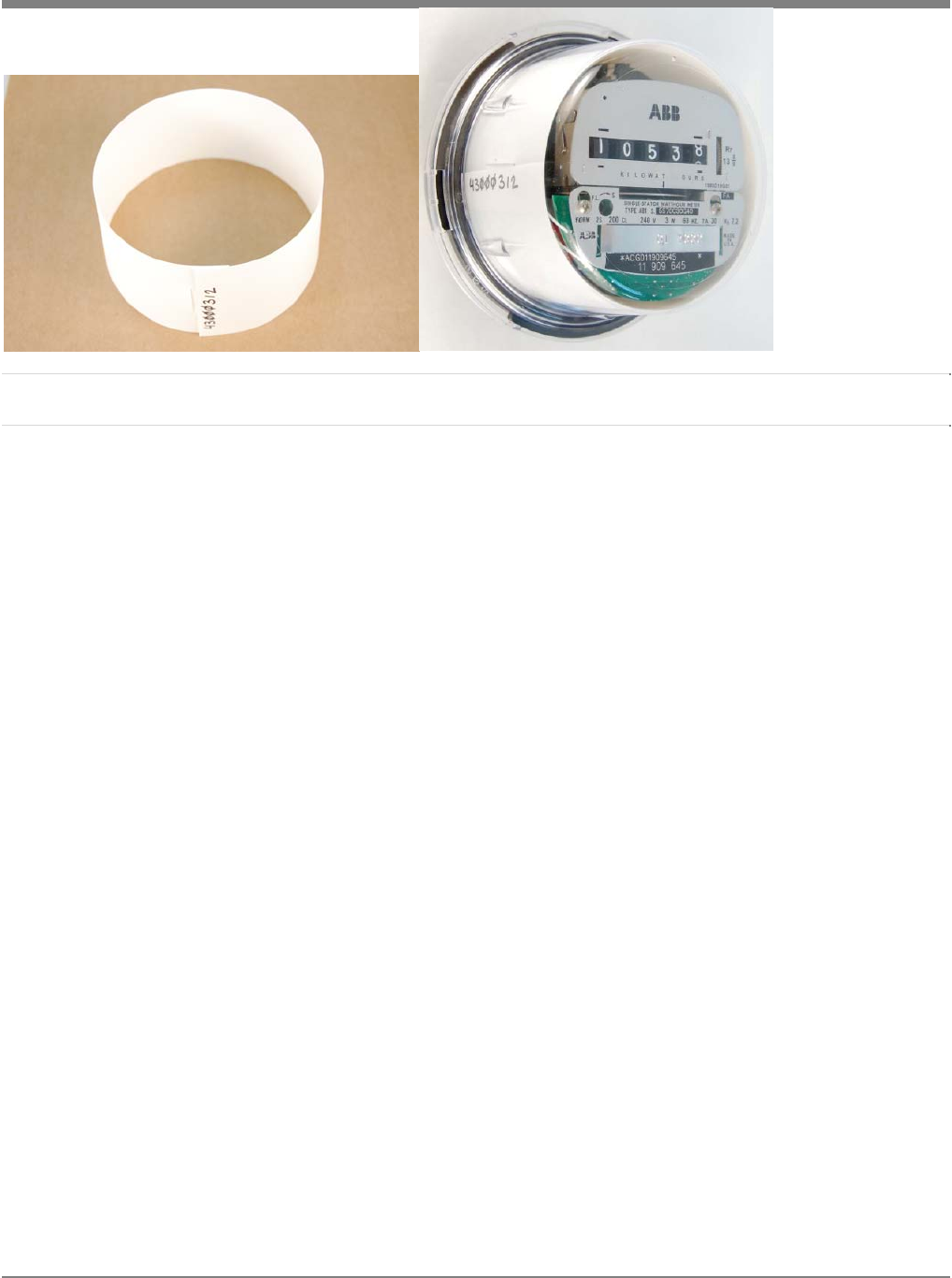

Electric FIREFLY Electric FIREFLY mounted on meter
Datamatic, LTD. System Training Manual Version 06.09.09
- 8 - Confidential Datamatic, Ltd. 2009
FIREFLY Meter Interface Unit (MIU) – MOSAIC Gas
The Gas FIREFLY can be configured to record 330 days of hourly consumption, and its signal transmits
the same data as the Electric FIREFLY. Three models are designed for three specific groups of meters:
• American, Canadian, & Singer
Power Supply: 3.6V replaceable lithium chloride D-cell battery
Operating Temperature Range: -40°F to 185°F
Radio Communication Frequency: 916.5 MHz
American Meter with
Gas FIREFLY

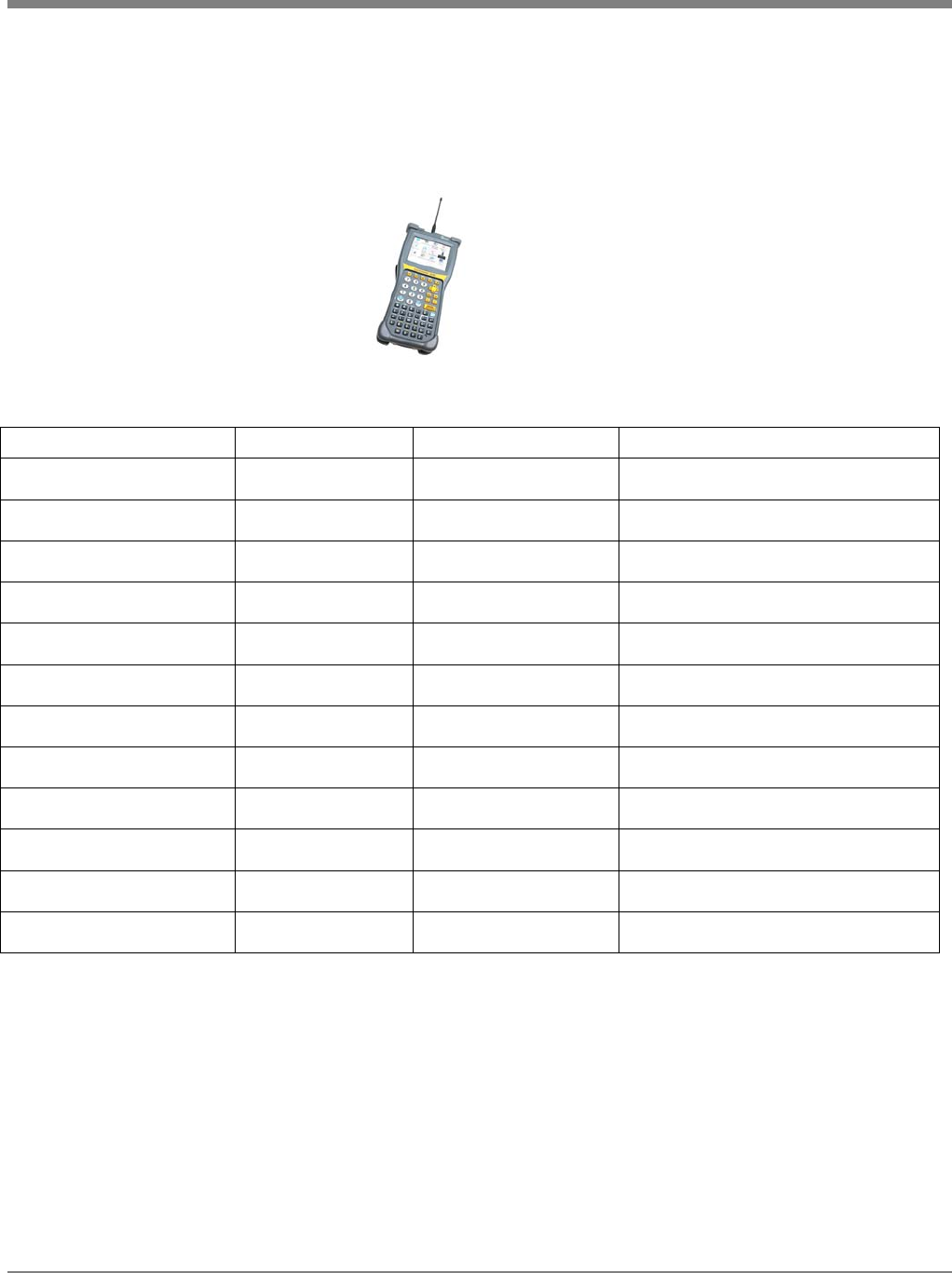

ROADRUNNER Handheld Computer
The ROADRUNNER Radio Frequency Receiving Unit (RFRU)
receives and buffers radio readings, then downloads them to the
ROADRUNNER handheld unit when interrogated (using the "I"
key).
The ROADRUNNER RFRU is an integrated, internal unit,
powered by a rechargeable NiCd battery pack.
X7 (left) and CX (right) ROADRUNNERs
Datamatic, LTD. System Training Manual Version 06.09.09
- 9 - Confidential Datamatic, Ltd. 2009
Installation Considerations
• Complete field installation of a MOSAIC FIREFLY takes five to ten minutes, depending on the
meter location and mounting application.
• Some meters may be located in such a manner that they require the addition of repeaters to reach
the mesh.
• Some areas of your service territory may not have the density to warrant the use of the mesh -
your project manager will alert you to these areas where units can be placed into a drive-by
mode.
• Profile data uses more mesh bandwidth and as such can require the use of additional repeaters
and/or Gateways.
• The system requires ongoing maintenance - make sure to have the proper equipment and training
to maintain the system after your installation contractor leaves.
• Do not attempt to repair or trouble-shoot equipment without the proper equipment and training.
Datamatic, LTD. System Training Manual Version 06.09.09
- 10 - Confidential Datamatic, Ltd. 2009

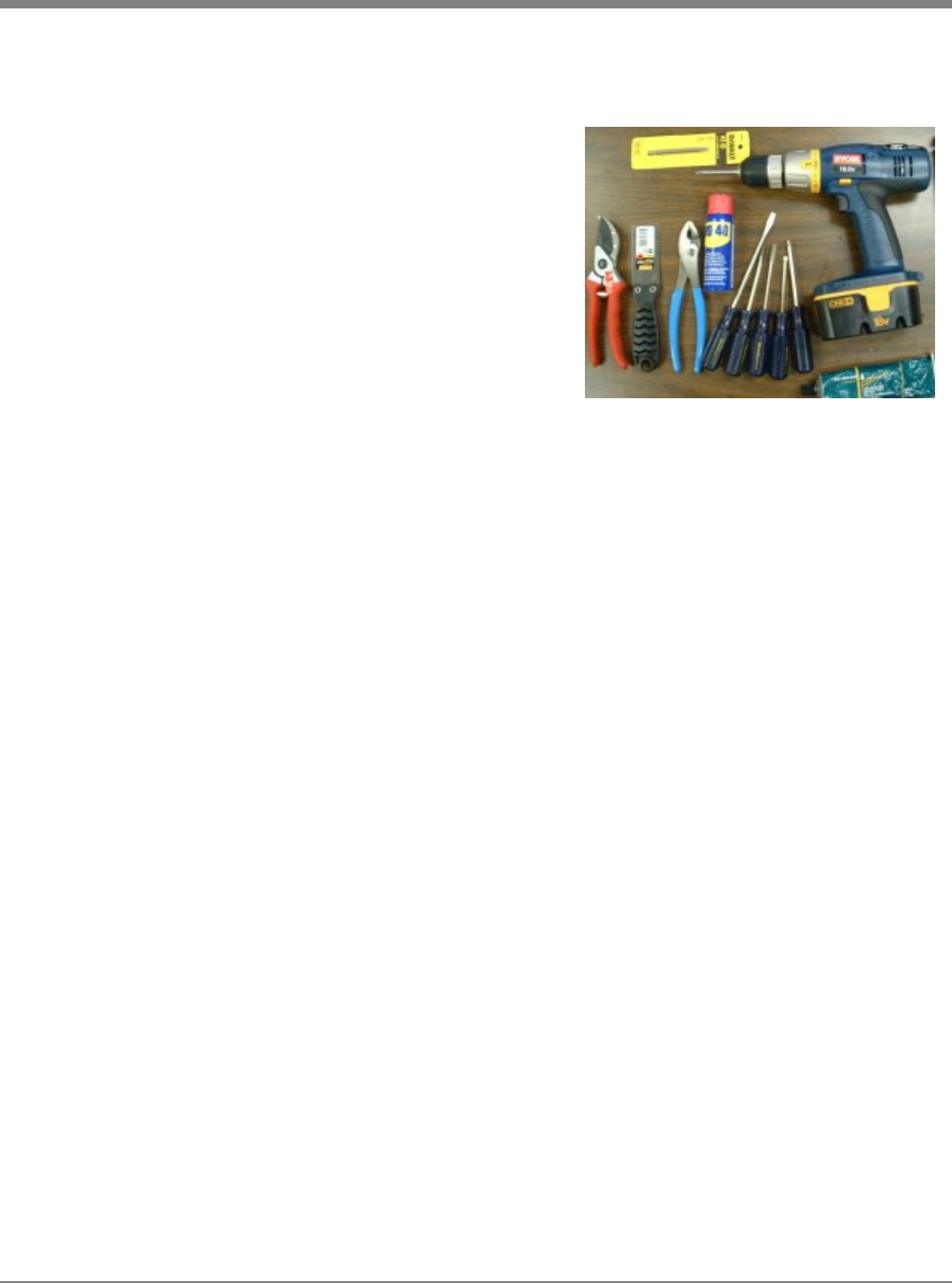

Installation Supplies
Electric FIREFLY Installation Equipment
• 2-way RF ROADRUNNER.
• Phillips Screwdriver, #2 head, with 3-4” shaft. Used for attaching FIREFLY to meter.
• Flat Head Screwdriver, with 3/16” wide head. Used for attaching FIREFLY power supply wire clips
to meter’s utility side power bus.
• Static grounding mat with wrist strap and grounding plug. Used whenever handling the electric
FIREFLY by hand, except when attached to meter.
Electric FIREFLY Installation Consumables
• Install packet including screws and nylon spacers.
• FIREFLY CR 2032 batteries.
• Disc marking template.
• Datamatic Ltd.’s Part #D2311 paint marker. Used for painting meter disc. The warranty on the
Electric FIREFLY will NOT be honored if the Datamatic D2311 paint marker is not used on the
meter disc.
Datamatic, LTD. System Training Manual Version 06.09.09
- 11 - Confidential Datamatic, Ltd. 2009
Electric Meter Install Kits
ABB Westinghouse Landis & Gyr
2 - .25 nylon spacers 2 - .25 nylon spacers 2 – 6-32 X ½” screws
2 – 6-40 X ½” screws 2 – Post Meter spacers
2 - .25 nylon spacers
GE Sangamo
2 - .25 nylon spacers 1 - .25 nylon spacer
2 - 4-48X1/2” pan head screws 1 - 5-40X ½” screw
Each Electromechanical FIREFLY will require a sun shade to be installed.
Datamatic, LTD. System Training Manual Version 06.09.09
- 12 - Confidential Datamatic, Ltd. 2009
Gas FIREFLY Installation Equipment
• 2-way RF ROADRUNNER
• Cordless drill, reversible, variable speed, adjustable
clutch. Used to remove register screws and attaching
FIREFLYS to meters.
• Flat head screwdriver, with standard 1/8” wide head. Used
to remove index screws.
• Flat head screwdriver, with standard 3/16” wide head.
Used to remove index screws.
• Flat head screwdriver, with standard 5/16” wide head.
Used to remove large screws from meters.
• Phillips Screwdriver, #2 head, with 3-4” shaft. Used for
attaching FIREFLY to meter.
• Phillips Screwdriver, #1 head [smaller], with 3-4” shaft. Used for small register screw removal.
• 1” wide putty knife. Used to remove old register cover gaskets from meter.
• WD40. Used for removing difficult screws.
• Small pruning shears. Used to prune bushes away from gas meters.
• Pliers with approximately 6” long handles. Used to extract rusted register screws from meter with
broken off heads.
• Phillips #2 bit for drill, 3-6” long. Used in cordless drill for register screw removal and FIREFLY
installation.
• Phillips #1 bit for drill, reduced 3/16” diameter shaft, 3-6” long. Used in cordless drill
American/Singer meter’s register screw attachment.
• Flat head 3/16” wide bit for drill, 3-6” long. Used in cordless drill for small register screw removal.
• Telescoping magnet. Used to activate the FIREFLY.
Gas FIREFLY Installation Consumables
• Cloth rags.
• Install packet including screws, tamper seals and necessary hardware.
Datamatic, LTD. System Training Manual Version 06.09.09
- 13 - Confidential Datamatic, Ltd. 2009
Reading an Electric or Gas Meter
Following are some basic rules on how to read “clock style” electric or gas meter indexes. Each of the
four or five dials on the meter represents one digit of the present reading. The dials move both
clockwise and counter-clockwise. When the hand of one of the dials is between numbers, always take
the smaller number. For example:
Residential Electric meter example
4 6 3 7 2
This reading would be 46372. To tell if a hand is past a number or not, look at the dial to the right. If
the dial to the right has passed zero, then the hand is pointing to the correct number. If the dial to the
right has not passed zero, then use the next smaller number.
Residential Gas Meter example
6 3 9 2
This reading would be 6392. The second digit is a three because the digit to the right has not yet passed
zero. If the second dial from the right was between zero and one (or past the zero), then the third digit
would have been a four.
To practice, go outside a home or business and record the readings for several days in a row. By
subtracting yesterday's reading from today's reading, you can get a feel for how much energy (kilowatt
hours for electric) or gas is used each day.
When a power or gas company representative reads a meter, they do not set it back to zero. Therefore,
the dials keep turning until the next time the meter is read. By subtracting two consecutive readings, the
amount of consumption is determined for the month. Utilities check to confirm that the readings each
month fall within an expected range. If a reading is significantly lower or higher than expected, the
meter reader can be alerted and confirm the reading is correct. This helps ensure bills are accurate each
month.
Datamatic, LTD. System Training Manual Version 06.09.09
- 14 - Confidential Datamatic, Ltd. 2009
This reading is 00000. Cyclometer (or odometer) style indexes are easier to read and can be found on
both electric and gas meters.
Datamatic, LTD. System Training Manual Version 06.09.09
- 15 - Confidential Datamatic, Ltd. 2009
Installation Procedures
Installing and Programming MOSAIC Gas FIREFLYs in Mesh Mode
Installing the MOSAIC Gas FIREFLY
Pre-installation Setup
• Access the FIREFLY Template from the FIREFLY Menu.
• Select the type of service for the FIREFLY you are installing.
• Then you will select a prompt type for each parameter of either Normal or Default.
¾ NORMAL - this means you are going to enter this value each time.
¾ DEFAULT - this means you are setting it to a preset value that does not change.
When selecting Default, an actual value must then be entered for that parameter.
#2 Set the Reading Mode
• Set the FIREFLY reading mode to Verify Read Mode.
#3 Check the Options Screen
Check the options screen from the FIREFLY Menu for the following:
1. Capture Data = Enabled
2. APD Register Number = Enabled
3. Clear Prof. Data = Enabled
4. Delta Warning = 2
5. Show Constants =Disabled
6. Comm. Method = Wireless RF
7. Zero Setting = 60
8. Read Truncation = Enabled
9. Quick Set = Disabled
A. Profile Default = 0
B. Encoder Zero Thr = 24
C. Trickle Duration = 48
D. Ovrflw Alert Days = 25
E. Rev Alert Days = 35
F. UnderSz Mtr Alert Day = 45
G. 0112 Support = Disabled
H. 0212 Support = Disabled
Datamatic, LTD. System Training Manual Version 06.09.09
- 16 - Confidential Datamatic, Ltd. 2009
Gas FIREFLY Parts Identification
American Gas FIREFLY Kit
1. American Gas FIREFLY
2. Gas FIREFLY battery
3. Index cover
4. Tamper caps (2)
5. American FIREFLY drive
6. FIREFLY to meter screws (4)
7. Index to FIREFLY screws (2)
8. Index cover screws (4)
9. Battery screw
Datamatic, LTD. System Training Manual Version 06.09.09
- 17 - Confidential Datamatic, Ltd. 2009
Installing the Gas FIREFLY
Optional: Pre-assemble FIREFLY, battery and drive kit prior to beginning field installations.
1. Remove tamper caps and/or lead wire seal from the gas meter, if equipped.
2. Remove the screws from the plastic index cover on the meter using a screwdriver (or cordless drill)
and remove the register index and screws.
3. Remove any remaining gasket material from behind the plastic cover. Use gasket scraper if necessary.
4. Prepare the Gas FIREFLY by inserting the drive shaft into the FIREFLY, making sure magnet is included.
On Rockwell meters, match the gear drive to the proper drive shaft kit (11, 18 or 24 tooth gear).
Datamatic, LTD. System Training Manual Version 06.09.09
- 18 - Confidential Datamatic, Ltd. 2009
5. Take meter index and align index drive with hole (or over gear) in FIREFLY drive shaft assembly.
6. Using new self-tapping screws from the install packet, tighten the index to the FIREFLY with a screwdriver.
7. Once the index is attached to the FIREFLY, rotate the drive shaft to confirm the dials move easily.
8. Insert the four (large) meter to FIREFLY screws from the install packet into the FIREFLY housing.
9. Align meter drive with FIREFLY/index assembly. On Rockwell meters, ensure the FIREFLY has
the proper gear drive installed matching the number of teeth on the meter output gear.
Datamatic, LTD. System Training Manual Version 06.09.09
- 19 - Confidential Datamatic, Ltd. 2009
a. Place bottom right of the FIREFLY, over the screw hole and insert mounting screw. Rotate the
FIREFLY counter clockwise to fully seat onto the meter.
12. After checking drive alignment, attach FIREFLY to meter by tightening screws. Torque screws in a
crossing pattern.
Note: When attaching the FIREFLY to the gas meter, the rear of the FIREFLY drive shaft needs to be properly
engaged to the meter gear or drive. Limit torque when installing meter screws. Failure to do so could damage
the FIREFLY and negatively impact the FIREFLY’s performance.
Datamatic, LTD. System Training Manual Version 06.09.09
- 20 - Confidential Datamatic, Ltd. 2009
13. Tighten the four screws that attach the new index cover to the FIREFLY. Check “Datamatic” lettering for
proper orientation. Make sure the gasket is tight against the meter, without over-tightening screws.
Note: Limit torque when installing screws. Failure to do so could damage the FIREFLY and negatively impact
the FIREFLY’s performance.
14. Program the FIREFLY then insert tamper plugs into new index cover (see programming section
below).
Datamatic, LTD. System Training Manual Version 06.09.09
- 21 - Confidential Datamatic, Ltd. 2009
Programming FIREFLYs in Mesh Mode
Mesh FF Config Utility (CXMI)
The Mesh FF Config Utility (CXMI) is used to program MOSAIC FIREFLYs in mesh mode. To access
the CXMI software from the standard ROADRUNNER program screen, press F3 to bring up the Begin
Comm menu, and then press 3 to exit the program. A shortcut to the CXMI program is located on the
Desktop. If you do not have the CXMI software, please contact Datamatic Customer Support.
Application Setup
From the ROADRUNNER Desktop, select the shortcut for the MeshFFConfigUtility.
When the application first loads, it will connect to the radio installed in the ROADRUNNER. The
following screen will be displayed while the connection process is active:
Once connected, the Main Menu will be displayed:
Datamatic, LTD. System Training Manual Version 06.09.09
- 22 - Confidential Datamatic, Ltd. 2009
The following selections are available from this menu:
1 – MIU Settings Select this option when programming or
troubleshooting FIREFLYs
2 – Load Firmware This option allows users to load firmware
images to both the OREO and the FIREFLY
3 – Edit Terminal
Commands This option allows users to add or edit a
terminal command
4 – Terminal Interface This feature allows the user to send pre-defined
or ad hoc commands to the FIREFLY
5 – Edit Export
Definition Defines the order of the fields in the export file
as well as the fields to export
6 – Export Data Places defined Export data in the CXMIData
folder to be removed from the RR and
analyzed using another program
X – Exit Exit the application and return to the Desktop
At the bottom of these menus the following information is displayed:
OREO Phy Fram: B4D2B4D2
The Phy Fram is the setting the radio inside the ROADRUNNER uses to communicate with the
FIREFLY. The radio and FIREFLY must be on the same setting to communicate. The default Phy
Fram for all FIREFLYs is B4D2B4D2. If this value is not correct for your setup, your Project Manager
will give you instructions on how to change this value.
Datamatic, LTD. System Training Manual Version 06.09.09
- 23 - Confidential Datamatic, Ltd. 2009
MIU Settings
From the MESH FIREFLY Config Utility Menu, select 1 – MIU Settings.
The following selections are available from this menu:
A – Current Settings View the current configuration of the
FIREFLY
B – Set Configuration Set the configuration parameters of FIREFLY
C – Enter AutoCAL
(Sensor Only) Manually enters AutoCAL mode for a Sensor-
end FIREFLY
D – Clear Flags
(Sensor Only) Clears all flags in the Sensor-end FIREFLY
E – Ship Mode Sets the FIREFLY to Ship Mode
X – Exit to Main Menu Returns to the Main Menu
Y – Clear Screen Clears the Configuration Screen
Datamatic, LTD. System Training Manual Version 06.09.09
- 24 - Confidential Datamatic, Ltd. 2009
Software Version
To view the current software version press the FNCTN key then the V key from the main menu.
Change Phy Fram
To change the OREO Phy Fram, press the CNTRL key then the P key. Use caution when performing
this function as it could prevent your ROADRUNNER from communicating with your FIREFLYs.
NOTE: To perform menu items A, B C, D and E, the FIREFLY must be awake before
it will respond. To wake up the FIREFLY, magnet swipe the FIREFLY then perform
the function.
Current Settings
To examine the current configuration of a FIREFLY, select A – Current Settings.

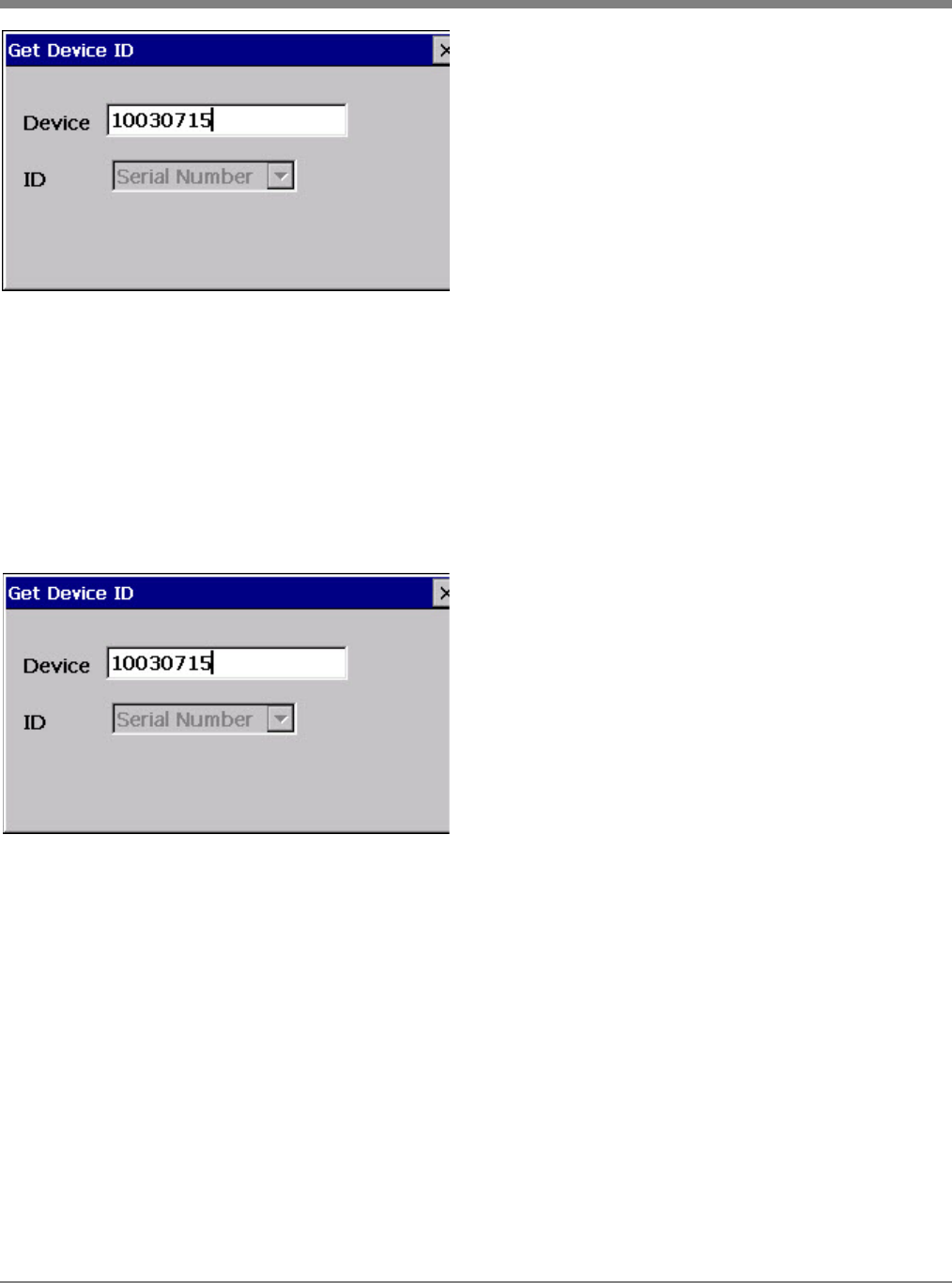

Enter the FIREFLY Serial Number and press Enter.
The application will now read the information from the FIREFLY.
Datamatic, LTD. System Training Manual Version 06.09.09
- 25 - Confidential Datamatic, Ltd. 2009
The following information is returned from the FIREFLY:
Set Configuration
See section below titled “Programming the Wire-end MOSAIC FIREFLY”
Enter AutoCAL (Sensor Only)
See the section below titled “Programming the Sensor-end MOSAIC FIREFLY”.
Clear Flags (Sensor Only)
To clear any FIRELY flags select D – Clear Flags.
Datamatic, LTD. System Training Manual Version 06.09.09
- 26 - Confidential Datamatic, Ltd. 2009
Enter the FIREFLY Serial Number. The application will clear all FIREFLY flags and return to the
FIREFLY Sensor menu.
Ship Mode
Ship Mode is when the processor on the FIREFLY is in dormant state and will only respond to an
interrupt caused by the closure of the reed switch using a magnet. Ship Mode will reset all parameters
except Phy Fram back to defaults.
To put the FIREFLY back into Ship Mode select E – Ship Mode.
Enter the FIREFLY Serial Number. The application will set the FIREFLY to Ship Mode and return to
the FIREFLY Sensor menu.
Datamatic, LTD. System Training Manual Version 06.09.09
- 27 - Confidential Datamatic, Ltd. 2009
Installing and Programming MOSAIC Electric FIREFLYs in Mesh Mode
Installing MOSAIC Electric FIREFLYs
Pre-installation Setup
• Access the FIREFLY Template from the FIREFLY Menu.
• Select the type of service for the FIREFLY you are installing such as electric.
• Then you will select a prompt type for each parameter of either Normal or Default.
¾ NORMAL - this means you are going to enter this value each time.
¾ DEFAULT - this means you are setting it to a preset value that does not change.
When selecting Default, an actual value must then be entered for that parameter.
#1 Set your FIREFLY Template: (See appendix A)
#2 Set the Reading Mode
• Set the FIREFLY reading mode to Verify Read Mode.
Datamatic, LTD. System Training Manual Version 06.09.09
- 28 - Confidential Datamatic, Ltd. 2009
#3 Check the Options Screen
Check the options screen from the FIREFLY Menu for the following:
1. Capture Data = Enabled
2. APD Register Number = Enabled
3. Clear Prof. Data = Enabled
4. Delta Warning = 2
5. Show Constants =Disabled
6. Comm. Method = Wireless RF
7. Zero Setting = 60
8. Read Truncation = Enabled
9. Quick Set = Disabled
A. Profile Default = 0
B. Encoder Zero Thr = 24
C. Trickle Duration = 48
D. Ovrflw Alert Days = 25
E. Rev Alert Days = 35
F. UnderSz Mtr Alert Day = 45
G. 0112 Support = Disabled
H. 0212 Support = Disabled
Datamatic, LTD. System Training Manual Version 06.09.09
- 29 - Confidential Datamatic, Ltd. 2009
Installing the MOSAIC Electric FIREFLY
Note: All work on Electric FIREFLYs needs to be done taking static grounding precautions. Failure to use a
grounded static mat and wrist strap when handling or retrofitting the FIREFLY to an electric meter could result in
static discharge damage to the electronics. Units found to be damaged in this manner will not be covered by
Datamatic warranty. See picture of static mat below:
1. Remove the break-away brass tamper seal, if equipped. Remove the glass cover from the electric meter.
2. Remove the screws from the utility faceplate.
3. Remove the utility faceplate from the meter. Clean the disc on old meters, if necessary.
4. Place marking template over meter disc, being sure to include one calibration hole and any black painted
stripe in the marking area, as illustrated below:
Note: When painting the disc, make sure calibration holes that do not fall within the painted area will not be
positioned over the FIREFLY optics at the same time as the painted area.
5. Using the Datamatic D2311 paint marker, paint in the entire area of the template. Leave no empty
spots within the template area.
Datamatic, LTD. System Training Manual Version 06.09.09
- 30 - Confidential Datamatic, Ltd. 2009
Note: If the meter disc is already painted, still place template over disc to ensure the entire area is covered. If not,
paint in additional area within template not already covered with paint.
6. If required for this meter type, add metal extensions to the meter.
7. Position the FIREFLY on top of the nameplate posts.
8. Mount the unit flush on top of the nameplate posts with the spacer and nameplate above it.
9. Thread the mounting screw through the faceplate, the nylon spacer and FIREFLY into the faceplate post-
holes.
10. While applying pressure perpendicular to the disc plane, tighten down screws into faceplate post-holes.
11. Make sure the FIREFLY is parallel with the meter disc; adjust if needed. Ensure the meter disc moves freely.
12. Attach fuse clips on FIREFLY wire ends to the meter 240 VAC terminal posts on the top of the meter. This is
the city’s side of the meter. Avoid placing clips next to lightning arrestors.
Note: Do not attach the fuse clips to any painted area on the meter posts.
13. Insert two CR2032 batteries into the two battery slots on the FIREFLY a maximum of 1 day before the meter
is to be used in the field (to maximize battery life).
14. Copy the FIREFLY serial number (located on the round component near the FIREFLY wires) onto the
outside of the sunshade and install it inside the meter cover as shown:
Datamatic, LTD. System Training Manual Version 06.09.09
- 31 - Confidential Datamatic, Ltd. 2009
Note: The CR2032 batteries have a limited life. Installing the FIREFLYs soon after battery installation ensures
the longest possible backup life.
15. Replace the glass cover on the meter, making sure the FIREFLY wires do not get pinched between the meter
and the cover.
16. Optional: Test meter and calibrate on a test bench.
17. Install the meter into the 240V socket on a house or business, being careful not to jar the meter to prevent
loosening the FIREFLY batteries.
Programming the MOSAIC Electric FIREFLY
Datamatic, LTD. System Training Manual Version 06.09.09
- 32 - Confidential Datamatic, Ltd. 2009
Read and Verify (RV) Procedure
Another visit to all electric and gas meters should occur no less than 72 hours after new FIREFLYs have been
installed. This allows for consumption to go through the meter to check accuracy. Any FIREFLY that needs
adjustment or troubleshooting due to inaccuracy requires another RV visit until the FIREFLY passes inspection
and accuracy is assured.
The RV mode is an installation tool used to verify the accuracy of FIREFLY readings with respect to the
meter register reading. This method of interrogation is similar to Manual interrogation in that it allows
only one meter to be read at a time. In contrast to manual interrogation, this routine will post the
manually entered visual reading in the standard meter record. These readings can be billed through the
billing system.
The RV process should also be used as a periodic auditing tool.
The RV function will begin by initializing the RF receiver unit. Once initialized, the application will
scan RF messages for the current meter record. When a valid RF meter reading is received, the user will
be prompted to manually enter the visual reading for that meter.
Before Leaving the Office
The following steps need to be checked before entering the field:
1. Set the ROADRUNNER reading mode to RV Mode.
2. Check the FIREFLY Options screen to verify the Delta setting.
3. Check the FIREFLY template.
Read and Verify Field Procedure
All FIREFLYs in the route are to be visited during an RV procedure. Utilize the following steps for
each FIREFLY on the route:
1. Verify the correct street address and meter number on the ROADRUNNER account screen.
2. Check the FIREFLY for visible damage.
3. Be sure the FIREFLY battery is making a good connection.
4. Interrogate the FIREFLY by pressing the “I” key.
5. The “Enter Visual Reading” screen appears.
6. Enter the visual reading of the meter into the ROADRUNNER.
7. If the reading is within the specified Delta range, the ROADRUNNER will advance to the next
account.
8. If the visual reading is outside of the specified Delta range, press [ENTER] and re-enter visual
reading again. If the visual reading is still outside of Delta, press [NO] and proceed to next meter.
This meter may need to be addressed during the troubleshooting phase.
Datamatic, LTD. System Training Manual Version 06.09.09
- 33 - Confidential Datamatic, Ltd. 2009
Entering a Trouble or Skip Code
If the user aborts the RV Interrogation, (meaning they have pressed “I” to interrogate, but then pressed ‘FNCTN’
then ‘ESC’ keys on X7 or ‘ESC’ only on the CX to stop interrogation) they have the option to enter a trouble
code, skip code, or exit without saving any information. This function will create a record that is returned with the
FIREFLY configuration data. Standard trouble and skip codes should be utilized.
Some examples:
• No Access to Meter – If unable to view the visual reading on the register, enter Skip Code 130
and advance to the next meter.
• No RF Signal from FIREFLY – enter Skip Code 150 and advance to the next meter.
Using a FIREFLY as a Repeate
You will need a repeater in situations where there is excess distance between installed units. Repeaters
help ‘lighten the load’ in passing data to the MOSAIC Gateway in dense installation areas and areas
with excessive RF obstructions.
• Wire red & blue together and swipe with the magnet to activate the MOSAIC FIREFLY as a
repeater.
Datamatic, LTD. System Training Manual Version 06.09.09
- 34 - Confidential Datamatic, Ltd. 2009

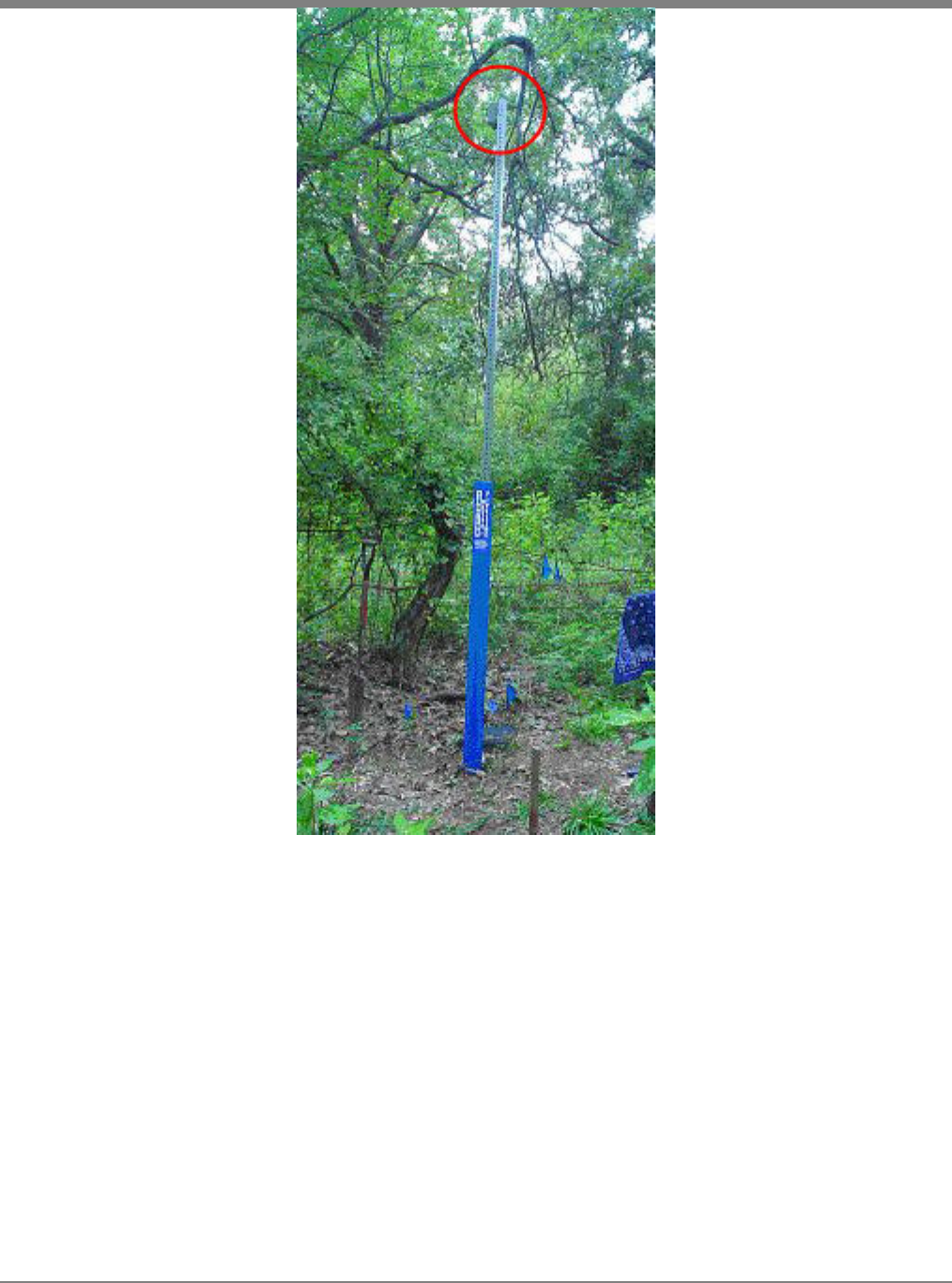

Repeaters are ideally placed above ground with the antenna in a vertical position. When using
FIREFLYs as repeaters, they can be placed in pits, but a resulting loss of RF performance should be
anticipated. For best results and maximum coverage mount the repeater similar to the picture above.
Datamatic, LTD. System Training Manual Version 06.09.09
- 35 - Confidential Datamatic, Ltd. 2009
Load Firmware
Load Firmware Image to OREO
After the user selects the ‘Load Firmware’ option, the following dialog is displayed:
The first option allows the user to load the firmware image to the OREO. The second option allows the
user to send a firmware image that has been loaded into an OREO to a FIREFLY. In order to load a
new firmware image to a FIREFLY through the OREO, it must first be loaded into the secondary image
location in the OREO.
If the option to load an image to the OREO is selected, the following dialog is displayed:
The dialog contains two list controls. The top list control lists all of the firmware images loaded on the
handheld that are available to send to the OREO. The list control has 3 columns. These columns are:
Firmware version number
Type of firmware image (Water, Electric, Gateway, OREO, etc.).
Build Date
Datamatic, LTD. System Training Manual Version 06.09.09
- 36 - Confidential Datamatic, Ltd. 2009
When a firmware image item is highlighted in the list control, the name of the file associated with the
image is displayed below the list control.
All firmware images stored on the handheld are expected to be stored in a folder designated as
\FirmwareImages
The second list control shows the list of firmware images that are currently in the OREO. The second
list control has 4 columns. These are:
Image Number (0-Primary or 1-Secondary)
Firmware version
Firmware type (W-Water, E-Electric, G-Gas, O-OREO, etc.)
Build Date
To send a firmware image to the OREO, highlight the image that will be needed on the OREO and press
the Blue (FNCTN) key and the ‘S’ key. After doing this, the following dialog will be displayed to show
the progress of the file transfer to the OREO:
The dialog will show the progress of the transfer until it has completed.
Once the transfer has completed, the user will be returned to the list of available firmware images dialog
box. The firmware image was transferred to the secondary image on the OREO. If the image loaded is
to replace the existing OREO image, a boot swap command must be done to move the image to the
primary location.
Load Image to FIREFLY
To load a firmware image to the FIREFLY the user will select option 2 from the Load Firmware dialog:
Datamatic, LTD. System Training Manual Version 06.09.09
- 37 - Confidential Datamatic, Ltd. 2009
The firmware image that will be sent to the FIREFLY is the image that is stored in the secondary image
location within the OREO. So in order to send a firmware image to a FIREFLY, the image must first be
loaded into the OREO.
After selecting option 2, the user will be prompted for the serial number of the FIREFLY:
After entering the serial number, the ‘Send Firmware Image to FIREFLY’ dialog is displayed:
Datamatic, LTD. System Training Manual Version 06.09.09
- 38 - Confidential Datamatic, Ltd. 2009
NOTE: Choosing “Destination: Both” will only work when upgrading firmware in the same
mode (i.e. mesh to mesh or non-mesh to non-mesh).
Immediately the application begins requesting a list of the current firmware images stored in the
FIREFLY. After a few seconds, these images are displayed in the list control at the bottom of the
screen:
Once the application has a list of firmware images from the FIREFLY, it displays the current image that
is available in the OREO for sending to the FIREFLY.
If the firmware image that will be sent to the FIREFLY from the OREO already exists in the secondary
image location in the FIREFLY, it will be indicated as in the following screen shot:
It determines that the images are the same by examining the version, firmware type and build date. If all
three of these are the same, the message is displayed.
If the image does not already exist in the FIREFLY, the user will be required to press the Blue (FNCTN)
key and the S key to start the transfer from the OREO to the FIREFLY.
When sending the image the software will display the progress of the transfer as shown in the following
dialog:
Datamatic, LTD. System Training Manual Version 06.09.09
- 39 - Confidential Datamatic, Ltd. 2009
After the transfer has completed, a message is displayed on the screen indicating that the transfer is
almost done (re-activate the FIREFLY if needed):
After the transfer has completed, a message is displayed on the screen indicating that the transfer is
done:
It should be noted that the FIREFLY goes inactive after the transfer has completed. In order to swap the image
into secondary location on the FIREFLY, the boot swap command must be issued to the FIREFLY from the
command line.
Datamatic, LTD. System Training Manual Version 06.09.09
- 40 - Confidential Datamatic, Ltd. 2009
Edit Terminal Commands
Adding a new terminal command
To add or edit a terminal command, from the main selection menu, select the ‘Edit Terminal
Commands’ menu item:
After selecting this option, the following dialog is displayed:
This dialog displays all of the commands that have been added to the command list. The commands are
sorted in alphabetical order. All of the commands are stored in a file called TerminalCommands.dat.
The file is expected to be in the same location as the CXMI application itself. If you do not have this
file, please contact Datamatic Customer Support.
To add a new command, press the Blue Key and the ‘A’ key to display the following dialog:
Datamatic, LTD. System Training Manual Version 06.09.09
- 41 - Confidential Datamatic, Ltd. 2009
The command edit control is where the terminal command is entered. The command description is not
required.
When entering a description, the ‘ENTER’ key can be used to add line feeds to the description as
needed.
To dismiss the dialog box and accept the changes, press the ‘OK’ button. To discard the changes, press
the ‘CANCEL’ button or press the ‘ESC’ key.
Terminal Interface
To edit an existing terminal command, select the command by highlighting it and then press the
‘ENTER’ key. The command along with its description will be displayed in the dialog box:
The dialog behaves the same as when adding a new command. The ‘ENTER’ key can be used to add
line feeds. To accept the changes and dismiss the dialog, press the ‘OK’ button. To discard the changes
press the ‘CANCEL’ button or hit the ‘ESC’ key.
Datamatic, LTD. System Training Manual Version 06.09.09
- 42 - Confidential Datamatic, Ltd. 2009
To execute a terminal command, select option 4. Terminal Interface from the main selection menu.
After selecting the terminal interface menu item, the following dialog is displayed:
This dialog has 5 controls.
The Command drop down list contains the list of available commands that can be executed on the
command line.
The Serial Num edit box is where the serial number for a remote device is supplied.
The drop down list following the serial number edit control indicates whether a command will be local
or remote. A local command will be directed to the OREO. A remote command will be directed to the
device indicated by the serial number.
The Command Line edit box shows the formatted command that will be executed on the target device.
When the user selects a command from the drop down list box, the command is automatically formatted
and added to the command line edit box. If the user is executing a command on a remote device (for
example, a FIREFLY), the ‘rexec’ command is automatically added to the command line as shown in
the following dialog:
Datamatic, LTD. System Training Manual Version 06.09.09
- 43 - Confidential Datamatic, Ltd. 2009
It should be noted that when a serial number is supplied, the command is automatically configured for
remote execution.
After the command is entered, press the Blue Key and the ‘E’ key to execute the command. For the
remote execution of the boot images command, after the command is executed, the ‘Command Result’
edit window will show the results of the command as shown in the following dialog:
If the device does not support a command that is executed, the typical response from the device is
‘Command not found: (command)’. The following is an example:
Also, if a terminal command that is needed has not been set up in the list, it can be entered directly in the
Command Line edit control and executed just as if it were in the list.
It should be noted that only a single command can be executed at a time.
Datamatic, LTD. System Training Manual Version 06.09.09
- 44 - Confidential Datamatic, Ltd. 2009
Edit Export Definition
The data export feature will allow exporting most of the data items captured during the FIREFLY
configuration process. In order to export data that has been captured, a definition that defines the order
of the fields in the export file as well as the fields to be export must be created. To create a new export
definition or to edit an existing export definition, the user will select option ‘5’ from the main menu.
This option is the Edit Export Definition option.
After selecting option 5, the following dialog is displayed:
The list in the dialog shows the existing definitions that have been set up previously. To edit an existing
definition, the user will highlight the definition that requires modification and press the ‘Edit’ button.
To create a new definition, the user will press the ‘New’ button.
If the user selects either the new button or selects to edit an existing definition, the following dialog is
displayed:
Datamatic, LTD. System Training Manual Version 06.09.09
- 45 - Confidential Datamatic, Ltd. 2009
When setting up a new definition, the user will be required to enter a definition name. The delimiter
option allows the user to specify how the fields will be separated in the export file. There are three
available separators the user can choose from: Comma, Semicolon, and Tab.
The default selection is to separate the fields in the exported file by commas.
There are two list views on the dialog. The list control on the left shows the data items that are selected
to be exported. The list control on the right shows the available data items that can be exported. In
order to select an available item, the user must highlight the item to be included in the export and press
the ‘Select’ button. This action will move the item from the ‘Available’ list control to the ‘Selected’ list
control. The following dialog is an example of moving the ‘Target Background’ field to the ‘Selected’
list.
Only one item can be selected at a time. This process can be used to move several items to the
‘Selected’ list until the ‘Selected’ list contains all of the items of interest to be exported.
The items will be exported in the order that they appear in the ‘Selected’ list. The following screen shot
is an example of setting up a definition to export lat/long data.
Datamatic, LTD. System Training Manual Version 06.09.09
- 46 - Confidential Datamatic, Ltd. 2009
The fields will be exported in the order that they appear in the ‘Selected’ list. To arrange the order of
the fields, highlight the field and press the ‘Up’ button to move the item up in the list or the ‘Down’
button to move it down in the list. To remove an item from the selection, press the ‘Del’ button.
Removing an item will move the item back to the Available fields list.
When the export definition is finished, the user can select the ‘Save’ button to save the definition. The
location where the export definitions are saved to will be the \CXMIExportDef folder.
To exit the dialog, the user will select the ‘Done’ button or press the ‘ENTER’ key. To exit the dialog
without saving changes to the dialog, the user will be required to press the ‘ESC’ key. A warning
indicating that the definition has not been saved will be displayed to verify that the user wants to exit the
dialog without saving any changes to the definition.
In the example above, when the lat/long data is exported, on each row of data, the serial number will
appear first followed by the latitude and then followed by the longitude. Each row will contain these 3
items. Also, the first row in each exported file will contain the names of the fields represented in the
file. The following is an example of the exported data:
Serial Number, Latitude, Longitude
13000082, 11954973, -35195374
13000184, 11955067, -35195540
Once exported, this file can be imported into excel or some other application to view or process the data
(after the file has been retrieved from the ROADRUNNER). A common software program used for
retrieving data from a handheld or mobile device is ActiveSync. If you do not have this software on
your PC, please contact a member of your IT staff.
Datamatic, LTD. System Training Manual Version 06.09.09
- 47 - Confidential Datamatic, Ltd. 2009
Export Data
In order to export data using a definition, the user will select option ‘6’ from the main menu. The
following screen shot is an example of the main menu.
Selecting option 6 will show the following dialog:
There will be a drop down list that contains all of the definitions that have been set up for exporting
data. After selecting a definition, the user will then have the option for entering a start date and an end
date. Each of the records captured from a FIREFLY is time stamped with the date and time at the
extraction. This will allow exporting data for a specific range of dates. Leaving the start and end date
fields blank will export all records that are available for export.
If the user decides to enter a start date and end date, the user can enter the date manually in the edit
control in the format MM/DD/YYYY or the user can simply press the ‘Start Date’ button or the ‘End
Date’ buttons to select a date from a calendar. Selecting the start or end date buttons will bring up the
following dialog:
Datamatic, LTD. System Training Manual Version 06.09.09
- 48 - Confidential Datamatic, Ltd. 2009
To select a date, the user can use either the arrow keys to move between dates and months or use the
stylus to select a date. The left/right arrow keys will scroll through the dates backward/forward through
the month. The up/down arrow keys will cause the date selection to scroll from week to week.
After selecting a date, the user will need to either press either the ‘OK’ button on the screen or press the
‘ENTER’ key on the keyboard. After the user dismisses the dialog used to select a date, the date will be
displayed in the Export Data dialog edit control. The following screen shot is an example:
Once the user has selected the start and end date, the user can begin the export by pressing the ‘Export’
button. The following is an example of the exported data:
Serial Number, Latitude, Longitude
13000082, 11954973, -35195374
13000184, 11955067, -35195540
The location where the exported data is stored will be in the \CXMIData folder. The file name will be
the same name as the definition file with the ‘.DEF’ extension removed and an ‘.EXP’ extension will be
added. Also, the date will be added to the name of the file. For example, using the above definition
name, the output file would be ‘latlongtest_20090209.EXP’. The exported data will be stored for up to
90 days before being automatically deleted.
Datamatic, LTD. System Training Manual Version 06.09.09
- 49 - Confidential Datamatic, Ltd. 2009
MOSAIC FIREFLYs as Repeaters (Mesh Mode)
When wired as a repeater, after a successful initial swipe, the RED LED will go solid and the GREEN
LED will flash slowly as the MOSAIC FIREFLY searches for the mesh. When communication has
been established with a node already connected to the mesh (MOSAIC Gateway, Repeater or another
MOSAIC FIREFLY) the GREEN LED will go solid.
Datamatic, LTD. System Training Manual Version 06.09.09
- 50 - Confidential Datamatic, Ltd. 2009
Troubleshooting Electric and Gas FIREFLYs
Reports are generated from installation and RV data that has been sent to Datamatic using the DAZE
program. These reports are processed and e-mailed back to the customers for review. These reports are
used to identify which FIREFLYs need troubleshooting. Examples of FIREFLYs in need of
troubleshooting include no RF signal and Delta values outside of specified range.
Before Leaving Office
The following steps need to be checked before entering the field:
1. Check the Template parameters from the FIREFLY Menu.
2. Set the ROADRUNNER reading mode to RV Mode.
3. Check the FIREFLY Options screen to verify the correct parameters.
Troubleshooting Field Procedure
The following steps should be taken to troubleshoot FIREFLY issues while in the field:
• Perform a Walk-Up RV (see Read and Verify Procedure section of this manual).
• If walk-up RV is accurate, proceed to the next meter on the Troubleshooting Report.
• If the FIREFLY is inaccurate or has any trouble codes then proceed with troubleshooting.
Troubleshooting Details
Check the following before troubleshooting the FIREFLY:
• The dials are not stuck or malfunctioning.
• Make sure the FIREFLY has no visible damage.
Receiving no RF signal from a FIREFLY
When interrogating a FIREFLY from a ROADRUNNER and no radio read can be made, check the
following:
• Check Current Settings by serial number to verify the register # on the meter, ROADRUNNER, and
FIREFLY match.
• Verify that in Current Settings of the FIREFLY, the Mode is showing to be ‘Active’.
Datamatic, LTD. System Training Manual Version 06.09.09
- 51 - Confidential Datamatic, Ltd. 2009
Inaccurate Undercounting FIREFLY
Gas FIREFLY:
• Ensure the drive shaft is engaged properly and turns freely.
• Look at index speed; excessive index speed can cause under-counting. Continually undercounting
deltas usually means the account has an undersized meter, making both the meter and FIREFLY
miss counts.
Electric FIREFLY:
• Check connection of FIREFLY to power posts. Reconnect using the proper technique if needed.
• Confirm there are no reflective unpainted areas within the painted area of the disc.
• Check meter disc speed; excessive disc spend can cause under-counting. Continually undercounting
deltas usually means the account has an undersized meter, making both the meter and FIREFLY
miss counts.
Tightening Gas FIREFLY onto register
• Do not over-tighten screws on the Gas FIREFLY.
• Breakage due to negligence may not be covered under warranty.
Datamatic, LTD. System Training Manual Version 06.09.09
- 52 - Confidential Datamatic, Ltd. 2009
Troubleshooting Procedures
MOSAIC FIREFLY Codes
Code Description Meaning Onsite visit Y or N? Steps To Resolve
BA10 Battery Battery is low Yes RMA for battery
replacement
Ta40 Tamper System recorded
En70 48 times Yes Perform Connection
Troubleshooting* below
Le60 Leak 25 hours of continual
consumption Yes Check for leak
EN70 Encoder Not
Read Did not receive
reading Yes Perform Connection
Troubleshooting* below
EN80 Encoder Invalid “Other” message.
System received
“garbled” data from
meter
No Should get a reading at
next scheduled reading
time. Check register if the
message is being
transmitted frequently.
MESH Mesh Alarm Hardware Alarm Yes Remove & Replace
immediately
Pr11 Primary Image Loading primary
image No Should not affect reading
Se13 Secondary
Image Loading secondary
image No Should not affect reading
Connection Troubleshooting
1. Check for physical damage to the MOSAIC FIREFLY wire.
2. Check for physical damage to the Register.
3. If possible, test the register head.
4. If there is no physical damage detected resplice and reswipe the MOSAIC FIREFLY.
a. Repeat step several times if necessary.
b. If the red light goes solid, repot the MOSAIC FIREFLY and continue to monitor.
c. Request an RMA if the issue persists.
Refer to LED Status Figure 1 for verification of functional status.
Datamatic, LTD. System Training Manual Version 06.09.09
- 53 - Confidential Datamatic, Ltd. 2009
Unread Meters Troubleshooting
1. Research in the MOSAIC Software Interface to determine when the last read was and check for
possible patterns.
2. If the MOSAIC FIREFLY is unable to join the network:
a. Verify that the MOSAIC FIREFLY is installed and mounted properly in the meter pit
b. Swipe the meter & refer to the LED Operational States for verification of functional
status Mesh (light will slow blink green). Go to the nearest neighboring MOSAIC
FIREFLY and swipe.
c. Check the unread MOSAIC FIREFLY for solid green light (this process can take several
attempts). Before swiping both units must be “asleep” (no LED lights) before attempting
to swipe again.
3. Continue monitoring in MOSAIC Software & replace unread MOSAIC FIREFLY if the issue
persists.
4. If after all troubleshooting is complete & you are unable to achieve a solid green light the
MOSAIC FIREFLY should be replaced.
a. If there is no LED response within 5 seconds of magnet swipe retry several times. If the
unit in question continues to be unresponsive it should be replaced.
Datamatic, LTD. System Training Manual Version 06.09.09
- 54 - Confidential Datamatic, Ltd. 2009
FIREFLY File Emailing Instructions
The program most commonly used to zip files is called WinZip. If you do not have this program, find
out if you can have it downloaded to your computer from www.Winzip.com. It is around $29 for the
software. These instructions below are written for users using the WinZip program.
Use the following instructions to Zip and E-mail the FFConfiguration (F1) and FFReadVertification
(F2) file.
Customers that are installing their own FIREFLYs will use only the
Customername_Customername_MMDDYY in the file name. Example: PlanoTX_PlanoTX_020705.
Installers (contractors) that are installing for a customer will use
Customername_Installername_MMDDYY. Example: PlanoTX_ABCMeters_020705.
Set up a shortcut to the Desktop for RoutesUploadedBackup folder. This has to be done only once.
Steps to Zip and E-mail a file using Winzip:
RoutesUploadedBackup folder
Open RoutesUploadedBackup folder
Select the FFConfiguration.dat and FFReadVertification.dat files that need to be zipped.
Right-click on the selected files and select Zip and E-Mail Plus.
Once at the Zip and E-Mail plus window, select “Use this name:” and enter the proper naming
convention as discussed above. Then click OK.
Example: PlanoTX_PlanoTX_020705
This will bring up your email and attach the zipped file into the email for you automatically.
Datamatic, LTD. System Training Manual Version 06.09.09
- 55 - Confidential Datamatic, Ltd. 2009
At the Email Window:
Enter the following information into the email window. The below example is if you are using Microsoft
Outlook as your email program.
To: FIREFLY@Datamatic.com
Subject: CustomerName_InstallerName_MMDDYY
Body: List the cycle/routes loaded in the file. Also, state whether this file was created from a new
install or a Read and Verify.
Click SEND
After receiving confirmation of arrival of the zip e-mailed files and receiving your reports back from
Datamatic, you may delete the FF.dat files in the RoutesUploadedBackup folder.
Datamatic, LTD. System Training Manual Version 06.09.09
- 56 - Confidential Datamatic, Ltd. 2009
FAQ’s
Can I use all three MOSAIC Gateway backhaul types in a single installation?
Yes.
Will I see a difference as far as data collection between the three MOSAIC Gateway backhaul
configurations?
No, you will not see a difference.
Why would I need to use GPRS in an installation?
GPRS works well in areas where other types of backhaul coverage are not available.
Is the Wi-Fi product 802.11 compliant?
Yes, our Wi-Fi product is 802.11B compliant.
How many MOSAIC FIREFLYs can mesh together?
Typically 1-24 MOSAIC FIREFLYs can communicate directly with each other. The minimum number
of MOSAIC FIREFLY connections needed to continue the mesh is 1. The total number of MOSAIC
FIREFLYs per MOSAIC Gateway should not exceed 1,500.
What is the output power of a MOSAIC FIREFLY?
Transmissions are rated at 250mW.
What is the range of a MOSAIC FIREFLY?
Above ground = approximately ¾ mile (line of sight). Pit mounted (through lid) = 600’ – 1000’
(depending on lid material). Many variables affect range, including topography, meter lid material and
height of the MOSAIC Gateway.
Are the new MOSAIC FIREFLYs compatible with previous legacy FIREFLYs?
No, the transmission frequencies and messages scheme are different; thus a new radio is needed for
handheld, mobile and mesh readings.
Do the MOSAIC FIREFLYs read via the ROADRUNNER MOBILE product?
Yes, a mobile reading mode is available with the same hardware used for Mesh reading.
Will I need different MOSAIC FIREFLYS for Mesh and Mobile functionality?
No, the same hardware used for mobile mode will work with both.
How do I program an MOSAIC FIREFLY?
MOSAIC FIREFLYs used on encoded water meters are automatically set-up. MOSAIC FIREFLYs for
other meters are programmed via 2-way radio communications from a handheld programmer. New
schedules, profile requests and firmware are also loaded via the Mesh.
What does your handheld programming tool look like?
The handheld programmer is a Datamatic, LTD ROADRUNNER CX unit with a MOSAIC 2-way radio.
Datamatic, LTD. System Training Manual Version 06.09.09
- 57 - Confidential Datamatic, Ltd. 2009
What is the battery life for the MOSAIC FIREFLY?
When run at a 20 minute mesh interval, 10 plus years.
Is the battery pack replaceable?
Yes, the battery pack can be replaced at Datamatic.
What frequency does the MOSAIC product use?
We use a Frequency Hopping Spread Spectrum (FHSS) over the 902-928 MHz band. 50 separate
frequencies are utilized.
Do you use a licensed frequency?
The radio frequency that Datamatic, LTD uses operates on the ISM band, which is unlicensed.
Does your product provide profiling?
Yes the battery operated MOSAIC FIREFLYS have 240 days of hourly profile data on board.
How do you get the profiling?
Profile data is extracted in two ways, the MOSAIC FIREFLY can be programmed via the mesh to
send an hourly profile packet along with its midnight read, or you can use the RR programmer to
extract the profile data on demand (in development). Keep in mind that requesting profile data over
the Mesh in large quantities will take time and network resources.
How often do I get reads via the Mesh?
Once daily is recommended, but this is user definable. Battery powered MOSAIC FIREFLYs send
in daily readings by default, with the ability to send in up to hourly intervals on selected basis. A
sampling of all meters can be configured to send in higher resolution profile data for statistical
analysis, but can have a negative impact on the mesh network performance.
Is the system 2-way?
Yes, the MOSAIC FIREFLYS can send data and receive commands from the MOSAIC Gateway,
which in turn communicates with the back office utility. MOSAIC FIREFLYs can also
communicate 2-way with a handheld programmer.
What can I do with the 2-way functionality?
Update schedules, configurations, extract profile or other data, and more. Communications can be
broadcast to an entire Mesh or directed to an individual MOSAIC FIREFLY.
Does the MOSAIC system have repeaters?
Yes, low cost repeaters are utilized to bridge the gap between distant MOSAIC FIREFLYs to reduce
network congestion at unavoidable Mesh network bottlenecks or to reduce latency.
How do the MOSAIC FIREFLY repeaters work?
Each MOSAIC FIREFLY already acts as a repeater. Units wired and dedicated as a MOSAIC
FIREFLY repeater utilize the same firmware but do not read a meter and therefore only repeat
readings upstream that they receive.
Datamatic, LTD. System Training Manual Version 06.09.09
- 58 - Confidential Datamatic, Ltd. 2009
What is the MOSAIC FIREFLY repeater battery life?
It works similar to that of a MOSAIC FIREFLY.
Do you support cellular backhaul from the MOSAIC Gateway?
Yes, via GPRS only at this time.
Do you support Wi-Fi backhaul at the MOSAIC Gateway?
Yes, 802.11 b.
Datamatic, LTD. System Training Manual Version 06.09.09
- 59 - Confidential Datamatic, Ltd. 2009
Appendix A
ROADRUNNER CX with
MOSAIC Gas FIREFLY
FIREFLY Template for_________________________________
Parameter Prompt Type Value Suggested Value
1. Reading Normal Normal Depends on meter/billing units
2. Register # Normal Normal Normal
3. Constant Default Depends on meter/billing units
4. Optic Threshold Default 10
5. Rollover Default Depends on meter/billing units
6. Read Truncation Default Depends on meter/billing units
7. Target Background Default 100
8. Optic Read Delay Default 5
9. Trickle Threshold Default 24 (hours)
A. No Dip Expiration Default 30 (days)
B. Drive-by Schedule Default Default Schedule Defined*
X. Save and Exit Save Your Template
*The schedule defined as the default value in the Template will be used
Datamatic, LTD. System Training Manual Version 06.09.09
- 60 - Confidential Datamatic, Ltd. 2009
#1 Set your FIREFLY Template (See Appendix A):
Parameter Prompt
Type Value (Recommended Value)
1. Reading Normal Normal
2. Register Number Normal Normal
3. Mode (makes the FIREFLY active) Default (Active)
4. System Number (area code for
FIREFLYs) Default (100)
5. Profile Interval (how often usage is
saved) Default (60)
6. Transmit Interval (how often a
FIREFLY sends its signal into the air) Default (3)
7. Index Size Normal 1,2,5,10 (whole # size from
index)
8. Rollover (# of dials you read + 2) Default Residential = (6)
9. Profile Scale (usually same as constant) Default (1)
A. Encoder Interval Default (0)
B. Pulse Ratio Default (1)
C. Pressure Compensation Ratio Normal (Indicated by a red index face)
X. Save & Exit To Save your Template
Datamatic, LTD. System Training Manual Version 06.09.09
- 61 - Confidential Datamatic, Ltd. 2009
ROADRUNNER CX with
MOSAIC Electric FIREFLY
FIREFLY Template for_________________________________
Parameter Prompt Type Value Suggested Value
1. Reading Normal Normal Depends on meter/billing units
2. Register # Normal Normal Normal
3. Constant Default Depends on meter/billing units
4. Optic Threshold Default 10
5. Rollover Default Depends on meter/billing units
6. Read Truncation Default Depends on meter/billing units
7. Target Background Default 100
8. Optic Read Delay Default 5
9. Trickle Threshold Default 24 (hours)
A. No Dip Expiration Default 30 (days)
B. Drive-by Schedule Default Default Schedule Defined*
X. Save and Exit Save Your Template
*The schedule defined as the default value in the Template will be used
Parameter Prompt
Type Value (Recommended Value)
1. Reading Normal
Normal
2. Register Number Normal Normal
3. Mode (makes the FIREFLY active) Default (Active)
4. Centron Mode (60Hz - America, 50Hz -
International) ROADRUNNER CX only Default (60 Hz)
5. System Number (area code for Default (100)
Datamatic, LTD. System Training Manual Version 06.09.09
- 62 - Confidential Datamatic, Ltd. 2009
FIREFLYs)
6. Profile Interval (how often usage is
saved) Default (15)
7. Transmit Interval (how often a
FIREFLY sends its RF signal) Default (2)
8. Constant (dependent upon the meter) Normal or
Default (7.2, 12, 14.4)
9. Rollover (# Of Dials FIREFLY sends) Default (5)
10. Profile Scale Default (1)
X. Save & Exit To Save your Template
Datamatic, LTD. System Training Manual Version 06.09.09
- 63 - Confidential Datamatic, Ltd. 2009
Contacting Datamatic
Use the Go To: master navigation menu to access the ‘Support’ page.
The Support page consists of the following:
Datamatic, LTD. System Training Manual Version 06.09.09
- 64 - Confidential Datamatic, Ltd. 2009
Datamatic, LTD. System Training Manual Version 06.09.09
- 65 - Confidential Datamatic, Ltd. 2009
Document Revisions
Do Not Print
Team Members: Deena Martin
Date: June 9, 2009 – June 16, 2009
Revision: A
Revision Log: Created MOSAIC Energy FF Guide; updates for FCC
certification per Ken D.
