User Manual.pdf
1
OPEN MESH
Wireless-N 450 + 450Mbps Long Range Ceiling Mount Dual Concurrent Access Point
MR900
Wireless-N 450 + 450Mbps Long Range Ceiling Mount Dual Concurrent Access Point
V1.0
1
Table of Contents
1 Introduction ....................................................................................................................................................................... 5
1.1 Features and Benefits ..................................................................................................................................................................................... 6
1.2 Package Contents ............................................................................................................................................................................................ 7
1.3 System Requirements ..................................................................................................................................................................................... 7
1.4 Applications ....................................................................................................................................................................................................... 7
2 Before you Begin ............................................................................................................................................................... 9
2.1 Considerations for Wireless Installation .................................................................................................................................................. 9
2.2 Computer Settings (in Windows XP/Windows 7) .............................................................................................................................. 10
2.3 Computer Settings in Apple Mac OS X ................................................................................................................................................. 13
2.4 Hardware Installation................................................................................................................................................................................... 14
3 Configuring Your Access Point ...................................................................................................................................... 19
3.1 Default Settings ............................................................................................................................................................................................. 19
3.2 Web Configuration ....................................................................................................................................................................................... 20
4 Building a Wireless Network ......................................................................................................................................... 22
4.1 Access Point Mode ....................................................................................................................................................................................... 22
4.2 WDS AP Mode ............................................................................................................................................................................................... 23
4.3 WDS Bridge Mode ........................................................................................................................................................................................ 24
4.4 Repeater mode .............................................................................................................................................................................................. 25
5 Status ................................................................................................................................................................................ 26
5.1 Save/Reload .................................................................................................................................................................................................... 26

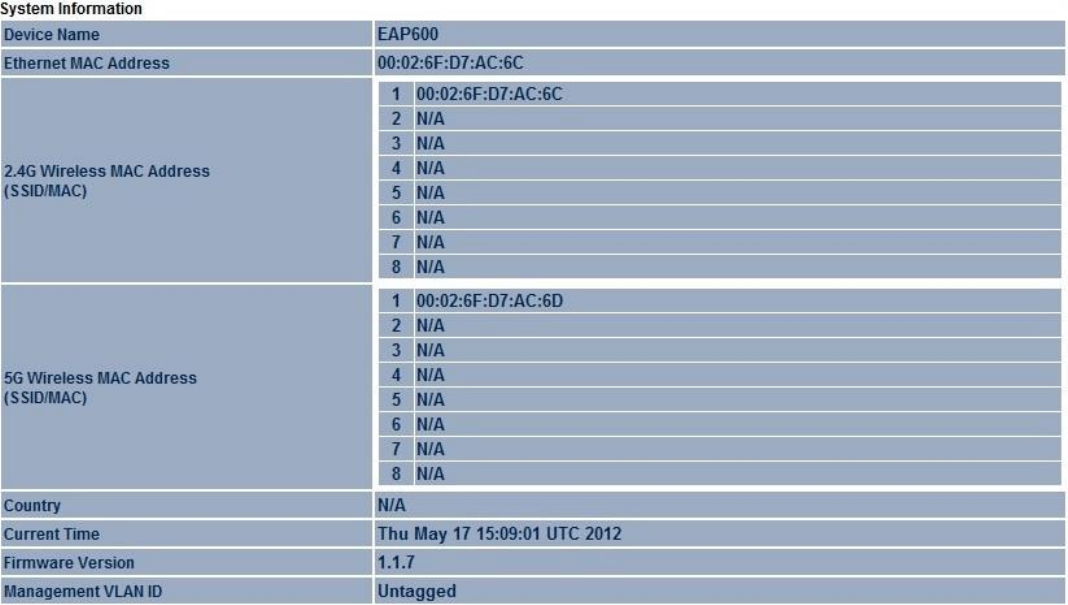

5.2 Main ................................................................................................................................................................................................................... 27
5.3 2.4G/5G Wireless Client List ...................................................................................................................................................................... 30

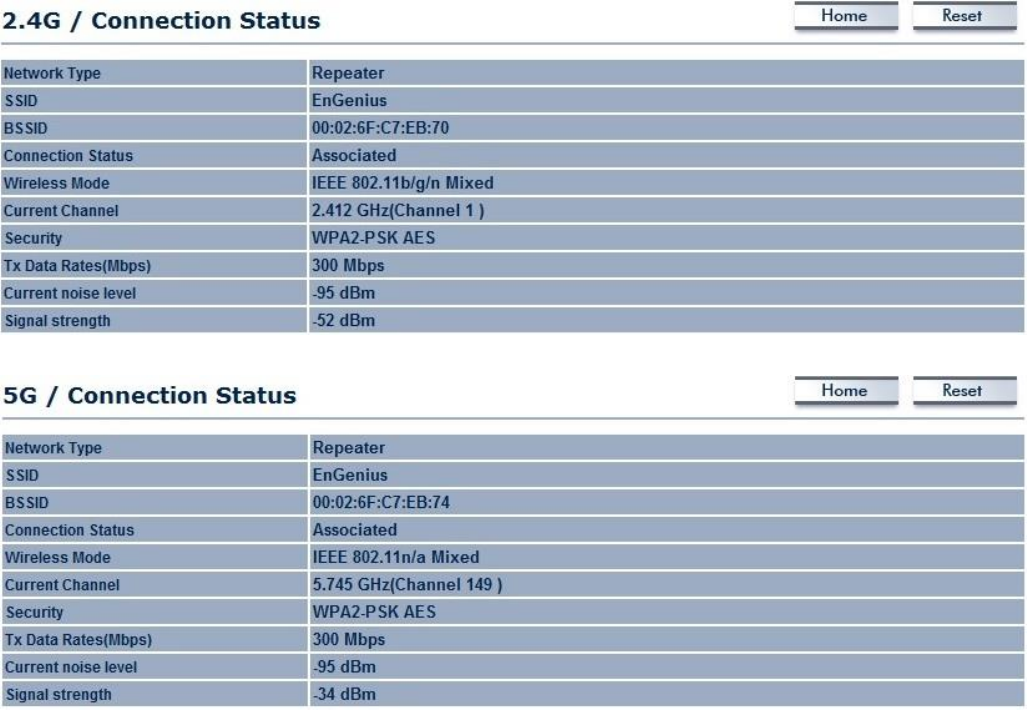

5.4 2.4G/5G Connection Status ....................................................................................................................................................................... 31
5.5 2.4G/5G WDS Link List ................................................................................................................................................................................ 32
2
5.6 System Log ...................................................................................................................................................................................................... 33
6 System .............................................................................................................................................................................. 34
6.1 Operation Mode ............................................................................................................................................................................................ 34
6.2 IP Settings ........................................................................................................................................................................................................ 35
6.3 Spanning Tree Setting ................................................................................................................................................................................. 36
7 2.4G/5G Wireless ............................................................................................................................................................. 38
7.1 Wireless Network .......................................................................................................................................................................................... 38

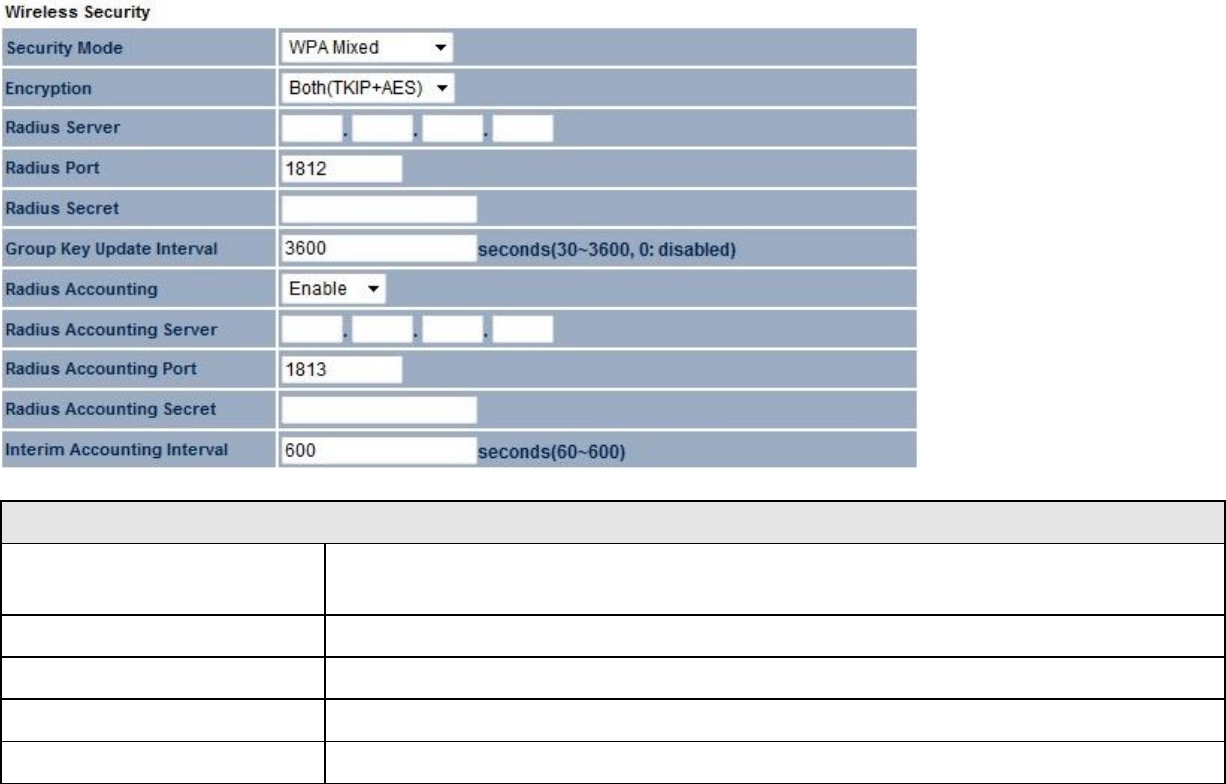

7.2 Wireless Security ........................................................................................................................................................................................... 45
7.3 Site Survey ....................................................................................................................................................................................................... 49

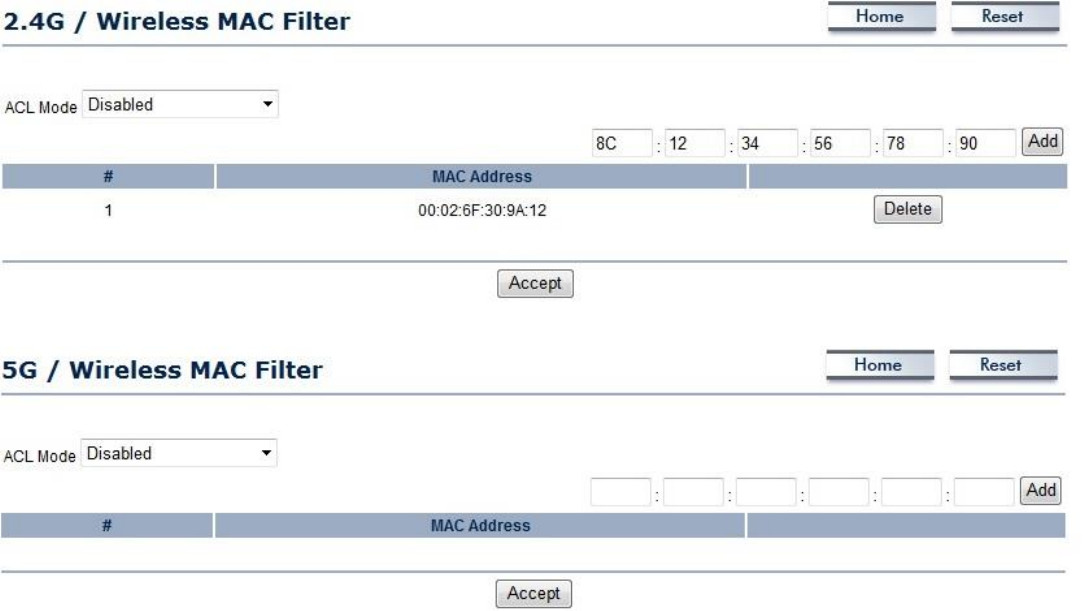

7.4 Wireless MAC Filtering ................................................................................................................................................................................ 53
7.5 Wireless Advanced ....................................................................................................................................................................................... 55
7.6 WPS (Wi-Fi Protected Setup) .................................................................................................................................................................... 57
7.7 WDS Link Settings......................................................................................................................................................................................... 60
8 Management .................................................................................................................................................................... 63
8.1 Administration................................................................................................................................................................................................ 63
8.2 Management VLAN Settings .................................................................................................................................................................... 64
8.3 Wireless Traffic Shaping ............................................................................................................................................................................. 66
8.4 SNMP Settings ............................................................................................................................................................................................... 67
8.5 Backup/Restore .............................................................................................................................................................................................. 69
8.6 Auto Reboot Settings .................................................................................................................................................................................. 70
8.7 Firmware Upgrade ........................................................................................................................................................................................ 71
8.8 Time Setting .................................................................................................................................................................................................... 72
8.9 Log ...................................................................................................................................................................................................................... 73

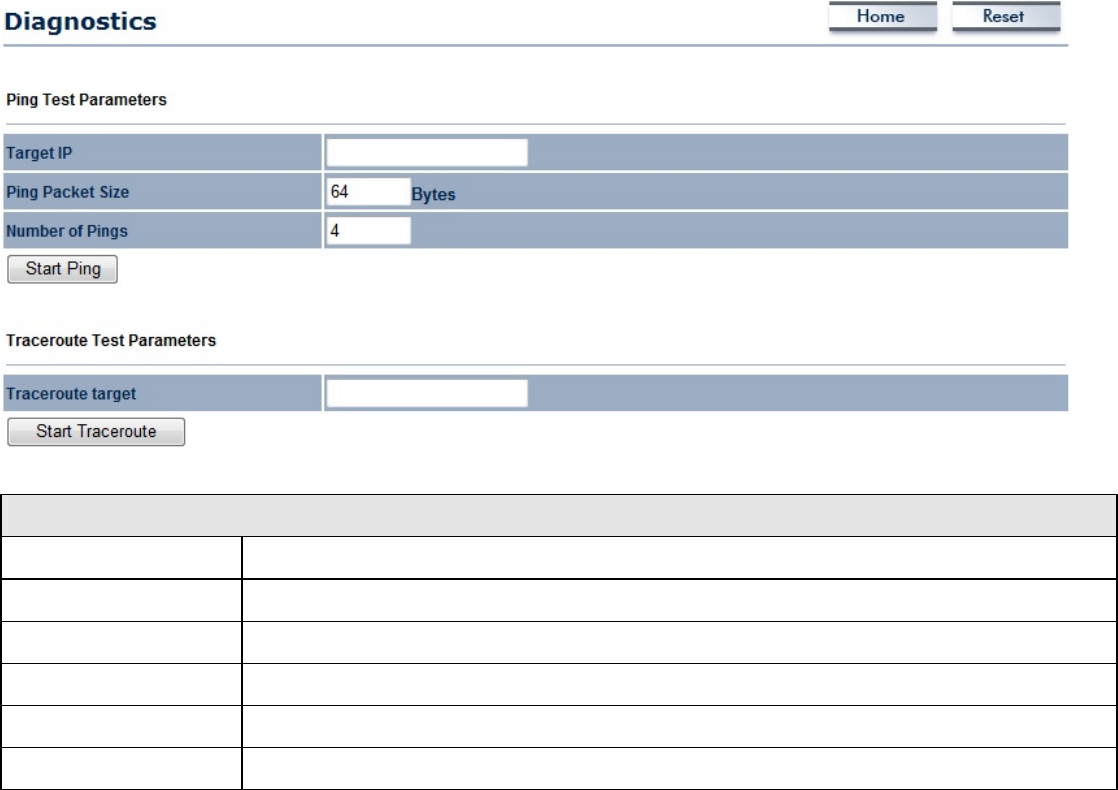

8.10 Diagnostics ...................................................................................................................................................................................................... 74
8.11 LED Control ..................................................................................................................................................................................................... 75
8.12 Logout ............................................................................................................................................................................................................... 76
8.13 Reset .................................................................................................................................................................................................................. 77
3
Appendix A – FCC Interference Statement .......................................................................................................................... 78
Appendix B – IC Interference Statement ............................................................................................................................. 79
Appendix C – CE Interference Statement ............................................................................................................................. 81
4
Revision History
Version
Date
Notes
1.0
2013/07/31
First Release
5
1 Introduction
The MR900 is a high-powered, long-range dual-band concurrent wireless 802.11a/b/g/n access point with four major
functional modes. The MR900 is designed to operate in numerous environments from large homes, small and medium-
sized businesses, multiple-floor offices, hotels and other venues to larger enterprise deployments. Its high-powered, long-
range characteristics make it a cost-effective alternative to ordinary access points that don’t have the range and reach to
connect to a growing number of wireless users who wish to connect to a large home or business network.

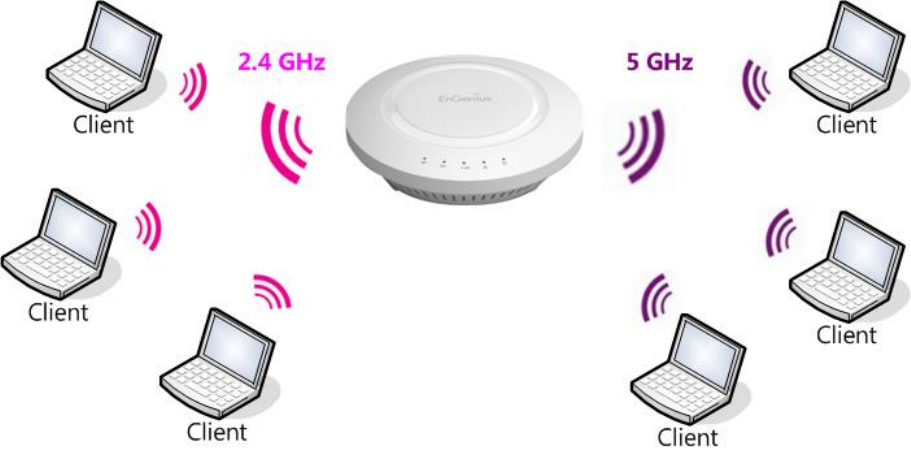

The MR900 supports the 2.4GHz frequency band under 802.11 b/g/n mode while at the same time providing 5GHz band
for communicating or transferring files in a less congested network frequency band.
The MR900 delivers up to 6x faster wireless speeds and 7x extended coverage than legacy 802.11a/b/g wireless devices.
Even though the MR900 has been designed and engineered for traffic heavy and demanding business environments it is
also quite at home in larger house scenarios because it efficiently extends the wireless range of an existing home router,
especially in very architecturally-challenging structures to provide whole home connectivity.
To protect sensitive data during wireless transmissions, the MR900 offers different encryption settings for wireless
transmissions including industry-standard WPA and WPA2 encryption. The MR900 also includes MAC address filtering to
allow network administrators to offer network access only to known computers and other devices based on their MAC
addresses.
6
1.1 Features and Benefits
Features
Benefits
High Speed Data Rate Up to 300 Mbps for
each band (2.4GHz / 5GHz)
Capable of handling heavy data payloads such as HD multimedia
streaming.
10/100/1000 Gigabit Ethernet
Support up to 1000Mbps wired networking speed.
IEEE 802.11n Compliant and Backwards
Compatible with 802.11 a/b/g devices
Fully compatible with IEEE 802.11 a/b/g/n devices.
Multi-Function
Allowing users to select any one of the following modes: Access
Point, WDS AP, WDS Bridge, and Repeater depending on their
specific networking deployment need.
Support Multiple SSID in AP mode (up to 8
in each frequency band)
Allow clients to access different networks through a single access
point and assign different policies and functions for each SSID
through the built in software.
WPA/WPA2/IEEE 802.1x Support
Powerful data security.
MAC Address Filtering in AP Mode
For more secure network connections with known users and devices.
User Isolation Support (AP mode)
Offers an additional layer of protection within the network by
isolating specific client users.
Power-over-Ethernet (IEEE802.3at/af)
Allows installers to deploy the access point in locations via a PoE
connection (Ethernet cable) where a power outlet may not be
available.
Save User Settings
Enables network administrators to save their device settings so
firmware upgrades do not permanently delete previous device
settings.
SNMP Remote Configuration Management
Allows remote connection to configure or manage the MR900 easily.
QoS (WMM) support
Prioritizes bandwidth-intensive and sensitive data traffic.
7
1.2 Package Contents
The MR900 package contains the following items (all items must be in package to issue a refund):
MR900 Access Point
12V/2A 100V~240V Power Adapter
RJ-45 Ethernet LAN Cable
Wall Mount Kit: Mounting Bracket, Wall/Ceiling Mounting Hardware Kit, T-Rail Mounting Hardware Kit
CD with User's Manual
Quick Installation Guide
1.3 System Requirements
The following are the Minimum System Requirements in order configure the device.
Computer with an Ethernet interface or wireless network capability
Windows OS (XP, Vista, 7), Mac OS, or Linux-based operating systems
Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or another similar browser application)
1.4 Applications
Wireless LAN (WLAN) products are easy to install and highly efficient. The following list describes some of the many
applications made possible through the power and flexibility of WLANs:
a) Difficult-to-Wire Environments
There are many situations where wires cannot be installed or deployed easily or cannot be hidden from view. Older
buildings, sites with multiple buildings, and/or areas make the installation of a Ethernet-based LAN impossible,
impractical or expensive.
8
b) Temporary Workgroups
Create temporary workgroups/networks in more open areas within a building – auditoriums, amphitheater
classrooms, ballrooms, arenas, exhibition centers, temporary offices where one wants either a permanent or
temporary Wireless LAN established.
c) The Ability to Access Real-Time Information
Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while dealing
with patients, serving customers, and/or processing information.
d) Frequently Changing Environments
Set up networks in environments that change frequently (i.e.: Show Rooms, Exhibits, etc.).
e) Small Office and Home Office (SOHO) Networks
SOHO users need a cost-effective, easy and quick installation of a small network.
f) Wireless Extensions to Existing Ethernet-based Networks
Devices like the MR900 enable network administrators, installers and end-users to extend the range and reach of an
existing Ethernet-based network.
g) Training/Educational Facilities
Training sites at corporations or students at universities use wireless connectivity to ease access to information,
information exchanges, and learning.
9
2 Before you Begin
This section will guide you through the installation process. Placement of the OPEN MESH MR900 is essential to maximize
the access point’s performance. Avoid placing the MR900 in an enclosed space such as a closet, cabinet, or stairwell.
2.1 Considerations for Wireless Installation
The operating distance of all wireless devices cannot be pre-determined due to a number of unknown obstacles in the
environment that the device is deployed in. These could be the number, thickness, and location of walls, ceilings, or other
objects that the MR900’s wireless signals must pass through. Here are some key guidelines to allow the MR900 to have
optimal wireless range.
Keep the number of walls and/or ceilings between the MR900 and other network devices to a minimum. Each wall
and/or ceiling can reduce the signal strength, resulting in lower signal strength.
Building materials makes a difference. A solid metal door and/or aluminum stubs may have a significant negative
effect on the signal strength of the MR900. Locate your wireless devices carefully so the signal can pass through a
drywall and/or open doorways. Materials such as glass, steel, metal, concrete, water (example: fish tanks), mirrors, file
cabinets and/or brick can also diminish wireless signal strength.
Interference from your other electrical devices and/or appliances that generate RF noise can also diminish the
MR900’s signal strength. The most common types of devices are microwaves or cordless phones.
10
2.2 Computer Settings (in Windows XP/Windows 7)
In order to use the MR900, you must first configure the TCP/IPv4 connection of your Windows OS computer system.
Click Start button and open Control Panel.
Windows XP Windows 7
11

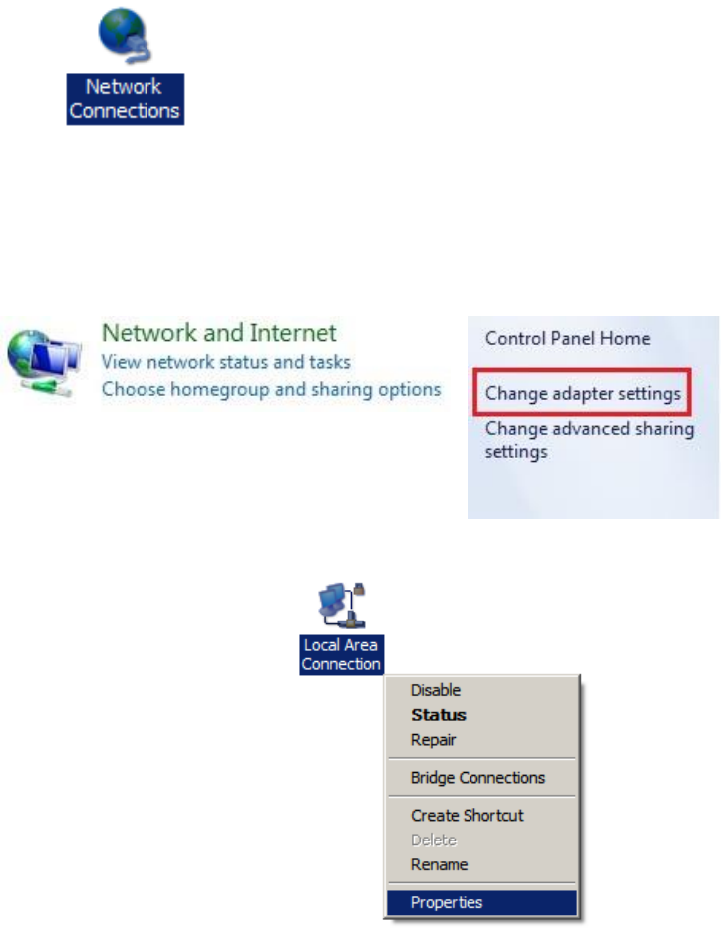

In Windows XP, click Network Connections
In Windows 7, click View Network Status and Tasks in the Network and Internet section, then select Change
adapter settings
Right click on Local Area Connection and select Properties
12

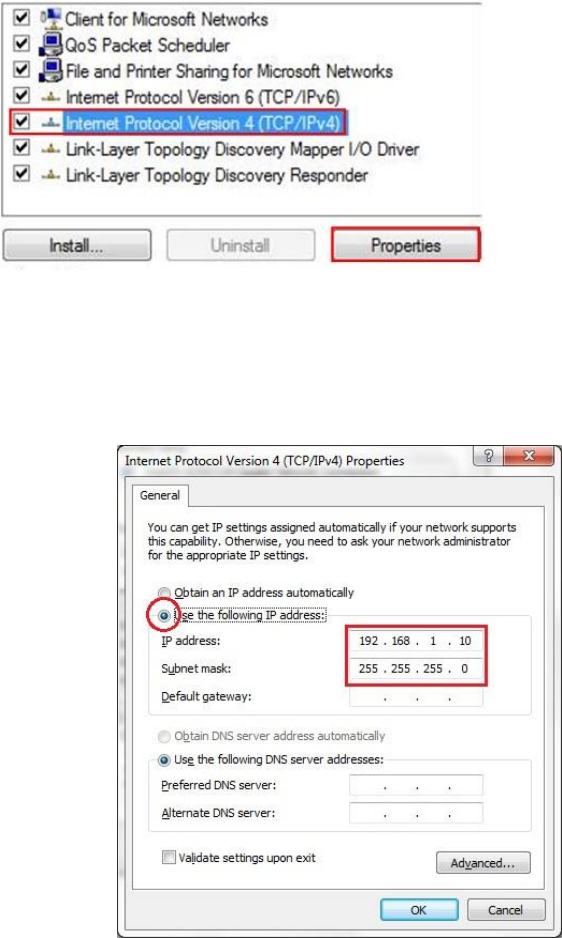

Select “Internet Protocol Version 4 (TCP/IPv4)” and then
select Properties
Select Use the following IP address and enter an IP address that is
different from the MR900 and subnet mask then click OK.
Note: Ensure that the IP address and subnet mask are on the same subnet as
the device.
For example: MR900 IP address: 192.168.1.1
PC IP address: 192.168.1.2 – 192.168.1.255
PC subnet mask: 255.255.255.0
13

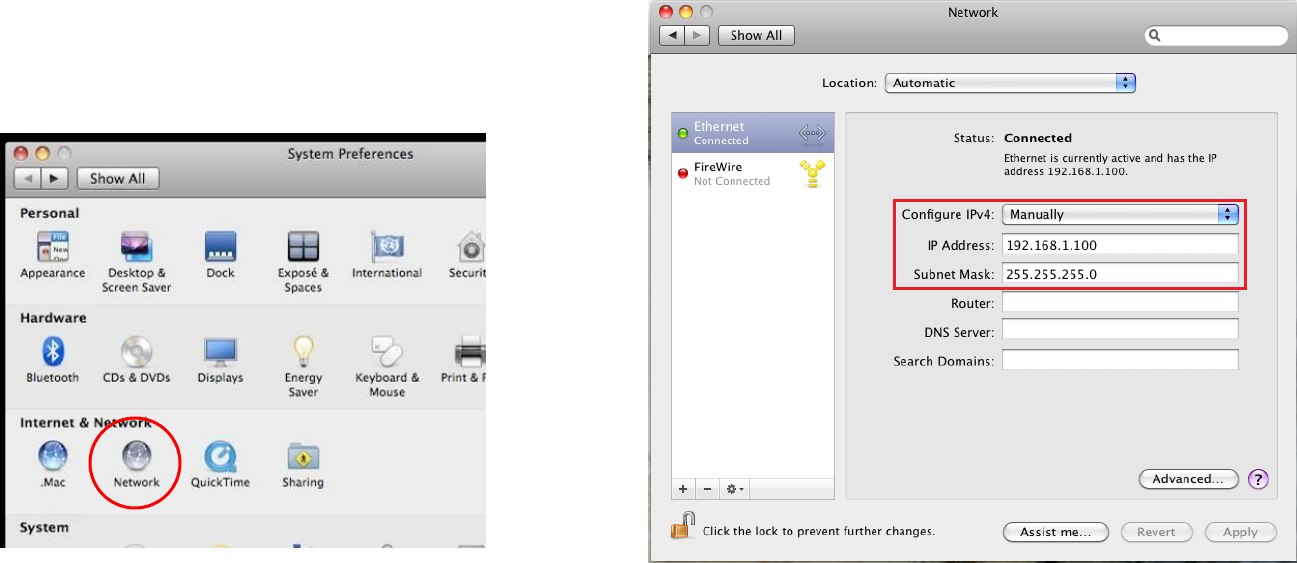

2.3 Computer Settings in Apple Mac OS X
Go to System Preferences (can be opened in the Applications folder or selecting it in the Apple Menu)
Select Network in the Internet & Network section
Highlight Ethernet
In Configure IPv4, select Manually
Enter an IP address that is different from the MR900 and subnet mask then press OK
Note: Ensure that the IP address and subnet mask are on the same subnet as the device.
For example: MR900 IP address: 192.168.1.1
PC IP address: 192.168.1.2 – 192.168.1.255
PC subnet mask: 255.255.255.0
Click Apply when done.
14
2.4 Hardware Installation

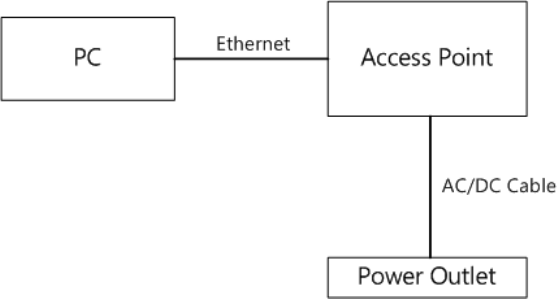

1. Ensure that the computer in use has an Ethernet Controller (RJ-45 Ethernet Port). For more information, verify with your
computer’s user manual.
2. Connect one end of the Category 5e Ethernet cable into the RJ-45 port of the MR900 and the other end to the RJ-45
port of the computer. Ensure that the cable is securely connected to both the MR900 and the computer.
3. Connect the Power Adapter DC connector to the DC-IN port of the MR900 and the Power Adapter to an available
electrical outlet. Once both connections are secure, verify the following:
a) Ensure that the POWER light is on (it will be orange).
b) Ensure that the 2.4GHz/5GHz WLAN light is on (it will be green for 5G, blue for 2.4G).
c) Ensure that the LAN (Computer/MR900 Connection) light is on (it will be blue).
d) Once all three lights are on, proceed to set up the access point using the computer.
This diagram depicts the hardware configuration.
15
Mounting the MR900
Using the provided hardware, the MR900 can be attached to a ceiling or wall.

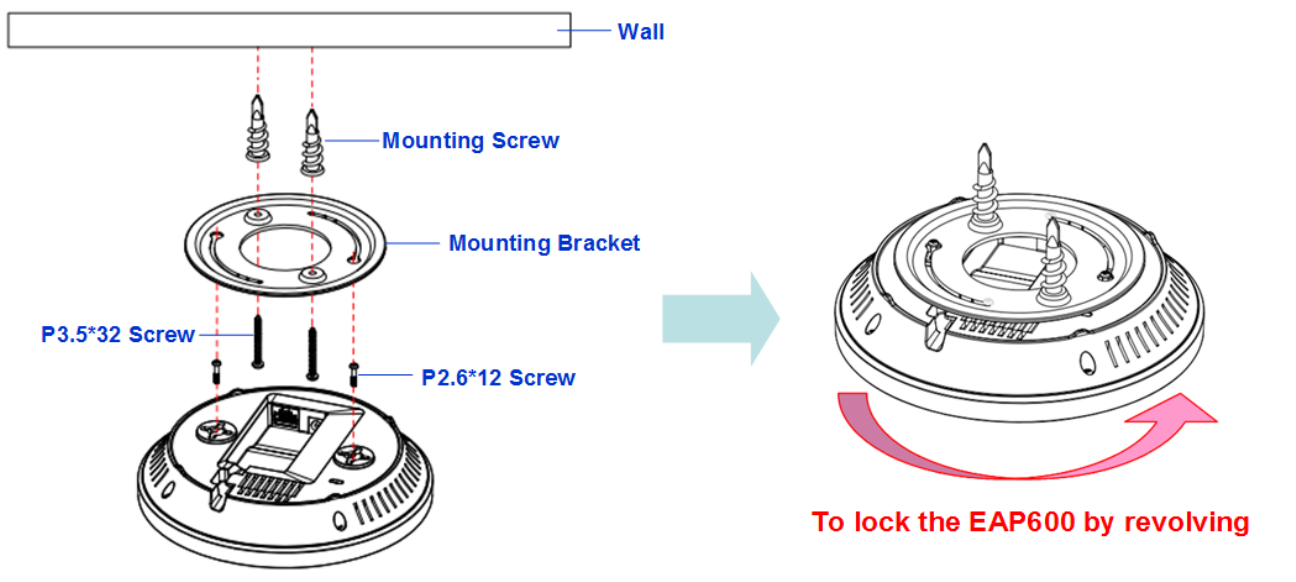

To attach the MR900 to a ceiling or wall using the mounting bracket:
1) Attach the mounting bracket to the wall or ceiling using the provided wall/ceiling mounting hardware kit.
2) Insert the provided short screws into the bottom cover of the MR900.
Leave enough of the screws exposed to ensure that the unit can be attached to the mounting bracket.
If extra space is required, use the provided spacers and long screws from the T-Rail mounting hardware kit to increase the
space between the unit and the mounting bracket.
16
3) Mount the MR900 on the mounting bracket by rotating the unit clockwise about 90 degrees to secure it in place.

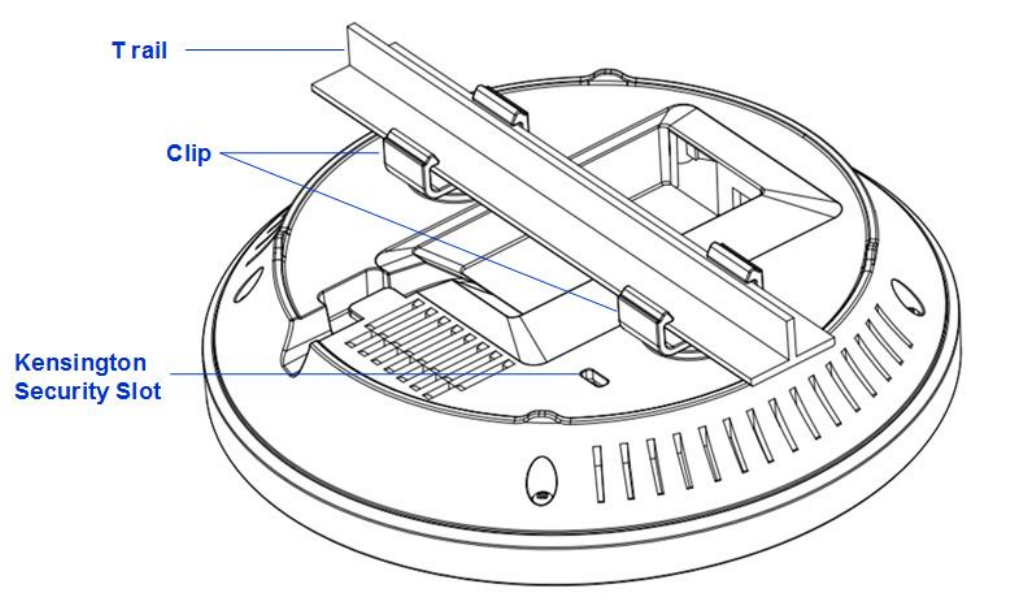

To attach the MR900 to a ceiling using the provided T-rail connectors:
1) Attach the T-rail connectors to the bottom cover of the MR900 using the provided short screws.
Two sizes of T-rail connectors are included in the mounting hardware kit: 15/16in (2.38cm) and 9/16in (1.43cm).
If extra space is required to accommodate drop ceiling tiles, use the provided spacers and long screws.
17
2) Line up the connected T-rail connectors with an appropriately sized rail and press the unit onto the rail until it snaps
into place.
Note: To protect your MR900, use the Kensington security slot to attach a cable lock (cable lock is not included).
18

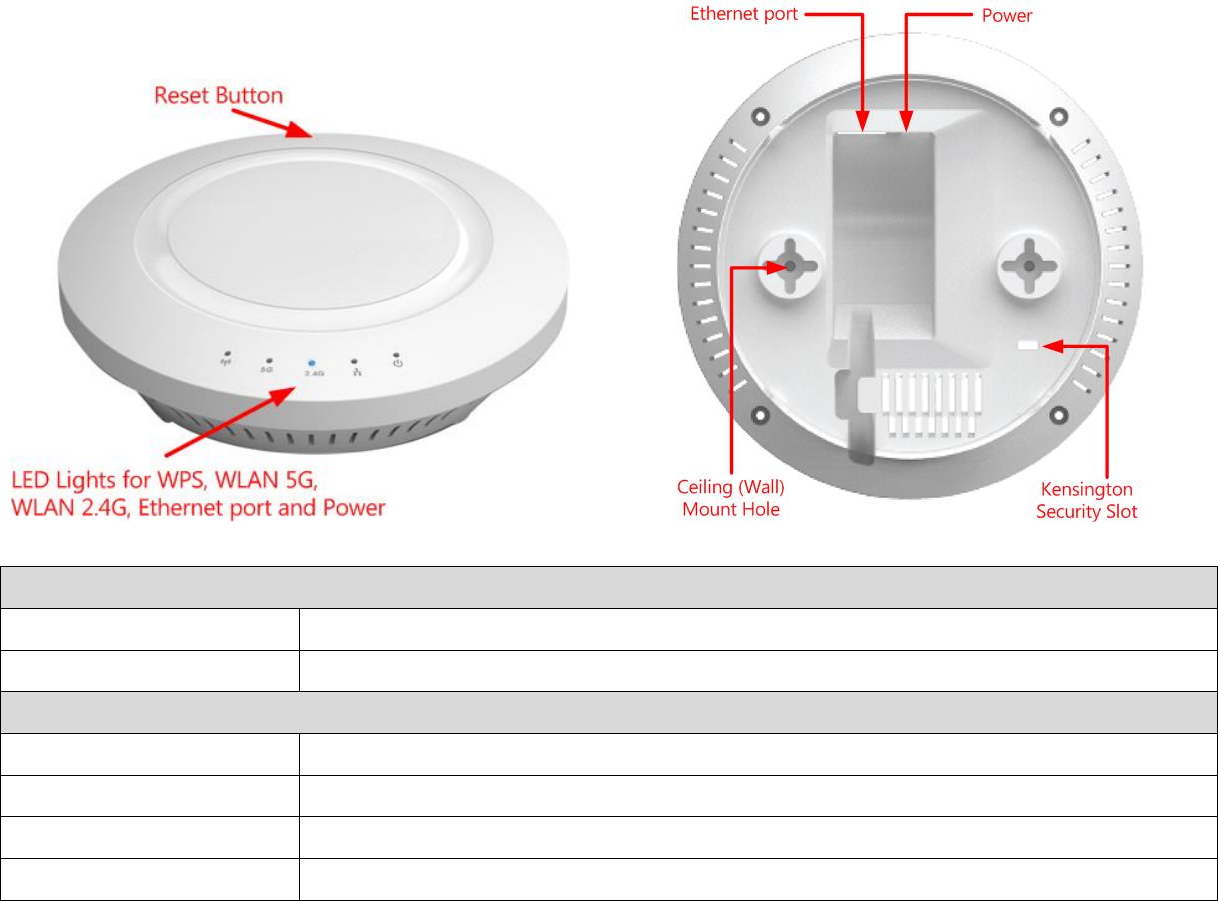

Front Panel Rear Panel
Front Panel
Reset Button
One click for reset the device. Press over 10 seconds for reset to factory default.
LED Lights
LED lights for WPS, WLAN 5G, WLAN 2.4G, Ethernet port and Power.
Rear Panel
Power
DC IN for Power.
Ethernet Port
Ethernet port for RJ-45 cable.
Ceiling (Wall) Mount Hole
Using the provided hardware, the MR900 can be attached to a ceiling or wall.
Kensington Security Slot
To protect your MR900, use the Kensington security slot to attach a cable lock.
19
3 Configuring Your Access Point
This section will show you how to configure the device using the web-based configuration interface.
3.1 Default Settings
Please use your Ethernet port or wireless network adapter to connect the Access Point.
Default Settings
IP Address
192.168.1.1
Username / Password
admin / admin
Operation Mode
AP / AP
20
3.2 Web Configuration

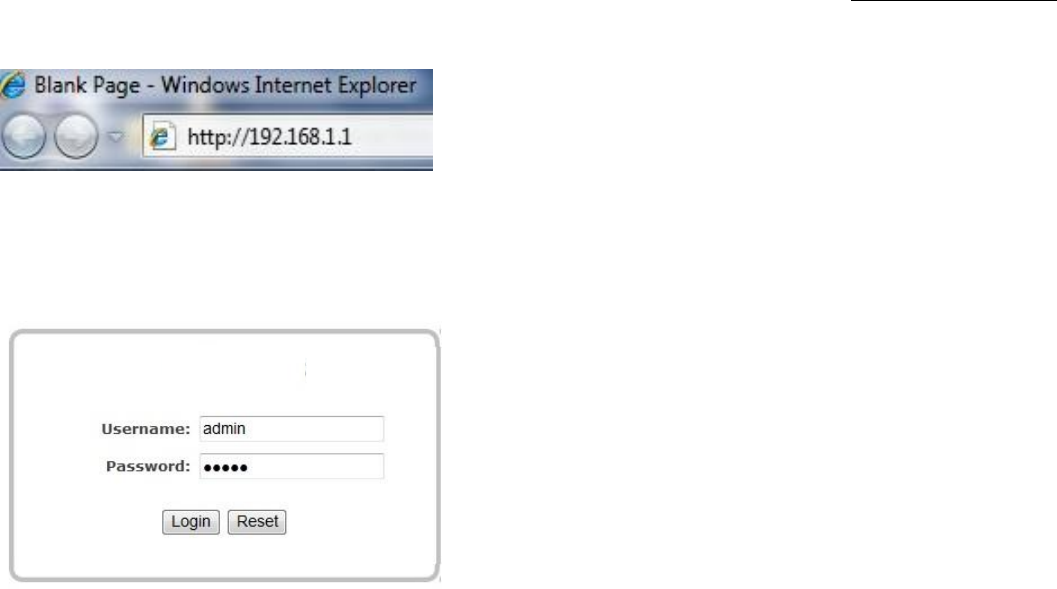

Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address http://192.168.1.1
Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.
The default username and password are admin. Once you have entered the correct username and password, click the
Login button to open the web-base configuration page.
21
If successful, you will be logging in and see the MR900 User Menu.
22
4 Building a Wireless Network
The MR900 has the ability to operate in various modes. This chapter describes the operating modes of the MR900.
4.1 Access Point Mode
In Access Point Mode, MR900 behaves likes a central connection for stations or clients that support IEEE 802.11a/b/g/n
networks. The stations and clients must be configured to use the same SSID (Service Set Identifier) and security password
to associate with the MR900. The MR900 supports up to eight SSIDs at the same time for secure access.
23

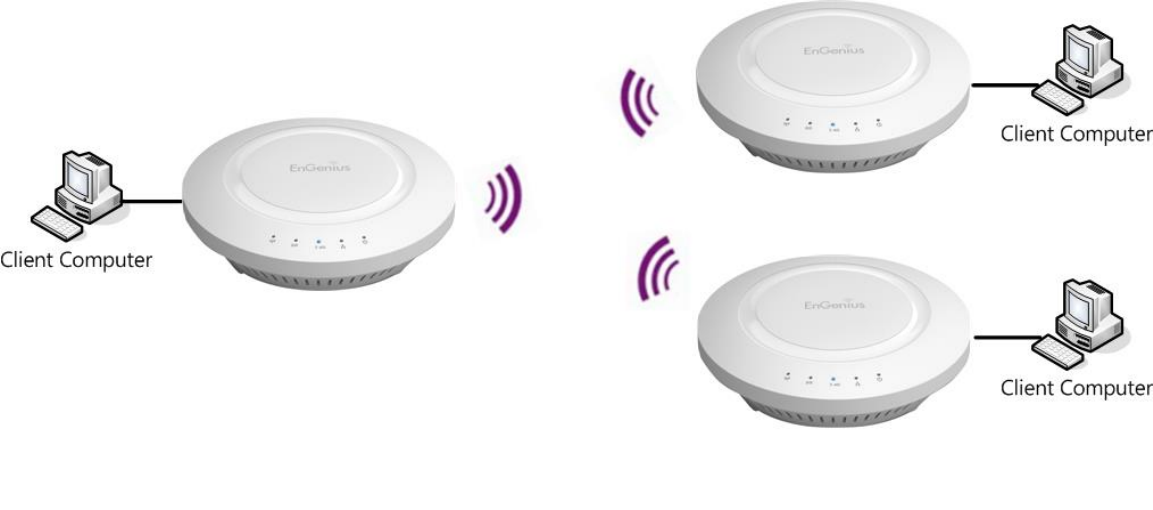

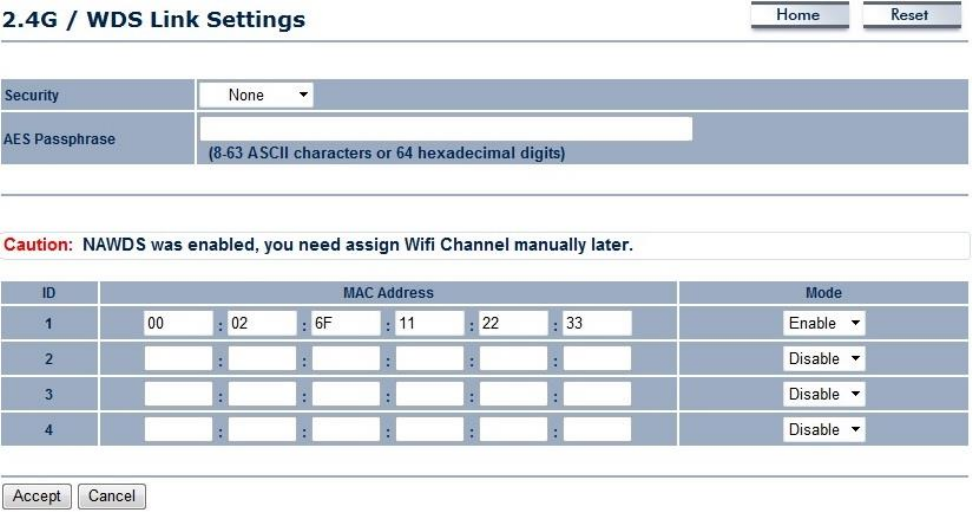

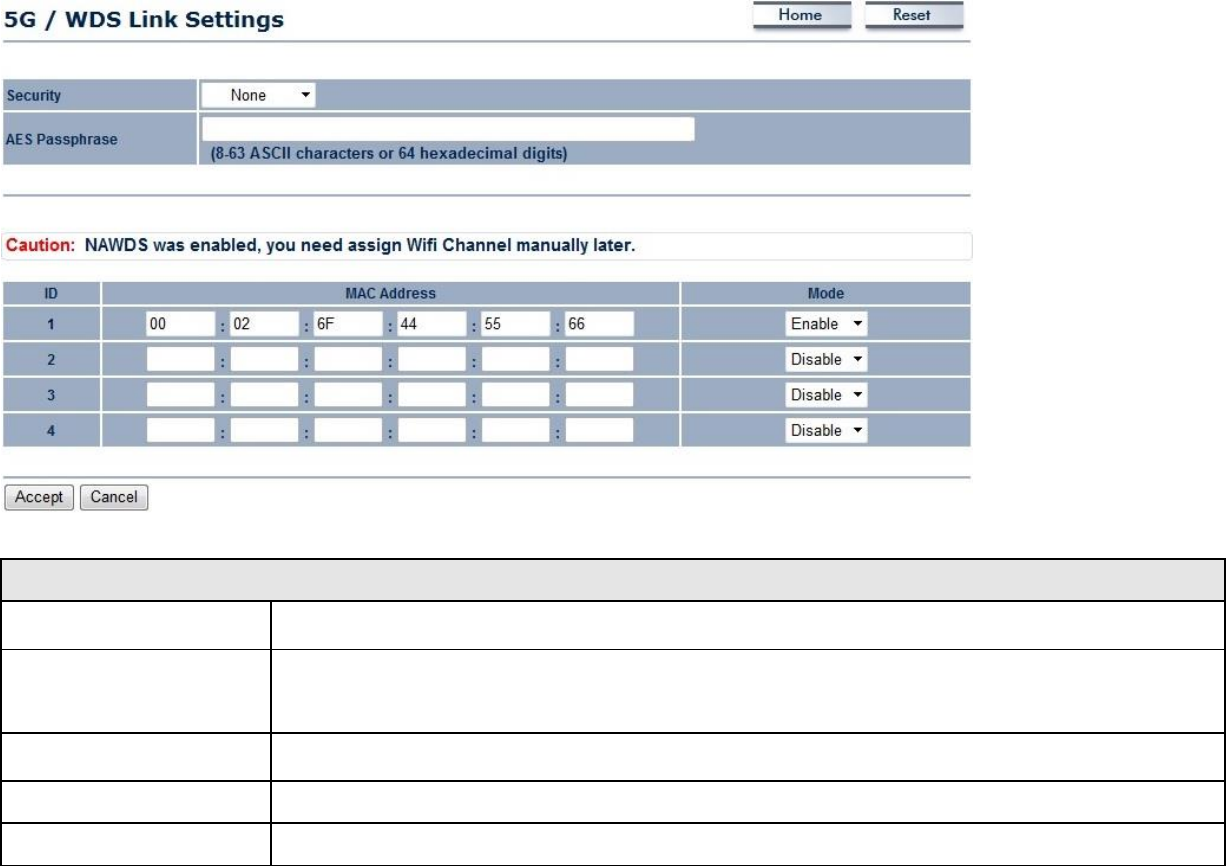

4.2 WDS AP Mode

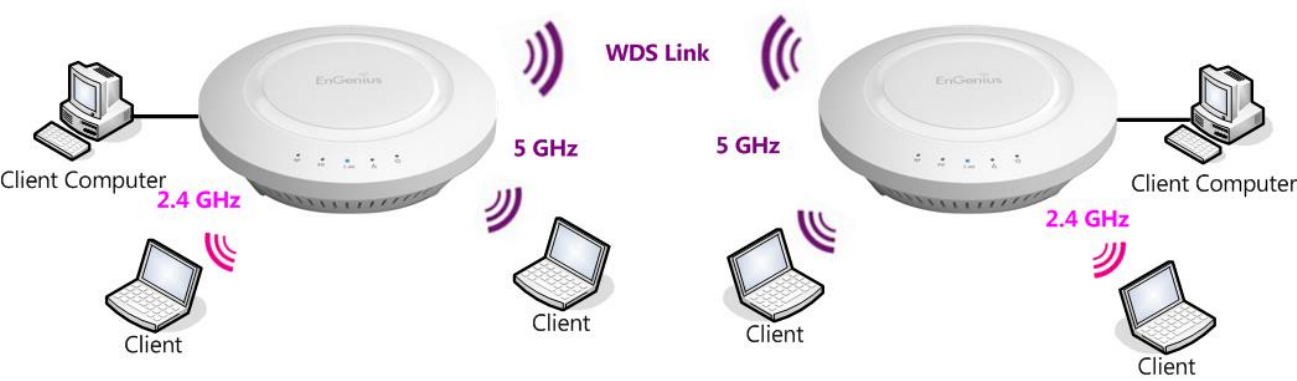

The MR900 also supports WDS AP mode. This operating mode allows wireless connections to the MR900 using WDS
technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling
WDS Link settings. WDS supports four AP MAC addresses.
24
4.3 WDS Bridge Mode
In WDS Bridge Mode, the MR900 can wirelessly connect different LANs by configuring the MAC address and security
settings of each MR900 device. Use this mode when two wired LANs located a small distance apart want to communicate
with each other. The best solution is to use the MR900 to wirelessly connect two wired LANs, as shown in the following
figure.
WDS Bridge Mode can establish four WDS links, creating a star-like network.
Note: WDS Bridge Mode does not act as an Access Point. Access Points linked by WDS are using the same frequency channel. More Access
Points connected together may lower throughput. This configuration can be susceptible to generate endless network loops in your network,
so it is recommended to enable the Spanning Tree function to prevent this from happening.
25

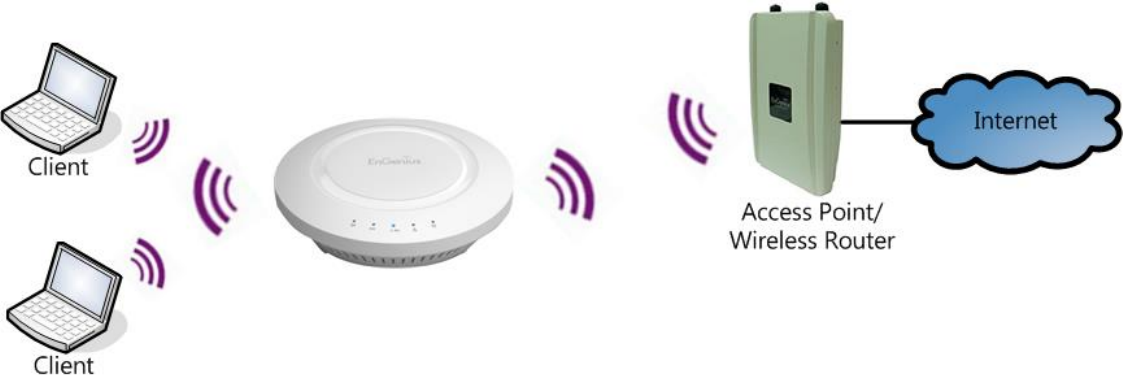

4.4 Repeater mode
The Repeater mode is used to regenerate or replicate signals from a wireless router or other access point/station that is
unable to reach certain areas in a building. When this mode is activated in the MR900, the MR900 receives the wireless
signal from an existing router or AP and relays it to other devices within its range so they can join the network.
26
5 Status
The Status section contains the following options: Main, 2.4G/5G Wireless Client List, 2.4G/5G Connection Status,
2.4G/5G WDS Link List and System Log.
The following sections describe these options.

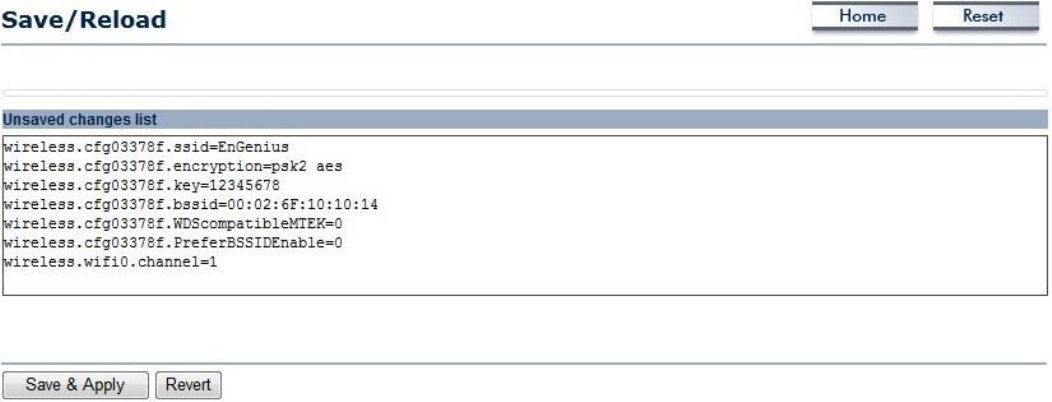

5.1 Save/Reload
This page lets you save and apply the settings shown under Unsaved changes list, or cancel the unsaved changes and
revert them to the previous settings that were in effect.
27

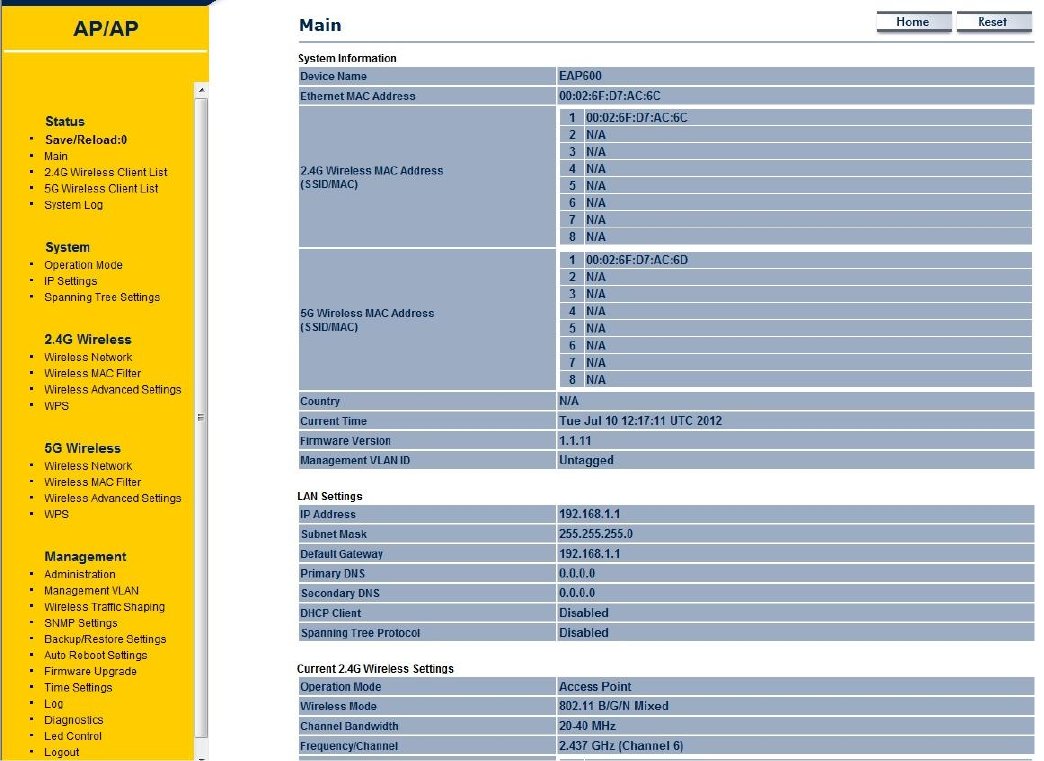

5.2 Main
Clicking the Main link under the Status menu or clicking Home at the top-right of the MR900 Page shows the status
information about the current operating mode.
- The System Information section shows general system information such as Device Name, MAC Address, Current Time,
Firmware Version, and Management VLAN ID (Note: VLAN ID is only applicable in Access Point or WDS AP mode).
28

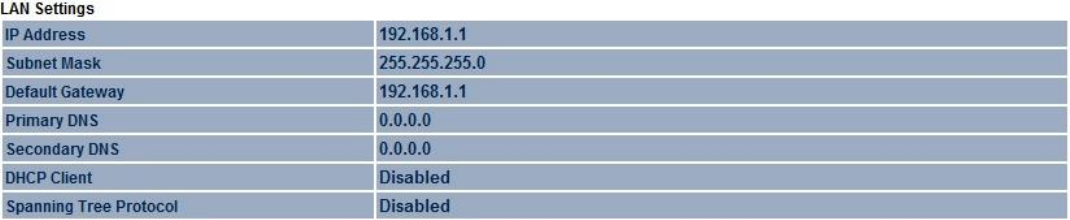

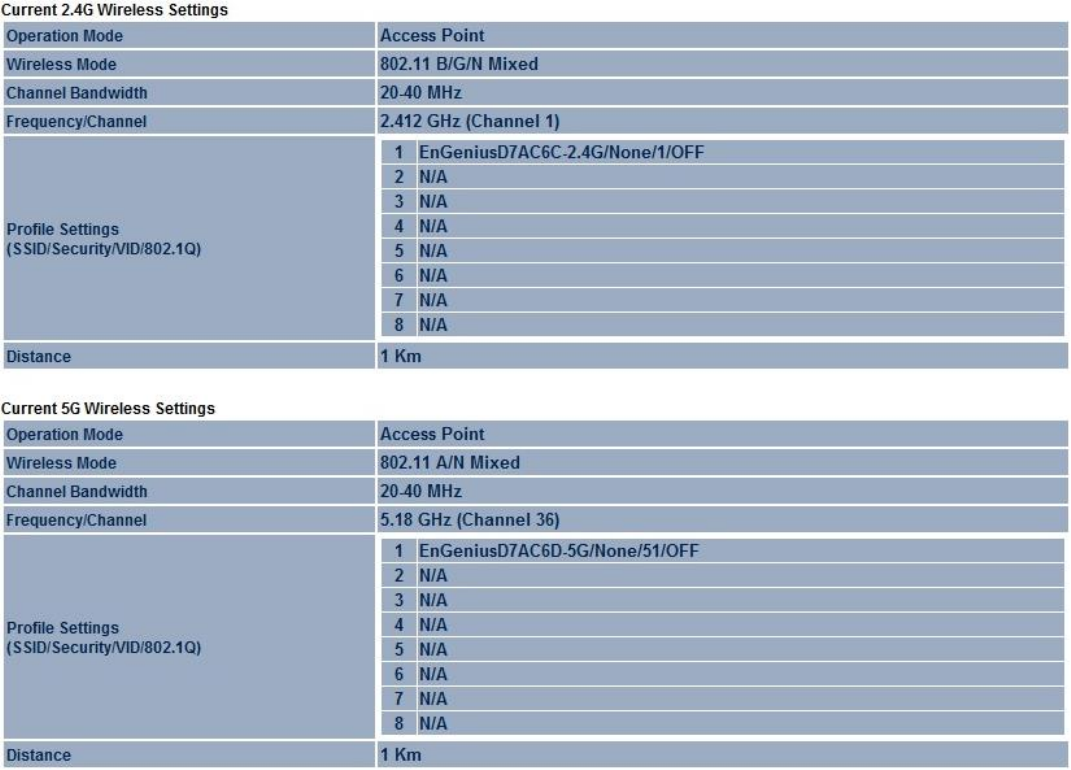

- The LAN Settings section shows the Local Area Network settings such as the LAN IP Address, Subnet Mask, and DNS
Address.
- The Current 2.4G/5G Wireless Settings section shows wireless information such as Operating Mode, Frequency, and
Channel. Since the MR900 supports multiple-SSIDs, information about each SSID, the ESSID and security settings, are
displayed (Note: Profile Settings is only applicable in Access Point, WDS AP).
29
30
5.3 2.4G/5G Wireless Client List

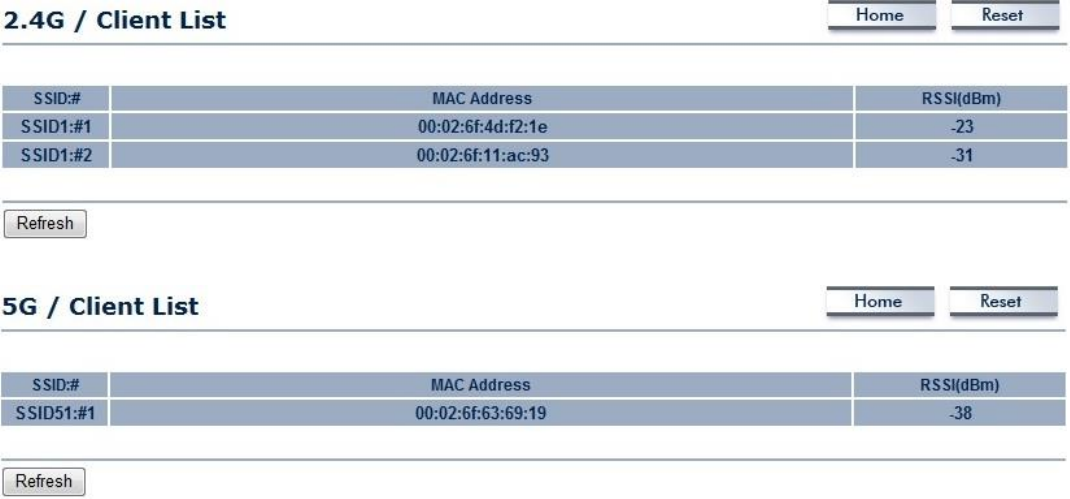

Clicking the 2.4G/5G Wireless Client List link under the Status menu displays the list of clients associated to the MR900’s
2.4GHz/5GHz, along with the MAC addresses and signal strength for each client. Clicking Refresh updates the client list.
Note: Only applicable in Access Point, WDS AP, and Repeater mode.
31
5.4 2.4G/5G Connection Status
Click on the 2.4G/5G Connection Status link under the Status menu. This page displays the current status of the Network,
including Network Type, SSID, BSSID, Connection Status, Wireless Mode, Current Channel, Security, Data Rate, Noise Level,
and Signal Strength.
Note: Only applicable in Repeater mode.
32

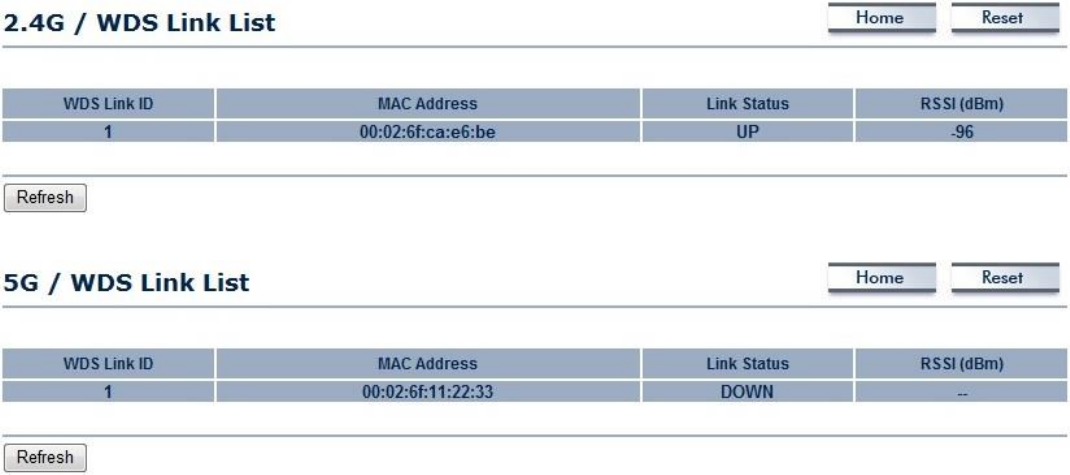

5.5 2.4G/5G WDS Link List
Click on the 2.4G/5G WDS Link List link under the Status menu. This page displays the current status of the WDS link,
including WDS Link ID, MAC Address, Link Status and RSSI.
Note: Only applicable in WDS AP and WDS Bridge mode.
33

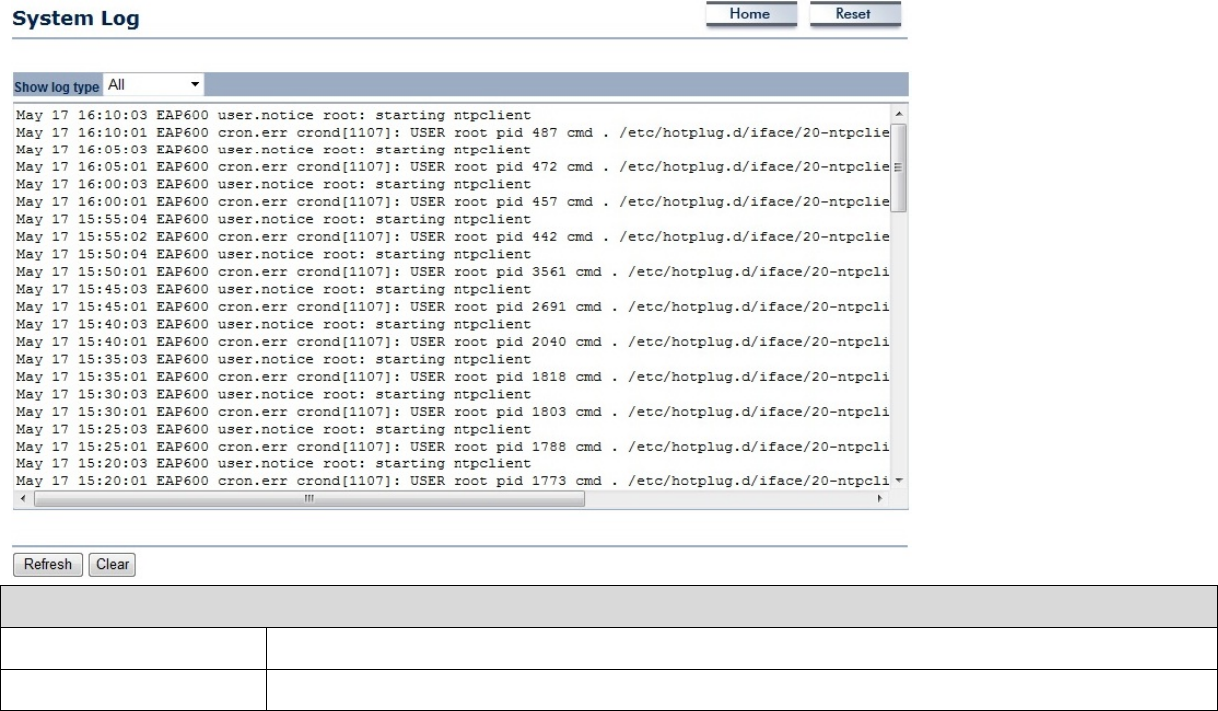

5.6 System Log
The MR900 automatically logs (records) events of possible interest in its internal memory. To view the logged information,
click the System Log link under the Status menu. If there is not enough internal memory to log all events, older events are
deleted from the log. When powered down or rebooted, the log will be cleared.
System Log
Refresh
Update the log.
Clear
Clear the log.
34
6 System
6.1 Operation Mode
The MR900 supports four operating modes: Access Point, WDS AP, WDS Bridge, and Repeater.

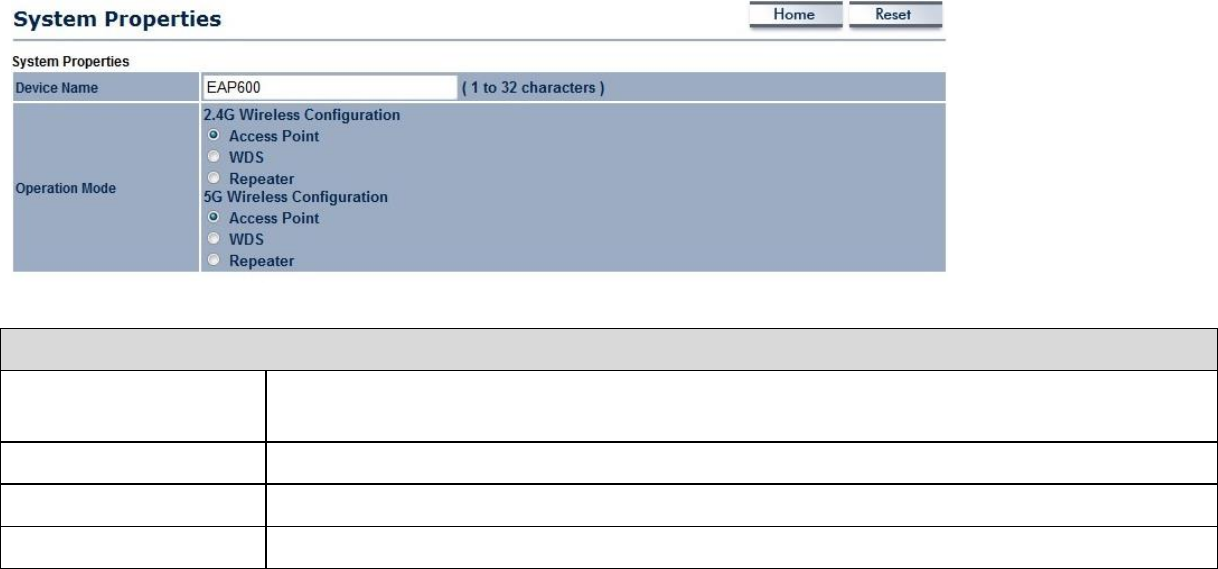

System Properties
Device Name
Enter a name for the device. The name you type appears in SNMP management. This name is
not the SSID and is not broadcast to other devices.
Operation Mode
Use the radio button to select an operating mode.
Save & Apply / Cancel
Click Save & Apply to confirm the changes or Cancel to cancel and return previous settings.
35
6.2 IP Settings
This page allows you to modify the device's IP settings.

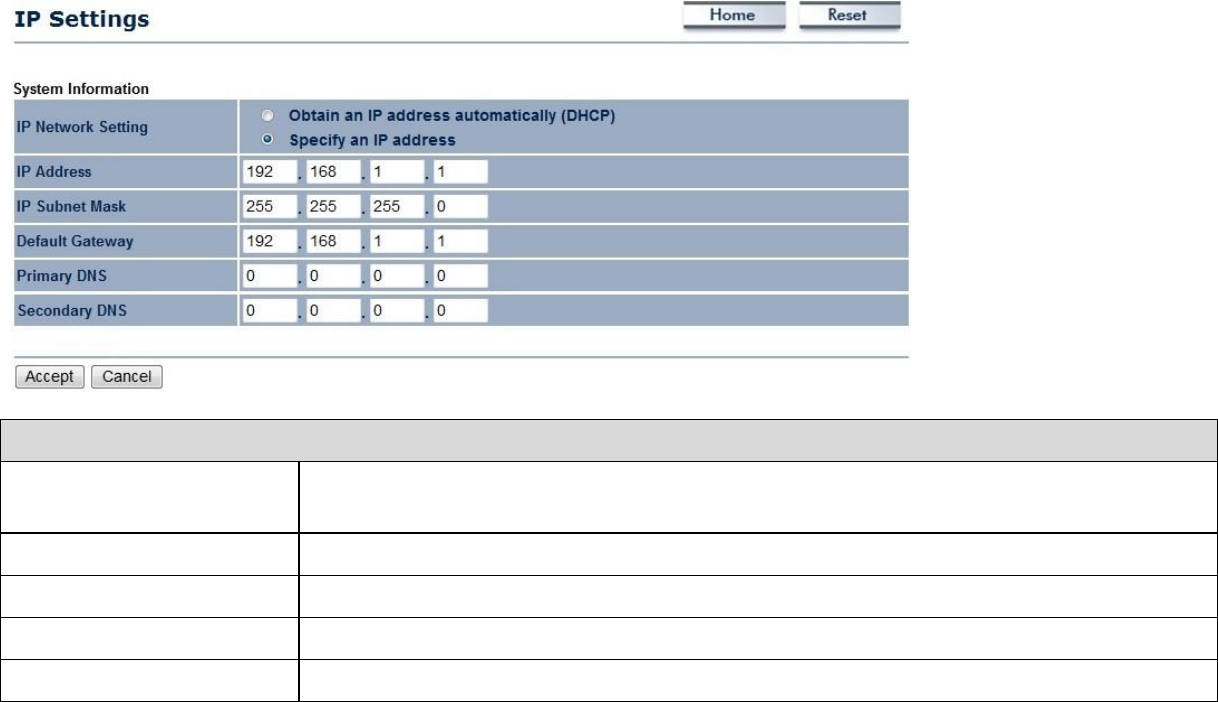

IP Settings
IP Network Setting
Select whether the device IP address will use the static IP address specified in the IP Address
field or be obtained automatically when the device connects to a DHCP server.
IP Address
The IP Address of this device.
IP Subnet Mask
The IP Subnet Mask of this device.
Default Gateway
The Default Gateway of this device. Leave it blank if you are unsure of this setting.
Primary / Secondary DNS
The primary / secondary DNS address for this device.
36
6.3 Spanning Tree Setting

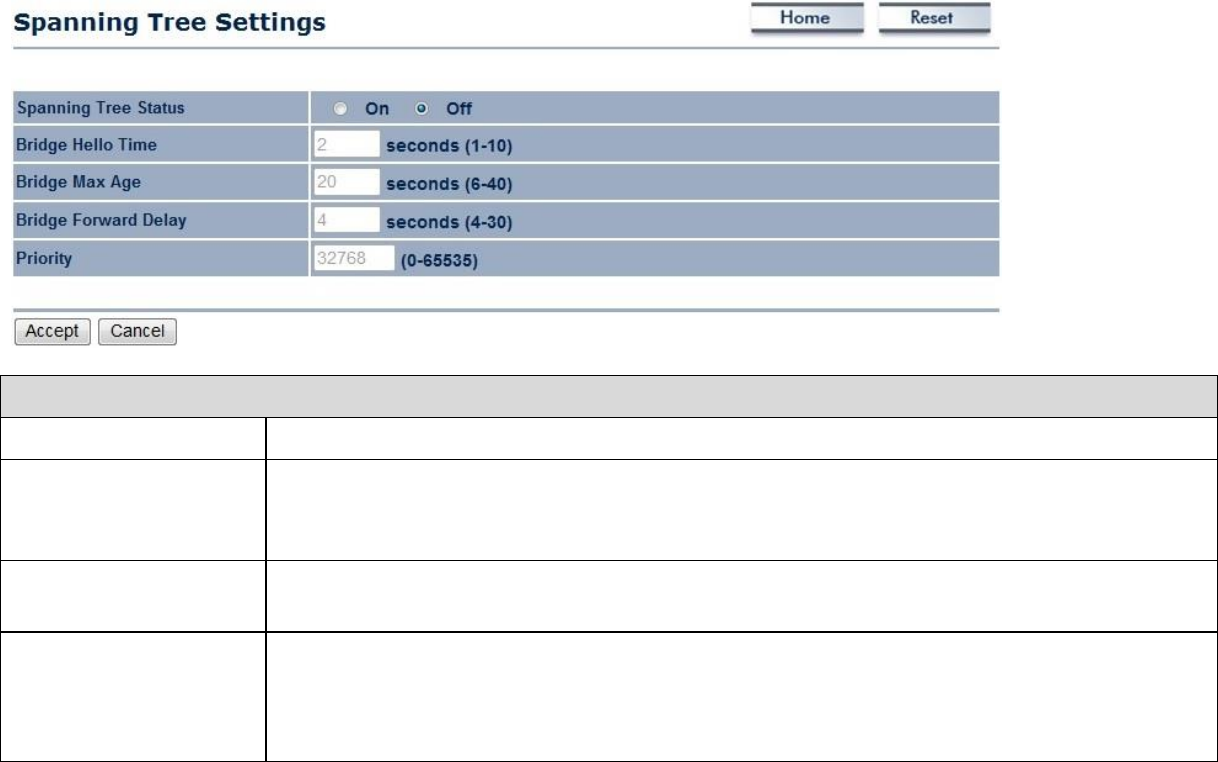

This page allows you to modify the Spanning Tree settings. Enabling Spanning Tree protocol will prevent network loops in
your LAN network.
Spanning Tree
Spanning Tree Status
Enable or disable the Spanning Tree function.
Bridge Hello Time
Specify Bridge Hello Time, in seconds. This value determines how often the device sends
handshake packets to communicate information about the topology throughout the entire
Bridged Local Area Network.
Bridge Max Age
Specify Bridge Max Age, in seconds. If another bridge in the spanning tree does not send a
hello packet for a long period of time, it is assumed to be dead.
Bridge Forward Delay
Specify Bridge Forward Delay, in seconds. Forwarding delay time is the time spent in each of
the Listening and Learning states before the Forwarding state is entered. This delay is provided
so that when a new bridge comes onto a busy network, it analyzes data traffic before
participating.
37
Priority
Specify the Priority Number. A smaller number has greater priority.
Accept / Cancel
Click Accept to confirm the changes or Cancel to cancel and return previous settings.
38

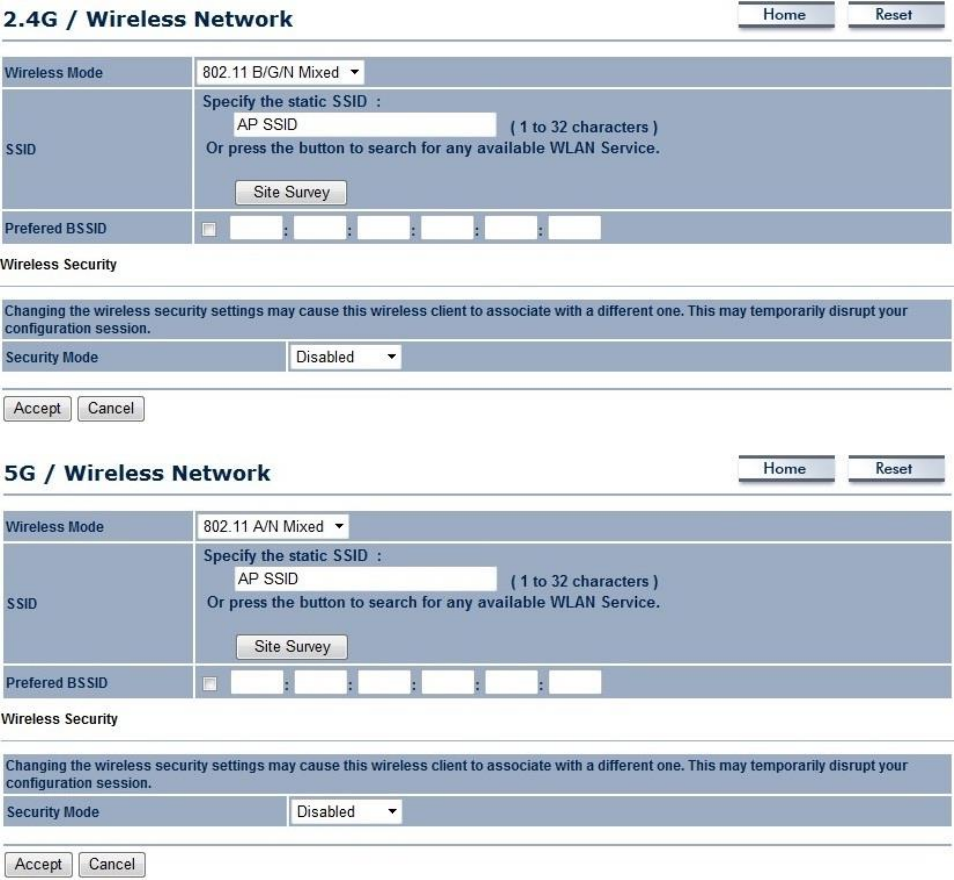

7 2.4G/5G Wireless
7.1 Wireless Network
This page displays the current status of the Wireless settings of the MR900.
Access Point / WDS AP mode:
39

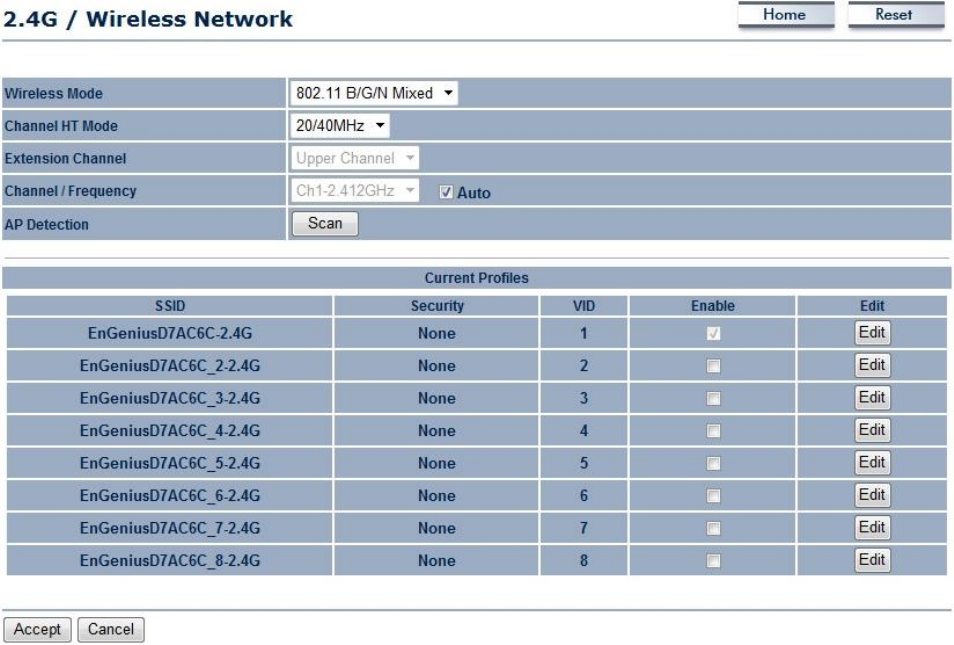

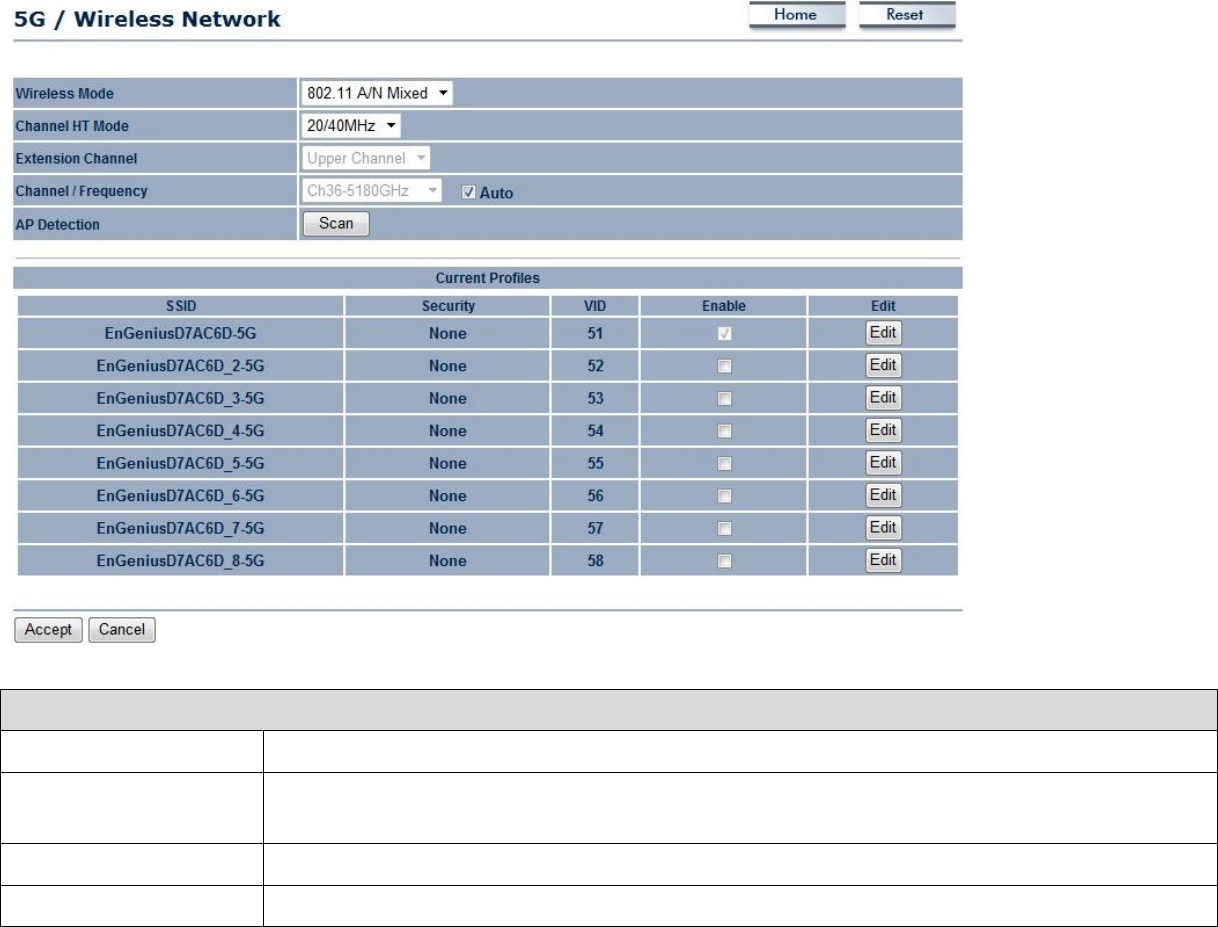

2.4G/5G Wireless Network (Access Point / WDS AP mode)
Wireless Mode
Wireless mode supports 802.11b/g/n mixed mode in 2.4G and 802.11a/n mixed mode in 5G.
Channel HT Mode
The default channel bandwidth is 20/40MHz. The larger the channel, the better the transmission
quality and speed.
Extension Channel
Select upper or lower channel. Your selection may affect the Auto channel function.
Channel / Frequency
Select the channel and frequency appropriate for your country’s regulation.
40
Auto
Check this option to enable auto-channel selection.
AP Detection
AP Detection can select the best channel to use by scanning nearby areas for Access Points.
Current Profile
Configure up to eight different SSIDs (four in WDS AP mode). If many client devices will be
accessing the network, you can arrange the devices into SSID groups. Click Edit to configure the
profile and check whether you want to enable extra SSID.
Accept / Cancel
Click Accept to confirm the changes or Cancel to cancel and return previous settings.
41
2.4G/5G SSID Profile
42

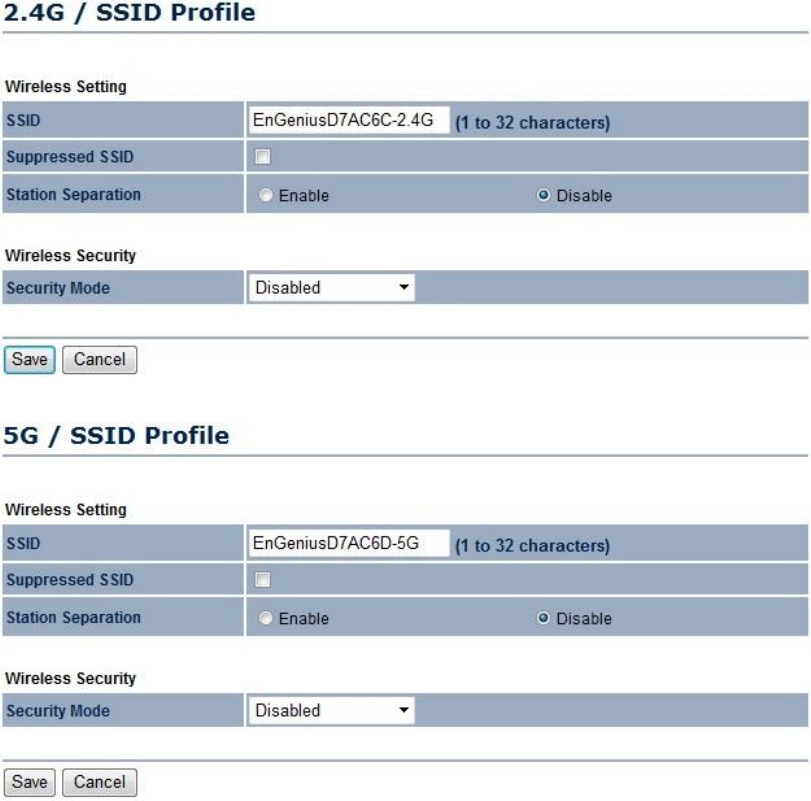

2.4G/5G SSID Profile
SSID
Specify the SSID for the current profile.
Suppressed SSID
Check this option to hide the SSID from clients. If checked, the SSID will not appear in the site
survey.
Station Separation
Click the appropriate radio button to allow or prevent communication between client devices.
Wireless Security
See the Wireless Security section.
Save / Cancel
Click Save to accept the changes or Cancel to cancel and return previous settings.
43

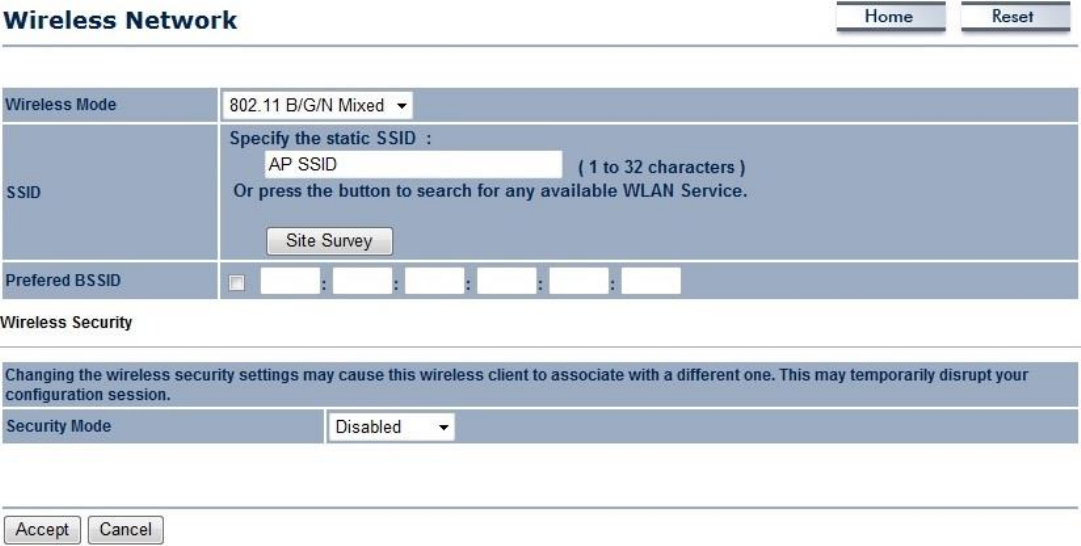

Repeater mode:
44

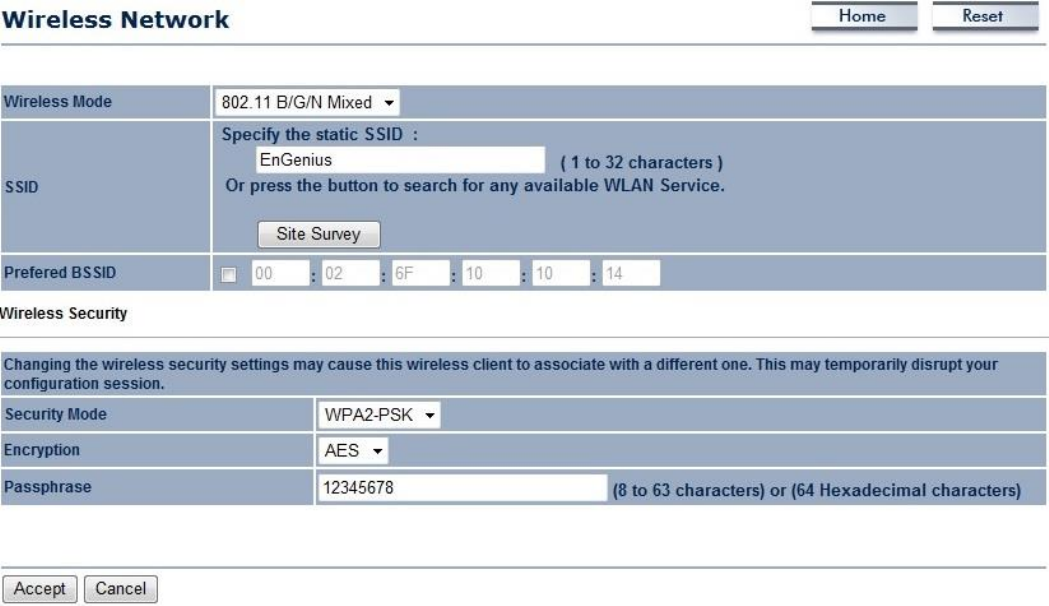

2.4G/5G Wireless Network (Repeter mode)
Wireless Mode
Wireless mode supports 802.11b/g/n mixed mode in 2.4G and 802.11a/n mixed mode in 5G.
SSID
The SSID is a unique named shared amongst all the points of the wireless network. The SSID
must be identical on all points of the wireless network and cannot exceed 32 characters. You
may specify an SSID or select one from the Site Survey.

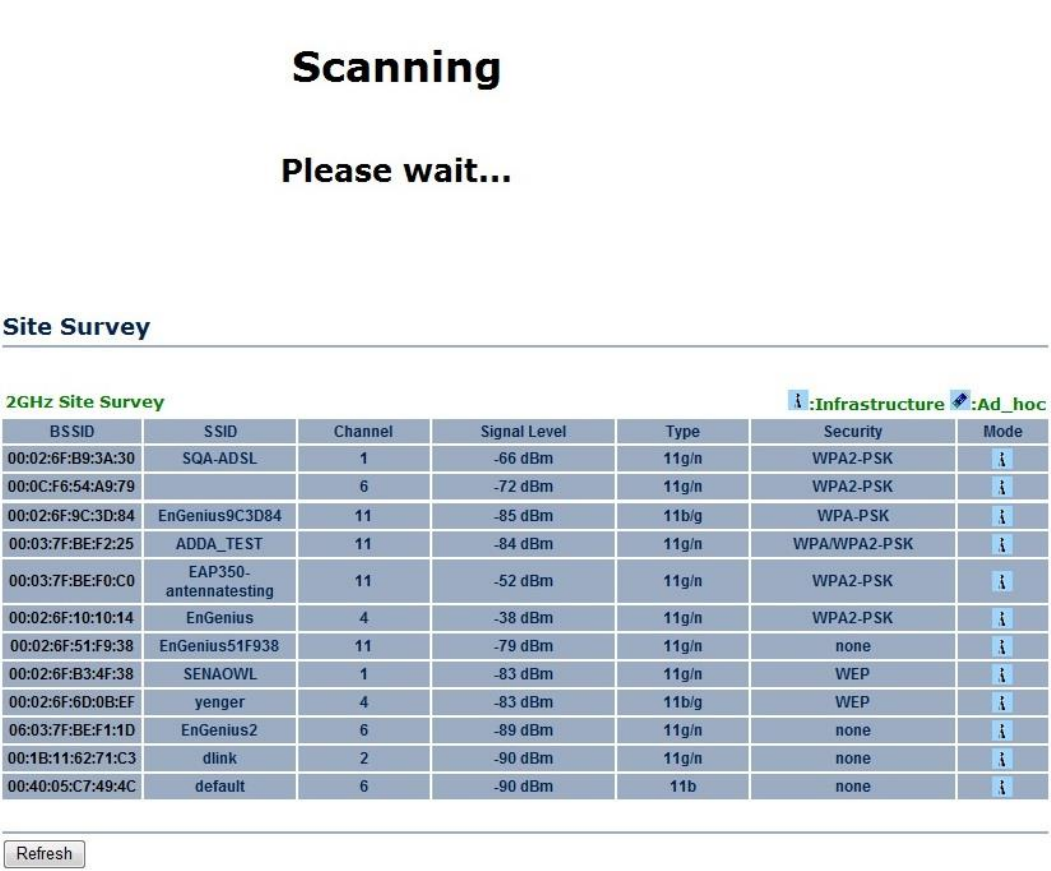

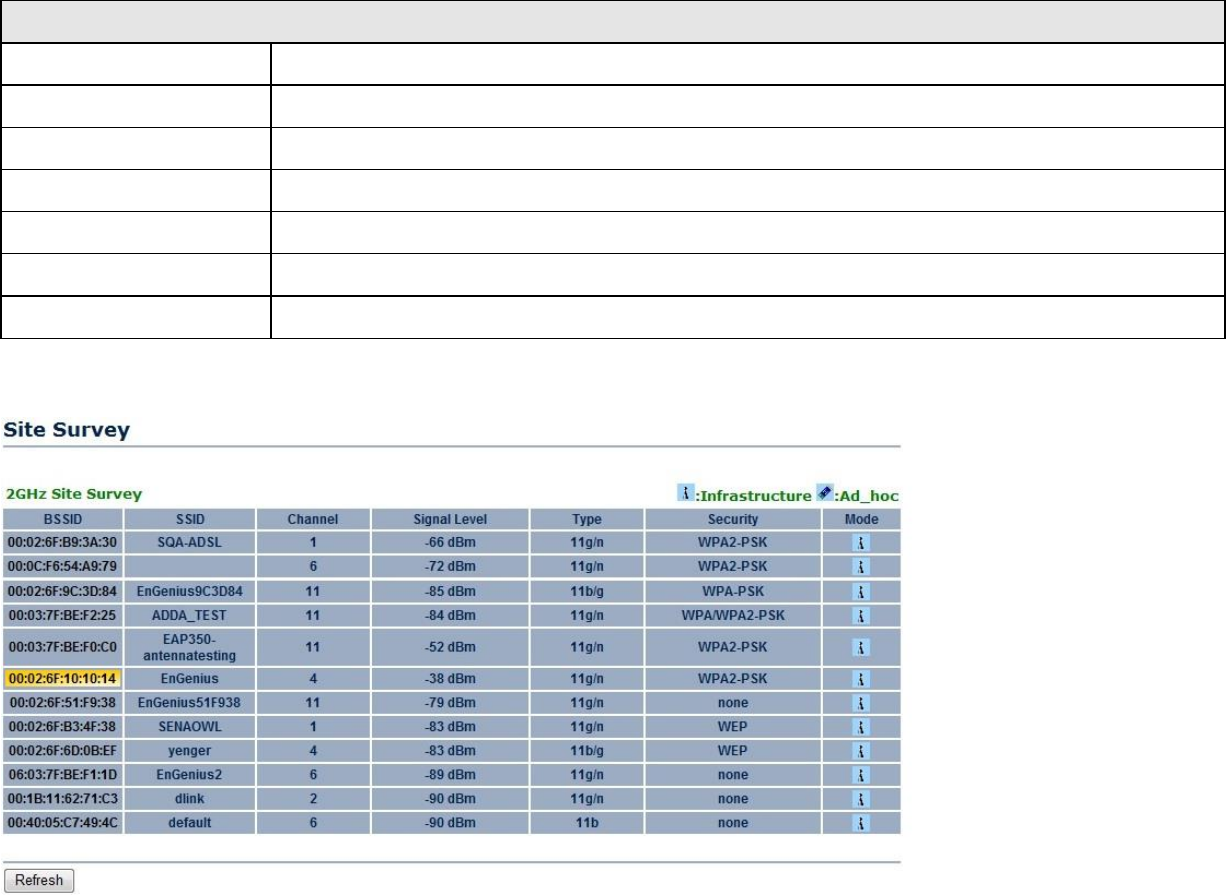

Site Survey
Click on Site Survey to search the existing Access Points.
Preferred BSSID
Specify the BSSID (Access Point’s MAC Address).
Wireless Security
The encryption is using. It must the same as Access Point’s encryption.
Accept / Cancel
Click Accept to confirm the changes or Cancel to cancel and return previous settings.
45
7.2 Wireless Security
The Wireless Security section lets you configure the MR900's security modes: WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed,
WPA, WPA2, and WPA Mixed. It is strongly recommend to use WPA2-PSK.
WEP Encryption:
WEP Encryption
Auth Type
Select Open System or Shared Key.
Input type
ASCII: Regular Text (recommended)
HEX: Hexadecimal Numbers (For advanced users)
Key Length
Select the desired option and ensure the wireless clients use the same setting.
Choices are 64, 128, 152-bit password lengths.
Default Key
Select the key you wish to be default. Transmitted data is ALWAYS encrypted using the Default
Key; the other Keys are for decryption only.
46
You must enter a Key Value for the Default Key.
Encryption Key #
Enter the key value or values you wish to use. Only the Key selected as Default is required. The
others are optional.

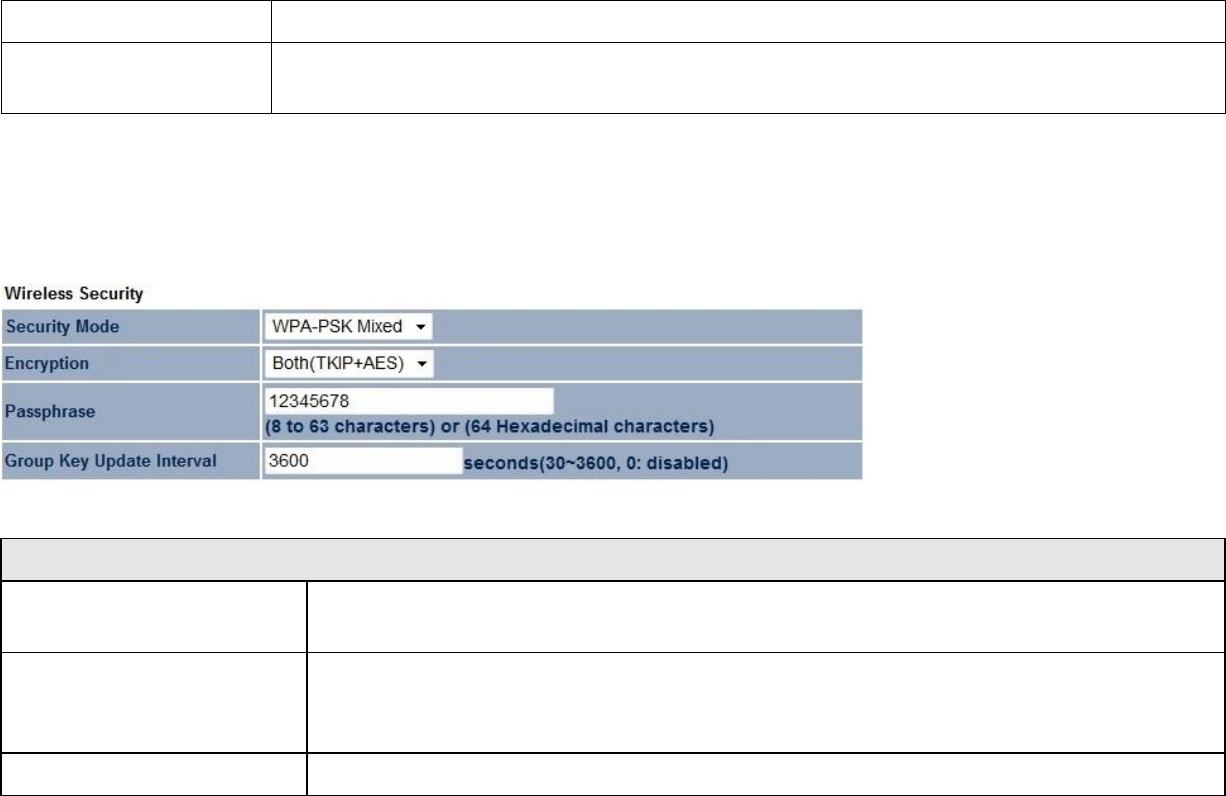

WPA-PSK (WPA Pre-Shared Key) Encryption:
WPA-PSK (WPA Pre-Shared Key) Encryption
Encryption
Select the WPA encryption type you would like.
Please ensure that your wireless clients use the same settings.
Passphrase
Wireless clients must use the same key to associate the device.
If using ASCII format, the Key must be from 8 to 63 characters in length. If using HEXformat,
the Key must be 64 HEX characters in length.
Group Key Update Interval
Specify how often, in seconds, the group key changes.
47
WPA Encryption: Only in Access Point / WDS AP mode
WPA Encryption
Encryption
Select the WPA encryption type you would like.
Please ensure that your wireless clients use the same settings.
Radius Server
Enter the IP address of the Radius server.
Radius Port
Enter the port number used for connections to the Radius server.
Radius Secret
Enter the secret required to connect to the Radius server.
Group Key Update Interval
Specify how often, in seconds, the group key changes.
48
Radius Accounting
Enable or disable accounting feature.
Radius Accounting Server
Enter the IP address of the Radius accounting server.
Radius Accounting Port
Enter the port number used for connections to the Radius accounting server.
Radius Accounting Secret
Enter the secret required to connect to the Radius accounting server.
Interim Accounting Interval
Specify how often, in seconds, the accounting data sends.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/WPA2-PSK TKIP security mode. The connection mode will automatically change from
802.11n to 802.11g.
49
7.3 Site Survey
Use this feature to scan nearby Access Points.
Note: Only applicable in Repeater mode.
1. Click Site Survey.
50
2. Scanning the nearby Access Points
3. The MR900 will list the available access points after site survey.
51
Site Survey (Repeater mode)
BSSID
Access Point's wireless MAC address.
SSID
SSID that the Access Point is broadcasting.
Channel
Channel that the Access Point is using.
Signal Level (dBm)
Signal strength from the Access Point to your station.
Type
The band that the Access Point is using.
Security
Encryption method that the Access Point is using to secure data over the WLAN.
Refresh
Click Refresh to rescan nearby Access Point.
4. Select an Access Point and click that Access Point’s BSSID.
52
5. Enter the correct security setting.
53
7.4 Wireless MAC Filtering
Wireless MAC Filtering is used to allow or deny network access to wireless clients (computers, tablet PCs, NAS,
smartphones, etc.) according to their MAC addresses. You can manually add a MAC address to restrict the permission to
access MR900. The default setting is Disable Wireless MAC Filter.
Note: Only applicable in Access Point and WDS AP mode.
54
Wireless MAC Filter (Access Point / WDS AP mode)
ACL Mode
Determines whether network access is granted or denied to clients whose MAC addresses
appear in the MAC Address table on this page. Choices are: Disabled, Deny MAC in the list, or
Allow MAC in the list.
MAC Address
Enter the MAC address of the wireless client.
Add
Click Add to add the MAC address to the MAC Address table.
Delete
Delete the selected entries.
Apply
Click Apply to apply the changes.
55
7.5 Wireless Advanced
This page allows you to configure wireless advance settings. It is recommended that the default settings are used unless
the user has experience with more advanced networking features.
56

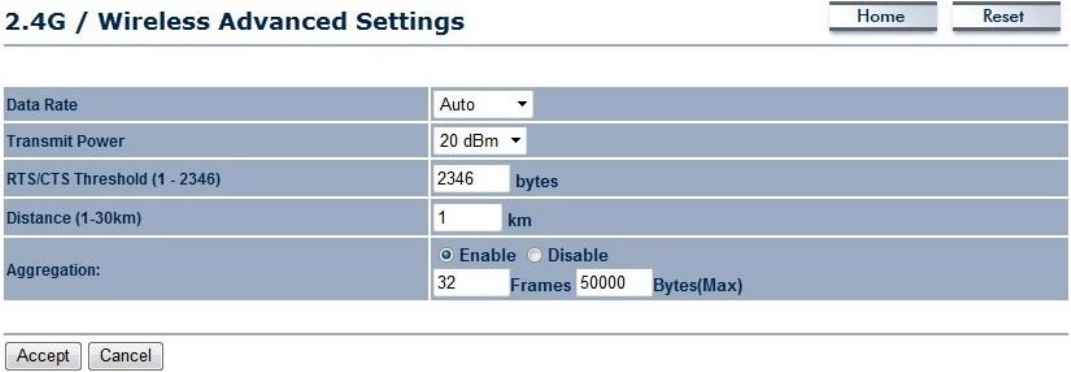

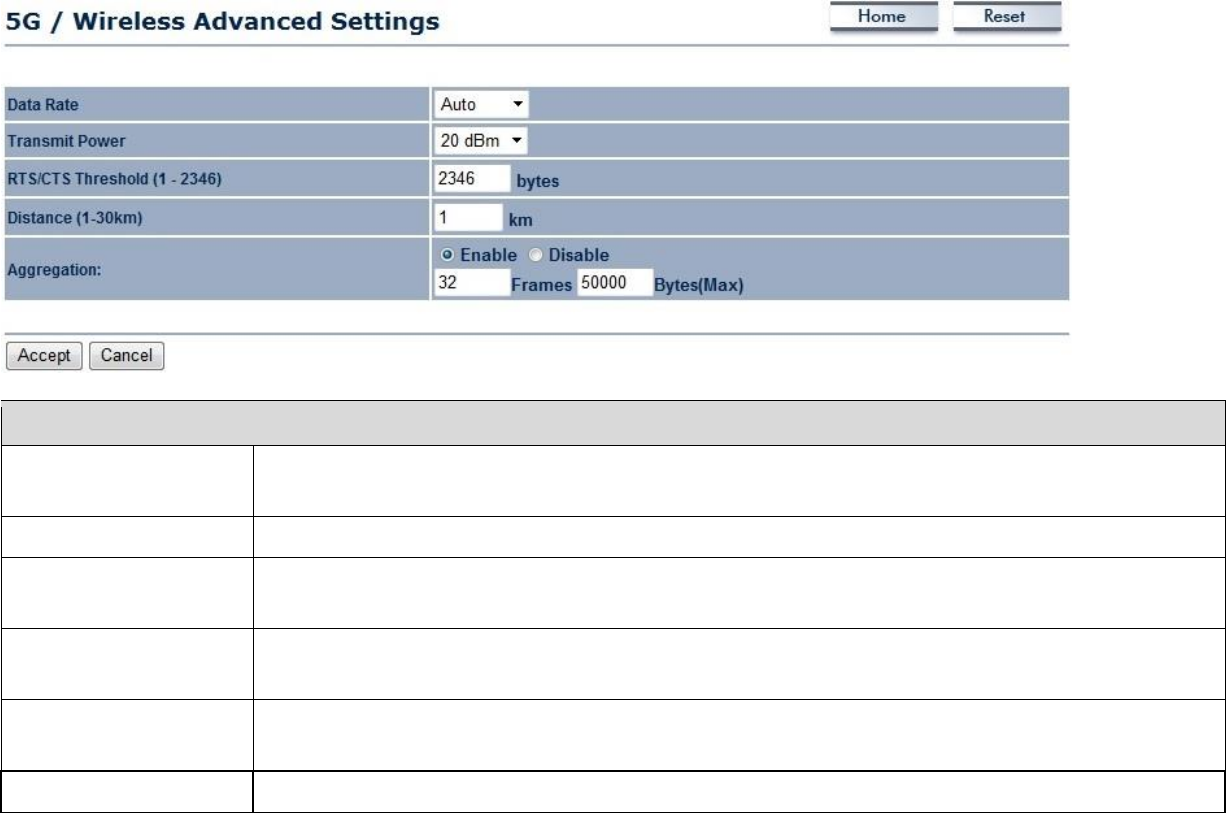

2.4G/5G Wireless Advanced
Data Rate
Select a data rate from the drop-down list. The data rate affects throughput of data in the MR900.
The lower the data rate, the throughput will be lower, but so will the transmission distance.
Transmit Power
Set the power output of the wireless signal.
RTS/CTS Threshold
Specify the threshold package size for RTC/CTS. A small number causes RTS/CTS packets to be
sent more often and consumes more bandwidth.
Distance
Specify the distance between Access Points and clients. Longer distances may drop high-speed
connections.
Aggregation
Merges data packets into one packet. This option reduces the number of packets, but increases
packet sizes.
Accept / Cancel
Click Accept to confirm the changes or Cancel to cancel and return previous settings.
57

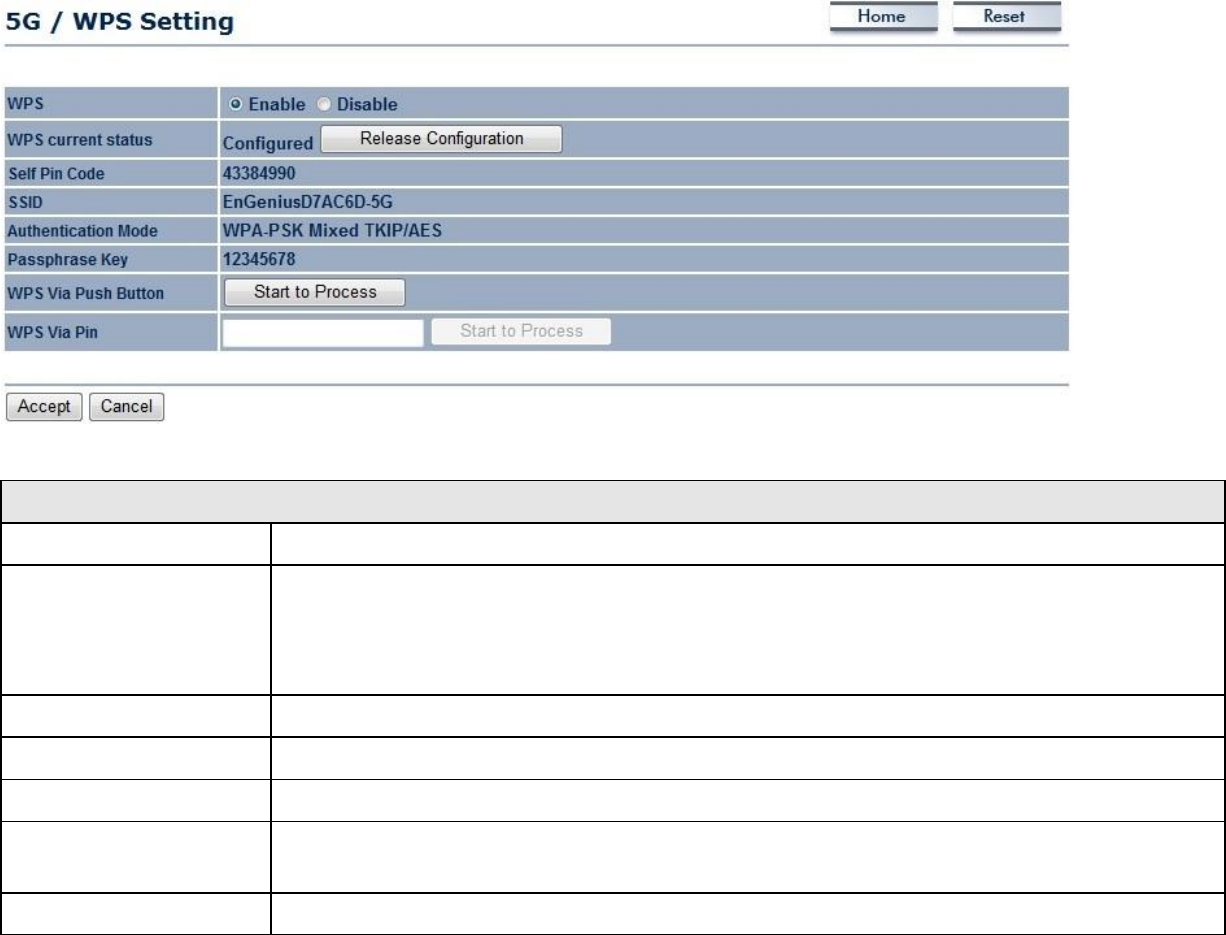

7.6 WPS (Wi-Fi Protected Setup)
Wi-Fi Protected Setup (WPS) feature complies with the Wi-Fi Alliance WPS standard and makes it easier to quickly add
client devices to an established, security-enabled Wi-Fi network.
WPS reduces the user steps required to configure a network and supports two methods that are familiar to most
consumers to configure a network and enable security.
Note: Only applicable in Access Point and WDS AP mode.
58

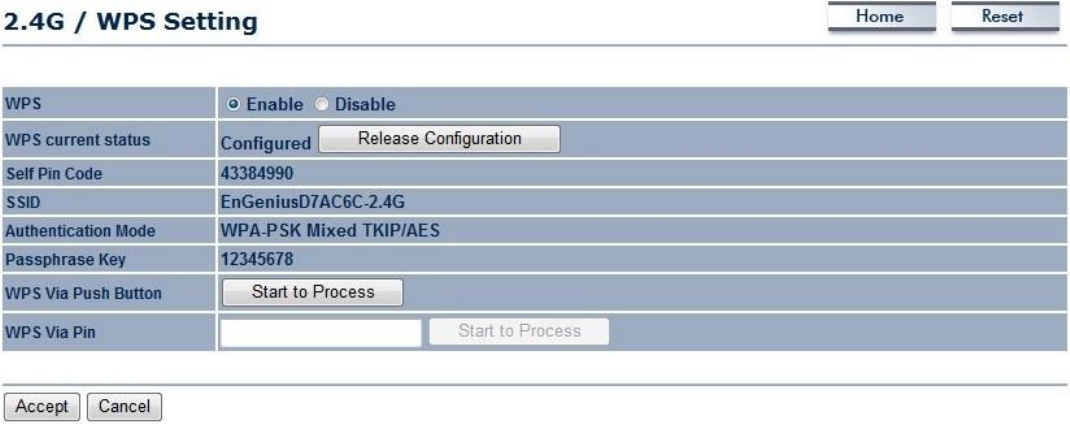

WPS (Wi-Fi Protected Setup)
WPS
Select to Enable or Disable the WPS feature.
WPS Current Status
Shows whether the WPS function is Configured or unConfigured.
When it is Configured, the WPS has been used to authorize connection between the device and
wireless clients.
Self Pin Code
The PIN code of this device.
SSID
The SSID (wireless network name) used when connecting using WPS.
Authentication Mode
Shows the encryption method used by the WPS process.
Passphrase Key
This is the passphrase key that is randomly generated during the WPS process. It is required if
wireless clients that do not support WPS attempts to connect to the wireless network.
WPS via Push Button
Click this button to initialize WPS feature using the push button method.
59
WPS via PIN
Enter the PIN code of the wireless device and click this button to initialize WPS feature using the
PIN method.
60
7.7 WDS Link Settings
Using WDS (Wireless Distribution System) will allow a network administrator or installer to connect to Access Points
wirelessly. Doing so will extend the wired infrastructure to locations where cabling is not possible or inefficient to
implement.
Note: Compatibility between different brands and models of access points is not guaranteed. It is recommended that the
WDS network be created using the same models for maximum compatibility.
Also note: All Access Points in the WDS network needs to use the same Channel and Security settings.
To create a WDS network, please enter the MAC addresses of the Access Points that you want included in the WDS. There can
be a maximum of four access points.
Note: Only applicable in WDS AP and WDS Bridge mode.
61
62
2.4G/5G WDS Link Settings
Security
Select None or AES from drop-down list.
AES Passphrase
Enter the key values you wish to use.
Other AP(s) must use the same key to establish WDS link.
MAC Address
Enter the Access Point’s MAC address to which you want to extend the wireless area.
Mode
Select Disable or Enable from the drop-down list.
Accept / Cancel
Click Accept to confirm the changes or Cancel to cancel and return previous settings.
63
8 Management
8.1 Administration
This page allows you to change the MR900 username and password. By default, the username is admin and the password
is: admin. The password can contain 0 to 12 alphanumeric characters and is case sensitive.

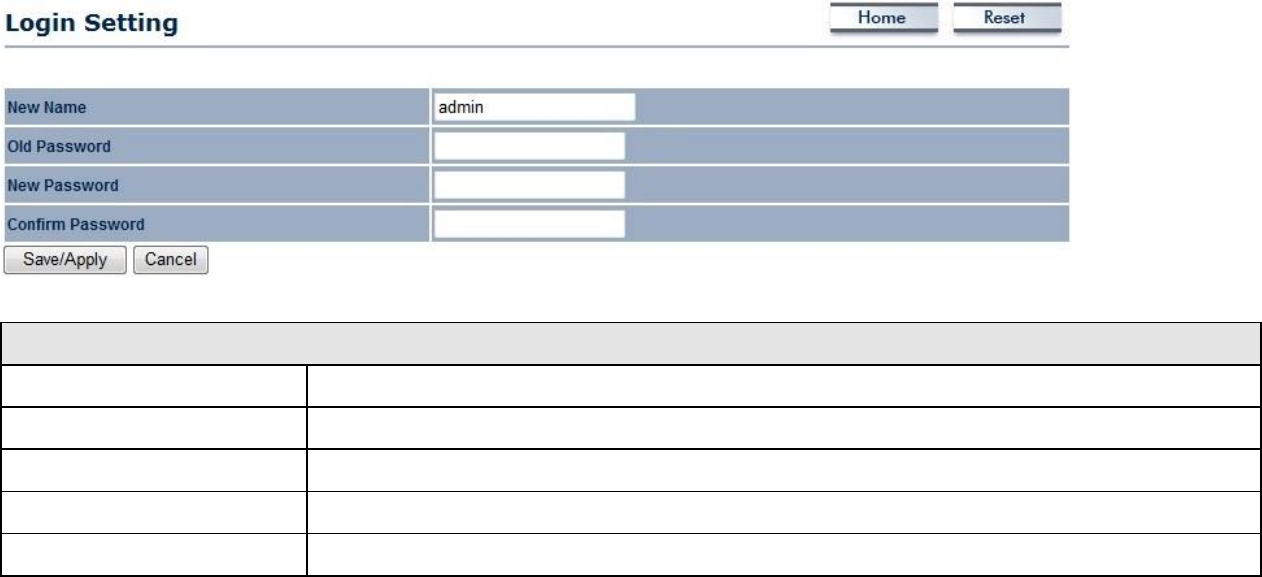

Login Setting
New Name
Enter a new username for logging in to the New Name entry box.
Old Password
Enter the old password for logging in to the Old Password entry box.
New Password
Enter the new password for logging in to the New Password entry box.
Confirm Password
Re-enter the new password in the Confirm Password entry box for confirmation.
Save/Apply / Cancel
Click Save/Apply to apply the changes or Cancel to return previous settings.
64
8.2 Management VLAN Settings
This page allows you to assign a VLAN tag to the
packets. A VLAN is a group of computers on a
network whose software has been configured so
that they behave as if they were on a separate
Local Area Network (LAN). Computers on VLAN
do not have to be physically located next to one
another on the LAN.
Note: Only applicable in Access Point and WDS AP mode.
65

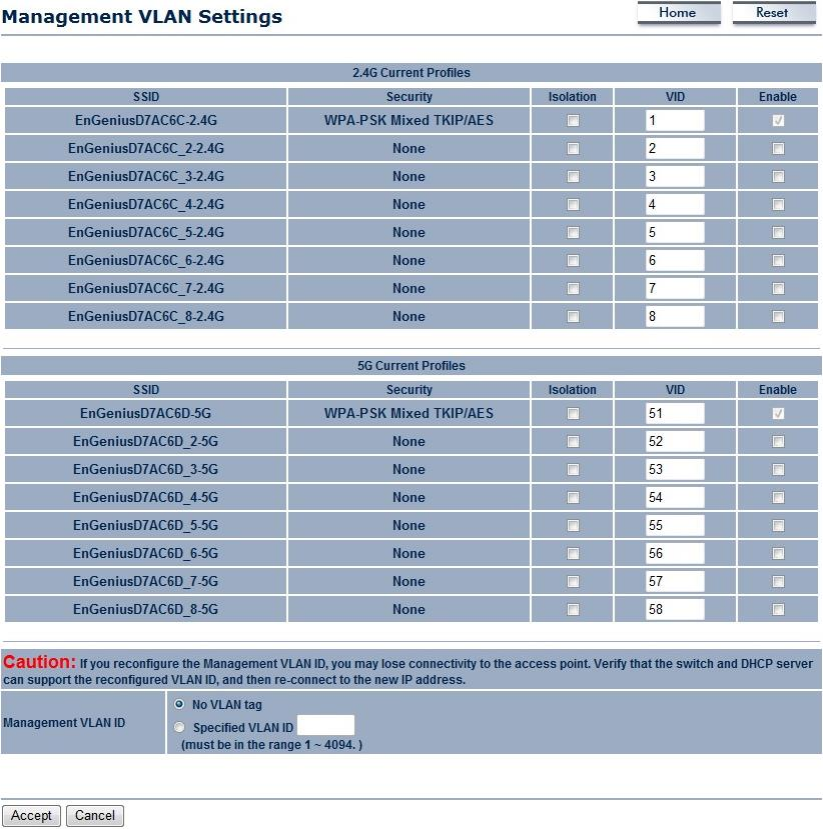

Management VLAN (Only applicable in Access Point mode)
Profile Isolation
Restricted client to communicate with different VID by selecting the radio button.
VLAN ID
Specify the VLAN tag for each profile.
Management VLAN ID
If your network includes VLANs, you can specify a VLAN ID for packets pass through the Access
Point with a tag. Otherwise, select No VLAN tag.
Accept / Cancel
Click Accept to confirm the changes or Cancel to cancel and return previous settings.
Note:
1. If you reconfigure the Management VLAN ID, you may lose your connection to the MR900. Verify that the DHCP server supports the
reconfigured VLAN ID and then reconnect to the MR900 using the new IP address.
2. Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see section 5.1).
66
8.3 Wireless Traffic Shaping
Traffic shaping regulates the flow of packets leaving an interface to deliver improved Quality of Service.
Wireless Traffic Shaping
Enable Traffic Shaping
Check this option to enable wireless traffic shaping.
Incoming Traffic Limit
Specify the wireless transmission speed used for downloading.
Outgoing Traffic Limit
Specify the wireless transmission speed used for uploading.
Accept / Cancel
Click Accept to confirm the changes or Cancel to cancel and return previous settings.
67

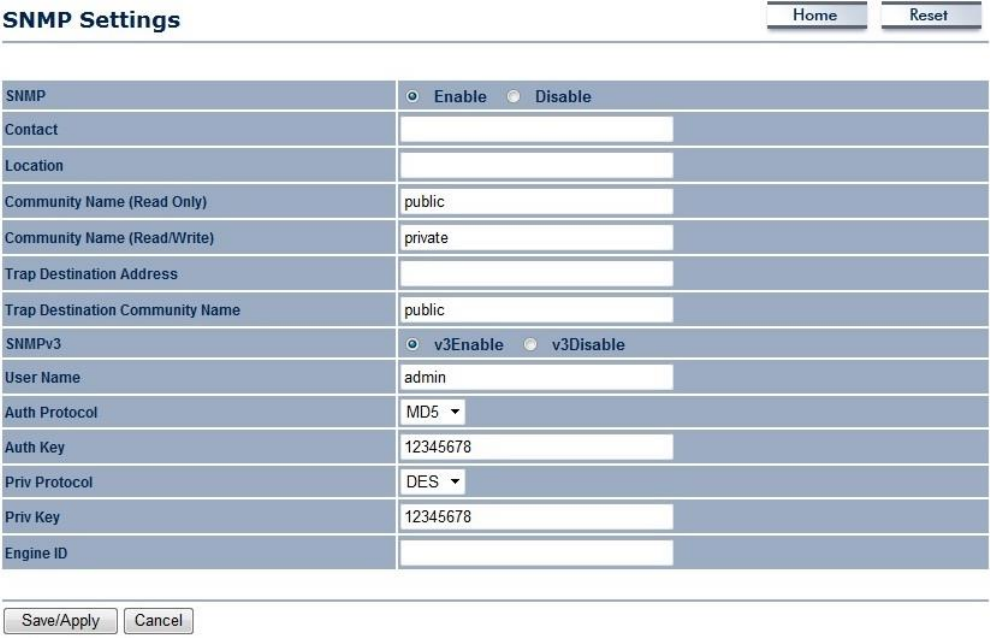

8.4 SNMP Settings
This page allows you to assign the Contact Details, Location, Community Name, and Trap Settings for Simple Network
Management Protocol (SNMP). This is a networking management protocol used to monitor network attached devices.
SNMP allows messages (called protocol data units) to be sent to various parts of the network. Upon receiving these
messages, SNMP compatible devices (called agents) return the data stored in their Management Information Bases.
68
SNMP
SNMP Enable/Disable
Enable or Disable SNMP feature.
Contact
Specify the contact details of the device
Location
Specify the location of the device.
Community Name (Read Only)
Specify the password for the SNMP community for read only access.
Community Name
(Read/Write)
Specify the password for the SNMP community with read/write access.
Trap
Trap Destination Address
Specify the IP address of the computer that will receive the SNMP traps.
Trap Destination Community
Name
Specify the password for the SNMP trap community.
SNMPv3
SNMPv3 Enable/Disable
Enable or Disable SNMPv3 feature.
User Name
Specify the username for SNMPv3.
Auth Protocol
Select the authentication protocol type: MDS or SHA.
Auth Key
Specify the authentication key for authentication.
Priv Protocol
Select the privacy protocol type: DES.
Priv Key
Specify the privacy key for privacy.
Engine ID
Specify the engine ID for SNMPv3.
Save/Apply / Cancel
Click Save/Apply to apply the changes or Cancel to return previous settings.
69
8.5 Backup/Restore
This page allows you to save the current device configurations. When you save the configurations, you also can reload the
saved configurations into the device through the Restore Saved Settings from A File section. If extreme problems occur, or
if you have set the MR900 wrongly, you can use the Factory Default button in the Revert to Factory Default Settings
section to restore all the configurations of the MR900 to the original default settings.

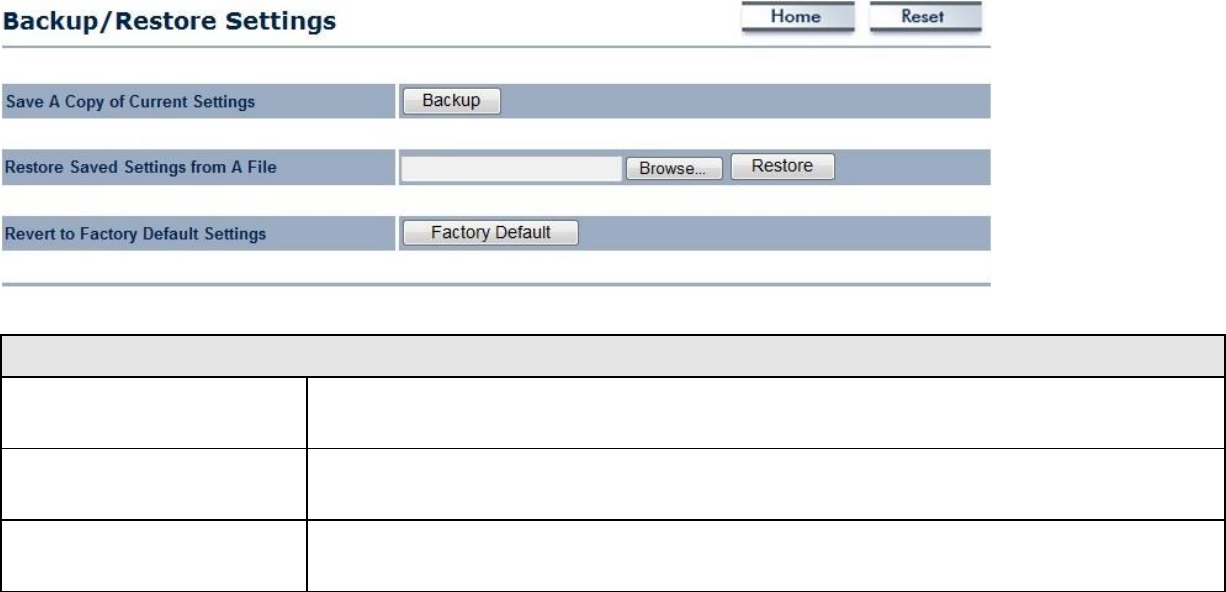

Backup/Restore
Save A Copy of Current
Settings
Click Backup to save the current configured settings.
Restore Saved Settings
from A File
To restore settings that have been previously backed up, click Browse, select the file, and
click Restore.
Revert to Factory Default
Settings
Click Factory Default button to restore the MR900 to its factory default settings.
70

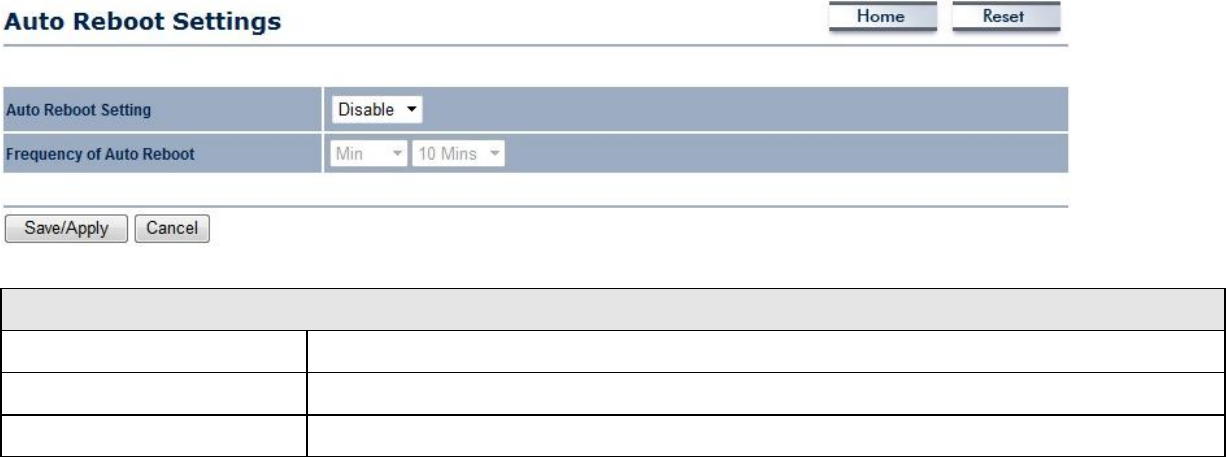

8.6 Auto Reboot Settings
You can specify how long to reboot the MR900 periodically.
Auto Reboot Settings
Auto Reboot Setting
Enable or disable the auto reboot function.
Frequency of Auto Reboot
To specify the time to reboot the MR900 by Min, Hour, Day or Week.
Save/Apply / Cancel
Click Save/Apply to apply the changes or Cancel to return previous settings.
71

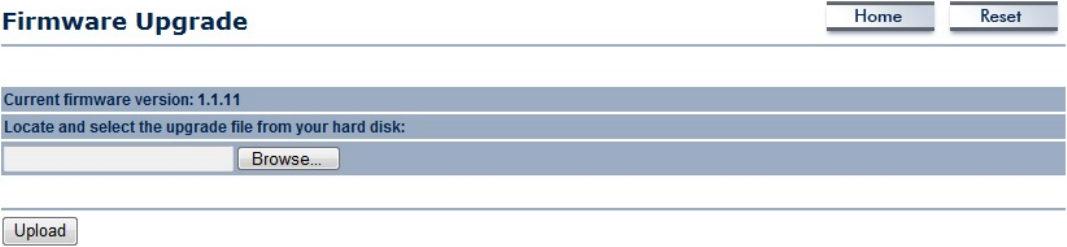

8.7 Firmware Upgrade
This page allows you to upgrade the firmware of the MR900.
To perform the Firmware Upgrade:
1. Click the Browse button and navigate the OS File System to the location of the upgrade file.
2. Select the upgrade file. The name of the file will appear in the Upgrade File field.
3. Click the Upload button to commence the firmware upgrade.
Note: The device is unavailable during the upgrade process and must restart when the upgrade is completed. Any connections to or through the
device will be lost.
72

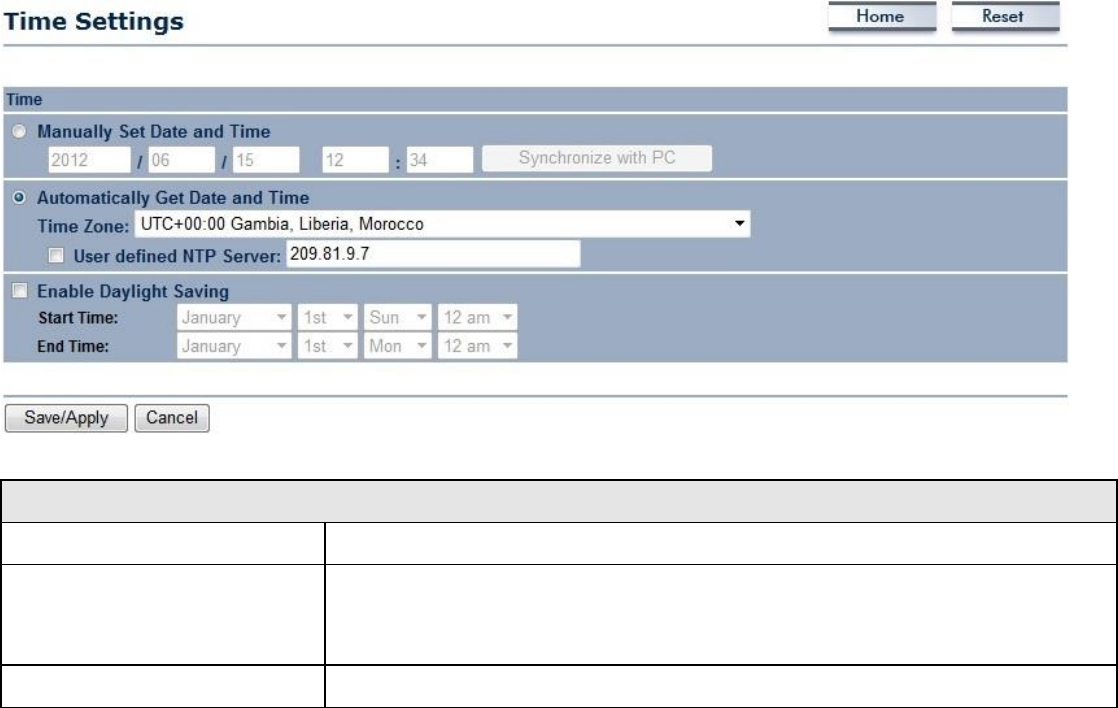

8.8 Time Setting
This page allows you to set the internal clock of the MR900.
Time
Manually Set Date and Time
Manually specify the date and time.
Automatically Get Date and
Time
Select a time zone from the drop-down list and check whether you want to
enter the IP address of an NTP server or use the default NTP server to get have
the internal clock set automatically.
Enable Daylight Saving
Check whether daylight savings applies to your area.
73
8.9 Log
This page allows you to setup Syslog and local log functions of the MR900.
Log
Syslog
Enable or disable the syslog function.
Log Server IP Address
Enter the IP address of the log server.
Local Log
Enable or disable the local log service.
Save/Apply / Cancel
Click Save/Apply to apply the changes or Cancel to return previous settings.
74
8.10 Diagnostics
This page allows you to analyze the connection quality of the MR900 and trace the routing table to a target in the network.
Diagnosis
Target IP
Enter the IP address you would like to search.
Ping Packet Size
Enter the packet size of each ping.
Number of Pings
Enter the number of times you want to ping.
Start Ping
Click Start Ping to begin pinging target device (via IP).
Traceroute Target
Enter an IP address or domain name you want to trace.
Start Traceroute
Click Start Traceroute to begin the trace route operation.
75
8.11 LED Control

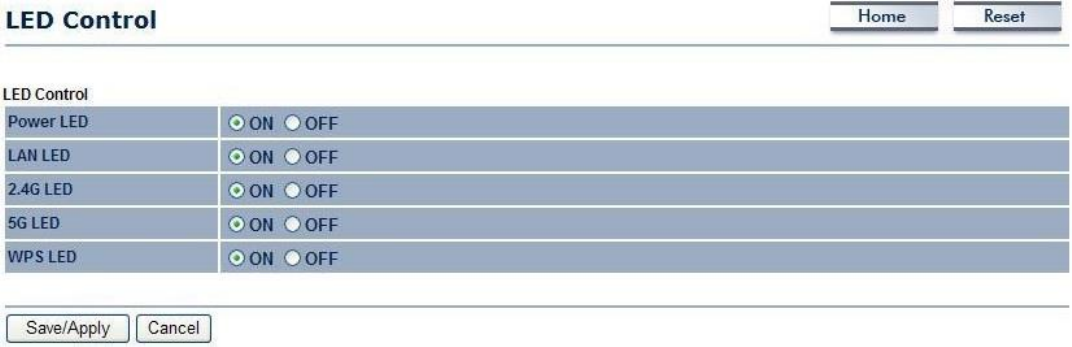

This page allows you to control LED on/off for Power, LAN interface, 2.4G/5G WLAN interface and WPS.
76
8.12 Logout
Click [Logout] in Management menu to logout.
77
8.13 Reset

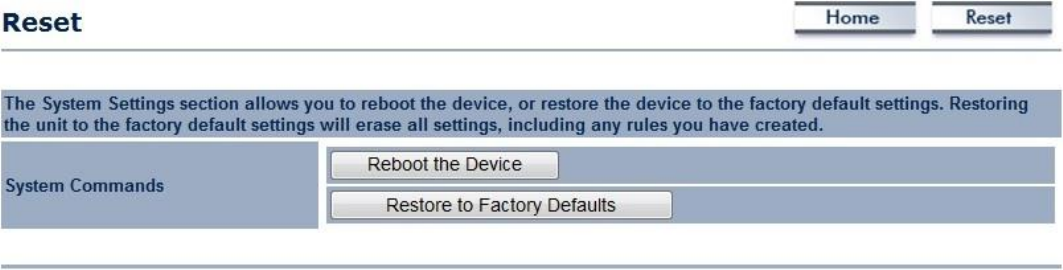

In some circumstances, it may be required to force the device to reboot. Click on Reboot the Device to reboot the MR900.
78
Appendix A – FCC Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
79
Appendix B – IC Interference Statement
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est
sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage
reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars
could cause interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-
d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
FOR MOBILE DEVICE USAGE
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
80
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps.
81
Appendix C – CE Interference Statement
1.1. Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to
prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
- EN60950-1
- Safety of Information Technology Equipment
-
- EN50385
- Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to
electromagnetic fields (0 Hz - 300 GHz)
-
- EN 300 328
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive
EN 301 893
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of
the R&TTE Directive
EN 301 489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
- EN 301 489-17
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in
the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.
82
0560
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklæ rer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væ sentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Ü bereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie
1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of
equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele sätetele.
English
Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con
los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment /
iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
83
[Hungarian]
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä]
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
