David Clark DCCI-BT Aviation Headset 2.4 GHz Bluetooth Interface User Manual

David Clark Company Inc. Aviation Headset 2.4 GHz Bluetooth Interface Users Manual

Users Manual

Quick Reference GuideWWW.DAVIDCLARK.COM ONEDCX_

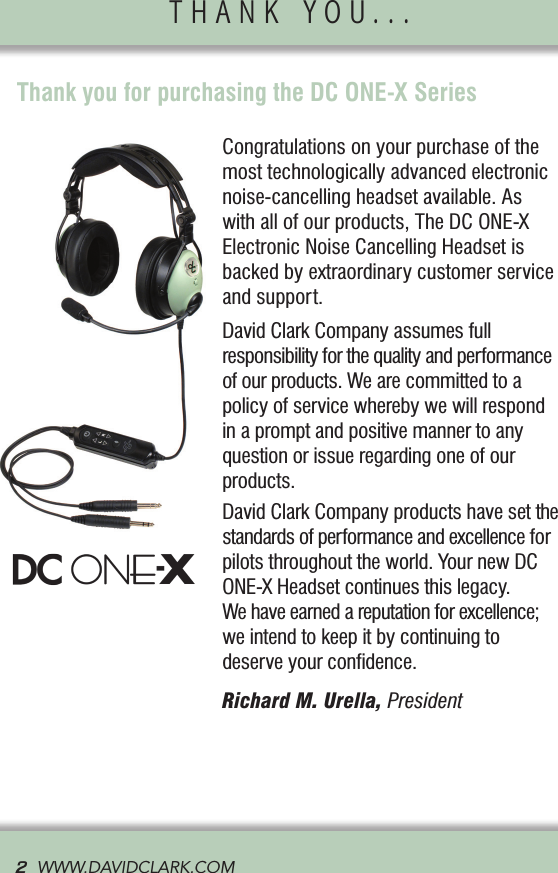

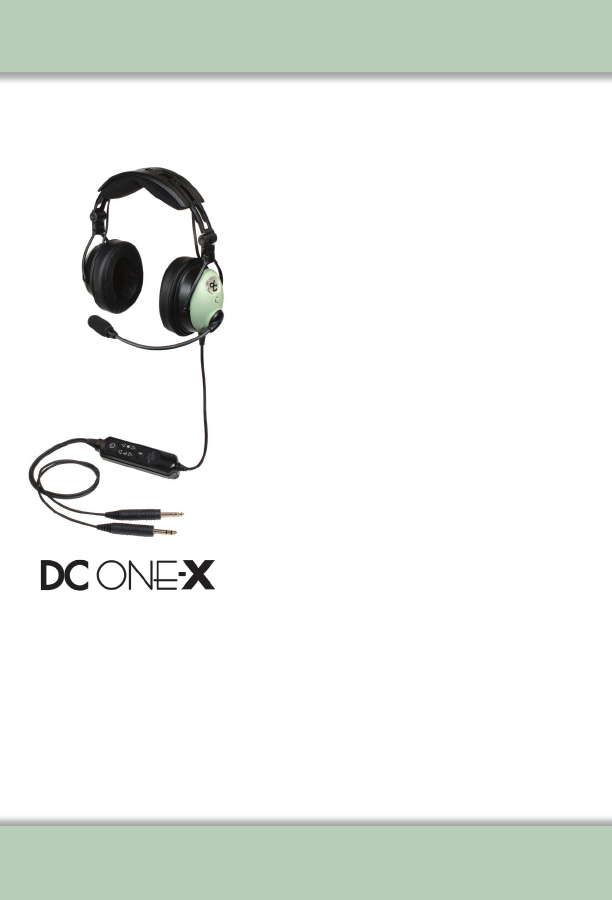

Congratulations on your purchase of the most technologically advanced electronic noise-cancelling headset available. As with all of our products, The DC ONE-X Electronic Noise Cancelling Headset is backed by extraordinary customer service and support.David Clark Company assumes full responsibility for the quality and performance of our products. We are committed to a policy of service whereby we will respond in a prompt and positive manner to any question or issue regarding one of our products.David Clark Company products have set the standards of performance and excellence for pilots throughout the world. Your new DC ONE-X Headset continues this legacy. We have earned a reputation for excellence; we intend to keep it by continuing to deserve your confidence. Richard M. Urella, PresidentThank you for purchasing the DC ONE-X SeriesTHANK YOU... 2 WWW.DAVIDCLARK.COM

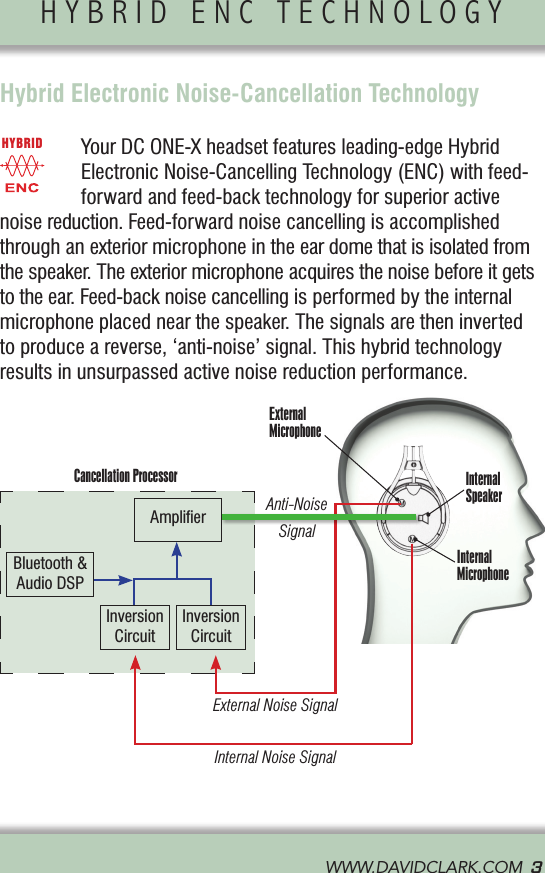

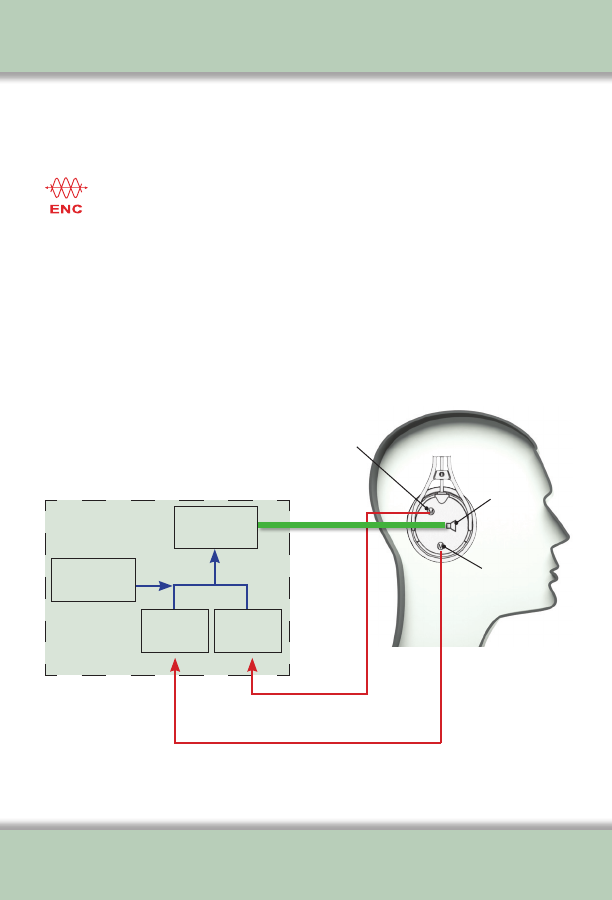

CONTROL MODULE Hybrid Electronic Noise-Cancellation TechnologyYour DC ONE-X headset features leading-edge Hybrid Electronic Noise-Cancelling Technology (ENC) with feed-forward and feed-back technology for superior active noise reduction. Feed-forward noise cancelling is accomplished through an exterior microphone in the ear dome that is isolated from the speaker. The exterior microphone acquires the noise before it gets to the ear. Feed-back noise cancelling is performed by the internal microphone placed near the speaker. The signals are then inverted to produce a reverse, ‘anti-noise’ signal. This hybrid technology results in unsurpassed active noise reduction performance. External MicrophoneInternal SpeakerInternal MicrophoneAmplifierBluetooth & Audio DSPInversion CircuitInversion CircuitExternal Noise SignalInternal Noise SignalCancellation ProcessorHYBRID ENC TECHNOLOGY WWW.DAVIDCLARK.COM 3Anti-Noise SignalHYBRID

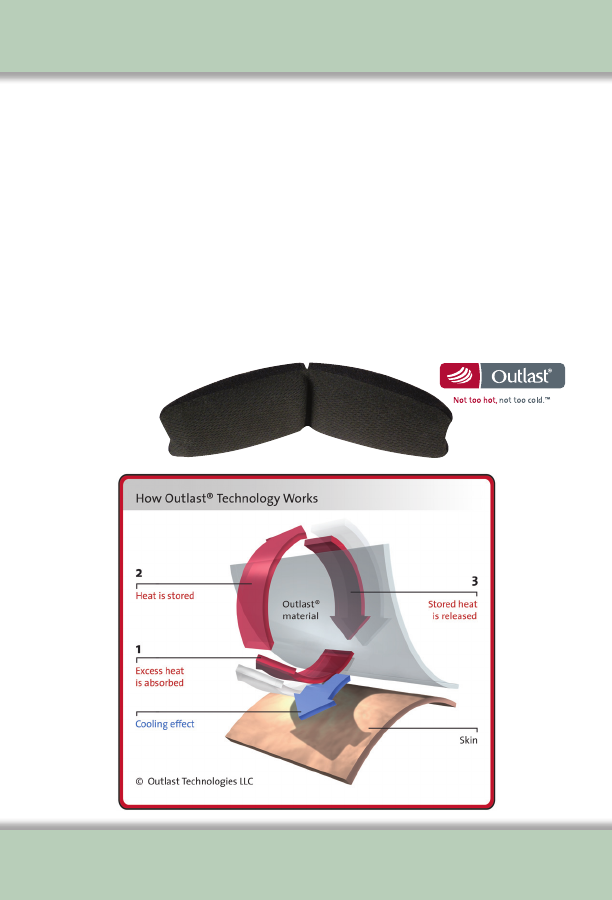

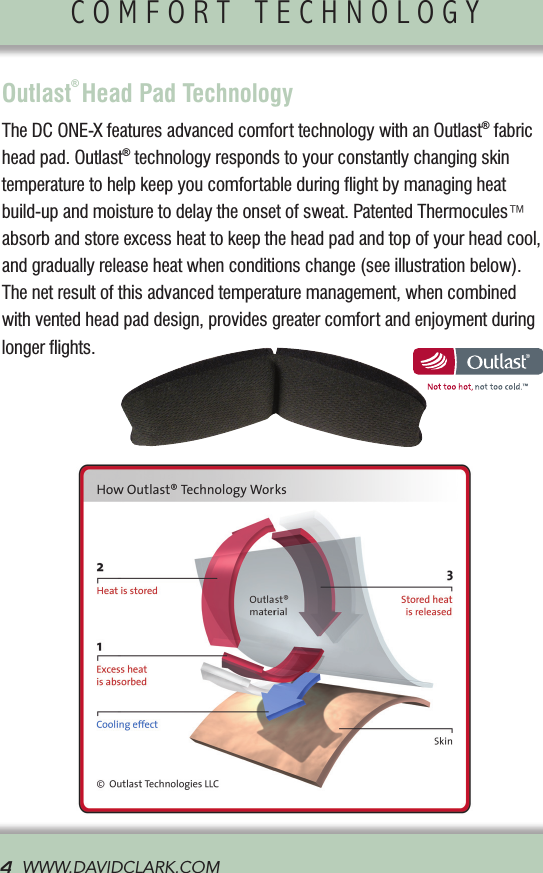

COMFORT TECHNOLOGY 4 WWW.DAVIDCLARK.COM Outlast® Head Pad TechnologyThe DC ONE-X features advanced comfort technology with an Outlast® fabric head pad. Outlast® technology responds to your constantly changing skin temperature to help keep you comfortable during flight by managing heat build-up and moisture to delay the onset of sweat. Patented Thermocules™ absorb and store excess heat to keep the head pad and top of your head cool, and gradually release heat when conditions change (see illustration below). The net result of this advanced temperature management, when combined with vented head pad design, provides greater comfort and enjoyment during longer flights.

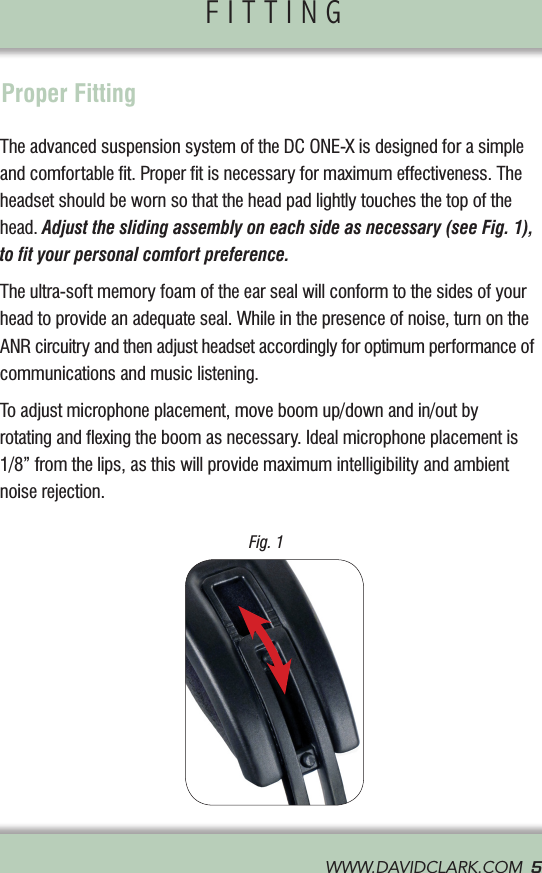

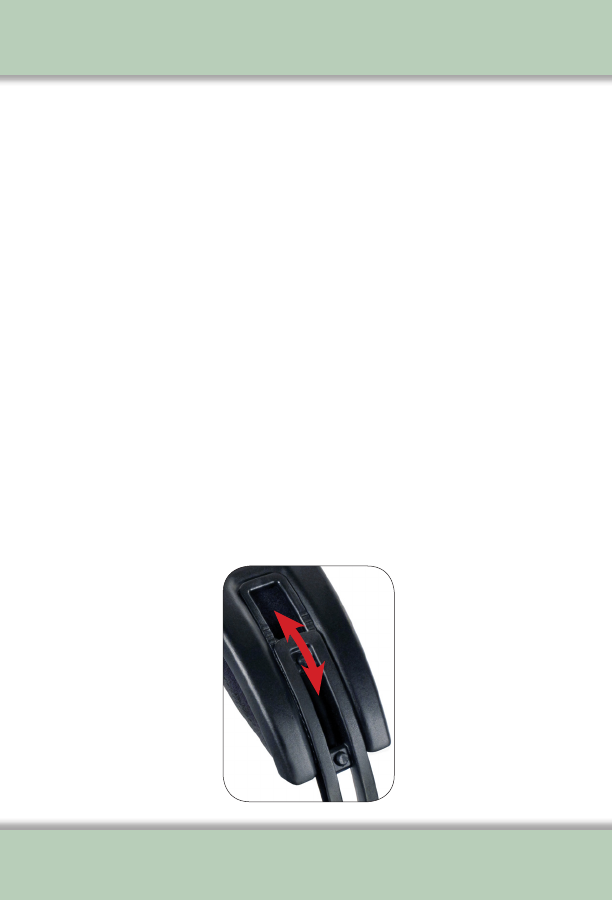

CONTROL MODULE FITTING WWW.DAVIDCLARK.COM 5Proper FittingThe advanced suspension system of the DC ONE-X is designed for a simple and comfortable fit. Proper fit is necessary for maximum effectiveness. The headset should be worn so that the head pad lightly touches the top of the head. Adjust the sliding assembly on each side as necessary (see Fig. 1), to fit your personal comfort preference.The ultra-soft memory foam of the ear seal will conform to the sides of your head to provide an adequate seal. While in the presence of noise, turn on the ANR circuitry and then adjust headset accordingly for optimum performance of communications and music listening.To adjust microphone placement, move boom up/down and in/out by rotating and flexing the boom as necessary. Ideal microphone placement is 1/8” from the lips, as this will provide maximum intelligibility and ambient noise rejection. Fig. 1

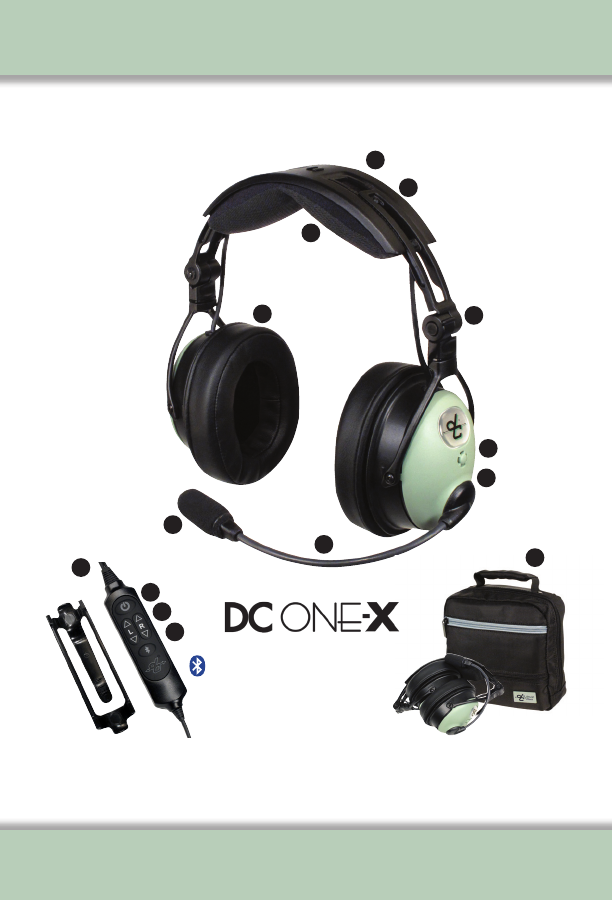

H E A D S E T 6 WWW.DAVIDCLARK.COM DC ONE-X Features1325671094®Bluetooth®ControlModuleand MountingClip141181312FAA TSO-C139a Approved** This article meets the minimum performance and quality control standards required by a technical standard order (TSO). Installation of this article requires separate approval.

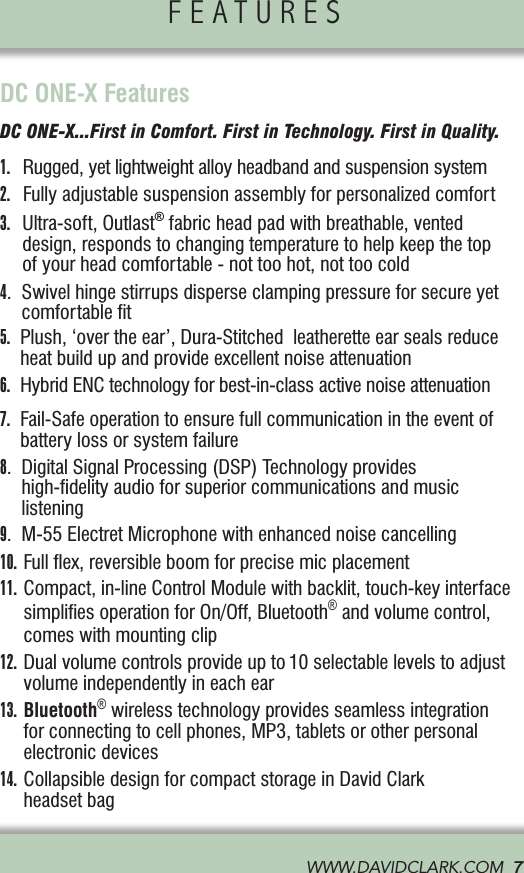

H E A D S E T F E A T U R E S WWW.DAVIDCLARK.COM 7DC ONE-X...First in Comfort. First in Technology. First in Quality.DC ONE-X Features1. Rugged, yet lightweight alloy headband and suspension system2. Fully adjustable suspension assembly for personalized comfort3. Ultra-soft, Outlast® fabric head pad with breathable, vented design, responds to changing temperature to help keep the top of your head comfortable - not too hot, not too cold 4. Swivel hinge stirrups disperse clamping pressure for secure yet comfortable fit 5. Plush, ‘over the ear’, Dura-Stitched leatherette ear seals reduce heat build up and provide excellent noise attenuation6. Hybrid ENC technology for best-in-class active noise attenuation7. Fail-Safe operation to ensure full communication in the event of battery loss or system failure8. Digital Signal Processing (DSP) Technology provides high-fidelity audio for superior communications and music listening9. M-55 Electret Microphone with enhanced noise cancelling10. Full flex, reversible boom for precise mic placement11. Compact, in-line Control Module with backlit, touch-key interface simplifies operation for On/Off, Bluetooth® and volume control, comes with mounting clip 12. Dual volume controls provide up to 10 selectable levels to adjust volume independently in each ear 13. Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other personal electronic devices 14. Collapsible design for compact storage in David Clark headset bag

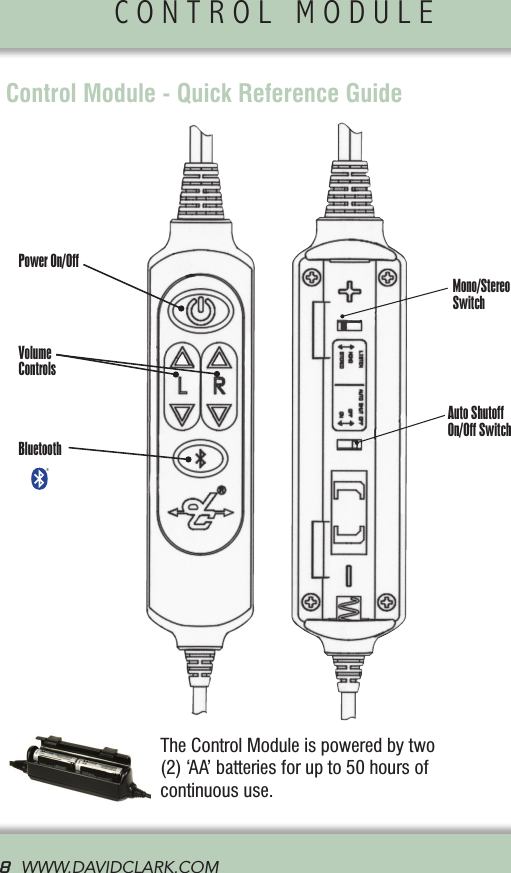

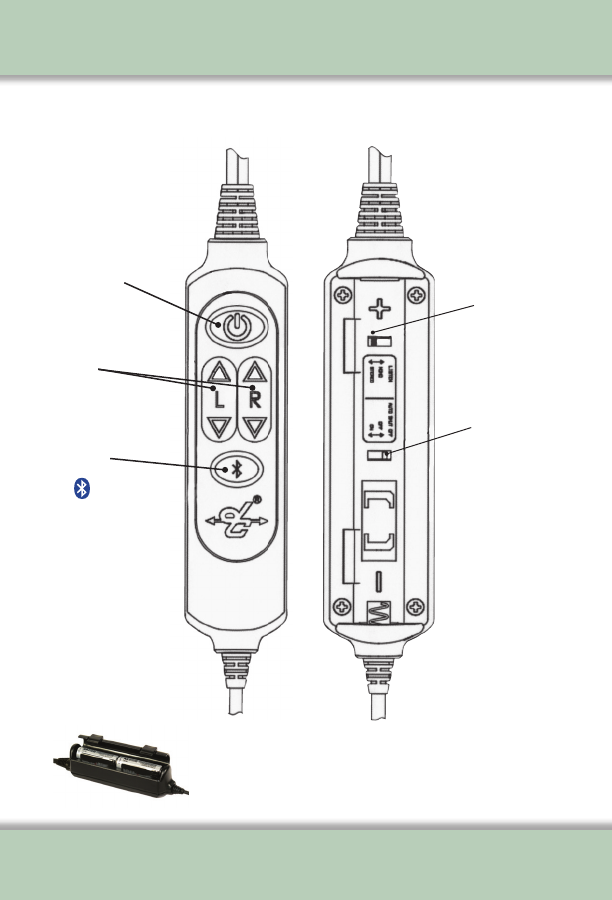

CONTROL MODULE 8 WWW.DAVIDCLARK.COM Control Module - Quick Reference GuidePower On/OffVolume ControlsBluetoothMono/Stereo SwitchAuto Shutoff On/Off SwitchThe Control Module is powered by two (2) ‘AA’ batteries for up to 50 hours of continuous use.®

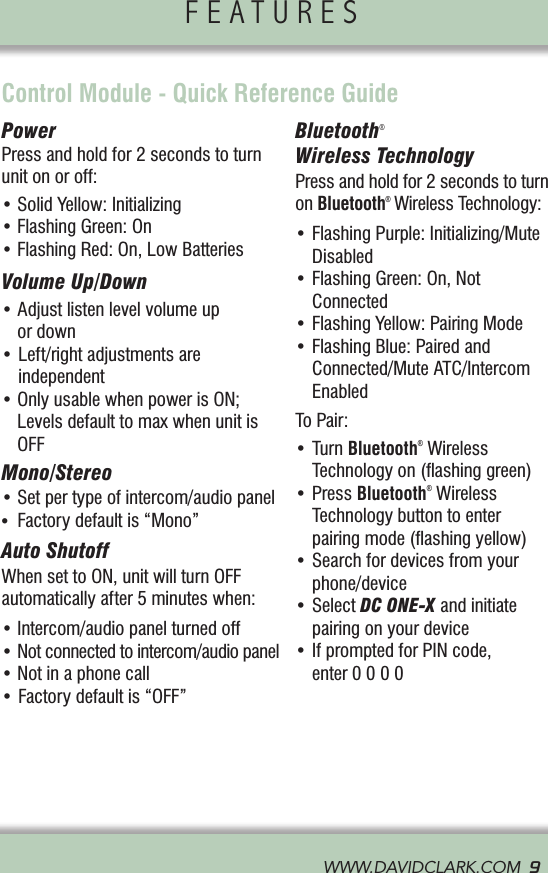

COMFORT TECHNOLOGY F E A T U R E S WWW.DAVIDCLARK.COM 9PowerPress and hold for 2 seconds to turn unit on or off:• Solid Yellow: Initializing• Flashing Green: On• Flashing Red: On, Low BatteriesVolume Up/Down • Adjust listen level volume up or down•Left/right adjustments are independent• Only usable when power is ON; Levels default to max when unit is OFFMono/Stereo• Set per type of intercom/audio panel• Factory default is “Mono”Auto ShutoffWhen set to ON, unit will turn OFF automatically after 5 minutes when:• Intercom/audio panel turned off• Not connected to intercom/audio panel• Not in a phone call•Factory default is “OFF”Bluetooth® Wireless Technology Press and hold for 2 seconds to turn on Bluetooth® Wireless Technology: •Flashing Purple: Initializing/Mute Disabled•Flashing Green: On, Not Connected•Flashing Yellow: Pairing Mode•Flashing Blue: Paired and Connected/Mute ATC/Intercom EnabledTo Pair:•Turn Bluetooth® Wireless Technology on (flashing green)•Press Bluetooth® Wireless Technology button to enter pairing mode (flashing yellow)•Search for devices from your phone/device•Select DC ONE-X and initiate pairing on your device•If prompted for PIN code, enter 0 0 0 0Control Module - Quick Reference Guide

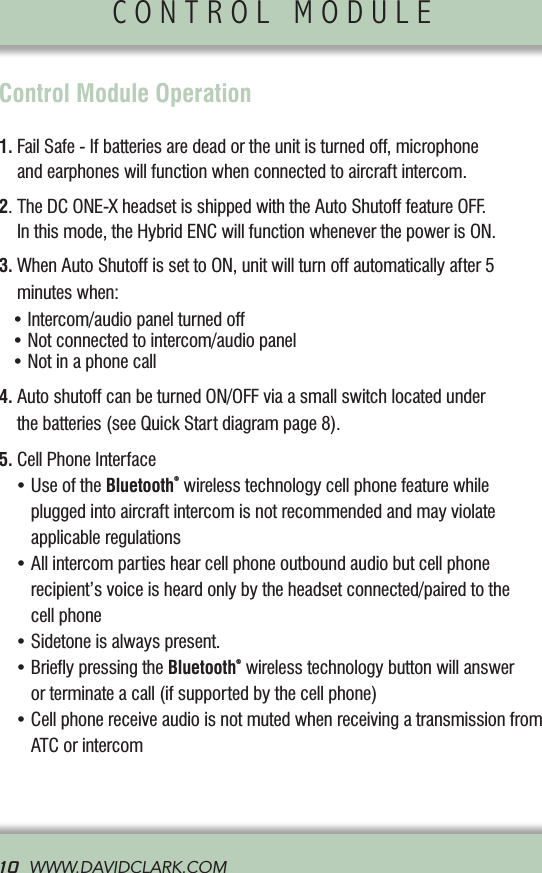

CONTROL MODULE 10 WWW.DAVIDCLARK.COM Control Module Operation1. Fail Safe - If batteries are dead or the unit is turned off, microphone and earphones will function when connected to aircraft intercom.2. The DC ONE-X headset is shipped with the Auto Shutoff feature OFF. In this mode, the Hybrid ENC will function whenever the power is ON.3. When Auto Shutoff is set to ON, unit will turn off automatically after 5 minutes when: •Intercom/audiopanelturnedoff•Notconnectedtointercom/audiopanel•Notinaphonecall4. Auto shutoff can be turned ON/OFF via a small switch located under the batteries (see Quick Start diagram page 8).5. Cell Phone Interface •UseoftheBluetooth® wireless technology cell phone feature while plugged into aircraft intercom is not recommended and may violate applicable regulations •Allintercompartieshearcellphoneoutboundaudiobutcellphone recipient’s voice is heard only by the headset connected/paired to the cell phone •Sidetoneisalwayspresent. •BrieypressingtheBluetooth® wireless technology button will answer or terminate a call (if supported by the cell phone) •CellphonereceiveaudioisnotmutedwhenreceivingatransmissionfromATC or intercomHYBRID ENC TECHNOLOGY

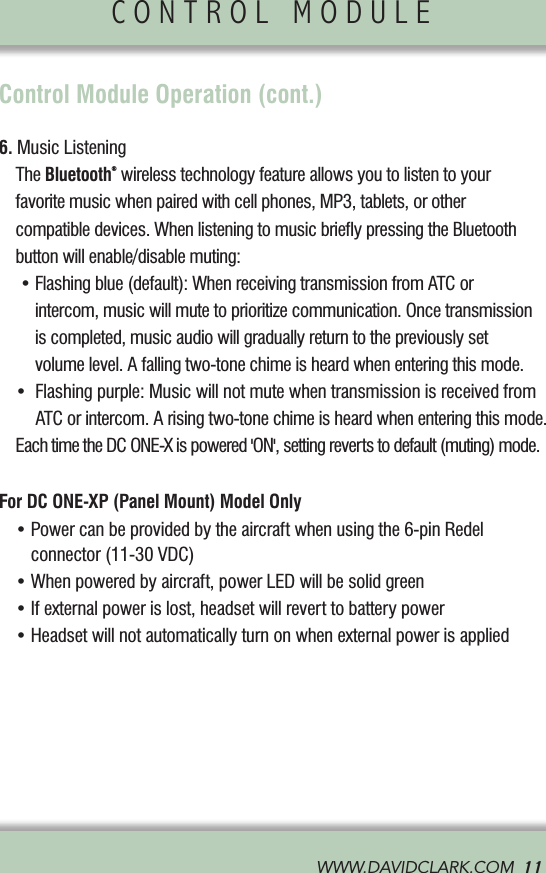

WWW.DAVIDCLARK.COM 11CONTROL MODULE Control Module Operation (cont.)6. Music Listening The Bluetooth® wireless technology feature allows you to listen to your favorite music when paired with cell phones, MP3, tablets, or other compatible devices. When listening to music briefly pressing the Bluetooth button will enable/disable muting:  •Flashingblue(default):WhenreceivingtransmissionfromATCor intercom, music will mute to prioritize communication. Once transmission is completed, music audio will gradually return to the previously set volume level. A falling two-tone chime is heard when entering this mode. •Flashingpurple:MusicwillnotmutewhentransmissionisreceivedfromATC or intercom. A rising two-tone chime is heard when entering this mode. Each time the DC ONE-X is powered 'ON', setting reverts to default (muting) mode. For DC ONE-XP (Panel Mount) Model Only •Powercanbeprovidedbytheaircraftwhenusingthe6-pinRedelconnector (11-30 VDC) •Whenpoweredbyaircraft,powerLEDwillbesolidgreen •Ifexternalpowerislost,headsetwillreverttobatterypower •Headsetwillnotautomaticallyturnonwhenexternalpowerisapplied

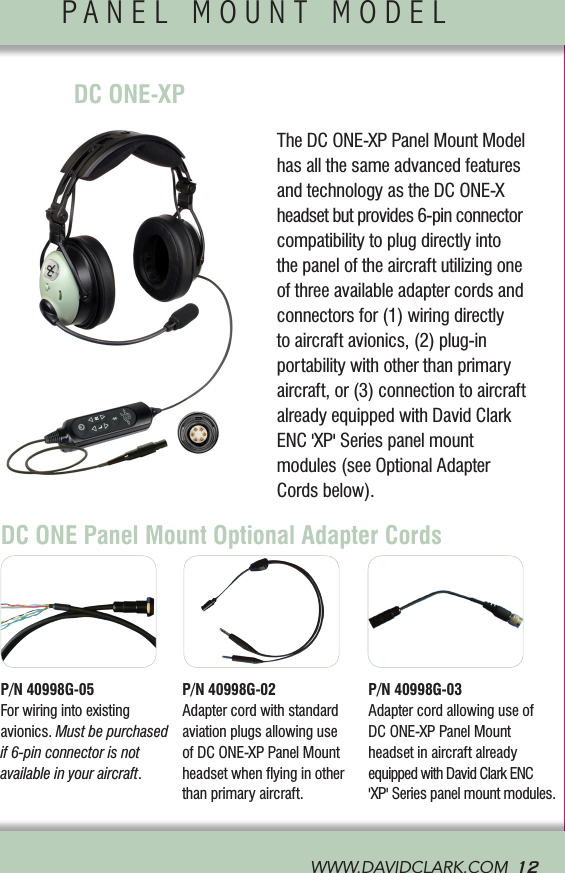

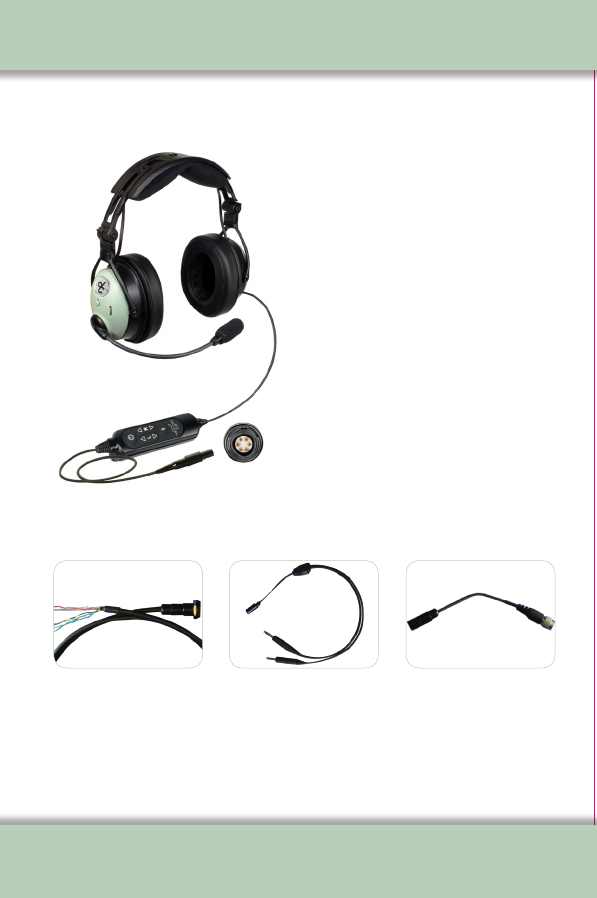

WWW.DAVIDCLARK.COM 12PANEL MOUNT MODEL The DC ONE-XP Panel Mount Model has all the same advanced features and technology as the DC ONE-X headset but provides 6-pin connector compatibility to plug directly into the panel of the aircraft utilizing one of three available adapter cords and connectors for (1) wiring directly to aircraft avionics, (2) plug-in portability with other than primary aircraft, or (3) connection to aircraft already equipped with David Clark ENC 'XP' Series panel mount modules (see Optional Adapter Cords below).DC ONE Panel Mount Optional Adapter CordsP/N 40998G-05 For wiring into existing avionics. Mustbepurchasedif 6-pin connector is not available in your aircraft.P/N 40998G-02 Adapter cord with standard aviation plugs allowing use of DC ONE-XP Panel Mount headset when flying in other than primary aircraft.P/N 40998G-03 Adapter cord allowing use of DC ONE-XP Panel Mount headset in aircraft already equipped with David Clark ENC 'XP' Series panel mount modules.CONTROL MODULE DC ONE-XP

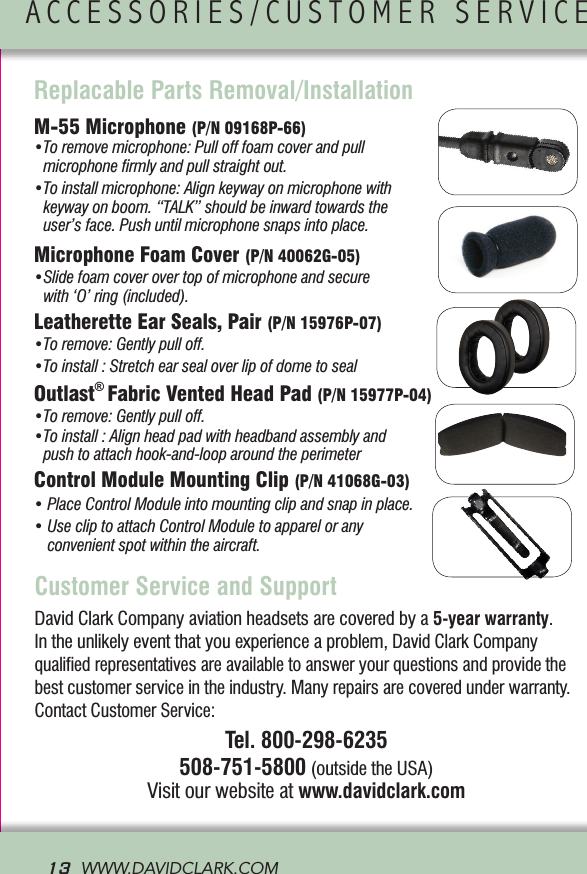

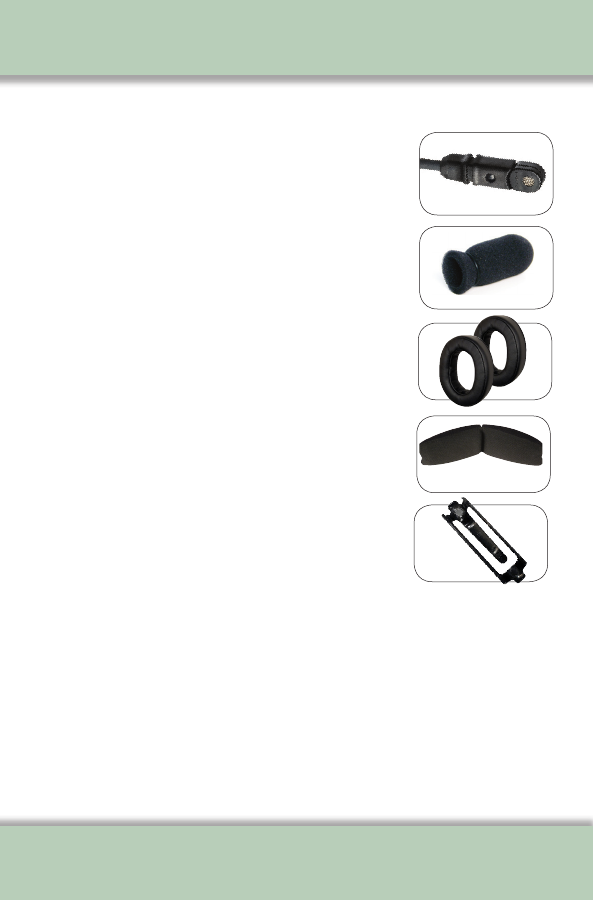

13 WWW.DAVIDCLARK.COM David Clark Company aviation headsets are covered by a 5-year warranty. In the unlikely event that you experience a problem, David Clark Company qualified representatives are available to answer your questions and provide the best customer service in the industry. Many repairs are covered under warranty. Contact Customer Service: Tel. 800-298-6235508-751-5800 (outside the USA)Visit our website at www.davidclark.comCustomer Service and SupportACCESSORIES/CUSTOMER SERVICE Replacable Parts Removal/InstallationM-55 Microphone (P/N 09168P-66) •To remove microphone: Pull off foam cover and pull microphone firmly and pull straight out.•To install microphone: Align keyway on microphone with keyway on boom. “TALK” should be inward towards the user’s face. Push until microphone snaps into place.Microphone Foam Cover (P/N 40062G-05)•Slide foam cover over top of microphone and secure with ‘O’ ring (included). Leatherette Ear Seals, Pair (P/N 15976P-07) •To remove: Gently pull off. •To install : Stretch ear seal over lip of dome to seal Outlast® Fabric Vented Head Pad (P/N 15977P-04) •To remove: Gently pull off.•To install : Align head pad with headband assembly and push to attach hook-and-loop around the perimeterControl Module Mounting Clip (P/N 41068G-03)•PlaceControlModuleintomountingclipandsnapinplace.•UsecliptoattachControlModuletoapparelorany convenient spot within the aircraft.

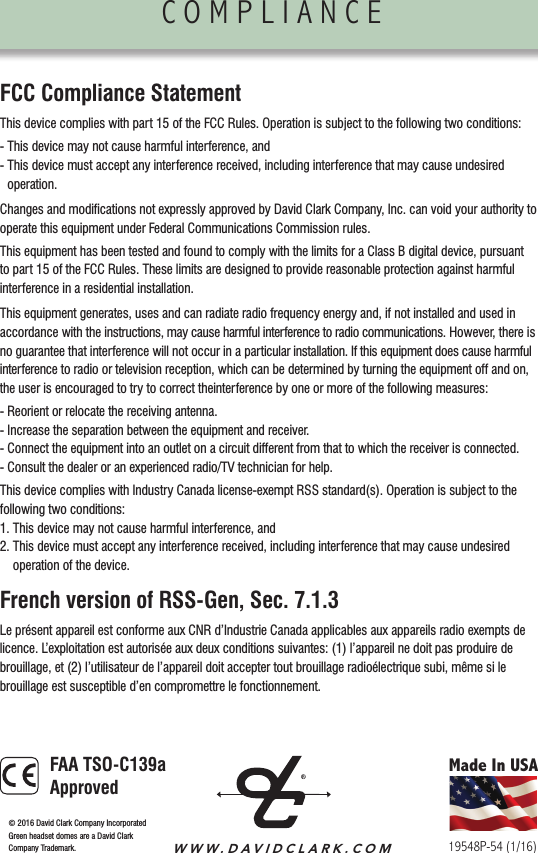

COMPLIANCE FCC Compliance StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:- This device may not cause harmful interference, and- This device must accept any interference received, including interference that may cause undesired operation.Changes and modifications not expressly approved by David Clark Company, Inc. can void your authority to operate this equipment under Federal Communications Commission rules.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation of the device.French version of RSS-Gen, Sec. 7.1.3Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.ACCESSORIES/CUSTOMER SERVICE Made In USAWWW.DAVIDCLARK.COM19548P-54 (1/16)© 2016 David Clark Company IncorporatedGreen headset domes are a David ClarkCompany Trademark. FAA TSO-C139a Approved
