David Clark DCXBT AVIATION HEADSET 2.4 GHz BLUETOOTH INTERFACE User Manual
David Clark Company Inc. AVIATION HEADSET 2.4 GHz BLUETOOTH INTERFACE
User Manual
Futura Med w/Bernard Fashion
Quick Reference Guide
WWW.DAVIDCLARK.COM
DCPRO MANUAL 5-10.indd 1 5/22/13 10:29 AM
Congratulations on your purchase of the
most technologically advanced electronic
noise-cancelling headset available. As
with all of our products, The DC PRO-X
Electronic Noise Cancelling Headset is
backed by extraordinary customer service
and support.
David Clark Company assumes full
responsibility for the quality and performance
of our products. We are committed to a
policy of service whereby we will respond
in a prompt and positive manner to any
question or issue regarding one of our
products.
David Clark Company products have set
the standards of performance and excellence
for pilots throughout the world. Your new
DC PRO-X continues this legacy. We have
earned a reputation for excellence; we
intend to keep it by continuing to deserve
your confidence.
Robert A. Vincent, President

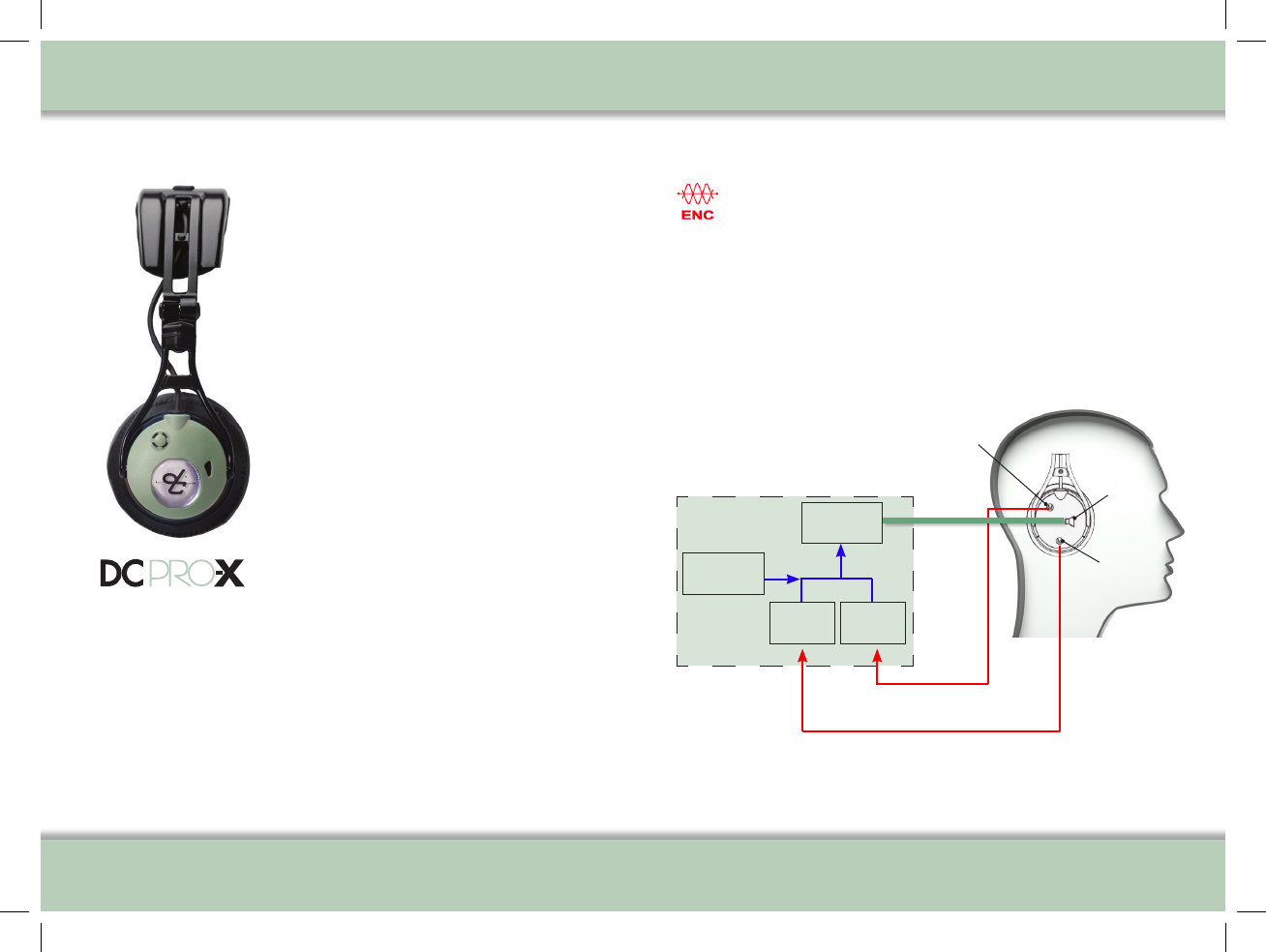

Thank you for purchasing the DC PRO-X Hybrid Electronic Noise-Cancellation Technology
Your DC PRO-X features leading-edge Hybrid Electronic
Noise-Cancelling Technology (ENC) with feed-forward
and feed-back technology for superior active noise
reduction. Feed-forward noise cancelling is accomplished through
an exterior microphone in the ear dome that is isolated from the
speaker. The exterior microphone acquires the noise before it gets
to the ear. Feed-back noise cancelling is performed by the internal
microphone placed near the speaker. The signals are then inverted
to produce a reverse, ‘anti-noise’ signal. This hybrid technology
results in unsurpassed active noise reduction performance.
External
Microphone
Internal
Speaker
Internal
Microphone
Amplifier
Bluetooth &
Audio DSP
Inversion
Circuit
Inversion
Circuit
External Noise Signal
Internal Noise Signal
Cancellation Processor
THANK YOU... HYBRID ENC TECHNOLOGY
2
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
3
Futura Med w/Bernard Fashion
Anti-Noise
Signal
HYBRID
DCPRO MANUAL 5-10.indd 2-3 5/22/13 10:29 AM

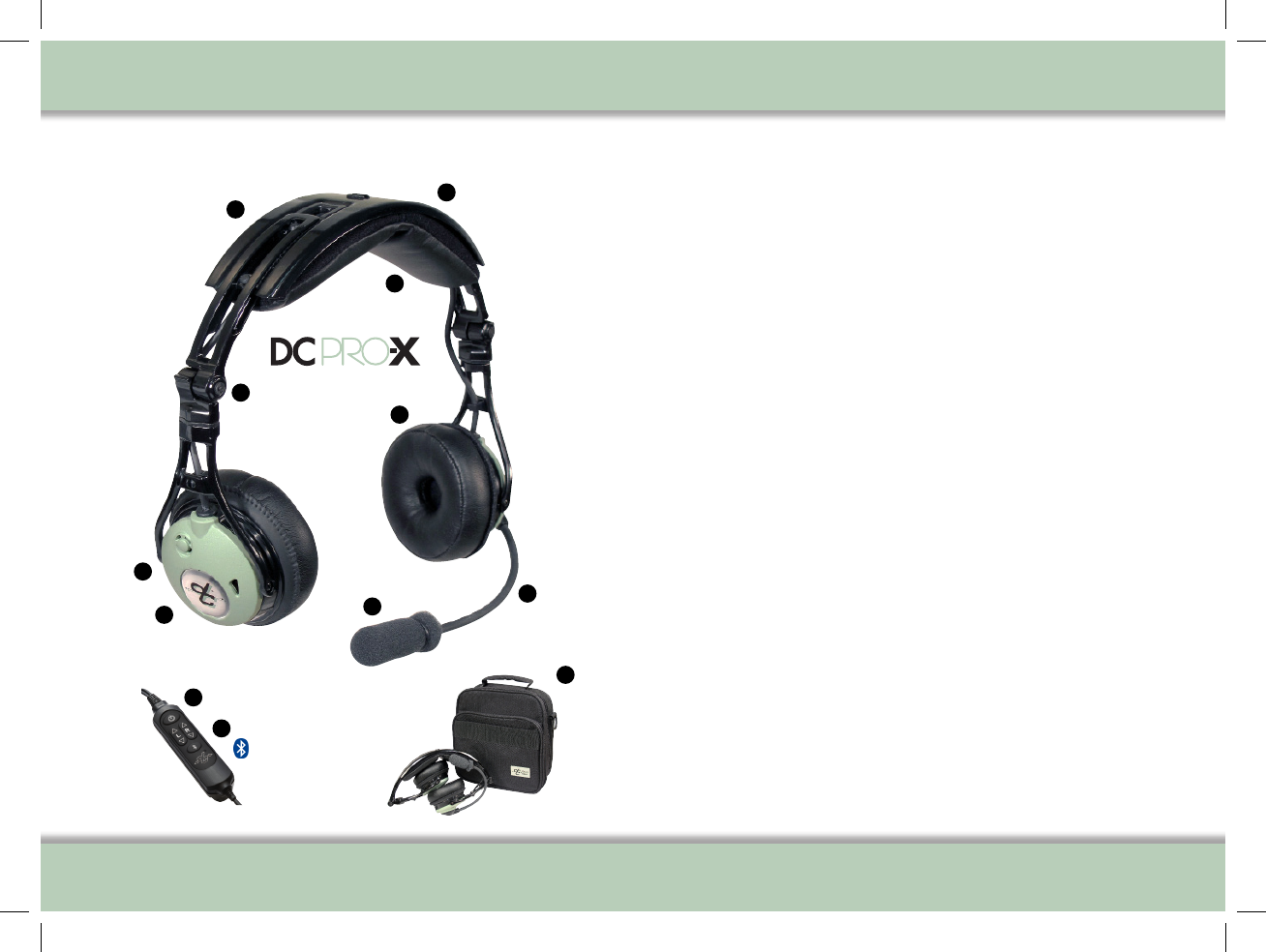

DC PRO-X Features
1
3
2
5
6
7
10
9
4
12
®
Technologically Advanced. Intelligently Designed.
1. Very light, yet rugged magnesium alloy headband and suspension
2. Fully adjustable suspension assembly for personalized comfort
3. Ultra-soft leatherette head pad with breathable, vented design
4. Swivel hinge stirrups disperse clamping pressure for secure yet
comfortable fit
5. Plush, ‘rest on ear’, Dura-Stitched leatherette ear seals reduce
heat build up
6. Hybrid ENC technology for best-in-class active noise attenuation
7. Dual Voice Coil Drivers provide Fail-Safe operation to ensure full
communication in the event of battery loss or system failure
8. Digital Signal Processing (DSP) Technology provides high-
fidelity audio for superior communications and music listening
9. M-55 Electret Microphone with enhanced noise cancelling
10. Full flex boom for precise mic placement
11. Bluetooth® wireless technology provides seamless integration
for connecting to cell phones, MP3, tablets or other personal
electronic devices
12. Collapsible design for compact storage in David Clark
headset bag
DC PRO-X Features
H E A D S E T F E A T U R E S
Futura Med w/Bernard Fashion
4
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
5
Approved
FAA TSO-C139
8
11
Bluetooth
Control
Module
DCPRO MANUAL 5-10.indd 4-5 5/22/13 10:29 AM

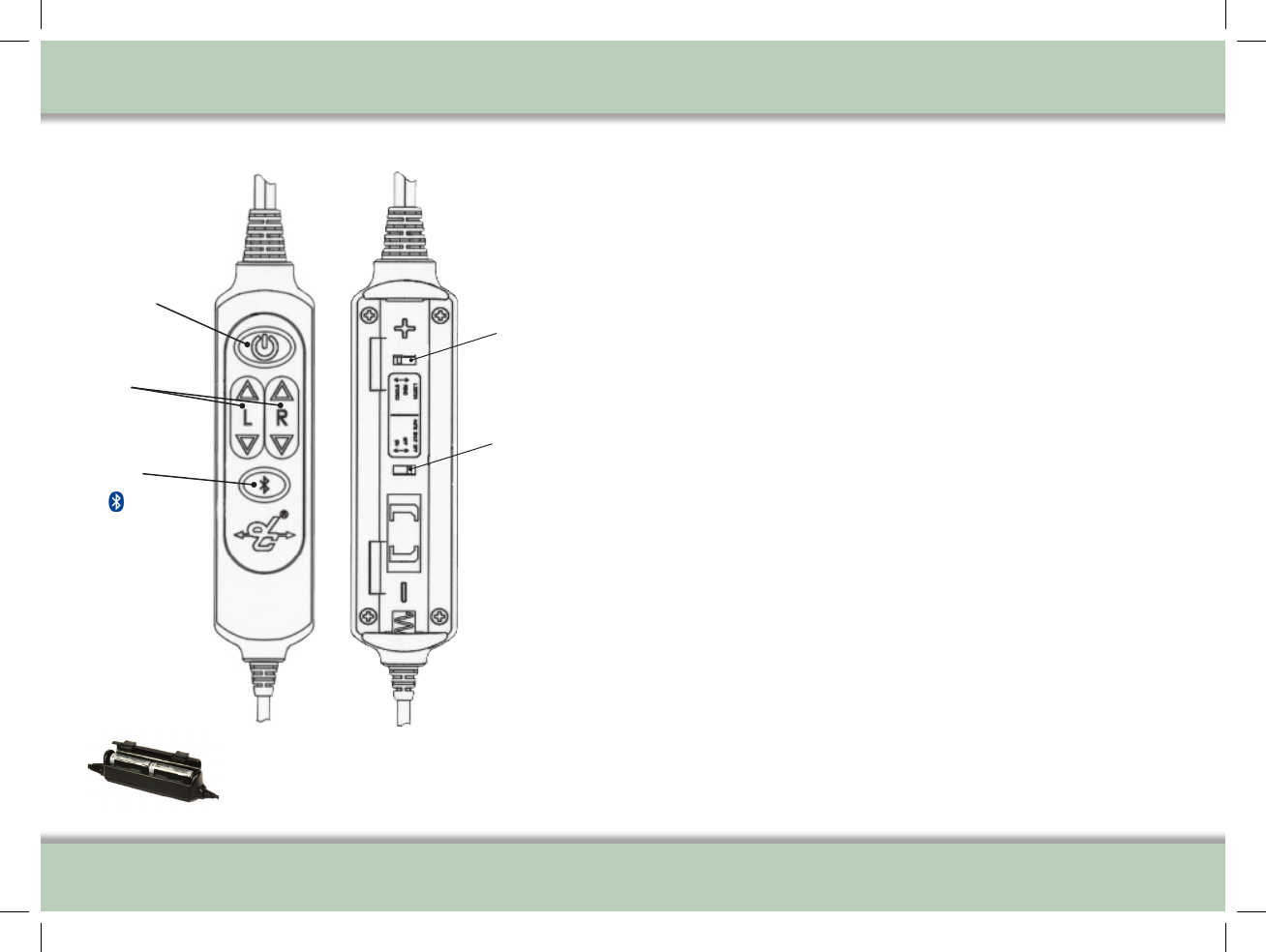

Control Module - Quick Reference Guide
Power On/Off
Volume
Controls
Bluetooth
Mono/Stereo
Switch
Auto Shutoff
Switch
Power
Press to turn unit on or off
• Solid Yellow: Initializing
• Pulsing Green: On
• Pulsing Red: On, Low Batteries
Volume Up/Down
• Adjust listen level volume up
or down
• Left/right adjustments are
independent
• Only usable when power is on;
Levels default to max when unit
is off
Mono/Stereo
• Set per type of intercom/audio
panel
Auto Shutoff
When set to ON, unit will turn off
automatically after 5 minutes when:
• Intercom/audio panel turned off
• Not connected to intercom/audio
panel
• Not in a phone call
Bluetooth®
Wireless Technology
Press and hold for 2 sec. to turn on
Bluetooth®
Wireless Technology:
• Pulsing Purple: Initializing
• Pulsing Green: On, Not
Connected
• Pulsing Yellow: Pairing Mode
• Pulsing Blue: Paired and
Connected
To Pair:
• Turn Bluetooth® Wireless
Technology on (pulsing green)
• Press Bluetooth® Wireless
Technology button to enter
pairing mode (flashing yellow)
• Search for devices from your
phone/device
• Select DC PRO-X and initiate
pairing on your device
• If prompted for PIN code, enter
0 0 0 0
Control Module - Quick Reference Guide
The Control Module is powered by two
(2) ‘AA’ batteries for up to 50 hours of
continuous use.
CONTROL MODULE F E A T U R E S
6
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
7
®
DCPRO MANUAL 5-10.indd 6-7 5/22/13 10:29 AM
CONTROL MODULE DC PRO-X USAGE
8
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
9
Control Module Operation
1. Fail Safe - if batteries are dead or the unit is turned off, microphone
and earphones will function when connected to aircraft intercom.
2. The DC PRO-X headset is shipped with the Auto Shutoff feature OFF.
In this mode, the Hybrid ENC will function whenever the power is ON.
3. When Auto Shutoff is set to ON, unit will turn off automatically after 5
minutes when:
• Intercom/audio panel turned off
• Not connected to intercom/audio panel
• Not in a phone call
4. Auto shutoff can be enabled/disabled via a small switch located under
the batteries (see Quick Start diagram page 6).
5. External Audio Management
• Aux audio is muted upon transmit or receive from intercom or radio
to ensure priority of audio voice communications
6. Cell Phone Interface
• All intercom parties hear cell phone outbound audio but cell phone
recipient’s voice is heard only by the headset connected/paired to
the cell phone
• Sidetone is present when connected to aircraft intercom. Sidetone may
not be (dependent on cell phone functionality) present when using the
headset and cell phone when not attached to the aircraft intercom
Proper Fitting
The advanced suspension system of the DC PRO-X is designed for
a simple and comfortable fit. Proper fit is necessary for maximum
effectiveness. The headset should be worn so that the head pad lightly
touches the top of the head. Adjust the sliding assembly on each side
as necessary (see Fig. 1), keeping slide positions equal on either side.
To adjust microphone placement, adjust boom up/down and in/out by
rotating and flexing the boom as necessary. Ideal microphone place-
ment is 1/8” from the lips, as this will provide maximum intelligibility
and ambient noise rejection.
Control Module Operation (cont.)
7. Music Listening
• The Bluetooth® wireless technology feature allows you to listen to your
favorite music when paired with cell phones, MP3, tablets, or other
compatible devices. When receiving transmission from ATC, music audio
will mute to prioritize communication. Once transmission is completed,
music audio will gradually return to the previously set volume level.

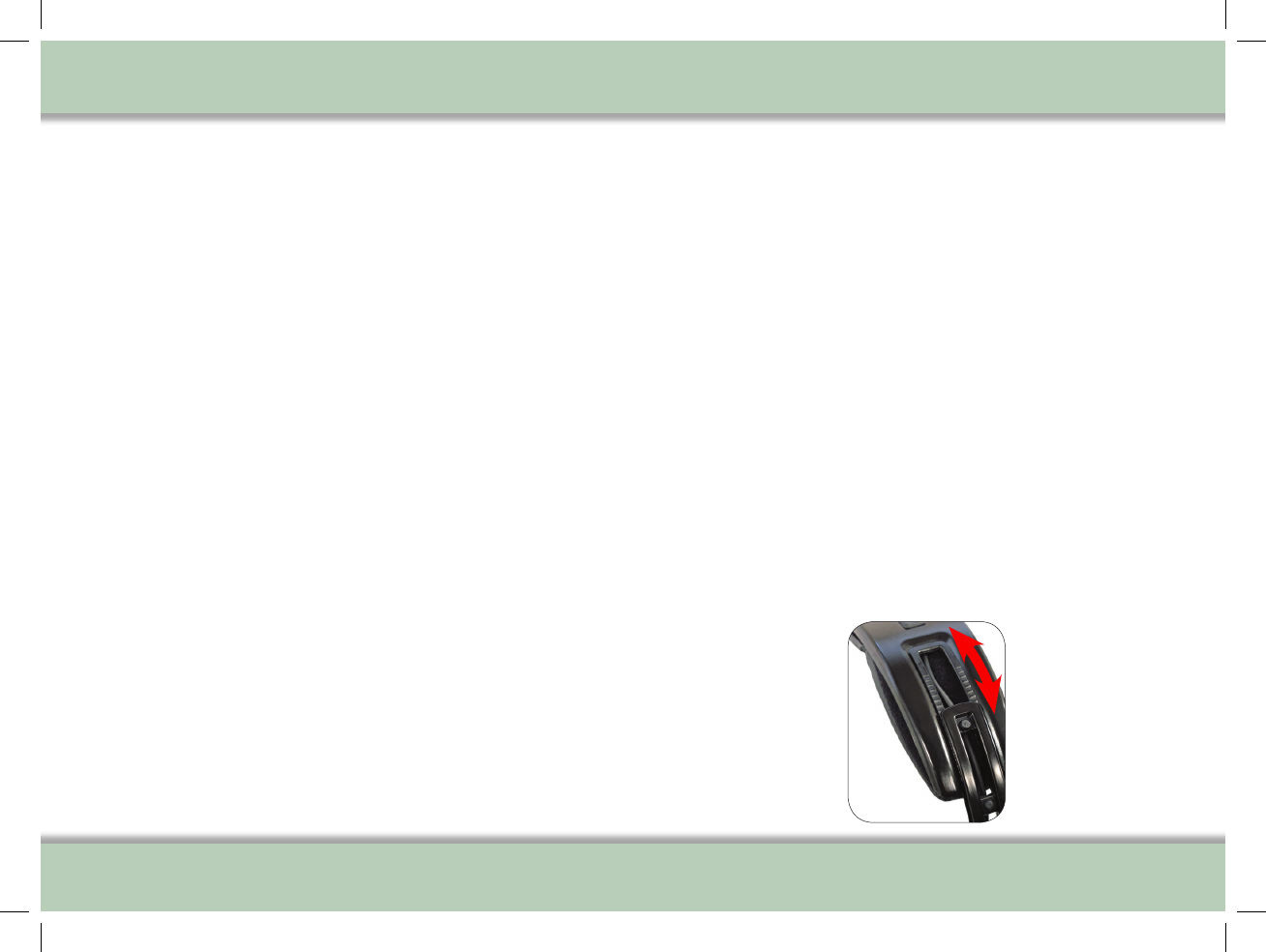

Fig. 1
DCPRO MANUAL 5-10.indd 8-9 5/22/13 10:29 AM
HEADSET ACCESSORIES CUSTOMER SERVICE
10
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
11

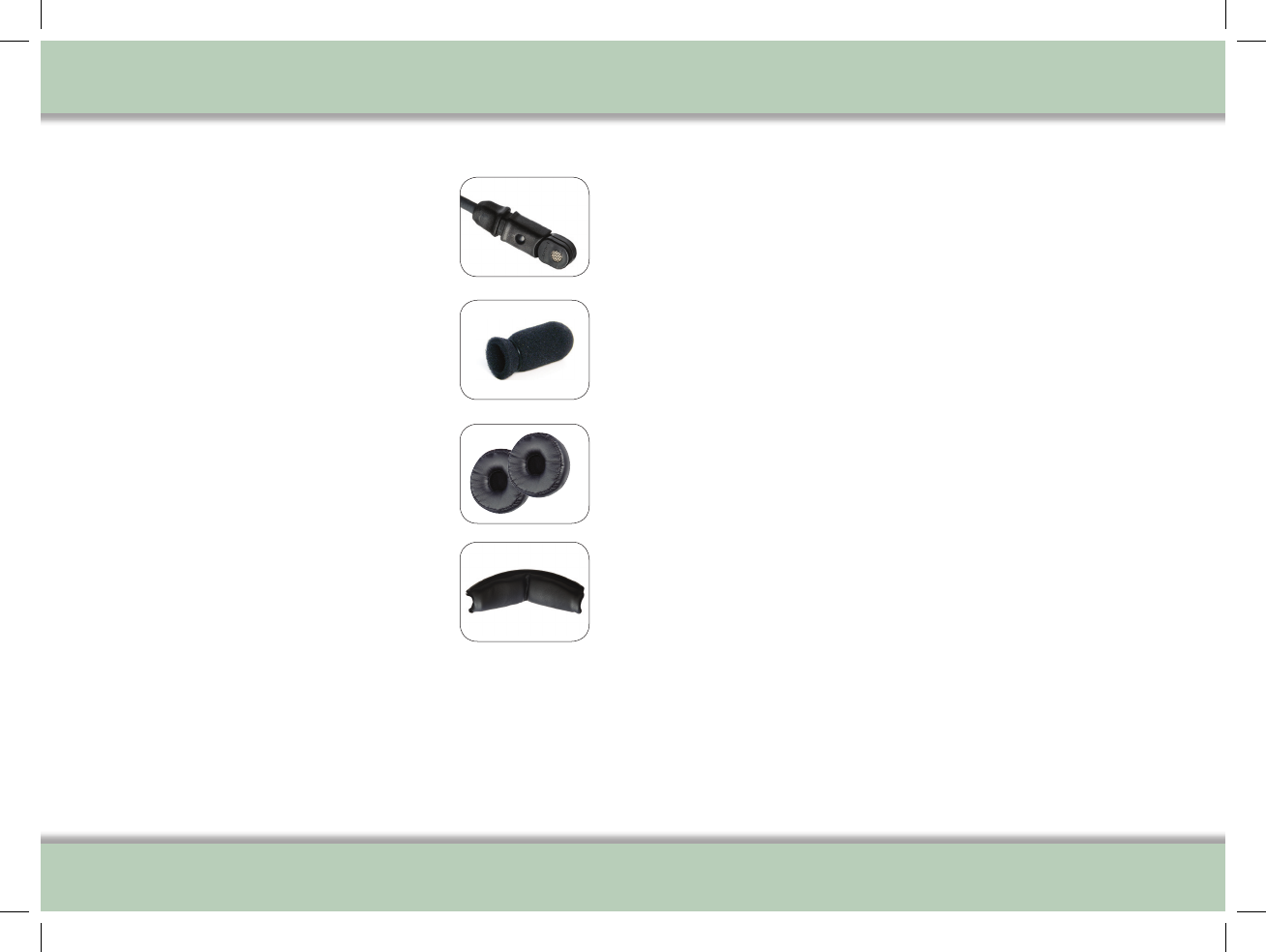

Replacable Parts Removal/Installation
M-55 Microphone (P/N 09168P-66)
• To remove microphone: Gently pull off foam cover. Grasp
microphone firmly and pull straight out.
• To install microphone: Align keyway on microphone with
keyway on boom. “TALK” should be inward towards the user’s
face. Push until microphone snaps into place.
Microphone Foam Cover (P/N 40062G-05)
• Slide foam cover over top of microphone and secure with
‘O’ ring (included).
Leatherette Ear Seals, Pair (P/N 15976P-03)
• To remove: Gently pull off.
• To install : Stretch earseal over lip of dome until completely
seated on dome.
Leatherette, Vented Head Pad (P/N 15977P-02)
• To remove: Gently pull off.
• To install : Align head pad with headband assembly and push
all around the perimeter to engage hook-and-loop fasteners.
David Clark Company aviation headsets are covered by a 5-year
warranty. We make every effort to prevent problems and the need for
repairs. In the unlikely event that you experience a problem, David
Clark Company qualified representatives are available to answer your
questions and provide the best customer service in the industry.
Many repairs are covered under warranty. Contact Customer Service:
Tel. 800-298-6235
508-751-5800 (outside the USA)
Visit our website at www.davidclark.com
Customer Service and Support
DCPRO MANUAL 5-10.indd 10-11 5/22/13 10:29 AM
COMPLIANCE
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause
undesired operation.
Changes and modifications not expressly approved by David Clark Company, Inc. can void your
authority to operate this equipment under Federal Communications Commission rules.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct theinterference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation of the device.
Made In USA
WWW.DAVIDCLARK.COM
19544P-97 (5/13)
© 2013 David Clark Company Incorporated
Green headset domes are a David Clark
Company Trademark.
Approved
FAA TSO-C139
