Vantage Pro Manual Page 1WE L C O M ET O T H E VA N T A G EPR O 5 5Vantage Pro Formats 5Display & Keyboard 6Console Modes 6Multiple stations / Sensors 7Optional Sensors 7Optional Accessories 8Vantage Pro Console Installation 9Cabled Vantage Pro Console Installation 10Powering your Vantage Pro 10Connecting the Cabled Vantage Pro to the Integrated Sensor Suite (ISS) 10Wireless Vantage Pro Installation 11Powering your Wireless Vantage Pro 11Connecting the Wireless Vantage Pro console to the Integrated Sensor Suite (ISS) 11Displaying the Vantage Pro Console 11Table & Shelf Display 12Wall Display 12Using the Vantage Pro Console 13Chapter 3 13Keyboard 14Using the Navigation Keys 14Display Features 15Setup Mode 18Current Weather Mode 18Activating Weather Variables 18Wind Speed and Direction 18Temperature 18Humidity 19Wind Chill 19Dew Point 19Barometric Pressure 20 UV (Ultraviolet Radiation) 20

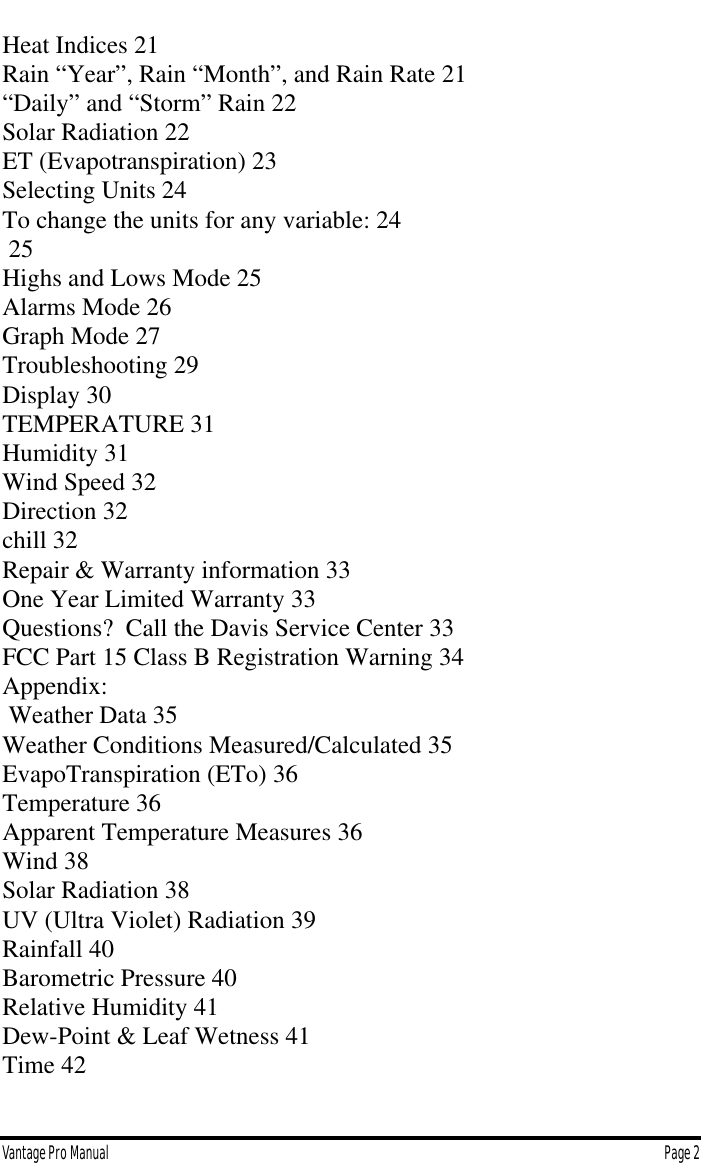

Vantage Pro Manual Page 2Heat Indices 21Rain “Year”, Rain “Month”, and Rain Rate 21“Daily” and “Storm” Rain 22Solar Radiation 22ET (Evapotranspiration) 23Selecting Units 24To change the units for any variable: 24 25Highs and Lows Mode 25Alarms Mode 26Graph Mode 27Troubleshooting 29Display 30TEMPERATURE 31Humidity 31Wind Speed 32Direction 32chill 32Repair & Warranty information 33One Year Limited Warranty 33Questions? Call the Davis Service Center 33FCC Part 15 Class B Registration Warning 34Appendix: Weather Data 35Weather Conditions Measured/Calculated 35EvapoTranspiration (ETo) 36Temperature 36Apparent Temperature Measures 36Wind 38Solar Radiation 38UV (Ultra Violet) Radiation 39Rainfall 40Barometric Pressure 40Relative Humidity 41Dew-Point & Leaf Wetness 41Time 42

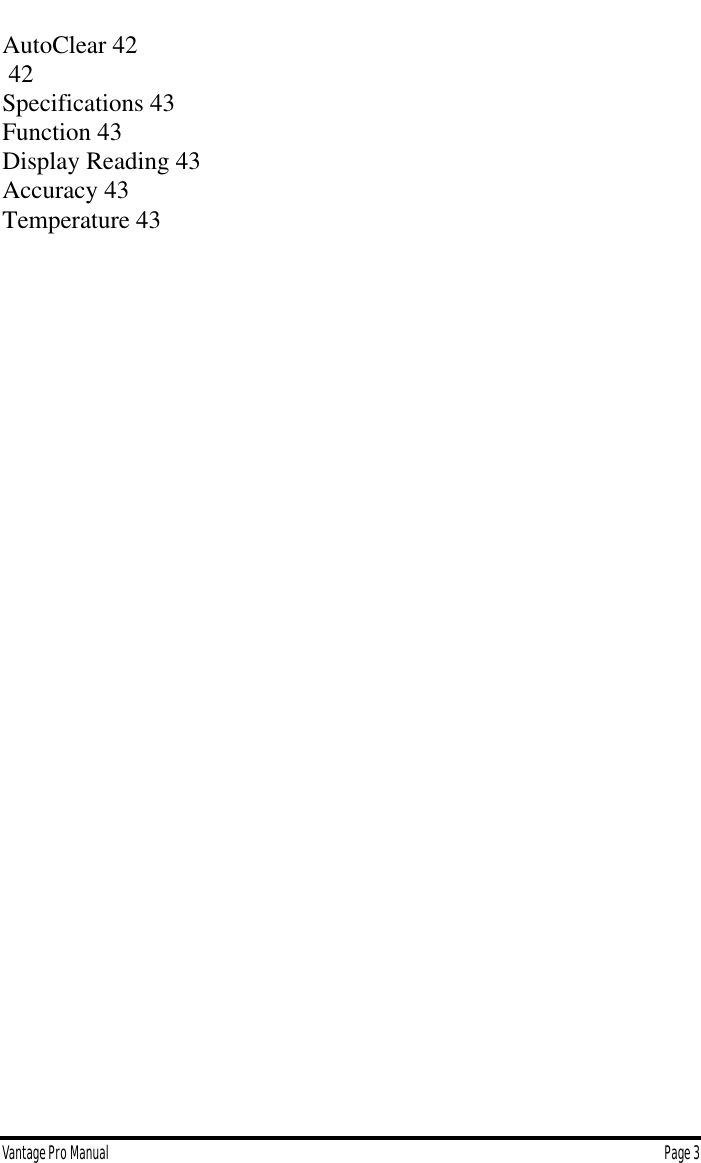

Vantage Pro Manual Page 3AutoClear 42 42Specifications 43Function 43Display Reading 43Accuracy 43Temperature 43
Welcome to the Vantage Pro 5Page 4 Vantage Pro Console Manual

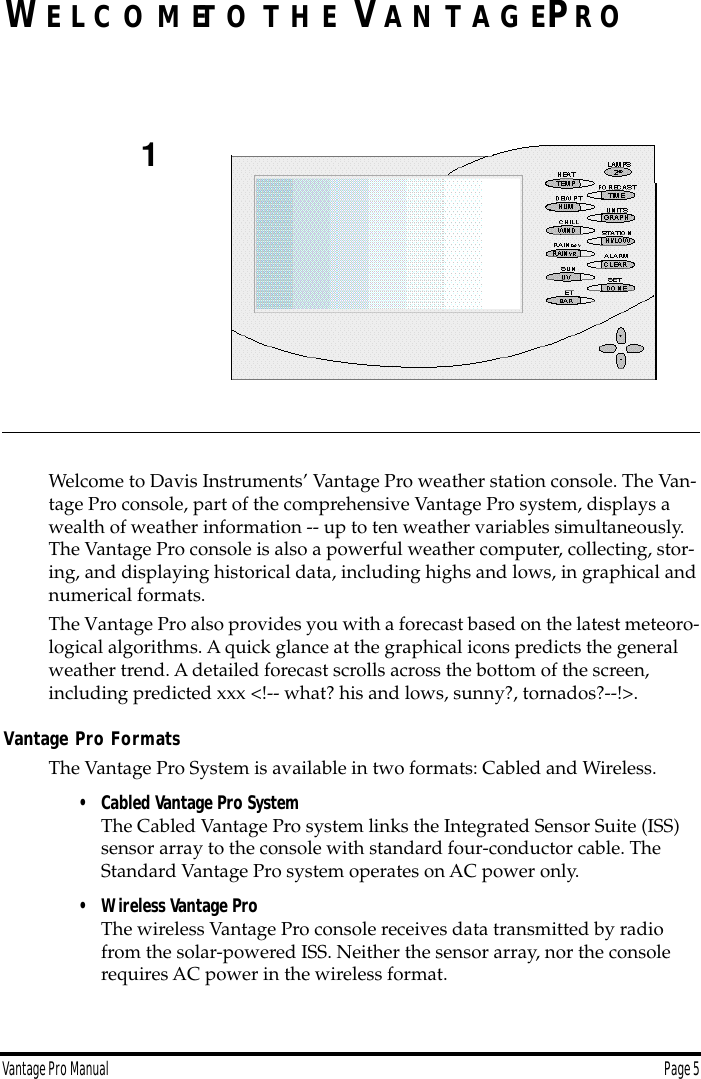

Vantage Pro Manual Page 5WE L C O M ET O T H E VA N T A G EPR OWelcome to Davis Instruments’ Vantage Pro weather station console. The Van-tage Pro console, part of the comprehensive Vantage Pro system, displays a wealth of weather information -- up to ten weather variables simultaneously. The Vantage Pro console is also a powerful weather computer, collecting, stor-ing, and displaying historical data, including highs and lows, in graphical and numerical formats. The Vantage Pro also provides you with a forecast based on the latest meteoro-logical algorithms. A quick glance at the graphical icons predicts the general weather trend. A detailed forecast scrolls across the bottom of the screen, including predicted xxx <!-- what? his and lows, sunny?, tornados?--!>. Vantage Pro FormatsThe Vantage Pro System is available in two formats: Cabled and Wireless. • Cabled Vantage Pro SystemThe Cabled Vantage Pro system links the Integrated Sensor Suite (ISS) sensor array to the console with standard four-conductor cable. The Standard Vantage Pro system operates on AC power only. • Wireless Vantage Pro The wireless Vantage Pro console receives data transmitted by radio from the solar-powered ISS. Neither the sensor array, nor the console requires AC power in the wireless format.1

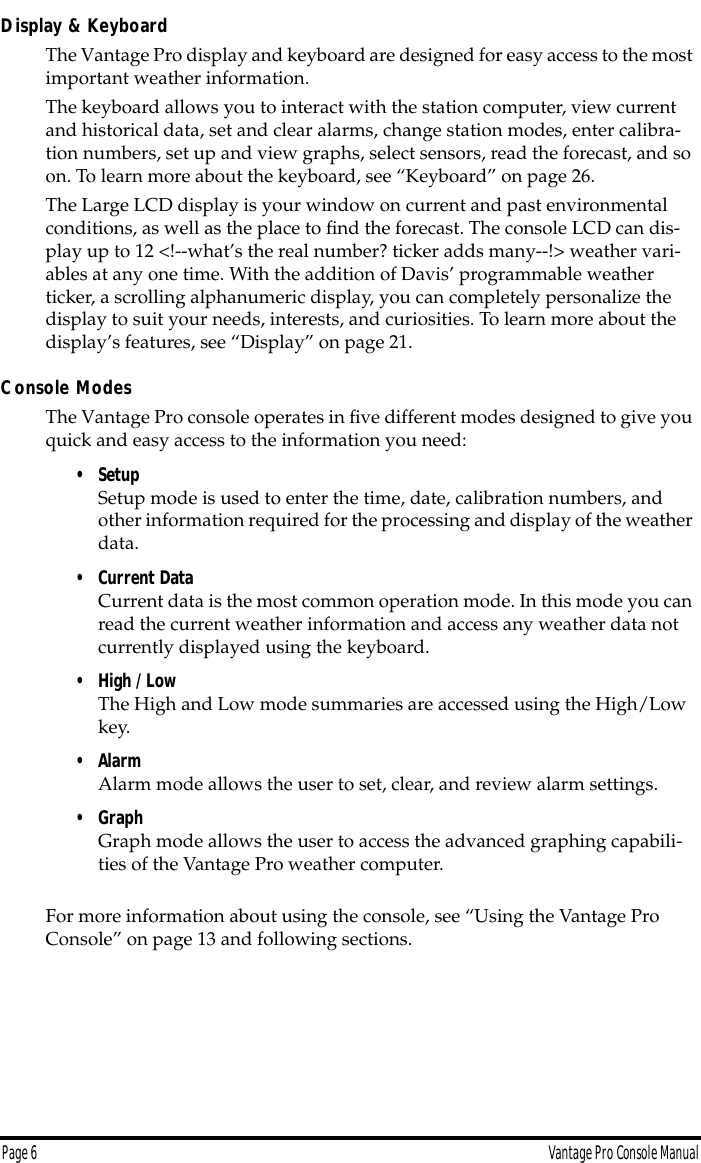

Page 6 Vantage Pro Console ManualDisplay & KeyboardThe Vantage Pro display and keyboard are designed for easy access to the most important weather information.The keyboard allows you to interact with the station computer, view current and historical data, set and clear alarms, change station modes, enter calibra-tion numbers, set up and view graphs, select sensors, read the forecast, and so on. To learn more about the keyboard, see “Keyboard” on page 26.The Large LCD display is your window on current and past environmental conditions, as well as the place to find the forecast. The console LCD can dis-play up to 12 <!--what’s the real number? ticker adds many--!> weather vari-ables at any one time. With the addition of Davis’ programmable weather ticker, a scrolling alphanumeric display, you can completely personalize the display to suit your needs, interests, and curiosities. To learn more about the display’s features, see “Display” on page 21.Console ModesThe Vantage Pro console operates in five different modes designed to give you quick and easy access to the information you need: • SetupSetup mode is used to enter the time, date, calibration numbers, and other information required for the processing and display of the weather data.• Current DataCurrent data is the most common operation mode. In this mode you can read the current weather information and access any weather data not currently displayed using the keyboard.• High / LowThe High and Low mode summaries are accessed using the High/Low key.• AlarmAlarm mode allows the user to set, clear, and review alarm settings. • GraphGraph mode allows the user to access the advanced graphing capabili-ties of the Vantage Pro weather computer.For more information about using the console, see “Using the Vantage Pro Console” on page 13 and following sections.

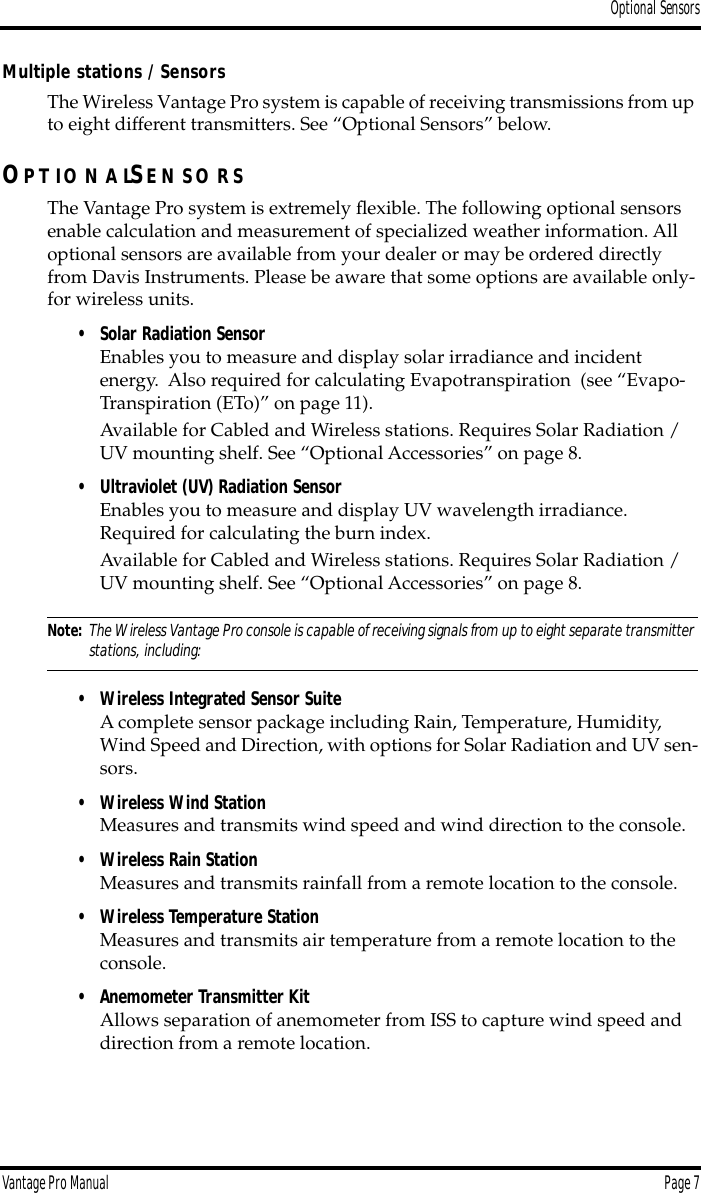

Optional SensorsVantage Pro Manual Page 7Multiple stations / SensorsThe Wireless Vantage Pro system is capable of receiving transmissions from up to eight different transmitters. See “Optional Sensors” below.OP T IO N A LSE N S O R SThe Vantage Pro system is extremely flexible. The following optional sensors enable calculation and measurement of specialized weather information. All optional sensors are available from your dealer or may be ordered directly from Davis Instruments. Please be aware that some options are available only-for wireless units.• Solar Radiation SensorEnables you to measure and display solar irradiance and incident energy. Also required for calculating Evapotranspiration (see “Evapo-Transpiration (ETo)” on page 11).Available for Cabled and Wireless stations. Requires Solar Radiation / UV mounting shelf. See “Optional Accessories” on page 8.• Ultraviolet (UV) Radiation SensorEnables you to measure and display UV wavelength irradiance. Required for calculating the burn index.Available for Cabled and Wireless stations. Requires Solar Radiation / UV mounting shelf. See “Optional Accessories” on page 8.Note: The Wireless Vantage Pro console is capable of receiving signals from up to eight separate transmitter stations, including:• Wireless Integrated Sensor SuiteA complete sensor package including Rain, Temperature, Humidity, Wind Speed and Direction, with options for Solar Radiation and UV sen-sors.• Wireless Wind StationMeasures and transmits wind speed and wind direction to the console. • Wireless Rain StationMeasures and transmits rainfall from a remote location to the console.• Wireless Temperature StationMeasures and transmits air temperature from a remote location to the console. • Anemometer Transmitter KitAllows separation of anemometer from ISS to capture wind speed and direction from a remote location.

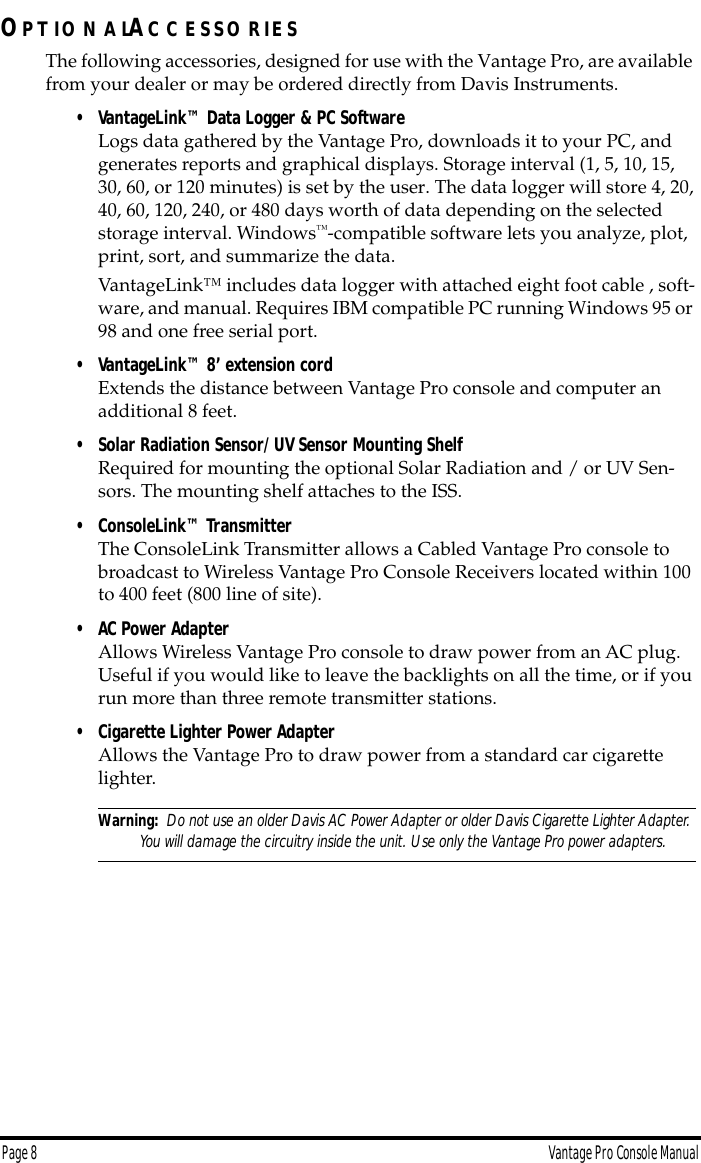

Page 8 Vantage Pro Console ManualOP T IO N A LAC C E S S O R IE SThe following accessories, designed for use with the Vantage Pro, are available from your dealer or may be ordered directly from Davis Instruments.• VantageLink™ Data Logger & PC SoftwareLogs data gathered by the Vantage Pro, downloads it to your PC, and generates reports and graphical displays. Storage interval (1, 5, 10, 15, 30, 60, or 120 minutes) is set by the user. The data logger will store 4, 20, 40, 60, 120, 240, or 480 days worth of data depending on the selected storage interval. Windows™-compatible software lets you analyze, plot, print, sort, and summarize the data. VantageLink™ includes data logger with attached eight foot cable , soft-ware, and manual. Requires IBM compatible PC running Windows 95 or 98 and one free serial port. • VantageLink™ 8’ extension cordExtends the distance between Vantage Pro console and computer an additional 8 feet. • Solar Radiation Sensor/ UV Sensor Mounting ShelfRequired for mounting the optional Solar Radiation and / or UV Sen-sors. The mounting shelf attaches to the ISS. • ConsoleLink™ Transmitter The ConsoleLink Transmitter allows a Cabled Vantage Pro console to broadcast to Wireless Vantage Pro Console Receivers located within 100 to 400 feet (800 line of site).• AC Power AdapterAllows Wireless Vantage Pro console to draw power from an AC plug. Useful if you would like to leave the backlights on all the time, or if you run more than three remote transmitter stations. • Cigarette Lighter Power AdapterAllows the Vantage Pro to draw power from a standard car cigarette lighter.Warning: Do not use an older Davis AC Power Adapter or older Davis Cigarette Lighter Adapter. You will damage the circuitry inside the unit. Use only the Vantage Pro power adapters.

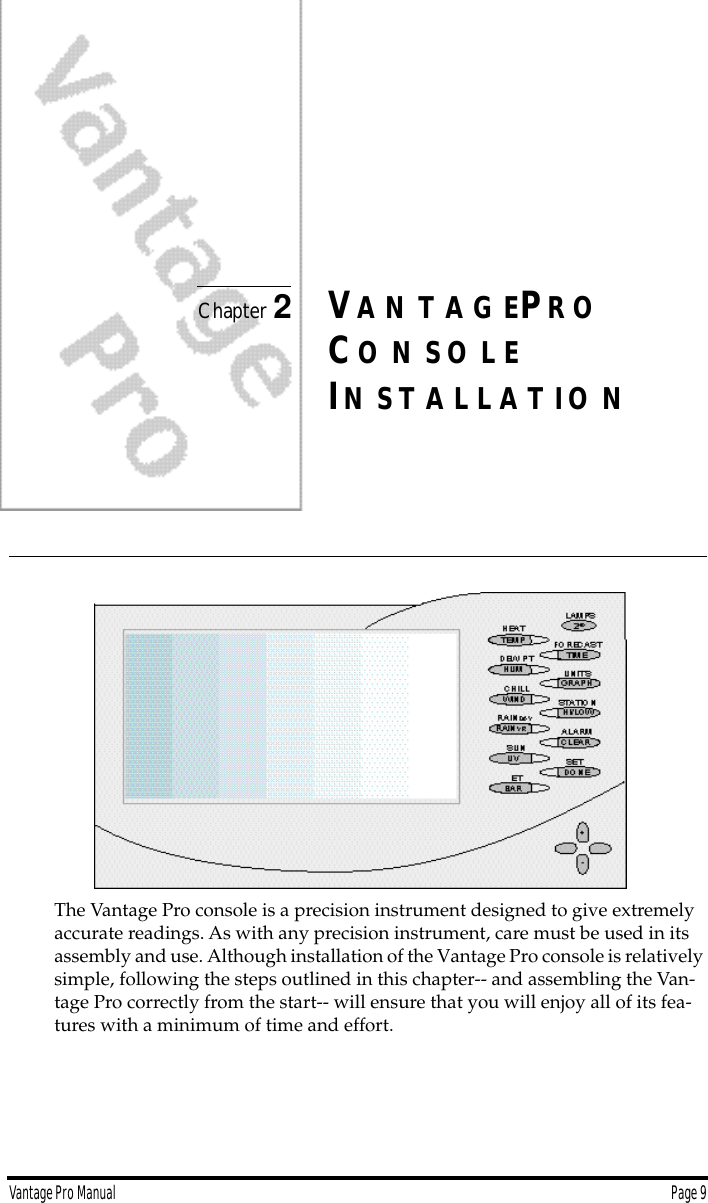

Vantage Pro Manual Page 9Chapter 2VA N T A G EPR OCO N S O L EIN S T A L L A T I O NThe Vantage Pro console is a precision instrument designed to give extremely accurate readings. As with any precision instrument, care must be used in its assembly and use. Although installation of the Vantage Pro console is relatively simple, following the steps outlined in this chapter-- and assembling the Van-tage Pro correctly from the start-- will ensure that you will enjoy all of its fea-tures with a minimum of time and effort.

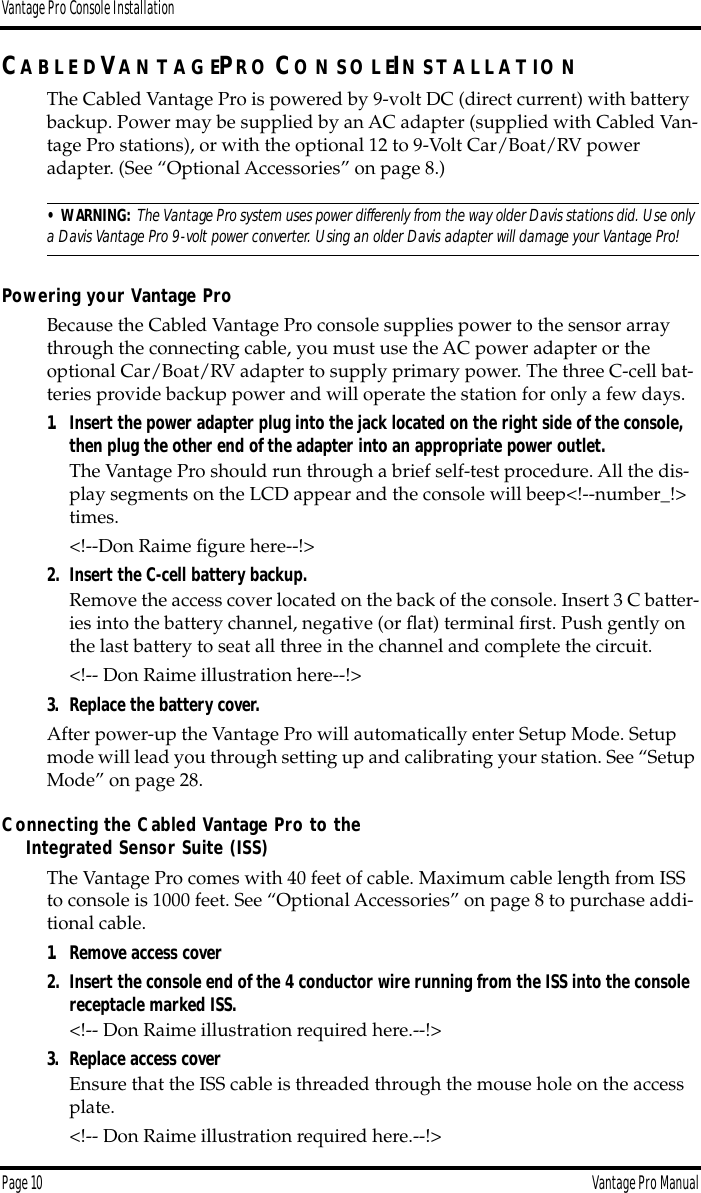

Vantage Pro Console InstallationPage 10 Vantage Pro ManualCA B L E DVA N T A G EPR O CO N S O LEIN S T A L LA T IO NThe Cabled Vantage Pro is powered by 9-volt DC (direct current) with battery backup. Power may be supplied by an AC adapter (supplied with Cabled Van-tage Pro stations), or with the optional 12 to 9-Volt Car/Boat/RV power adapter. (See “Optional Accessories” on page 8.) • WARNING: The Vantage Pro system uses power differenly from the way older Davis stations did. Use only a Davis Vantage Pro 9-volt power converter. Using an older Davis adapter will damage your Vantage Pro!Powering your Vantage ProBecause the Cabled Vantage Pro console supplies power to the sensor array through the connecting cable, you must use the AC power adapter or the optional Car/Boat/RV adapter to supply primary power. The three C-cell bat-teries provide backup power and will operate the station for only a few days. 1. Insert the power adapter plug into the jack located on the right side of the console, then plug the other end of the adapter into an appropriate power outlet.The Vantage Pro should run through a brief self-test procedure. All the dis-play segments on the LCD appear and the console will beep<!--number_!> times. <!--Don Raime figure here--!>2. Insert the C-cell battery backup.Remove the access cover located on the back of the console. Insert 3 C batter-ies into the battery channel, negative (or flat) terminal first. Push gently on the last battery to seat all three in the channel and complete the circuit.<!-- Don Raime illustration here--!>3. Replace the battery cover.After power-up the Vantage Pro will automatically enter Setup Mode. Setup mode will lead you through setting up and calibrating your station. See “Setup Mode” on page 28.Connecting the Cabled Vantage Pro to theIntegrated Sensor Suite (ISS)The Vantage Pro comes with 40 feet of cable. Maximum cable length from ISS to console is 1000 feet. See “Optional Accessories” on page 8 to purchase addi-tional cable. 1. Remove access cover2. Insert the console end of the 4 conductor wire running from the ISS into the console receptacle marked ISS.<!-- Don Raime illustration required here.--!>3. Replace access coverEnsure that the ISS cable is threaded through the mouse hole on the access plate.<!-- Don Raime illustration required here.--!>
Wireless Vantage Pro InstallationVantage Pro Manual Page 114. Test the connections between the ISS and the console. Spin the wind cups and change the direction of the vane. If the ISS is pow-ered and the connection between the ISS and the console is correct, you should see the wind direction and speed fields changing. Look at the other data fields to ensure they’re reporting data from the sensors.WIR E L E S S VA N T A G EPR O IN S T A L LA T IO NPowering your Wireless Vantage ProBecause the Wireless Vantage Pro console does not supply power to the sensor array, an AC adapter is not required to operate the console. You may purchase the AC adapter separately. See “Optional Accessories” on page 8.1. Remove the access plate from the back of the Vantage Pro console.Insert 3 C-cell batteries as shown. Insert the negative (or flat) terminal first. The Vantage Pro should run through a brief self-test procedure. All the dis-play segments appear and the console will beep <!--number_!> times. <!-- same illustration as above--!>2. Replace the battery cover. Note: Regarding Battery Use. Under normal circumstances, 3 C cell alkaline batteries should power your wireless Vantage Pro console for approximately 1 year. Davis Instruments does not recommend using rechargeable NiCad batteries with the Vantage Pro, because the Vantage Pro will not recharge them and they will not last as long.After powering up and running through its self-test mode, the Vantage Pro console will automatically enter Setup Mode. Setup Mode will lead you through setting up and calibrating your station. (See “Setup Mode” on page 28.) Connecting the Wireless Vantage Pro consoleto the Integrated Sensor Suite (ISS)As you position your console, be aware of possible interference from cordless phones and other items. To prevent interference, maintain a distance of 10 feet between the Vantage Pro console and the cordless phone (handset and base). Also, for best reception, avoid positioning the console near large metallic sur-faces (e.g., most refrigerator surfaces).For more information about locating the sensor transmitter and testing recep-tion, consult the ISS or other transmitter manual.DIS P L A Y IN GT H E VA N T A G EPR O CO N S O L EYou should place the Vantage Pro computer console indoors, in a location where the keyboard is easily accessible and the display is easy to read. For more accurate readings, follow these suggestions:• Avoid placing the Vantage Pro console in direct sunlight. The casing heats up in direct sunlight. This may cause erroneous readings and / or damage to the unit.

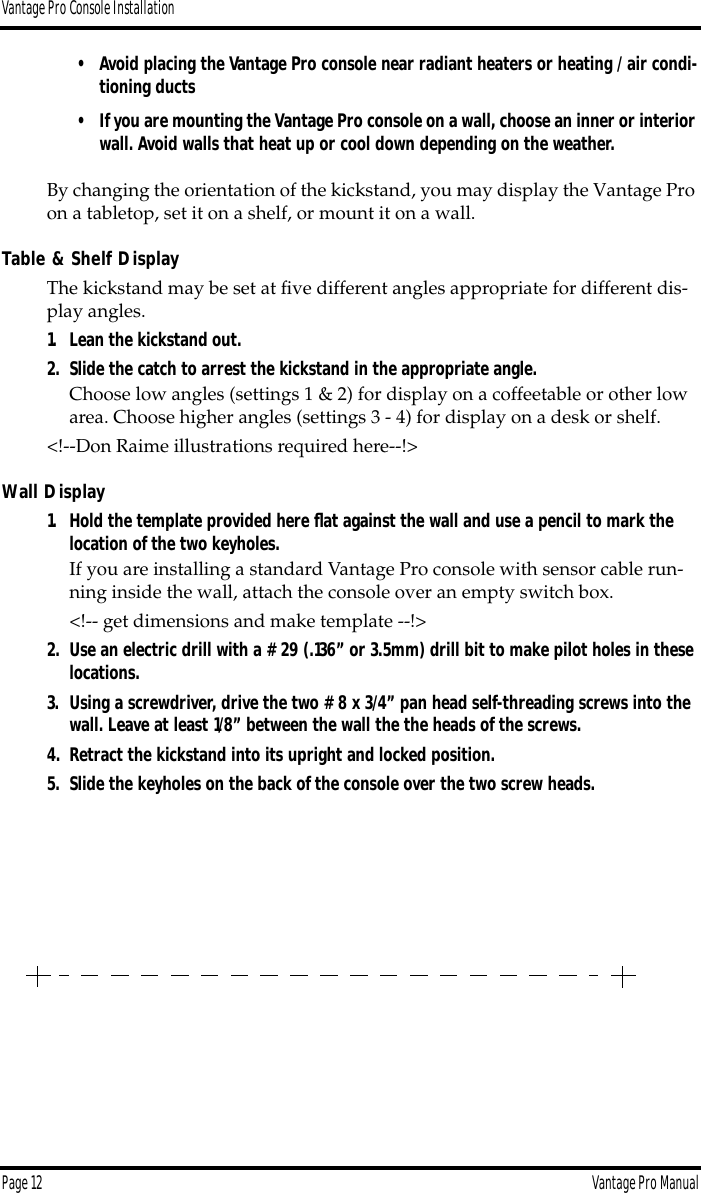

Vantage Pro Console InstallationPage 12 Vantage Pro Manual• Avoid placing the Vantage Pro console near radiant heaters or heating / air condi-tioning ducts•If you are mounting the Vantage Pro console on a wall, choose an inner or interior wall. Avoid walls that heat up or cool down depending on the weather.By changing the orientation of the kickstand, you may display the Vantage Pro on a tabletop, set it on a shelf, or mount it on a wall. Table & Shelf DisplayThe kickstand may be set at five different angles appropriate for different dis-play angles. 1. Lean the kickstand out. 2. Slide the catch to arrest the kickstand in the appropriate angle.Choose low angles (settings 1 & 2) for display on a coffeetable or other low area. Choose higher angles (settings 3 - 4) for display on a desk or shelf. <!--Don Raime illustrations required here--!>Wall Display1. Hold the template provided here flat against the wall and use a pencil to mark the location of the two keyholes.If you are installing a standard Vantage Pro console with sensor cable run-ning inside the wall, attach the console over an empty switch box. <!-- get dimensions and make template --!>2. Use an electric drill with a #29 (.136” or 3.5mm) drill bit to make pilot holes in these locations.3. Using a screwdriver, drive the two #8 x 3/4” pan head self-threading screws into the wall. Leave at least 1/8” between the wall the the heads of the screws.4. Retract the kickstand into its upright and locked position.5. Slide the keyholes on the back of the console over the two screw heads.

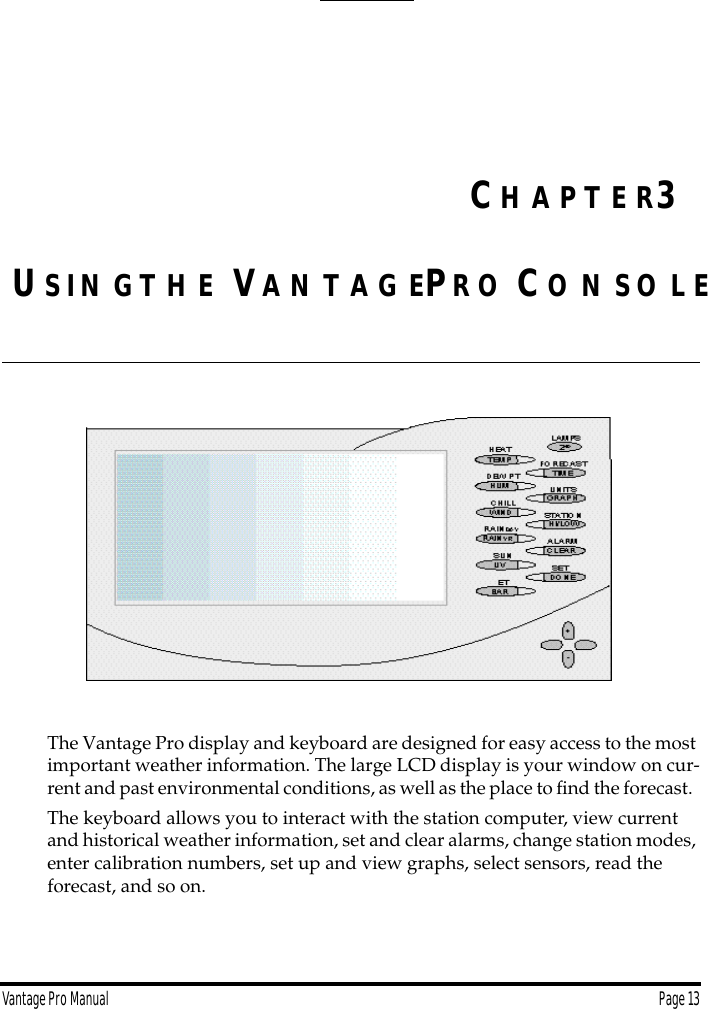

Vantage Pro Manual Page 13US I N GT H E VA N T A G EPR O CO N S O L EThe Vantage Pro display and keyboard are designed for easy access to the most important weather information. The large LCD display is your window on cur-rent and past environmental conditions, as well as the place to find the forecast. The keyboard allows you to interact with the station computer, view current and historical weather information, set and clear alarms, change station modes, enter calibration numbers, set up and view graphs, select sensors, read the forecast, and so on. CH A P T E R3

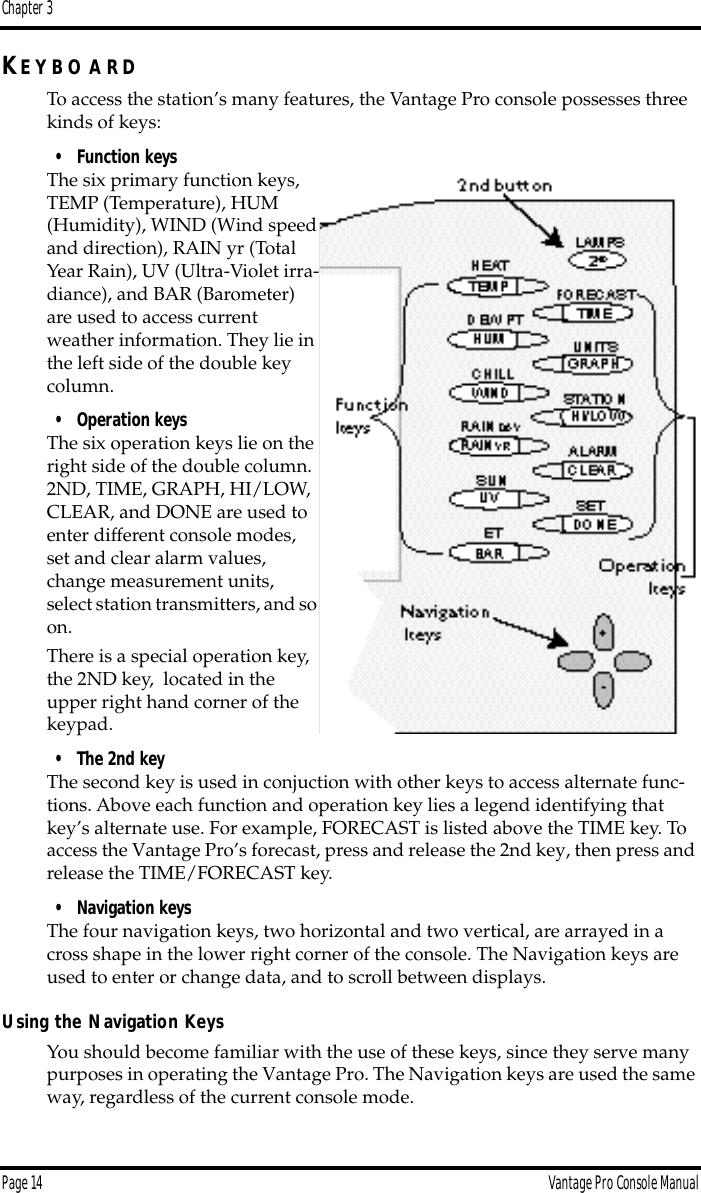

Chapter 3Page 14 Vantage Pro Console ManualKE Y B O A R DTo access the station’s many features, the Vantage Pro console possesses three kinds of keys:• Function keysThe six primary function keys, TEMP (Temperature), HUM (Humidity), WIND (Wind speed and direction), RAIN yr (Total Year Rain), UV (Ultra-Violet irra-diance), and BAR (Barometer) are used to access current weather information. They lie in the left side of the double key column. • Operation keysThe six operation keys lie on the right side of the double column. 2ND, TIME, GRAPH, HI/LOW, CLEAR, and DONE are used to enter different console modes, set and clear alarm values, change measurement units, select station transmitters, and so on.There is a special operation key, the 2ND key, located in the upper right hand corner of the keypad.• The 2nd keyThe second key is used in conjuction with other keys to access alternate func-tions. Above each function and operation key lies a legend identifying that key’s alternate use. For example, FORECAST is listed above the TIME key. To access the Vantage Pro’s forecast, press and release the 2nd key, then press and release the TIME/FORECAST key. • Navigation keysThe four navigation keys, two horizontal and two vertical, are arrayed in a cross shape in the lower right corner of the console. The Navigation keys are used to enter or change data, and to scroll between displays.Using the Navigation KeysYou should become familiar with the use of these keys, since they serve many purposes in operating the Vantage Pro. The Navigation keys are used the same way, regardless of the current console mode.

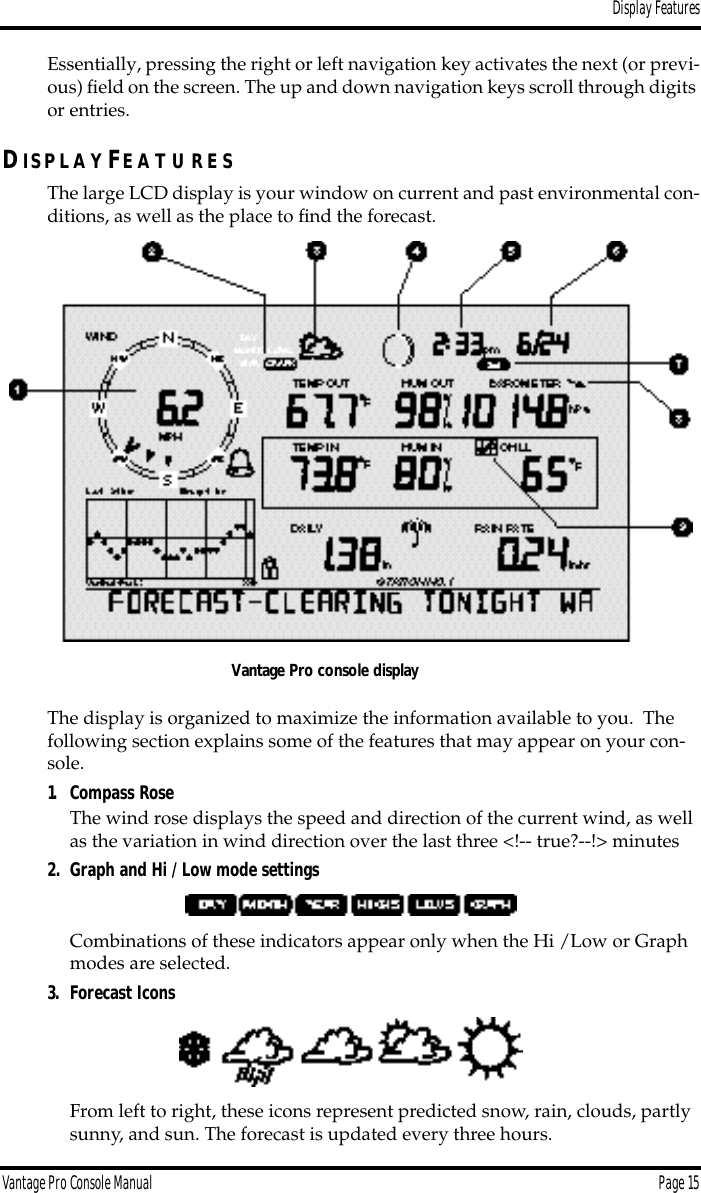

Display FeaturesVantage Pro Console Manual Page 15Essentially, pressing the right or left navigation key activates the next (or previ-ous) field on the screen. The up and down navigation keys scroll through digits or entries. DIS P L A Y FE A T U R E SThe large LCD display is your window on current and past environmental con-ditions, as well as the place to find the forecast. The display is organized to maximize the information available to you. The following section explains some of the features that may appear on your con-sole. 1. Compass RoseThe wind rose displays the speed and direction of the current wind, as well as the variation in wind direction over the last three <!-- true?--!> minutes2. Graph and Hi / Low mode settingsCombinations of these indicators appear only when the Hi /Low or Graph modes are selected. 3. Forecast IconsFrom left to right, these icons represent predicted snow, rain, clouds, partly sunny, and sun. The forecast is updated every three hours.Vantage Pro console display

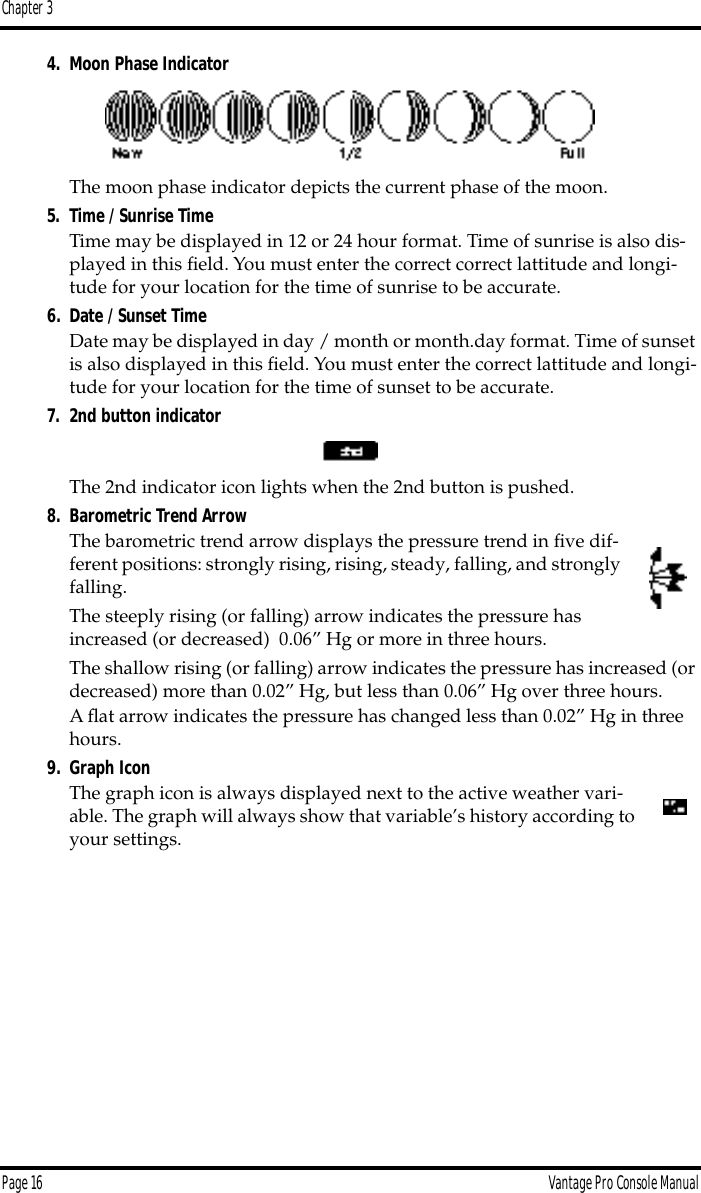

Chapter 3Page 16 Vantage Pro Console Manual4. Moon Phase IndicatorThe moon phase indicator depicts the current phase of the moon. 5. Time / Sunrise Time Time may be displayed in 12 or 24 hour format. Time of sunrise is also dis-played in this field. You must enter the correct correct lattitude and longi-tude for your location for the time of sunrise to be accurate.6. Date / Sunset TimeDate may be displayed in day / month or month.day format. Time of sunset is also displayed in this field. You must enter the correct lattitude and longi-tude for your location for the time of sunset to be accurate.7. 2nd button indicatorThe 2nd indicator icon lights when the 2nd button is pushed.8. Barometric Trend ArrowThe barometric trend arrow displays the pressure trend in five dif-ferent positions: strongly rising, rising, steady, falling, and strongly falling. The steeply rising (or falling) arrow indicates the pressure has increased (or decreased) 0.06” Hg or more in three hours.The shallow rising (or falling) arrow indicates the pressure has increased (or decreased) more than 0.02” Hg, but less than 0.06” Hg over three hours.A flat arrow indicates the pressure has changed less than 0.02” Hg in three hours.9. Graph IconThe graph icon is always displayed next to the active weather vari-able. The graph will always show that variable’s history according to your settings.

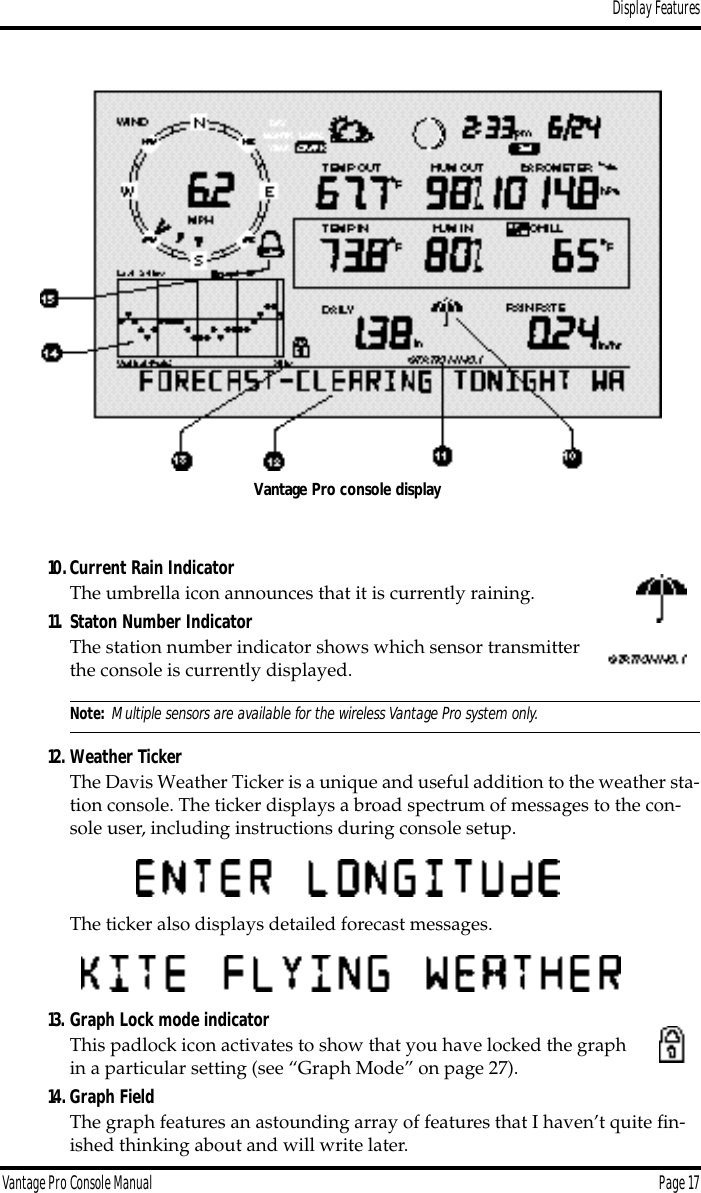

Display FeaturesVantage Pro Console Manual Page 1710.Current Rain IndicatorThe umbrella icon announces that it is currently raining.11. Staton Number IndicatorThe station number indicator shows which sensor transmitter the console is currently displayed.Note: Multiple sensors are available for the wireless Vantage Pro system only.12. Weather TickerThe Davis Weather Ticker is a unique and useful addition to the weather sta-tion console. The ticker displays a broad spectrum of messages to the con-sole user, including instructions during console setup.The ticker also displays detailed forecast messages.13. Graph Lock mode indicatorThis padlock icon activates to show that you have locked the graph in a particular setting (see “Graph Mode” on page 27).14. Graph FieldThe graph features an astounding array of features that I haven’t quite fin-ished thinking about and will write later.Vantage Pro console display
Chapter 3Page 18 Vantage Pro Console Manual15. Alarm iconThe bell icon is active when an alarm is set. <!-- What about when alarm going off?--!>SE T U PMO D E<!--Not yet written--!>CU R R E N TWE A T H E RMO D EThe Current Weather screen is the heart of the display and where you’ll likely spend most of your time. Up to ten weather variables are displayed simulta-neously on the Vantage Pro’s LCD screen. Some of these variables are always displayed: Barometric pressure, Outside Temperature, and Outside Humidity, as well as Wind Direction. Other variables share display space and must be accessed through keypresses. Activating Weather VariablesDisplaying any current weather information is straightforward. Press any func-tion key to display that weather variable’s current value. Selecting a variable also activates that variable’s graph. Note: The graph icon is always displayed next to the active weather variable. You can also select any variable currently displayed on the LCD screen using the navigation keys. Pushing the left, right, up, or down arrows will move the graph icon to the next data field in the selected direction. Wind Speed and Direction• Wind SpeedPress the WIND / CHILL key to select the wind speed field. Wind speed may be displayed in miles per hour (mph), kilometers per hour (kph), meters per second (m/s), and knots (knots). • Wind DirectionThe large arrow within the wind rose graphically displays the cur-rent wind direction. Smaller arrows display the range of wind direc-tion within the last 3 minutes.To activate a digital readout of the wind direction, press the WIND / CHILL key again. The digital wind direction is displayed in degrees. See “Wind” on page 34.Temperature

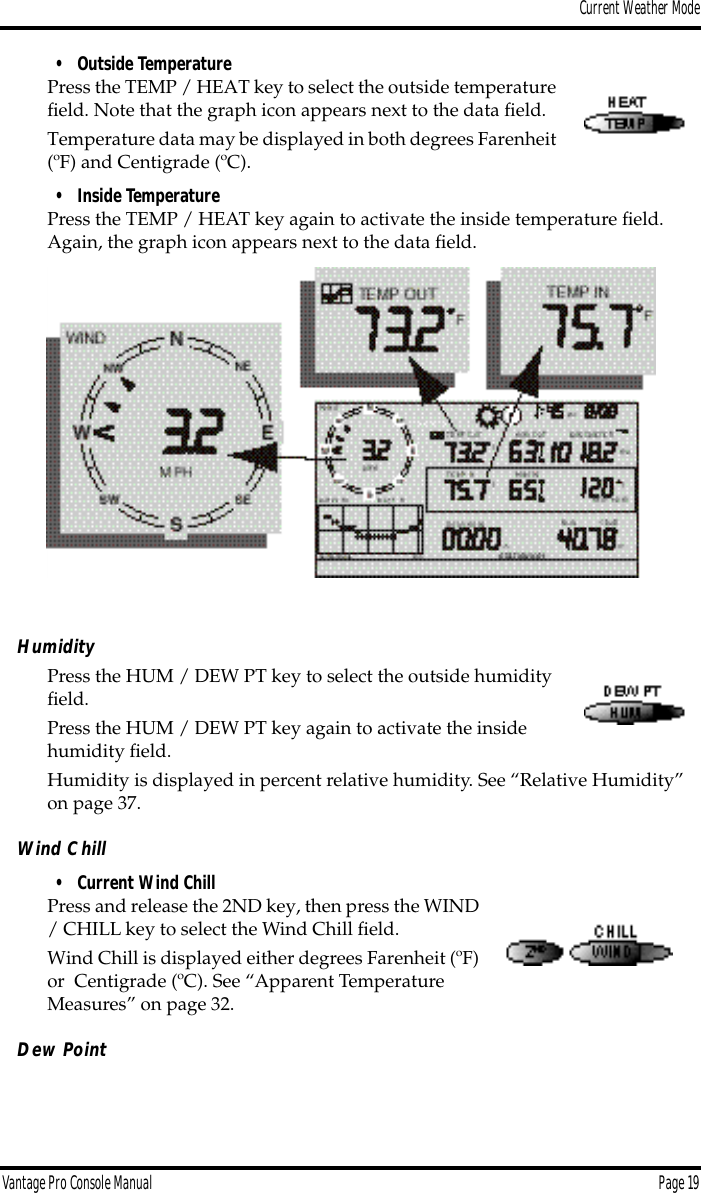

Current Weather ModeVantage Pro Console Manual Page 19• Outside TemperaturePress the TEMP / HEAT key to select the outside temperature field. Note that the graph icon appears next to the data field.Temperature data may be displayed in both degrees Farenheit (ºF) and Centigrade (ºC).• Inside TemperaturePress the TEMP / HEAT key again to activate the inside temperature field. Again, the graph icon appears next to the data field. HumidityPress the HUM / DEW PT key to select the outside humidity field.Press the HUM / DEW PT key again to activate the inside humidity field.Humidity is displayed in percent relative humidity. See “Relative Humidity” on page 37.Wind Chill• Current Wind ChillPress and release the 2ND key, then press the WIND / CHILL key to select the Wind Chill field. Wind Chill is displayed either degrees Farenheit (ºF) or Centigrade (ºC). See “Apparent Temperature Measures” on page 32.Dew Point

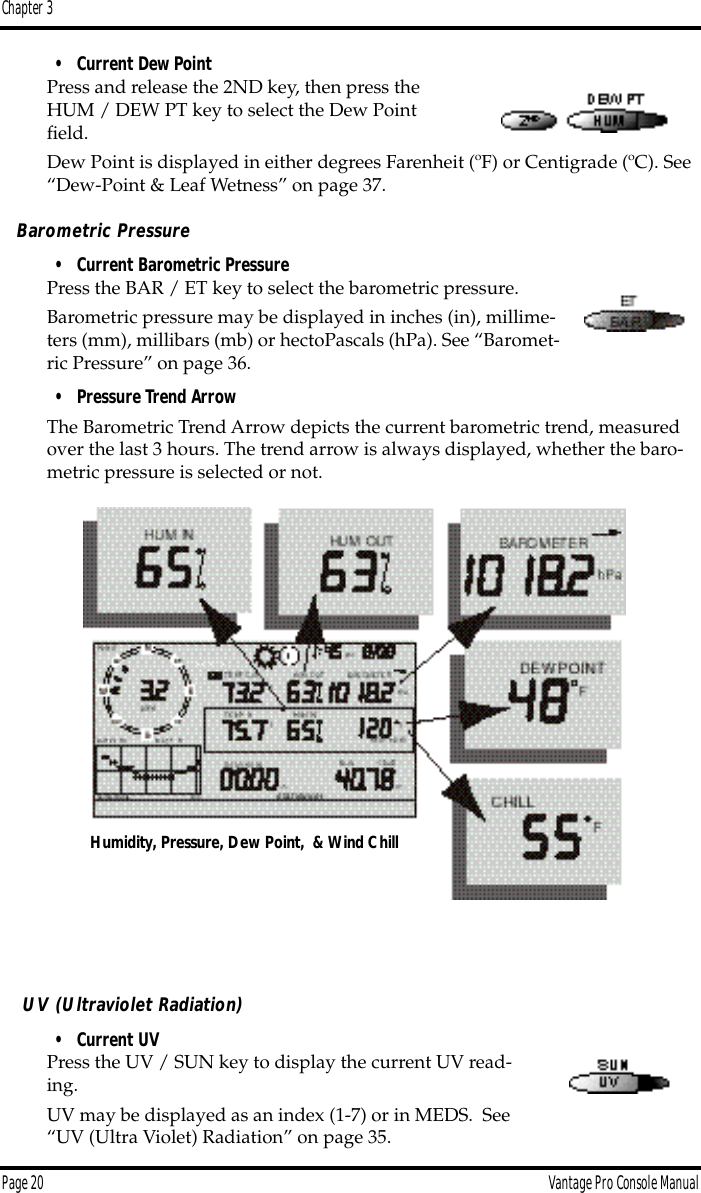

Chapter 3Page 20 Vantage Pro Console Manual• Current Dew PointPress and release the 2ND key, then press the HUM / DEW PT key to select the Dew Point field.Dew Point is displayed in either degrees Farenheit (ºF) or Centigrade (ºC). See “Dew-Point & Leaf Wetness” on page 37.Barometric Pressure• Current Barometric PressurePress the BAR / ET key to select the barometric pressure. Barometric pressure may be displayed in inches (in), millime-ters (mm), millibars (mb) or hectoPascals (hPa). See “Baromet-ric Pressure” on page 36.• Pressure Trend ArrowThe Barometric Trend Arrow depicts the current barometric trend, measured over the last 3 hours. The trend arrow is always displayed, whether the baro-metric pressure is selected or not. UV (Ultraviolet Radiation)• Current UVPress the UV / SUN key to display the current UV read-ing.UV may be displayed as an index (1-7) or in MEDS. See “UV (Ultra Violet) Radiation” on page 35. Humidity, Pressure, Dew Point, & Wind Chill

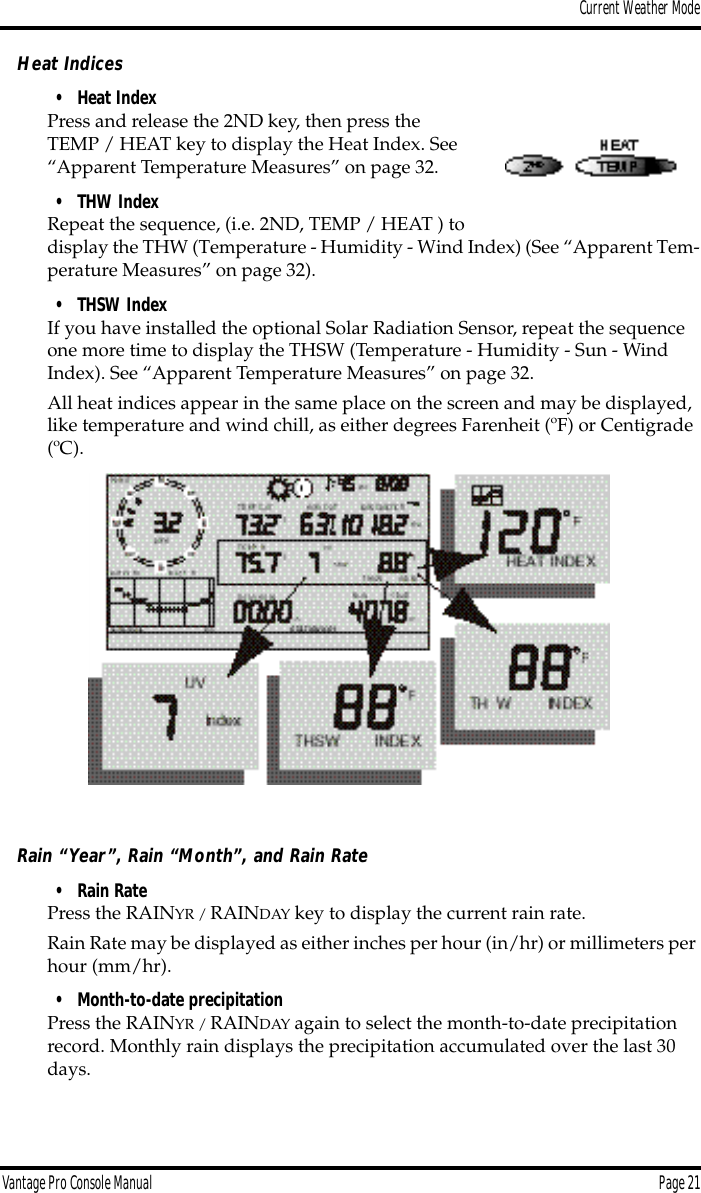

Current Weather ModeVantage Pro Console Manual Page 21Heat Indices• Heat IndexPress and release the 2ND key, then press the TEMP / HEAT key to display the Heat Index. See “Apparent Temperature Measures” on page 32.• THW IndexRepeat the sequence, (i.e. 2ND, TEMP / HEAT ) to display the THW (Temperature - Humidity - Wind Index) (See “Apparent Tem-perature Measures” on page 32). • THSW IndexIf you have installed the optional Solar Radiation Sensor, repeat the sequence one more time to display the THSW (Temperature - Humidity - Sun - Wind Index). See “Apparent Temperature Measures” on page 32.All heat indices appear in the same place on the screen and may be displayed, like temperature and wind chill, as either degrees Farenheit (ºF) or Centigrade (ºC).Rain “Year”, Rain “Month”, and Rain Rate• Rain Rate Press the RAINYR / RAINDAY key to display the current rain rate.Rain Rate may be displayed as either inches per hour (in/hr) or millimeters per hour (mm/hr).• Month-to-date precipitation Press the RAINYR / RAINDAY again to select the month-to-date precipitation record. Monthly rain displays the precipitation accumulated over the last 30 days.

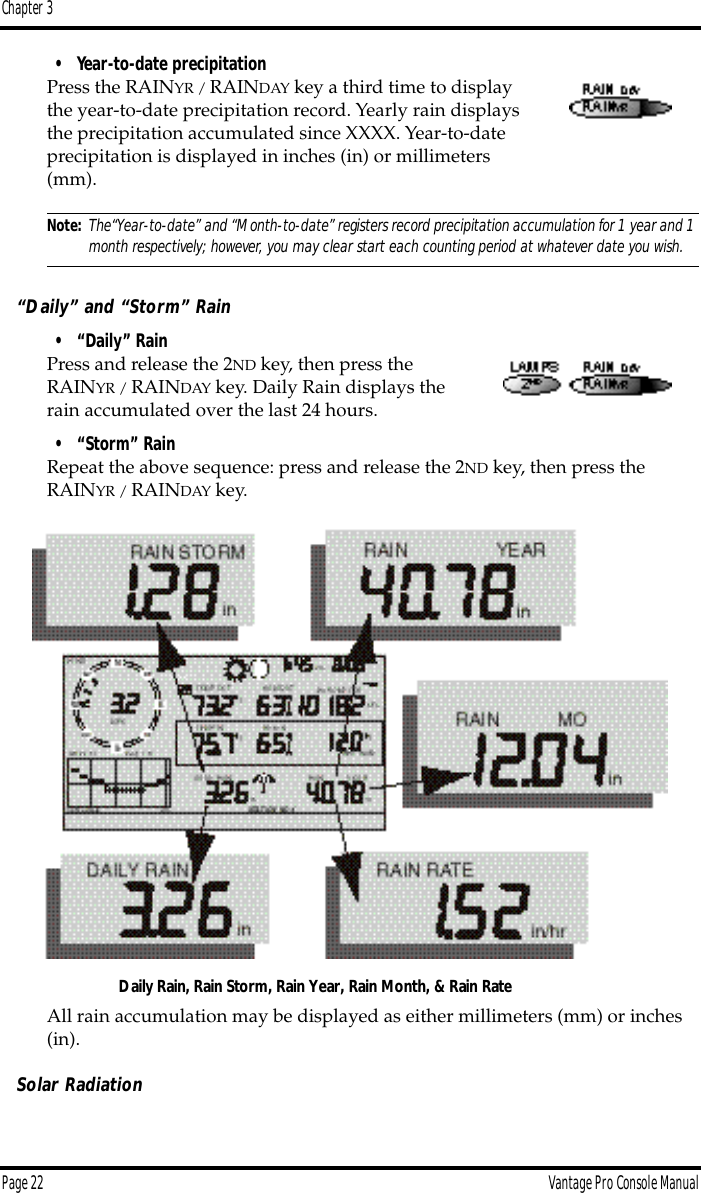

Chapter 3Page 22 Vantage Pro Console Manual• Year-to-date precipitationPress the RAINYR / RAINDAY key a third time to display the year-to-date precipitation record. Yearly rain displays the precipitation accumulated since XXXX. Year-to-date precipitation is displayed in inches (in) or millimeters (mm). Note: The“Year-to-date” and “Month-to-date” registers record precipitation accumulation for 1 year and 1 month respectively; however, you may clear start each counting period at whatever date you wish. “Daily” and “Storm” Rain• “Daily” RainPress and release the 2ND key, then press the RAINYR / RAINDAY key. Daily Rain displays the rain accumulated over the last 24 hours.• “Storm” RainRepeat the above sequence: press and release the 2ND key, then press the RAINYR / RAINDAY key. All rain accumulation may be displayed as either millimeters (mm) or inches (in).Solar RadiationDaily Rain, Rain Storm, Rain Year, Rain Month, & Rain Rate

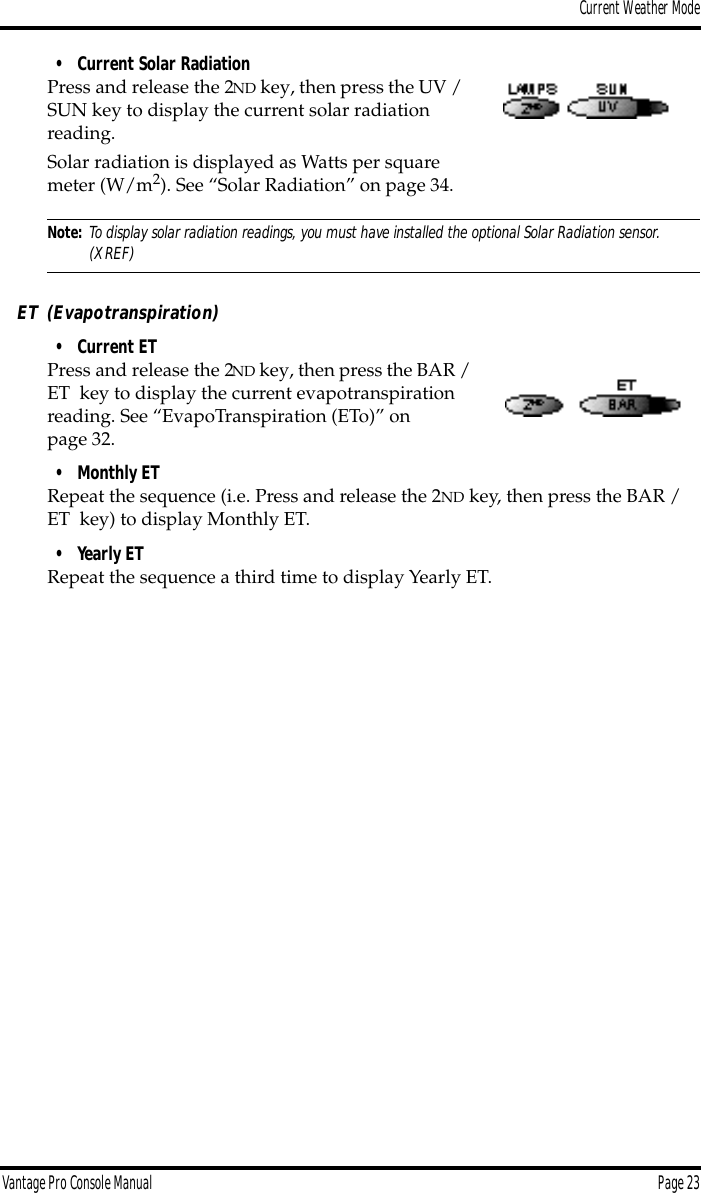

Current Weather ModeVantage Pro Console Manual Page 23• Current Solar RadiationPress and release the 2ND key, then press the UV / SUN key to display the current solar radiation reading. Solar radiation is displayed as Watts per square meter (W/m2). See “Solar Radiation” on page 34.Note: To display solar radiation readings, you must have installed the optional Solar Radiation sensor. (XREF)ET (Evapotranspiration)• Current ETPress and release the 2ND key, then press the BAR / ET key to display the current evapotranspiration reading. See “EvapoTranspiration (ETo)” on page 32.• Monthly ETRepeat the sequence (i.e. Press and release the 2ND key, then press the BAR / ET key) to display Monthly ET. • Yearly ETRepeat the sequence a third time to display Yearly ET.

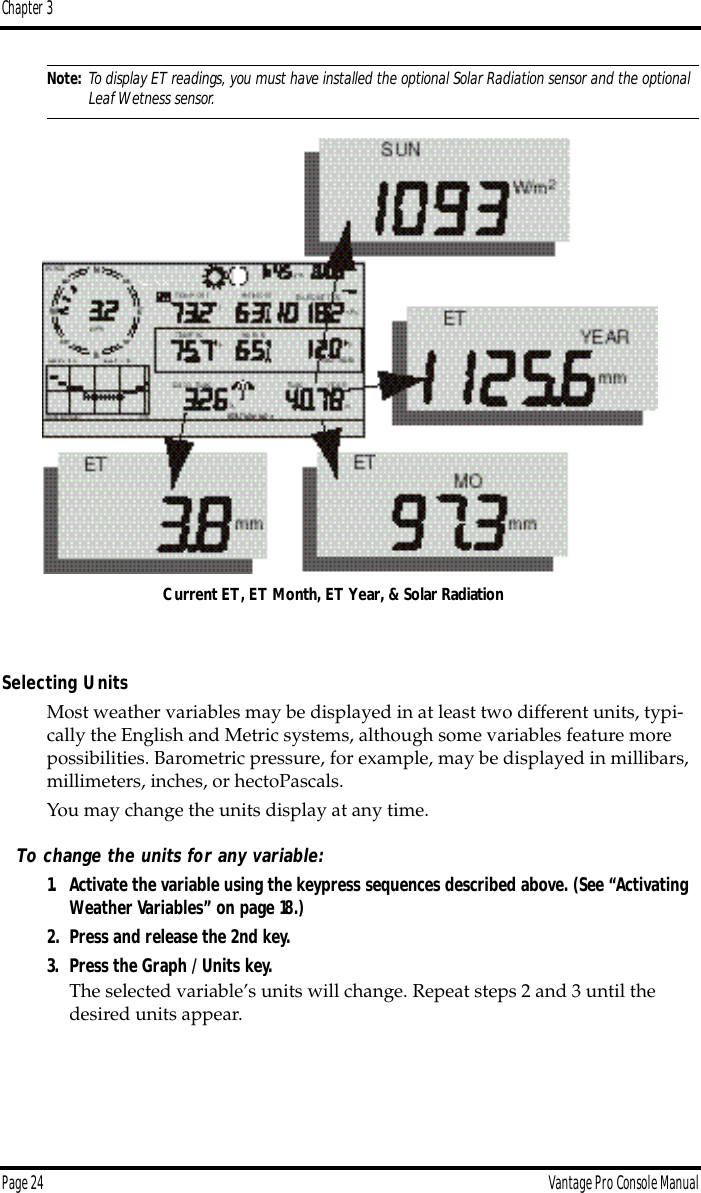

Chapter 3Page 24 Vantage Pro Console ManualNote: To display ET readings, you must have installed the optional Solar Radiation sensor and the optional Leaf Wetness sensor.Selecting UnitsMost weather variables may be displayed in at least two different units, typi-cally the English and Metric systems, although some variables feature more possibilities. Barometric pressure, for example, may be displayed in millibars, millimeters, inches, or hectoPascals.You may change the units display at any time. To change the units for any variable:1. Activate the variable using the keypress sequences described above. (See “Activating Weather Variables” on page 18.)2. Press and release the 2nd key.3. Press the Graph / Units key.The selected variable’s units will change. Repeat steps 2 and 3 until the desired units appear.Current ET, ET Month, ET Year, & Solar Radiation

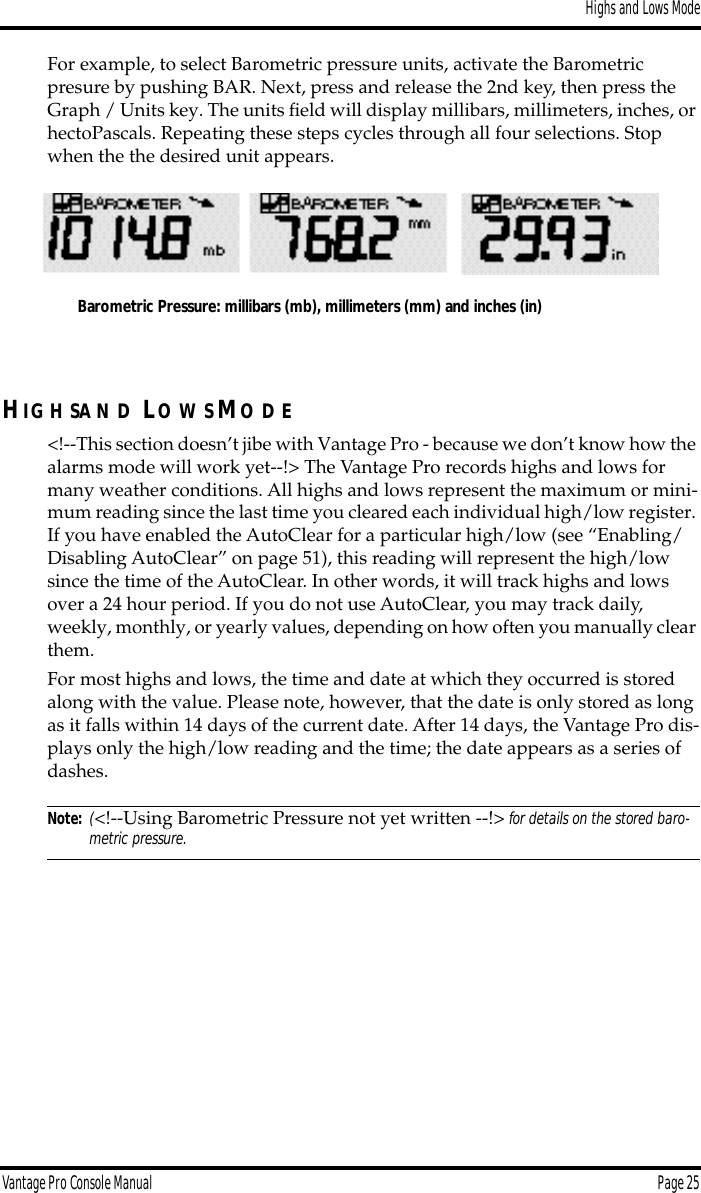

Highs and Lows ModeVantage Pro Console Manual Page 25For example, to select Barometric pressure units, activate the Barometric presure by pushing BAR. Next, press and release the 2nd key, then press the Graph / Units key. The units field will display millibars, millimeters, inches, or hectoPascals. Repeating these steps cycles through all four selections. Stop when the the desired unit appears.HIG H SA N D LO W S MO D E<!--This section doesn’t jibe with Vantage Pro - because we don’t know how the alarms mode will work yet--!> The Vantage Pro records highs and lows for many weather conditions. All highs and lows represent the maximum or mini-mum reading since the last time you cleared each individual high/low register. If you have enabled the AutoClear for a particular high/low (see “Enabling/Disabling AutoClear” on page 51), this reading will represent the high/low since the time of the AutoClear. In other words, it will track highs and lows over a 24 hour period. If you do not use AutoClear, you may track daily, weekly, monthly, or yearly values, depending on how often you manually clear them.For most highs and lows, the time and date at which they occurred is stored along with the value. Please note, however, that the date is only stored as long as it falls within 14 days of the current date. After 14 days, the Vantage Pro dis-plays only the high/low reading and the time; the date appears as a series of dashes.Note: (<!--Using Barometric Pressure not yet written --!> for details on the stored baro-metric pressure.Barometric Pressure: millibars (mb), millimeters (mm) and inches (in)

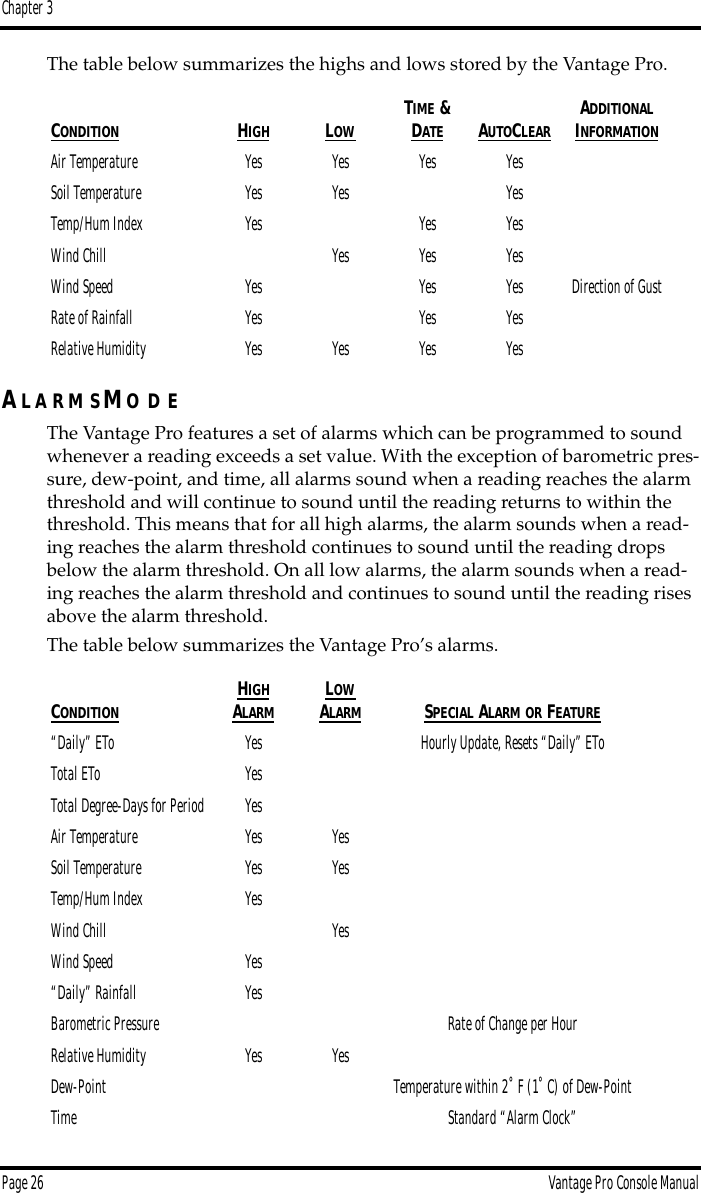

Chapter 3Page 26 Vantage Pro Console ManualThe table below summarizes the highs and lows stored by the Vantage Pro.ALA R M S MO D EThe Vantage Pro features a set of alarms which can be programmed to sound whenever a reading exceeds a set value. With the exception of barometric pres-sure, dew-point, and time, all alarms sound when a reading reaches the alarm threshold and will continue to sound until the reading returns to within the threshold. This means that for all high alarms, the alarm sounds when a read-ing reaches the alarm threshold continues to sound until the reading drops below the alarm threshold. On all low alarms, the alarm sounds when a read-ing reaches the alarm threshold and continues to sound until the reading rises above the alarm threshold.The table below summarizes the Vantage Pro’s alarms.CONDITION HIGH LOW TIME &DATE AUTOCLEAR ADDITIONALINFORMATIONAir Temperature Yes Yes Yes YesSoil Temperature Yes Yes YesTemp/Hum Index Yes Yes YesWind Chill Yes Yes YesWind Speed Yes Yes Yes Direction of GustRate of Rainfall Yes Yes YesRelative Humidity Yes Yes Yes YesCONDITION HIGHALARM LOWALARM SPECIAL ALARM OR FEATURE“Daily” ETo Yes Hourly Update, Resets “Daily” EToTotal ETo YesTotal Degree-Days for Period YesAir Temperature Yes YesSoil Temperature Yes YesTemp/Hum Index YesWind Chill YesWind Speed Yes“Daily” Rainfall YesBarometric Pressure Rate of Change per HourRelative Humidity Yes YesDew-Point Temperature within 2˚F (1˚C) of Dew-PointTime Standard “Alarm Clock”

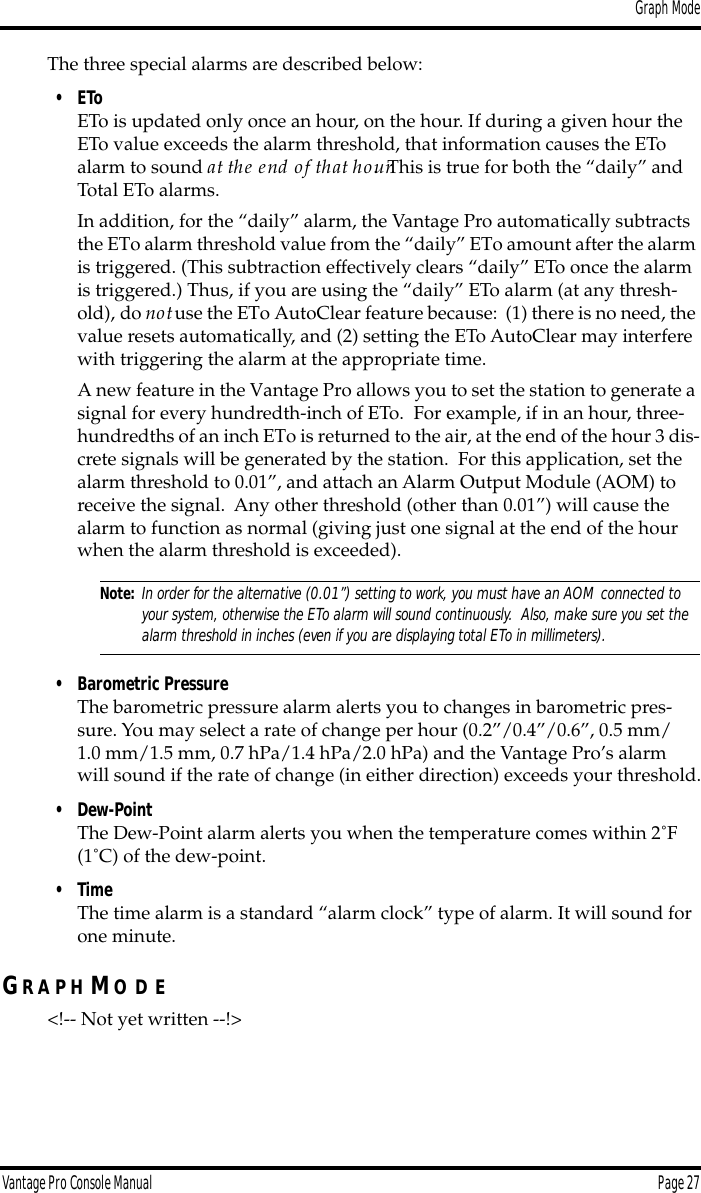

Graph ModeVantage Pro Console Manual Page 27The three special alarms are described below:• EToETo is updated only once an hour, on the hour. If during a given hour the ETo value exceeds the alarm threshold, that information causes the ETo alarm to sound at the end of that hour. This is true for both the “daily” and Total ETo alarms.In addition, for the “daily” alarm, the Vantage Pro automatically subtracts the ETo alarm threshold value from the “daily” ETo amount after the alarm is triggered. (This subtraction effectively clears “daily” ETo once the alarm is triggered.) Thus, if you are using the “daily” ETo alarm (at any thresh-old), do not use the ETo AutoClear feature because: (1) there is no need, the value resets automatically, and (2) setting the ETo AutoClear may interfere with triggering the alarm at the appropriate time.A new feature in the Vantage Pro allows you to set the station to generate a signal for every hundredth-inch of ETo. For example, if in an hour, three-hundredths of an inch ETo is returned to the air, at the end of the hour 3 dis-crete signals will be generated by the station. For this application, set the alarm threshold to 0.01”, and attach an Alarm Output Module (AOM) to receive the signal. Any other threshold (other than 0.01”) will cause the alarm to function as normal (giving just one signal at the end of the hour when the alarm threshold is exceeded).Note: In order for the alternative (0.01”) setting to work, you must have an AOM connected to your system, otherwise the ETo alarm will sound continuously. Also, make sure you set the alarm threshold in inches (even if you are displaying total ETo in millimeters).• Barometric PressureThe barometric pressure alarm alerts you to changes in barometric pres-sure. You may select a rate of change per hour (0.2”/0.4”/0.6”, 0.5 mm/1.0 mm/1.5 mm, 0.7 hPa/1.4 hPa/2.0 hPa) and the Vantage Pro’s alarm will sound if the rate of change (in either direction) exceeds your threshold.• Dew-PointThe Dew-Point alarm alerts you when the temperature comes within 2˚F (1˚C) of the dew-point.• TimeThe time alarm is a standard “alarm clock” type of alarm. It will sound for one minute.GR A P H MO D E<!-- Not yet written --!>
Chapter 3Page 28 Vantage Pro Console Manual

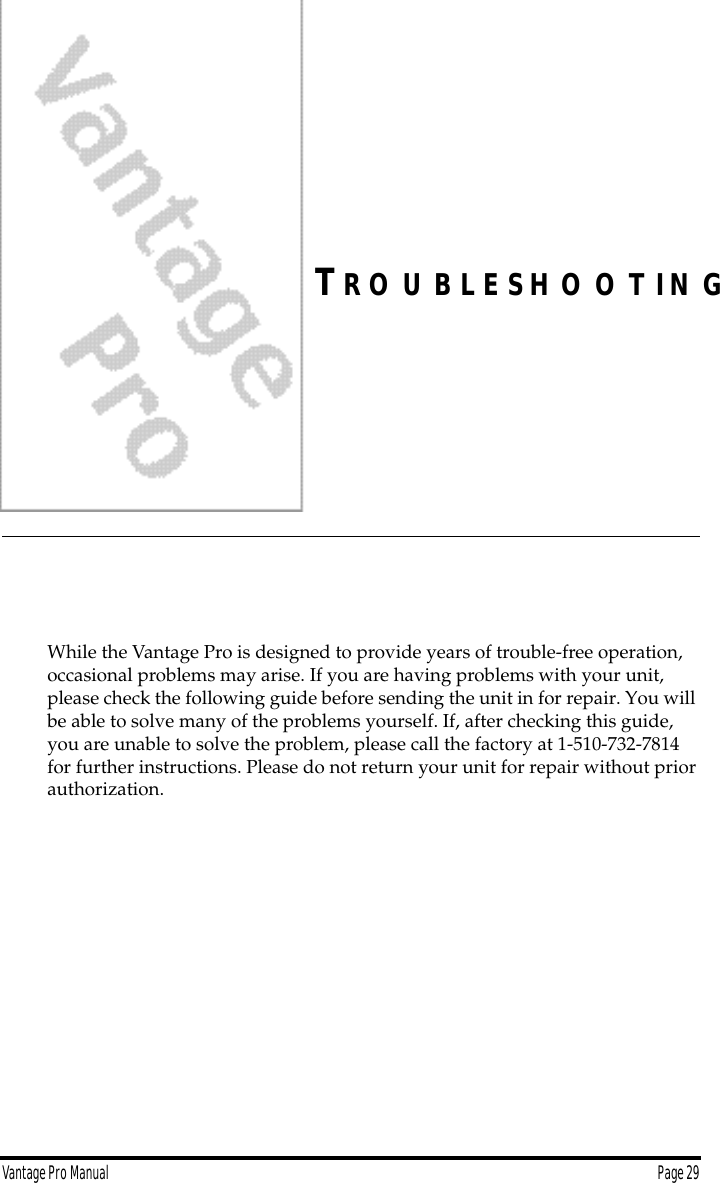

Vantage Pro Manual Page 29TR O U B L E S H O O T I N GWhile the Vantage Pro is designed to provide years of trouble-free operation, occasional problems may arise. If you are having problems with your unit, please check the following guide before sending the unit in for repair. You will be able to solve many of the problems yourself. If, after checking this guide, you are unable to solve the problem, please call the factory at 1-510-732-7814 for further instructions. Please do not return your unit for repair without prior authorization.

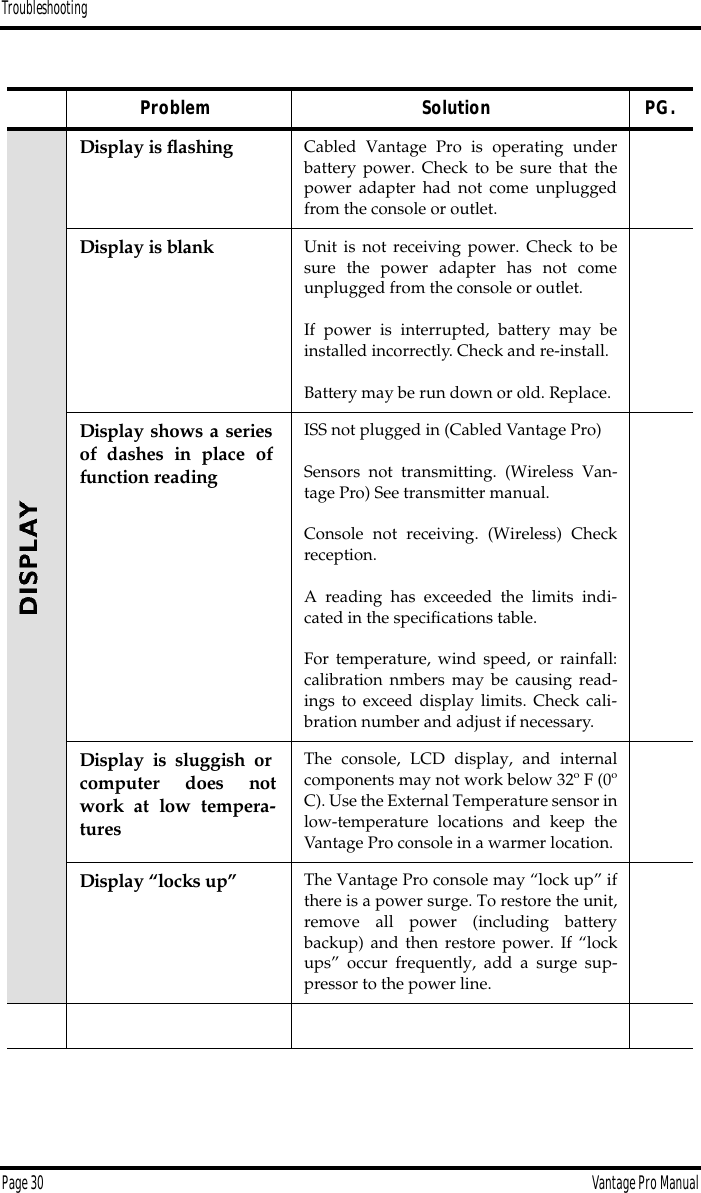

TroubleshootingPage 30 Vantage Pro ManualProblem Solution PG. Display is flashing Cabled Vantage Pro is operating underbattery power. Check to be sure that thepower adapter had not come unpluggedfrom the console or outlet.Display is blank Unit is not receiving power. Check to besure the power adapter has not comeunplugged from the console or outlet.If power is interrupted, battery may beinstalled incorrectly. Check and re-install.Battery may be run down or old. Replace.Display shows a seriesof dashes in place offunction readingISS not plugged in (Cabled Vantage Pro)Sensors not transmitting. (Wireless Van-tage Pro) See transmitter manual.Console not receiving. (Wireless) Checkreception.A reading has exceeded the limits indi-cated in the specifications table.For temperature, wind speed, or rainfall:calibration nmbers may be causing read-ings to exceed display limits. Check cali-bration number and adjust if necessary.Display is sluggish orcomputer does notwork at low tempera-turesThe console, LCD display, and internalcomponents may not work below 32º F (0ºC). Use the External Temperature sensor inlow-temperature locations and keep theVantage Pro console in a warmer location.Display “locks up” The Vantage Pro console may “lock up” ifthere is a power surge. To restore the unit,remove all power (including batterybackup) and then restore power. If “lockups” occur frequently, add a surge sup-pressor to the power line.

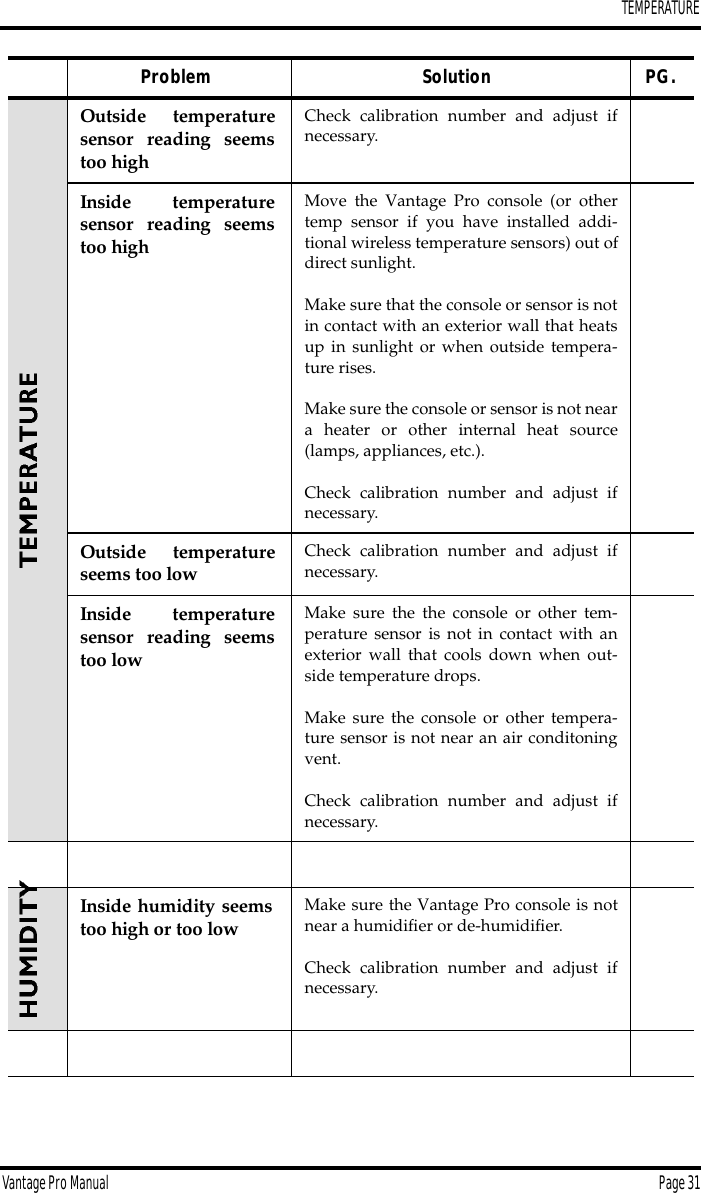

TEMPERATUREVantage Pro Manual Page 31 Outside temperaturesensor reading seemstoo highCheck calibration number and adjust ifnecessary.Inside temperaturesensor reading seemstoo highMove the Vantage Pro console (or othertemp sensor if you have installed addi-tional wireless temperature sensors) out ofdirect sunlight.Make sure that the console or sensor is notin contact with an exterior wall that heatsup in sunlight or when outside tempera-ture rises.Make sure the console or sensor is not neara heater or other internal heat source(lamps, appliances, etc.).Check calibration number and adjust ifnecessary.Outside temperatureseems too low Check calibration number and adjust ifnecessary.Inside temperaturesensor reading seemstoo lowMake sure the the console or other tem-perature sensor is not in contact with anexterior wall that cools down when out-side temperature drops.Make sure the console or other tempera-ture sensor is not near an air conditoningvent.Check calibration number and adjust ifnecessary. Inside humidity seemstoo high or too low Make sure the Vantage Pro console is notnear a humidifier or de-humidifier.Check calibration number and adjust ifnecessary.Problem Solution PG.

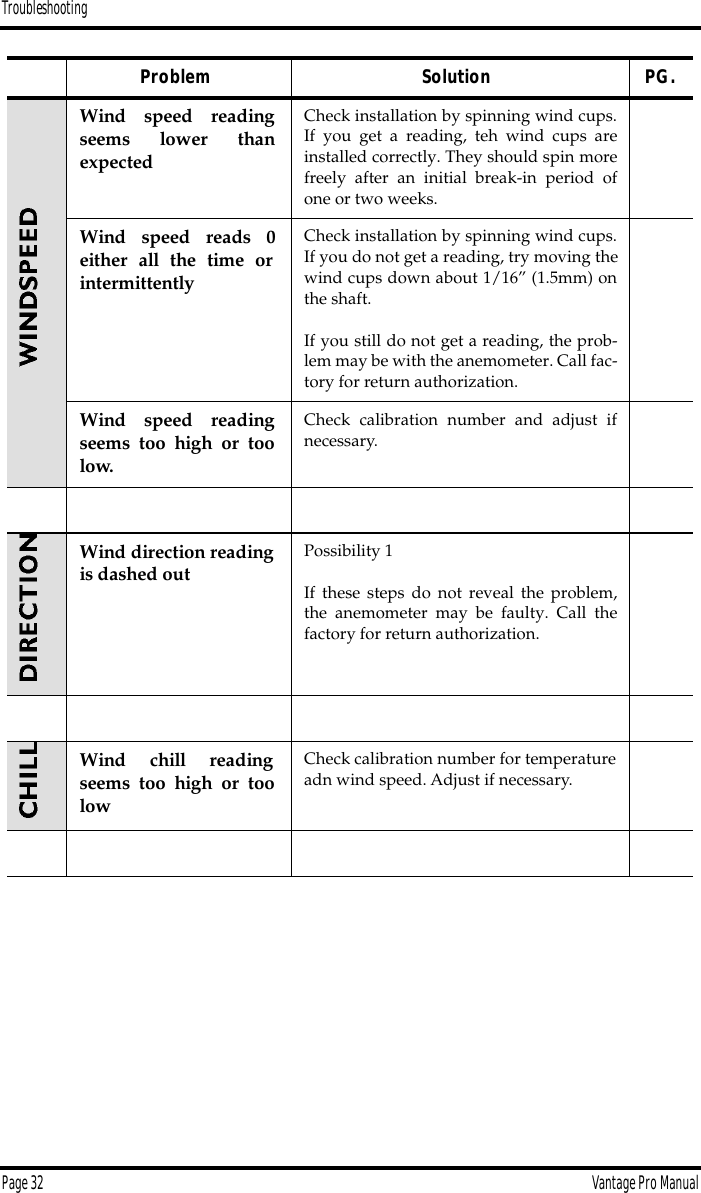

TroubleshootingPage 32 Vantage Pro Manual Wind speed readingseems lower thanexpectedCheck installation by spinning wind cups.If you get a reading, teh wind cups areinstalled correctly. They should spin morefreely after an initial break-in period ofone or two weeks.Wind speed reads 0either all the time orintermittentlyCheck installation by spinning wind cups.If you do not get a reading, try moving thewind cups down about 1/16” (1.5mm) onthe shaft.If you still do not get a reading, the prob-lem may be with the anemometer. Call fac-tory for return authorization.Wind speed readingseems too high or toolow.Check calibration number and adjust ifnecessary. Wind direction readingis dashed out Possibility 1If these steps do not reveal the problem,the anemometer may be faulty. Call thefactory for return authorization. Wind chill readingseems too high or toolowCheck calibration number for temperatureadn wind speed. Adjust if necessary.Problem Solution PG.

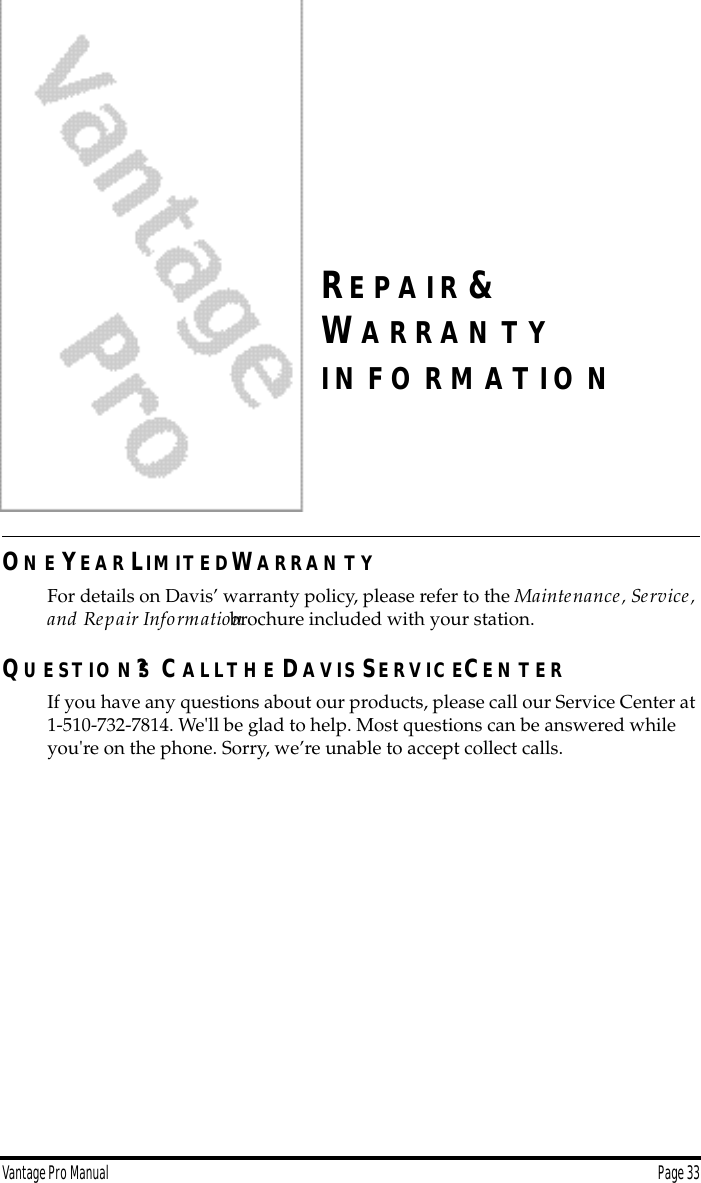

Vantage Pro Manual Page 33RE P A I R &WA R R A N T YI N F O R M A T I O NON E YE A R LIM IT E DWA R R A N T YFor details on Davis’ warranty policy, please refer to the Maintenance, Service, and Repair Information brochure included with your station.QU E S T IO N S? CA L LT H E DA V IS SE R V IC ECE N T E RIf you have any questions about our products, please call our Service Center at 1-510-732-7814. We'll be glad to help. Most questions can be answered while you're on the phone. Sorry, we’re unable to accept collect calls.

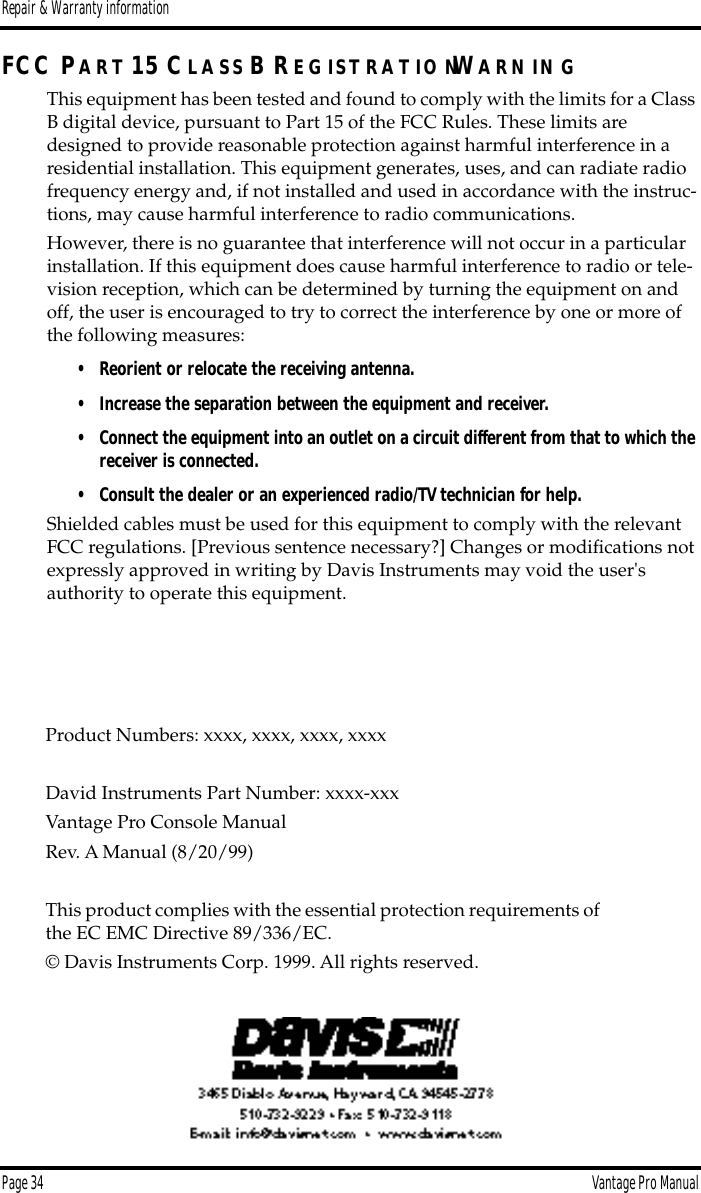

Repair & Warranty informationPage 34 Vantage Pro ManualFCC PA R T 15 CL A S S B R E G IS T R A T IO NWA R N IN GThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-vision reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Shielded cables must be used for this equipment to comply with the relevant FCC regulations. [Previous sentence necessary?] Changes or modifications not expressly approved in writing by Davis Instruments may void the user's authority to operate this equipment.Product Numbers: xxxx, xxxx, xxxx, xxxxDavid Instruments Part Number: xxxx-xxxVantage Pro Console ManualRev. A Manual (8/20/99)This product complies with the essential protection requirements of the EC EMC Directive 89/336/EC.© Davis Instruments Corp. 1999. All rights reserved.
