Daviscomms PTD-01 GSM / GPRS / GPS / Paging Personal Tracking Device User Manual EaziTRAC 2000 110329 01

Daviscomms (S) Pte Ltd GSM / GPRS / GPS / Paging Personal Tracking Device EaziTRAC 2000 110329 01

manual

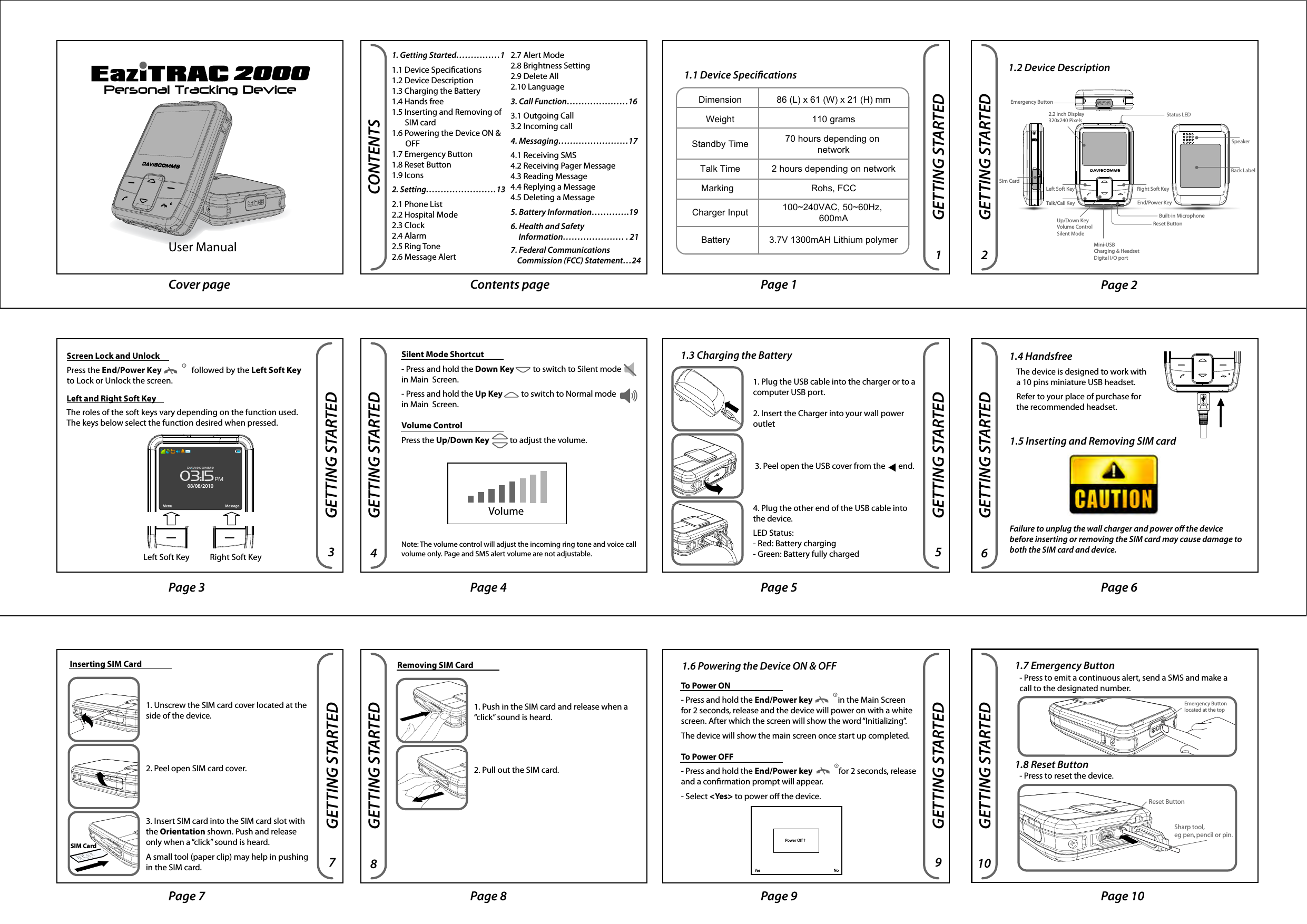

Reset ButtonSharp tool, eg pen, pencil or pin.GETTING STARTED2000Personal Tracking DeviceCover page Contents page Page 1 Page 2Page 4 Page 5 Page 6Page 7 Page 8 Page 9 Page 10CONTENTSGETTING STARTED1. Getting Started……………11.1 Device Specications1.2 Device Description1.3 Charging the Battery1.4 Hands free1.5 Inserting and Removing of                            SIM card1.6 Powering the Device ON &         a     OFF1.7 Emergency Button1.8 Reset Button1.9 Icons2. Setting……………………132.1 Phone List2.2 Hospital Mode2.3 Clock2.4 Alarm2.5 Ring Tone2.6 Message Alert2.7 Alert Mode2.8 Brightness Setting2.9 Delete All2.10 Language 3. Call Function…………………163.1 Outgoing Call3.2 Incoming call4. Messaging……………………174.1 Receiving SMS4.2 Receiving Pager Message4.3 Reading Message4.4 Replying a Message4.5 Deleting a Message5. Battery Information………….196. Health and Safety         Information………………… . 217. Federal Communications                    Commission (FCC) Statement…241.1 Device Specications100~240VAC, 50~60Hz, 600mACharger InputRohs, FCCMarking3.7V 1300mAH Lithium polymerBattery2 hours depending on networkTalk Time70 hours depending on networkStandby Time110 gramsWeight86 (L) x 61 (W) x 21 (H) mmDimensionGETTING STARTEDGETTING STARTED1.2 Device DescriptionGETTING STARTEDScreen Lock and UnlockPress the End/Power Key                followed by the Left Soft Key to Lock or Unlock the screen. Left and Right Soft KeyThe roles of the soft keys vary depending on the function used.  The keys below select the function desired when pressed. GETTING STARTEDSilent Mode Shortcut- Press and hold the Down Key          to switch to Silent mode       in Main  Screen. - Press and hold the Up Key          to switch to Normal mode in Main  Screen.Volume ControlPress the Up/Down Key           to adjust the volume.Note: The volume control will adjust the incoming ring tone and voice call volume only. Page and SMS alert volume are not adjustable.Inserting SIM CardSIM CardVolumeGETTING STARTED1.3 Charging the Battery 1.4 Handsfree1.6 Powering the Device ON & OFFEmergency Button Speaker 2.2 inch Display320x240 Pixels Talk/Call Key Left Soft Key End/Power KeyRight Soft Key Mini-USBCharging & HeadsetDigital I/O port Up/Down KeyVolume ControlSilent ModeBuilt-in Microphone Reset Button Status LED Sim Card Back Label 1. Plug the USB cable into the charger or to a computer USB port.2. Insert the Charger into your wall power outlet 3. Peel open the USB cover from the       end.4. Plug the other end of the USB cable into the device.LED Status:- Red: Battery charging- Green: Battery fully charged1. Unscrew the SIM card cover located at the side of the device.2. Peel open SIM card cover.3. Insert SIM card into the SIM card slot with the Orientation shown. Push and release only when a “click” sound is heard.A small tool (paper clip) may help in pushing in the SIM card. The device is designed to work with a 10 pins miniature USB headset. Refer to your place of purchase for the recommended headset.  GETTING STARTED 1.5 Inserting and Removing SIM cardFailure to unplug the wall charger and power o the device before inserting or removing the SIM card may cause damage to both the SIM card and device.GETTING STARTEDTo Power ON- Press and hold the End/Power key              in the Main Screen for 2 seconds, release and the device will power on with a white screen. After which the screen will show the word “Initializing”. The device will show the main screen once start up completed.To Power OFF- Press and hold the End/Power key              for 2 seconds, release and a conrmation prompt will appear. - Select <Yes> to power o the device.GETTING STARTED1. Push in the SIM card and release when a “click” sound is heard.2. Pull out the SIM card.Removing SIM CardYes NoPower Off ?1.7 Emergency Button1.8 Reset Button- Press to emit a continuous alert, send a SMS and make a call to the designated number.- Press to reset the device.Page 11 Page 12 Page 13 Page 14Page 15 Page 16 Page 17 Page 18Page 19 Page 20 Page 21 Page 22SETTINGSCALL FUNCTION3.1 Outgoing Call- Press Talk/Call key         to direct you to the phone list to make an Outgoing Call. Or - Select <CALL> in response to an SMS.3.2 Incoming call2.5 Ring Tone- Select MENU>RING TONE> Select ring tone melody. Choose <OK> to set.2.6 Message Alert- Select MENU>MESSAGE ALERT>SMS ALERT or PAGER ALERT> Select alert type. Choose <OK> to set.2.7 Alert Mode- Select MENU>ALERT MODE> Select alert mode type. Choose <OK> to set.2.8 Brightness Setting- Select MENU>DISPLAY SETTINGS> Select brightness level. Choose <OK> to set.2.9 Delete All- Select MENU>DELETE ALL> YES to delete.2.10 Language- Select MENU>LANGUAGE> Select language type. Choose <OK> to set.MESSAGING4.1 Receiving SMSWhen an SMS is received, the popup box will display a New SMS Message Received.4.2 Receiving Pager MessageWhen a Pager message is received, the popup box will display a New Pager Message Received.To Accept a Call- Press Talk/Call key         to accept the call. To End or Reject a Call- Press END/Power Key               to end the call or to reject an incoming call.To Mute the Ring Tones- Select <MUTE> during an incoming call to turn o the ring tone.4.3 Reading Message- Select <MESSAGE> on the Main Screen.Or- Select <VIEW> on the New Message pop out Screen.Note: A reminder alert at 5 minute intervals for unread messages when alert mode is set to audio or vibrate.4.4 Replying a Message- Select <OPTION> in the Message Screen.- Select <REPLY> Select canned message. Choose <SMS> to reply.4.5 Deleting a Message- Select <OPTION> in the Message Screen. Choose <DELETE> to delete.New SMS Message ReceivedNew Pager Message ReceivedBATTERY INFORMATIONBATTERY INFORMATIONCharging and dischargingWarning: Use only chargers and enhancements approved by Daviscomms for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous.For availability of approved enhancements, please check with your dealer. When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.Your device is powered by a rechargeable battery.The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge your battery only with Daviscomms approved chargers designated for this device.Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger,  since  overcharging  may  shorten  its  lifetime.  If  left unused, a fully charged battery will lose its charge over time. If the battery is completely discharged, it may take several minutes before the charging indicator appears on the display or before any calls can be made. Never use any charger that is damaged. Leaving the device in hot or  cold  places,  such  as  in  a  closed  car  in  summer  or  winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not work temporar-ily, even when the battery is fully charged. Do not dispose the device in a re as they may explode. Dispose of device  according  to  local  regulations.  Do  not  dispose  as household waste. Do not dismantle the device. In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. In the event of such a leak, ush your skin or eyes immediately with water, or seek medical help.MESSAGINGGETTING STARTEDGETTING STARTED1.9 IconsMain Screen Icons  Message Inbox IconsGSMGPSPagingAudioAlarmNew MessageMissed callBattery Gaugeregisteredconnected to network hospital modein rangeaudio onlysilentalarm active message received missed call 2/3 full full low 1/3 full charging fully charged headsetaudio  &vibration vibrationonlynotregistered notoperationalvalid position not valid positionout ofrangenotoperationalnotoperationalSETTINGSSETTINGS2.1 Phone ListTitle BarMessage ListSMS message unread SMS message unread pager messageread SMS message read pager messagepager message - Select MENU>PHONE LIST> Select name/number.- Select <SMS> Select canned message. Choose <SMS> to send.You are also able to send a message from the Message Option. refer to reply to a message section- Select MENU>HOSPTIAL MODE> Select ON/OFF.2.3 Clock2.2 Hospital Mode2.4 AlarmSet Time- Select MENU>CLOCK>SET TIME> Set hour value. - Select <NEXT> Set minute value.- Select <NEXT> Set AM/PM . Choose <OK> to setSet Date- Select MENU>SET DATE> Set date value.- Select <NEXT> Set day value.- Select <NEXT> Set year value. Choose <OK> to set.Set Time Zone- Select MENU>TIME ZONE> Select time zone value. Choose <OK> to set. Valid GMT time zones follow the UTC set (refer to command guide for value set).Set Time Format- Select MENU>TIME FORMAT> Select time format. Choose <OK> to set.Set Date Format- Select MENU>DATE FORMAT> Select date format. Choose <OK> to set.- Select MENU>ALARM> Set hour value- Select <NEXT> Set minute value- Select <NEXT> Set AM/PM. Choose <OK> to set.1 24365871091211 1413Page 231615 18172019 21User Manual  Left Soft Key           Right Soft KeyMenu Message08/08/201003:15PMPage 3HEALTH AND SAFETY INFORMATIONHEALTH AND SAFETY INFORMATION22Read these simple guidelines. Failure to comply may be dangerous or illegal.TURN OFF WHEN REFUELLING Do not use the product at a refueling point. Do not use near fuel or chemicals.ROAD SAFETY COMES FIRST Obey all local laws. Always free your hands to operate the vehicle while driving. Your rst consideration while driving should be road safety.TURN ON SAFELY Do not turn the product on when wireless product use is prohibited or when it may cause interference or danger.INTERFERENCE All wireless products may be subject to interference. Turn the product o near medical equipment.TURN OFF IN HOSPITALS Follow all restrictions. Turn the product o near medical equipment.TURN OFF IN AIRCRAFT Follow any restrictions. Wireless devices can cause interference in aircraft.     HEALTH AND SAFETY INFORMATION23Road Safety-  Your wireless product gives you the powerful ability to communicate by voice, anywhere and anytime. But an important responsibility accompanies the benets of wireless products, one that every user must uphold.- When driving a car, driving is your rst responsibility. When using your wireless product while driving, follow local regulations in the country or region you are in.QUALIFIED SERVICE Only qualied personnel may install or repair this product.WATER-RESISTANCE Your product is not water-proof. Keep it dry.ENHANCEMENT Use only approved enhancements. Do not connect incompatible products.   Hearing Aids- Some digital wireless products may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.regulations in the country or region you are in.Potentially Explosive Environments- Turn o your product when in any area with a potentially explosive atmosphere, and obey all signs and instructions. Sparks in such areas could cause an explosion or re resulting in bodily injury or even death. - Areas with a potentially explosive atmosphere are often but not always clearly marked. They include the areas below deck on boats, chemical transfer or storage facilities, vehicles using liquied petroleum gas, such as propane or butane, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn o your vehicle engine.Page 2525equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit dierent      from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1) this device may not cause harmful interference and2) this device must accept any interference received, including interference that may cause undesired operation of the device.FCC RF Radiation Exposure Statement:For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 0cm to 1.3 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. SAR Max. Value is 0.846W/Kg(1g)Back Cover PageDAVISCOMMS (S) PTE LTDBlock 70 Ubi Crescent #01-07 | Ubi TechPark | Singapore 408570500286R01Emergency Buttonlocated at the topPage 24FCC STATEMENTFCC STATEMENT24Federal Communications Commission (FCC) Statement15.21You are cautioned that changes or modications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.15.105(b)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
Reset ButtonSharp tool, eg pen, pencil or pin.GETTING STARTED2000Personal Tracking DeviceCover page Contents page Page 1 Page 2Page 4 Page 5 Page 6Page 7 Page 8 Page 9 Page 10CONTENTSGETTING STARTED1. Getting Started……………11.1 Device Specications1.2 Device Description1.3 Charging the Battery1.4 Hands free1.5 Inserting and Removing of                            SIM card1.6 Powering the Device ON &         a     OFF1.7 Emergency Button1.8 Reset Button1.9 Icons2. Setting……………………132.1 Phone List2.2 Hospital Mode2.3 Clock2.4 Alarm2.5 Ring Tone2.6 Message Alert2.7 Alert Mode2.8 Brightness Setting2.9 Delete All2.10 Language 3. Call Function…………………163.1 Outgoing Call3.2 Incoming call4. Messaging……………………174.1 Receiving SMS4.2 Receiving Pager Message4.3 Reading Message4.4 Replying a Message4.5 Deleting a Message5. Battery Information………….196. Health and Safety         Information………………… . 217. Federal Communications                    Commission (FCC) Statement…241.1 Device Specications100~240VAC, 50~60Hz, 600mACharger InputRohs, FCCMarking3.7V 1300mAH Lithium polymerBattery2 hours depending on networkTalk Time70 hours depending on networkStandby Time110 gramsWeight86 (L) x 61 (W) x 21 (H) mmDimensionGETTING STARTEDGETTING STARTED1.2 Device DescriptionGETTING STARTEDScreen Lock and UnlockPress the End/Power Key                followed by the Left Soft Key to Lock or Unlock the screen. Left and Right Soft KeyThe roles of the soft keys vary depending on the function used.  The keys below select the function desired when pressed. GETTING STARTEDSilent Mode Shortcut- Press and hold the Down Key          to switch to Silent mode       in Main  Screen. - Press and hold the Up Key          to switch to Normal mode in Main  Screen.Volume ControlPress the Up/Down Key           to adjust the volume.Note: The volume control will adjust the incoming ring tone and voice call volume only. Page and SMS alert volume are not adjustable.Inserting SIM CardSIM CardVolumeGETTING STARTED1.3 Charging the Battery 1.4 Handsfree1.6 Powering the Device ON & OFFEmergency Button Speaker 2.2 inch Display320x240 Pixels Talk/Call Key Left Soft Key End/Power KeyRight Soft Key Mini-USBCharging & HeadsetDigital I/O port Up/Down KeyVolume ControlSilent ModeBuilt-in Microphone Reset Button Status LED Sim Card Back Label 1. Plug the USB cable into the charger or to a computer USB port.2. Insert the Charger into your wall power outlet 3. Peel open the USB cover from the       end.4. Plug the other end of the USB cable into the device.LED Status:- Red: Battery charging- Green: Battery fully charged1. Unscrew the SIM card cover located at the side of the device.2. Peel open SIM card cover.3. Insert SIM card into the SIM card slot with the Orientation shown. Push and release only when a “click” sound is heard.A small tool (paper clip) may help in pushing in the SIM card. The device is designed to work with a 10 pins miniature USB headset. Refer to your place of purchase for the recommended headset.  GETTING STARTED 1.5 Inserting and Removing SIM cardFailure to unplug the wall charger and power o the device before inserting or removing the SIM card may cause damage to both the SIM card and device.GETTING STARTEDTo Power ON- Press and hold the End/Power key              in the Main Screen for 2 seconds, release and the device will power on with a white screen. After which the screen will show the word “Initializing”. The device will show the main screen once start up completed.To Power OFF- Press and hold the End/Power key              for 2 seconds, release and a conrmation prompt will appear. - Select <Yes> to power o the device.GETTING STARTED1. Push in the SIM card and release when a “click” sound is heard.2. Pull out the SIM card.Removing SIM CardYes NoPower Off ?1.7 Emergency Button1.8 Reset Button- Press to emit a continuous alert, send a SMS and make a call to the designated number.- Press to reset the device.Page 11 Page 12 Page 13 Page 14Page 15 Page 16 Page 17 Page 18Page 19 Page 20 Page 21 Page 22SETTINGSCALL FUNCTION3.1 Outgoing Call- Press Talk/Call key         to direct you to the phone list to make an Outgoing Call. Or - Select <CALL> in response to an SMS.3.2 Incoming call2.5 Ring Tone- Select MENU>RING TONE> Select ring tone melody. Choose <OK> to set.2.6 Message Alert- Select MENU>MESSAGE ALERT>SMS ALERT or PAGER ALERT> Select alert type. Choose <OK> to set.2.7 Alert Mode- Select MENU>ALERT MODE> Select alert mode type. Choose <OK> to set.2.8 Brightness Setting- Select MENU>DISPLAY SETTINGS> Select brightness level. Choose <OK> to set.2.9 Delete All- Select MENU>DELETE ALL> YES to delete.2.10 Language- Select MENU>LANGUAGE> Select language type. Choose <OK> to set.MESSAGING4.1 Receiving SMSWhen an SMS is received, the popup box will display a New SMS Message Received.4.2 Receiving Pager MessageWhen a Pager message is received, the popup box will display a New Pager Message Received.To Accept a Call- Press Talk/Call key         to accept the call. To End or Reject a Call- Press END/Power Key               to end the call or to reject an incoming call.To Mute the Ring Tones- Select <MUTE> during an incoming call to turn o the ring tone.4.3 Reading Message- Select <MESSAGE> on the Main Screen.Or- Select <VIEW> on the New Message pop out Screen.Note: A reminder alert at 5 minute intervals for unread messages when alert mode is set to audio or vibrate.4.4 Replying a Message- Select <OPTION> in the Message Screen.- Select <REPLY> Select canned message. Choose <SMS> to reply.4.5 Deleting a Message- Select <OPTION> in the Message Screen. Choose <DELETE> to delete.New SMS Message ReceivedNew Pager Message ReceivedBATTERY INFORMATIONBATTERY INFORMATIONCharging and dischargingWarning: Use only chargers and enhancements approved by Daviscomms for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous.For availability of approved enhancements, please check with your dealer. When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.Your device is powered by a rechargeable battery.The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge your battery only with Daviscomms approved chargers designated for this device.Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger,  since  overcharging  may  shorten  its  lifetime.  If  left unused, a fully charged battery will lose its charge over time. If the battery is completely discharged, it may take several minutes before the charging indicator appears on the display or before any calls can be made. Never use any charger that is damaged. Leaving the device in hot or  cold  places,  such  as  in  a  closed  car  in  summer  or  winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not work temporar-ily, even when the battery is fully charged. Do not dispose the device in a re as they may explode. Dispose of device  according  to  local  regulations.  Do  not  dispose  as household waste. Do not dismantle the device. In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. In the event of such a leak, ush your skin or eyes immediately with water, or seek medical help.MESSAGINGGETTING STARTEDGETTING STARTED1.9 IconsMain Screen Icons  Message Inbox IconsGSMGPSPagingAudioAlarmNew MessageMissed callBattery Gaugeregisteredconnected to network hospital modein rangeaudio onlysilentalarm active message received missed call 2/3 full full low 1/3 full charging fully charged headsetaudio  &vibration vibrationonlynotregistered notoperationalvalid position not valid positionout ofrangenotoperationalnotoperationalSETTINGSSETTINGS2.1 Phone ListTitle BarMessage ListSMS message unread SMS message unread pager messageread SMS message read pager messagepager message - Select MENU>PHONE LIST> Select name/number.- Select <SMS> Select canned message. Choose <SMS> to send.You are also able to send a message from the Message Option. refer to reply to a message section- Select MENU>HOSPTIAL MODE> Select ON/OFF.2.3 Clock2.2 Hospital Mode2.4 AlarmSet Time- Select MENU>CLOCK>SET TIME> Set hour value. - Select <NEXT> Set minute value.- Select <NEXT> Set AM/PM . Choose <OK> to setSet Date- Select MENU>SET DATE> Set date value.- Select <NEXT> Set day value.- Select <NEXT> Set year value. Choose <OK> to set.Set Time Zone- Select MENU>TIME ZONE> Select time zone value. Choose <OK> to set. Valid GMT time zones follow the UTC set (refer to command guide for value set).Set Time Format- Select MENU>TIME FORMAT> Select time format. Choose <OK> to set.Set Date Format- Select MENU>DATE FORMAT> Select date format. Choose <OK> to set.- Select MENU>ALARM> Set hour value- Select <NEXT> Set minute value- Select <NEXT> Set AM/PM. Choose <OK> to set.1 24365871091211 1413Page 231615 18172019 21User Manual  Left Soft Key           Right Soft KeyMenu Message08/08/201003:15PMPage 3HEALTH AND SAFETY INFORMATIONHEALTH AND SAFETY INFORMATION22Read these simple guidelines. Failure to comply may be dangerous or illegal.TURN OFF WHEN REFUELLING Do not use the product at a refueling point. Do not use near fuel or chemicals.ROAD SAFETY COMES FIRST Obey all local laws. Always free your hands to operate the vehicle while driving. Your rst consideration while driving should be road safety.TURN ON SAFELY Do not turn the product on when wireless product use is prohibited or when it may cause interference or danger.INTERFERENCE All wireless products may be subject to interference. Turn the product o near medical equipment.TURN OFF IN HOSPITALS Follow all restrictions. Turn the product o near medical equipment.TURN OFF IN AIRCRAFT Follow any restrictions. Wireless devices can cause interference in aircraft.     HEALTH AND SAFETY INFORMATION23Road Safety-  Your wireless product gives you the powerful ability to communicate by voice, anywhere and anytime. But an important responsibility accompanies the benets of wireless products, one that every user must uphold.- When driving a car, driving is your rst responsibility. When using your wireless product while driving, follow local regulations in the country or region you are in.QUALIFIED SERVICE Only qualied personnel may install or repair this product.WATER-RESISTANCE Your product is not water-proof. Keep it dry.ENHANCEMENT Use only approved enhancements. Do not connect incompatible products.   Hearing Aids- Some digital wireless products may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.regulations in the country or region you are in.Potentially Explosive Environments- Turn o your product when in any area with a potentially explosive atmosphere, and obey all signs and instructions. Sparks in such areas could cause an explosion or re resulting in bodily injury or even death. - Areas with a potentially explosive atmosphere are often but not always clearly marked. They include the areas below deck on boats, chemical transfer or storage facilities, vehicles using liquied petroleum gas, such as propane or butane, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn o your vehicle engine.Page 2525equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit dierent      from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1) this device may not cause harmful interference and2) this device must accept any interference received, including interference that may cause undesired operation of the device.FCC RF Radiation Exposure Statement:For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 0cm to 1.3 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. SAR Max. Value is 0.846W/Kg(1g)Back Cover PageDAVISCOMMS (S) PTE LTDBlock 70 Ubi Crescent #01-07 | Ubi TechPark | Singapore 408570500286R01Emergency Buttonlocated at the topPage 24FCC STATEMENTFCC STATEMENT24Federal Communications Commission (FCC) Statement15.21You are cautioned that changes or modications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.15.105(b)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
Reset ButtonSharp tool, eg pen, pencil or pin.GETTING STARTED2000Personal Tracking DeviceCover page Contents page Page 1 Page 2Page 4 Page 5 Page 6Page 7 Page 8 Page 9 Page 10CONTENTSGETTING STARTED1. Getting Started……………11.1 Device Specications1.2 Device Description1.3 Charging the Battery1.4 Hands free1.5 Inserting and Removing of                            SIM card1.6 Powering the Device ON &         a     OFF1.7 Emergency Button1.8 Reset Button1.9 Icons2. Setting……………………132.1 Phone List2.2 Hospital Mode2.3 Clock2.4 Alarm2.5 Ring Tone2.6 Message Alert2.7 Alert Mode2.8 Brightness Setting2.9 Delete All2.10 Language 3. Call Function…………………163.1 Outgoing Call3.2 Incoming call4. Messaging……………………174.1 Receiving SMS4.2 Receiving Pager Message4.3 Reading Message4.4 Replying a Message4.5 Deleting a Message5. Battery Information………….196. Health and Safety         Information………………… . 217. Federal Communications                    Commission (FCC) Statement…241.1 Device Specications100~240VAC, 50~60Hz, 600mACharger InputRohs, FCCMarking3.7V 1300mAH Lithium polymerBattery2 hours depending on networkTalk Time70 hours depending on networkStandby Time110 gramsWeight86 (L) x 61 (W) x 21 (H) mmDimensionGETTING STARTEDGETTING STARTED1.2 Device DescriptionGETTING STARTEDScreen Lock and UnlockPress the End/Power Key                followed by the Left Soft Key to Lock or Unlock the screen. Left and Right Soft KeyThe roles of the soft keys vary depending on the function used.  The keys below select the function desired when pressed. GETTING STARTEDSilent Mode Shortcut- Press and hold the Down Key          to switch to Silent mode       in Main  Screen. - Press and hold the Up Key          to switch to Normal mode in Main  Screen.Volume ControlPress the Up/Down Key           to adjust the volume.Note: The volume control will adjust the incoming ring tone and voice call volume only. Page and SMS alert volume are not adjustable.Inserting SIM CardSIM CardVolumeGETTING STARTED1.3 Charging the Battery 1.4 Handsfree1.6 Powering the Device ON & OFFEmergency Button Speaker 2.2 inch Display320x240 Pixels Talk/Call Key Left Soft Key End/Power KeyRight Soft Key Mini-USBCharging & HeadsetDigital I/O port Up/Down KeyVolume ControlSilent ModeBuilt-in Microphone Reset Button Status LED Sim Card Back Label 1. Plug the USB cable into the charger or to a computer USB port.2. Insert the Charger into your wall power outlet 3. Peel open the USB cover from the       end.4. Plug the other end of the USB cable into the device.LED Status:- Red: Battery charging- Green: Battery fully charged1. Unscrew the SIM card cover located at the side of the device.2. Peel open SIM card cover.3. Insert SIM card into the SIM card slot with the Orientation shown. Push and release only when a “click” sound is heard.A small tool (paper clip) may help in pushing in the SIM card. The device is designed to work with a 10 pins miniature USB headset. Refer to your place of purchase for the recommended headset.  GETTING STARTED 1.5 Inserting and Removing SIM cardFailure to unplug the wall charger and power o the device before inserting or removing the SIM card may cause damage to both the SIM card and device.GETTING STARTEDTo Power ON- Press and hold the End/Power key              in the Main Screen for 2 seconds, release and the device will power on with a white screen. After which the screen will show the word “Initializing”. The device will show the main screen once start up completed.To Power OFF- Press and hold the End/Power key              for 2 seconds, release and a conrmation prompt will appear. - Select <Yes> to power o the device.GETTING STARTED1. Push in the SIM card and release when a “click” sound is heard.2. Pull out the SIM card.Removing SIM CardYes NoPower Off ?1.7 Emergency Button1.8 Reset Button- Press to emit a continuous alert, send a SMS and make a call to the designated number.- Press to reset the device.Page 11 Page 12 Page 13 Page 14Page 15 Page 16 Page 17 Page 18Page 19 Page 20 Page 21 Page 22SETTINGSCALL FUNCTION3.1 Outgoing Call- Press Talk/Call key         to direct you to the phone list to make an Outgoing Call. Or - Select <CALL> in response to an SMS.3.2 Incoming call2.5 Ring Tone- Select MENU>RING TONE> Select ring tone melody. Choose <OK> to set.2.6 Message Alert- Select MENU>MESSAGE ALERT>SMS ALERT or PAGER ALERT> Select alert type. Choose <OK> to set.2.7 Alert Mode- Select MENU>ALERT MODE> Select alert mode type. Choose <OK> to set.2.8 Brightness Setting- Select MENU>DISPLAY SETTINGS> Select brightness level. Choose <OK> to set.2.9 Delete All- Select MENU>DELETE ALL> YES to delete.2.10 Language- Select MENU>LANGUAGE> Select language type. Choose <OK> to set.MESSAGING4.1 Receiving SMSWhen an SMS is received, the popup box will display a New SMS Message Received.4.2 Receiving Pager MessageWhen a Pager message is received, the popup box will display a New Pager Message Received.To Accept a Call- Press Talk/Call key         to accept the call. To End or Reject a Call- Press END/Power Key               to end the call or to reject an incoming call.To Mute the Ring Tones- Select <MUTE> during an incoming call to turn o the ring tone.4.3 Reading Message- Select <MESSAGE> on the Main Screen.Or- Select <VIEW> on the New Message pop out Screen.Note: A reminder alert at 5 minute intervals for unread messages when alert mode is set to audio or vibrate.4.4 Replying a Message- Select <OPTION> in the Message Screen.- Select <REPLY> Select canned message. Choose <SMS> to reply.4.5 Deleting a Message- Select <OPTION> in the Message Screen. Choose <DELETE> to delete.New SMS Message ReceivedNew Pager Message ReceivedBATTERY INFORMATIONBATTERY INFORMATIONCharging and dischargingWarning: Use only chargers and enhancements approved by Daviscomms for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous.For availability of approved enhancements, please check with your dealer. When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.Your device is powered by a rechargeable battery.The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge your battery only with Daviscomms approved chargers designated for this device.Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger,  since  overcharging  may  shorten  its  lifetime.  If  left unused, a fully charged battery will lose its charge over time. If the battery is completely discharged, it may take several minutes before the charging indicator appears on the display or before any calls can be made. Never use any charger that is damaged. Leaving the device in hot or  cold  places,  such  as  in  a  closed  car  in  summer  or  winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not work temporar-ily, even when the battery is fully charged. Do not dispose the device in a re as they may explode. Dispose of device  according  to  local  regulations.  Do  not  dispose  as household waste. Do not dismantle the device. In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. In the event of such a leak, ush your skin or eyes immediately with water, or seek medical help.MESSAGINGGETTING STARTEDGETTING STARTED1.9 IconsMain Screen Icons  Message Inbox IconsGSMGPSPagingAudioAlarmNew MessageMissed callBattery Gaugeregisteredconnected to network hospital modein rangeaudio onlysilentalarm active message received missed call 2/3 full full low 1/3 full charging fully charged headsetaudio  &vibration vibrationonlynotregistered notoperationalvalid position not valid positionout ofrangenotoperationalnotoperationalSETTINGSSETTINGS2.1 Phone ListTitle BarMessage ListSMS message unread SMS message unread pager messageread SMS message read pager messagepager message - Select MENU>PHONE LIST> Select name/number.- Select <SMS> Select canned message. Choose <SMS> to send.You are also able to send a message from the Message Option. refer to reply to a message section- Select MENU>HOSPTIAL MODE> Select ON/OFF.2.3 Clock2.2 Hospital Mode2.4 AlarmSet Time- Select MENU>CLOCK>SET TIME> Set hour value. - Select <NEXT> Set minute value.- Select <NEXT> Set AM/PM . Choose <OK> to setSet Date- Select MENU>SET DATE> Set date value.- Select <NEXT> Set day value.- Select <NEXT> Set year value. Choose <OK> to set.Set Time Zone- Select MENU>TIME ZONE> Select time zone value. Choose <OK> to set. Valid GMT time zones follow the UTC set (refer to command guide for value set).Set Time Format- Select MENU>TIME FORMAT> Select time format. Choose <OK> to set.Set Date Format- Select MENU>DATE FORMAT> Select date format. Choose <OK> to set.- Select MENU>ALARM> Set hour value- Select <NEXT> Set minute value- Select <NEXT> Set AM/PM. Choose <OK> to set.1 24365871091211 1413Page 231615 18172019 21User Manual  Left Soft Key           Right Soft KeyMenu Message08/08/201003:15PMPage 3HEALTH AND SAFETY INFORMATIONHEALTH AND SAFETY INFORMATION22Read these simple guidelines. Failure to comply may be dangerous or illegal.TURN OFF WHEN REFUELLING Do not use the product at a refueling point. Do not use near fuel or chemicals.ROAD SAFETY COMES FIRST Obey all local laws. Always free your hands to operate the vehicle while driving. Your rst consideration while driving should be road safety.TURN ON SAFELY Do not turn the product on when wireless product use is prohibited or when it may cause interference or danger.INTERFERENCE All wireless products may be subject to interference. Turn the product o near medical equipment.TURN OFF IN HOSPITALS Follow all restrictions. Turn the product o near medical equipment.TURN OFF IN AIRCRAFT Follow any restrictions. Wireless devices can cause interference in aircraft.     HEALTH AND SAFETY INFORMATION23Road Safety-  Your wireless product gives you the powerful ability to communicate by voice, anywhere and anytime. But an important responsibility accompanies the benets of wireless products, one that every user must uphold.- When driving a car, driving is your rst responsibility. When using your wireless product while driving, follow local regulations in the country or region you are in.QUALIFIED SERVICE Only qualied personnel may install or repair this product.WATER-RESISTANCE Your product is not water-proof. Keep it dry.ENHANCEMENT Use only approved enhancements. Do not connect incompatible products.   Hearing Aids- Some digital wireless products may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.regulations in the country or region you are in.Potentially Explosive Environments- Turn o your product when in any area with a potentially explosive atmosphere, and obey all signs and instructions. Sparks in such areas could cause an explosion or re resulting in bodily injury or even death. - Areas with a potentially explosive atmosphere are often but not always clearly marked. They include the areas below deck on boats, chemical transfer or storage facilities, vehicles using liquied petroleum gas, such as propane or butane, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn o your vehicle engine.Page 2525equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit dierent      from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1) this device may not cause harmful interference and2) this device must accept any interference received, including interference that may cause undesired operation of the device.FCC RF Radiation Exposure Statement:For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.3cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. SAR Max. Value is 0.846W/Kg(1g)Back Cover PageDAVISCOMMS (S) PTE LTDBlock 70 Ubi Crescent #01-07 | Ubi TechPark | Singapore 408570500286R01Emergency Buttonlocated at the topPage 24FCC STATEMENTFCC STATEMENT24Federal Communications Commission (FCC) Statement15.21You are cautioned that changes or modications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.15.105(b)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
