Dayton TKCOMBO Bike Combo transmitter User Manual
Dayton Industrial Co., Ltd. Bike Combo transmitter Users Manual
Dayton >
Users Manual
3-5mm
4mm
2Nm
3-5mm

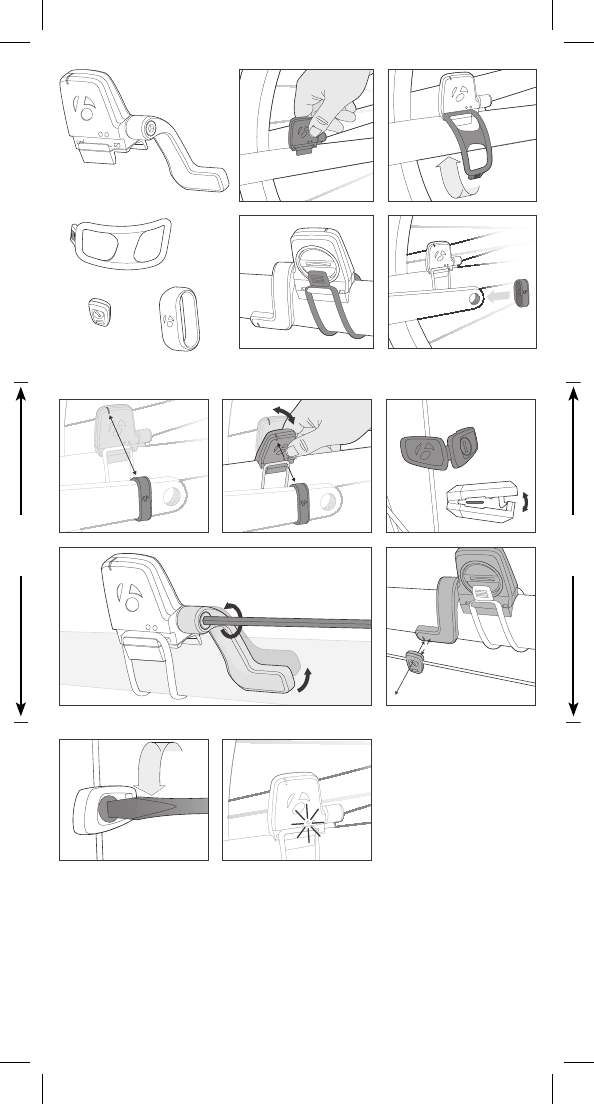

Red LED will flash when the speed magnet is lined up correctly. Green LED will flash when the cadence
magnet is lined up correctly. LEDs will only flash for the first ten revolutions.
La diode Rouge clignotera lorsque l’aimant vitesse est en cours d’appairage. La diode Verte clignotera
lorsque l’aimant cadence est correctement appairé. Ces lumières clignoteront seulement durant les 10ers
tours de roue.
Die rote LED blinkt, wenn der Tacho-Magnet korrekt ausgerichtet ist. Die grüne LED blinkt, wenn der
Trittfrequenz-Magnet korrekt ausgerichtet ist. Beides erfolgt nur während der ersten 10 Umdrehungen
von Kurbel bzw. Laufrad.
El LED rojo emitirá destellos cuando el imán de la velocidad esté correctamente alineado. El LED verde
emitirá destellos cuando el imán de la cadencia esté correctamente alineado. Los LEDs emitirán destellos
sólo durante las diez primeras revoluciones.
FOLD LINE
FOLD LINE
2Nm
4mm
3-5mm
3-5mm
424634_Instruction_Insert.indd 1 9/19/11 4:08 PM
NOTES:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH
MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE
EQUIPMENT.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
corrected.
-- Consult the dealer or experienced radio / TV technician for help.
FCC ID: O4GTKCOMBO
MADE IN CHINA
This device complies with part 15 of the FCC Rules.
Operation is subject to the following conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
