Dedicated Sound and Audio BTA-5 Audio Amplifier User Manual
Dedicated Sound & Audio,Inc. Audio Amplifier Users Manual
Users Manual
!
!
!
! !
!

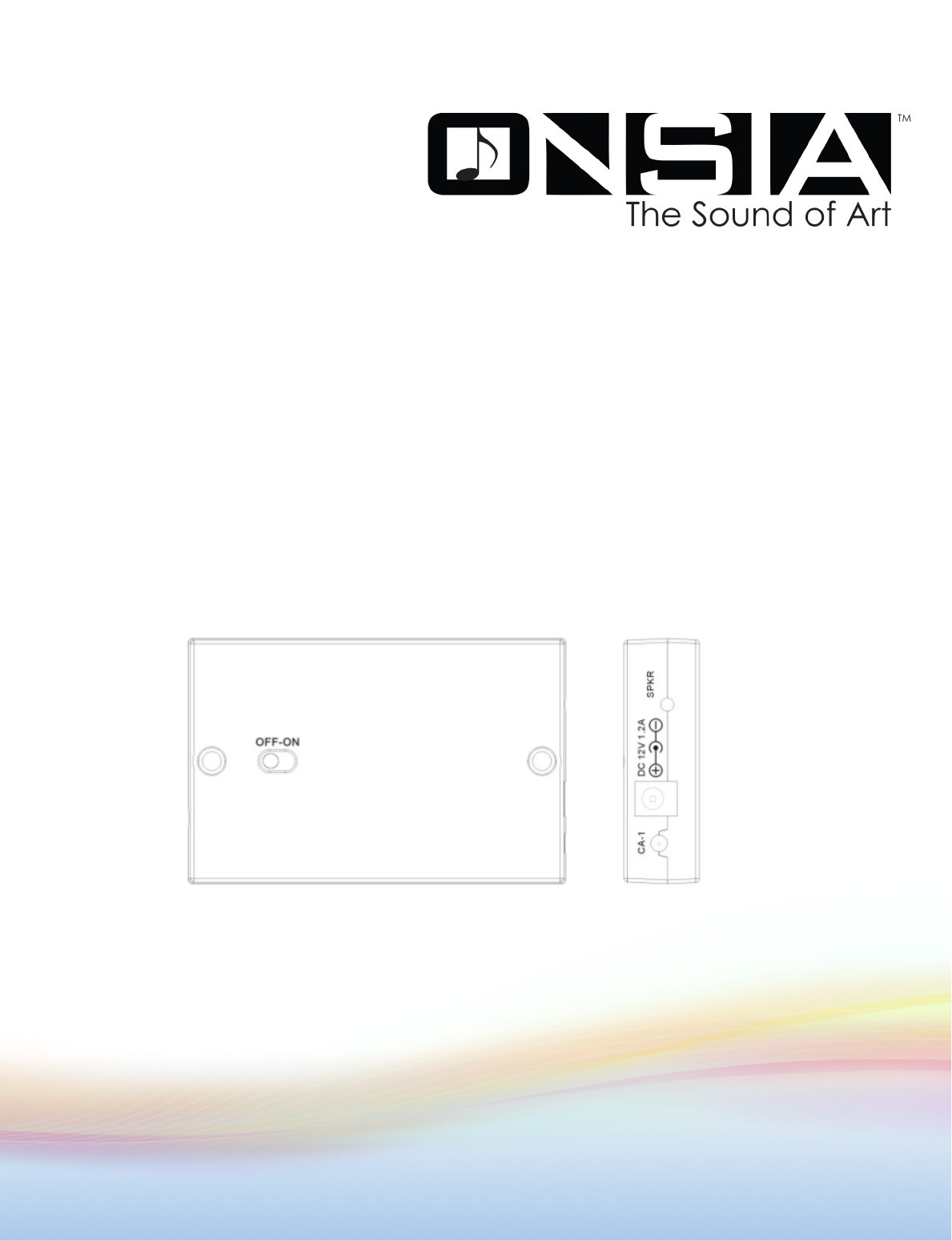

Operating*Instructions*Manual*
*
ONSIA*𝐁𝐥𝐮𝐞𝐭𝐨𝐨𝐭𝐡
®
*Audio*Amplifier**
Model*No.*BTA;5*
Your*Wall.*Your*Art.*Your*Sound.
™
*
English
2
INTRODUCTION
Thank you for choosing the ONSIA BTA-5 Bluetooth Audio Amplifier powered by Dedicated Sound and
Audio. The ONSIA BTA-5 Bluetooth Audio Amplifier is a small form factor audio amplifier with Bluetooth
wireless technology and has been designed to be compatible
with Bluetooth wireless technology
enabled smartphones, laptops, tablets and PCs
. The ONSIA BTA-5 Bluetooth Audio Amplifier offers
power efficiency audio amplifier design and provides a truly enjoyable
listening
experience with the added convenience of wireless technology.
Please read this operating instructions manual completely before you start using your ONSIA BTA-5
Bluetooth Audio Amplifier.
If you have any questions about the operation of the ONSIA BTA-5 Bluetooth Audio Amplifier please
contact the Dedicated Sound and Audio customer support at www.dsausa.com.
Limitation of Liability
DEDICATED SOUND AND AUDIO AND ITS
AFFILIATES
DO NOT MAKE ANY
GUARANTEES,
EXPRESSED
OR
IMPLIED,
INCLUDING
MERCHANT ABILITY
AND
FITNESS
FOR
PURPOSE,
WITH
RESPECT
TO ANY OF THESE SUGGESTIONS OR INSTRUCTIONS.
DEDICATED SOUND AND AUDIO SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF
PROFITS, LOSS OF USE, COST OF REPLACEMENT, BREACH OF CONTRACT, INJURY, OR ANY
OTHER CAUSE WHATSOEVER EVEN IF DEDICATED SOUND AND AUDIO HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
IMPORTANT
SAFETY
INSTRUCTIONS
Read these instructions before using this
product.
Keep these instructions for future reference.
Heed all warnings in this
guide.
Follow all
instructions.
Fire and Electric Shock Hazard
DO NOT open, dismantle, disassemble or modify your ONSIA Bluetooth Audio Amplifier.
DO NOT subject your ONSIA Bluetooth Amplifier to
excessive
cold, heat, humidity or
sunlight.
DO NOT block push objects into holes or any openings.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class-B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This s equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
he dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Caution: Any changes or modications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
English
3
SETUP

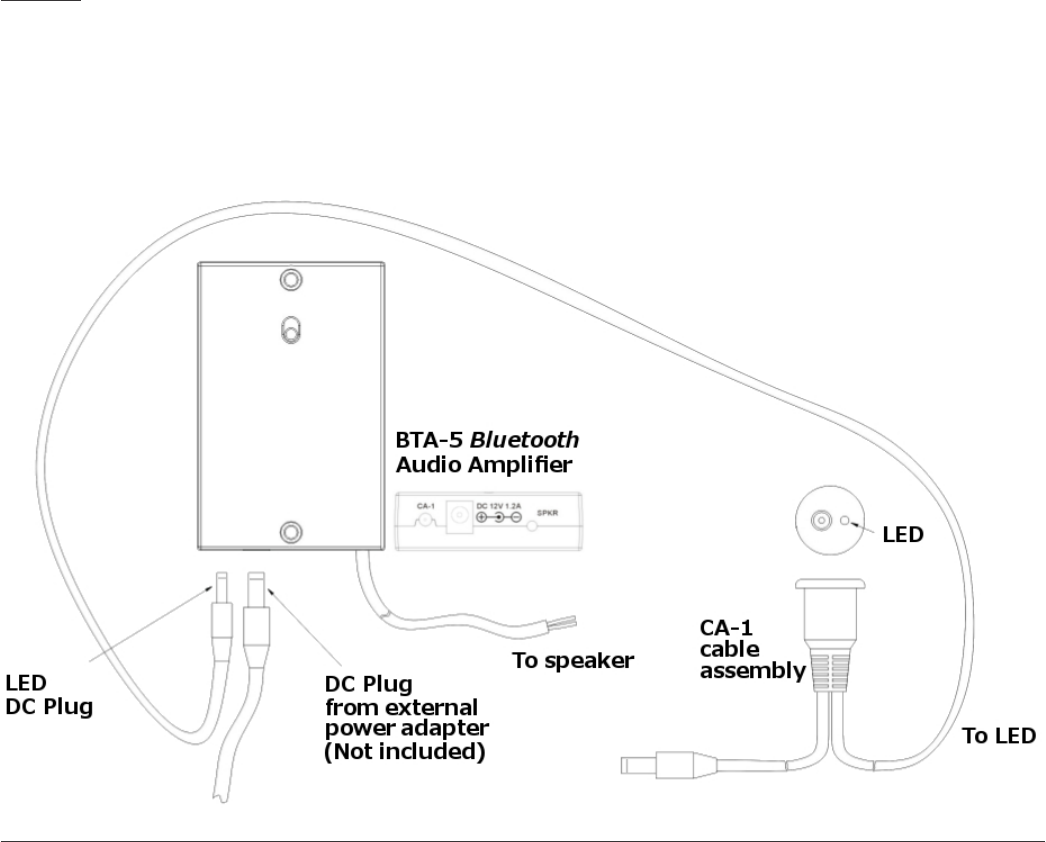

The ONSIA BTA-5 Bluetooth Audio Amplifier comes with an optional remote DC jack and LED cable
assembly (CA-1). The following diagram depicts the setup of the amplifier with the optional cable assembly.
English
4
OPERATION

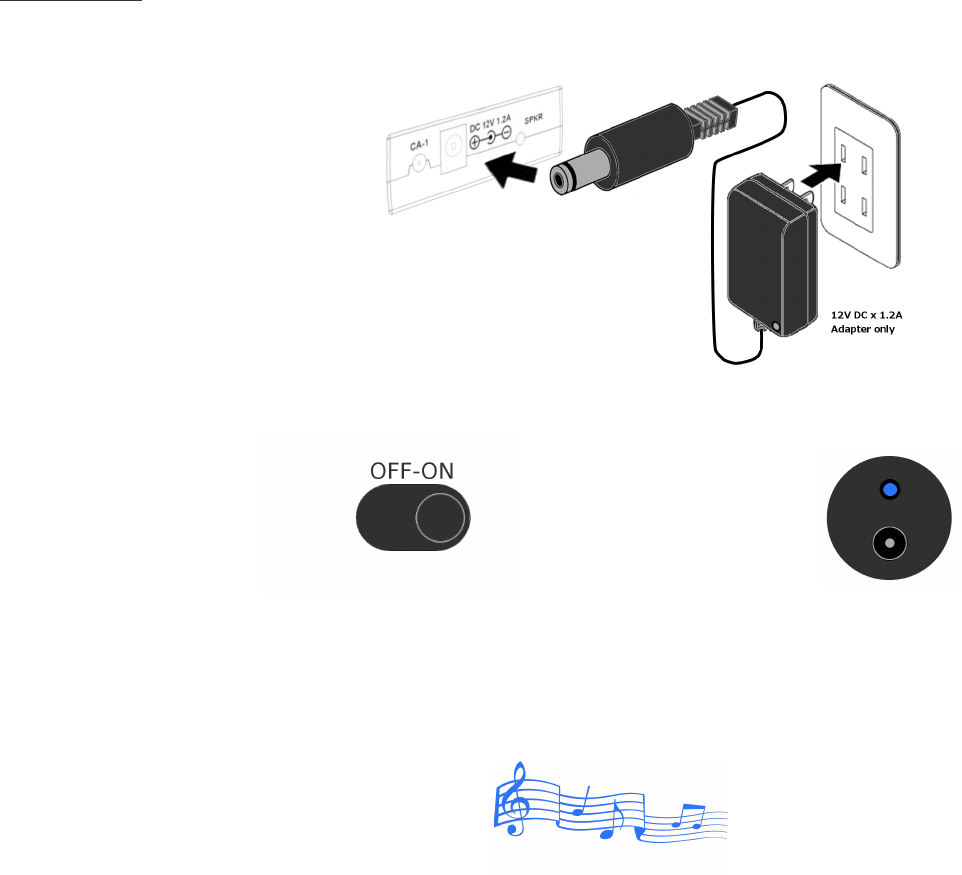

1) Connect Speaker and Power Supply.
Connect a 8Ω speaker with 10W RMS
minimum power handling capabilities to
the cable labeled “SPKR.”
Connect a 12V DC power supply
(1.2A minimum) to the DC jack located
on the amplifier.
2) Power it.
Slide the power switch to the ”ON” A blue LED indicator located next to
position. When the Bluetooth Audio the DC jack on the optional CA-1
Amplifier is powered ON, you will hear cable assembly will turn ON and will
a series of three tones indicating the unit remain ON to indicate the unit is
is ready to be paired or play music. powered.
3) Pair it. Play it. Love it!
To pair your ONSIA Bluetooth Audio
Amplifier, enable Bluetooth on your music
source device and scan for Bluetooth
devices (read your device’s manual or
user’s guide to add or setup a Bluetooth
device). Pair your device with the Bluetooth
device named “ONSIA BTA-5.”
English
5
TROUBLESHOOTING GUIDE
If your ONSIA Bluetooth Audio Amplifier appears to have a problem, the following notes may help. If the
problem still persists after having attempted to resolve it, consult your dealer
for
assistance.
Symptom
Possible Cause
No sound at all
-Check amplifier is powered ON.
-Check volume and mute settings on music source device.
-Check device is paired.
-Reset audio amplifier. Slide power switch to the “OFF”
position and then back to the “ON” position.
Unable to pair device
-Check amplifier is powered ON.
-Make sure amplifier is not paired to another device.
-Place music source device in direct line of sight and within
20 feet. Objects, walls, and moving persons may reduce
wireless operating range.
-Reset amplifier. Slide power switch to the “OFF”
position and then back to the “ON” position.
Music breaks, device disconnects
-Place music source device in direct line of sight and within
20 feet. Objects, walls, and moving persons may reduce
wireless operating range.
-If using a streaming music service, try playing music
stored in music source device instead.
Distortion at high volume levels
-Check the recording quality of the music material.
SPECIFICATIONS
Audio Output Power: 10 watts RMS @ 8 Ω
THD (@1kHz): 1% @ 7.5W RMS, 10% @ 10W RMS
Frequency Range: 20Hz to 20kHz
Bluetooth Version: 4.0
Maximum Wireless Range: 33 feet under ideal conditions (direct line of sight)
Supply Voltage: 12V DC
Power Consumption: 14.4 W max
English
6
PRODUCT CARE
Do not use any solvents or liquids to clean your ONSIA Bluetooth Audio Amplifier. Simply dust unit with a
dry piece of cloth.
WARRANTY INFORMATION
Dedicated Sound and Audio warrants its ONSIA Bluetooth Audio Amplifier products to be free from defects
in material and workmanship for one year from the date of purchase. DO NOT attempt to open, dismantle,
disassemble or modify the unit; doing so will void its warranty. Except where prohibited by applicable law,
this warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific
legal rights and you may also have other rights that vary under local laws.
In the event of a defect, Dedicated Sound and Audio will, at its option, repair or replace the product with
no charge to the purchaser for parts or labor. The repaired or replaced product will be warranted for 90
days from the date of return shipment, or for the balance of the original warranty, whichever is longer.
To obtain warranty service, the purchaser must obtain a Return Materials Authorization (RMA) number
by calling Dedicated Sound and Audio at 1-800-279-7686. To obtain an RMA number, the purchaser
must provide a copy of the original sales receipt. The purchaser must return the product postpaid with
the purchaser’s return address and the RMA number clearly printed on the outside of the package to the
Authorized ONSIA Service Center provided by Dedicated Sound and Audio with the RMA number.
Dedicated Sound and Audio will not be responsible for any losses or damage to the product incurred
while the product is in transit or is being shipped for repair. Insurance is highly recommended.
www.dsausa.com
©2014 Dedicated Sound and Audio, Inc. All rights reserved. The DSA logo, the ONSIA logo, Where
Technology Listens™, ONSIA™, The Sound of Art™, Sound Art™, and Your Wall. Your Sound. Your Art.™
are trademarks owned by Dedicated Sound and Audio, Inc. The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Dedicated Sound and
Audio, Inc. is under license.
QA-INS-0003 Rev 1
