![](asset-1.png)
Owner’s
Manual
SLIMLINE MULTIFUNCTION
BUILT-IN OVEN
600 EMSG
CONTENTS
2 Introduction
2 Unpacking
2 Cupboard design
2 Electrical Installation
3 Installation
4 The control panel
4 Automatic oven timer / clock
7 Multifunction oven
7 Fan only (Defrosting)
7 Conventional oven
8 Conventional oven – fan assisted
8 Thermofan oven
9 Turbo grilling
10 Conventional grilling
10 Precautions
10 Control panel cooling fan
11 Maintenance
12 Cleaning
13 Care guide for stainless steel
15 Problem check
15 Owner’s responsibilities
www.defy.co.za
![](asset-2.png)
INTRODUCTION
Congratulations on the purchase of this quality product.
We trust that you will enjoy many years of trouble free use. Please read these instructions
carefully before using the oven. This manual will provide you with information on how to
operate and care for your product in order that you gain the maximum benefit from it.
UNPACKING
•
Please ensure that packaging material is disposed of in a responsible manner.
•
Plastic bags should be cut up to prevent children playing with them and accidentally
suffocating.
•
Remove all packing from the oven cavity and position the accessories.
•
If the appliance is damaged in any way, do not use it. Report the damage to your dealer,
who will take the necessary corrective action.
CUPBOARD DESIGN
•
Cooking appliances generate considerable heat. The layout and materials of the
mounting cabinet should take account of the characteristics of the oven.
•
Surfaces immediately adjacent to the oven should be able to withstand temperatures of
up to 100°C without delaminating or discolouring.
•
Because the oven vents through the handle, overhanging doors above the oven may be
subjected to heat as well as condensation if very moist foods are being cooked.
ELECTRICAL INSTALLATION
This appliance must be earthed and the manufacturer and the seller do not accept
responsibility for any damage due to incorrect installation or electrical connection.
•
This appliance should not be connected through an earth leakage system. Refer to
S.A.B.S. 0142.
•
Support the oven in front of the aperture and make the electrical connection before
installing. This will ensure enough cable length for subsequent servicing.
Connection to the power supply
The connection must be carried out by a licensed electrician, who will ensure that the oven
is correctly connected and safely earthed. The rated current is printed on the serial number
label attached to the oven side trim.
The appliance must be connected to the mains through a double pole isolating switch which
has a minimum clearance between the contacts of 3 mm. in both poles.
A means for disconnection must be provided in the fixed wiring.
![](asset-3.png)

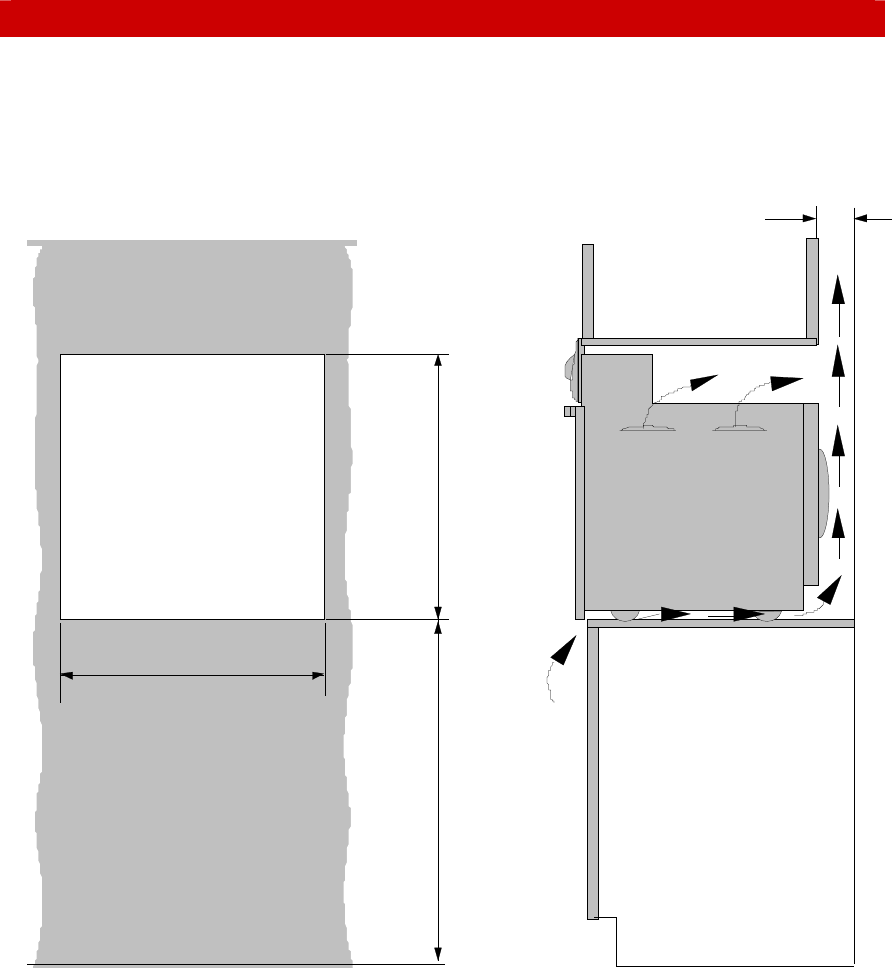

INSTALLATION
•
Insert the oven into the cupboard.
•
Open the door to expose the fixing holes in the side trims.
•
Secure the oven by 4 countersunk screws (fasteners are not supplied).
590
Aperture
Typical section showing
ventilation requirements
565
900
Above floor
level
Floor
60
+
_3
0
+
_3
0
+
_3
0
+
_3
0
APERTURE
590 H X 565 W X 570 D
![](asset-4.png)

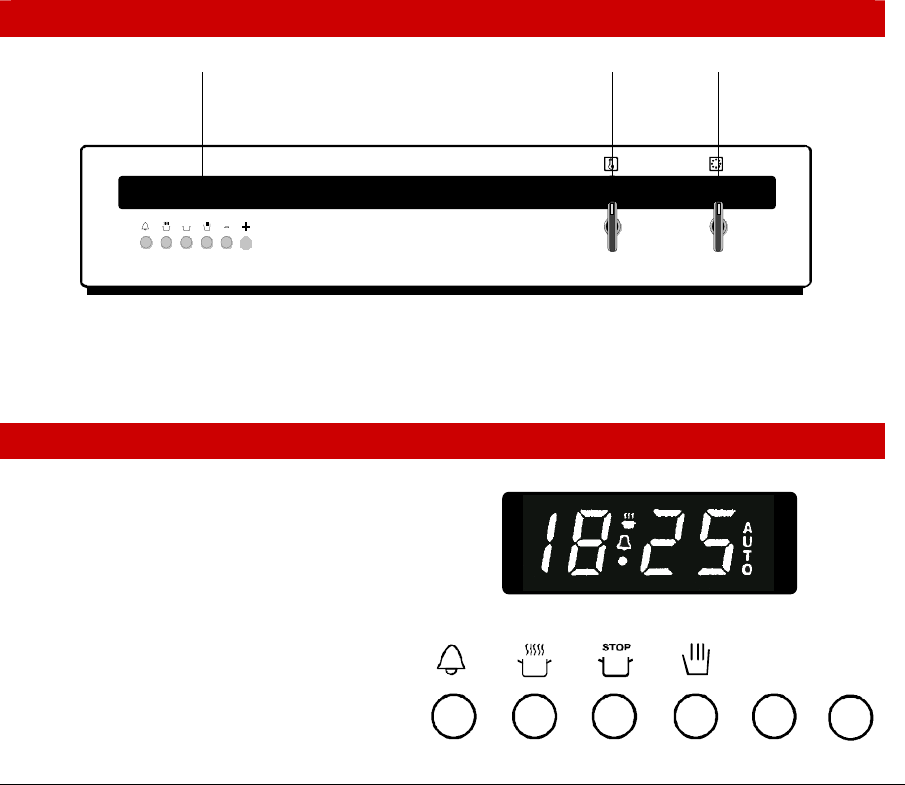

THE CONTROL PANEL
STOP
12:45
SLIMLINE 600 E THERMOFAN
AUTOMATIC OVEN
TIMER AND CLOCK
MULTIFUNCTION OVEN
THERMOSTAT AND
INDICATOR LIGHT
MULTIFUNCTION
SELECTOR
THE OVEN THERMOSTAT IS MARKED TO 70°C.
WHEN SET TO THIS POSITION, THE OVEN MAY BE USED AS A WARMER
AUTOMATIC OVEN TIMER / CLOCK
BUTTON FUNCTIONS
1 = MINUTE MINDER
2 = COOKING PERIOD
3 = STOP TIME
4 = MANUAL CONTROL
5 = SUBTRACT
6 = ADD
+
-
6
5
4
3
2
1
Setting the time of day
•
When the power is first connected (or after a power failure), the clock display will flash
00.00.
•
To set the clock, press buttons 1 and 2 and hold them down.
•
Press button 5 or 6 until the correct time of day is displayed.
•
Release the buttons. The clock is now set.
•
Please note that the clock has a 24 hour display.
•
For example 3.00 PM will be displayed as 15.00.

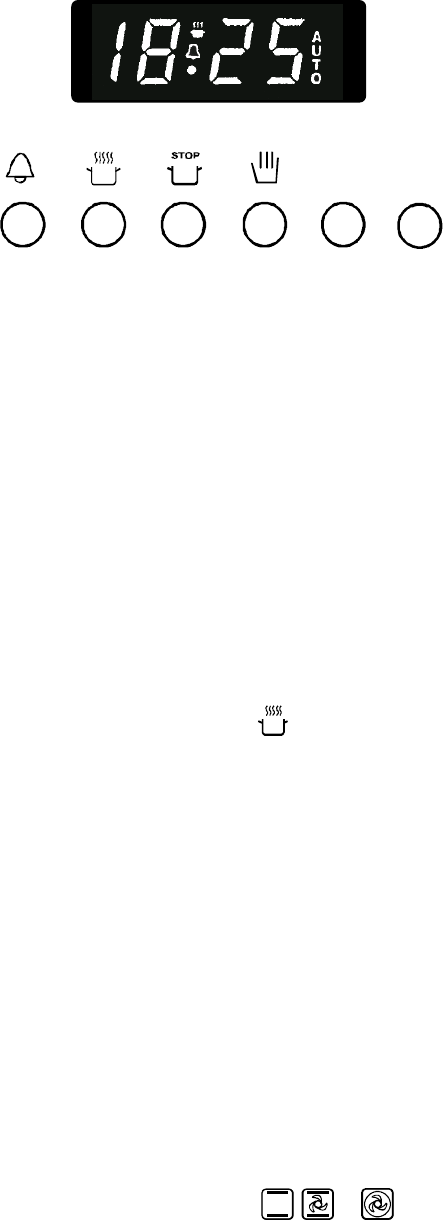

Minute minder
•
Suppose that you wish to time the boiling of a 5 minute egg.
•
First boil the water
•
Press and hold button 1. The display will show 00.00
•
Press button 6 until the display shows 00.05
•
Release the buttons and place the egg in the boiling water. The display will again show
the time of day.
•
After 5 minutes the timer will emit an electronic tone which lasts for about one minute
(2 beeps every 2 seconds). To cancel the tone, press any of the buttons.
![](asset-5.png)
Note:
•
During the operation of the minute
minder, the remaining time may be
displayed by pushing button 1
•
The minute minder can be used
simultaneously and independent of
any automatic control program
•
The display will always revert to
the time of day after any program
has been set.
+
-
6
5
4
3
2
1
Switching the oven on and off automatically (Autobake)
Autobake is intended for dishes such as roasts and casseroles. These are not affected by a
waiting period in a cold oven.
•
Prepare your meal and place it in the oven.
•
Set the cooking period required by pressing buttons 2 and 6 until the desired period is
displayed.
•
Set the stop time by pushing buttons 3 and 6 until the desired stop time is displayed.
•
Release the buttons and the clock will again display the time of day.
•
The word AUTO will light up on the clock display.
•
Set the multi function selector where applicable to the desired function.
•
Now set the relevant oven thermostat to the desired temperature setting.
The automatic control will automatically switch the oven on and the symbol will light
up in the clock display.
Cooking will commence at the selected temperature and for the selected cooking period.
The oven will automatically switch off at the selected stop time and emit an electronic tone
for about one minute (4 beeps every 2 seconds). To cancel the tone, press any of the
buttons.
•
The word AUTO will flash until button 4 is pressed and manual control is restored.
•
Return the multi function selector to the OFF position
•
The oven thermostat must be turned to the OFF position in an anticlockwise direction.
Example:
Suppose the time of day is now 13h00. The food needs cooking for 2 hours at 180°C and it
should be ready to serve at 18h00. Here’s what to do.
•
Ensure the clock is set to the correct time of day, 13.00.
•
Press buttons 2 and 6 until 02.00 is displayed
•
Press buttons 3 and 6 until 18.00 is displayed.
•
Set the oven thermostat to 180°C and the multi function selector to
,OR
Hint:
It is not advisable to use the Autobake function for cooking periods that are less than
60 minutes.
![](asset-6.png)

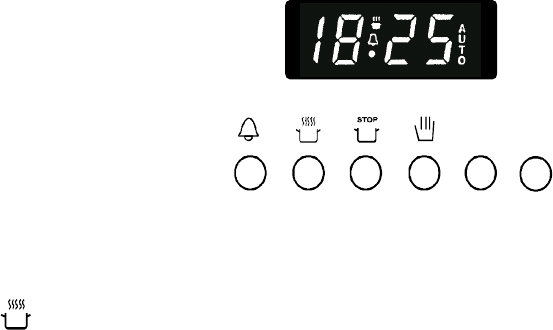

Switching the oven off automatically
Suppose you have to go out and you will not
be back in time to switch off a meal already
cooking in the oven and requiring another
40 minutes before it is done. Proceed as
follows:
•
Press and hold button 2. The clock will
display 00.00.
•
Press button 6 until the clock displays
00.40.
+
-
6
5
4
3
2
1
•
Release the buttons and the clock will again display the time of day.
•
The word AUTO and will light up in the display.
•
After 40 minutes the oven will switch off automatically and emit an electronic tone for
about one minute. (4 beeps every 3 seconds)
•
The word AUTO will flash until button 4 is pressed and manual control is restored.
•
Return the multi function selector to OFF
•
The oven thermostat must be turned to the OFF position in an anticlockwise direction.
Important
•
If the Automatic start and or stop functions are not required, the clock must be set to
manual mode. Unless this is done, the oven will not work.
Press button 4
Special feature -Key lock
When activated, the ‘Key Lock” prevents unauthorised persons or children operating the
oven.
To Activate the key lock:
1. Ensure that the timer is in manual mode. (Cancel any active programmes)
2. Press buttons 1 and 2 simultaneously and hold them down for approximately 8
seconds. The display will then read “ON”
3. Press button 6 and the display will read “OF” and a key symbol will appear.
4. After approximately 5 seconds, the clock will revert to the time of day but the key
symbol will remain
5. In this mode the clock will function normally but the elements will not come on and
the oven elements are thus disabled.
De-activating the Key lock
1. Ensure that the timer is in manual mode. (Cancel any active programmes)
2. Press buttons 1 and 2 simultaneously and hold them down for approximately 8
seconds. The display will then read “OF”
3. Press button 6 and the display will read “ON” and a key symbol will disappear.
4. After approximately 5 seconds, the clock will revert to the time of day.
5. In this mode the clock and oven will again function normally.
![](asset-7.png)

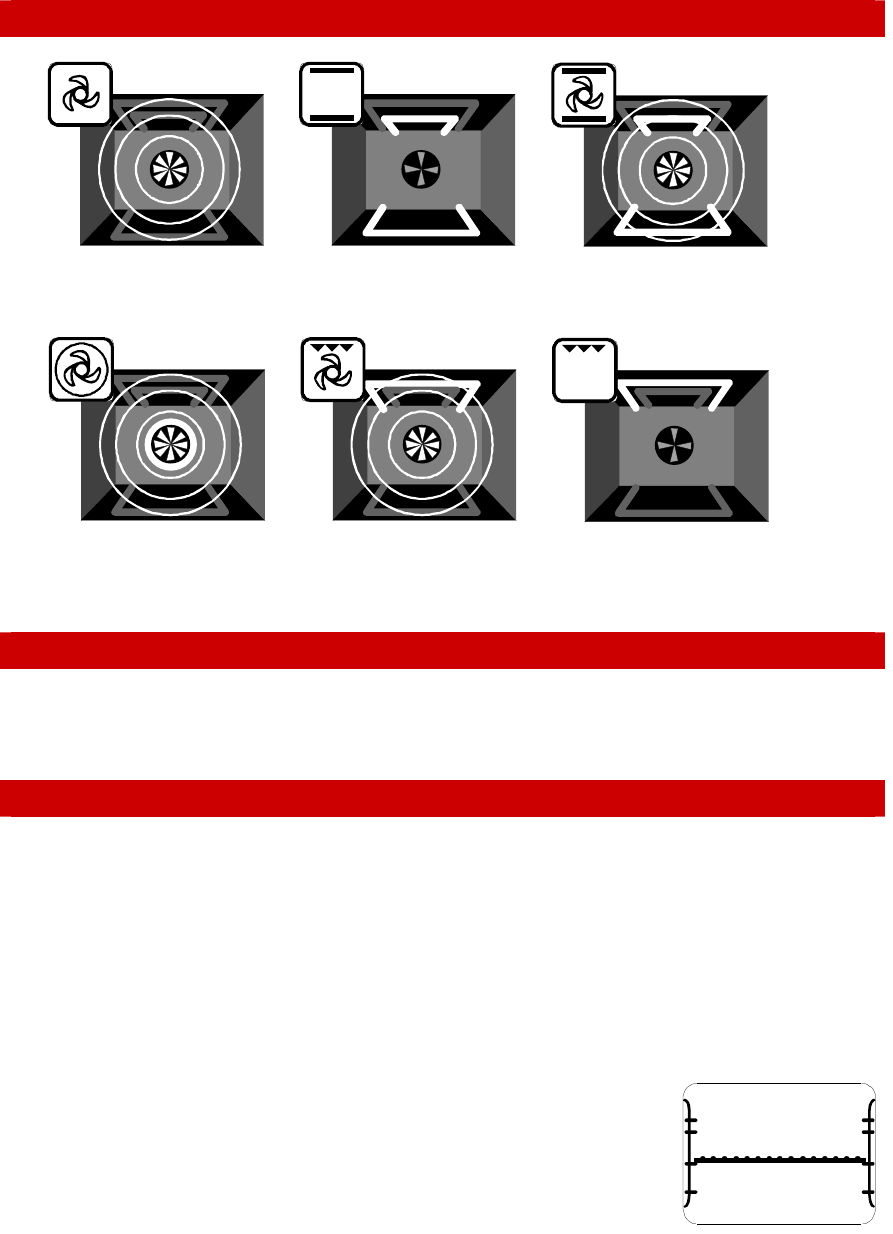

MULTIFUNCTION OVEN
The fan blows ambient air
over the frozen food to
defrost it.
Top heat and bottom bake
elements are used.
Top heat and bottom bake
elements are used in
conjunction with the fan.
The rear bake element is
used in conjunction with
the fan.
The top grill element is
used in conjunction with
the fan.
The top grill element only
is used.
1 2 3
654
FAN ONLY - NO HEAT STATIC OVEN FAN ASSISTED OVEN
THERMOFAN OVEN TURBO GRILL GRILL
1 FAN ONLY (DEFROSTING)
•
Set the multi function knob to fan only. In this mode the fan at the back of the oven will
circulate air at room temperature, substantially reducing the defrosting period required
for frozen food.
2 CONVENTIONAL OVEN
•
Set the multi function selector to conventional oven and the oven thermostat to the
required temperature. The indicator light will glow and remain on until the oven has
reached the selected temperature.
•
When the indicator light switches off, the food should be placed in the oven.
•
During cooking the indicator light will cycle on and off as the oven thermostat maintains
the selected temperature.
•
After completion, return the multifunction selector and the oven thermostat to the
OFF position in an anti clockwise direction.
Baking guide
•
Where possible, bake on the middle shelf position (2) in the
oven.
•
Do not use the baking trays as these are exclusively used for
Thermofan baking.
•
Place the food halfway between the back of the oven and the
door.
•
Do not open the oven door until at least two thirds of the baking time has elapsed.
1
2
3
4
![](asset-8.png)
3 CONVENTIONAL OVEN (FAN ASSISTED)
•
Set the multifunction selector to conventional oven fan assisted and the oven
thermostat to the required temperature. The indicator light will glow and remain on until
the oven has reached the selected temperature.
•
No preheating is necessary and the food can be placed in the oven immediately.
•
During cooking the indicator light will cycle on and off as the oven thermostat maintains
the selected temperature.
After completion, return the multifunction selector and the oven thermostat to the OFF
position in an anti clockwise direction.

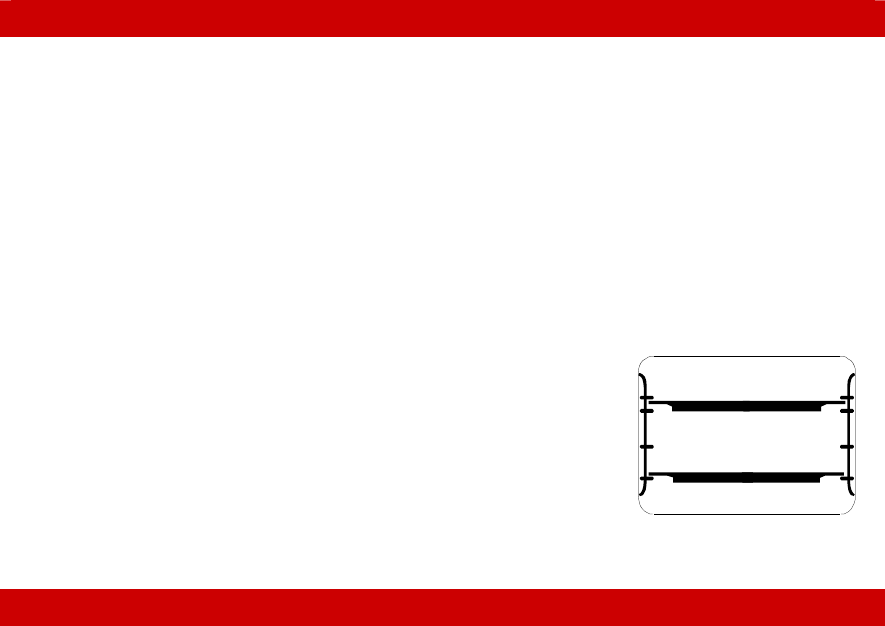

Baking guide
•
Cooking / baking is done at slightly lower temperatures than in the conventional mode.
•

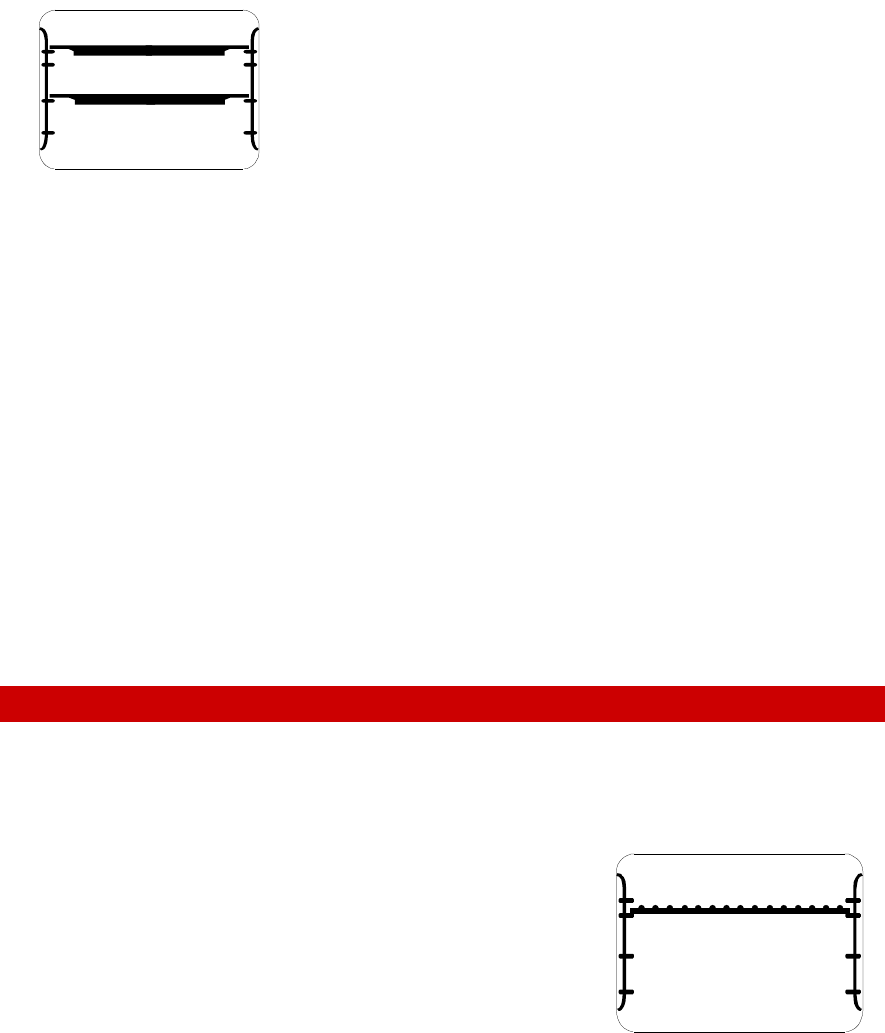

Baking may be done on two shelves simultaneously. The
recommended shelf positions are 1 and 3.
•
Do not use the baking trays as these are exclusively used
for Thermofan baking.
•
Place the food halfway between the back of the oven and
the door.
•
Do not open the oven door until at least half of the
baking time has elapsed.
4 THERMOFAN OVEN
Registered by Defy in 1978, Thermofan cooking differs from conventional cooking in that
it uses the principle of forced convection within the oven. The advantages are:
1. Both trays may be used at the same time.
2. Different dishes can be cooked simultaneously without flavour or aroma transfer. Hence
fish, meat and cakes can be baked at the same time.
3. The oven door may be opened any time for inspection purposes without risking a flop.
4. By circulating hot air around the food, spit-roast chickens may be done without using a
rotisserie.
5.
Cooking is done at slightly lower temperatures, saving electricity and reducing splatter.
Cooking
•
Set the multifunction selector to Thermofan oven and the oven thermostat to the required
temperature.
•
The indicator light will glow and remain on until the oven has reached the selected
temperature. When the indicator light switches off, the food should be placed in the
oven. During cooking the indicator light will cycle on and off as the oven thermostat
maintains the selected temperature.
•
After completion, return the multifunction selector and the oven thermostat to the
OFF position in an anti clockwise direction.
1
2
3
4
![](asset-9.png)
Recommended shelf positions
1
2
3
4
Position 4 = T/fan baking
Position 2 = T/Fan roasting / baking
Position 1 = T/Fan roasting (large)
Baking guide
• Thermofan baking is done with the oven trays in position.
• For small items the entire area of each tray may be utilised. Larger items should be
placed towards the front of each tray.
• All ovens extract a certain amount of moisture from the food being cooked. The much
greater capacity of the Thermofan oven allows more food to be cooked and thus more
moisture may be released. This is normal and not detrimental to the food or the oven.
• For professional results and perfect browning, open the oven door when half the baking
time has lapsed. Then turn the baking tins around so that the sides previously facing the
back of the oven now face the front.
Caution: Thermofan baking relies on good contact between the bottom of the cake tin
and the oven tray. Do not use spring form baking tins with a raised bottom. The lack
of contact will cause the bottom of the cake to be underdone. These tins may be used
on a wire shelf where no insulating air space is created.
5 TURBO GRILLING
•
The oven door must remain closed when turbo grilling.
•
Use only a wire shelf when grilling as the intense heat could warp the baking trays.
•
Turbo grilling is most suitable for meat as drying out and shrinkage will be reduced.
•
Set the multi function knob to turbo grill.
•
Set the oven thermostat to the grill position.
•
Pre-heat the Grill element for about 5 minutes
•
Place the food on the Grid/Roast pan and place this on
the wire shelf near to the grill element.( position 3)
•
Monitor the grilling process to avoid burning the food.
•
Care must be taken not to touch the grill element while
handling food in the oven. Withdraw the shelf to improve
access.
•
After completion, return the multifunction selector and the oven thermostat to the
OFF position in an anti clockwise direction.
WARNING:
ACCESSIBLE PARTS MAY BECOME HOT WHEN GRILLING. ALWAYS USE OVEN
GLOVES WHEN HANDLING FOOD IN THE OVEN AND KEEP
CHILDREN WELL AWAY FROM THE PRODUCT WHEN IT IS IN USE.
1
2
3
4
![](asset-a.png)
6 CONVENTIONAL GRILLING
•
The oven door must remain closed when grilling.
•
Use only a wire shelf when grilling as the intense heat could warp the baking tray.
•
Set the multifunction knob to conventional grill.
•
Set the oven thermostat to the grill position.
•
Operating instructions are otherwise the same as those for turbo grilling mentioned
previously.
PRECAUTIONS
•
Only use the appliance for preparing food.
•
The appliance is not intended for use by young children or infirm persons without
supervision.
•
Young children should be supervised to ensure they do not play with the appliance.
•
Do not leave hot fat or oil unattended. If overheating occurs, these could catch fire.
•
Switch off the power at the mains in the event of a fault or when cleaning the oven.
•
Do not store flammable items in the oven. If the oven is inadvertently switched on, these
could catch fire.
•
Avoid spilling fruit juice, particularly citrus, on the appliance as it could damage the
enamel.
•
Always keep the oven door gasket clean as this will enable the door to seal properly.
Note:
The control panel cooling fan protects the controls from excessive heat while
the oven is working and will continue to operate for about 10 minutes after the
oven is switched off
![](asset-b.png)
MAINTENANCE

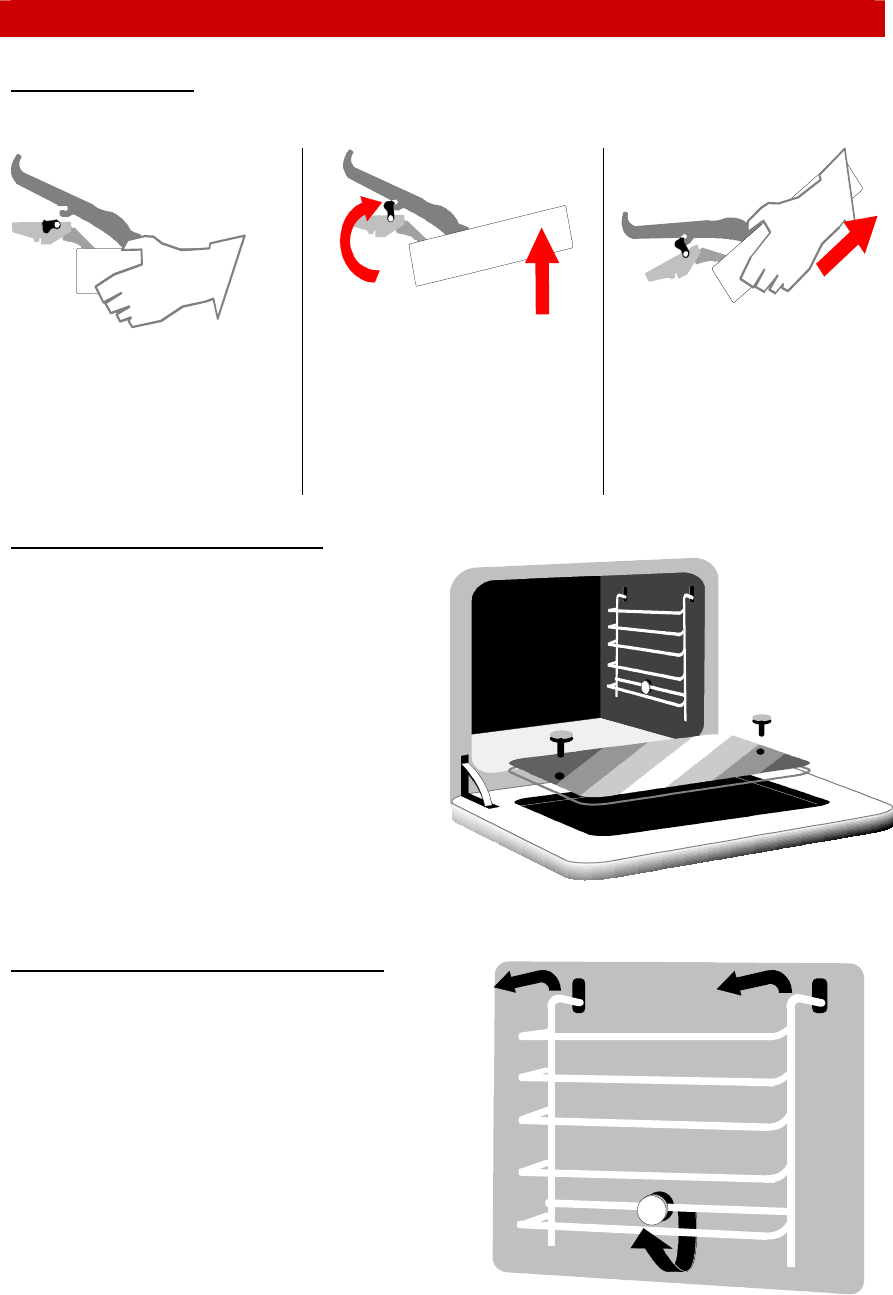

Lift-off oven door
The oven door may be removed to improve oven access during cleaning
Grasp the open door on both
sides near the hinges
Flip the retainer clasps up
and over the hook on the
upper hinge arm.
Maintain upward pressure
on the door to prevent the
clasps from disengaging
Lift the door upwards and
outwards until it is free of
the hinge housing
After cleaning, refit the door
in reverse order.
Removing the inner door glass.
• The glass may be removed for cleaning
purposes by removing the two screws
which hold it in place.
• It is now possible to clean the inside of
the outer glass if required.
• Wash the glass in hot soapy water, rinse
and dry.
• Re-assemble by carefully locating the
rubber seal in the embossed groove
before fitting the glass. The glass is
marked “THIS SIDE TOWARDS
OVEN”.
• Re-fit the two securing screws.
Removing the side racks and shelves
• The side racks and shelves may be
removed for cleaning purposes.
• Slide the shelf out fully against the shelf
stop.
• Lift the shelf slightly and slide it out
• The side racks may be removed by
pulling the bottom stay slightly
downwards thereby dislodging it from
the retainer at the bottom centre. Lift the
racks free of the retaining slots in the
oven wall.
• Replace in reverse order of disassembly.
![](asset-c.png)
Oven light
The oven light is switched on by the multifunction selector switch and switches off when
the knob is returned to 0.
To replace a faulty light bulb, proceed as follows.
•
Switch off the power at the wall switch to avoid the possibility of electric shock.
•
Remove the light cover by unscrewing it in an anti-clockwise direction.
•
Unscrew the faulty bulb and fit a new 25 watt bulb rated for 300°C.
•
Refit the light cover.
CLEANING
Cleaning the oven
• Switch off the electrical power supply before cleaning any part of the appliance.
• Open the oven door and allow the oven to cool down.
• For your convenience, the shelves, bake trays, the element guard and side racks may be
removed to improve access.
• Clean the oven with a damp, hot soapy cloth. Do not use a steam cleaner.
• It may be necessary to soak burnt soils with a liquid cleaner to soften them before
scrubbing them with a nylon brush or scouring sponge.
• Heavy soils on the bottom of the oven may require overnight soaking under a sponge
liberally sprinkled with household ammonia. The soil can then be removed the following
morning by washing normally.
• Do not use metal objects or steel wool to clean the oven.
General cleaning
• Switch off the electrical power supply before cleaning any part of the appliance.
• Wipe down glass panels, cabinet, door, control knobs, trims and handle with a hot soapy
cloth.
• Use only liquid household cleaners and avoid abrasive powders, scouring pads and
caustic cleaners.
• Rinse and wipe down with a clean cloth.
• Do not use a steam cleaner.
![](asset-d.png)
CARE GUIDE FOR STAINLESS STEEL
Stainless steel is not adversely affected by normal household use but because of it’s
reputation for durability, it is sometimes assumed to be indestructible, and therefore
subjected to misuse or even abuse. Care should be taken to avoid such ‘abnormal use’.
Cleaning materials
DO USE
•
A soft cloth or synthetic sponge.
•
Soap, or a mild household detergent.
•
Diluted ammonia in warm water.
•
A nylon bristle brush.
•
Cleaners labelled “Suitable for stainless steel”.
DO NOT USE
•
Acids.
•
Coarse abrasive cleaning powders.
•
Metallic scourers, steel wool or metal scrapers.
•
Wire brushes or emery paper.
•
So called ‘silver cleaners’.
•
Kitchen scourers/foam pads.
Cleaning procedure
•
Frequent cleaning is recommended rather than an occasional aggressive clean.
•
Routine cleaning will preserve the corrosion resistance and appearance of the stainless
steel for many years.
•
Clean the stainless steel as often as necessary (i.e. when noticeably dull or dirty) and use
the simplest cleaning method that will effectively do the job.
•
Use clean water, or a mild detergent solution applied with a soft cloth or sponge. Rinse
well and wipe dry.
ALWAYS WIPE
IN THE DIRECTION OF THE
BRUSHED TEXTURE
ON THE STAINLESS STEEL
![](asset-e.png)
CONDITION ACTION NOTES AND
COMMENTS
Requires routine cleaning Mild detergent solution
applied with soft sponge or
cloth. Rinse and wipe dry.
If possible use warm to
hand-hot water. A 5%
addition of ammonia is
beneficial.
Finger prints Pre-treat finger marks with
alcohol or an organic solvent.
Follow immediately with
routine cleaning.
Minimize re-occurrence by
applying a wax or silicone
based household polish to
the clean dry surface.
Wipe with a little baby oil and
a soft lint free cloth.
Buff to shine.
Apply whenever necessary.
Stubborn stains and
discolouration
Use a little Ceran cleaning
paste. (available from Defy
Service Centres).
Rinse and dry.
Repeat several times rather
than resorting to a single
aggressive cleaning method.
Grease and fat splatter. Wipe off excess with a soft
cloth or paper towel. Use a
water borne degreasing agent
(dishwashing liquid). Follow
up by routine cleaning.
Scratches on the brushed
finish.
For slight scratches, use a
nylon pad loaded with an iron
free abrasive polishing
compound. Follow the
direction of the original
texture. Follow up with
routine cleaning.
For deep scratches use a
coarser abrasive initially and
follow up as for light
scratches.
Deep scratches will be
difficult to remove
completely. Do not use steel
wool or metal scourers
unless they are made from
stainless steel.
It must be appreciated that some of the above suggested procedures will alter the
surface appearance of the treated area.
They should therefore only be applied with due consideration and care.
![](asset-f.png)
PROBLEM CHECK
Before calling a service technician to assist with a problem,
PLEASE CHECK THE FOLLOWING
The main distribution board.
The wall switch.
Check that “Key lock” on the timer is not activated (see page 6)
Ensure that the timer is set to manual. (Press button 4 on the timer)
Should your timer display “HELP”, please contact your nearest Defy Service Centre.
Remember that you may be charged for a service call, even during the warranty
period, if the fault is due to or caused by any of the above.
OWNER’S RESPONSIBILITY
Since the following are not factory faults, they are the owner’s responsibility.
•
Damage to exterior finish.
•
Breakage of glass and other components.
•
Replacement of the light bulb.
•
Damage through improper installation or use of the appliance.
•
Damage caused by installing the appliance.
