Page 1
www.defy.co.za
OWNER’S
MANUAL
TOP
LOADING
AUTOMATIC
WASHING
MACHINE
INDEX
2 Features.
2 Accessories.
3 Safety precautions.
4 Installation.
5 Electrical installation.
6 Loading the machine.
7 Control functions.
8 Programme selections.
9 Time delayed start.
9 Customising programmes.
10 Adding detergents.
11 Starting the machine.
11 Maintenance.
12 Technical specification.
13 Trouble shooting.
14 Service.
15 Warranty.
E L E C T R O L O G I C 1 3 0 0
INDEX
YOU CAN RELY ON DEFY
Page 2
Congratulations
Features
You are now the proud owner of one of the finest and most
modern washing machines that today’s technology can pro-
duce. You and your machine are going to make a great team
together. But first it will pay if you really get to know each
other. This book will tell you all you need to know about your
machine, what it will do and how to do it. Please read all the
instructions carefully before operating the machine.
HOT WATER TAP.
CONTROL PANEL.
POWER ON / OFF
SWITCH.
PULSATOR.
ADJUSTABLE
LEVELLING FEET.
COLD WATER TAP
DETERGENT BOX
LINT FILTER
POWER CORD
AND PLUG
DRAIN HOSE
Accessories
SOFTENER INLET.
BASE
COVER DRAIN
HOSE DRAIN
HOSE
CLAMP INLET
HOSE
Page 3
Safety precautions
Before washing, check all clothes for loose buttons and tears.
Check pockets for coins , pins or other small articles.
Close zips and fasteners.
Wash small articles inside a pillow slip.
Do not wash clothes soaked in petrol, thinners, vegetable oil or any
other flammable liquids. Nor should any of these liquids be added to
the wash water as they constitute a fire hazard.
Only use the machine for washing fabrics. Do not attempt to wash
plastic leather or fibreglass. Sort and separate clothes by fabric, colour
and degree of dirt.
Avoid spraying water on to the control panel and back of the machine.
Do not use detergents which are not specifically designed for top load-
ing automatic washing machines.
Do not allow children to play with or crawl inside the machine.
Supervise them closely when the washer is in use.
Always unplug the machine from the wall socket when it requires
cleaning or service. Only permit qualified persons to repair or install
parts in the washer.
Do not reach inside the tub while the machine is working.
Wait until all motion stops.
Do not use water which is hotter than 65 degrees Celsius as this may
deform plastic parts of the machine.
Page 4
UNPACKING
Remove all packaging and dispose of it in a responsible manner.
Open the wash-tub lid and remove all the accessories stored in the drum.
Do not attempt to operate the machine while any of the packaging is still in place.
POSITIONING
The machine should be installed in a well ventilated
place, away from direct sunlight.
Hot and cold water taps should be located within 1 metre
of the inlet valves.
Positioned the machine on a flat and stable uncarpeted
floor capable of supporting the fully loaded washer.
Adjustable levelling feet are located at the front of the ma-
chine and may be turned in or out to achieve stability. An
unstable machine will vibrate and generate excessive noise.
DRAIN HOSE
Connect the drain hose to the drain outlet at the rear of
the machine and secure it with the hose clamp supplied.
Hook the outlet end of the drain hose over the lip of a
sink or outlet pipe.
SINK OR LAUNDRY TUB DRAIN
The top lip of the sink must be at least 860mm (A) above
floor level and not higher than 1300mm.
PIPE DRAIN
The minimum inside diameter of the pipe drain should be
30mm and the pipe should be able to drain 30 litres per
minute.
The top lip of the pipe should be at least 860mm (B)
above floor level and not higher than 1300mm.
Installation
Drain hose Hose clamp
Drain
outlet
A
B
Page 5
Installation—continued
INLET HOSES
Connect the respective inlet hoses to the hot and cold water taps and to the machine’s inlet
fittings. The hot water inlet is on the left and the cold water inlet on the right.
CONNECTING THE WATER INLET HOSES
Connect the inlet hoses to threaded hot and cold water taps and
to the machine’s inlet fittings. Take care not to confuse the hot
and cold water inlets. The hot water inlet is coloured pink and
the cold water inlet is coloured blue.
If only one water tap is available, connect the inlet hose to the
blue, cold water coupling.
Open the taps and check for leaks. Re-tighten couplings if nec-
essary.
The washing machine is designed to operate on a 230 Volt, 50 Hz, 15 Amp, AC power
supply.
The machine should be connected to an earthed 3 pin wall socket.
If the power-cord should ever need replacing, use only a genuine cord available from
the nearest Defy Service Centre.
The appliance must be earthed
and the manufacturer and seller
do not accept responsibility for
any damage due to incorrect
electrical connection.
Electrical installation
Page 6
Loading the machine
PREPARATION
Close all zippers, snaps and hooks to prevent them from snagging other articles.
Remove pins, and other hard items to prevent them from scratching the machine.
Empty all pockets and turn them inside out.
Turn down cuffs and turn synthetic knits inside out.
Tie strings and sashes so they will not tangle.
Treat spots and stains before washing.
SORTING
Mix large and small items in each load.
Separate heavily soiled items from lightly soiled ones.
Separate dark colours from light colours.
Separate colourfast items from non-colourfast ones.
Separate robust fabrics from delicate.
Separate whites from coloured fabrics.
LOADING
Lift and fold the lid.
Arrange the articles to be washed loosely round the perimeter of the tub.
Load evenly as an off balance load may cause unnecessary vibrations.
Use a large load programme when washing permanent press garments. These items
need more space to move than heavy items such as jeans and towels.
Do not overload the machine as this will result in poor cleaning, increased creasing
and excessive lint formation.
Page 7

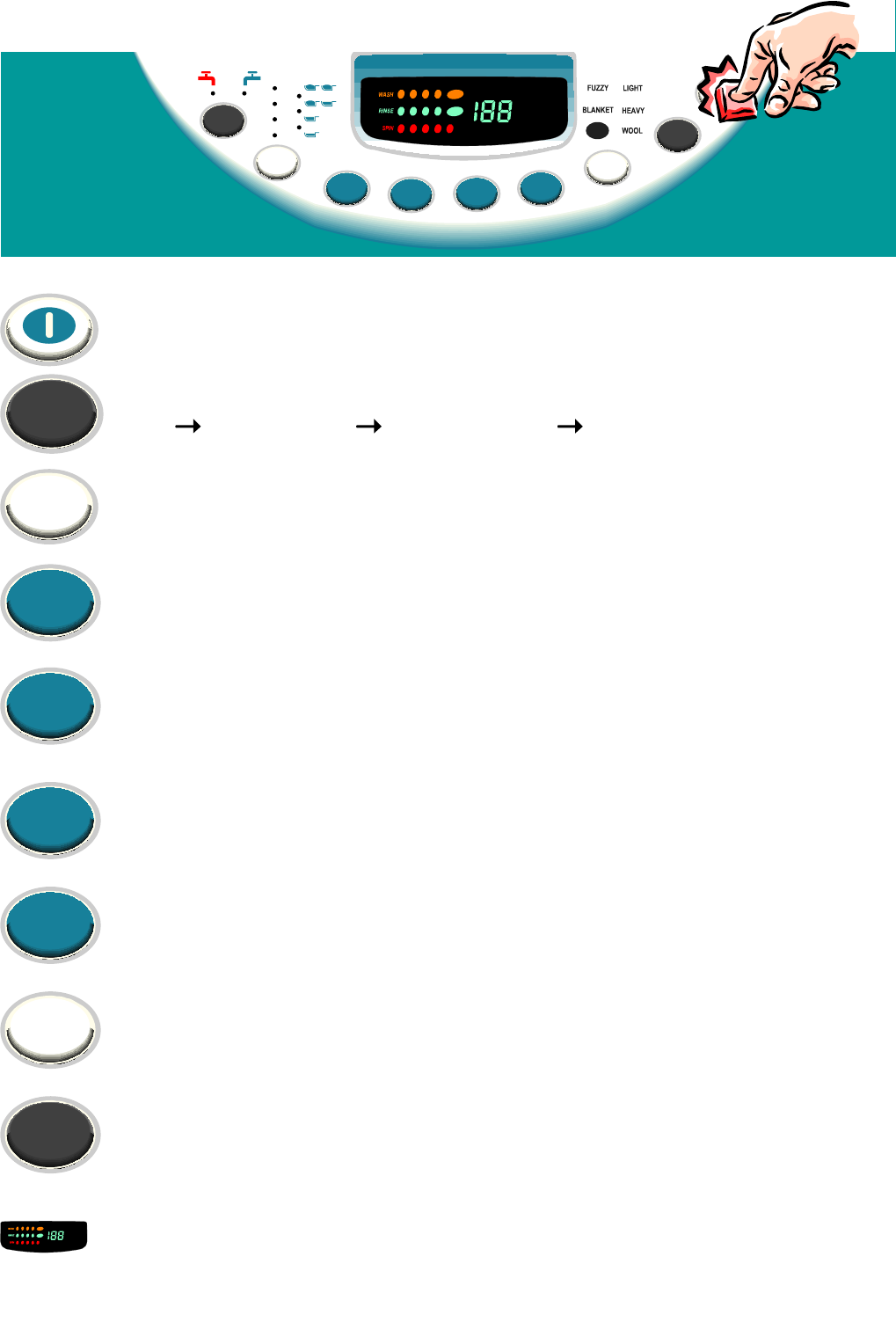

HIGH
MED.
LOW
SMALL
OE
IE
LE
UE
DETERGENTHOT COLD
10
614 18
FEED
1234
13579
REM RES
HOUR MIN
OE
IE
LE
UE
SOAK
FUZZY LOGIC AIR POWER PROGRAMME POWER ON / OFF
START
HOLD
PROGR.
SPIN
RINSE
WASH
DELAY
WATER
LEVEL
WASH
TEMP
Press this pad to turn the power on or off.
Press this pad to select the water temperature. Repeated pressing will highlight
C O L D COLD + HOT HOT.
Press this pad to select the water level. Repeated pressing will highlight HIGH,
MEDIUM, LOW or SMALL as well as midway settings between these.
Press this pad to engage the time delay function.( 2— 48 hours )
The wash will be completed at the end of the selected time.
Press this pad repeatedly to select the required wash time in minutes
6 >10 >14 >18 > soak.
Press this pad to repeatedly to select the required number of rinses
1 > 2 > 3 > 4.
Press this pad repeatedly to select the required spin time in minutes
5 > 7 > 9 > off > 1 > 3 > 5.
Press this pad repeatedly to select one of the fully automatic programmes.
FUZZY > BLANKET > ECONOMY > LIGHT > HEAVY > WOOL.
Control functions
Press this pad to commence operation. Pressing it a second time will cause the
machine to pause, during which time any settings may be altered. Pressing it
again will cause the machine to resume the wash cycle at the new settings.
10
61418
FEED
1234
13579
REM RES
HOUR MIN
OE
IE
LE
UE
SOAK Pilot lights in the display panel will highlight the options that are selected.
WASH
TEMP
WATER
LEVEL
DELAY
WASH
RINSE
SPIN
PROGR.
START
HOLD
Page 8
ECONOMY PROGRAMME
This programme saves water and is ideal for washing lightly soiled clothes.
Programme selection
FUZZY LOGIC PROGRAMME
This machine has Fuzzy Logic sensors. These enable it to evaluate each load placed in
the drum and to select and modify a wash programme to suit the load.
Do not use the FUZZY programme for woollen or delicate garments.
BLANKET PROGRAMME
Use this programme for washing blankets, curtains and small rugs.
CYCLE
Select water level and temp.
POWER
To select Fuzzy, simply press the
POWER On pad and then the START /
HOLD pad.
Select water level and temp.
LIGHT PROGRAMME
This programme is ideal for lightly soiled clothing. Fuzzy logic selects water level.
HEAVY PROGRAMME
This programme is ideal for robust garments such as blue jeans.
NOTE: If you wish to SOAK, press the WASH button to adjust to SOAK after complet-
ing the programme selection.
START
HOLD
PROGR.
Select ECONOMY
PROGR.
Select BLANKET
START
HOLD
PROGR.
Select LIGHT
START
HOLD
Select WASH RISE and SPIN options.
PROGR.
Select HEAVY
START
HOLD
Page 9
Time delayed start
The wash cycle completion time may be delayed by 2 to 48 hours. This feature is particu-
larly useful when you are at work and only want the machine to finish washing just be-
fore you arrive home.

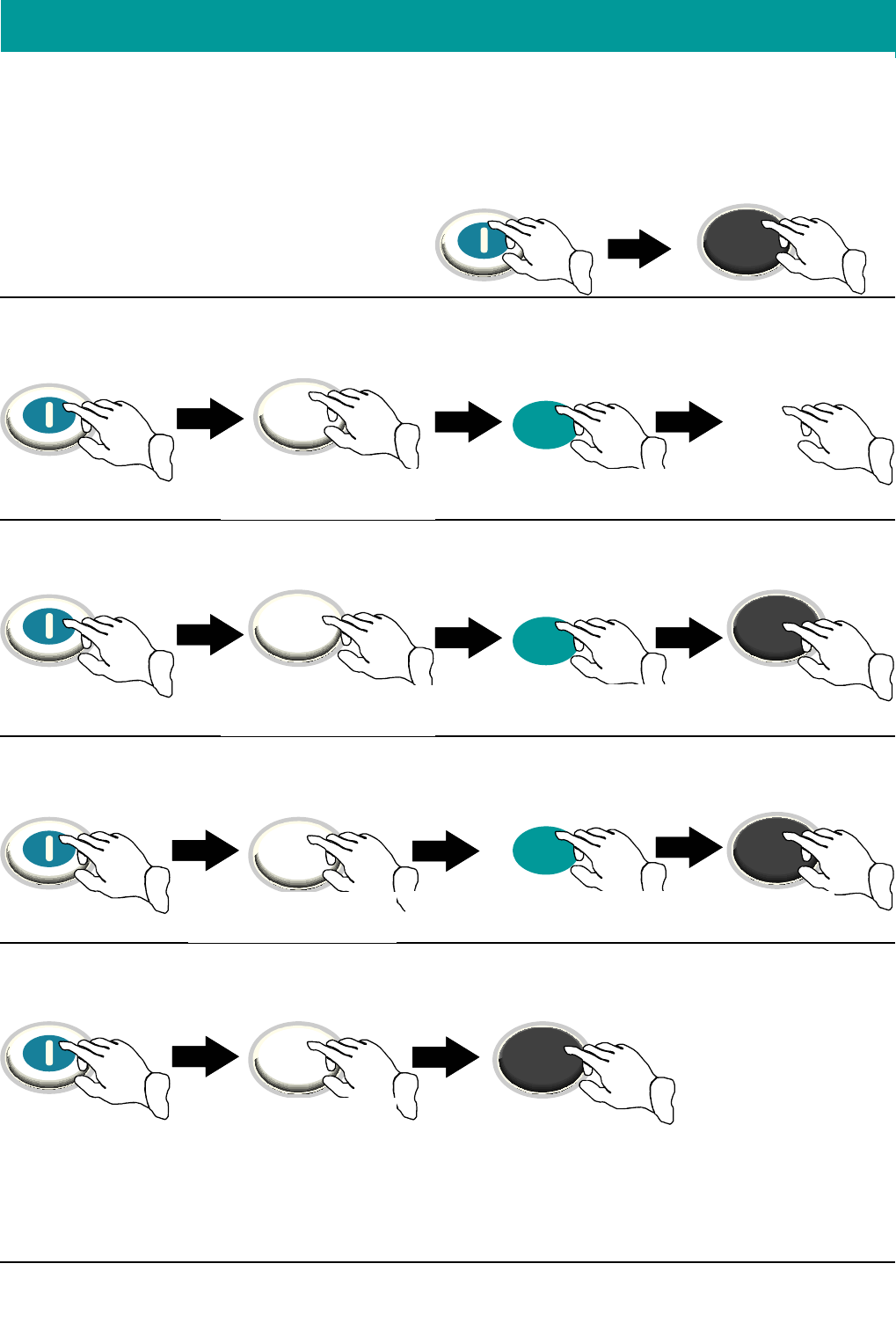

To cancel the “time Delayed Start” press the power button. Wait five seconds before
pressing the power button once more to resume
EXAMPLE: To set a completion time 8 hours from the present, proceed as follows:
WOOL PROGRAMME ( The water temperature is automatically set to COLD )
Wash 1.5 kg maximum. Do not wash chamois or leather.

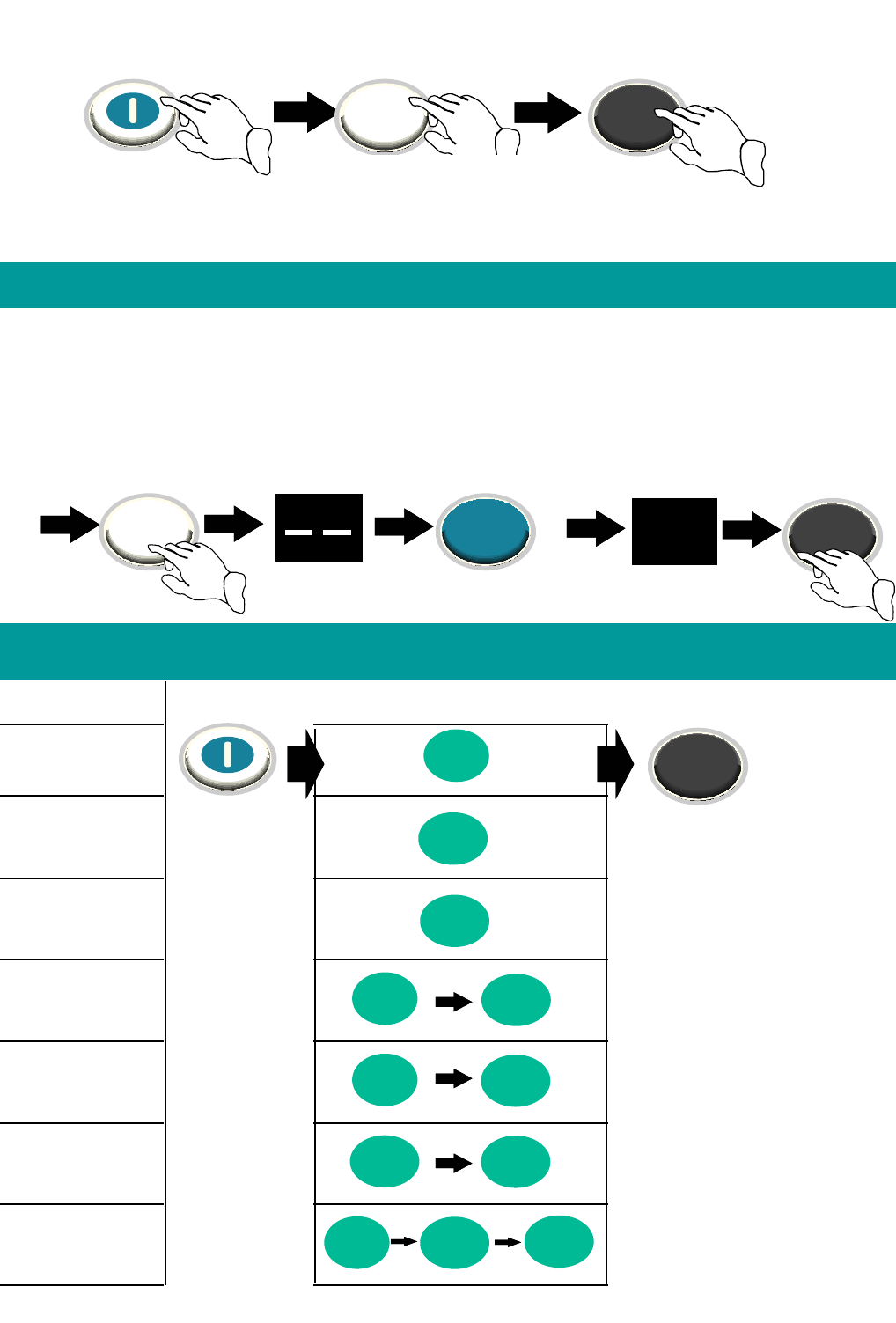

Customising programmes
SELECTION PROCEDURE
WASH ONLY
RINSE ONLY
SPIN ONLY
WASH AND
RINSE
WASH AND
SPIN
RINSE AND
SPIN
WASH, RINSE
AND SPIN
WASH
RINSE
SPIN
WASH RINSE
WASH SPIN
RINSE SPIN
WASH RINSE SPIN
Press the Start Hold pad
to begin the programme.
Press the Start Hold pad
once more to interrupt the
programme and stop the
machine.
Press the Start Hold pad
once more to continue the
programme from where it
was interrupted.
At the end of the cycle a
buzzer will sound and the
power will be switched
off automatically.
Press the
Power
ON / OFF
pad.
REMAIN REMAIN
8
Display Set to 8 Display
Select a
programme
PROGR. START
HOLD
Select WOOL
NOTE: Water temperature is automatically set at COLD and LOW
Water level is not selectable.
PROGR. DELAY START
HOLD
START
HOLD
Page 10
Add a measured amount of detergent to the detergent drawer. Use only detergent spe-
cifically recommended for top loading washers and follow the manufacturers instruc-
tions.
If required, add a measure of liquid chlorine bleach to the bleach inlet. Avoid spilling
bleach onto the clothes in the machine as undiluted bleach may damage them.
If desired add measured liquid fabric softener to the softener inlet until it reaches the
load line. Avoid spilling undiluted softener onto the clothes in the tub as it may damage
them.
The machine will automatically dispense detergent, bleach and softener at the appro-
priate time during the wash cycle.
Adding detergent, bleach and softener
Detergent drawer Softener inlet
Load line
Bleach inlet
HOT
OPTIONAL
BEFORE ANY OF THE WASH OPTIONS ARE SELECTED YOU MUST FIRST:
Insert the power plug into an earthed wall socket and switch on.
Open the hot and cold water taps.
Load the washing into the machine.( see Loading)
Add detergent and if necessary softener and bleach.( See Adding detergents)
Close the lid.
NOTE: DO NOT OPEN THE HOT WATER TAP W2ITHOUT OPENING THE
COLD WATER TAP ALSO.
IT IS ESSENTIAL TO OPEN THE COLD WATER TAP FOR ALL PROGRAMMES.
COLD
Inlet hole
Page 11
Starting the machine
STARTING THE MACHINE
Close the lid.
Press the POWER ON pad.
Select the desired wash cycle ( either fully automatic FUZZY or any of the pre-
programmed washes BLANKET, ECONOMY, WOOL, SOAK or any customised pro-
gramme).
Press the START / HOLD pad.
The machine will complete the selected programme.
Maintenance
CLEANING THE EXTERIOR
Wipe up any detergent, bleach and other spills as they occur with
a soft damp cloth.
Periodically clean the cabinet with a damp warm soapy cloth, rinse and dry.
CLEANING THE INTERIOR
Clean the interior with 250ml of chlorine bleach mixed with 500ml of detergent.
Run the washer through a complete cycle.
Repeat the process if necessary.
CARE
Do not put sharp metal objects in the washer.
Check all pockets for pins, paper clips coins, bolts, screws and such.
Do not lay these items on top of the washer after emptying the pockets.
HOLIDAY CARE
If the washer will not be used for an extended period it is advisable to:
Remove the electric plug from the wall socket.
Turn off the water supply to the washer.
CLEANING THE LINT FILTER
Pull the filter frame upwards. Turn the filter inside out and
remove any lint and dirt
under running water.
Filter Frame
Re-shape the filter mesh
and fit the filter frame
back in it’s slot.
1 2 3
Page 12
Maintenance continued
CLEANING THE WATER INLET FILTER
Periodically clean the water inlet filter.
Remove the power plug from the wall socket.
Turn off the water taps.
Separate the inlet hose and remove the mesh filter.
Clean the filter with an old toothbrush and re-fit.
CLEANING THE DRAIN FILTER
Place a shallow con-
tainer under the drain-
filter to collect any
residual water spillage.
Turn the filter cap in an
anticlockwise direction. Pull the filter assembly
out.
Clean the drain filter.
Re-fit the filter along the
guides ensuring that
the groove in the filter
aligns with the guide rib.
Tighten the cap by turn-
ing it in a clockwise
Direction.
Technical specifications
Dry weight capacity 13.00 kg.
Power source 220-230V AC / 50 Hz
Power consumption 480 W
Dimensions in mm. ( W x H x D )in mm. 630 x 1010 x 670
Unit weight 49kg
Standard water consumption 250 litres
Water level for High, Medium, Low, Small 97, 77, 62, 36 litres respectively.
Wash mode Double action type Air bubble + Pulsator.
GROOVE
Page 13
Trouble shooting
Most problems are easily solved if the cause is known
BEFORE CALLING A SERVICE TECHNICIAN PLEASE CHECK THE FOLLOWING:
PROBLEM
The machine will not operate at all.
There is a restricted or no water supply.
If the water flow has not stopped after 20
minutes the fault code IE will be displayed
and a buzzer will sound to indicate a prob-
lem.
The machine will not drain.
If draining is not completed in a specified
time limit the fault code OE will be dis-
played and a buzzer will sound to indicate
a problem.
The machine will not spin.
If the load is unbalanced the spin cycle
will be interrupted and the machine will
stop. The unbalanced condition may be
corrected by re-filling the tub, rinsing and
then draining. If the unbalanced condition
remains, the fault code UE will be dis-
played and a buzzer will sound indicating
a problem.
CHECK
Is there a power failure?
Has the power pad been pressed?
Has the start / hold pad been pressed?
Is there water in the tub?
See if the tap is open?
Are the water pipes frozen?
Has the water supply been cut off?
Is the inlet filter blocked?
Is the drain hose blocked or frozen?
Is the drain hose kinked or deformed?
Is the end of the drain hose immersed in
water?
Is there excessive dirt in the drain filter?
Is the wash load located all to one side?
Has the machine been installed on an un-
even floor?
Is the lid open? The fault code LE will be
displayed if this is the case.
NOTE:
Always refer to garment care labels for
the manufacturer's recommendations.
Page 14
Service Centres
If you have followed the instructions and still have a problem, contact the
nearest Defy Service Centre. They will be able to advise you on any aspect
of the product or send a qualified technician to repair it.
BLOEMFONTEIN
CAPE TOWN
EAST LONDON
JOHANNESBURG
DURBAN
POLOKWANE
PORT ELIZABETH
PRETORIA.
OTHER AREAS ARE SERVICED BY OVER 200 AUTHORISED SERVICE AGENTS.
PLEASE CONSULT THE NEAREST REGIONAL DEFY SERVICE CENTRE FOR DETAILS
P.O.Box 1691 Bloemfontein. 9300.
160 Long Street, Hilton,
Bloemfontein 9301.
Tel. 051 400 3900
P.O.Box 953 Milnerton. 7435
5A Marconi Rd. Montague Gardens,
Milnerton 7441.
Tel. 021 551 8314
P.O.Box 7006 East London 5200.
16 Bowls Rd. Arcadia,
East London 5201.
Tel. 043 743 7100
P.O.Box 27150 Benrose 2011.
Cnr. Mimetes & Kruger Sts. Denver ext.12
Johannesburg. 2094.
Commercial Head Office, Tel. Sales, Administration,
Distribution, Commercial Head Office, National Groups,
Contracts and Credit.
Tel. 011 621 0200 or 011 621 0300
P.O.Box 12004 Jacobs 4026.
174 Teakwood Rd.
Jacobs 4052.
Tel. 031 460 9712
P.O.Box 1719 Polokwane 0700.
87 Nelson Mandela Drive.
Superbia 0699.
Tel. 0152 92 1166 / 7 / 8 / 9.
P.O.Box 2971 North End 6056.
3 Sidon Str.North End
Port Elizabeth.6001.
Tel. 041 401 6400
P.O.Box 19768 Pretoria West 0117.
Block A1 Old Mutual Industrial Park.
Cnr. D.F.Malan Drive & Moot Str. Hermanstad. 0082.
Tel. 012 377 8300
Page 15
This certificate is issued by DEFY APPLIANCES LIMITED manufacturers of Defy and Ocean
products, hereinafter the Company, to the original purchaser only, of the appliance described on the
certificate and shall constitute the only warranty given in respect of this appliance.
The Company warrants to the original purchaser that for a period of TWO YEARS from date of pur-
chase the appliance is free from defect under normal domestic use, both in workmanship and mate-
rial, subject to the following conditions.
1. Repair or replacement of any part of this appliance, found by the Company to be defective, shall
be at the election of the Company. The Company reserves the right to effect such service through
any of its Service Divisions or Authorised Service Dealers. The cost of such service shall be borne
by the Company in full, provided that the appliance is located no further than 50km from a Com-
pany Service Centre or an Authorised Service Dealer. Where the appliance is located beyond the
50km radius, the purchaser shall be liable for the standard travelling charges, as determined by the
Company.
CARRY IN SERVICE Microwave ovens, Compact cookers and small appliances are repaired in our
service centres and are not collected from the customers home. Faulty units should be delivered to
the purchasing dealer or to the nearest Company Service Centre for warranty repairs.
2. Vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It is an ex-
press condition of these warranties that the purchaser takes due care and attention in the use and
maintenance of the appliance. Abuse, misuse in conflict with operating instructions, connection to
incorrect voltages and subjection to commercial use shall release the Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by, or any re-
pairs to the appliance are effected by any persons not duly authorised by the Company, or if substi-
tute parts not approved by the Company are used in the appliance, or if the serial number of the ap-
pliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or
any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable
for any consequential loss or damage of any kind caused by or due to the failure or malfunction of
the appliance.
5. The Company shall not be responsible for transportation or other costs other than those incurred
within the provisions of Point 1 of this Certificate.
6. These warranties shall not apply to the appliance if it is purchased or used beyond the borders of
the Republic of South Africa, Namibia, Botswana, Swaziland and Lesotho.
7. Where service is requested under warranty and no fault or defect can be found
by the Company, all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the
purpose of warranty, it will be essential to produce this Certificate and invoice.
Failure to do so, will render the purchaser liable for service costs.
KEEP THIS CERTIFICATE AND SALES INVOICE AS
PROOF OF PURCHASE FOR WARRANTY PURPOSES.
Warranty
Page 16
The Manufacturer strives for continuous improvements. For this reason, the text
and illustrations in this book are subject to change without notice.
You can rely on Defy
Part Number 062 660

Navigation menu
