1. General
The Amantag deActivator serve to switch off the alarm of the Prisontags. And it displays
the battery condition of the transponders.
2. Operation
Put the beeping transponder on the middle of the front side of the device. After pushing
the button, the yellow LED is on and the Amantag deActivator (ADA) is in operation. Now
it switches off the alarm of the transponder.
Besides, the LEDs display the battery condition of the transponder. If the red LED is
blinking, the battery will be empty soon. If the green LED is blinking, the battery is ok.
The ADA is switched off, if you release the button.
3. Technical Data
Dimensions (mm): 83 x 152 x 33
Weight: 190g
Protection Type: IP65
Operating temperature: -10C°...+50C°
Supply Voltage: 9V (block battery)
Current consumption: ca. 120mA at 9V
Operating frequency: 125kHz
Reading range: up to 2cm
Transponder: TPU4030
5 deister electronic GmbH 30890 Barsinghausen Germany V15/10/04
deActivato
r

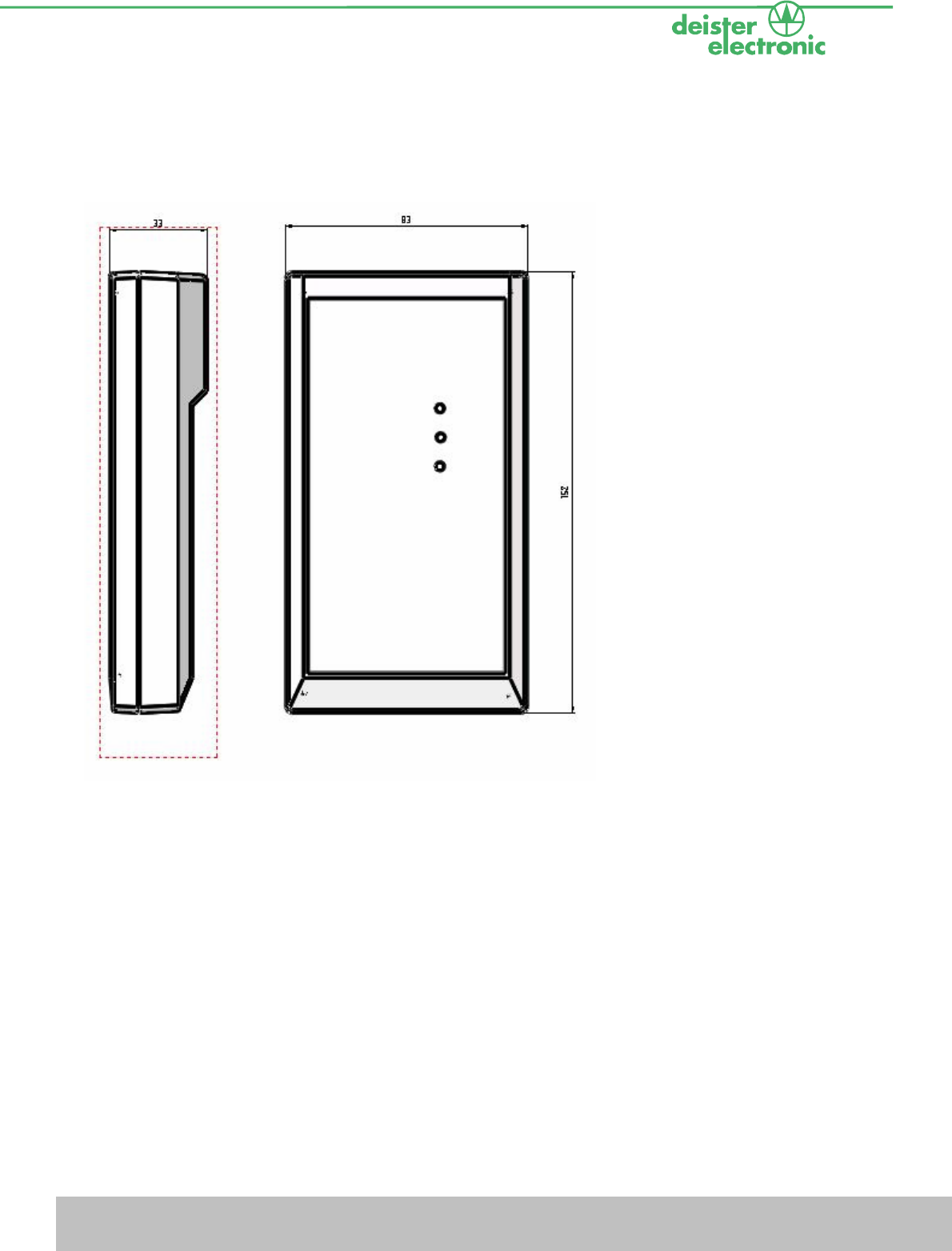

4. Mechanical Dimensions
5. LEDs
Yellow LED: device is in operation
Green LED: battery of the transponder is ok
Red LED: battery of the transponder is nearly empty
6. Battery changing
For change the battery of the ADA, the small cover of the rear side has to be opened.
Therefore, the two Phillips screws has to screwed off. After that, you can remove the cover
and change the battery.
6 deister electronic GmbH 30890 Barsinghausen Germany V15/10/04
deActivato
r
