Deister Electronic KWA Proximity Reader User Manual
Deister Electronic GmbH Proximity Reader Users Manual
Users Manual
KWA_Manual.doc KWA ISO-15693/14443 Keyboard Wedge
Page 1 of 3
Introduction

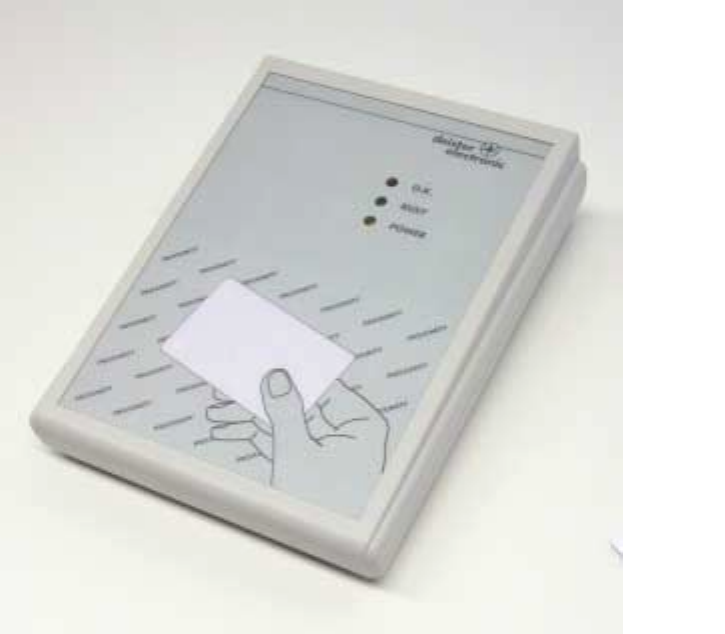

The KWA Keyboard Wedge is a read-only device that rapidly and accurately
captures a badge identification (BID) number from either an ISO14443A or
ISO15693 physical security credential.
.
The KWA Keyboard Wedge is a data entry convenience device. It is not an
access control reader. The KWA does not communicate with microcontrollers,
or contribute to the determination of access privileges.
.
Connections
The keyboard and system PC connections are made through PS/2-style 6-pin
mini-DIN connectors, keyed for correct installation. The KWA 12VDC power
plug is keyed so as to require proper ± conductor orientation. The power cable
is permanently terminated at the AC power supply.
KWA_Manual.doc KWA ISO-15693/14443 Keyboard Wedge
Page 2 of 3
User Interface
LED Control
The red LED blinks on briefly to indicate a BID has been read and sent to the PC.
The green LED is not active.
The yellow LED indicates the KWA is powered, and that the attached PC is
powered on. The yellow LED blinks off briefly to indicate a valid badge read.
Beeper Control
The beeper sounds briefly to indicate that a badge has been read.
Operating Environment
Temperature: -20°C to +70°C (-4°F to 158°F)
Humidity: 0% to 95% humidity, non-condensing
The KWA Keyboard Wedge is a desktop unit, intended for use in-doors only.
KWA Use
Power on the KWA configured personal computer. Place the cursor in BID field of
the software application. Place the credential (typically a badge) on the KWA
reader. The KWA Keyboard Wedge will read the credential and format the
credential badge identification number as text, properly format the BID and send
the resulting character string to the cursor designated data entry field.
Proceed in the customary manner with creation of the badge holder record.
KWA_Manual.doc KWA ISO-15693/14443 Keyboard Wedge
Page 3 of 3
Regulatory Notices
FCC
Changes or modifications not expressly approved by deister electronic for
compliance could void the user’s authority to operate the equipment.
Agency Approvals
The KWA has been agency tested to FCC part 15c, CE EN301489 and
EN300330.
